USER MANUAL HJ24ex7.5B Series CANON

Read this operation manual before using the product.

Keep the manual in place for future reference.

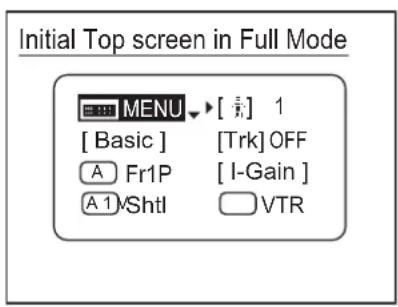

① Display switch

スイッチ	デフォルト	割付け可能な機能
		Fr1P	Fr1F	Fr2P	Fr2F	Sped	Shl	NON	VTR	RET
1 V VTR		●	●	●	●	●	●	●
2 R RET		●	●	●	●	●	●	●
3 A Fr1P		●	●	●	●	●	●	●	●
4 A1	Shtl	●	●	●	●	●	●	●	●
5 A2	Fr1P	●	●	●	●	●	●	●	●

The English version is the operation manual for countries other than Japan.

FCC REGULATIONS

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

-- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help.

Do not make any changes or modifications to the equipment unless otherwise specified in the manual. If such changes or modifications should be made, you could be required to stop operation of the equipment.

Canadian Radio Interference Regulations

CAN ICES-3(B)/NMB-3(B)

CE

We, Canon Inc., in Japan and CANON EUROPE LTD., in U.K., confirm that the BCTV zoom lens is conformity with the essential requirements of EC Directive(s) by applying the following standards:

EN55032 and EN55103-2

Note:

a) Applicable Electromagnetic Environments: E1 (residential), E2 (commercial and light industrial), E3 (urban outdoors) and E4 (controlled EMC environment, e.g., TV studio). b) Use of shielded cable is required to comply with limits specified by the above standards.

Only for European Union and EEA (Norway, Iceland, and Liechtenstein)

This symbol indicates that this product is not to be disposed of with your household waste, according to the WEEE Directive (2012/19/EU) and national legislation. This product should be handed over to a designated collection point, e.g., on an authorized one-for-one basis when you buy a new similar product or to an authorized collection site for recycling waste electrical and electronic equipment (EEE). Improper handling of this type of waste could have a possible negative impact on the environment and human health due to potentially hazardous substances that are generally associated with EEE. At the same time, your cooperation in the correct disposal of this product will contribute to the effective usage of natural resources. For more information

about where you can drop off your waste equipment for recycling, please contact your local city office, waste authority, approved WEEE scheme or your household waste disposal service.

For more information regarding return and recycling of WEEE products, please visit

www.canon-europe.com/weee.

- FOREWORD -

Thank you for purchasing the Canon BCTV zoom lens.

This product comes with the following documents for the models mentioned below:

①Operation Manual "Lens" ②Operation Manual "Information Display CD-ROM"

HJ14ex4.3BHJ17ex6.2BHJ18ex7.6BHJ24ex7.5B	IRSE S
	IASE S
	IRSE-C S
	IASE-C S

HJ18ex28B	IASE S
	IASE-C S
HJ21ex7.5B IASE S

KJ10ex4.5B	IRSE S
KJ17ex7.7B
KJ22ex7.6B	IASE S

The illustrations in this book show HJ18ex7.6B. Actual forms may vary depending on models and specifications.

STANDARD PRODUCT LIST

Make sure all of the following items are included in the packing box. If you find any item missing, please contact your dealer or Canon Inc.

Accessories other than those mentioned above may be required depending on the specifications of your unit. For details, contact your dealer or Canon Inc.

SAFETY PRECAUTIONS

Always observe the safety warnings and precautions on the product and in the manual. Failure to observe the warnings and precautions may result in injury or accidents. Read this manual carefully to become familiar with it and ensure correct use. Keep the manual in a convenient place for future reference as needed.

The following symbols and signal words are used in this manual to identify potential hazards, so that you can ensure the safety of users and others and prevent accidents.

WARNING	Indicates a potentially hazardous situation that poses a risk of serious injury or death. Always observe warnings to ensure safe use.
CAUTION	Indicates a potentially hazardous situation that poses a risk of injury or damage. Always observe precautions to ensure safe use.
NOTE	Indicates information to note or operating tips when using the product. Failure to observe this information may prevent correct operation. Notes may also indicate helpful operating information.

HANDLING THE PRODUCT

WARNING

1. Do not get the product wet or allow liquid inside. If water gets inside, stop using the product immediately. Continuing to use the product in this condition may cause fire or electric shock.
2. Do not stare at the sun or other bright objects through the lens. This may injure your eyes.

CAUTION

1. Be careful not to drop the lens when carrying it. Dropping the lens may damage it or cause injury.
2. Ensure that all mountings are securely tightened. If a mounting becomes loose, parts may fall off and cause injury.
3. Always hold the connector itself when disconnecting the lens cable. Pulling on the cable may sever or damage it and pose a risk of fire or electric shock from a short circuit.
4. Inspect mountings regularly (about every six months to one year) to ensure they are securely tightened. If a mounting becomes loose, parts may fall off and cause injury.
5. When service is required, contact Canon's representative or your dealer.

NOTE

1. Do not expose the lens to strong impact. Striking or dropping the lens may cause the malfunction.
2. The lens is not waterproof. Take measures to avoid direct contact with rain, snow, or moisture.
3. In dusty environments, cover the lens mount when attaching or removing the lens.
4. Take measures to avoid sudden changes in temperature where the lens is used, which may prevent operation temporarily if condensation forms in the lens.
5. Before use in particular environments, such as places where chemical products are used, contact your Canon representative.

RESPONDING TO MALFUNCTION OR ACCIDENTS

WARNING

1. If any of the following situations occurs, immediately disconnect the lens cable from the camera and contact your dealer or a Canon representative listed on the next page.
2. Smoke, fumes, or unusual noises coming from the lens
3. Foreign objects (such as liquid or metal objects) inside the lens

MAINTENANCE AND INSPECTION

WARNING

1. Before cleaning the lens, always disconnect the lens cable and remove the lens from the camera. Do not use benzene, thinner, or other flammable substances to clean the lens. This may cause fire or electric shock.

NOTE

1. Clean off any dust on the lens using a lens blower or a soft lens brush. In case of fingerprints or stains on the lens, use a clean cotton cloth moistened with commercial lens cleaning fluid, or use lens cleaning paper. Gently wipe in a spiral pattern from the center of the lens. Be careful not to rub dust across the lens, which may scratch the lens surface.
2. Routine inspection about once a year is recommended, depending on the conditions and environment of use. Request overhaul, if needed.

STORAGE

CAUTION

1. Always attach the lens cap (or hood cap) and dust cap before storage. Storing the lens without the caps attached poses a risk of fire if the lens focuses a light source.

NOTE

1. Immediately wipe off any moisture on the lens from misty or foggy environments, using a dry cloth. Seal the lens in a plastic bag with a desiccant (preferably new) to prevent moisture inside.

LEGAL NOTICES

1. Canon is not liable for any damage arising from incorrect operation.
2. Regarding documentation or product quality or functionality, Canon makes no guarantees about marketability or suitability for a particular purpose. Moreover, Canon is not liable for any loss arising directly or indirectly from use for this purpose.
3. Canon makes no guarantees about results obtained from the product.
4. Product specifications, configurations, and appearance are subject to change without notice.
5. For information on service, maintenance, or adjustments not described in this manual, contact your Canon dealer or a Canon representative listed below.
6. Note that service may not be available for products for which users have performed unauthorized modification.

CANON INC.

30-2, Shimomaruko 3-chome, Ohta-ku, Tokyo 146-8501, Japan

Canon Europe Ltd

3 The Square, Stockley Park, Uxbridge, Middlesex, UB11 1ET UK

The copyright for this manual is retained by Canon Inc.

Unauthorized copying or reproduction in whole or part is prohibited.

1 NOMENCLATURE		E2
2 HOW TO MOUNT	2-1. MOUNT THE LENS ON THE CAMERA2-2. MOUNT THE HOOD ON THE LENS2-3. TURN IT ON	E3
3 ADJUSTMENT	3-1. BACK FOCUS ADJUSTMENT OF THE LENS3-2. IRIS GAIN ADJUSTMENT	E4
4 MODE SETTING	4-1. OPERATION MODES4-2. SETTING ITEMS IN BASIC MODE4-3. SETTING ITEMS IN FULL MODE4-4. SETTING ITEMS IN ANALOG MODE	E5
5 OPERATION	5-1. ZOOM OPERATION5-2. FOCUS OPERATION5-3. EXTENDER OPERATION5-4. IRIS OPERATION5-5. MACRO OPERATION5-6. SWITCH OPERATIONS	E7
6 PRODUCT SPECIFICATIONS		E15
APPENDIXES	TECHNICAL INFORMATION INDEX	END

1 NOMENCLATURE

① Iris Gain Adjusting Trimmer ② Instant Auto-Iris Switch ③ Iris Operation Mode Change-over Switch ④ Zoom Rocker Seesaw ⑤ RET Switch (Video Return Switch) ⑥ Memo Switch (Memory Switch) ⑦ AUX Switch ⑧ Flange Back Lock Screw/Flange Back Adjusting Ring ⑨ Locating Pin ⑩ Macro Button/Macro Ring ⑪ Extender Lever ⑫ Iris Ring ⑬ Zoom Lever/Zoom Ring ⑭ Focus Ring ⑮ Zoom/Focus* Operation Change-over Knob NOTE) *IASE S and IASE-C S type lenses only. ⑯ Hood Lock Knob ⑰ Zoom/Focus Remote Virtual Connectors (20-pin) NOTE) Virtual output port is Connector ★ only. Use these connectors to connect the control accessory (equipped with a 20 pin connector) for zooming or focusing. Connector ★ is also used to connect to the interface of such as virtual system. It can output each positioning signal of zoom, focus, and iris. ⑱ VTR Switch ⑲ Max. Zoom Speed Adjusting Volume

Information Display (Digital Drive Unit)

① Display Switch Used to turn the display ON/OFF. ② Display It turns off if left for 2 minutes without operation. ③ Control key Used to move the cursor up/down/left/right. Press the center to confirm.

For the operation of the digital drive unit, refer to the "Information Display Manual" on the CD-ROM.

2 HOW TO MOUNT

2-1. MOUNT THE LENS ON THE CAMERA

Before mounting the lens on the camera, make sure that the camera's power is turned off.

1 Remove the dust cap from the lens. 2 Align the lens locating pin to the groove on the camera mount to fit the lens to the camera mount. 3 Turn the bayonet mount ring on the camera to secure the lens. 4 Connect the power/iris control cable of the lens to the camera.

NOTE

Never hold the lens, drive unit and band portion to support the entire weight of the camera. Excessive force to the mount portion and drive unit of the lens may result in damage to the lens mechanism.

2-2. MOUNT THE HOOD ON THE LENS

The lens cap is attached to the lens at the factory. Please remove the lens cap before mounting the hood.

1 Fit the hood on the front of the lens barrel. 2 Align the index marks on the hood and lens barrel. 3 Tighten the hood lock knob.

2-3. TURN IT ON

Turn on the camera, and the power of the lens will be supplied.

3 ADJUSTMENT

3-1. BACK FOCUS ADJUSTMENT

If the relationship between the image plane of the lens and the image plane of the television camera is incorrect, the object goes out of focus when the lens is zoomed. Follow the procedure below to adjust the back focus of the lens.

1 Select an object at an appropriate distance (HJ14ex: approx. 1 to 3m, HJ17ex/HJ18ex7.6B/HJ21ex/HJ24ex/KJ10ex/KJ17ex/KJ22ex: approx. 2 to 5m, HJ18ex28B: approx. 5 to 7m recommended). Use any object with sharp contrast to facilitate the adjustment work. 2 Set the extender lever to 1x. 3 Set the iris fully open. 4 Set the lens to the telephoto angle by turning the zoom ring. 5 Bring the object into focus by turning the focus ring. 6 Set the lens to the widest angle by turning the zoom ring. 7 Loosen the flange back lock screw, and turn the flange back adjusting ring to bring the object into focus. 8 Repeat steps 4 to 7 a few times until the object is brought into focus both at the widest end and the telephoto end. 9 Tighten the flange back lock screw.

3-2. IRIS GAIN ADJUSTMENT

An iris gain adjusting trimmer is located on the front of the lens drive unit. The iris gain is set at middle of range at the factory. However, if you wish to change the iris gain, adjust the trimmer using a small screwdriver.

1 Pull up the rubber cap on the iris gain adjusting trimmer. 2 Set the iris operation mode change-over switch to the "A" (Auto) position. 3 Turn the iris gain adjusting trimmer, using a small screwdriver. As you look at the lens iris ring, set it to the position of maximum gain at which no iris hunting occurs. 4 Close the rubber cap after adjustment completes.

This adjustment can be performed on the information display. Refer to the Information Display Manual.

4 MODE SETTING

There are three operation modes below. One of the operation modes can be selected on the display screen of the information display of this lens according to usage and preference.

1. Basic mode : Items that can be set and viewed are limited in this mode, and are recommended to users who do not require sophisticated settings. This product is factory-set to basic mode.
2. Full mode : All items can be set and viewed in this mode.
3. Analog mode: This mode is selected when the digital functions are not used at all.

This manual describes only the items that can be set on the Top screen in each mode.

For details on how to set them, refer to the "Information Display Manual" on the supplied CD-ROM.

4-2. SETTING ITEMS IN BASIC MODE

The following eight items can be set on the top screen in Basic Mode.

1. Go to MENU screen
2. Auto iris gain settings
3. AUX switch assignment
4. Zoom tracking ON/OFF
5. AUX1 switch assignment
6. AUX2 switch assignment
7. Iris torque settings
8. Zoom curve mode settings

For details on how to set each setting item, refer to "Information Display Manual" on the supplied CD-ROM.

4-3. SETTING ITEMS IN FULL MODE

The following 14 items can be set on the top screen in Full Mode.

1. Go to MENU screen
2. Switch users
3. Switch to Basic Mode
4. Zoom tracking ON/OFF
5. AUX switch assignment
6. Iris gain settings
7. AUX1 switch assignment
8. VTR switch assignment
9. AUX2 switch assignment
10. RET switch assignment
11. Iris torque settings
12. Zoom curve mode settings
13. Iris A/M switch setting
14. Seasaw switch assignment

4-4. SETTING ITEMS IN ANALOG MODE

The following three items can be set on the top screen in Analog Mode.

1. Go to MENU screen
2. Auto iris gain settings
3. Switch to Basic Mode

For details on how to set each setting item, refer to "Information Display Manual" on the supplied CD-ROM.

5 OPERATION

5-1. ZOOM OPERATION

5-1-1. Manual Zoom Operation

1 Set the zoom operation change-over knob at the bottom of the lens drive unit to MANU. position.

2 Turn the zoom ring (or zoom lever) to perform zoom operation.

NOTE

The zoom operation change-over knob must be set to the "MANU." position before performing manual zoom operations.

The lens may be damaged if manual zoom operations are forcibly performed with the knob at the "SERVO" position.

5-1-2. Servo Zoom Operation

Zoom operation can be performed by driving the built-in motor in the lens.

1. Set the zoom operation change-over knob to the SERVO position.

2. Press the zoom rocker seesaw to perform zoom operation. Zoom speed changes with the depth of the switch being pressed. The deeper the switch is pressed, the faster the zoom speed.

5-1-3. Maximum Zoom Speed Adjustment

The maximum speed of zoom when the zoom rocker seesaw is pressed can be adjusted with the adjusting volume.

This adjustment can be performed on the information display. Refer to the Information Display Manual.

5-1-4. Zoom Track Function (only for servo zoom)

The zoom control range (zoom track) position can be set as desired to set the virtual zoom limit at the telephoto end and the widest angle end. To use the zoom track function, the function should be enabled in advance.

A: Setting "ON" or "OFF" on the information display (in case of basic mode)

1. Press the DISPLAY switch to turn on the display. 2. Select [Trk] using the control key, and then press the Set key. [Trk] and the previous setting now blink on the display. 3. Press the left or right key to select ON or OFF. 4. Press the Set key. This completes the setting.

For details, refer to the Information Display Operation Manual.

B: Setting "ON" or "OFF" by operating the switches

	Selection method	Operation	How to ascertain the selection
To set the function to "ON"	Hold down MEMO botton and Instant auto-iris switch simultaneously for at least 3 seconds.	The zoom control range is fixed to the zoom range set last. (If there is no previous setting, it is set to the mechanism end point.)	Automatic zooming from current zoom position to the closer of the two set positions.
To set the function to "OFF"		The zoom range is set to the mechanical end.	Automatic zooming from current zoom position to the closer of the two mechanical ends.

Setting the Zoom Track Positions

Set the zoom track function to ON before setting the zoom track position.

1. Zoom to the zoom track position that you want to set. 2. Keeping this zoom position, press the Instant Auto-Iris switch while holding down the MEMO switch. If the zoom position is at the telephoto end, the position is stored as the zoom track position for the telephoto limit. If the position is at the widest angle end, it is stored as the widest limit. 3. Repeat steps 1 and 2 to set both the telephoto and the widest limits. It is possible to set only one end. To change the setting, perform steps 1 to 3. (The position set last overwrites the setting in the memory.)

1) If the zoom track position is to be set again, the zoom position cannot move beyond the end point setting toward the mechanical end by performing servo zoom operations. To move the zoom, set the zoom track function to OFF, then take one of the steps below.

• Proceed with the zooming operation at the setting established by operating the zoom rocker seesaw.
• Perform the zooming operation manually.

2) Although up to two zoom track positions (the telephoto end and the widest angle end) can be set, two positions cannot be set that are on the same side of the center position of the zoom range of this lens. (In this case, the latest setting is stored as the zoom track position of this side.)

5-1-5. Shuttle-Shot Function

This function allows you to switch between the current zoom position and the preset zoom position at the maximum speed.

speed Current zoom position Shuttle memory position Previous zoom position speed

Before using shuttle-shot function, the shuttle function must be assigned to the VTR, RET, or AUX switch of the drive unit, or the AUX1 or AUX2 switch on the zoom demand. This manual describes the "Shtl" function assigned to the VTR switch. For details, refer to "5-6 SWITCH OPERATIONS".

Setting the shuttle memory position

Zoom to the position that you want to store. Keeping this position, press the Shtl switch while holding down the MEMO switch.

The "position" you stored here is different from the one you set in "Framing Preset" mentioned later. The stored position set here is retained even after the power is turned off.

The operation with the Shtl switch is given the priority over that with the zoom rocker seesaw. The operation with the zoom rocker seesaw is disabled while the Shtl switch is pressed.

5-1-6. Speed Preset

This function allows you to call the preset zoom speed any time you zoom. Assign the "Sped" function to the VTR, RET, or AUX switch of the drive unit, or AUX1 or AUX2 switch on the zoom demand. This manual describes the "Sped" function assigned to the VTR switch.

1. Storing the zoom speed and direction

Operate the zoom rocker seesaw to determine the zoom speed and direction (toward the telephoto angle or the widest angle) which you want to store, and press the MEMO switch while holding this position.

The stored zoom speed is applied to the "Framing Preset".

2. How to operate the speed preset function

When the "Sped" switch is pressed, the zoom starts to move at the preset speed and to the determined direction (toward the telephoto angle or the widest angle) stored in section 1 and stops at the zoom end.

3. How to cancel movement in Speed Preset

Movement in Speed Preset can be canceled by any of the following operations.

1) Press the "Sped" switch again.→ Zooming stops. 2) Performing zoom operation with the zoom rocker seasaw / "Shtl" switch / "Fr1P" switch / "Fr2P" switch / "Fr1F" switch / "Fr2F" switch.

5-1-7. Framing Preset

There are three framing preset types based on how the settings are combined.

[Zoom]

This enables a predetermined picture angle and movement speed (zoom speed) to be reproduced easily.

[Focus] "IASE S/IASE-C S" type only

This enables a predetermined focus to be reproduced easily.

[Z+F] "IASE S/IASE-C S" type only

This enables the movement speed (focus speed, zoom speed) to a predetermined focus and picture angle to be reproduced easily.

The framing preset setting is changed on the Preset screen on the information display. The "Frame1" setting is changed to "Zoom", "Focus", or "Z+F".

Up to two framing presets, Frame1 and Frame2, can be stored in the memory. Only Frame1 is described in the description given on the following pages. Frame1 is indicated as "Fr1P".

How to set the zoom speed to the framing memory position

Movement speed to the framing position is selected by assigning the "Fr1P" or "Fr1F" switch.

"Fr1P"----For the preset speed setting (preset speed) (Assigned to the AUX switch at the factory.)

"Fr1F"----For the maximum speed setting (fast speed)

For details on how to assign the switches, refer to 5-6. SWITCH OPERATIONS.

Setting combinations

Frame preset control	Control content	Movement speed setting
		"Fr1P", "Fr2P"(speed settable)	"Fr1F", "Fr2F"(maximum speed)
Zoom	Zoom operation control	The zoom moves at the preset speed.	The zoom moves at the maximum speed.
Focus	Focus operation control	*1The focus moves at maximum speed.	The focus moves at maximum speed.
Z+F	Zoom + focus operation control	*2The zoom and focus move at the preset speeds.	The zoom and focus move at the maximum speed.

*1 : Focus speed is fixed at maximum speed. *2: The zoom and focus are controlled in such a way that they start and stop simultaneously.

Framing Preset [Zoom]/[Focus]/[Z+F] Setting

The following figure below is shown as an example. Actual state of the switch may look different if the function is allocated to the different switch.

1) Fr1P function----Assigned to the AUX switch by factory default.

1. Setting the framing memory position

Zoom (and focus) to the position that you want to store, while holding this zoom (and zoom focus) position, press the "Fr1P" switch while holding down the MEMO switch.

This framing memory position is different from the shuttle memory position (Refer to "5-1-5. Shuttle-Shot Function"). The stored zoom position remains in the memory, even after the power is turned off.

2. Moving to the framing memory position

Once the "Fr1P" switch is pressed, the zoom starts to move toward the framing memory position at the preset speed and stops at the framing memory position. When the zoom reaches the framing memory position, it stops and stays there.

3. Canceling the movement to the framing memory position or switching to other zoom operation

During movement to the framing memory position, the movement can be canceled and/or switched to other zoom operation by any of the following operations.

[Zoom Framing Preset]

• Press the "Fr1P" switch again.
• Perform zoom operation with the zoom rocker see-saw.
• Perform zoom operation with the "Shuttle" switch.

[Focus Framing Preset]

[Zoom, Focus Framing Preset]

- Operate a connected focus demand. Movement to the memory position stops, and movement to the operating position of the focus demand takes place.

5-1-8 Clutchless Zoom ("-C S" LENS only)

The "-C S" lens clutchless incorporates a clutchless zoom mechanism.

Owing to the clutchless zoom mechanism, you are no longer required to operate the clutch when switching between the servo zoom and manual zoom. This mechanism allows you to use a slow steady servo zoom technique in the MANUAL mode.

Set the zoom operation change-over knob to the SERVO position to activate the clutchless zoom mechanism.

The lens may be damaged if manual zoom operation is performed during the servo zoom operation.

Zoom operation change-over knob	Clutchless zoom mechanism	Operation
SERVO ON		Setting used when both servo and manual operations are needed Without operating a clutch, you can switch between the servo zoom and manual zoom.
MANU. OFF Set to MANU. when using only the manual zoom.

1. When an IASE S or IASE-C S type lens is used, set the focus operation change-over knob to the MANU position.

When using the IASE S or IASE-C S type lens, the camera can be damaged if excessive force is used to try to turn the focus ring when the knob is left in the SERVO position.

2. Turn the focus ring to bring the near or far object into focus.

5-2-2. Servo Focus Operation

1. When an IASE S or IASE-C S type lens is used, set the focus operation change-over knob to the SERVO position.

2. Mount the accessory such as a focus demand. For details, refer to the operation manual of the accessories.

The lens with built-in extender has a built-in 2x extender.

Use the extender lever to switch between 1x and 2x.

When the extender is used, note that the light quantity may decrease by the zoom ratio depending on the iris correction setting.

5-4. IRIS OPERATION

The iris operation mode can be switched between auto and manual with the iris operation mode change-over switch.

5-4-1. Automatic Iris Operation

Slide the iris operation mode change-over switch to the "A" position. The iris operation is performed automatically by the instruction from the camera, to keep the video signal level constant.

5-4-2. Manual Iris Operation

Slide the iris operation mode change-over switch to the "M" position. The iris operation is performed by turning the iris ring on the lens body.

NOTE

The iris operation mode change-over switch must be set to the M position before performing manual iris operations. The lens may be damaged if manual iris operations are forcibly performed with the knob at the A position.

When the instant auto-iris switch is pressed during manual iris operation mode, the iris changes to automatic operation mode while the switch is held down.

This adjustment can be performed on the information display. Refer to the Information Display Manual.

In macro shooting, the object distance becomes shorter than the normal minimum object distance (M.O.D.). The minimum object distance by macro operation for this lens is 10mm at the widest angle.

To operate the macro, press the macro button to unlock the macro ring. While holding it down, turn the macro ring at the rear of the lens clockwise as viewed from the camera side to allow macro shooting.

1 Set the lens to the widest angle by manual or servo zoom operation.

2 Bring the object into focus by turning the macro ring.

Macro operation is also possible at any zoom position other than the widest angle, but the object distance increases.

Multi-point Focus Shooting

In macro shooting, when zooming to change the focal length, the focal point varies.

The multi-point focus shooting technique uses this characteristic. The focal point is shifted by the zoom operation. Follow the steps below:

1 Zoom in to a far object, and bring it into focus by normal focus operation.

2 Zoom out to a near object and bring into focus by macro operation.

3 Zoom in to the far object again while not touching the macro button set by above step 2, and bring into focus again by normal focus operation.

5-6. SWITCH OPERATIONS

Functions can be assigned to the five switches: the VTR, RET, AUX switches, or AUX1 and AUX2 switches on the information display. "VTR", "RET", "Shtl", and "Fr1P" functions are assigned respectively by default.

The following steps explain how to assign the functions to the switches in basic mode. For further details, refer to the Information Display Operation Manual.

1 Press the DISPLAY switch to turn on the display. 2 After using the control key to select the name of the switch key to which the function is to be allocated, press the Set key. The name of the switch and the default or the previous setting now blink on the display. 3 Press the left or right key until the function to be changed to appears on the display. 4 Press the Set key. This completes the setting.

Switch

Default value

Functions

Fr1P

Fr1F

Fr2

P Fr2F

Sped

Shtl

NON

VTR

RET

1 V VTR

●

●

●

●

●

●

●

2 R RET

●

●

●

●

●

●

●

3 A Fr1P

●

●

●

●

●

●

●

●

4 A1

Shtl

●

●

●

●

●

●

●

●

5 A2

Fr1P

●

●

●

●

●

●

●

●

"●" indicates a combination of an assignable function and a switch. (4) and (5) are AUX1 and AUX2 switches on the zoom demand.

Switch name	Description
VTR	Starts/stops VTR operation.
RET	Hold down to view the main-line video on the view finder.
Fr1P, Fr2P	Press to move to the stored zoom/focus position.One position can be stored/called for Fr1P and Fr1F, and another for Fr2P and Fr2F.
Fr1F, Fr2F
Sped	Press to move in the stored zoom direction (toward the telephoto end or the widest angle end) at the stored zoom speed.
Shtl	Press to move to the stored zoom position at the maximum speed. Release to return to the previous zoom position at the maximum speed.
NON	No function

6 PRODUCT SPECIFICATIONS

HDXS Lenses

Model name			HJ14ex4.3B HJ17	ex6.2B HJ18ex7.6B
Focal Length		1x 4.3	-60mm 6.2-106mm 7.6-137mm
		2x 8.6	-120mm 12.4-212mm 15.2-274mm
Zoom Ratio			14 × 17× 18×
Maximum Relative Aperture		1x	1:1.8 (at 4.3-40mm)1:2.7 (at 60mm)	1:1.8 (at 6.2-65.8mm)1:2.9 (at 106mm)	1:1.8 (at 7.6-103mm)1:2.4 (at 137mm)
		2x	1:3.6 (at 8.6-80mm)1:5.4 (at 120mm)	1:3.6 (at 12.4-131.6mm)1:5.8 (at 212mm)	1:3.6 (at 15.2-206mm)1:4.8 (at 274mm)
Image Format Dia. 11mm			(9.6 × 5.4 mm)
Angular Field of View	Wide	1x 96	3°×64.2° 75.5°×47.1° 64.6°×39.1°
		2x 58	3°×34.9° 42.3°×24.6° 35.1°×20.1°
	Tele	1x 9.1°×5.2°	5.2°×2.9°	4.0°×2.3°
		2x	4.6° ×2.6°	2.6° ×1.5°	2.0° ×1.1°
Minimum Object distance (M.O.D)(Macro: 10mm from the lens vertex)			0.3m	0.4m	0.56m
Object Dimensions at M.O.D	Wide	1x	76.4 ×43.0cm	73.3 ×41.2cm	65.5 ×36.8cm
		2x	38.2 ×21.5cm	36.7 ×20.6cm	32.8 ×18.4cm
	Tele	1x	5.2 ×2.9cm	4.1 ×2.3cm	3.8 ×2.1cm
		2x	2.6 ×1.5cm	2.1 ×1.2cm	1.9 ×1.1cm
Flange back			48mm (in air)
Thread for filters			127mm P0.75(Hood Unit Thread Size)	105mm P1.0(Hood Unit Thread Size)	82mm P0.75(Lens Barrel Thread Size)
Zoom speed for full range			Max. 0.5s ± 0.2s
Focus speed for full range			1.3s ± 0.3s	1.5s ± 0.3s	1.3s ± 0.3s
Iris			Control from camera
Mount			B4
Power source			DC12V (DC10 ~ 17V)
Current consumption		R type	Max. 300mA
		A type	Max. 500mA
Operating temperature			Temperature: -20°C to +45°CHumidity: 5% to 95%RH (no condensation)
Mass without hood		IRSE S	Approx. 1.99kg	Approx. 1.97kg	Approx. 1.58kg
		IASE S	Approx. 2.07kg	Approx. 2.05kg	Approx. 1.66kg
Model name			HJ18ex28B HJ21	ex7.5B HJ24ex7.5B
Focal Length		1x 28	500mm 7.5-158mm 7.5-180mm
		2x 56	1000mm 15-316mm 15-360mm
Zoom Ratio			18× 21x 24x
Maximum Relative Aperture		1x	1:2.8 (at 28-286mm)1:4.9 (at 500mm)	1:1.9 (at 7.5-116mm)1:2.6 (at 158mm)	1:1.8 (at 7.5-120mm)1:2.7 (at 180mm)
		2x	1:5.6 (at 56-572mm)1:9.8 (at 1000mm)	1:3.8 (at 15-232mm)1:5.2 (at 316mm)	1:3.6 (at 15-240mm)1:5.4 (at 360mm)
Image Format Dia. 11mm			(9.6 x 5.4 mm)
Angular Field of View	Wide	1x 19	5°×11.0° 65.2°×39.6° 65.2°×39.6°
		2x 9.8°×5.5°	35.5°×20.4° 35.5°×20.4°
	Tele	1x 1.1°×0.6°	3.5°×2.0°	3.1°×1.7°
		2x	0.6° ×0.3°	1.7° ×1.0°	1.5°×0.9°
Minimum Object distance (M.O.D)(Macro: 10mm from the lens vertex)			2.2m	0.85m	0.8m
Object Dimensions at M.O.D	Wide	1x	71.1×40.0cm	120.4×67.7cm	96.0 ×54.0cm
		2x	35.6×20.0cm	60.2×33.9cm	48.0 ×27.0cm
	Tele	1x	4.1×2.3cm	5.6×3.2cm 4.1 ×2.3cm
		2x	2.1×1.2cm	2.8×1.6cm 2.1 ×1.2cm
Flange back			48mm (in air)
Thread for filters			127mm P0.75(Hood Unit Thread Size )		94mm P1.0 (Lens Barrel Thread Size)or 105mm P1.0 (Hood Unit Thread Size)
Zoom speed for full range			Max. 0.5s ± 0.2s
Focus speed for full range			1.5s ± 0.3s
Iris			Control from camera
Mount			B4
Power source			DC12V (DC10 ~ 17V)
Current consumption		R type	Max. 300mA
		A type	Max. 500mA
Operating temperature			Temperature : - 20°C to + 45°CHumidity : 5% to 95%RH (no condensation)
Mass without hood		IRSE S	-	-	Approx. 1.78kg
		IASE S	Approx. 2.56kg	Approx. 2.69kg	Approx. 1.86kg

HDGC Lenses

Model name			KJ10ex4.5B KJ17	ex7.7B KJ22ex7.6B
Focal Length		1x 4.5	-45mm 7.7-131mm 7.6-168mm
		2x 9-9	0mm 15.4-262mm 15.2-336mm
Zoom Ratio			10x 17x 22x
Maximum Relative Aperture		1x	1:1.8 (at 4.5-34.5mm)1:2.35 (at 45mm)	1:1.8 (at 7.7-102.5mm)1:2.3 (at 131mm)	1:1.8 (at 7.6-116.3mm)1:2.6 (at 168mm)
		2x	1:3.6 (at 9-68.9mm)1:4.7 (at 90mm)	1:3.6 (at 15.4-205mm)1:4.6 (at 262mm)	1:3.6 (at 15.2-232.6mm)1:5.2 (at 336mm)
Image Format Dia. 11mm			(9.6 x 5.4 mm)
Angular Field of View	Wide	1x 93	7° × 61.9° 63.9° × 38.6° 64.6° × 39.1°
		2x 56	1° × 33.4° 34.6° × 19.9° 35.1° × 20.1°
	Tele	1x	12.2° × 6.9°	4.2° × 2.4°	3.3° × 1.8°
		2x	6.1° × 3.4°	2.1° × 1.2°	1.6° × 0.9°
Minimum Object distance (M.O.D)(Macro: 10mm from the lens vertex)			0.3m	0.6m	0.8m
Object Dimensions at M.O.D	Wide	1x	74.1 ×41.7cm	68.5 ×38.5cm	95.0 ×53.4cm
		2x	37.0 ×20.8cm	34.3 ×19.3cm	47.5 ×26.7cm
	Tele	1x	6.4 ×3.6cm	4.2 ×2.4cm	4.4 ×2.5cm
		2x	3.2 ×1.8cm	2.1 ×1.2cm	2.2 ×1.3cm
Flange back			48mm (in air)
Thread for filters			127mm P0.75(Hood Unit Thread Size)	82mm P0.75(Lens Barrel Thread Size)	94mm P1.0 (Lens Barrel Thread Size)or 105mm P1.0 (Hood Unit Thread Size)
Zoom speed for full range			Max. 0.5s ± 0.2s
Focus speed for full range			1.3s ± 0.3s		1.5s ± 0.3s
Iris			Control from camera
Mount			B4
Power source			DC12V (DC10 ~ 17V)
Current consumption		R type	Max. 300mA
		A type	Max. 500mA
Operating temperature			Temperature : - 20°C to + 45°CHumidity : 5% to 95%RH (no condensation)
Mass without hood		IRSE S	Approx. 1.83kg	Approx. 1.48kg	Approx. 1.82kg
		IASE S	Approx. 1.91kg	Approx. 1.56kg	Approx. 1.89kg

MEMO

Chinese Version

The Chinese version is the instruction manual for use in the People's Republic of China.

① Aperture gain fine adjustment knob

② Aperture transient automatic switch

③ Aperture operation mode switch

④ Zoom rocker switch

⑤ RET switch (recording playback switch)

⑥ MEMO switch (memory switch)

⑦ AUX switch

⑧ Back focus locking screw / back focus adjustment ring

⑨ Positioning pin

⑩ Macro shooting button / macro ring

⑪ Extender switching lever

⑫ Aperture ring

⑬ Zoom lever / zoom ring

⑭ Focus ring

⑮ Zoom/focus servo/manual switching knob *Only for IASE S, IASE-C S type lenses

⑯ Lens hood locking screw

① Display switch

1 Set the zoom to the desired zoom tracking position.

开关 默认值	可分配功能
	Fr1P	Fr1F	Fr2P	Fr2F	Sped	Sh	U1	NON	VTR	RET
1 V VTR	●	●	●	●	●			●	●
2 R RET	●	●	●	●	●			●	●
3 A	Fr1P	●	●	●	●	●	●	●
4 A1	Sht1	●	●	●	●	●	●	●
5 A2	Fr1P	●	●	●	●	●	●	●

● Indicates the combination of assignable functions and switches.

30-2 Shimomaruko 3-chome, Ohta-ku, Tokyo 146-8501, Japan

Canon Ru LLC

30-2, Shimomaruko 3-chome, Ohta-ku, Tokyo 146-8501, Japan

Canon Ru LLC

There are some differences in the external appearance of the drive unit for the IRSE S type and clutchless type.

Canada ____ Canon Canada, Inc.

Broadcast and Communications Div. 6390 Dixie Road, Mississauga, Ontario, L5T 1P7, Canada Tel:[phone] Fax:[phone]

Mexico ____ Canon Mexicana, S. de R.L. de C.V.

Call Center Div.

Blvd. Manuel Avila Camacho No,138,

Col. Lomas de Chapultepec, Mexico, D.F.

Tel:[phone]

North & South America ____ Canon U.S.A., Inc.

ITCG METC

65 Challenger Road, Ridgefield Park, NJ, 07660 Tel: [phone] (Toll Free) Fax: [phone]

ASIA

Asia & Hong Kong, S.A.R. ____ Canon Hongkong Company Ltd.

ICP Marketing Div.

19/F, The Metropolis Tower, 10 Metropolis Drive,

Hunghom, Kowloon, Hong Kong

Tel: [phone]

China ____ Canon (China) Co., Ltd.

South & Southeast Asia ____ Canon Singapore Pte. Ltd.

REG ICP Sales & Marketing Div.

1 Fusionopolis Place, #15-10 Galaxis,

Singapore 138522

Tel: [phone]

Tel: [phone]

Broadcast Products Div.

3 The Square, Stockley Park, Uxbridge, Middlesex, UB11 1ET UK

Tel: [phone] Fax: [phone]

OCEANIA

Oceania ____ Canon Australia Pty. Ltd.

CCI Division

Building A, The Park Estate, 5 Talavera Road, Macquarie Park, NSW 2113, Australia

Tel: [phone]

Canon

Canon Inc.

30-2, Shimomaruko 3-chome, Ohta-ku, Tokyo, 146-8501, Japan

Subject to change without notice.

Importer: Canon (China) Co., Ltd.

Pub No. B-IM-20234-6 2015.12 CANON INC. ©

Country of origin: Japan
