TECH 17 G - Microwave FRANKE - Free user manual and instructions

Product Type	Built-in Microwave Oven
Brand	Franke
Model	TECH 17 G
Installation Type	Built-in
Dimensions (H x W x D)	38 cm x 59 cm x 40 cm
Oven Capacity	17 liters
Net Weight	18 kg
Power Supply	230V ~ 50Hz
Nominal Power	1500 W
Microwave Power Levels	5 levels
Grill Function	Yes
Defrost Function	Yes, by weight
Timer	Up to 60 minutes
Child Lock	Yes
Interior Light	Yes
Control Type	Analog dial + buttons
Door Opening	Side hinge, left
Cleaning	Wipe with damp cloth; avoid abrasives
Safety Features	Automatic shut-off, door interlock
Spare Parts Availability	Contact Franke service or authorized retailers

Frequently Asked Questions - TECH 17 G FRANKE

How do I install the Franke TECH 17 G microwave?

Ensure the cabinet opening matches the dimensions (38x59x40 cm). The microwave requires proper ventilation; leave at least 10 cm clearance around. It must be connected to a grounded 230V outlet. Refer to the manual for detailed installation instructions.

Can I use metal containers in the microwave?

No, metal containers and aluminum foil can cause sparks and damage the oven. Use microwave-safe glass, ceramic, or plastic dishes. Check the manual for a list of safe materials.

How do I clean the interior?

Unplug the oven. Wipe the interior with a soft damp cloth and mild detergent. Do not use abrasive cleaners or scouring pads. For stubborn stains, place a bowl of water with lemon juice and heat for 2 minutes, then wipe.

What does the child lock feature do?

The child lock prevents accidental operation. Activate it by pressing and holding the 'Stop' button for 3 seconds. The display will show a lock icon. To deactivate, repeat the same process.

Why is my microwave not heating?

Possible causes: the door is not closed properly, the timer is not set, or the power supply is faulty. Check the door seal and ensure the plug is connected. If the problem persists, contact Franke service.

Can I use the grill function without microwaves?

Yes, the grill can be used independently for browning or toasting. Select the grill mode and set the timer. The microwave power will be off in this mode.

What is the maximum cooking time?

The timer allows up to 60 minutes. For longer cooking, you can reset the timer after the cycle ends. Avoid running the microwave empty.

How do I defrost food using the defrost function?

Place the frozen food on a microwave-safe plate. Select the defrost mode and enter the weight of the food. The microwave will automatically set the time and power level. Turn or stir food halfway through for even defrosting.

Are spare parts available for this model?

Yes, you can order spare parts from Franke customer service or authorized retailers. Common parts include the turntable plate, glass tray, and fuse. Provide the model number TECH 17 G when ordering.

What should I do if the microwave makes unusual noises?

Normal sounds include a hum and click during operation. If you hear grinding or rattling, check the turntable and its roller ring for obstruction. If the noise persists, service may be required.

USER MANUAL TECH 17 G FRANKE

Metal grid (Grill model only)

Operation Instructions

1. Setting the clock

1. Multi-section cooking

Read these instructions carefully before using your microwave oven, and keep it carefully.

If you follow the instructions, your oven will provide you with many years of good service.

SAVE THESE INSTRUCTIONS CAREFULLY

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

(a) Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks. (b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. (c) WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

ADDENDUM

If the apparatus is not maintained in a good state of cleanliness, its surface could be degraded and affect the lifespan of the apparatus and lead to a dangerous situation.

Specifications

Model:	TECH 17 G
Rated Voltage:	230V~50Hz
Rated Input Power(Microwave):	1150W
Rated Output Power(Microwave):	700W
Rated Input Power(Grill):	1000W
Oven Capacity:	17L
Turntable Diameter:	∅ 245mm
External Dimensions:	595x382x320mm
Net Weight:	Approx. 14kg

IMPORTANT SAFETY INSTRUCTIONS

WARNING

To reduce the risk of fire, electric shock, injury to persons or exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including the following:

1. Warning: Liquids and other foods must not be heated in sealed containers since they are liable to explode.
2. Warning: It is hazardous for anyone other than a competent person to remove a cover which gives protection against exposure to microwave energy.
3. Warning: Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understand the hazards of improper use.
4. Warning: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated. (only for grill series)
5. Only use utensils suitable for use in microwave ovens.
6. The oven should be cleaned regularly and any food deposits should be removed.
7. Read and follow the specific: "PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY".
8. When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.
9. If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames.
10. Do not overcook food.
11. Do not use the oven cavity for storage purposes. Do not store items, such as bread, cookies, etc. inside the oven.
12. Remove wire twist-ties and metal handles from paper or plastic containers/bags before placing them in the oven.
13. Install or locate this oven only in accordance with the installation instructions provided.
14. During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.
15. Accessible parts may become hot during use. Young children should be kept away.
16. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering.
17. Eggs in the shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.
18. Use this appliance only for its intended uses as described in the manual. Do not use corrosive chemicals or vapors in this appliance. This oven is especially designed to heat. It is not designed for industrial or laboratory use.
19. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
20. Do not store or use this appliance outdoors.
21. Do not use this oven near water, in a wet basement or near a swimming pool.
22. The temperature of accessible surfaces may be high when the appliance is operating. Keep the cord away from heated surfaces, and do not cover any vents on the oven.
23. Do not let the cord hang over the edge of a table or counter.
24. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.
25. The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns. 23. Microwave heating of beverages can result in delayed eruptive boiling, therefore take care when handling the container.
26. Steam cleaner is not to be used.
27. This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capacities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
28. Children should be supervised to ensure that they do not play with the appliance.

To Reduce the Risk of Injury to Persons Grounding Installation

DANGER

Electric Shock Hazard

Touching some of the internal components can cause serious personal injury or death. Do not disassemble this appliance.

WARNING

Electric Shock Hazard

Improper use of the grounding can result in electric shock. Do not plug into an outlet until appliance is properly installed and grounded.

CLEANING

Be sure to disconnect the

oven from the power supply.

1. Clean the inside of the oven after using with a slightly damp cloth.
2. Clean the accessories in the usual way in soapy water.
3. The door frame and seal and neighbouring parts must be cleaned carefully with a damp cloth when they are dirty.

Two-round-pin plug

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded. If it is necessary to use an extension cord, use only a 3-wire extension cord.

1. A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.
2. If a long cord set or extension cord is used: 1) The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance. 2) The extension cord must be a grounding-type 3-wire cord. 3) The long cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over unintentionally.

UTENSILS

CAUTION

Personal Injury Hazard

It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

See the instructions on "Materials you can use in microwave oven or to be avoided in microwave oven."

There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below.

Utensil Test:

1. Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking.
4. Do not exceed 1 minute cooking time.

Materials you can use in microwave oven

Utensils Remarks

Aluminum foil Shielding only. Small smooth pieces can be used to cover thin parts of meat or poultry to prevent overcooking. Arcing can occur if foil is too close to oven walls. The foil should be at least 1 inch (2.5cm) away from oven walls.
Browning dish	Follow manufacturer's instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break.
Dinnerware	Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes.
Glass jars	Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break.
Glassware	Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes.
Oven cooking bags	Follow manufacturer's instructions. Do not close with metal tie. Make slits to allow steam to escape.
Paper plates and cups	Use for short-term cooking/warming only. Do not leave oven unattended while cooking.
Paper towels	Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only.
Parchment paper	Use as a cover to prevent splattering or a wrap for steaming.
Plastic	Microwave-safe only. Follow the manufacturer's instructions. Should be labeled "Microwave Safe". Some plastic containers soften, as the food inside gets hot. "Boiling bags" and tightly closed plastic bags should be slit, pierced or vented as directed by package.
Plastic wrap	Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food.
Thermometers Microwave-safe only (meat and candy thermometers).
Wax paper Use as a cover to prevent splattering and retain moisture.

Materials to be avoided in microwave oven

Utensils Remarks

Aluminum tray	May cause arcing. Transfer food into microwave-safe dish.
Food carton with metal handle	May cause arcing. Transfer food into microwave-safe dish.
Metal or metal-trimmed utensils	Metal shields the food from microwave energy. Metal trim may cause arcing.
Metal twist ties	May cause arcing and could cause a fire in the oven.
Paper bags	May cause a fire in the oven.
Plastic foam	Plastic foam may melt or contaminate the liquid inside when exposed to high temperature.
Wood	Wood will dry out when used in the microwave oven and may split or crack.

SETTING UP YOUR OVEN

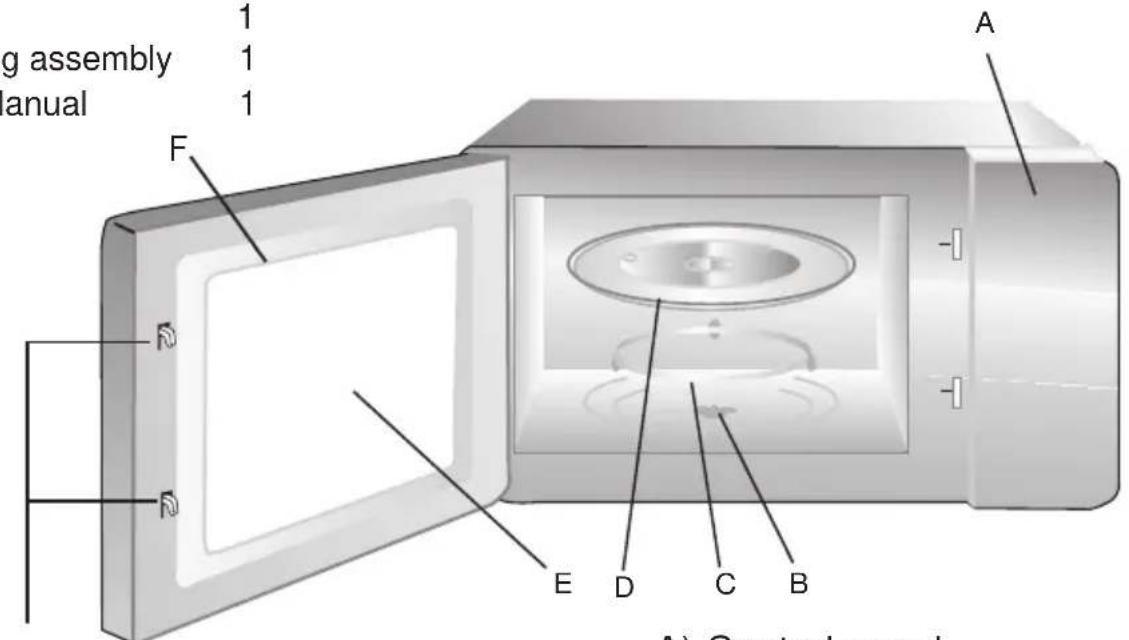

Names of Oven Parts and Accessories

Remove the oven and all materials from the carton and oven cavity.

Your oven comes with the following accessories:

Glass tray	1
Turntable ring assembly	1
Instruction Manual	1

Grill Rack (Only for Grill series)

A) Control panel B) Turntable shaft C) Turntable ring assembly D) Glass tray E) Observation window F) Door assembly G) Safety interlock system

Shut off oven power if the door is opened during operation.

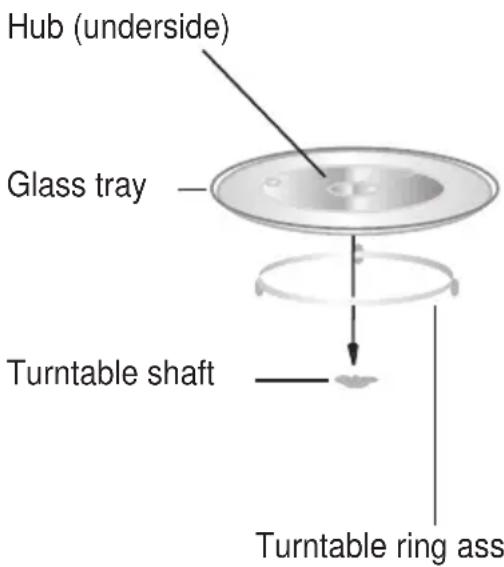

Turntable Installation

a. Never place the glass tray upside down. The glass tray should never be restricted. b. Both glass tray and turntable ring assembly must always be used during cooking. c. All food and containers of food are always placed on the glass tray for cooking. d. If glass tray or turntable ring assembly cracks or breaks, contact your nearest authorized service center.

Installation and connection

1. This appliance is only intended for domestic use.
2. This oven is intended for built-in use only. It is not intended for counter-top use or for use inside a cupboard.
3. Please observe the special installation instructions.
4. The appliance can be installed in a 60cm wide wall-mounted cupboard (at least 55cm deep and 85cm off the floor).
5. The appliance is fitted with a plug and must only be connected to a properly installed earthed socket.
6. The mains voltage must correspond to the voltage specified on the rating plate.
7. The socket must be installed and the connecting cable must only be replaced by a qualified electrician. If the plug is no longer accessible after installation, an all-pole disconnecting device must be present on the installation side with a contact gap of at least 3 mm.
8. Adapters, multi-way strips, and extension leads must not be used. Overloading can result in a risk of fire.

The accessible surface may be hot during operation.

Operation Instructions

1. Clock Setting

When the microwave oven is electrified, the oven will display "0:00", and the buzzer will ring once.

1) Press "Clock/Pre-Set", the hour figures will flash, and the indicator for clock will light.

2) Turn "🔍" to adjust the hour figures, the input time should be within 0--23.

3) Press "Clock/Pre-Set", the minute figures will flash.

4) Turn "🔍" to adjust the minute figures, the input time should be within 0--59.

5) Press "Clock/Pre-Set" to finish clock setting. The indicator for clock will go out, ":" will flash, and the time will light.

2. Cooking food

Press "Micro./Grill/Combi." and turn "🔍" to select the function you want. Press "Micro./Grill/Combi." and turn "🔍" to select the cooking time. Press "Start" to start cooking.

Example: If you want to use 80% microwave to cook food for 20 minutes, you can operate the oven as the following steps.

1) Press "Micro./Grill/Combi.", the screen displays "P100".

2) Turn " 🔥 " to adjust 80% microwave power until the oven displays "P 80".

3) Press "Micro./Grill/Combi." to confirm, the screen displays "P 80".

4) Turn " 🔍 " to adjust the cooking time until the oven displays "20:00".

5) Press " Inicio " to start cooking or press " Cancelar/Stop " to cancel the settings.

Note: the step quantities for the adjustment time of the coding switch are as follow:

"Micro./Grill/Combi." Pad instructions

Order	LED Display	Microwave Power	Grill Power
1		100%
2		80%
3		50%
4		30%
5		10%
6		0%	100%
7		55%	45%
8		36%	64%

3. Program set in Advance

1) Set the clock first. (Consult the instruction of clock setting.) 2) Input the cooking program. Three stage power levels can be set at most. Defrost should always be set as the first stage, if it is included in the multi-level program.

3) Press " Reloj/Pre-Set ", the hour figures will flash, and the indicator " " will light.

4) Turn " 🔍 " to adjust the hour figures, the input time should be within 0--23.

5) Press " Reloj/Pre-Set ", the minute figures will flash.

6) Turn " 🔍 " to adjust the minute figures, the input time should be within 0--59.

7) Press "Inicio" to finish setting. The indicator for clock " will flash. If the door is closed, buzzer will ring twice when the time arrives, then cooking will start automatically and the indicator for clock " will go out.

4. Start/Quick Start

When the oven is in the waiting state, Press "Inicio" to start cooking food with full microwave power for 1 minute. Each press will increase one minute. The maximum cooking time is 95 minutes.

5. Defrost By Weight

1) Press the "Defrost By Weight" button. The LED will display "dEF1", and the " " and " " indicators will light up.

2) Turn the "🔍" knob to select the weight of the food. The "g" indicator will light up.

3) Press "Start" to begin defrosting the food. The " " and " " indicators will flash.

6. Defrost By Time

1) Press the "Defrost By Time" button. The LED will display "dEF2", and the "[icon]" and "[star]" indicators will light up.

2) Turn the "🔍" knob to select the cooking time.

3) Press "Start" to begin defrosting the food. The " " and " " indicators will flash.

7. Multi-section cooking

You can input up to 3 cooking sections. In multi-section cooking, if one section is for defrosting, it must be placed in the first section.

Example: If you want to cook food using "20 minutes at 100% microwave power + 5 minutes at 80% microwave power".

1) Press the "Micro./Grill/Combi." pad. The screen will display "P100".

2) Press "Micro./Grill/Combi." to select 100% microwave power.

3) Turn the " " knob to select the cooking time.

4) Press the "Micro./Grill/Combi." pad. The screen will display "P100".

5) Turn the dial to select 80% microwave power.

6) Press the "Micro./Grill/Combi." pad, then turn the dial to select the cooking time for 80% microwave power.

7) Press "Inicio" to start cooking or press "Cancelar/Stop" to cancel the setting.

8. Auto Menu

Example: If you want to use "Auto Menu" to cook fish of 250g.

1) Press "Auto Menu". The display will show "AUTO COOK".

2) Turn the dial to select the function you want.

3) Press the "Auto Menu" button to confirm.

4) Turn the dial to select the weight of the fish. The "g" indicator will light up.

5) Press "Inicio" to start. The "g" indicator will go out, and "☐" and "AUTO COOK" will flash.

9. Lock-out Function for Children

Lock: In the waiting state, press and hold "Cancelar/Stop" for 3 seconds. A long beep will sound, indicating that the oven has entered the child lock state, and the display will show "".

Lock quitting: In the locked state, press and hold "Cancelar/Stop" for 3 seconds. A long beep will sound, indicating that the lock is released.

10. Inquiring Function

(1) In microwave, grill, or combination cooking state, press "Micro./Grill/Combi." to display the current power for 4 seconds. After 4 seconds, the oven will return to the previous state. (2) In cooking state, press "Reloj/Pre-Set" to inquire the current time; the time will flash for 4 seconds. (3) In preset state, press "Reloj/Pre-Set" to inquire the preset time; it will flash for 4 seconds.

The automatic menu procedure:

Menu	Order	Weight	Display
A-1Auto Reheat(Recalentar)	1	200 g	200
		400 g	900
		600 g	600
A-2Vegetable(Vegetales)	2	200 g	200
		300 g	300
		400 g	400
A-3Fish(Pescado)	3	250 g	250
		350 g	350
		450 g	450
A-4Meat(Carnes)	4	250 g	250
		350 g	350
		450 g	450
A-5Pasta	5	50 g	50
		100 g	100
A-6Potato(Patatas)	6	200 g	200
		400 g	400
		600 g	600
A-7Pizza	7	200 g	200
		400 g	400
A-8Soup (Liquidos)	8	200 ml	200
		400 ml	400

Troubleshooting

Normal
Microwave oven interfering TV reception	Radio and TV reception may be interfered when microwave oven operating. It is similar to the interference of small electrical appliances, like mixer, vacuum cleaner, and electric fan. It is normal.
Dim oven light	In low power microwave cooking, oven light may become dim. It is normal.
Steam accumulating on door, hot air out of vents	In cooking, steam may come out of food. Most will get out from vents. But some may accumulate on cool place like oven door. It is normal.
Oven started accidentally with no food in.	It is forbidden to run the unit without any food inside. It is very dangerous.

Trouble	Possible Cause	Remedy
Oven can not be started.	(1) Power cord not plugged in tightly.	Unplug. Then plug again after 10 seconds.
	(2) Fuse blowing or circuit breaker works.	Replace fuse or reset circuit breaker (repaired by professional personnel of our company)
	(3) Trouble with outlet.	Test outlet with other electrical appliances.
Oven does not heat.	(4) Door not closed well.	Close door well.
Glass turntable makes noise when microwave oven operates	(5) Dirty roller rest and oven bottom.	Refer to "Maintenance of Microwave" to clean dirty parts.

According to the Waste of Electrical and Electronic Equipment (WEEE) directive, WEEE should be separately collected and treated. If at any time in the future you need to dispose of this product, please do NOT dispose of this product with household waste. Please send this product to WEEE collecting points where available.
