PIXO is elegantly designed whilst still offering valuable comfort features: it is comfortable and easy to drive whilst still being fun, and full of features and functions at a very competitive price. Plus one environmentally friendly engine, two transmissions, four grades and six colours, you’re sure to find an attractive combination.
GRADES
VISIA
5 DOOR
1.0 LITRE 5-SPEED MANUAL
COMFORT AND CONVENIENCE
- Power steering
- Tilt-adjustable steering wheel
- 12v socket (front)
- Front cabin light
- Vanity mirror
HEATING, VENTILATION AND VISIBILITY
- 2-speed front wiper with intermittent setting
Rear wiper
- Manually adjustable door mirrors
INSTRUMENTATION
Headlamp leveller
SEATING, TRIM AND STORAGE
2 front cup holders
- 2 rear door storage pockets
2 Rear headrests
- Parcel shelf
SAFETY
- Front airbags
ABS with EBD and Brake assist
- ISOfix childseat anchorage points
- Child proof door locks
SECURITY
STYLING

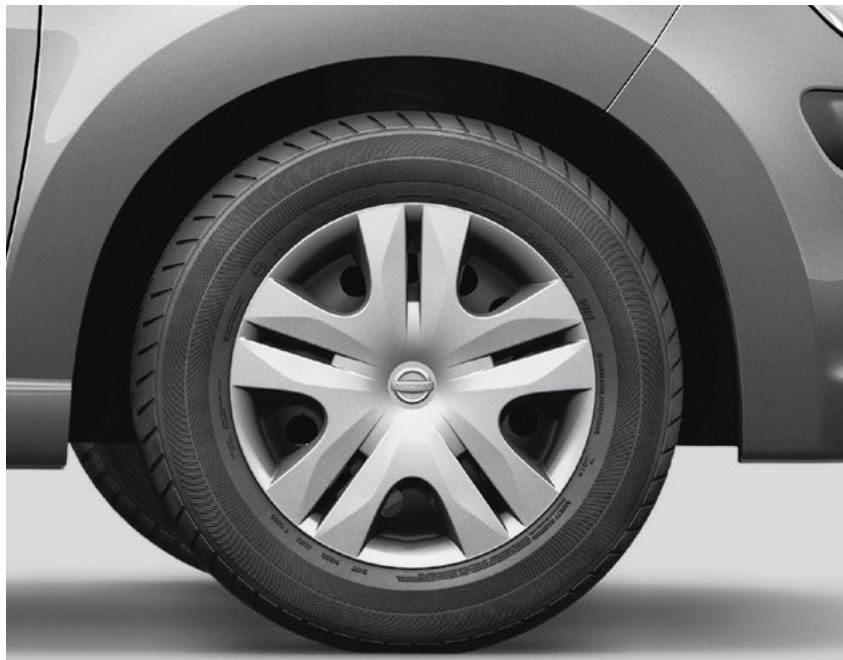

14" Steel wheels with wheel covers
IN-CAR ENTERTAINMENT
CD player with MP3 playback
2 Speakers
Metallic or Pearlescent paint
ACENTA
ADDITIONAL TO
VISIA GRADE 5 DOOR
1.0 LITRE 5-SPEED MANUAL
OR 4-SPEED AUTO
COMFORT AND CONVENIENCE
SEATING, TRIM AND STORAGE
50:50 split folding rear seats
SAFETY
- Side airbags
- Front fog lamps
SECURITY
Central door locking
Remote keyless entry
- Boot door opening lever
STYLING
- Body coloured door mirrors
- Body colours door handles
Metallic or Pearlescent paint
n-tec
ADDITIONAL TO
ACENTA GRADE 5 DOOR
1.0 LITRE 5-SPEED MANUAL
OR 4-SPEED AUTO
COMFORT AND CONVENIENCE
- Manual air conditioning
- Pollen filter
Metallic or Pearlescent paint
TEKNA
ADDITIONAL TO
ACENTA GRADE 5 DOOR
1.0 LITRE 5-SPEED MANUAL
OR 4-SPEED AUTO
COMFORT AND CONVENIENCE
- Manual air conditioning
- Pollen filter
SAFETY
Metallic or Pearlescent paint
PIXO
1.0 litre petrol engine
MODEL
| Body type | | 5-door hatchback |
| Available grades | | Visia, Acenta, n-tec, Tekna |
| Seating capacity | persons | 4 |
| ENGINE |
| Engine code | | K10B |
| No. of cylinders | | 3 |
| Valves per cylinder | | 4 |
| Engine capacity | cm³ | 996 |
| Bore x stroke | mm | 73 x 79.4 |
| Max. engine power¹) | kW(PS)/min-1 | 50(68)/6000 |
| Max. torque¹) | Nm/min-1 | 90/3400 |
| Compression ratio | | 11 |
| Fuel type | | Unleaded petrol RON 95 |
| Ignition system / Intake system (Diesel) | | Multi point injection |
| Fuel supply | | Electronic |
| Emission control system | | 3 way catalyst |
| Emissions Level | | EU5 |
DRIVE TRAIN
| Clutch type | | Mechanical | Hydraulic |
| Transmission | | 5 MT | 4AT |
| Gear ratio | 1st | | 3.454 | 2.875 |
| 2nd | | 1.904 | 1.568 |
| 3rd | | 1.280 | 1.000 |
| 4th | | 0.966 | 0.697 |
| 5th | | 0.815 | - |
| Reverse | | 3.272 | 2.300 |
| Final drive ratio | | 3.650 | 4.375 |
| Driven wheels | | Front |
CHASSIS
| Suspension | front | | Mc Pherson strut |
| rear | | Isolated trailing link with coil spring |
| Steering | | Electric power assisted |
| Braking system | | Disc front, drum rear, with ABS, EBD and brake assist function |
| Stability control system (option) | | Tekna only |
| Wheel size (option) | | 14x4 |
| Tyre size (option) | | 155/65R14 |
1.0 litre petrol engine
MODEL
| Body type | | 5-door hatchback |
| Available grades | | Visia, Acenta, n-tec, Tekna |
| Seating capacity | persons | 4 |
WEIGHTS & DIMENSIONS
| Kerb weight2) | kg | 885 | 910 |
| Gross Vehicle Weight | kg | 1250 |
| Max. pay load2) | kg | 365 | 340 |
| Max. axle weight front | kg | 700 |
| Max. axle weight rear | kg | 650 |
| Max. trailer weight | braked4) | kg | 200 |
| unbraked4) | kg | 100 |
| Max. vert. load on coupling point | kg | 50 |
| Max. roof load | kg | 35 |
| Overall length | mm | 3565 |
| Overall width | mm | 1600 |
| Overall height | mm | 1470 |
| Wheelbase | mm | 2360 |
| Track front | mm | 1405 |
| rear | mm | 1400 |
| Luggage capacity | (option) (VDA) | I | 129 |
| max. with folded seats(VDA) | I | 367 |
| Cd | | 0.3 |
| Fuel tank capacity [N] | I | 35 |
PERFORMANCE
| Fuel consumption 3) | | |
| Urban cycle | mpg (l/100 km) | 51.4 (5.5) | 42.2 (6.7) |
| Extra-urban | mpg (l/100 km) | 74.3 (3.8) | 62.8 (4.5) |
| Combined | mpg (l/100 km) | 64.2 (4.4) | 54.3 (5.2) |
| CO2 mass emission (Combined) | g/km | 103 | 122 |
| Max. speed | mph (km/h) | 96 (155) | 93 (150) |
| Acceleration 0 - 62 mph | sec | 14 | 17 |
| Min. turning circle (kerb to kerb) | m | 4.5 |
1) In accordance with 1999/99/EC.
2) Figures in accordance with EC Directive. Kerb weight condition is without driver and including coolant, oils, fuel, spare wheel and tools. Pay load will be reduced depending on the options and/or accessories installed.
3) In accordance with 1999/100/EC. (Optional equipment, maintenance, driving behaviour, road and weather conditions may affect the official results)
4) Figures shown are with driver + 4 passengers and luggage and max. kerb weight.
