SHBR 100 D2 - Heated blanket SILVERCREST - Free user manual and instructions

Product Type	Heated Blanket
Brand	SilverCrest
Model	SHBR 100 D2
Dimensions	160 x 130 cm
Weight	1.5 kg
Power Consumption	100 W
Voltage	220-240 V ~ 50/60 Hz
Temperature Settings	6 levels (1-6)
Heating Zones	Back and foot area
Material	Microfleece (100% polyester)
Safety Features	Automatic shut-off (3 hours), overheat protection, detachable controller
Care Instructions	Machine washable at 30°C, detachable controller, do not bleach, do not dry clean
Warranty	3 years
Certifications	CE, GS

Frequently Asked Questions - SHBR 100 D2 SILVERCREST

How do I set the temperature on the SilverCrest SHBR 100 D2?

Use the controller to select a level from 1 (low) to 6 (high). Press the power button to turn on, then press the temperature button repeatedly to adjust.

Can I wash the heated blanket?

Yes, the blanket can be machine washed at 30°C. First, unplug and remove the controller. Use a gentle cycle and mild detergent. Do not bleach or dry clean. Tumble dry on low heat or air dry.

Does the blanket automatically turn off?

Yes, for safety, the blanket has an automatic shut-off after 3 hours of continuous use. You can restart it by pressing the power button.

What is the power consumption of the SilverCrest SHBR 100 D2?

The blanket consumes approximately 100 watts of power. The exact consumption depends on the selected temperature level.

Can I use the blanket with a pet?

The blanket is designed for human use. If used with pets, supervise them and avoid chewing the cables. The controller may be damaged by pets.

What should I do if the blanket doesn't heat up?

Check that the power cord is securely connected to both the blanket and the wall outlet. Ensure the controller is properly attached. If it still doesn't work, contact customer service.

Is the controller detachable?

Yes, the controller is detachable for washing or storage. Unplug the blanket first, then disconnect the controller from the blanket.

Can I sleep with the blanket on?

It is safe to sleep with the blanket on, but it is recommended to use a lower temperature setting (1-3) and note the automatic shut-off. Do not fold or bunch the blanket while in use.

What are the dimensions of the blanket?

The blanket measures approximately 160 cm in length and 130 cm in width, suitable for a single bed or as an extra layer on a double bed.

How do I store the blanket?

Unplug and let it cool completely. Fold loosely (do not crease) and store in a dry, cool place. Avoid placing heavy objects on top.

USER MANUAL SHBR 100 D2 SILVERCREST

Operating instructions and safety advice

GR CY

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

GR CY

GB/IE/NI/CY Operating instructions and safety advice

Page 5

Line drawing of a human figure holding a device with a handle and connector (no text or symbols)

Diagram of a device with a curved arrow indicating motion or force, no text or symbols present

List of pictograms used....Page 6

Introduction......Page 6

Intended use....Page 7

Parts description....Page 7

Scope of delivery....Page 7

Technical data....Page 7

Important safety instructions....Page 7

Safety system....Page 9

Special features....Page 9

Start-up Page 10

Switching on/off/Selecting the temperature......Page 10

Temperature levels....Page 10

Automatic switch-off Page 10

Cleaning and care....Page 10

Storage Page 11

Disposal Page 11

Warranty / Service centre Page 12

Declaration of conformity....Page 12

List of pictograms used
	Read the instructions! Do not use bleach.
	Volt (AC) Do not dry in a tumbler dryer.
	Hertz (mains frequency) Do not iron.
	Watt (effective power) Do not dry clean.
	Safety class II		Automatic switch-off
	Observe the warning and safety instructions!		6 Temperature levels
	Not suitable for very young children age 0-3 years!		Illuminated function display
	Do not stick needles into it!		Breathable
	The textiles used in this heating pad meet the strict human ecological requirements of Oeco-Tex Standard 100, as verified by the German Hohenstein Research Institute.		Removable control unit
	Do not use folded or rucked!		"Turbo" rapid heating function
	Caution - Risk of electric shock!Danger to life!		Dispose of the packaging and the heating pad in an environmentally friendly way!
	This heating pad is machine washable.Set the washing machine to an extra gentle washing cycle at 30 °C.

Stomach & Back Heating Pad

Introduction

Please familiarise yourself with the heating pad before getting started and using it for the first time. To do so, please

carefully read the following operating instructions and the important safety information. Use the heating pad only as described and for the stated areas of use. Keep these instructions in a safe place. If you pass the heating pad on to anyone else, please ensure that you also pass on all the documentation.

Intendeduse

This heating pad is intended for applying heat to the human body. It can be used to apply heat to specific areas. This heating pad is not suitable for use in hospitals or for any other commercial use. In particular it must not be used for babies or infants, persons who are insensitive to heat, helpless persons, or animals. Any use other than that described above or modification of the heating pad are not permissible and may lead to injury and / or damage to the heating pad. The manufacturer accepts no liability for any damage caused by improper use.

Partsdescription

1 Control (see fig. A)
2 Function display (see fig. A)
3 Plug-in connector (see fig. B)

- Scope of delivery

Please check immediately on unpacking that the delivery scope is complete and that the heating pad is in perfect condition.

1 Stomach & Back Heating Pad
1 Control unit / Plug-in connector
1 Set of instructions for use

- Technicaldata

Model: SHBR 100 D2

Type: P10 B

Power supply: 220-240V/50-60Hz

Powerinput: 100 W

Dimensions: approx. 69 x 28 cm

Protectionclass: II/☐

electric field strength: max. 5000V/m

magnetic field strength: max. 80A/m

magnetic flux density: max. 0.1 milli-Tesla

Material:

Top/bottom: 100% Polyester

Manufacturer:

MGG Elektro GmbH

Steinstraße 27

DE-40210 Düsseldorf

GERMANY

IMPORTANT INSTRUCTIONS – KEEP FOR FUTURE REFERENCE!

Important safety instructions

WARNING! Failure to observe the following instructions can cause personal injury or property damage (electric shock, burns, fire). The following safety instructions and hazard warnings are not only

intended to protect your own health and the health of others, but also to prevent damage to the heating pad. Please observe these safety instructions and pass on this operating manual together with the heating pad.

SCALDING HAZARD!

This heating pad may not

Important safety instructions

be used by persons insensitive to heat and other persons in need of protection who do not respond to overheating (e.g. diabetics, persons with skin changes caused by illness or scarred skin areas in the application area after using analgesics or alcohol). There is a risk of receiving skin burns.

WARNING!

heating pad may not be used for very young children (0–3 years), as they are unable to react to overheating. There is a risk of receiving skin burns.

This heating pad may not be used by young children (3–8 years) unless the control unit was set by a parent or a supervising person and the child was adequately instructed on the safe use of the heating pad. There otherwise is a risk of burns.
This heating pad may be used by older children age 8 and up, and persons with diminished physical, sensory or mental capacities or lacking experience and knowledge when supervised and instructed on the safe use of the heating pad and understand the associated risks.
■ Children must be supervised to prevent them from playing with

the heating pad. There is a risk of injury.

■ Children must not perform clean or maintain the product without supervision. There is a risk of injury.
This heating pad is not intended for hospital or commercial use. This poses a risk of injuries and / or damage to the heating pad.

WARNING!

Do not insert needles or pointed objects into the heating pad. There is a risk of electric shock.

WARNING!

Do not switch on the

heating pad whilst folded or pushed together. The heating pad may otherwise be damaged.

• Do not use when wet! Otherwise there is a risk of electric shock.
  This heating pad may only be operated together with the control unit specified on the label. The heating pad may otherwise be damaged.
  The electric and magnetic fields emitted by this heating pad could potentially interfere with the functionality of your pacemaker. However, the levels are far below the permissible limits: electric field strength: max. 5000V/m,

magnetic field strength: max. 80A/m magnetic flux density: max. 0.1 milli-Tesla. Therefore please consult your physician and the manu facturer of your pacemaker before using this heating pad.

• Do not pull, twist or kink the cables. The heating pad may otherwise be damaged.
  ■ Frequently check the heating pad for wear or damage. If signs thereof are detected, the heating pad was used improperly or will no longer heat up, it must first be inspected by the manufacturer before being switched on again.
  If the power cord of the heating pad is damaged, it must be replaced by the manufacturer or its service department, or a similarly qualified person, to avoid hazards.

■ With the heating pad switched on, never

• place objects on it (e.g. suitcases or clothes baskets),
• place a heating source such as a hot-water bottle, heating pad or similar items on it. The heating pad may otherwise be damaged.

■ The electronic components inside the control unit will heat up whilst

operating the heating pad. For this reason, the control unit must not be covered or be lying on the heating pad during operation. This poses a risk of injuries and / or damage to the heating pad.

■ Always observe the information on start-up, cleaning and care, and storage.

If you have additional questions on using our products, please contact our Customer Service Department.

●Safetysystem

Note: The heating pad is equipped with a safety system. The electronic sensor technology prevents the entire surface of the heating pad from overheating by automatically switching off in the event of a fault. If the safety system switches the heating pad off automatically due to a fault, then the function display 2 on the control unit 1 is no longer illuminated, even if the heating pad is switched on.

☐ Please note that, for safety reasons, the heating pad must not be used after a fault and must be returned to the service address indicated.

Specialfeatures

This heating pad has been provided with an especially soft and hygienic velour fabric. The textiles used in this heating pad meet the strict human ecological requirements of Oeco-Tex Standard 100, as verified by the German Hohenstein Research Institute.

- Start-up

Note: The heating pad may smell of plastic the first time you use it, but this will disappear after a short period of time.

☐ To begin, first connect the control 1 to the heating pad with the plug-in connector 3 (see fig. B).
☐ Position the heating pad according to your individual requirements on your back or stomach (see fig. C).

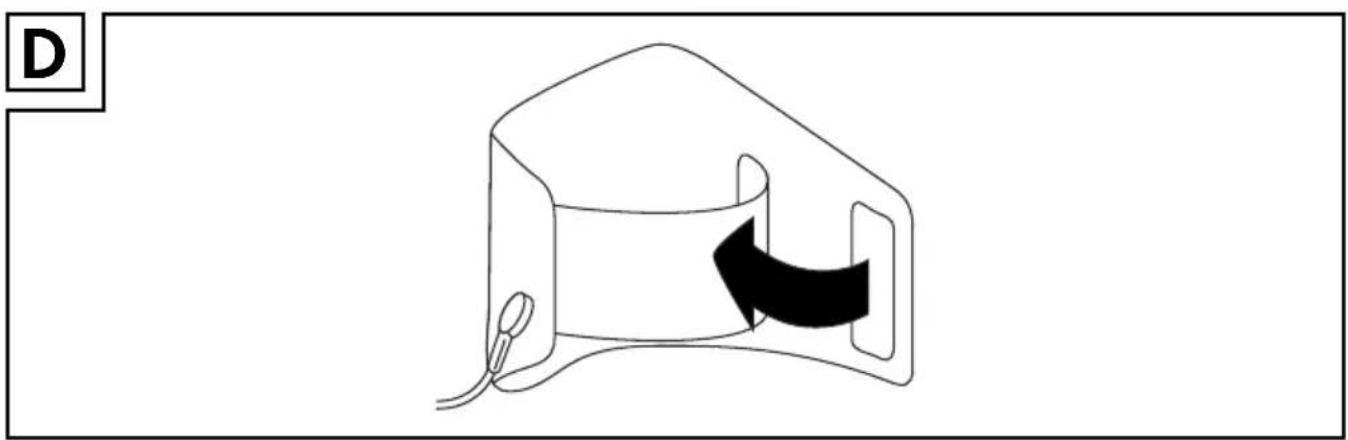

☐ Wind the long, extendible rubber band around your body.
☐ Then fix the heating pad to your body by connecting the hook-and-loop fasteners of the heating pad with the hook-and-loop fasteners of the rubber band (see fig. D).

- Switching on/off/Selecting the temperature

Switching on:

☐ Set the control unit to 1, 2, 3, 4, 5 or 6, to switch on the heating pad.
Note: The function display 2 illuminates after the heating pad is switched on.
Note: This heating pad features rapid heating, which allows it to heat up within the first 10 minutes of operation.

Switching off:

Set the control unit to 0 to switch off the heating pad.
Note: The operating display 2 will switch off.

Selecting the temperature:

☐ Just before using the heating pad, set it to the highest temperature setting (setting 6). This will cause the heating pad to warm up quickly.
☐ When using the heating pad for several hours, set it to the lowest temperature setting (setting 1).

WARNING!

When opera-

ting the heating pad for several hours,

we commend setting the control unit to the lowest setting to prevent overheating and potential burns to the part of the body heat is applied to.

●Temperaturelevels

Set the required temperature level on the control 1 (see fig. A).

Level0:off

Level 1: minimum heat

Level 2-5: customised settings

Level 6: maximum heat

●Automaticswitch-off

Note: The heating pad switches itself off automatically after about 90 minutes. The function display 2 then starts to flash.

☐ Then select the setting 0 and after about 5 seconds, reset the heating pad to the desired temperature setting to switch it on again.

If the heating pad is no longer used after the timer expires:

• switch off the heating pad (Setting 0),
• unplug from the socket,
• disconnect the plug-in connection 3, i.e. the control unit 1, from the heating pad.

- Cleaning and care

WARNING! DANGER TO

LIFE BY ELECTRIC SHOCK! Always remove the mains plug from the socket

and the plug-in connector 3 with the control 1 from the heating pad (see fig. B) before cleaning the heating pad. Otherwise there is a risk of electric shock.

☐ Use a dry, lint-free cloth for control unit cleaning and care.
RISK OF DAMAGE TO THE PRODUCT OR PROPERTY! Never immerse the control 1 in water or other liquids. It may otherwise be damaged.
If the heating pad is slightly soiled, use a dam-pened cloth and a little liquid mild detergent, if necessary.
RISK OF DAMAGE TO THE PRODUCT OR PROPERTY! Do not use chemical cleaning or scouring agents to clean the heating pad and control 1. The heating pad and control unit 1 may otherwise be damaged.
he heating pad is machine-washable. Set the washing machine at an extra washing cycle for delicate items at 30 °C.
For ecological reasons, please only wash the heating pad together with other textiles. Use a mild laundry detergent according to the manufacturer's instructions.
☐ Please note that frequent washing will cause wear to the heating pad. It should therefore be washed no more than max. 10 times in a washing machine throughout its useful life.
RISK OF DAMAGE TO THE PRODUCT OR PROPERTY! Please note that the heating pad may not be dry cleaned, bleached, wrung out, dried mechanically, mangled or ironed. The heating pad may otherwise be damaged.
Do not use bleach. Do not use any cleaning agents containing bleach (such as heavy duty detergents).
Do not dry in a tumbler dryer.
Do not ran.
Do nor dry clean.

■ Reshape the still damp heating pad to the original size immediately after washing, and dry flat, spread on a clothes drying rack.
RISK OF DAMAGE TO THE PRODUCT OR PROPERTY! Do not hang the heating pad up to dry
with pegs or similar. The heating pad may otherwise be damaged.
DANGER OF ELECTRIC SHOCK!
Do not reconnect the control 1 to the heating pad until the plug-in connector 3 and the heating pad are completely dry. Otherwise there is a risk of electric shock.
DANGER OF ELECTRIC SHOCK! RISK OF PROPERTY DAMAGE! Do not under any circumstances switch

the heating pad on to help it dry. Otherwise there is a risk of electric shock.

Storage

RISK OF DAMAGE TO THE PRODUCT OR PROPERTY! Let the heating pad cool before putting

it away. The heating pad may otherwise be damaged.

RISK OF DAMAGE TO THE PRODUCT OR PROPERTY! To

prevent the heating pad from becoming sharply creased, do not store other objects on top of the heating pad. The heating pad may otherwise be damaged.

☐ If you do not intend to use the heating pad for any length of time, store it in the original packaging in a dry environment and without weighing it down. Disconnect the plug-in connection 3, i.e. the control unit 1, from the heating pad to do so.

●Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1-7: plastics / 20-22: paper and fibre-board/80-98: composite materials.

In accordance with European Directive (covering waste electrical and electronic equipment) and its transposition into national legislation, worn-out electrical devices must be collected separately and taken for environmentally compatible recycling.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

● Warranty / Service centre

We provide a 3-year warranty covering faults in materials or manufacture of the heating pad from the purchase date.

The warranty does not cover:

• Damage from improper use.
  ·Wearparts.
• Damage caused by the customer.
• If the device has been opened by an unauthoried repair shop.

This warranty does not affect the customer's legal rights. The customer must provide proof of purchase in order for any warranty claims within the warranty period to be honoured. Warranty claims must be filed with MGG Elektro GmbH, Düsseldorf, Germany within 3 years from the date of purchase.

In the event of a claim, please contact our Service Department listed below: Service Hotline (toll-free):

GB

∅ 0800 93 10 319

(Mon-Fri: 8 am-6 pm)

[e-mail]

IE NI

∅ 1800 93 92 35

(Mon-Fri: 8 am-6 pm)

[e-mail]

CY

∅ 0800 773 70

(Mon-Fri: 8 am-6 pm)

[e-mail]

If we ask you to return the defective heating pad, please send it to the following address:

NU Service GmbH

Lessingstraße 10b

DE-89231 Neu-Ulm

GERMANY

IAN 285269

● Declaration of conformity €

This heating pad complies with the requirements of the relevant European and national guidelines.

This is confirmed by the CE mark.

The relevant declarations are held by the manufacturer.
