Product Type	Deep Fryer
Brand	Ambiano
Model	DF-036
Oil Capacity	2 liters
Power Consumption	1500 W
Voltage	120 V / 60 Hz
Dimensions (W x D x H)	28 x 22 x 30 cm
Weight	2.5 kg
Temperature Control	Adjustable thermostat (150-190 °C)
Heating Element	Stainless steel immersion
Basket Material	Removable wire mesh with handle
Frying Chamber Material	Non-stick coated interior
Exterior Material	Plastic with cool-touch handles
Safety Features	Overheat protection, auto shut-off
Indicator Lights	Power and heating indicators
Cleaning Method	Wipe with damp cloth; removable basket dishwasher safe
Spare Parts Available	Replacement basket, lid
Repairability	Basic components replaceable
Additional Features	Viewing window, odor filter

Frequently Asked Questions - Deep Fryer DF-036 Ambiano

What type of oil should I use?

Use high smoke point oils like vegetable, canola, or peanut oil for best results.

Can I fry frozen food directly?

Yes, but pat dry excess ice to minimize splattering. Fry in small batches and adjust cooking time.

How do I clean the deep fryer?

Unplug and let cool. Remove oil, wipe interior with a damp cloth. The basket is dishwasher safe. Do not immerse the base.

What is the maximum oil level?

Fill between the MIN and MAX markings inside the fryer, typically around 2 liters.

Why does the fryer turn off during use?

This may be due to overheating protection. Turn off, let it cool, and ensure proper oil level.<

How do I adjust the temperature?

Rotate the thermostat knob to your desired temperature (150-190 °C). The heating indicator will turn off when ready.

Can I use the fryer without oil?

No, this is a traditional deep fryer requiring oil. Do not operate empty.

What if the basket gets stuck?

Ensure the basket is properly aligned and the locking mechanism releases. If stuck, gently wiggle while pressing the release.

How long does it take to heat up?

Approximately 10-15 minutes depending on oil volume and ambient temperature.

Is the fryer suitable for commercial use?

No, it is designed for household use only. Not for continuous professional operation.

USER MANUAL Deep Fryer DF-036 Ambiano

Contents

Product contents/device parts 06

Important Safeguards 07

Getting Started 12

Instructions 13

Other Useful Information 14

Approximate Cooking Times 15

Making home-made French Fries ....16

Responsible Disposal 17

Discard old oil 17

Specifications 17

A

B

Correct position / Posición correcta

Product contents/device parts

1 Power indicator light (red)
2 Temperature indicator light (green)
3 Temperature control knob
4 Timer knob
5 Oil container
6 Frying basket
7 Housing
8 RESTART - button
9 Safety switch

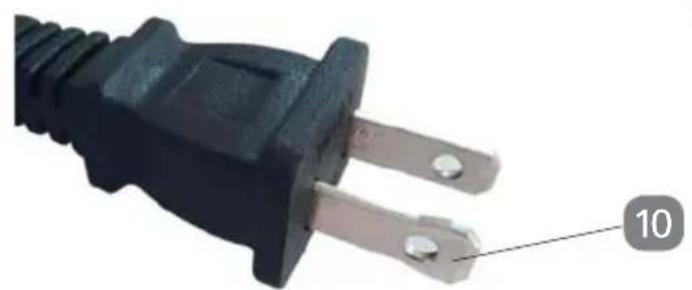

10 Polarized plug

Important Safeguards

READ ALL INSTRUCTIONS

Read this manual thoroughly before first use, even if you are familiar with this type of product. The safety precautions enclosed herein reduce the risk of fire, electric shock and injury when correctly adhered to. Keep the manual in a safe place for future reference, along with the completed warranty card, purchase receipt and carton. If applicable, pass these instructions on to the next owner of the appliance. Always follow basic safety precautions and accident prevention measures when using an electrical appliance, including the following:

Electrical safety and cord handling

• Voltage: Before plugging in the power adaptor, make sure your outlet voltage and circuit frequency correspond to the voltage stated on the product rating label.
• Wall socket: Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fi re or electric shock. When the adaptor is plugged into the power supply, make sure the wall socket is easily accessible so it can be readily unplugged.
• Do not immerse: To protect against fire and electric shock, do not immerse the cord, plug, power adaptor or the product itself in water or other liquid.
• Protect from moisture: Never subject this product to moisture or extreme temperatures. Do not expose it to dripping or splashing water. Do not use the product near water (bathtub, washbowl, kitchen sink, laundry tub, swimming pool) or in a damp basement.
• Protect the power cord: Do not kink, bend, squash or damage the cord of the power adaptor and protect it from sharp edges and heat. Ensure nothing is placed upon or against the cord. It is always best to have a clear area from where the cord exits the unit to where it is plugged into a wall outlet. Run the cord in such a way that there will be no risk of anyone pulling it inadvertently, tripping over it or stepping on it.
• Damaged cord: If the electric cord is damaged, it must be replaced by a qualified service agent.
• Disconnect: To prevent damage to the product due to lightning strikes and powerline surges, switch the product off and unplug it from the wall outlet

during lightning storms and when the product is not going to be used for an extended period of time.

• Grip the plug when disconnecting, do not pull the cord.
• Never use this appliance for anything other than its intended use. This appliance is for household use only. Do not use this appliance outdoors.

Usage conditions and restrictions

• Attachments: Do not use attachments that are not recommended by the product manufacturer or distributor.
• Adjustments: Only use and adjust controls and perform procedures as specified in this manual. Any other adjustments or procedures may expose you to danger and void your warranty.
• Installation and use: Improper use or installation may result in the risk of fire, electric shock and/or injury. We assume no liability for any eventual damages caused by improper use or incorrect handling.
• Usage restriction: This product is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the product by a person responsible for their safety.
• Children: Supervise young children to ensure they do not play with the product.

Safe usage

- Location: Place the product on a straight, rigid and stable surface, away from sources of direct sunlight or excessive heat.

- Keep away from heat: Do not place the product near heat sources such as radiators, heat registers, stoves or other appliances that produce heat.

- Prevent damage: Do not place the product near other items that may damage it, such as naked flame sources (lit candles) or objects containing water (a vase or fi sh bowl).

- Keep openings clear: Take care that no objects fall and no liquids are spilled into any openings.

CAUTION

• Before using the Deep Fryer, make sure you know how it functions and how to operate it.
• Never use the appliance near curtains, walls, under cupboards or near other flammable materials.
• Never operate the Deep Fryer without oil or liquid fat as this will damage the appliance. This Deep Fryer is not suitable for use with solid fats as these may contain water.
  • The appliance housing can become very hot during use, take special care.

WARNING!

• Never add water to the oil!
• Do not touch hot surfaces, use handles or knobs.
• Extreme caution must be used when moving the Deep Fryer if it contains hot oil or other liquids.
  • Always keep lid closed while the Deep Fryer is cooking food. Use basket handle to raise and lower basket.

- BEWARE OF HOT STEAM WHEN OPENING LID.

- Wet food should be dried first with paper towels. Remove loose ice from frozen foods. Close the lid before food is lowered into the oil and while frying. Beware of oil splattering when food is put into the oil.

- Be sure the oil container is filled to at least the minimum oil level. Do not fill above the maximum. Do not operate appliance without oil or with an insufficient amount of oil. Never pour oil into heated oil container.

- Do not operate this appliance if the lid, the basket and the oil container are not completely dry.

- Do not leave appliance unattended while in use. Always disconnect it from the power outlet.

- Maintain the appliance in accordance with the instructions to ensure that it functions properly.

- Never operate the appliance by means of an external timer or separate remote-control system.

• Do not use the appliance if it has been dropped or if there are any visible signs of damage.
• Always ensure that hands are dry before handling the plug or switching on the appliance.
• A short power-supply cord is to be provided to reduce the risk resulting from becoming entangled in or tripping over a long cord.
• Longer detachable power-supply cords or extension cords are available and may be used if care is exercised in their use.

• If a long detachable power-supply cord or extension cord is used:

• The marked electrical rating of the cord or extension cord should be at least as great as the electrical rating of the appliance;

• If the appliance is of the grounded type, the extension cord should be a grounding 3-wire cord; and:
• The longer cord should be arranged so that it does not drape over the countertop or table top where it can be pulled on by children or tripped over unintentionally.

Polarized Plug: This appliance has a polarized plug (one blade is wider than the other 10).

To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician.

Do not attempt to modify the plug in any way.

The cord attachment at the base of the fryer is a magnetic connection designed to release quickly. This is to prevent a child or an impaired person from pulling the cord.

"This Side Up" indicates the correct position, the power cable should be inserted into the fryer.

Very little pressure is required when making this connection.

DO NOT force the plug into the socket.

- Always attach the breakaway cord to appliance first, then plug into wall outlet. To disconnect, turn the thermostat to the 'MIN' position, then remove plug from wall outlet.

Care and cleaning

WARNING: Always unplug the Deep Fryer from the electrical outlet before storing the unit or disassembling it for cleaning. Never immerse the unit in water or any other liquid.

CAUTION: DO NOT use abrasive cleaners of any kind on any part of your Deep Fryer. Abrasive cleaners or cleaning tools can damage the item.

WARNING Ethereal oils and organic solvents can attack plastic parts, e.g. lemon juice or the juice form orange peel, butyric acid, cleanser that contain acetic acid.

Do not allow such substances to come into contact the appliance parts.

• Wipe the surfaces with a soft cloth moistened with warm water and mild detergent. Then rinse with a soft cloth dampened with warm water. Dry thoroughly.
• DO NOT immerse the Deep Fryer or cord in water or any other liquid.

WARNING!

• Use extreme caution when opening the lid during or after cooking. Hot steam will escape and may cause scalding.
• Don't touch the inside of the appliance while it is operating.

To remove the replaceable fi Iters:

Your Deep Fryer is equipped with replaceable filters that help to prevent odors.

With time, the odor filters placed inside the lid lose their effectiveness and need to be replaced. A change of color from white to brown in the filter shows that they need to be changed. Replace filters after approximately 60 uses.

Please contact our after sales support for replacement fil Iters.

1. To replace the filters, remove the plastic filter cover by pressing the hook in the direction of the thermostat and timer knob, then raise it.
2. Insert the new black fi lter fi rst with the new white fi lter on top.
3. The filter cover must be placed over the black filter again.

SAVE THESE INSTRUCTIONS

Getting Started

Before fi rst use

1. Unpack your Deep Fryer and make sure all parts are in good condition and ready to use.
2. Remove the lid by the handle on top of the lid and take the frying basket, power cord and protective paper sheet out of the oil container 5.
3. Read all instructions.
4. It is highly recommended to clean the lid, casing, container and frying basket as described in the 'Care and Cleaning' section.
5. Position your Deep Fryer on a stable, secure, dry, heat resistant and level work surface and ensure the power cord is routed away from the Deep Fryer's heating surfaces.
6. The cord attachment at the base of the fryer is a magnetic connection designed to release quickly. Very little pressure is required when making this connection. Look for the words "This Side Up" when making this connection.
7. Before connecting to a power source, make sure your mains supply voltage is the same as indicated on the product label. Connect the plug to a suitable power outlet and make sure that the power cord does not overhang the work surface.

WARNING!

Overheating Protection

The Deep Fryer is fitted with a overheat protection.

If you should accidentally switch on your Deep Fryer when there is no oil or fat in it, the overheating protection is automatically turned on. The appliance is no longer ready to be used.

Only after the device has been left to cool down completely should the 'RESTART' button 8 on the front of the control element be pressed in order to use the Deep Fryer again.

NOTE: To press this you should use a plastic or wooden object that is the least 1" (4 cm) long.

Instructions

1. Make sure that the appliance is unplugged and switched off (the control lamps 1 and 2 are off).

2. Remove the lid using the handle.

P I e a s e e n s u r e t h a ly attached:

P r e s s t h e e n d s o f

Insert the brackets into wire hoops inside the basket, then pull the handle back so it clicks and locks into place.

1. Remove the frying basket. Add good quality oil into the oil container until it reaches between the 'MIN' and 'MAX' marks inside container.

DO NOT OVERFILL OR UNDERFILL.

1. Place the lid back on the Deep Fryer.

2. Attach the breakaway cord to the back of the appliance, then plug into wall outlet. The red control lamp 1 lights up.

3. Turn on the Deep Fryer by setting the temperature control knob 3 to the desired Temperature. The green control lamp 2 lights up. Once the set temperature has been reached, the green control lamp goes off.

NOTE: The temperature indicator light switches on and off several times during frying. This is normal and it indicates that the temperature is controlled by the thermostat and is being maintained.

1. Place food into the basket and open the lid.

N O T E : D o n o t o v e r

1. Carefully lower basket into oil.

2. Look through viewing window to see if the food has reached the desired color. If the food is ready, remove the lid, raise the basket and allow oil to drain 10 to 20 seconds into the oil container.

C A U T I O N : B e w a r e o

1. Remove the basket and place cooked food onto absorbent paper towels. When cooking is finished, shut down fryer by turning the temperature control knob 3 to the 'MIN' position and then remove plug from wall outlet.

NOTE: To preserve oil quality, do not add salt or spices to the food has been removed from the fryer.

Other Useful Information

Useful Hints for use

• Always remove the food remaining in the oil (e.g. pieces of French fries).
- Use high quality frying oil or frying grease.
- Do not use margarine, olive oil or butter, because they start to smoke at low temperatures.
• Liquid frying oil is recommended.

- All oils have a “smoke point” at a specific temperature. At the “smoke point,” the oil begins to break down and can have a foul odor or taste. The following oils have a high “smoke point” and are safe to use for deep frying: peanut, canola, corn, grape seed, safflower, sunflower and vegetable. Each kind of oil has a unique taste and nutrient makeup but all are safe to use for deep-frying.

- In order to reduce the acrylamide content of food containing starch (potatoes, cereals) the temperature during deep-fat frying should not exceed 340°F for a longer time. The frying time should be kept as short as possible and the food only fried until it turns golden yellow.

- Choose the right frying temperature and check the conditions of the food to be fried. A rule of thumb is that pre-fried foods require a higher temperature than raw foods.

- Due to their extremely low temperature, frozen foods inevitably lower the temperature of the oil. For best results, do not overload the basket with frozen foods.

- Follow the instructions on page 15 for approximate cooking times and temperatures.

- Frozen foods are frequently covered with a coating of ice crystals, which should be removed before frying. Lower the basket very slowly into the oil in order to ensure that oil does not boil over.

- When frying dough-like foods, scrape off the excess dough.

WARNING: Please note this important information if you intend to use fat!

- If you use fat, please divide it up into small pieces. Turn the thermostat to a low temperature and add the pieces slowly. Once the fat has melted and the correct oil level is reached you can set the desired temperature on the thermostat.

- Under no circumstances should you place fat in the frying basket.

Approximate Cooking Times

Food Type Temperature(°F)		Weight(g)	Time(min)
Whole shrimp 265 °F 200 3-5
Mushrooms 300 °F 300 4-6
Fillets 300 °F 300 5-7
Crumbed chicken 340 °F 250 12-14
Fish cakes 340 °F 300 3-5
Onions 375 °F 350 2-4
French fries 375 °F 400 8-10
Potato chips 375 °F 400 3-6

Note: Use this chart as a guide to deep frying times. Frying times may vary because of food temperature, quantity and size of pieces. Best results are obtained when food is cooked in small batches and size of pieces is uniform. When frying larger amounts, keep in mind that the food must be completely covered with cooking oil/fat after the frying basket has been lowered.

WARNING!

The deep fat frying basket must not be more than 2/3 FULL.

Making home-made French Fries

You will need: Potatoes, salt and freshly ground pepper.

TIP: Use vegetable or peanut oil for best results.

1. Heat oil in the Deep Fryer to 340 °F.
2. Cut the potatoes into uniform French Fry sticks (about 0.2 x 0.2 inch).
3. Dry the potato sticks completely and thoroughly.
4. Add the potato sticks into the basket and fry in small batches. Cook for approx. 3 minutes, remove and drain on layers of paper towels.
5. Increase the oil temperature to 375° F.
6. Add the potato sticks to the basket and fry in small batches for a second time for approx. 4 minutes.
7. Once they are golden and crispy, remove the French Fries and drain on fresh layers of paper towels.
8. Season to taste and serve immediately.

Responsible Disposal

At the end of its working life, do not throw this device out with your household trash. Electrical and electronic products contain substances that can have a detrimental effect on the environment and human health if disposed of inappropriately. Observe any local regulations regarding the disposal of electric products and dispose of it appropriately for recycling. Contact your local authorities for advice on disposal/recycling facilities in your area.

Discard old oil

If the oil is clouded or if the oil starts to foam or has a foul odor, taste, or smell, discard it. DO NOT pour oil down the sink. Oil will cool with water in the drain and congeal causing backups in your sink, septic system, or public sewer system. Oil can also be damaging to the environment. Oil can spread very thinly across water over a very large area changing the chemistry and health of the ecosystem. Thus, do not dispose the oil near lakes, streams, or watersheds.

The safest way to dispose of oil is by pouring it into a sealable metal container such as a coffee can, or gallon milk jug. Used cooking oil can also be recycled in some areas. If there is a recycle drop-off point in your area, check it to see if they will accept your oil so it could become useful again.

Specifications

Power: 1700 W

Voltage: 120V/60 Hz

Contenido

P R E C A U C I Ó N : T e n g a

* We recommend you keep the receipt with this warranty card

Location of purchase:

Description of malfunction:

Return your completed warranty card together with the faulty product to:

[e-mail]

MODEL: DF-036

01/2017

Toll-free hotline available from 10 am to 5 pm EST.

YEAR WARRANTY

ALDI INC. FULL WARRANTY CONDITIONS

Dear Customer:

The ALDI warranty is a full warranty offering you the following benefits:

Warranty period: 2 year from date of purchase.

6 months for movable parts and consumables under normal and proper conditions of use (e.g. rechargeable batteries).

Costs: Free repair/exchange or refund.

No transport costs.

ADVICE: Please contact our service hotline by phone, e-mail or fax before sending in the device. This allows us to provide support in the event of possible operator errors.

In order to make a claim under the warranty, please send us:

The faulty item with all component parts, the original receipt and the warranty card properly completed.

The warranty does not cover damage caused by:

Accident or unanticipated events (e.g. lightning, water, fire).

Improper use or transport.

Failure to follow the safety and maintenance instructions.

Other improper treatment or modification of the product.

After the expiration of the warranty period, you may wish to have your product repaired at your own expense. You will be notified of the repair costs in advance.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state but this warranty is not intended to exceed statutory minimum requirements beyond what is included above.

This warranty does not limit the statutory obligation of the seller arising from any implied warranties. The period of warranty can only be extended in accordance with applicable law.

Neither the service company nor ALDI will assume any liability for data or settings stored on any returned product.

TARJETA DE GARANTÍA

AMBIANO®

Freidora

Sus detalles:

Nombre:

Dirección:

E-Mail:

Fecha de compra*

[e-mail]

NO DEL MODELO: DF-036

01/2017

[e-mail]

MODEL: DF-036

01/2017

YEARS WARRANTY AÑOS DE GARANTÍA
