USER MANUAL FJ192R2 FREEJET, FJ192R2 FREEJET HOOVER

PRINTED IN P.R.C. 0565 5324 GOVER® GENERATION FUTURE

HOOVER

FREEJET 3in1

GENERATION FUTURE

INSTRUCTION MANUAL

ENGLISH GB

FRANÇAIS FR

ITALIANO IT

DEUTSCH DE

PORTUGUÉS PT

ESPAÑOL ES

NEDERLANDS NL

POLSKI PL

ΕΛΛΗΝΙΚΑ GF

РУССКИЙ RU

SLOVENCINA SI

DANSK DK

SUOMI FI

NORSK NC

SVENSKA SE

HRVATSKI HR

ČESKY CZ

Exterior view of a modern white HOOVER vacuum cleaner (no visible text or symbols on body)

1 C B M N O P 2 3 Q R A D E F J G H I K L

Diagram showing a device being inserted into a cylindrical component, with a downward arrow indicating the insertion direction (no text or symbols present)

Technical line drawing of a mechanical clamp or bracket assembly with directional arrows indicating movement (no text or symbols)

Line drawing of a hand holding a handheld device with a spring scale, no text or symbols present

Line drawing of hands holding a handheld device with a tool, no text or symbols present

Line drawing of a person's seatbelt buckle being adjusted, showing bandage and grip mechanism (no text or symbols)

Line drawing of a hand using a handheld tool to lift a cylindrical object into a container (no text or symbols)

Technical line drawing of a mechanical assembly with internal components (no text or symbols)

Diagram of a hand holding a device with directional arrows indicating movement or force (no text or symbols present)

Line drawing of a blender with a downward arrow indicating compression or disassembly (no text or symbols)

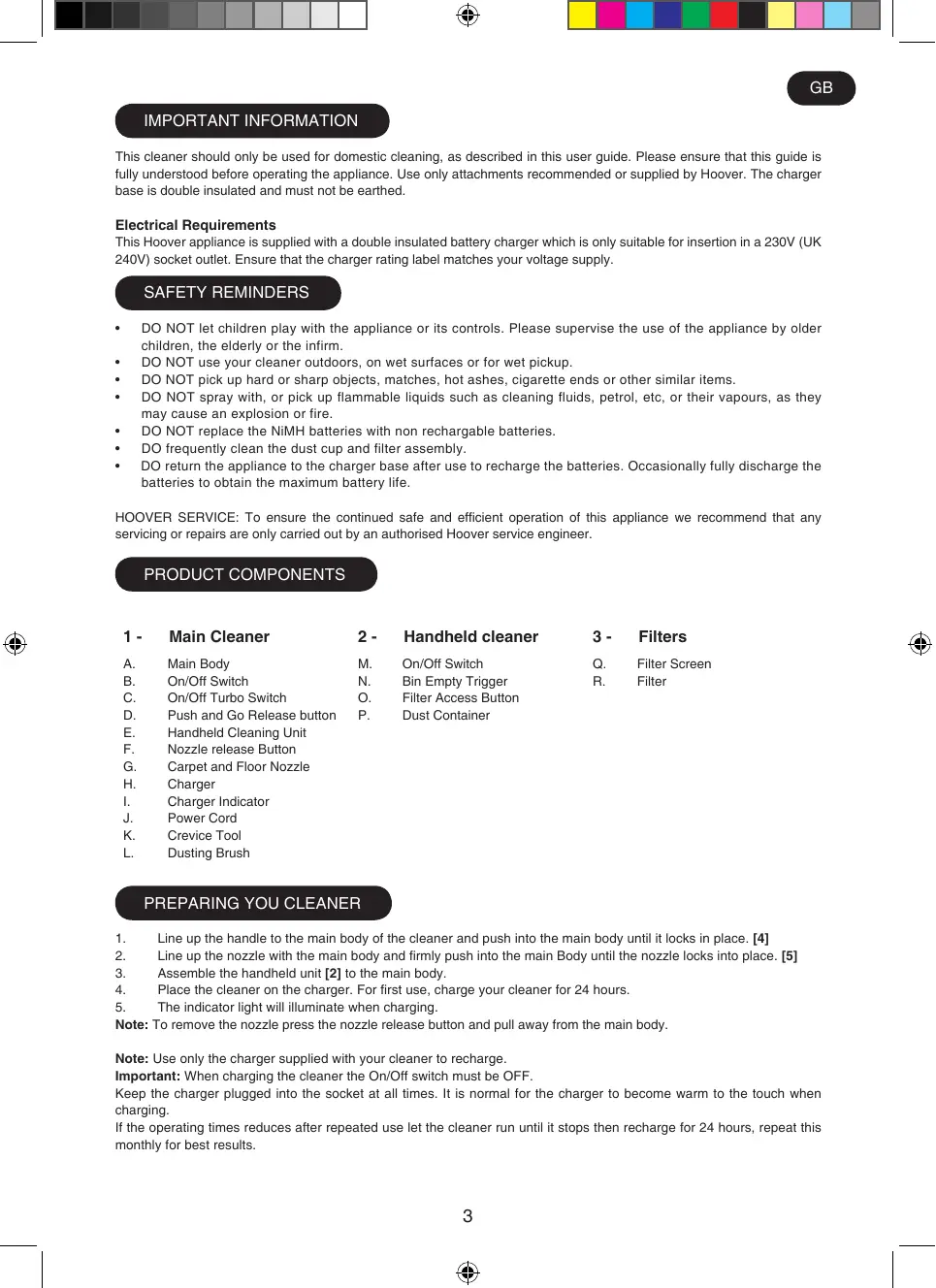

IMPORTANT INFORMATION

This cleaner should only be used for domestic cleaning, as described in this user guide. Please ensure that this guide is fully understood before operating the appliance. Use only attachments recommended or supplied by Hoover. The charger base is double insulated and must not be earthed.

Electrical Requirements

This Hoover appliance is supplied with a double insulated battery charger which is only suitable for insertion in a 230V (UK 240V) socket outlet. Ensure that the charger rating label matches your voltage supply.

SAFETY REMINDERS

• DO NOT let children play with the appliance or its controls. Please supervise the use of the appliance by older children, the elderly or the infirm.
  • DO NOT use your cleaner outdoors, on wet surfaces or for wet pickup.
  • DO NOT pick up hard or sharp objects, matches, hot ashes, cigarette ends or other similar items.
• DO NOT spray with, or pick up flammable liquids such as cleaning fluids, petrol, etc, or their vapours, as they may cause an explosion or fire.
  • DO NOT replace the NiMH batteries with non rechargeable batteries.
  • DO frequently clean the dust cup and filter assembly.
• DO return the appliance to the charger base after use to recharge the batteries. Occasionally fully discharge the batteries to obtain the maximum battery life.

HOOVER SERVICE: To ensure the continued safe and efficient operation of this appliance we recommend that any servicing or repairs are only carried out by an authorised Hoover service engineer.

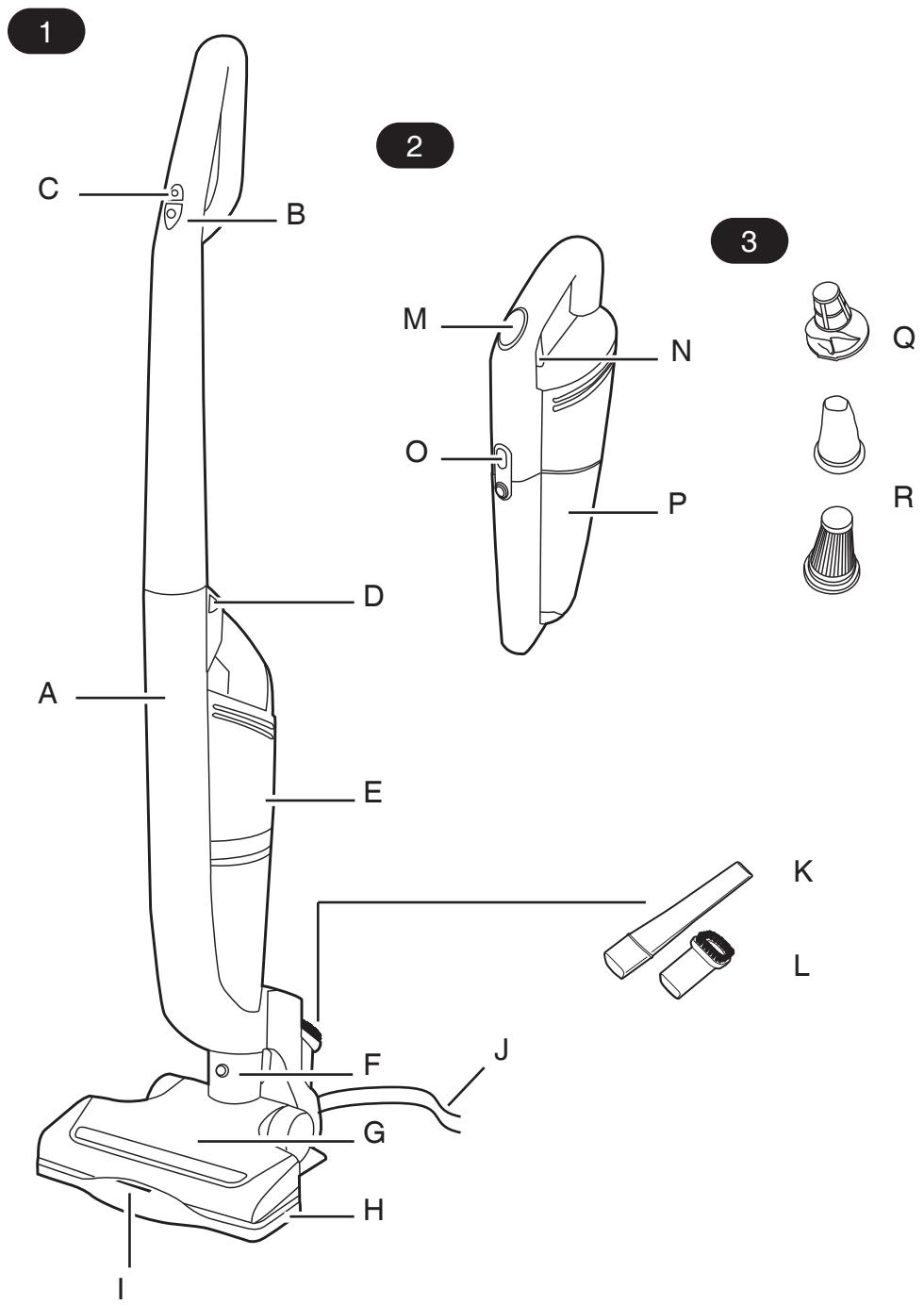

PRODUCT COMPONENTS

1 - Main Cleaner

A. Main Body
B. On/Off Switch
C. On/Off Turbo Switch
D. Push and Go Release button
E. Handheld Cleaning Unit
F. Nozzle release Button
G. Carpet and Floor Nozzle
H. Charger
I. Charger Indicator
J. Power Cord
K. Crevice Tool
L. Dusting Brush

2 - Handheld cleaner

M. On/Off Switch

N. Bin Empty Trigger

O. Filter Access Button

P. Dust Container

3 - Filters

Q. Filter Screen

R. Filter

PREPARING YOU CLEANER

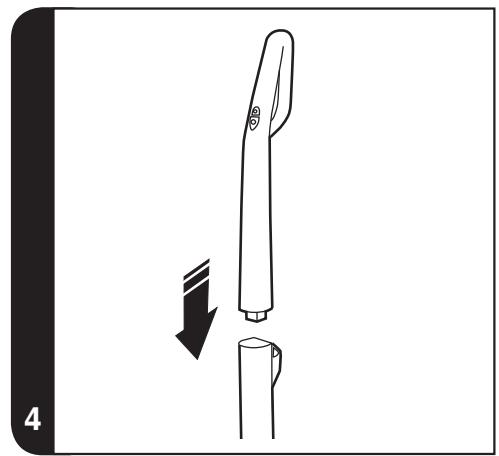

1. Line up the handle to the main body of the cleaner and push into the main body until it locks in place. [4]

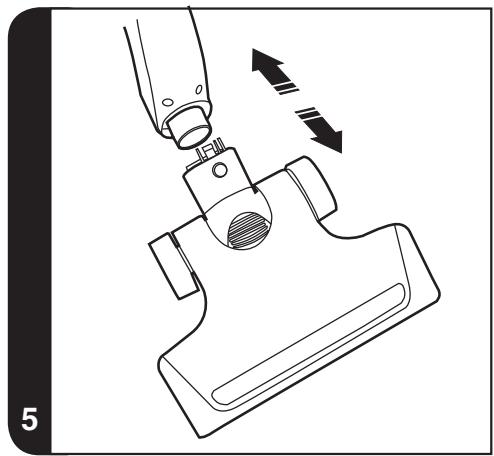

2. Line up the nozzle with the main body and firmly push into the main Body until the nozzle locks into place. [5]
3. Assemble the handheld unit [2] to the main body.
4. Place the cleaner on the charger. For first use, charge your cleaner for 24 hours.
5. The indicator light will illuminate when charging.

Note: To remove the nozzle press the nozzle release button and pull away from the main body.

Note: Use only the charger supplied with your cleaner to recharge.

Important: When charging the cleaner the On/Off switch must be OFF.

Keep the charger plugged into the socket at all times. It is normal for the charger to become warm to the touch when charging.

If the operating times reduces after repeated use let the cleaner run until it stops then recharge for 24 hours, repeat this monthly for best results.

USING YOUR CLEANER

Main cleaner

1. Turn the cleaner on by pressing the On/Off button. [1B]
2. Set the On/Off Turbo switch to the desired cleaning mode. [1C]

CARPET: Switch Turbo Nozzle ON (LED will be ON.)

HARD FLOOR: Switch Turbo Nozzle OFF (LED will be OFF.)

Handheld Cleaner

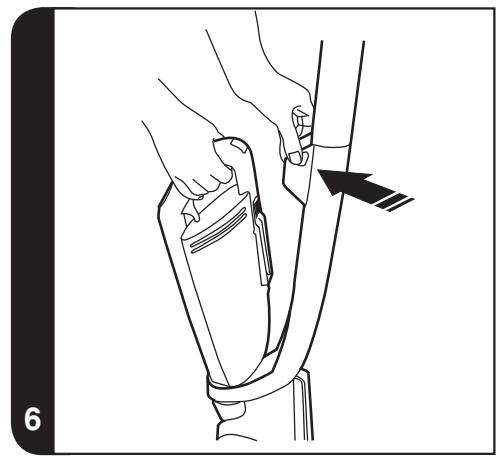

1. Press the Push and Go button and lift the handheld unit from the cleaner main body. {6}
2. Turn the handheld cleaner on by pressing the On/Off button. [2M]

ACCESSORIES

Crevice Tool and Dusting brush

Both accessories are stored at the rear of the charger. Both fit directly onto the handheld unit.

CLEANER MAINTENANCE

Emptying the Dust Container

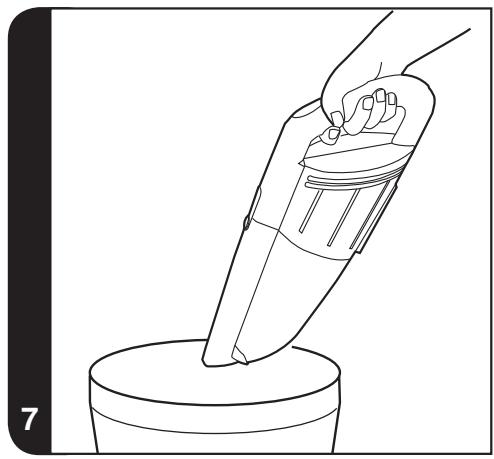

Hold the unit over a bin and pull the bin empty trigger [2N] to instantly empty the dust container. [7]

Cleaning the Filters

1. Release the handheld unit from the main body of the cleaner.

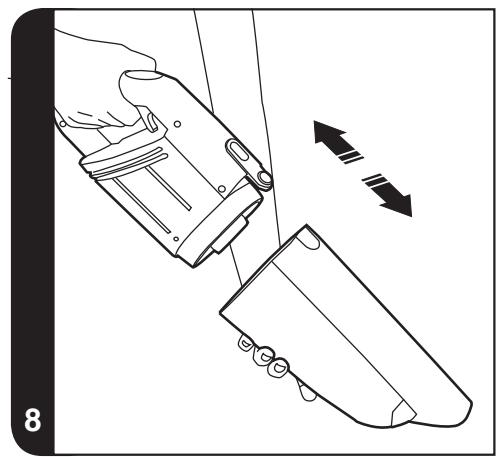

2. Press the filter access button [20] and remove the handle section from the dust container. [8]

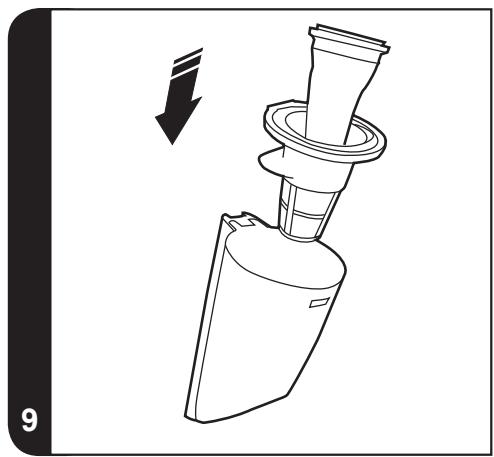

3. Use the filter handle to remove the filter and filter screen from the dust container. [9]
4. Wash the filter and screen in hand warm water. Once thoroughly dry return to the dust container.
5. Reassemble the handheld unit and return to the cleaner main body.

Note: Do not use hot water or detergents when cleaning the filters. In the unlikely event of the filters becoming damaged, fit a genuine Hoover replacement. Do not try and use the product without a filter fitted.

Changing the Agitator

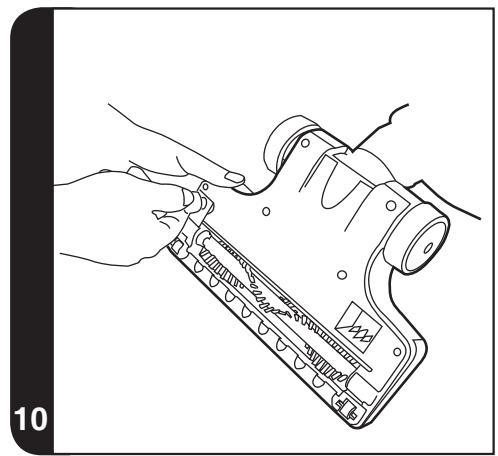

1. Using a coin turn the lock to the open position. [10]
2. Remove the agitator retainer.

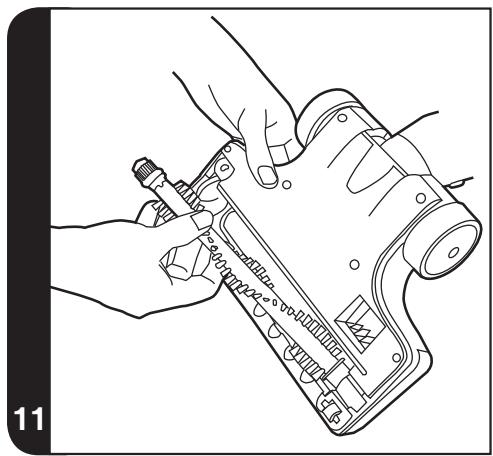

3. Unloop the belt and lift the agitator out of the cleaner. [11]
4. Loop the belt around the new agitator and return to its original position. Replace the agitator retainer and lock in place.

End of Product Life Battery Disposal

If the cleaner is to be disposed of the batteries should be removed. Used batteries should be taken to a recycling station and not disposed with household waste.

IMPORTANT: Always fully discharge the batteries before removal.

1. Run the unit until the batteries run flat.
2. Release the handheld unit from the main body of the cleaner.
3. Press the filter access button and remove the handle section from the dust container.

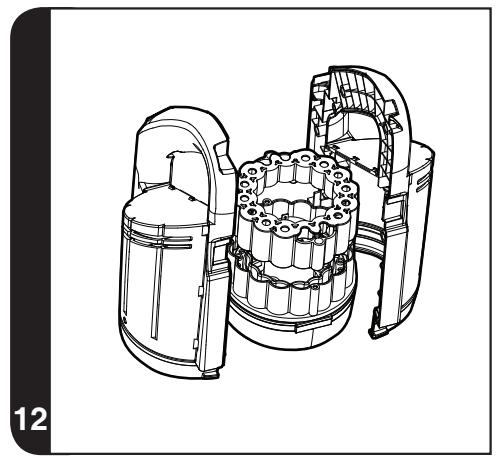

4. Remove 6 screws and open the unit. [12]
5. Remove the motor/battery housing and disconnect the cables.
6. Remove the batteries from the housing.

Note: Should you experience any difficulties in dismantling the unit or for more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service.

HOOVER SPARES AND CONSUMABLES

Always replace parts with genuine Hoover spares. These are available from your local Hoover dealer or direct from Hoover. When ordering parts always quote your model number.

• Pre motor Hepa Filter - S93 – 35600860
• Agitator - Y24 - 35600861

The Environment:

This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The symbol on the product indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal. For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Symbol of a trash bin crossed with two crossed lines, no text or numbers present

YOUR GUARANTEE

The guarantee conditions for this appliance are as defined by our representative in the country in which it is sold. Details regarding these conditions can be obtained from the dealer from whom the appliance was purchased. The bill of sale or receipt must be produced when making any claim under the terms of this guarantee.

Subject to change without notice.
