Product Type	Wine Cellar
Model	EA31EC-43-T
Brand	Sunwind
Capacity	43 bottles (standard 750 ml)
Temperature Range	5°C - 18°C
Number of Zones	Single zone
Installation Type	Freestanding or built-in (check clearances)
Dimensions (H x W x D)	82 cm x 60 cm x 57 cm
Weight	32 kg
Power Supply	220-240 V, 50/60 Hz
Energy Consumption	~ 100 kWh/year
Noise Level	< 40 dB(A)
Lighting	LED interior light
Shelves	6 wire shelves, sliding
Door Type	Solid door with handle
Reversible Door	Yes
Lock	Yes (key included)
Vibration Dampening	Compressor vibration dampening system
UV Protection	Heat-reflecting glass door (if applicable)
Climate Class	N-ST (16°C - 38°C)
Refrigerant	R600a
Controls	Electronic touch panel with digital display
Temperature Memory	Retains settings after power loss
Defrosting	Automatic defrost
Cleaning	Use mild soap and water; avoid harsh chemicals
Safety Features	Automatic shutdown if overheated; child lock (optional)
Spare Parts	Available through authorized service centers

Frequently Asked Questions - EA31EC-43-T Sunwind

What is the ideal temperature for storing red wine?

For red wine, set the temperature between 12°C and 18°C. Lighter reds are best at the lower end, while full-bodied reds prefer warmer conditions. Use the control panel to adjust as needed.

How many bottles can I store in this wine cellar?

This model has a capacity of 43 standard 750 ml wine bottles. Shelves are designed to hold bottles securely, and you can store different sizes by adjusting shelf positions.

Can I install the wine cellar under a counter?

Yes, this unit is designed for both freestanding and built-in installation. Ensure proper ventilation: leave a gap of at least 5 cm at the back and sides for airflow.

How do I change the door swing direction?

The door is reversible. To change the swing, remove the hinges, transfer them to the opposite side, and reattach the door. Detailed instructions are in the user manual.

What does the alarm signal mean?

An alarm may sound if the door is left open too long or the internal temperature exceeds the set range. Check the door seal and ensure the settings are correct. The alarm stops automatically when conditions normalize.

How often should I clean the wine cellar?

Clean the interior every 3-6 months with a soft cloth and mild detergent. Avoid abrasive cleaners. Wipe down shelves and the door seal. Disconnect the power before cleaning.

Is it safe to store sparkling wine or Champagne?

Yes, sparkling wines can be stored at 5-10°C. Ensure the bottles are laid flat to keep the cork moist. This cellar maintains consistent humidity to preserve cork integrity.

What should I do if the wine cellar is noisy?

First, check that the unit is level. Adjust the feet if needed. A slight hum from the compressor is normal. If noise persists, ensure there's no vibration against walls or cabinets. Contact support if abnormal.

How do I save energy with this wine cellar?

Place the unit away from heat sources and direct sunlight. Keep the door closed as much as possible. Set the temperature to the recommended range (10-14°C for general storage). Clean the condenser coils annually.

What is the warranty period for this product?

Sunwind offers a 2-year warranty for parts and labor. Register your product online to activate. Coverage includes manufacturing defects; not damage from misuse or improper installation.

USER MANUAL EA31EC-43-T Sunwind

NO User Manual

EN Instruction Manual

IMPORTANT!

1. Removable shelves
2. Adjustable legs
3. Water drawer
4. Glass door
5. Interior light on/off
6. Adjustable temperature control

7.display

The cabinet holds 12 standard wine bottles (750 ml).

Appliance parts 28 bottles

1. Removable shelves
2. Adjustable feet
3. Water tray
4. Glass door
5. Interior light on/off
6. Adjustable temperature control

7. Display

Installation

Side	2	inches.	(50mm)
Topp	2	inches.	(50mm)
Bakside	2	inches.	(50mm)

NOTE!

Condensation inside the cavity / glass surface

Supplier name	Euro-Asia Electric Manufacturing (Holdings) Ltd
Model number EA31EC-43-T-BK
Rated voltage 220-240V~ 50/60Hz
Rated power 70W
Storage volume 43L
Category	Category
Climate class (~) SN
Energy efficiency class E
Power consumption (*) 0.8kWh/24h – 292/year
Design temperature (^)	18 °C
Noise Level Below 39dB(A)

10

Supplier name	Euro-Asia Electric Manufacturing (Holdings) Ltd
Model number EA31EC-75-T-BK
Rated voltage 220-240V~ 50/60Hz
Rated power 100W
Storage volume 75L
Category	Category
Climate class (~) SN
Energy efficiency class F
Power consumption (*) 1.01kWh/24h –	368.65/year
Design temperature (^)	18 °C
Noise Level Below 39dB(A)

10

Energy saving tips

When using this appliance, always exercise basic safety precautions, including the following:

1) Read all of the instructions before using this appliance. 2) This appliance must be placed on a level surface. 3) Never unplug your appliance by pulling on the power cord. Always grasp the plug firmly and pull straight out from the outlet. 4) If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard. 5) Unplug your appliance before cleaning or before making any repairs. Note: Should there be any reason this product requires service, it must be performed by a certified technician. 6) If your appliance is not being used, we recommend that you remove the door and leave the shelves in place. This will reduce the possibility of danger to children. 7) This appliance should not be recessed or built into an enclosed cabinet. It is designed for freestanding installation only. 8) Do not operate your appliance in the presence of explosive fumes. 9) Do not store food in the appliance as the interior temperature may not be cool enough to prevent spoilage.

SAVE THESE INSTRUCTIONS

DANGER

Risk of child entrapment. Before you throw away your old appliance, take off the doors. Leave the shelves in place so that children may not easily climb inside.

WARNING

Keep ventilation openings in the appliance enclosure clear of obstruction.

Do not use electrical appliances inside the storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

TO AVOID A HAZARD DUE TO INSTABILITY OF THE APPLIANCE, IT MUST BE FIXED IN ACCORDANCE WITH THE INSTRUCTION.

Parts

(Photo shown may vary from the product.)

1. Removable Shelves
2. Leveling Legs (4)
3. Water tray
4. Glass See-through Door (door frame may vary per model purchased)
5. Interior light switch
6. Adjustable Temperature Control
7. LED display

The appliance is suitable to hold 28 standard size wine bottles (750ml).

Installing Your Appliance

Unpacking Your Appliance

1. Remove all packaging material. This includes the base and all adhesive tape holding the cooler accessories inside and outside.
2. Inspect and remove any remains of packing, tape or printed materials before powering on the unit.

Leveling your appliance

Your appliance has 4 leveling legs. After properly placing your appliance in its final position, you can level your appliance.

Leveling legs can be adjusted by turning them clockwise to raise your appliance or by turning them counterclockwise to lower your appliance.

Install the legs by screwing in the legs into the preset screw holes. (Please note that the leg which stands on the hinge is the shorter leg.)

Proper Air Circulation

To assure your appliance works at the maximum efficiency it was designed for, you should install it in a location where there is proper air circulation and electrical connections.

The following are recommended clearances around the cooler:

Sides....2 inches. (50mm)

Top.....2 inches. (50mm)

Back .....2 inches. (50mm)

Do not over fill your cooler for proper internal air circulation.

NOTE: Allow enough space in the front of the unit to open the door to 120° .

Electrical Requirement

Make sure there is a suitable power outlet (220-240 Volts, 15 Amps outlet) with proper earthing to power the appliance.

Avoid the use of two-pin adapters or cutting off the third earthing pin in order to accommodate a two-plug outlet. This is a dangerous practice since it provides no effective grounding for the cooler and may result in shock hazard.

Use of Extension Cords

Avoid the use of an extension cord because of potential safety hazards under certain conditions. If it is necessary to use an extension cord, use only a 3-wire extension cord that has a 3-blade grounding plug and a 3-slot outlet that will accept the plug. The marked rating of the extension cord must be equal to or greater than the electrical rating of the appliance (2 Ampere).

Installation Limitations

Do not install your appliance in any location not properly insulated or heated, e.g., garage, etc.

Select a suitable location for the appliance on a hard, even surface away from direct sunlight or heat sources, e.g., radiators, baseboard heaters, cooking appliances, etc. Any surface unevenness should be corrected with the leveling legs located on the front and rear bottom corners of the cooler. Avoid placing the unit where there may be electrical interference.

Your cooler is designed for free-standing installation only. It is not designed for built-in application.

NOTE: To minimize the risk of rusting, leakage, and insulation damage, avoid placing the unit in a place where heavy moisture is present. Under no circumstances spill or directly apply water onto or into the unit.

Installing Air Filter

The filter should be installed on the ventilation located at the back of the unit.

1. Place the hook into the slot way 2. Whirl the filter according to arrow instructions to place the hook in the slot.
2. Please clean the filter regularly.

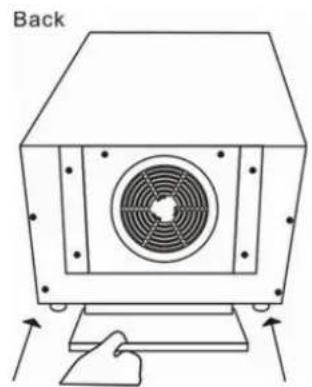

Installing Water Tray

The purpose of the water tray is to receive the condensed water drained from the cavity. The collected water will be self-evaporated, so there is no need to remove the water manually.

To install the water tray, simply slide it in along the track located beneath the cabinet body. The tray should be slid in from the back of the cabinet.

CAUTION

Condensation inside the cavity / glass surface

During normal operation, condensation may accumulate in the lower cavity due to the high relative humidity of the surrounding environment. This condensation should be wiped away with a clean, dry towel.

CHILD SAFETY

To avoid the risk of injury or entrapment, the unit door should be removed when the product is not in use.

Never allow children to operate, play with, or crawl inside the appliance.

SERVICE AND REPAIR

Do not attempt to service or repair any internal element of the unit or its power supply cord. If the supply cord is damaged, it must be replaced by the supplier, its service agent, or similarly qualified persons in order to avoid a hazard.

Cooler Features & Use

Temperature Adjustments:

Your appliance has electronic temperature control on the front of the unit. You can set the temperature of your appliance to any setting you desire. The temperature will range from 4°C to 22°C. When initially turned on, the LED will show the ambient temperature, and the default setting is 10°C. The LED will then display the internal temperature.

NOTE: White wine temperature is cooler than red wine temperature.

By pressing the (+) temperature button on the display, you can increase the temperature, and pressing the (-) temperature button will lower the temperature. Your cooler also has a light for your viewing pleasure. A light switch on the control panel will activate the light manually. Under normal operation, it is best for the light to remain off.

Please note that the actual cabinet temperature of this unit is dependent on the ambient temperature. You may set the cabinet temperature within range, but the unit may not reach the preset temperature.

For this model, when the ambient temperature is 25°C, the lowest temperature that can be reached is 11°C. When the ambient temperature is 18°C, the cabinet temperature can reach approximately 4°C.

Note: The display temperature ranges from 0°C to 37°C. Thus, when the cooler is installed, if the ambient temperature is higher than 37°C or lower than 0°C, the display will show "--" until the cabinet has cooled down to 37°C or warmed up to 0°C. When the cooler is started, the temperature display

will show the ambient temperature.

When the ambient temperature is below the pre-set temperature, the cellar will not operate until the ambient temperature increases to higher than the pre-set temperature.

Proper Cooler Care and Cleaning

Cleaning and Maintenance

Warning: To avoid electric shock, always unplug your cooler before cleaning. Ignoring this warning may result in death or injury.

Caution: Before using cleaning products, always read and follow the manufacturer's instructions and warnings to avoid personal injury or product damage.

General: Prepare a cleaning solution of 3-4 tablespoons of baking soda mixed with warm water. Use a sponge or soft cloth dampened with the cleaning solution to wipe down your cooler.

Rinse with clean warm water and dry with a soft cloth.

Do not use harsh chemicals, abrasives, ammonia, chlorine bleach, concentrated detergents, solvents, or metal scouring pads. Some of these chemicals may dissolve, damage, and/or discolor your cooler.

Power Interruptions

Occasionally, there may be power interruptions due to thunderstorms or other causes. Remove the power cord from the AC outlet when a power outage occurs. When power has been restored, re-plug the power cord into the AC outlet.

Vacation and Moving Care

For long vacations or absences, unplug the unit, empty contents from the cooler, and clean the appliance and door gaskets according to the "General Cleaning" section. Prop doors open so air can circulate inside. When moving, always move the appliance vertically. Do not move the unit lying on its side.

Wine appears too warm

Frequent door openings.

Allow time for recently added wine to reach desired temperature.

Check gaskets for proper seal.

Adjust temperature control to colder setting.

Wine temperature is too cold

If temperature control setting is too cold, adjust to a warmer setting.

Cooler runs too frequently

This may be normal to maintain constant temperature during high temperature and humid days.

Doors may have been opened frequently or for an extended period of time.

Check gasket for proper seal.

Check to see if doors are completely closed.

Moisture build up on interior or exterior of the cooler:

This is normal during high humidity periods.

Prolonged or frequent door openings.

Check door gaskets for proper seal.

Cooler door does not shut properly:

Level the cooler.

Check for blockages e.g. wine bottles, shelves.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

SPECIFICATION EA31EC-75-T-BK

Supplier name	Euro-Asia Electric Manufacturing (Holdings) Ltd
Model number EA31EC-75-T-BK
Rated voltage 220-240V~ 50/60Hz
Rated power 100W
Storage volume 75L
Category	Category
Climate class (~) SN
Energy efficiency class F
Power consumption (*) 1.01kWh/24h –	368.65/year
Design temperature (^)	18 °C
Noise Level Below 39dB(A)

10

SPECIFICATION EA31EC-43-T-BK

Supplier name	Euro-Asia Electric Manufacturing (Holdings) Ltd
Model number EA31EC-43-T-BK
Rated voltage 220-240V~ 50/60Hz
Rated power 70W
Storage volume 43L
Category	Category
Climate class (~) SN
Energy efficiency class E
Power consumption (*) 0.8kWh/24h – 292/year
Design temperature (^)	18 °C
Noise Level Below 39dB(A)

10

Remarks:

(~) This appliance is intended to be used at an ambient temperature between 10 °C and 32 °C. (*) Actual energy consumption will depend on how the appliance is used and where it is located. (A) Intended for the storage of beverages at a temperature warmer than 14°C (at the max. ambient of 32°C)

Tip to energy saving

(1). Disconnect the appliance when it is not in use. (2). Turn off the interior light when the appliance is not for beverage displaying purpose. (3). Never block the ventilation openings of the appliance, either on the inside or its exterior. It is vital to keep your appliance well ventilated. (4). Cooling fan is located at the back of appliance, clean the dust accumulated on the air inlet area regularly. (5). The temperature of the appliance will be less cooler at the top of the cooling zone and cooler at the bottom. (6). Pre-cool the wine for 2 hours in refrigerator before storing inside the appliance. (7). The appliance should be located in cool area. And should not be exposed to direct sunlight, continuous heat or extremes of temperature. (8). The frequency to open the door should be reduced to minimum especially in the hot and humid environment. (9). For the bottles that are going to be drunk soon, move them from the bottom to the top shelf.
