El-dorado Pro - Toilet Sunwind - Free user manual and instructions

Product Type	Portable Toilet
Model	El-dorado Pro
Brand	Sunwind
Dimensions (H x W x L)	40 x 40 x 40 cm
Weight	5 kg
Material	High-density polyethylene (HDPE)
Fresh Water Tank Capacity	15 L
Waste Tank Capacity	20 L
Flush Type	Manual piston pump
Power Source	None (manual operation)
Seat Material	Polypropylene
Maximum Weight Capacity	150 kg
Usage	Indoor/Outdoor, camping, RV, boat
Maintenance Cleaning	Use mild soap and water; rinse with vinegar solution to prevent odors
Safety Features	Non-slip base, child lock on seat lid
Included Accessories	Toilet paper holder, water fill cap, waste tank handle
Spare Parts Available	Seals, pump kit, tank lids, seat cover
Warranty	2 years

Frequently Asked Questions - El-dorado Pro Sunwind

How do I clean the El-dorado Pro toilet?

Clean the toilet with mild soap and water. For the waste tank, use a vinegar solution (1 part vinegar to 10 parts water) to neutralize odors. Avoid harsh chemicals as they may damage seals.

What is the waste tank capacity?

The waste tank has a capacity of 20 liters. It should be emptied regularly to prevent overflow and odors.

Can I use the toilet in a marine environment?

Yes, the El-dorado Pro is suitable for marine use. Ensure it is securely fastened and use only marine-grade toilet chemicals to break down waste.

How do I operate the flush?

Use the manual piston pump located on the side. Push down to flush water from the fresh tank into the bowl.

What spare parts are available?

Common spare parts include seals, pump kits, tank lids, and seat covers. Contact Sunwind or authorized retailers.

How often should I replace the seals?

Seals should be inspected every 6 months and replaced if cracked or leaking. Regular maintenance prolongs the toilet's life.

What chemicals can I use in the waste tank?

Use formaldehyde-free toilet chemicals for odor control and waste breakdown. Follow the manufacturer's dosage instructions.

Can I sit on the toilet normally?

Yes, the toilet is designed for standard use with a maximum weight capacity of 150 kg. Ensure it is placed on a stable surface.

How do I empty the waste tank?

Remove the waste tank from the base, carry it to a designated dump station, and pour out the contents. Rinse with water after emptying.

Is the toilet easy to transport?

Yes, it weighs only 5 kg and has a compact design. Use the integrated handles for easy carrying.

USER MANUAL El-dorado Pro Sunwind

Maintenance

Combustion chamber

Open the buckle/lever.

Pull out the drawer.

5.

5.

Insert a bag to ensure all waste falls into the combustion chamber.

Tips

Supplement for service personnel

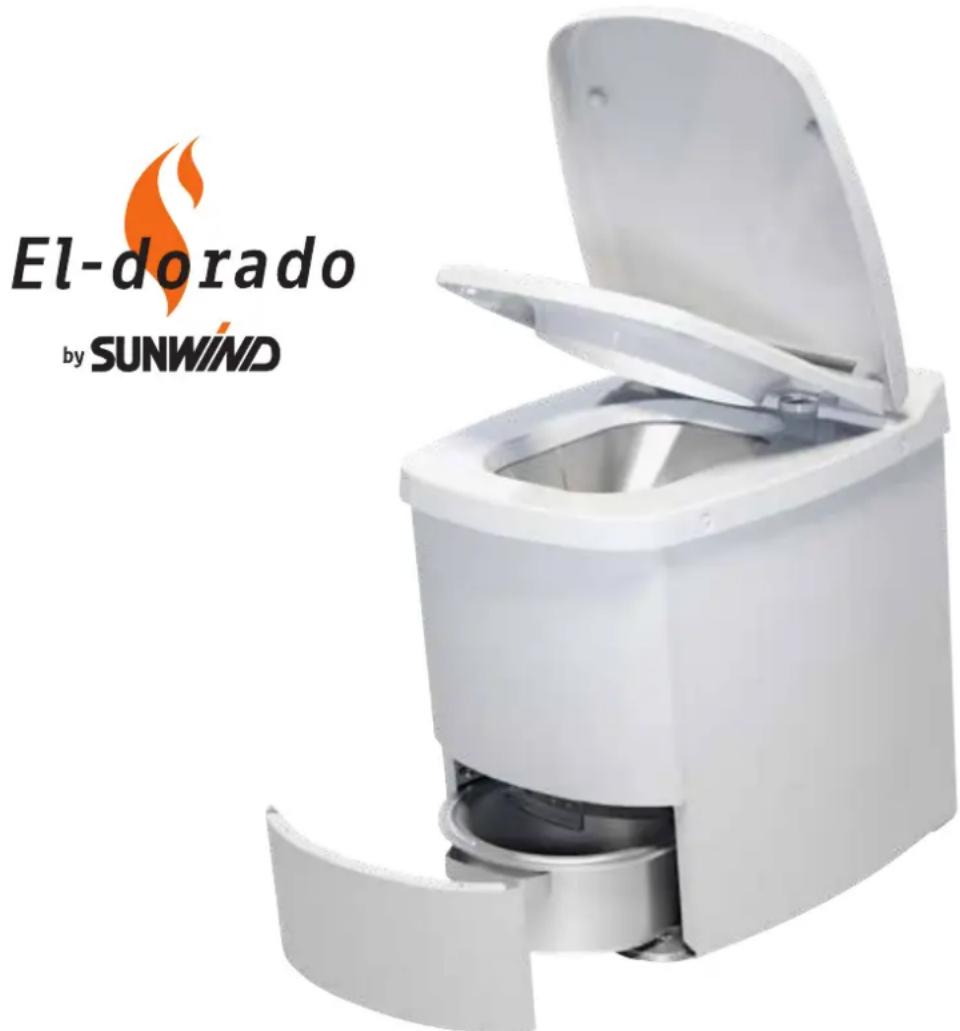

CONGRATULATIONS ON YOUR NEW TOILET!

The Sunwind combustion toilet's design is founded on established concepts for combustion of excrements. Operational safety and reliability are among the major advantages of this toilet. The toilet is composed of high-quality steel, and electrical components are limited to what is necessary to maintain function and reliability.

The Sunwind combustion toilet is a thoroughly tested and solid product that you will enjoy for several years, if the toilet is installed and used appropriately. Please read the instructions carefully and keep this manual with the toilet for future reference.

Please follow our advice on installation, maintenance, and cleaning. Spare parts are available through our retailers across the country; updated contact information can be found at www.sunwind.no at all times. After installing the toilet, ongoing maintenance mainly consists of rinsing the inner ash pot in hot water a few times per year. Once a year, the fan blades should also be removed and cleaned with regular detergent and hot water. We recommend vacuuming the inside of the toilet once it is open. Please see the paragraph regarding maintenance for further instructions on how to perform this.

Externally, the toilet is cleaned as and when needed.

Important safety information WARNING!

• To avoid electric shock, always ensure that the toilet is unplugged prior to moving or cleaning it.
• Maintenance must only be performed when the toilet's power plug has been disconnected from the electric socket, and only after it has cooled down.
• Please read the instructions carefully.
• Ensure that the toilet is only plugged into a grounded outlet providing a minimum of 10A.
• Do not use any extension cords, power strips, or multi-outlet adapters.
• When connecting the toilet to a 10A outlet, no other appliances can be connected to the same circuit. Please consult your electrician if in doubt.
• The toilet must be installed indoors.
• Do not cover the toilet.
• Unplug the toilet from the electric socket when it is not being used for an extended period of time. • Take extra care when young children are around.
• Do not let children play with the toilet or operate the toilet on their own.
• Children under the age of 8 should be supervised when using the toilet.
• Should damage to a cable occur, this must be repaired by the manufacturer or by a qualified person.
• The toilet must not be used or placed near flammable materials, gases or liquids.
• The toilet must be placed on an even and stable surface.
• Please be aware that some parts of the toilet may become very hot and cause burns if touched.
• Do not place the toilet within the immediate vicinity of a shower, sink, tub, or pool.
• Never use extension cords, as this may cause heat generation in the cable and cause fires.
• Ensure that the electric cord is not pinched under or behind the toilet.
• The toilet is not intended for use by people with physical or mental disabilities.
• Anyone using the toilet should be instructed on how to use it.
• The toilet is intended for combustion of human faeces and urine only. Never throw any objects or other waste in the toilet.
• The excrement of livestock will not incinerate properly, and will petrify if thrown in the toilet.
• ALWAYS place a bag in the toilet prior to each visit.
• The toilet should be emptied at least once a week; never empty warm ashes along with flammable objects.
• Never attempt to insert your hands or other items into the combustion chamber.

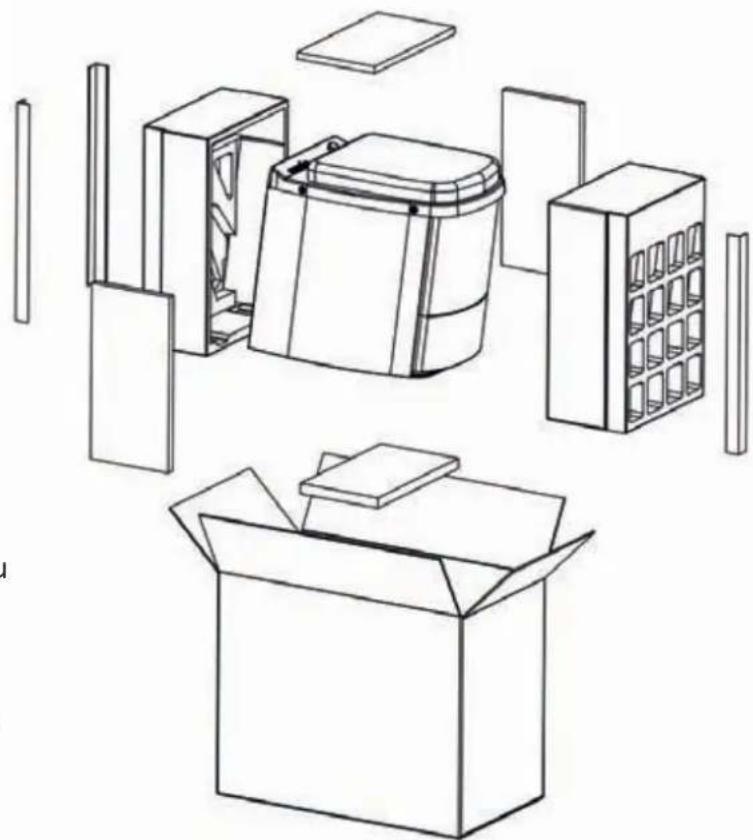

Unpacking

Please be careful when unpacking the toilet. Do not lift the toilet by its seat. Lift the toilet out of the box by grabbing the side plates. We would recommend that two people lift the toilet together.

Prior to installation:

After unpacking the toilet, please ensure that no damage has occurred during transport. Should you find any visible damage to the product, contact your dealer as soon as possible.

Keeping the packaging for future transport of the toilet may be beneficial. Should you wish to discard the packaging, please ensure that it is disposed of appropriately. Keep any plastic packaging away from children.

Please read the entire manual carefully before using the toilet, and keep these instructions for future reference or in case of resale. You can also always find updated information at www.sunwind.no.

Warranty

There is a 5-year warranty on the toilet, and a 2-year warranty on electronics and wear parts. The toilet is intended for use at cabins/second homes; it is NOT suitable for permanent residencies, public assembly halls, workplaces, kindergartens, schools, etc.

The warranty applies from the day of purchase, and only with a valid receipt. The warranty covers manufacturing defects and faulty components. Eventual repairs must be performed by authorised personnel only. Simple maintenance may be performed as instructed by this manual.

Should any malfunction of a Sunwind combustion toilet occur during the warranty period, which is not caused by inappropriate installation, use, or handling, this will be covered by the warranty. The warranty does not apply for damage during transport or due to lightning strikes or other natural disasters. Please contact your dealer or Sunwind Gylling AS directly should you have a malfunction problem with the toilet.

IMPORTANT!

Should the toilet need servicing, it must be properly cleaned before handing it in.

Function

The Sunwind combustion toilet is designed to combust faeces/urine and paper. Do not dispose of any other items in the toilet. A bag must be inserted prior to each visit. The bag ensures that the waste is sent directly into the combustion chamber, and that good hygiene is maintained. Inserting the bag correctly will also minimise the cleaning required.

The combustion is powered by a 2000W heating element located above the combustion chamber. This heating element is thermostatically controlled, and the temperature within the chamber will be approximately 560°C during combustion. A single combustion will last for about 90 minutes. After combustion, the heater will be switched off, and the cooling fan will run for as long as necessary. If a combustion is ongoing when the next visit is made, the toilet will automatically add extra time beyond 90 minutes if the visit was made within the first 30 minutes of the combustion time.

NOTE!

After visits producing minimum amounts of waste, especially when the toilet is used by small children, it may be necessary to pour a small amount of water into the bag, or help the bag slide down towards the combustion chamber once this opens.

The waste will disappear into the combustion chamber automatically, with the aid of gravity, once you initiate a combustion by pressing the button on top of the toilet.

Ventilation

The toilet must have a permanent ventilation through 110 mm ∅ smooth pipes. Use of corrugated pipes will void the warranty. We recommend using a separate ventilation kit (accessory).

NOTE!

The toilet room must not have any other form of mechanical exhaust if air for the toilet is not taken from outside. If you choose to draw combustion air from the room the toilet is in, it must be equipped with at least one fresh air valve! Best combustion and air circulation is obtained if the valve is located close to and at the same height as the toilet. The ventilation opening must be at least the same diameter as the air outlet (∅ 110 mm).

The package contains:

A toilet, a packet of toilet bags, water bottle, a bag of screws for installation of the toilet, instructions on how to secure the toilet to the wall, and a user's manual. Please ensure that the box has not suffered any damage during transport. Should the box be damaged, please contact the carrier or dealer as soon as possible. The warranty does not cover shipping damage.

Exhaust gases from the toilet must be directed outside. The rules and technical requirements for installation may vary between countries. In Norway, all toilets must be aired over the roof. There are two ways of directing the ventilation above the roof. The ventilation pipe may be placed straight up through the ceiling of the room where the toilet is installed, or the ventilation pipe may be directed outside through the back wall, and then up over the roof. The top of the ventilation pipe must be at least 60cm above the surface of the roof. Local conditions may vary, and for instance in areas with heavy snowfalls, this must be taken into account so that the pipe is continued higher up from the roof.

A branched pipe should be used for either of the two options; the bottom of this pipe must have a hole (of minimum 3mm) allowing condensed water to escape. Please take this into consideration when installing pipes through indoor ceilings.

The diagram below shows different options for installation:

1.

Cut a piece of 110 mm pipe adapted to the desired horizontal length of pipe. When connecting pipes, use of silicone spray or soap is recommended.

2.

If you are directing the pipe through the wall, you can now insert the pipe into the toilet's vent stub and use a pencil to put a mark on the wall where the hole should be.

3.

Use a 114 mm hole saw to make the hole in the wall. Ensure that you will not hit a stud before you start sawing.

4.

Use sealant to seal around the pipe where it runs through the wall, enabling flexibility of the pipe.

5.

Attach the branched pipe and the bottom plug in this pipe. Remember to drill a hole of at least 3 mm in the bottom plug.

6.

Connect as many lengths of pipe as you need to reach the desired height. See the separate paragraph if you are planning on directing the pipe through the ceiling.

7.

The pipe must be secured with clamps so that it is stable. Use the brackets supplied in the installation package for attachment to the wall. Should the pipe need to be attached further away from the wall, brackets with distance screws may be bought separately.

8.

Attach the vent top last. Do not use insect nets or suchlike, as this may limit the air supply.

9.

The pipe should run for a maximum of 1 m horizontally, and 6 m vertically. No more than one 90° bend and two 45° bends should be used.

Installing the pipe through the roof

When installing the pipe through the roof, put a mark in the ceiling where the hole should be - after positioning the pipe vertically towards the planned hole. Ensure that you avoid potential rafters. The appropriate diameter of the hole needed will depend on the roof pitch. Start off by drilling through the ceiling with a thin but sufficiently long drill, enabling you to use a hole saw from both sides afterwards. This initially small hole will then also guide the central pilot drill of the hole saw.

When installing the pipe through a tar paper/shingle roof, the cuff supplied in the installation package should be used. The tar paper/shingle should be heated and placed so that it covers the part of the cuff that is above the roof; the lower part of the cuff should be glued in place. Use generous amounts of asphalt glue. For turf roofs with a membrane underlay, professional assistance from a roofer should be sought.

For turfed roofs with tar paper underneath, the pipe is installed in the same way as described for tar paper roofs. The drainage layer covers the tar paper, and should be adjusted so that lies adjacent to the pipe.

For tile and tile plate roofs, the cuff should also be sealed against the tar paper underlay. Please contact a roofer or a tinsmith to get a metal plate that seals the area between the pipe and the tiles/tile plates.

Installation

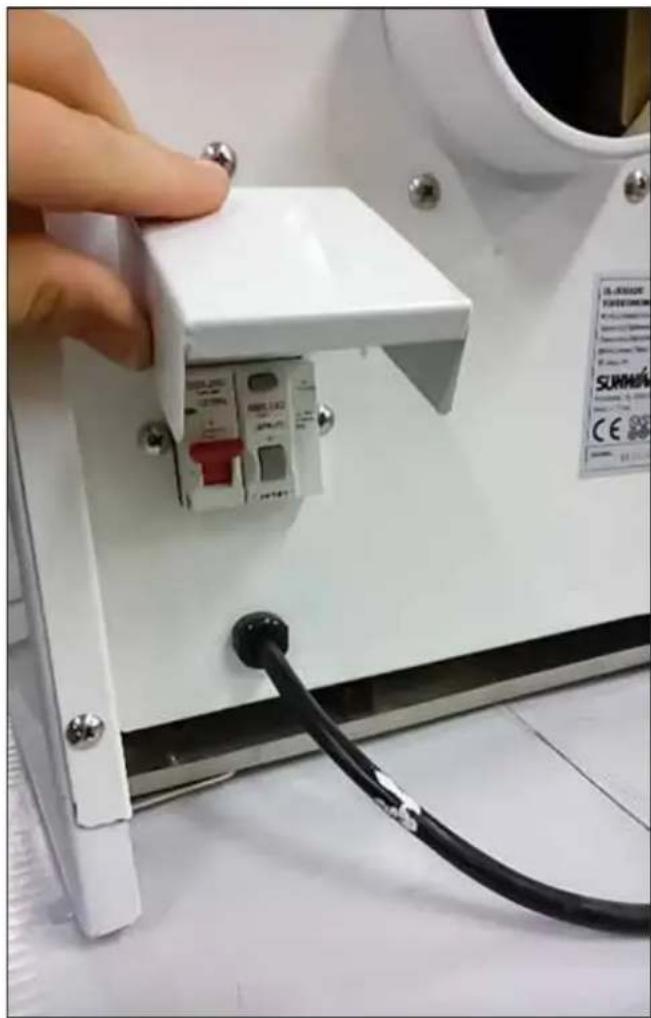

The toilet is connected to an electric socket; this MUST be a grounded outlet, with a minimum of a 10A slow fuse box. In the event of any other appliances on the same circuit, this should be at least 16A. Alternatively, consult your electrician about installing a separate circuit for the toilet. Avoid any use of extension cords, power strips, or multi-outlet adapters.

Should the floor be slippery so that the toilet may slide during visits, it should be secured to the floor. Remember to ensure that there are no heating cables underneath the brackets where you are securing the toilet. Brackets and screws are enclosed in the box for the toilet.

Unplug the toilet from the electric socket when it is not being used for an extended period of time.

The toilet is now ready for use. Connect the toilet to the electric outlet and ensure that the on/off switch is in the "ON" position. The toilet's combustion should be tested prior to the first visit. To test the toilet, press the combustion button located at the top of the toilet. Completing one combustion takes about 90 minutes, after which the toilet is ready for normal use.

Maintenance

The toilet does require some maintenance that you can perform yourself.

WARNING!

Always unplug the toilet from the electric outlet prior to performing any form of maintenance! The toilet should be cooled down before performing any maintenance!

Cleaning and daily hygiene

Use of a bag not only ensures correct use of the toilet, but also makes cleaning and maintaining good hygiene simple tasks. Wipe the surfaces with a cloth soaked in soapy water as needed. The shutters above the combustion chamber are cleaned in the same way.

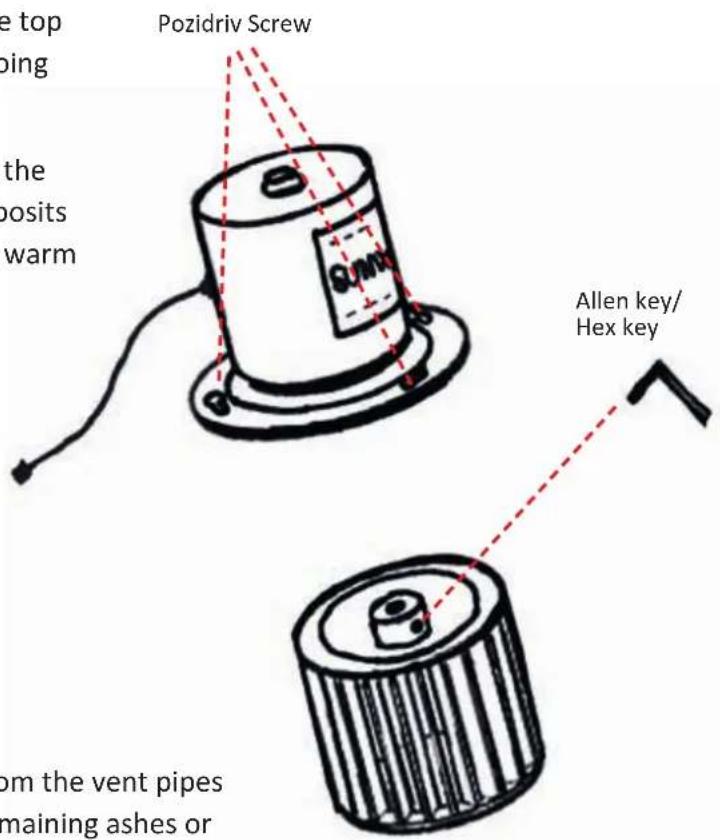

Fan

The fan ensures uniform combustion and an odor free room. All of the combustion air passes the fan, and over time deposits of soot and ashes will form on the fan blades. The fan should therefore be cleaned once yearly.

Disconnect the toilet from the electric outlet. Loosen the screws around the top of the toilet so that the top can be lifted off. The fan is then loosened by undoing three screws (please see the illustration).

Use a vacuum cleaner or a steel brush to remove the deposits. If left too long without cleaning, the deposits may become excessive and require cleaning with warm water. NB! Never soak the entire fan in water.

The blades are removed from the motor shaft using an Allen/hex key before leaving them to soak in warm water for some time, after which they are cleaned using a brush. Dry the parts well afterwards, and reassemble the fan in the reverse order. Ensure that the fan runs freely after installation.

Vent connection

Once a year, the toilet should be disconnected from the vent pipes and the vent stub should be inspected. Should remaining ashes or other foreign objects be found, this should be removed and the stub cleaned by vacuuming.

Odor problems caused by negative pressure

Toilets with balanced ventilation have a function that enables the ventilation fan to run at low speed continuously. If you experience impacts in ventilation pipes or odors in the room, a kit/set can be purchased separately and connected so that the fan runs continuously. It creates a positive draft in the ventilation pipe. See picture of the set and below:

Combustion chamber

The chamber must be emptied at least once a week, even if it is not full, because the ashes will petrify over time after repeated combustions, making it difficult to empty the ashes.

Should the bottom of the pot become filled with petrified ashes, the easiest solution would be to soak this part of the pot in approximately 10 mm boiling water and subsequently initiate a combustion. The boiling water will loosen up the remaining ashes so that the pot can be completely emptied again.

Heating element

The heating element has a durability of 2-5 years, depending on the frequency of which it is used. The element is changed during the periodic service at least every 5 years. Frequent use may shorten the lifetime of this element, which is considered a wear part. We would recommend replacing the element every other year if used frequently, to avoid that it stops working during use.

Functions

The toilet is designed to consume a minimum amount of energy. The combustion time and temperature in the chamber has been optimised for the average need of a family of 4 people. Frequent visits and large amounts of waste may result in incomplete combustion of some of the paper - or, less frequently, the excrements.

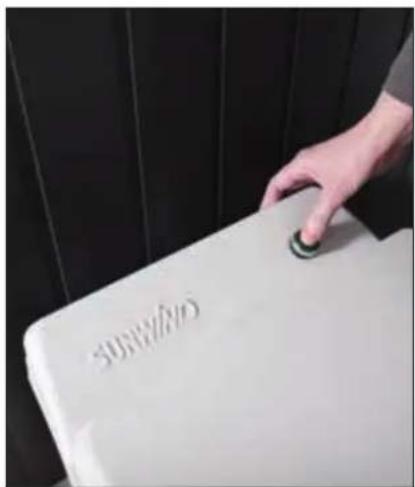

Press the green button to start a combustion. A simple combustion takes about 90 minutes. After combustion, the heating element will be turned off and the cooling fan will run until the toilet has cooled down.

If a burn cycle is already underway when the next visit is made, the toilet will add extra time beyond 90 minutes if the visit is made within the first 30 minutes of the combustion time. When the combustion is complete, the fan will run until the toilet has cooled down sufficiently.

When you push the button to start a combustion cycle, the burner lids will open and the waste falls down to the combustion chamber. It is important to make sure the whole waste bag falls into the combustion chamber. If not there is mounted a reverse button on the back of the toilet to reopen the lids without adding more burning time. Hold it down and make sure the lids open again and close the combustion chamber properly.

Periodic service

You should bring the toilet in for service at least every 5 years, or every 2–3 years if the toilet is used frequently. Wear parts will then be replaced, and the toilet serviced to optimise its durability. NOTE! Toilets that are brought in for service must be properly cleaned first.

During the periodic service, the workshop will change the heating element and the heat sensors in the combustion chamber. The catalyst will be checked, and the fan will be tested; if needed, the engine will be adjusted.

Please contact your dealer for information about the nearest workshop.

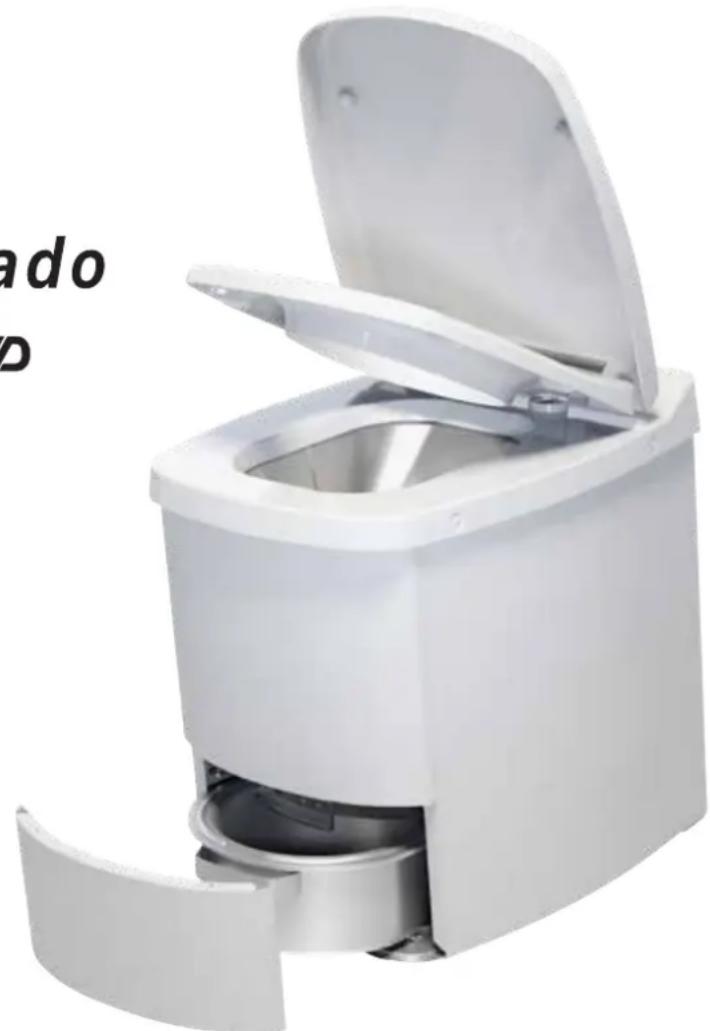

Emptying the ash pot

The pot must be emptied at least once a week, even if it is not full, because the ashes will petrify over time after repeated combustions, making it difficult to empty the pot.

1.

Open the hatch at the front of the toilet as shown below.

2.

Open the hatch lock to remove the ash pot.

3.

Subsequently pull the pot towards you and empty the ashes in a suitable place.

The ashes may be used as fertilizer, be buried, or be emptied with regular household waste.

NOTE! Never empty warm ashes along with flammable materials!

4.

After emptying the pot, put it back inside the toilet. Ensure that the pot slides all the way into place, and secure it with the hatch locks.

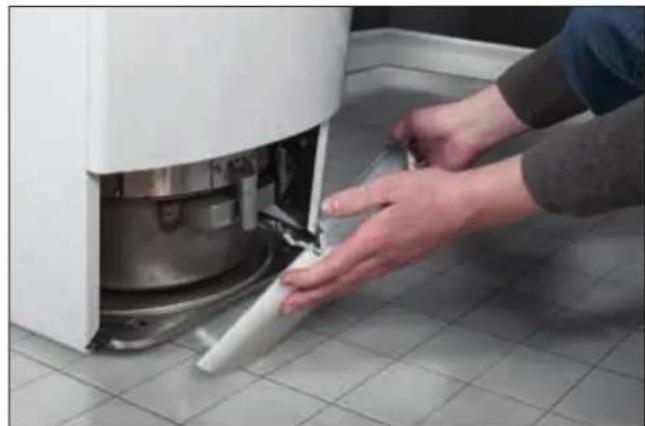

Open the front hatch of the toilet – the hatch is pushed downwards and tilted towards you.

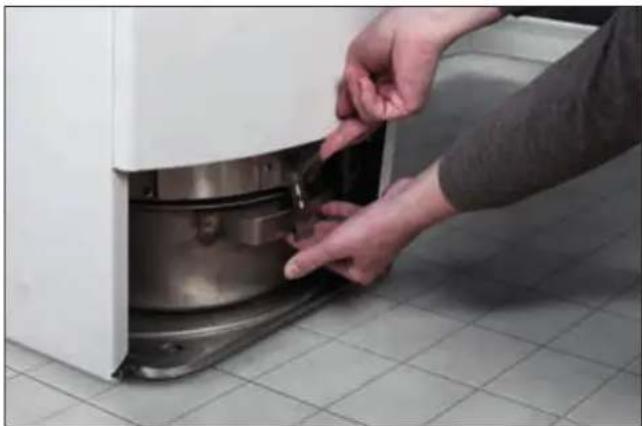

Open the hatch lock.

Pull the pot towards you.

5.

Close the hatch, and the toilet is ready to be used again. We recommend emptying the pot every time you leave the cabin, though at least once a week.

6.

If there is burned paper residue around the ash pot, this may indicate that parts of a bag have gotten stuck on the top of the combustion chamber. Remove the top of the toilet and clean the paper residue.

Daily use

1.

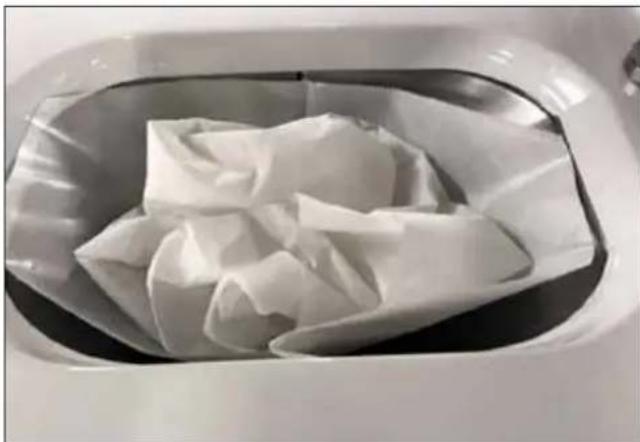

Always put a bag in the toilet before each visit.

2.

Ensure that the bag has been placed correctly.

3.

After each visit, press start and close the seat.

4.

Ensure that the bag falls down into the combustion chamber. (Jump straight to point 6 if the waste bag falls down to the combustion chamber the right way). If not, press the reverse button on the back of the toilet to open the lids again.

5.

If the bag does not fall down to the combustion chamber in a proper way, there is a reverse button on the back of the toilet. This will reopen the lids without adding more burning time to the combustion. When pushing this button, the reverse-button will light up in two sequences. If you see the waste bag does not fall in the combustion chamber the right way, press and hold this reverse button until the lids close properly. Then start a new combustion cycle by pushing the button on top of the toilet.

6.

Empty the toilet's ash pot at the time of departure, though at least once a week.

Press start. Grab a bag and put the bag in the toilet. Press and hold the reverse button if the hatches don't close properly.

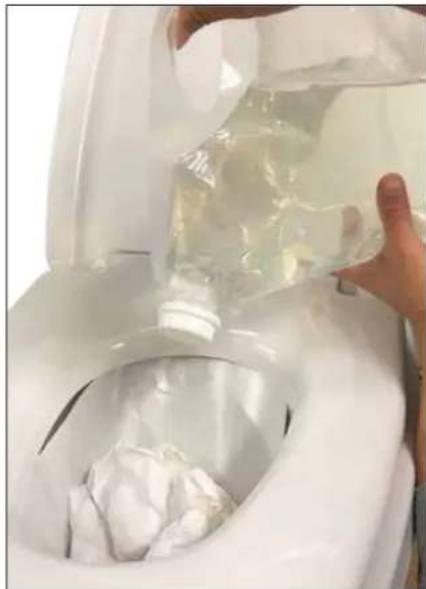

Use water if needed.

If you use a lot of toilet paper that remains dry in the El-dorado bags, as shown below, the bags may get stuck between the latches when they open and close.

The solution is to pour water onto the paper if there is a lot of paper. The paper will then contract when it gets wet, which will help the bag fall down into the combustion chamber. Pour about 1 dl water to moisten the paper.

Tip

An alternative to pouring water on the toilet paper would be to throw the paper in a biodegradable bin bag. At the end of the day you can empty the bin by incinerating the bag in the toilet. This can easily be done by placing the bag directly in the ash pot, and start the combustion by pressing the green start button on top of the toilet.

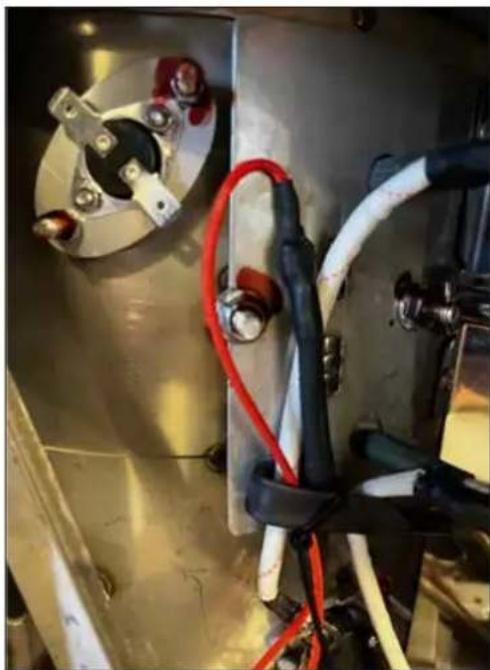

Additional information for service personnel

When replacing parts, use only originals.

The parts are designed to withstand high temperatures

and the tough conditions in the toilet.

Service:

Sunwind Gylling AS

Rudssletta 71

1309 Rud

Tel.: [phone]

E-mail: [e-mail]

www.sunwind.no

Troubleshooting

Troubleshooting Mulig løsning	Possible cause
Overheat thermostat	Waste bag is stuck or the combustion chamber is not completely closed due to the stuck bag.	Use the reverse-button to reopen the lids. And ensure the bags falls through to the burning chamber.Open top of toilet; check the thermostat in the electrical unit and remove the ashes or paper which are outside the burning chamber.
No combustion	Overheat thermostat or defect element.	Check all thermostats.Check waste tray, if the tray is full, it may cause poor combustion. See separate point about bad combustion.
Waste hatch do not open	The toilet does not get power.	Check that the socket is plugged in, and that the fuse on the back of the toilet is in an “on” position.
Bad combustion	Too many users due to the capacity of the toilet.The element could be broken.This should be changed every 5 year.Bad ventilation – check if there is something blocking the pipes.Catalyst mass can be dense and should be replaced with an interval of 1–2 years, depending on use.	Many visits? Can cause the combustion to become poor. Press the start button to start the combustion once again.Fix the ventilationChange the catalyst-massContact service-place
Toilet is dead on arrival	No function within the toilet, and no light in the button	Check the distribution fuse in your houseCheck the fuse on the back of the toilet

Troubleshooting

Troubleshooting Solution	Possible cause

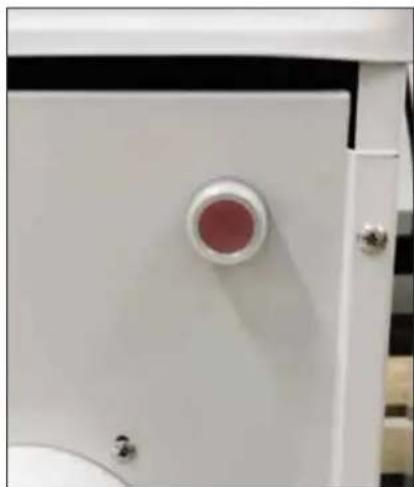

The cooling fan is running but no combustion	Heat fuse has blownHeat element has gone bustCircuit board error	Reset the automatic fuse.Remove top lid of the toilet assembled with 4 screws. Change heating elementCircuit board may be replaced
The cooling fan turns on and off periodically after the combustion	Heat fan will automatic start if the temperature is over the cut off limit	No need for action, this is normal
Burnt paper/ash outside the ash pot	One or more of the waste bags has gotten stuck in the lid of burning chamber	Remove top lid of the toilet assembled with 4 screws. Carefully push the lid downwards if there is too much resistance when you unscrew.Remove all visible waste.Assemble again and test.
Smell in the toilet room	No fresh air intake, or too small air intake in the toilet roomObstructions in the ventilation ductWaste that has not been properly combusted in the burning chamberToggle clip that holds the burning chamber in the right position is too looseKitchen fan or fireplace sucks air from the toilet room and use the ventilation piping to get enough airflow	Check external ventilation according to this manual's mounting instructionsCheck ventilation for obstructionsCheck that the heating element is working and adjust burning time if necessaryAdjust toggle clip tight enough to hold the ash pot close to the burning chamberInstall more ventilation ducts in your cabin and seal bigger gaps and ducts between toilet room and rest of your living areaDisconnect the thermostat so that the fan runs at low speed all the time for a positive draft in the ventilation pipe.(kit/set purchased separately

Warranty form

Maintenance

Combustion chamber

Open the clip.

Pull out the drawer.

5.

5.

Tips

Maintenance operations:

Burner housing

Open the latch.

5.

Daily use

1.

Tip

Valid. 18 June 2020

Rev.3 amended 03.2024

We hereby confirm that our model No. 720112 - 720108 - 720110 - 720114 Eldorado combustion/incinerating toilet manufactured up to current standards to be applicable for these type toilets.

The toilet is approved and function tested by Nemko and Intertek and also produced according to LVD, EMC and Rhos directive.

Fuhua Industrial Region, Hesui Industrial Garden

DongFeng Town

Zhongshan City Guangdong Province

China

Factory

Zhongshan DongFeng Fuhua Electric Appliance CO., Ltd.

Fuhua Industrial Region, Hesui Industrial Garden

DongFeng Town

Zhongshan City, Guangdong Province

China

Project Number

PRJ0029525

Product

Combustion toilet

Model/Type Ref.

720110

Ratings

2300W 10A 230V AC 50Hz

Brand name / Trademark

Principal Characteristics

Cl. I. IPX4

A sample of the product was tested and found to be in conformity with

Safety

This certificate documents conformity with the standards shown, and also applies as license for use of Nemko's name and certification mark. The certificate and license is valid as long as the applicable conditions are complied with, and provided that any changes to the product are notified to Nemko for acceptance prior to implementation.

New standards or amendments to the standards may imply that the product design must be updated and/or that re-testing and re-certification is necessary.

Additional Information

See next pages

Additional model(s)

Signature

Nemko Group AS

Philip Pedersens vei 11

1366 Lysaker, Norway

TEL [phone]

[e-mail]

ENTERPRISE NUMBER

NO974404532

Date of Issue

Juan Z Saussey

Certification department

2024-01-15

Working for a more sustainable future Please do not print

www.dsnk.com

Page 1 of 2

EL-DORADO PRO BALANCED VENTILATION INCINERATOR TOILET

Model: 720114 • NOBB: 60173420

Voltage: 220 - 240V - 50HZ

Current: 9A

Power: 2300W

IP-class: X4

Rudssletta 71, 1350 Rud, Norway

Made in China

SUNWIND

ENJOY your spare time

Sunwind Gylling AS

Rudssletta 71-75, 1351 Rud, Norway

Tlf: 67 17 13 70

www.sunwind.no

Sunwind Gylling AB
