Product Type	Manual outdoor sweeper
Brand	HOOVER
Model	SPINSWEEP PRO
Handle Height	Adjustable to 5 positions
Working Width	Approximately 30 cm
Collection Bin	Removable, capacity about 1 liter
Brush Type	SpinSweep rotating brushes
Brush Height Adjustment	Yes, HIGH/LOW dial
Surfaces Suitable For	Hard, flat surfaces (tile, concrete, asphalt)
Power Source	None (manual operation)
Weight	Approximately 1.8 kg
Dimensions (H x W x D)	~100 x 30 x 25 cm
Side Guide	Yes, for cleaning along walls
Maintenance	Empty bin after each use; clean brushes with water and mild detergent
Storage	Upright or hung; fold handle
Safety	Do not use on grass, liquids, or hot surfaces; keep children away
Warranty	1 year for domestic and light commercial use
Spare Parts	Replacement brushes available through Hoover service
Customer Service	Hoover (US) 1-800-944-9200; Canada 1-800-463-3923

Frequently Asked Questions - SPINSWEEP PRO HOOVER

How to assemble the SpinSweep Pro handle?

Insert the lower handle sections into the upper section on each side, then push the button to engage the desired height. The Pro has 5 height adjustment holes.

How to adjust the brush height?

Turn the adjustment dial to HIGH to raise the brushes (for uneven surfaces) or to LOW to lower them (for smooth surfaces).

What if the sweeper does not pick up debris?

Check the height adjustment: too high for small debris, too low for large debris. Adjust accordingly. If the brushes do not spin, raise the height or avoid very smooth surfaces.

Why is the sweeper hard to push?

Turn the height adjustment to HIGH to reduce friction on uneven surfaces. If the problem persists, check that the brushes are not obstructed.

How to empty the collection bin?

Slide the release button backward, lift the handle, and remove the bin. Empty it into a trash can, then clean with warm water and mild detergent.

Can the sweeper be used on grass or liquids?

No, it is designed only for hard, flat surfaces. Do not use on grass, liquids, or steps.

How to clean the brushes?

Clean the brushes with water and mild detergent. Avoid high-pressure water jets. To replace the brushes, contact a Hoover service center.

Where to find the model number?

The full model number is printed on the base of the sweeper. Write it down before contacting customer service.

What is the warranty for the SpinSweep Pro?

Full 1-year warranty for domestic and light commercial use. It covers parts and labor. Keep your proof of purchase.

How to store the sweeper?

Loosen the handle knobs, fold it towards the brushes, then retighten. Store the device upright or hanging in a dry place.

USER MANUAL SPINSWEEP PRO HOOVER

Line drawing of a lawn mower with motion lines indicating blade and wheel (no text or symbols)

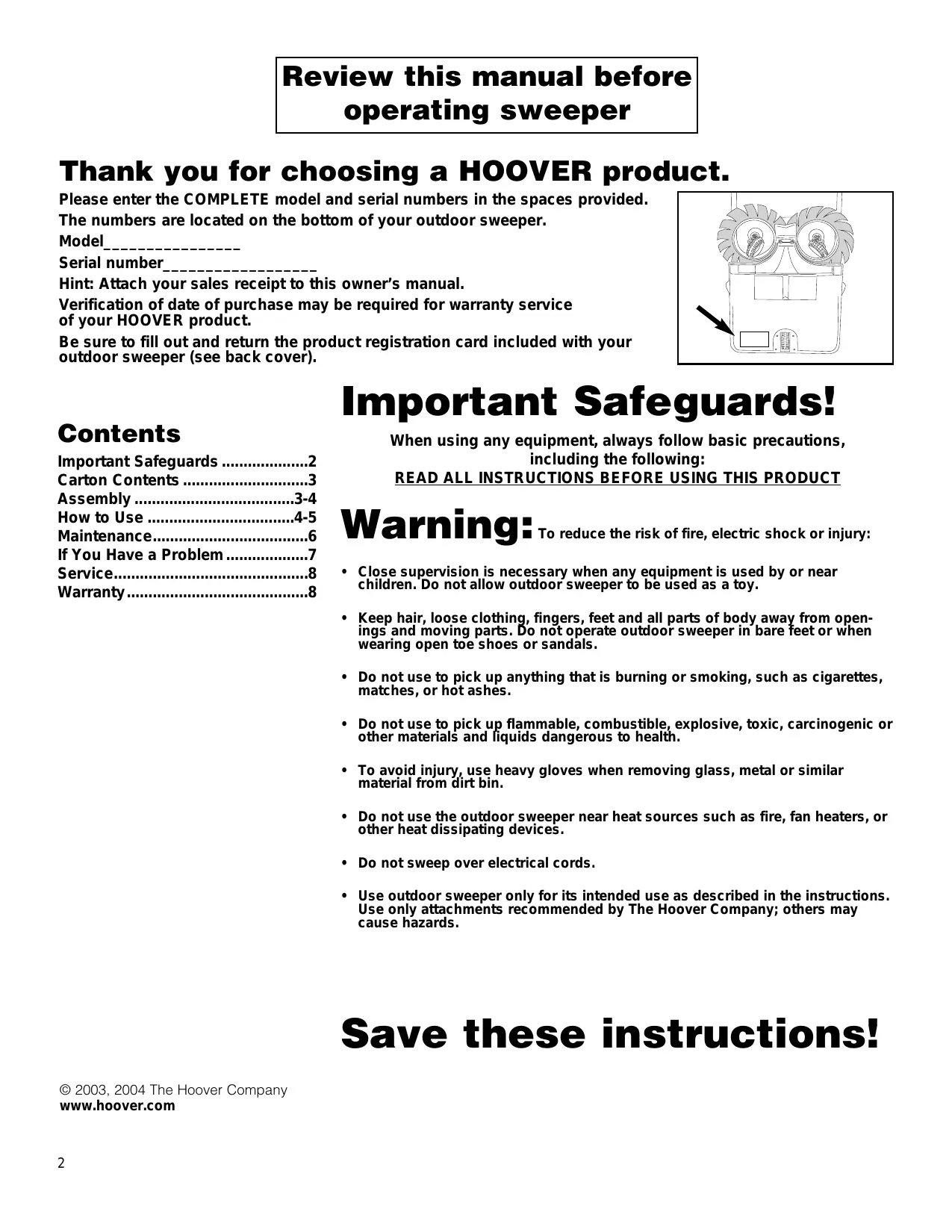

Review this manual before operating sweeper

Thank you for choosing a HOOVER product.

Please enter the COMPLETE model and serial numbers in the spaces provided.

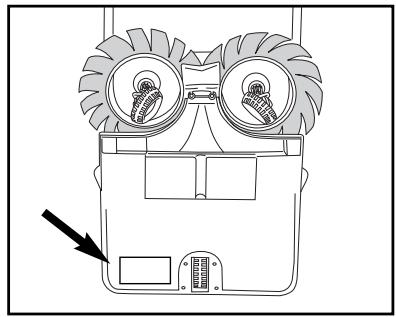

The numbers are located on the bottom of your outdoor sweeper.

Model

Serial number ____

Hint: Attach your sales receipt to this owner's manual.

Verification of date of purchase may be required for warranty service of your HOOVER product.

Be sure to fill out and return the product registration card included with your outdoor sweeper (see back cover).

Line drawing of a device with two fans and a control panel, no text or symbols present

Contents

Important Safeguards ......2

Carton Contents ....3

Assembly 3-4

How to Use ....4-5

Maintenance......6

If You Have a Problem......7

Service......8

Warranty......8

Important Safeguards!

When using any equipment, always follow basic precautions, including the following:

READ ALL INSTRUCTIONS BEFORE USING THIS PRODUCT

Warning:

To reduce the risk of fire, electric shock or injury:

• Close supervision is necessary when any equipment is used by or near children. Do not allow outdoor sweeper to be used as a toy.
• Keep hair, loose clothing, fingers, feet and all parts of body away from openings and moving parts. Do not operate outdoor sweeper in bare feet or when wearing open toe shoes or sandals.
• Do not use to pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
• Do not use to pick up flammable, combustible, explosive, toxic, carcinogenic or other materials and liquids dangerous to health.
• To avoid injury, use heavy gloves when removing glass, metal or similar material from dirt bin.
• Do not use the outdoor sweeper near heat sources such as fire, fan heaters, or other heat dissipating devices.
• Do not sweep over electrical cords.
• Use outdoor sweeper only for its intended use as described in the instructions. Use only attachments recommended by The Hoover Company; others may cause hazards.

Save these instructions!

If you need any assistance:

Visit our website at www.hoover.com. Click on the “Service” button to find the service outlet nearest you.

Please do not return this product to the store.

1. Assembly

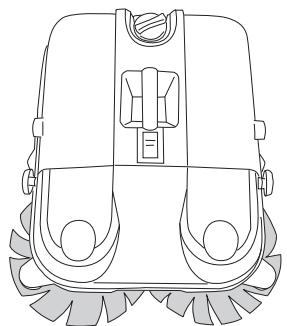

SpinSweep™ Carton contents

A. Lower handle sections (2)
B. Top handle section
C. Outdoor sweeper

1-1

Line drawing of three vertical supports with curved top and base, no text or symbols present

A
B

Line drawing of a mechanical device with gear-like base and handle (no text or symbols)

C

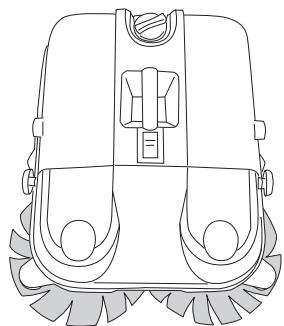

SpinSweep™ Pro Carton contents

A. Lower handle sections (2)
B. Top handle section
C. Outdoor sweeper

1-1

Line drawing of a curved mechanical component with three vertical rods and a central arch (no text or symbols)

A
B

Line drawing of a mechanical device with gear-like base and handle (no text or symbols)

C

NOTE: Handle assembly differs slightly between SpinSweep™ and SpinSweep™ Pro. Refer to the proper section for your model for handle assembly. Handle attachment, use and maintenance for the two models are the same.

Assemble handle - SpinSweep™

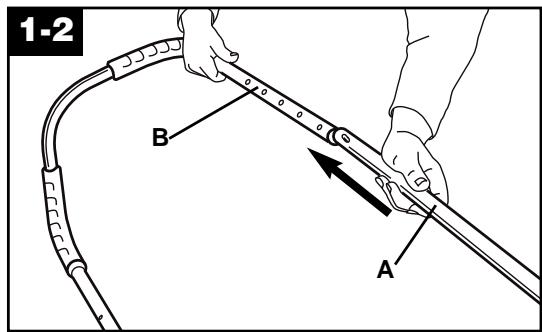

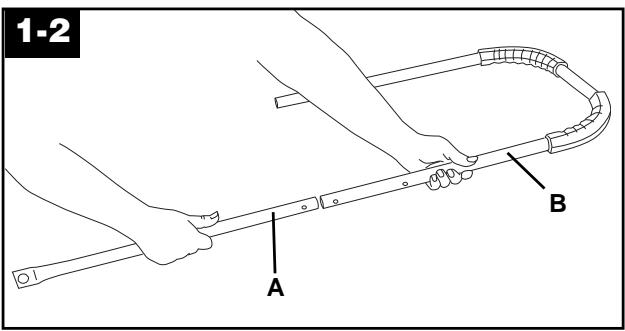

Insert round end of straight lower handle sections (A) into each side of upper handle section (B).

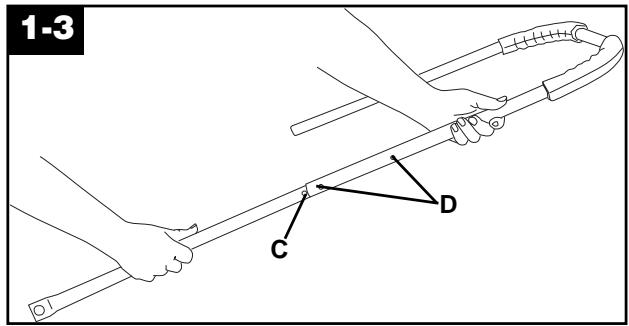

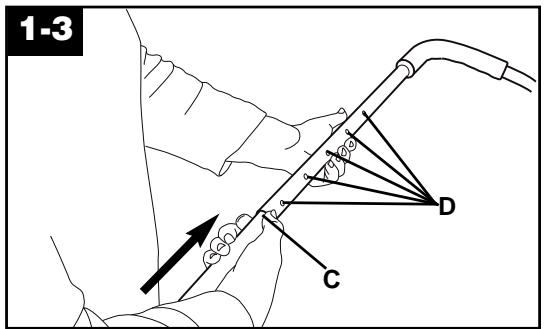

Press button (C) on lower handle section. Slide lower section into upper handle until button snaps into one of the holes (D).

Select upper holes for a shorter handle or lower holes for a longer handle.

Assemble handle - SpinSweep™ Pro

Insert round end of straight lower handle sections (A) into each side of upper handle section (B).

Press button (C) on lower handle section. Slide lower section into upper handle until button snaps into one of the holes (D). For your convenience, there are five height adjustment holes. Select upper holes for a shorter handle or lower holes for a longer handle.

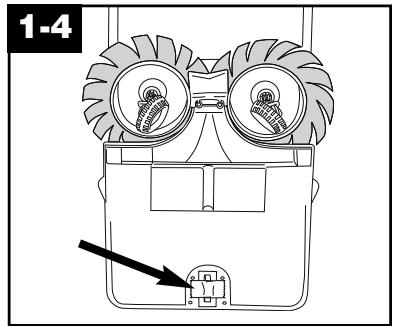

Remove tape from caster wheel on bottom of unit. (SpinSweep™ Pro only)

For SpinSweep™ and SpinSweep™ Pro models --

Attach handle

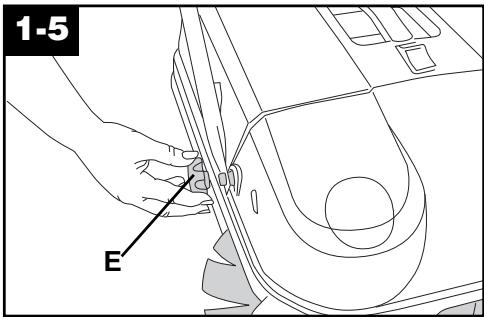

Unscrew handle knobs (E) from each side of sweeper.

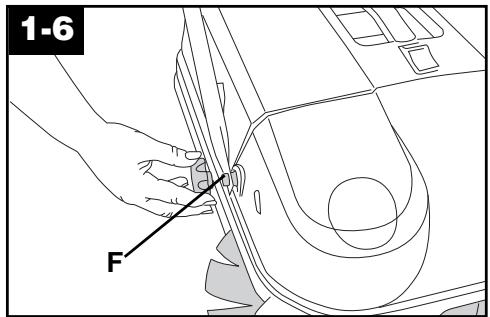

Fit holes on handle onto screw posts (F).
Reattach knobs and twist to tighten.

2. How to use

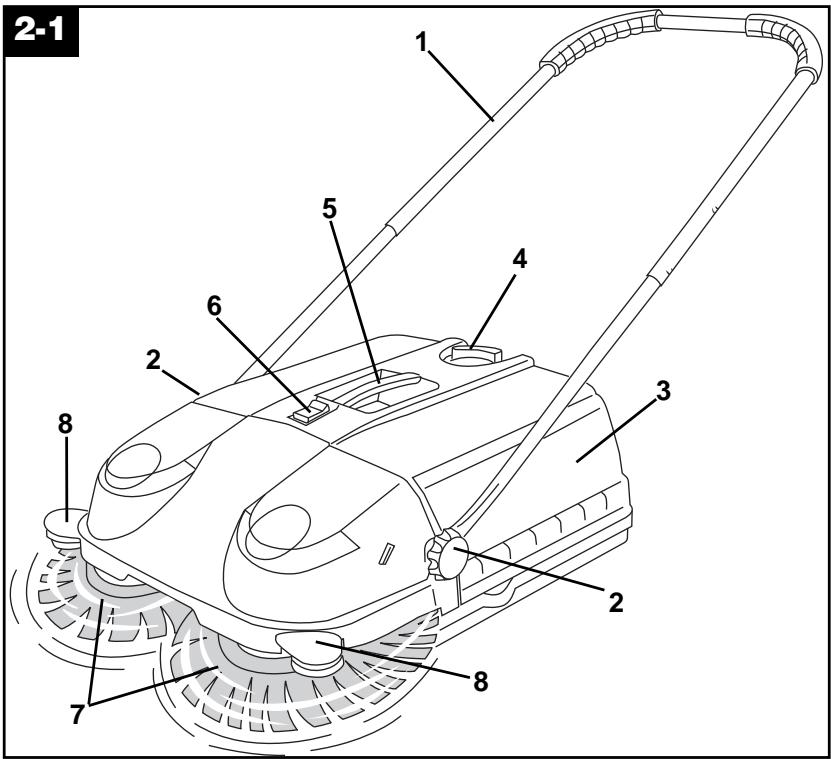

Sweeper description

1. Handle
2. Handle knobs
3. Dirt bin
4. Brush height adjustment control
5. Dirt bin handle
6. Dirt bin release button
7. SpinSweep™ brushes
8. Wall guides

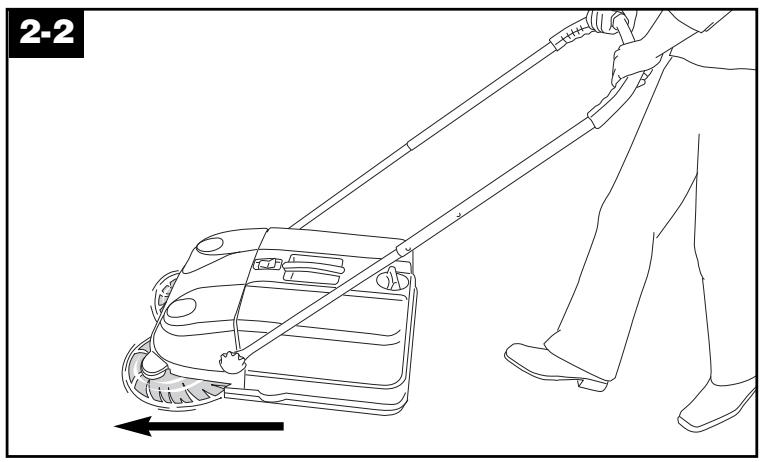

The outdoor sweeper is designed for use on hard, flat surfaces. It is not intended to be used for wet pick up or on lawns. Do not use outdoor sweeper on steps.

The brushes rotate and sweep up debris when the sweeper is pushed forward.

For best results, push the outdoor sweeper at a normal walking pace.

Line drawing of a person using a lawn mower to lift a lawn (no text or symbols)

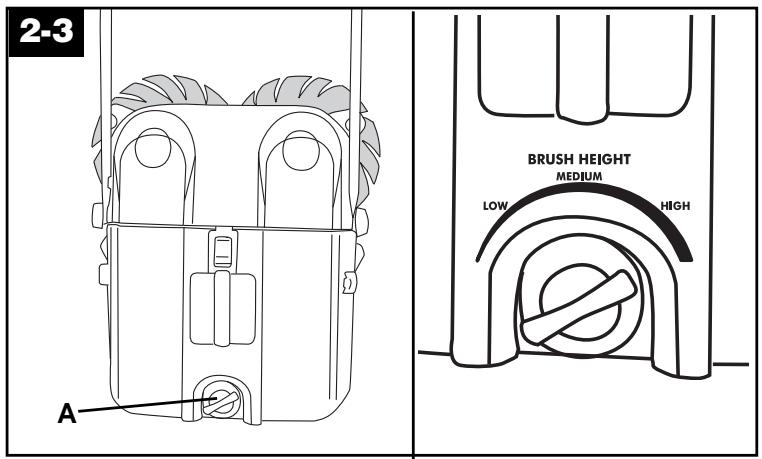

Brush height adjustment

Turn the height adjustment control (A) toward “HIGH” to raise the brushes. (The rear of the sweeper will move to a lower position.) Turn it towards “LOW” to lower the brushes. (The rear of the sweeper will move to a higher position.)

The settings

LOW - for smooth surfaces and picking up debris that is small in size.

HIGHER settings - for rougher surfaces, such as brick and asphalt, or for picking up larger debris.

If the sweeper is difficult to push on a surface, turn the height adjustment toward "HIGH".

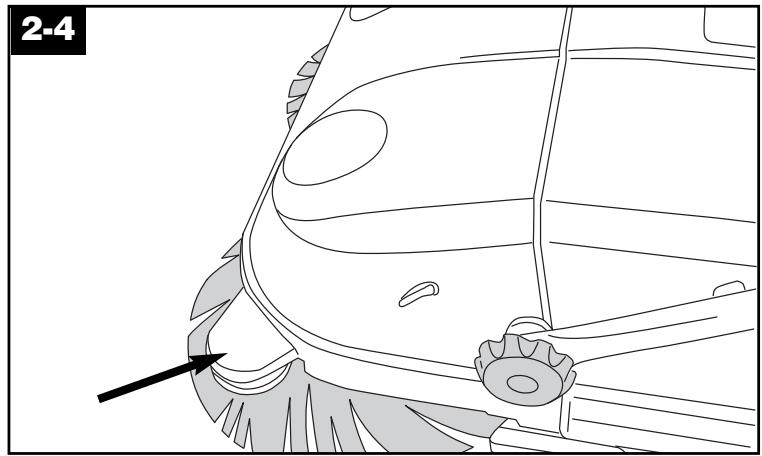

Wall guides

Wall guides are provided on each side of the sweeper to aid in sweeping close to walls or edges.

Guide either side of sweeper along walls.

Line drawing of a car's front wheel and side gear (no text or symbols)

3. Maintenance

Familiarize yourself with these home maintenance tasks, as proper use and care of your outdoor sweeper will ensure continued cleaning ability.

Dirt bin

When to empty

It is recommended that the dirt bin be emptied after every use.

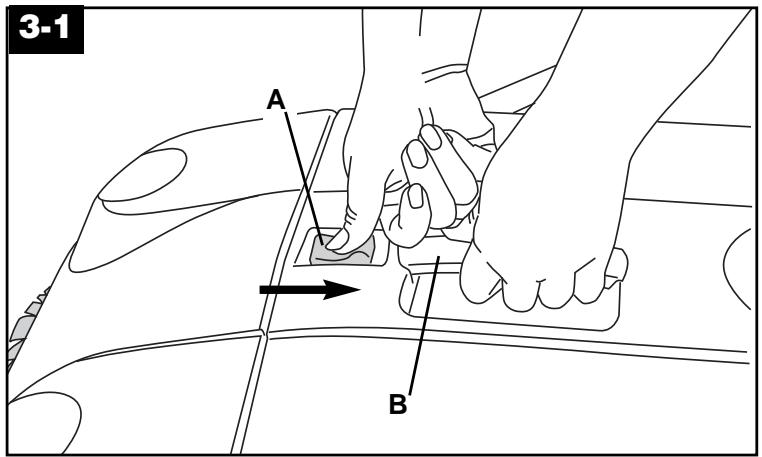

How to empty

Slide dirt bin release (A) toward rear of sweeper.

Lift on handle (B) and remove bin.

Empty bin in an approved trash receptacle. If needed, clean the bin and exterior of sweeper with water and mild detergent. Do not use any solvent-based cleansers.

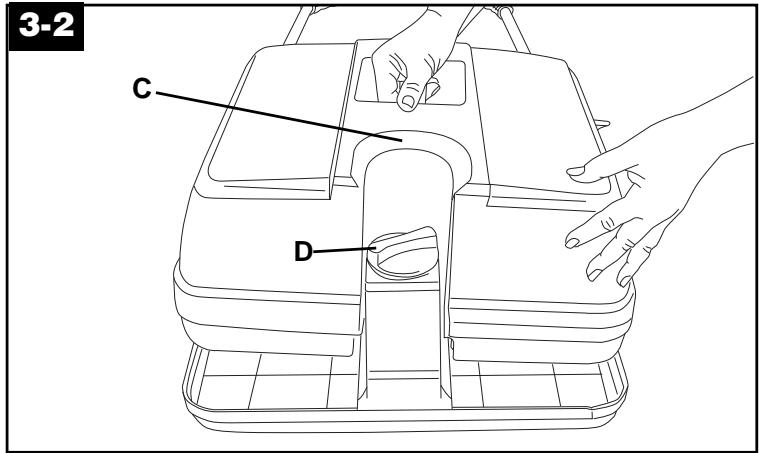

To replace dirt bin, align indent (C) on bin over height adjustment (D).

Lower bin onto sweeper and snap in place.

The brushes

Clean brushes with water and mild detergent. Do not use high pressure water spray to clean the brushes.

New brushes can be installed by your local Hoover Service Center.

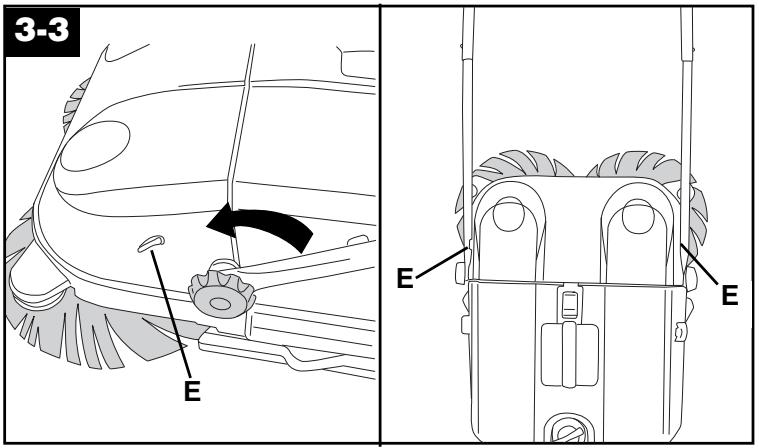

Storage

Loosen handle knobs and rotate handle toward the brushes and past the "stoppers" (E). Tighten the handle knobs.

Store the outdoor sweeper either standing upright or hanging.

Store in a dry place.

4. If you have a problem

Problem: Debris is swept back onto surface during use.

Possible cause

Possible solution

• Light debris has collected in front of dirt bin.
- Tip the outdoor sweeper back to allow debris to move to back of dirt bin.

Problem: Line of debris is left while using.

Possible cause

Possible solution

• Fine debris or large amounts of debris have been picked up.
• Overlap the sweeping path to more effectively clean the area.
• Sweeper is being pushed too slowly.
• Push sweeper slightly faster.

Problem: Sweeper difficult to push.

Possible cause

Possible solution

• Surface is rough or uneven.

- Turn the height adjustment knob toward a higher setting.

Problem: Sweeper does not pick up debris.

Possible cause

Possible solution

• Height adjustment setting set too high for small debris.
• Turn the height adjustment knob toward a lower setting.
• Height adjustment setting set too low for large debris.
• Turn the height adjustment knob toward a higher setting.

Problem: Brushes won't turn.

Possible cause

Possible solution

• Surface is uneven.
• Turn the height adjustment knob toward a higher setting.
  • Surface is too smooth.
• Sweeper not designed for optimum performance on low friction surfaces, such as vinyl decks.

Service

To obtain approved HOOVER service and genuine HOOVER parts, locate the nearest Hoover Factory Service Center or Authorized Hoover Warranty Service Dealer (Depot) by:

• checking the Yellow pages under "Vacuum Cleaners - Household" OR -
• checking the list of Factory Service Centers provided with this sweeper OR -
• checking the Service section of The Hoover Company on-line at www.hoover.com OR -
• calling 1-800-944-9200 for an automated referral of authorized service outlet locations (U.S. only).

Do not send your sweeper to The Hoover Company in North Canton for service, as this will only result in delay.

If further assistance is needed, contact The Hoover Company Consumer Response Center, North Canton, Ohio 44720, Phone: [phone].

In Canada, contact Hoover Canada, Burlington, Ontario L7R 4A8, Phone: [phone].

Always identify your sweeper by the complete model number when requesting information or ordering parts. (The model number appears on the bottom of the sweeper.)

Full One Year Warranty

Your HOOVER® sweeper is warranted in normal household and light commercial use, in accordance with the Owner's Manual against original defects in material and workmanship for a period of one full year from date of purchase. This warranty provides, at no cost to you, all labor and parts to place this sweeper in correct operating condition during the warranted period. This warranty applies when the sweeper is purchased in the United States, including its territories and possessions, or in Canada or from a U.S. Military Exchange. Sweepers purchased elsewhere are covered by a limited one year warranty which covers the cost of parts only. This warranty does not apply if the sweeper is used in a heavy commercial or rental application.

This warranty only applies when the product is in use in the country or territory in which it is purchased.

Warranty service can only be obtained by presenting the sweeper to one of the following authorized warranty service outlets. Proof of purchase will be required before service is rendered.

1. Hoover Factory Service Centers
2. Hoover Authorized Warranty Service Dealers (Depots)

For an automated referral of authorized service outlets in the U.S.A., phone [phone] OR

visit The Hoover Company on-line at www.hoover.com.

This warranty does not cover pick up, delivery, or house calls; however, if you mail your sweeper to a Hoover Factory Service Center for warranty service, transportation will be paid one way.

While this warranty gives you specific legal rights, you may also have other rights which vary from state to state.

If further assistance is needed, or if there are questions concerning this warranty or the availability of warranty service outlets, write or phone the Consumer Response Center, The Hoover Company, 101 East Maple St., North Canton, Ohio 44720. Phone: [phone]

In Canada, contact Hoover Canada, Burlington, Ontario L7R 4A8, 1-800-263-6376.

HOOVER™

SpinSweep™ SpinSweep™ Pro

are registered trademarks
