USER MANUAL HCA 453 HOOVER

I F D GB NL E P GENERAL INFORMATION

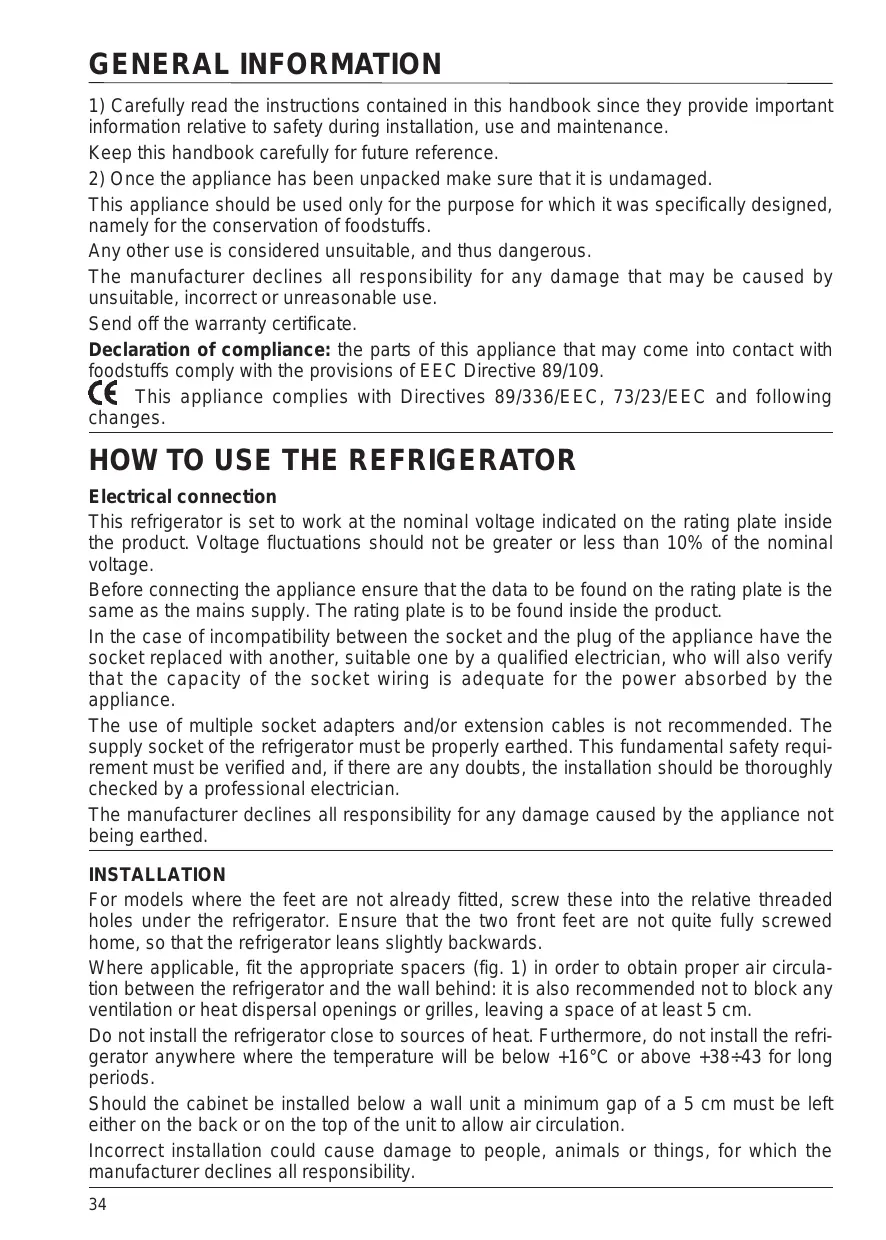

1) Carefully read the instructions contained in this handbook since they provide important information relative to safety during installation, use and maintenance. Keep this handbook carefully for future reference. 2) Once the appliance has been unpacked make sure that it is undamaged. This appliance should be used only for the purpose for which it was specifically designed, namely for the conservation of foodstuffs. Any other use is considered unsuitable, and thus dangerous. The manufacturer declines all responsibility for any damage that may be caused by unsuitable, incorrect or unreasonable use. Send off the warranty certificate. Declaration of compliance: the parts of this appliance that may come into contact with foodstuffs comply with the provisions of EEC Directive 89/109. This appliance complies with Directives 89/336/EEC, 73/23/EEC and following changes.

HOW TO USE THE REFRIGERATOR Electrical connection

This refrigerator is set to work at the nominal voltage indicated on the rating plate inside the product. Voltage fluctuations should not be greater or less than 10% of the nominal voltage. Before connecting the appliance ensure that the data to be found on the rating plate is the same as the mains supply. The rating plate is to be found inside the product. In the case of incompatibility between the socket and the plug of the appliance have the socket replaced with another, suitable one by a qualified electrician, who will also verify that the capacity of the socket wiring is adequate for the power absorbed by the appliance. The use of multiple socket adapters and/or extension cables is not recommended. The supply socket of the refrigerator must be properly earthed. This fundamental safety requirement must be verified and, if there are any doubts, the installation should be thoroughly checked by a professional electrician. The manufacturer declines all responsibility for any damage caused by the appliance not being earthed. INSTALLATION For models where the feet are not already fitted, screw these into the relative threaded holes under the refrigerator. Ensure that the two front feet are not quite fully screwed home, so that the refrigerator leans slightly backwards. Where applicable, fit the appropriate spacers (fig. 1) in order to obtain proper air circulation between the refrigerator and the wall behind: it is also recommended not to block any ventilation or heat dispersal openings or grilles, leaving a space of at least 5 cm. Do not install the refrigerator close to sources of heat. Furthermore, do not install the refrigerator anywhere where the temperature will be below +16°C or above +38÷43 for long periods. Should the cabinet be installed below a wall unit a minimum gap of a 5 cm must be left either on the back or on the top of the unit to allow air circulation. Incorrect installation could cause damage to people, animals or things, for which the manufacturer declines all responsibility. 34

RECOMMENDATIONS FOR ADJUSTING THE TEMPERATURE AND IMPLEMENTING PRINCIPLES OF FOOD HYGIENE.

Proper use of the refrigerator and respect for hygienic principles will significantly improve the quality of food preservation. Temperature Control Place the most delicate foods in the coldest part of the refrigerator, generally right above the fruit and vegetable crisper. Cooked foods should be stored in air-tight containers, left to cool off, and then placed in the middle of the refrigerator. Fruits and vegetables are placed in the crisper drawers at the bottom of the refrigerator. Implementing Food Hygiene Principles Remove wrapping before placing food in the refrigerator. Packaging fresh food helps them last longer and keeps them from contaminating one another. Place foods in such a way that air can circulate freely inside the refrigerator. Clean the inside of the refrigerator frequently using a mild detergent which has some antibacterial power. ENVIRONMENTAL INFORMATION Packaging and waste treatment After unpacking the appliance, do not throw the packaging in the garbage but separate the various materials (such as styrofoam, cardboard, etc.) according to the local regulations and procedures for waste disposal. Important This appliance has been produced without CFCs. The refrigerating circuit contains HFC R 134a fluid, or alternatively, R 600 a isobutane gas. For further details, look at the serial number plate on the appliance. When cleaning the appliance, use only the materials and the procedure specified in the section dealing with cleaning. Otherwise the appliance may be damaged. For appliance with isobutane (R 600 a) Isobutane is a natural gas that does not harm the environment. Isobutane is, however, flammable. You must therefore ensure that: - when the appliance is installed there is more than 3 cubic metres of air around it; - the appliance's ventilation vents are kept unobstructed and clean; - the appliance's refrigerating circuit is damaged neither internally, through the use of sharp or pointed objects nor externally because the condenser unit was incorrectly cleaned. At the end of the appliance's working life it must be stored securely before being disposed of. For information on proper disposal of the appliance, consult your retailer or the local authority responsible for disposal. REFRIGERATION COMPARTMENT For perfect storage of food (flavour, freshness and texture), it is recommended to wrap different flavoured food in aluminium foil, cling film or in sealed plastic containers. This will also prevent tainting of flavours. For better results ensure that the food is stored as follows: Meats, fish etc. on the shelf just above the salad crisper. 35

Cooked foods, cakes etc. on the upper shelves.

Dairy products are better stored in the inner door trays. Fruits and vegetables: in the specific draw packaged in small poliethene bags, previously pierced for better condition. Warning: All tinned food must be kept in plastic containers once it has been opened. Ensure that the cold air can flow freely around the stored food by leaving gaps between the packages. Cooked foods can only be refrigerated once they have cooled down. Drinks and liquids must be kept in sealed containers.

EXPLANATION OF THE SYMBOLS Refrigerator

The refrigerator low temperature compartment can store frozen foods for short periods of about 1 week. Refrigerator The refrigerator low temperature compartment can store forzen foods for medium periods of about 1 month.

The refrigerator low temperature compartment can store frozen foods for long periods of about 3 months and is suitable for the storage of ice-cream and similar products. Refrigerator - Refrigerator-Freezer ❋ ❋ The symbol shows that frozen foods can be conserved at low temperatures for a long period and that fresh foods can be frozen according to the instructions shown in the freezing table. TEMPERATURE CONTROL The ambient temperature, the load and the frequency with which the doors of the appliance are opened all affect the internal temperature. When the temperature setting is changed the refrigerator cannot start up immediately because it has been halted. Temperature regulating is done using the thermostat knob to be found either inside or outside the refrigerator. The refrigerator will not work on position "0" . "0" means off. It is best to set the thermostat knob on a medium position. By turning the knob in clockwise direction lower temperatures are reached If the room temperature is very high the machine might work continually causing the occasional formation of frost. If this occurs the thermostat knob should be turned to a lower number. CONTROL PANEL FOR TWIN AND SINGLE COMPRESSOR APPLIANCES (fig. 2) The twin compressor version can be identified by the fact that the refrigerator regulator is inside the refrigerator compartment, while the freezer compartment is regulated by the control panel as illustrated in fig. 2. Thermostat “D” controls the freezer. In the “O” position the freezer is not working. Turn the knob clockwise, the appliance switches on and the green indicator light “A” comes on. When the thermostat knob is turned to “S” (rapid freezing) the yellow indicator light “C” comes on and the compressor works continuously for 50 hours. At the end of the 50 hours the yellow light will flash, it means that the rapid freezing is completed and thermostat knob must be turned on a normal position. 36

If the red indicator light “B” comes on, it means that the temperature in the freezer compartment is not low enough. This may be due to:

- the appliance having only just been switched on - the door having been left open, or not having been properly closed - food having been put in for freezing. The red indicator light goes out when the selected temperature has been reached. The single compressor version has only one regulator (see fig. 2). The thermostat “D” controls the refrigerator and the freezer. In the “0” position neither the refrigerator nor the freezer are working. Turn the knob clockwise, the appliance switches on and the green indicator light “A” comes on. When the thermostat knob is turned to “S” (rapid freezing) the yellow indicator light “C” comes on and the compressor works continuously for 6 hours. At the end of the 6 hours the yellow light will flash, this indicates that the thermostat knob must be turned back to a normal position. If the red indicator light “B” comes on, it means that the temperature in the freezer compartment is not low enough. This may be due to: - the appliance having only just been switched on - the door having been left open, or not having been properly closed - food having been put in for freezing. The red indicator light goes out when the selected temperature has been reached. CONTROL PANEL (fig. 4B & fig. 13) FOR FRIDGE FREEZER WITH 2 COMPRESSORS Thermostat “A” controls the freezer, turn the dial clock-wise and the freezer will turn on and the green led “B” and red LED “C” will switch on. The red light “C” will turn off as soon as the freezer reaches its set temperature. The yellow LED “E” will light up (as show in fig. 4b), when the quick freeze switch “F” is turned on, while the model with the control panel shown in fig. 13, super freeze will be activated when dial “A” is turned to the “Super” position. Thermostat dial “H” controls the temperature of the fridge, if it is set on “0” the fridge will not work. Turning the dial “H” clock-wise will turn the fridge on and the green led “G” will light up. CONTROL PANEL (fig. 4) FOR FROST FREE FRIDGE FREEZER WITH 1 COMPRESSOR Thermostat dial “A” controls the temperature in the freezer, when the dial is in the “0” position the fridge and freezer are both off. Dial “H” adjusts the fridge temperature. Turning dial “A” clock-wise turns the freezer on, the green LED “B” switches on and the red LED “C” flashes. This initial operation should only be done when the device is turned on. The 4 green LEDs “D” indicate the temperature inside the freezer. The yellow LED “E” switches on when the super freeze switch “F” is pushed for at least 4 seconds, then the compressor will work continuously. Dial “H” adjusts the fridge temperature. At the “0” position the fridge will not work. Turning the dial “H” clock-wise, turns the fridge on and the green LED “G” lights up (only if the “A” dial is in a different position from “0”). The fridge works only if the green LED “B” is switched on. Failure signal: when the red LED “C” flashes and one of green LEDs “D” is switched on, it means that there is a power failure or some food in the freezer has been at a temperature above 0 degrees for a certain time. To turn the flashing red LED (“C”) off push “F” for at least 4 seconds. For optimum results within the freezer we suggest that you set the dial so that the green led “X” lights up, doing this will guarantee optimum food preservation. CONTROL PANEL (fig. 13) FOR FROST FREE FRIDGE FREEZER WITH 1 COMPRESSOR Thermostat dial “A” controls the temperature in the freezer, when the dial is in the “0” position the fridge and freezer are both off. Dial “H” adjusts the fridge temperature. 37

Turning dial “A” clock-wise turns the freezer on, with the green LED “B” and the red LED

“C” switching on. When the freezer reaches the set temperature the red LED will switch off. The yellow LED “E” switches on when dial “A” is turned to the “SUPER” position, then the compressor will work continuously. Dial “H” adjusts the fridge temperature. At the “0” position the fridge will not work. Turning the dial “H” clock-wise, turns the fridge on and the green LED “G” switches on (only if the “A” dial is in a different position from “0“). CONTROL PANEL (fig.4, fig.4b, fig.13) When the red LED “C” is on or lit up, the temperature inside the fridge or freezer is not cold enough. Reasons for failure: - appliance has just been switched on - door left opened or ajar - fresh food for freezing just placed inside the freezer. The freezer must always ensure temperatures of -18°C or less. CAUTION: There is no correlation between the numbers shown on the thermostat dial (A) and the temperatures displayed on the 4 green lights (D). CONTROL PANEL (fig. 12) Thermostat "A" controls fridge and freezer. On position "0" both fridge and freezer do not operate. By turning the thermostat knob clockwise, the appliance operates and green light "B" lights up. CONSERVATION Some models feature a storage area above the top refrigerated shelf. This area must be used as a two star compartment as shown on the appliance. The maximum performance of conservation is obtained by removing all the crispes but lower one. The symbol shows that frozen products can be stored for a long time and that ❋ can be frozen. fresh foods Conservation time are closely connected with maintaining the correct temperature, thus any changes will affect the length of time it can be conserved. In the case of a power cut do not, under any circumstances, open the door or the lid. The frozen foods will remain wholesome for 10-12 hours. For longer periods the food should be wrapped in special foodstuff paper and preferably put into a refrigerator or, at least in a cool place. In this case it is advisable to eat the food within 24 hours or to cook it and then to re-freeze it. FREEZING ❋ The maximum perfomance of freezing is obtained by removing all the crispes but the lower one. Fridge Freezer with control panel (fig. 2, fig. 4, fig. 4b & fig. 13) Before freezing fresh food you should transfer food already frozen in the top compartment to the compartments below, making room for the fresh produce. 24 hours before freezing food follow the instructions below: Control panel (fig. 4 – fig. 4b) To activate the quick freezing function push button “F” for at least 4 seconds, the yellow LED “E” will switch on to indicate that the quick freezing process has begun. This stage will stop automatically after 50 hours, restoring the appliance to the previous settings (the yellow LED will turn off). If you would like to stop the super freezing process before this time you have to push button “F” for more than 4 seconds. 38

Control panel (fig. 13)

To activate the quick freezing function turn dial “A” clock-wise to the “Super” position, the yellow LED “E” will switch on to indicate that the quick freezing process has begun. This stage will stop automatically after 50 hours (the yellow LED will turn off). To restore the appliance to the previous settings turn the dial “A” to the previous position, other than “SUPER”. Control panel (fig. 2) for Built-In Fridge Freezer with 2 compressors To activate the quick freezing function turn dial “D” clock-wise to position “S”, and the yellow LED “C” will light up. After 50 hours, when the quick freezing process has finished, the yellow light “C” will flash to indicate that the thermostat dial needs to be turned to the normal working position. Combi fridge freezers with or without control panel (fig. 12) 24 hours before beginning freezing, make space for the products requiring freezing. When freezing starts, in order not to cool the refrigerator compartment excessively, it may be necessary to decrease the setting on the thermostat dial by one or two numbers, depending on the load and the ambient temperature. When freezing is over, reset the thermostat at its normal dial setting. Single compressor, built-in version with control panel (fig. 2) In addition to the instructions for combi appliances without control panel: for improved freezing, whenever the ambient temperature is above 30°C, it is recommended to turn the thermostat to the “S” position for rapid freezing, approximately 6 hours before inserting fresh food for freezing. After 6 hours (when LED “C” is flashing) turn the thermostat dial to a normal working position different from “S”. FOR ALL APPLIANCES, the maximum quantity that can be frozen, as laid down by European standards, is indicated on the serial number and specification plate. DEFROSTING The refrigerating compartment defrosts automatically whenever the compressor is not working. During these periods the water drops that are formed from the melting frost drain into an appropriate container located over the compressor, which, with the heat it generates, causes it to evaporate. It is advisable not to place either food or the container against the back panel. For defrosting the freezer compartment, follow these instructions: a) 24 hours before defrosting set the thermostat knob onto the high numbers or activate fast freezing, to lower the temperature of the food. b) Wrap frozen foods in sheets of special foodstuff paper and plate them in a refrigerator or in a cool place. c) Set the thermostat to "0" or, where appropriate, switch off the green switch. d) Leave the door open. e) When defrosting is finished, dry the inside and replace the food that had been removed. f) Set the refrigerator to its former condition and allow it to function with the thermostat on a high value. Fig. 9) Important: the freezer is equipped with a frost water evacuation system consisting of a flexible rubber drain tube located on the bottom panel of the cell. Fig. 10) Important: in some models the defrosted water is discharged from the freezer by means of a pipe (closed with a plug) connected to a drip located at the base. In some models the drip tray must be pulled out from the chick plate and replaced after defrosting (fig. 10b). N.B.: Remember to remove the plug that closes the pipe in order to drain the defrosted water and replace the plug after the water has been drained. 39

Models with drink dispenser

Some models are equiped with a drink dispenser, which comprises of a bottle storage unit with drip tray fitted to the door inner panel. User instruction 1) Fig. 8A - Pull out the drip tray "K'' which clippes in place. Then remove container "H" from the inner door panel by lifting it upwards. 2) Remove dispenser "Z" from "H". Screw "Z" into the bottle, then insert the bottle into container "H". 3) Fig. 8B - Position the container unit "H" in the inner door panel by fixing it to the appropriate shelf supports. To secure it to the inner door panel push the unit upwards and insert the drip tray "K". The dispenser is now ready for use. 4) To dispense a cold drink, place the rim of the glass underneath the three levers and push upwards. 5) Cleaning the drip tray-Pull forward the drip tray "K" and remove from the dispensing unit.Clean the area where the liquid has collected and replace the drip tray after cleaning. N.B.:It is necessary to rinse the drip tray with water more frequently if sweet drinks are regularly despensed. CLEANING To prevent the formation of unpleasant smells, it is recommendend that the inside of the appliance be cleaned periodically, at least two or three times a year. a) Before carrying out any cleaning or maintenance, disconnect the appliance from the power supply by pulling out the plug (it is not enough to set the thermostat control to "0"). b) Remove all food and ice cubes form the refrigerator (see DEFROSTING). c) Wait until the frost has melted off the evaporator. d) Clean the interior of the refrigerator using lukewarm water into which have been dissolved one or two spoonfuls of bicarbonate of soda, rinse and dry. IMPORTANT: do not use detergents, abrasives or soaps. e) Restart the appliance before putting food back into the freezer. f) Clean the drain spout every so often using the relevant tool (fig. 5) which can be left inserted in the drain spout. When the appliance is to be out of use for a long period, after a through cleaning it should be left unplugged and with its doors partially open. SERVICING For any repairs use only Service Centres recommended by the manufacturer and insist that only original spares be used. Non-observance of the above could prejudice the safety of the appliance. If your refrigerator does not work, or if it does not work properly, check these points before making a Service call. 1) Is power getting to the socket to which the refrigerator is connected? Try it with a lamp. 2) Is the connecting plug not plugged into the socket? Plug it in. 3) Is the thermostat perhaps at position "0"? Turn it to position 3. 4) Have you let too much frost accumulate on the evaporator (more than 4 to 5 mm)? Defrost it (see "Defrosting"). 5) Has the food been badly placed inside the freezer, hindering free circulation of air? 6) Can air circulate freely around the condenser behind the appliance? Move it further away the wall. If you have a problem in or out of guarantee, please contact GIAS UK on Tel: 08705-99 00 11 for manufacturers service, giving the model type which you will find on the rating plate inside the refrigerator (or on the warranty form). You will get prompt and better service by 40

giving this information.

Important: A layer of heat around the freezer cell shows that the appliance is working properly. REVERSING THE OPENING OF THE DOORS (some models only) see fig. 3 To reverse the appliance doors, please contact GIAS SERVICE (tel. 08705 990011) to arrange an appointment with an engineer, who will provide this service for a nominal charge. 1) It is advisable to lean the refrigerator at an angle of about 45°, since it is necessary to work on the bottom of the appliance in order to remove the lower hinge. 2) Remove the plinth, if fitted. 3) Remove the lower hinge (and relative washers), by loosening screws A as shown in the figure. 4) Remove the lower door. 5) Remove the middle hinge (and relative washers), by loosening screws B as shown in the figure 3. Models with the upper tall door (fig. 7d – inside upper portion of the top door), before removing screws that fix the central hinge (between fridge and freezer door) open the top door and remove cap M and plastic insert L. When reversing the doors, the doors need to be supported at all times. 6) Remove the top door. Remove screw N from the right bottom hinge (fig 7e – bottom section of the appliance with kickplate removed). Take the left bottom hinge from the plastic bag and fix it to the bottom of the appliance with the screw you removed from the right bottom hinge. 7) Remove the plastic film, covering the upper left-hand hinge, from the facing. 8) Unscrew journal C from the upper right-hand hinge and refit it on the left. Models with the upper tall door (fig. 7c – inside upper portion of the top door), remove caps F-G, pivot D and the right upper hinge, taking away the screw. Take the left upper hinge (H) from plastic bag and fix it with the screw you have removed. Fix pivot D with washer to the left upper hinge. After transferring the hinge to the left hand side, the plastic insert (L) which covers this mechanism needs to be altered, the membrane of cap G needs to be broken so that its fits back into place. 9) Replace the doors working in a reverse fashion (6-5-4-3-2); remembering to refit the spacing washers between door and hinge. 10) Move the vertical handles, if they have been supplied, from the left hand side to the right hand side, by adjusting the relevant screws. For handles marked “M”, move them diagonally across from left to right. Remove the adhesive label from the left handle, take a new label from the accessory pack, remove the protective strip and attach it to the right handle. 11) Restore the appliance to an upright position. N.B. Correct alignment of the doors is obtained by adjustment of the middle hinge. REVERSING THE OPENING OF THE DOORS (some models only) see fig.7 To reverse the appliance doors, please contact GIAS SERVICE (tel. 08705 990011) to arrange an appointment with an engineer, who will provide this service for a nominal charge. For models with a bottom hinge both on the right and the left. 1) We recommend that the refrigerator be tilted about 45 degrees. 2) Remove the screws (A) that hold the central hinge in place. Models with the upper tall door (fig. 7d – inside upper portion of the top door), before removing screws that fix the central hinge (between fridge and freezer door) open the top door and remove cap M and plastic insert L. When reversing the doors, the doors need to be supported at all times. 3) Remove the top door. Remove screw N from the right bottom hinge (fig 7e – bottom section of the appliance with kickplate removed). Take the left bottom hinge from the plastic bag and fix it to the bottom of the appliance with the screw you removed from the right bottom hinge. 41

4) Remove the central hinge.

5) Remove the bottom door. 6) Remove the plastic membrane covering the top left hinge and the lower left hinge from the panel and the plinth. 7) Remove the pin (B) from the bottom right hinge and reassemble on the left. 8) Remove the pin (C) from the top right hinge and reassemble it on the left. Models with the upper tall door (fig. 7c – inside upper portion of the top door ), remove caps F-G, pivot D and the right upper hinge, taking away the screw. Take the left upper hinge (H) from plastic bag and fix it with the screw you have removed. Fix pivot D with washer to the left upper hinge. After transferring the hinge to the left hand side, the plastic insert (L) which covers this mechanism needs to be altered, the membrane of cap G needs to be broken so that its fits back into place. 9) Refit the doors in the reverse order (5-4-3-2) and remember to also fit the spacer washers, if they are available. 10) Move the vertical handles, if they have been supplied, from the left hand side to the right hand side, by adjusting the relevant screws. For handles marked “M”, move them diagonally across from left to right. Remove the adhesive label from the left handle, take a new label from the accessory pack, remove the protective strip and attach it to the right handle. 11) Restore the appliance to the upright position. HOW TO PANEL THE 370 L - 410 L REFRIGERATOR Dimensions of insert panel (see fig. 11): Height mm.

Necessary tools: Philips screwdriver.

Procedure: a) Remove the frame form the freezer door, unscrewing the screws on the right-hand side of the door. b) Loosen the top and bottom screws. c) Insert the panel in the appropriate opening in the frame. d) Refit the frame, tightening the screws, tighten the top and bottom screws. The procedure for the larger door is the same. IF THE LIGHT IN THE REFRIGERATOR'S COMPARTMENT DOES NOT WORK, PROCEED AS FOLLOWS: - Disconnect the appliance from the mains. - Remove the protection lid, unhooking it from its positions (in models with ceiling light pull forward and downward; in models with side light push the lower side and move upward). - Unscrew the bulb and replace it with a similar one. - Replace the cover and reconnect the appliance to the mains.
