HT 260 - Hedge Trimmers Texas - Free user manual and instructions

Product Type	Hedge Trimmer
Brand	Texas
Model	HT 260
Power Source	Electric (corded)
Motor Power	600 W
Blade Length	60 cm (23.6 in)
Tooth Spacing	20 mm
Cutting Capacity	Up to 20 mm
Cutting Speed	1600 strokes/min
Weight	3.5 kg
Vibration Level	2.5 m/s²
Sound Pressure Level	85 dB(A)
Safety Features	Two-hand operation, blade guard
Ergonomic Design	Soft grip handle, adjustable rear handle
Maintenance	Automatic oiling system, blade sharpening
Spare Parts Availability	Blades, motor brushes, switches
Warranty	2 years

Frequently Asked Questions - HT 260 Texas

How do I start the Texas HT 260 hedge trimmer?

Plug the trimmer into a power outlet, press and hold the safety lock button, then squeeze the trigger switch. Release the safety lock once the trigger is engaged.

What type of oil should I use for blade lubrication?

Use a lightweight machine oil (e.g., SAE 10W-30) or special hedge trimmer blade oil. Apply to the blade teeth and guide bar before and after use.

How do I clean the blades after use?

Disconnect the trimmer from power. Use a soft brush and warm soapy water to remove debris. Dry thoroughly and apply oil to prevent rust. Do not use solvents.

Can I use an extension cord with this trimmer?

Yes, use an outdoor-rated extension cord with a minimum gauge of 16 AWG and a maximum length of 30 meters. Ensure the cord is fully unwound to avoid overheating.

How should I store the hedge trimmer?

Clean the trimmer, oil the blades, and store in a dry place. Use the blade guard for protection. Keep out of reach of children. Do not store near flammable materials.

What safety gear is recommended when using the HT 260?

Wear safety glasses, hearing protection, gloves, and sturdy footwear. Avoid loose clothing and tie back long hair. Use a face shield if necessary.

How do I replace the blade?

Disconnect the trimmer from power. Remove the blade bolt and old blade. Install the new blade ensuring correct orientation. Tighten the bolt securely. Refer to the manual for specific torque.

Why does the hedge trimmer stop suddenly during use?

Possible causes include overheating, a tripped thermal overload protector, or a blocked blade. Allow the trimmer to cool for 10 minutes. Check for debris and reset if needed.

How can I adjust the rear handle?

The rear handle can be rotated to three positions. Press the handle adjustment button and rotate the handle to the desired angle. Ensure it locks into place before use.

Where can I find spare parts for the Texas HT 260?

Spare parts such as blades, screws, and switches are available through authorized Texas service centers or online retailers. Use genuine parts for safety and performance.

USER MANUAL HT 260 Texas

Vigtig!

Please read this manual carefully before using your hedge-trimmer

Viktigt!

Sådan startes en varm motor

Tændrør

Safety precautions....11

Survey....12

Fuel....13

Before start....13

How to start a cold engine 14

Recommendations for trimming 14

Maintenance 14

Spark plug....15

Rotation of handle....15

Storage 15

Trouble shooting....16

Specifications....17

EU certificate of declaration....34

Introduction

Thank you for choosing our Texas hedge trimmer.

This manual informs you of the use and maintenance of your hedge-trimmer to ensure that you benefit the most from using it. Your local dealer will be ready to give you advice and will be happy to answer any questions you might have to this manual.

Spare parts

Part list and explosive drawings for the specific product, can be found on our website www.texas.dk

If you help find part numbers yourself, it will ease the service.

For purchase of spare parts, please contact your dealer.

Before using the machine

• Read this user manual carefully to understand how to operate the machine properly.
• Never wear loose fitting clothes when working the machine. Always use protective glasses and gloves.
• Make sure that any spectators are more than 5 meters from the place where you use the machine.
• Start the machine on solid ground with an even surface.
• Hold both handles on the handles all times when using the machine.
• Make sure to stand steady with both feet and your body in balance during work.
• Keep the machine away from your body when you start it and work with it.
• Do not touch the knives with your hands once the machine is started.
• Never attempt to remove objects that are stuck in the knives without stopping the engine and removing the spark cable first.
• Always stop the engine when not trimming and keep the exhaust away from your body when carrying the machine.
• Only fill fuel outdoors. Wipe away any fuel spilled before starting the engine. Be at a distance of more than 3 meters from the fuel container and the place of fuelling before starting the engine. Never add fuel to a hot engine. Wait until it is cold.
• The exhaust should not get close to dry grass or any other lightly lit material. Always keep the exhaust away from your body.
• Never touch the spark plug when starting the machine or working with it.
• While working with the machine you should be observant of objects that may damage the knives such as wire, fences or poles.
• Never use the machine indoors.

1. Throttle lever
2. Start / stop
3. Starter
4. Handle
5. Hand protection
6. Knife protection
7. Knife
8. Fuel tank
9. Clutch housing
10. Choke
11. Fuel primer
12. Grease nipple
13. Release handle

14. Lock handle for rotation

15. This product is equipped with a two-stroke engine that needs two-stoke oil added to the gasoline.

16. Always use unleaded fuel (octane 95).
17. Never use already mixed petrol/oil from gas stations that is normally used for mopeds, motorcycles i.e.
18. Always follow the directions from the supplier of the oil regarding the mix of oil and petrol.
19. Use a clean and approved gasoline can for mixing the oil with the petrol.
20. Use an approved two-stroke oil for air cooled engines, chain saws, trimmers. (Do not use oil for outboard motors or car oil). Mix only in small quantities.
21. Texas recommends Texas Motex 2TX mixed 2%. Mix 0,1 l Motex 2TX oil with 5 l unleaded gasoline. If another oil is used a 4% mixture is required. But you should always follow the directions given to you by the manufacturer of the oil.
22. Mix the oil and the gasoline thoroughly and shake the mix before tanking.
23. Never use a mix of gasoline and oil that is more than 90 days old as this may lead to problems starting the engine. Never store the same mix in the tank for more than 30 days.
24. When storing the machine for more than 30 days you should empty the tank.

Filing of gasoline – Smoking prohibited!

1. Unscrew the gasoline lid. Place it on a clean surface.
2. Carefully pour the oil mixed fuel into the tank. Beware of spilling.
3. Screw the lid on tightly. Wipe away any spilled fuel.
4. It is normal that the engine smokes the first time it is used.

Notice ! Always turn off the engine before fuelling. Never add fuel onto a machine that is running or when the engine is hot. (Cooling time at least 2 minutes). Move more than 3 meters away from the place where you add fuel on the engine before it is started.

Before start

1. Moisten the foam filter in engine oil before start. Read more on page 14.

2. Place the hedge-trimmer on a flat even surface.

3. Turn the switch (2) to "Start" (This is not indicated, but it is the lowest position.)

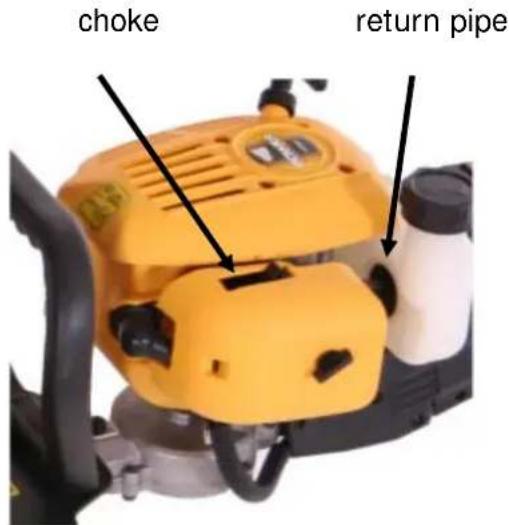

4. Press the fuel primer located beneath the air filter (right side) until the gasoline returns to the tank (the clear tube).
5. Switch on the choke.
6. Pull the starter, until the engine runs.
7. Switch the choke to running position.

How to start a warm engine

1. Switch the choke to "OFF".
2. Pull the starter until the engine runs.

How to stop the engine

Put the engine in idling position before it is stopped.

1. Turn switch (2) to "STOP".

Recommendations for trimming

• Use only the necessary amount of gas.
• Turn the hedge-trimmer 5-10° compared to the hedge. This makes it easier to cut and the result is better.

Maintenance

Maintenance before and after use.

• Remove any leaves or branches and dirt from the machine.
• Check for any loose or missing parts. Fasten any loose parts.

• Check for any leakage from the fuel system.

• A dirty air filter makes it difficult to start the engine and lessens the performance of the engine. Check for any dirt in the filter.

• Clean the air filter in warm soap water. It must be completely dry, before 2-stroke engine oil is applied.

The air filter must be soaked in 2-stroke engine oil. Press out any surplus oil Check that the air filter cover closes tightly.

Notice that the gearbox must be oiled.

On delivery it is oiled, but it may be necessary to re-oil.

The gearbox must be 3/4 filled.

The amount should be controlled at least once a year.

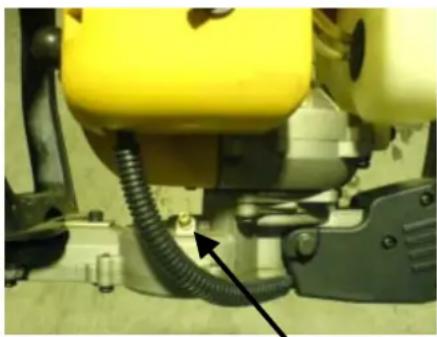

Use the grease nipple below the air filter for greasing.

(Unmount the alley bolt below the gear)

Use grease type: MULTIFAK EP-0

Spark plug

This machine is equipped with a spark plug type BPMR7A, with an electrode distance of 0.6 mm. For optimal performance it should be replaced once a year.

Article number, Spark plug : 10011022

Rotation of handle

To give you best and most ergonomic way of trimming your hedge the handle can be rotated by 90 degrees to the right or the left.

Do not press the throttle when rotating handle!

Press the handle (13) on top of the handle bar. Then pull back the lock handle (14) while at the same time turning the handle to the left or right.

Storage

1. Empty all fuel into a can approved for petrol. Let the engine run until it stops.
2. Clean the knives, store them frost free and out of reach for children.
3. Observe all safety precautions concerning safe storage and handling of petrol.

PROBLEM POSSIBLE CAUSE SOLUTION
The engine does not start.	1. No spark. Check the spark plug.	Take off the spark plug, place the spark plug cap on the spark plug and put the spark plug on the metal cylinder. Pull the starter and check if there are sparks on the top of the spark plug. It there are no sparks repeat the procedure with a new spark plug.
	2. No fuel. Press the fuel primer. If the problem persists, contact your local dealer.
	3. "Drowned" engine. Remove the spark plug and turn the trimmer so that the spark plug hole faces the ground. Switch the choke to "RUN" and pull the starter 10-15 times. Clean the spark plug and fit it again. You might also replace the spark plug. Pull the starter 3 times with the choke switched to "RUN". If the engine does not start, move the choke to "Choke" and normal starting procedure is used. If the engine still does not start, repeat the procedure with a new spark plug.
	4. The starter must be pulled harder than when the machine was new.	Contact your local dealer.
The engine starts but does not accelerate.	The carburettor should be adjusted.	Contact your local dealer.
The engine starts but can only run on full power and on half choke.	The carburettor should be adjusted, repaired or cleaned.	Contact your local dealer.
The engine does not run on full power and smokes heavily.	1. Check the mix of the petrol and oil.	Use new fuel with the correct mix.
	2. The air filter is dirty. Clean or replace.
	3. The carburettor should be adjusted.	Contact your local dealer.
The engine starts, runs and accelerates but can not run idle.	The carburettor should be adjusted.	Contact your local dealer.
Oil leaks from the exhaust.	1. The trimmer is not used on full power.	Use full power.
	2. Check the mix of the petrol and oil.	Use new fuel and correct two-stroke mix.
	3. The air filter is dirty. Clean or replace.
	4. The carburettor should be adjusted.	Contact your local dealer.
HT 260
Net Weight (kg) 5,4
Outer dimension	Total Length (mm) 1050
	Total Width (mm) 220
	Total Height (mm) 220
Knife	Type	Double
	Total Length (mm) 600
	Cutting capacity (mm) 27
Transmission Automatic centrifugal clutch
Engine	Type	Aircooled, single cylinder, two-stroke petrol engine
	Cc	26
	Effect 0,75 kW / 7500 rev./min
	Fuel Capacity (L) 0,4
	Starter	Recoil
	Sparkplug Denso W22MPR-U (10011022)

Due to continued product development Texas A/S reserves the right to improve the product without being obligated to make the amendments to already sold products.
