Product Type	Wristwatch
Model Number	2-LD3574
Brand	Auriol
Display Type	Analog with digital display
Case Diameter	Approx. 42 mm
Case Thickness	Approx. 12 mm
Weight	Approx. 80 g
Power Source	1x CR2032 battery
Battery Life	Up to 2 years
Water Resistance	3 ATM (splash resistant)
Main Functions	Time, date, alarm, chronograph, backlight
Movement Type	Quartz
Band Material	Stainless steel or resin (check product)
Band Width	22 mm
Care Instructions	Clean with soft damp cloth; avoid solvents
Safety Precautions	Keep away from strong magnetic fields; do not immerse
Spare Parts Availability	Batteries and straps available online
Repairability	Battery replacement by a professional
General Information	User manual in PDF format available for download

Frequently Asked Questions - 2-LD3574 AURIOL

How do I set the time on my Auriol 2-LD3574 watch?

Press and hold the Mode button until the seconds flash. Use the Start/Stop and Reset buttons to adjust hours, minutes, and date. Press Mode to confirm.

How do I replace the battery in this watch?

Open the battery compartment on the back with a small screwdriver. Replace the old CR2032 battery with a new one, ensuring correct polarity. Snap the cover back on.

Is the Auriol 2-LD3574 water-resistant?

Yes, it is rated 3 ATM, meaning it can withstand splashes and rain but should not be submerged or used for swimming.

How do I use the chronograph function?

Press the Start/Stop button to begin timing; press again to stop. Press Reset to return to zero.

Why is the backlight not working?

The backlight activates by pressing the Light button. If it fails, check battery level. Low battery may cause dim or no light.

How do I set the alarm?

Press Mode until the alarm time appears. Use Start/Stop and Reset to set hours and minutes. Press Mode to save and toggle alarm on/off.

Can I adjust the metal bracelet length?

Yes, the stainless steel bracelet has removable links. Use a pin pusher tool to remove links for a proper fit.

What does the 'CHRON' display mean?

'CHRON' indicates the chronograph (stopwatch) mode is active. Press Reset to exit chronograph mode.

How do I switch between 12h and 24h time format?

In time setting mode, press the Start/Stop button while the hour digits flash to toggle between 12H and 24H format.

Where can I download the user manual?

The manual is available for free download in PDF format on the product page at notice-facile.com. Search for 'Auriol 2-LD3574'.

USER MANUAL 2-LD3574 AURIOL

WATCH AND JEWELLERY SET

GB

WATCH AND JEWELLERY SET

Operation and safety notes

SI

KOMPLET Z ROČNO URO IN ZAPESTNICO

GB Operation and safety notes Page 5

B
3 BAR	√	×	×	×
5 BAR	√	√	×	×
10 BAR	√	√	√	×
20 BAR	√	√	√	√

E HG05229C

F

HG05229C

List of pictograms used ...... Page 6

Introduction Page 6

Intended use.... Page 7

Description of parts....Page 7

Technical data ...... Page 7

Scope of delivery.... Page 8

Before first use Page 8

Changing the battery....Page 8

Setting the time.... Page 8

Water resistance Page 9

Adjusting the watch strap (HG05229C).... Page 9

Removing segments ...... Page 9

How to exchange the pin inside the slider (Fig. D, E, F)....Page 10

Cleaning and care Page 10

Disposal.... Page 11

Warranty Page 12

List of pictograms used

Direct current

Suitable for rain, washing hands, splashes

Suitable for showering, washing up, bathing

Suitable for swimming, snorkelling

Suitable for wind surfing, scuba diving

WATCH AND JEWELLERY SET

Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Intended use

The product is intended for consumer use only and must not be used in commercial areas.

● Description of parts

1 Minute hand 2 Crown 3 Second hand 4 Hour hand 5 Unlock position 6 Segment (HG05229C) 7 Repair set (HG05229C) 8 Rotating slider (HG05229C) 9 Spare pin (HG05229C) 10 Bottom cover (HG05229C)

● Technical data

Battery: 1 x 1.5 V ---

Button cell (type SR626SW)

Model number:

HG05229A: Silver case, black strap

HG05229B: Black case, black mesh band

HG05229C: Silver case, metal link band

HG05229D: Silver, gold case, brown strap

- Scope of delivery

Immediately after unpacking, please check the package contents for completeness and if the product and all parts are in good condition.

1 Watch 1 Battery (pre-installed) 1 Bracelet (HG05229A-D) 1 Set of instructions for use ■ 1 Spare changeable link (HG05229C) ■ 1 Repair set (HG05229C)

Before first use

■ Remove all packaging materials from the product.

● Changing the battery

Note: Have batteries changed in a specialist shop.

- Setting the time

1. To set the time, pull the crown 2 out to the unlock position 5.
2. Turn the crown 2 to set the hour 4 and minute hands 1.
3. When the crown 2 is pushed back to the normal position, the second hand 3 begins to run.

Water resistance

Figure B shows the permissible areas of use. Please note that the water resistance is not a permanent feature. It should be checked annually and particularly before subjecting it to special conditions, as the function of the in-built sealing elements diminishes with daily use.

● Adjusting the watch strap (HG05229C)

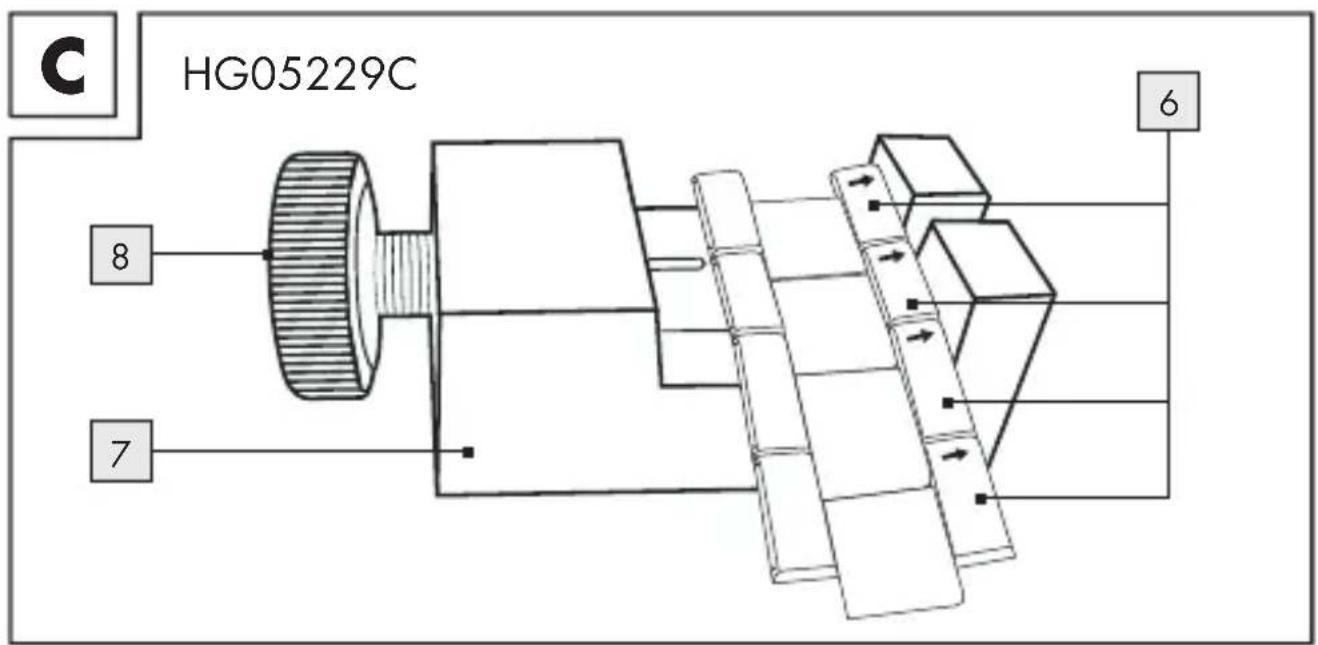

See Fig. C:

Adjust the watch strap by removing segments 6 (1 spare changeable link is included). To this purpose you should use the repair set 7 supplied.

- Removing segments

Note: The segments which can be removed are marked with an arrow (see Fig. C). They are connected together with pins. These can be pushed out in the direction of the arrow with the repair set 7. Use a pair of tweezers (not included) if necessary in order to remove the pins.

Place the watch with the dial facing downwards in the repair set 7.

■ Remove the pins of the segment that you wish to remove (as described above) and take out the segment 6.

Note: If you would like to take out more than one consecutive segment 6, it is sufficient to remove the two outer pins.

Connect the watch strap together again by joining the loose segments 6 with a pin. Press this pin against the direction of the arrow into the adjacent segments 6.

● How to exchange the pin inside the slider (Fig. D, E, F)

Take out the rotating slide, open the bottom cover 10 with the spare pin 9 inside (Fig. E).

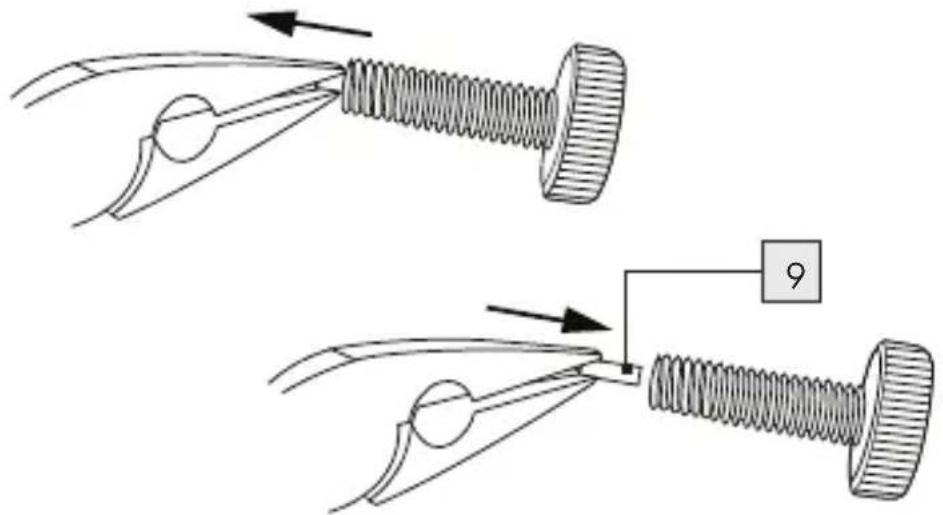

You will need the pliers (not included) to carefully remove the old pin from the slider (Fig. F).

- Insert the spare pin carefully into the rotating slider by again using the pliers (not included). The new pin is installed.

● Cleaning and care

- Clean the product on the outside only with a soft, wet and clean cloth.

- Rinse the product under running water if necessary. Dry thoroughly after rinsing.

Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with the following meaning: 1 - 7: plastics / 20 - 22: paper and fibreboard / 80 - 98: composite materials.

The product and packaging materials are recyclable; dispose of them separately for better waste treatment. The Triman logo is valid in France only.

Contact your local refuse disposal authority for more details on how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Faulty or used batteries / rechargeable batteries must be recycled in accordance with Directive 2006/66/EC and its amendments. Please return the batteries / rechargeable batteries and / or the product to the available collection points.

Environmental damage through incorrect disposal of the batteries / rechargeable batteries!

Batteries / rechargeable batteries may not be disposed of with the usual domestic waste. They may contain toxic heavy metals and are subject to hazardous waste treatment rules and regulations. The chemical symbols for heavy metals are as follows: Cd = cadmium, Hg = mercury, Pb = lead. That is why you should dispose of used batteries / rechargeable batteries at a local collection point.

Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it - at our choice - free of charge to you.

The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase. This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

The warranty further excludes a reduction in water tightness. The state of water tightness is not a permanent property and should therefore be regularly maintained. Please note, opening and repairs performed by unauthorized individuals will void any warranty.

Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

Please have the till receipt and the item number (e.g. IAN 123456_7890) available as proof of purchase.

You will find the item number on the type plate, an engraving on the front page of the instructions (bottom left), or as a sticker on the rear or bottom of the appliance.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.
