USER MANUAL GT-10B ROLAND

Thank you, and congratulations on your choice of the BOSS GT-10B.

Before using this unit, carefully read the sections entitled: "USING THE UNIT SAFELY" (p. 2-3), and "IMPORTANT NOTES" (p. 4-5). These sections provide important information concerning the proper operation of the unit. Additionally, in order to feel assured that you have gained a good grasp of every feature provided by your new unit, Owner's manual should be read in its entirety. The manual should be saved and kept on hand as a convenient reference.

USING THE UNIT SAFELY

INSTRUCTIONS FOR THE PREVENTION OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS

About WARNING and CAUTION Notices

▲WARNING	Used for instructions intended to alert the user to the risk of death or severe injury should the unit be used improperly.
▲CAUTION	Used for instructions intended to alert the user to the risk of injury or material damage should the unit be used improperly. * Material damage refers to damage or other adverse effects caused with respect to the home and all its furnishings, as well to domestic animals or pets.

About the Symbols

▲	The △ symbol alerts the user to important instructions or warnings. The specific meaning of the symbol is determined by the design contained within the triangle. In the case of the symbol at left, it is used for general cautions, warnings, or alerts to danger.
◎	The ⊙ symbol alerts the user to items that must never be carried out (are forbidden). The specific thing that must not be done is indicated by the design contained within the circle. In the case of the symbol at left, it means that the unit must never be disassembled.
◎	The ● symbol alerts the user to things that must be carried out. The specific thing that must be done is indicated by the design contained within the circle. In the case of the symbol at left, it means that the power-cord plug must be unplugged from the outlet.

ALWAYS OBSERVE THE FOLLOWING

WARNING

• Do not open (or modify in any way) the unit or its AC adaptor.

• Do not attempt to repair the unit, or replace parts within it (except when this manual provides specific instructions directing you to do so). Refer all servicing to your retailer, the nearest Roland Service Center, or an authorized Roland distributor, as listed on the "Information" sheet.

• Never use or store the unit in places that are:

• Subject to temperature extremes (e.g., direct sunlight in an enclosed vehicle, near a heating duct, on top of heat-generating equipment); or are

• Damp (e.g., baths, washrooms, on wet floors); or are
• Humid; or are
• Exposed to rain; or are
• Dusty; or are

• Subject to high levels of vibration.

• Make sure you always have the unit placed so it is level and sure to remain stable. Never place it on stands that could wobble, or on inclined surfaces.

• Be sure to use only the AC adaptor supplied with the unit. Also, make sure the line voltage at the installation matches the input voltage specified on the AC adaptor's body. Other AC adaptors may use a different polarity, or be designed for a different voltage, so their use could result in damage, malfunction, or electric shock.

WARNING

• Use only the attached power-supply cord. Also, the supplied power cord must not be used with any other device.

• Do not excessively twist or bend the power cord, nor place heavy objects on it. Doing so can damage the cord, producing severed elements and short circuits. Damaged cords are fire and shock hazards!

• This unit, either alone or in combination with an amplifier and headphones or speakers, may be capable of producing sound levels that could cause permanent hearing loss. Do not operate for a long period of time at a high volume level, or at a level that is uncomfortable. If you experience any hearing loss or ringing in the ears, you should immediately stop using the unit, and consult an audiologist.

• Do not allow any objects (e.g., flammable material, coins, pins); or liquids of any kind (water, soft drinks, etc.) to penetrate the unit.

WARNING

• Immediately turn the power off, remove the AC adaptor from the outlet, and request servicing by your retailer, the nearest Roland Service Center, or an authorized Roland distributor, as listed on the "Information" page when:

• The AC adaptor, the power-supply cord, or the plug has been damaged; or
• If smoke or unusual odor occurs
• Objects have fallen into, or liquid has been spilled onto the unit; or
• The unit has been exposed to rain (or otherwise has become wet); or

• The unit does not appear to operate normally or exhibits a marked change in performance.

• In households with small children, an adult should provide supervision until the child is capable of following all the rules essential for the safe operation of the unit.

• Protect the unit from strong impact. (Do not drop it!)

• Do not force the unit's power-supply cord to share an outlet with an unreasonable number of other devices. Be especially careful when using extension cords—the total power used by all devices you have connected to the extension cord's outlet must never exceed the power rating (watts/amperes) for the extension cord. Excessive loads can cause the insulation on the cord to heat up and eventually melt through.

• Before using the unit in a foreign country, consult with your retailer, the nearest Roland Service Center, or an authorized Roland distributor, as listed on the "Information" sheet.

CAUTION

• The unit and the AC adaptor should be located so their location or position does not interfere with their proper ventilation.

• Always grasp only the plug on the AC adaptor cord when plugging into, or unplugging from, an outlet or this unit.

• At regular intervals, you should unplug the AC adaptor and clean it by using a dry cloth to wipe all dust and other accumulations away from its prongs. Also, disconnect the power plug from the power outlet whenever the unit is to remain unused for an extended period of time. Any accumulation of dust between the power plug and the power outlet can result in poor insulation and lead to fire.

• Try to prevent cords and cables from becoming entangled. Also, all cords and cables should be placed so they are out of the reach of children.

• Never climb on top of, nor place heavy objects on the unit.

• Never handle the AC adaptor or its plugs with wet hands when plugging into, or unplugging from, an outlet or this unit.

• Before moving the unit, disconnect the AC adaptor and all cords coming from external devices.

• Before cleaning the unit, turn off the power and unplug the AC adaptor from the outlet (p. 27).

• Whenever you suspect the possibility of lightning in your area, disconnect the AC adaptor from the outlet.

• Should you remove the screw and the USB connector cap, keep them in a safe place out of children's reach, so there is no chance of them being swallowed accidentally.

Power Supply

• Do not connect this unit to same electrical outlet that is being used by an electrical appliance that is controlled by an inverter (such as a refrigerator, washing machine, microwave oven, or air conditioner), or that contains a motor. Depending on the way in which the electrical appliance is used, power supply noise may cause this unit to malfunction or may produce audible noise. If it is not practical to use a separate electrical outlet, connect a power supply noise filter between this unit and the electrical outlet.
• The AC adaptor will begin to generate heat after long hours of consecutive use. This is normal, and is not a cause for concern.
• Before connecting this unit to other devices, turn off the power to all units. This will help prevent malfunctions and/or damage to speakers or other devices.

Placement

• Using the unit near power amplifiers (or other equipment containing large power transformers) may induce hum. To alleviate the problem, change the orientation of this unit; or move it farther away from the source of interference.
• This device may interfere with radio and television reception. Do not use this device in the vicinity of such receivers.
• Noise may be produced if wireless communications devices, such as cell phones, are operated in the vicinity of this unit. Such noise could occur when receiving or initiating a call, or while conversing. Should you experience such problems, you should relocate such wireless devices so they are at a greater distance from this unit, or switch them off.
• When moved from one location to another where the temperature and/or humidity is very different, water droplets (condensation) may form inside the unit. Damage or malfunction may result if you attempt to use the unit in this condition. Therefore, before using the unit, you must allow it to stand for several hours, until the condensation has completely evaporated.
• Depending on the material and temperature of the surface on which you place the unit, its rubber feet may discolor or mar the surface. You can place a piece of felt or cloth under the rubber feet to prevent this from happening. If you do so, please make sure that the unit will not slip or move accidentally.

Maintenance

• For everyday cleaning wipe the unit with a soft, dry cloth or one that has been slightly dampened with water. To remove stubborn dirt, use a cloth impregnated with a mild, non-abrasive detergent. Afterwards, be sure to wipe the unit thoroughly with a soft, dry cloth.
• Never use benzine, thinners, alcohol or solvents of any kind, to avoid the possibility of discoloration and/or deformation.

Repairs and Data

• Please be aware that all data contained in the unit's memory may be lost when the unit is sent for repairs. Important data should always be backed up on a another MIDI device (e.g., a sequencer), or written down on paper (when possible). During repairs, due care is taken to avoid the loss of data. However, in certain cases (such as when circuitry related to memory itself is out of order), we regret that it may not be possible to restore the data, and Roland assumes no liability concerning such loss of data.

Additional Precautions

• Please be aware that the contents of memory can be irretrievably lost as a result of a malfunction, or the improper operation of the unit. To protect yourself against the risk of loosing important data, we recommend that you periodically save a backup copy of important data you have stored in the unit's memory in another MIDI device (e.g., a sequencer).
• Unfortunately, it may be impossible to restore the contents of data that was stored in another MIDI device (e.g., a sequencer). once it has been lost. Roland Corporation assumes no liability concerning such loss of data.
• Use a reasonable amount of care when using the unit's buttons, sliders, or other controls; and when using its jacks and connectors. Rough handling can lead to malfunctions.
• Never strike or apply strong pressure to the display.
• When connecting / disconnecting all cables, grasp the connector itself—never pull on the cable. This way you will avoid causing shorts, or damage to the cable's internal elements.
• To avoid disturbing your neighbors, try to keep the unit's volume at reasonable levels. You may prefer to use headphones, so you do not need to be concerned about those around you (especially when it is late at night).

• When you need to transport the unit, package it in the box (including padding) that it came in, if possible. Otherwise, you will need to use equivalent packaging materials.

• Use only the specified expression pedal (Roland EV-5, BOSS FV-500L/500H with a connection cable (stereo 1/4'' phone - stereo 1/4'' phone); sold separately). By connecting any other expression pedals, you risk causing malfunction and/or damage to the unit.

• Some connection cables contain resistors. Do not use cables that incorporate resistors for connecting to this unit. The use of such cables can cause the sound level to be extremely low, or impossible to hear. For information on cable specifications, contact the manufacturer of the cable.

Copyright

• This product can be used to record or duplicate audio without being limited by certain technological copy-protection measures. This is due to the fact that this product is intended to be used for the purpose of producing original music, and is therefore designed so that material that does not infringe copyrights belonging to others (for example, your own original works) can be recorded or duplicated freely.
• Do not use this unit for purposes that could infringe on a copyright held by a third party. We assume no responsibility whatsoever with regard to any infringements of third-party copyrights arising through your use of this unit.

Printing Conventions and icons in This Manual

Text or numerals enclosed in square brackets [ ]	Indicate buttons. [WRITE] WRITE button
NOTE	Indicates information that you should be aware of when using the GT-10B.
MEMO	Indicates supplementary information about an operation.
TIP	Indicates information about a convenient operation.
cf. (p.**)	Indicates a reference page.

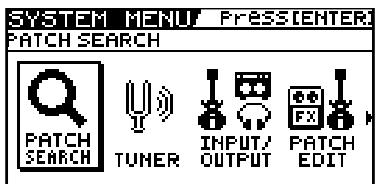

About the Explanations of Procedures in the Text

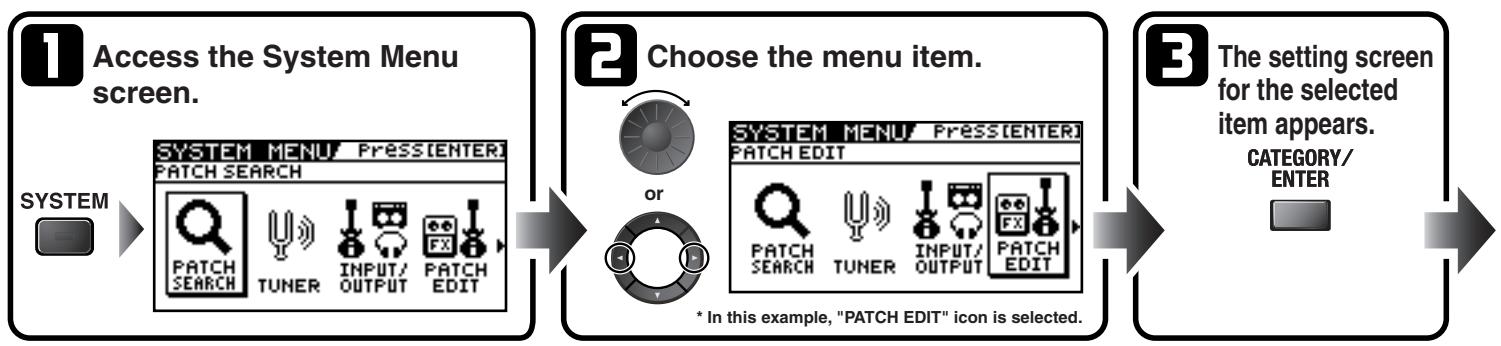

• For selecting items like those shown in the screen view below, the explanations describe how to make the selection using the knobs, but you can also select the items using [] and [] (the cursor buttons).

IMPORTANT NOTES 4

Main Features 10

Names of Things and What They Do. 11

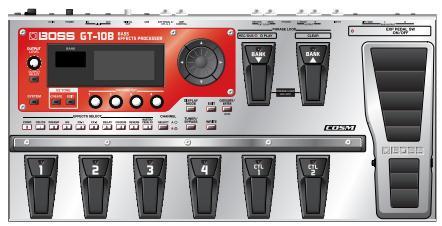

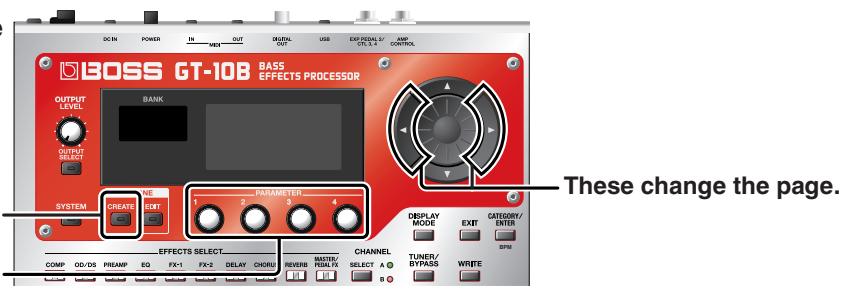

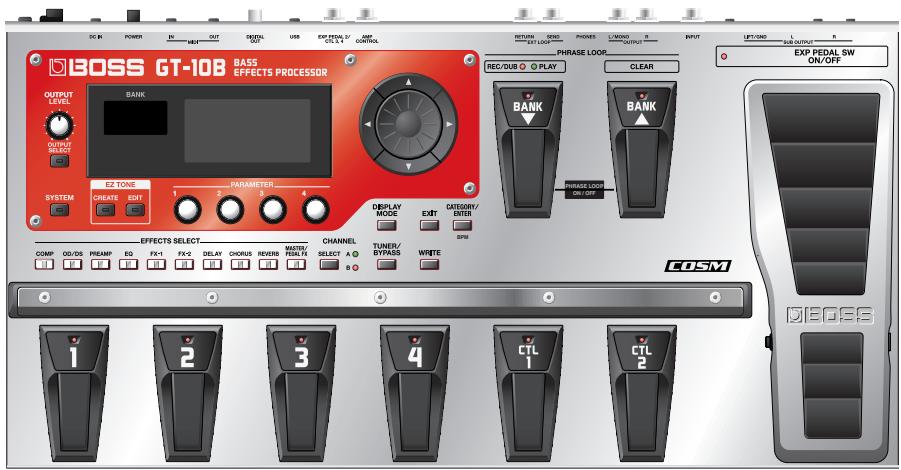

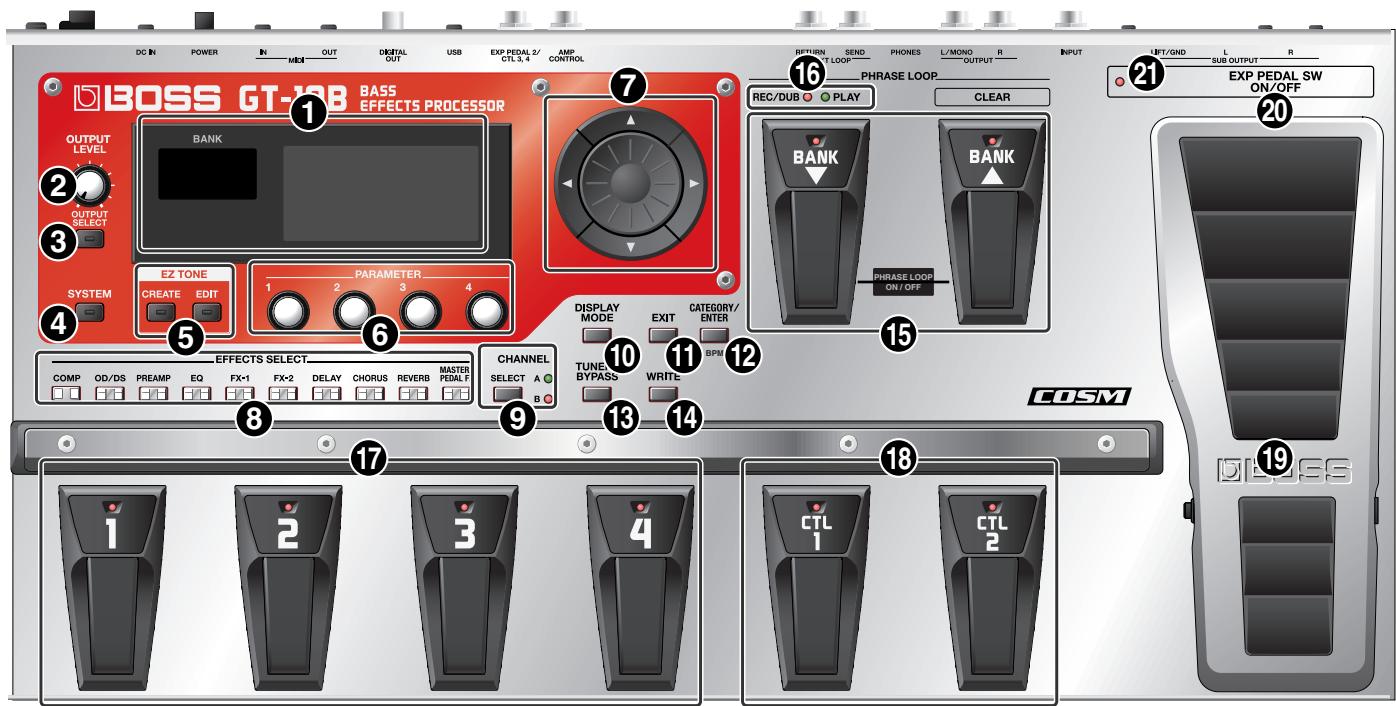

Front Panel. 11

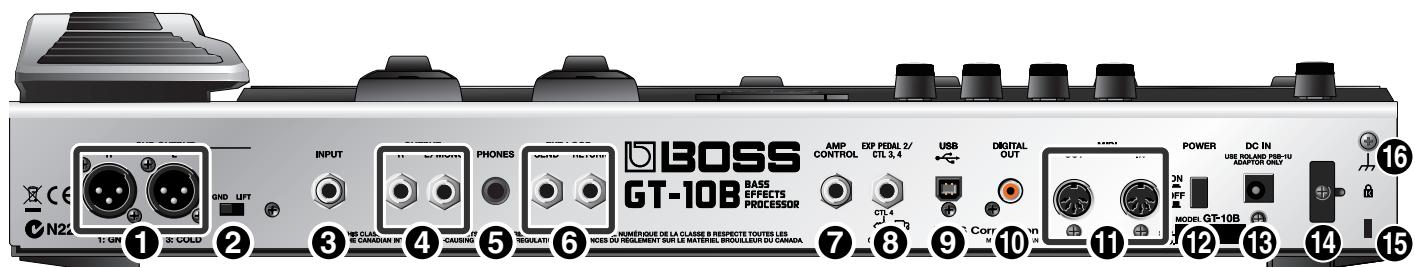

Rear Panel. 13

Checking the Package Contents. 13

Quick Guide. 14

Getting Ready 14

Playing Sounds 16

Editing 18

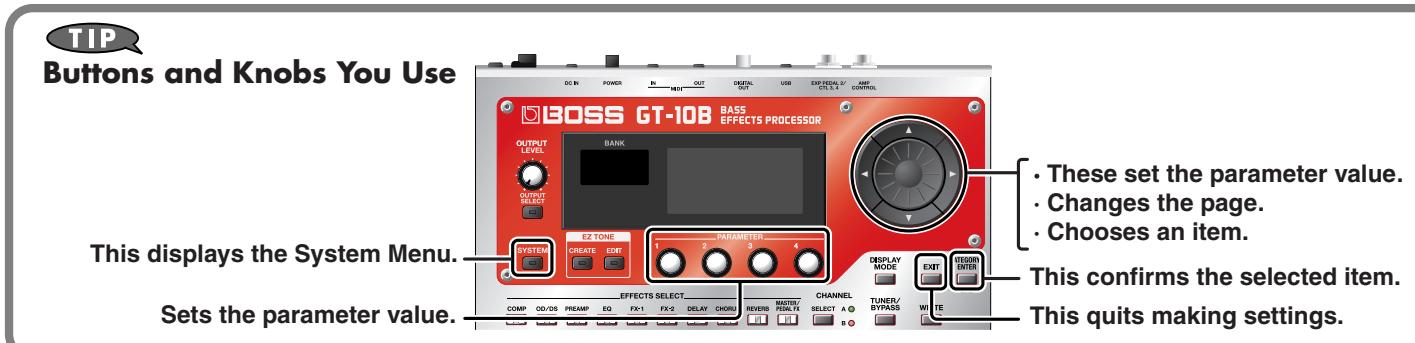

Basic Operation 18

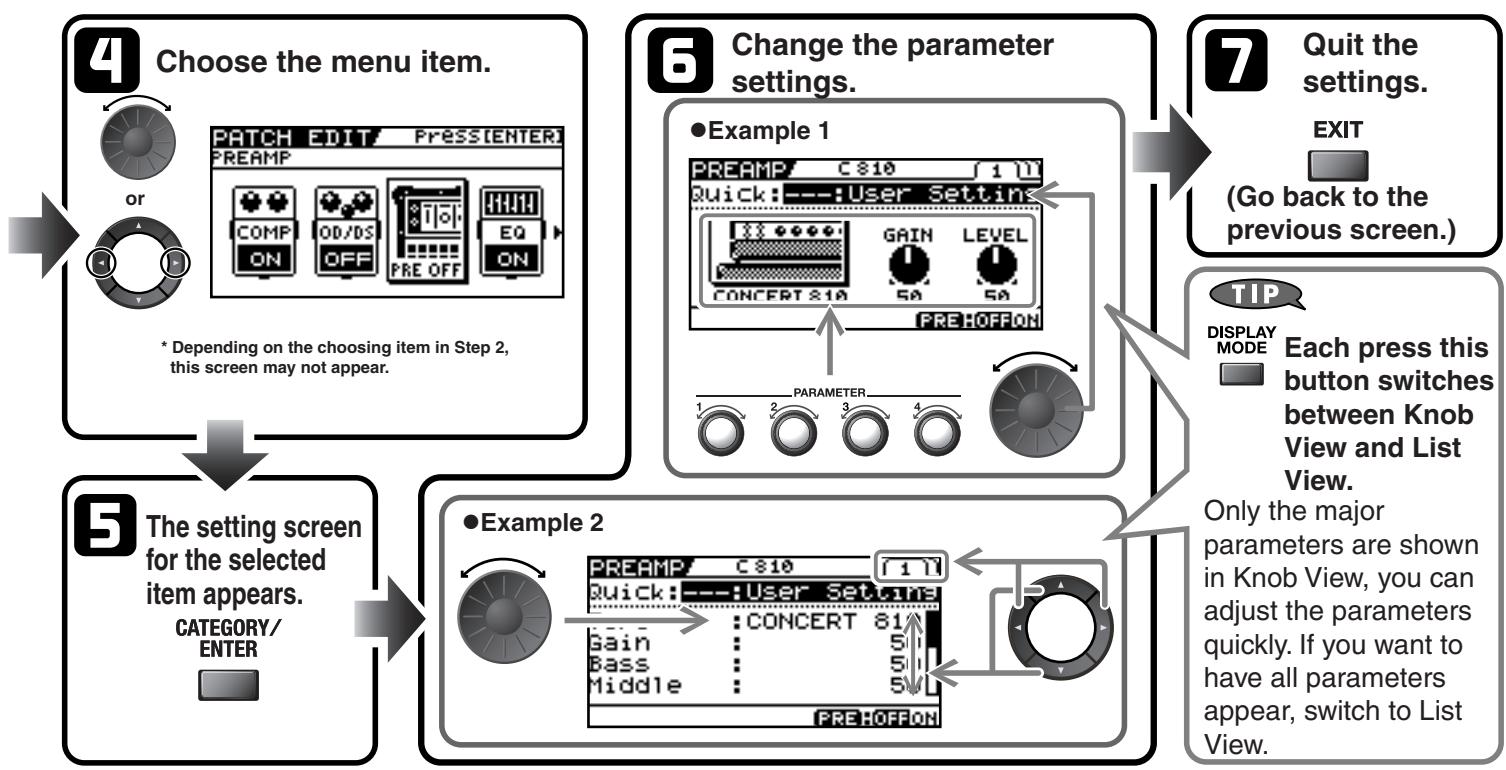

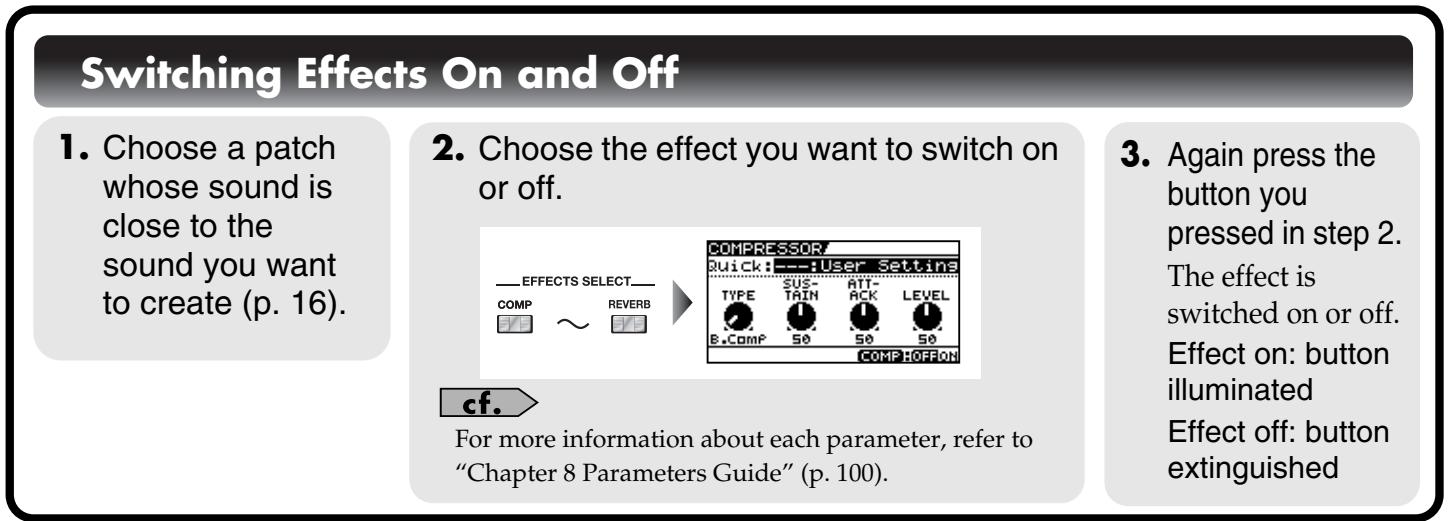

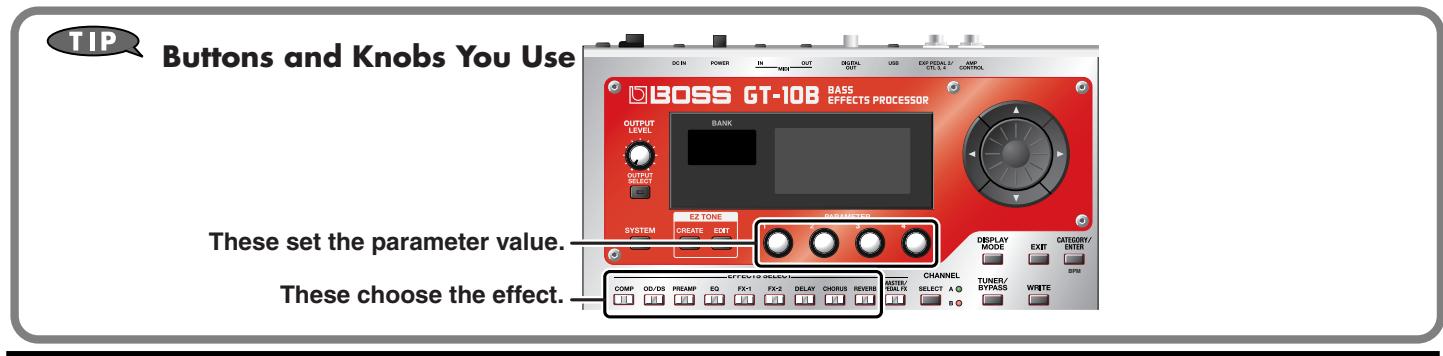

Creating Sounds Based on Existing Patches 18

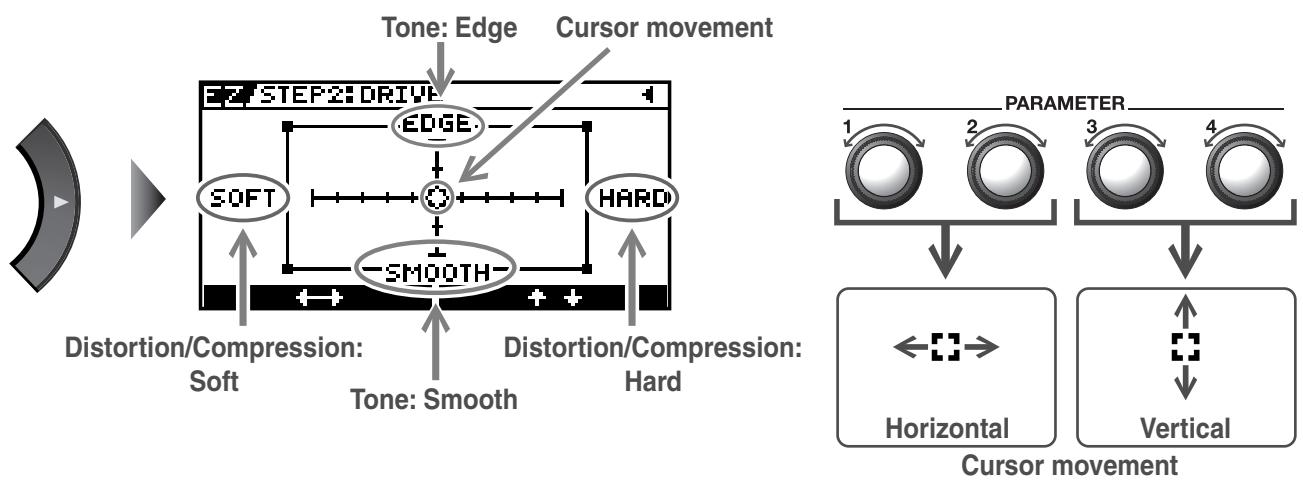

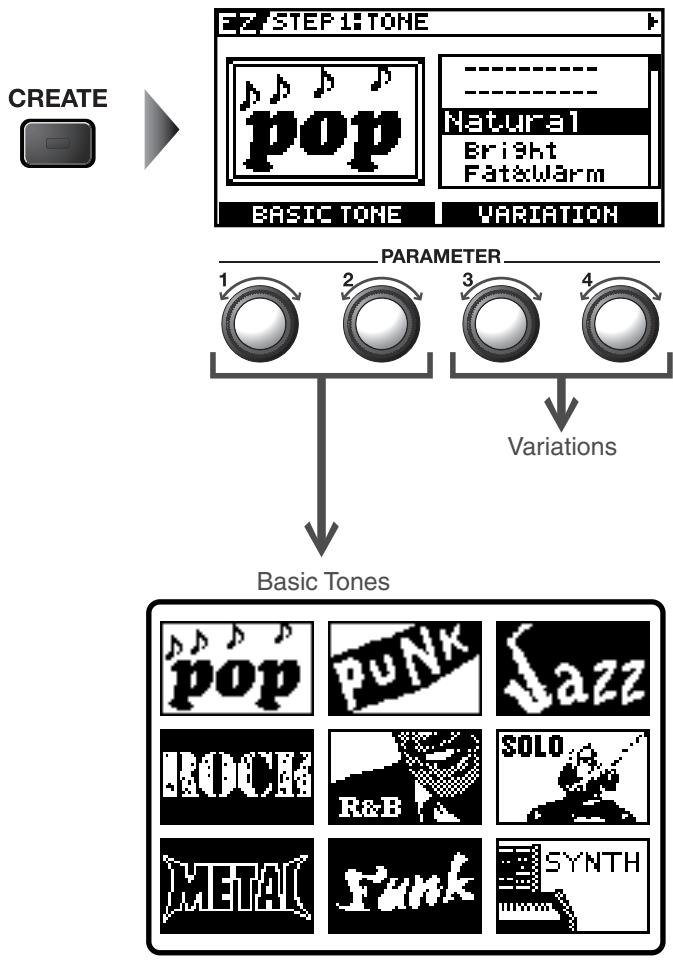

Creating Sounds with Ease (EZ TONE) 20

Chapter 1 Outputting Sounds. 22

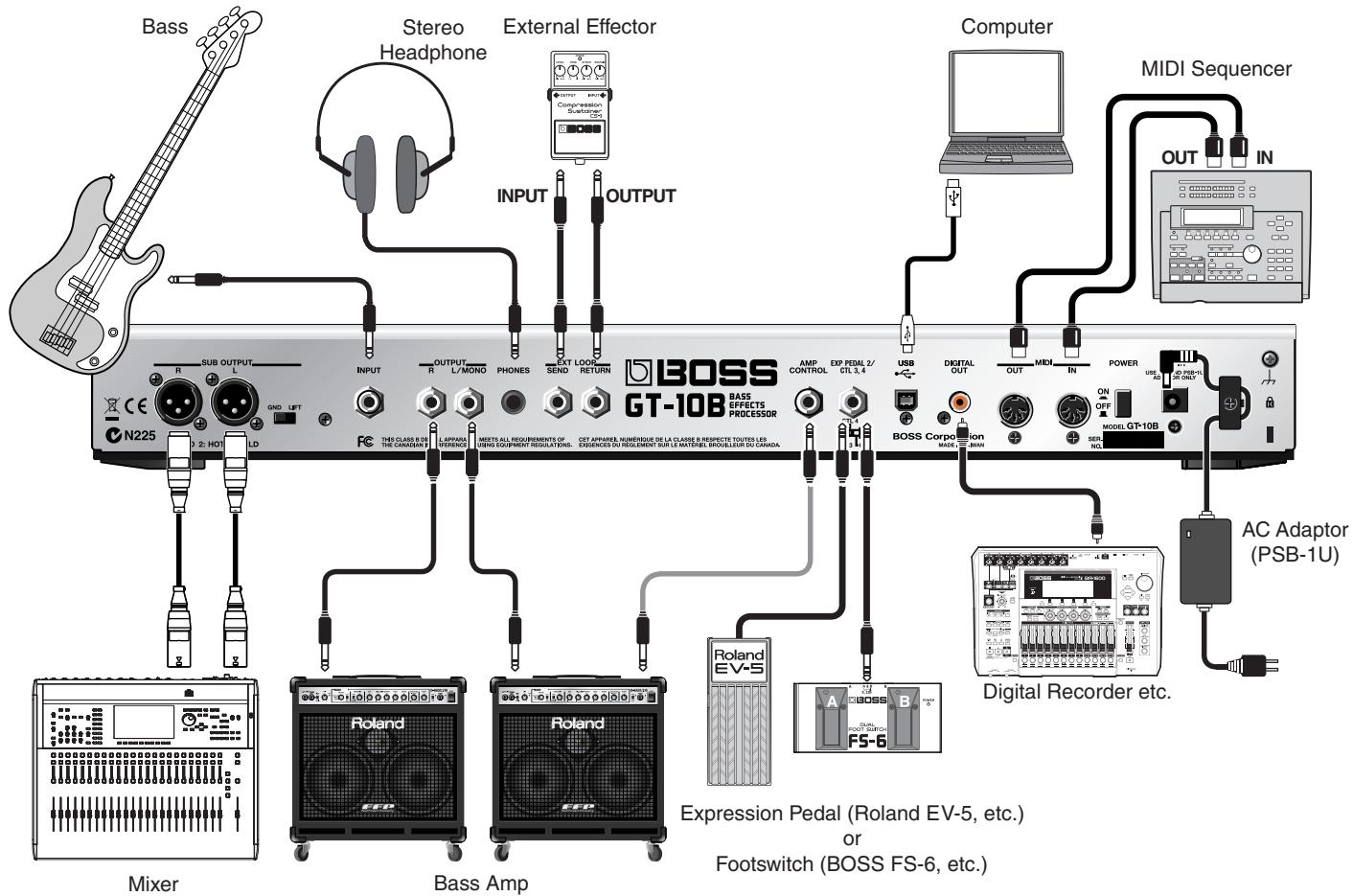

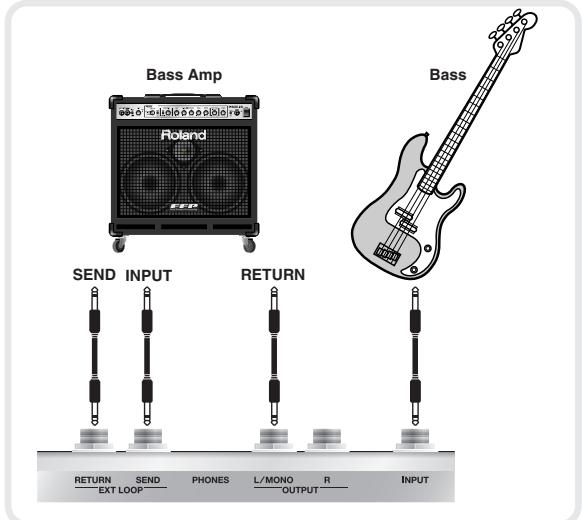

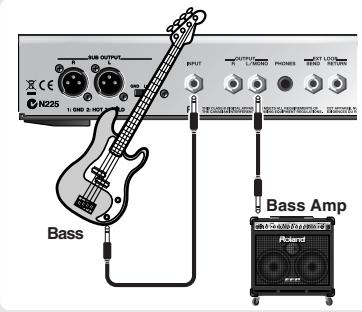

Making the Connections 22

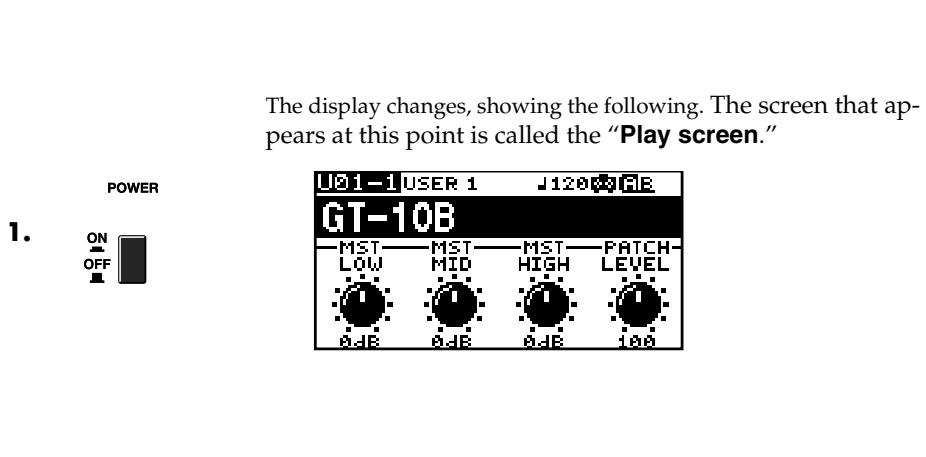

Turning on the Power 24

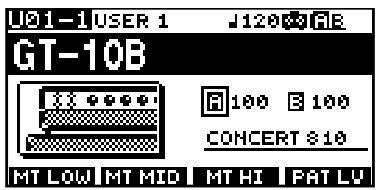

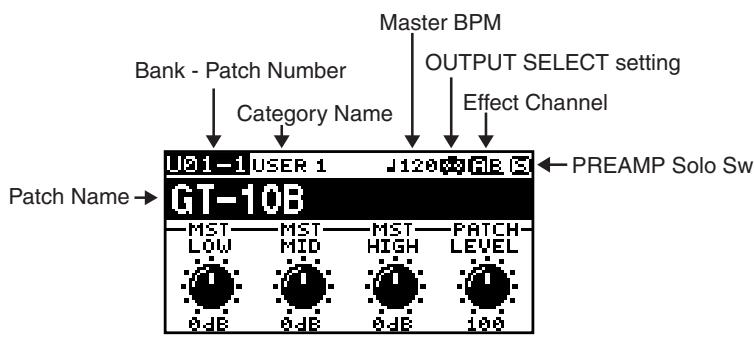

The Icons in the Play Screen 24

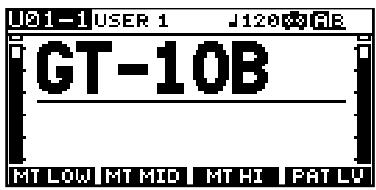

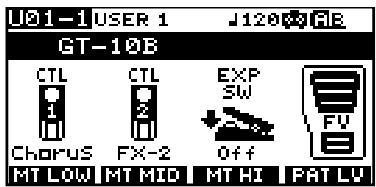

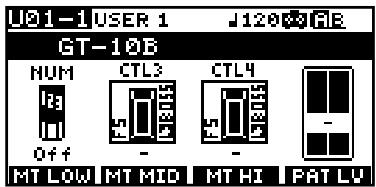

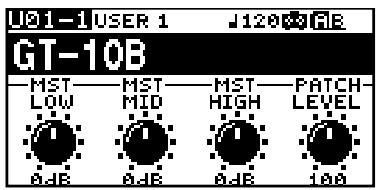

Switching the Play Screen 25

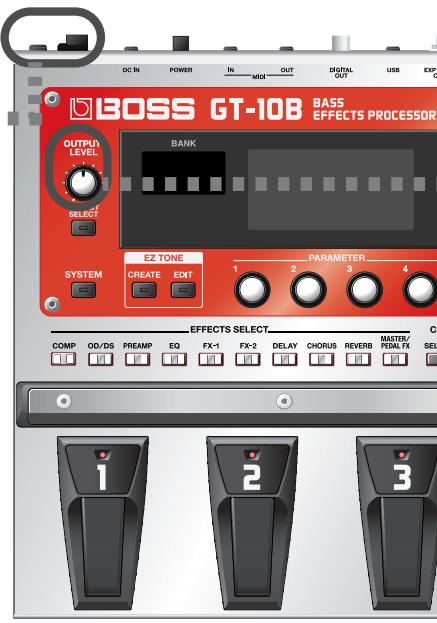

Adjusting the Output Level 25

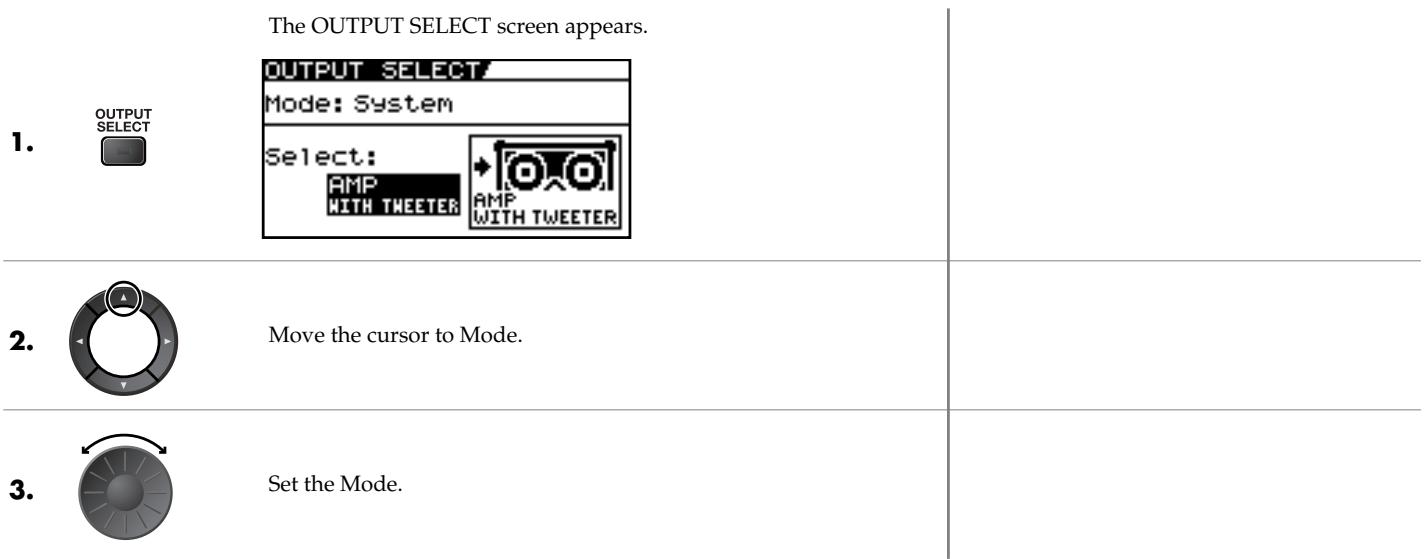

Making Settings for a Connected Device (Output Select) 26

Turning Off the Power 27

Tuning the Bass (TUNER) 27

Turning the Tuner Function On and Off 27

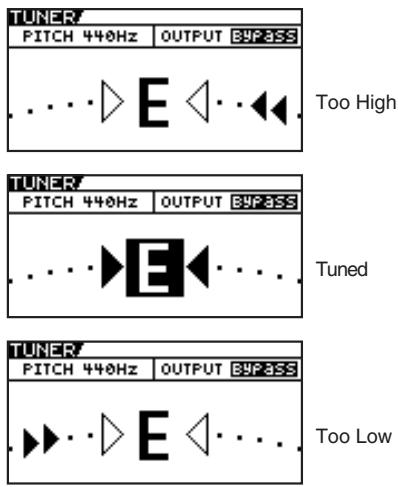

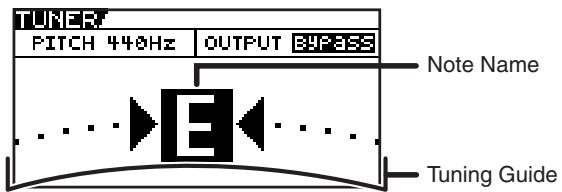

About the Display During Tuning 27

How to Tune 28

Changing the Tuner Settings (Tuner Pitch) 28

Changing the Tuner Settings (Tuner Out) 29

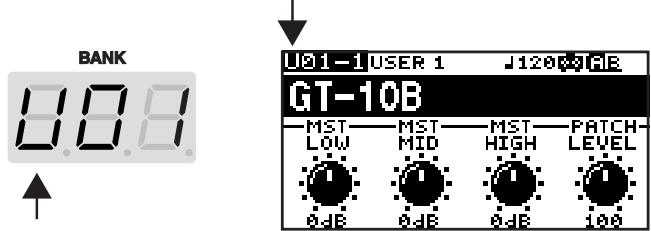

Selecting a Tone (Patch Change) 30

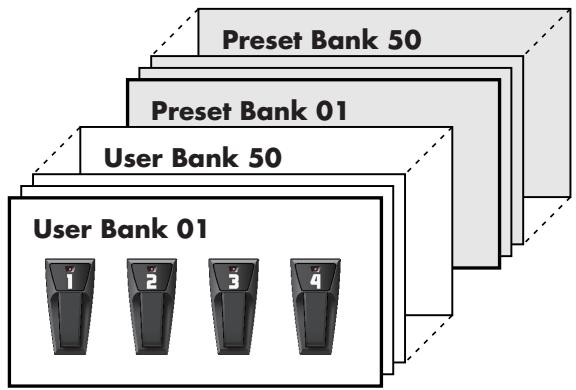

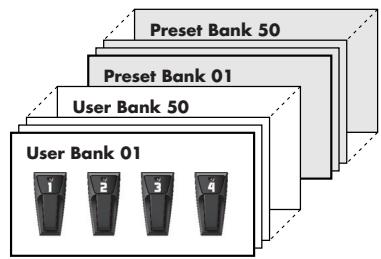

What is a Patch? 30

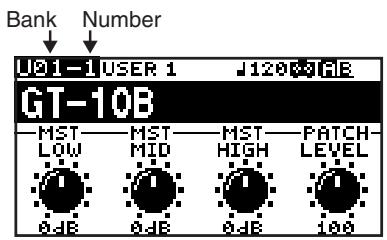

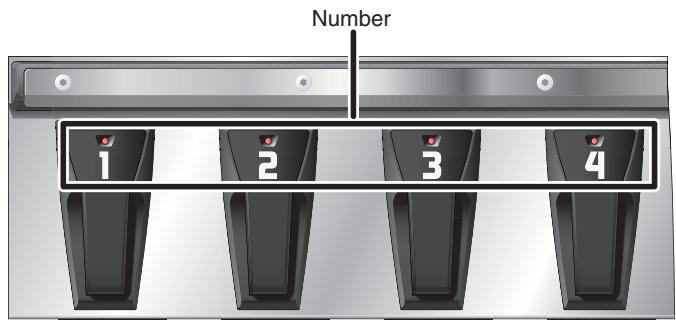

Using the Pedal to Select the Patch 31

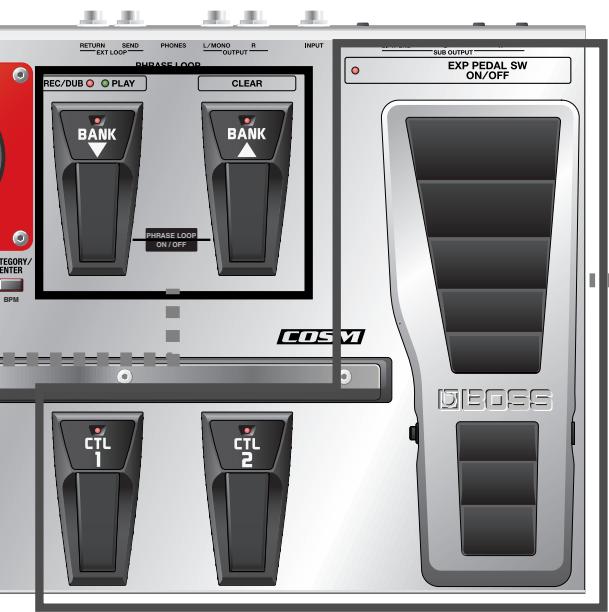

Using the Dial to Select the Patch 32

Separating Patches into Groups (CATEGORY) 32

Adjusting a Tone 32

Chapter 2 Creating Sounds (Patch Edit) 33

Creating Sounds with Ease (EZ TONE) 33

Creating a Tone for the Song You Envision (Create) 33

Adjusting the Tone (Edit) 33

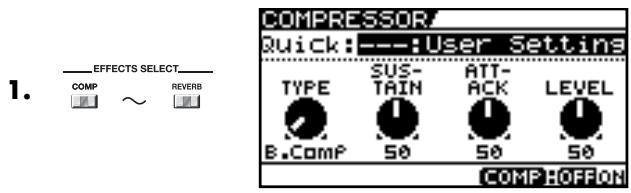

Setting the Effects 34

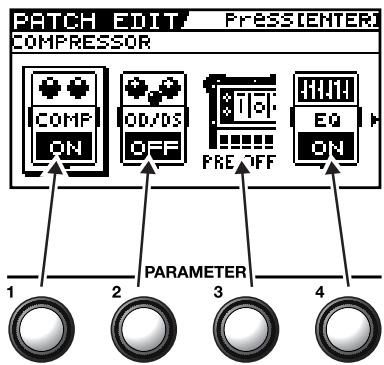

Turning an Effect On and Off. 34

Setting the Effects Simply (Quick Setting) 35

Switching Between Knob View and ListView 35

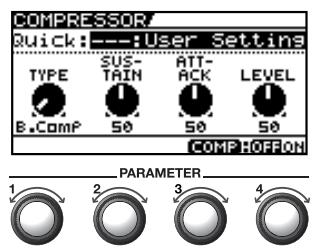

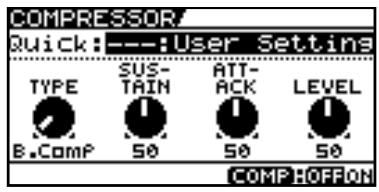

Adjusting the Parameters. 36

Changing the Connection Order of Effects (Effect Chain) 37

Using Two Different Type Effects (Channel Select) 39

Grouping Patches by Category (CATEGORY) 40

Naming User Categories (CATEGORY NAME) 41

Naming a Patch (PATCH NAME) 42

Chapter 3 Saving a Tone 43

Saving a Patch (PATCH WRITE) 43

Copying Patches (PATCH COPY) 43

Exchanging Patches (PATCH EXCHANGE) 44

Initializing Patches (PATCH INITIALIZE) 44

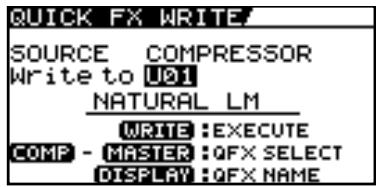

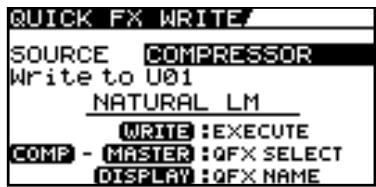

Storing Settings by Effect (User Quick Settings) 45

Swapping Effect Settings Between Channels 46

Chapter 4 Playing Sounds 47

Setting the Functions of the Knobs of the Play Screen 47

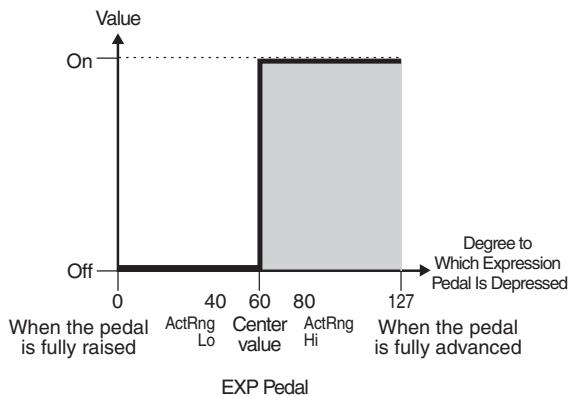

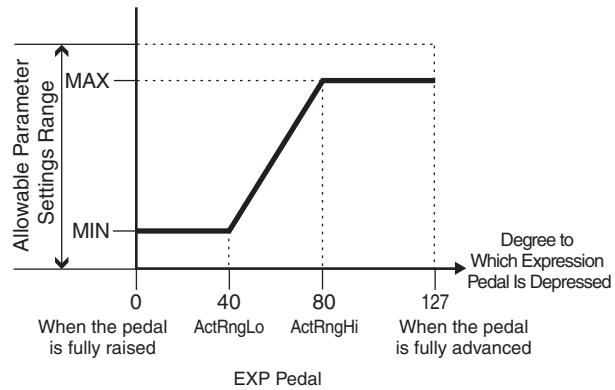

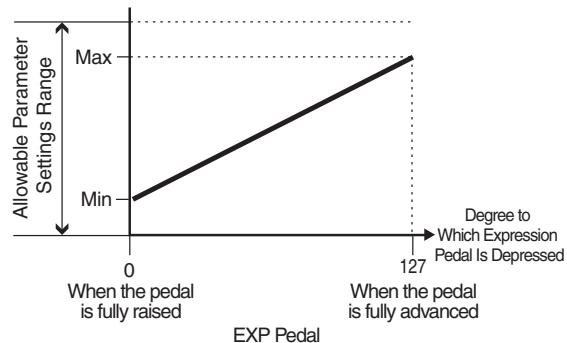

Using Pedals to Control the Parameters 48

Using the CTL/EXP Pedal With the Same Functions Assigned at All Times (Pedal Function) .... 48

Setting CTL/EXP Functions Individually in Each Patch (PEDAL FX) 49

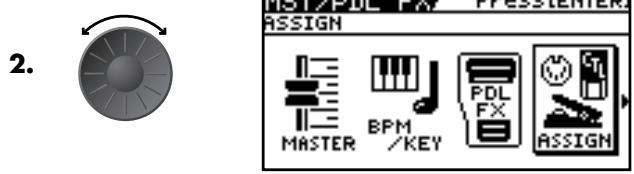

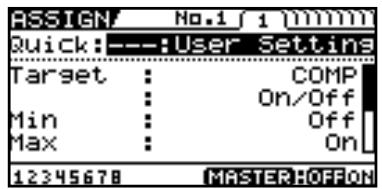

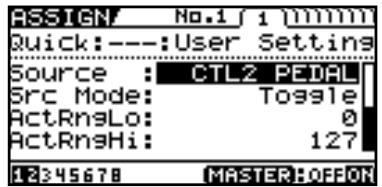

Setting Each Controller Functions to Individual Patches (Assign) 51

Activating the Virtual Expression Pedal at the Start of Operations (Internal Pedal System) 55

Turning the Effects On and Off with the BANK/Number Pedals (Manual Mode) 56

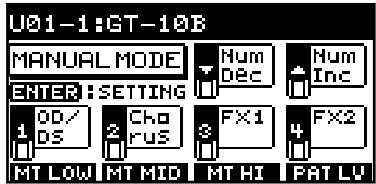

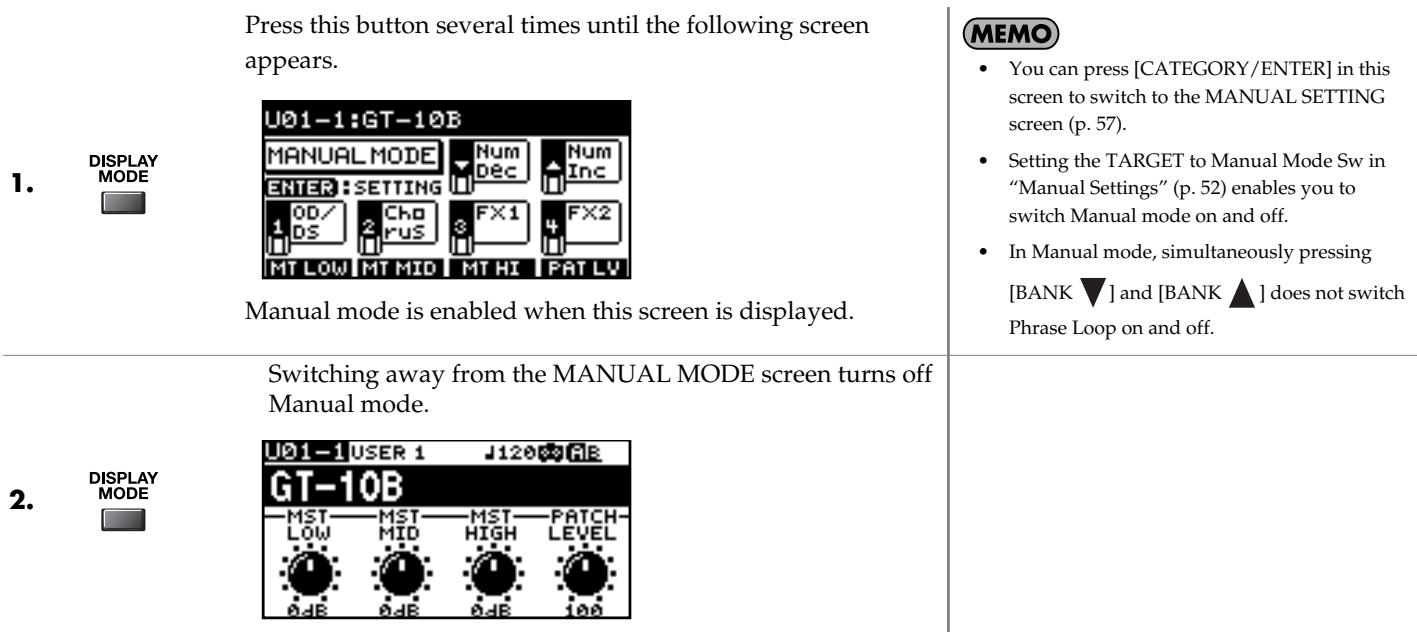

Switching to Manual Mode 56

Switching Effects On and Off with the Pedals 56

Assigning an Effect On/Off Switch to a Pedal 57

Switching Settings with the Number Pedals 58

Phrase Loop Play 59

What's Phrase Loop? 59

Using the Phrase Loop 59

Setting Phrase Loop 60

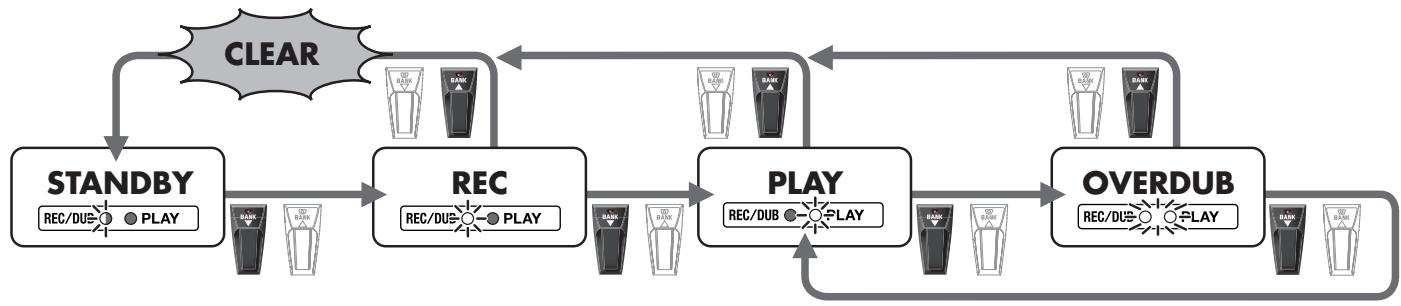

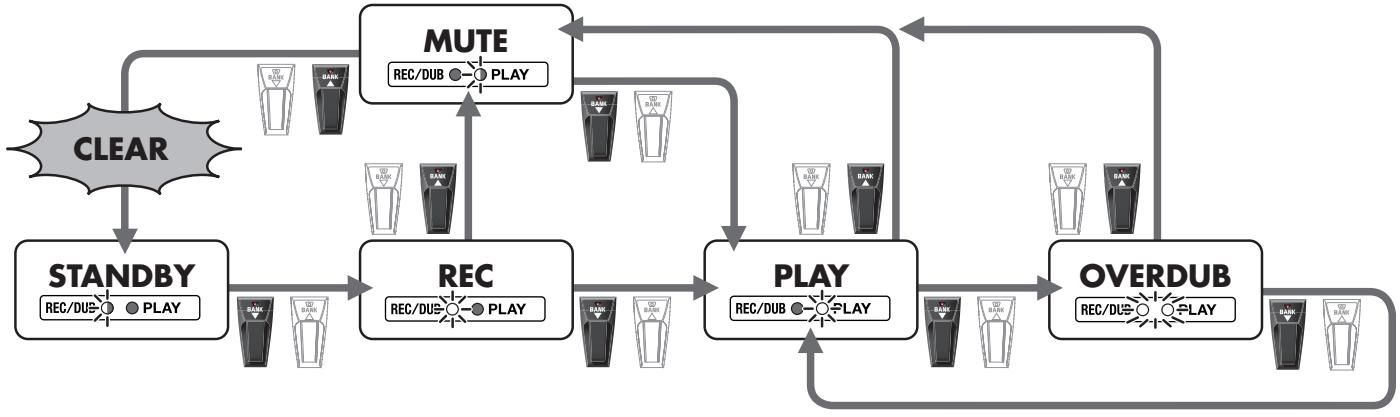

Overview of Phrase Loop Operation 62

Chapter 5 Making Global Settings. 63

Making Settings Matched to the Connected Bass (Input Select) 63

Adjusting the Overall Sound to Match the Usage Environment (Global) 64

Adjusting the Overall Tone (Global EQ) 64

Controlling the Overall Effect of the Noise Suppressor (Total Noise Suppressor) 65

Controlling the Overall Reverb Level (Total REVERB) 66

Setting the Output Reference Level to Match the Connected Equipment (Main Out Level) 67

Adjusting the Output Level of the DIGITAL OUT Jack 68

Switching the SUB OUTPUT Jacks Signals 69

Adjusting the SUB OUTPUT Jacks Level 70

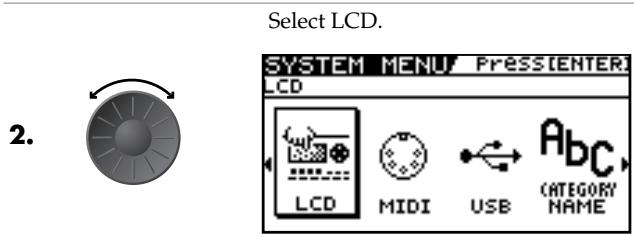

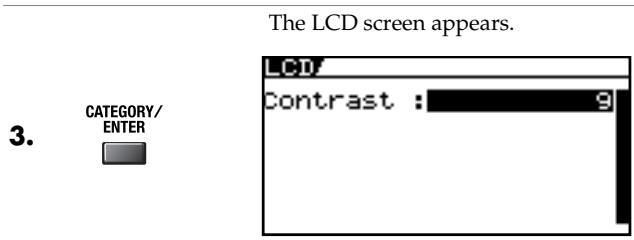

Adjusting the Display Contrast (LCD Contrast) 71

Keeping Effect Sounds Playing After Patches Are Switched (Patch Change Mode) 72

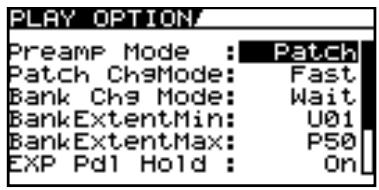

Using the Identical Preamp Settings in All Patches (Preamp Mode) 73

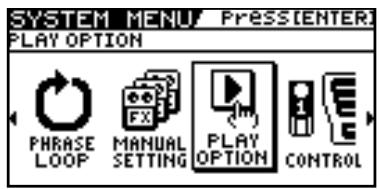

Using the System Preamp. 73

Setting the System Preamp 73

Saving the Current Preamp Setting As the System's Preamp Setting. 74

Limiting the Banks That Can Be Switched (Bank Extent) 75

Setting the Timing Used for Switching Patches (Bank Change Mode) 76

Having Values from an EXP Pedal Carried Over When Patches are Called Up (EXP Pedal Hold) 77

Switching How the Pedal Indicators Light (Pedal Indicate) 78

Setting the Dial Function (Dial Function) 79

Restoring the Factory Settings (Factory Reset) 80

Adjusting the EXP Pedal (Pedal Calibration) 81

Chapter 6 Using the GT-10B with External MIDI Devices Connected......83

What Can You Do with MIDI? 83

Operating From the GT-10B 83

Remotely Controlling the GT-10B Using an External MIDI Device 83

Making the Settings for MIDI Functions 84

Setting the MIDI Receive Channel. 84

Setting the MIDI Omni Mode. 85

Setting the MIDI Transmit Channel 85

Setting the MIDI Device ID. 85

Setting the MIDI Sync Clock. 85

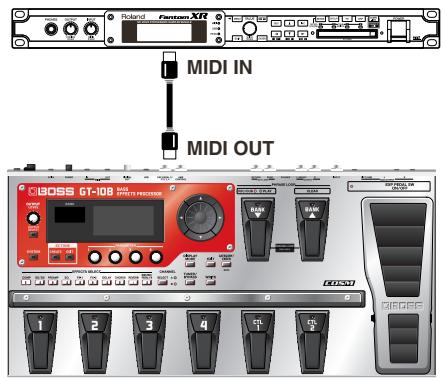

Sending Program Change Messages 86

Sending EXP Pedal Operations as Control Change Messages 86

Sending EXP Pedal Sw Operations as Control Change Messages 86

Sending External EXP Pedal Operations as Control Change Messages 86

Sending CTL Pedal Operations as Control Change Messages 87

Sending External Footswitch Operations as Control Change Messages 87

Setting the Correspondences Between Program Change Messages and Patches (Program Change Map)...... 88

Enabling/Disabling the Program Change Map Settings (MIDI Map Select) 88

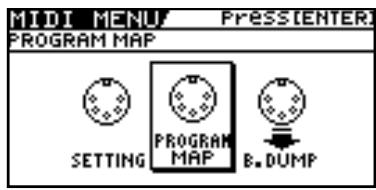

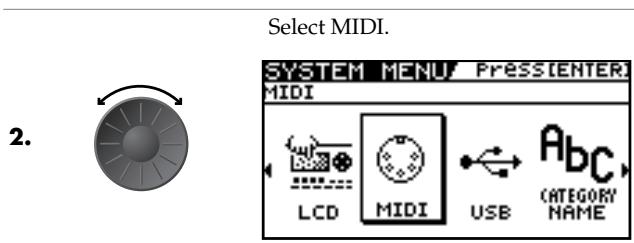

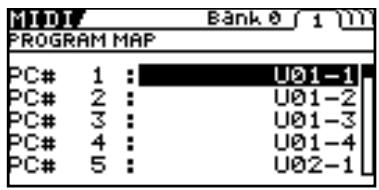

Setting the Program Change Map 88

Changing Patches Using Bank Select Messages 89

Changing Patch Numbers on an External MIDI Device from the GT-10B 89

Changing Patch Numbers on the GT-10B from an External MIDI Device 90

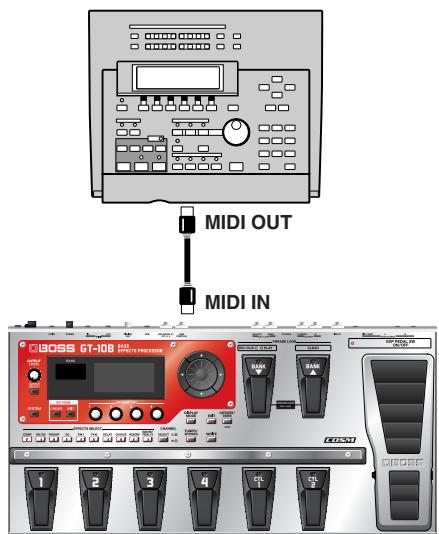

Transmitting Data to an External MIDI Device (Bulk Dump) 91

Making the Connections 91

Transmitting 92

Receiving Data from an External MIDI Device (Bulk Load) 93

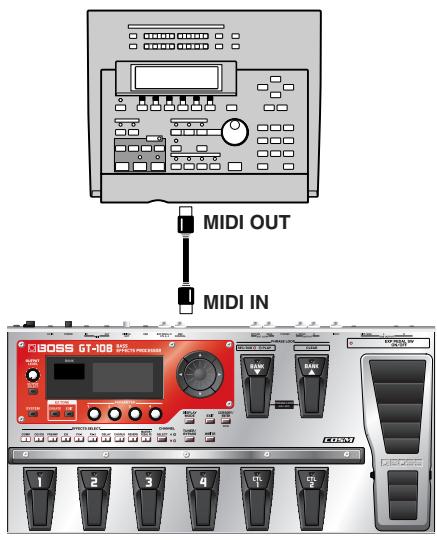

Making the Connections 93

Receiving 93

Chapter 7 Using the GT-10B Connected to a Computer Via USB............94

Before Connecting with USB 94

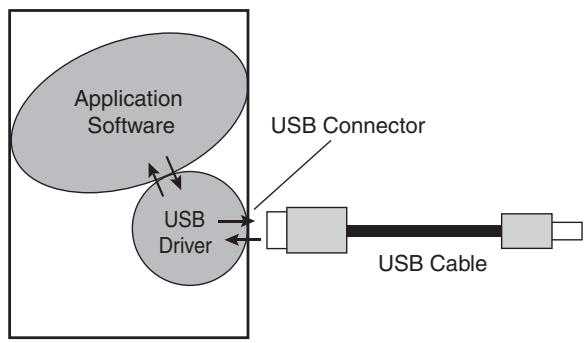

Installing and Setting the USB Driver 94

Exchanging MIDI Messages between the Computer and the GT-10B 94

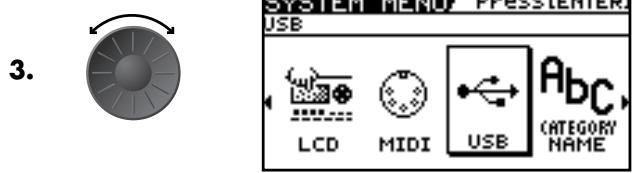

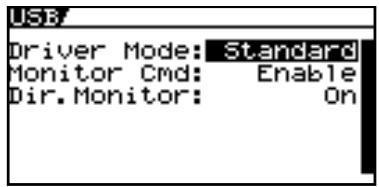

Switching the Driver Mode 95

Setting the USB Functions 96

Setting the Digital Audio Signal Input and Output 96

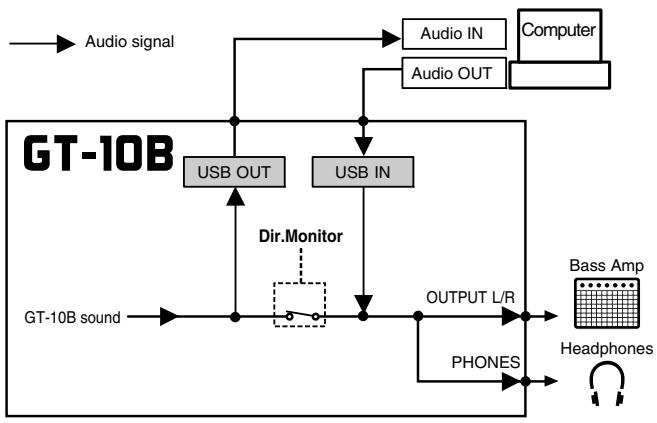

Setting the Direct Monitor 97

Controlling the Direct Monitor Setting from a Computer 98

Recording the GT-10B's Output with a Computer 98

Applying GT-10B Effects to a Computer's Audio Playback 99

Chapter 8 Parameters Guide. 100

COMPRESSOR/LIMITER 100

OD/DS

(Overdrive/Distortion) 101

PREAMP 102

Preamp Settings 102

Speaker Settings 104

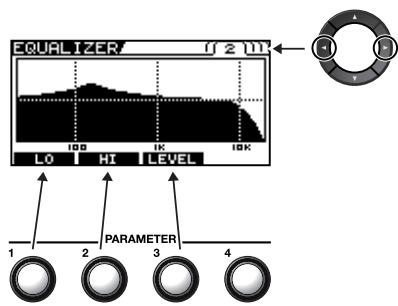

EQ (Equalizer) 105

FX-1/FX-2 105

T.WAH (Touch Wah) 106

AUTO WAH (Auto Wah) 106

SUB WAH. 107

SUB COMP (Sub Compressor) 107

SUB LIMITER 108

GRAPHIC EQ (Graphic Equalizer) 108

PARA EQ (Parametric Equalizer) 108

ENHANCER 109

TONE MODIFY 109

BASS SIM. (Bass Simulator) 109

SLOW GEAR. 110

DEFRETTER 110

BASS SYNTH 110

OCTAVE. 111

PITCH SHIFTER 111

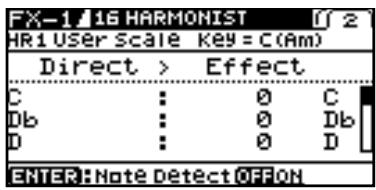

HARMONIST 112

SOUND HOLD 113

PHASER. 114

FLANGER 114

TREMOLO. 115

ROTARY 115

UNI-V. 115

PAN 115

SLICER. 116

VIBRATO. 116

RING MOD. (Ring Modulator) 117

HUMANIZER 117

2X2 CHORUS 118

SUB DELAY 118

DELAY 119

DELAY Common Parameters 119

Pan. 120

Dual-S, Dual-P, Dual-L/R. 120

Warp. 120

Modulate 120

CHORUS. 121

REVERB 121

MASTER 122

MASTER 122

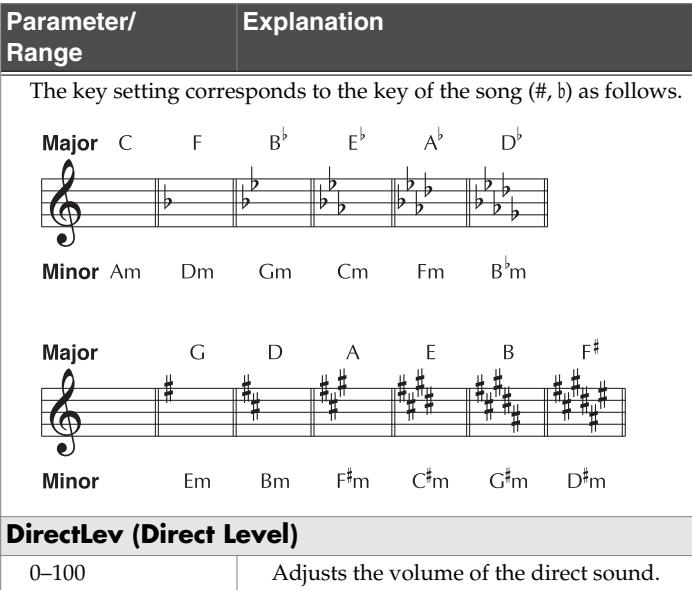

MASTER BPM/KEY 122

PEDAL FX 122

ASSIGN 1-8. 126

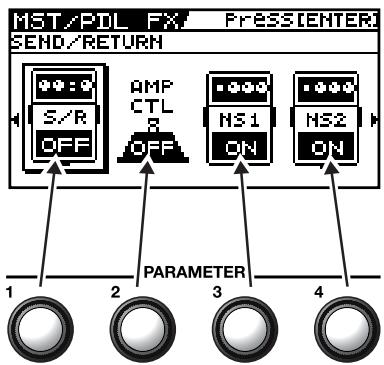

SEND/RETURN 131

AMP CONTROL 132

NS1/NS2 (Noise Suppressor) 132

CH.SELECT (Channel Select) 133

EZ TONE 134

STEP1: TONE 134

STEP2: DRIVE 134

SYSTEM 134

TUNER. 134

INPUT/OUTPUT 134

PHRASELOOP 135

MANUAL MODE SETTING 136

PLAY OPTION 136

CONTROLLER 137

LCD 139

MIDI 139

USB 140

OUTPUT SELECT 141

Appendices. 142

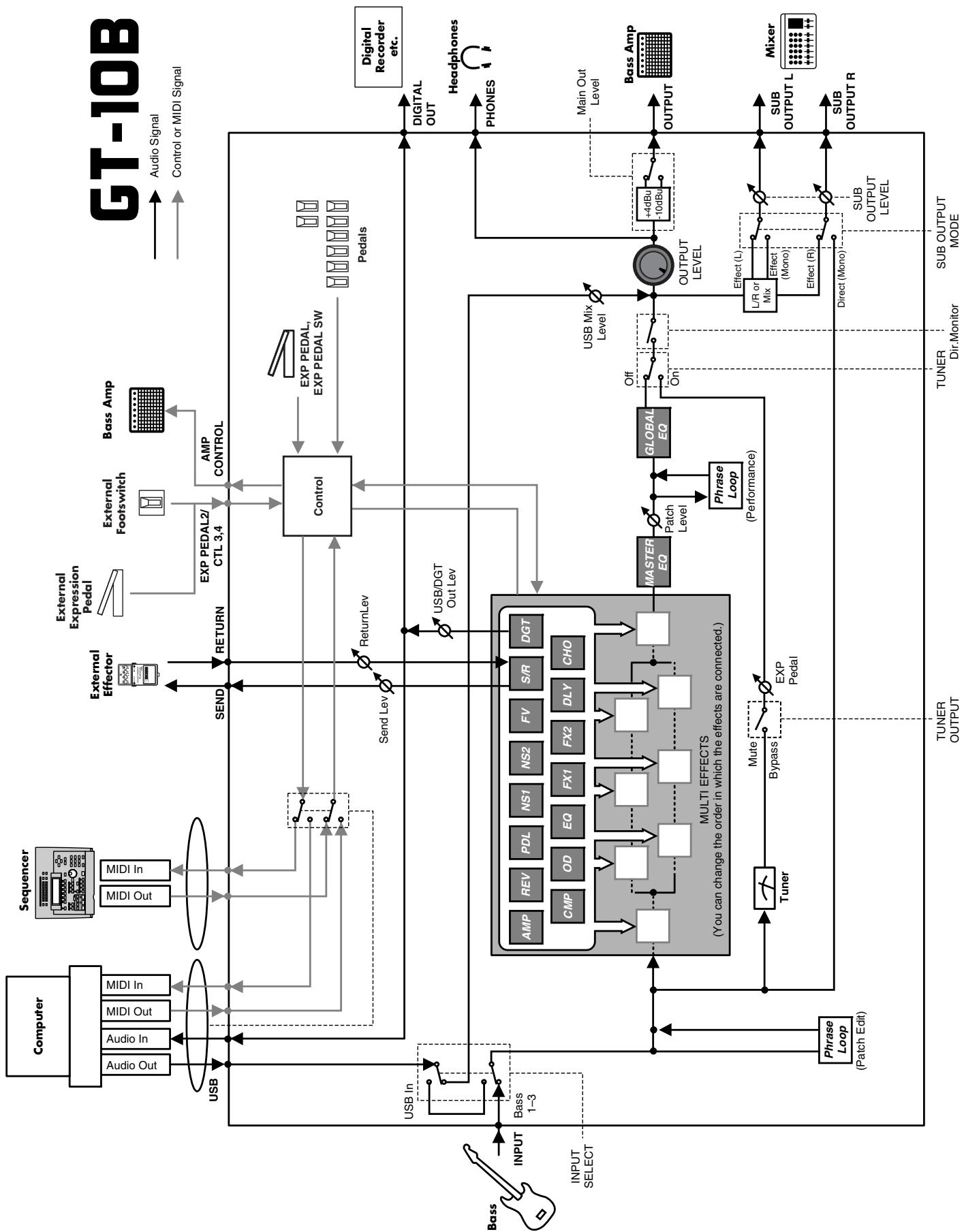

Signal Flow 142

MIDI Implementation Chart 143

Specifications. 144

Error Messages 145

Troubleshooting 145

Problems with the sound 145

Other Problems. 146

Index 147

Multi-Effects Processor Designed for Bass, Packed with the Latest Technologies

The GT-10B's original high-performance processors put BOSS's wealth of bass expertise in a single package.

BOSS COSM effects have been precision-tuned to fully express all of the subtle fingering nuances that are characteristic of the bass. It can truly be said that this is the definitive bass multi-effects processor.

Create Tones Intuitively with EZ TONE

The EZ TONE provides an innovative user interface that enables you to create your own tones with absolutely no special knowledge of effect parameters needed.

Sound making on the EZ TONE is truly intuitive. EZ TONE shows you the way to create the sound with both graphical icons and intuitive terms such as "SOFT" or "HARD." Choose the basic sound you want according to the music genre, song imagery, performance-style. Then you can shape the sound by just moving the cursor on the TONE GRID toward "SOFT" or "HARD."

Now everyone can easily create his or her own tones the instant a sonic image comes to mind.

Phrase Loop Feature

The Phrase Loop feature lets you record and play loop performances, whereby you continue adding new sounds as the loop plays.

The unit provides up to 38 seconds of recording time, which lets you switch effects as you continue to layer additional bass lines.

You can also take phrases recorded beforehand without effects and then apply the perfect tone, adding the effects as you play back the phrase.

A Wide Variety of Tones with Parallel Chain

The GT-10B includes a "Parallel Chain" function that allows you to split the "chain"—the signal path—into two independent chains, with full freedom to arrange effects in each chain in any order you want.

This feature also enables you to change the relative balance of sounds from the two chains according to volume or pitch, and provides you with even greater precision in creating tones.

Works Like a Compact Effects Processor

Operating the GT-10B is like using compact effects processors. It's easy to make super-fast tone adjustments, even in the middle of live performances. Just select an effect type, then directly adjust the four optimal parameters with the front-panel knobs. Of course, you can also switch the display to show all effect parameters to create tones with even more exacting detail.

Equipped with XLR Balanced Output Jacks

The GT-10B features two XLR type output jacks, enabling you to connect to PAs and recording decks.

High-Visibility Indicators

Foot pedal indicators and other lights all utilize brightly lit LEDs. Clearly visible in any situation, whether it be in a live outdoor concert or up on a pitch-black stage, these indicators help ensure accurate operation.

Front Panel

1. Display

Various information about the GT-10B is shown here.

The display screen on the left side shows the bank number.

2. OUTPUT LEVEL Knob

This adjusts the volume level at the OUTPUT jack and the PHONES jack.

3. OUTPUT SELECT Button

This adjusts the characteristics of the output from the GT-10B to match the type of equipment that is connected (p. 26).

4. SYSTEM Button

This makes global settings mainly, for the GT-10B (p. 63).

5. EZ TONE

CREATE Button

This makes it easy to create tones based on the musical genre and the feel of the song you have in mind (p. 33).

EDIT Button

This provides a simple way to modify tones (p. 33).

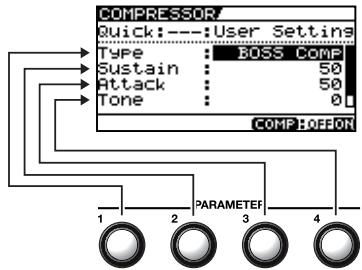

6. Parameter Knobs P1 Through P4

These change the values of the parameter shown on the display.

7. Dial

This switches patches and modifies values.

[ ], [ ], [ ], and [ ] (Cursor Buttons)

These move the onscreen cursor up, down, or to the left or right.

8. EFFECTS SELECT

Use these buttons to switch effects on or off, or to change their settings (p. 34). When an effect is switched on, the button's indicator lights up; the indicator goes out when the effect is off.

• [MASTER/PEDAL FX] does not light up.

COMP (Compressor) Button

OD/DS (Overdrive/Distortion) Button

PREAMP Button

EQ (Equalizer) Button

FX-1 Button

FX-2 Button

DELAY Button

CHORUS Button

REVERB Button

MASTER/PEDAL FX (Master/Pedal Effect) Button

9. SELECT Button

These switch between the A and B channels for the Effects.

10.DISPLAY MODE Button

Allows you to change the way things are shown in the display (p. 25).

11进出口

Use this to go back to the previous screen or to cancel an operation.

12. CATEGORY/ENTER Button

Use this button for the following operations:

• When executing an operation
• When selecting patches arranged by category (p. 32)
• When doing tap input for MASTER BPM (p. 122) or Delay Time (p. 119)

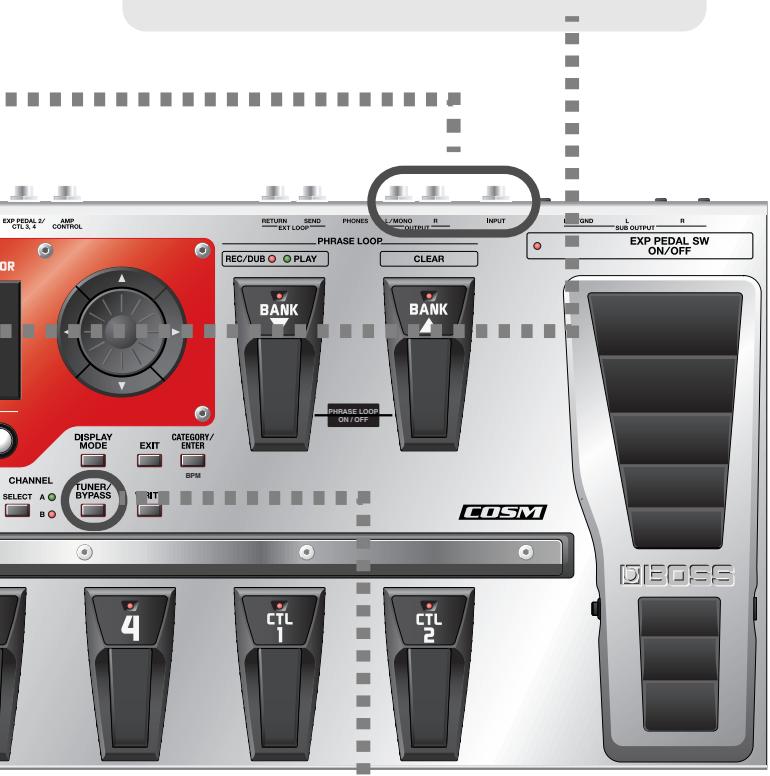

13. TUNER/BYPASS Button

Press to use the tuner features (p. 27).

14. WRITE Button

Use this to store patch settings in memory, or to replace or copy settings (p. 43).

15. BANK Pedals

Use these when switching patch banks (p. 31) or performing operations with phrase loops (p. 59).

MEMO

You can switch a phrase loop on or off by depressing the two BANK pedals at the same time (p. 59).

16.PHRASE LOOP (p. 59)

REC/DUB (Recording/Over dubbing) Indicator

This lights steadily when you're recording or overdubbing a phrase, and flashes during recording standby.

PLAY Indicator

This lights up while phrase playback is in progress.

17. Number Pedals 1 through 4

These switch the patch number (p. 31).

18. CTL (Control) Pedals 1 and 2

These can be used to control a variety of functions you assign, such as the A and B channels for the PREAMP (p. 102) or switching the Tuner on or off (p. 48).

19. EXP (Expression) Pedal

Controls volume, wah, and other parameters (p. 48).

NOTE

When operating the EXP Pedal, be careful not to get your fingers pinched between the movable part and the panel. In places with small children, an adult should provide supervision and guidance until the child is capable of following all the rules essential for the safe operation of the unit.

MEMO

When "EXP1" is shown in the display for a parameter, indicates the GT-10B's EXP pedal.

20. EXP PEDAL SW (EXP Pedal Switch)

The switch is turned on or off by firmly pressing on the toe of the EXP Pedal.

21.EXP PEDAL SW ON/OFF

(EXP Pedal Switch On/Off) Indicator

This lights up when the feature controlled by the EXP PEDAL SW is on and goes out when the controlled feature is off.

Rear Panel

1. SUB OUTPUT Jacks L, R

These balanced output jacks use XLR type connectors.

2. GND LIFT Switch

You can disconnect the SUB OUTPUT jacks' No. 1 pin from the GT-10B's ground.

Switch this to LIFT if a ground loop or similar problem is causing output of hum or noise. Normally, this is set to GND.

3. INPUT Jack

The bass is connected here.

4. OUTPUT Jacks L/MONO, R

Connect to your amp, mixer, or such device.

5. PHONES Jack

Connect headphones here.

MEMO

Tonal adjustments for monitoring are applied when headphones are connected to the PHONES jack.

6. EXT LOOP SEND RETURN Jacks

Connect to external effects processor or amp.

7. AMP CONTROL Jack

When using the AMP CONTROL function (p. 132), connect to the jack used for switching bass amp channels.

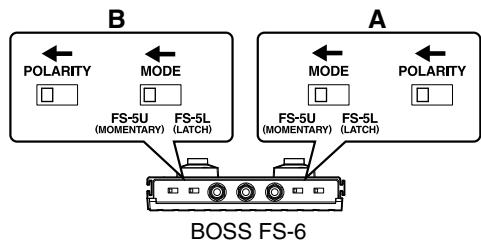

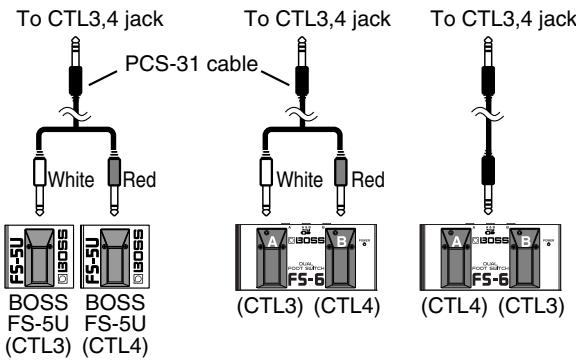

8. EXP PEDAL 2/CTL 3, 4 Jack

Connect an optional expression pedal (such as the Roland EV-5) or footswitch (such as the BOSS FS-6) here (p. 22).

9. USB Connector

Use a USB cable to connect a computer to this connector and enable exchange of data between the GT-10B and the computer (p. 94).

10. DIGITAL OUT Jack

Outputs digital audio signals (p. 68).

11.MIDI IN/OUT Connectors

Connect an external MIDI device to these connectors to transmit and receive MIDI messages (p. 83).

12. POWER Switch

Turns the power on and off.

13.DC IN (AC Adaptor) Jack

Connect the included AC adaptor here.

• To prevent damaging the GT-10B, please be sure not to use any AC adaptor other than the one included with the GT-10B.

14. Cord Hook

Hook the AC adaptor cord here to prevent the adaptor plug from being disconnected (p. 22).

• Disconnecting the AC adaptor while the GT-10B is in use may result in corruption of important data.

15. Security Slot ( K )

Connect a commercially available anti-theft security cable here.

http://www.kensington.com/

16. Grounding Terminal

Connect the ground cable here.

cf.

Before using the grounding terminal, carefully read the sections entitled: Notes in the "Making the Connections" (p. 23).

Checking the Package Contents

The GT-10B comes with the following items. After opening the package, please check all items. If any items are missing, please contact the retailer from whom this product was purchased.

• GT-10B
• AC Adaptor (Roland PSB-1U)
• Owner's Manual (This document)
• Roland Service (Information Sheet)

The Quick Guide describes required settings and basic operations. For detailed descriptions of operations, refer to the explanations in chapter 1 and after.

Getting Ready

1 Connect the Bass and Amp

1. Connect the bass and the bass amp.

Before turning on the power, confirm the following.

• Are all external devices properly connected?
• Is the volume on the GT-10B, your amp, and all other connected devices turned down to the minimum level?

NOTE

Raise the amp volume only after turning on the power to all connected devices.

For detailed information on how to make the connections, refer to "Making the Connections" (p. 22).

Turn On the Power

NOTE

Once the connections have been completed, turn on power to your various devices in the order specified. By turning on devices in the wrong order, you risk causing malfunction and/or damage to speakers and other devices.

1. Insert the DC plug on the AC adaptor into the DC IN jack on the GT-10B.

1. Plug the AC adaptor into a power outlet.

1. Use the POWER switch to switch on the power.

1. Power up the bass amp.

For information on how to switch off the power, refer to "Turning Off the Power" (p. 27).

Use the OUTPUT LEVEL knob to adjust the volume level.

Tune the Bass

Each press of the TUNER/BYPASS button switches the Tuner feature on or off.

Switching on the Tuner feature enables direct output of input sounds (bypass), and lets you tune the bass while in this state. For more information, refer to "Tuning the Bass (TUNER)" (p. 27).

Examples of Connections Using the SEND/RETURN Jacks

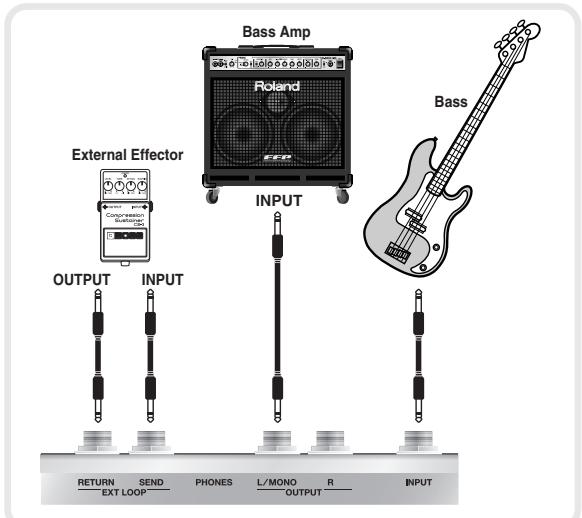

Example 1: Using an External Effects Unit

This enables use as one of the GT-10B's effects.

Example 2: Using Send and Return on the bass Amp

This allows you to switch between use of the GT-10B and the bass amp's preamp.

• When you're making connections using the SEND/RETURN jacks, you also need to make settings for the "SEND/RETURN" (p. 131).

Playing Sounds

Once you've finished getting ready to play, try playing sounds as you operate the GT-10B.

Choosing a Patch in the Current Bank

Choose the patch you want to use by depressing the corresponding number pedal.

The indicator for the number pedal you pressed lights up and the patch is switched.

Choosing a Patch in a Different Bank

1. Press the BANK pedals to select the desired bank.

The GT-10B stands by for specification of the patch number, and the number pedal indicators blink.

1. Choose the patch you want to use by depressing the corresponding number pedal.

The indicator for the number pedal you pressed lights up and the patch is switched.

NOTE

If you're not at the Play screen (p. 24), you won't be able to switch patches. Press the [EXIT] button to go back to the Play screen, then choose the patch.

MEMO

You can also use the BANK pedals to operate the Phrase Loop feature. Phrase Loop is a feature that lets you record a performance and play it back as a loop. For more information, refer to "Phrase Loop Play" (p. 59).

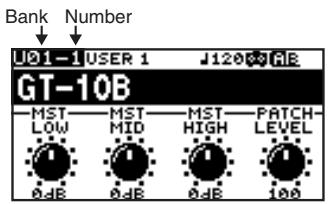

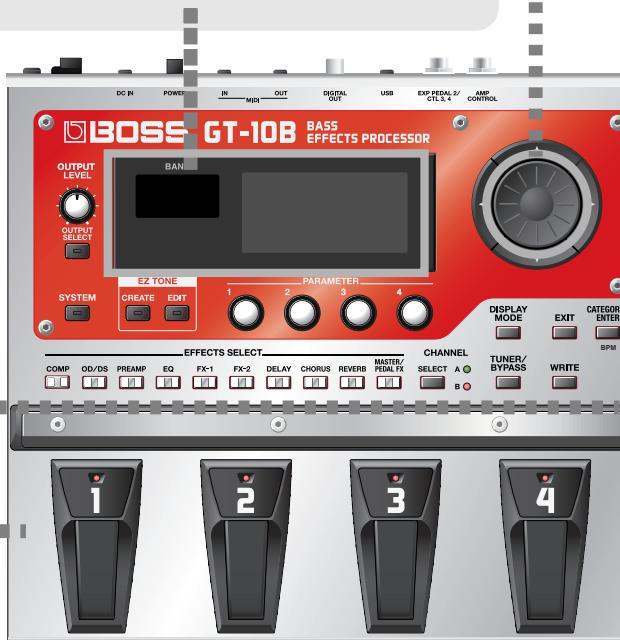

About the Bank and Number Display

The display on the left side shows the bank, and the display on the right side shows the bank and patch number.

What is a Patch?

A combination (or set) of effects together with a group of parameter settings is called a "patch." The GT-10B can store 400 different patches in memory, organized by bank and number as shown below.

Patches include User patches, which you can use to save the settings for newly created effects, and Preset patches, for which modified settings cannot be saved. For more information, refer to "Selecting a Tone (Patch Change)" (p. 30).

Switch the Patch with the Dial

When you're at the Play screen (p. 24), turning the dial switches the patch.

Working with Effects Using the Pedals

The EXP Pedal and the CTL 1 and 2 pedals can be set to use in switching effects on or off for individual patches, use as a volume pedal, and other such operations.

Executing these operations during a performance lets you modify the sound more effectively.

Press the CTL 1 pedal. The CTL1 pedal function is switched on. (The indicator for the CTL 1 pedal lights up.) Press a second time to switch off. (The indicator for the CTL 1 pedal goes out.)

Press the CTL 2 pedal. The CTL2 pedal function is switched on. (The indicator for the CTL 2 pedal lights up.) Press a second time to switch off. (The indicator for the CTL 2 pedal goes out.)

Press the toe of the EXP Pedal. The EXP Pedal value rises.

Press the heel of the EXP Pedal. The EXP Pedal value decreases.

Press the toe of the EXP Pedal firmly. The EXP PEDAL SW function is switched on. (The EXP PEDAL SW ON/OFF indicator lights up.) Press firmly a second time to switch off. (The EXP PEDAL SW ON/OFF indicator goes out.)

You can assign the parameters you want to the EXP Pedal, EXP PEDAL SW and the CTL 1 and 2 pedals and operate them accordingly. For more information, refer to "Using Pedals to Control the Parameters" (p. 48).

Editing

Basic Operation

This describes the basic operations you use when editing settings.

Creating Sounds Based on Existing Patches

Let's try creating a new sound based on a patch whose sound is close to what you want to make.

Adjusting Effect Parameters

1. Switch on the effect you want to adjust.

2. Adjust the parameters for the effect.

For more information about each parameter, refer to "Chapter 8 Parameters Guide" (p. 100).

1. Repeat steps 1 and 2 until you obtain the sound you want.

NOTE

If you switch patches, all settings that have been made will be lost. To save the sound you've created, carry out the Write procedure (p. 43).

Creating Sounds with Ease (EZ TONE)

Using the EZ Tone feature (p. 33) lets you quickly find settings close to the musical genre and feel of the song you want to create, and enables you to create the sound easily. Let's try creating sounds using EZ Tone.

Choose the Basic Tone

Use the basic tones and variations to choose the musical genre and the feel of the song.

For more information about each parameter, refer to "STEP1: TONE" (p. 134).

Buttons and Knobs You Use

This starts the EZ Tone feature.

These set the parameter values.

Adjust the Distortion/Compression

Using Tone Grid, adjust the distortion or compression until you get the sound you want.

NOTE

If you switch patches, you'll lose all the settings you've made. To save the sound you've created, carry out the Write procedure (p. 43).

TIP

You can take parameters you've adjusted with EZ TONE CREATE and fine-tune them further using EZ TONE EDIT or parameter operations. For more information, refer to "Adjusting the Tone (Edit)" (p. 33).

Making the Connections

Connecting Directly to a Recording Mixer or PA Mixer (XLR Balanced Output)

The GT-10B features balanced outputs that utilize SUB OUTPUT jacks (XLR connectors). Although direct boxes are generally used to connect bass (effects processor) outputs to mixers in concert halls and recording studios, you can connect the GT-10B directly to the mixer, which lets you avoid degradations in the sound quality, as well as any additional problems that might occur as the result of connecting multiple devices.

MEMO

• The SUB OUTPUT level cannot be adjusted with the OUTPUT LEVEL knob.
• The OUTPUT SELECT function (p. 26) affects sounds from the OUTPUT jacks. The output from the SUB OUTPUT jacks will always be equivalent to the sound that is output when the LINE/PHONES setting is used.

NOTE

• To prevent malfunction and/or damage to speakers or other devices, always turn down the volume, and turn off the power on all devices before making any connections.
• Raise the amp volume only after turning on the power to all connected devices.
• When connection cables with resistors are used, the volume level of equipment connected to the INPUT jack may be low. If this happens, use connection cables that do not contain resistors.
• When outputting in mono, connect the cable to the OUTPUT L/MONO jack.
• Use only the specified expression pedal (Roland EV-5 or BOSS FV-500L; sold separately). By connecting any other expression pedals, you risk causing malfunction and/or damage to the unit.
• Depending on the circumstances of a particular setup, you may experience a discomforting sensation, or perceive that the surface feels brittle to the touch when you touch this device, microphones connected to it, or the metal portions of other objects, such as basses. This is due to an infinitesimal electrical charge, which is absolutely harmless. However, if you are concerned about this, connect the ground terminal (see figure) with an external ground. When the unit is grounded, a slight hum may occur, depending on the particulars of your installation. If you are unsure of the connection method, contact the nearest Roland Service Center, or an authorized Roland distributor, as listed on the "Information" page. Unsuitable places for connection

Water pipes (may result in shock or electrocution)
Gas pipes (may result in fire or explosion)
- Telephone-line ground or lightning rod (may be dangerous in the event of lightning)

• Place the AC adaptor so the side with the indicator (see illustration) faces upwards and the side with textual information faces downwards. The indicator will light when you plug the AC adaptor into an AC outlet.

MEMO

• To prevent the inadvertent disruption of power to your unit (should the plug be pulled out accidentally), and to avoid applying undue stress to the AC adaptor jack, anchor the power cord using the cord hook, as shown in the illustration.

• This instrument is equipped with balanced (XLR) type connectors. Wiring diagrams for these connectors are shown below. Make connections after first checking the wiring diagrams of other equipment you intend to connect.

• When connecting an expression pedal to the EXP PEDAL2/CTL 3,4 jack, set the minimum volume for the connected expression pedal to the "MIN" position.
• When connecting a BOSS FS-6 footswitch (optional) to the EXP PEDAL 2/CTL 3,4 jack, set the MODE switch and POLARITY switch as shown below.

• When connecting a BOSS FS-5U footswitch (optional) to the EXP PEDAL 2/CTL 3,4 jack, set the POLARITY switch as shown below.

• You can use the special (optional Roland) PCS-31 connector cord to connect two footswitches.
• When a BOSS FS-6 footswitch (optional) is connected to the CTL3,4 jack with an optional connection cable (stereo 1/4'' phone - stereo 1/4'' phone), pedal switch B operates according to the CONTROL 3 settings, and pedal switch A operates according to the CONTROL 4 settings.

cf.

• When using the unit with an expression pedal or a footswitch (the optional FS-6 or FS-5U) connected to the EXP PEDAL 2/CTL 3,4 jack, make the settings given on "Using Pedals to Control the Parameters" (p. 48).
• For more on using the AMP CONTROL jack, refer to "AMP CONTROL" (p. 132).

Turning on the Power

Before turning on the power, confirm the following.

• Are all external devices properly connected?
• Is the volume on the GT-10B, your amp, and all other connected devices turned down to the minimum level?

NOTE

Once the connections have been completed, turn on power to your various devices in the order specified. By turning on devices in the wrong order, you risk causing malfunction and/or damage to speakers and other devices.

1. Turn on the power to any external effects processors the bass amp (power amp).

MEMO

• Upon power-up, the patch most recently selected when the power was last turned off is selected.
• This unit is equipped with a protection circuit. A brief interval (a few seconds) after power up is required before the unit will operate normally.
• The explanations in this manual include illustrations that depict what should typically be shown by the display. Note, however, that your unit may incorporate a newer, enhanced version of the system (e.g., includes newer sounds), so what you actually see in the display may not always match what appears in the manual.

The Icons in the Play Screen

1120 Displays the Master BPM (p. 122) value for each patch.
BE	When the Effect Ch.Mode is set to Single, effect channel A is selected. Also, this is displayed when the Ef- fect Ch.Mode is set to Dynamic B.	When the Effect Ch.Mode is set to Dynamic, the display switches be- tween A and B according to the input level.
AB	When the Effect Ch.Mode is set to Single, effect channel B is selected. Also, this is displayed when the Ef- fect Ch.Mode is set to Dynamic A.
AB	This is displayed when the Effect Ch.Mode is set to Dual Mix, Dual L/R, or Freq Divide. When the Effect Ch.Mode is set to Dynamic A or Dynamic B, it is displayed according to the input level.
B	This is displayed when the PREAMP Solo Sw is Off.
S	This is displayed when the PREAMP Solo Sw is On.

cf.

For details on the OUTPUT SELECT icons, refer to "Making Settings for a Connected Device (Output Select)" (p. 26).

MEMO

The "S" icon is not shown if the selected amp type doesn't have the Solo Sw parameter.

Switching the Play Screen

The GT-10B has a variety of Play screen variations. You can switch the information shown in the Play screen by pressing

MEMO

• You can use the PARAMETER knobs 1 through 4 to work with the values of the parameters displayed at the bottom of the Play screen. Also, for each parameter, you can change the corresponding assignment at the SYS KNOB ASSIGN screen (p. 47).
  The parameter name displayed at the each Play screen is abbreviated. For details about parameter names, refer to "Parameters You Can Set with PDL:CTL/EXP" (p. 125) or "Display of Parameters You Can Set with SYS KNOB SETTING" (p. 138).

Screen 1

This displays the name of the patch and the parameters you can work with using the PARAMETER 1 through 4 controls.

Screen 2

This screen displays the effect channel level and the preamp that's in use.

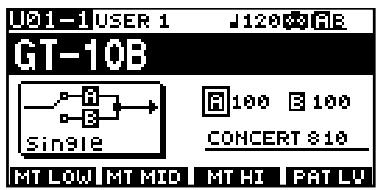

Screen 3

This screen displays the effect channel mode and the effect channel level.

Screen 4

This screen displays the functions assigned to CTL 1 and 2, the EXP PEDAL SW, and the EXP Pedal.

* About the S icon and A icon displayed at the Screen 4 and 5.

The Sicon displays when the Pedal Function is enabled (p. 48).

The A icon displays when the Patch Assign Function is enabled (p. 51).

Screen 5

This screen displays the functions assigned to the Number Pedal Switch, CTL 3 and 4, the external expression pedal (EXP PEDAL2).

Screen 6

This is the screen shown when you're in Manual mode (p. 56). Manual mode is enabled only while this screen is displayed. Pressing [CATEGORY/ENTER] in this screen allows you to make settings for MANUAL MODE SETTING.

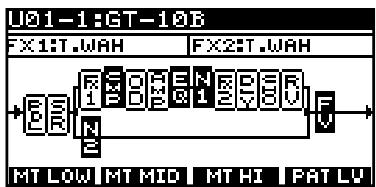

Screen 7

The effects used, as well as their connection sequence (CHAIN) in a channel is indicated.

Screen 8

The patch name and the output level meter are displayed.

Adjusting the Output Level

1.

OUTPUT LEVEL

Adjust the GT-10B's output level with the OUTPUT LEVEL knob.

Making Settings for a Connected Device (Output Select)

Select the type of device connected to the OUTPUT jack.

MEMO

To derive the maximum performance from the GT-10B, be sure to make the correct setting for OUTPUT SELECT, the one that's most suitable for your setup.
- The OUTPUT SELECT function affects sounds from the OUTPUT jacks. The output from the SUB OUTPUT jacks will always be equivalent to the sound that is output when the LINE/PHONES setting is used.
- If the headphones are connected to the PHONES jack, the output from OUTPUT jack and PHONES jack will be equivalent to the sound that is output when the LINE/PHONES setting is used.

Value	Explanation
Patch	This uses the patch's Output Select setting. You can use a different output setting for each individual patch.
System	This uses the system's Output Select setting. The same output setting is used for all patches.

Value	Explanation	Icon displayed on the Play screen
AMP WITH TWEETER	Use this setting when connecting to a tweeter-equipped bass amp.
AMP NO TWEETER	Use this setting when connecting to a bass amp that has no tweeter. The high-frequency range is adjusted.
LINE/PHONES	Use this setting when connecting to a multi-track recorder for recording or when using headphones.

Turning Off the Power

Before turning off the power, confirm the following.

• Is the volume on the GT-10B, your amp, and all other connected devices turned down to the minimum level?

• Have you saved any patches containing settings that have been changed? (p. 43)

• Turn off the power to the bass amp (power amp) any external effects processors and other devices.

2.

POWER

Turn the GT-10B's power off.

NOTE

Changes in patch settings are lost when the power is turned off. If you want to save changes in the settings, carry out the Write procedure (p. 43) before turning off the power.

Tuning the Bass (TUNER)

When the Tuner is turned on, sounds input to the GT-10B are output directly as is (bypassed), and the tuner is activated. Under these conditions you can then tune your bass.

Turning the Tuner Function On and Off

1.

The tuner is switched on or off.

About the Display During Tuning

With the GT-10B's internal tuner, the Note Name and the Tuning Guide are shown of the display, indicating the difference between the input sound and the sound in the display.

When the difference from the correct pitch falls within 50 cents, the Tuning Guide then indicates the size of that difference. As you watch the Tuning Guide, tuning until the center indicator lights up.

How to Tune

1. Play a single open note on the string being tuned.

The Note Name closest to the pitch of the string that was played appears in the display.

1. Tune the string until the string name appears in the display.

1. Keep checking the Tuning Guide, tuning until the center indicator lights up.

1. Repeat Steps 1-3 until all of the strings are tuned.

MEMO

Only play a single note on the one string being tuned.

TIP

• General Four-String Bass

	4th	3rd	2nd	1st
Regular	E	A	D	G
1/2 Step Down	D#	G#	C#	F#
1 Step Down	D	G	C	F

• General Five-String Bass

	5th	4th	3rd	2nd	1st
Regular	B	E	A	D	G
1/2 Step Down	A‡	D‡	G‡	C‡	F‡
1 Step Down	A	D	G	C	F

• General Six-String Bass

	6th	5th	4th	3rd	2nd	1st
Regular	B	E	A	D	G	C
1/2 Step Down	A#	D#	G#	C#	F#	B
1 Step Down	A	D	G	C	F	A#

Changing the Tuner Settings (Tuner Pitch)

Turn on the Tuner.

Move the cursor to PITCH.

Change the reference pitch.

MEMO

• The frequency of A4 (the middle A on a piano keyboard) played by an instrument (such as a piano) that provides the pitch to which the other instruments refer in tuning before a performance begins is called the reference pitch.
  This is set to 440Hz when shipped from the factory.

Range	Explanation
435Hz–445Hz	This sets the reference pitch.

Changing the Tuner Settings (Tuner Out)

1.

TUNER/ BYPASS

STFAS3

Turn on the Tuner.

2.

Move the cursor to OUTPUT.

3.

Select the output while Tuner is on.

MEMO

• When OUTPUT is set to "Bypass," and Tuner is set to ON, you can adjust the volume of the direct sound by operating the EXP Pedal.
• OUTPUT is set to "Bypass" when shipped from the factory.

Value	Explanation
Bypass	Sounds input to the GT-10B bypass the processing and are output directly as is.	FX Effector Mute Bypass TUNER Output EXP Pedal Switch
Mute	Sounds are muted, and no sound is output.

TIP

Switching the Tuner On and Off with the CTL Pedal

By setting the CTL Pedal function (p. 48) to "Tuner," you can switch the tuner on and off with one of the CTL pedals.

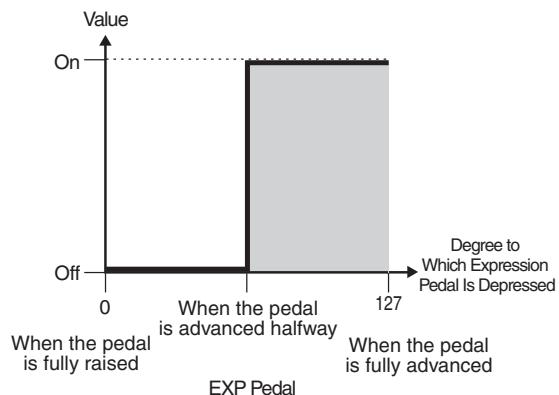

Switching the Tuner On and Off by Lifting Up on the EXP Pedal

When the EXP Pedal is functioning as a Foot Volume control, set one of the ASSIGN 1-8 Assign Variable settings (p. 51) as follows.

With these setting, you can switch on the Tuner by drawing back the EXP Pedal.

Target:	Tuner Sw	Src Mode:	Moment
Min:	On	ActRngLo:	0
Max:	Off	ActRngHi:	1
Source:	EXP1 PEDAL

Switching the Tuner On and Off with the Number Pedal

Set the Num Pdl Sw function (p. 58) to Tuner to switch the tuner on and off with the number pedal of the current patch.

Selecting a Tone (Patch Change)

What is a Patch?

A combination (or set) of effects together with a group of parameter settings is called a "patch."

The GT-10B can store 400 different patches in memory, organized by bank and number as shown below.

User Banks (U01-U50)

Newly created effects settings are saved in the User banks. Patches in these banks are called "User patches."

A "U" appears in the display when a User patch is selected.

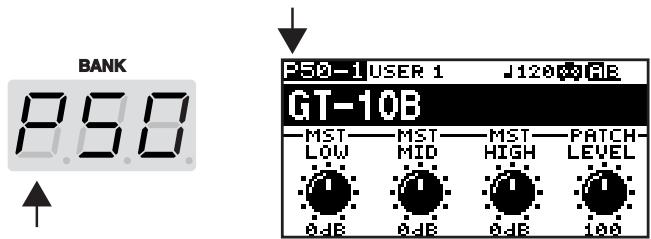

Preset Banks (P01-P50)

The Preset banks contain effect settings that make full use of the features the GT-10B has to offer. The patches in these banks are called "Preset patches." When you change the settings of a Preset patch, save the result as a User patch. Preset patches cannot be overwritten.

A "P" appears in the display when a Preset patch is selected.

Using the Pedal to Select the Patch

Patches are switched by selecting a "bank" (U01-U50, P01-P50) and "number" (1-4). The bank and number appear in the GT-10B's display as shown in the following figure.

MEMO

• When selecting a patch, even if a new bank is selected, the patch is not switched until you also choose the number. If you want to be able to switch patches merely by selecting a different bank, adjust the Bank Change mode (p. 76) setting.
• You can also set the unit so certain effects continue to be used with a following patch after you switch patches. For details, refer to "Keeping Effect Sounds Playing After Patches Are Switched (Patch Change Mode)" (p. 72).

Choosing a Patch in the Same Bank

1.

Choose the number of the patch you want to use.

Choosing a Patch in a Different Bank

1.

Select the bank.

2.

Choose the number of the patch you want to use.

MEMO

• The indicator for the selected number pedal lights up.
• On the GT-10B, you cannot switch patches in any screen other than the Play screen. Press [EXIT] to return to the Play screen (p. 25).

MEMO

Press the BANK pedals to select the desired bank. After bank selection, the GT-10B stands by for specification of the patch number, and the number pedal indicators light up.

MEMO

• The indicator for the selected number pedal lights up.
• On the GT-10B, you cannot switch patches in any screen other than the Play screen. Press [EXIT] to return to the Play screen (p. 25).

Using the Dial to Select the Patch

1.

Select the Patch.

MEMO

On the GT-10B, you cannot switch patches in any screen other than the Play screen. Press [EXIT] to return to the Play screen (p. 25).

Separating Patches into Groups (CATEGORY)

The GT-10B includes a function that allows you to categorize patches into a number of different groups. This is called the CATEGORY function (p. 40). Specifying the category for each patch makes searching for patches more convenient.

1.	CATEGORY/ENTER	The CATG screen appears. The categories and the patches in these categories are shown in list format.	MEMO • On the GT-10B, you cannot enter the CATG screen in any screen other than the Play screen. Press [EXIT] to return to the Play screen (p. 25). • You can also display the CATG screen from PATCH SEARCH in the SYSTEM screen.
		CATG USER 1 J01-1|CT-10E J01-2|FIELD SCOOP SLAP J01-3|CARIFORNIA SLAP J01-4|OAKLAND SLAP J02-1|BASIC GREEN J02-2|DETEROIT J02-3|ROOM810
2.		Select the category.
3.		The GT-10B switches to the selected patch.

Adjusting a Tone

On the GT-10B, the master equalizer parameters are assigned to the PARAMETER knobs of the Play screen by default. You can use these PARAMETER knobs to adjust the sound quality globally, for all patches.

1.	Select the Patch.
2.	P1 knob: Adjust the low frequency range tone. P2 knob: Adjust the middle frequency range tone. P3 knob: Adjust the high frequency range tone.

Creating Sounds with Ease (EZ TONE)

Creating a Tone for the Song You Envision (Create)

If you already have a clear idea about the kind of sound you want to create, you can save yourself a lot of trouble by starting out with a patch that is relatively similar to what you have in mind, then tweak its settings until you arrive at what you want.

EZ TONE CREATE lets you create sounds easily by choosing settings close to the musical genre and the feel of the song you want to compose.

NOTE

The current settings for the patch you are using at the moment are lost when you press EZ TONE [CREATE]. If you want to save the current settings, carry out the Write procedure (p. 43) before performing the procedure below.

The TONE screen for EZ TONE CREATE appears.
EZ STEP1: TONE POP Natural Bright Fate/Warm BASIC TONE VARIATION
P1, P2 knob: This selects the basic tone. P3, P4 knob: This selects a variation.
The DRIVE Tone Grid for EZ TONE CREATE appears.
EZ STEP2: DRIVE EDGE SOFT SMOOTH HARD ←→ + + +
P1, P2 knob: This adjusts the distortion and the compression effect. P3, P4 knob: This adjusts the tone.		NOTE Switching patches causes all settings that have been made to be lost. To save the sound you've created, carry out a Write operation (p. 43). MEMO You can take parameters you've adjusted with EZ TONE CREATE and fine-tune them further using EZ TONE EDIT or parameter operations. For more information, refer to "Adjusting the Tone (Edit)" (p. 33).

Adjusting the Tone (Edit)

By using EZ TONE EDIT you can adjust the sound of a patch with ease, without having to manipulate complicated parameters.

The EZ TONE EDIT screen appears.
EZ/TONE CREATE EDIT	COMP DRIVE CHORUS REVERB
P1 knob: Adjusts the volume level of the compressor. P2 knob: Adjusts the distortion (DRIVE). P3 knob: Adjusts the volume level of the chorus. P4 knob: Adjusts the volume level of the reverb.		MEMO Z/EDT Ch.B Ch.B Ch.B Ch.B Ch.B Ch.B Ch.B Ch.B Ch.B Ch.B Ch.B Ch.B Ch.B Ch.B Ch.B Ch.B Ch.B Ch.B Ch.B Ch.B Ch.B Ch.B Ch.B Ch.B Ch.B Ch.B Ch.B Ch.B Ch.B Ch.B Ch.B Ch.B Ch.B Ch.B Ch.B Ch.B Ch.A Ch.A Ch.A Ch.A Ch.A Ch.A Ch.A Ch.A Ch.A Ch.A Ch.A Ch.A Ch.A Ch.A Ch.A Ch.A Ch.A Ch.A Ch.A Ch.A Ch.A Ch.A Ch.A Ch.A Ch.A Ch.A Ch.A Ch.A Ch.A Ch.A Ch.A Ch.A Ch.A Ch.A

Setting the Effects

Turning an Effect On and Off

The GT-10B's internal effects are switched on and off with button controls. When an effect is switched on, the button's indicator lights up; the indicator goes out when the effect is off.

MEMO

[MASTER/ PEDAL FX] does not light up.

The setting screen for the effects appears.

(Press the button you pressed in step 1 a second time.) 2. EFFECTS SELECT COMP \~ REVERB The effect is switched on or off.

1. To select another effect to be switched on and off, repeat Steps 1 and 2.

MEMO

• With [FX-1] and [FX-2], the settings for the currently selected effect are shown.
• Pressing [MASTER/PEDAL FX] displays the MST/PDL FX screen.

MEMO

• If you want to name the patch or edit the name, proceed to "Naming a Patch (PATCH NAME)" (p. 42) before you save.
• If you want to save a tone with the settings you've made, proceed as described in "Saving a Patch (PATCH WRITE)" (p. 43).

On/Off Operations Using the PARAMETER Knobs

You can use the P1 through P4 knobs to switch on or off the effects whose icons are displayed in the PATCH EDIT screen or MST/PDL FX screen.

PATCH EDIT screen
Select the icon in the SYSTEM MENU screen.

MST/PDL FX screen
Press in the MST/PDL FX screen until the screen below appears.

Setting the Effects Simply (Quick Setting)

Each effect includes prepared sample settings called "Quick Settings."
You can easily create new effect sounds just by selecting and combining these Quick Settings.

The setting screen for the effects appears.		MEMO • With FX-1 and FX-2, the settings for the currently selected effect are shown. • Pressing [MASTER/PEDAL FX] displays the MST/PDL FX screen. • “----: User Setting” indicates that the effect indicated in the display is set to be saved to the currently selected patch, or that the settings are currently being modified.
COMPRESSOR Quick:User Setting TYPE SUS-ATT-LEVEL B.Comp 50 50 50 COMP-OFFON
Select the Quick Setting you want.		MEMO • When FX-1 or FX-2 has been selected in Step 1, the settings for the effect selected by means of the FX1/FX2 Select parameter (p. 105) are switched. • If you want to name the patch or edit the name, proceed to “Naming a Patch (PATCH NAME)” (p. 42) before you save. • If you want to save a tone with the settings you’ve made, proceed as described in “Saving a Patch (PATCH WRITE)” (p. 43).
U**: User Quick Setting P**: Preset Quick Setting U01-1 - U50-4: User Patch Setting P01-1 - P50-4: Preset Patch Setting
For the various FX-1 or FX-2 effects, or the ASSIGN 1 through 8 Quick Settings, you can call up the respective settings described below. • Each effect of the FX-1 or FX-2 (You can call up settings separately for FX1 and FX2.) U01-1.1 - U50-4.2: User Patch Setting P01-1.1 - P50-4.2: Preset Patch Setting • ASSIGN (You can call up settings separately for ASSIGN 1 through 8) U01-1.1 - U50-4.8: User Patch Setting P01-1.1 - P50-4.8: Preset Patch Setting

Switching Between Knob View and List View

You can switch the setting screen for effects between a knob-format view and a list-format view.

1. EFFECTS SELECT COMP ~ REVERB The setting screen for the effects appears. With [FX-1] and [FX-2], the settings for the currently selected effect are shown.
Each press switches between Knob View and List View. Only the major parameters are shown in Knob View, you can adjust the parameters quickly. If you want to have all parameters appear, switch to List View.
DISPLAY MODE COMPRESSOR BUICK:----User Settings TYPE SUS- TAIN ATT- ACK LEVEL B.Comp 50 50 50 COMP:OFFON		COMPRESSOR BUICK:----User Settings TYPE BOSS COMP Sustain 50 Attack 50 Tone 0 COMP:OFFON

Adjusting the Parameters

Each effect comprises several different kinds of parameters. You can more precisely create the sounds you want by editing each of these parameters individually.

The setting screen for the effects appears.

1.

2.

Make the settings for the parameters.

1. To adjust another effect parameter, repeat Steps 1 and 2.

MEMO

• With [FX-1] and [FX-2], the settings for the currently selected effect are shown.
• Pressing [MASTER/PEDAL FX] displays the MST/PDL FX screen.

MEMO

Some effects include multiple pages for the parameter settings. You can use [ ] and

] to switch the pages.

MEMO

• If you want to name the patch or edit the name, proceed to "Naming a Patch (PATCH NAME)" (p. 42) before you save.
• If you want to save a tone with the settings you've made, proceed as described in "Saving a Patch (PATCH WRITE)" (p. 43).

Operations Using the PARAMETER Knobs

In the effects screens, the knobs correspond to the displayed parameters.

Adjusting EQ (Equalizer)

In the EQ screen, using [DISPLAY MODE] to switch the screen lets you check the current status of the settings by means of a graph.

Use [] and [] to switch pages, and use the P1 through P4 knobs to adjust the respective parameters.

You can use the same technique to adjust the various parameters under PARA EQ for FX-1 and FX-2 as well.

For details, refer to "EQ (Equalizer)" (p. 105).

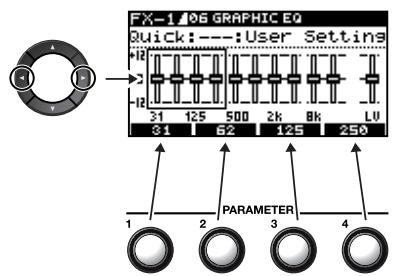

Adjusting GRAPHIC EQ for FX-1/2

In the GRAPHIC EQ screen for FX-1 or FX-2, using [DISPLAY MODE] to switch the screen lets you check the current status of the settings by means of a slider view.

Use [] and [] to select the range you want to adjust, and use the P1 through P4 knobs to adjust the respective parameters.

For details, refer to "GRAPHIC EQ (Graphic Equalizer)" (p. 108).

Changing the Connection Order of Effects (Effect Chain)

Here's how you can change the order in which the effects are connected.

The MST/PDL FX screen appears.
MST/PDL FX PressEnter MASTER
BPM /KEY PDX ASSIGN
Select FX CHAIN.
MST/PDL FX PressEnter FX CHAIN
ABC CHIN SELECT NAME
The FX CHAIN screen appears.
FX CHAIN SELECT:PEDAL FX1 CMP PDL S/R NS2 DIAL MOVE SELECT		MEMO The icon displayed on the FX CHAIN screen indicates the status as described below. CMP: Effect on CMP: Effect off CMP: Selected effect (movable)

Chapter 2 Creating Sounds (Patch Edit)

4.	Pressing the effect button for the effect you want to move lets you choose the effect.
	CMP Compressor/Limiter	DLI Delay	FU Foot Volume
	OD/DS	CHO Chorus	S/R Send/Return
	PREAM PREAMP	REV Reverb	OUT Digital/USB Out
	EQ EQ FX-1 FX-2	FOL Pedal FX Noise Suppressor1	INJ OUTPUT jack
		HS1 Noise Suppressor1	OJ OUTPUT jack
		HS2 Noise Suppressor2
5.	Move an effect to the point where you want to have an effect inserted.			MEMO and cannot be moved.
6. If you want to change the sequence further, repeat Steps 4 and 5.				MEMO If you want to name the patch or edit the name, proceed to "Naming a Patch (PATCH NAME)" (p. 42) before you save. If you want to save a name of the patch with the settings you've made, proceed to "Saving a Patch (PATCH WRITE)" (p. 43).
Checking the Effect Level with the Level Meter In the upper right of the FX CHAIN screen, you can meter the output level of each effect. To check an effect's output level, move the cursor to the desired effect. MEMO You can check the level of signals being input to the INPUT jack by selecting Selecting allows you to check the level of signals output from the GT-10B.

Using Two Different Type Effects (Channel Select)

GT-10B's effector has two routes (EFFECT CHANNEL). You can use it by switching or mixing each route for application as needed.

The MST/PDL FX screen appears.
MIST/PDL FX PressEnter. MASTER
BPM /KEY PDL ASSIGN
Select CH. SELECT.
MIST/PDL FX PressEnter. CHANNEL SELECT
ABC FXY CHA CHAIN NAME
The CH. SELECT screen appears.
CHANNEL SELECT
CH_MODE	CH_SELECT	CH_A LEVEL
Single	CH_A	100
CH:AB
4. 1	Select the Ch.Mode.	MEMO You can also select the Ch.Mode using P2 knob.

Value	Explanation		Value	Explanation
Single	A B	Only the channel selected with Ch.Select or [CHANNEL SELECT] is used.	Dynamic SW	A B Detect Input Level	Channels A and B are switched according to the bass input volume level. This produces dynamic ton-al changes in response to the picking dynamics.
Dual Mix	A B	The output of Chan- nels A and B is mixed.	Dynamic A	Channel A's volume level is controlled. The volume in Channel B is fixed.
Dual L/R	A B L R	Channel A is output from the left and Channel B is output from the right.	Dynamic B	Channel B's volume level is controlled. The volume in Channel A is fixed.
Freq Divide	Low-frequency Range A B High-frequency Range	The low-frequency range is assigned to Channel A, and the high-frequency range is assigned to Channel B.

Grouping Patches by Category (CATEGORY)

You can assign categories to patches and group them accordingly.

1.	Select the patch you want to include in a category.
2.	The MST/PDL FX screen appears. MST/PDL FX PRESSENTER MASTER BPM KEY ASSIGN
3.	Select NAME. MST/PDL FX PRESSENTER PATCH NAME ABCDCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCH CHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCHCH
4.	The PATCH NAME screen appears.
5.	Select a category. PATCH/CUSTOMER CATEGORY/TUSER 1 GT-100 ABCDEFGHIJKLMNOPQRSTUWXYZ :CURSOR:INS KEYWD AB! 3K:AR CATG	MEMO • If you want to name the patch or edit the name, proceed to “Naming a Patch (PATCH NAME)” (p. 42) before you save. • If you want to save a name of the patch with the settings you've made, proceed to “Saving a Patch (PATCH WRITE)” (p. 43).

Naming User Categories (CATEGORY NAME)

The CATEGORY function also features ten user categories (USER1-10) you can name however you like.

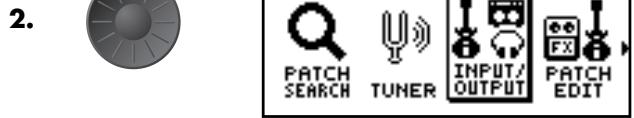

The SYSTEM MENU screen appears.
SYSTEM MENU Press ENTER PATCH SEARCH Q PATCH SEARCH TUNER INPUT/ OUTPUT PATCH EDIT
1. SYSTEM Choose category name. Select CATEGORY NAME. SYSTEM MENU PressEnter USER CATEGORY NAME LCD MIDI USB ABC CATEGORM NAME
2.	The CATEGORY NAME screen appears.
3. CATEGORY/ ENTER	CATEGORY NAME USER CATEGORY 1 USER 1 ABCDEFGHIJKLMNOPQRSTUWXYZ O:CURSOR INS DEL VAL A0! AOKAR I CATG
4.	Select the name of the category you want to edit.
5. Use the same procedure as in "Naming a Patch (PACKH NAME)" (p. 42) to edit the name of the category.
6. EXIT twice. The Play screen appears.		MEMO Category names are system parameters. They are saved at the time they are entered, and don't require the Write procedure.

Naming a Patch (PATCH NAME)

Each patch can be given a name (PATCH NAME) consisting of up to sixteen characters. You'll probably want to take advantage of this feature by assigning names that suggest the sound you'll obtain, or the song in which it'll be used.

1.	Select the patch whose name you want to edit.
2.	The MST/PDL FX screen appears.
	MAST/ POL FX Press ENTER MASTER BPM KEY ASSIGN
3.	Select NAME.
	MST/PDL FX Press ENTER PATCH NAME FOX CH. CHAIN SELECT NAME
4.	The PATCH NAME screen appears.
	PATCH NAME CATEGORY:USER 1 GT-108 ABCDEFGHIJKLMNOPQRSTUWXYZ 0:CURSOR 0:INS 0:DEL KEYWD A0! 3<A|CATG
5.	Move the cursor to the position at which you want to change a character.
6.	Select the character.

You can use the following convenient operations.

Operation	Description	Operation	Description
	Inserts a blank space at the cursor position.		Deletes the character and shifts the characters that follow to the left.
1	Inserts a keyword associated with the patch at the cursor position.	2	Switches between letters, numerals, and symbols.
3	Switches between uppercase and lower-case letters.	4	Sets the category for the current patch. Refer to “Grouping Patches by Category (CATEGORY)” (p. 40)

1. If you want to edit names further, repeat Steps 5 and 6.

MEMO

If you want to save a name of the patch with the settings you've made, proceed to "Saving a Patch (PATCH WRITE)" (p. 43).

Saving a Patch (PATCH WRITE)

If you want to save the changes in the settings, carry out the Write procedure.

NOTE

The patch previously stored at the write destination will be lost once the write is executed.

1. WRITE The PATCH WRITE screen appears.	MEMO When no edits have been made to the currently selected patch, the PATCH COPY screen is displayed.
2. Select the write-destination User patch.	MEMO To cancel the Write procedure, press [EXIT]. The Play screen returns to the display.
	TIP You can also use the procedure described in “Using the Pedal to Select the Patch” (p. 31) to select the write-destination.
3. WRITE The GT-10B saves the changes in the settings to the write-destination patch.	MEMO If you want to name the patch or edit the name, proceed to “Naming a Patch (PATCH NAME)” (p. 42) before you save.

Copying Patches (PATCH COPY)

You can copy a Preset or User patch to another User patch.

NOTE

The patch previously stored at the write destination will be lost once the write is executed.

1.	Select the patch you wish to copy.	"Selecting a Tone (Patch Change)" (p. 30)
2.	Write The PATCH COPY screen appears.	MEMO When edits have been made to the currently selected patch, the PATCH WRITE screen is displayed.
3.	Select the copy-destination User patch.	MEMO To cancel the Copy procedure, press [EXIT]. The Play screen returns to the display. TIP You can also use the procedure described in "Using the Pedal to Select the Patch" (p. 31) to select the copy destination.
4.	Write The GT-10B copies the patch selected in Step 1 to the copy-destination patch.

Exchanging Patches (PATCH EXCHANGE)

On the GT-10B, you can "swap" or exchange the positions of two User patches. The following explains how this is done.

1.	Select the exchange source patch.	“Selecting a Tone (Patch Change)” (p. 30)
2.	The PATCH COPY screen appears.	MEMO When edits have been made to the currently selected patch, the PATCH WRITE screen is displayed.
3.	Select the PATCH EXCHANGE (page 2) screen.
4.	Select the exchange destination User patch.	MEMO To cancel the Exchange procedure, press [EXIT]. The Play screen returns to the display. TIP You can also use the procedure described in “Using the Pedal to Select the Patch” (p. 31) to select the exchange destination.
5.	The GT-10B exchange the positions of the two User patches.

Initializing Patches (PATCH INITIALIZE)

You can return (initialize) a User patch to its original factory settings. This is convenient when you want to create a new patch from scratch.

NOTE

Any tone settings you've stored in a patch are lost once the initialization is executed.

1.	WRITE	The PATCH COPY screen appears.	MEMO When edits have been made to the currently selected patch, the PATCH WRITE screen is displayed.
2.		Select the PATCH INITIALIZIZE (page 3) screen.
		Patch INITIALIZE 031 Initialize U01-1 GT-10B WRITE: EXECUTE COMP - MST: QUICK FX WRITE
3.		Select the User patch you want to initialize.	MEMO To cancel the Initialize procedure, press [EXIT]. The Play screen returns to the display. TIP You can also use the procedure described in “Using the Pedal to Select the Patch” (p. 31) to select the initialize destination.
4.	WRITE	The selected patch is initialized.

Storing Settings by Effect (User Quick Settings)

In addition to storing settings in the form of patches, you can also store settings for individual effects.

Since you can use such stored settings in other patches, just like with the Preset Quick Settings (p. 35), storing effects settings you like ahead of time User Quick Settings is a convenient way to create new patches.

Effects That Can Be Stored

COMP
OD/DS
- PREAMP
EQ

FX-1/FX-2 Effects
- DELAY
- CHORUS
- REVERB

PEDAL FX WAH and Pedal Bend
SEND/RETURN
- ASSIGN1-8

1.

WRITE

The PATCH COPY screen appears.

The QUICK FX WRITE screen appears.

Select the effect settings you want to save.

2.

The screen for specifying the destination to which to save the settings appears.

Move the cursor to "Write to."

3.

4.

Select the save-destination for the settings.

5.

WRITE

The settings are saved.

MEMO

When edits have been made to the currently selected patch, the PATCH WRITE screen is displayed.

MEMO

To save ASSIGN 1-8 settings (p. 51), set the SOURCE parameter to ASSIGN 1-8.
- For FX-1/FX-2, the settings in the currently chosen effects set by FX select (p. 105) will be saved.
- The effects shown below change with each press of [MASTER/PEDAL FX].

• PEDAL WAH
• PEDAL BEND
  -SEND/RETURN
• ASSIGN 1-8

MEMO

When you want to change the User Quick Setting name (12 characters), press [DISPLAY MODE]. For information on how to enter characters, refer to steps 4 through 6 of "Naming a Patch (PATCH NAME)" (p. 42).

Swapping Effect Settings Between Channels

You can swap the settings for the two effect channels.

1.	WRITE	The PATCH COPY screen appears.	MEMO When edits have been made to the currently selected patch, the PATCH WRITE screen is displayed.
2.	CHANNEL SELECT A B	The CH A/B UTILITY screen appears.
		CH A/B UTILITY Exchange? Chain Ch.A↔B
		WRITE:EXECUTE
3.	WRITE	This swaps the arrangement of channel A and channel B in the FX CHAIN.

Setting the Functions of the Knobs of the Play Screen

You can change the functions of the PARAMETER knobs.

1.	SYSTEM	The SYSTEM MENU screen appears.
2.		Select CONTROL.
		SYSTEM MENU PRESSENTER CONTROLLER PHRASE LOOP MANUAL PLAY OPTION
3.	CATEGORY/ ENTER	The CONTROLLER screen appears.
4.		Select the SYS KNOB SETTING screen (page 1).
		CONTROLLER 1 1 1 1 1 1 SYS KNOB SETTING
		Knob P1:MASTER:Low Knob P2:MASTER:Mid Knob P3:MASTER:High Knob P4:Patch Level
5.		Select the parameter knob (Knob P1-P4) whose assignment you want to change.
6.		Change the parameter settings.	cf. For information on what settings you can assign, refer to “SYS KNOB SETTING (System Knob Setting)” (p. 137).
7.	To change another controller setting, repeat Steps 5-6.
8.	EXIT twice.	The Play screen appears.	MEMO CONTROLLER parameters are system parameters. They are saved at the time they are entered, and do not require a Write procedure.

Using Pedals to Control the Parameters

Using the CTL/EXP Pedal With the Same Functions Assigned at All Times (Pedal Function)

This applies the functions of the CTL pedal, EXP Pedal and EXP PEDAL SW globally to the GT-10B.

1.	SYSTEM	The SYSTEM MENU screen appears.
2.		Select CONTROL.
		SYSTEM MENU PresstENTER CONTROLLER PHRASE MANUAL PLAY OPTION CONTROL
3.	CATEGORY/ENTER	The CONTROLLER screen appears.
		CONTROLLED 1 11111 SYS KNOB SETTING Knob P1: MASTER:Low Knob P2: MASTER:Mid Knob P3: MASTER:High Knob P4: Patch Level
4.		Select the controller whose assignment you want to change.
		CONTROLLED 11111 CTL1 PEDAL SETTING Prefernc: Patch Function: Off Min: Off Max: On Src Mode: Toggle
5.		Select Prefernc.
6.		Set the Prefernc parameter to System.
7.		Select the parameter of the chosen controller whose settings you want to change.
8.		Change the parameter settings.	cf. For information on what settings you can assign, refer to “Function” (p. 138).
9.	To change another controller setting, repeat Steps 4-6.
10.	EXIT twice.	The Play screen appears.	MEMO CONTROLLER parameters are system parameters. They are saved at the time they are entered, and do not require a Write procedure.

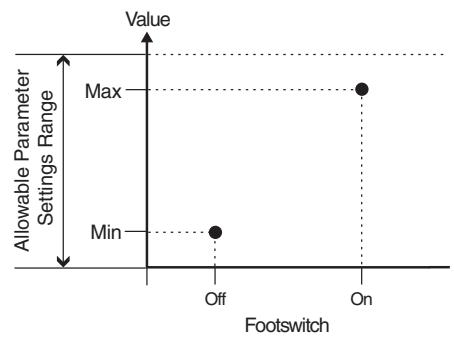

Example of Setting the Pedal Function

Setting the parameters as shown below in the EXP1 PEDAL SETTING screen enables you to constantly use the GT-10B's EXP Pedal as a wah pedal.

Prefernc:	System
Function:	WAH
Min:	0
Max:	100

Setting CTL/EXP Functions Individually in Each Patch (PEDAL FX)

This procedure sets the functions for the GT-10B's controllers (CTL/EXP Pedal, EXP PEDAL SW) for individual patches.

• Set the Prefernc parameter of the CTL/EXP Pedal and EXP PEDAL SW (p. 137) settings to "Patch."

• The MST/PDL FX screen appears.

Select PEDAL/FX.

2.

The PDL:CTL/EXP screen appears.

1. ENTER CTL CTL EXP SW EXP1 CHARUS FX-2 Off FV

2. 1 Make the parameter settings.

P1: CTL1 Pedal
P2:CTL2 Pedal
P3: EXP PEDAL SW
P4: EXP Pedal

Pressing [DISPLAY MODE] toggles the display between Knob View and List View.

• Some EXP Pedal parameters use multiple pages for the parameter settings. You can use [ ] or [ ] to switch pages.
  Each time [MASTER/PEDAL FX] is pressed, the EXP Pedal functions alternate as shown below.

Parameter	Functions Switched
Foot Volume	Normal Foot Volume (Does not include an ON/OFF switching function)
Pedal Bend	Pedal Bend On/Off
WAH	Wah On/Off
PB/FV	Pedal Bend, Foot Volume
WAH/FV	Wah, Foot Volume

The currently selected setting is the one highlighted at the lower right of the display.

For information on what settings you can assign, refer to "SW&PDL FUNCTION" (p. 122).

1. To save the settings, use the Write procedure (p. 43).

TIP

EXP Pedal Function Quick Settings

Selecting these prepared sample settings (Quick Settings) lets you choose optimal values for the related parameters instantly. This allows you to complete the settings simply and easily without the need to set each parameter individually.

1. Follow the procedure in "Setting CTL/EXP Functions Individually in Each Patch (PEDAL FX)" (p. 49) step 1-3 to display the PDL:CTL/EXP screen.

2.	4	Select either WAH/FV, PB/FV, WAH, or PB.
3.		The PDL:WAH screen or the PDL:PEDAL BEND screen appears.
		POL:WAH 1211 Quick:----User Setting TYPE : FEDAL MAX EFCCT LEVEL E.WAH 0 100 100 MASTER:OFFON
4.		Select the Quick Setting (P**, U**).

Display	Explanation
Quick:U**	User Quick Settings
Quick:P**	Preset Quick Settings
U01-1-U50-4	User Patch	MEMO
P01-1-P50-4	Preset Patch	When you select a User patch or Preset patch, you can use the existing patch's assign settings just as they are.

1. To save the settings, use the Write procedure (p. 43).

MEMO

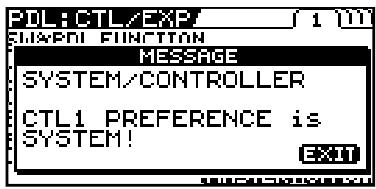

When SYSTEM or CONTROLLER Messages Are Displayed

These appear when the Prefernc parameter for the Controller whose settings you attempted to change (CONTROLLER screen (p. 137)) is set to System.

This means that the settings in the PDL:CTL/EXP screen, which are the patch parameters, have no effect.

To enable the settings in the PDL:CTL/EXP screen, set the Prefernc parameter to Patch beforehand.

To dismiss this message, press [EXIT].

Setting Each Controller Functions to Individual Patches (Assign)

You can set the CTL/EXP Pedal, EXP PEDAL SW, and external controllers (footswitch and expression pedal) connected to the rear panel's EXP PEDAL 2/CTL 3,4 jacks for each individual patch.

You can save up to eight separate settings per patch (using Assign numbers 1 through 8) that determine what parameters are controlled by which controllers.

• Set the Prefernc parameter of the CTL/EXP Pedal and EXP PEDAL SW (p. 137) settings to "Patch."

Quick Settings

When you select prepared settings (Quick Settings), the relevant parameters are instantly set to their optimal values. This lets you make the settings simply, instead of setting each individual parameter separately.

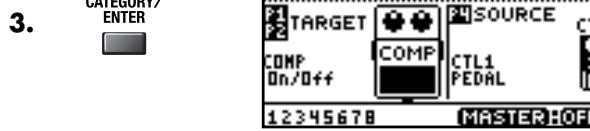

1. 1. The MST/PDL FX screen appears.
2. Select one of the ASSIGN number (No.1-8).
4. Select the Quick Setting (P^,U^)

MEMO

Each time [MASTER/PEDAL FX] is pressed it alternately switches the selected ASSIGN number on and off. When on, the Assign number at the bottom left of the display and the "ON" indication at the bottom right are highlighted. Be sure to set any Assign settings not being used to "Off."

Display	Explanation
Quick:U**	User Quick Settings
Quick:P**	Preset Quick Settings
U01-1.1-U50-4.8	User Patch	MEMO
P01-1.1-P50-4.8	Preset Patch	When you select a User patch or Preset patch, you can use the existing patch's assign settings just as they are.

1. To use the Quick Settings with other Assigns, repeat Steps 4-8.
2. To save the settings, use the Write procedure (p. 43).

Manual Settings

Here, you can individually determine which controller is to control which parameter.

1.	MASTER/ PedAL FX	The MST/PDL FX screen appears.
2.		Select ASSIGN.
		MST/PDL FX PresstENTER ASSIGN EPM KEY ASSIGN
3.	CATEGORY/ ENTER	The ASSIGN screen appears.	MEMO Only the TARGET and the SOURCE are shown in Icon View. If you want to have all parameters appear, switch to List View. For information on the parameters, refer to "ASSIGN 1-8" (p. 126).
		ASSIGN No.1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 0.95
		Quick:---User Settings TARGET COMP On/Off SOURCE CTL1 PEDAL MASTER:OFFON
4.		Select one of the ASSIGN number (No.1-8).
5.	MASTER/ PedAL FX	Set the selected Assign number to "On."	MEMO Each time [MASTER/PEDAL FX] is pressed it alternately switches the selected ASSIGN number on and off. When on, the Assign number at the bottom left of the display and the "On" indication at the bottom right are highlighted. Be sure to set any Assign settings not being used to "Off."
6.	4	Select the controller that you want to edit the parameter.
7.	2	Select the parameter you wish to control.	TIP You can rapidly select the parameter you want by using the P1 knob to navigate down from the broad category.
8.	To set the other Assigns, repeat Steps 4-7.
9.	To save the settings, use the Write procedure (p. 43).

Parameters That Can Be Set in ListView

The following describes the parameters that can be set when you switch to ListView in the ASSIGN screen.

MEMO

Pressing [DISPLAY MODE] toggles the display between Knob View and List View.

• The screen that's shown uses ASSIGN No. 1 as an example.

Parameter	Explanation
Target	Use to select the parameter you want to control.
Min	This sets the minimum value for the target's controllable range.
Max	This sets the maximum value for the target's controllable range.

Parameter	Explanation
Source	This selects the controller assigned to the function.
Src Mode	Moment	The normal state is Off (minimum value), with the switch On (maximum value) only while the footswitch is depressed.
	Toggle	The setting is toggled On (maximum value) or Off (minimum value) with each press of the footswitch.
ActRngLo	This sets the minimum for the range in which the value of the setting can be changed.
ActRngHi	This sets the maximum for the range in which the value of the setting can be changed.

cf.

For more information about each parameter, refer to "ASSIGN 1-8" (p. 126).

About the Range of a Target's Change

The value of the parameter selected as the target changes within the range defined by "Min" and "Max," as set on the GT-10B. When using an external footswitch, or other controller that acts as an on/off switch, "Min" is selected with Off (CLOSED), and "Max" is selected with On (OPEN).

When using an external expression pedal or other controller that generates a consecutive change in the value, the value of the setting changes accordingly, within the range set by the minimum and maximum values. Also, when the target is of an on/off type, the median value of the received data is used as the dividing line in determining whether to switch it on or off.

When using the footswitch:

When using the EXP Pedal:

When controlling the On/Off target with the EXP Pedal:

• The range that can be selected changes according to the target setting.
• When the "minimum" is set to a higher value than the "maximum," the change in the parameter is reversed.
• The values of settings can change if the target is changed after the "minimum" and "maximum" settings have been made. If you've changed the target, be sure to recheck the "minimum" and "maximum" settings.

About the Range of a Controller's Change

This sets the operational range within which the value of the setting changes when an EXP Pedal or other controller that changes the value consecutively is used as the source. If the controller is moved outside the operational range, the value does not change, it stops at "minimum" or "maximum."

(Example) With ActRngLo: 40, ActRngHi: 80

• When using a footswitch or other on/off switching controller as the source, leave these at "ActRngLo: 0" and "ActRngHi: 127." With certain settings, the value may not change.

TIP

Example of Assign Settings

Setting the parameters as shown below enables you to use the GT-10B's EXP Pedal as a UNI-V Rate parameter.

Target:	FX1:UV:Rate	Src Mode:	Moment
Min:	0	ActRngLo:	0
Max:	100	ActRngHi:	127
Source:	EXP1 PEDAL

Activating the Virtual Expression Pedal at the Start of Operations (Internal Pedal System)

The GT-10B features a function called Internal Pedal system. This function assigns specified parameters to a virtual expression pedal (the internal pedal), providing an effect that automatically changes volume and tone in real time just the way an expression pedal functions.

The Internal Pedal system features the following three functions, allowing you to set Source for each ASSIGN No.1-8 of the "Manual Settings" (p. 52).

• When the Internal Pedal or the Wave Pedal is used, set the ASSIGN Src Mode to Moment.

Internal Pedal

With the trigger you have set, the assumed expression pedal starts working. If you have set INTERNAL PDL to Source, set the Int Trig parameter.

cf.

For more detailed information on the parameters that can be set using Internal Pedal, refer to "Int Trig (Internal Pedal Trigger)" (p. 126), "Int Time (Internal Pedal Time)" (p. 126), and "IntCurve (Internal Pedal Curve)" (p. 126).

Wave Pedal

This changes the parameter selected as a target in a certain cycle with the assumed expression pedal. When you have set Wave Pedal for Source, the WaveRate and Waveform should be set.

cf.

For more detailed information on the parameters that can be set using Wave Pedal, refer to "WaveRate (Wave Pedal Rate)" (p. 126) and "Waveform (Wave Pedal Form)" (p. 126).

Input Level

The parameter set as the target changes in response to the input level.

MEMO

If you want to adjust the input sensitivity, set the "INPUT SENS" (p. 127).

Turning the Effects On and Off with the BANK/Number Pedals (Manual Mode)

The GT-10B features a Manual mode, in which the pedals are used for switching specified effects on and off.

In Manual mode, you can switch effects on and off without changing the patch number.

Switching to Manual Mode

Switching Effects On and Off with the Pedals

1. Perform "Switching to Manual Mode" (p. 56), to turn Manual mode on.
2. 157 159 160

MEMO

The assigned effect is switched on or off with each press of the pedal. When the assigned effect is on, the indicator at the top of the pedal lights up.

Assigning an Effect On/Off Switch to a Pedal

1.	SYSTEM	The SYSTEM MENU screen appears.	MEMO You can also enter the MANUAL SETTING screen from the Play screen (p. 56).
2.		Select MANUAL SETTING.
		SYSTEM MENU PressEnter MANUAL MODE SETTING PHRASE LOOP MANUAL SETTING PLAY OPTION CONTROL
3.	CATEGORY/ENTER	The MANUAL SETTING screen appears.
		MANUAL SETTING MANUAL MODE SETTING Num Dec Num Inc 1 DS 2 Cho Rus FX1 FX2
4.		Select the pedal whose assignment you want to change.
5.		Select the effect switch you want to assign to the pedal.
6.	To change another pedal setting, repeat Steps 4-5.

Assignable Effect Switches

Display	Explanation
Off	The function is not assign to the pedals.
Ch.A/B	Switches between effect channel A and B.
Comp	Switches the COMP on and off.
OD/DS	Switches the OD/DS on and off.
Preamp	Switches the PREAMP/SPEAKER on and off.
EQ	Switches the EQ on and off.
FX1	Switches FX-1 on and off.
FX2	Switches FX-2 on and off.
Delay	Switches the DELAY on and off.
Chorus	Switches the CHORUS on and off.
Reverb	Switches the REVERB on and off.
PdIFX	Switches the PEDAL FX on and off.
S/R	Switches the SEND/RETURN on and off.
AmpCtrl	Switches the Amp Control on and off.
Tuner	Switches the TUNER on and off.

Display	Explanation
PL	Switches the PHRASE LOOP on and off.
PL R/P	Records/plays back the phrase.
PL Clr	Cleared the phrase.
PL M/P	Mutes playback of the phrase.
BPMTap	Used for tap input of the Master BPM.
DlyTap	Used for tap input of the delay time.
MIDI	Controls the Start/Stop of external MIDI devices (such as sequencers).
MMCPly	Controls the Play/Stop of external MIDI devices (such as hard disk recorders).
Lev+10	Increases the patch volume level by 10 units.
Lev+20	Increases the patch volume level by 20 units.
Lev -10	Decreases the patch volume level by 10 units.
Lev -20	Decreases the patch volume level by 20 units.
NumInc	Switches to the next higher patch number in the same bank as the currently selected patch.
NumDec	Switches to the next lower patch number in the same bank as the currently selected patch.
BnkInc	Switches to the next higher bank number.
BnkDec	Switches to the next lower bank number.

Switching Settings with the Number Pedals

The GT-10B includes a function that allows you to turn the tuner on and off, switch effect channels, and perform other tasks by pressing the pedal with the same number as the currently selected patch.

MEMO

You can switch the following functions in any condition other than the Manual Mode (p. 56).

1.	SYSTEM	The SYSTEM MENU screen appears.
2.		Select PLAY OPTION.
		SYSTEM MENU PresstENTER PLAY OPTION PHRASE LOOP MANUAL SETTING PLAY OPTION CONTROL
3.	CATEGORY/ENTER	The PLAY OPTION screen appears.
4.		Select Num Pdl Sw.
		PLAY OPTION BankExtentMin: U01 BankExtentMax: P50 EXP Pd1 Hold: On Pd1 Indicate: Off Num Pd1 Sw: Off Dial Func: Pat&Val
5.		Set the Num Pdl Sw Parameter.

Display	Explanation
Off	Not used.
Tuner	Switches the tuner on and off.
Ch. A/B	Switches between effect channels A and B.

Phrase Loop Play

What's Phrase Loop?

In this mode, you can record up to 38 seconds of material (recorded in mono) and repeatedly play material as a "phrase loop." As the loop plays, you can overdub new material if desired.

You can record a phrase loop with effects, or you can add effects after a loop has been recorded. Adding effects after-the-fact lets you create special effects with recorded performances. It's also a great way to audition tones, as you can adjust effect parameters in real time while a phrase plays back.

NOTE

Recorded phrases are deleted when Phrase Loop is switched off or when the power is turned off.

Using the Phrase Loop

Recording a Phrase (REC)

1. Press [BANK▼] and [BANK▲] at the same time.	The unit goes into recording standby (The REC/DUB in- indicator flashes).	The maximum recording time for monaural recording is approximately 38 seconds. When the recording time reaches 38 seconds, playback of the recorded performance starts automatically.
2.	Recording starts. (The REC/DUB indicator lights up.) Play the phrase you want to record.
3.	Recording stops. (The REC/DUB indicator goes out.) The recorded phrase is looped (played repeatedly). (The PLAY indicator lights up.)

Over dubbing Sound onto a Phrase (DUB)

1. Follow the procedure in "Recording a Phrase (REC)" (p. 59) to record a phrase, then perform loop play. (The PLAY indicator lights up.)

REC/UB PLAY Overdubbing starts. (The REC/DUB indicator lights up.) 2. Play the phrase you want to overdub along with the playback of the loop.

1. Overdubbing stops. (The REC/DUB indicator goes out.) The phrase you just recorded is combined with the phrase you recorded first and that sound is automatically played in a loop. (The PLAY indicator lights up.)

TERM

Recording on top of an existing performance is called "overdubbing."

MEMO

If you want to overdub additional material, repeat steps 2 and 3.

Deleting a Phrase (CLEAR)

The procedure for deleting a phrase differs according to the setting of the Clear Pdl parameter.

For information on the Clear Pdl parameter, refer to "Clear Pdl (Clear Pedal Function)" (p. 61).

When the Clear PdI parameter is “Clear Only”		When the Clear PdI parameter is “Mute/Clear”
1.	The phrase is deleted and the unit goes into recording standby.	1.	Pressing this during recording stops recording and puts the unit in muted playback. (The PLAY indicator flashes.) No sound is produced, but loop play continues inside the GT-10B. MEMO Pressing [BANK▼] while the unit is muted enables normal loop playback. (The PLAY indicator lights up.)
		2.	Pressing this while the sound is muted deletes the phrase and puts the unit in recording standby.

Setting Phrase Loop

You can also enable different uses by changing the parameters.

1.	SYSTEM	The SYSTEM MENU screen appears.
2.		Select PHRASE LOOP.
		SYSTEM MENU PresstENTER PHRASE LOOP PHRASE LOOP MANUAL SETTING PLAY OPTION CONTROL
3.	CATEGORY/ENTER	The PHRASE LOOP screen appears.
		PHRASE LOOP Mode:Performance Pd1 Mode:Off Rec Mode:Mono Play Lev:100 Clear Pd1:Clear Only ENTER:OFFON
4.		Move the cursor to select the parameter you wish to change.
5.		Change the parameter settings.

Parameter/Range	Explanation
Mode
Performance	This records the sound after it passes through the effects.This lets you achieve a rich variety of performances by combining different tones.	When the Mode is set to the Patch Edit. When the Mode is set to the Performance.
Patch Edit	This records the sound before it passes through the effects, and applies the effects during loop play.This enables you to adjust effects or compare patch tones.
Pdl Mode (Pedal Mode)
Off	The BANK pedals are not used for operation of the Phrase Loop feature. These are used as bank switch pedals.TIPPhrase Loop can be controlled by assigning the Phrase Loop feature to any of the CTL pedals 1 through 4 etc. and maintaining the BANK pedals' bank switching function.
On	The BANK pedals are used for operation of the Phrase Loop feature.
Rec Mode (Recording Mode)
Mono	Phrases are recorded in mono (max. 38 seconds).
Stereo	Phrases are recorded in stereo (max. 19 seconds).
Play Lev (Play Level)
0-120	Sets the phrase playback volume.
Clear Pdl (Clear Pedal Function)
Clear Only	When you press [BANK▲] while the Phrase Loop feature is on, the recorded data is cleared and then GT-10B switches to STANDBY mode.
Mute/Clear	When you press [BANK▲] while the Phrase Loop feature is on, the performance of the recorded phrase is muted (the recorded data is not erased).If you then press [BANK▲] again while the phrase is muted, the recorded data is cleared and then GT-10B switches to STANDBY mode.

Overview of Phrase Loop Operation

When the PHRASE LOOP function and the Pdl Mode parameter are both set to "on," phrase loop operation is switched as shown below.

When the Clear Pdl parameter is "Clear Only"

When the Clear Pdl parameter is "Mute/Clear"

Making Settings Matched to the Connected Bass (Input Select)

The GT-10B includes a feature for adjusting the tone to suit whatever Bass you have connected, allowing you to make settings for three bass types (Bass 1-3). This is effective when you are connecting a different bass from the one used when the patch was created.

NOTE

When adjusting the input level and input presence, the input signals for all patches are affected. Note that the nuances of the effect sounds that occur in response to bass volume may change, particularly with patches in which effects are controlled by the bass volume.

SYSTEM The SYSTEM MENU screen appears.

Select INPUT/OUTPUT.
4. Select the INPUT SELECT (Bass 1-3) you want to set.
P2 knob: Adjusts the bass input level.
P3 knob: Adjusts the tonal quality of the bass's high end.

MEMO

Select USB In when you're inputting audio from a computer via USB (p. 134).

cf.

For information on the parameters, refer to "INPUT" (p. 134).

Adjusting the Overall Sound to Match the Usage Environment (Global)

The GT-10B includes a feature that allows you to change the overall tone of all patches. This is called the "Global function."

With the Global function, you can change your settings to match those of your equipment and the operating environment, while leaving the settings in the patches untouched.

Adjusting the Overall Tone (Global EQ)

This adjusts the tone of the OUTPUT regardless of the equalizer on/off settings of individual patches.

1.	SYSTEM	The SYSTEM MENU screen appears.
2.		Select INPUT/OUTPUT.
		SYSTEM MENU PressEnter INPUT/OUTPUT PATCH SEARCH TUNER
3.	CATEGORY/ ENTER	The INPUT/OUTPUT screen appears.
4.		Select the GLOBAL EQ (page 2) screen.
		INPUT/OUTPUT 1/2 GLOBAL EQ Low Gain: 0dB Mid Gain: 0dB Mid Freq: 800Hz Mid Q: 1 High Gain: 0dB
5.		Move the cursor to the parameter you want to set.
6.		Adjust the parameter.	cf. For information on the parameters, refer to “GLOBAL EQ” (p. 134).

Parameter	Explanation
Low Gain	Adjusts the low frequency range tone.
Mid Gain (Middle Gain)	Adjusts the middle frequency range tone.
Mid Freq (Middle Frequency)	Specifies the center of the frequency range that will be adjusted by the Mid Gain.
Mid Q (Middle Q)	Adjusts the width of the area affected by the EQ centered at the Mid Freq. Higher values will narrow the area.
High Gain	Adjusts the high frequency range tone.

Controlling the Overall Effect of the Noise Suppressor (Total Noise Suppressor)

This controls the overall threshold value for the noise suppressor settings in the individual patches. This is an effective tool when basses are changed during performances and for making adjustments in response to noise levels at the performance venue.

This is an overall setting and does not alter the individual patch settings.

MEMO

This has no effect on patches in which the noise suppressor is turned off.

1.	SYSTEM	The SYSTEM MENU screen appears.
2.		Select INPUT/OUTPUT.
		SYSTEM MENU PresstENTER INPUT/OUTPUT
		PATCH SEARCH TUNER	INPUT/OUTPUT PATCH EDIT
3.	CATEGORY/ ENTER	The INPUT/OUTPUT screen appears.
4.		Select the TOTAL (page 3) screen.
		INPUT/OUTPUT
		TOTAL
		NS Threshold: 0dB
		Rev Level: 100%
		USB/DGT Out Lev: 100%
		USB Mix Level: 100%
		Main Out Level: -10dB
5.		Move the cursor to NS Threshold.
6.		Adjust the threshold level of the Noise Suppressor.	MEMO Set to “0 dB” when using this in individual patch settings. cf. For information on the parameters, refer to “NS Threshold (Noise Suppressor Threshold)” (p. 135).

Controlling the Overall Reverb Level (Total REVERB)

This controls the overall reverber level settings in the individual patches. This is effective for adjusting to the acoustics of the performance venue.

This setting does not affect the individual patch settings.

This has no effect on patches in which the reverb is turned off.

1.	SYSTEM	The SYSTEM MENU screen appears.
2.		Select INPUT/OUTPUT.
		SYSTEM MENU PressEnter INPUT/OUTPUT
		PATCH SEARCH TUNER	INPUT/ OUTPUT PATCH EDIT
3.	CATEGORY/ ENTER	The INPUT/OUTPUT screen appears.
4.		Select the TOTAL (page 3) screen.
		INPUT/OUTPUT	TOTAL
		NS Threshold	0dB
		Rev Level	100%
		USB/DGT Out Level	100%
		USB Mix Level	100%
		Main Out Level	-10dB
5.		Move the cursor to Rev Level.
6.		Adjust the reverb level.	MEMO Set to "100%" when using this in individual patch settings. cf. For information on the parameters, refer to "Rev Level (Reverb Level)" (p. 135).

Setting the Output Reference Level to Match the Connected Equipment (Main Out Level)

This sets the output reference level to match the equipment connected to the OUTPUT jack.

1.	SYSTEM	The SYSTEM MENU screen appears.
2.		Select INPUT/OUTPUT.
		SYSTEM MENU PressEnter INPUT/OUTPUT
		PATCH SEARCH TUNER	INPUT/ OUTPUT PATCH EDIT
3.	CATEGORY/ ENTER	The INPUT/OUTPUT screen appears.
4.		Select the TOTAL (page 3) screen.
		INPUT/OUTPUT (if 3)
		TOTAL
		NS Threshold: 0dB
		Rev Level: 100%
		USB/DGT Out Lev: 100%
		USB Mix Level: 100%
		Main Out Level: -10dB
5.		Move the cursor to Main Out Level.
6.		Adjust the reference level.

Value	Explanation
-10dB	Choose this when connected to a bass amp.
+4dB	Choose this when connected to a recorder, mixer, or other line device.

Adjusting the Output Level of the DIGITAL OUT Jack

You can adjust the level of the audio signals output from the DIGITAL OUT jack.

Digital signals are output from the DIGITAL OUT jack on the rear panel. You can connect this directly to the digital in connector of a digital recorder or other device and record with no degradation in sound quality.

The same digital audio signals are output from DIGITAL OUT and USB.

1.	SYSTEM	The SYSTEM MENU screen appears.
2.		Select INPUT/OUTPUT.
		SYSTEM MENU PresstENTER INPUT/OUTPUT PATCH SEARCH TUNER	INPUT/PATCH OUTPUT/PATCH EDIT
3.	CATEGORY/ ENTER	The INPUT/OUTPUT screen appears.
4.		Select the TOTAL (page 3) screen.
		INPUT/OUTPUT (if 3) TOTAL NS Threshold : 0dB Rev Level : 100% USB/DGT Out Lev : 100% USB Mix Level : 100% Main Out Level : -10dB
5.		Move the cursor to USB/DGT Out Lev.
6.		Adjust the level.	.

Switching the SUB OUTPUT Jacks Signals

You can select the signals to be output from the SUB OUTPUT (XLR) jacks.

1.	SYSTEM	The SYSTEM MENU screen appears.
2.		Select INPUT/OUTPUT.
		SYSTEM MENU PressEnter. INPUT/OUTPUT PATCH SEARCH TUNER
3.	CATEGORY/ ENTER	The INPUT/OUTPUT screen appears.
4.		Select the SUB OUTPUT (page 4) screen.
		INPUT/OUTPUT 4 SUB OUTPUT Mode : L/R Level : 100
5.		Move the cursor to Mode.
6.		Select the Mode you want to set.

Value	Explanation
L/R	The GT-10B's stereo output is output as is, without change. Set to L/R when recording in stereo or sending stereo signals to a PA.
Effect/Direct	Output from SUB OUTPUT L jack is the GT-10B's stereo output mixed to mono, output from SUB OUTPUT R jack is the sound before effect (mono) directly. MEMO The INPUT SELECT, INPUT LEVEL and PRES. parameters are enabled in the input sound. TIP For recording, you can record the direct bass sound on a separate channel, then later on you can remix the direct sound with the effect sound during mixdown.

Adjusting the SUB OUTPUT Jacks Level

You can adjust the level of the audio signals output from the SUB OUTPUT (XLR) jacks.

The SUB OUTPUT level cannot be adjusted with the OUTPUT LEVEL knob.

1.	SYSTEM	The SYSTEM MENU screen appears.
2.		Select INPUT/OUTPUT.
		SYSTEM MENU PressEnter INPUT/OUTPUT
		PATCH SEARCH TUNER	INPUT/ OUTPUT PATCH EDIT
3.	CATEGORY/ ENTER	The INPUT/OUTPUT screen appears.
4.		Select the SUB OUTPUT (page 4) screen.
		INPUT/OUTPUT (if if 4) SUB OUTPUT
		Mode : L/R Level : 100
5.		Move the cursor to Level.
6.		Adjust the level.

Adjusting the Display Contrast (LCD Contrast)

Depending on where the GT-10B is placed, the display (on the right) may become difficult to read. If this occurs, adjust the display contrast.

SYSTEM The SYSTEM MENU screen appears. 1.

Keeping Effect Sounds Playing After Patches Are Switched (Patch Change Mode)

The GT-10B features a mode that is enabled when spatial effects (such as reverb and delay) are used, whereby the effects sound of one patch continues playing even after you switch to the next patch. If the necessary following conditions regarding the effects chain and effect parameter settings are met, you can then have the decay of reverb, delay, and similar effects continue on into the next patch after you switch patches.

• Effects are in the same effects chain
• When the Delay Type parameter and Dly Time parameter are identical
• When switching other effects off or on, or when the parameter settings are identical

MEMO

There still may be no reverberation in some cases, even after the above settings are made.

1.	SYSTEM	The SYSTEM MENU screen appears.
2.		Select PLAY OPTION.
		SYSTEM MENU PressEnter PLAY OPTION FRASE MANUAL SETTING PLAY OPTION CONTROL
3.	CATEGORY/ENTER	The PLAY OPTION screen appears.
4.		Move the cursor to Patch ChgMode.
		PLAY OPTION Preamp Mode: Patch Patch ChgMode: Fast Bank Chg Mode: Wait BankExtentMin: U01 BankExtentMax: P50 EXP Pd1 Hold: On
5.		Select the value of the Patch ChgMode parameter.

Value	Explanation
Fast	Patches are changed normally. The unit switches to the subsequent patch without any carry-over of the decay from the previous patch's reverb or delay.
Smooth	The unit switches to the subsequent patch with the decay from the previous patch's reverb or delay continued after the switch is made. MEMO To ensure smooth switching, the patches may be switched with a delay of one tempo beat.

Using the Identical Preamp Settings in All Patches (Preamp Mode)

With the GT-10B, you can have a preamp be set globally for use in all patches, allowing you to make settings for three preamp types.

This provides an effect that always gives you the sound of the same bass amp regardless of the patches you set.

Using the System Preamp

1.

The SYSTEM MENU screen appears.

2.

Select PLAY OPTION.

3.

The PLAY OPTION screen appears.

4.

Move the cursor to Preamp Mode.

5.

Select the value of the Preamp Mode parameter you want to set.

Value	Explanation
Patch	The patch preamp setting is used. This allows you to use different preamp settings in each individual patch.
System1-3	The system's preamp setting is used. This applies the same preamp settings to all patches. MEMO Pressing EZ TONE [CREATE] automatically switches Preamp Mode to Patch.

Setting the System Preamp

When Preamp Mode is System1 through System3, the changed preamp setting is saved as the system's preamp setting. The stored content is updated each time the settings are changed.

Saving the Current Preamp Setting As the System's Preamp Setting

You can save the current preamp setting as a preamp setting for the system (System1 through System3).

1.	WRITE	The PATCH COPY screen appears.	MEMO When edits have been made to the currently selected patch, the PATCH WRITE screen is displayed.
2.		Select the SYS PREAMP WRITE screen.
		SYS PREAMP WRITE 4 Write to System1 WRITE:EXECUTE
3.		Select the save-destination system preamp (System1-3).	MEMO To cancel the Write procedure, press [EXIT]. The Play screen returns to the display.
4.	WRITE	The settings are saved.

Limiting the Banks That Can Be Switched (Bank Extent)

By setting an limit to the range of banks that can be switched, you can set the GT-10B so that only the patches you need can be selected.

1.	SYSTEM	The SYSTEM MENU screen appears.
2.		Select PLAY OPTION.
		SYSTEM MENU PRESS ENTER PLAY OPTION EX PHRASE LOOP MANUAL SETTING PLAY OPTION CONTROL
3.	CATEGORY/ ENTER	The PLAY OPTION screen appears.
4.		Move the cursor to BankExtentMin.
		PLAY OPTION Preamp Mode: Patch Patch ChsMode: Fast Bank Chs Mode: Wait BankExtentMin: U01 BankExtentMax: P50 EXP Pd1 Hold: On
5.		Set the lower limit for the banks.
6.		Move the cursor to BankExtentMax.
7.		Set the upper limit for the banks.

Setting the Timing Used for Switching Patches (Bank Change Mode)

This sets the timing with which the GT-10B switches to the next patch when switching banks with the pedals.

1.	SYSTEM	The SYSTEM MENU screen appears.
2.		Select PLAY OPTION.
		SYSTEM MENU PressEnter PLAY OPTION PHRASE MANUAL SETTING PLAY OPTION CONTROL
3.	CATEGORY/ENTER	The PLAY OPTION screen appears.
4.		Move the cursor to Bank Chg Mode.
		PLAY OPTION Preamp Mode: Patch Patch ChgMode: Fast Bank Chg Mode: NET BankExtentMin: U01 BankExtentMax: P50 EXP Pdl Hold: On
5.		Set the timing for switching patches.

Value	Explanation
Wait	Although the indication in the display is updated to reflect the change in the bank when a BANK pedal is pressed, the patch will not change. The patch changes when a number pedal is pressed.
Immed	The patch switches instantly when a BANK pedal or any of the number pedals is pressed.

Having Values from an EXP Pedal Carried Over When Patches are Called Up (EXP Pedal Hold)

This setting determines whether or not the EXP Pedal operational status is carried over to the next patch when patches are switched.

MEMO

EXP Pedal Hold does not function if the Assign Source mode is set to Toggle (whereby the value is toggled between Min and Max each time the pedal is pressed).

1.	SYSTEM	The SYSTEM MENU screen appears.
2.		Select PLAY OPTION.
		SYSTEM MENU PressEnter PLAY OPTION PHRASE MANUAL SETTING PLAY OPTION CONTROL
3.	CATEGORY/ ENTER	The PLAY OPTION screen appears.
4.		Move the cursor to EXP Pdl Hold.
		PLAY OPTION Preamp Mode: Patch Patch ChsMode: Fast Bank Chs Mode: Wait BankExtentMin: U01 BankExtentMax: P50 EXP Pdl Hold: On
5.		Set whether EXP Pedal Hold is used or not.

Value	Explanation
Off	The EXP Pedal status is not carried over. (Example) If a patch is switched while the volume is being controlled with an EXP Pedal, the volume of the subsequent patch is adjust to the value set in that patch. If the EXP Pedal is operated, and that information is transmitted to the GT-10B, the volume will change in accord with the pedal's movement.
On	The EXP Pedal status is carried over. (Example) If a patch is switched while the volume is being controlled with the EXP Pedal, the volume of the subsequent patch will take on the value determined by the current pedal position (angle). If the patch switched to has the EXP Pedal controlling the wah effect, then the volume assumes the value set in the patch, and the patch's wah effect is given the value derived from the current pedal position (angle).

Switching How the Pedal Indicators Light (Pedal Indicate)

You can have all unlit pedal indicators flash faintly instead.

This makes it easier to locate pedal positions on stage and in other darkened environments.

1.	SYSTEM	The SYSTEM MENU screen appears.
2.		Select PLAY OPTION.
		SYSTEM MENU PressEnter PLAY OPTION PHRASE MANUAL SETTING PLAY OPTION CONTROL
3.	CATEGORY/ENTER	The PLAY OPTION screen appears.
4.		Move the cursor to Pdl Indicate.
		PLAY OPTION BankExtentMin: U01 BankExtentMax: P50 EXP Pd1 Hold: On Pd1 Indicate: Off Num Pd1 Sw: Off Dial Func: Pat&Val
5.		Set whether Pedal Indicate function is used or not.

Value	Explanation
Off	The Pedal Indicator function is not use.
On	All unlit pedal indicators flash.

Setting the Dial Function (Dial Function)

This setting determines whether or not rotating the dial switches the patches.

1.	SYSTEM	The SYSTEM MENU screen appears.
2.		Select PLAY OPTION.
		SYSTEM MENU PressEnter PLAY OPTION PHRASE MANUAL SETTING PLAY OPTION CONTROL
3.	CATEGORY/ENTER	The PLAY OPTION screen appears.
4.		Move the cursor to Dial Func.
		PLAY OPTION BankExtentMin: U01 BankExtentMax: P50 EXP Pd1 Hold: On Pd1 Indicate: Off Num Pd1 Sw: Off Dial Func: Pet&V31
5.		Select the dial function.

Value	Explanation
Pat&Val	The dial is used both for switching patches and changing the value of settings. In addition to switching patches with the pedals, you can also switch them by rotating the dial.
Value	The dial is used only for changing the values of settings.

Restoring the Factory Settings (Factory Reset)

Restoring the GT-10B to the settings made at the factory is referred to as a "Factory Reset."

Not only can you return all of the settings to the values in effect when the GT-10B was shipped from the factory, you can also specify the range of settings to be reset.

1.	SYSTEM	The SYSTEM MENU screen appears.
2.		Select FACTORY RESET.
		SYSTEM MENU PressEnter FACTORY RESET
		POL CALI-BRATION FACTORY RESET
3.	CATEGORY/ENTER	The FACTORY RESET screen appears.
		FACTORY RESET SYSTEM ~ U50-4 ENTER:START
4.		Set the range for the Factory Reset (Refer to the following table).
		FACTORY RESET SYSTEM ~ U50-4 ENTER START
		The range of data you wish to factory reset

Value	Explanation
System	System parameter settings
Quick	Settings for User Quick Setting 1-10
U01-1-U50-4	Settings for Patch Number U01-1 through U50-4

1. The specified range of parameters are returned to their original factory settings.

Adjusting the EXP Pedal (Pedal Calibration)

Although the GT-10B's EXP Pedal has been set for optimum operation at the factory, extended use and the operating environment can result in the pedal going out of adjustment.

If you encounter problems such as being unable to fully cut off the sound with the volume pedal or being unable to switch the EXP PEDAL SW, you can use the following procedure to readjust the pedal.

1.	SYSTEM	The SYSTEM MENU screen appears.
2.		Select PDL CALIBRATION.
		SYSTEM MENU PRESS ENTER PEDAL CALIBRATION FACULTY RESET
3.		The PEDAL CALIBRATION screen appears.
		PEDAL CALIBRATION Set Pedal to Min Then, Press [ENTER]
4.		Depress the heel of the EXP Pedal.
5.		The message “OK” appears, and then the following screen is displayed. PEDAL CALIBRATION Set Pedal to Max Then, Press [ENTER]
6.		Depress the toe of the EXP Pedal.
7.		The message “OK” appears, and then the following screen is displayed. PEDAL CALIBRATION Test PEDAL SW Thres: B Then, Press [ENTER]

Chapter 5 Making Global Settings

8.

Firmly depress the toe of the EXP Pedal.

9.

Repeat steps 8 and 9 to adjust the Thres parameter so that the EXP PEDAL SW indicator lights up and goes out with appropriate depression force.

10.

The sensitivity of the PEDAL SW is calibrated. The message "COMPLETE!" appears, and Pedal Calibration procedure finishes.

Chapter 6 Using the GT-10B with External MIDI Devices Connected

What Can You Do with MIDI?

You can perform the following operations using MIDI with the GT-10B.

MEMO

The use of MIDI requires that the MIDI channels of the connected devices match. If the MIDI channel settings are not correct, the GT-10B will be unable to exchange data with other MIDI devices.

Operating From the GT-10B

Outputting Program Change Messages

When a patch is selected on the GT-10B, a Program Change message corresponding to the patch number is transmitted simultaneously. The external MIDI device then switches its settings according to the Program Change message it receives.

Outputting Control Change Messages

Data describing the actions of the CTL pedal, EXP Pedal, EXP PEDAL SW, and external devices connected to the EXP PEDAL 2/CTL 3, 4 jack are output as Control Change messages. Such messages can be used to (among other things) manipulate the parameters of an external MIDI device.

Transmitting Data

You can use Exclusive messages to transmit the settings for effect sounds and other content stored in the GT-10B to other MIDI devices. For example, you can provide another GT-10B with the same settings, and save effect sound settings to a sequencer or other device.

Remotely Controlling the GT-10B Using an External MIDI Device

Switching Patch Numbers

When the GT-10B receives Program Change messages from the external MIDI device, its patches are simultaneously switched.

MEMO

You can set up the correspondence between MIDI Program Change messages and the GT-10B's patches using the Program Change Map (p. 88). You may need to work on these correspondences when you want to line up some effects in combination with other MIDI devices.

The connections shown in the figure below are for a sequencer automatically performing the backing as a bass is being played. The patches are switched automatically when the program numbers corresponding to the patches are input along with the performance data at the points where you have determined the GT-10B patches are to be switched.

Receiving Control Change Messages

MEMO

You can control specified parameters during a performance by having the GT-10B receive Control Change messages. Parameters to be controlled are set with "Manual Settings" (p. 52).

Receiving Data

The GT-10B can receive data transmitted from another GT-10B, as well as data that's been stored on a sequencer.

Exchanging MIDI Messages between the Computer and the GT-10B

If the Driver Mode parameter set to the Advanced (p. 95), and you connect the GT-10B to your PC/Mac by a USB cable, you can transfer MIDI message bidirectionally via USB.

Set your computer MIDI input and output ports to "GT-10B."

However, MIDI message transfer via GT-10B's MIDI connectors become inactivated in this situation.

Making the Settings for MIDI Functions

Here is a description of the GT-10B's MIDI functions. Set them as needed, depending on the intended use.

1.	SYSTEM	The SYSTEM MENU screen appears.
2.		Select MIDI.
		SYSTEM MENU Pressienter MIDI LCD MIDI USB ABC CATEGORY NAME
3.	CATEGORY/ ENTER	The MIDI MENU screen appears.
4.		Select SETTING.
		MIDI Menu Pressienter SETTING PROGRAM MAP B.DUMP
5.	CATEGORY/ ENTER	The SETTING screen appears.
		MIDI SETTING Rx Channel 1 Omni Mode 1 Tx Channel 1 Device ID 1 Sync Clock Auto
6.		Select the parameter.
7.		Change the setting's value.	MEMO Set each parameter as necessary. For details on these settings, refer to the following sections.

Setting the MIDI Receive Channel

This sets the MIDI channel used for receiving MIDI messages.

1. Follow the procedure in "Making the Settings for MIDI Functions" (p. 84) to move the cursor to "Rx Channel."
2. Set the desired value.

1-16

Setting the MIDI Omni Mode

This makes the settings for the channels used for MIDI information.

1. Follow the procedure in "Making the Settings for MIDI Functions" (p. 84) to move the cursor to "Omni Mode."
2. Set the desired value. Omni On Messages are received on all channels, regardless of the MIDI channel settings.

Omni Off

Information is received on the channel specified by the Rx Channel setting.

MEMO

Even when Omni Mode is set to "Omni On", the only Exclusive messages received are for Device ID data set with "Device ID."

Setting the MIDI Transmit Channel

This sets the MIDI channel used for transmitting MIDI messages.

1. Follow the procedure in "Making the Settings for MIDI Functions" (p. 84) to move the cursor to "Tx Channel."
2. Set the desired value.

1-16,Rx

MEMO

When set to "Rx," this MIDI channel is same as the MIDI Receive channel.

Setting the MIDI Device ID

This sets the MIDI Device ID used for transmitting and receiving Exclusive messages.

1. Follow the procedure in "Making the Settings for MIDI Functions" (p. 84) to move the cursor to "Device ID."
2. Set the desired value.

1-32

Setting the MIDI Sync Clock

This setting determines the basis used for synchronizing the timing for effect modulation rates and other time-based parameters.

1. Follow the procedure in "Making the Settings for MIDI Functions" (p. 84) to move the cursor to "Sync Clock."

2. Set the desired value

Auto

Operations are synchronized to the MIDI Clock received via MIDI. However, operations are automatically synchronized to the GT-10B's internal Clock if the GT-10B is unable to receive the external Clock.

Internal

Operations are synchronized to the GT-10B's internal Clock.

NOTE

• When you have an external MIDI device connected, the Master BPM is then synchronized to the external MIDI device's tempo, thus disabling the Master BPM setting. To enable setting of the Master BPM, set to "Internal."
• When synchronizing performances to the MIDI Clock signal from an external MIDI device, timing problems in the performance may occur due to errors in the MIDI Clock.

Sending Program Change Messages

This setting determines whether or not Program Change messages are output when patches are switched on the GT-10B.

1. Follow the procedure in "Making the Settings for MIDI Functions" (p. 84) to move the cursor to "PC Out."

2. Set the desired value.

Off

Program Change messages are not output, even when patches are switched.

On

Program Change messages are simultaneously output when patches are switched.

MEMO

On the GT-10B, Bank Select messages are output simultaneously with Program Change messages. For more details, refer to p. 89.

Sending EXP Pedal Operations as Control Change Messages

This sets the controller number when EXP Pedal operation data is output as Control Change messages.

1. Follow the procedure in "Making the Settings for MIDI Functions" (p. 84) to move the cursor to "EXP1 Out."

2. Set the desired value.

Off

Control Change messages are not output.

CC#1-CC#31, CC#64-CC#95

This sets the controller number when EXP Pedal operation data is output as Control Change messages.

Sending EXP Pedal Sw Operations as Control Change Messages

This sets the controller number when EXP PEDAL SW operation data is output as Control Change messages.

1. Follow the procedure in "Making the Settings for MIDI Functions" (p. 84) to move the cursor to "EXP Sw Out."

2. Set the desired value.

Off

Control Change messages are not output.

CC#1-CC#31, CC#64-CC#95

This sets the controller number when EXP PEDAL SW operation data is output as Control Change messages.

Sending External EXP Pedal Operations as Control Change Messages

This sets the controller number when operation data from the EXP PEDAL connected to the EXP PEDAL 2 jack is output as Control Change messages.

1. Follow the procedure in "Making the Settings for MIDI Functions" (p. 84) to move the cursor to "EXP2 Out."
2. Set the desired value. Off Control Change messages are not output.

CC#1-CC#31, CC#64-CC#95

This sets the controller number when external EXP Pedal operation data is output as Control Change messages.

Sending CTL Pedal Operations as Control Change Messages

This sets the controller number when CTL 1 and CTL 2 pedal switch operation data is output as Control Change messages.

1. Follow the procedure in "Making the Settings for MIDI Functions" (p. 84) to move the cursor to "CTL1 Out" or "CTL2 Out."
2. Set the desired value. Off Control Change messages are not output.

CC#1-CC#31, CC#64-CC#95

This sets the controller number when CTL 1 and CTL 2 pedal operation data is output as Control Change messages.

Sending External Footswitch Operations as Control Change Messages

This sets the controller number when operation data from the footswitch connected to the CTL 3,4 jack is output as Control Change messages.

1. Follow the procedure in "Making the Settings for MIDI Functions" (p. 84) to move the cursor to "CTL3 Out" or "CTL4 Out."
2. Set the desired value.

CC#1-CC#31, CC#64-CC#95

This sets the controller number when external footswitch operation data is output as Control Change messages.

Setting the Correspondences Between Program Change Messages and Patches (Program Change Map)

When switching patches using Program Change messages transmitted by an external MIDI device, you can freely set the correspondence between Program Change messages received by the GT-10B and the patches to be switched to in the "Program Change Map."

MEMO

When setting MIDI Omni Mode (p. 85) to "Omni Off," be sure to have the MIDI Rx Channel (p. 84) set beforehand to the match the transmit channel of the external MIDI device.

Enabling/Disabling the Program Change Map Settings (MIDI Map Select)

This setting determines whether patches are switched according to the Program Change Map settings, or to the default settings.

1. Follow the procedure in "Making the Settings for MIDI Functions" (p. 84) to move the cursor to "Map Select."
2. Set the desired value.
   Fix

This deactivates the Program Change Map. Switches to the patches according to the default settings.

Prog

This activates the Program Change Map. Switches to the patches according to the Program Change Map.

Setting the Program Change Map

Set the correspondence between Program Change messages received and the patches to be switched.

SYSTEM The SYSTEM MENU screen appears.

1. 1. THE MIDI MENU screen appears.

4.

Select PROGRAM MAP.

5.

The PROGRAM MAP screen appears.

MEMO

The Program Change Map settings are disabled when Map Select is set to "Fix."

6.	Select the received Program number.	MEMO ·Use the cursor buttons (left and right) to select the Bank Select number. ·When using only Program Change messages to make program changes, without using Bank Select messages, set the Program number (1-128) when the Bank Select number is “0.”
7.	Set the corresponding patch number of the received Program number.
8.	Repeat Step 6-7 as needed, setting patch numbers to their corresponding Program numbers, until the Program Change Map is completed.

Changing Patches Using Bank Select Messages

A bank select message consists of a set of two control change messages, the controllers numbered 0 (CC#0) and 32 (CC#32). Normally, you select a sound by using the bank select message followed by a program change message. On the GT-10B, these messages are used for changing patch numbers.

Changing Patch Numbers on an External MIDI Device from the GT-10B

When a patch is selected on the GT-10B, the bank select and program change messages sent from the GT-10B correspond with each other as shown below.

Bank	Number
	1		2		3		4
U01	0,0:	1	0,0:	2	0,0:	3	0,0:	4
U02	0,0:	5	0,0:	6	0,0:	7	0,0:	8
U03	0,0:	9	0,0:	10	0,0:	11	0,0:	12
U04	0,0:	13	0,0:	14	0,0:	15	0,0:	16
U05	0,0:	17	0,0:	18	0,0:	19	0,0:	20
U06	0,0:	21	0,0:	22	0,0:	23	0,0:	24
U07	0,0:	25	0,0:	26	0,0:	27	0,0:	28
U08	0,0:	29	0,0:	30	0,0:	31	0,0:	32
U09	0,0:	33	0,0:	34	0,0:	35	0,0:	36
U10	0,0:	37	0,0:	38	0,0:	39	0,0:	40
U11	0,0:	41	0,0:	42	0,0:	43	0,0:	44
U12	0,0:	45	0,0:	46	0,0:	47	0,0:	48
U13	0,0:	49	0,0:	50	0,0:	51	0,0:	52
U14	0,0:	53	0,0:	54	0,0:	55	0,0:	56
U15	0,0:	57	0,0:	58	0,0:	59	0,0:	60
U16	0,0:	61	0,0:	62	0,0:	63	0,0:	64
U17	0,0:	65	0,0:	66	0,0:	67	0,0:	68
U18	0,0:	69	0,0:	70	0,0:	71	0,0:	72
U19	0,0:	73	0,0:	74	0,0:	75	0,0:	76
U20	0,0:	77	0,0:	78	0,0:	79	0,0:	80
U21	0,0:	81	0,0:	82	0,0:	83	0,0:	84
U22	0,0:	85	0,0:	86	0,0:	87	0,0:	88
U23	0,0:	89	0,0:	90	0,0:	91	0,0:	92
U24	0,0:	93	0,0:	94	0,0:	95	0,0:	96
U25	0,0:	97	0,0:	98	0,0:	99	0,0:	100
U26	1,0:	1	1,0:	2	1,0:	3	1,0:	4
U27	1,0:	5	1,0:	6	1,0:	7	1,0:	8
U28	1,0:	9	1,0:	10	1,0:	11	1,0:	12
U29	1,0:	13	1,0:	14	1,0:	15	1,0:	16
U30	1,0:	17	1,0:	18	1,0:	19	1,0:	20
U31	1,0:	21	1,0:	22	1,0:	23	1,0:	24
U32	1,0:	25	1,0:	26	1,0:	27	1,0:	28
U33	1,0:	29	1,0:	30	1,0:	31	1,0:	32
U34	1,0:	33	1,0:	34	1,0:	35	1,0:	36
U35	1,0:	37	1,0:	38	1,0:	39	1,0:	40

If you wish to know whether the receiving device can recognize bank select messages or not, refer to the description for control changes in the MIDI implementation chart provided in the owner's manual of the receiving device.
If the receiving device does not recognize bank select messages, it will ignore the bank select messages and recognize only the program change messages.

Changing Patch Numbers on the GT-10B from an External MIDI Device

When the MIDI Map Select parameter set to Fix, to change patch numbers on the GT-10B using bank select messages sent from an external MIDI device, check how the external bank select and program change messages correspond with the patch numbers on the GT-10B.

Corresponding Table with the Patch Numbers when the MIDI Map Select is Fix

CC#0: Controller Number 0 (Bank Select MSB)

• CC#0 data of a value of 04H or higher, and the CC#32 are ignored.

(Example) When changing to Patch #30-3 (Bank U30, Number 3)

Transmit MIDI messages from an external MIDI sequencer in following order.

CC#0: 1

PC#: 19

Transmitting Data to an External MIDI Device (Bulk Dump)

With the GT-10B, you can use Exclusive messages to set another GT-10B to the same settings or to save effect sound settings to MIDI sequencers and other such devices. This transmission of data is referred to as bulk dump.

Making the Connections

When Saving to a MIDI Sequencer	When Transmitting Data to Another GT-10B
Connect as shown in the figure below, and put the sequencer in the state where it is ready to receive Exclusive messages.	Connect as shown in the figure below, and match the Device ID for the transmitting and receiving devices (p. 85).
MIDI IN MIDI OUT	MIDI IN MIDI OUT
1 2 3 4 5 6
MEMO For instructions on operating the sequencer, refer to the owner's manual for the sequencer you are using.

Transmitting

1.	SYSTEM	The SYSTEM MENU screen appears.
2.		Select MIDI.
		SYSTEM MENU PressiENTER MIDI LCD MIDI USB ABC CATEGORY NAME
3.	CATEGORY/ ENTER	The MIDI MENU screen appears.
4.		Select B.DUMP.
		MIDI MENU PressiENTER BULK DUMP SETTING PROGRAM MAP B.DUMP
5.	CATEGORY/ ENTER	The BULK DUMP screen appears.
		FACTORY RESET System ~ US0-4 ENTER:START
6.		Select the start and end of the data to be transmitted.

The following types of data can be transmitted. You can transmit data by specifying the range from the start to the end of transmission.

Displayed	Data Transmitted
System	System parameter settings
Quick	Settings for User Quick Setting
U01-1-U50-4	Settings for Patch Number U01-1 through U50-4
Temp	Settings for the patch that is currently selected

7.

CATEGORY/

ENTER

The data is transmitted.

Receiving Data from an External MIDI Device (Bulk Load)

You can restore settings by importing data that has been saved on a MIDI sequencer or the like by a bulk dump. This data-receiving operation is called a "bulk load."

Making the Connections

When Receiving Data Saved on a MIDI Sequencer

Connect as shown below. Set the GT-10B's Device ID to the same number that was used when the data was transmitted to the MIDI sequencer (p. 85).

MEMO

For instructions on operating the sequencer, refer to the owner's manual for the sequencer you are using.

Receiving

1. Transmit the data from the external MIDI device.

MEMO

• When data is being received, the message "BULK DATA RECEIVING..." appears on the display.
• Keep the power on while the bulk data is being received.
• If the message "MIDI BUFFER FULL" appears, check the connections and reduce the tempo of the transmitting MIDI device.

Chapter 7 Using the GT-10B Connected to a Computer Via USB

With the GT-10B, you can use USB to transmit both digital audio signals between the GT-10B and your computer.

Before Connecting with USB

Installing and Setting the USB Driver

Just by connecting the GT-10B to your PC/Mac with a USB cable, audio signal can be transferred bidirectionally via USB.

When the Driver Mode parameter (p. 95) set to the Standard, your PC/Mac uses a standard driver that is found on OS. The driver will be installed automatically once connected with your computer via USB.

The GT-10B supports the following compatible OS:

Windows XP/Vista
Mac OS X 10.4.3 or later

When the Driver Mode parameter (p. 95) set to the Advanced and use specialized driver, you can record, play back, and edit audio with high-quality sound and stable timing.

It also allows you to control the GT-10B using MIDI messages via USB.

You can download the special GT-10B driver from the Roland local website.

Install the special GT-10B driver before you connect the GT-10B to your PC/Mac.

The program and procedures for installing the driver vary according to the operating environment; carefully read the Readme included in the downloaded file.

What is a USB Driver?

A USB driver is software that acts as a go-between in transferring data between computer applications (such as recording software and sequencer software) and the USB device when the computer and USB device are connected using a USB cable. The USB driver transmits data from the applications to the USB device, and conversely, passes messages from the USB device to the applications.

Computer

GT-10B

Exchanging MIDI Messages between the Computer and the GT-10B

If the Driver Mode parameter set to the Advanced (p. 95), and you connect the GT-10B to your PC/Mac by a USB cable, you can transfer MIDI message bidirectionally via USB.

Set your computer MIDI input and output ports to "GT-10B."

However, MIDI message transfer via GT-10B's MIDI connectors become inactivated in this situation.

For more on MIDI-related settings, refer to "Making the Settings for MIDI Functions" (p. 84).

Switching the Driver Mode

Switches two operational modes, one which uses the special driver contained on the downloaded file, and one in which the OS's (Windows/Mac OS) standard driver is used.

1. Quit all sequencer software and other applications on the computer that are using the GT-10B.
   SYSTEM The SYSTEM MENU screen appears.
   The USB screen appears.
2. ENTER
3. Move the cursor to Driver Mode.
4. "PLEASE RESTART" message appears.

Setting	Explanation
Standard	This mode uses the OS's standard USB driver.
	MEMO • The supported OS in the GT-10B are the Windows XP/Vista and the Mac OS X 10.4.3 or later. • You cannot use MIDI when Standard is selected as the driver mode. If you want to use MIDI with the USB connection, set the GT-10B to the advanced driver mode.
Advanced	This mode uses the special driver contained on the downloaded file.
	MEMO • About the supported OS in the GT-10B, read the Readme included in the downloaded file. • If you have not yet installed the special driver in your PC/Mac, you should install the special driver before you connect the GT-10B to your PC/Mac.

7.

Turn the GT-10B's power off and then back on again.

MEMO

• The functions of a mode won't become available until after the power has been turned off, then on again.
• Wait until setting of your computer finishes to use a USB.

Setting the USB Functions

The following section describes the GT-10B's USB-related functions.

Make these settings in accordance with how you plan to use the GT-10B.

Setting the Digital Audio Signal Input and Output

This lets you adjust the volume level of the digital audio signals output from the GT-10B and adjust the amount of digital audio from USB (computer) to be mixed in.

1.	SYSTEM	The SYSTEM MENU screen appears.
2.		Select INPUT/OUTPUT.
		SYSTEM MENU PressEnter INPUT/OUTPUT PATCH SEARCH TUNER
3.	CATEGORY/ ENTER	The INPUT/OUTPUT screen appears.
4.		Select the TOTAL (page 3) screen.
		INPUT/OUTPUT (||| || | TOTAL NS Threshold : 0dB Rev Level : 100% USB/DGT Out Lev : 100% USB Mix Level : 100% Main Out Level : -10dB
5.		Move the cursor to USB/DGT Out Lev or USB Mix Level.
6.		Adjust the parameters.

Parameter	Explanation
USB/DGT Out Lev	Adjusts the volume level of the digital audio signals output to the USB (Computer) and DIGITAL OUT connectors.
USB Mix Level	Sets the volume level of the mixed digital audio signals from USB (Computer) when INPUT SELECT (p. 63) is set to “Bass 1-3.”

Setting the Direct Monitor

Switches the output of the GT-10B sound to the OUTPUT and PHONES jacks.

1.	SYSTEM	The SYSTEM MENU screen appears.
2.		Select USB.
		SYSTEM MENU PRESS ENTER USB LCD MIDI USB CATEGORIES NAME
3.	CATEGORY/ENTER	The USB screen appears.
		Driver Mode: Standard Monitor Cmd: Enable Dir.Monitor: On
4.		Move the cursor to Dir.Monitor.
5.		Select the Monitor mode.	cf. For more information on signal paths set by the Direct Monitor parameter settings, refer to "Signal Flow" (p. 142).

Parameter/Range	Explanation
Off	Set this to Off if transmitting audio data internally through a computer (Thru).No sound is heard at this time unless the setting for the computer is Thru.
On	The GT-10B sound is output. Set this to On when using the GT-10B as a standalone device, without connecting to a computer.(When the Dir.Monitor parameter is set to Off, only sounds from USB In are audible.)
MEMOThis setting cannot be saved. It is set to On when the power is turned on.If you are using the special driver, you can control Dir.Monitor On/Off from ASIO 2.0-compatible application.

Controlling the Direct Monitor Setting from a Computer

This setting determines whether or not the command (the Direct Monitor command) controlling the Direct Monitor setting (p. 97) is enabled.

1.	SYSTEM	The SYSTEM MENU screen appears.
2.		Select USB.
		SYSTEM MENU Press ENTER USB LCD MIDI USB CATEGORIES NAME
3.		The USB screen appears.
		USB Driver Mode: Standard Monitor Cmd: Enable Dir.Monitor: On
4.		Move the cursor to Monitor Cmd.
5.		Set the desired value.

Parameter/Range	Explanation
Disable	The Direct Monitor command is disabled, maintaining the Direct Monitor mode set by the GT-10B.
Enable	The Direct Monitor command is enabled, allowing the Direct Monitor mode to be switched from a computer.

Recording the GT-10B's Output with a Computer

In the computer application, set the audio input port to the GT-10B.

MEMO

If passing audio data through the software you're using, switch the direct monitor off.

Applying GT-10B Effects to a Computer's Audio Playback

In the computer application, set the audio output port to the GT-10B.

You can use the GT-10B to apply effects to the audio data played by the computer, then record the data again with the computer.

Use this process when, for example, you want to add effects to existing audio data.

1.	SYSTEM	The SYSTEM MENU screen appears.
2.		Select INPUT/OUTPUT.
		SYSTEM MENU / PRESS ENTER INPUT/OUTPUT PATCH / TUNER / INPUT / OUTPUT / PATCH / EDIT
3.	CATEGORY/ENTER	The INPUT/OUTPUT screen appears.
4.		Select the INPUT SELECT (page 1) screen.
		INPUT / OUTPUT / 1 / 1 INPUT SELECT USB In INPUT LEVEL PRES 0 dB 0 dB
5.		Set the INPUT SELECT parameter to USB In.	MEMO • Set the software so audio is not passed through it. • Set the Dir.Monitor parameter to On.

Parameter/Range	Explanation
Bass 1–3	Effects are applied to the signals input via the INPUT jacks.
USB In	Effects are applied to the signals input via USB.

In this chapter you will find detailed descriptions for each of the GT-10B's effects and the parameters used to control them.

MEMO

• The format used for parameter names is based on how the names are displayed when the screen is in list view.
  The sound that is input to each effect is called the "direct sound," and the sound modified by the effect is called the "effect sound."

• MONO This effect sound is mono.

• STereo This effect sound is output with two channels.

The trademarks listed in this document are trademarks of their respective owners, which are separate companies from Roland/BOSS. Those companies are not affiliated with Roland/BOSS and have not licensed or authorized BOSS's GT-10B. Their marks are used solely to identify the equipment whose sound is simulated.

COMPRESSOR/LIMITER

STEREO

This is an effect that produces a long sustain by evening out the volume level of the input signal. You can switch it to a limiter to suppress only the sound peaks and prevent distortion.

Parameter/Range	Explanation
COMP ON/OFF (Compressor ON/OFF)
Off, On	Turns the COMP effect on/off.Pressing [COMP] switches On and Off.
TYPE
Select the compressor type.
BOSS Comp	Models the BOSS CS-3
D-Comp	Models the MXR DynaComp.
BOSS Limitr	This selects a stereo limiter.
Rack 160D	Models the dbx 160x.
Vtg Rack U	Models the UREI 1178.
Multi Band	This limiter lets you divide the input signal into four separate bands—ultra low, low, high, and ultra high frequency ranges—and apply different settings to the low and high frequency ranges. You can set the frequencies separating each band using the Xover f L, M, and H parameters.
	Xoverf L Xoverf M Xoverf H Ultra Low Frequency Range High Frequency Range Low Frequency Range Ultra High Frequency Range MEMO The limiter is applied neither to the ultra low range, which is critical to the bass's sound, nor to the ultra high range, which affects the nuance of the attack.
Natural	This compressor is configured using the same frequency divisions as Multi Band, but with simplified parameter settings.

Parameter/Range	Explanation
Sustain *1
0-100	Adjusts the range (time) over which low-level signals are boosted. Larger values will result in longer sustain.
Attack
0-100	Adjusts the strength of the picking attack when the strings are played. Higher values result in a sharper attack, creating a more clearly defined sound.
Threshold *2
0-100	When the input signal level exceeds this threshold level, limiting will be applied.
Ratio *2
1:1-∞:1	This selects the compression ratio used with signals in excess of the threshold level. Higher values create a stronger compression effect.
Release *2
0-100	Adjusts the time from when the signal level drops below the threshold until when limiting is removed.
Lo Thres *3
0-100	In the Low Frequency Range, when the input signal level exceeds this threshold level, limiting will be applied.
Lo Ratio *3
1:1-∞:1	In the Low Frequency Range, this selects the compression ratio used with signals in excess of the threshold level. Higher values create a stronger compression effect.
Hi Thres *3
0-100	In the High Frequency Range, when the input signal level exceeds this threshold level, limiting will be applied.
Hi Ratio *3
1:1-∞:1	In the High Frequency Range, this selects the compression ratio used with signals in excess of the threshold level. Higher values create a stronger compression effect.
Xover f L (Crossover Frequency Low) *3
32Hz-315Hz	This sets the frequency dividing the ultra low- and low-frequency ranges.
Xover f M (Crossover Frequency Middle) *3
100Hz-4.00kHz	This sets the frequency dividing the low- and high-frequency ranges.
Xover f H (Crossover Frequency High) *3
2.50kHz-10.0kHz	This sets the frequency dividing the high- and ultra high-frequency ranges.
Drive *4
0-100	Adjusts the range (time) over which low-level signals are boosted. Larger values will result in longer sustain.
Tone
-50-+50	Adjusts the tone.
Level
0-100	Adjusts the volume.

1 Setting available with Type set to BOSS Comp or D-Comp.
2 Setting available with Type set to BOSS Limitr, Rack 160D, or Vtg Rack U.
3 Setting available with Type set to Multi Band.
4 Setting available with Type set to Natural.

OD/DS (Overdrive/Distortion)

This effect distorts the sound to create long sustain.

It provides 12 types of distortion settings.

Parameter/Range	Explanation
OD/DS (Overdrive/Distortion ON/OFF)
Off, On	Turns the OD/DS effect on/off.Pressing [OD/DS] switches On and Off.
Type
Selects the type of distortion.
Booster	This not only functions as a booster, but also produces a clean tone that has punch even when used alone.
Natural	This is an overdrive sound that provides distortion with a natural feeling.
Bass Driver	Models the TECH21 SANSAMP BASS DRIVER DI.
Bass OD	Overdrive tuned especially for use with basses.
Blues OD	This is a crunch sound of the BOSS BD-2.This produces distortion that faithfully reproduces the nuances of picking.
Bass DS	Distortion tuned especially for use with basses.
GUV DS	This models a Marshall GUV' NOR.
Bass MT	Wild, radical distortion sound.
Metal Zone	This is the sound of the BOSS MT-2.It produces a wide range of metal sounds, from old style to slash metal.
Bass FUZZ	Fuzz tuned especially for use with basses.
MUFF FUZZ	This models an Electro-Harmonix Big Muff π.
HiBandDrive	With this effect, distortion is applied only to the high frequency sounds, and not to the sounds in the low frequency range.
Drive
0-100	Adjusts the depth of distortion.
Tone
-50-+50	Adjusts the tone.
EffectLev (Effect Level)
0-100	Adjusts the volume of the OD/DS sound.
DirectLev (Direct Level)
0-100	Adjusts the volume of the direct sound.
BottomLev (Bottom Level)
0-100	Extracts the low-frequency components of the sound input to this effect, and adjusts the amount added to the effect sound.

PREAMP

MONO

COSM technology simulates different preamp characteristics, speaker sizes, and cabinet shapes.

MEMO

You can make separate settings for Channel A and Channel B.

Parameter/Range	Explanation
PREAMP ON/OFF
Off, On	Turns the COSM AMP effect on/off. Pressing [PREAMP] switches On and Off.
Gain
0-100	Adjusts the distortion of the amp.
Bass
0-100	Adjusts the tone for the low frequency range.
Middle
0-100	Adjusts the tone for the middle frequency range.
Treble
0-100	Adjusts the tone for the high frequency range.
Level
0-100	Adjusts the volume of the entire preamp. * Be careful not to raise the Level setting too high.

Preamp Settings

Parameter/ Range	Explanation
Type
This sets the type of the bass preamp.
SUPER FLAT	An amp with flat response.
FLIP TOP	Models the Ampeg B-15.
B MAN	Models the Fender Bassman 100.
CONCERT 810	Models the Ampeg SVT.
BASS 360	Models the acoustic 360.
T.E.	Models the Trace Elliot AH600SMX.
SESSION	Models the SWR SM-400.
AC BASS	An amp ideal for ACOUSTIC BASS.
GTR Clean	This is a clean sound that is smooth and warm.
GTR Crunch	This is a crunch sound that can faithfully reproduce the nuances of picking.
GTR Drive	This is a drive sound producing awesome distortion.
GTR Metal	This is a metal sound suited to heavy riffs.

Type SUPER FLAT, AC BASS

Parameter/Range	Explanation
Presence
0–100	Adjusts the tone for the ultra high frequency range.

Type FLIP TOP

Parameter/Range	Explanation
Mid Freq (Middle Frequency)
220Hz, 800Hz,3.0kHz	Specifies the center of the frequency range that will be adjusted by the Mid Freq.
Bright
Turns the bright setting on/off.
Off	Bright is not used.
On	Bright is switched on to create a lighter and crisper tone.
Response
BASS, FLAT	This controls the overall amp characteristics. Select the position corresponding to the charac-teristics for one of the two types of sound.

Type=B MAN

Parameter/Range	Explanation
Mid Freq (Middle Frequency)
220Hz, 800Hz,3.0kHz	Specifies the center of the frequency range that will be adjusted by the Mid Freq.
Deep
Off, On	This switch changes the character of the lower range.

Type=CONCERT 810

Parameter/Range	Explanation
Mid Freq (Middle Frequency)
220Hz, 800Hz,3.0kHz	Specifies the center of the frequency range that will be adjusted by the Mid Freq.
Bright
Turns the bright setting on/off.
Off	Bright is not used.
On	Bright is switched on to create a lighter and crisper tone.
Ultra Lo
-, 0, +	This controls the character of the lower range.
Ultra Hi
Off, On	This controls the ultra high-frequency range lying beyond treble.

Type=BASS 360

Parameter/Range	Explanation
Bright
Turns the bright setting on/off.
Off	Bright is not used.
On	Bright is switched on to create a lighter and crispener tone.

Type T.E.

Parameter/Range	Explanation
Mid Freq (Middle Frequency)
220Hz, 800Hz,3.0kHz	Specifies the center of the frequency range that will be adjusted by the Mid Freq.
Pre Shape
Off, 1, 2	This is a shape switch that adds a particular nu-ance to the midrange.

Type SESSION

Parameter/Range	Explanation
Mid Freq (Middle Frequency)
220Hz, 800Hz,3.0kHz	Specifies the center of the frequency range that will be adjusted by the Mid Freq.
Enhancer
0-100	This controls the clarity and presence of the sound.

Type=GTR Clean, GTR Crunch

Parameter/Range	Explanation
Presence
0-100	Adjusts the tone for the ultra high frequency range.
Bright
Turns the bright setting on/off.
Off	Bright is not used.
On	Bright is switched on to create a lighter and crispener tone.
Gain Sw
Low, Middle, High	Provides for selection from three levels of distortion: Low, Middle, and High. Distortion will successively increase for settings of Low, Middle and High. MEMO The sound of each Type is created on the basis that the Gain is set to Middle. So, normally set it to Middle.
Solo Sw
Off, On	Solo Sw is switched on to create the tone to one suitable for solos.
SoloLevel
0-100	Adjusts the volume level when the Solo Sw is ON.

Type=GTR Drive, GTR Metal

Parameter/Range	Explanation
Presence
0-100	Adjusts the tone for the ultra high frequency range.
Gain Sw
Low, Middle, High	Provides for selection from three levels of distortion: Low, Middle, and High. Distortion will successively increase for settings of Low, Middle and High. MEMO The sound of each Type is created on the basis that the Gain is set to Middle. So, normally set it to Middle.
Solo Sw
Off, On	Solo Sw is switched on to create the tone to one suitable for solos.
SoloLevel
0-100	Adjusts the volume level when the Solo Sw is ON.

Speaker Settings

Type=SUPER FLAT, FLIP TOP, B MAN, CONCERT 810, BASS 360, T.E., SESSION, AC BASS

Parameter/Range	Explanation
SP Type (Speaker Type)
Select the speaker type.
Off	This turns off the speaker simulator.
Original	This is the built-in speaker of the amp you selected with PREAMP TYPE.
1x15"	This is a compact open-back speaker cabinet with one 15-inch speaker.
1x18"	This is a compact open-back speaker cabinet with one 18-inch speaker.
2x15"	This is a general open-back speaker cabinet with two 15-inch speakers.
4x10"	This is an optimal speaker cabinet for a large enclosed amp with four 10-inch speakers.
8x10"	This is a double stack of two cabinets, each with four 10-inch speakers.
Mic Pos (Mic Position)
This simulates the mic position.
Center	Simulates the condition that the mic is set in the middle of the speaker cone.
1-10cm	Simulates the condition that the mic is moved away from the center of the speaker cone.
Mic Level
0-100	Adjusts the volume of the mic.
BottomLev (Bottom Level)
0-100	Extracts the low-frequency components of the sound input to this effect, and adjusts the amount added to the effect sound.
DirectLev (Direct Level)
0-100	Adjusts the volume of the direct sound.

Type=GTR Clean, GTR Crunch, GTR Drive, GTR Metal

Parameter/Range	Explanation
GtrSPType (Guitar Speaker Type)
Select the speaker type.
Off	This turns off the speaker simulator.
Original	This is the built-in speaker of the amp you selected with PREAMP TYPE.
1x8"	This is a compact open-back speaker cabinet with one 8-inch speaker.
1x10"	This is a compact open-back speaker cabinet with one 10-inch speaker.
1x12"	This is a compact open-back speaker cabinet with one 12-inch speaker.
2x12"	This is a general open-back speaker cabinet with two 12-inch speakers.
4x10"	This is an optimal speaker cabinet for a large enclosed amp with four 10-inch speakers.
4x12"	This is an optimal speaker cabinet for a large enclosed amp with four 12-inch speakers.
8x12"	This is a double stack of two cabinets, each with four 12-inch speakers.
Mic Type
This setting selects the simulated mic type.
DYN57	This is the sound of the SHURE SM-57. General dynamic mic used for instruments and vo-cals. Optimal for use in miking bass amps.
DYN421	This is the sound of the SENNHEISER MD-421. Dynamic mic with extended low end.
CND451	This is the sound of the AKG C451B. Small condenser mic for use with instruments.
CND87	This is the sound of the NEUMANN U87. Condenser mic with flat response.
FLAT	Simulates a mic with perfectly flat response. Pro-duces a sonic image close to that of listening to the sound directly from the speakers (on site).
Mic Dis (Mic Distance)
Simulates the distance between the mic and speaker.
Off Mic	This setting points the mic away from the speaker.
On Mic	Provides conditions whereby the mic is directed more towards the speaker.
Mic Pos (Mic Position)
This simulates the mic position.
Center	Simulates the condition that the mic is set in the middle of the speaker cone.
1-10cm	Simulates the condition that the mic is moved away from the center of the speaker cone.
Mic Level
0-100	Adjusts the volume of the mic.
BottomLev (Bottom Level)
0-100	Extracts the low-frequency components of the sound input to this effect, and adjusts the amount added to the effect sound.
DirectLev (Direct Level)
0-100	Adjusts the volume of the direct sound.

EQ (Equalizer)

STEREO

This adjusts the tone as a equalizer. A parametric type is adopted for the high-middle and low-middle range.

Parameter/Range	Explanation
EQ ON/OFF (Equalizer ON/OFF)
Off, On	Turns the EQ effect on/off.Pressing [EQ] switches On and Off.
Low Cut (Low Cut Filter)
Flat,55Hz-800Hz	This sets the frequency at which the low cut filter begins to take effect. When “Flat” is select-ed, the low cut filter will have no effect.
Low Gain
-20-+20dB	Adjusts the low frequency range tone.
Lo-Mid f (Low Middle Frequency)
20.0Hz-10.0kHz	Specifies the center of the frequency range that will be adjusted by the Lo-Mid G.
Lo-Mid Q (Low Middle Q)
0.5-16	Adjusts the width of the area affected by the EQ centered at the LO-Mid f.Higher values will narrow the area.
Lo-Mid G (Low Middle Gain)
-20-+20dB	Adjusts the low-middle frequency range tone.
Hi-Mid f (High Middle Frequency)
20.0Hz-10.0kHz	Specifies the center of the frequency range that will be adjusted by the Hi-Mid G.
Hi-Mid Q (High Middle Q)
0.5-16	Adjusts the width of the area affected by the EQ centered at the Hi-Mid f.Higher values will narrow the area.
Hi-Mid G (High Middle Gain)
-20-+20dB	Adjusts the high-middle frequency range tone.
High Gain
-20-+20dB	Adjusts the high frequency range tone.
High Cut (High Cut Filter)
700Hz-11.0kHz,Flat	This sets the frequency at which the high cut filter begins to take effect. When “Flat” is select-ed, the high cut filter will have no effect.
Level
-20-+20dB	Adjusts the overall volume level of the equaliz-er.

FX-1/FX-2

STEREO

With FX-1 and FX-2, you can select the effect to be used from the following. You can select the same effect for FX-1 and FX-2.

FX Select
FX-1/FX-2 Common	T.WAH	Touch Wah	p. 106
	AUTO WAH	Auto Wah	p. 106
	SUB WAH	Sub Wah	p. 107
	SUB COMP	Sub Compressor	p. 107
	SUB LIMITER	Sub Limiter	p. 108
	GRAPHIC EQ	Graphic Equalizer	p. 108
	PARA EQ	Parametric Equalizer	p. 108
	ENHANCER	Enhancer	p. 109
	TONE MODIFY	Tone Modify	p. 109
	BASS SIM.	Bass Simulator	p. 109
	SLOW GEAR	Slow Gear	p. 110
	DEFRETTER	Defretter	p. 110
	BASS SYNTH	Bass Synth	p. 110
	OCTAVE	Octave	p. 111
	PITCH SHIFTER	Pitch Shifter	p. 111
	HARMONIST	Harmonist	p. 112
	SOUND HOLD	Sound Hold	p. 113
	PHASER	Phaser	p. 114
	FLANGER	Flanger	p. 114
	TREMOLO	Tremolo	p. 115
	ROTARY	Rotary	p. 115
	UNI-V	Uni-V	p. 115
	PAN	Pan	p. 115
	SLICER	Slicer	p. 116
	VIBRATO	Vibrato	p. 116
	RING MOD.	Ring Modulator	p. 117
	HUMANIZER	Humanizer	p. 117
	2X2 CHORUS	2x2 Chorus	p. 118
	SUB DELAY	Sub Delay	p. 118

Parameter/Range	Explanation
FX-1, FX-2 ON/OFF (Effect ON/OFF]
Off, On	Turns the FX-1 (FX-2) effect on/off. Pressing [FX-1], [FX-2] switches On and Off.
FX Select
see above	Selects the effect to be used.

T.WAH (Touch Wah)

You can produce a wah effect with the filter changing in response to the bass level.

Parameter/Range	Explanation
Mode
Selects the wah mode.
LPF	This creates a wah effect over a wide frequency range.
BPF	This creates a wah effect in a narrow frequency range.
Polarity
Selects the direction in which the filter will change in response to the input.
Down	The frequency of the filter will fall.
Up	The frequency of the filter will rise.
Sens (Sensitivity)
0-100	Adjusts the sensitivity at which the filter will change in the direction determined by the polarity setting. Higher values will result in a stronger response. With a setting of 0, the strength of pick- ing will have no effect.
Frequency
0-100	Adjusts the center frequency of the Wah effect.
Peak
Adjusts the way in which the wah effect applies to the area around the center frequency.
0-100	Higher values will produce a stronger tone which emphasizes the wah effect more. With a value of 50 a standard wah sound will be pro- duced.
EffectLev (Effect Level)
0-100	Adjusts the volume of the effect sound.
DirectLev (Direct Level)
0-100	Adjusts the volume of the direct sound.

AUTO WAH (Auto Wah)

This changes the filtering over a periodic cycle, providing an automatic wah effect.

Parameter/Range	Explanation
Mode
Selects the wah mode.
LPF	This creates a wah effect over a wide fre-quence range.
BPF	This creates a wah effect in a narrow fre-quence range.
Frequency
0-100	Adjusts the center frequency of the Wah ef-fect.
Peak
0-100	Adjusts the amount of wah effect applied in the range near the center frequency. Higher values will produce a stronger tone which emphasizes the wah effect more. With a value of 50 a standard wah sound will be produced.
Rate
0-100, BPM -BPM	Adjusts the frequency (speed) of the change.
When set to BPM, the value of each parameter will be set according to the value of the “Master BPM” (p. 122) specified for each patch. This makes it easier to achieve effect sound settings that match the tempo of the song. MEMO If, due to the tempo, the time is longer than the range of allowable settings, it is then synchronized to a period either 1/2 or 1/4 of that time.
Depth
0-100	Adjusts the depth of the effect.
EffectLev (Effect Level)
0-100	Adjusts the volume of the effect sound.
DirectLev (Direct Level)
0-100	Adjusts the volume of the direct sound.

SUB WAH

You can control the wah effect in real time by adjusting the EXP Pedal or the expression pedal connected to the EXP PEDAL 2 jack.

Parameter/Range	Explanation
Type
Selects the type of wah.
CRY WAH	This models the sound of the CRY BABY wah pedal popular in the '70s.
VO WAH	This models the sound of the VOX V846.
Fat WAH	This is a wah sound featuring a bold tone.
Light WAH	This wah has a refined sound with no unusual characteristics.
Bass WAH	This wah has been specially adapted for use in the bass registers. Inclusion of the low-frequency range in the wah sound produces a robust wah effect, with no dilution of the sound.
Reso WAH	This completely original effect offers enhancements on the characteristic resonances produced by analog synth filters.
Pedal Pos (Pedal Position)
0-100	Adjusts the position of the wah pedal. MEMO This parameter is used after it's been assigned to an EXP Pedal or similar controller.
Pedal Min (Pedal Minimum)
0-100	Selects the tone produced when the heel of the EXP Pedal is depressed.
Pedal Max (Pedal Maximum)
0-100	Selects the tone produced when the toe of the EXP Pedal is depressed.
EffectLev (Effect Level)
0-100	Adjusts the volume of the effect sound.
DirectLev (Direct Level)
0-100	Adjusts the volume of the direct sound.

SUB COMP (Sub Compressor)

This is an effect that produces a long sustain by evening out the volume level of the input signal. You can also use it as a limiter to suppress only the sound peaks and prevent distortion.

Parameter/ Range	Explanation
Type
Selects the compressor type.
BOSS Comp	This models a BOSS CS-3.
Hi-BAND	This is a compressor that adds an even stronger effect in the high end.
Light	This is a compressor with a light effect.
D-Comp	This models a MXR DynaComp.
ORANGE	This is modeled on the sound of the Dan Arm-strong ORANGE SQUEEZER.
Fat	When applied heavily, this compressor effect provides a fat tone with a boosted midrange.
Mild	When applied heavily, this compressor effect produces a sweet tone with the high end cut.
Stereo Comp	This selects a stereo compressor.
Sustain
0-100	Adjusts the range (time) over which low-level signals are boosted. Larger values will result in longer sustain.
Attack
0-100	Adjusts the attack time.
Tone
-50-+50	Adjusts the tone.
Level
0-100	Adjusts the volume.

SUB LIMITER

The limiter attenuates loud input levels to prevent distortion.

Parameter/ Range	Explanation
Type
Selects the limiter type.
BOSS Limitr	This selects a stereo limiter.
Rack 160D	This models a dbx 160X.
Vtg Rack U	This models a UREI 1178.
Attack
0-100	Adjusts the attack time.
Threshold
0-100	Adjust this as appropriate for the input signal from your bass. When the input signal level exceeds this threshold level, limiting will be applied.
Ratio
1:1-∞:1	This selects the compression ratio used with signals in excess of the threshold level.
Release
0-100	Adjusts the release time.
Level
0-100	Adjusts the volume.

GRAPHIC EQ (Graphic Equalizer)

This adjusts the tone as a equalizer. You can adjust the sound quality in ten bands.

Parameter	Range
31Hz	-12-+12dB
62Hz
125Hz
250Hz
500Hz
1kHz
2kHz
4kHz
8kHz
16kHz
Level	-12-+12dB

PARA EQ (Parametric Equalizer)

Adjusts the tonal quality. You can adjust the sound quality in four bands.

Parameter/Range	Explanation
Low Cut (Low Cut Filter)
Flat,55Hz-800Hz	This sets the frequency at which the low cut filter begins to take effect. When “Flat” is selected, the low cut filter will have no effect.
Low Gain
-20-+20dB	Adjusts the low frequency range tone.
Lo-Mid f (Low Middle Frequency)
20.0Hz-10.0kHz	Specify the center of the frequency range that will be adjusted by the “Lo-Mid G.”
Lo-Mid Q (Low Middle Q)
0.5-16	Adjusts the width of the area affected by the EQ centered at the “Lo-Mid f.” Higher values will narrow the area.
Lo-Mid G (Low Middle Gain)
-20-+20dB	Adjusts the low-middle frequency range tone.
Hi-Mid f (High Middle Frequency)
20.0Hz-10.0kHz	Specify the center of the frequency range that will be adjusted by the “Hi-Mid G.”
Hi-Mid Q (High Middle Q)
0.5-16	Adjusts the width of the area affected by the EQ centered at the “Hi-Mid f.” Higher values will narrow the area.
Hi-Mid G (High Middle Gain)
-20-+20dB	Adjusts the high-middle frequency range tone.
High Gain
-20-+20dB	Adjusts the high frequency range tone.
High Cut (High Cut Filter)
700Hz-11.0kHz,Flat	This sets the frequency at which the high cut filter begins to take effect. When “Flat” is selected, the high cut filter will have no effect.
Level
-20-+20dB	Adjusts the volume before the equalizer.

ENHANCER

This is an effect that clarifies the contour of the input sound by emphasizing the attack of the sound following changes in the input level.

Parameter/Range	Explanation
Sens (Sensitivity)
0-100	This adjusts the Enhancer sensitivity. The more the value is increased, the more softly you can play and still have the effect applied.
Low Freq (Low Frequency)
31.5Hz-125Hz	Sets the low frequency range for the enhanced sound.
Low Lev (Low Level)
0-100	Adjusts the enhancer volume for the high fre-quency range.
High Freq (High Frequency)
800Hz-8.00kHz	Sets the high frequency range for the enhanced sound.
High Lev (High Level)
0-100	Adjusts the enhancer volume for the high fre-quency range.

TONE MODIFY

This changes the tone of the connected bass.

Parameter/Range	Explanation
Type
Selects the type of tone modification.
Fat	Fat tone with boosted mid range.
Presence	Bright tone with boosted high-mid range.
Mild	Mild tone with the high end cut back.
Tight	Tone with the low frequencies cut.
Enhance	Tone with the high frequencies boosted.
Resonator 1, 2, 3	This produces a tone with greater power and punch by adding resonance in the low-frequen-cy range and midrange.
Resonance
0-100	This adjusts the strength of the low-end and midrange resonance when Type is set to Reso-nator 1, 2, or 3.
Low
-50-+50	Adjusts the tone for the low frequency range.
High
-50-+50	Adjusts the tone for the High frequency range
Level
0-100	Adjusts the volume.

BASS SIM. (Bass Simulator)

Simulation of the characteristics of particular bass components such as pickups and different bass bodies allows you to switch among a number of different bass types all while using a single bass.

Parameter/Range	Explanation
Type
Selects the type of the bass simulator.
‘PAS’‘ACT'	Changes from a passive type pickup tone to an active type pickup tone.
‘ACT’‘PAS'	Changes from an active type pickup tone to a passive type pickup tone.
‘SGL’‘HUM'	Changes from a single-coil pickup tone to a humbucking pickup tone.
‘HUM’‘SGL'	Changes from a humbucking pickup tone to a single-coil pickup tone.
‘SLD’‘HLW'	Changes a solid body bass tone to a hollow body bass tone with the body resonance added.
‘SGL’‘ACO'	Changes a single-coil pickup tone to an acoustic bass tone.
‘HUM’‘ACO'	Changes a humbucking pickup tone to an acoustic bass tone.
Low
-50-+50	Adjusts the tone for the low frequency range.
High
-50-+50	Adjusts the tone for the High frequency range
Body
0-100	Adjusts the way the body sounds when Type is set to ‘SLD’‘HLW’, ‘SGL’‘ACO’, or‘HUM’‘ACO.’The body sound increases as the value is raised; reducing the value produces a tone similar to that from a piezo pickup.
Level
0-100	Adjusts the volume.

SLOW GEAR

This produces a volume-swell effect ("violin-like" sound).

Parameter/ Range	Explanation
Sens (Sensitivity)
0–100	Adjusts the sensitivity of the slow gear. When it is set to a lower value, the effect of the slow gear can be obtained only with a stronger picking, while no effect is obtained with a weaker pick-ing. When the value is set higher, the effect is obtained even with a weak picking.
Rise Time
0–100	Adjusts the time needed for the volume to reach its maximum from the moment you begin picking.

DEFRETTER

This simulates a fretless bass.

Parameter/Range	Explanation
Tone
-50–+50	Adjusts the amount of blurring between the notes.
Sens (Sensitivity)
0–100	This controls the input sensitivity of the defret-ter.
Attack
0–100	Adjusts the attack of the picking sound.
EffectLev (Effect Level)
0–100	Adjust the volume of the defretter sound.
DirectLev (Direct Level)
0–100	Adjust the volume of the direct sound.

BASS SYNTH

This is a synth sound that processes the bass input signal.

MEMO

• Because of the need to analyze the pitch, chords (two or more sounds played simultaneously) cannot be played. Be sure to mute all the other strings and play only one note at a time.
• When you are to play the next string while a certain sound is still playing, mute the previous sound and then play the next one with a clear attack. If the unit cannot detect the attack, it may not sound correctly.
• The sensitivity may vary according to the bass's TONE knob and pickup type.

Parameter/Range	Explanation
Wave
Selects a wave type which the synth sound is based.
Saw	Creates a synth sound with a saw waveform(∼∼).
Square	Creates a synth sound with the square waveform(∼□□).
Cutoff (Cutoff Frequency)
0-100	Adjusts the frequency where the harmonics contents of the sound are cut off.
Resonance
0-100	This adjusts the amount of resonance (and the tone coloration) in the synth sound. The higher the value, the more the synth tone coloration is emphasized.
FLT.Sens (Filter Sensitivity)
0-100	This adjusts the amount of filtering applied in response to the input.
FLT.Decay (Filter Decay)
0-100	This sets the time needed for the filter to finish its sweep.
FLT.Depth (Filter Depth)
0-100	Adjusts the depth of the filter. When the value is higher, the filter will change more drastically.
Synth Lev (Synth Level)
0-100	Adjusts the volume of the synth sound.
DirectLev (Direct Level)
0-100	Adjusts the volume of the direct sound.

OCTAVE

This adds a note one octave lower, creating a richer sound.

MEMO

Because of the need to analyze the pitch, chords (two or more sounds played simultaneously) cannot be played.

Parameter/Range	Explanation
Range
This selects the register to which the effect is applied.
Range 1	B0 (Low B) to E5 (corresponds to the 1st string played at the 28th fret on six-string bass)
Range 2	B0 (Low B) to E4 (corresponds to the 1st string played at the 21st fret on four- or five-string bass)
Range 3	B0 (Low B) to E3 (corresponds to the 1st string played at the 9th fret on four- or five-string bass)
Range 4	B0 (Low B) to E6 (corresponds to the 1st string played at the 24th fret on guitar)
Oct.Level (Octave Level)
0–100	Adjusts the volume of the sound one octave below.
DirectLev (Direct Level)
0–100	Adjusts the volume of the direct sound.

PITCH SHIFTER

This effect changes the pitch of the original sound (up or down) within a range of two octaves.

Parameter/Range	Explanation
Voice
Selects the number of voices for the pitch shift sound.
1-Voice	One-voice pitch-shifted sound output in monaural.
2-Mono	Two-voice pitch-shifted sound (PS1, PS2) output in monaural.
2-Stereo	Two-voice pitch-shifted sound (PS1, PS2) output through left and right channels.
PS1/PS2 (Pitch Shift)
Mode *1
Selection for the pitch shifter mode.
Fast, Medium, Slow	The response is slower in the order of FAST, MEDIUM and SLOW, but the modulation is lessened in the same order.
Mono	MONO is used for inputting single notes. MEMO You may be unable to produce the intended effect when playing chords (two or more notes played simultaneously).
Pitch *1
-24+24	Adjusts the amount of pitch shift (the amount of interval) in semitone steps.
Fine *1
-50+50	Make fine adjustments to the interval. The amount of the change in the Fine 100 is equivalent to that of the Pitch 1.
PreDly (Pre Delay) *1
0 ms-300 ms, BPM ↓ -BPM ↓	Adjusts the time from when the direct sound is heard until the pitch shifted sounds are inputted. Normally you can leave this set at 0ms.
When set to BPM, the value of each parameter will be set according to the value of the “Master BPM” (p. 122) specified for each patch. This makes it easier to achieve effect sound settings that match the tempo of the song. MEMO If, due to the tempo, the time is longer than the range of allowable settings, it is then synchronized to a period either 1/2 or 1/4 of that time.
Fbk (Feedback)
0-100	Adjusts the feedback amount of the pitch shift sound.
Level *1
0-100	Adjusts the volume of the pitch shifter
DirectLev (Direct Level)
0-100	Adjusts the volume of the direct sound.

*1 With Voice set to 2-Mono or 2-Stereo, you can select two sounds.

HARMONIST

Harmonist is an effect where the amount of shifting is adjusted according to an analysis of the bass input, allowing you to create harmonics based on diatonic scales.

MEMO

• Because of the need to analyze the pitch, chords (two or more sounds played simultaneously) cannot be played. Be sure to mute all the other strings and play only one note at a time.
• When you are to play the next string while a certain sound is still playing, mute the previous sound and then play the next one with a clear attack. If the unit cannot detect the attack, it may not sound correctly.
• The sensitivity may vary according to the bass's TONE knob and pickup type.

Parameter/Range	Explanation
Voice
Selects the number of voices for the pitch shift sound.
1-Voice	One-voice pitch-shifted sound output in monaural.
2-Mono	Two-voice pitch-shifted sound (HR1, HR2) output in monaural.
2-Stereo	Two-voice pitch-shifted sound (HR1, HR2) output through left and right channels.
HR1/HR2 *1
Harm (Harmony) *1
This determines the pitch of the sound added to the input sound, when you are making a harmony.
-2oct+2oct, User	It allows you to set it by up to 2 octaves higher or lower than the input sound. When the scale is set to USER, this parame-ter sets the user scale number to be used.
PreDI (Pre Delay) *1
0ms-300ms, BPM ↓-BPM ↓	Adjusts the time from when the direct sound is heard until the harmonist sounds are heard. Normally you can leave this set at 0ms.
When set to BPM, the value of each parameter will be set according to the value of the “Master BPM” (p. 122) specified for each patch. This makes it easier to achieve effect sound settings that match the tempo of the song. MEMO If, due to the tempo, the time is longer than the range of allowable settings, it is then synchronized to a period either 1/2 or 1/4 of that time.
Fbk (Feedback)
0-100	Adjusts the feedback amount of the har-monist sound.
Level *1
0-100	Adjusts the volume of the harmony sound.
MasterKey
C (Am)-B (G#m)	This sets the key for the HARMONIST.

Parameter	Range
UserScale
UserScale 1-12 *2
C	↓C - ▼C - C - ▲C - ▲C
Db	↓Db - ▼Db - Db - ▲Db - ▲Db
D	↓D - ▼D - D - ▲D - ▲D
Eb	↓Eb - ▼Eb - Eb - ▲Eb - ▲Eb
E	↓E - ▼E - E - ▲E - ▲E
F	↓F - ▼F - F - ▲F - ▲F
F#	↓F# - ▼F# - F# - ▲F# - ▲F#
G	↓G - ▼G - G - ▲G - ▲G
Ab	↓Ab - ▼Ab - Ab - ▲Ab - ▲Ab
A	↓A - ▼A - A - ▲A - ▲A
Bb	↓Bb - ▼Bb - Bb - ▲Bb - ▲Bb
B	↓B - ▼B - B - ▲B - ▲B
Specify the note name of the output sound. The minus (-) and plus (+) symbols indicate sounds above or below the set note name. Triangles next to the note names indicate octaves. One downward-pointing triangle indicates a note one octave below the note displayed; two triangles indicate a two-octave drop. One upward-pointing triangle indicates a note one octave above the note displayed; two triangles indicate a two-octave rise.
Note Detect
Off, On	When set to “On,” the input sounds are analyzed, and the note names are then input automatically. Pressing [CATEGORY/ENTER] switches On and Off the Note Detect function.

1 HR1 and HR2 are set individually.
2 Effective with User selected for Harm parameter.

Creating Harmonist Scales (User Scale)

When HARM is set to any value from -2oct to +2oct, and the harmony does not sound the way you intend, use a User scale. You can set the corresponding pitches to be output for each input pitch.

1. Set HR1 (or HR2) to User in the HARMONIST screen.
2. Select the screen of the HR1 settings (page 2) or the HR2 settings (page 3) with Cursor [▶].

The User scale setting screen appears.

1. Use Cursor [▼] [▲], dial, to set the amount of pitch shift for each voice.

SOUND HOLD

You can have sound played on the bass be held continuously. This effect allows you to perform the melody in the upper registers while holding a note in the lower registers.

Because of the need to analyze the pitch, chords (two or more sounds played simultaneously) cannot be played. Be sure to mute all the other strings and play only one note at a time.

Parameter/Range	Explanation
Hold
Off, On	Switches the hold sound on and off. Normally, this is controlled with the CTL 1,2 pedals or CTL 3/4 jack or the footswitch con- nected to the CTL 3,4 jack.
	MEMO • It is assumed that this parameter will be assigned (p. 126) to the footswitch. • Patches are written with the Hold parameter set to Off.
Rise Time
0–100	Adjusts how rapidly the Sound Hold sound is produced.
EffectLev (Effect Level)
0–120	Adjusts the volume of the hold sound.

PHASER

By adding varied-phase portions to the direct sound, the phaser effect gives a whooshing, swirling character to the sound.

Parameter/Range	Explanation
Type
Selects the number of stages that the phaser effect will use.
4 Stage	This is a four-phase effect. A light phaser effect is obtained.
8 Stage	This is an eight-phase effect. It is a popular phaser effect.
12 Stage	This is a twelve-phase effect. A deep phase effect is obtained.
Bi-Phase	This is the phaser with two phase shift circuits connected in series.
Rate
0-100, BPM -BPM	This sets the rate of the phaser effect.
When set to BPM, the value of each parameter will be set according to the value of the "Master BPM" (p. 122) specified for each patch. This makes it easier to achieve effect sound settings that match the tempo of the song. MEMO If, due to the tempo, the time is longer than the range of allowable settings, it is then synchronized to a period either 1/2 or 1/4 of that time.
Depth
0-100	Determines the depth of the phaser effect.
Manual
0-100	Adjusts the center frequency of the phaser effect.
Resonance
0-100	Determines the amount of resonance (feedback). Increasing the value will emphasize the effect, creating a more unusual sound.
Step Rate
Off, 0-100, BPM -BPM	This sets the cycle of the step function that changes the rate and depth. When it is set to a higher value, the change will be finer. Set this to "Off" when not using the Step function.
When set to BPM, the value of each parameter will be set according to the value of the "Master BPM" (p. 122) specified for each patch. This makes it easier to achieve effect sound settings that match the tempo of the song. MEMO If, due to the tempo, the time is longer than the range of allowable settings, it is then synchronized to a period either 1/2 or 1/4 of that time
EffectLev (Effect Level)
0-100	Adjusts the volume of the phaser.
DirectLev (Direct Level)
0-100	Adjusts the volume of the direct sound.

FLANGER

The flanging effect gives a twisting, jet-airplane-like character to the sound.

Parameter/Range	Explanation
Rate
0-100,BPM 。-BPM ∅	This sets the rate of the flanging effect.
When set to BPM, the value of each parameter will be set according to the value of the “Master BPM” (p. 122) specified for each patch. This makes it easier to achieve effect sound settings that match the tempo of the song. MEMO If, due to the tempo, the time is longer than the range of allowable settings, it is then synchronized to a period either 1/2 or 1/4 of that time.
Depth
0-100	Determines the depth of the flanging effect.
Manual
0-100	Adjusts the center frequency at which to apply the effect.
Resonance
0-100	Determines the amount of resonance (feedback). Increasing the value will emphasize the effect, creating a more unusual sound.
Sepration (Separation)
0-100	Adjusts the diffusion. The diffusion increases as the value increases.
Low Cut (Low Cut Filter)
Flat, 55Hz-800Hz	This sets the frequency at which the low cut filter begins to take effect. When “Flat” is selected, the low cut filter will have no effect.
EffectLev (Effect Level)
0-100	Adjusts the volume of the flanger.
DirectLev (Direct Level)
0-100	Adjusts the volume of the direct sound.

TREMOLO

Tremolo is an effect that creates a cyclic change in volume.

Parameter/Range	Explanation
WaveShape
0-100	Adjusts changes in volume level. A higher value will steepen wave's shape.
Rate
0-100, BPM -BPM	Adjusts the frequency (speed) of the change.
When set to BPM, the value of each parameter will be set according to the value of the "Master BPM" (p. 122) specified for each patch. This makes it easier to achieve effect sound settings that match the tempo of the song. MEMO If, due to the tempo, the time is longer than the range of allowable settings, it is then synchronized to a period either 1/2 or 1/4 of that time.
Depth
0-100	Adjusts the depth of the effect.

ROTARY

This produces an effect like the sound of a rotary speaker.

Parameter/Range	Explanation
Speed Sel (Speed Select)
Slow, Fast	This parameter changes the simulated speaker's rotating speed (Slow or Fast).
Rate-Slow
0-100,BPM -BPM	This parameter adjusts the Speed Sel of rotation when set to "Slow."
Rate-Fast
0-100,BPM -BPM	This parameter adjusts the Speed Sel of rotation when set to "Fast."
When the Rate-Slow or Rate-Fast set to BPM, the value of each pa-rameter will be set according to the value of the "Master BPM" (p. 122) specified for each patch. This makes it easier to achieve effect sound settings that match the tempo of the song. MEMO If, due to the tempo, the time is longer than the range of allowable settings, it is then synchronized to a period either 1/2 or 1/4 of that time.
Rise Time
0-100	This parameter adjusts the time it takes for the rotation Speed Sel to change when switched from "Slow" to "Fast."
Fall Time
0-100	This parameter adjusts the time it takes for the rotation Speed Sel to change when switched from "Fast" to "Slow."
Depth
0-100	This parameter adjusts the amount of depth in the rotary effect.

UNI-V

This models a Uni-Vibe.

Although this resembles a phaser effect, it also provides a unique undulation that you can't get with a regular phaser.

Parameter/Range	Explanation
Rate
0-100,BPM 。 -BPM	Adjusts the rate of the Uni-V effect.
When set to BPM, the value of each parameter will be set according to the value of the “Master BPM” (p. 122) specified for each patch. This makes it easier to achieve effect sound settings that match the tempo of the song. MEMO If, due to the tempo, the time is longer than the range of allowable settings, it is then synchronized to a period either 1/2 or 1/4 of that time.
Depth
0-100	Adjusts the depth of the Uni-V effect.
Level
0-100	Adjusts the volume.

PAN

With the volume level of the left and right sides alternately changing, when playing sound in stereo, you can get an effect that makes the bass sound appear to fly back and forth between the speakers.

Parameter/Range	Explanation
Type
Auto	This varies the volume level on the left and right according to the settings for WaveShape, Rate, and Depth.
Manual	Output uses the volume balance set with Position.
WaveShape *1
0-100	Adjusts changes in volume level. A higher value will steepen wave's shape.
Rate *1
0-100, BPM -BPM	Adjusts the frequency (speed) of the change.
When set to BPM, the value of each parameter will be set according to the value of the “Master BPM” (p. 122) specified for each patch. This makes it easier to achieve effect sound settings that match the tempo of the song. MEMO If, due to the tempo, the time is longer than the range of allowable settings, it is then synchronized to a period either 1/2 or 1/4 of that time.
Depth *1
0-100	Adjusts the depth of the effect.
Position *2
L100-CENTER-R100	This adjusts the volume balance between the left and right channels.

1 Setting available when Type is set to Auto.
2 Setting available when Type is set to Manual.

SLICER

This consecutively interrupts the sound to create the impression that a rhythm backing phrase is being played.

Parameter/Range	Explanation
Pattern
P1-P20	Select the slice pattern that will be used to cut the sound.
Rate
0-100,BPM -BPM	Adjust the rate at which the sound will be cut.
When set to BPM, the value of each parameter will be set according to the value of the “Master BPM” (p. 122) specified for each patch. This makes it easier to achieve effect sound settings that match the tempo of the song. MEMO If, due to the tempo, the time is longer than the range of allowable settings, it is then synchronized to a period either 1/2 or 1/4 of that time.
Trig Sens (Trigger Sensitivity)
0-100	Adjusts the sensitivity of the sensor to play the selected pattern from the beginning. When strongly picked notes play the rhythm of pattern will play from the beginning. With high settings of this parameter, the pattern will be restarted from the beginning even by softly picked notes.

VIBRATO

This effect creates vibrato by slightly modulating the pitch.

Parameter/Range	Explanation
Rate
0-100, BPM -BPM	Adjusts the rate of the vibrato.
When set to BPM, the value of each parameter will be set according to the value of the “Master BPM” (p. 122) specified for each patch. This makes it easier to achieve effect sound settings that match the tempo of the song. MEMO If, due to the tempo, the time is longer than the range of allowable settings, it is then synchronized to a period either 1/2 or 1/4 of that time.
Depth
0-100	Adjusts the depth of the vibrato.
Trigger
Off, On	This selects on/off of the vibrato. MEMO It is assumed that this parameter will be assigned (p. 51) to the footswitch.
Rise Time
0-100	This sets the time passing from the moment the Trigger is turned on until the set vibrato is obtained. MEMO When a patch with Trigger set to On is called up, the effect obtained is identical to what happens when Trigger is switched from Off to On. If you want the vibrato effect to be produced immediately after the patches are switched, set Rise Time to 0.

RING MOD. (Ring Modulator)

This creates a bell-like sound by ring-modulating the bass sound with the signal from the internal oscillator. The sound can be unmusical and lack distinctive pitches.

Parameter/Range	Explanation
Mode
This selects the mode for the ring modulator.
Normal	This is a normal ring modulator.
Intelligent	By ring-modulating the input signal, a bell like sound is created. The intelligent ring modula- tor changes the oscillation frequency according to the pitch of the input sound and therefore produces a sound with the sense of pitch, which is quite different from Normal. This ef- fect does not give a satisfactory result if the pitch of the bass sound is not correctly detected. So, you must use single notes, not chords.
Frequency
0-100	Adjusts the frequency of the internal oscillator.
EffectLev (Effect Level)
0-100	Adjusts the volume of the effect sound.
DirectLev (Direct Level)
0-100	Adjusts the volume of the direct sound.

HUMANIZER

This can create human vowel-like sounds.

Parameter/Range	Explanation
Mode
This selects the mode that switches the vowels.
Picking	It changes from vowel 1 to vowel 2 along with the picking. The time spent for the change is adjusted with the rate.
Auto	By adjusting the rate and depth, two vowels (Vowel 1 and Vowel 2) can be switched automatically.
Random	Five vowels (A, E, I, O, U) are called out at random by adjusting the rate and depth.
Vowel 1 *1
a, e, i, o, u	Selects the first vowel.
Vowel 2 *1
a, e, i, o, u	Selects the second vowel.
Sens (Sensitivity) *2
0-100	Adjusts the sensitivity of the humanizer. When it is set to a lower value, no effect of the humanizer is obtained with weaker picking, while stronger picking produces the effect. When it is set to a higher value, the effect of the humanizer can be obtained whether the picking is weak or strong.
Rate
0-100, BPM -BPM	Adjusts the cycle for changing the two vowels.
When set to BPM, the value of each parameter will be set according to the value of the “Master BPM” (p. 122) specified for each patch. This makes it easier to achieve effect sound settings that match the tempo of the song. MEMO If, due to the tempo, the time is longer than the range of allowable settings, it is then synchronized to a period either 1/2 or 1/4 of that time.
Depth
0-100	Adjusts the depth of the effect.
Manual *3
0-100	This determines the point where the two vowels are switched. When it is set to 50, vowel 1 and vowel 2 are switched in the same length of time. When it is set to lower than 50, the time for vowel 1 is shorter. When it is set to higher than 50, the time for vowel 1 is longer.
Level
0-100	Adjusts the volume.

1 Setting available with Mode set to Picking or Auto.
2 Setting available with Mode set to Picking.
*3 Setting available with Mode set to Auto.

2X2 CHORUS

Frequency band division is employed to produce two different choruses, one for low frequencies and one for higher frequencies, for both the left and right channels (for a total of four). This allows you to achieve a more natural chorus sound.

Parameter/Range	Explanation
Xover f (Crossover Frequency)
100Hz-4.00kHz	This sets the frequency dividing the low-and high-frequency ranges.
Lo Rate (Low Rate)
0-100,BPM -BPM	Adjust the speed of the chorus effect for the low frequency range.
When set to BPM, the value of each parameter will be set according to the value of the "Master BPM" (p. 122) specified for each patch. This makes it easier to achieve effect sound settings that match the tempo of the song.MEMOIf, due to the tempo, the time is longer than the range of allowable settings, it is then synchronized to a period either 1/2 or 1/4 of that time.
Lo Depth (Low Depth)
0-100	Adjust the depth of the chorus effect for the low frequency range. If you wish to use this as a doubling effect, use a setting of 0.
Lo PreDly (Low Pre Delay)
0.0ms-40.0ms	Adjusts the delay of the effect sound in the low-frequency range.Extending the pre-delay will produce the sensation of multiple sounds (doubling ef- fect).
Lo Level (Low Level)
0-100	Adjusts the volume of the effect sound in the low-frequency range.
Hi Rate (High Rate)
0-100,BPM -BPM	Adjust the speed of the chorus effect for the high frequency range.
When set to BPM, the value of each parameter will be set according to the value of the "Master BPM" (p. 122) specified for each patch. This makes it easier to achieve effect sound settings that match the tempo of the song.MEMOIf, due to the tempo, the time is longer than the range of allowable settings, it is then synchronized to a period either 1/2 or 1/4 of that time
Hi Depth (High Depth)
0-100	Adjust the depth of the chorus effect for the high frequency range. If you wish to use this as a doubling effect, use a setting of 0.
Hi PreDly (High Pre Delay)
0.0ms-40.0ms	Adjusts the delay of the effect sound in the high-frequency range.Extending the pre-delay will produce the sensation of multiple sounds (doubling ef- fect).
Hi Level (High Level)
0-100	Adjusts the volume of the effect sound in the high-frequency range.

SUB DELAY

This is a delay with the maximum delay time of 1,000ms . This effect is useful for making the sound fatter.

Parameter/Range	Explanation
Dly Time (Delay Time)
1ms-1000ms, BPM ↓-BPM ↓	Adjusts the delay time.
When set to BPM, the value of each parameter will be set according to the value of the “Master BPM” (p. 122) specified for each patch. This makes it easier to achieve effect sound settings that match the tempo of the song. MEMO ·If, due to the tempo, the time is longer than the range of allowable settings, it is then synchronized to a period either 1/2 or 1/4 of that time. ·If you tap [CATEGORY/ENTER], the delay time will change to match the timing of your tapping.
Feedback
0-100	Adjusts the volume that is returned to the input. Higher settings will result in more delay repeats.
Hi-Cut (High Cut Filter)
700Hz-11.0kHz, Flat	This sets the frequency at which the high cut filter begins to take effect. When “Flat” is selected, the high cut filter will have no effect.
EffectLev (Effect Level)
0-120	Adjusts the volume of the delay sound.
DirectLev (Direct Level)
0-100	Adjusts the volume of the direct sound.

This effect adds delayed sound to the direct sound, giving more body to the sound or creating special effects.

Parameter/Range	Explanation
DELAY ON/OFF
Off, On	Turns the DELAY Effect on/off.Pressing [DELAY] switches On and Off.
Type
This selects which type of delay. MEMO ·If you switch patches with the Type set to either Dual-S, Dual-P, or Dual-L/R and then begin to play immediately after the patches change, you may be unable to attain the intended effect in the first portion of what you perform. ·The stereo effect is cancelled if a monaural effect or COSM amp is connected after a stereo delay effect.
Single	This is a simple monaural delay.
Pan	This delay is specifically for stereo output. This allows you to obtain the tap delay effect that divides the delay time, then deliver them to L and R channels. Input:Tap Time OUTPUT L D1:Delay1 OUTPUT R Delay OUTPUT R Feedback
Stereo	The direct sound is output from the left channel, and the effect sound is output from the right channel.
Dual-S(Dual Series)	This is a delay comprising two different delays connected in series. Each delay time can be set in a range from 1 ms to 1700 ms. D1:Delay1 D2:Delay2
Dual-P(Dual Parallel)	This is a delay comprising two delays connected in parallel. Each delay time can be set in a range from 1 ms to 1700 ms. D1 D2
Dual-L/R	This is a delay with individual settings available for the left and right channels. Delay 1 goes to the left channel, Delay 2 to the right. D1 L D2 R
Reverse	This produces an effect where the sound is played back in reverse.
Analog	This gives a mild analog delay sound. The delay time can be set within the range of 1 to 3400 ms

Parameter/Range	Explanation
Tape	This setting provides the characteristic wavering sound of the tape echo. The delay time can be set within the range of 1 to 3400 ms.
Warp	This simultaneously controls the delay sound's feedback level and volume to produce a totally unreal delay. INPUT Level Dep DELAY OUTPUT F.B. Depth Rise Time
Modulate	This delay adds a pleasant wavering effect to the sound.

DELAY Common Parameters

Parameter/Range	Explanation
Dly Time (Delay Time)
1ms-3400ms, BPM -BPM o	This determines the delay time.
When set to BPM, the value of each parameter will be set according to the value of the "Master BPM" (p. 122) specified for each patch. This makes it easier to achieve effect sound settings that match the tempo of the song. MEMO ·If, due to the tempo, the time is longer than the range of allowable settings, it is then synchronized to a period either 1/2 or 1/4 of that time. ·If you tap [CATEGORY/ENTER], the delay time will change to match the timing of your tapping.
Feedback
0-100	This sets the amount of delay sound re- turned to the input. A higher value will increase the number of the delay repeats. TERM Feedback is returning a delay signal to the input.
High Cut (High Cut Filter)
700Hz-11.0kHz, Flat	This sets the frequency at which the high cut filter begins to take effect. When "Flat" is selected, the high cut filter will have no effect.
EffectLev (Effect Level)
0-120	Adjusts the volume of the delay sound.
DirectLev (Direct Level)
0-100	Adjusts the volume of the direct sound.

Pan

Parameter/Range	Explanation
Tap Time
0-100%	Adjusts the delay time of the left channel delay. This setting adjusts the L channel delay time relative to the R channel delay time (considered as 100%).

Dual-S, Dual-P, Dual-L/R

Parameter/Range	Explanation
D1:Time (Delay 1 Time)D2:Time (Delay 2 Time)
1ms-1700ms,BPM -BPM 。	This determines the delay time.
When set to BPM, the value of each parameter will be set according to the value of the “Master BPM” (p. 122) specified for each patch. This makes it easier to achieve effect sound settings that match the tempo of the song.When setting to BPM, press [CATEGORY/ENTER] to display the MASTER BPM screen.If no operation if performed within a set period of time, the display returns to the Delay screen.MEMO·If, due to the tempo, the time is longer than the range of allowable settings, it is then synchronized to a period either 1/2 or 1/4 of that time.·After setting D1:Time or D2:Time to a value from 1 ms to 1,700 ms, you can press [CATEGORY/ENTER] to set the value for D1:Time or D2:Time to a value from 1 ms to 1,700 ms according to the interval you press the button.When Type is set to Dual-S or Dual-P, D1:Time is not changed.
D1:Fbk (Delay 1 Feedback)D2:Fbk (Delay 2 Feedback)
0-100	Adjusts the amount of feedback of the Delay 1 (or Delay 2). A higher value will increase the number of the delay repeats.
D1:HiCut (Delay 1 High Cut Filter)D2:HiCut (Delay 2 High Cut Filter)
700Hz-11.0kHz,Flat	This sets the frequency at which the high cut filter begins to take effect. When “Flat” is selected, the high cut filter will have no effect.
D1:Level (Delay 1 Level)D2:Level (Delay 2 Level)
0-120	Adjusts the volume of the Delay1 (or Delay 2).

Warp

Parameter/Range	Explanation
Warp Sw
Off, On	Turns the Warp effect on/off. MEMO This parameter is assigned to the CTL1, CTL2 or CTL 3/4 jack.
Rise Time
0-100	Adjusts how rapidly the warped delay sound rises.
F.B.Depth (Feedback Depth)
0-100	Adjusts the feedback level of the warped delay sound.
Level Dep (Level Depth)
0-100	Adjusts the volume of the warped delay sound.

Modulate

Parameter/Range	Explanation
Mod.Rate (Modulate Rate)
0–100	Adjusts the modulation rate of the delay sound.
Mod.Depth (Modulate Depth)
0–100	Adjusts the modulation depth of the delay sound.

CHORUS

STEREO

In this effect, a slightly detuned sound is added to the original sound to add depth and breadth.

Parameter/Range	Explanation
CHORUS ON/OFF
Off, On	Turns the CHORUS effect on/off.Pressing [CHORUS] switches On and Off.
Mode
Selection for the chorus mode.
Mono	This chorus effect outputs the same sound from both L channel and R channel.
Stereo1	This is a stereo chorus effect that adds dif-ferent chorus sounds to L channel and R channel.
Stereo2	This stereo chorus uses spatial synthesis, with the direct sound output in the L channel and the effect sound output in the R channel.
Rate
0-100,BPM -BPM	Adjusts the speed of the chorus effect.
When set to BPM, the value of each parameter will be set according to the value of the "Master BPM" (p. 122) specified for each patch. This makes it easier to achieve effect sound settings that match the tempo of the song.MEMOIf, due to the tempo, the time is longer than the range of allowable settings, it is then synchronized to a period either 1/2 or 1/4 of that time.
Depth
0-100	Adjusts the depth of the chorus effect.TIPTo use it for doubling effect, set the value to 0.
Pre Delay
0.0ms-40.0ms	Adjusts the time needed for the effect sound to be output after the direct sound has been output. By setting a longer pre delay time, you can obtain an effect that sounds like more than one sound is being played at the same time (doubling effect).
Low Cut (Low Cut Filter)
Flat, 55Hz-800Hz	This sets the frequency at which the low cut filter begins to take effect. When "Flat" is selected, the low cut filter will have no effect.
High Cut (High Cut Filter)
700Hz-11.0kHz,Flat	This sets the frequency at which the high cut filter begins to take effect. When "Flat" is selected, the high cut filter will have no effect.
EffectLev (Effect Level)
0-100	Adjusts the volume of the effect sound.

REVERB

STEREO

This effect adds reverberation to the sound.

Parameter/Range	Explanation
REVERB ON/OFF
Off, On	Turns the REVERB effect on/off. Pressing [RE-VERB] switches On and Off.
Type
This selects the reverb type. Various different simulations of space are offered.
Ambience	Simulates an ambience mic (off-mic, placed at a distance from the sound source) used in recording and other applications. Rather than empa-sizing the reverberation, this reverb is used to produce a sense of openness and depth.
Room	Simulates the reverberation in a small room. Provides warm reverberations.
Hall 1	Simulates the reverberation in a concert hall. Provides clear and spacious reverberations.
Hall 2	Simulates the reverberation in a concert hall. Provides mild reverberations.
Plate	Simulates plate reverberation (a reverb unit that uses the vibration of a metallic plate). Pro-vides a metallic sound with a distinct upper range.
Spring	This simulates the sound of a bass amp's built-in spring reverb.
Modulate	This reverb adds the wavering sound found in hall reverb to provide an extremely pleasant re-verb sound.
Rev Time (Reverb Time)
0.1s–10.0s	Adjusts the length (time) of reverberation.
Pre Delay
0ms–500ms	Adjusts the time until the reverb sound ap-pears.
Low Cut (Low Cut Filter)
Flat, 55Hz–800Hz	This sets the frequency at which the low cut fil-ter begins to take effect. When “Flat” is select-ed, the low cut filter will have no effect.
High Cut (High Cut Filter)
700Hz–11.0kHz, Flat	This sets the frequency at which the high cut fil-ter begins to take effect. When “Flat” is select-ed, the high cut filter will have no effect.
Density
0–10	Adjusts the density of the reverb sound.
EffectLev (Effect Level)
0–100	Adjusts the volume of the reverb sound.
DirectLev (Direct Level)
0–100	Adjusts the volume of the direct sound.
Sprg.Sens (Spring Sensitivity)
0–100	Adjusts the sensitivity of the spring effect. When the value is set higher, the effect is ob-tained even with a weak picking.

*1 Setting available with Type set to Spring.

MASTER

MASTER

These settings are applied to the overall sound.

Parameter/Range	Explanation
Patch Level
0-200	Adjusts the volume of the patch.
Master Low (Master Low EQ Gain)
-12--+12dB	Adjusts the low frequency range tone.
Master Mid f (Master Middle EQ Frequency)
20.0Hz-10.0kHz	Specify the center of the frequency range that will be adjusted by the "Master Mid G."
Master Mid Q (Master Middle EQ Q)
0.5-16	Adjusts the width of the area affected by the EQ centered at the Master Mid f. Higher values will narrow the area.
Master Mid G (Master Middle EQ Gain)
-12--+12dB	Adjusts the middle frequency range tone.
Master High (Master High EQ Gain)
-12--+12dB	Adjusts the high frequency range tone.

MASTER BPM/KEY

Parameter/Range	Explanation
Master BPM
40-250	Adjust the BPM value for each patch.
TERM BPM (beats per minute) indicates the number of quarter note beats that occur each minute. MEMO When you have an external MIDI device connected, the Master BPM synchronizes to the external MIDI device's tempo, making it impossible to set the Master BPM. To enable setting of the Master BPM, set "Sync Clock" (p. 139) to Internal.
Master Key
C (Am)-B (G#m)	This sets the key for the HARMONIST.
The key setting corresponds to the key of the song (#, b) as follows. Major C F B B E A B D Minor Am Dm Gm Cm Fm B'm Major G D A E B F# Minor Em Bm F'm C'm G'm D'm

PEDAL FX

SW&PDL FUNCTION

"Setting CTL/EXP Functions Individually in Each Patch (PEDAL FX)" (p. 49)

Parameter/Range	Explanation
CTL1 Func (CTL1 Pedal Function)/CTL2 Func (CTL2 Pedal Function)/EXPSwFunc (EXP Pedal Switch Function)
Off	The function is not assign to the pedals.
Ch. A/B	Switches between effect channel A and B.
Comp	Switches the COMP on and off.
OD/DS	Switches the OD/DS on and off.
Preamp	Switches the PREAMP/SPEAKER on and off.
EQ	Switches the EQ on and off.
FX-1	Switches the FX-1 on and off.
FX-2	Switches the FX-2 on and off.
Delay	Switches the DELAY on and off.
Chorus	Switches the CHORUS on and off.
Reverb	Switches the REVERB on and off.
Pedal FX	Switches the PEDAL FX on and off.
Send/Return	Switches the SEND/RETURN on and off.
Amp Ctrl	Switches the Amp Control on and off.
Tuner	Switches the TUNER on and off.
Manual	Switches the MANUAL MODE on and off.
PL	Switches the PHRASE LOOP on and off.
PL Rec/Play	Records/plays back the phrase.
PL Clear	Cleared the phrase.
PL Mute/Ply	Mutes playback of the phrase.
BPM Tap	Used for tap input of the Master BPM.
Delay Tap	Used for tap input of the delay time.
MIDI Start	Controls the Start/Stop of external MIDI devices (such as sequencers).
MMC Play	Controls the Play/Stop of external MIDI devices (such as hard disk recorders).
Lev +10	Increases the patch volume level by 10 units.
Lev +20	Increases the patch volume level by 20 units.
Lev -10	Decreases the patch volume level by 10 units.
Lev -20	Decreases the patch volume level by 20 units.
Num Inc	Switches to the next higher patch number in the same bank as the currently selected patch.
Num Dec	Switches to the next lower patch number in the same bank as the currently selected patch.
Bank Inc	Switches to the next higher bank number.
Bank Dec	Switches to the next lower bank number.
LED Moment *1	The pedal indicator lights up while you press the pedal, and it goes out when you release the pedal.
LED Toggle *1	The pedal indicator lights up and goes out when alternate each time you press the pedal.
PEDAL FX ON/OFF
OFF, ON	Switches the status of function assigned to EXP1.
EXP1 Func (EXP Pedal Function)
Off	The function is not assign to the controller.
Foot Volume	Controls the Foot Volume.
Pedal Bend	Controls the Pedal Bend.
WAH	Controls the WAH.
PB/FV	Controls the Pedal Bend or Foot Volume.
WAH/FV	Controls the WAH or Foot Volume.

*1 This setting value is enabled in CTL1 Func and CTL2 Func.

WAH

MONO

You can control the wah effect in real time by adjusting the EXP Pedal or expression pedal connected to the EXP PEDAL 2 jack.

"Setting CTL/EXP Functions Individually in Each Patch (PEDAL FX)" (p. 49)

Parameter/Range	Explanation
Type
This selects the wah type.
CRY WAH	This models the sound of the CRY BABY wah pedal popular in the '70s.
VO WAH	This models the sound of the VOX V846.
Bass WAH	This wah has been specially adapted for use in the bass registers. Inclusion of the low-frequency range in the wah sound produces a robust wah effect, with no dilution of the sound.
Reso WAH	This completely original effect offers enhancements on the characteristic resonances produced by analog synth filters.
Custom	Custom wah You can customize it however you like to match the sound you want.
Pdl Pos. (Pedal Position)
0-100	Adjusts the position of the wah pedal. MEMO This parameter is used after it's been assigned to an EXP Pedal or similar controller.
Pedal Min (Pedal Minimum)
0-100	Selects the tone produced when the heel of the EXP Pedal is depressed.
Pedal Max (Pedal Maximum)
0-100	Selects the tone produced when the toe of the EXP Pedal is depressed.
EffectLev (Effect Level)
0-100	Adjusts the volume of the wah sound.
DirectLev (Direct Level)
0-100	Adjusts the volume of the direct sound.
Custom MEMO Setting available when Type is set to Custom.
Type
This selects the basic sound when the TYPE parameter is set to Cus-tom.
CRY WAH	This models the sound of the CRY BABY wah pedal popular in the '70s.
VO WAH	This models the sound of the VOX V846.
Bass WAH	This wah has been specially adapted for use in the bass registers. Inclusion of the low-frequency range in the wah sound produces a robust wah effect, with no dilution of the sound.
Q
-50--+50	Adjusts the amount of characteristic effect applied to the wah tone.
Range Low
-50--+50	Selects the tone produced when the pedal is back.
RangeHigh
-50--+50	Selects the tone produced when the pedal is for ward.
Presence
-50--+50	Adjusts the tonal quality of the wah effect.

Pedal Bend/PB

MONO

This lets you use the pedal to get a pitch bend effect.

MEMO

Because of the need to analyze the pitch, chords (two or more sounds played simultaneously) cannot be played.

Parameter/Range	Explanation
Pitch Min (Pitch Minimum)
-24+24	This sets the pitch at the point where the EXP Pedal is fully lifted.
Pitch Max (Pitch Maximum)
-24+24	This sets the pitch at the point where the EXP Pedal is all the way down.
Pdl Pos. (Pedal Position)
0-100	Adjusts the pedal position for pedal bend. MEMO This parameter is used after it's been assigned to an EXP Pedal or similar controller.
EffectLev (Effect Level)
0-100	Adjusts the volume of the pitch bend sound.
DirectLev (Direct Level)
0-100	Adjusts the volume of the direct sound.

FootVolume/FV

STEREO

This is a volume control effect.

Normally, this is controlled with the EXP Pedal or the expression pedal connected to the EXP PEDAL 2 jack.

"Setting CTL/EXP Functions Individually in Each Patch (PEDAL FX)" (p. 49)

Parameter/Range	Explanation
Vol. Curve (Volume Curve)
You can select how the actual volume changes relative to the amount the pedal is pressed.
Slow 1, Slow 2, Normal, Fast	Volume When the pedal is fully raised EXP Pedal When the pedal is fully advanced When the pedal is depressed.
Vol. Min (Volume Minimum)
0-100	Sets the volume when the heel of the EXP Pedal is depressed.
Vol. Max (Volume Maximum)
0-100	Selects the volume when the toe of the EXP Pedal is depressed.
Level
0-100	Adjusts the volume.

Parameters You Can Set with PDL:CTL/ EXP

The parameter names displayed in Icon View (or at Play screen 4 (p. 25)) are abbreviated. For information on the parameter names displayed in List View, refer to the chart shown below.

List View	Icon View (at Play screen 4)
Off	Off
Ch. A/B	A/B
Comp	Comp
OD/DS	OD/DS
Preamp	Preamp
EQ	EQ
FX-1	FX-1
FX-2	FX-2
Delay	Delay
Chorus	Chorus
Reverb	Reverb
Pedal FX	Pdl FX
Send/Return	S/R
Amp Ctl	AmpCtl
Tuner	Tuner
Manual	Manual
PL	PL
PL Rec/Play	PL R/P
PL Clear	PL Clr
PL Mute/Ply	PL M/P
BPM Tap	BPM Tp
Delay Tap	Dly Tp
MIDI Start	MIDI
MMC Play	MMC
Lev +10	Lev+10
Lev +20	Lev+20
Lev -10	Lev-10
Lev -20	Lev-20
Num Inc	NumInc
Num Dec	NumDec
Bank Inc	BnkInc
Bank Dec	BnkDec
LED Moment	LED Mo
LED Toggle	LED Tg
Foot Volume (FV)	FV
Pedal Bend (PB)	PB
WAH	WAH

ASSIGN 1-8

You can freely assign functions to the GT-10B's controllers.

Parameter/Range	Explanation
ASSIGN 1-8 ON/OFF
Off, On	Turns the ASSIGN1-8 on/off. Pressing [MASTER/PEDAL FX] switches On and Off.
Target
This selects the parameter to be changed. Refer to “TARGET PARAMETER” (p. 127).
Min (Minimum)
This sets the minimum value for the range in which the parameter can change. The value differs depending on the parameter assigned for TARGET PARAMETER.
Max (Maximum)
This sets the maximum value for the range in which the parameter can change. The value differs depending on the parameter assigned for TARGET PARAMETER.
Source
This selects the controller to which the function is assigned.
EXP1 PEDAL	EXP Pedal (this unit)
CTL1 PEDAL	CTL 1 pedal (this unit)
CTL2 PEDAL	CTL 2 pedal (this unit)
EXP PEDAL SW	EXP Pedal switch (this unit)
EXP2 PEDAL	Expression pedal connected to the EXP PEDAL 2/SUB CTL 3,4 jack.
CTL3 PEDAL	footswitch connected to the EXP PEDAL 2/SUB CTL 3,4 jack (jack Tip).
CTL4 PEDAL	Expression pedal connected to the EXP PEDAL 2/SUB CTL 3,4 jack (jack Ring).
INTERNAL PDL	Refer to “Activating the Virtual Expression Pedal at the Start of Operations (Internal Pedal System)” (p. 55)
WAVE PEDAL	Refer to “Activating the Virtual Expression Pedal at the Start of Operations (Internal Pedal System)” (p. 55)
INPUT LEVEL	This controls the level of the signal from the IN-PUT jack. Set the sensitivity in response to the level with Assign INPUT SENS.
CC#1-#31, CC#64-#95	Control Change messages from an external MIDI device (1-31, 64-95)
Src Mode (Source Mode)
This sets the behavior of the value each time the switch is operated.
Moment	The normal state is Off (minimum value), with the switch On (maximum value) only while the footswitch is depressed.
Toggle	The setting is toggled On (maximum value) or Off (minimum value) with each press of the footswitch.
ActRngLo (Active Range Low) ActRngHi (Active Range High)
ActRngLo: 0-126 ActRngHi: 1-127	You can set the controllable range for target parameters within the source's operational range. Target parameters are controlled within the range set with ActRngLo and ActRngHi. You should normally set ActRngLo to 0 and ActRngHi to 127.

Parameter/Range	Explanation
Int Trig (Internal Pedal Trigger)
This sets the trigger that activates the internal pedal. *1
Patch Change	This is activated when a patch is selected.
EXP1 PDL-Low	This is actuated when the EXP Pedal is operat-ed at minimum.
EXP1 PDL-Mid	This is activated when the EXP Pedal is de-pressed and an intermediate value is passed.
EXP1PDL-High	This is actuated when the EXP Pedal is operat-ed at maximum.
CTL1 PEDAL,CTL2 PEDAL	This is activated when the CTL 1 or 2 pedal on the GT-10B is depressed.
EXP PEDAL SW	This is activated when the EXP Pedal switch on the GT-10B is turned on.
EXP2 PEDAL	This is activated when the expression pedal connected to the EXP PEDAL 2/CTL 3,4 jack is depressed.
CTL3 PEDAL	This is activated when the footswitch (jack Tip) connected to the EXP PEDAL 2/CTL 3,4 jack is depressed.
CTL4 PEDAL	This is activated when the footswitch (jack Ring) connected to the EXP PEDAL 2/CTL 3,4 jack is depressed.
CC#1-#31,CC#64-#95	This is activated when the value of the Control Change messages (CC#01-31, 64-95) from an external MIDI device exceeds the middle value.
Int Time (Internal Pedal Time)
0-100	This controls the time needed for the assumed EXP Pedal to move from the returned (lifted) position to the depressed (lowered) position. *1
IntCurve (Internal Pedal Curve)
This selects one of the three types that determines how the assumed expression pedal changes. *1
Linear	Slow RiseFast Rise
WaveRate (Wave Pedal Rate)
0-100,BPM - BPM	This determines the time spend for one cycle of the assumed EXP Pedal. *2
When set to BPM, the value of each parameter will be set according to the value of the "Master BPM" (p. 122) specified for each patch. This makes it easier to achieve effect sound settings that match the tempo of the song.MEMOIf, due to the tempo, the time is longer than the range of allowable settings, it is then synchronized to a period either 1/2 or 1/4 of that time.
Waveform (Wave Pedal Form)
This selects one of the three types that determines how the assumed EXP Pedal should change. *2
SAW	TRIANGLE SINE
INPUT SENS
0-100	This adjusts the input sensitivity when INPUT LEVEL is selected for Source. MEMO The INPUT SENS parameter is on page 9 of the ASSIGN 1-8 screen.

1 The Int Trig, Int Time, and IntCurve parameters are enabled when the SOURCE parameter is set to INTERNAL PDL.
2 The WaveRate and Waveform parameters are enabled when the Source parameter is set to WAVE PEDAL.

TARGET PARAMETER

COMP (Compressor)

Displayed Parameter	(Real Name)
On/Off
Type
COMP Sustain
COMP Attack
LM Threshold	(Limiter Threshold)
LM Ratio	(L Limiter Ratio)
LM Attack	(L Limiter Attack)
LM Release	(L Limiter Release)
MB Lo Thres.	(Multi Band Low Threshold)
MB Lo Ratio	(Multi Band Low Ratio)
MB Hi Thres.	(Multi Band High Threshold)
MB Hi Ratio	(Multi Band High Ratio)
MB Xover f L	(Multi Band Crossover Frequency Low)
MB Xover f M	(Multi Band Crossover Frequency Middle)
MB Xover f H	(Multi Band Crossover Frequency High)
NA Drive	(Natural Drive)
Tone
Level

OD/DS (Overdrive/Distortion)

Displayed Parameter	(Real Name)
On/Off
Type
Drive
Tone
Effect Level
Direct Level
Bottom Level

PREAMP

Displayed Parameter	(Real Name)
On/Off
Type
Gain
Bass
Middle
Middle Freq	(Middle Frequency)
Treble
Presence
Level
Bright
Deep
Response
Enhancer
Pre Shape
Ultra Low
Ultra High
Gain Sw	(Gain Switch)
Solo Sw	(Solo Switch)
Solo Level
Speaker Type
Gtr SP Type	(Guitar Speaker Type)
Mic Type
Mic Distance
Mic Position
Mic Level
Bottom Level
Direct Level

EQ (Equalizer)

Displayed Parameter	(Real Name)
On/Off
Low Cut
Low Gain
Low-Mid Freq	(Low-Middle Frequency)
Low-Mid Q	(Low-Middle Q)
Low-Mid Gain	(Low-Middle Gain)
Hi-Mid Freq	(High-Middle Frequency)
Hi-Mid Q	(High-Middle Q)
High-Mid Gain	(High-Middle Gain)
High Gain
High Cut
Level

FX1, FX2: (Effects)

Displayed Parameter		(Real Name)
On/Off
Select
TW (T.WAH)	Mode
	Polarity
	Sens	(Sensitivity)
	Frequency
	Peak
	Effect Level
	Direct Level
AW (AUTO WAH)	Mode
	Frequency
	Peak
	Rate
	Depth
	Effect Level
	Direct Level
SWH (SUB WAH)	Type
	Pdl Position	(Pedal Position)
	Pdl Min	(Pedal Minimum)
	Pdl Max	(Pedal Maximum)
	Effect Level
	Direct Level
SCS (SUB COMP)	Type
	Sustain
	Attack
	Tone
	Level
SLM (SUB LIMITER)	Type
	Attack
	Threshold
	Ratio
	Release
	Level
GEQ (GRAPHIC EQ)	31Hz
	62Hz
	125Hz
	250Hz
	500Hz
	1kHz
	2kHz
	4kHz
	8kHz
	16kHz
	Level

Displayed Parameter		(Real Name)
PEQ (PARAMETRIC EQ)	Low Cut
	Low Gain
	Lo-Mid Freq	(Low-Middle Frequency)
	Lo-Mid Q	(Low-Middle Q)
	Lo-Mid Gain	(Low-Middle Gain)
	Hi-Mid Freq	(High-Middle Frequency)
	Hi-Mid Q	(High-Middle Q)
	Hi-Mid Gain	(High-Middle Gain)
	High Gain
	High Cut
	Level
ENH (ENHANCER)	Sens	(Sensitivity)
	Low Freq.	(Low Frequency)
	Low Level
	High Freq.	(High Frequency)
	High Level
TM (TONE MODIFY)	Type
	Resonance
	Low
	High
	Level
BS (BASS SIM.)	Type
	Low
	High
	Body
	Level
DF (DEFRETTER)	Sens	(Sensitivity)
	RiseTime
DEF (DEFRETTER)	Tone
	Sens	(Sensitivity)
	Attack
	Effect Level
	Direct Level
OS (OCTAVE)	Wave
	Cutoff
	Resonance
	Filter Sens	(Filter Sensitivity)
	Filter Decay
	Filter Depth
	Synth Level
	Direct Level
OC (OCTAVE)	Range
	Octave Level
	Direct Level
PS (PITCH SHIFTER)	Voice
	PS1/2 Mode
	PS1/2 Pitch
	PS1/2 Fine
	PS1/2Pre Dly	(PS1/2 Pre Delay)
	PS1 Feedback
	PS1/2 Level
	Direct Level
HR(HARMONIST)	Voice
	HR1/2 Harmony
	HR1/2 PreDly	(HR1/2 Pre Delay)
	HR1 Feedback
	HR1/2 Level
	Direct Level
SH(SOUNDHOLD)	Hold
	RiseTime
	Effect Level
PH (PHASER)	Type
	Rate
	Depth
	Manual
	Resonance
	Step Rate
	Effect Level
	Direct Level
FL (FLANGER)	Rate
	Depth
	Manual
	Resonance
	Separation
	Low Cut
	Effect Level
	Direct Level
TR(TREMOLO)	Wave Shape
	Rate
	Depth
RT (ROTARY)	Speed Select
	Rate Slow
	Rate Fast
	Rise Time
	Fall Time
	Depth
UV(UNI-V)	Rate
	Depth
	Level

Displayed Parameter		(Real Name)
PAN	Type
	Position
	Wave Shape
	Rate
	Depth
SL(SLICER)	Pattern
	Rate
	Trigger Sens	(Trigger Sensitivity)
VB(VIBRATO)	Rate
	Depth
	Trigger
	RiseTime
RM(RING MOD.)	Mode
	Frequency
	Effect Level
	Direct Level
HU (HUMANIZER)	Mode
	Vowel 1
	Vowel 2
	Sens	(Sensitivity)
	Rate
	Depth
	Manual
	Level
2CE (2x2 CHORUS)	Crossover f	(Crossover Frequency)
	Low Rate
	Low Depth
	Low Pre Dly	(Low Pre Delay)
	Low Level
	High Rate
	High Depth
	High Pre Dly	(High Pre Delay)
	High Level
SDD(SUB DELAY)	Delay Time
	Feedback
	High Cut
	Effect Level
	Direct Level

DELAY

Displayed Parameter		(Real Name)
On/Off
Type
Delay Time
Tap Time
Feedback
High Cut
D1/2	Time
D1/2	Feedback
D1/2	High Cut
D1/2	Level
Warp Sw		(Warp Switch)
WarpRiseTime
WarpFB Depth		(Warp Feedback Depth)
WarpLevDepth		(Warp Level Depth)
Modul. Rate		(Modulation Rate)
Modul. Depth		(Modulation Depth)
Effect Level
Direct Level

CHORUS

Displayed Parameter	(Real Name)
On/Off
Mode
Rate
Depth
Pre Delay
Low Cut
High Cut
Effect Level

REVERB

Displayed Parameter	(Real Name)
On/Off
Type
Reverb Time
Pre Delay
Low Cut
High Cut
Density
Effect Level
Direct Level
Spring Sens	(Spring Sensitivity)

MASTER

Displayed Parameter	(Real Name)
Patch Level
Master Low
Master Mid f	(Master Middle Frequency)
Master Mid Q	(Master Middle Q)
Master Mid G	(Master Middle Gain)
Master High

BPM/KEY

Displayed Parameter	(Real Name)
Master BPM
Master Key

AMP CTL (AMP Control)

Displayed Parameter	(Real Name)
Amp Ctl Sw	(Amp Control Switch)

CH.SELECT (Channel Select)

Displayed Parameter	(Real Name)
Bass Ch.Mode	(Bass Channel Mode)
Ch. A Level	(Channel A Level)
Ch. B Level	(Channel B Level)
Ch. Select	(Channel Select)
Crossover f	(Crossover Frequency)
Sens	(Sensitivity)
Release

PEDAL

Displayed Parameter		(Real Name)
On/Off
WAH	Type
	Pdl Position	(Pedal Position)
	Pedal Min	(Pedal Minimum)
	Pedal Max	(Pedal Maximum)
	Effect Level
	Direct Level
PB	Pitch Min	(Pitch Minimum)
	Pitch Max	(Pitch Maximum)
	Pdl Position	(Pedal Position)
	Effect Level
	Direct Level
FV	Volume Curve
	Volume Min	(Volume Minimum)
	Volume Max	(Volume Maximum)
	Level

SEND/RTN (Send/Return)

Displayed Parameter	(Real Name)
On/Off
Mode
Send Level
Return Level

NS1, NS2 (Noise Suppressor)

Displayed Parameter	(Real Name)
On/Off
Threshold
Release
Detect

(Others)

Displayed Parameter		(Real Name)
Tuner Sw *1		(Tuner Switch)
ManualModeSw *1		(Manual Mode Switch)
PH LOOP	On/Off
	Rec/Play *1
	Clear *1
	Mute/Play *1
TAP	BPM Tap *1
	Delay Tap *1
MIDI	Start/Stop *1 *2
	MMCPlay/Stop *1 *2
PATCH	Level Inc.10 *1	(Patch Level Increment 10)
	Level Inc.20 *1	(Patch Level Increment 20)
	Level Dec.10 *1	(Patch Level Decrement 10)
	Level Dec.20 *1	(Patch Level Decrement 20)
	Number Inc. *1	(Patch Number Increment)
	Number Dec. *1	(Patch Number Decrement)
	Bank Inc. *1	(Patch Bank Increment)
	Bank Dec. *1	(Patch Bank Decrement)

1 This parameter is disabled when the SOURCE parameter is set to Internal Pedal or Wave Pedal.
2 The Src Mode parameter normally functions using the Toggle setting (the Src Mode parameter setting is disregarded).

SEND/RETURN

MONO

This allows you to connect an external effects device to the SEND and RETURN jacks and use it as part of the GT-10B's effects.

Parameter/Range	Explanation
SEND/RETURN ON/OFF
Off, On	Switches the SEND/RETURN on/off. Pressing [MASTER/PEDAL FX] switches On and Off.
Mode
Switches the SEND/RETURN mode.
Normal	Outputs the input to SEND/RETURN to the SEND jack and the input from the RE-TURN jack to the circuit post-SEND/RE-TURN. Use this when you want to connect an external effects device serially in the GT-10B's effects chain.
	SEND RETURN
Direct Mix	Outputs the input to SEND/RETURN to the SEND jack, mixes the input from the RETURN jack with the input to SEND/RETURN (the direct sound), then outputs this to the circuit post-SEND/RETURN. Use this when you want to mix the GT-10B's effects sounds together with the sound with the external effects device applied to it.
	SEND RETURN
Branch Out	Outputs the input to SEND/RETURN to the SEND jack. The input from the RE-TURN jack is disregarded. For example, using this with the GT-10B's reverb and delay immediately ahead of the SEND/RETURN allows you to use the SEND jack as a direct out.
	SEND
Send Lev (Send Level)
0-200	Adjusts the volume of the output to the external effects device.
ReturnLev (Return Level)
0-200	Adjusts the volume of the input from the external effects device.

AMP CONTROL

By connecting your bass amp's channel switching jack to the GT-10B's AMP CONTROL jack, you can then use Amp Control to switch the amp channel.

This combining of the GT-10B and the amp channels allows you to get an even wider variety of distortion sounds.

Since the Amp Control setting is handled as one of the effects parameters saved to each individual patch, it allows you to switch bass amp channels with each patch.

Parameter/Range	Explanation
Amp Control
Off	Closed Bass Amp (Amp's channel switching jack) GT-10B (AMP CONTROL jack)
On	Open Bass Amp (Amp's channel switching jack) GT-10B (AMP CONTROL jack)

MEMO

• To determine how the amp channels are switched when the circuit is open and closed, refer to the amp owner's manual, or actually confirm the sounds by operating the amp.
• Note that, depending on the circuitry of the channel switching jack in the bass amp used, the Amp Control function may not operate.
• With Amp Control, not only can you switch amp channels, you can also use it to switch the amp's effects on and off, like a footswitch controller.
• You can also switch this parameter using [MASTER/PEDAL FX] in the AMP CONTROL screen.

NS1/NS2 (Noise Suppressor)

STEREO

This effect reduces the noise and hum picked up by bass pickups. Since it suppresses the noise in synchronization with the envelope of the bass sound (the way in which the bass sound decays over time), it has very little effect on the bass sound, and does not harm the natural character of the sound.

TIP

Please connect the noise suppressor in the signal path prior to the reverberation type effect. This setup will prevent unnatural break of the reverberation type effect.

Parameter/Range	Explanation
NS1, NS2 ON/OFF (Noise Suppressor ON/OFF)
Off, On	Switches the noise suppressor effect on/off. Pressing [MASTER/PEDAL FX] switches On and Off.
Threshold
0-100	Adjust this parameter as appropriate for the volume of the noise. If the noise level is high, a higher setting is appropriate. If the noise level is low, a lower setting is appropriate. Adjust this value until the decay of the bass sound is as natural as possible. MEMO High settings for the threshold parameter may result in there being no sound when you play with your bass volume turned down.
Release
0-100	Adjusts the time from when the noise suppressor begins to function until the noise level reaches “0.”
Detect
This controls the noise suppressor based on the volume level for the point specified in Detect.
Input	Input volume from input jack.
NS Input	Noise suppressor input volume.
FV Out (Foot Volume Output)	Volume after passing through Foot Volume.

CH.SELECT (Channel Select)

Ch.Mode (Channel Mode)
Selects how the two channels are to be used.
Single	Only the channel selected with [CHAN-NEL SELECT] or Ch.Select is used.A B
Dual Mix	The output of Channels A and B is mixed.A B
Dual L/R	Channel A is output from the left and Channel B is output from the right.A B L R
Freq Divide	The low-frequency range is assigned to Channel A, and the high-frequency range is assigned to Channel B.Low-frequencyRangeA B High-frequencyRange
Dynamic SW	Channels A and B are switched according to the bass input volume level.The GT-10B switches to Channel B when the strings are picked with greater force.This produces dynamic tonal changes in response to the picking dynamics.A B DetectInput Level
Dynamic A	Channel A's volume level is controlled according to the bass input volume level.The volume in Channel B is fixed.
Dynamic B	Channel B's volume level is controlled according to the bass input volume level.The volume in Channel A is fixed.
Ch.Select (Channel Select)
Ch.A, Ch.B	These switch between the A and B chan-nels for the effect.
Ch.A Lev/Ch.B Lev (Channel A Level/Channel B Level)
0-100	Adjusts the volume of the each channels.
Xover f (Crossover Frequency)*1
100Hz-4.00kHz	This sets the frequency dividing the low- and high-frequency ranges.

Sens (Sensitivity) *2
0-100	When the Ch.Mode parameter is set to Dynamic Sw, raising the value allows switching of the channels even with weaker picking. When the Ch.Mode parameter is set to Dynamic A (or Dynamic B), raising the value enables volume level changes in Channel A (or Channel B) even with weaker picking.
Release *2
0-100	This adjust the rate of the response when the input level drops.

1 This setting value is enabled when the Ch.Mode parameter is set to Freq Divide.
2 This setting value is enabled when the Ch.Mode parameter is set to Dynamic Sw, Dynamic A, or Dynamic B.

EZ TONE

This feature allows you to make tone settings based on the equipment you are using and the tonal image you want to create.

STEP1: TONE

Parameter/Range	Explanation
BASIC TONE
BASIC TONE lets you create sounds easily by choosing settings close to the musical genre and the feel of the song you want to compose.
POP	Pop sound
ROCK	Rock sound
METAL	Metal sound
PUNK	Punk sound
R&B	Rhythm&Blues sound
FUNK	Funk sound
JAZZ	Jazz sound
SOLO	For solo play
SYNTH	Synth Bass

STEP2: DRIVE

Parameter/ Range	Explanation
EDGE	Produces a crisp, distinctive tone.
SMOOTH	Produces a smooth, warm tone.
SOFT	The distortion or the compression effect be- comes mild.
HARD	The distortion or the compression effect be- comes strong.

SYSTEM

Used for making settings related to the GT-10B's operating environment.

TUNER

Parameter/Range	Explanation
PITCH
435Hz-445Hz	This sets the reference pitch.
OUTPUT
Mute	The tuning sound is not output.
Bypass	The tuning sound is output. MEMO ·When OUTPUT is set to “Bypass,” and Tuner is set to ON, you can adjust the volume of the direct sound by operating the EXP Pedal. ·OUTPUT is set to “Bypass” when shipped from the factory.

INPUT/OUTPUT

Parameter/Range	Explanation
INPUT SELECT
Bass 1-Bass 3,USB In	You can store three separate tone configurations tailored to the basses you intend to connect (Bass 1 through 3). Select USB In when you're inputting audio from a computer via USB.
INPUT
LEVEL
-20+20dB	Input volume from input jack.
PRES. (Presence)
-20+20dB	Adjusts the ultra high frequency range tone.
GLOBAL EQ
Low Gain
-12+12dB	Adjusts the low frequency range tone.
Mid Gain (Middle Gain)
-12+12dB	Adjusts the middle frequency range tone.
Mid Freq (Middle Frequency)
20.0Hz-10.0kHz	Specifies the center of the frequency range that will be adjusted by the Mid Gain.
Mid Q (Middle Q)
0.5-16	Adjusts the width of the area affected by the EQ centered at the Mid Freq. Higher values will narrow the area.
High Gain
-12+12dB	Adjusts the high frequency range tone.
TOTAL
NS Threshold (Noise Suppressor Threshold)
-20-+20dB	This controls the global threshold level for the noise suppressor settings in each patch. This feature is effective when you connect a different bass or for adjusting for changes in noise levels in the performance venue. It does not affect the settings in each individual patch. MEMO To use the settings contained in the individual patches, set this to 0 dB.
Rev Level (Reverb Level)
0-200%	This controls the global reverb level for the reverb settings in each patch. Adjusting this reverb level is effective for adjusting to the acoustics of the performance space. It does not affect the settings in each individual patch. MEMO To use the settings contained in the individual patches, set this to 100%.
USB/DGT Out Lev (USB/Digital Out Level)
0-200%	Adjusts the volume level of the digital audio signals output to the USB (Computer).
USB Mix Level
0-200%	Sets the volume level of the mixed digital audio signals from USB (Computer) when Input Select is set to "Bass 1-3."
Main Out Level
This sets the output reference level to match the equipment connected to the OUTPUT jack.
-10dB	Choose this when connected to a bass amp.
+4dB	Choose this when connected to a recorder, mixer, or other line device.
SUB OUTPUT
Mode
This sets the signals to be output from the SUB OUTPUT (XLR) jacks.
L/R	The GT-10B's stereo output is output as is, without change. Set to L/R when recording in stereo or sending stereo signals to a PA.
Effect/Direct	Output from SUB OUTPUT L jack is the GT-10B's stereo output mixed to mono, output from SUB OUTPUT R jack is the sound before effect (mono) directly. MEMO The INPUT SELECT, INPUT LEVEL and PRES. parameters are enabled in the input sound. TIP For recording, you can record the direct bass sound on a separate channel, then later on you can remix the direct sound with the effect sound during mixdown.
Level
0-100	Adjusts the level of the audio signals output from the SUB OUTPUT (XLR) jacks. MEMO The SUB OUTPUT level cannot be adjusted with the OUTPUT LEVEL knob

PHRASE LOOP

Parameter/Range	Explanation
PHRASE LOOP
Off, On	Switches the Phrase Loop function on/off.
Mode
Performance	This records the sound after it passes through the effects. This lets you achieve a rich variety of performances by combining different tones.
Patch Edit	This records the sound before it passes through the effects, and applies the effects during loop play. This enables you to adjust effects or compare patch tones.
Pdl Mode (Pedal Mode)
Off	The BANK pedals are not used for operation of the Phrase Loop feature. These are used as bank switch pedals. TIP Phrase Loop can be controlled by assigning the Phrase Loop feature to any of the CTL 1 through 4 etc. and maintaining the BANK pedals' bank switching function.
On	The BANK pedals are used for operation of the Phrase Loop feature.
Rec Mode (Recording Mode)
Mono	Phrases are recorded in mono.
Stereo	Phrases are recorded in stereo.
Play Lev (Play Level)
0-120	Sets the phrase playback volume.
Clear Pdl (Clear Pedal Function)
Clear Only	When you press [BANK▲] while the Phrase Loop feature is on, the recorded data is cleared and then GT-10B switches to STANDBY mode.
Mute/Clear	When you press [BANK▲] while the Phrase Loop feature is on, the performance of the recorded phrase is muted (the recorded data is not erased). If you then press [BANK▲] again while the phrase is muted, the recorded data is cleared and then GT-10B switches to STANDBY mode. TIP Skillful use of muting lets you combine your own performances with prerecorded phrases at the timing you want.

MANUAL MODE SETTING

Parameter/Range	Explanation
Number Pedal 1-4, BANK▼Pedal, BANK▲Pedal
The Number pedal and the BANK pedal are used for switching specified effects on and off.
Off	The function is not assign to the pedals.
Ch.A/B	Switches between effect channel A and B.
Comp	Switches the COMP on and off.
OD/DS	Switches the OD/DS on and off.
Preamp	Switches the PREAMP/SPEAKER on and off.
EQ	Switches the EQ on and off.
FX1	Switches the FX-1 on and off.
FX2	Switches the FX-2 on and off.
Delay	Switches the DELAY on and off.
Chorus	Switches the CHORUS on and off.
Reverb	Switches the REVERB on and off.
PdlFX	Switches the PEDAL FX on and off.
S/R	Switches the SEND/RETURN on and off.
AmpCtrl	Switches the Amp Control on and off.
Tuner	Switches the TUNER on and off.
PL	Switches the PHRASE LOOP on and off.
PL R/P	Records/plays back the phrase.
PL Clr	C clears the phrase.
PL M/P	Mutes playback of the phrase.
BPMTap	Used for tap input of the Master BPM.
DlyTap	Used for tap input of the delay time.
MIDI	Controls the Start/Stop of external MIDI devices (such as sequencers).
MMCPly	Controls the Play/Stop of external MIDI devices (such as hard disk recorders).
Lev+10	Increases the patch volume level by 10 units.
Lev+20	Increases the patch volume level by 20 units.
Lev-10	Decreases the patch volume level by 10 units.
Lev-20	Decreases the patch volume level by 20 units.
NumInc	Switches to the next higher patch number in the same bank as the currently selected patch.
NumDec	Switches to the next lower patch number in the same bank as the currently selected patch.
BnkInc	Switches to the next higher bank number.
BnkDec	Switches to the next lower bank number.

PLAY OPTION

Parameter/Range	Explanation
Preamp Mode
Patch	The patch preamp setting is used. This allows you to use different preamp settings in each individual patch.
System1-3	The system's preamp setting is used. This applies the same preamp settings to all patches. MEMO Pressing EZ TONE [CREATE] automatically switches Preamp Mode to Patch.
Patch ChgMode (Patch Change Mode)
This setting determines whether or not the decay of reverb, delay, and similar effects continue when patches are switched on the GT-10B.
Fast	Patches are changed normally. The unit switches to the subsequent patch without any carry-over of the decay from the previous patch's reverb or delay.
Smooth	The unit switches to the subsequent patch with the decay from the previous patch's reverb or delay continued after the switch is made. MEMO To ensure smooth switching, the patches may be switched with a delay of one tempo beat.
Bank Chg Mode
This sets the timing with which the GT-10B switches to the next patch when switching banks with the pedals.
Wait	Although the indication in the display is updated to reflect the change in the bank when a BANK pedal is pressed, the patch will not change until a number pedal has been pressed.
Immed	The patch switches instantly when a BANK pedal or any of the number pedals is pressed.
BankExtentMin (Bank Extent Minimum)
P01-P50, U01-U50	Sets the lower limit for the banks.
BankExtentMax (Bank Extent Maximum)
P01-P50, U01-U50	Sets the upper limit for the banks.
EXP Pdl Hold (Expression Pedal Hold)
This setting determines whether or not the Assign's (p. 51) operational status is carried over to the next patch when patches are switched.
Off	The Assign's operational status is not carried over. (Example) If a patch is switched while the volume is being controlled with an EXP Pedal, the volume of the subsequent patch is set to the value set in that patch. If the EXP Pedal is operated, the volume will change in accord with the pedal's movement.
On	The Assign's operational status is carried over. (Example) If a patch is switched while the volume is being controlled with the EXP Pedal, the volume of the subsequent patch will take on the value determined by the current pedal position (angle). If the patch switched to has the EXP Pedal controlling the wah effect, then the volume assumes the value set in the patch, and the patch's wah effect is given the value derived from the current pedal position (angle).
Pdl Indicate (Pedal Indicate)
You can have all unlit pedal indicators flash faintly instead.
Off	The Pedal Indicate function is not use.
On	All unlit pedal indicators flash.
Num Pdl Sw (Number Pedal Switch)
This allows you to call up various features by pressing the pedals with the same numbers as the currently selected patches.
Off	This function is not operational.
Tuner	Switches the Tuner on and off.
Ch. A/B	Switches between effect channel A and B.
Dial Func (Dial Function)
This setting determines whether or not rotating the dial switches the patches.
Pat&Val	The dial is used both for switching patches and changing the value of settings. In addition to switching patches with the pedals, you can also switch them by rotating the dial.
Value	The dial is used only for changing the values of settings.

CONTROLLER

Parameter/Range	Explanation
SYS KNOB SETTING (System Knob Setting)
Knob P1-P4	COMP:CS:Sus, COMP:CS:Atk,COMP:LM:Thres, COMP:LM:Rel,COMP:MB:LoThr, COMP:MB:HiThr,COMP:NA:Drive,COMP:Tone,COMP:Level,ODDS:Drive, ODDS:Tone,ODDS:EfectLev, PRE:Gain, PRE:Level,PRE:Bass, PRE:Mid, PRE:Treble,PRE:Presnce, PRE:Mic Lev, EQ:Low Cut,EQ:Low Gain, EQ:Lo-MidGain,EQ:Hi-MidGain, EQ:High Gain, EQ:High Cut, DELAY:Time,DELAY:Feedback, DELAY:Hi Cut, DELAY:EfectLev, DELAY:D1(2)Time,DELAY:D1(2)Fbk, DELAY:D1(2)HCut,DELAY:D1(2)Lev, CHORUS:Rate,CHORUS:Depth, CHORUS:PreDly,CHORUS:E.Lev, REVERB:Time,REVERB:Hi Cut, REVERB:E.Lev,MASTER:Low, MASTER:Mid,MASTER:High, Patch Level,PDL:Wah E.Lev, PDL:PB E.Lev,SR:Send Level, SR:Rtn Level,NS1(2):Threshold, NS1(2):Release,GLOBAL EQ:Low, GLOBAL EQ:Mid,GLOBAL EQ:Hi
EXP1/2 PEDAL SETTING
Prefernc (Preference)
Patch	The patch pedal setting is used. This allows you to use different pedal settings in each individual patch.
System	The CONTROLLER screen's pedal setting (Function, Min and Max) is used. This applies the same pedal settings to all patches.
Function
Off	The function is not assign to the controller.
Foot Volume	Controls the Foot Volume.
Pedal Bend *1	Controls the Pedal Bend.
WAH *1	Controls the WAH.
PB/FV *1	Controls the Pedal Bend or Foot Volume.
WAH/FV *1	Controls the WAH or Foot Volume.
Patch Level	Controls the Patch Level.
*1 This parameter is enabled in EXP1 PEDAL SETTING.
Min (Minimum)
0-1000-200 (Function = Patch Level)	This sets the minimum value for the range in which the parameter can change.
Max (Maximum)
0-1000-200 (Function = Patch Level)	This sets the maximum value for the range in which the parameter can change.
EXP PEDAL SW SETTING (Expression Pedal Switch Setting)CTL1-4 PEDAL SETTING (CTL1-4 Pedal Setting)
Prefernc (Preference)
Patch	The patch pedal setting is used. This allows you to use different pedal settings in each individual patch.
System	The CONTROLLER screen's pedal setting (Function, Min, Max and Src Mode) is used. This applies the same pedal settings to all patches.
Function
Off	The function is not assign to the pedals.
Ch. A/B	Switches between effect channel A and B.
Comp	Switches the COMP on and off.
OD/DS	Switches the OD/DS on and off.
Preamp	Switches the PREAMP/SPEAKER on and off.
EQ	Switches the EQ on and off.
FX-1	Switches the FX-1 on and off.
FX-2	Switches the FX-2 on and off.
Delay	Switches the DELAY on and off.
Chorus	Switches the CHORUS on and off.
Reverb	Switches the REVERB on and off.
Pedal FX	Switches the PEDAL FX on and off.
Send/Return	Switches the SEND/RETURN on and off.
Amp Ctl	Switches the Amp Control on and off.
Tuner	Switches the TUNER on and off.
Manual	Switches the MANUAL MODE on and off.
PL	Switches the PHRASE LOOP on and off.
PL Rec/Play	Records/plays back the phrase.
PL Clear	C clears the phrase.
PL Mute/Ply	Mutes playback of the phrase.
BPM Tap	Used for tap input of the Master BPM.
Delay Tap	Used for tap input of the delay time.
MIDI Start	Controls the Start/Stop of external MIDI devices (such as sequencers).
MMC Play	Controls the Play/Stop of external MIDI devices (such as hard disk recorders).
Lev +10	Increases the patch volume level by 10 units.
Lev +20	Increases the patch volume level by 20 units.
Lev -10	Decreases the patch volume level by 10 units.
Lev -20	Decreases the patch volume level by 20 units.
Num Inc	Switches to the next higher patch number in the same bank as the currently selected patch.
Num Dec	Switches to the next lower patch number in the same bank as the currently selected patch.
Bank Inc	Switches to the next higher bank number.
Bank Dec	Switches to the next lower bank number.

Parameter/Range	Explanation
Min (Minimum)
Off, On	This sets the value for times when the switch is Off.
Max (Maximum)
Off, On	This sets the value for times when the switch is On.
Src Mode (Source Mode)
This sets the behavior of the value each time the switch is operation.
Moment	The normal state is Off (minimum value), with the switch On (maximum value) only while the footswitch is depressed.
Toggle	The setting is toggled On (maximum value) or Off (minimum value) with each press of the footswitch.

Display of Parameters You Can Set with SYS KNOB SETTING

The parameter names displayed in the Play screen (p. 25) are abbreviated. For details about the parameter names, refer to the chart shown below.

Display with SYS KNOB SETTING	Display at Play screen 1	Display at the bottom of the Play screen
COMP:CS:Sus	COMP CS SUS	CS SUS
COMP:CS:Atk	COMP CS ATK	CS ATK
COMP:LMI:Thres	COMP LM THR	LM THR
COMP:LMI:Rel	COMP LM REL	LM REL
COMP:MB:LoThr	COMP MB LTH	MB LTH
COMP:MB:HiThr	COMP MB HTH	MB HTH
COMP:NA:Drive	COMP NA DRV	NA DRV
COMP:Tone	COMP TONE	CS TNE
COMP:Level	COMP LEVEL	CS LEV
ODDS:Drive	ODDS DRIVE	OD DRV
ODDS:Tone	ODDS TONE	OD TNE
ODDS:EfectLev	ODDS E LEV	OD ELV
PRE:Gain	PRE GAIN	PreGAN
PRE:Level	PRE LEVEL	PreLEV
PRE:Bass	PRE BASS	PreBAS
PRE:Mid	PRE MID	PreMID
PRE:Treble	PRE TREBL	PreTRB
PRE:Presnce	PRE PRES	PrePRS
PRE:Mic Lev	PRE M LEV	PreMLV
EQ:Low Cut	EQ L CUT	EQ LC
EQ:Low Gain	EQ LOW	EQ LOW
EQ:Lo-MidGain	EQ L MID	EQ LMD
EQ:Hi-MidGain	EQ H MID	EQ HMD
EQ:High Gain	EQ HIGH	EQ HI
EQ:High Cut	EQ H CUT	EQ HC
DELAY:Time	DELAY TIME	DD TIM
DELAY:Feedback	DELAY FBK	DD FBK
DELAY:Hi Cut	DELAY H CUT	DD HC
DELAY:EfectLev	DELAY E LEV	DD ELV
DELAY:D1:Time	DELAY D1TIM	D1 TIM
DELAY:D1:Fbk	DELAY D1FBK	D1 FBK
DELAY:D1:HCut	DELAY D1HC	D1 HC
DELAY:D1:Lev	DELAY D1LEV	D1 LEV
DELAY:D2:Time	DELAY D2TIM	D2 TIM
DELAY:D2:Fbk	DELAY D2FBK	D2 FBK
DELAY:D2:HCut	DELAY D2HC	D2 HC
DELAY:D2:Lev	DELAY D2LEV	D2 LEV
CHORUS:Rate	CHORS RATE	CE RAT
CHORUS:Depth	CHORS DEPTH	CE DPT
CHORUS:PreDly	CHORS P DLY	CE DLY
CHORUS:E. Lev	CHORS E LEV	CE LEV
REVERB:Time	REVRB TIME	RV TIM
REVERB:Hi Cut	REVRB H CUT	RV HC
REVERB:E. Lev	REVRB E LEV	RV ELV
MASTER:Low	MST LOW	MT LOW
MASTER:Mid	MST MID	MT MID
MASTER:High	MST HIGH	MT HI
Patch Level	PATCH LEVEL	PAT LV
PDL:WAH:E. Lev	PEDAL WAH E	WA ELV
PDL:PB:E. Lev	PEDAL PB E	PB ELV
SR:Send Level	SR S LEV	SR SND
SR:Rtn Level	SR R LEV	SR RTN
NS1:Threshold	NS1 THRES	N1 THR
NS1:Release	NS1 RELE	N1 REL
NS2:Threshold	NS2 THRES	N2 THR
NS2:Release	NS2 RELE	N2 REL
GLOBAL EQ:Low	GBEQ LOW	GB LOW
GLOBAL EQ:Mid	GBEQ MID	GB MID
GLOBAL EQ:Hi	GBEQ HIGH	GB HI

LCD

Parameter/Range	Explanation
Contrast
1–16	Adjusts the contrast.

MIDI

Parameter/Range	Explanation
Rx Channel (Receive Channel)
1-16ch	This sets the MIDI channel used for receiving MIDI messages.
Omni Mode
Omni Off, Omni On	When set to “Omni On,” messages are received on all channels, regardless of the MIDI channel settings.
Tx Channel (Transmit Channel)
1-16ch, Rx	This sets the MIDI Transmit channel used for transmitting MIDI messages. When set to “Rx,” this MIDI channel is same as the Rx Channel parameter (Receive channel).
Device ID
1-32	This sets the Device ID used for transmitting and receiving Exclusive messages.
Sync Clock
This setting determines the basis used for synchronizing the timing for effect modulation rates and other time-based parameters. MEMO · When you have an external MIDI device connected, the Master BPM is then synchronized to the external MIDI device's tempo, thus disabling the Master BPM setting. To enable setting of the Master BPM, set to “Internal.” · When synchronizing performances to the MIDI Clock signal from an external MIDI device, timing problems in the performance may occur due to errors in the MIDI Clock.
Auto	When the MIDI Clock of the external MIDI device is not being received, the performance is synchronized to the tempo set in MASTER BPM; when the external MIDI device's MIDI Clock is being received from the USB or MIDI IN connector, the performance is synchronized to that.
Internal	The performance is synchronized to the tempo set in MASTER BPM.
PC Out (Program Change Out)
This setting determines whether or not Program Change messages are output when patches are switched on the GT-10B.
Off	Program Change messages are not output, even when patches are switched.
On	Program Change messages are simultaneously output when patches are switched.
EXP1/EXP Sw/CTL1/CTL2/EXP2/CTL3/CTL4 Out(Transmit Control Change)
This sets the controller number when the controller operation data is output as Control Change messages.
Off, CC#1-CC#31, CC#64-CC#95	Selects the controller.
Map Select
This setting determines whether patches are switched according to the Program Change Map settings, or to the default settings.
Fix	Switches to the patches according to the default settings.
Prog	Switches to the patches according to the Program Change Map.
PROGRAM MAP
When switching patches using Program Change messages transmitted by an external MIDI device, you can freely set the correspondence between Program Change messages received by the GT-10B and the patches to be switched to in the “PROGRAM MAP.”
Bank 0-3 /PC#1-PC#128	This sets the patch number (U01-1 through P50-4) for the corresponding Program Change number.
BULK DUMP
On the GT-10B, you can use Exclusive messages to provide another GT-10B with identical settings, and save effect settings on a MIDI sequencer or other device.
System	System Parameters
Quick	Settings for User Quick Setting
U01-1-U50-4	Settings for Patch Number U01-1 through U50-4
Temp	Settings for the patch that is currently called up

USB

Parameter/Range	Explanation
Driver Mode
Standard	This mode uses the OS's standard USB driver. MEMO You cannot use MIDI when Standard is selected as the driver mode. If you want to use MIDI with the USB connection, set the GT-10B to the advanced driver mode.
Advanced	This mode uses the special driver.
Monitor Cmd (Monitor Command)
Disable	The Direct Monitor command is disabled, maintaining the Direct Monitor mode set by the GT-10B.
Enable	The Direct Monitor command is enabled, allowing the Direct Monitor mode to be switched from a computer.
Dir.Monitor (Direct Monitor)
Off	Set this to Off if transmitting audio data internally through a computer (Thru). No sound is heard at this time unless the setting for the computer is Thru.
On	The GT-10B sound is output. Set this to On when using the GT-10B as a standalone device, without connecting to a computer (only USB input sound will be output if this is set to Off).
MEMO · This setting cannot be saved. It is set to On when the power is turned on. · If you are using the special driver, you can control Dir.Monitor On/Off from ASIO 2.0-compatible application.

OUTPUT SELECT

This selects the type of device connected to the OUTPUT jacks.

MEMO

• To derive the maximum performance from the GT-10B, be sure to make the correct setting for OUTPUT SELECT, the one that's most suitable for your setup.
• The OUTPUT SELECT function affects sounds from the OUTPUT jacks. The output from the SUB OUTPUT jacks will always be equivalent to the sound that is output when the LINE/PHONES setting is used.
• If the headphones are connected to the PHONES jack, the output from OUTPUT jack and PHONES jack will be equivalent to the sound that is output when the LINE/PHONES setting is used.

Parameter/Range	Explanation
Mode
Patch	This uses the patch's Output Select setting. You can use a different output setting for each individual patch.
System	This uses the system's Output Select setting. The same output setting is used for all patches.
Select
AMP WITH TWEETER	Use this setting when connecting to a tweeter-equipped bass amp.
AMP NO TWEETER	Use this setting when connecting to a bass amp that has no tweeter. The high-frequency range is adjusted.
LINE/PHONES	Use this setting when using headphones or when recording with the GT-10B connected to a multitrack recorder.

Signal Flow

MIDI Implementation Chart

BASS EFFECTS PROCESSOR

Model GT-10B

Date: Jan. 10, 2008

Version: 1.00

MIDI Implementation Chart

Function...		Transmitted	Recognized	Remarks
Basic Channel	Default Changed	1-16 1-16	1-16 1-16	Memorized
Mode	Default Messages Altered	X X ****	OMNI ON/OFF X X	Memorized
Note Number:	True Voice	X ****	X ****
Velocity	Note ON Note OFF	X X	X X
After Touch	Key's Ch's	X X	X X
Pitch Bend		X	X
Control Change	0,32 1-31 33-63 64-95	O (0-3) O X O	O * 1 O * 2 O * 2	Bank Select

Mode 1: OMNI ON, POLY

Mode 2: OMNI ON, MONO

O:Yes

Mode 3:OMNI OFF,POLY

Mode 4:OMNI OFF,MONO

X:No

Specifications

GT-10B: Bass Effects Processor

AD Conversion

24-bit + AF method

DA Conversion

24-bit

Sampling Frequency

44.1 kHz

Program Memories

400: 200(user) + 200(preset)

Nominal Input Level

INPUT: -10 dBu

RETURN: -10 dBu

Input Impedance

INPUT: 1 M ohm

RETURN: 220k ohms

Nominal Output Level

SUB OUTPUT: 600 ohms

Dynamic Range

100 dB or greater (IHF-A)

Digital Output

Coaxial type (conforms to IEC60958)

Display

132 × 64 dots graphic LCD (backlit LCD)

7 segments, 3 characters LED

Connectors

SUB OUTPUT jacks L, R (XLR type)

INPUT jack (1/4 inch phone type)

OUTPUT jacks L/MONO, R (1/4 inch phone type)

PHONES jack (Stereo 1/4 inch phone type)

EXT LOOP jacks SEND, RETURN (1/4 inch phone type)

AMP CONTROL jack (1/4 inch phone type)

EXP PEDAL 2/CTL3,4 jack (1/4 inch TRS phone type)

USB connector

DIGITAL OUT jack (coaxial type)

MIDI connectors IN, OUT

DC IN jack

Power Supply

DC 9 V (AC Adaptor: Roland PSB-1U)

Current Draw

800 ~mA

Dimensions

AC Adaptor (Roland PSB-1U)

Owner's Manual

Roland Service (Information Sheet)

Options

Footswitch: BOSS FS-5U

Dual Footswitch: BOSS FS-6

Expression Pedal: Roland EV-5, BOSS FV-500L/500H

Footswitch Cable: Roland PCS-31

(1/4 inch Phone plug (stereo) - 1/4 inch Phone plug (mono) x2)

• 0 ~dB u = 0.775 V r m s

NOTE

In the interest of product improvement, the specifications and/or appearance of this unit are subject to change without prior notice.

AF method (Adaptive Focus method)

This is a proprietary method from Roland & BOSS that vastly improves the signal-to-noise (S/N) ratio of the A/D and D/A converters.

Error Messages

If there has been a mistake in an operation or if the operation is not executed properly, an error message will appear in the display.

Please follow the instructions indicated in the message to resolve the issue.

"MIDI BUFFER FULL" "USB BUFFER FULL"

• The data cannot be processed correctly due to the high volume of MIDI messages.
  Reduce the volume of MIDI messages transmitted to the GT-10B.

• Transmissions from the connected device have been interrupted. This message also appears when the power to the connected device has been turned off. It does not indicate damage.
• Check to make sure no cable is disconnected and that there are no shorts.

"DATA WRITE ERROR"

• Writing to the memory for storage of user data failed.
  The unit may be damaged. Consult your Roland dealer or contact Roland Service Center.

"Out of Range! Set again"

The EXP pedal cannot be calibrated.
Confirm the calibration by carrying out the procedure once more (p. 81). If the message continues to appear even after the calibration is correctly performed, it may indicate damage or malfunction. Consult your Roland dealer or contact Roland Service Center.

Troubleshooting

If there is no sound or other operational problems occur, first check through the following solutions. If this does not resolve the problem, then consult your Roland dealer or contact Roland Service Center.

Problems with the sound

No sound / volume too low

Are the connection cables broken?
Try using a different set of connection cables.
Is the GT-10B correctly connected to the other devices?
Check connections with the other devices (p. 22).
Is the connected amp/mixer turned off, or the volume lowered?
Check the settings of your amp/mixer system.
Is the OUTPUT LEVEL knobs lowered?
Adjust the OUTPUT LEVEL knobs to an appropriate position (p. 25).
Is Tuner set to On?
When the volume is set to "Mute" in the Tuner mode, even the direct sound will not be output by setting the Tuner to "On" (p. 29).
Is each effect set correctly?
Use the "Changing the Connection Order of Effects (Effect Chain)" (p. 37) to check the output level of each effect. If there is an effect for which the meter does not move, check the settings for that effect.
Is "USB/DGT Out Lev" set to a low value?
Adjust the setting to an appropriate value (p. 135).
Is "PEDAL: FV: Level" or "MASTER: Patch Level" specified as an assign Target?
Move the controller to which it is assigned (p. 51).
Is the power to the external device connected to the EXT LOOP jack off, or is the volume of the device turned down?
Check the settings for the connected device.

Sound from devices connected to the INPUT jack is not heard in the headphones

Is the Dir.Monitor (p. 97) set to OFF?
Set to ON.

The volume level of the instrument connected to INPUT and RETURN are too low

Could you be using a connection cable that contains a resistor?
Use a connection cable that does not contain a resistor.

Oscillating sound occurs

Is the value for any gain- or volume-related effects parameter set too high?
Lower these values.
Is the INPUT SELECT (p. 63) set to "USB In?"
When set to "USB In," audio signals may, depending on the software settings, end up looping. You can use the following methods to prevent this from happening.

• Stop playback with the software, and set Soft Thru to Off.
• Switch the software's audio input off.
• Change INPUT SELECT to "Bass 1-3."

No change in preamp tone even after switching patches

Has the GT-10B been set to "System1-3" in Preamp mode (p. 73)?
When the GT-10B is set to "System1-3" in Preamp mode, the preamp settings do not change when patches are switched.

To make different preamp settings for individual patches, choose the "Patch" setting in Preamp mode.

Unable to change parameters with the knobs or dial

Are you using the Internal Pedal System (p. 55) in Assign?
When the Assign Source is set to "INTERNAL PDL", "WAVE PDL," or "INPUT LEVEL" the effect parameter set as the Assign Target changes automatically. If you want to be able to change the parameters manually with the knobs and dial, first switch off Assign to deactivate the Internal Pedal System.

Is "INPUT LEVEL" (p. 51) set as the Assign Source in Assign?
When "INPUT LEVEL" is set for the Assign Source, the effect parameter set as the Assign Target changes automatically according to the level of the input from the bass (the playing dynamics).

If you want to be able to change the parameters manually with the knobs and dial, first switch off Assign.

Other Problems

Patch does not change

Is something other than the Play screen shown in the display?
On the GT-10B, patches can be selected only when the Play screen is displayed. Press [EXIT] to return to the Play screen (p. 25).

Parameters specified with Assign can't be controlled

Could the effect be switched off?
To control a parameter using the EXP Pedal or footswitch, make sure the effect that contains the parameter you intend to control is switched on.
Is Prefernc ("preference") for Pedal Function set to the "System" setting?
Even when an assignment setting has been made for the patch, the setting made for Pedal Function (p. 48) takes precedence. To enable the setting made for the patch, for Pedal Function set the preference for the relevant controller to "Patch."
- Do the MIDI channel settings of both devices match?
Make sure that the MIDI channels of both devices match (p. 84).
- Do the controller number settings of both devices match?
Make sure that the controller number of both devices match (p. 126).
Could the expression pedal be out of adjustment?
Although the unit's expression pedal has been set for optimal operation at the factory, extended use and certain operating environments can result in the pedal going out of adjustment. Adjust the expression pedal (p. 81).

MIDI messages are not transmitted/received

Are the MIDI cables broken?
Try another set of MIDI cables.
Is the GT-10B correctly connected to the other MIDI device?
Check connections with the other MIDI device.
- Do the MIDI channel settings of both devices match?
Make sure that the MIDI channels of both devices match (p. 84).
- When you send messages from the GT-10B, make sure the GT-10B is set to the settings appropriate for sending data.
Check the on/off status for transmission of program change messages (p. 86) and the settings for the controller numbers to be transmitted (p. 86).

Numerics

2X2 CHORUS 105, 118

A

AC Adaptor 23

Amp 23-24

AMP CONTROL 23,132

AMP CONTROL Jack 13

Assign 51

ASSIGN 1-8 126

AUTO WAH 105-106

B

Bank 16

Bank Change Mode 76

Bank Extent 75

BANK Pedals 12

Bass Amp 27

BASS SIM. 105, 109

Bass Simulator 105, 109

BASS SYNTH 105, 110

BulkDump 91

Bulk Load 93

C

CATEGORY 32,40

CATEGORY NAME 41

CATEGORY/ENTER Button 12

CHORUS 121

CHORUSButton 11

COMPButton 11

COMPRESSOR/LIMITER 100

Connection 14,22

Contrast 71

Control Change 83, 89

Controller 54, 137

Copy 43

CREATE Button 11

CTL Pedal 83

CTL Pedals 12

D

DC IN Jack 13

DEFRETTER 105, 110

DELAY 119

DELAY Button 11

Dial 11

Dial Function 79

DIGITAL OUT 68

DIGITAL OUT Jack 13

Direct Monitor 97

DISPLAY MODE Button 11

Driver Mode 95

Dual-L/R 120

Dual-P 120

Dual-S 120

E

EDIT Button 11

Effect

Level 38

On and Off 34

Effect Chain 37

EFFECTS SELECT 11

ENHANCER 105, 109

EQ 105

EQ Button 11

Equalizer 105

EXITButton 11

EXP Pedal 12,83

Adjusting 81

EXP Pedal Hold 77

EXP PEDAL SW 12,83

EXP PEDAL/CTL 3,4 Jack 13

Expression Pedal 23

EXT LOOP Jacks 13

External Effects 24, 27

EZ TONE 11,33,134

CREATE 33

EDIT 33

EZ Tone 20

F

Factory Reset 80

Factory Settings 80

FLANGER 105, 114

Foot Switch 23

FootVolume 125

Fretless Bass 110

FX-1 105

FX-1 Button 11

FX-2 105

FX-2 Button 11

G

Global 64

Global EQ 64

GND LIFT Switch 13

GRAPHIC EQ 105, 108

Graphic Equalizer 105, 108

H

HARMONIST 105, 112

Harmonist Scale 113

HUMANIZER 105, 117

1

Initialize 44

INPUT Jack 13

Input Level 63

Input Presence 63

Input Select 63

INPUT/OUTPUT 134

Internal Pedal 55, 126

Internal Pedal System 55

K

KEY 122

Knob View 35

L

LCD Contrast 71, 139

Level Meter 38

LINE/PHONES 26

List View 35

M

Main Out Level 67

Manual Mode 56

MANUAL MODE SETTING 136

Manual Settings 52

MASTER 122

MASTER BPM 122

MASTER/PEDAL FX Button 11

MIDI 83,139

MIDI IN/OUT Connectors 13

MIDI Map Select 88

MIDI Sequencer 93

MODE switch 23

Modulate 120

N

NAME

CATEGORY 41

PATCH 42

Noise Suppressor 132

NS 132

Number 16

Number Pedal 16,58

Number Pedals 12

0

OCTAVE 105, 111

OD/DS 101

OD/DS Button 11

OUTPUT Jacks 13

OUTPUT L/MONO 23

OUTPUT LEVEL 25

OUTPUT LEVEL Knob 11

OUTPUT SELECT 141

Output Select 26

OUTPUT SELECT Button 11

Overdrive/Distortion 101

P

PAN 105, 115

Pan 120

PARAEQ 105,108

Parameter 36

Parameter Knobs 11

Parametric Equalizer 105, 108

PATCH

COPY 43

EXCHANGE 44

INITIALIZE 44

SELECT 16

WRITE 43

Patch 16,30

Patch Change Mode 72

PATCH NAME 42

PEAK 106

Pedal 48

Pedal Bend 124

Pedal Function 48

PEDAL FX 49,122

Pedal Indicate 78

PHASER 105, 114

PHONES Jack 13

Phrase

Deleting 60

Over dubbing 59

Recording 59

PHRASE LOOP 12,59,135

PITCH SHIFTER 105, 111

PLAY OPTION 136

Play Screen 24

POLARITY switch 23

POWER Switch 13

PREAMP 102

PREAMP Button 11

Preamp Mode 73

Preset Bank 30

Program Change 83

Program Change Map 88

Q

QUICK FX WRITE 45

Quick Setting 35

R

RETURN 131

REVERB 121

REVERB Button 11

RING MOD. 105, 117

Ring Modulator 105, 117

RISE TIME 120

ROTARY 105, 115

s

Saving a Patch 43

SELECT Button 11

SEND 131

SEND/RETURN 131

SEND/RETURN Jacks 15

SLICER 105, 116

SLOWGEAR 105,110

SOUND HOLD 105, 113

Speaker 23

SUBCOMP 105,107

Sub Compressor 105, 107

SUB DELAY 105, 118

SUB LIMITER 105, 108

SUB OUTPUT 69-70

SUB OUTPUT Jack 13,69-70

SUB WAH 105, 107

SW&PDL FUNCTION 122

Swap 44

SYSTEM 134

SYSTEMButton 11

T

T.WAH 105-106

Target 54

TARGETPARAMETER 127

TONE MODIFY 105, 109

Total Noise Suppressor 65

Total REVERB 66

Touch Wah 105-106

TREMOLO 105, 115

TUNER 27,134

Tuner 27

TUNER/BYPASS Button 12

TYPE 102, 119

U

UNI-V 105, 115

USB 94

USB Connector 13

USB Driver 94

User Bank 30

User Patch 30,44

User Quick Setting 45

User Scale 113

V

VIBRATO 105, 116

View

Knob 35

List 35

Volume 23

Volume-swell Effect 110

W

WAH 123

Warp 120

Wave Pedal 55, 126

Write 43

WRITE Button 12

MEMO

有关产品中所含有害物质的说明

This symbol indicates that in EU countries, this product must be collected separately from household waste, as defined in each region. Products bearing this symbol must not be discarded together with household waste.

• Microsoft and Windows are registered trademarks of Microsoft Corporation.
• Windows® is known officially as: "Microsoft® Windows® operating system."
• Apple and Macintosh are registered trademarks of Apple Inc.
• Mac OS is a trademark of Apple Inc.
• All product names mentioned in this document are trademarks or registered trademarks of their respective owners.

For the U.K.

IMPORTANT: THE WIRES IN THIS MAINS LEAD ARE COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE.

BLUE: NEUTRAL

BROWN: LIVE

As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured BLACK. The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured RED.

Under no circumstances must either of the above wires be connected to the earth terminal of a three pin plug.

This product complies with the requirements of EMC Directive 2004/108/EC.

For EU Countries

For the USA

FEDERAL COMMUNICATIONS COMMISSION RADIO FREQUENCY INTERFERENCE STATEMENT

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

Unauthorized changes or modification to this system can void the users authority to operate this equipment.

This equipment requires shielded interface cables in order to meet FCC class B Limit.

For Canada

NOTICE

This Class B digital apparatus meets all requirements of the Canadian Interference-Caising Equipment Regulations.

AVIS

DECLARATION OF CONFORMITY

Compliance Information Statement

Model Name : GT-10B

Type of Equipment : Bass Effects Processor

Responsible Party : Roland Corporation U.S.

Address: 5100 S.Eastern Avenue,

Telephone: [phone]
