LBL16AZ - Washing machine SMEG - Free user manual and instructions

Product Type	Freestanding Washing Machine
Brand	Smeg
Model	LBL16AZ
Loading Type	Front Load
Capacity (kg)	8 kg
Dimensions (H x W x D)	850 x 595 x 595 mm
Weight	70 kg
Energy Class	A+++
Spin Speed (rpm)	1600
Number of Programs	15
Display	LED Digital
Noise Level (Wash/Spin)	52 dB / 76 dB
Water Consumption per Cycle (L)	50
Annual Energy Consumption (kWh)	200
Power Supply	220-240 V, 50 Hz
Main Features	Delay Start, Quick Wash, Child Lock, Eco Wash
Maintenance	Clean detergent drawer, filter, drum
Safety	Child lock, Aquastop
Spare Parts Availability	10 years
Country of Origin	Italy

Frequently Asked Questions - LBL16AZ SMEG

How do I install the Smeg LBL16AZ washing machine?

Ensure the machine is on a level surface, remove transit bolts, connect water inlet hose to cold water tap, connect drain hose to a standpipe or sink, and plug into a grounded outlet. Refer to the manual for detailed steps.

What do the different wash programs mean?

Programs include Cotton, Synthetics, Delicates, Wool, Quick 30 min, and Eco. Each is optimized for fabric type and soil level.

How do I clean the detergent drawer?

Pull out the drawer, remove the insert, rinse under warm water, and scrub with a brush. Reassemble after drying. Do this every 2 months.

Why is my machine not spinning?

Check if the load is unbalanced, or if the drain filter is clogged. Also ensure the spin speed is set appropriately and the child lock is off.

How do I activate the child lock?

Press and hold the Child Lock button for 3 seconds until the indicator lights up. Repeat to deactivate.

What does the error code E01 mean?

E01 indicates a water inlet issue. Check that the water tap is open, the inlet hose is not kinked, and the filter in the inlet valve is clean.

How often should I clean the filter?

Clean the drain filter every 3 months or when you notice drainage issues. Turn off the machine, remove the filter cap, extract and clean debris.

Can I use liquid detergent?

Yes, use the liquid detergent compartment in the drawer. Avoid overfilling; follow the dosage instructions on the detergent bottle.

What is the maximum load for a quick wash?

The Quick 30 min program is designed for a maximum load of 2 kg of lightly soiled laundry.

How do I prevent mold in the drum?

Leave the door ajar after each wash, regularly run a drum cleaning cycle (if available) or a hot empty wash with a cleaner, and wipe the door seal.

USER MANUAL LBL16AZ SMEG

Instructions for use of the LBL16

Washing Machine with integrated sink

Index

Page

1. Instructions for unpacking and transport 2
2. Plinth disassembly 3
3. Rubber strap disassembly 4
4. Rubber strap use 5
5. Door disassembly 6
6. Cleaning 7
7. Caution 7
8. Instructions for unpacking and transport

NO NO

2. Plinth dismount

1) With a screwdriver, make lever on the points .... 2) ... indicated, with a movement from the bottom to the upper ...

3) in order to permit the plastic tooth, on the plinth, to come out from the site 4) After the described operation on both sides, proceed with the plinth dismount following the order in picture.

5) For the assemblage of the plinth, follow the order on the picture. 6) Finish the operation with a light pressure on the points in picture. The "click" sound will indicate that the plinth is assembled.

3. Rubber strap dismount

3) ... with a light pressure... 4) and the extract them.

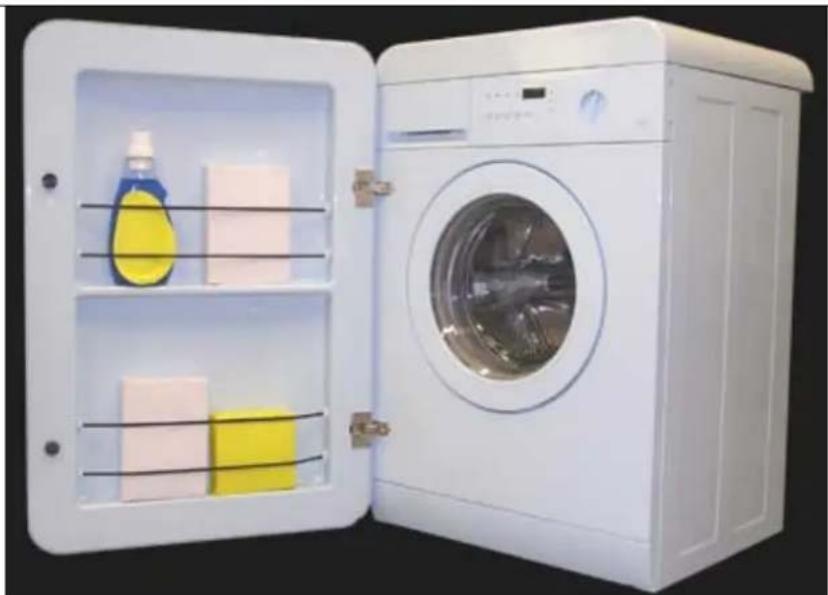

4. Rubber strap use

In picture, the possibility to insert some products in the vain can be appreciated ...

ATTENTION:

Weight Max 4.0 kg

... these products are of daily use, e.g. detergents, softener etc.

ATTENTION

This appliance is intended for use by adults.

Do not allow children to tamper with the controls or play with the washing machine.

Do not allow children to approach the appliance.

Keep children away from the appliance.

5. Door dismount

1) To remove the door, unscrew the indicated screw

2) on both the hinges (cross screwdriver)

3) support the door and extract ... 4) .. the hinges from their sites.

6. Instruction for cleaning

ATTENTION !!

Only use non-abrasive sponges, soap and water to clean the washing machine!!

Never use the following:

• Abrasive sponges (e.g.: for washing dishes, etc.)
• Powder cleansers and detergents that could ruin the surface of the basin

To preserve the external appearance of the sink, never allow the following materials to come into contact with it:

• Nail varnish removers
• Stain removers
• Drain cleaners
• Ethanol
• Solvents • Acids at any concentration level
• Engine oil
• Chloroform
• Ether
• Formalin
• Iodine

7. Caution

The washbasin only works if the washing machine is powered (plug inserted).
