B-455M - Food processor FAGOR - Free user manual and instructions

USER MANUAL B-455M FAGOR

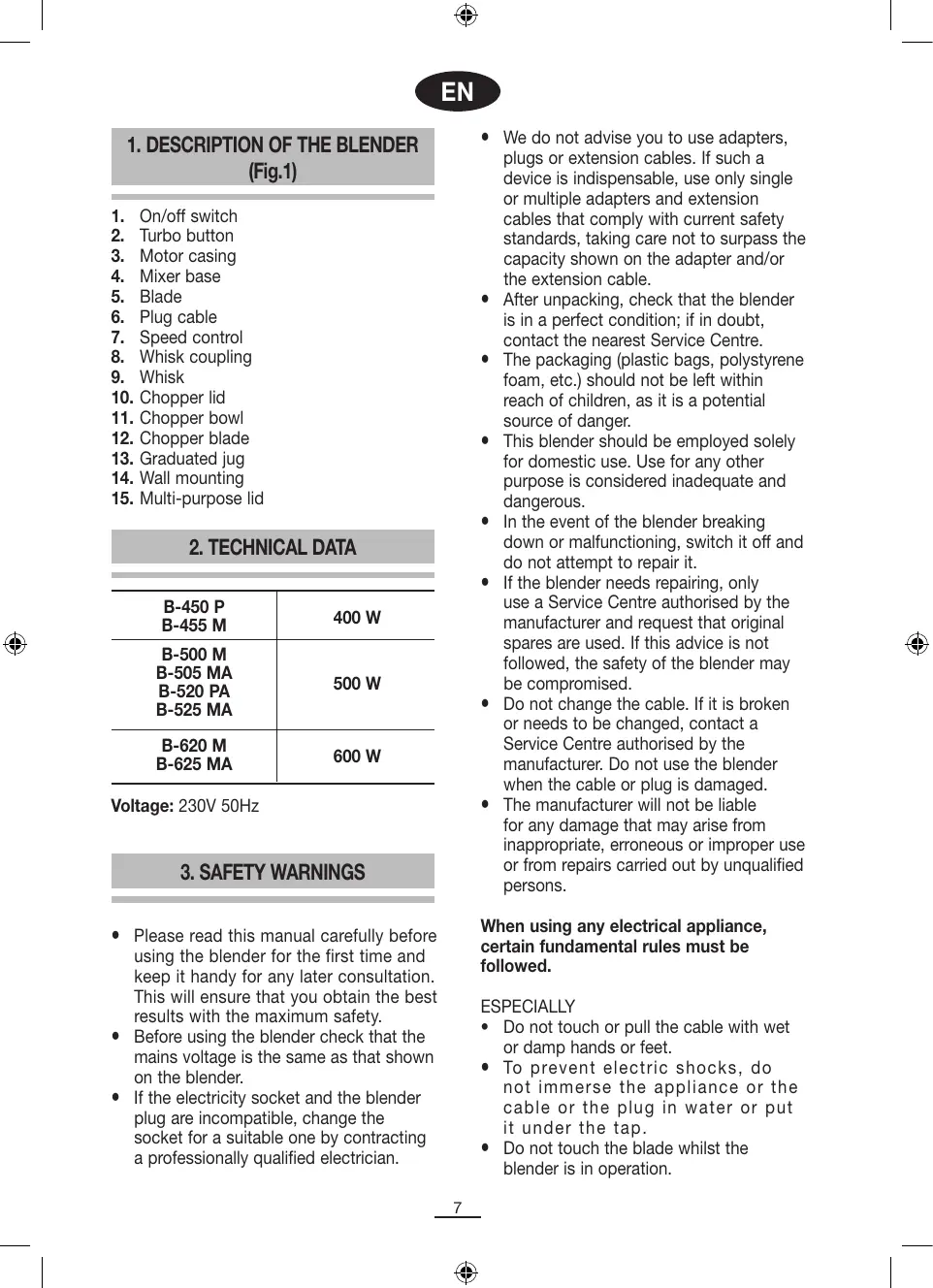

• We do not advise you to use adapters,

When using any electrical appliance, certain fundamental rules must be followed.

• Please read this manual carefully before

plugs or extension cables. If such a device is indispensable, use only single or multiple adapters and extension cables that comply with current safety standards, taking care not to surpass the capacity shown on the adapter and/or the extension cable. After unpacking, check that the blender is in a perfect condition; if in doubt, contact the nearest Service Centre. The packaging (plastic bags, polystyrene foam, etc.) should not be left within reach of children, as it is a potential source of danger. This blender should be employed solely for domestic use. Use for any other purpose is considered inadequate and dangerous. In the event of the blender breaking down or malfunctioning, switch it off and do not attempt to repair it. If the blender needs repairing, only use a Service Centre authorised by the manufacturer and request that original spares are used. If this advice is not followed, the safety of the blender may be compromised. Do not change the cable. If it is broken or needs to be changed, contact a Service Centre authorised by the manufacturer. Do not use the blender when the cable or plug is damaged. The manufacturer will not be liable for any damage that may arise from inappropriate, erroneous or improper use or from repairs carried out by unqualified persons. using the blender for the first time and keep it handy for any later consultation. This will ensure that you obtain the best results with the maximum safety. Before using the blender check that the mains voltage is the same as that shown on the blender. If the electricity socket and the blender plug are incompatible, change the socket for a suitable one by contracting a professionally qualified electrician. ESPECIALLY

• Do not touch or pull the cable with wet or damp hands or feet.
• To prevent electric shocks, do not immerse the appliance or the cable or the plug in water or put it under the tap.
• Do not touch the blade whilst the blender is in operation.

• The whisk should be fitted or removed

B-625MA, select the speed by turning the speed control (7). If necessary, push the Turbo button (2) to blend at high speed. only when the appliance is unplugged. Do not allow the cable to hang over the edge of a table or work-surface or to come into contact with hot surfaces. Do not pull the cable to unplug the appliance. Unplug the blender when it is not in use, before fitting or removing the mixer base and before cleaning it. Do not allow children to use the appliance. Before connecting the blender, ensure that the mixer base is correctly fitted to the appliance. Do not use or place any part of the blender on or near to hot surfaces (gas or electric hotplates or ovens). Operating the whisk Push the whisk into the blender coupling until it locks (Fig. 5). Afterwards, connect it to the body of the blender (Fig. 6). Place the blender in the container, connect the plug to the mains and push the on/off switch to begin beating. Use the speed control to select the speed (models B-520PA, B-505MA, B-525MA and B-625MA only) or push the Turbo button. You may use the jug (13) or another container for whisking. The contents of the bowl can be stored using the corresponding lid. Operating the chopper (models B-505MA, B-520 PA, B-525MA, B-625MA)

The chopper may be used with dried fruits, herbs, hard-boiled eggs, dry bread, etcetera. Fit the chopper blade (12) on the bowl’s shaft. Place the ingredients to be chopped into the chopping bowl. Fit the motor body (3) onto the blender coupling (8), turning it anticlockwise until it fits firmly into place. Fit the blender coupling (8) onto the mincer lid (10) (fig. 3). Insert the plug into a mains socket and push the on/off switch. Use the speed control (7) to select a speed (models B-520PA, B-525MA, B-620M and B-625MA only) or push the Turbo button (2) to chop more rapidly. Once you have finished chopping, make sure that you remove the blade from the bowl before emptying out the contents. Once you have finished chopping, you can store the contents of the bowl by using the multi-purpose lid (15) to seal it hermetically. Afterwards you can serve the contents by turning the revolving part of the multipurpose lid until it coincides with the holes prepared in the fixed part of the lid (Fig. 4). Preparing for use This blender is designed to process small quantities of foodstuff and should not be used for any other purpose. Before using for the first time, clean the casing of the motor with a damp cloth. Wash the shaft and the blade in hot, soapy water; do not immerse the upper part of the shaft. Dry all the pieces thoroughly. IMPORTANT: Before fitting or removing any of the parts of this blender, unplug it from the mains. Operating the blender The blender is suitable for processing light foodstuffs, such as preparing sauces, soups, mayonnaise or purées. Fit the accessory that you are going to use to the motor casing, turning it in an anticlockwise direction until it is properly and securely fitted. Once the mixer base is fitted (4), plug the blender into the mains. Place the food to be processed in a suitable container and place the blender in the position shown in Figure 2. Push the on/off switch (1). If using models B-520PA, B-525MA, B-620M and Wall mounting The wall mounting allows the blender to be attached to a wall. To install the wall

mounting, use the screws supplied with the product, ensuring that they are properly secured. authority or the shop where you bought the product. Cleaning and maintenance Disconnect the blender and unplug it from the mains before carrying out any maintenance or cleaning. Wash all the accessories immediately after use in order to prolong their useful life. Take care when handling the blades, as they are very sharp, and keep them out of the reach of children. The jugs (11 and 13) and the egg whisk (9) are dishwasher safe. Use a damp cloth to clean the surfaces of exterior parts.

NOTE: NEVER IMMERSE THE MOTOR

CASING, THE CHOPPER CASING OR

THE WHISK CASING IN ANY LQIUID. Do not allow the cable to hang over the edge of tables or work-surfaces or to come into contact with surfaces hot to the touch.

5. INFORMATION FOR THE CORRECT

DISPOSAL OF ELECTRICAL AND

ELECTRONIC APPLIANCES At the end of its working life, the product must not be disposed of as urban waste. It must be taken to a special local authority differentiated waste collection centre or to a dealer providing this service. Disposing of a household appliance separately avoids possible negative consequences for the environment and health deriving from inappropriate disposal and enables the constituent materials to be recovered to obtain significant savings in energy and resources. To remind you that you must collaborate with a selective collection scheme, the symbol shown appears on the product warning you not to dispose of it in traditional refuse containers. For further information, contact your local
