B-450P - Food processor FAGOR - Free user manual and instructions

Product type	Food processor (hand blender)
Brand	FAGOR
Model	B-450P
Power	400 W
Voltage	230 V ~ 50 Hz
Speeds	Fixed speed with Turbo function (maximum speed)
Functions	Blending, whisking
Included accessories	Blending leg, whisk, measuring cup, wall mount
Motor unit material	Plastic
Blade material	Stainless steel
Control type	On/Off switch and Turbo button
Cable length	Approximately 1 m
Maintenance	Clean the accessories with soapy water, wipe the motor unit with a damp cloth; do not immerse the motor unit
Dishwasher safe	Measuring cup and whisk compatible (bowl not provided)
Safety	Unplug before assembly/disassembly; do not touch the blades while operating; do not use if cord is damaged
Repairability	Contact an authorized Technical Assistance Service
Usage	Household use only

Frequently Asked Questions - B-450P FAGOR

How to use the whisk?

Insert the whisk into its housing until it locks, then attach the housing to the motor unit. Place the whisk in the container, plug in the appliance, and press On/Off. Use the Turbo button for maximum speed.

How to clean the food processor?

Unplug the appliance. Clean the motor unit with a damp cloth. Wash the accessories (blending leg, whisk, measuring cup) in warm soapy water. The measuring cup and whisk are dishwasher safe. Never immerse the motor unit.

Can I chop nuts with this appliance?

No, the chopping function is not available on the B-450P model. Use the blender for light preparations such as sauces, soups or purées. For chopping, opt for a dedicated chopper.

What to do if the appliance does not work?

Check that the plug is properly inserted and that the blending leg is securely locked. If the problem persists, do not attempt to repair it yourself. Contact an authorized Technical Assistance Service.

Can I use the blender in hot liquids?

Yes, but avoid immersing the motor unit in steam. Use a suitable container and do not exceed 60 °C to avoid any risk of burns or damage.

How to install the wall mount?

Use the provided bolts to securely fix the mount to the wall. Make sure it is tight. Hang the blender by the motor unit.

What is the function of the Turbo button?

The Turbo button allows the appliance to run at maximum speed temporarily. Hold it down for an extra boost of power while blending.

Can I blend ice?

No, this appliance is not designed to crush ice. Use it only for soft foods or liquids.

Does the appliance have a speed control?

No, the B-450P model has a fixed speed. You have an On/Off switch and a Turbo button to access maximum speed.

How to dispose of the appliance at the end of its life?

Do not dispose of it with household waste. Take it to a collection center for waste electrical and electronic equipment (WEEE) or return it to your retailer.

USER MANUAL B-450P FAGOR

The manufacturer reserves the right to modify the models described in this User's Manual.

Illustration of two Varimix brand electric shaver devices, one with a turbo button and the other with a fagor sensor (no text or symbols on device body)

BATIDORA DE VARILLA / BATEDEIRA DE VARETA / HAND BLENDER /

MIXEUR À MAIN / STABMIXER / FRULLATORE AD IMMERSIONE / PABΔΟΣ ΜΠΛENTEP

BOTMIXER / RUČNÍ TYČOVÝ MIXÉR SE ŠLEHAČEM /

RUČNÝ TYČOVÝ MIXÉR SO ŠL'AHACOM / BLENDER / PACATOR / MIKCEP

MOD.:

B-450P, B-455M, B-500M, B-505MA,

B-520PA, B-525MA, B-620M, B-625MA

Illustration of a hand using a Fanook brand applicator to lift a food processor into a blender (no text or symbols visible)

Line drawing of a kitchen grater with a lid and handle, showing a circular arrow indicating rotation (no text or symbols)

Fig. 5 Abb. 5 Eik. 5

1. Ábra Obr. 5 Rys 5

Фиг. 5 Рис.5

Fig. 6 Abb. 6 Eik. 6

1. Ábra Obr. 6 Rys 6

Фиг. 6 Рис.6

Diagram showing a hand holding a whisk and pouring liquid into a container (no text or symbols)

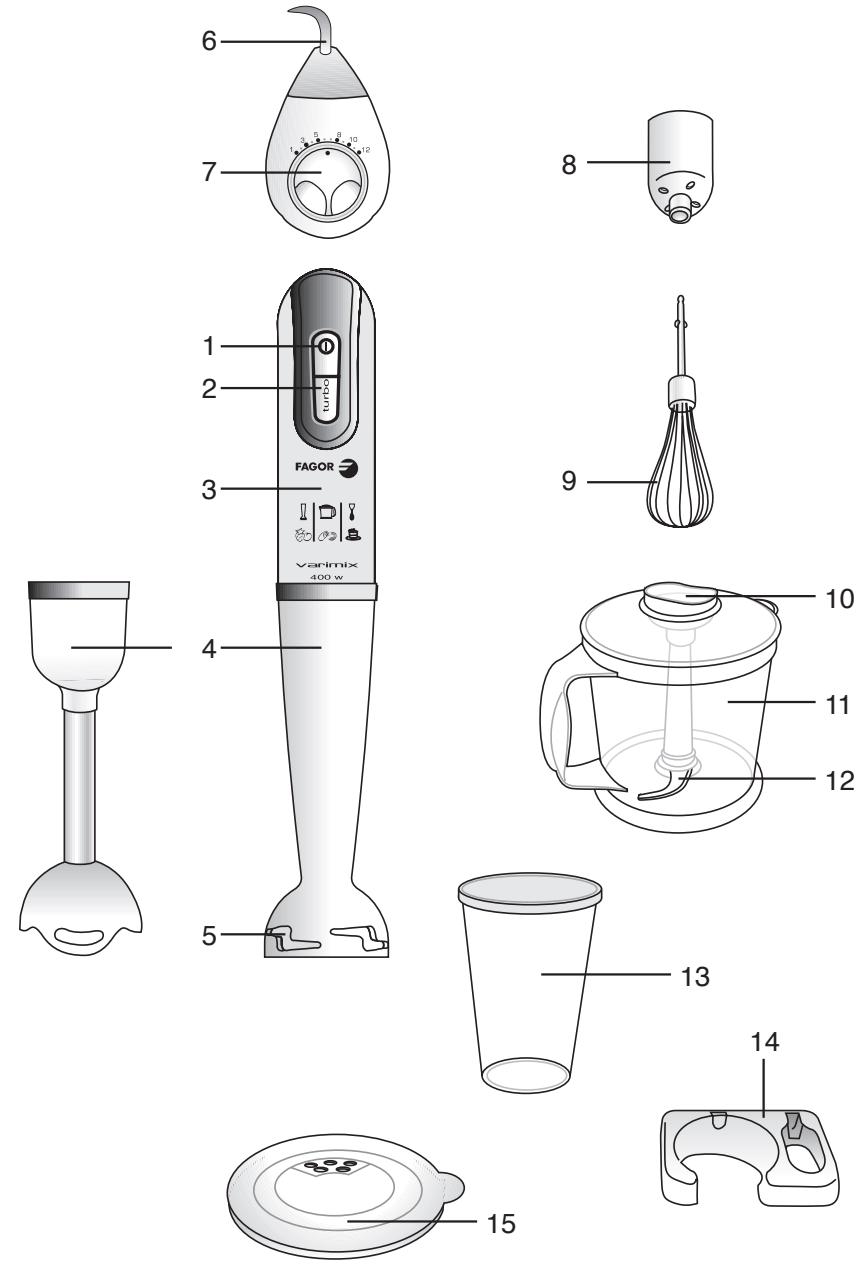

Fig.1 Abb.1 Eik.1

1. Ábra Obr.1 Rys 1

Фиг.1 Рис.1

• Please read this manual carefully before using the blender for the first time and keep it handy for any later consultation. This will ensure that you obtain the best results with the maximum safety.
• Before using the blender check that the mains voltage is the same as that shown on the blender.

• If the electricity socket and the blender plug are incompatible, change the socket for a suitable one by contracting a professionally qualified electrician.

• We do not advise you to use adapters, plugs or extension cables. If such a device is indispensable, use only single or multiple adapters and extension cables that comply with current safety standards, taking care not to surpass the capacity shown on the adapter and/or the extension cable.

• After unpacking, check that the blender is in a perfect condition; if in doubt, contact the nearest Service Centre.
• The packaging (plastic bags, polystyrene foam, etc.) should not be left within reach of children, as it is a potential source of danger.
• This blender should be employed solely for domestic use. Use for any other purpose is considered inadequate and dangerous.
• In the event of the blender breaking down or malfunctioning, switch it off and do not attempt to repair it.
• If the blender needs repairing, only use a Service Centre authorised by the manufacturer and request that original spares are used. If this advice is not followed, the safety of the blender may be compromised.
• Do not change the cable. If it is broken or needs to be changed, contact a Service Centre authorised by the manufacturer. Do not use the blender when the cable or plug is damaged.
• The manufacturer will not be liable for any damage that may arise from inappropriate, erroneous or improper use or from repairs carried out by unqualified persons.

When using any electrical appliance, certain fundamental rules must be followed.

ESPECIALLY

• Do not touch or pull the cable with wet or damp hands or feet.
• To prevent electric shocks, do not immerse the appliance or the cable or the plug in water or put it under the tap.

• Do not touch the blade whilst the blender is in operation.

• The whisk should be fitted or removed only when the appliance is unplugged.

• Do not allow the cable to hang over the edge of a table or work-surface or to come into contact with hot surfaces.
• Do not pull the cable to unplug the appliance.
• Unplug the blender when it is not in use, before fitting or removing the mixer base and before cleaning it.
• Do not allow children to use the appliance.
• Before connecting the blender, ensure that the mixer base is correctly fitted to the appliance.
• Do not use or place any part of the blender on or near to hot surfaces (gas or electric hotplates or ovens).

4. OPERATION

Preparing for use

This blender is designed to process small quantities of foodstuff and should not be used for any other purpose.

Before using for the first time, clean the casing of the motor with a damp cloth. Wash the shaft and the blade in hot, soapy water; do not immerse the upper part of the shaft. Dry all the pieces thoroughly.

IMPORTANT: Before fitting or removing any of the parts of this blender, unplug it from the mains.

Operating the blender

The blender is suitable for processing light foodstuffs, such as preparing sauces, soups, mayonnaise or purées.

Fit the accessory that you are going to use to the motor casing, turning it in an anti-clockwise direction until it is properly and securely fitted.

Once the mixer base is fitted (4), plug the blender into the mains. Place the food to be processed in a suitable container and place the blender in the position shown in

Figure 2. Push the on/off switch (1). If using models B-520PA, B-525MA, B-620M and

B-625MA, select the speed by turning the speed control (7). If necessary, push the Turbo button (2) to blend at high speed.

Operating the whisk

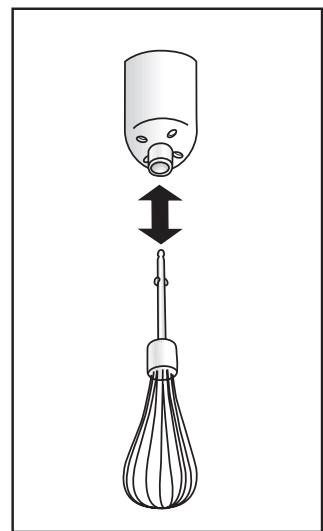

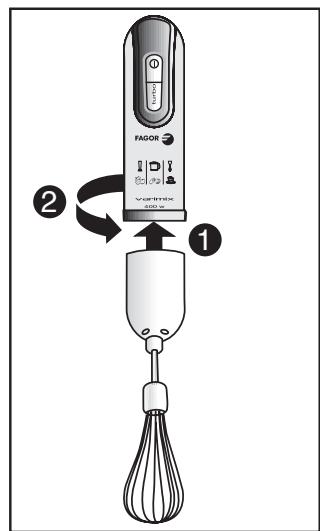

Push the whisk into the blender coupling until it locks (Fig. 5). Afterwards, connect it to the body of the blender (Fig. 6). Place the blender in the container, connect the plug to the mains and push the on/off switch to begin beating. Use the speed control to select the speed (models B-520PA, B-505MA, B-525MA and B-625MA only) or push the Turbo button.

You may use the jug (13) or another container for whisking. The contents of the bowl can be stored using the corresponding lid.

Operating the chopper (models B-505MA, B-520 PA, B-525MA, B-625MA)

The chopper may be used with dried fruits, herbs, hard-boiled eggs, dry bread, etcetera.

Fit the chopper blade (12) on the bowl's shaft. Place the ingredients to be chopped into the chopping bowl. Fit the motor body (3) onto the blender coupling (8), turning it anticlockwise until it fits firmly into place. Fit the blender coupling (8) onto the mincer lid (10) (fig. 3). Insert the plug into a mains socket and push the on/off switch. Use the speed control (7) to select a speed (models B-520PA, B-525MA, B-620M and B-625MA only) or push the Turbo button (2) to chop more rapidly. Once you have finished chopping, make sure that you remove the blade from the bowl before emptying out the contents.

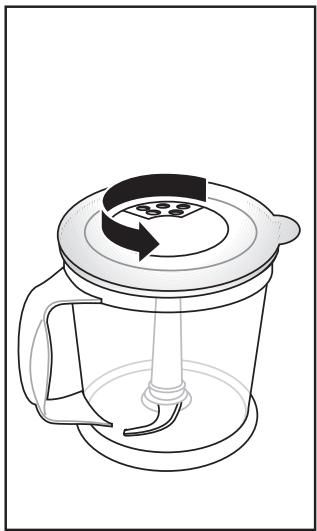

Once you have finished chopping, you can store the contents of the bowl by using the multi-purpose lid (15) to seal it hermetically. Afterwards you can serve the contents by turning the revolving part of the multi-purpose lid until it coincides with the holes prepared in the fixed part of the lid (Fig. 4).

Wall mounting

The wall mounting allows the blender to be attached to a wall. To install the wall

mounting, use the screws supplied with the product, ensuring that they are properly secured.

Cleaning and maintenance

Disconnect the blender and unplug it from the mains before carrying out any maintenance or cleaning. Wash all the accessories immediately after use in order to prolong their useful life. Take care when handling the blades, as they are very sharp, and keep them out of the reach of children. The jugs (11 and 13) and the egg whisk (9) are dishwasher safe.

Use a damp cloth to clean the surfaces of exterior parts.

NOTE: NEVER IMMERSE THE MOTOR CASING, THE CHOPPER CASING OR THE WHISK CASING IN ANY LQUID.

Do not allow the cable to hang over the edge of tables or work-surfaces or to come into contact with surfaces hot to the touch.

authority or the shop where you bought the product.

5. INFORMATION FOR THE CORRECT DISPOSAL OF ELECTRICAL AND ELECTRONIC APPLIANCES

At the end of its working life, the product must not be disposed of as urban waste. It must be taken to a special local authority differentiated waste collection centre or to a dealer providing this

service. Disposing of a household appliance separately avoids possible negative consequences for the environment and health deriving from inappropriate disposal and enables the constituent materials to be recovered to obtain significant savings in energy and resources.

To remind you that you must collaborate with a selective collection scheme, the symbol shown appears on the product warning you not to dispose of it in traditional refuse containers.

For further information, contact your local
