Product type	Cooker hood
Brand	Bosch
Model	DWK096625
Dimensions (W x D x H)	90 x 50 x 60 cm
Weight	15 kg
Power supply	220-240 V, 50 Hz
Motor power	200 W
Maximum air flow	750 m³/h
Maximum noise level	65 dB
Lighting	2 x LED 3 W
Grease filter	Metal, dishwasher-safe
Charcoal filter	Optional, replace every 6 months
Controls	Push buttons
Number of speeds	3
Venting type	Recirculation or external venting
Outlet diameter	150 mm
Energy class	A+
Filter cleaning	Monthly
Exterior cleaning	Damp cloth, no abrasive cleaners
Automatic shut-off	Not specified
Warranty	2 years
Spare parts available	Filters, bulbs, remote control (optional)

Frequently Asked Questions - DWK096625 BOSCH

How to install the DWK096625 hood?

Installation must be carried out by a professional. Ensure the wall mounting is sturdy and the dimensions match. Follow the assembly instructions provided in the manual.

How to clean the grease filters?

The metal grease filters are dishwasher-safe or can be washed by hand with hot water and detergent. Allow them to dry completely before reinstalling. Clean them monthly.

What to do if the hood does not turn on?

Check the power supply (fuse, circuit breaker). Make sure the plug is connected. If the problem persists, contact Bosch customer service.

How to adjust the hood speed?

Use the push buttons on the control panel. Press the desired speed button (usually 3 levels). A higher speed is recommended for strong odors or steam.

Can the hood be used without external venting?

Yes, the hood operates in recirculation mode with a charcoal filter (sold separately). The air is purified then returned to the room. This mode requires the installation of a recirculation kit.

What is the difference between recirculation and venting?

In venting mode, air is expelled outside through a duct. In recirculation mode, air passes through a charcoal filter to remove odors before being recirculated into the kitchen. Recirculation is easier to install but requires periodic replacement of the charcoal filter.

How to replace the LED bulb?

Turn off the power supply. Remove the bulb cover (clip or screw). Disconnect the LED bulb and replace it with a bulb of the same type (3 W, GU10 base for example). Replace the cover and restore power.

Why is the hood making noise?

Excessive noise may be due to a clogged filter, incorrect installation, or vibrations. Clean the filters, check that the hood is securely fastened and screws are tightened. If the noise persists, contact customer service.

How to reset the filter saturation indicator?

After cleaning or replacing the filters, press and hold the reset button (usually the lighting button or a specific button) for 3 seconds until the indicator turns off.

Where to find spare parts for the DWK096625?

Spare parts (filters, bulbs, etc.) are available from Bosch customer service or approved spare parts websites. Use the model reference to order.

USER MANUAL DWK096625 BOSCH

DKE 995 F

de Gebrauchsanleitung en Instructions for Use fr Mode d'emploi nl Gebruiksaanwijzing it Instruzioni sull'uso es Instrucciones de manejo pt Instruções de Serviçio sv Bruksanvisning no Bruksanvisning fi Käyttöohje da Brugsanvisning

Household Appliances

Filter and Maintenance

Grease filter:

Malfunctions

Rainbow air pressure can be obtained, provided combustion air can escape through non-lockable openings, e.g. in doors, windows, air-intake/exhaust-air wall boxes or by other technical procedures, such as reciprocal interlocking, etc.

An air-intake/exhaust-air wall box by itself is no guarantee that the limiting value will not be exceeded.

Note: When assessing the air pressure, the entire ventilation system in the house/apartment must be taken into account. If using cooking appliances, e.g. hob and/or gas cooker, this rule does not apply.

Government regulations must be observed for the conveyance of exhaust air.

Operating mode

Exhaust-air mode:

☐ The extractor-hood fan extracts the kitchen vapours and conveys them through the grease filter into the atmosphere. ☐ The grease filter absorbs the solid particles in the kitchen vapours. ☐ The kitchen is kept almost free of grease and odours.

If the extractor hood is in exhaust-air mode and a flue-type heater is running at the same time (e.g. gas, oil or solid-fuel heaters, continuous-flow heaters, water heaters), ensure that the fireplace has an adequate air supply for combustion.

Safe operation requires that the low air pressure in the room in which the fireplace is located does not exceed 4 Pa (0.04 mbar).

Before using for the first time

Important notes:

This extractor hood complies with all relevant safety regulations.

Repairs should only be carried out by qualified specialists.

Improperly executed repairs can give rise to significant hazards for the user.

The appliance is not intended for use by young children or infirm persons without supervision. Young children should be supervised to ensure they do not play with the appliance. The appliance should only be connected up to the mains and taken into use by a qualified specialist. Dispose of packaging materials properly (see Installation instructions). Light bulbs must always be fitted when the extractor hood is in use. Defective bulbs should be replaced immediately to prevent the remaining bulbs from overloading.

Before using for the first time

Never operate the extractor hood without a grease filter. Overheated fat or oil can easily catch fire.

If you are cooking with fat or oil, e.g. chips, etc., never leave the cooker unattended.

Do not flambé food directly under the extractor hood.

Risk of grease filter catching fire due to flames.

Restrictions apply to the use of the extractor hood over a solid-fuel burner (coal, wood, etc.). (See Installation instructions).

Gas hobs / gas cookers

Always use gas hobs in a proper and safe manner.

Important:

The flames from the gas hob must always be covered by pots or pans.

The intense heat generated by the gas flames could cause damage to the extractor hood. The heat load of all the hotplates which is produced during operation must not exceed 11.3 kW, irrespective of the installed nominal output. Exception: The hotplates may be operated briefly (max. 15 minutes) at a heat load up to 13.5 kW if at least fan setting 2 has been permanently switched on. (Otherwise, there is a risk of burns if the housing surfaces are touched).

Operating procedure

The most effective method of removing vapours produced during cooking is to:

Switch the ventilator ON as soon as you begin cooking. Switch the ventilator OFF a few minutes after you have finished cooking.

Fan OFF Reduce fan speed Fan ON and increase speed

Acoustic signal:

When a button is pressed, this is verified by an acoustic signal.

Switching off the acoustic signal:

Simultaneously press buttons 0 and + until a signal is emitted after approx. 3 seconds.

Switching on the acoustic signal:

Repeat the process.

Setting the required fan speed:

Press the + button. The fan speed is increased by one step. Press the – button. The fan speed is reduced by one step.

Press the 0 button. The displayed goes out shortly afterwards.

Or:

- Keep pressing the – button until the fan switches off. The displayed ☐ goes out shortly afterwards.

Operating procedure

Intensive setting:

Maximum power is obtained at the intensive setting. It is only required for short intervals.

☐ Keep pressing the + button until a 📋 appears in the display. ☐ If the intensive setting is not cancelled by hand, the fan will automatically switch back to step 2 after 10 minutes.

Fan follow-on:

☐ Press the →button. The fan continues to run at step 1 for 10 minutes, and at the same time a dot flashes in the display. After this period the fan switches off automatically.

Lighting:

Briefly press the 🔒 button to switch the light on and off. ☐ The light can be switched on at any time, even though the fan is switched off.

☐ Adjusting the brightness: Hold down the ⚙ button until the desired brightness is obtained.

Switching on the light automatically, e.g. via a timer:

☐ Fan and light must be switched off.

Switching on:

Simultaneously press the – and →I buttons.

After approximately 3 seconds, the light switches on to acknowledge the setting.

Switching off:

Repeat the process with the light switched on.

After approximately 3 seconds, the light switches off to acknowledge the setting.

Filters and maintenance

Grease filter:

Two metal grease filters are inserted to absorb the fatty residues from kitchen steam.

The filters are made of non-flammable metal.

Caution:

As the filter becomes increasingly saturated with grease, not only does the risk of fire increase, but the efficiency of the extractor hood can also be adversely affected.

Important:

The danger of fire, which can occur due to heat accumulation when deep frying or roasting, can be prevented by timely cleaning.

Saturation indicator: - +

When the grease filters reach saturation point, an acoustic signal sounds for 10 seconds after the fan has been switched off, and a symbol appears in the display. The grease filters should be cleaned immediately.

Cleaning the grease filter:

The filters can be cleaned in a dishwasher. However, they may become slightly discoloured. Insert the outer filter so that the hooking-in holes are at the bottom and the rinsing water can run off. Do not clean very soiled grease filters together with dishes. When cleaning the filters by hand, soak them in hot soapy water first. Then brush the filters clean, rinse them thoroughly, and leave the water to drain off.

Important:

Press the 0 button.

Filters and maintenance

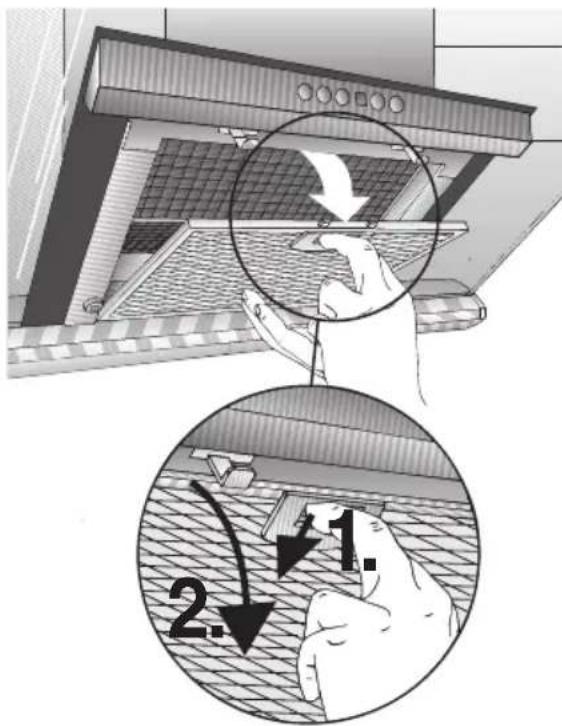

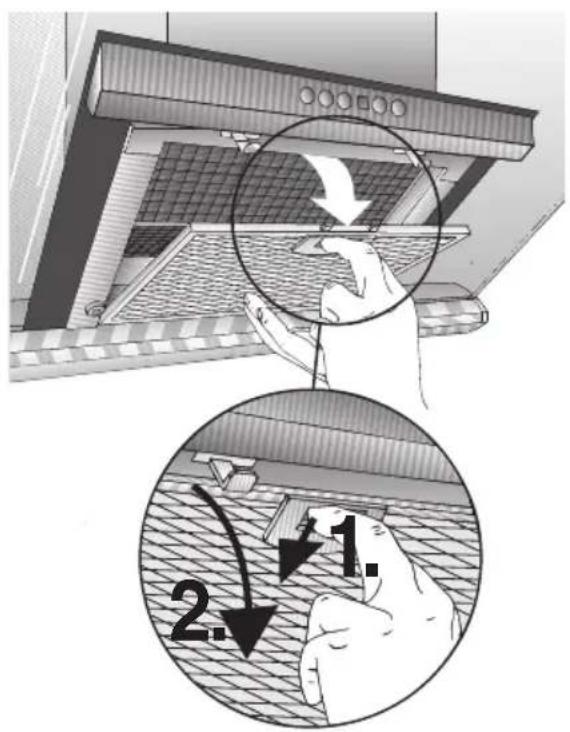

Removing the grease filter:

1. Pull the bottom of the outermost filter until it comes away from the magnets.

1. Unhook the filter in a vertical position from the top.

1. Press the notch on the inner filter and fold the filter down.

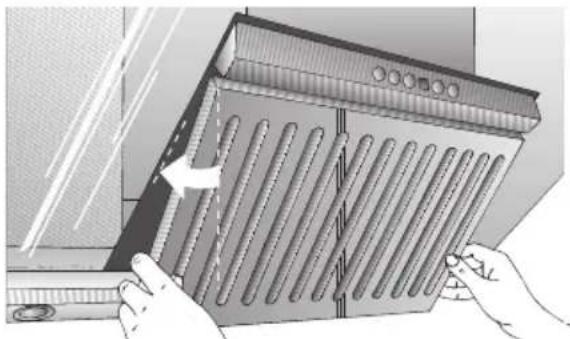

Inserting the grease filter:

1. Insert the inner filter at the back and fold the filter upwards.

1. Hook in the outer filter in a vertical position.

1. Press the filter to the back, until the magnets take hold.

Cleaning and care

Disconnect the extractor hood from the electricity supply by pulling out the mains plug or switching it off at the fuse box.

☐ At the same time as you clean the grease filters, clean off any grease from all accessible parts of the housing. This significantly reduces the fire hazard and ensures that the extractor hood performs as effectively as possible. ☐ Use a hot detergent solution or a mild window cleaner to clean the canopy of the extractor hood. ☐ Do not scrape off any dirt that has dried on but loosen it up with a damp cloth. ☐ Do not use abrasive cleaning agents or sponges that could cause scratches. ☐ Note: Do not use alcohol (spirit) on plastic parts, otherwise the surface may become matt in appearance.

Caution: Ensure that the kitchen is adequately ventilated. Avoid naked flames!

⚠ Clean the operating buttons with a mild soapy solution and a soft, damp cloth only. Do not use stainless-steel cleaner to clean the operating buttons.

Stainless steel surfaces:

☐ Use a mild non-abrasive stainless steel cleaner. ☐ Clean the surface in the same direction as it has been ground and polished.

Do not use any of the following to clean stainless steel surfaces: abrasive sponges, cleaning agents containing sand, soda, acid or chloride!

Aluminium, painted and plastic surfaces:

☐ Use a soft, non-linting window cloth or micro-fibre cloth. ☐ Do not use dry cloths. ☐ Use a mild window cleaning agent. ☐ Do not use aggressive, acidic or caustic cleaners. ☐ Do not use abrasive agents.

Replacing the light bulbs

1. Switch off the extractor hood and pull out the mains plug or switch off the electricity supply at the fuse box.

When switched on, the halogen bulbs become very hot. Even for some time after the bulbs have been switched off there is still a risk of burns.

1. Remove the bulb ring with a screwdriver or similar tool.

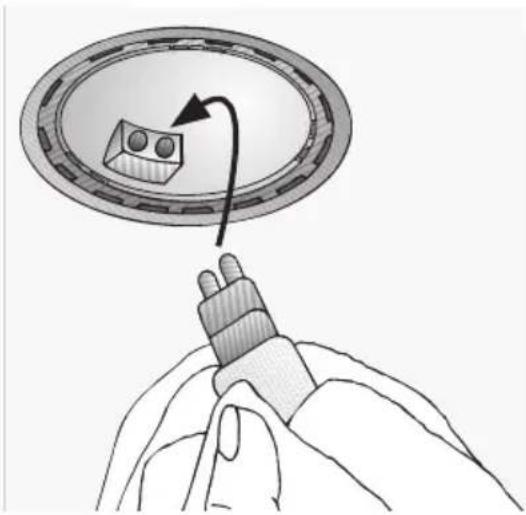

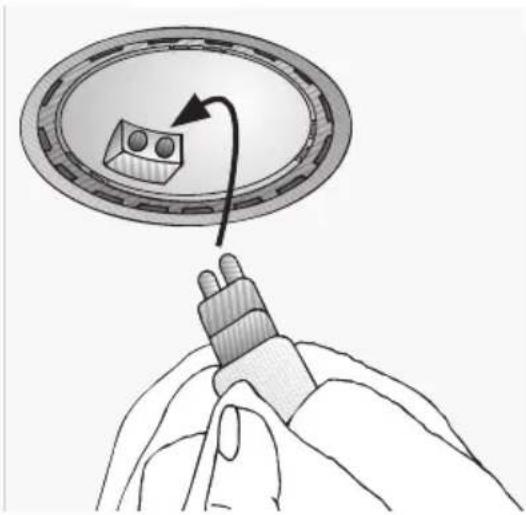

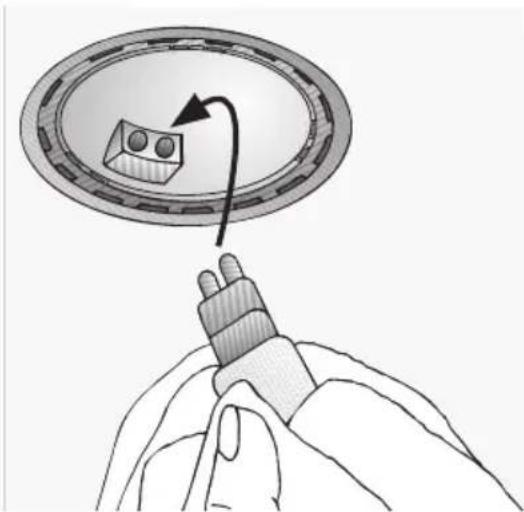

2. Replace the halogen light bulb (conventional halogen bulb, 12 Volt, max. 20 Watt, G4 cap).

Caution: Refer to the plug-in lampholder.

Take hold of the bulb with a clean cloth.

1. Re-insert the bulb ring.
2. Plug the appliance into the mains or switch it on at the fuse box.

Note: If the light does not function, check that the bulbs have been inserted correctly.

If you encounter a problem

If an ≡ appears in the display:

☐ See "Filters and maintenance" Section.

If it is not possible to operate the extractor hood:

☐ Disconnect the extractor hood from the mains electricity supply by pulling out the plug or switching it off at the main fuse box.

Wait for approx. 1 minute and then switch it on again.

If you have any questions or if a fault occurs, please call Customer Service.

(See list of Customer Service representatives).

When you call, please quote the following:

E-Nr.

FD

Enter the relevant numbers into the box above. The E-Nr. (product no.) and FD (production date) are shown on the nameplate which can be seen inside the extractor hood after the filter frame has been detached.
