PPQ719B20E - Cooker BOSCH - Free user manual and instructions

Product type	Gas cooker
Brand	Bosch
Model	PPQ719B20E
Dimensions (W x D x H)	90 x 60 x 85 cm
Weight	80 kg
Power supply	Natural gas / Butane, 220-240 V
Number of burners	5 (including 1 triple crown)
Oven type	Electric multifunction (convection, bottom heat, top heat, etc.)
Oven capacity	67 litres
Cooking programs	7 automatic programs
Oven cleaning	Pyrolytic (Catalytic)
Safety features	Thermocouples on burners, child safety, automatic shut-off
Hob material	Enameled steel
Oven racks	2 telescopic racks
Oven lighting	LED
Repairability index	8.2/10
Parts availability	Spare parts available for 10 years
Oven energy class	A+
Noise level	45 dB

Frequently Asked Questions - PPQ719B20E BOSCH

How to turn on the oven of the Bosch PPQ719B20E cooker?

Select the desired cooking mode with the rotary selector, then set the temperature. The oven turns on automatically. Make sure the door is closed.

What to do if a burner does not ignite?

Check that the gas is open and that the thermocouples are clean. If the problem persists, clean the burners with a brush and white vinegar. Consult the manual for disassembly.

How to clean the oven after a pyrolysis cycle?

Start the pyrolysis cycle (approx. 2h30). Once finished and cooled, wipe the ashes with a damp cloth. Do not use chemical products.

Can I use copper utensils on this cooker?

Yes, copper is compatible with gas burners. Make sure to use flat bottoms for better stability.

How to disable the child safety lock?

Press and hold the lock button for 3 seconds until the symbol disappears. Refer to the 'Safety' chapter of the manual.

What types of dishes can be used for oven cooking?

All heat-resistant dishes (glass, ceramic, metal) are suitable. Avoid plastic or paper dishes.

How to set the timer clock?

Press the 'Timer' button, set the hours and minutes using the selector, then confirm. A beep will sound at the end of the program.

What does error code 'E011' on the display mean?

This code indicates a fault in the oven temperature sensor. Turn off the appliance and contact Bosch after-sales service.

How to maintain the oven door glass?

Remove the door following the instructions in the manual, clean the glass with white vinegar and a soft cloth, then reassemble.

Where to find spare parts for this cooker?

Spare parts are available on the website pièces-detachées.Bosch.com or from authorized dealers. Use the model number PPQ719B20E.

USER MANUAL PPQ719B20E BOSCH

Operating instructions de Gebrauchsanweisung fr Mode d'emploi it Avvertenze per l'uso es Instrucciones de funcionamiento pt Manual de utilização nl Gebruiksaanwijzing tr Kullanma Kilavuzu

BOSCH

We would like to thank and congratulate you for your choice.

This practical modern appliance has been made using materials of the highest quality, which have been put through the strictest of Quality Controls during manufacture and meticulously tested to ensure that they meet all of your cooking demands.

We kindly ask you to read and follow these simple instructions in order to guarantee first-class results from the very start. This booklet contains important information not only concerning use, but also concerning your own personal safety and maintenance of the appliance.

Our products need to be carefully packed to protect them during transportation. All the material used for packing is considered essential for this purpose and is also completely recyclable. You too can contribute towards protecting the environment by disposing of this material at your nearest recyclable refuse collection point. Do not dispose of used cooking oil down the kitchen sink. Oil may seriously damage the environment. Dispose of it in a closed container at your nearest collection point or, failing this, dispose of it in your rubbish bin. Although this last solution is far from perfect, your oil will be taken to a controlled refuse dump where it will not be allowed to pollute water. You and your children will appreciate it.

Render your old appliance useless before disposing of it at your nearest recyclable refuse collection centre.

Your local authority will be pleased to inform you where your nearest centre is.

Packaging and old appliances

If the symbol

appears on the specifications plate, follow these instructions:

Disposing in an environmentally-responsible manner

Unpack the appliance and dispose of the packaging in an environmentally-responsible manner.

This appliance is labelled in accordance with the European Directive 2002/96/EC concerning used electrical and electronic appliances (waste electrical and electronic equipment—WEEE).

The guideline determines the framework for the return and recycling of used appliances as applicable.

CONTENTS

Safety Warnings 3

Your new hob 5

Gas Burners 6

Recommended receptacle diameters 7

Cooking recommendations 8

Warnings of use 9

Cooking 9

Cleaning and maintenance 10

Troubleshooting 11

Conditions of warranty 12

Safety warnings

Read this manual carefully in order to cook efficiently and safely. In accordance with current regulations, the installation and adaptation of gas systems may only be performed by an officially authorized technician. Check all measurements before proceeding to install your new hob. These instructions are only valid for the countries indicated on the appliance. Refer to the technical instructions to adapt the appliance to the conditions of use for the relevant country. This appliance has been designed for home use only, not for commercial or professional use. This appliance cannot be installed on yachts or in caravans. The warranty will only be valid if the appliance is used for the purpose for which it was designed. This appliance should not be connected to a device for extracting combustion products. The appliance should not be exposed to strong draughts, as these may blow the burners out. This appliance leaves the factory set for the gas supply indicated on the characteristics plate. Call the Service Centre if it needs to be altered. Do not tamper inside the appliance. If necessary, call your local Service Centre. Look after these instructions of use and installation so as to be able to produce them should the appliance ever change hands. If your hob is supplied with a glass cover, do not subject it to excessive force. If the glass should become detached from the hob, call the Service Centre immediately for them to repair or replace it. Do not use a damaged appliance. The surfaces on heating and cooking appliances get hot when in use. Be careful. Keep children away from the appliance.

☐ Only use your appliance for the preparation of food and never for room-heating purposes. ☐ Overheated fat or oil can easily catch fire. Never leave the appliance unattended when cooking food with fat or oil, e.g. chips. ☐ Never pour water on burning fat or oil. DANGER OF BURNS! Cover the receptacle to smother the flames and turn the hob off. ☐ In the event of a fault, cut the gas and electricity supplies to the appliance. Call our Service Centre to repair the fault. ☐ Do not use unstable or uneven-based receptacles on cooking plates or burners. They may accidentally tip over. ☐ If a gas supply knob/valve jams, do not force it. Call your official Service Centre immediately for them to repair or replace it. ☐ While using your gas hob should avoid draughts and spillages of cold liquids. As these may cause the glass to break. ☐ Do not use steam clearing machines to clean the hotplate, as there is risk of electrocution. ☐ This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. ☐ Never leave the appliance unattended during operation. ☐ The illustrations used in this booklet are only intended as a guide.

IF THESE INSTRUCTIONS ARE NOT FOLLOWED, THE MANUFACTURER ACCEPTS NO RESPONSIBILITY.

Your New Hob:

Gas burners

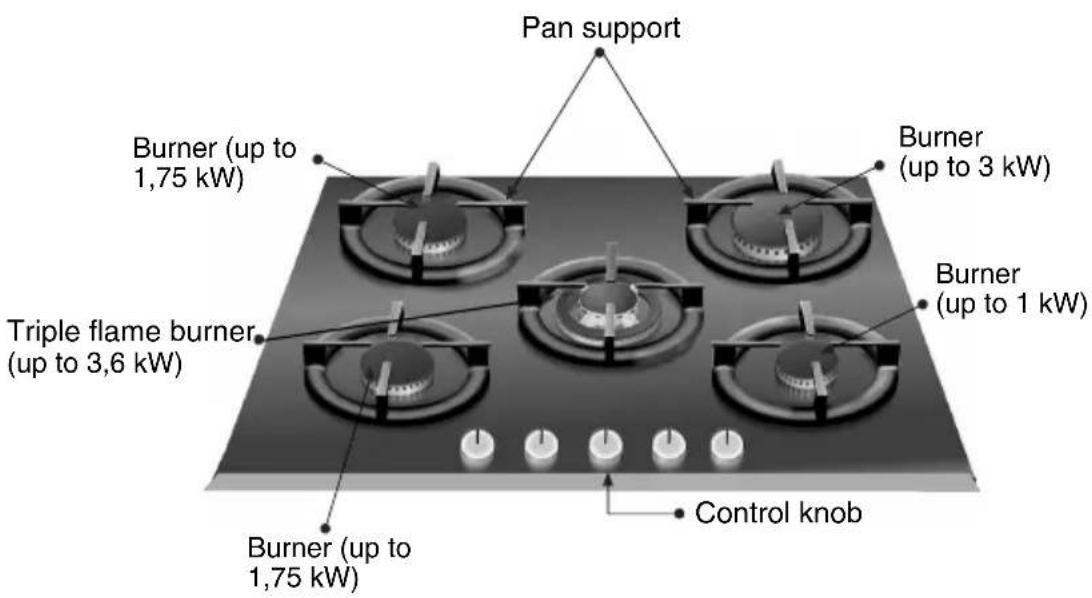

Fig 1.

Each control knob indicates which burner it controls. Fig 1.

To light a burner, press the burner switch and turn it left to the maximum position, keeping it in this position for a few seconds until the burner lights before releasing and adjusting it to the required position. Hold the knob at the maximum position for a few seconds until the burner ignites and then release and set the knob to the desired setting. If the burner does not light at the first attempt, repeat the operation.

If your hob does not come with any kind of automatic ignition system, then light the burners with a naked flame (cigarette lighter, matches, etc.).

If the spark plugs are dirty, then a fault may occur in the ignition system. Keep them completely clean. Clean the spark plugs using a small brush, remembering that the plugs must not receive any kind of violent impact.

If your hob is equipped with burners with safety valves which prevent gas from being released should the burners accidentally go out, proceed to light as described above, but keep the control knob pressed in until the burners light and then for a few more seconds once alight. If complete ignition does not occur, repeat the operation keeping the knob pressed in for approx. 10 seconds

To turn the burners off, turn the control knob in a clockwise direction to the ●setting.

Your modern functional hob is equipped with progressive valves which permit you to find the perfect flame setting between maximum and minimum.

Depending on the model that you have purchased, your hob may come with a triple-flame burner, the perfect system for cooking paellas, using woks, etc.

Gas appliances create both heat and humidity in the room they are used in. Make sure that your kitchen is properly ventilated: keep natural ventilation outlets open or install a mechanical ventilation system (extractor fan). When using your appliance for a prolonged period of time, it may be necessary to provide additional ventilation e.g. by opening a window (without creating a draught) or turning up the setting on your mechanical ventilation system.

An orange-coloured flame is normal and it is produced in the presence of dust in the atmosphere, spillages, etc.

Recommended receptacle diameters (cm.)

Depending on model:

BURNER MAXIMUM MECHANICERTACCEPTACLE
Triple flame:	>22 cm
Rapid:	22 cm 26 cm
Semi-rapid:	14 cm	20 cm
Auxiliary:	12 cm 14 cm

Additional pan support:

Fig 2.

Depending on the model that you have purchased, your hob may come equipped with an additional pan support. This pan support is essential when using the triple-flame burner for receptacles with diameters of more than 26 cm, griddles, terracotta casseroles and all kinds of concave receptacles (woks, etc...) Fig 2. If you do not have a pan support, then these are available from your Service Centre, code 484128 // 363300.

Coffee pot support: Depending on the model that you have purchased, your hob may come equipped with an additional coffee pot support. This pan support is only for use on the auxiliary burner for receptacles with diameters of less than 10 cm. If you do not have a pan support, then these are available from your Service Centre, code 184200.

The manufacturer cannot be held responsible for the non-use or misuse of these additional pan support.

Cooking recommendations

These recommendations are only intended as a guide

Very strong Strong Medium Slow
Triple flame	Boiling, stewing, grilling, Re-heating and keeping foodbrowning off, paellas, oriental warm: prepared food,food (wok)	pre-cooked food
Rapid	Escalope, steak, omelette, Rice,fried food sauce, ragout. fish,	white Steaming:vegetables.
Semi-rapid	Steamed potatoes, fresh vegetables, pasta warm: pre-cooked food anddelicate stews.	Re-heating and keeping foodfood
Auxiliary Stews, rice pudding, caramel. Thawing and Making/melting:slow boiling: Butter,pulses, fruit,chocolate,frozen food jelly

Warnings concerning cooking:

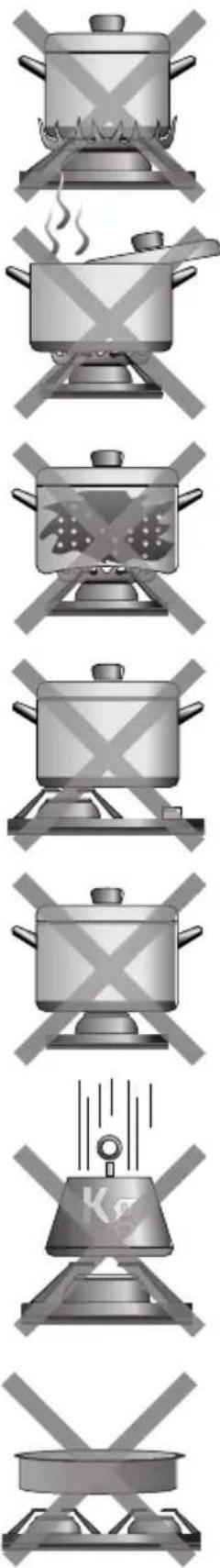

DON'Ts

DOs

Do not use small receptacles on large burners. The flame should not touch the sides of receptacles.

Do not cook without lids or with lids only partially covering receptacles. You are wasting energy.

Do not use receptacles with uneven bases. They lengthen cooking times and increase energy consumption.

Always use suitably sized receptacles on each burner. This helps avoid excessive gas consumption and prevents receptacles from getting tarnished. Always use lids.

Only use thick-, flat-based saucepans, frying pans and casseroles.

Always place receptacles in the middle of burners.

Do not place receptacles on burners off centre. They could tip over. Do not use wide-based receptacles on the burners nearest to the controls. When centred on the burner, they could touch the controls or raise the temperature in the area. This may damage the hob.

Do not place receptacles directly on top of burners.

Always place receptacle on the pans support. Make sure that the metal grids and the tops of the burners are correctly positioned before using them.

Do not use excessive weights or strike the hob with heavy objects.

Handle receptacles on the hob with care.

Do not use two burners or heat sources for a single recipient. Do not use baking trays, earthenware dishes, etc... at full heat for a long time.

Only use one recipient per burner. Use the extra mental grid on the burner with three flames.

Cleaning and maintenance:

DON'Ts

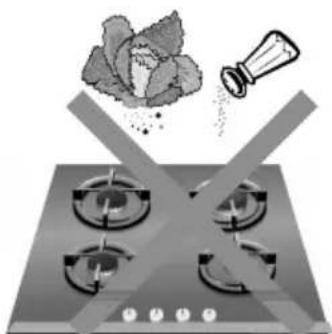

Do not use scouring powder, oven cleaner sprays, or abrasive pads that may scratch the glass. Never use sharp objects such as knives or wire wool to remove food remains that have become encrusted onto the surface. Do not use knives, scrapers, or similar implements for cleaning the joins between the glass and the rims of the burners or the metal surrounds. Do not slide recipients over the glass as they may scratch it. Similarly, do not drop hard or sharp objects onto the glass. Avoid knocking any part of the edge of the cooking plate.

Grains of sand, which may, for example, come from cleaning vegetables, can scratch the glass surface.

DOs

Once the appliance is cold, clean it with a sponge and soapy water.

Clean the surface of the heating elements once they have cooled down, each time they are used. Even small amounts of dirt burn when it is switched on again.

The burners and pan supports must be cleaned regularly to keep them clean. This is done by submerging them in soapy water and scrubbing them with a non-metal brush to keep the holes and slits free from obstruction so they can give a perfect flame. Dry the burner covers whenever wet or damp.

After cleaning and drying the burners, make sure that the covers are properly in position on the flame diffuser.

The high temperatures suffered by the cover on the triple-flame burner ring and the stainless steel parts on your hob (plate rings, grease trays, area around burners, etc) may become discoloured over time. This is NORMAL. Clean them after use with a product suitable for stainless steel.

After washing the pan supports, dry them thoroughly before cooking with them again. The presence of droplets of water or dampness at the beginning of the cooking process may damage the enamel surface.

Be careful with the feet on the metal grids when cleaning them; if they are detached, the grid may scratch the glass next time it is used.

Troubleshooting

It is not always necessary to call the Service Centre. In some cases, you may be able to solve the problem yourself. This table contains some useful information. Important information:

Only authorised personnel from our Service Centre are qualified to work on the main gas and electric systems.

What's wrong	Possible cause Solution
...if none of the electrical system works?	-Faulty fuse. -Check the fuse in- The automatic circuit breaker or mains differential has been triggered.	the main fuse box and replace it if it is faulty.-Check to see if the circuit breaker or a differential has been triggered in the mains supply box.
...if the electric ignition system does not work?	-There may be food or cleaning product particles between the spark plugs and the burners.-The burners are wet. -Dry the- The covers on the burners are not in the right position.	-The gap between the spark plug and the burner needs to be cleaned carefully.burner covers and spark plugs carefully.-Check that the covers have been put in the proper position.
...if the flame on the burners is not evenly distributed?	-The burner components have not been assembled properly.-The gas outlets on the burners are dirty.	-Put the components in their correct positions.-Clean the gas outlets on the burners.
...if the gas flow does not seem normal or there is no gas flow at all?	-The gas flow has been cut at an intermediate stopcock.-If the gas is supplied from a gas bottle, it may be empty.	- Open any intermediate stopcocks.-Replace the gas bottle with a full one.
...if the kitchen smells of gas?	-One of the valves has been left open.-Possible leak on the gas bottle coupling.	-Check to see if a valve has been left open.-Check that the coupling on the gas bottle is in order.
...if the safety devices on the different burners do not work?	-The control knob has not been kept pressed in for long enough.-The outlets on the burners are dirty.	-Once ignited, keep the control knob pressed in for a few seconds.-Clean the gas outlets on the burners.

Should you need to contact our Service Centre, please quote the following information:

E - NR FD

These indications appear on your appliance's characteristics plate on the bottom of your appliance.

Conditions of warranty

The conditions of warranty are those set out by our company's representatives in the country where you purchased your appliance. The salesperson that sold you the appliance will be only too pleased to inform you as to the details of these conditions. Proof of purchase must be produced when making any kind of claim against the warranty.

The manufacturer reserves the right to modify these conditions.

Dear Customer:

Never use sharp objects such as metal scouring pads or knives to remove hardened food residue from the surface.

Rules for Glass:
