Product type	Blender
Brand	Philips
Model	HR1744
Dimensions (L x W x H)	Approx. 15 x 15 x 38 cm
Weight	Approx. 1.2 kg
Power supply	220-240 V ~ 50/60 Hz
Power	600 W
Bowl capacity	1.5 L
Bowl material	Glass or plastic (depending on version)
Speeds	2 speeds + Pulse function
Main functions	Blend, grind, emulsify, pulse
Blades	4-prong stainless steel blades
Safety	Safety lock if bowl is incorrectly positioned
Care and cleaning	Bowl and lid dishwasher safe; wipe motor unit with a damp cloth
Spare parts	Bowl, lid, seal, blades available separately
Repairability	Estimated repairability score 7.5/10
Cable length	1.2 m
Warranty	2 years

Frequently Asked Questions - HR1744 PHILIPS

How to use the Pulse function?

Press the Pulse button for short bursts. Release to stop. Ideal for chopping or crushing food.

The blender does not start, what should I do?

Check that the bowl is properly locked onto the base. Make sure the lid is securely closed. If the problem persists, check the power outlet.

Can I blend hot ingredients?

No, do not pour hot liquids (>60°C) into the bowl. Let cool before blending to avoid burns and damage to the appliance.

How to clean the blender?

Remove the bowl and lid, wash them with soapy water or in the dishwasher. Wipe the motor unit with a damp cloth. Never immerse the base in water.

What is the maximum capacity?

Do not exceed the 'MAX' mark on the bowl, i.e., about 1.5 L for liquids and 1 L for thick mixtures.

Can I blend ice cubes?

Yes, use the Pulse function in short bursts. Do not add too many ice cubes at once to avoid overloading the motor.

Are the blades removable?

Yes, the blade assembly can be unscrewed for thorough cleaning. Be careful of sharp edges, use a brush.

The lid seal is leaking, what should I do?

Inspect the seal: if it is worn or deformed, replace it. Make sure it is correctly positioned before each use.

Can I use a power adapter?

No, the appliance must be plugged directly into a 220-240 V outlet. Using an adapter may damage the motor.

How to get spare parts?

Contact Philips consumer service or visit the official website. Provide the model HR1744 to order bowl, lid, or blades.

USER MANUAL HR1744 PHILIPS

White Philips Micron blender with handle and control buttons, against a pink gradient background (no text or symbols on the device body)

PHILIPS

ENGLISH 6

DEUTSCH 13

FRANÇAIS 20

NEDERLANDS 27

ESPAÑOL 34

ITALIANO 41

PORTUGUÊS 48

NORSK 55

SVENSKA 62

SUOMI 69

DANSK 76

ΕΛΛΗΝΙΚΑ 83

TÜRKÇE 91

Introduction

The appliance is equipped with built-in safety systems:

• The appliance does not function if the accessories have been assembled incorrectly or have not been assembled at all.
• Never switch the appliance on or off by turning the accessories.

General description

▶ Blender:
A Stopper
B Lid
© Opening in lid
D Pouring spout
E Blender jar
F Level indications
G Rubber sealing ring
H Blade unit
Safety lock
J M = Pulse ("Moment")/Quick Clean button
KSpeed buttons
- 3: high speed
- 2: normal speed
- 1: low speed
- 0 : Off
L Rubber suction feet/cord storage facility
▶ Fruit Filter:
M Fruit filter

Safety notice

• Always unplug the appliance from the mains before assembling, disassembling or making adjustments to any of the accessories.
• Keep the appliance out of the reach of children.
• The motor only starts if the blender jar attachment has been correctly assembled onto the motor unit.
• Make sure the blade unit is securely fastened onto the blender jar before you screw the attachment onto the motor unit.
• Never touch the blade unit when it is assembled on the appliance and the appliance is plugged in.
• Avoid touching the cutting edges of the blade units when cleaning them. They are very sharp and you could easily cut your fingers on them.
• To reduce the risk of injury, never place the blade unit onto the motor unit without having attached the blender jar or mill beaker properly.

Important

Read these instructions for use carefully before using the appliance and save them for future reference.

General

• Check if the voltage indicated on the appliance corresponds to the local mains voltage (110-127 volts or 220-240 volts) before you connect the appliance.

• Never use any accessories or parts from other manufacturers or that have not been specifically advised by Philips. Your guarantee will become invalid if such accessories or parts have been used.

• Do not use the appliance if the mains cord, the plug or other parts are damaged.
  If the mains cord is damaged, it must be replaced by Philips, a service centre authorised by Philips or similarly qualified persons in order to avoid a hazard.

• Never let the appliance run unattended.
• Never switch the appliance on or off by turning the accessories.
• Do not exceed the maximum level indicated on the accessories.
• Do not exceed the quantities and preparation times recommended at the recipes.
• Always make sure the lid is properly closed and the stopper has been properly inserted into the lid before you switch the appliance on.
• To avoid leakage, always make sure the rubber sealing ring has been correctly placed before you start using the blender.
• To reduce the risk of injury, never place the blade unit onto the motor unit without having attached the blender jar or mill beaker properly.
• Avoid touching the blades, especially when the appliance is plugged in. The blades are very sharp!
• Always make sure that the blade unit is correctly assembled before you plug the appliance in and switch it on.
• If the blades get stuck, unplug the appliance before removing the ingredients that are blocking the blades.

Blender

• To avoid spillage, always make sure the lid is properly closed and the stopper has been properly inserted into the lid before you switch the appliance on.
  If the ingredients stick to the wall of the blender jar, switch the appliance off, unplug it and loosen the ingredients from the wall with a spatula or by adding liquid.
  The jar is made of glass and therefore breakable. Do not drop the jar on a hard floor. Also avoid extreme thermal shocks. If the jar is very cold, rinse it well with lukewarm water before pouring in hot liquid.

- If the glass jar cracks, stop using it.

Filter

• Do not use the filter to process hot ingredients.
• Never overload the filter. Do not put more than 75g dried soy beans (unsoaked weight) or 150g fruit in the filter at the same time (see 'Recipes').

Before first use

• Wash all accessories and detachable parts (see 'Cleaning').
• Wind excess mains cord round the base of the appliance. (fig. 2)

Using the appliance

Blender

• The blender is intended for:
• Blending fluids, e.g. dairy products, sauces, fruit juices, soups, mixed drinks, shakes.
• Mixing soft ingredients, e.g. pancake batter or mayonnaise.
• Pureeing cooked ingredients, e.g. for making baby food.

Preparing the blender for use

I Place the sealing ring in the blade unit. (fig. 3)

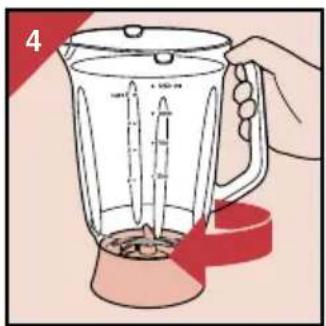

2 Mount the blender jar onto the blade unit and turn it in the direction of the arrow until it locks into position. Always make sure that you place the jar onto the blade unit in such a way that the level indications on the blender jar are in line with the ribs on the blade unit. (fig. 4)

3 Mount the blender jar with the blade unit attached to it onto the motor unit and turn it in the direction of the arrow until it locks into position. (fig. 5)

Do not to exert too much pressure on the handle of the jar.

4 Put the ingredients in the jar.

Never fill the jar with ingredients that are hotter than 80^ C.

5 After putting the ingredients in the blender jar, attach the lid to the jar by pressing it down and turning it. Make sure that the sieve in the lid is positioned in front of the spout of the jar to be able to pour out liquids. (fig. 6)

6 Insert the stopper into the lid. (fig. 7)

7 To disassemble the blender, follow the instructions in the section above in reverse order.

- Always make sure that you remove the blender jar from the motor unit with the blade unit still attached to the jar.

Using the blender

Place the blender on a flat, dry surface. The rubber suction feet will prevent the appliance from moving across the worktop.

2 Put the mains plug in the wall socket.

3 Select the required processing speed by pressing the appropriate button and the appliance will switch on automatically. (fig. 8)

- Speed 1: light processing of mainly liquid ingredients, e.g. chocolate milk, milk with fruit or mayonnaise.

- Speed 2: heavier processing of a combination of liquid and solid ingredients, e.g. tomato sauce, soups or pate.

- Speed 3: heavy processing of mainly solid ingredients, e.g. ice cubes or beans.

If you are not sure which speed you should use, you can always select the highest speed (speed 3).

Never reach into the jar with your fingers or an object (e.g. a spatula) while the blender is running.

Do not let the appliance run for more than 3 minutes at a time. If you have not finished processing after 3 minutes, switch the appliance off for one minute before you let it run again.

4 Press the pulse button (M) if you want to process ingredients very briefly. (fig. 9)

You can also press the pulse button (M) to obtain a temporary power burst while the blender is running at speed 1, 2 or 3. Once your release the pulse button the blender automatically stops running.

Never press the pulse button (M) longer than a few seconds at a time.

5 Press the off button (0) to switch the appliance off when it is running at speed 1, 2 or 3. (fig. 10)

Tips

To avoid spillage, never fill the jar above the maximum level indication (1.25 litres). If you are blending hot liquids, do not fill the jar beyond the 1.0 litre indication.

- If you are blending foaming liquids, never fill the jar beyond the 1.0 litre indication.

The opening in the lid can be used for adding ingredients while the motor is running. (fig. 11)

- Dry ingredients must not be processed for more than 1 minute.

- Cut solid ingredients into smaller pieces before putting them in the blender jar. Do not process a large quantity of solid ingredients at the same time. Process these ingredients in a series of small batches instead.

If you are not satisfied with the result when blending solid ingredients, switch the blender off and press the pulse button (M) a few times to let the blender run briefly. You can also stir the

ingredients with a spatula (not while the blender is running!) or remove some of the contents of the jar and process smaller amounts.

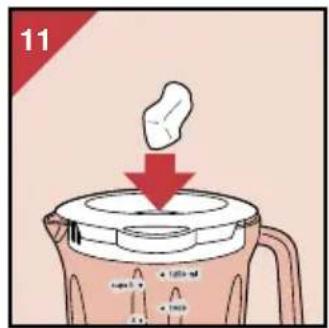

• To crush ice cubes, drop them through the opening in the lid and switch the appliance ON.
• To make tomato juice, cut the tomatoes in four and drop the pieces through the opening in the lid onto the rotating blades.
• If you are processing solid and liquid ingredients at the same time, pour the liquid ingredients in the jar before switching the appliance on.Add the solid ingredients while the appliance is running.

Tips for better endresults:

• It is recommended to dry the jar between the processing batches;
• or put the dry jar in the refrigerator or freezer for some minutes.

Filter

You can use the filter accessory to obtain extra finely blended sauces, fresh fruit juices or cocktails. All pips and skins will be caught in the filter.

Preparing the filter for use

Put the filter in the blender jar. (fig. 12)
Make sure the filter is properly fitted onto the bottom of the jar.

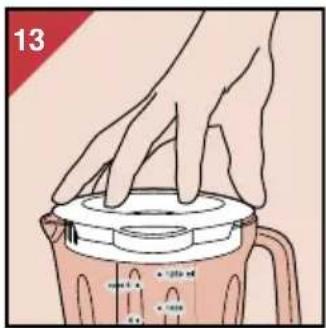

2 Put the lid on the jar to fix the filter in its proper position. (fig. 13)

Using the filter

Put the ingredients in the filter through the opening in the lid. (fig. 14) Never overload the filter. Do not put more than 75g dried soy beans (unsoaked weight) or 150g fruit in the filter at the same time.

Cut fruits into smaller pieces and soak dried ingredients, such as soy beans, before processing them in the filter.

2 Add water or another liquid.
3 Put the stopper in the lid and switch the appliance on. Select the highest speed and let the appliance run for max. 40 seconds.
4 Switch the appliance off. Pour out the drink through the spout of the blender jar. (fig. 15)
5 For optimal results, put the jar with the remaining ingredients back onto the appliance and let it run for a few more seconds.
6 Pour out the rest of the drink.

Tips

- Particularly when you are processing large quantities, we advise you not to put all the ingredients in the filter at the same time. Start processing a small quantity, let the appliance run for a moment, switch it off and then add another small quantity. But do not exceed the above mentioned quantities!

- For making soy milk: Soak dried soy beans for 4 hours before processing them. - You can process max. 75g dried soy beans with max. 600ml water at a time. For detailed information: see 'Recipes'.

- For making fruit juices and cocktails: For the best results, add approx. 300ml water (or another liquid if you are making e.g. cocktails) to 150g fruit.

Cleaning

Cleaning of the appliance, its parts and the accessories is easiest immediately after use.

Never clean the accessories or parts of the appliance in the dishwasher.

Do not use abrasives, scourers, alcohol, etc.

Always unplug the appliance before cleaning it.

▶ After cleaning the parts and/or accessories, rinse them with clean water and dry them thoroughly.

Motor unit

Clean the motor unit with a moist cloth.

Never immerse the motor unit in water nor rinse it under the tap

Blender jar

Never clean the glass jar with water hotter than 160^ F/ 80^ C.

Quick cleaning:

I Assemble the blender jar (see 'Using the appliance').
2 Pour warm water and some washing-up liquid into the blender jar.
3 Place the lid on the blender jar and insert the stopper into the opening in the lid.
4 Let the appliance run for a few moments by pressing the Quick Clean button (M), then release this button. Repeat this process a few times. (fig. 9)
5 Press the off button (0).
6 Wait until the blades have stopped moving.
7 Unplug the appliance.
8 Remove the blender jar and rinse it with clean water.
9 Thorough cleaning: remove the blade unit and clean all parts separately.

Filter

I Remove the filter from the blender jar.
2 Hold the filter over a waste bin and gently shake out its contents.
3 Rinse the filter under the tap.
4 It may be necessary to soak the filter in warm water for a few minutes before rinsing it.
5 If necessary, the mesh of the filter may be cleaned with a very soft brush.

Storage

You can store the mains cord by winding it round the base of the appliance.

Guarantee & service

If you need information or if you have a problem, please visit the Philips Web site at www.philips.com or contact the Philips Customer Care Centre in your country (you will find its phone number in the worldwide guarantee leaflet). If there is no Customer Care Centre in your country, turn to your local Philips dealer or contact the Service Department of Philips Domestic Appliances and Personal Care BV.

Troubleshooting

This chapter summarises the most common problems you could encounter. Please read the different sections for more details. If you are unable to solve the problem, please contact the Philips Customer Care Centre in your country (you will find its phone number in the worldwide guarantee leaflet). If there is no Customer Care Centre in your country, turn to your local Philips dealer or the nearest Philips service centre.

Problem	Solution
The appliance does not work	This appliance is equipped with safety systems. The appliance will not work if the accessories have not been assembled properly onto the motor unit or have not been assembled at all. Check whether the accessories have been assembled properly (see various sections of these directions for use). Switch off the appliance first!
The blade unit or the motor is blocked.	Switch the appliance off, remove some of the ingredients and start processing a smaller quantity.
The motor unit gives off an unpleasant smell the first few times the appliance is used.	This is normal. If the appliance continues to give off this smell after you have used it a few times, check whether the quantity you are processing, the processing time and the processing speed are correct.
The appliance makes a lot of noise, produces an unpleasant smell, feels hot to the touch, emits smoke, etc.	Switch the appliance off and unplug it. Contact the Philips Customer Care Centre in your country or the nearest Philips service centre.
Although the filter has been assembled, the fruit juice or soy milk contains pulp.	Make sure that the filter has been assembled properly in the blender jar. Check whether the quantity you are processing, the processing time and the processing speed are correct.

* If the problems persist or if other problems occur, please contact the Philips Customer care Centre or nearest Philips Service Centre.

Recipes

Mayonnaise (about 300ml)

Ingredients:

• 2 egg yolks or 1 whole egg
• I tsp mustard powder
• | tsp. salt
• 1/2 tsp pepper
• | tsp sugar
• 30ml vinegar or lemon juice
• 300ml oil

▶ All the ingredients have to be at room temperature.
Put the egg or egg yolks in the blender jar, add salt, pepper and mustard powder and half of the vinegar or lemon juice and blend at average speed. Pour oil through the opening in the lid until the mayonnaise becomes thick. Then add the remaining vinegar or lemon juice and season according to taste. Store in the refrigerator.

Salad dressing

Ingredients:

• I part vinegar or lemon
• 3 parts oil
• salt, pepper

Pour vinegar or lemon juice into the blender jar, add salt and pepper and switch the appliance on. Process until the salt and pepper have dissolved. Then add the oil through the small hole in the stopper with securing clip until a homogeneous dressing has formed.
▶ You can also prepare a larger quantity of this basic dressing and store it in the refrigerator. Always shake before use to mix the ingredients.

Soy milk (This recipe can only be prepared with the filter.)

Ingredients:

• 75g dry soy beans
• 600ml water

▶ Soak the soy beans for 4 hours before processing them.
Pour the soaked soy beans and the water in the filter. Blend for 40 seconds at the maximum speed.
▶ Bring the soy milk to the boil in a pan, then add sugar and leave to simmer.
▶ Serve hot or cold!

Note: Do not process the recipe more than once without interruption. If you need to process more quantities, let the appliance cool down first and then continue the process.

Juices & Cocktails (This recipe can only be prepared with the filter.)

Ingredients:

• 150g fruit
• 300ml water/milk/or other liquid

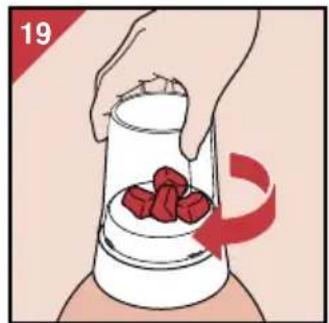

▶ Chop up the fruit in little pieces and put the fruit in the filter.
▶ Pour the liquid in the blender jar.
▶ Blend for 40 seconds at the maximum speed.

Einleitung

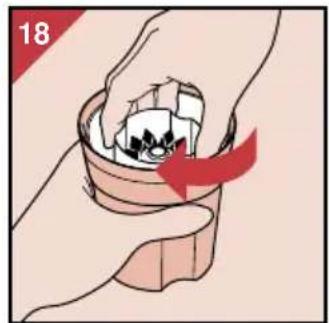

Quick cleaning/rengøring:

Illustration of a medical device with a red arrow indicating motion or force (no text or symbols)

Illustration of a hand using a tool to lift a small object into a pink container (no text or symbols)

Illustration of hands operating a blender with a lid and control buttons (no text or symbols)

Illustration of a hand pouring red beans from a spoon into a blender (no text or symbols)

Illustration of a hand pouring red liquid from a blender into a bowl (no text or symbols)

Illustration of hands holding a small object with a red arrow indicating motion (no text or symbols)

Illustration of hands holding a food cup with a red arrow indicating compression (no text or symbols)
