EWA3120 - Kettle AEG - Free user manual and instructions

Product Type	Electric Kettle
Brand	AEG
Model	EWA3120
Capacity	1.7 L
Power Rating	2200 W
Voltage	220-240 V, 50-60 Hz
Material	Plastic body, stainless steel heating element
Cordless	Yes, 360° rotational base
Auto Shut-Off	Yes
Boil-Dry Protection	Yes
Limescale Filter	Removable mesh filter
Water Level Indicator	Yes, transparent window with markings
Dimensions (HxWxD)	25 x 22 x 15 cm
Weight	1.0 kg
Color	White
Safety Features	Auto shut-off, boil-dry protection, cool-touch handle
Cleaning & Maintenance	Descaling every 4-8 weeks with vinegar or citric acid
Spare Parts / Repairability	Replaceable filter, base unit; heating element not user-serviceable
Warranty	2 years
Included Accessories	Base with cord storage

Frequently Asked Questions - EWA3120 AEG

What is the capacity of the AEG EWA3120 kettle?

The AEG EWA3120 has a capacity of 1.7 liters, ideal for boiling water for tea, coffee, or cooking.

How do I descale the kettle?

Fill the kettle with a mixture of water and descaling solution or white vinegar (1:3 ratio). Boil, let it sit for 15 minutes, rinse thoroughly with clean water, and boil again with fresh water to remove any residue.

Does the kettle have automatic shut-off?

Yes, the kettle automatically switches off when the water reaches boiling point to save energy and prevent overheating.

Can I use the kettle without the base?

No, the kettle is cordless and must be placed on its power base for operation. The base provides power through a 360° connector.

What is the power consumption of the EWA3120?

The kettle has a power rating of 2200 W, allowing fast boiling of water.

Is the kettle suitable for all types of stovetops?

No, this is an electric kettle designed only for use with its powered base. Do not place on any stove or heat source.

How do I clean the limescale filter?

Remove the filter from the spout, rinse it under running water, and use a soft brush to gently clean any deposits. Reattach it after drying.

What materials is the kettle made of?

The body is made of durable plastic, and the heating element and inner base are stainless steel. The handle stays cool during use.

Does the kettle have a water level indicator?

Yes, there is a transparent water window with markings for minimum and maximum levels (e.g., 0.5 L to 1.7 L).

What should I do if the kettle doesn't turn on?

Check that the base is plugged in and the kettle is properly seated. Ensure the switch is in the 'on' position. If it still doesn't work, contact AEG customer service for assistance.

USER MANUAL EWA3120 AEG

Exterior view of a modern AEG Electrolux water heater with a handle and control panel (no text or symbols on the device itself)

WATERKETTLE MODEL EWA31xx

D·GR·NL·F·GB

D Anleitung 3–10

GB Instruction book .....11–15

Before using the appliance for the first time, please read the safety advice on page 12 carefully.

DG

Teile

Black and white photo of a kettle with a cloth cover and a checkmark (no text or symbols visible)

D

Simple diagram showing a circular component connected to a wall-mounted socket (no text or symbols)

Close-up of a black kettle being inserted into a metal pipe, with a hand pointing to the drop (no text or symbols visible)

Close-up of a modern kettle with a close-up inset showing internal components (no text or symbols visible)

1. Die Abdeckung schließen und sicherstellen, dass sie einrastet. Andernfalls funktioniert die automatische Abschaltung nicht zuverlässig. Den Wasserkocher auf die Basis setzen. Den EIN/AUS-Schalter herunterdrücken; die Anzeige leuchtet auf und der Wasserkocher beginnt mit dem Erhitzen.
2. Κλείστε το καπάκι και βεβαιωθείτε ότι κλειδώνει κανονικά. Διαφορετικά, η λειτουργία αυτόματης απενεργοποίησης δεν θα λειτουργεί κανονικά. Τοποθετήστε το βραστήρα στη βάση. Πιέστε τον διακόπτη ΟΝ/OFF (ΕΝΕΡΓΟΠΟΙΗΣΗ/ΑΠΕΝΕΡΓΟΠΟΙΗΣΗ). Η ενδεικτική λυχνία θα ανάψει και ο βραστήρας θα αρχίσει να ζεσταίνεται.
3. Sluit de klep zodat deze goed vastklikt. Anders werkt de functie voor automatisch uitschakelen niet goed. Plaats de waterkoker op de voet. Druk de AAN/UIT-schakelaar naar beneden; het indicatielampje gaat branden en de waterkoker wordt opgewarmd.
4. Fermez le couvercle et assurez-vousqu'il soit fermé correctement. Si le couvercle est mal enclenché, l'arrêt automatique ne fonctionnera pas correctement. Placez la bouilloire sur son socle. Appuyez sur l'interrupteur marche/arrêt ; le voyant s'allume et la bouilloire commence à chauffer.

Illustration of a digital water heater with an arrow indicating the change, next to a magnified inset showing the tip of the lid (no text or symbols present)

Black and white photo of a kettle with a cloth cover and a checkered cloth, next to an electrical plug (no text or symbols visible)

D

Illustration of a black kettle with lid and handle, emitting steam from a fan (no text or symbols)

1. Zum Reinigen des Kalkfi Iters den Siebeinsatz nach oben herausziehen. Reinigen der Basis – auf der Oberfläche der Basis k+önnen Rostfl ecken entstehen. Mit einem Edelstahlputzmittel entfernen.

2. Για να καθαρίσετε το φίλτρο, πιάστε την υποδοχή του πλέγματος και σηκώστε τη. Καθαρισμός της βάσης – ενδέχεται να εμφανιστούν επιφανειακοί λεκέδες σκουριάς στη βάση. Αφαιρέστε τους με ένα καθαριστικό για ανοξείδωτο ατσάλι.

3. Voor het reinigen van het netfi liter, pakt u de zeefi nzet vast en tilt deze eruit. De voet reinigen – er kunnen oppervlakkige roestvlekjes ontstaan op de voet. Verwijder deze met een schoonmaakproduct voor roestvrij staal.

4. Pour nettoyer le fi ltre, retirez-le en le tirant vers le haut. Nettoyage du socle – De la rouille superfi cielle peut se former sur le socle. Éliminez-la à l'aide d'un nettoyant pour acier inoxydable.

Illustration of a black and white kettle with a lid, connected to a metal pipe (no text or symbols visible)

1. Je nach Wasserhärte sollte das Gerät regelmäßig entkalkt werden. Den Wasserkocher der Produktanleitung entsprechend mit Wasser und Entkalker füllen. Die Lösung nicht kochen lassen, da sie überschäumen könnte. Danach den Wasserkocher gründlich mit frischem Wasser ausspülen.

2. Η αφαλάτωση συνίσταται τακτικά, ανάλογα με τη σκληρότητα του νερού. Γεμίστε το βραστήρα με νερό και αποσκληρυντικό σύμφωνα με τις οδηγίες χρήσης του αποσκληρυντικού. Μη βράζετε το διάλυμα γιατί μπορεί να ξεχειλίσει. Στη συνέχειαξεπλύνετε καλά το βραστήρα με τρεχούμενο νερό.

3. Ontkalken doet u bij voorkeur regelmatig, afhankelijk van de hardheid van het water. Vul de waterkoker met water en ontkalker, volgens de gebruiksaanwijzing van het ontkalkingsproduct. Laat de oplossing niet koken, aangezien deze kan gaan schuimen. Naderhandspoelt u de waterkoker grondig na met schoon water.

4. Il est recommandé il est recommandé de procéder à un détartrage régulier en fonction de la dureté de l'eau. Remplissez la bouilloire d'eau et de détartrant en respectant les consignes d'utilisation du produit détartrant. Ne laissez pas bouillir la solution, car la mousse formée pourrait déborder. Puis,, rincez soigneusement l'intérieur de la bouilloire à l'eau claire.

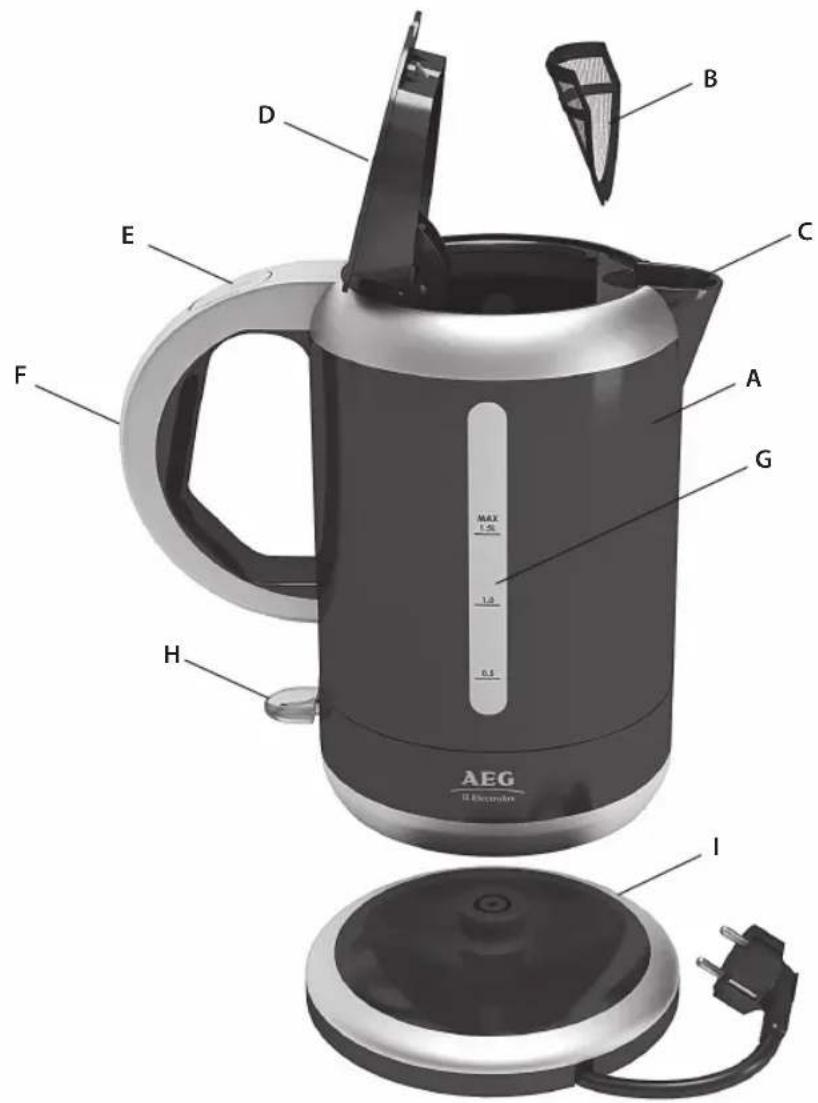

A. Jug
B. Removable mesh filter
C. Spout
D. Lid
E. Opening lid button
F. Handle
G. Water level indicator
H. ON/OFF switch with indicator light
I. Separate base and mains cable

Safety advice

GBG

Read the following instruction carefully before using the appliance for the first time.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  • Children should be supervised to ensure that they do not play with the appliance.
• The appliance may only be connected to a power supply whose voltage and frequency comply with the specifications on the rating plate!
• Never use or pick up the appliance if – the supply cord is damaged, – the housing is damaged."
• The appliance must only be connected to an earthed socket. If necessary an extension cable suitable for 10 A can be used.
• If the appliance or the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified person, in order to avoid hazard.

• Always place the appliance on a flat, level surface.
- Never leave the appliance unattended while connected to the supply mains.
- The appliance must be switched off and the mains plug withdrawn each time after use, before cleaning and maintenance.
- The appliance and accessories become hot during operation. Use only designated handles and knobs. Allow to cool down before cleaning or storage.
- The mains cable must not come into contact with any hot parts of the appliance.
• Do not immerse the appliance in water or any other liquid.
Attention: If the kettle is overfilled there is a risk that the boiling water may spray out, which could scald or burn! Therefore never fill the kettle above the maximum marking.
- Never operate appliance with open lid.
• Do not use or place the appliance on a hot surface or near source of heat.
• Only use the kettle for heating water!

• The kettle can only be used with the stand provided.
• Appliance is for indoor use only.
- This appliance is intended for domestic use only. The manufacturer cannot accept any liability for possible damage caused by improper or incorrect use.

Getting started

GB

Black and white photo of a kettle with a cloth cover and a checkmark (no text or symbols visible)

1. Before first use, wipe the inside and outside of the kettle with a damp cloth.

3D illustration of a black circular device connected to a white electrical outlet plug (no text or symbols)

1. Place the base unit on a firm and fl at surface. Plug the mains plug into a wall socket. Redundant cord can be wound up at the bottom of base unit.

Close-up of a black kettle being inserted into a metal pipe, with a hand holding the lid and a downward arrow indicating force (no text or symbols visible)

1. Press the button to open the lid, pour water into the kettle. Make sure water level is visible in the water level indicator, but not exceeding the Max. mark.

D GR NL F

GB

Close-up of a black and gray water heater with a close-up inset showing internal components (no text or symbols visible)

1. Close the lid and make sure it snaps in correctly. Otherwise the auto switch off function will not work reliably. Place the kettle onto the base. Press down the ON/OFF switch; the indicator light will illuminate and the kettle will start to heat up.

Illustration of a modern kettle with an arrow indicating a change, next to a magnified inset showing the hand holding a small object (no text or symbols present)

1. The automatic switch off function. When the water has boiled or the kettle is moved from the base, it will switch off automatically. If you wish to stop the heating process before the water is boiling, simply lift up the ON/OFF switch to the OFF position.

Cleaning

Black kettle with a cloth cover and a checkered cloth cover, next to a crossed-out X symbol (no text or labels)

GB

1. Before cleaning, always unplug the appliance. Never rinse or immerse the kettle or base unit in water. Just wipe with a damp cloth, using no abrasive detergents. Occasionally rinse out the kettle with clean water.

3D rendering of a black kettle with open lid and plug, showing internal components (no text or symbols visible)

1. To clean the mesh fi Iter, grab the strainer insert and lift out. Cleaning the base unit – superficial spots of rust may appear on the base unit. Remove with a stainless steel cleaning agent.

Illustration of a kettle being poured into a black flask with a white bottle nearby (no text or symbols)

1. Decalcifying is recommended regularly, depending on water hardness. Fill the kettle with water and decalcifier according to decalcifier product instructions. Do not boil the solution as it could foam over. Afterwards, rinse kettle thoroughly with fresh water.

Troubleshooting

GB

Problem Possible cause Solution
The appliance switches off before boiling.	Too much lime scale at the base of the kettle.	Run the decalcifying procedure.
The appliance does not switch off . Close lid until it locks.
		Instert the strainer correctly.
The appliance cannot be switched on. After operating with little or no water, the appliance has not cooled down sufficiently.		Allow to cool a short time and try again.

Disposal

GB

Disposal

Packaging materials

The packaging materials are environmentally friendly and can be recycled. The plastic components are identified by markings, e.g. >PE<, >PS<, etc. Please dispose the packaging materials in the appropriate container at the community waste disposal facilities.

Old appliance

The symbol 📄 on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health,

which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

D Deutschland

Electrolux Home Products Belgium

Divisie Floor Care

Bergensesteenweg, 719

1502 LEMBEEK

Tel.: [phone]

Belgique

DÉCLARATION DE CONDITIONS DE GARANTIE

Electrolux Home Products Belgium

Division Floor Care

Bergensesteenweg, 719

1502 LEMBEEK

Tel.: [phone]

AEG

Electrolux

Share more of our thinking at www.electrolux.com

3482 EEWA31xx02020909
