EWA 5210 - Kettle AEG - Free user manual and instructions

Product Type	Kettle
Brand	AEG
Model	EWA 5210
Capacity	1.7 liters
Power Rating	2200 W
Voltage	220-240 V
Frequency	50/60 Hz
Dimensions (H x W x D)	260 x 220 x 195 mm
Weight	1.1 kg
Material	Stainless steel and plastic
Cord Length	0.75 m
Lid Type	Flip-top lid with one-button opening
Filter	Removable scale filter
Base	360° swivel cordless base
Functions	Boil water, automatic shut-off, boil-dry protection
Indicator Light	Power on/off light
Water Level Window	Yes, with min/max markings
Cleaning and Care	Descale regularly with vinegar or citric acid; wipe exterior with damp cloth
Safety Features	Auto shut-off when boiling, boil-dry protection, overheat protection
Spare Parts	Replacement lid, filter, base available
Warranty	2 years

Frequently Asked Questions - EWA 5210 AEG

How do I descale the AEG EWA 5210 kettle?

To descale, fill the kettle with a mixture of water and white vinegar (or citric acid). Bring to a boil, let it sit for 15 minutes, then rinse thoroughly. Repeat if necessary. Alternatively, use a descaling solution compatible with kettles.

What is the capacity of this kettle?

The AEG EWA 5210 has a capacity of 1.7 liters, suitable for boiling enough water for several cups of tea or coffee at once.

Why does my kettle turn off before the water boils?

This may be due to scale buildup. Descale the kettle as described above. Also, ensure the lid is closed properly and the water level is above the minimum mark.

Can I open the lid while the kettle is boiling?

It is not recommended to open the lid during boiling as hot steam can cause burns. Wait until the kettle has automatically switched off and cooled down slightly.

How do I clean the removable filter?

The scale filter can be removed by pulling it out. Rinse it under running water and scrub gently with a soft brush. For stubborn deposits, soak in a vinegar solution before rinsing.

What does the boil-dry protection do?

Boil-dry protection is a safety feature that automatically switches off the kettle if there is no water inside or if the water level is too low, preventing damage to the heating element.

How long does it take to boil a full kettle?

Boiling 1.7 liters of water typically takes about 3-4 minutes, depending on the starting water temperature and voltage.

Is the kettle cordless?

Yes, the kettle is cordless and sits on a 360° swivel base, making it easy to lift and pour. The base has a cord storage underneath.

What should I do if the kettle leaks?

Check the lid seal and the water level window for cracks. If the kettle leaks from the base, ensure the base is not damaged. Contact AEG customer service for replacement parts if needed.

Can I use the kettle to heat milk or other liquids?

No, this kettle is intended for water only. Heating milk or other liquids can cause burning, clogging, and damage to the kettle and void the warranty.

USER MANUAL EWA 5210 AEG

Illustration of a modern electric kettle with visible internal resistance bands (no text or symbols)

WATERKETTLE MODEL EWA 5110/5210

D·GR·NL·F·GB

D Anleitung 3–10

GB Instruction book .....11-15

Before using the appliance for the first time, please read the safety advice on page 12 carefully.

DG

Teile

White portable kettle with a patterned lid and power plug, next to a black X symbol (no text or labels)

D

Diagram showing a wall-mounted power plug connected to a circular socket with a black cable, next to a separate electrical outlet (no text or symbols present)

Close-up of a white digital water heater with a handle and spout, showing internal components and a magnified inset (no text or symbols visible)

White kettle with a lid and a hand inserting a small container into it, shown in an inset view (no text or symbols visible)

1. Die Abdeckung schließen und sicherstellen, dass sie einrastet. Andernfalls funktioniert die automatische Abschaltung nicht zuverlässig. Den Wasserkocher auf die Basis setzen. Den EIN/AUS-Schalter herunterdrücken; die Anzeige leuchtet auf und der Wasserkocher beginnt mit dem Erhitzen.
2. Κλείστε το καπάκι και βεβαιωθείτε ότι κλειδώνει κανονικά. Διαφορετικά, η λειτουργία αυτόματης απενεργοποίησης δεν θα λειτουργεί κανονικά. Καθαρισμός της εστίας θέρμανσης – στην εστία θέρμανσης μπορεί να εμφανιστούν επιφανειακές κηλίδες σκουριάς. Η ενδεικτική λυχνία θα ανάψει και ο βραστήρας θα αρχίσει να ζεσταίνεται.
3. Sluit de klep zodat deze goed vastklikt. Anders werkt de functie voor automatisch uitschakelen niet goed. Plaats de waterkoker op de voet. Druk de AAN/UIT-schakelaar naar beneden; het indicatielampje gaat branden en de waterkoker wordt opgewarmd.
4. Fermez le couvercle et assurez-vousqu'il soit fermé correctement. Si le couvercle est mal enclenché, l'arrêt automatique ne fonctionnera pas correctement. Placez la bouilloire sur son socle. Appuyez sur l'interrupteur marche/arrêt ; le voyant s'allume et la bouilloire commence à chauffer.

White kettle with a digital display showing internal components, accompanied by an inset image of the same device (no text or symbols visible)

White kettle with a patterned cloth and power plug, next to a small cross symbol (no text or labels visible)

D

White electric kettle with open lid and power cord, showing internal compartments and a small battery (no text or symbols visible)

White digital water heater with digital display and a plastic bottle beside it (no visible text or symbols)

1. Je nach Wasserhärte sollte das Gerät regelmäßig entkalkt werden. Den Wasserkocher der Produktanleitung entsprechend mit Wasser und Entkalker füllen. Die Lösung nicht kochen lassen, da sie überschäumen könnte. Danach den Wasserkocher gründlich mit frischem Wasser ausspülen.

2. Η αφαλάτωση συνίσταται τακτικά, ανάλογα με τη σκληρότητα του νερού. Γεμίστε το βραστήρα με νερό και αποσκληρυντικό σύμφωνα με τις οδηγίες χρήσης του αποσκληρυντικού. Μη βράζετε το διάλυμα γιατί μπορεί να ξεχειλίσει. Στη συνέχειαξεπλύνετε καλά το βραστήρα με τρεχούμενο νερό.

3. Ontkalken doet u bij voorkeur regelmatig, afhankelijk van de hardheid van het water. Vul de waterkoker met water en ontkalker, volgens de gebruiksaanwijzing van het ontkalkingsproduct. Laat de oplossing niet koken, aangezien deze kan gaan schuimen. Naderhandspoelt u de waterkoker grondig na met schoon water.

4. Il est recommandé de procéder à un détartrage régulier en fonction de la dureté de l'eau. Remplissez la bouilloire d'eau et de détartrant en respectant les consignes d'utilisation du produit détartrant. Ne laissez pas bouillir la solution, car la mousse formée pourrait déborder. Puis, rincez soigneusement l'intérieur de la bouilloire à l'eau claire.

GB

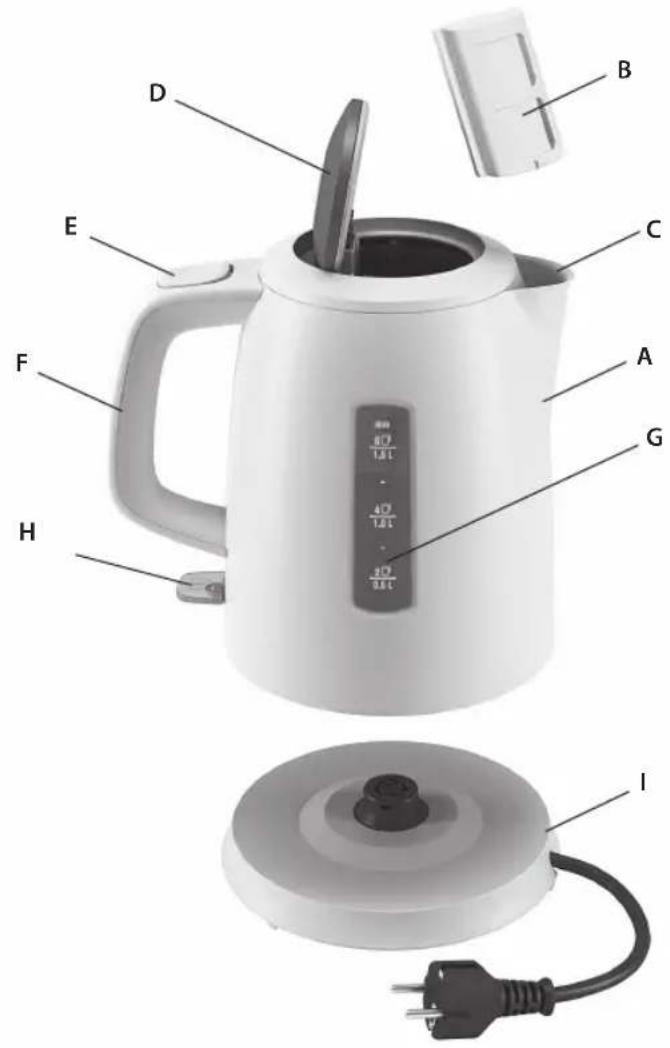

Components

A. Jug
B. Removable mesh filter
C. Spout
D. Lid
E. Opening lid button
F. Handle
G. Water level indicator
H. ON/OFF switch with indicator light
I. Separate base and mains cable

Safety advice

GB

Read the following instruction carefully before using the appliance for the first time.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  • Children should be supervised to ensure that they do not play with the appliance.
  • The appliance may only be connected to a power supply whose voltage and frequency comply with the specifications on the rating plate!
• Never use or pick up the appliance if – the supply cord is damaged, – the housing is damaged."
• The appliance must only be connected to an earthed socket. If necessary an extension cable suitable for 10 A can be used.
• If the appliance or the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified person, in order to avoid hazard.

• Always place the appliance on a flat, level surface.
- The appliance must be switched off and the mains plug withdrawn before cleaning and maintenance.
- The appliance and accessories become hot during operation. Use only designated handles and knobs. Allow to cool down before cleaning or storage.
- The mains cable must not come into contact with any hot parts of the appliance.
- Do not immerse the appliance in water or any other liquid.
' Attention: If the kettle is overfilled there is a risk that the boiling water may spray out, which could scald or burn! Therefore never fill the kettle above the maximum marking.
- Never operate appliance with open lid.
- Do not use or place the appliance on a hot surface or near source of heat.
- Only use the kettle for heating water!
- The kettle can only be used with the stand provided.
- Appliance is for indoor use only.

- This appliance is intended for domestic use only. The manufacturer cannot accept any liability for possible damage caused by improper or incorrect use.

Getting started

GB

White kettle with a patterned cloth and power plug, next to a black X symbol (no text or labels visible)

1. Before first use, rinse the inside and wipe the outside of the kettle with a damp cloth.

Diagram showing a wall-mounted power plug connected to a socket with a black cable, with an arrow indicating the connection (no text or symbols present)

1. Place the base unit on a firm and fl at surface. Plug the mains plug into a wall socket. Excess cord can be wound into the bottom of base unit.

Close-up of a white electric kettle with a handle and lid, showing internal components and a magnified inset (no text or symbols visible)

1. Press the button to open the lid, pour water into the kettle. It is also possible to fill the kettle through the spout, without opening the lid. Make sure water level is visible in the water level indicator, but not exceeding the Max. mark.

GB

White kettle with digital display and a hand inserting a plug into the pot (no text or symbols visible)

1. Close the lid and make sure it snaps in correctly. Otherwise the auto switch off function will not work reliably. Place the kettle onto the base. Press down the ON/OFF switch; the indicator light will illuminate and the kettle will start to heat up.

White kettle with digital display and a magnified inset showing a small mechanical component (no text or symbols visible)

1. The automatic switch off function. When the water has boiled or the kettle is moved from the base, it will switch off automatically. If you wish to stop the heating process before the water is boiling, simply lift up the ON/OFF switch to the OFF position.

Cleaning

White kettle with a patterned lid and power plug, next to a black X symbol (no text or labels visible)

GB

1. Before cleaning, always unplug the appliance. Never rinse or immerse the kettle or base unit in water. Just wipe with a damp cloth, using no abrasive detergents. Occasionally rinse out the kettle with clean water.

White electric kettle with open lid and power cord, no visible text or symbols

1. To clean the mesh fi Iter, grab the strainer insert and lift out. Cleaning the heating plate – superfi cial spots of rust may appear on the heating plate. Remove with a stainless steel cleaning agent.

White kettle with digital display and water drop, next to a white bottle (no visible text or symbols)

1. Decalcifying is recommended regularly, depending on water hardness. Fill the kettle with water and decalcifier according to decalcifier product instructions. Do not boil the solution as it could foam over. Afterwards, rinse kettle thoroughly with fresh water.

Troubleshooting

GB

Problem Possible cause Solution
The appliance switches off before boiling. Too much lime scale at the heating element of the kettle.		Run the decalcifying procedure.
The appliance does not switch off . Close lid until it locks.
		Insert the mesh filter correctly.
The appliance cannot be switched on. After operating with little or no water, the appliance has not cooled down sufficiently.		Allow to cool a short time and try again.

Disposal

GB

Disposal

Packaging materials

The packaging materials are environmentally friendly and can be recycled. The plastic components are identified by markings, e.g. >PE<, >PS<, etc. Please dispose the packaging materials in the appropriate container at the community waste disposal facilities.

Old appliance

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help

prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

AEG

Electrolux

Share more of our thinking at www.electrolux.com

3482AEWA 5110/521002010410
