ZHC 605 XM - Range hood ZANUSSI - Free user manual and instructions

Product type	Range hood
Brand	Zanussi
Model	ZHC 605 XM
Width	60 cm
Depth	Approx. 50 cm
Height (min-max)	65 - 100 cm
Net weight	Approx. 11 kg
Power supply	230 V ~ 50 Hz
Maximum power	240 W
Maximum airflow	600 m³/h
Maximum noise level	65 dB(A)
Control type	Mechanical sliders
Number of speeds	3
Lighting	2 halogen bulbs 20 W (or LED depending on version)
Grease filter type	Washable metal filter (aluminum)
Activated carbon filter (optional)	Compatible model: ZHC 605 XM requires carbon filter (not supplied)
Exhaust mode	External evacuation (recirculation possible with carbon filter)
Air outlet diameter	150 mm (or 120 mm depending on installation)
Energy class	B (according to standards)
Energy efficiency index (EEI)	55.1
Airflow at optimal point	315 m³/h
Pressure at optimal point	400 Pa
Power at optimal point	138 W
Noise at optimal point	50 dB(A)
Airflow performance index (FDE)	30.5
Lighting performance index (LE)	17 lux/W
Main material	Stainless steel
Installation	Wall-mounted (dowels and screws supplied)
Warranty	2 years (parts and labor)
Grease filter maintenance	Wash in dishwasher or by hand every 2 months
Carbon filter replacement	Every 3 to 6 months depending on use
Repairability index	7.6/10 (according to manufacturer data)

Frequently Asked Questions - ZHC 605 XM ZANUSSI

What is the ideal installation height for the ZHC 605 XM hood?

The recommended height between the hob and the hood is 65 to 75 cm for electric cooking, and 75 to 85 cm for gas cooking.

How to clean the metal grease filter?

The grease filter can be washed in the dishwasher on low temperature (short cycle) or by hand with warm soapy water. It must be dried before reinstalling.

Do I need a carbon filter for my ZHC 605 XM hood?

If your hood is not connected to an external exhaust, you must use an activated carbon filter (sold separately) to purify the air in recirculation mode.

How to change the hood bulb?

Unplug the hood, unclip the lighting panel, replace the 20W halogen bulb (or equivalent LED) with one of the same type and wattage. Close the panel.

Why is my hood noisy or vibrating?

Check that the hood is securely fixed to the wall, the filters are clean and properly engaged. A noise level up to 65 dB is normal at maximum speed.

Can I use the hood in recirculation mode without external exhaust?

Yes, your hood can operate in recirculation mode if you install a carbon filter and the air is expelled into the room through the outlet grille at the top of the hood.

How to adjust the 3 speeds of the hood?

Use the mechanical slider on the control panel: position 1 for low (gentle cooking), position 2 for medium, position 3 for intense (strong odors).

What to do if the hood does not turn on?

Check the power supply (socket and fuse). Ensure the bulbs are not burned out. If the problem persists, contact customer service.

Where to find the replacement carbon filter for ZHC 605 XM?

The compatible carbon filter is generally the ZHC 605 XM - Carbon filter model. It is available online or at Zanussi authorized dealers.

What is the lifespan of the halogen bulbs?

Halogen bulbs last approximately 1000 to 2000 hours. To extend their life, avoid impacts and do not clean them with water while on.

USER MANUAL ZHC 605 XM ZANUSSI

INSTALLATION, USE AND MAINTENANCE HANDBOOK

INSTRUCTION MANUAL FOR INSTALLATION, USE AND MAINTENANCE

INSTRUCTION MANUAL

Instructions Manual INDEX

RECOMMENDATIONS AND SUGGESTIONS....18 CHARACTERISTICS....19 INSTALLATION 20 USE....23 MAINTENANCE....24

Instruction Manual CONTENTS

RECOMMENDATIONS AND SUGGESTIONS ....26 CHARACTERISTICS 27 INSTALLATION 28 USE....31 MAINTENANCE....32

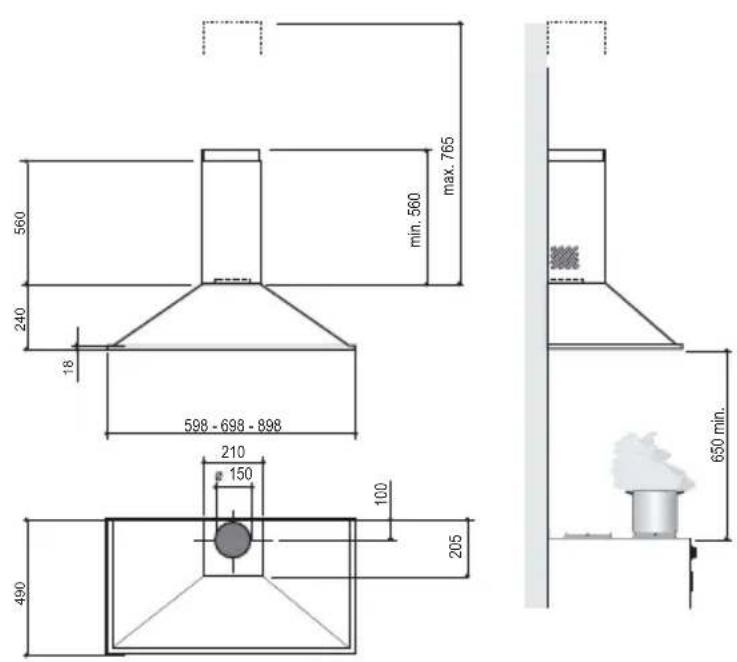

Dimensions

Components

Chimney assembly

Upper chimney

Lighting

RECOMMENDATIONS AND SUGGESTIONS

INSTALLATION

• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.
• The minimum safety distance between the cooker top and the extractor hood is 650 mm.
• Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood.
• For Class I appliances, check that the domestic power supply guarantees adequate earthing.

Connect the extractor to the exhaust flue through a pipe of minimum diameter 120 mm. The route of the flue must be as short as possible.

- Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.).

- If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. The kitchen must have an opening communicating directly with the open air in order to guarantee the entry of clean air.

USE

• The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.
• Never use the hood for purposes other than for which it has been designed.
• Never leave high naked flames under the hood when it is in operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.
• Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.
• Do not flambè under the range hood; risk of fire
• The hood should not be used by children or persons not instructed in its correct use.

MAINTENANCE

• Switch off or unplug the appliance from the mains supply before carrying out any maintenance work.
• Clean and/or replace the Filters after the specified time period.
• Clean the hood using a damp cloth and a neutral liquid detergent.

Dimensions

Components

Ref. Q.ty Product Components

1 1 Hood Body, complete with: Controls, Light, Blower, Filters

2 1 Telescopic Chimney comprising: 2.1 1 Upper Section 2.2 1 Lower Section 9 1 Reducer Flange ∅ 150-120 mm 15 1 Air Outlet Connection

Ref. Q.ty Installation Components

7.1 2 Hood Body Fixing Brackets 7.2.1 2 Upper Chimney Section Fixing Brackets 11 8 Wall Plugs 12a 8 Screws 4.2 x 44,4 12c 6 Screws 2.9 x 9.5 12d 2 Screws M4 x 25

Q.ty Documentation

1 Instruction Manual

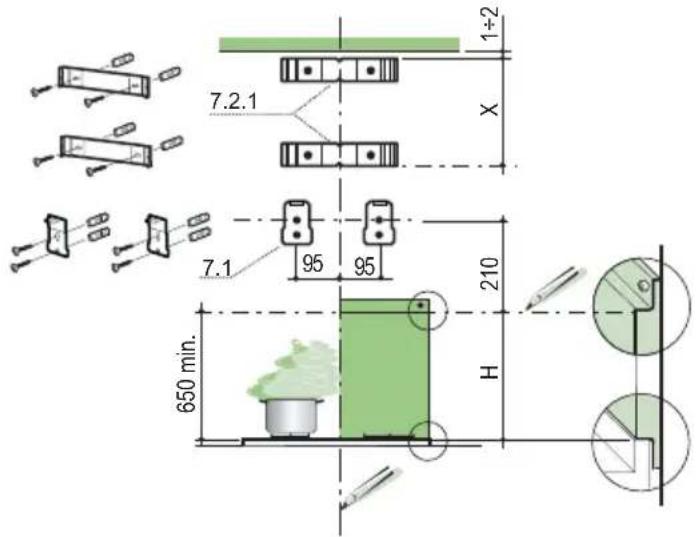

Wall drilling and bracket fixing

Wall marking:

• Draw a vertical line on the supporting wall up to the ceiling, or as high as practical, at the centre of the area in which the hood will be installed.
• Draw a horizontal line at 650 mm above the hob for installation without the back panel, or at height H (H=height of the visible part of the panel) for installation with the back panel.
• Place bracket 7.2.1 on the wall as shown about 1-2 mm from the ceiling or upper limit, aligning the centre (notch) with the vertical reference line.
• Mark the wall at the centres of the holes in the bracket.
• Place bracket 7.2.1 on the wall as shown at X mm below the first bracket (X = height of the upper chimney section supplied), aligning the centre (notch) with the vertical line.
• Mark the wall at the centres of the holes in the bracket.
• Place bracket 7.1 as shown 95 mm from the vertical reference line and 210 mm above the horizontal reference line. Mark the centres of the holes in the bracket.
• Repeat this operation on the other side.

REAR PANEL (OPTIONAL)

The Rear Panel must be fitted before fixing the hood body and, if it is to be fixed at both top and bottom, must be fitted at the correct height prior to installing the bases. As this operation is rather complex, it should be carried out either by the kitchen installer or a qualified person who knows the final dimensions of the units.

For fixing at the top only, proceed as follows:

• Rest the back panel on the base, inserting the lower plate between the upper surface and the wall, centring it on the vertical reference line.
• Mark the centres of the two holes in the upper plate.
• Drill 8 mm diameter holes at all the centre points marked.
• Insert the wall plugs 11 in the holes. Fix the brackets using the 12a screws (4.2 x 44.4) supplied.
• Fix the back panel (where present) using the 12a (4.2 x 44.4) screws supplied.

Mounting the hood body

• Screw the two screws 12d supplied onto the brackets 7.1.
• Hook the hood body onto the bracket 7.1, centring it around the vertical line.
• Use the adjusting screws 12d underneath the hood to level the hood body.

Connections

DUCTED VERSION AIR EXHAUST SYSTEM

When installing the ducted version, connect the hood to the chimney using either a flexible or rigid pipe ø 150 or 120 mm, the choice of which is left to the installer.

• To install a φ 120 mm air exhaust connection, insert the reducer flange 9 on the hood body outlet.
• Fix the pipe in position using sufficient pipe clamps (not supplied).
• Remove any activated charcoal filters.

RECIRCULATION VERSION AIR OUTLET

• Push fit the air outlet fitting 15 onto the air outlet of the hood body.
• Ensure that the activated charcoal filters have been inserted.

ELECTRICAL CONNECTION

- Connect the hood to the mains through a two-pole switch having a contact gap of at least 3 mm.

- Remove the grease filters (see paragraph Maintenance) being sure that the connector of the feeding cable is correctly inserted in the socket placed on the side of the fan.

Flue assembly

Upper exhaust flue

• Slightly widen the two sides of the upper flue and hook them behind the brackets 7.2.1, making sure that they are well seated.
• Secure the sides to the brackets using the 4 screws 12c (2,9 x 9,5) supplied.

Lower exhaust flue

- Slightly widen the two sides of the flue and hook them between the upper flue and the wall, making sure that they are well seated.

- Fix the lower part laterally to the hood body using the 2 screws 12c (2.9 x 9.5) supplied.

• Make sure that the air outlet connection is aligned with the chimney outlets.

Control panel

L Light Switches the lighting system on and off.

M Motor Switches the extractor motor on and off.

V Speed Sets the operating speed of the extractor:

1. Low speed, used for a continuous and silent air change in the presence of light cooking vapour.
2. Medium speed, suitable for most operating conditions given the optimum treated air flow/noise level ratio.
3. Maximum speed, used for eliminating the highest cooking vapour emission, including long periods.

L Light: switches the lighting system on and off.

S Led: motor running led.

V1 Motor: switches the extractor motor on and off at low speed. Used to provide a continuous and silent air change in the presence of light cooking vapours.

V2 Speed: medium speed, suitable for most operating conditions given the optimum treated air flow/noise level ratio.

V3 Speed: maximum speed, used for eliminating the highest cooking vapour emission, including long periods.

Grease filters

CLEANING METAL SELF-SUPPORTING GREASE FILTERS

• The filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher.
• Remove the filters one at a time by pushing them towards the back of the group and pulling down at the same time.
• Wash the filters, taking care not to bend them. Allow them to dry before refitting.
• When refitting the filters, make sure that the handle is visible on the outside.

Activated charcoal filter (Recirculation version)

These filters are not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently with heavy usage.

REPLACING THE ACTIVATED CHARCOAL FILTER

• Remove the metal grease filters
• Remove the saturated activated charcoal filter as shown (A). • Fit the new filters (B).
• Replace the metal grease filters.

Lighting

LIGHT REPLACEMENT

40 W incandescent light.

• Remove the metal grease filters.
• Unscrew the bulbs and replace them with new ones having the same characteristics.
• Replace the metal grease filters.

Lighting

LIGHT REPLACEMENT

20 W halogen light.

• Remove the 2 screws fixing the Lighting support, and pull it out of the Hood. • Extract the lamp from the Support.
• Replace with another of the same type, making sure that the two pins are properly inserted in the lamp holder socket holes.
• Replace the Support, fixing it in place with the two screws removed as above.

INSTALLATION

Dimensions

Components

BASE FIXING (IF PROVIDED)

Chimney Mounting

Upper Chimney

Odor filter (Filter version)

REPLACEMENT OF ACTIVE CARBON FILTER

Lighting

REPLACEMENT OF LAMPS

ASSEMBLY

Space required

Components

BACK PANEL (OPTION)

Connections in exhaust version

Chimney mounting

Upper chimney section

Grease filter (recirculation version)

Lighting

REPLACING THE LAMPS

Halogen lamp 20 W

INSTALLATION

External dimensions

Parts

Ref. Product parts

Ref. Installation parts

WALL PLATE (OPTIONAL)

Grease filter (filter version)

Lighting

REPLACING THE LAMPS

INSTALLATION

Dimensions

Components

Lighting

INSTALLATION

Dimensions

Components

Chimney assembly

Upper chimney

Lighting

Dimensions

Components

Lighting

The symbol 📄 on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.
