USER MANUAL 4350 HTC

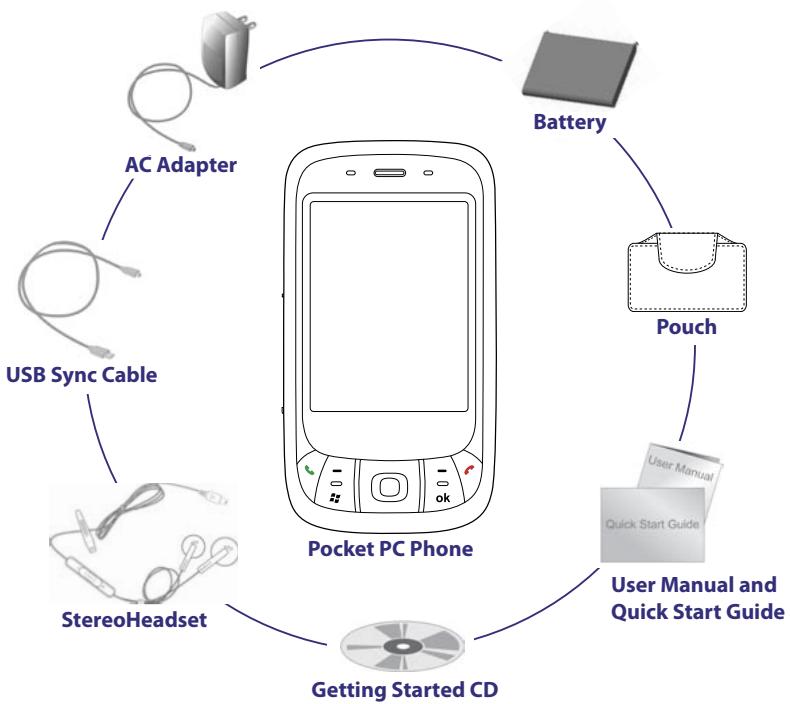

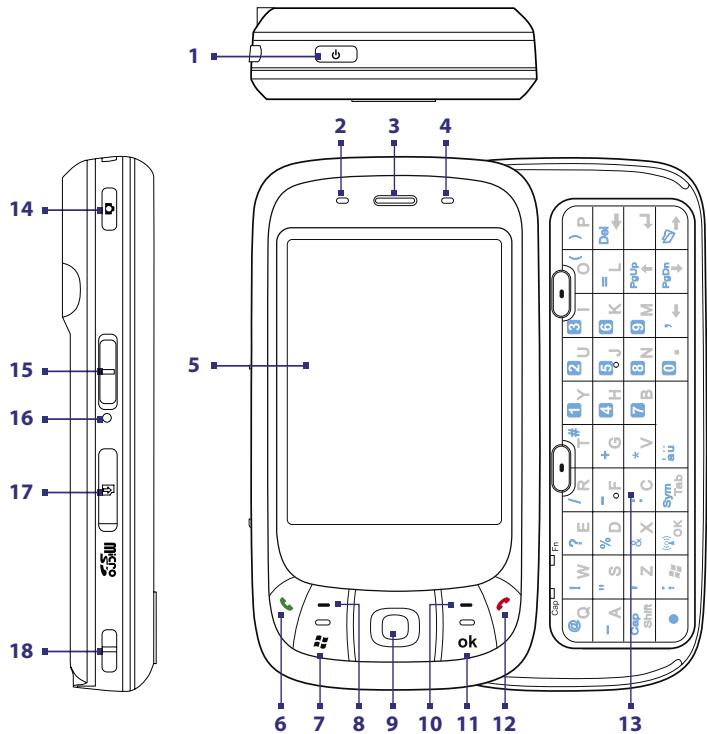

POWER Button Notification LED 1 Earpiece Notification LED 2 Touch Screen TALK Button START Button Left SOFT KEY NAVIGATION Control/ENTER Right SOFT KEY OK Button END Button Hardware Keyboard CAMERA Button Volume RESET Button microSD Card Slot Strap Holder Press and hold to turn on the device. When the device is tumed on, press to turn off the display temporarly. This switches your device to Sleep mode, and you can still receive calls and messages. Press and hold (for about 5 seconds) to turn off the power completely. Al functions including the phone will be unavailable for use. This bi-color LED shows Green and Amber lights for GSM/GPRS/EDGE standby, message, and network status as well as for notification and battery charging status. Listen to a phone call from here. This LED shows a blinking Blue light for Bluetooth system notification of powered-up and ready to transmit Bluetooth signal, or a blinking Green light for Wi-Fi status. When both Bluetooth and Wi-Fi are enabled, their lights blink alternately. ap the screen with the stylus to write, draw, or make a selection. Press to answer an incoming call or a number. Press to open the Start menu. Press to execute the command shown in the label above the button. Press this multi-directional control up, down, left, or right to move through menus and program instructions; carry out the selection by pressing the center button. Press to execute the command shown in the label above the button. Press to confirm your data entries, or to exit the program in use. Press to end a call or to return to the Today screen. The QWERTY keyboard is similar to a standard keyboard on your PC. Press to launch the Camera; press again to take a photo or video clip, depending on the specified capture mode. Slide up or down to adjust the speaker volume. During a call, slide up or down to adjust the earpiece volume. With the stylus, press the RESET button to soft-reset your device. Insert a storage card (microSD card) for storing data. Attach a strap for carrying your device.

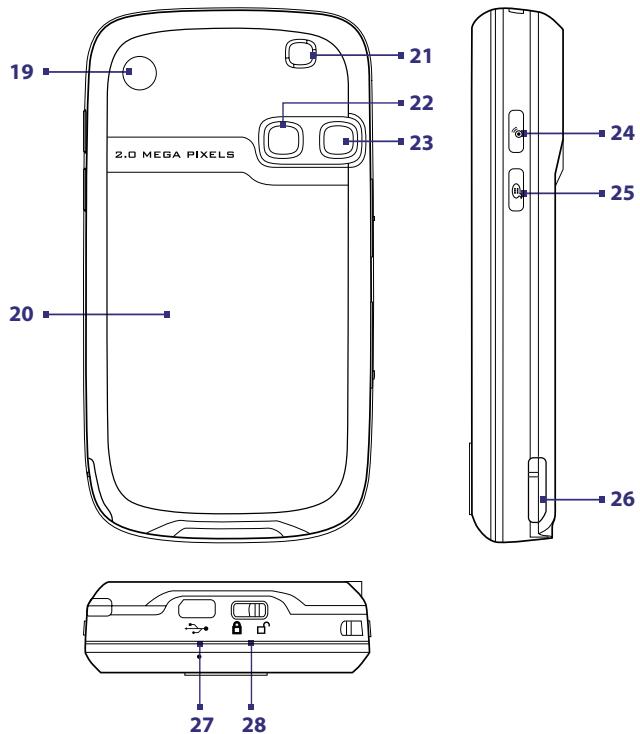

19 Car Antenna Connect your phone to the car antenna while in a car to have better reception quality. Connector Simply peel off the rubber cap and connect the antenna jack. Replace the rubber cap if unused. 20 Back Cover This covers the battery and SIM card compartment. To remove, slide the latch that is located atthe bottom of your device. 21 Speaker Listen to the audio media from here. 22 Self-Portrait Turn the back side of your device to face yourself so that your image reflects on the mirror ror when taking self-portrait shots. 23 Camera This is a 2.0 megapixel CMOS color camera. Use the camera to take still photos and record video clips. 24 COMM Manager Press to launch Comm Manager. Comm Manager lets you easily turn on/off your devices button connections (such as Bluetooth and Wi-Fi) ringer, phone, etc. 25 Voice Command Press to start Voice Speed Dial; press and hold to record a voice note. Button 26 Stylus Use the stylus to write, draw, or select items on the touch screen. 27 Sync Connector/ Use this connector to synchronize data by connecting the provided USB Sync cable or to Earphone Jack recharge the battery via the provided AC adapter. You can also connect the provided USB stereo headset for hands-free conversation or for listening to audio media. 28 BackCoverLatch Slide this latch to release the back cover.

Before you start using your device, you must install a SIM card and a charged battery. The SIM card contains your phone number and service details, and it stores phonebook entries and your messages. You can also install a microSD card to expand the storage for your device. Install the SIM card

1. Make sure your device is turned off.

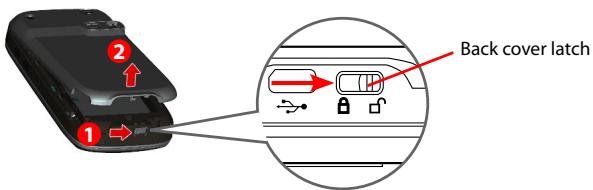

2. Slide the back cover latch to the unlock position (Ê ) to pop up the back cover slightly.

Then, remove the back cover by lifting it up from the bottom end. Back cover latch

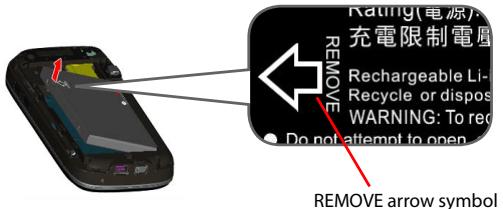

3. If you have installed the battery, remove it by lifting it up from the end that is marked with a

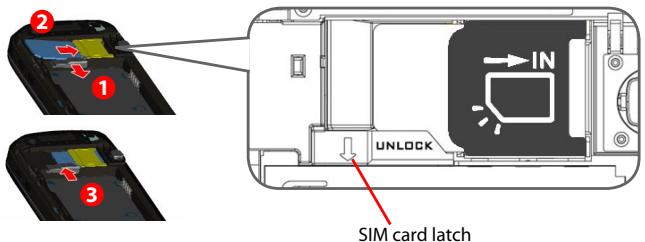

4. Pull the SIM card latch downward to unlock the slot. Insert the SIM card into the slot with its

gold contacts facing down and its cut-off corner facing toward outside of the slot (see the diagram printed on the slot). After inserting the SIM card, push back the SIM card latch to secure the SIM card in place. SIM card latch

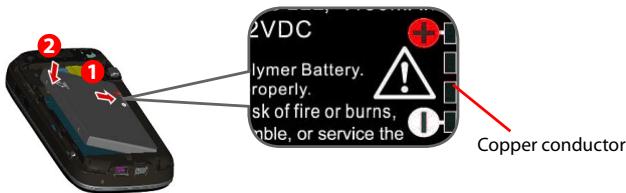

5. Install the battery by inserting it with its exposed copper part aligned with the protruding

copper conductor on the upper right side of the battery compartment. Insert the right side ofthe battery first, then gently push the battery into place. Copper conductor

6. Replace the back cover and slide the back cover latch to the lock position (A).

Install the microSD card If you need more storage for your device, you can install a microSD card into the slot on the left side of the device. To install the mcroSD card, open the rubber cover first, and then insert the card into the slot (with its gold contacts facing down) until it snaps into place. After inserting the card, replace the rubber cover. To remove the microSD card, make sure that no application is accessing the card. Open the rubber cover and press the card to pop it out slightiy. Then, pull the card out ofthe slot and replace the rubber cover. Charge the battery New batteries are shipped partially charged. Before you start using your device, you have to install and charge the battery. Some batteries perform best after several full charge/discharge cycles. You can charge the battery in two ways: + Connect your device directly to an electrical» Plug the sync cable to the USB port on outlet using the AC adapter. your PC and to the sync connector on your device. When your device is turned off, charging is indicated by a solid amber light on the LED indicator. When your device is turned on, charging is indicated by a solid amber light on the LED indicator as well as a charging icon ((Æ] ) on the Today screen. After the battery has been fully charged, the LED indicator becomes green and a full battery icon (@M ) appears on the Today screen.

Check the battery power + Tap the battery level icon ( (MH) on the Today screen; or + Tap Start > Settings > Systems tab > Power. Damme Lin The Power Settings screen will then open where you can see the Fehagraste — Gragns

current battery power level. When the battery power gets very low, a warning message will be displayed. When you see this, immediately save your data by synchronizing with your PC, or save your data on a storage card, and then turn off your device. Do not attempt to restart your device until you have connected it with the power adapter. Battery power indicator Turn on your Pocket PC Phone Press and hold POWER to turn on your device. When you turn on your device for the first time, a Quick Start Wizard will guide you through the screen calibration process and the setup of regional settings, date and time, password, Outlook e-mail, and POP3/IMAP4 e-mail accounts. To turn off your device, press POWER again.

Like a standard mobile phone, you can use your device to make, receive, and keep track of phone calls and send SMS messages. The Phone screen From the Phone screen, you can access Call History, Speed Dial, and Phone settings. To open the Phone screen, do one of the following: + Use the stylus to tap Start > Phone. + Press TALK on the device. TALK button Make a voice call + Onthe Phone screen, tap the phone number you want to call, then tap DE or press the TALK button.

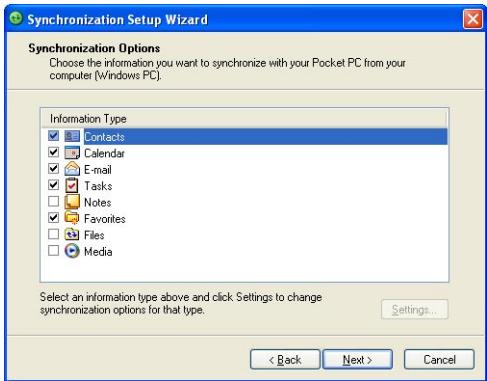

Using Microsoft® ActiveSync®, you can synchronize information on your device with information on your PC, such as Outlook content. ActiveSync is already installed on your device, but you need toinstall it on your PC if you don't already have it. Insert the Getting Started CD into the CD drive of your PC. Follow the instructions on the installation wizard screen to install ActiveSync. Once installation is completed, connect the sync cable to your device and plug it into your PC's USB port. To set up a partnership between your device and the PC, turn on your device. When the PC detects a USB connection, it starts the ActiveSync Synchronization Setup Wizard. Follow the instructions on the screen and select the Outlook items you want to synchronize. Smehronfzation Setup Mizard Smehorzoion Dons arme toner Satan mange da ad cdi Extras home Brera ra ba Ge du Synchronization Setup Wizard (Synchronization Options)

PC requirement to run ActiveSync 4.x To connect your device to the PC, you must have the Microsoft® ActiveSync® program installed on your PC. ActiveSync 4x is included in the Getting Started CD, which is compatible with the following operating systems and applications: Microsoft® Windows® 2000 Service Pack 4 Microsoft® Windows Server“ 2003 Service Pack 1 Microsoft® Windows Server 2003 1A64 Edition Service Pack 1 Microsoft® Windows Server“ 2003 x64 Edition Service Pack 1 Microsoft® Windows® XP Professional Service Packs 1 and 2 Microsoft® Windows® XP Home Service Packs 1 and 2 Microsoft® Windows® XP Tablet PC Edition 2005 Microsoft® Windows® XP Media Center Edition 2005 Microsoft® Windows® XP Professional x64 Edition Microsoft® Outlook® 98, Microsoft” Outlook® 2000 and Microsoft® Outlook XP and Microsoft® Outlook® 2003 messaging and collaboration clients Microsoft® Office 97, excluding Outlook Microsoft® Office 2000 Microsoft® Office XP Microsoft® Office 2003 Microsoft® Internet Explorer” 4.01 or later (required) Microsoft Systems Management Server 2.0

3. The E-mail Setup Wizard guides you step-by-step through

the setup process. eur e mal provider Set up Outlook e-mail To be able to send and receive Outlook e-mail on your device, you must set up ActiveSync synchronization with your computer or the Exchange Server. For information about setting up ActiveSync synchronization, refer to the user manual.

Set up a POP3/IMAP4 e-mail account Set up a POP3 or IMAP4 e-mail account on your device if you have an e-mail account with an Internet service provider (ISP) or an account that you access using a VPN server connection {typically a work account).

1. Tap Start > Messaging.

2. Tap Menu > Tools > New Account.

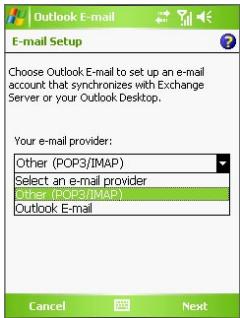

3. On the first E-mail Setup screen, select Other (POP3/IMAP) from the Your e-mail provider

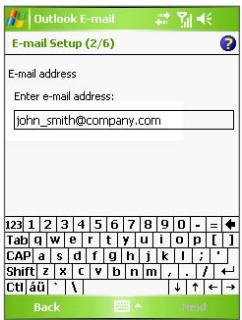

list, then tap Next. On the next screen, enter your e-mail address, and tap Next. Auto configuration will help you download necessary e-mail server settings. À md sta 5/9 © Etats Et mal ar BHBEEESETELE- EE nfapelet TE Tuto el ET (carla [sal Flan let EL cLvlbnqm) T UHCE

5. Once Auto configuration has finished, tap Next.

6. Enter your name (the name you want displayed when you send e-mail) and your password.

Tip Selectthe Save password check box if you want to save your password so that you do not need to enter it again.

Your device is capable of sending and receiving E-mail, SMS, and MMS messages as long as itis connected to the network. Although you can send text messages (SMS) to only mobile phone numbers, MMS messages can be sent to both mobile phone numbers and e-mail addresses. Compose and send a message

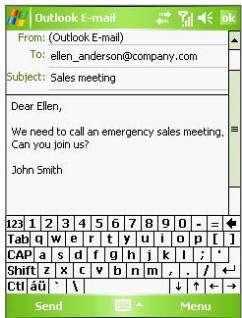

Note In the message list, tap Menu > Go To and select an account. Tap New. Enter the e-mail address or mobile phone number of one or more recipients, separating them with a semicolon. To access addresses and phone numbers from Contacts, tap To. Enter your message. + To quickly add common messages, tap Menu > My Text and tap a desired message. + To check the spelling, tap Menu > Spell Check. Tap Send. SMS and MMS can only be sent if your device is connected to a GSM/EDGE network. E-mail messages can be sent only if your device has Internet access (e.g. via GSM/EDGE/GPRS, USB/Bluetooth connection to computer, etc) He CuDikE val To on amorseneerpa eo ue: sabemascra enenden a onemengrer ss net. Fabre ÉnnsnE on anfapwleT TE Tu

You can set up connections to the Internet or to a corporate network to browse the Internet. The pre-loaded browser, Internet Explorer Mobile, is a full-featured Internet browser, and optimized for use on your device. Use Internet Explorer Mobile

1. Tap Start > Internet Explorer. Vanternet EMMA Yi 4e D

2. To go to a web site, enter the URL address of the desired

web site in the address bar that appears at the top of the screen. Tap the down arrow (+) to choose one web site from previously entered addresses. ETS Bddorarmtes.

3. Tap the Go icon ( & } to go to the web address you entered.

4. Tap Back to go back to the previous page. Fe

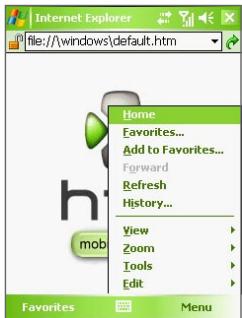

you want to visit. To add a favorite link while browsing the Internet, go to the page you want to add. Then, tap Menu > Add to Favorites, or tap and hold on the page to select Add to Favorites from the shortcut menu. Internet Explorer Mobile

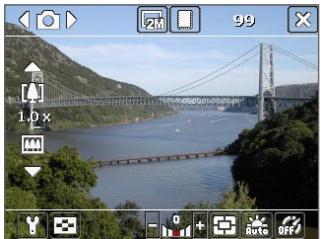

Using the Camera Taking photos and recording video clips along with audio is easy with your device's built-in camera. Launch the camera + Tap Start > Programs > Camera. + Tap Start > Programs > Pictures & Videos, then tap the Camera icon. + Press the CAMERA button on your device. To exit the camera, tap the Exit icon (Æ) on the screen. Camera screen Capture a still image

1. After launching the camera, tap {]or[J at the upper left side of the screen or press

NAVIGATION left or right to select the Photo capture mode.

1. After launching the camera, tap {]or[J at the upper left side of the screen or press

NAVIGATION left or right to select the Video capture mode.

2. Press the CAMERA or ENTER button to start recording a video clip. To stop recording, press

10. Using Pictures & Videos

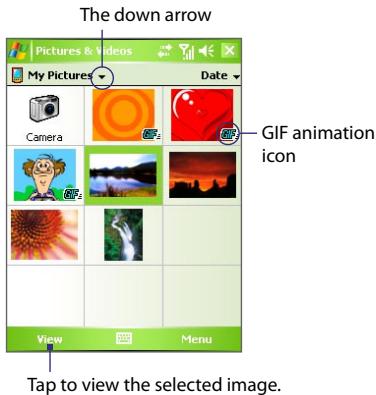

The Pictures & Videos program collects, organizes, The down arrow and sorts all of your captured images and video clips on our device. (pts EEE 4€ You can use this program to view/play pictures, GIF animation, and video clips. You can even view pictures as a slide show, beam them, send them via e-mail, edit them, or set them as the background on the Today screen. Tap to view the selected image. View pictures

1. Tap Start > Programs > Pictures & Videos. The files in the My Pictures folder appear as

thumbnails by default.

2. Select a picture and tap View.

1. Tap Start > Programs > Pictures & Videos.

2. Select a GIF animation file (marked with a BF: icon) and tap View. The GIF Animation

program then opens and plays the animation.

2. To find the video clips that you capture, tap the down arrow (w) next to the My Pictures

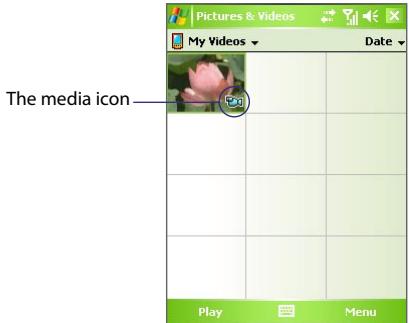

folder and tap My Documents. Next, tap My Videos. Video clips are displayed as thumbnails by default, which appear with a media icon (T4). rctures 8 Va + Yi 4e Be videos Date ‘The media icon

3. Tap the desired thumbnail to play it with the built-in Windows Media Player.

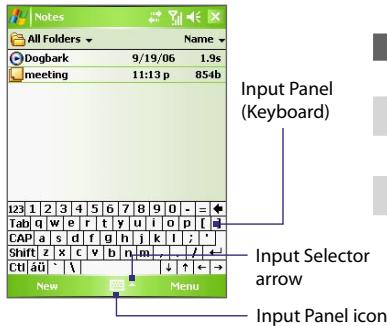

When you start a program or select a field that requires text or numbers, the Input Panel icon becomes available on the menu bar. Tap the Input Selector arrow (that appears next to the Input Panel icon) to open a menu where you can select a text input method and customize input options. After selecting a text input method, the corresponding Input Panel is then displayed and you can use it to enter text. To toggle between showing and hiding the Input Panel, simply tap the Input Panel icon. (OJatrabes — ge put method mean input Panel On-screen keyboard (Keyboard) Letter Recognizer or Block Recognizer I symbol Pad Transcrib BEREEEE LITE ME CA A Input Selector arrow Input Panel icon Note Some text input methods may not be available in certain language versions of the device.

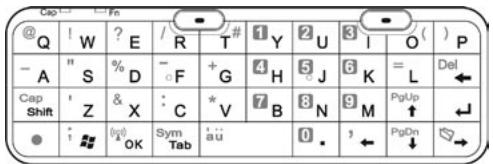

Use the Hardware Keyboard Alternately, you can use the OWERTY keyboard to enter information. To use the QWERTY keyboard, slide the screen panel to the left to reveal the keyboard. FE, 8, 5 Le [te |[Bn|8, BK" PA

‘v]U8/0N Ou" | nu + To type lowercase letters, press the keys using your thumbs or fingers. + To use all uppercase letters, press ( + first, then press [zx] To change back to all lowercase letters, press these buttons again. + Touse a single uppercase letter, press 3x and then press the corresponding key. + To enter a number or symbol (labeled in blue color), press (+ and then press the corresponding key. + To open the Symbol Pad, press [+ and then press + Press the Left/Right SOFT KEY (([_=_)) to perform the command shown in the label above the key. + Press to verify your data entries or exit the program in use. + Press["# to open the Start menu. + Pressthe arrow keys [+ [+ [7 [52] for directional movement. + Totype accented characters (like 4, 4, ç, ê, i, 6, ü, etc), press the letter key first and then, hold +_ and atthe same time press the space bar[“__ |several times until you find the correct character you need.

The Today screen displays important information, such as upcoming appointments and status indicators. Following are some of the status icons that you may see on your device: Icon ortext messages; SMS notification of voice m D New multimedia (MMS) message. 2 New MSN message. D There are more notifications. Tap the icon to view all. AL Voice callin progress. Æ. Callonhold. #3 Callsare forwarded. t! Missed all. # Dialing while no SIM cards inserted. < Speakerphoneon. il Maximum signal strength. T Nosignal. x Phoneis turned off. Yi Nophoneservice.

Searching for phone service. GPRS available. GPRS connecting. GPRS in use. EDGE available. EDGE connecting. EDGE in use. Roaming. Connection is active. Connection is not active. Synchronization in progress. ActiveSync notification. Synchronization error. i function enabled, but device not connected to a wireless network yet. less network(s) detected. Connecting to wireless network (arrows moving}; connected to wireless network.

Synchronizing via Wi-Fi. Battery is fully charged. Battery power is very low. Battery charging. Sound on. Sound off. Vibration mode. Alarm. No SIM card inserted. is locked. is unlocked. Bluetooth headset detected. GPRS Monitor currently active. Sprite Backup notification. Serial USB connection active. Note The USB to PC (Hg) icon appears on the Today Screen when your device is connected to your computer and you enable a serial USB conne PC, refer to the user manual.

13. Customizing Your Pocket PC Phone

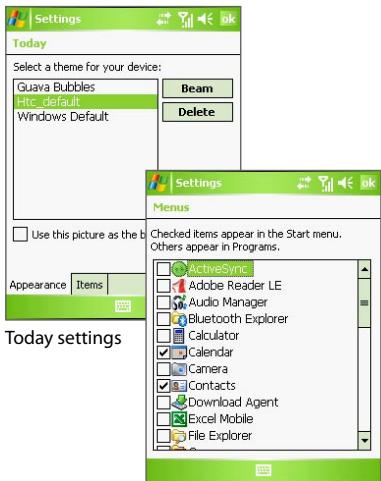

You can customize the look and feel of your device and set the time and date according to the current time zone. |stngs TE Customize the Today screen

1. Tap Start > Settings > Personal tab > Today.

theme for the background of the Today screen.

3. On the Items tab, select the items you want to

appear on the Today screen. _— — Customize the Start Menu

1. Tap Start > Settings > Personal tab > Menus.

ee seen ΠOthers aporar n Pragrane,

2. Select the check boxes of the items you want

to appear in the Start menu. You can select up to seven items. Today settings Set the time and date

1. Tap Start > Settings > System tab > Clock &

2. Select the correct time zone and change the

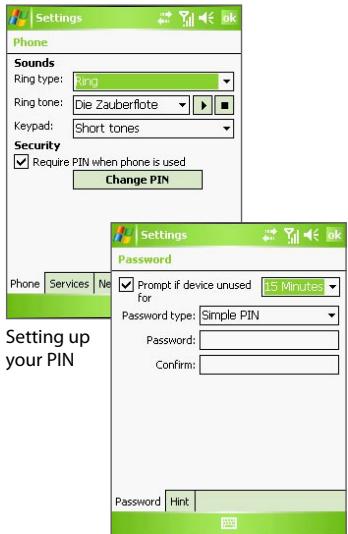

There are two kinds of security on your device. You can protect your SIM card from unauthorized use by assigning a PIN (Personal Identification Number). Additionally, you can prevent unauthorized access to any part of the device by using password protection. Protect your SIM card with a PIN

1. Tap Start > Settings > Personal tab > Phone.

2. On the Phone tab, tap Require PIN when phone is

used. To change the PIN at any time, tap Change PIN. Protect your device with a password

1. Tap Start > Settings > Personal tab > Lock.

and in the box to the right, select how long your device must be ide before a password is required. In the Password type box, select the type of password you would like to use. Enter the password and confirm it.

3. On the Hint tab, enter a phrase that will help you

remember your password, but doesn't allow others to guess your password. The hint will be displayed after the wrong password is entered four times.

4. Tap OK. The next time your device is turned on, you

will be prompted to enter your password. |stngs TE Pdons rai] ain Setting up your PIN Setting up password

For more instructions, refer to the User Manual or contact your local dealer for assistance.
