IDL 500 S - Dishwasher INDESIT - Free user manual and instructions

Brand	Indesit
Model	IDL 500 S
Product type	Freestanding dishwasher
Dimensions (W x D x H)	60 x 60 x 85 cm
Weight	45 kg
Electrical supply	230 V ~ 50 Hz, 10 A
Energy class	Class A
Water consumption per cycle	15 L
Energy consumption per cycle	1.05 kWh
Number of place settings	12
Wash programmes	Eco, Intensive, Quick, Glasses, Pre-wash
Main functions	Delayed start, Temperature selection, Salt and rinse aid indicator
Noise level	49 dB(A)
Drying type	Condensation drying
Safety system	Overflow protection, Child safety (key lock)
Tub material	Stainless steel
Power cable length	1.5 m
Inlet hose length	1.5 m
Maintenance and cleaning	Regular cleaning of filters, wash arms and door seals
Country of manufacture	Italy

Frequently Asked Questions - IDL 500 S INDESIT

How to install my Indesit IDL 500 S dishwasher?

Make sure it is placed on a flat and stable surface. Connect the water inlet hose to a cold water supply, connect the drain hose to the drain, then plug the appliance into a grounded power outlet. Refer to the installation manual for more details.

What products to use for the dishwasher?

Use regenerating salt, rinse aid, and powder or tablet detergent. Follow the quantities recommended by the manufacturer for optimal washing.

How to maintain the filters?

Remove the filters located at the bottom of the tub, wash them under running water with a soft brush, then put them back in place. Regular cleaning prevents blockages.

What to do if the dishes are not perfectly dry?

Check that you are using rinse aid and that the reservoir is full. You can also select a program with an enhanced drying option, or open the door after the cycle for natural drying.

How to resolve an error message?

Note the error code displayed, then check the code table in the manual. Common solutions include checking the water supply, cleaning the filter, or restarting the appliance.

The dishwasher does not start, what to do?

Make sure the door is properly closed and a program is selected. Also check the power supply and that the water inlet tap is open.

What is the maximum capacity?

The Indesit IDL 500 S dishwasher can wash up to 12 place settings. Do not overload the appliance to ensure effective washing.

Can I use 3-in-1 tablets?

Yes, you can use all-in-one tablets. Then set the salt and rinse aid dispenser to the minimum position, or follow the recommendations in the manual.

How to deep clean the dishwasher?

Run an empty program with a special dishwasher cleaner, or use white vinegar in the rinse aid compartment. Also clean the door seals and the wash arm.

Where to find spare parts for this appliance?

You can order spare parts from Indesit customer service or from specialized appliance spare parts websites. Refer to the model number IDL 500 S.

USER MANUAL IDL 500 S INDESIT

Illustration of four different household furniture items with grid patterns and directional arrows (no text or symbols)

3D wire mesh structure with an arrow pointing to a structural element (no text or symbols)

Technical line drawing of a mechanical assembly with internal components (no text or symbols)

Two wireframe diagrams of plastic crates with circular and rectangular cutouts, no text or symbols present.

Ribaltine Just you\*

Isometric line drawing of a grid-like structure with three small human figures standing on top (no text or symbols)

Simple line drawing of a bucket with handle and spout, no text or symbols present

Illustration of a mechanical device with a curved handle and two separate parts, no text or symbols present.

metallico.

Technical line drawing of three mechanical components labeled A, B, and C (no text or symbols beyond labels)

Positioning and levelling

Connecting the water and electricity supplies

Technical data

Description of the appliance, 15

Overall view

Control panel

Loading the racks, 16

Lower rack

Cutlery basket

Upper rack

IDL 500

Start-up and use, 17

Starting the dishwasher

Loading the detergent

Washing options

Wash cycles, 18

Wash cycle table

Rinse aid and refined salt, 19

Loading the rinse aid

Loading the refined salt

Care and maintenance, 20

Shutting off the water and electricity supplies

Cleaning the dishwasher

Preventing unpleasant odours

Cleaning the sprayer arms

Cleaning the filters

Leaving the machine unused for extended periods

Precautions and advice, 21

General safety

Disposal

Saving energy and respecting the environment

Troubleshooting, 22

indesit

Keep this instruction manual in a safe place for future reference. If the appliance is sold, given away or moved, please ensure the manual is kept with the machine, so that the new owner may benefit from the advice contained within it.
Please read this instruction manual carefully: it contains important information regarding the safe installation, use and maintenance of the appliance.
If the appliance must be moved at any time, keep it in an upright position; if absolutely necessary, it may be tilted onto its back.

Positioning and levelling

1. Remove the appliance from all packaging and check that it has not been damaged during transportation. If it has been damaged, contact the retailer and do not proceed any further with the installation process.
2. Check the dishwasher by placing it so that its sides or back panel are in contact with the adjacent cabinets or even with the wall. This appliance can also be recessed under a single worktop (see the Assembly instruction sheet).
3. Position the dishwasher on a level and sturdy floor. If the floor is uneven, the front feet of the appliance may be adjusted until it reaches a horizontal position (the angle of inclination must not exceed 2 degrees). If the appliance is levelled correctly, it will be more stable and much less likely to move or cause vibrations and noise while it is operating.

Connecting the water and electricity supplies

A Connection to the water and electricity supplies should only be performed by a qualified technician.
The dishwasher should not stand on top of the water hoses or the electricity supply cable.
The appliance must be connected to the water supply network using new hoses. Do not use old hoses.

The water inlet (A) and outlet (B) hoses and the electricity supply cable may be positioned towards the right or the left in order to achieve the best possible installation (see figure).

Connecting the water inlet hose

• To a suitable cold water connection point: before attaching the hose, run the water until it is perfectly clear so that any impurities that may be present in the water do not clog the appliance; after performing this operation, screw the inlet hose tightly onto a tap with a 34 gas threaded connection.
• To a suitable hot water connection point: your dishwasher may be provided with hot water from the mains supply (if you have a central heating system with radiators) provided that it does not exceed a temperature of 60°C. Screw the hose to the tap as described for connection to a cold water supply.

If the inlet hose is not long enough, contact a specialist store or an authorised technician (see Assistance).
The water pressure must be within the values indicated in the Technical data table (see below).
The hose should not be bent or compressed.

Anti-flooding protection

To ensure floods do not occur, the dishwasher:

• is provided with a special system which blocks the water supply in the event of anomalies or leaks from inside the appliance.
• is provided with a Water Stop ^* safety device, in other words it has a water inlet hose that consists of a transparent hose on the outside and a red hose on the inside: both the hoses can withstand extremely high pressure. If the internal hose breaks, the external hose becomes a bright red colour and carries the water instead, thus avoiding any leakage.
  It is very important to check the external hose regularly: if it is a bright red colour, it must be replaced by an authorised technician as soon as possible (see Assistance).

WARNING: HAZARDOUS VOLTAGE!

Under no circumstance should the water inlet hose be cut as it contains live electrical parts.

* Only available in selected models.

Connecting the water outlet hose

Connect the outlet hose (without bending it) to a drain duct with a minimum diameter of 4 cm. Alternatively, rest it over a sink or tub; the free end of the hose should not remain immersed in water.

The special plastic elbow ^* makes it easier to find the best layout: fix the elbow to the wall securely in order to prevent the outlet hose from moving and spilling the dirty water.

The part of the hose marked with the letter A should be between 40 and 100 cm

above the ground (see figure).

We advise against the use of hose extensions.

Electrical connection

Before inserting the plug into the electrical socket, make sure that:

• the socket is earthed and complies with current regulations;
• the socket can withstand the maximum load of the appliance, which is indicated on the data plate located on the inside of the door (see Description of the appliance);
• the power supply voltage falls within the values indicated on the data plate on the inside of the door;
• the socket is compatible with the plug of the appliance. If this is not the case, ask an authorised technician to replace the plug (see Assistance); do not use extension cables or multiple sockets.

Once the appliance has been installed, the power supply cable and the electrical socket should be easily accessible.

The cable should not be bent or compressed.

The cable should be checked regularly and replaced by authorised technicians only (see Assistance).
The Company shall not be held responsible for any incidents that occur if these regulations are not observed.

Advice regarding the first wash cycle

After the appliance has been installed, immediately before running the first wash cycle, completely fill the salt dispenser with water and add approximately 2 kg of salt (see Rinse aid and refined salt). The water may overflow: this is normal and is not a cause for concern. It is also normal that the LOW SALT ^* indicator light continues to flash for a few cycles after the salt has been loaded.

If the salt container is not filled, the water softener of the heating element may be damaged as a result.

Technical data
Dimensions	width 60 cmheight 85 cmdepth 60 cm
Capacity 12 standard place-settings
Water supply pressure	0,05 ÷ 1MPa (0.5 ÷ 10 bar)4.3 psi – 145 psi
Power supply voltage	See appliance data plate
Total absorbed power	See appliance data plate
Fuse See appliance data plate
	This dishwasher conforms to the following European Community Directives:-73/23/EEC dated 19/02/73(Low Voltage) and subsequent modifications-89/336/EEC dated 03/05/89(Electromagnetic Compatibility)and subsequent modifications-97/17/EC (Labelling)-2002/96/ CE Waste Electrical and Electronic Equipment(WEEE)

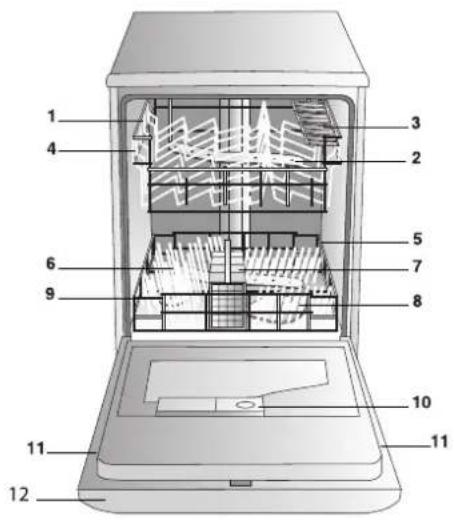

Overall view

1. Upper rack
2. Upper sprayer arm
3. Tip-up compartments
4. Rack height adjuster
5. Lower rack
6. Lower sprayer arm
7. Cutlery basket
8. Washing filter
9. Salt dispenser
10. Detergent and rinse aid dispensers
11. Data plate
12. Control panel ***

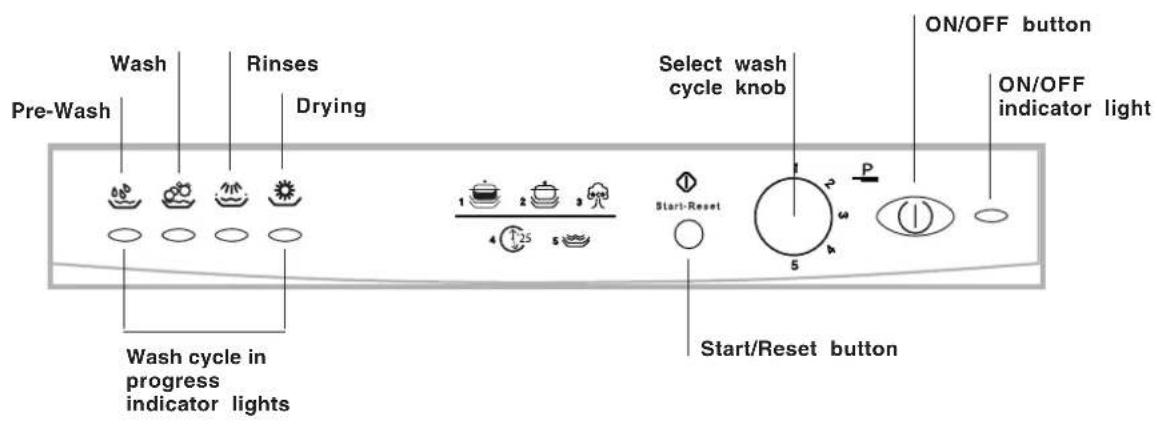

Control panel

***Only in completely built-in models.

* Only available in selected models.

Before loading the racks, remove all food residues from the crockery and empty liquids from glasses and cups. After loading the appliance, check that the sprayer arms can rotate freely.

Lower rack

The lower rack can hold pans, lids, plates, salad bowls, cutlery, etc. as seen in the Loading examples. Plates and large covers should be placed at the sides of the rack, ensuring that they do not block the rotation of the upper sprayer arm. Some dishwasher models are fitted with tip-up sections*, which can be used in a vertical position when arranging plates or in a horizontal position when arranging pans and salad bowls.

Cutlery basket

The type of cutlery basket may vary according to the dishwasher model.

Knives and other utensils with sharp edges must be placed in the cutlery basket with the points facing downwards, or they must be positioned horizontally in the tip-up compartments on the upper rack.

Illustration of four different types of household baskets with grid patterns and directional arrows indicating movement (no text or symbols)

To divide the central basket* into two separate pieces: pull out the handle. The two detachable side compartments* may be hooked onto the upper or lower rack.

The two grids* may be positioned in the basket to separate the cutlery: place the pieces of cutlery into the appropriate compartments with the handles at the bottom.

Upper rack

Load this rack with delicate and lightweight crockery: glasses, tea and coffee cups, saucers, small salad bowls, saucepans and small saucepans that are not too soiled, using the Loading examples as a guide.

• Lightweight crockery: position these dishes so that they will not be moved by the jets of water.
- Mugs and cups: place these on the tip-up compartments**.
- Long sharp knives and serving utensils: place these on the tip-up compartments**.

Adjusting the height of the upper rack

In order to make it easier to arrange the crockery, the upper rack may be moved to a higher or lower level.

The height of the upper rack should ideally be adjusted WHEN THE RACK IS EMPTY.

Never lift or lower the rack on one side only.

Open the left and right guide rail stops and pull out the rack; position it higher or lower as required, slide it along the guide rails until the front wheels are in place and close the stops (see figure).

3D wire mesh structure with a black arrow pointing to a structural element (no text or symbols)

If the rack is equipped with the click clack handles* (see figure), pull them upwards or downwards to adjust the height.

Loading examples for the upper rack

Technical line drawing of two mechanical components with internal gears and housing (no text or symbols)

Loading examples for the lower rack

Two wireframe diagrams of plastic crates with circular and rectangular components, no text or symbols present.

Just you Tip-up compartments\*

These special tip-up compartments can be used to arrange mugs and cups. Spoons, forks and knives should be placed in the slots provided. Stemmed glasses can be hooked on by threading the stems into the slits.

Items that should not be washed in the dishwasher

• Wooden items, objects with wooden or horn handles or glued-on parts.
• Items made from aluminium, copper, brass, pewter or tin.
• Items made from plastic that is not heat-resistant.
• Antique or hand-painted porcelain.
• Antique silver. Silver that is not antique may, however, be washed in the dishwasher using a delicate wash cycle, provided that it does not come into contact with other metals.

We recommend the use of crockery which is dishwasher safe.

Washing the handles\*

To wash the upper and lower rack handles: remove the two fastening plugs, lift out the handles and rinse them under running water, then fasten them to the rack using the same plugs.

* Only available in selected models.
** The number and position may vary.

Starting the dishwasher

1. Turn the water tap on.
2. Press the ON/OFF button: the indicator light will illuminate.
3. Open the door and pour in a suitable amount of detergent (see below).
4. Load the racks (see Loading the racks) and shut the door.
5. Select the desired wash cycle depending on the dishes and how dirty they are (see table of wash cycles), by turning the SELECT WASH CYCLE knob clockwise.
6. Start the cycle by pressing the START/RESET button: the WASH CYCLE PHASE indicator lights display the status of the cycle:

pre-wash,

wash,

rinses,

drying

1. At the end of the wash cycle the drying phase indicator light flashes..
2. Switch off the appliance by pressing the ON/OFF button, shut off the water tap and unplug the appliance from the electricity socket.
3. Open the door and wait for a few minutes before removing the crockery, in order to avoid burns. Unload the racks, beginning with the lower level.

Modifying a wash cycle already in progress

If the wrong programme was chosen, it may be changed within one minute from switching on: press and hold the START/RESET button for 4 seconds. The WASH CYCLE PHASE indicator light will go out: Select the new cycle and switch the machine back on by pressing the START/RESET button.

The knob must be turned clockwise from wash cycle 1 to 5, an anti-clockwise from wash cycle 5 to 1.

Adding extra crockery

Press the ON/OFF button and open the door, taking care to avoid the escaping steam, and place the crockery inside the dishwasher. Press the ON/OFF button again: the cycle starts from the point at which it was interrupted.

Accidental interruptions

If the door is opened during the wash cycle, or if there is a power cut, the cycle stops. It starts again from the point at which it was interrupted once the door has been shut or the electricity supply is restored.

Loading the detergent

A good wash result also depends on the correct amount of detergent being used; exceeding the stated amount does not result in a more effective wash and increases environmental pollution.

Only use detergent which has been specifically designed for dishwashers.
DO NOT USE washing up liquid.
Using excessive detergent may result in foam residue remaining in the machine after the cycle has ended.
The use of tablets is only recommended for models which offer the MULTI-FUNCTIONAL TABLETS option.
To achieve the best results from each washing and drying cycle, powder detergent, rinse aid liquid and salt should be used.

Compartment A: Washing detergent Compartment B: Pre-wash detergent

1. Open cover C by pressing button D.
2. Pour in the detergent after consulting the Table of wash cycles:
3. For powder detergent use compartments A and B.
4. For detergent in tablet form: when the cycle requires 1 tablet,

place it in compartment A and close the cover; when it requires 2, place the second tablet at the bottom of the appliance.

1. Remove detergent residues from the edges of the compartment and close the cover until it clicks.

Wash cycle table

INDESIT dishwashers are equipped with an automatic filter cleaning system so that they do not become clogged with food residues. This function may extend the duration of the wash cycles. If there is a high level of dirt contained in the filters, the dishwasher will stop operating (see Troubleshooting - Blocked filter alarm).
If the crockery is only lightly soiled or if it has been rinsed with water before being placed in the dishwasher, reduce the amount of detergent used accordingly.
The number and type of wash cycles and options varies according to the model of dishwasher.

Wash cycle selection instructions	Wash cycle	Detergent (A) = compartment A (B) = compartment B			Drying	Wash cycle duration (tolerance ±10%) Hrs. Min.
		Powder	Liquid	Tablets
Extremely soiled dishes and pans (not to be used for delicate items).	1) Intensive	30 g (A)5 g (B)	30 ml (A)5 ml (B)	1 (A)1 (bottom of the appliance)	Yes	2:00'
Normally soiled pans and dishes. Standard daily wash cycle.	2) Normal	30 g (A)	30 ml (A) 1	(A)	Yes	1:12'
Environmentally-friendly wash cycle with low energy consumption levels, suitable for pans and dishes.	3) Eco*	25 g (A)5 g (B)	25 ml (A)5 ml (B)	1 (A)	Yes	2:10'
Economic and fast wash cycle to be used for lightly soiled dishes. (Run cycle immediately after use.)	4) Rapid 25'	25 g (A)	25 ml (A) No	No 0:25'
Preliminary wash cycle for dishes while the load is awaiting completion with the dishes from the next meal.	5) Soak	No	No	No		No

0:12'

Notes:

To make it easier to measure out the detergent, it is worth remembering that:

1 tablespoon = 15 grams of powder = approximately 15 ml of liquid - 1 teaspoon = 5 grams of powder = approximately 5 ml of liquid

* The Eco wash cycle adheres to the regulation EN-50242. Although it has a longer duration than other wash cycles it uses less energy and is less harmful to the environment.

Note for Test Laboratories: for information relating to comparative EN testing conditions, please send an email to the following address: [e-mail]

Only use products which have been specifically designed for dishwashers. Do not use table salt or industrial salt, or washing up liquid.

Follow the instructions given on the packaging.

If using a multi-functional product it is not necessary to add rinse aid; however, we recommend that you add salt, especially if you live in an area where the water is hard or very hard. Follow the instructions given on the packaging.

If you do not add salt or rinse aid, the LOW SALT* and LOW RINSE AID* indicator lights remain lit.

Loading the rinse aid

Rinse aid makes it easier for the crockery to dry, as water runs off surfaces more readily and therefore does not leave streaks or marks.

The rinse aid dispenser should be filled:

• whenever the indicator light (H) signals that it is empty. Illuminated light: add rinse aid; unlit light: there is no shortage of rinse aid in the dispenser.
• when the LOW RINSE AID* indicator light on the panel flashes;

1. Open the dispenser by turning the lid (G) in an anticlockwise direction.

2. Pour in the rinse aid, making sure it does not overflow from the dispenser. If this happens, clean the spill immediately with a sponge.

3. Screw the lid back on.

NEVER pour the rinse aid directly into the appliance tub.

Adjusting the amount of rinse aid

If you are not completely satisfied with the washing or drying results, you may adjust the quantity of rinse aid used. Use a screwdriver to turn the dosage adjuster to one of the 6 pre-set positions (the default position is set to 4):

• if there are white streaks on the crockery, set the adjuster to a lower number (1-3).
• if drops of water remain on the crockery or there are limescale marks present after the cycle has finished, set the adjuster to a higher number (4-6).

If you are using multi-functional tablets and you wish to further improve the drying performance of the appliance, fill the dispenser and set the dosage adjuster to 2.

Loading the refined salt

In order to obtain the best possible results from a wash cycle, make sure that the dispenser is never empty. Refined salt removes limescale from the water, thus

avoiding the formation of deposits on crockery. The salt dispenser is located in the lower part of the dishwasher (see Description) and should be filled:

• when the green float * cannot be seen by simply looking at the cap of the salt dispenser;
• when the LOW SALT ^* indicator light on the panel flashes;
• if your machine is not equipped with an indicator light or a green float: approximately every 30 wash cycles;

Simple line drawing of a mechanical component with no text or symbols

1. Remove the lower rack and unscrew the cap of the dispenser (in an anti-clockwise direction).
2. For the first wash cycle only: fill the dispenser up to the edges with water.
3. Position the funnel ^* provided correctly (see figure) and fill the

salt dispenser up to the edges (approximately 2 kg); it is normal for a little water to leak out.

1. Remove the funnel, wipe away any salt residue from the thread and screw the cap on tightly, so that detergent does not leak into the dispenser during the wash cycle (this could damage the water softening system beyond repair).

When necessary, measure out the salt before a wash cycle so that any saline solution which has leaked out of the salt dispenser is removed.

Adjusting the amount of salt\*

It is possible to adjust the amount of salt used according to the hardness of the water in your area (this information is available from your local water board).

1. Unscrew the dispenser cap.
2. Turn the arrow on the neck of the dispenser (see figure) towards the + or - symbols, using the table below as a guide.

Hardness of the water			Selector knob position	Salt consumption (grams/cycle)	Autonomy (cycles/2 kg)
°dH	°fH	°mmol/l
0 - 10	0 - 17	0 - 1.7 / 0 /
10 - 25	18 - 44	1.8 - 4.4	-	20	60
25 - 50	45 - 89	4.5 - 8.9	MED	40	40
>50	>89	>8.9	+	60	25

(°dH = hardness measured in German degrees - °f = hardness measured in French degrees - mmol/l = millimoles per litre)

The default setting of the water softening system is +. - If using multi-functional tablets fill the salt dispenser and set the adjuster to -; if the hardness of the water is greater than 60^ fH, set it to +.

Shutting off the water and electricity supplies

• Turn off the water tap after every wash cycle to avoid leaks.
• Remove the plug from the socket when cleaning the machine and when carrying out maintenance work.

Cleaning the dishwasher

- The external surfaces of the machine and the control panel may be cleaned using a cloth dampened with warm soapy water. Do not use solvents or abrasive products.

- Any marks on the appliance interior may be removed using a cloth dampened with water and a little vinegar.

Preventing unpleasant odours

• Always keep the door of the appliance ajar in order to avoid moisture from forming and being trapped inside the machine.

- Clean the seals around the door and detergent dispensers regularly using a damp sponge. This will avoid food becoming trapped in the seals, which is the main cause of the formation of unpleasant odours.

Cleaning the sprayer arms

Illustration of a mechanical setup with a top component and three components on a base (no text or symbols)

Food residue may become encrusted onto the sprayer arms and block the holes used to spray the water. It is therefore recommended that the arms are checked from time to time and cleaned with a small non-metallic brush.

Cleaning the filters

The filters remove food residue from the water used in the wash cycle: to obtain the best results from each wash, they should be cleaned.

Clean the filters regularly.

After cleaning check that the filter assembly has been replaced correctly.

The dishwasher should not be used without filters.

1. Remove the filters by pulling the handle upwards.

1. Clean the filters:

• after every wash cycle, remove the largest pieces of residue from semicircular plate A and glass B (these may be removed by pulling the handle) by

rinsing them under running water.

- The entire filter assembly should be cleaned thoroughly once a month: this includes the semicircular plate A, the glass B and the cylinder C (this may be removed by turning it in an anti-

clockwise direction). Use a small non-metallic brush to clean these parts.

1. Reconstruct the filter assembly and replace it in the correct position, following movements 1 and 2 as shown in the figure, until it clicks into place.

Leaving the machine unused for extended periods

• Run a wash cycle when the dishwasher is empty.
• Unplug the appliance and disconnect the water supply.
• Leave the door of the appliance ajar.

The appliance was designed and manufactured in compliance with current international safety standards. The following information has been provided for safety reasons and should therefore be read carefully.

General safety

• The appliance was designed for domestic use inside the home and is not intended for commercial or industrial use.
• The appliance must be used by adults only, to wash domestic crockery according to the instructions in this manual.
• The appliance must not be installed outdoors, even in covered areas. It is extremely dangerous to leave the machine exposed to rain and storms.
• Do not touch the appliance when barefoot.
• When unplugging the appliance always pull the plug from the mains socket, do not pull on the cable.
• The water supply tap must be shut off and the plug should be removed from the electrical socket before cleaning the appliance or carrying out any maintenance work.
• If the appliance breaks down, do not under any circumstances touch the internal parts in an attempt to carry out the repair work yourself.
• Never touch the heating element.
• Do not lean or sit on the open door of the appliance: this may cause the appliance to overturn.
• The door should not be left open as it may create a dangerous obstacle.
• Keep detergent and rinse aid out of reach of children.
• The packaging material should not be used as a toy: it can become a choking or suffocation hazard.

Disposal of old electrical appliances

The European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected.

Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

Saving energy and respecting the environment

Saving water and energy

• Only start a wash cycle when the dishwasher is full. While waiting for the dishwasher to be filled, prevent unpleasant odours with the Soak cycle (see Wash Cycles).
• Select a wash cycle that is suited to the type of crockery and to the soil level of the crockery using the Wash cycle table:
• for dishes with a normal soil level, use the Eco wash cycle, which guarantees low energy and water consumption levels.
• if the load is smaller than usual activate the Half load* option (see Start-up and use).
• If your electricity supply contract gives details of electricity saving time bands, run wash cycles during the periods when a lower tariff is applied. The Delayed start * button (see Start-up and use) helps you organise the wash cycles accordingly.

Phosphate-free and chlorine-free detergents containing enzymes

• We strongly recommend that you use detergents that do not contain phosphates or chlorine, as these products are harmful to the environment.
- Enzymes provide a particularly effective action at temperatures around 50°C, and as a result detergents containing enzymes can be used in conjunction with low-temperature wash cycles in order to achieve the same results as a normal 65°C wash cycle.
- To avoid wasting detergent, use the product in appropriate quantities based on the manufacturer's recommendations, the hardness of the water and the soil level and quantity of the crockery. Even if they are biodegradable, detergents contain substances that may alter the balance of nature.

Whenever the appliance fails to work, check for a solution from the following list before calling for Technical Assistance Centre.

Problem: Possible causes / Solutions:
The dishwasher does not start.	· The plug has not been inserted into the electrical socket properly, or there is no power in the house.· The dishwasher door has not been shut properly.· A delayed start has been programmed (see Start-up and use).
No water drains out from the dishwasher.	· The dishwasher cycle has not yet finished.· The water inlet hose is bent (see Installation).· The drain duct is blocked.· The filter is clogged up with food residues (see Care and maintenance).
The dishwasher makes excessive noise.	· The dishes are rattling against each other or against the sprayer arms.
The dishes and glasses are covered in a white film or limescale deposits.	· The level of the refined salt is low or the dosage setting is not suited to the hardness of the water (see Rinse aid and salt).· The lid on the salt dispenser is not closed properly.· The rinse aid has been used up or the dosage is too low.· The crockery is made from non-stick material.
The dishes and glasses are streaked or have a bluish tinge.	· The rinse aid dosage is too high (see Rinse aid and salt).
The crockery has not been dried properly.	· The rinse aid has been used up or the dosage is too low (see Rinse aid and salt).· The rinse aid dispenser setting is not high enough.· A wash cycle without a drying programme has been selected.
The dishes are not clean.	· The racks are overloaded (see Loading the racks).· The crockery has not been arranged well.· The sprayer arms cannot move freely.· The wash cycle is too gentle (see Wash cycles).· An excessive amount of foam has been produced: the detergent has not been measured out correctly or it is not suitable for use in dishwashers (see Start-up and use).· The lid on the rinse aid compartment has not been shut correctly.· The filter is dirty or blocked (see Care and maintenance).· The refined salt level is low (see Rinse aid and salt).
The dishwasher does not take any water in/Tap shut-off alarm.(several short beeps are emitted)*Only available in selected models.(the Wash and Rinses Wash Cycle in progress indicator lights flash).	· There is no water in the mains supply.· The water inlet hose is bent (see Installation).· Turn on the tap and the appliance will start after a few minutes.· The appliance lock has been activated because no action was taken when the beeps sounded.* Switch off the machine with the ON/OFF button, turn on the tap and switch the machine back on after 20 seconds by the same knob. Re-programme the machine and restart the wash cycle.
Foam/Blocked filter alarm(the Pre-wash and Rinses Wash Cycle in progress indicator lights flash).	· Switch off the appliance by the ON/OFF button.· There is an excess of foam inside the machine.· A detergent which is not suitable for use in the dishwasher has been used;· The lid on the rinse aid compartment has not been shut correctly.· Remove any food residues from the filters (see Care and maintenance). Replace the filter assembly correctly and switch the machine back on by the ON/OFF button. Re-programme the machine and restart the wash cycle.
Water intake solenoid valve malfunction alarm(the Wash Wash Cycle in progress indicator light flash).	· Switch off the appliance by the ON/OFF buttonb and switch it back on after a minute. If the alarm continues, shut off the water tap to eliminate the risk of flooding, remove the plug from the electrical socket and contact Assistance.

FR

Français, 23

IDL 500

Sommaire

Installation, 24-25

Four line drawings of household baskets with internal grid patterns, showing different shapes and structural variations (no text or symbols)

Diagram of a construction grid with rebar and upward arrow, no readable text or symbols

Technical line drawing of two mechanical components with internal springs and housing (no text or symbols)

Two wireframe diagrams of plastic crates with circular and rectangular cutouts, no text or symbols present.

Etagères rabattables Just you\*

chiffon sec.

Simple line drawing of a mechanical component with no text or symbols

Illustration of a mechanical device with a top component and three separate components (no text or symbols)

Technical line drawing of three mechanical components labeled A, B, and C (no text or symbols beyond labels)

Illustration of four different household furniture items: a basket, grid-patterned box, cityscape, and handbag (no text or symbols)

Technical line drawing of two mechanical components with internal gear and housing (no text or symbols)

Two technical line drawings of a multi-compartment container or storage unit, showing internal compartments and structural elements (no text or symbols)

Simple line drawing of a bucket with handle and outlet (no text or symbols)

Simple line drawing of a mechanical assembly with no text or symbols

Technical line drawings of three mechanical components labeled A, B, and C (no text or symbols beyond labels)

Four line drawings of household items: a handbag, a grid-patterned box, a curved arrow, and a mechanical device (no text or symbols)

3D wire mesh structure with an upward arrow indicating force or movement (no text or symbols)

Technical line drawing of two mechanical components with internal gears and housing (no text or symbols)

Two hand-drawn sketches of plastic baskets with internal compartments (no text or symbols)

Opklaprekjes Just you\*

Simple line drawing of a mechanical component with no text or symbols

Illustration of a mechanical device with a curved component and three separate parts (no text or symbols)

metalen borsteltje.

Illustration of four different household items: a handbag, a woven basket, a house-shaped structure with arrows indicating rotation or movement (no text or symbols)

3D wire mesh structure with an arrow pointing to a structural element (no text or symbols)

Technical line drawing of two mechanical components with internal springs and housing (no text or symbols)

Two wireframe diagrams of plastic crates with circular and rectangular cutouts, no text or symbols present.

Simple line drawing of a mechanical component with no text or symbols

Illustration of a kitchen utensil with a lid, tray, and cup (no text or symbols)

Technical line drawings of three mechanical components labeled A, B, and C (no text or symbols beyond labels)

cm. de altura (veja a figura)

Illustration of four different types of household appliances or devices, including a hand gesture and three grid-patterned containers with directional arrows (no text or symbols)

3D wire mesh structure with a black arrow pointing to a structural element (no text or symbols)

Technical line drawing of two mechanical components with internal springs and housing (no text or symbols)

Two wireframe diagrams of plastic crates with circular and rectangular cutouts, no text or symbols present.

Simple line drawing of a bucket with handle and spout (no text or symbols)

Illustration of a mechanical setup with a rotating component and three separate components (no text or symbols)

de metal.

Technical line drawing of three mechanical components labeled A, B, and C (no text or symbols beyond labels)
