ULTI 500ND - Gps MAPPY - Free user manual and instructions

Brand	MAPPY
Model	ULTI 500ND
Product type	Car navigation GPS
Dimensions	Not provided in the manual
Weight	Not provided in the manual
Power supply	Rechargeable battery via USB cable or cigarette lighter
Main functions	GPS navigation, route calculation, map and radar updates via mappyPlus, touch screen
Package contents	Cigarette lighter cable, USB cable, CD-ROM with complete manual, quick guide, stylus, car mount with suction cup
Map update	Free for 30 days after activation (20 km traveled) via mappyPlus software
Warranty	12 months from date of purchase, covers defects in materials and workmanship
Customer service	Phone: [phone], website: www.support-gps.com
Electromagnetic compatibility	Compliant with European standards EN 301 489-1, EN 301 489-3, EN 300 440-2
In-car use	Suction cup mount on windshield, be careful not to obstruct driving or airbags
Maintenance and cleaning	Clean the glass before attaching the suction cup; avoid shocks and humidity
Safety	Do not use headphones at full volume; do not obstruct the driver's vision
Spare parts and repairability	Accessories available at www.support-gps.com; warranty repair at the retailer
General information	Manufacturer: Logicom, 55 rue de Lisbonne, 75008 Paris, France. Declaration of conformity signed by Bernard BESSIS on March 30, 2011.

Frequently Asked Questions - ULTI 500ND MAPPY

How to turn on and off the MAPPY ULTI 500ND?

To turn on, press and hold the Power button for about 3 seconds. To turn off, press and hold for about 5 seconds: two options appear (Standby or Shut down), otherwise the device shuts down automatically after 10 seconds.

How to install the car mount?

Assemble the suction cup on the mount, clean the glass, attach the suction cup and lock it. Place the GPS on the lower part of the mount, then push back to snap it in. Make sure not to obstruct driving or the deployment of airbags.

Why does my GPS take time to acquire satellites?

GPS reception can take 5 to 10 minutes after a period of non-use, and longer on first use. To speed it up, stop the device for a few moments outdoors or behind a window. Heat-reflecting windshields may affect reception.

How to set up a first route?

Turn on the GPS, click Navigation then Navigate. Select Address, enter the city, street, number (or 'Anywhere'), then confirm with OK. Wait until the GPS signal is acquired and follow the instructions.

How to update maps and radars?

Download the mappyPlus software from www.support-gps.com. Connect the GPS with the USB cable, launch the software, log in, go to My products and click Synchronize. Important: back up your data before and do not disconnect during installation. The map update is free for 30 days after activation (20 km traveled).

What if my GPS does not turn on?

First check the battery charge by connecting the device to the cigarette lighter or a USB port. If the problem persists, consult the FAQ at www.support-gps.com or contact customer service at 01 48 63 59 25.

How to back up GPS data?

Connect the GPS to the computer with the USB cable: it appears as a removable disk. Copy all contents of the disk to your computer. This backup is recommended before any update or repair.

What are the warranty conditions?

The warranty is 12 months from the date of purchase. It covers defects in materials or workmanship under normal use. To apply, return the product to your retailer with proof of purchase. It is void if unauthorized repair or serial number modification occurs.

Can I use the GPS in a tunnel or building?

No, GPS signal reception is impossible in tunnels, underground areas, or inside a building. The GPS must be outdoors or behind a window to function properly.

How to contact technical support?

For any usage questions, call 01 48 63 59 25. For map or radar updates, visit www.support-gps.com, contact section. You will also find the FAQ and complete guides there.

USER MANUAL ULTI 500ND MAPPY

Learn about your mappy^{ulti 500ND!}

fr

en

CE

Support vehicule comple (2 parties)

This manual is designed to help you learn how to use your mappy ^ulti500ND GPS

CE

1) What is GPS?

GPS (Global Positioning System) is a system that captures geographical positioning information from satellites. The information received from these satellites by radio waves is used to calculate locations, making it possible to guide you as your travel.

2^ Reception d'un signal GPS

To capture this information, your GPS must be outdoors or behind glass.

• If you are in a building, in a tunnel, or underground, you cannot receive GPS signals.
• If your vehicle has an athermic windshield, your reception may be impaired. We cannot guarantee that your device will work smoothly in such conditions. Please check with your vehicle's manufacturer.

Tip: For your GPS to receive GPS signals more quickly, stop moving your GPS for a few moments.

It is normal for your GPS to take time to capture information from satellites.

Receiving a GPS signal can take 5-10 minutes when you device has not been used recently, or even longer during its first use.

a) Package contents

Cable for the cigarette

Full vehicle support (2 parts)

CD-ROM With complete user guide

USB Cable

Your Quick Start guide

Stylus

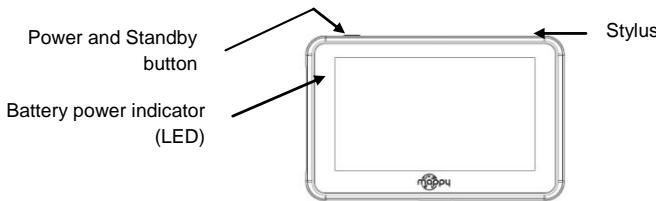

b) Product overview

Headphone jack
PC and battery charge connection
Micro SD port (card not provided)
Reset

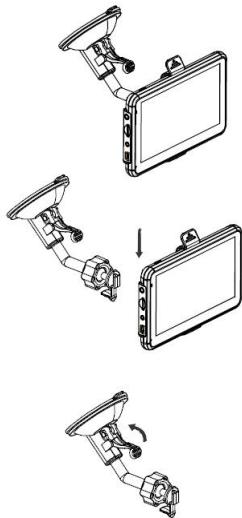

4) First use of mappy^{ulti SOUNU}

1

First, start up your vehicle. (If the device has been used for a long time with the engine turned off, the vehicle's battery may be drained.)

2

Attached the suction cup to the windshield and lock it into its base. For a stronger hold, clean the glass before attaching the suction cup.

3

Place the product on the lower part of its holder. Next, as shown in the illustration, push the device back into the car holder.

4

Connect one end of the car charger to your device and the other end to the cigarette lighter.

5

Push the lever toward your car's windshield to attach it.

6

Press the power button on the device. When te device turns on, you are brought to a home screen where you can access various functions.

Warning: Install the car holder where it does not interfere with driving, obstruct the driver's vision, or deploy the airbags.

5^ ) How do I set up my first itinerary?

Once your mappy GPS has started up:

1 Click on "Navigation"

2 Click on "Navigate"

3 Next, click on "Address"
4 Enter the name or postal code for the Town, and then select your destination in the list of results.
(optional) Enter the name of your destination street name, and then select the street you want.
(optional) Enter the house number for your destination.
7 Click on "OK" and Go
8 Wait a few moments for your mappy^{ulti 500ND} to receive the GPS signal, and then let it guide you.

6^ ) Turning your mappyuni on/off

Turning on your device

To turn on the device, hold down the power button for a few seconds (about 3 seconds)

Turning off your device

To power off the device, hold down the button for a few seconds (about 5 seconds). You have two options for turning off your device: putting it in standby mode (when you turn on the device, it will restart at the same location) or powering it off completely (the device will completely restart). You have 10 seconds to decide. Otherwise, the device will automatically go to OFF mode. To cancel this operation, touch the screen (not any icons).

Note: When charging the battery, you can only put your device in standby mode, even if you click on the Off button.

07	Number of seconds remaining before the device goes into automatic standby mode.
Standby	For standby mode
Off	The power down the device

Terms and Conditions :

For 30 days after activating your GPS on mappyPlus, you may update mappy maps for FREE.

Installation :

1. Install mappyPlus on your PC. It is available at: www.support-gps.com into the involved section
2. Connect your GPS with the provided cable
3. Wait for the software to recognize your GPS and for the server to finish analyzing the contents of your mappy GPS
4. Log in and then go to "My Products", located on the left menu bar
5. Once the Ready to be installed" message appears, click on "Synchronize". Do not disconnect your GPS during the installation.

Warning: You are strongly advised to back up your mappy GPS before starting the installation.

8^ Save the file

Important:

It is advisable to make a backup of your memory in case of data loss, so you can recover the original content in order to avoid intervention service.

• Connect your GPS mappy^{ulti 500ND} to your computer via the supplied USB cable. Then check if the equipment is recognized on the user's computer as a Removable Disk.
  Make a copy and paste the entire contents of removable disk to your computer.

9^ Warranty coverage

The manufacturer guarantees that this product is free of assembly and material defects under normal conditions of use.

Warranty Period

The warranty takes effect on the date of purchase. The certificate of warranty and the invoice, indicating the date on which the device was purchased, are proof of warranty. This product comes with a warranty of twelve (12) months from the date of purchase.

Warranty and Returns Assistance

If you have any problems with your product during the warranty period, you must return the product to your local dealer.

A dated proof of purchase is required. Please have the following information available before contacting customer service:

1. The serial number

2. The description of the problem

If the customer finds a defect or malfunction on the device due to an assembly or material defect (see "Restrictions") during the warranty period under normal use, the customer must return the device to the local dealer. The device must be packaged properly in order to be safely transported. The proof of purchase must be attached (the attached certificate of warranty and the invoice). If you have to send it by mail, it is recommended to send the product using a service that includes package tracking. The manufacturer shall not be held responsible for loss or damage to the device before the device is received.

Before Returning the Device under Warranty

The customer should first consult the Frequently Asked Questions (FAQ) on the www.support-gps.com website to see if there is already a solution to the problem. The customer should save all of their data and erase any information from the device that may be considered to be confidential, personal, or relating to intellectual property. The manufacturer is not responsible for damage or loss of any software or data saved on a device that is sent to customer service for repair.

Restrictions

The manufacturer accepts no responsibility if, upon receipt of the product for repair, texts and examinations of the device reveal that the alleged defect or malfunction does not exist or that it was caused by the customer or a third party, particularly in the following situations: breakage, misuse, negligence, improper maintenance, unauthorized attempts to open, repair, or modify the product, incorrect installation or use of software added by the user, a virus, or any cause unrelated to its originally intended use, an accident, fire, lightning, short circuits, power outage, or any other incident, exposure to moisture, or exposure to excessive temperatures.

The warranty does not apply if:

1. The device has been tampered with or repairs have been made by unauthorized personnel.
2. The device's serial number has been modified or removed.
3. The warranty seal has been altered or damaged or if the warranty has expired.
