Brand	Mappy
Model	ULTI 490
Product type	Automotive navigation GPS
Power supply	Cigarette lighter (12V) and rechargeable internal battery
Connectivity	USB (PC connection and charging), headphone jack
Included accessories	Suction cup mount, cigarette lighter cable, USB cable, stylus, CD-ROM, quick guide
GPS reception	Outdoors or behind a window; acquisition time 5 to 10 minutes (first use up to 15 min)
Guidance	Navigation by address, city, street, number; voice guidance
Map update	Free for 30 days after activation (20 km driven) via mappyPlus software
Synchronization software	mappyPlus (www.support-gps.com)
Screen	Touch screen (size not specified, presumably 4.3 inches)
Weight	Approximately 150 g (estimate for a GPS of this range)
Dimensions (L×H×D)	Approximately 12 × 8 × 2 cm (estimate)
Operating temperature	-10°C to 60°C (standard estimate)
Warranty	12 months from date of purchase, parts and labor
After-sales service	Contact: 01 48 63 59 25 or www.support-gps.com
Compliance	Directive R&TTE 1999/5/EC, standards EN 301 489-1, EN 301 489-3, EN 300 440-2
Maintenance	Clean the windshield before attaching the suction cup; avoid heat-reflective windshield
Precautions	Do not obstruct the driver’s vision or airbag deployment
Power on/off	Press and hold 3 s to turn on, 5 s to turn off; sleep mode available
Data backup	Copy-paste the contents of the removable disk to computer via USB
Repairability index	Estimated 5/10 (no official spare parts provided)

Frequently Asked Questions - ULTI 490 MAPPY

How to turn on and off my Mappy ULTI 490?

To turn on, press and hold the Power button for about 3 seconds. To turn off, press and hold for about 5 seconds. A menu appears: choose Sleep (quick resume) or Complete shutdown (full restart). If you do not choose, the device turns off automatically after 10 seconds.

How to install the car mount?

Assemble the suction cup onto the mount. Clean the windshield, then attach the suction cup and lock it. Place the GPS on the lower part of the mount, then push it backwards to snap it in. Be careful not to obstruct the driver's view or airbag deployment.

Why is my GPS not picking up satellites?

Your GPS must be outdoors or behind a window. Inside a building, tunnel, or underground, reception is impossible. In a vehicle with a heat-reflective windshield, reception may be affected. To speed up acquisition, stop the device for a few moments. The first use may take 5 to 10 minutes, or more.

How to plan a route?

From the home screen, click Navigation > Navigate > Address. Enter the city, then the street, then the number (or choose 'Anywhere'). Confirm with OK after route calculation. Wait for the GPS to pick up the signal and follow the instructions.

How to update the map?

You have 30 days after activation (20 km driven) to update the map for free. Download the mappyPlus software from www.support-gps.com. Connect your GPS via USB, launch the software, log in, go to 'My Products', then click Synchronize. Do not disconnect during installation. It is recommended to back up your data first.

How to back up GPS data?

Connect the GPS to your computer via the USB cable. It appears as a removable disk. Copy and paste all contents to your computer. This will allow you to restore the data in case of loss.

What to do if the screen is unresponsive or the device freezes?

Try pressing and holding the Power button for 10 seconds to force shutdown. Then restart normally. If the problem persists, consult the FAQ at www.support-gps.com or contact customer service at 01 48 63 59 25.

How to use the device without the car engine?

You can use the GPS on internal battery. However, with prolonged use with the engine off, the car battery may drain if the device is plugged into the cigarette lighter. For standalone use, make sure the GPS battery is sufficiently charged.

What does the 12-month warranty cover?

The warranty takes effect from the purchase date and covers any defect in materials or workmanship under normal use. To apply, return the device to your retailer with proof of purchase. It does not cover damage caused by misuse, unauthorized modification, exposure to moisture or extreme temperatures, etc.

Can I get additional accessories?

Yes, a range of accessories (case, mounts, etc.) is available on the website www.support-gps.com. Check the accessories section to find products compatible with your Mappy ULTI 490.

USER MANUAL ULTI 490 MAPPY

Support vehicule comple (2 parties)

This manual is designed to help you learn how to use your mappy^{ulti 490ND} GPS

CE

1) What is GPS?

GPS (Global Positioning System) is a system that captures geographical positioning information from satellites. The information received from these satellites by radio waves is used to calculate locations, making it possible to guide you as your travel.

To capture this information, your GPS must be outdoors or behind glass.

• If you are in a building, in a tunnel, or underground, you cannot receive GPS signals.
• If your vehicle has an athermic windshield, your reception may be impaired. We cannot guarantee that your device will work smoothly in such conditions. Please check with your vehicle's manufacturer.

Tip: For your GPS to receive GPS signals more quickly, stop moving your GPS for a few moments.

It is normal for your GPS to take time to capture information from satellites.

Receiving a GPS signal can take 5-10 minutes when you device has not been used recently, or even longer during its first use.

a) Package contents

Cable for the cigarette

Full vehicle support (2 parts)

CD-ROM With complete user guide

USB Cable

Your Quick Start guide

Stylus

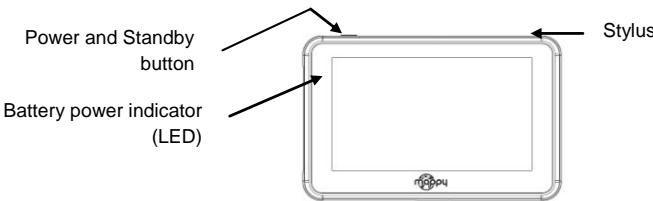

b) Product overview

Headphone jack
PC and battery charge connection
Micro SD port (card not provided)
Reset

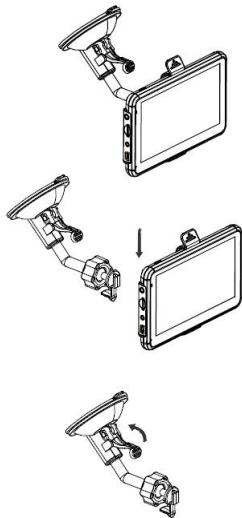

4) First use of mappy^{ulti 49UNJ}

1

First, start up your vehicle. (If the device has been used for a long time with the engine turned off, the vehicle's battery may be drained.)

2

Attached the suction cup to the windshield and lock it into its base. For a stronger hold, clean the glass before attaching the suction cup.

3

Place the product on the lower part of its holder. Next, as shown in the illustration, push the device back into the car holder.

4

Connect one end of the car charger to your device and the other end to the cigarette lighter.

5

Push the lever toward your car's windshield to attach it.

6

Press the power button on the device. When te device turns on, you are brought to a home screen where you can access various functions.

Warning: Install the car holder where it does not interfere with driving, obstruct the driver's vision, or deploy the airbags.

5^ ) How do I set up my first itinerary?

Once your mappy GPS has started up:

1 Click on "Navigation"

2 Click on "Navigate"

3 Next, click on "Address"

4 Enter the name or postal code for the Town, and then select your destination in the list of results.
(optional) Enter the name of your destination street name, and then select the street you want.
(6 optional) Enter the house number for your destination.
7 Click on "OK" and Go
8 Wait a few moments for your mappy^{ulti 490ND} to receive the GPS signal, and then let it guide you.

Turning on your device

To turn on the device, hold down the power button for a few seconds (about 3 seconds)

Turning off your device

To power off the device, hold down the button for a few seconds (about 5 seconds). You have two options for turning off your device: putting it in standby mode (when you turn on the device, it will restart at the same location) or powering it off completely (the device will completely restart). You have 10 seconds to decide. Otherwise, the device will automatically go to OFF mode. To cancel this operation, touch the screen (not any icons).

Note: When charging the battery, you can only put your device in standby mode, even if you click on the Off button.

07	Number of seconds remaining before the device goes into automatic standby mode.
Standby	For standby mode
Off	The power down the device

Terms and Conditions :

For 30 days after activating your GPS on mappyPlus, you may update mappy maps for FREE.

Installation :

1. Install mappyPlus on your PC. It is available at: www.support-gps.com into the involved section
2. Connect your GPS with the provided cable
3. Wait for the software to recognize your GPS and for the server to finish analyzing the contents of your mappy GPS
4. Log in and then go to "My Products", located on the left menu bar
5. Once the Ready to be installed" message appears, click on "Synchronize". Do not disconnect your GPS during the installation.

Warning: You are strongly advised to back up your mappy GPS before starting the installation.

8^ Save the file

Important:

It is advisable to make a backup of your memory in case of data loss, so you can recover the original content in order to avoid intervention service.

• Connect your GPS mappy^{ulti 490ND} to your computer via the supplied USB cable. Then check if the equipment is recognized on the user's computer as a Removable Disk.
  Make a copy and paste the entire contents of removable disk to your computer.

9^ Warranty coverage

The manufacturer guarantees that this product is free of assembly and material defects under normal conditions of use.

Warranty Period

The warranty takes effect on the date of purchase. The certificate of warranty and the invoice, indicating the date on which the device was purchased, are proof of warranty. This product comes with a warranty of twelve (12) months from the date of purchase.

Warranty and Returns Assistance

If you have any problems with your product during the warranty period, you must return the product to your local dealer.

A dated proof of purchase is required. Please have the following information available before contacting customer service:

1. The serial number

2. The description of the problem

If the customer finds a defect or malfunction on the device due to an assembly or material defect (see "Restrictions") during the warranty period under normal use, the customer must return the device to the local dealer. The device must be packaged properly in order to be safely transported. The proof of purchase must be attached (the attached certificate of warranty and the invoice). If you have to send it by mail, it is recommended to send the product using a service that includes package tracking. The manufacturer shall not be held responsible for loss or damage to the device before the device is received.

Before Returning the Device under Warranty

The customer should first consult the Frequently Asked Questions (FAQ) on the www.support-gps.com website to see if there is already a solution to the problem. The customer should save all of their data and erase any information from the device that may be considered to be confidential, personal, or relating to intellectual property. The manufacturer is not responsible for damage or loss of any software or data saved on a device that is sent to customer service for repair.

Restrictions

The manufacturer accepts no responsibility if, upon receipt of the product for repair, texts and examinations of the device reveal that the alleged defect or malfunction does not exist or that it was caused by the customer or a third party, particularly in the following situations: breakage, misuse, negligence, improper maintenance, unauthorized attempts to open, repair, or modify the product, incorrect installation or use of software added by the user, a virus, or any cause unrelated to its originally intended use, an accident, fire, lightning, short circuits, power outage, or any other incident, exposure to moisture, or exposure to excessive temperatures.

The warranty does not apply if:

1. The device has been tampered with or repairs have been made by unauthorized personnel.
2. The device's serial number has been modified or removed.
3. The warranty seal has been altered or damaged or if the warranty has expired.
