USER MANUAL ULTI E518 MAPPY

User Manual Navigation software for the Mappy PND UK English April 2013, ver. 1.0

Thank you for choosing the Mappy PND as your navigator. Start using Mappy PND right away. This document is the detailed description of the navigation software. You can easily discover Mappy PND while you are using it, however, we still recommend that you read this manual to fully understand the screens and features.

Table of contents 1 Warnings and Safety information 2 Getting started.

2.2 Buttons and other controls on the screen.

2.3.1 Navigating on the map.

2.3.2 Position markers

2.3.2.1 Vehirarker and Lock-on-Road.……

2.3.2.2 Selected map location (Cursor) and selected map object

2.3.3 Objects on the map …

2.3.3.1 Streets and roads

2.3.3.2 Tu preview and Next street.

2.3.3,3 Lane infonation and Signposts..

2.3.3 Junction view...

2.3.3.5 Motorway exit services

2.3.6 Checking the details of the current position (Where Am I?)

3 On-road navigation

3.1 Selecting the destination of a route.

3.1.1 Combined Search.

3.1.1.1 Combined Search - Navigating to a recent destination (History) ….

3.1.1.2 Combined Search - Navigating to a Favourite destination...

3.1.1.3 Combined Search - Navigating to an address.

3.1.1.4 Combined Search - Navigating to an intersection ….

3.1.1.5 Combined Search - Navigating to a Place of Interest.

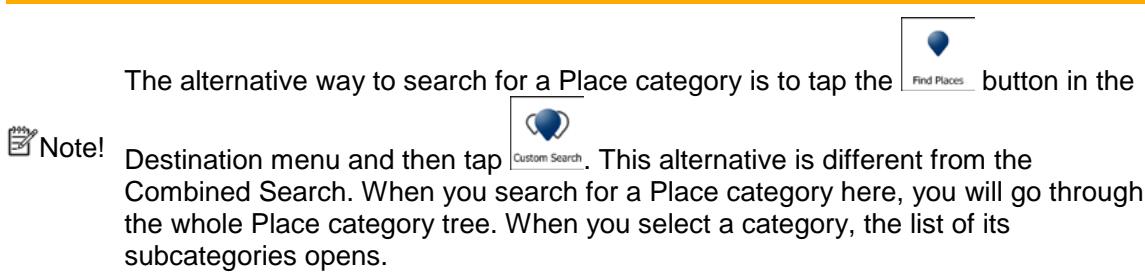

3.1.1.6 Combined Search - Navigating to a Place of Interest by its category.

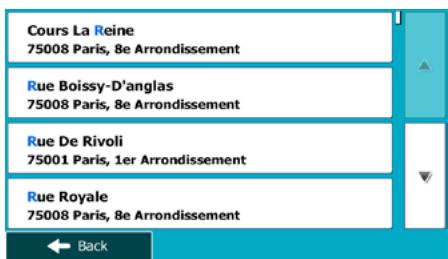

3.1.2 Entering an address or a part of the address.

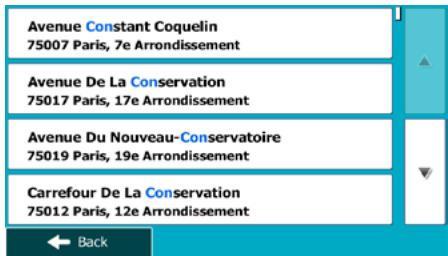

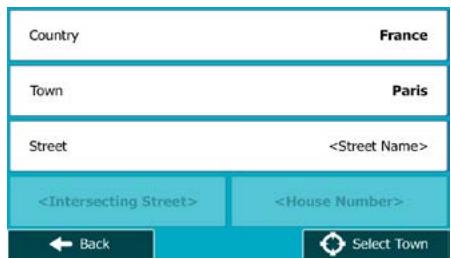

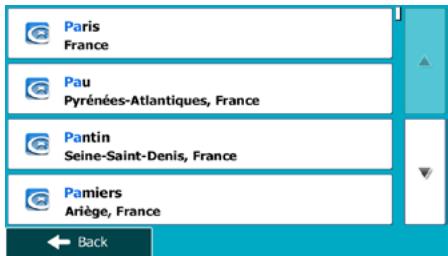

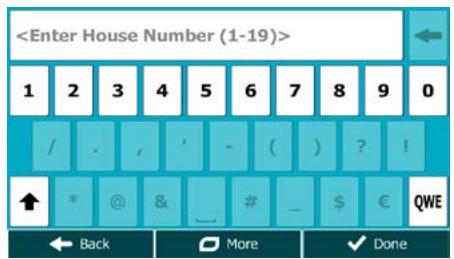

3.1.2.1 Entering an address …

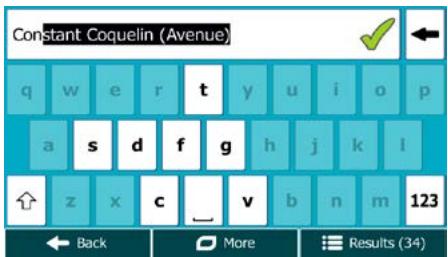

3.1.2.2 Entering the midpoint of a street as the destination.

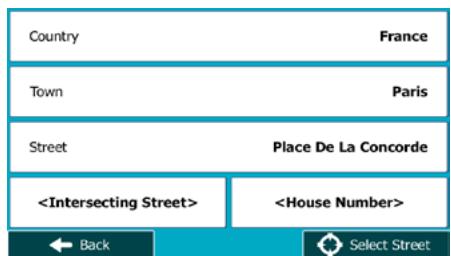

3.1.2.3 Selecting an intersection as the destination …

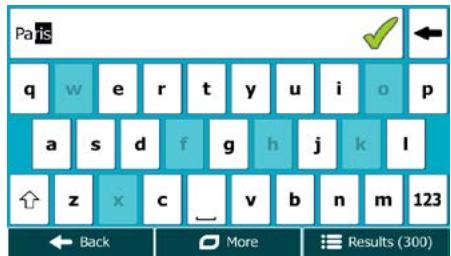

3.124 Sdecting a city/toun centre as the destination.

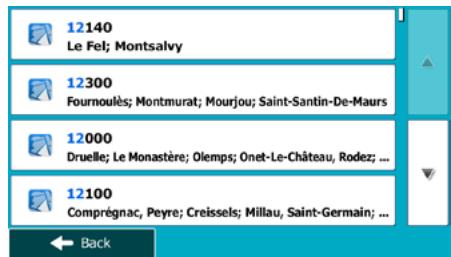

3.1.2.5 Entering an address with a postal code ….

3.1.2.6 Tips on entering addresses quickly ….

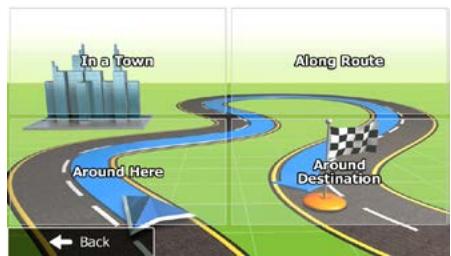

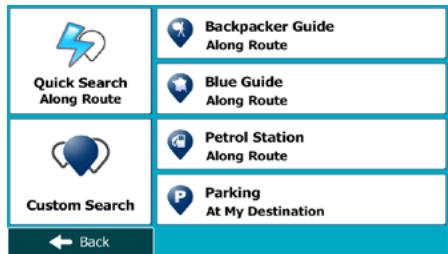

3.1.3 Selecting the destination from the Places of Interest

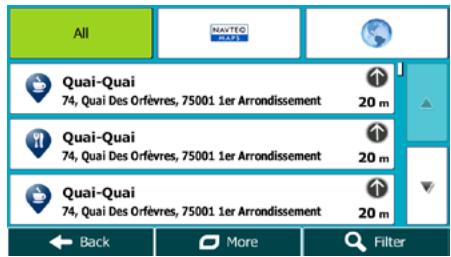

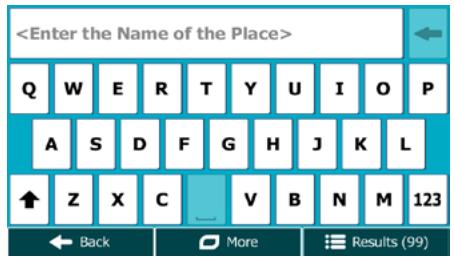

3.1.3.1 Quick search for a Place of Interest…

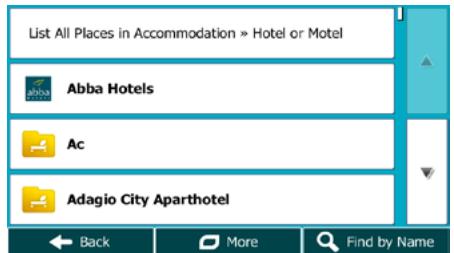

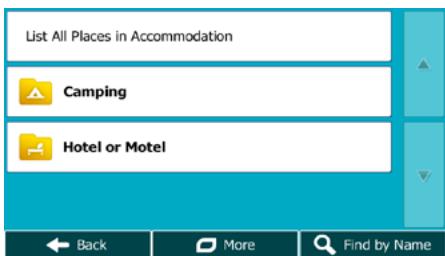

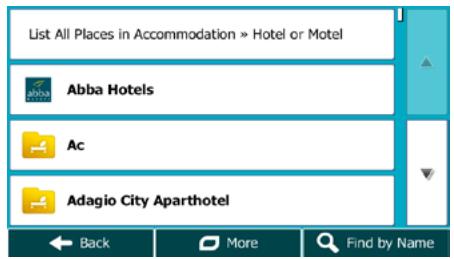

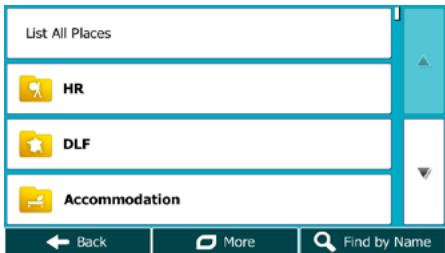

3.1.3.3 Searching for a Place of Interest by category.

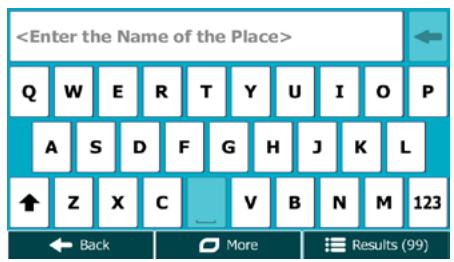

3.1.3.4 Searching for a Place of Interest by nane …

3.1.3.5 Sdlecting nearby assistance from'Where Am 1?"

3.1.4 Selecting a map location as the destination... .

3.1.5 Selecting the destination from your Favourites

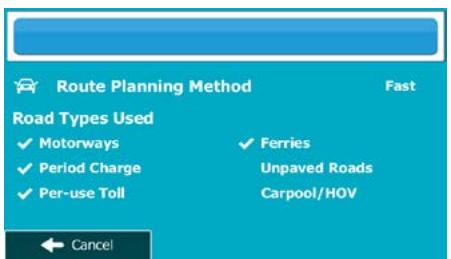

3.1.6 Selecting one of the most likely destinations (Smart History).

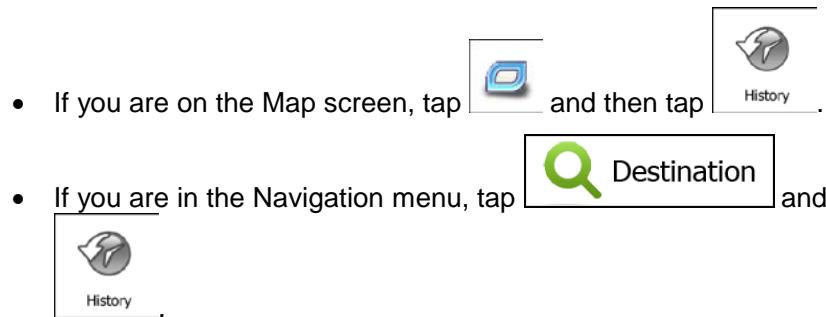

3.1.7 Selecting a recent destination from the History

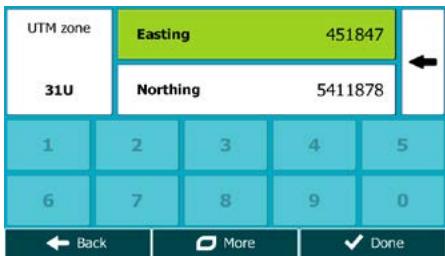

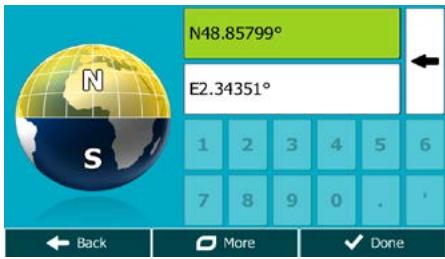

3.1.8 Entering the coordinate of the destination...

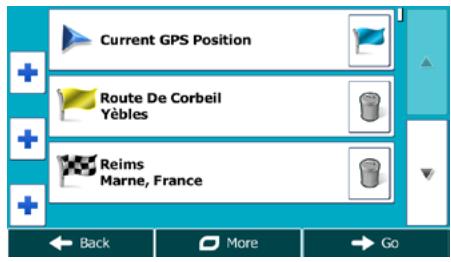

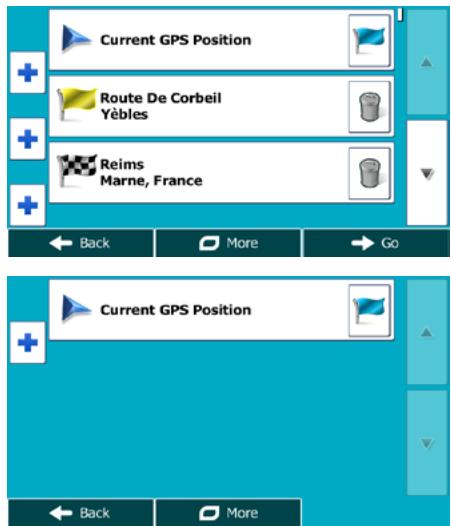

3.1.9 Building a route from the list of destinations (Create Route)

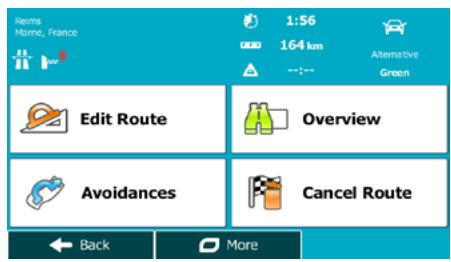

3.2 Viewing the entire route on the nap

3.4.4 Pausing the active route … 65

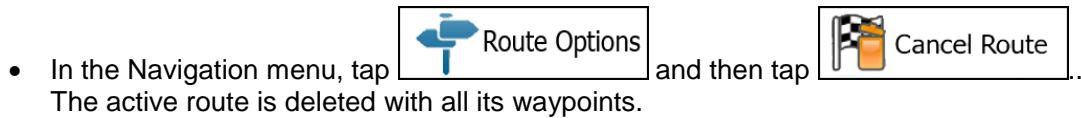

3.4.5 Cancelling the active route. .65

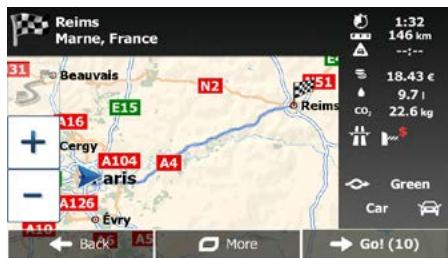

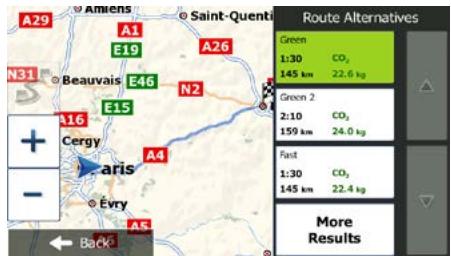

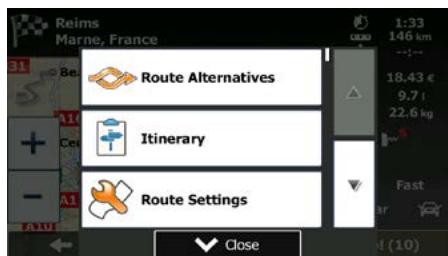

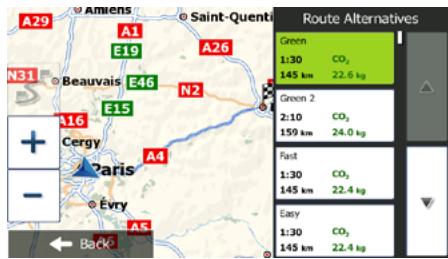

3.4.6 Checking route altematives when planning the route... 65

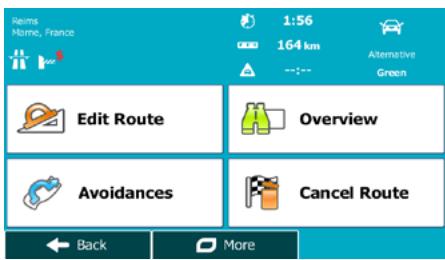

3.4.7 Checking route altematives for an existing route

3.4.8 Changing the vehicle used in route planning … .

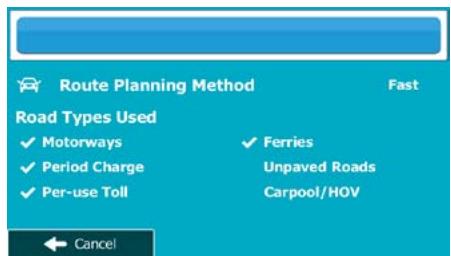

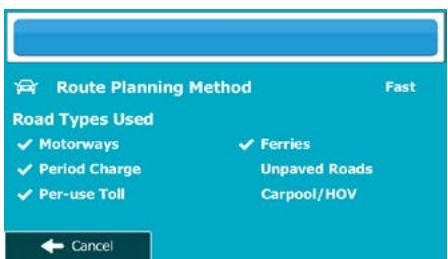

3.4.9 Changing the road types used in TOUR planning...

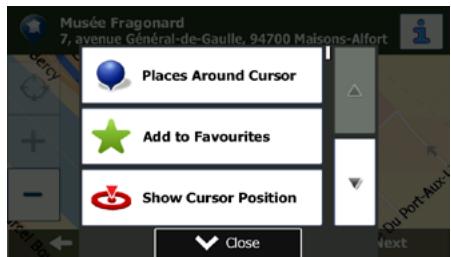

3.5 Saving a location as a Favourite destination.

3.5.1 Editing the details of a Favourite destinatioi

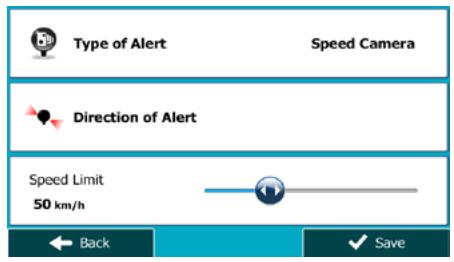

3.6 Saving a map location as an alert point 71

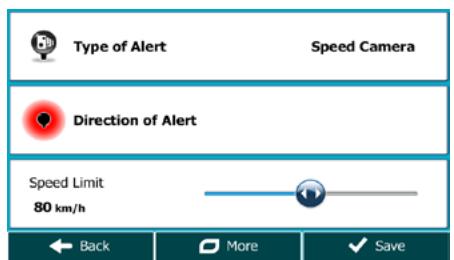

3.7 Editing an alert point... 72

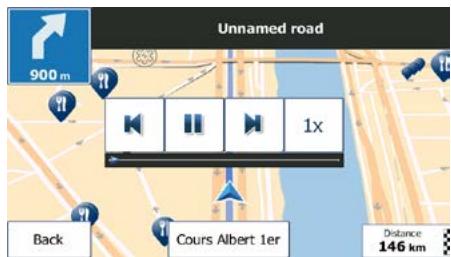

3.8 Watching the sinulation of the route...’ 73

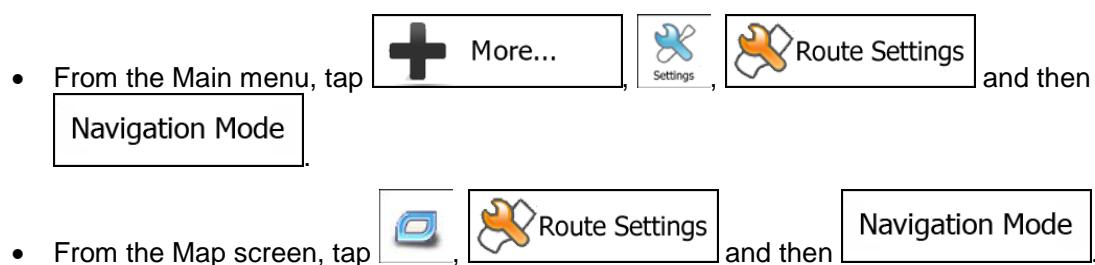

4 Off-road navigation

4.1 Selecting the destination of the route. .75

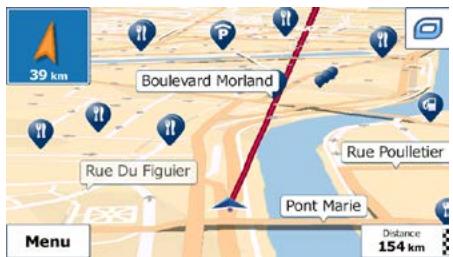

4.2 Navigating in off road node

5 Reference Guide nn 76

5.1.6 Road safety cameres and other proximity alert points... 80

5.1.7 Speed limit waming

5. 1.8 Battery and GPS position quality idicaors

5.1.9 Traffic information in route planning...’ 82

5.3.3 Traffic settings...

5.3.7 Visual guidance settings

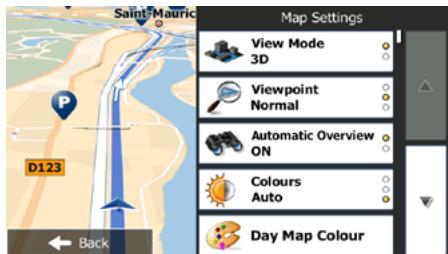

5.3.8 Display settings.

5.3.9 Regional setting.

5.3.10 Trip monitor settings...

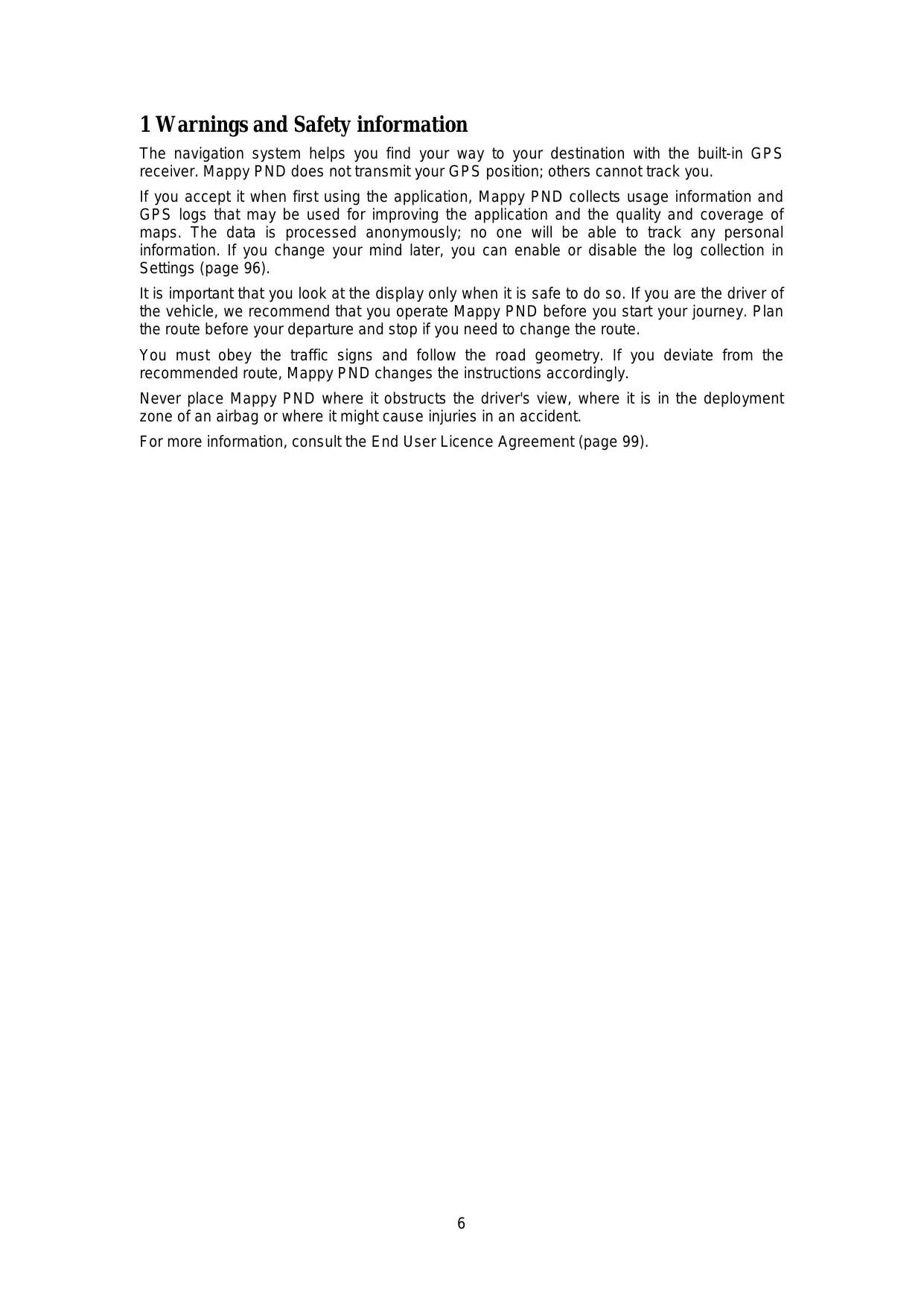

1 Warnings and Safety information The navigation system helps you find your way to your destination with the built-in GPS receiver. Mappy PND does nottransmit your GPS position; others cannot track you. If you accept it when first using the application, Mappy PND collects usage information and GPS logs that may be used for improving the application and the quality and coverage of maps. The data is processed anonymously; no one will be able to track any personal information. If you change your mind later, you can enable or disable the log collection in Settings (page 96). Itis important that you look at the display only when it is safe to do so. If you are the driver of the vehicle, we recommend that you operate Mappy PND before you start your journey. Plan the route before your departure and stop if you need to change the route. You must obey the traffic signs and follow the road geometry. If you deviate from the recommended route, Mappy PND changes the instructions accordingly. Never place Mappy PND where it obstructs the driver's view, where it is in the deployment zone of an airbag or where it might cause injuries in an accident. For more information, consult the End User Licence Agreement (page 99).

2 Getting started Mappy PND is optimised for in-car or pedestrian use. There is no need to use a stylus. You can use it easily by tapping the screen buttons and the map with your fingertips. When using the navigation software for the first time, an initial setup process starts automatically. Do as follows:

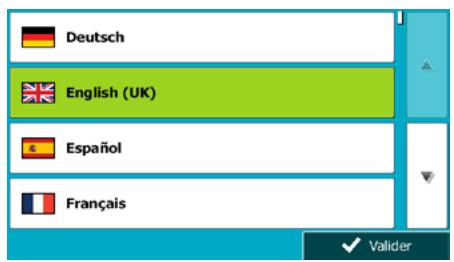

1. Selectthe written language of the application interface. Later you can change itin

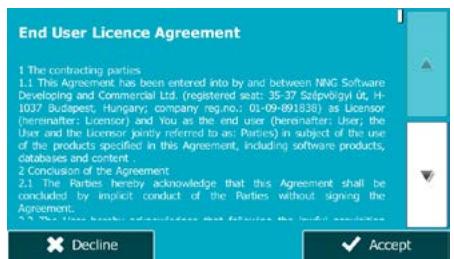

2. Read the End User Licence Agreement. Tap to continue.

End User Licence Agreement

3. You are now asked whether you allow the software to collect usage information and

GPS logs that may be used for improving the application and the quality and coverage

of maps. Tap Ÿ to allow the anonymous statistics or disable this function. Later you can turn them on or off individually in Log collection settings (page 96).

4. The Configuration wizard starts. Tap to continue.

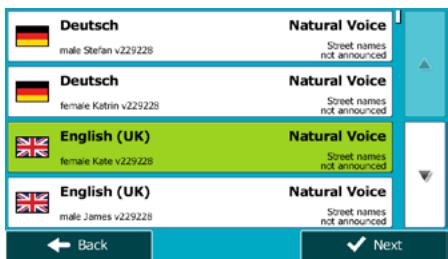

Select the language and speaker used for voice guidance messages. Later you can change it in Sound and Warnings settings (page 95). English (UK)

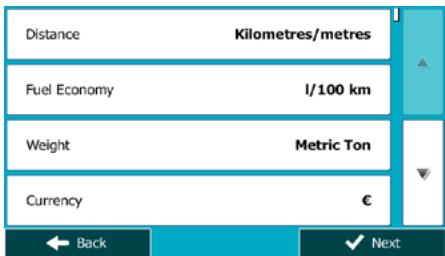

6. Ifneeded, modify the time format and unit settings. Later you can change them in

Regional settings (page 95). Kilometres/metres. Fu Economy

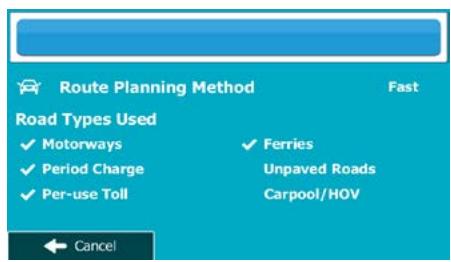

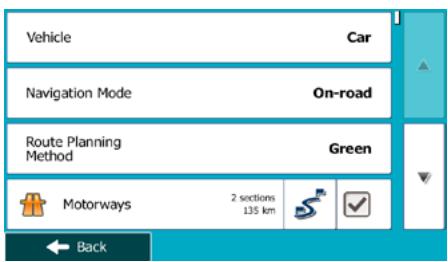

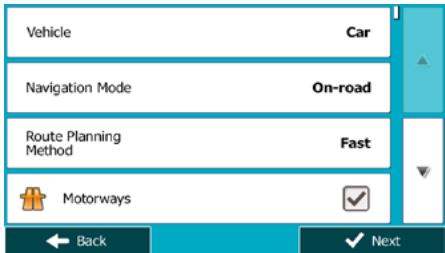

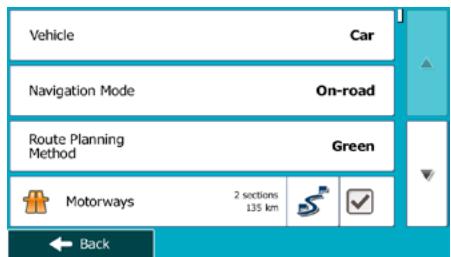

7. Ifneeded, modify the default route planning options. Later you can change them in

Route settings (page 88). Navigation Mode Route Planning Method

8. Theinitial setup is now complete. The Configuration wizard can be restarted later from

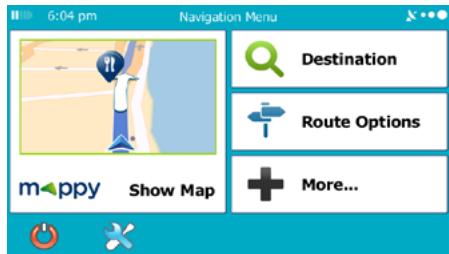

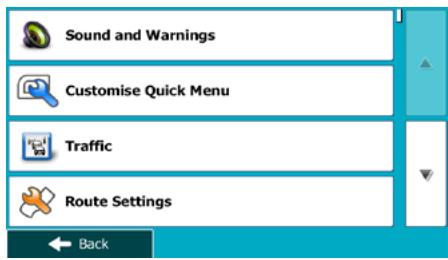

the Settings menu (page 84). After the initial setup, the Navigation menu appears and you can start using Mappy P ND.

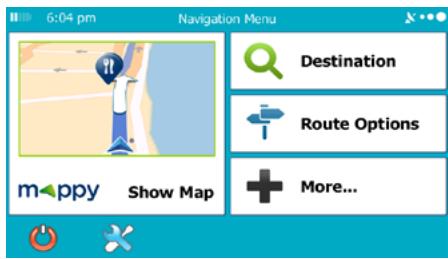

You can reach all parts of Mappy PND from the Navigation menu. 9 Q, vesimation Li Lu Route Options MAPPY show Map | "= More. You have the following options: Q Destination . . . e Tap to select your destination by entering an address or selecting a place of interest, a location on the map or one of your Favourite destinations. You can also look up your recent destinations from the Smart History or enter a coordinate. 7 Route Options + Tap 1 to display the route parameters and the route in its full length on the map. You can also perform route-related actions such as editing or cancelling your route, setting à start point for the route, picking route alternatives, avoiding parts of the route, simulating navigation or adding the destination to your Favourites. + More... + Tap applications. to simulate demo routes or to run some additional

° Tap ES. customise the way the navigation software works. + Tap Show Map to start navigating on the map. The button itself is a miniature live map that shows your current position, the recommended route and the surrounding map area. Tap the button to enlarge the map to the full screen. ° Tap ©, stop navigation and exit the software.

2.2 Buttons and other controls on the screen

When you are using Mappy PND, you usually tap buttons on the touch screen. You only need to confirm selections or changes if the application needs to restart, it needs to perform à major reconfiguration, or you are about to lose some of your data or settings. Otherwise, Mappy PND saves your selections and applies the new settings without confirmation as soon as you use the controls. Type Example Description How to use it Button . Tapitto initiate a function, |Tapitonce. Q Destination to open a new screen, or to set a parameter. Button @) Viewpoint Some buttons display the |Tapitonce. with value Pt Normal current value of a field or setting. Tap the button to change the value. After the change, the new value is shown on the button. Icon Distance Shows status information. |?0ME icons also 1 function as a button.

6.9 4m Tap them once.

List When you need to select |Grabthe list anywhere from several options, they appear in a list. and slide your finger up or down. Depending on the speed of the sliding, the list will scroll fast or slow, only a bit or till the end. Alternatively, move between pages with the

____Jand buttons and tap the value that you want.

Radio When there are only a few |Tap one of the buttons button © O choices, radio buttons may |to select a new value. be used instead of lists. Only one value can be selected. Switch When there are only two Tapit to turn the switch v choices, a checkmark on or off. shows whether the feature is enabled. Slider When à feature can be set * Dragthe handle — à — to different values in a to move the range, Mappy PND shows slider to its new an indicator on a gauge position. that displays and sets the value. + Tapthe slider where you want the handle to appear; the thumb jumps there. Virtual Alphabetic and Each key is a touch keyboard alphanumeric keyboards to screen button. enter text and numbers.

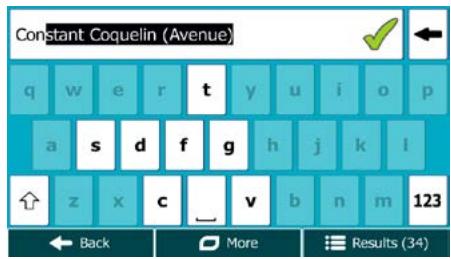

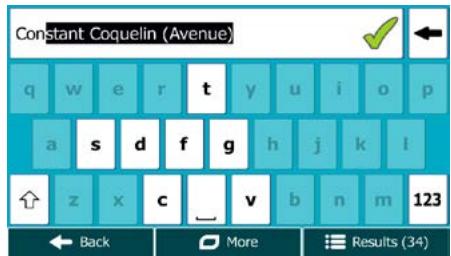

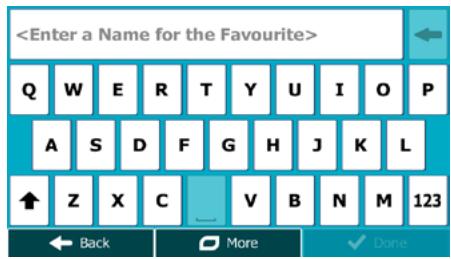

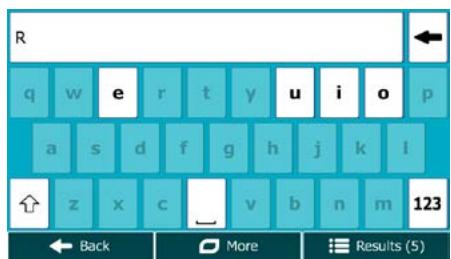

2.2.1 Using keyboards

You only need to enter letters or numbers when you cannot avoid it. You can type with your fingertips on the full-screen keyboards and you can switch between various keyboard layouts, for example English, Greek or numerical. Task Instruction Switching to another keyboard layout, for example from an English keyboard to a Greek keyboard Tap the button and select the new keyboard layout from the list. Correcting your entry on the keyboard

Tap to remove the unneeded character(s). Tap and hold the button to delete several characters or the entire input string. Entering a space, for example between a first name and a family name or in multi-word street names Tapthe button at the bottom centre of the screen.

Entering upper and lower case letters When entering a text, the first character appears in upper case while the rest of the text is in lower case. Tap & to enter an upper case letter or tap twice to turn on Caps Lock. Tap again and lower case letters return. Entering numbers and symbols

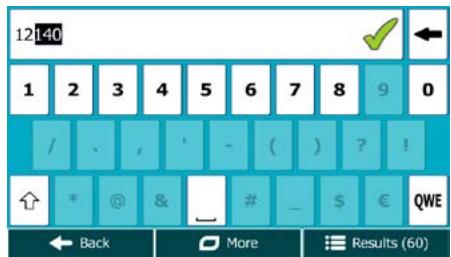

Tap to switch to a keyboard offering numeric and symbol characters. Finalising the keyboard entry (accepting the suggested search result) Tap Ÿ. Finalising the keyboard entry (opening the list of search results) Tap | Finalising the keyboard entry (saving your input) Tap | Cancelling the keyboard entry (returning to the previous screen) Tap À

2.2.2 Beyond single screen tap

You usually need to tap the screen only once. However, some useful features can be accessed with combined touch screen tapping. Those are the following: Action Details Tapping and : ; ne: holding the Tap and keep pressing the following buttons to reach extra functions: screen ° Tapandhold Map screen appears. ° _ Tap and hold any ofthe

° Tapandholdi or continuously. on list and menu screens: the 2 LU 2 LI and

buttons on the Map screen: you can rotate, tilt or scale the map continuously.

+ Tap and hold on keyboard screens: you can delete several characters quickly. in long lists: you can scroll pages

Gestures You need to drag and drop the screen only in cases like: (drag&drop) + _ Moving the handle on a slider. + Scrolling the list: grab the list anywhere and slide your finger up or down. Depending on the speed of the sliding, the list will scroll fast or slow, only a bit or till the end. + _ Moving the map in map browsing mode: grab the map, and move it in the desired direction.

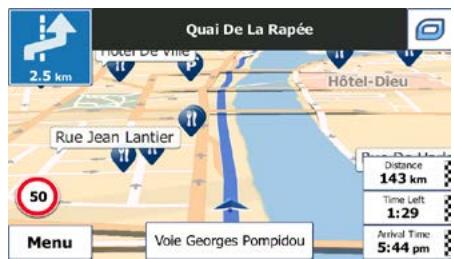

The Map screen is the most frequently used screen of Mappy PND. Show Map A small live map is displayed on the Navigation menu, as à part of the button. Q, oesimatien «T7 Route Options

MAPPY Showrmap | mn more. Show Map To enlarge this small map and open the Map screen, tap This map shows the current position (the Vehimarker, a blue arrow by default), the recommended route (an orange line), and the surrounding map area. When there is no GPS position, the Vehimarker is transparent. It shows your last known position. You see coloured dots circling around a satellite symbol in the top left corner. The more green dots you see, the closer you are to getthe valid GPS position.

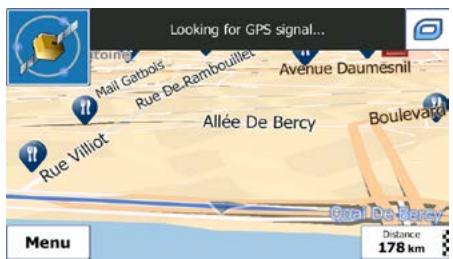

When GPS position is available, the Vehimarker is displayed in full colour, now showing your current position. Avenue De New-York 18tin À There are screen buttons and data fields on the screen to help you navigate. During navigation, the screen shows route information. The 4 button gives quick access to frequently used functions. You can change the available functions in Settings. By default, only one data field is displayed in the bottom right corner. Tap this field to see all route data fields. Tap any of the data fields to suppress others and display only the selected one. Rue Jean Lantier The data fields are different when you are navigating an active route and when you have no specified destination (the orange line is not displayed). Default data fields when cruising without a destination (tap and hold any of the fields to change its value): Field Description Speed Shows your current speed given by the GPS receiver. 61 km/h Speed Limit Shows the speed limit of the current road if the map contains it. 70 xm/h Time Shows the current time corrected with time zone offset. The accurate 17:11 time comes from the GPS satellites, and the time zone information comes from the map or it can be set manually in Regional settings. (The current time is always displayed in the top left corner of menu screens.) Default data fields when navigating a route (tap and hold any of the fields to change its value): Field Description Shows the distance you need to travel on the route before reaching Distance your final destination.

Time Left Shows the time needed to reach the final destination of the route based 0:16 on information available for the remaining segments of the route. The calculation cannot take into account traffic jams and other possible delays. Historical traffic data can also be taken into account if data is available. Arrivel Time Shows the estimated arrival time at the final destination of the route 17:22 based on information available for the remaining segments of the route. The calculation cannot take into account traffic jams and other possible delays. Historical traffic data can also be taken into account if data is available.

2.3.2 Position markers

2.3.2.1 Vehimarker and Lock-on-Road

When your GPS position is available, Mappy PND marks your current position with the Vehimarker. By default, this marker is a blue arrow, but you can change this icon in Settings. The exact location of the Vehimarker depends on the vehicle type used for route calculation and the navigation mode. Both can be set in Route settings (page 88). + _lf you choose pedestrian and/or off-road navigation: The Vehimarker is at your exact GPS position. The direction of the icon shows your current heading. ° _Inall other cases: The Vehimarker may not show your exact GPS position and heading. If roads are near, itis aligned to the nearest road to suppress GPS position errors, and the direction of the icon is aligned to the direction of the road.

2.3.2.2 Selected map location (Cursor) and selected map object

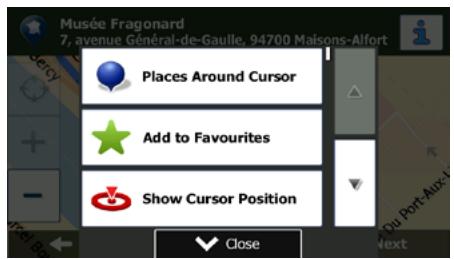

You can mark a map location in the following ways: ° Tapthe map when navigating, ° _Tapthe map when you are asked to confirm the destination at the end of a search, or ° Tapthe mapin Find on Map (page 54) When a map location is selected, the Cursor appears at the selected point on the map. The

Cursor is displayed with a radiating red dot ( © to make it visible at all zoom levels. The location of the Cursor can be used as the destination of the route, a new alert point, you can search for Places around it, or you can save this location as one of your Favourite destinations. You can also select some of the objects on the map. If you tap the map at the icon of a Place of Interest or an alert point, the object will be selected (you see a red circling border around the object), and you can get information about this object or use it as a route point.

2.3.3.1 Streets and roads

Mappy PND shows the streets in a way that is similar to how the paper road maps show them. Their width and colours correspond to their importance: you can easily tell a motorway from a small street.

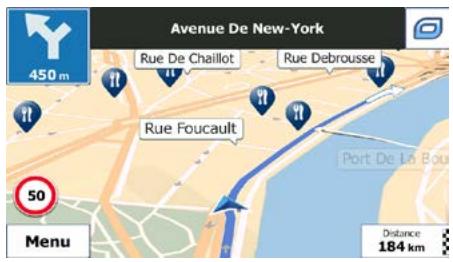

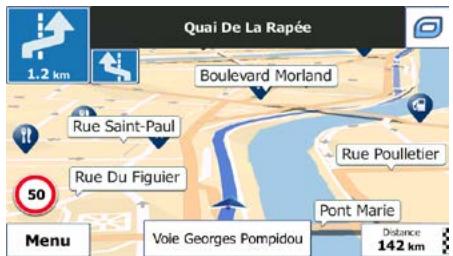

2.3.3.2 Turn preview and Next street

When navigating a route, the top section of the Map screen shows information about the next route event (manoeuvre) and the next street or the next city/town. Avenue De New-York Rue De Chailot | Rue Dern D

[Menu | “] EE There is à field in the top left corner that displays the next manoeuvre. Both the type of the event (turn, roundabout, exiting motorway, etc.) and its distance from the current position are displayed. A smaller icon shows the type of the second next manoeuvre if it is near the first one. Otherwise, only the next manoeuvre is displayed.

Rue Saint-Paul L DA 1 Rue Poulletier [Rue Du Figuier | |] [ae ae] menu |+e2 {vo ones omoou PE 2, Most of these icons are very intuitive. The following table lists some of the frequently shown route events. The same symbols are used in both fields: Icon Description Le Turn left. Turn right. Turn back. Bear right. "1 Turn sharp left. Keep left.

Continue straight in the intersection. Go left on the roundabout, 3rd exit (next manoeuvre). Enter roundabout (second next manoeuvre). Enter motorway. Exit motorway. Board ferry. Leave ferry. Approaching a waypoint. Approaching the destination.

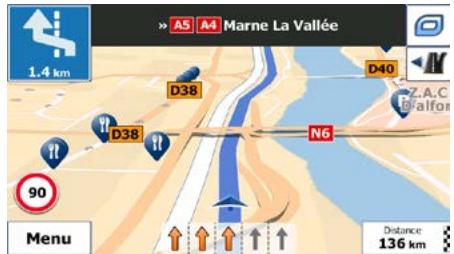

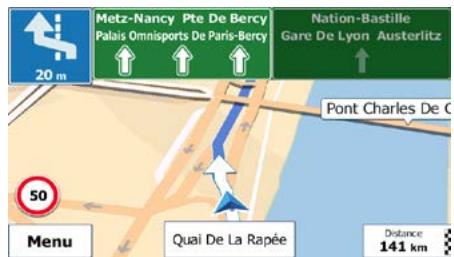

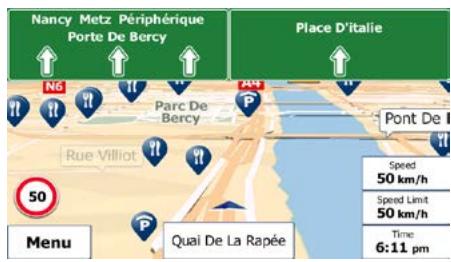

2.3.3.3 Lane information and Signposts

When navigating on multilane roads, it is important to take the appropriate lane in order to follow the recommended route. If lane information is available in the map data, Mappy PND displays the lanes and their directions using small arrows at the bottom of the map. Highlighted arrows represent the lanes and direction you need to take. Where additional information is available, signposts substitute arrows. Signposts are displayed at the top of the map. The colour and style of the signposts are similar to the real ones you can see above road or by the roadside. They show the available destinations and the number of the road the lane leads to. All signposts look similar when cruising (when there is no recommended route). When navigating a route, only the signpost that points to the lane(s) to be taken is displayed in vivid colours; all others are darker. If you want to hide the currently displayed signposts, tap any of them and the normal Map screen returns until new signpost information is received.

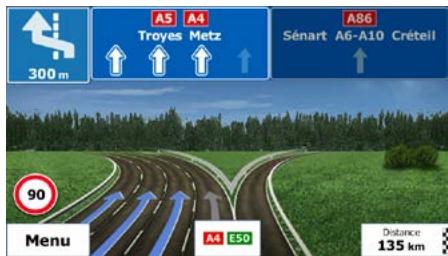

2.3.3.4 Junction view

If you are approaching a motorway exit or a complex intersection and the needed information exists, the map is replaced with a 3D view of the junction. The lanes you need to take are displayed with arrows. Atthe top of the screen road signs show you additional information. If you want to hide the currently displayed junction, tap the picture and the Map screen returns. (AS) (aa t ? €

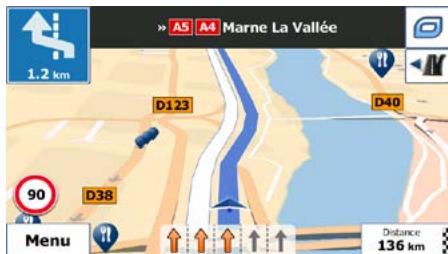

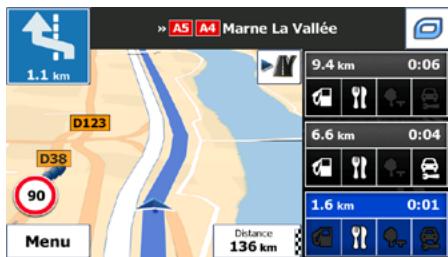

2.3.3.5 Motorway exit services

You may need a petrol station or a restaurant during your journey. This feature displays a new button on the map when you are driving on motorways.

2 m \ : [men (Qtitttte 5 1 Tap this button to open a panel with the details of the next few exits or service stations. Tap any of them to display the exit area on the map. You can now easily add this exit as a waypoint to your route if needed. If you want to display other types of Places for the exits, you can change the icons in Visual Guidance settings (page 94).

Mappy P ND supports the following 3D object types: Type Description 3D terrain |3D terrain map data shows changes in terrain, elevations or depressions in the land when you view the map in 2D, and use it to plot the route map in 3D when you navigate. Hills and mountains are shown in the background of the 3D map, and illustrated by colour and shading on the 2D map. Eleuted Complex intersections and vertically isolated roads (such as overpasses or bridges) are displayed in 3D.

2.3.3.7 Elements of the active route

Mappy PND shows the route in the following way: Symbol Name Description

Current GPS position and Start point Your current position displayed on the map. ° In pedestrian mode itis the exact GPS position. + fa vehicle is selected for route calculation and roads are near, the symbol is snapped onto the nearest road. Normally if GPS position is available, the route starts from the current position. If there is no valid GPS position, Mappy PND uses the last known position as the start point. = mepoit t An intermediate destination of the route before reaching the #5 (intermediate final destination. destination) Destination (end |The final destination of the route. point) Route colour The route always stands out with its colour on the map, both in daytime and in night colour mode. Streets and roads that are excluded from the navigation You can choose whether you want to use or avoid certain road types (page 88). However, when Mappy PND cannot avoid such roads, the route will include them and it will show them in a colour that is different from the route colour.

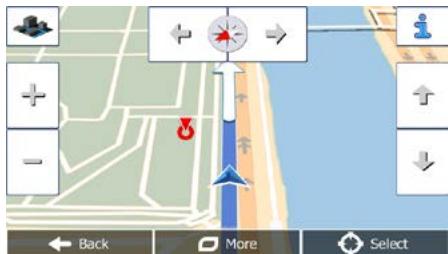

Tap the map anywhere to browse it during navigation. The map stops following the current position (the Vehimarker, a blue arrow by default, is not locked in a fix position on the screen any more) and control buttons appear to help you modify the map view. Action Button(s) Description Hong he No buttons You can move the map in any direction: tap and hold dabéd the map, and move your finger towards the direction rag&arop you want to move the map. Zooming in n Changes how much of the map is displayed on the ang ou = |— screen. Mappy PND uses high-quality vector maps that let you examine the map at various zoom levels, always with optimised content. It always displays street names and other text with the same font size, never upside-down, and you only see the streets and objects that you need. Map scaling has a limit in 3D map view mode. If you zoom out further, the map switches to 2D view mode. Tap the button once to modify the view in large steps, or tap and hold the button to modify it continuously and smoothly. ang up and Ï I Changes the vertical view angle of the map in 3D mode. ' Tap the button once to modify the view in large steps, or tap and hold the button to modify it continuously and smoothly. NET à Changes the horizontal view angle of the map. == es! É , Tap the button once to modify the view in large steps, or tap and hold the button to modify it continuously and smoothly. 2D or 3D view Tap this button to switch between the 3D perspective < F and 2D top-down map view modes. Compass in À 2D map view mode ' The direction of the compass shows North. Tap the à button to switch to North-up view, and then tap again to rotate the map in the previous direction.

Compass in 3D map view mode The direction of the compass shows North. Tap the button to switch to North-up view, and then tap again to rotate the map in the previous direction. Location : : Tap this button to open a new screen with information information about the selected map point, the Cursor. Return to normal navigation = Back Tap this button to move the map back to follow the current GPS position. Automatic map rotation is also re- enabled. The map manipulation buttons disappear and navigation continues. searching for Places around the Cursor. Select Par Tap this button to select the Cursor as a new destination destination. The route is automatically calculated. À «A Additional Tap this button to open a list of additional features like options ï : noue saving the Cursor as a Favourite destination, or

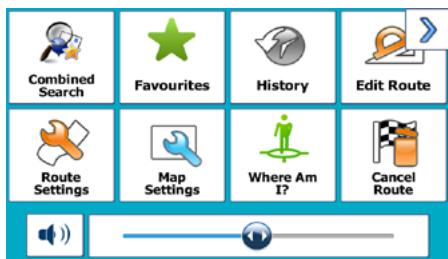

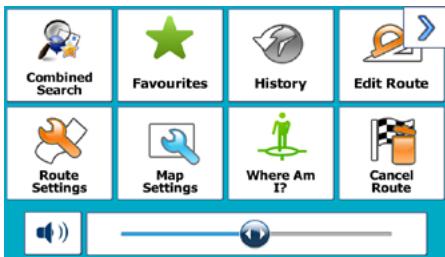

The Quick menu is a selection of controls and functions that are frequently needed during _ . mL navigation. It can be opened directly from the Map screen by tapping . &|k|e Combined | ravourites | History | Edit route X|Ia|It|IFr Route Map settings settings Cancel Route D | —Q@

The menu will also close if you initiate simple controls like muting the device. In other cases tapping a button will open a new screen with options. The menu will close after a few seconds of inactivity or if you tap Most of these functions are shortcuts. They are accessible from the menu system. There are more functions available than the number of buttons in the menu. In Settings, you can choose the function of each button (page 87). The following options are available: Button Description Shortcut for Master : This slider adjusts the sound volume of the device. | More / Settings / Sound Volume slider All sounds of the application are affected. and Warnings / Volume 1 Master slider This switch mutes all sounds of the application. Tap |More / Settings / Sound d) ax again to re-enable sounds. and Warnings / Volume ' 1 Master switch

This button opens the Combined Search function that allows you to search addresses, Places, Favourite and recent destinations by name in one unified environment. Destination (page 25) This function lets you search for a Place by its name. The search is carried out either along your route or around your current location if there is no route calculated. Destination / Find Places / Quick Search (page 43) This button opens the destinations. list of your Favourite Find / Favourite (page 55) This button opens the History list You can select one of your previous destinations. Find / History (page 57) This button opens the route editing function. My Route / Edit Route This button opens the route related settings. More / Settings / Route Settings (page 88) Map Settings This button opens the map related settings. More / Settings / Map Settings (page 92) Where Am 1? This button opens a special screen with information about the current position and a button to search for nearby emergency or roadside assistance. For details, see the next chapter. Tap the Current Street field on the Map screen

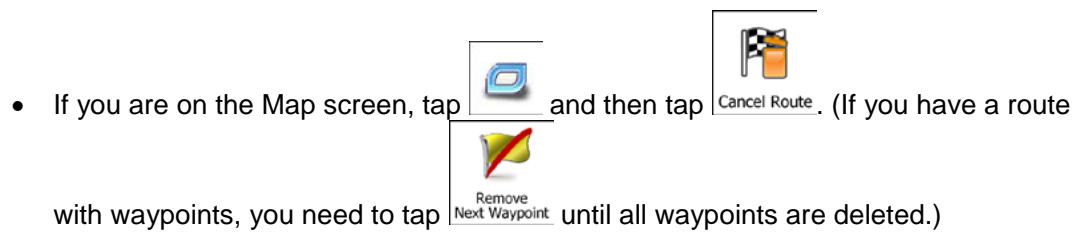

Cancel Route This button cancels the route and stops navigation. The button is replaced with the next one if waypoints are given. My Route / Cancel Route (page 65)

Remove Next Waypoint This button skips the next waypoint from the route. Overview This button opens à 2D map scaled and positioned to show the entire route. My Route / Overview (page 60) veual Guidance This button opens the Visual Guidance settings screen. More / Settings / Visual Guidance (page 94)

This button opens the Traffic Summary screen. Tap the Traffic icon in the Navigation menu or on the Map screen This button lets you recommended route. bypass parts of the My Route / Avoidances This button opens the Trip Monitor screen where you can manage your previously saved trip logs and track logs. More / Trip Monitor (page 83) This button opens the list of manoeuvres (the itinerary). Tap the top of the Map screen during navigation. With this function you can save the active route for later use. My Route / More / Save Route With this function you can replace the active route with a previously saved route. My Route / More / Load Route Find Piaces With this function you can search for Places of Interest in various different ways. Find / Find Places (page 43) Simulte Navigation This button opens the Map screen and starts simulating the active route. My Route / More / Simulate Navigation (page 73) This button opens the GPS Information screen with satellite position and signal strength information. Tap the top of the Map screen when there is no GPS reception Vehice Profile This button opens the parameters of the selected Vehicle profile. More / Settings / Route (page 88)

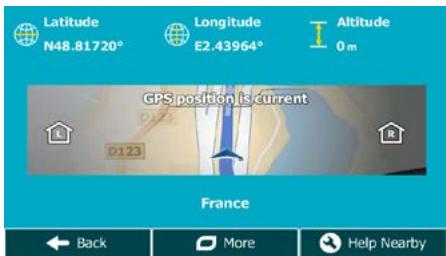

2.3.6 Checking the details of the current position (Where Am I?)

This screen contains information about the current position (or about the last known position if GPS reception is not available) and a button to search for useful Places nearby. a Longitude À e2.42964 You can access this screen from the map in one of the following ways: <_lfthe current street is displayed below the Vehimarker (the current position on the map), tap it to open the Where Am |? screen.

+ _ Openthe Quick menu and tap the |WrereamP button. Information on this screen: | E Latitude and Longitude (coordinate of the current position in WGS84 format). Q H Altitude (elevation information coming from the GPS receiver - often inaccurate). . Oo House number on the left. . : House number on the right. + _Inthe middle of the screen you can see whether the position is current, or the time left since it was last updated. .< _ Address details (when available) of the current position are displayed atthe bottom. You can also perform some actions on this screen:

Tap | Or | to save the current position as a Favourite destination.

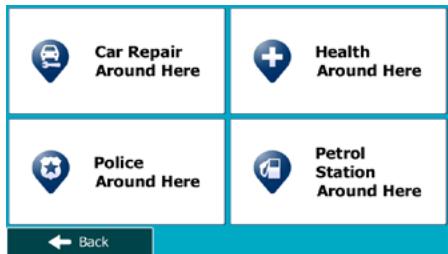

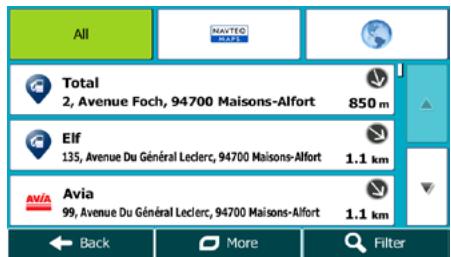

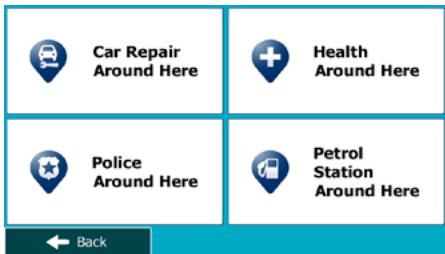

Ip Nea You can also search for assistance near your current position. Tap [Qi ner | to open à new screen for the Quick search: Car Repair Heaith Around Here Around Here | petri © nee | © Sri SNA ere The following services can be searched around the current position or the last known position:

Car Repair Around Here : Car repair and roadside assistance services

Police Around Here : Police stations

Health Around Here : Medical and emergency services

Petrol Station Around Here : Petrol stations Tap any of the buttons, select a Place from the list, and navigate to it.

3 On-road navigation When first started, Mappy PND calculates routes using the road network of the high quality vector maps provided with the product. You can set up your route in different ways: + _If you need a route for immediate navigation, you can selectthe destination and start navigating to it right away (normal navigation). ° _ You can also plan a route independently of your current GPS position or even without GPS reception. To achieve this you need to set a new starting point in My Route / Edit Route by tapping the flag icon at the current position. This will also turn off the GPS receiver so that the route is not recalculated when a new position is received. You can plan routes with multiple destinations. Select the first destination. Then select a second destination and add it to your route to create a multi-point route. You can add as many destinations to your route as you like. You can also use Mappy P ND for off-road navigation. For details, see page 75.

3.1 Selecting the destination of a route

Mappy P ND offers you several ways of choosing your destination: + _ Enter a full address or a part of an address, for example a street name without a house number or the names of two intersecting streets (page 34). ° Enter an address with postal code (page 41). This way you do not need to selectthe name of the city/town and the search for street names might be faster as well. ° Use a built-in Place of Interest as your destination (page 43). + _ Select a location on the map with the Find on Map feature (page 54). + _ Use à previously saved Favourite destination (page 55). + _ Select a location from the History of previously used destinations (page 57). + _ Enterthe coordinate of the destination (page 58).

3.1.1 Combined Search

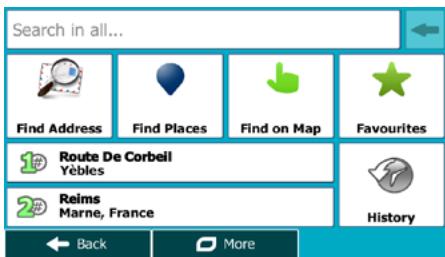

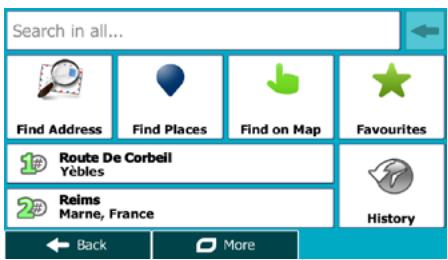

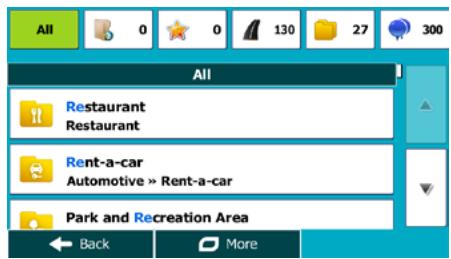

There are several ways to select the destination of the route. You can find buttons in the Destination menu that initiate a separate search for addresses, Places, Favourite or recent destinations. The fastest way to search for any of these is to use the Combined Search. In this section you can find the full description of how this feature works. The below process shows how to carry out the search and the following subsections will help you find specific kinds of results. LL Q Destination

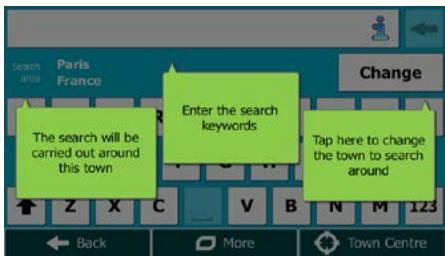

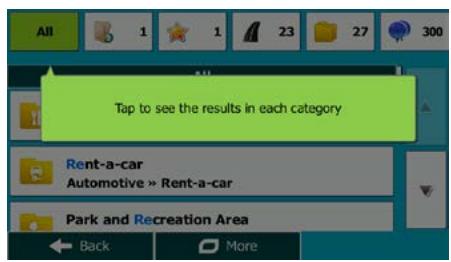

First you see hints on the screen showing how you can use the function. These hints are only displayed the first time you use this screen. Tap anywhere and the hints disappear. Once you get through this screen to the search results, the hint will not appear again when you open this window later but you can see them again if you tap the information button on the right side of the input field. You can see the input field at the top of the screen. Right below that you see the search area, the city/town around which the search is carried out. The default search area is the area where you are located. For a local search, skip the next step. (optional) To search in a different area, do as follows:

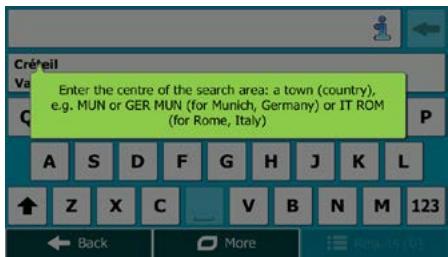

Change Tap . À new screen opens with a new input field. A hint bubble explains how you can specify the new search centre. Tap anywhere and the hint disappears. If you successfully select a new search area, the hint will not appear again when you open this window later but you can see it again if you tap the information button on the right side of the input field. Start entering the centre of the new search area using the screen keyboard. You only need to enter a few letters to get a result. Ifthe new search area is in a different country, you can narrow the search results if you enter one space and then a few letters of the country of the search area. The most likely result appears below the input field as you enter new letters. Tap to select this as your new search area. If you cannot see your preferred = Results | area after a few letters, tap and select one from the list.

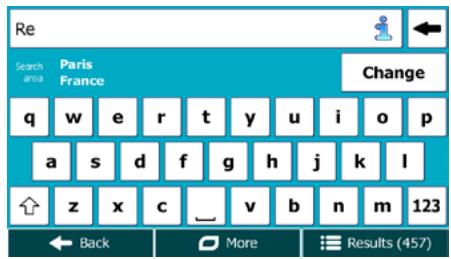

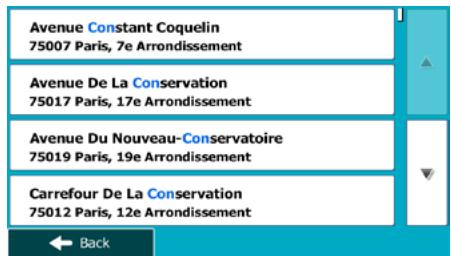

With the proper search area displayed, you can start entering the name, address or category of the destination you are looking for. The number shown in the = Results button shows how many results match the entered text. The background search is carried out while you enter letters so this number may keep on increasing if you wait a few seconds. Keep on entering new letters while this number is high. Once the number of results is acceptable after a few seconds of searching, you can Results | tap to switch to the result screen. The result screen also opens with hints. Tap anywhere to suppress them. Once you select a destination, they will not appear again. You see all results in the list, regardless of their type. Addresses, Places, Place categories, Favourite and recent destinations are mixed within one list. You have the following options: °< Tapthe result you want to use as your destination. Scroll the list if necessary. °_ To narrow the search for only one type of result (for example for Places only) you can tap the related button at the top of the screen. See the next sections for details. Once the destination is selected, a full screen map appears with the selected point in the middle. If necessary, tap the map somewhere else to modify the destination. The 4 . Next . Cursor ( ) appears atthe new location. Tap to confirm the Back destination, or tap to select a different destination.

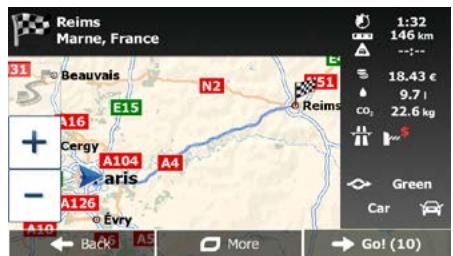

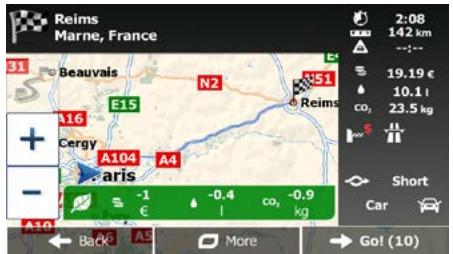

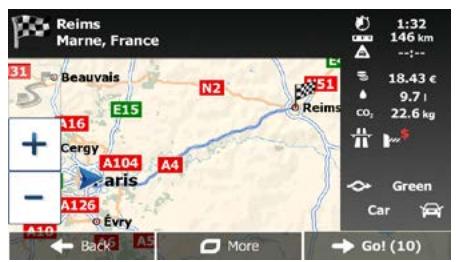

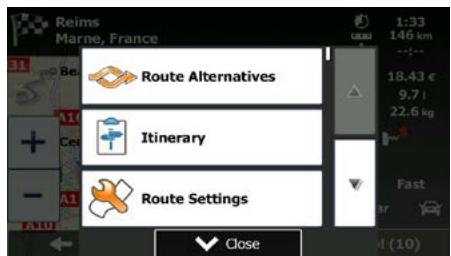

13. After a short summary of the route parameters, the map appears showing the entire

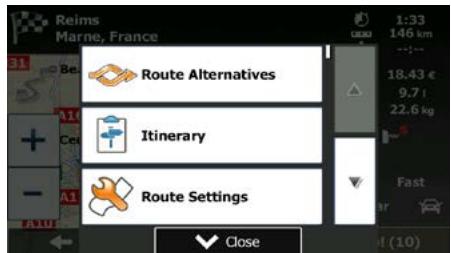

More route. The route is automatically calculated. Tap to modify route parameters, or tap and start your journey. 4 Ferries Unpaved Roads 4 Per-use Toll Carpool/HOV

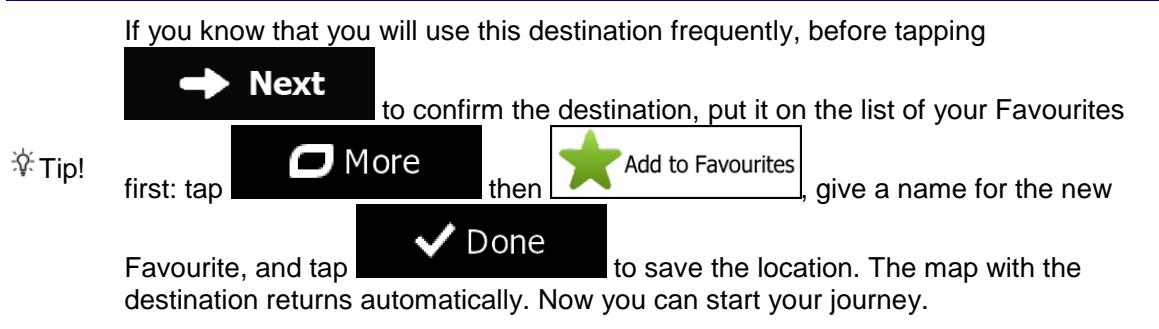

© Évry D pr EXT If you know that you will use this destination frequently, before tapping o confirm the destination, put it on the list of your Favourites YTipl Xe to Favourites| first: tap then give à name for the new one Favourite, and tap to save the location. The map with the destination returns automatically. Now you can start your journey.

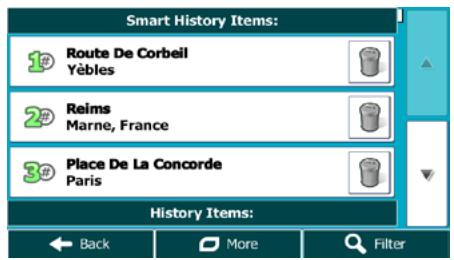

3.1.1.1 Combined Search - Navigating to a recent destination (History)

To find one of your recent destinations in Combined Search, carry out the search as described earlier. For the input text you can use either à part of the name or à part of the address of the recent destination. When you get to the result screen, do as follows:

1. Tap atthe top of the screen.

2. Thelistis now filtered. What you see is the list of recent destinations with a matching

3. Scroll down the list if necessary and then select one of the destinations from the list.

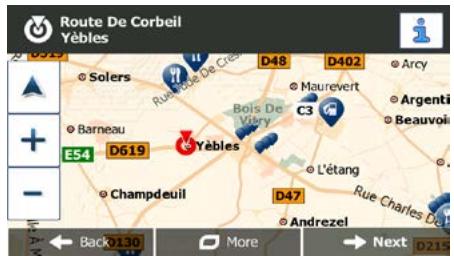

4. Once the destination is selected, a full screen map appears with the selected point in

the middle. If necessary, tap the map somewhere else to modify the destination. The

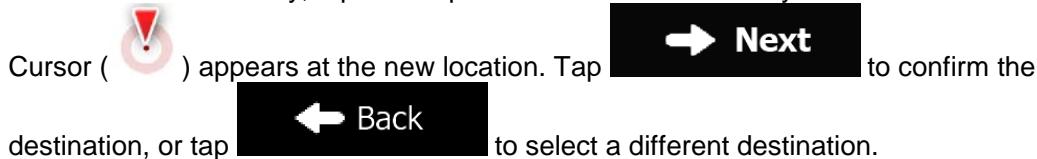

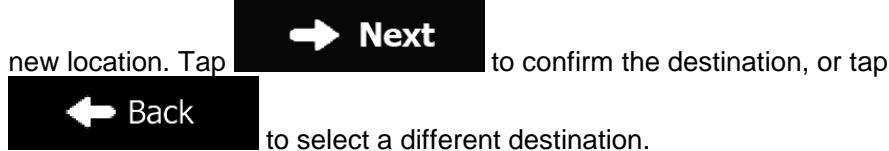

Cursor ( ) appears atthe new location. Tap Back destination, or tap to select a different destination. to confirm the

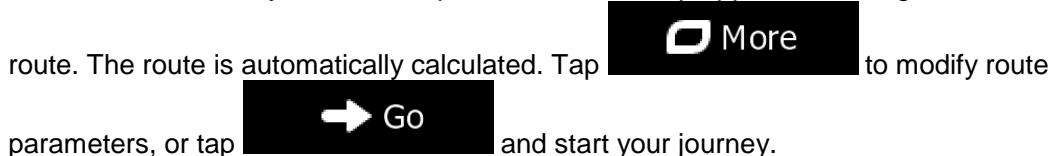

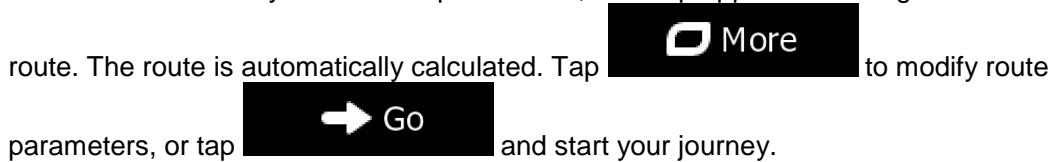

5. After a short summary of the route parameters, the map appears showing the entire

More route. The route is automatically calculated. Tap to modify route parameters, or tap and start your journey. 4 Ferries Unpaved Roads Carpool/HOV

© Évry D pr EXT ÉYNote! The alternative way to search for a recent destination is to tap the button in ‘the Quick menu or in the Destination menu. The rest of the procedure is similar to the above.

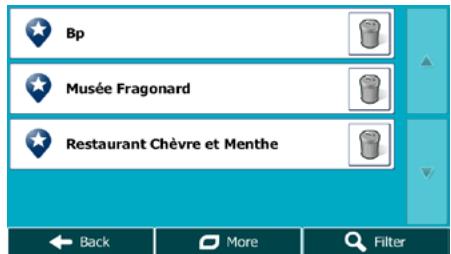

3.1.1.2 Combined Search - Navigating to a Favourite destination

To find one of your Favourite destinations in Combined Search, carry out the search as described earlier. When you get to the result screen, do as follows:

1. Tap # atthe top of the screen.

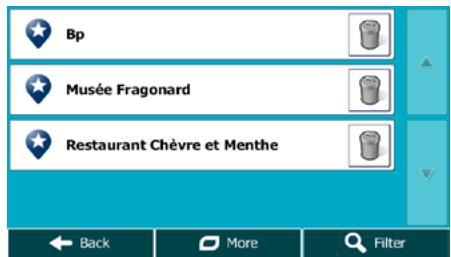

2. Thelistis now filtered. What you see is the list of your Favourite destinations with a

3. Scroll down the list if necessary and then select one of the destinations from the list.

4. Once the destination is selected, a full screen map appears with the selected point in

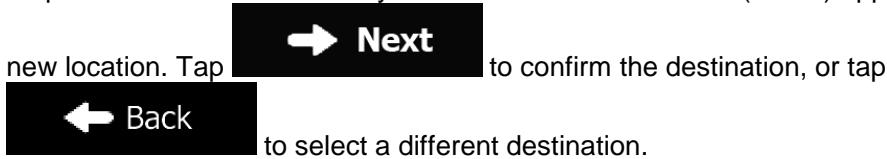

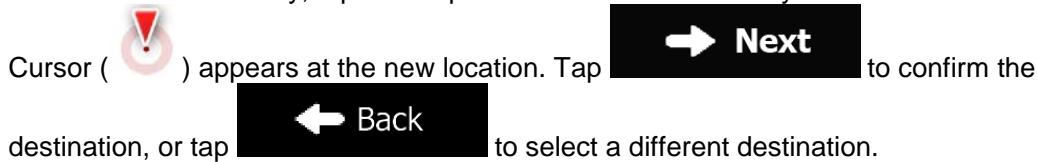

Cursor( ‘ ) appears atthe new location. Tap Next . to confirm the destination, or tap to select a different destination.

5. After a short summary of the route parameters, the map appears showing the entire

More route. The route is automatically calculated. Tap to modify route parameters, or tap and start your journey. #_ Route Planning Method Road Types Used Y Motorways 4 Ferries V Period Charge Unpaved Roads 4 Per-use Toll Carpool/HOV CR! “© Évry + cn Deus [ou + |

ÉYNote! The alternative way to search for a Favourite destination is to tap the ”_ inthe Quick menu or in the Destination menu. The rest of the procedure is similar to the above.

3.1.1.3 Combined Search - Navigating to an address

To find an address in Combined Search, carry out the search as described earlier. Use the name of the street alone or combined with the house number as your input text. When you get to the result screen, do as follows: Tap atthe top of the screen. The list is now filtered. What you see is the list of matching addresses. Scroll down the list if necessary and then select one of the addresses from the list. FwNRE Once the destination is selected, a full screen map appears with the selected point in the middle. If necessary, tap the map somewhere else to modify the destination. The y . Next Cursor ( ) appears atthe new location. Tap Back to confirm the destination, or tap to select a different destination.

5. After a short summary of the route parameters, the map appears showing the entire

More route. The route is automatically calculated. Tap to modify route parameters, or tap ECS and start your journey. Marne, France + Route Planning Method Pom Road Types Used TER ns —— ES ; V Period Charge Unpaved Roads ee ris” 4 Per-use Toll Carpool/HOV

p126] © Évry + cn D pr EXT

ÉYNote! The alternative way to search for an address is to tap the == button in the ” Destination menu. Unlike the Combined Search, this alternative search method is a structured one where you can define the parts of the address separately.

3.1.1.4 Combined Search - Navigating to an intersection

To find an intersection in Combined Search, carry out the search as described earlier but use the '&' sign to separate the two intersecting streets. You do not need to use spaces before and after the separator character. For example you can use any of the following input texts to find the intersections of Collins Street and Douglas Avenue (the more precise the input string the fewer false results are expected): e Collins St& Douglas Ave e Collins & Douglas + CollSt& Dou Av ° Col&Doug e C&D e_ Collins St& (this one will give you all the intersections of Collins Street so that you can select the appropriate one from the result list) When you get to the result screen, do as follows: Tap atthe top of the screen. The list is now filtered. What you see is the list of matching intersections. Scroll down the list if necessary and then select one intersection from the list. 8 W ND # Once the destination is selected, a full screen map appears with the selected point in the middle. If necessary, tap the map somewhere else to modify the destination. The

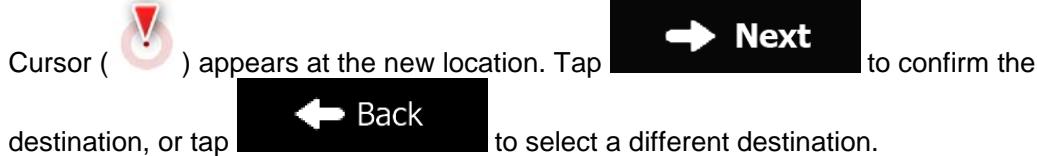

Cursor( ‘ ) appears atthe new location. Tap Next . to confirm the destination, or tap to select a different destination.

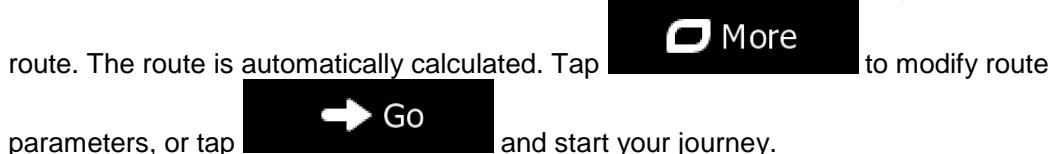

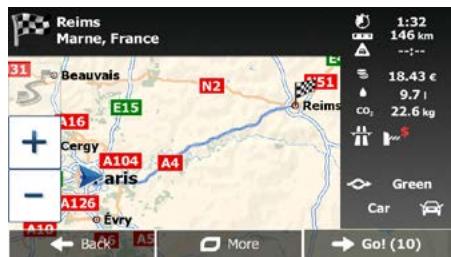

5. After a short summary of the route parameters, the map appears showing the entire

route. The route is automatically calculated. Tap to modify route parameters, or tap and start your journey. #_ Route Planning Method Road Types Used Y Motorways 4 Ferries V Period Charge Unpaved Roads 4 Per-use Toll Carpool/HOV + Can ÉYNote! The alternative way to search for an address is to tap the #*+ button in the ” Destination menu. Unlike the Combined Search, this alternative search method is a structured one where you can define the parts of the address separately.

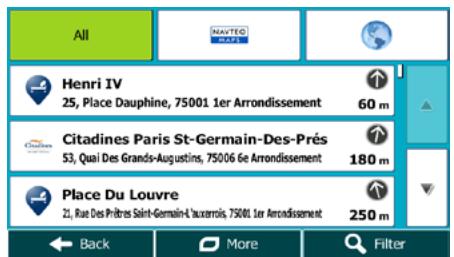

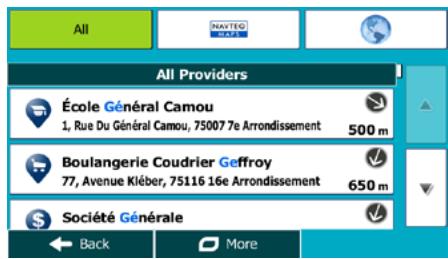

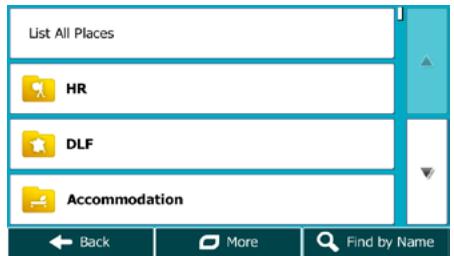

3.1.1.5 Combined Search - Navigating to a Place of Interest

To find a Place of Interest in Combined Search, carry out the search as described earlier. Search for a part of its name. When you get to the result screen, do as follows:

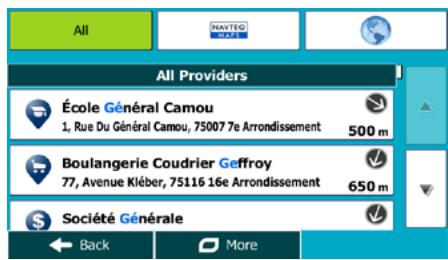

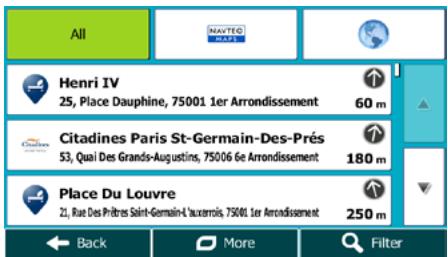

2. Thelistis now filtered. What you see is the list of matching Places ordered by their

distance from your current location. atthe top of the screen.

3. (optional) Should your product contain Places from different data providers, you can

further narrow the list by showing Places from one provider only. Look for the provider logos atthe top of the screen. Tap one of them to see Places from that provider only. École Général Camou À, Rue Du Général Camou, 75007 Je Amendement 500 m Q souianserie coudrier cerroy 77, Avenue Kléber, 75116 16e Arrondissement 650 m £ Société Général

4. Scroll down the list if necessary and then select one of the Places from the list.

5. Once the destination is selected, a full screen map appears with the selected point in

the middle. If necessary, tap the map somewher e else to modify the destination. The _ EX Cursor ( ) appears atthe new location. Tap to confirm the Back destination, or tap to select a different destination.

6. After a short summary of the route parameters, the map appears showing the entire

; ; More route. The route is automatically calculated. Tap

p126] © Évry D pr EXT The alternative way to search for a Place is to tap the button in the Quick menu or the -_ button in the Destination menu. These alternatives are different from the Combined Search. The first one is also a name search but if there is a route planned, it will not be carried out around your current location but along the route. The Place search in the Destination menu is a complex Place search with several options including category search or search around the destination of the current route. É’Note!

3.1.1.6 Combined Search - Navigating to a Place of Interest by its category

To find a Place of Interest in Combined Search by giving its category only, carry out the search as described earlier. Search for a part of the category name. When you get to the result screen, do as follows:

1. The listis ordered with Place categories atthe beginning but if you want, you can filter

the listto contain Place categories only. Tap uw) atthe top of the screen to filter the list.

2. Scrollthe list and select one of the categories. You get the list of Places in that

category ordered by their distance from your current position. If the selected category contains subcategories, you will see all Places in that category mixed into one list.

3. (optional) Should your product contain Places from different data providers, you can

further narrow the list by showing Places from one provider only. Look for the provider logos atthe top of the screen. Tap one of them to see Places from that provider only. École Général Camou À, Rue Du Général Camou, 75007 Je Amendement 500 m Q souianserie coudrier cerroy 7, Avenue Kléber, 75116 16e Arrondissement 650 m

4. Scroll down the list if necessary and then select one of the Places from the list.

5. Once the destination is selected, a full screen map appears with the selected point in

the middle. If necessary, tap the map somewhere else to modify the destination. The _ EX Cursor ( ) appears atthe new location. Tap to confirm the destination, or tap RES. select a different destination.

6. After a short summary of the route parameters, the map appears showing the entire

route. The route is automatically calculated. Tap

parameters, or tap REZ and start your journey. to modify route

1464m S 18436 4 Ferries Unpaved Roads Carpool/HOV The alternative way to search for a Place category is to tapthel" button in the É'Note! Destination menu and then tap ===", This alternative is different from the Combined Search. When you search for a Place category here, you will go through the whole Place category tree. When you select a category, the list of its subcategories opens.

3.1.2 Entering an address or a part of the address

If you know at least a part of the address, it is the quickest way to select the destination of the route. Using the same screen, you can find an address by entering: e the exact address, including house number ° the centre of a city/town + anintersection e the midpoint of a street ° any of the above, starting the search with the postal code (page 41)

3.1.2.1 Entering an address

To enter an address as the destination, do as follows: Menu

1. If you are on the Map screen, tap to return to the Navigation

menu. Lu , Q Destination

2. Inthe Navigation menu, tap the following buttons: Find Address.

3. By default, Mappy P ND proposes the country and city/town where you are. Ifneeded,

Country . tap enter the first few letters of the country name on the keyboard, and select one country from the list of results. Country France Ton pars Set street Name

4. Ifneeded, select a new city/town:

Town a. Tap b. Start entering the name of the city/town on the keyboard. c. Find the city/town you need: + The most likely city/town name is always shown in the input field. To acceptit, tap

Enter the street name:

. _lfthe desired name does not show up, the names that match the string appear in a list after entering a couple of characters (to open the list of results before it appears automatically, tap Es rats | Select the city/town from the list. Paris France (0) Pau © | pyrénées-Atiantiques, France Pantin © | Seine-Saint-Denis, France Pamiers. Ariège, France Street Tap Start entering the street name on the keyboard. Find the street you need: + The most likely street name is always shown in the input field. To accept it, tap . _lfthe desired name does not show up, the names that match the string appear in a list after entering a couple of characters (to open the list of | . = Results results before it appears automatically, tap . Select the street from the list. Avenue Constant Coquelin 75007 Paris, 7e Arrondissement Avenue De La Conservation 78017 Paris, 17e Arrondissement Avenue Du Nouveau-Conservatoire 75019 Paris, 19e Arrondissement Carrefour De La Conservation 75012 Paris, 12e Arrondissement Enter the house number:

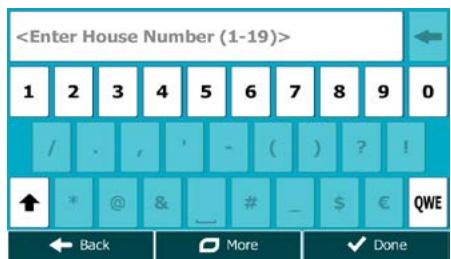

<House Number> Tap | QWE Enter the house number on the keyboard. (To enter letters, tap

c. Tap | Vo | to finish entering the address. (If the entered house number cannot be found, the midpoint of the street is selected as the destination.) <Enter House Number (1-19)> A full screen map appears with the selected point in the middle. If necessary, tap the

map somewhere else to modify the destination. The Cursor ( s | appears atthe new location. Tap to confirm the destination, or tap to select a different destination. After a short summary of the route parameters, the map appears showing the entire . . More route. The route is automatically calculated. Tap

parameters, or tap REZ and start your journey. to modify route + Route Planning Method Road Types Used Y Motorways V Feries 4 Period Charge Unpaved Ronds V Per-use Tol Carpool/HOV dr Gr + cn D pr EXT

3.1.2.2 Entering the midpoint of a street as the destination

You can navigate to the midpoint of a street if the house number is not available: Menu ae If you are on the Map screen, tap to return to the Navigation menu. Q Destination In the Navigation menu, tap the following buttons: Find Address. Ifnecessary, modify the country and city/town as described earlier (page 34). Enter the street name: Street a. Tap

b. Start entering the street name on the keyboard. c. Find the street you need: + The most likely street name is always shown in the input field. To accept it, tap . *_Ifthe desired name does not show up, the names that match the string appear in a list after entering a couple of characters (to open the list of | . Z= Results results before it appears automatically, tap D. Select the street from the list. an coque : Avenue Constant Coquelin Astant Coque m PRET 75007 Paris, 7e Arrondissement Avenue De La Conservation 78017 Paris, 17e Arrondissement Avenue Du Nouveau-Conservatoire 75019 Paris, 19e Arrondissement Carrefour De La Conservation 75012 Paris, 12e Arrondissement Instead of entering the house number, tap street is selected as the destination. | The midpoint of the Country France Ton Paris Street Place De La Concorde <intersecting Street> | <House Number> A full screen map appears with the selected point in the middle. If necessary, tap the

map somewhere else to modify the destination. The Cursor ( | appears atthe new location. Tap to confirm the destination, or tap to select a different destination. After a short summary of the route parameters, the map appears showing the entire More route. The route is automatically calculated. Tap to modify route

parameters, or tap | + and start your journey. Marne, France #_ Route Planning Method ons Road Types Used Y Motorways 4 Ferries V Period Charge Unpaved Roads 4 Per-use Toll Carpool/HOV CR! “© Évry + cn Deus [ou + |

3.1.2.3 Selecting an intersection as the destination

To enter an address as the destination, do as follows: Menu

1. If you are on the Map screen, tap to return to the Navigation

menu. Lu . Q Destination

2. Inthe Navigation menu, tap the following buttons: Find Address.

3. lfnecessary, modify the country and city/town as described earlier (page 34).

4. Enterthe street name:

Street a. Tap | b. Start entering the street name on the keyboard. c. Find the street you need: + The most likely street name is always shown in the input field. To accept it, tap . _lfthe desired name does not show up, the names that match the string appear in a list after entering a couple of characters (to open the list of | . Z= Results results before it appears automatically, tap D. Select the street from the list. Avenue Constant Coquelin 75007 Paris, 7e Arrondissement Avenue De La Conservation 78017 Paris, 17e Arrondissement Avenue Du Nouveau-Conservatoire 75019 Paris, 19e Arrondissement Carrefour De La Conservation 75012 Paris, 12e Arrondissement

5. Enter the intersecting street name:

<Intersecting Street>

+_Ifonly a few intersecting streets exist, their list appears immediately. + In case of a longer street, the keyboard screen appears. Start entering the name of the intersecting street on the keyboard. As soon as the street names that match the entered string can be shown on one screen, their list appears automatically. Select from the list. ours La Reine 75008 Paris, 8e Arrondissement Rue Boissy-D'anglas 75008 Paris, 8e Arrondissement Rue De Rivoli 75001 Paris, 1er Arrondissement Rue Royale 75008 Paris, 8e Arrondissement

6. A full screen map appears with the selected point in the middle. If necessary, tap the

map somewhere else to modify the destination. The Cursor ( | appears atthe new location. Tap to confirm the destination, or tap Bac to select a different destination.

7. After a short summary of the route parameters, the map appears showing the entire

route. The route is automatically calculated. Tap l'O À modify route parameters, or tap ECS and start your journey. r Beauvais. + Route Planning Method nr ee 2 Motorways 4 Femies + Er, z V Period Charge Unpaved Roads ee ris” 4 Per-use Toll Carpool/HOV

© Évry + cn D pr EXT

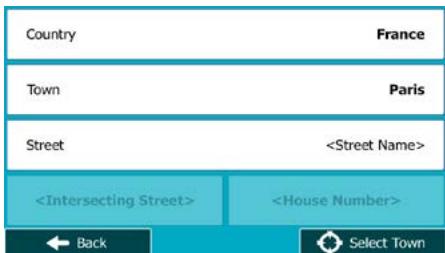

3.1.2.4 Selecting a city/town centre as the destination

The city/town centre is not the geometric centre of the city/town but an arbitrary point the map creators have chosen. In towns and villages, it is usually the most important intersection; in larger cities, it is one of the important intersections. Menu un

1. If you are on the Map screen, tap to return to the Navigation

menu. Fo) Find Address LL . Q Destination

2. Inthe Navigation menu, tap the following buttons:

3. lfnecessary, modify the country as described earlier (page 34).

4. Selectthe destination city/town:

Town a. Tap b. Start entering the name of the city/town on the keyboard. c. Find the city/town you need: + The most likely city/town name is always shown in the input field. To acceptit, tap .

*_Ifthe desired name does not show up, the names that match the string appear in a list after entering a couple of characters (to open the list of results before it appears automatically, tap Es rats | Select the city/town from the list.

France Pau Pyrénées-Atlantiques, France Pantin © | seine-Saint-Denis, France Pamiers. Ariège, France Select Town

5. Instead of entering the street name, tap . This way the centre of

the displayed city/town becomes the destination of the route. Country France Toun Paris Sue <Street Name>

6. A full screen map appears with the selected point in the middle. If necessary, tap the

map somewhere else to modify the destination. The Cursor ( ) appears atthe

new location. Tap to confirm the destination, or tap Back to select a different destination.

7. After a short summary of the route parameters, the map appears showing the entire

More route. The route is automatically calculated. Tap to modify route parameters, or tap and start your journey. + Route Planning Method Pom Road Types Used 0 V Motonways Femies Ro > Period Charge Unpaved Ronde F Paris” 4 Per-use Toll Carpool/HOV

p126] © Évry + cn D pr EXT

3.1.2.5 Entering an address with a postal code

All of the above address searching possibilities can be performed with entering the postal code instead of the city/town name. Find below an example with a full address: Menu

1. If you are on the Map screen, tap to return to the Navigation

menu. Lu , Q Destination

2. Inthe Navigation menu, tap the following buttons: Find Address.

3. Ifnecessary, modify the country as described earlier (page 34).

4. Enter a new city/town using its postal code:

Town a. Tap b. Tap 1123, open the numeric keypad. c. Startentering the postal code. d. Findthe city/town you need: + The most likely postal code is always shown in the input field. To accept d number does not show up, open the list of results by Z= Results | | Select the postal code from the list. E :210 Le Fel; Montsalvy

5. Enterthe street name:

Street a. Tap b. Start entering the street name on the keyboard. c. Find the street you need: + The most likely street name is always shown in the input field. To accept

c. Tap REZ to finish entering the address. (If the entered house number cannot be found, the midpoint of the street is selected as the destination.) <Enter House Number (1-19)> A full screen map appears with the selected point in the middle. If necessary, tap the

map somewhere else to modify the destination. The Cursor ( - ) appears atthe . Next . . new location. Tap to confirm the destination, or tap Bac to select a different destination. After a short summary of the route parameters, the map appears showing the entire More route. The route is automatically calculated. Tap to modify route parameters, or tap and start your journey.

1464m = S 18436 #_ Route Planning Method a Road Types Used Y Motorways 4 Ferries 4 Period Charge Unpaved Roads Carpool/HOV CR! “© Évry Deus [ou + |

3.1.2.6 Tips on entering addresses quickly

+ _ When you are entering the name of a city/town or a street: ° _ Only those letters are offered on the keyboard that appear in possible search results. All other characters are greyed out. ° As you are typing, the most likely result is always displayed in the input field. If the guess is correct, tap to select it. «After entering a couple of letters, tap to list the items that contain the specified letters. ° You can speed up finding an intersection: + _ Search first for the street with a less common or less usual name; fewer letters are enough to find it. + _lfone of the streets is shorter, search for that one first. You can then find the second one faster. °_ You can search for both the type and the name of a road. Ifthe same word appears in several names, for example in the name of streets, roads and avenues, you can obtain the result faster if you enter the first letter of the street type: For example, enter ‘PI A'to obtain Pine Avenue and skip all Pine Streets and Pickwick Roads. ° _ You can also search in postal codes. As postal codes consist of only a few characters, this is usually faster than entering the name of the city/town.

3.1.3 Selecting the destination from the Places of Interest

You can select your destination from the Places of Interest included with Mappy PND. Using the same screen, you can find a Place in different ways: e with the Quick search feature, you can quickly find a nearby Place by its name «with the Preset search feature, you can find frequently searched types of Places with only a few screen taps °__ you can search for a Place byits category e__ you can search for a Place by its name In addition, you can search for special services from the Where Am 1?' screen.

3.1.3.1 Quick search for a Place of Interest

The Quick search feature lets you quickly find a Place by its name. The search is always carried out °__ along the recommended route if it exists or °_ around your current location if there is no destination given.

1. Startthe Quick search function:

• _Ifyou are on the Map screen, tap and then tap| Se

. . Q Destination < If you are in the Navigation menu, tap FnéPecs and then Quick Search tap | Aer | Using the keyboard, start entering the name of the Place. <Enter the Name of the Place> E wlelrirlvylulrilolr

After entering a few letters, tap to open the list of Places with names containing the entered character sequence. DE = | Quai-Q 74, Quai Des Orves 5001 1e Arrondissement Quai-Quai 74, Quai Des Orèves, 75001 1e Arrondissement (optional) The Places in the list are ordered by the length of the necessary detour {when navigating a route) or by their distance from the current position (when no destination is given). If you need to reorder the list, tap Browse the list if necessary and tap one of the list items. A full screen map appears with the selected point in the middle. The name and address of the Place is displayed atthe top of the screen.

(optional) Tap to see the details of the selected Place. Tap to return to the map. If necessary, tap the map somewhere else to modify the destination. The Cursor

(© ) appears at the new location. Tap Next . to confirm the Bac destination, or tap to select a different destination.

8. After a short summary of the route parameters, the map appears showing the entire

route. The route is automatically calculated. Tap parameters, or tap More and start your journey. 4 Ferries Unpaved Roads Carpool/HOV to modify route

3.1.3.2 Searching for a Place of Interest using preset categories

The Preset search feature lets you quickly find the most frequently selected types of Places.

1. If you are on the Map screen, tap

Menu menu. Q Destination

2. Inthe Navigation menu, tap the following buttons:

Bacipacker Guide Pr? ons Route Quick Search © Blue Guide Dons Route ons Route Parol station @ one Route Paring = At My Destination

to return to the Navigation Find Piaces

4. Tap any of the quick search buttons to get an instant list of Places.

5. (optional) The Places in the list are ordered by their distance from the current or last

known position, from the destination or by the length of the necessary detour. If you need to reorder the list, tap

6. Browse the list if necessary and tap one of the list items. A full screen map appears

with the selected point in the middle. The name and address of the Place is displayed atthe top of the screen.

7. (optional) Tap to see the details of the selected Place. Tap

to return to the map.

y . Next { ) appears at the new location. Tap Back to confirm the destination, or tap to select a different destination.

9. After a short summary of the route parameters, the map appears showing the entire

More route. The route is automatically calculated. Tap to modify route parameters, or tap and start your journey. r Beauvais. + Route Planning Method Road Types Used 4 Motorways 4 Ferries V Period Charge Unpaved Roads 4 Per-use Toll Carpool/HOV

3.1.3.3 Searching for a Place of Interest by category

You can search for Places of Interest by their categories and subcategories. Menu

1. If you are on the Map screen, tap to return to the Navigation

menu. LL . Q Destination

4. Selectthe area around which the Place should be searched for:

Around Here ° Tap to search around the current position or ifitis not available, around the last know position. (The result list will be ordered by the distance from this position.) In a Town e Tap to search for a place within a selected city/town. (The result list will be ordered by the distance from the centre of the selected city/town.) Around ° Tap Destination to search for a place around the destination of the active route. (The result list will be ordered by the distance from the destination.) Along Route ° Tap to search along the active route, and not around a given point. This is useful when you search for a later stopover that results in a minimal detour only, such as searching for upcoming petrol stations or restaurants. (The result list will be ordered by the length of the necessary detour.)

5. (optional) If you have selected

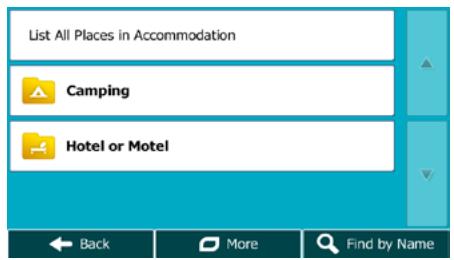

6. Select one ofthe main Place categories (e.g. Accommodation) or tap

List All Places to list all Places around the selected location or along the route. Ust Al Places Ex accommodation Q And by Name List All Places

7. Select one of the Place subcategories (e.g. Hotel or Motel) or tap

to list all Places in the selected main category around the selected location or along the route. st Al Places in Accommodation Q fndby Name

8. Sometimes the list of brands in the selected Place subcategory appears. Select one

List All Places brand or tap to list all Places in the selected subcategory around the selected location or along the route. st Al Places in Accommodation » Hotel or Motel FA ae Hotes @ Fndby Na

9. Finally, the results appear in a list.

10. (optional) The Places in the list are ordered by their distance from the current or last

known position, from the selected city/town, from the destination or by the length of the necessary detour. If you need to reorder the list, tap

11. Browse the list if necessary and tap one of the list items. A full screen map appears

with the selected point in the middle. The name and address of the Place is displayed atthe top of the screen.

12. (optional) Tap to see the details of the selected Place. Tap

to return to the map.

13. lfnecessary, tap the map somewhere else to modify the destination. The Cursor

_ EXC ( ) appears at the new location. Tap to confirm the destination, or tap ECS. select a different destination.

14. After a short summary of the route parameters, the map appears showing the entire

. . More route. The route is automatically calculated. Tap

parameters, or tap REZ and start your journey. #_ Route Planning Method to modify route Road Types Used Y Motorways 4 Ferries V Period Charge Unpaved Roads 4 Per-use Toll Carpool/HOV CR! “© Évry + cn Lens | Où | +cc |

3.1.3.4 Searching for a Place of Interest by name

You can search for Places of Interest by their names. You can search around different locations or along your route in the whole Place database or in one Place category or subcategory only. Menu

1. If you are on the Map screen, tap to return to the Navigation

4. Selectthe area around which the Place should be searched for:

Around Here . . ° Tap to search around the current position or ifitis not available, around the last know position. (The result list will be ordered by the distance from this position.) In a Town ° Tap to search for a place within a selected city/town. (The result list will be ordered by the distance from the centre of the selected city/town.) Around Destination e Tap to search for a place around the destination of the active route. (The result list will be ordered by the distance from the destination.)

Along ° Tap Route to search along the active route, and not around a given point. This is useful when you search for a later stopover that results in a minimal detour only, such as searching for upcoming petrol stations or restaurants. (The result list will be ordered by the length of the necessary detour.) Hreunattere

5. (optional) If you have selected

Find by Q And by Name

7. Select one of the Place subcategories (e.g. Hotel or Motel) to search in or tap

st Al Places in Accommodation Hotlor Motel Q find by Name

if you have not done it before.

After entering a few letters, tap to open the list of Places with names containing the entered character sequence. Quai-Quai 4 Quai Des Ones, 5001 1e Arrondissement (optional) The Places in the list are ordered by their distance from the current or last known position, from the selected city/town, from the destination or by the length of the necessary detour. If you need to reorder the list, tap Browse the list if necessary and tap one of the list items. A full screen map appears with the selected point in the middle. The name and address of the Place is displayed atthe top of the screen. (optional) Tap to see the details of the selected Place. Tap to return to the map.

If necessary, tap the map somewhere else to modify the destination. The Cursor 4 | Next { ) appears at the new location. Tap Back destination, or tap to select a different destination. to confirm the After a short summary of the route parameters, the map appears showing the entire More route. The route is automatically calculated. Tap | One À modify route parameters, or tap ECS and start your journey.

#_ Route Planning Method Road Types Used Ÿ Motorways 4 Ferries V Period Charge Unpaved Roads 4 Per-use Toll Carpool/HOV

3.1.3.5 Selecting nearby assistance from ‘Where Am 1?'

You can quickly search for nearby assistance from the ‘Where Am 1?' screen.

3. Preset search categories appear, all for searching around the current position (or

around the last known position if the current position is not available): Car Repair Around Here : : ; h : Car repair and roadside assistance services Health Around Here : : : Medical and emergency services Police Around Here s : : Police stations Petrol Station . Around Here | Petrol stations

4. Tap any of the quick search buttons to get an instant list of that type of Places.

5. (optional) The Places in the list are ordered by their distance from the current or last

known position, from the selected city/town, from the destination or by the length of the : More necessary detour. If you need to reorder the list, tap

6. Browse the list if necessary and tap one of the list items. A full screen map appears

with the selected point in the middle. The name and address of the Place is displayed atthe top of the screen.

7. (optional) Tap to see the details of the selected Place. Tap

to return to the map.

y . Next { ) appears at the new location. Tap Back to confirm the destination, or tap to select a different destination.

9. After a short summary of the route parameters, the map appears showing the entire

More route. The route is automatically calculated. Tap to modify route parameters, or tap and start your journey. r Beauvais. + Route Planning Method Road Types Used 4 Motorways 4 Ferries V Period Charge Unpaved Roads 4 Per-use Toll Carpool/HOV

3.1.4 Selecting a map location as the destination

1. If you are on the Map screen, tap to return to the Navigation

menu. Q Destination Find on Map

2. Inthe Navigation menu, tap the following buttons:

3. Locate your destination on the map: move and scale the map as needed.

4. Tapthe location that you want to select as your destination. The Cursor ( )

5. Tap ESS. select the Cursor as the destination.

6. After a short summary of the route parameters, the map appears showing the entire

route. The route is automatically calculated. Tap

parameters, or tap REZ and start your journey. to modify route #_ Route Planning Method Road Types Used Y Motorways 4 Ferries V Period Charge Unpaved Roads 4 Per-use Toll Carpool/HOV

3.1.5 Selecting the destination from your Favourites

You can select a location that you have already saved as a Favourite to be your destination. Adding a location to the list of Favourite destinations is described on page 70.

1. Access the list of Favourites:

• _Ifyou are on the Map screen, tap to open the Quick menu. . LL Q Destination ° _Ifyou are in the Navigation menu, tap

2. Tapl ®°%** The list of Favourite destinations is displayed.

Q musée renard Q restaurant chèvre et Menthe 8|

3. Tap the Favourite that you want to set as your destination. If necessary, browse down

Filter to see more ofthe list or tap name of the Favourite destination. and enter a few letters from the

4. A full screen map appears with the selected point in the middle. If necessary, tap the

map somewhere else to modify the destination. The Cursor ( ) appears atthe to confirm the destination, or tap to select a different destination.

5. After a short summary of the route parameters, the map appears showing the entire

; ; More route. The route is automatically calculated. Tap

parameters, or tap REZ and start your journey. Marne, France to modify route + Route Planning Method Road Types Used 4 Motorways 4 Ferries V Period Charge Unpaved Roads 4 Per-use Toll Carpool/HOV

© Évry + cn D pr EXT

3.1.6 Selecting one of the most likely destinations (Smart History)

The destinations that you have set earlier appear in the History list. Two of those recent destinations are shown in the Destination menu for easy access. Smart History offers these locations based on your navigation habits, using parameters like the current time of day, the day of week, and the current location. The more you use the navigation software, the better it can guess your desired destination.

1. If you are on the Map screen, tap to return to the Navigation

3. Tapthe orthe destination in the History field.

4. A full screen map appears with the selected point in the middle. If necessary, tap the

map somewhere else to modify the destination. The Cursor ( | appears atthe . Next new location. Tap Bac to confirm the destination, or tap to select a different destination.

5. After a short summary of the route parameters, the map appears showing the entire

route. The route is automatically calculated. Tap l'O À modify route parameters, or tap ECS and start your journey. r Beauvais. [5] pu] Eero,

4 Ferries Unpaved Roads Carpool/HOV

3.1.7 Selecting a recent destination from the History

The destinations that you have set earlier appear in the History.

Access the History: la a © °_lf you are on the Map screen, tap andthentapl M . Q Destination ° _lfyou are in the Navigation menu, tap and then tap

History The list of recent destinations appears. Smart History promotes three destinations to the first page based on your previous routes (most likely destinations). The rest of the destinations are ordered by time they were last selected. If necessary, scroll the list to see earlier destinations. Smart History Items: 2 Farm, rrance Place De La Concorde 39 paris Select a destination from the list. A full screen map appears with the selected point in the middle. If necessary, tap the

map somewhere else to modify the destination. The Cursor ( ) appears atthe

new location. Tap to confirm the destination, or tap Back to select a different destination. After a short summary of the route parameters, the map appears showing the entire More route. The route is automatically calculated. Tap to modify route parameters, or tap and start your journey. 4 Ferries Unpaved Roads Carpool/HOV Ceray, (ao Bars

3.1.8 Entering the coordinate of the destination

You can also select a destination by entering its coordinate. Do as follows: Menu

1. If you are on the Map screen, tap to return to the Navigation

menu. LL Q Destination

degrees; degrees and decimal minutes; or degrees, minutes and decimal seconds.

7. A full screen map appears with the selected point in the middle. If necessary, tap the

map somewhere else to modify the destination. The Cursor ( - ) appears atthe new location. Tap ETS. confirm the destination, or tap Back to select a different destination.

8. After a short summary of the route parameters, the map appears showing the entire

More route. The route is automatically calculated. Tap to modify route parameters, or tap and start your journey. 4 Ferries Unpaved Roads 4 Per-use Toll Carpool/HOV

3.1.9 Building a route from the list of destinations (Create Route)

You can also build your route destination by destination from the My Route menu. Menu

1. If you are on the Map screen, tap to return to the Navigation

4. There is only one line in the list of route points, the start point of the route, normally the

current GPS position.

5. Tap to select the destination.

6. The Destination menu appears and you can select the destination of the route the

same way as described in the previous sections.

7. When the new destination is selected, the list returns.

8. To add more destinations, tap where you want to insert the new route point in

the list, and repeat the above procedure.

3.2 Viewing the entire route on the map

Itis easy to get a map overview of the active route. Do as follows: Menu

1. If you are on the Map screen, tap to return to the Navigation

2. Inthe Navigation menu, tap

3. Tap VEVIEN The active route is displayed in its full length on the map

together with additional information and controls.

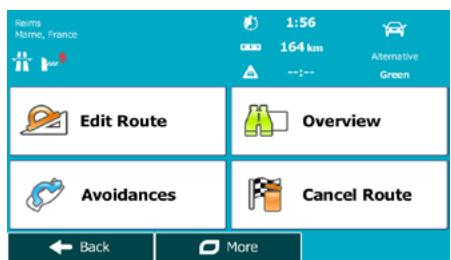

3.3 Checking route parameters and accessing route related functions

You can check different parameters of the route recommended by Mappy PND. Menu ae

1. If you are on the Map screen, tap to return to the Navigation

2. Inthe Navigation menu, tapL_ |

3. The following pieces of information are displayed:

+ _ The name and/or address ofthe destination. °_ Warning icons (if any). They provide extra information about your route (e.g. unpaved roads or toll roads to be taken). ° The total time of the route. ° The total length of the route. e _ Estimated delay calculated from traffic events on your route. The symbol of the vehicle type used in route calculation. ° The route planning method (e.g. Fast). 1:56 & 164km Alternative Green

4. You have the following options on this screen (for detailed instructions on how to use

them, see the next chapter): > Edit Route ue ° Tap to edit the route: to add or remove destinations or change their sequence. You can also set a route start point other than your current location. This can be useful to plan and save a future trip. ul Overview ; . e Tap to display the entire route on the map. 4 Avoidances e Tap to bypass a part of the route. FA Cancel Route ° Tap to delete the active route. e Tap to open a list with more options like selecting from route alternatives, changing route parameters, simulating the route, saving the active route or loading a previously saved route.

° Tap RES. return to the Navigation menu.

3.4 Modifying the route

When navigation is already started, there are several ways to modify the active route. The following sections show some of those options.

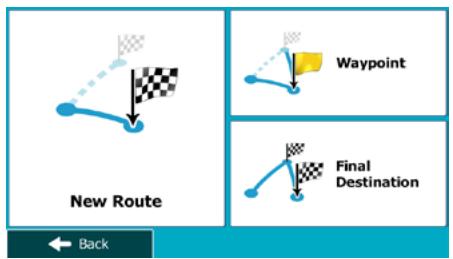

3.4.1 Selecting a new destination when already having a route: New Route,

Waypoint or Final Destination If you already have à recommended route and you select à new destination as described in the above sections, the application will ask you whether to start a new route, add à new waypoint (intermediate destination) to the route or append the newly selected destination at the end of the current route. «y Waypoint DE En New Route + Tapl “*®*# to plan a new route to the newly selected location. The previous destination and waypoint(s) are deleted.

e Tap “*_to add the newly selected location as an intermediate destination to your route. The other destinations of the route remain intact. Note: the new waypoint is placed among destinations to keep the route optimal. To decide where a waypoint to appear, use the Edit Route feature.

e_ Tapl*=%% to append the newly selected destination at the end of the route. The other destinations of the route remain intact. The previous final destination is now the last waypoint.

3.4.2 Setting a new starting position for the route

For normal navigation, all routes are planned from the current position. In order to check future routes, simulate them or see their length in time and distance, you can turn off the GPS receiver. Then you can set the starting point of the route to a different location than the current GPS position. Menu ae

1. If you are on the Map screen, tap to return to the Navigation

menu. de Route Options

3. 2 Edit Route If you are starting a new route,

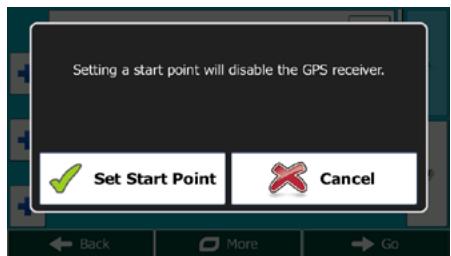

4. The first line is the start of the route, normally the current GPS position. Tap and

confirm your action atthe warning message. Seting a star point will disab Set Start Poi

5. The Destination menu appears and you can select the start point of the route the same

way you select a destination. 2|el|.|*%x Find Address _[_rind places _]_rind on map | _ravountes Rout De Corbai res Ke) 2 Fame, France History [ere]

6. When the new start point is set, tap | + |

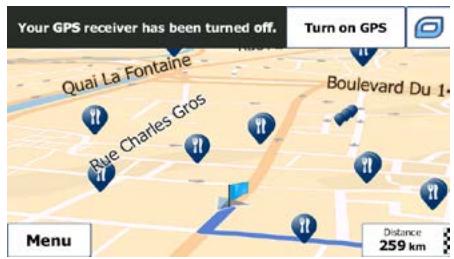

7. The map returns with a transparent Vehimarker (showing that there is no GPS

reception). If an active route already existed, it is now recalculated starting from the selected location. | menu VAT 5 À Turn on GPS

8. To return to normal navigation, tap

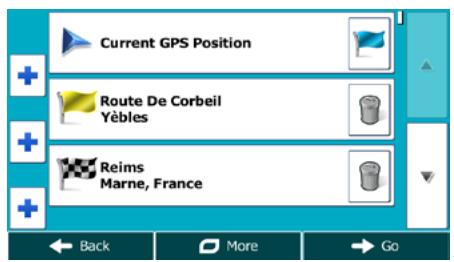

3.4.3 Editing the list of destinations (Edit Route)

You can edit the route by modifying the list of destinations. You can add or remove destinations, modify the start position or reorder the list. Menu ae

1. If you are on the Map screen, tap to return to the Navigation

menu. de Route Options

D current 95 Postion ARS route De Corbeil Yébles Back Oo

4. You have the following options:

° Tap + to add a new destination. e Tap fo to delete a destination. ° Tap to modify the start point of the route. More | . ° Tap to reorder the list. You can do it manually or you can letthe application optimise the route for you.

3.4.4 Pausing the active route

You do not need to pause the active route: when you start driving again, Mappy P ND restarts the voice instructions from your position.

3.4.5 Cancelling the active route

To cancel the navigated route, do one of the following: and then tap |Cenc! Route, (|f you have à route with waypoints, you need to tap etant. until all waypoints are deleted.) + If you are on the Map screen, ta Route Options FA Cancel Route + _Inthe Navigation menu, tap l and then tap |. The active route is deleted with all its waypoints.

3.4.6 Checking route alternatives when planning the route

You can select from different route alternatives or change the route planning method after you have selected a new destination. Do as follows:

1. Select a destination as explained earlier, and get to the route confirmation screen.

2 Route Alternatives

4. You see the basic details of three route alternatives with the selected route planning

method. Tap any of them to see it on the map. né aim quent La] ci © Ft ED pm + é 1m € Évry

5. Orif you cannot find a good alternative, tap and scroll down for

routes with different routing methods.

6. Select one of the route alternatives and tap to return to the

previous screen. Mappy PND recalculates the route. The orange line now shows the new recommended route.

3.4.7 Checking route alternatives for an existing route

To recalculate the active route with a different route planning method, you can modify the Route settings (page 88). There is another way to do this and to compare different route alternatives with the same route planning method. Do as follows: Menu ae

1. If you are on the Map screen, tap to return to the Navigation

22 Route Alternatives 4 TapL

5. Yousee the basic details of three route alternatives with the selected route planning

method. Tap any of them to see it on the map. Co) saint-quenti

6. Orif you cannot find a good alternative, tap and scroll down for

routes with different routing methods.

7. Select one of the route alternatives then tap and hold for a few

seconds to return to the Map screen. Mappy P ND recalculates the route. The orange line now shows the new recommended route.

3.4.8 Changing the vehicle used in route planning

To recalculate the active route for a different vehicle, do as follows. These changes can also be made in Settings (page 88).

1. Onthe Map screen, tap Lt and then tap sms

Navigation Mode Route Pannin Method 9 he oovers Vehicle .

2. Tap and then tap one of the following:

7 Pedestrian d% Bicycle 3 Emergency

3. Mappy PND recalculates the route optimised for the new vehicle type. The orange line

now shows the new recommended route.

À Pedestrian . . If you select and you forget to change it back to a vehicle ÉYNote! later, the software warns you when you travel with a speed that is too high for a æ Car pedestrian. You are allowed to switch back instantly to

3.4.9 Changing the road types used in route planning

To recalculate the active route with different road type preferences, do as follows. These changes can also be made in Settings (page 88).

2. Tap any ofthe listed road types to modify the route. If needed, scroll the list for all road

types. You have the followi type): LE Period Charge D Per-use Toll

of temporary ferries. roads can be in a ba them. pes Carpool & Motorways a slow car or you are towing another vehicle. pass or vignette to u: enabled or disabled a per-use charge) in plans the best toll-free route. unpaved Roads ng options (their order depends on the selected vehicle - You might need to avoid motorways when you are driving - Charge roads are pay roads where you can purchase a se the road for a longer period of time. They can be separately from toll roads. - Mappy P ND includes toll roads (pay roads where there is the routes by default. If you disable toll roads, Mappy PND - Mappy P ND includes ferries in a planned route by default. However, a map does not necessarily contain information about the accessibility You might also need to pay a fare on ferries. - Mappy PND excludes unpaved roads by default: unpaved d condition and usually you cannot reach the speed limit on - Carpool or HOV lanes can be used if a given number of passengers are travelling in the vehicle. You should check whether you are allowed to use carpool lanes before enabling this road type.

3. The route has already been recalculated. Tap to return to the Map

screen. The orange line now shows the new recommended route.

3.5 Saving a location as a Favourite destination

You can add any location to Favourites, the list of frequently used destinations. Planning a route to one of the Favourite destinations is described on page 55.

1. Select a destination as described before. It can be an address, a Place, any location

on the map, a previously used destination from History, etc.

2. When the full screen map appears with the selected location in the middle, tap

4. (optional) Using the keyboard, you can change the name offered for the Favourite. Tap

5. Tap to save the location as a new Favourite destination.

3.5.1 Editing the details of a Favourite destination

You can select a location that you have already saved as a Favourite and edit its details. Adding a location to the list of Favourite destinations is described on page 70.

1. Access the list of Favourites:

(e) °_lf you are on the Map screen, tap and then tap| fous, Q Destination ° _lfyou are in the Navigation menu, tap and then tap

2. The listof Favourite destinations is displayed.

Q musée renard Q restaurant chèvre et Menthe 8|

3. Tap the Favourite that you want to edit. If necessary, browse down to see more of the

ilter list or tap and enter a few letters from the name of the Favourite destination.

4. A full screen map appears with the selected point in the middle.

5. Tap to see the details of the selected Place.

6. Tap any ofthe data fields and modify its content.

7. Tap and hold RES. return to the map.

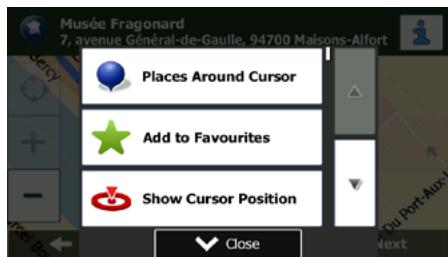

3.6 Saving a map location as an alert point

You can save any map location as an alert point (for example a speed camera or à railway crossing).

1. Browse the map and select a location. The red Cursor appears there.

3. Scroll down the list and tap

4. Onthe newly opened screen, select the type of the alert point, the direction from which

you expect the alert, and (if applicable) the speed limit for this alert point. ® ne oraier Speed Camera *@. Direction of Alert sed Save . .

5. Tap to save the location as a new alert point.

3.7 Editing an alert point

You can edit a previously saved or uploaded alert point (for example a speed camera or a railway crossing).

1. Browse the map and select the alert point to edit. The red circle appears around the

3. Scroll down the list and tap

4. On the newly opened screen, modify the type of the alert point, the direction from

which you expect the alert, or (if applicable) the speed limit for this alert point. ® ne oraier Speed Camera

Speed init 80 mn © Save .

5. Tap to save the changes to the alert point.

3.8 Watching the simulation of the route

You can run a simulated navigation that demonstrates the active route. Do as follows: Menu

1. If you are on the Map screen, tap to return to the Navigation

V ose (GÈTS Navigation

4. Scroll down the list and tap The simulation starts from the starting

point of the route, and using a realistic speed, it leads you through the whole recommended route.

1. (optional) You have the following controls during the simulation (the control

buttons disappear after a few seconds but you can open them again if you tap the map): . : Jump to the next route event (manoeuvre). il Le . : Pause the simulation. IX . . : Jump to the previous route event (manoeuvre).

. : Tap to increase the speed of the simulation to 4, 8 or 16 times faster. Now tap again to return to the normal speed. Back

2. Tap to stop the simulation.

4 Off-road navigation When first started, Mappy PND calculates routes using the road network of the high quality vector maps provided with the product. You can switch the application to off-road mode in Route settings in one of the following ways: + More... e Fromthe Main menu, tap Navigation Mode à Route Settings ’ and then (æ) ea Route Settings Navigation Mode ° _ Fromthe Map screen, tap , and then Most of the procedures described for on-road navigation also apply to off-road navigation. However, there are some that are not available in this navigation mode (for example you cannot open the itinerary as you have no manoeuvres just route points and straight lines between them).

4.1 Selecting the destination of the route

Selecting the start point or a destination (waypoint or final destination) is the same as described at on-road navigation. The only difference is that route points are linked to form a route with straight lines regardless of the road network and traffic regulations.

4.2 Navigating in off-road mode

The real difference between the on-road and off-road modes is the navigation itself. When you are on the Map screen with an off-road route: *__ your position and heading is not aligned with the nearest road and

• there is no turn by turn navigation just a recommended direction. You see a orange line drawn between your current position and the next destination to reach. The Turn Preview field in the top left corner shows à compass with your bearing and the distance of the next destination. [mem | When you reach a waypoint, the orange line will show the direction to the next destination. (Future legs of the route are shown with orange lines.) When you reach the final destination, navigation ends.

5 Reference Guide On the following pages you will find the description of the different concepts and menu screens of Mappy PND.

Smart Zoom provides much more than just a usual automatic zoom feature: + _ While following a route: when approaching a turn, it will zoom in and raise the view angle to let you easily recognise your manoeuvre at the next junction. If the next turn is at a distance, it will zoom out and lower the view angle to be flat so you can see the road in front of you. + _ While driving without an active route: Smart Zoom will zoom in if you drive slowly and zoom out when you drive at high speed.

5.1.2 Daytime and night colour themes

Mappy P ND uses different colour themes during the day and during the night for both the map and the menu screens. e_ Daytime colours are similar to paper road maps, and the menus are bright. ° The night colour themes use dark colours for large objects to keep the average brightness of the screen low. Mappy P ND offers different daytime and night colour profiles. It can also switch automatically between the daytime and the night schemes based on the current time and GPS position a few minutes before sunrise, when the sky has already turned bright, and a few minutes after sunset, before it becomes dark.

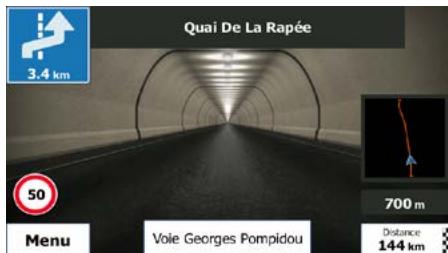

Voie Georges Pompidou The top-down overview of the tunnel helps you orientate yourself. The remaining distance in the tunnel is also displayed. After leaving the tunnel, the original map view returns. This feature can be turned off in Settings (page 94).

5.1.4 Route calculation and recalculation

Mappy P ND calculates the route based on your preferences: ° Route planning methods: Fast e 1 Gives a quick route if you can travel at or near the speed limit on all roads. Usually the best selection for fast and normal cars. Short . : . : Gives a route that has the smallest total distance of all possible routes. It can be practical for slow vehicles. Green . : Gives a quick but fuel efficient route based on the fuel consumption data given in Route settings (page 88). Travel cost and CO; emission calculations are estimations only. They cannot take elevations, curves and traffic conditions into account. Economical . . . | . F For vehicle types where Green routing is not available, this method combines the benefits of Fast and Short: Mappy PND calculates as ifit were calculating the Fast route, but it takes other roads as well to save fuel. Easy . : Results in a route with fewer turns and no difficult manoeuvres. With this option, you can make Mappy P ND to take, for example, the motorway instead of a series of smaller roads or streets. + Vehicle types: When creating a new vehicle profile, select one of the below vehicle types. Besides the below mentioned conditions, dimension, weight and freight hazard restrictions can also be taken into account when planning a route. æ Car + _ Manoeuvre restrictions and directional constraints are taken into account when planning a route. ° _ Roads are used only if access for cars is allowed. e _ Private roads and resident-only roads are used only if they are inevitable to reach the destination. ° _ Walkways are excluded from routes.

À Pedestrian | + Neither manoeuvre restrictions nor directional constraints are taken into account when planning a route. ° Roads are used only if access for pedestrians is allowed. + Controlled-access roads are excluded from routes. ° A private road is used only if the destination is there. e Speed limits are not used in route calculation and an average walking speed is used when calculating the estimated time of arrival.

SP Taxi | Oro) Bicycle | Manoeuvre restrictions and directional constraints (if they are applied to bicycles in the map data) are taken into account when planning a route. Roads are used only if access for bicycles or pedestrians is allowed. Controlled-access roads are excluded from routes. A private road is used only if the destination is there. Speed limits are not used in route calculation and an average cycling speed is used when calculating the estimated time of arrival. Emergency | All manoeuvres are available in intersections. Directional constraints are taken into account the way that opposite direction is allowed with a low speed. A private road is used only if the destination is there. Walkways are excluded from routes. Bus Manoeuvre restrictions and directional constraints are taken into account when planning a route. Roads are used only if access for buses is allowed. Private roads, resident-only roads and walkways are excluded from routes. Manoeuvre restrictions and directional constraints are taken into account when planning a route. Roads are used only if access for taxis is allowed. Private roads, resident-only roads and walkways are excluded from routes. Lorry Manoeuvre restrictions and directional constraints are taken into account when planning a route. Roads are used only if access for lorries is allowed. Private roads, resident-only roads and walkways are excluded from routes. U-turns are excluded from routes (turning back on a divided road is not considered as a U-turn).

+ _ Road types used or avoided in route calculation: & Motorways LE Period Charge D Per-use Toll . à Ferries Eynpaved Roads pes Carpool Whenever data exist, route calculation takes into account statistical traffic data for the given day of week and time of day. Mappy P ND automatically recalculates the route if you deviate from the proposed itinerary. For further information about Route settings, see page 88.

Route calculation is not only about finding the quickest or shortest route. For some of the vehicle types, you can also check the fuel consumption and CO; emission when planning a route, and you can create cost effective routes with less effect on the environment. In Route settings, you can edit the parameters of the selected vehicle. Enter the fuel consumption values and the price of the fuel. You can also select whether you want to see the difference between your route and the green route even if the selected routing method is not Green. Green . After the above parameters are set, select as route planning method to get a fast but also fuel efficient route. Note that travel cost and CO emission calculations are estimations only. They cannot take elevations, turns, curves and traffic conditions into account. Also, this routing is not meant to give you the "greenest" route of all. It is still important to travel quickly so the result is à fast route with low fuel consumption and CO: emission. With a vehicle type where green routing is selectable, whichever route planning method is selected, the Green details are also shown when you confirm the route: rs Beauvais | Le] a ? Reims — 5. œ ovry eus [ Ow [+cs

If the selected route planning method is not Green, and you have allowed the application to show the green alternative, the price, fuel consumption and CO: emission differences between your selected route and the Green route are also shown on this screen: Des To Tics | Tap the field with these details to switch the route to Green immediately.

5.1.6 Road safety cameras and other proximity alert points

There is a special proximity warning for road safety cameras (like speed or red light cameras) and other proximity alert points (like schools or railroad crossings). These alert points are not part of Mappy PND. You can download them from www.naviextras.com or you can upload points in a specific text file if needed. You can also add your own alert points or edit the previously uploaded points. See page 71 for details. The application can warn you when you approach road safety cameras like speed cameras or dangerous areas like school zones or railroad crossings. You can set up the different alert types individually in Sound and Warning settings (page 85). The following alert types are available: *__ Audio warning: beeps can be played while you are approaching one of these points, or extra alert sounds if you exceed the given speed limit while approaching. *_ Visual warning: the type of the alert point, its distance and the related speed limit appear on the Map screen while you are approaching one of these cameras. For some of the alert points, the enforced or expected speed limit is available. For these points, the audio alert can be different if you are below or above the given speed limit. + __ Only when speeding: The audio alert is only played when you exceed the given speed limit. +. When approaching: The audio alert is always played when approaching one of these alert points. In order to draw your attention, the alert can is different when you exceed the speed limit. The warning for road safety cameras is disabled when you are in a country where ÉYNote! road safety camera warning is prohibited. However, you must ensure on your own liability that using this feature is legal in the country where you intend to use it.

Maps may contain information about the speed limits of the road segments. Mappy PND is able to warn you if you exceed the current limit. This information may not be available for your region (ask your local dealer), or may not be fully correct for all roads in the map. The maximum speed set in the vehicle profile is also used for this warning. Mappy PND alerts you if you exceed the preset value even if the legal speed limit is higher. Speed warning can be fine-tuned in Sound and Warning settings (page 85). You can setthe relative speed above which the application initiates the warning. The following alert types are available: °__ Audio warning: you receive a verbal warning when you exceed the speed limit with the given percentage. ° Visual warning: the current speed limit is shown on the map when you exceed it (for

You can also choose to see the speed limit sign on the map all the time. example:

5.1.8 Battery and GPS position quality indicators

You can find useful information in the top corners of menu screens. The battery symbol in the top left corner, next to the current time shows information about the rechargeable battery of the device. Icon Description The battery is charging. The device runs on external power. The battery is not charging but it is full. The battery is not full but it still has enough capacity. You need to recharge the battery.

In the top right corner, the GPS reception quality icon shows the current accuracy of the position information. Icon Description e ( Mappy PND has no connection to the GPS receiver: GPS navigation is J not possible. Devices with a built-in GPS receiver are permanently connected. On such devices, the icon does not appear in normal circumstances. V e ( Mappy PND is connected to the GPS receiver, but the signal is too 2 | weak and the receiver cannot determine the GPS position. GPS navigation is not possible. V .0e. Only a few satellites are received. Position information is available, but 2 | elevation (altitude) cannot be calculated. GPS navigation is possible, but the position error may be significant. X CE ZX | Altitude information is available, the position is a 3D position. GPS navigation is possible.

5.1.9 Traffic information in route planning

The recommended route is not always the same between two points. Offline statistical traffic information (historical speed information or traffic patterns) can be taken into account in the route calculation based on the time of day and the day of week whenever suitable data exists. The function is subject to data availability. You can display the historical traffic information on the map if you browse the map and select this option from the More menu. À 2D map is displayed with road segments coloured by the density of the traffic in the given period. The current information is shown when you open the screen. Modify the day of week and the time of day to see the desired period.

5.1.9.1 Historical traffic

If statistical traffic information is stored with the map data, Mappy PND can take them into account when planning a route. In normal cases, these statistics help you avoid usual traffic jams on the given day of week in the given hour but in some cases like on public holidays that fall on normal weekdays, they can be misleading. You can disable this feature in Traffic settings (page 87). You can display statistical traffic information on the map if you browse the map and select this option from the More menu.

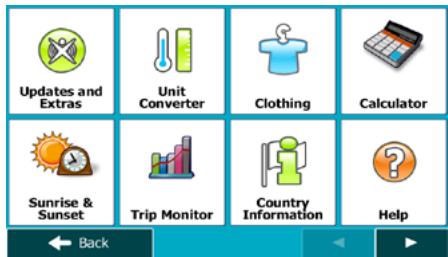

The ‘More’ menu provides you with various options and additional applications. Tap the Menu + More... following buttons: Péstras "| converter | ciothing | caicutator || |o Séoneet | trip monitor | informatlon Help Button Description Visit www.naviextras.com to get additional content, such as new maps or 3D landmarks and useful applications. Updates and Extras

Unit Converter Access travel applications: the unit converter helps you convert between various different international units for temperature, speed, area or pressure, etc.

Gothing Access travel applications: the clothing size converter helps you convert between various different international size units for men's or women's cloth types and shoes.

Calculetor The scientific calculator helps you in all your calculation needs. Tap the Mode button for additional functions and use the memory to save your results.

Fuel Consumption The Fuel consumption monitor helps you keep track of the consumption of your car even if you do not use navigation for all your journeys. Set the initial odometer value and then record the distance taken and fuel filled in whenever you fill your car. You can also set reminders for regular car maintenance.

Sunrise & Sunset Tap this button to see the sunlit and dark areas of the world. Your current location and route points are marked on the map. Tap the Details button to see the exact sunrise and sunset times for all your route points (your current location, all waypoints and the final destination).

Trip Monitor If you save your trip logs when you arrive at some of your destinations or let the application automatically save the trip logs for you, those logs are all listed here. Tap one of the trips to see the trip statistics, speed and altitude profile. If track log has also been saved, you can display it on the map with the selected colour. Track logs can be exported to GPX files for later use.

Count Information Select a country from the list and see useful driving information about the selected country. Information may include speed limits on different road types, the maximum blood alcohol level and any compulsory equipment you need to show when stopped by the police.

@ Run the Demo and watch sample route simulations to see how navigation works. ? The About section provides you with product information. Read the Software and Database End User License Agreement, or check the map and other contents of the application. You can also access program usage statistics.

You can configure the program settings, and modify the behaviour of Mappy PND. Tap the Menu ‘@ following buttons:

The Settings menu has several options. Tap or scroll with your finger to see the full list. D sourd an varinos @, customs qu Mens Button Description D soune and Wamings |Adjust the sound volume, mute your device or change the voice guidance language. In addition, you can enable and set up different warnings and alerts. (M eistomise qui Menu The content of the Quick menu (page 20) is fully customisable. Tap the button you want to change, and select its new function from the list. (&l Traffic The recommended route is not always the same between two points. Whenever suitable data exists, traffic information can be taken into account in the route calculation. ns |These settings determine how routes will be calculated. Select the type SX route Settings ||of vehicle you are driving, the road types used in route planning, and 7 |the route planning method. b If more drivers use Mappy P NDfor navigating, their settings can be User Profiles || emembered by using one of the user profiles. You can fine-tune the appearance of the Map screen. Adjust the map [X Map settings || View to your needs, choose suitable colour themes from the list for both daytime and night use, change the blue arrow to a 3D car model, show or suppress 3D buildings, turn track logging on or off, and manage you Place visibility sets (which Places to show on the map). sua Guidance || Adjust how the software helps you navigate with different kinds of route related information on the Map screen.

1 Display Display related settings include menu animations and separate skins for daytime and night use. These settings allow you to customise the application for your local language, measurement units, time and date settings and formats, as well as to choose the time zone. Trip logs and track logs contain useful information about your trips. Trip logs can be saved manually when you reach your destination or you can turn on the automatic saving here. The application collects usage information and GPS logs that may be used for improving the application and the quality and coverage of maps. Here you can enable or disable collecting these logs. AE Configuration Wizard Modify the basic software parameters set during the initial setup process. For details, see page 7. a Reset to Defaults Delete all saved data and reset all settings to their factory defaults.

5.3.1 Sound and Warnings

Adjust the sound volume, mute your device or change the voice guidance language. In addition, you can enable and set up different warnings and alerts. Button Description Volume Tap this button to adjust the volume of the different sounds in the application. A new screen shows the different sound types and their controls. See below for details. Voice language This button shows the current voice guidance profile. By tapping the button, you can select a new profile from the list of available languages and speakers. Tap any of these to hear a sample voice prompt. J ust tap ECS when you have selected the new spoken language. TTS Pro Tap this button to adjust the enhanced TTS features. The following settings are available: e You can setthe feature to read outtraffic messages. + Whenever a route is calculated, the software can read outthe quick summary of the route. °_ When you cross country borders, the application can read outthe information about the country you have just entered. . All system messages can also be announced. Verbosity Level Tap this button to set the verbosity of the voice instructions: how much they tell and how often they speak.

Speed Warning Settings Maps may contain information about the speed limits of the road segments. Mappy PND is able to warn you if you exceed the current limit. This information may not be available for your region (ask your local dealer), or may not be fully correct for all roads in the map. The maximum speed set in the vehicle profile is also used for this warning. Mappy PND alerts you if you exceed the preset value even if the legal speed limit is higher. This setting lets you decide whether you wish to receive visible and/or audible warnings. Adjust the slider to set the relative speed above which the application initiates the warning. The following alert types are available: *__ Audio warning: you receive a verbal warning when you exceed the speed limit with the given percentage. e Visual warning: the current speed limit is shown on the map when you exceed it. If you prefer to see the speed limit sign on the map all the time {normally itis shown only if your speed exceeds it), you can setithere. Alert Point Settings This feature allows you to receive a warning when approaching à Road Safety Camera or other alert points like school zones or railroad crossings. You must ensure on your own liability that using this feature is legal in the country where you intend to use it. You can set the alert for the different alert point categories individually. The following alert types are available: *__ Audio warning: beeps can be played while you are approaching one ofthese points, or extra alert sounds if you exceed the given speed limit while approaching. «Visual warning: the type of the alert point, its distance and the related speed limit appear on the Map screen while you are approaching one of these cameras. For some of the alert points, the enforced or expected speed limit is available. For these points, the audio alert can be different if you are below or above the given speed limit. °_ Only when speeding: The audio alertis only played when you exceed the given speed limit. °_ When approaching: The audio alertis always played when approaching one of these alert points. In order to draw your attention, the alert is different when you exceed the speed limit. Warning Sign Alerts Maps may contain driver alert information. Tap this button to turn on or off these warnings and to set the distance from the hazard to receive the warning at. These can be set individually for the different warning types.

You can control the volume of the following sound types: Button Description Master This is the main volume control. These controls affect all below sounds. They can also be accessed from the Quick menu. Voice These controls affect the volume of the guidance sounds (verbal instructions). Ding Turn off the attention tone preceding verbal instructions or adjust its volume. Alerts These controls affect the volume of the non verbal alert sounds (beeps). Key Sounds Key sounds provide audible confirmation of tapping the touch screen. These controls affect key sounds. Controls for each sound type: Button Description Volume slider Adjusts the volume of the related sound.

Use the switch to mute the related sound. The slider becomes inactive. Tap again to re-enable.

5.3.2 Customise Quick menu

The content of the Quick menu (page 20) is fully customisable. Tap the button you want to change, and select its new function from the list. The list of available functions and their descriptions are on page 20.

5.3.3 Traffic settings

The recommended route is not always the same between two points. Whenever suitable data exists, traffic information can be taken into account in the route calculation. Button Description & Historical Traffic Use this switch to enable or disable historical traffic data and traffic patterns. This locally stored information can be very useful in normal circumstances but for example on public holidays it may be better to turn off in order not to take into account normal weekday traffic jams.

5.3.4 Route settings

These settings determine how routes will be calculated. Button Description Vehicle You can setthe type of vehicle you will use to navigate the route. Based upon this setting, some of the road types can be excluded from the route, or some of the restrictions may not be taken into account in route calculation. You can edit the parameters of the selected vehicle profile, or you can even create new vehicle profiles if you tap More. Navigation Mode On-road navigation creates a turn by turn itinerary using the road network on the map. Switch to off-road navigation to navigate between destinations in a straight line. Route Planning Method The route calculation can be optimised for different situations and vehicle types by changing the planning method. See below for details. To let the route fit your needs, you can also set which road types are to be considered for or to be excluded from the route if possible. Excluding a road type is a preference. It does not necessarily mean total prohibition. If your destination can only be accessed using some of the excluded road types, they will be used but only as much as necessary. In this case a warning icon will be shown on the My Route screen, and the part of the route not matching your preference will be displayed in a different colour on the map. In the list of road types you can see in how many segments and what total length of the road type is used in the current route. Button Description & Motorways You might need to avoid motorways when you are driving a slow car or you are towing another vehicle. LE Period Charge Charge roads are pay roads where you can purchase à pass or vignette to use the road for a longer period of time. They can be enabled or disabled separately from toll roads. D Per-use Toll Mappy PND includes toll roads (pay roads where there is a per-use charge) in the routes by default. If you disable toll roads, Mappy PND plans the best toll-free route. £SÈË Ferries Mappy PND includes ferries in a planned route by default. However, a map does not necessarily contain information about the accessibility of temporary ferries. You might also need to pay a fare on ferries. Eynpaved Roads Mappy PND excludes unpaved roads by default: unpaved roads can be in a bad condition and usually you cannot reach the speed limit on them. Res Carpool Carpool or HOV lanes can be used if a given number of passengers are travelling in the vehicle. You should check whether you are allowed to use carpool lanes before enabling this road type.

Vehicle profiles: When you first tap Vehicle you see the list of default vehicle profiles. You have the following options: Button Description You can edit the parameters of the vehicle profile. Tap this button to reveal the below options. æ Add Profile Tap this button to create your own vehicle profile. Tap this button to reset all vehicle profiles to their default settings. L mn Al Profiles When creating a new vehicle profile, first you need to select the vehicle type. Then you need to set the following parameters (some of them may not exist for the selected vehicle type). You can modify the s ame parameters when you edit an existing profile: Button Description Name Tap this button to rename the profile for something meaningful. Fuel Consumption Urban Enter the average consumption of your vehicle when used in built-up areas. The unit for consumption can be set in Regional Settings. Fuel Consumtion Rural Enter the average consumption of your vehicle when used on highways. The unit for consumption can be set in Regional Settings. Type of Engine ||Select the engine and fuel type of your vehicle. This helps in estimating the CO; emission. Price of Fuel Enter the average fuel price for travel cost calculation. The currency can be set in Regional Settings. Setthe maximum speed you travel with the vehicle. Max. Speed pese Check this box to enable more settings for the below parameters. Use Extended Settings g P Length Setthe total length of the vehicle. Setthe width of the vehicle. Width " "eT Height Setthe height of the vehicle. : Set if there is a trailer attached to the vehicle. Trailer

Maximum Allowed Weight | S et the maximum allowed weight of the vehicle. Setthe actual weight of the vehicle. Actual Weight . Select one or more hazard types if the vehicle carries dangerous Freight material. Vehicle types: When creating a new vehicle profile, select one of the below vehicle types. Besides the below mentioned conditions, dimension, weight and freight hazard restrictions can also be taken into account when planning a route. æ Car Manoeuvre restrictions and directional constraints are taken into account when planning a route. Roads are used only if access for cars is allowed. Private roads and resident-only roads are used only they are inevitable to reach the destination. Walkways are excluded from routes. Pedestrian Neither manoeuvre restrictions nor directional constraints are taken into account when planning a route. Roads are used only if access for pedestrians is allowed. Controlled-access roads are excluded from routes. A private road is used only if the destination is there. Speed limits are not used in route calculation and an average walking speed is used when calculating the estimated time of arrival. d Bicycle Manoeuvre restrictions and directional constraints (if they are applied to bicycles in the map data) are taken into account when planning a route. Roads are used only if access for bicycles or pedestrians is allowed. Controlled-access roads are excluded from routes. A private road is used only if the destination is there. Speed limits are not used in route calculation and an average cycling speed is used when calculating the estimated time of arrival. Emergency All manoeuvres are available in intersections.

• __ Directional constraints are taken into account the way that opposite direction is allowed with a low speed.

• A private road is used only ifthe destination is there. °_ Walkways are excluded from routes. ES Bus

+ Manoeuvre restrictions and directional constraints are taken into account when planning a route. ° _ Roads are used only if access for buses is allowed. «Private roads, resident-only roads and walkways are excluded from routes. Taxi + Manoeuvre restrictions and directional constraints are taken into account when planning a route. *< _ Roads are used only if access for taxis is allowed. «Private roads, resident-only roads and walkways are excluded from routes. . & Lorry + Manoeuvre restrictions and directional constraints are taken into account when planning a route. *< _ Roads are used only if access for lorries is allowed. «Private roads, resident-only roads and walkways are excluded from routes. °__U-turns are excluded from routes (turning back on a divided road is not considered as a U-turn). Route Planning Method types: Button Description Gives à quick route if you can travel at or near the speed limit on all Fast roads. Usually the best selection for fast and normal cars. Short Gives a short route to minimise the distance to travel. Usually practical for pedestrians, cyclists or slow vehicles. Searching for a short route regardless of the speed, this route type is rarely practical for normal vehicles. Green Gives a quick but fuel efficient route based on the fuel consumption data given in Route settings (page 88). Travel cost and CO; emission calculations are estimations only. They cannot take elevations, curves and traffic conditions into account.

Economical For vehicle types where Green routing is not available, this method combines the benefits of Fast and Short: Mappy PND calculates as if it were calculating the Fast route, but it takes other roads as well to save fuel. Easy Results in a route with fewer turns and no difficult manoeuvres. With this option, you can make Mappy PND to take, for example, the motorway instead of a series of smaller roads or streets.

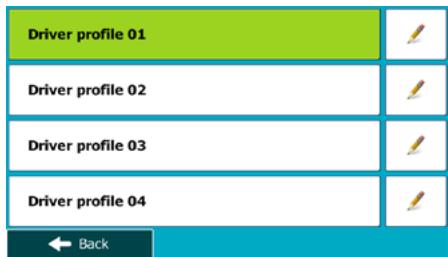

If more drivers use Mappy P NDfor navigating, their settings can be remembered by using one of the user profiles. Rename the profiles after tapping the edit button on the right so that all users know which profile to use and switch between profiles by tapping its name. If you select a new profile, the application restarts so that the new settings can take effect. Driver profile 02 1 Driver profile 03 2 Driver profile 04 4

You can fine-tune the appearance of the Map screen. Adjust the map view to your needs, choose suitable colour themes from the list for both daytime and night use, change the blue arrow to a 3D car model, show or hide 3D buildings, turn track logging on or off, and manage you Place visibility sets (which Places to show on the map). The map is always shown on the screen so that you can see the effect when you change a setting.

Button Description View Mode ||Switch the map view between a 3D perspective view and a 2D top- 3D down view. @) Viewpoint || Adjust the basic zoom and tilt levels to your needs. Three levels are Normal available. MARS When selected, the map zooms out to show an overview of the surrounding area if the next route event (manoeuvre) is far. When you get close to the event, the normal map view returns.

Colours Auto Switch between daytime and night colour modes or let the software switch between the two modes automatically a few minutes before sunrise and a few minutes after sunset. Select the colour scheme used in daytime mode. Select the colour scheme used in night mode. Replace the default position marker to one of the 3D vehicle models. You can select separate icons for different vehicle types selected for route planning. Separate icons can be used for car, pedestrian and the other vehicles. Ë LandmarkS |Show or suppress 3D landmarks, 3D artistic or block representations of ds: ON prominent or well-known objects. BuildingS |Show or suppress 3D city models, 3D artistic or block representation of ON full city building data containing actual building size and position on the map. au Show or suppress the 3D elevation of the surrounding terrain. aux Logs |Turn on or off track log saving, that is, saving the sequence of the locations your journeys go through.

Place Markers Select which Places to show on the map while navigating. Too many Places make the map crowded so it is a good idea too keep as few of them on the map as possible. For this, you have the possibility to save different Place visibility sets. You have the following possibilities: *_ Tapthe checkbox to show or hide the Place category. ° _ Tapthe name ofthe Place category to open the list of its subcategories. More ur e Tap to save the current Place visibility set or to load a previously saved one. Here you can also revert to the default visibility settings.

Adjust how the software helps you navigate with different kinds of route related information on the Map screen. 5 Data Fields The data fields in the corner of the Map screen can be customised. Tap this button and select the values you want to see. The values can be different when you navigate a route from when you are just cruising without a given destination. You can select general trip data like your current speed or the altitude, or route data related to your final destination or the next waypoint on your route. You may need a petrol station or a restaurant during your journey. This feature displays à new button on the map when you are driving on motorways. Tap this button to open a panel with the details of the next few exits or service stations. Tap any of them to display it on the map and add it as a waypoint to your route if needed. Select the service types displayed for the motorway exists. Choose from the POI categories. Whenever adequate information is available, lane information similar to the real ones on road signs above the road is displayed at the top ofthe map. You can turn this feature on or off. If you are approaching a motorway exit or a complex intersection and the needed information exists, the map is replaced with a 3D view ofthe junction. You can turn this feature on or let the map be displayed for the whole route. When entering tunnels, the surface roads and buildings can be disturbing. This feature shows à generic picture of a tunnel instead of the map. A top-down overview of the tunnel and remaining distance are also displayed. Turn on the route progress bar to see your route as a straight line on the left side of the map. The blue arrow represents your current position and moves up as you travel. Waypoints and Traffic events are also displayed on the line. Offer Congestion Detour on Highways When you slow down while driving on a motorway, there is a chance that you are in a traffic jam so Mappy P ND offers you a detour using the next exit. The message shows you distance of the exit and the difference in distance and estimated time compared to the original route. You can choose from one of the following options: °_ Tap Dismiss or just ignore the message if you want to keep the original route. °_ Tap Preview to see the overview of the original route and the detour to make the decision. You can acceptthe detour as offered or increase the bypassed motorway segment before accepting. ° Turn to the suggested new direction and the route will be automatically recalculated.

Offer Real-time Route Alternatives Similar to the above possibility, alternative routes can be suggested when driving on normal roads. Mappy PNDwill select a different turn in the Upcoming intersection and offers you a different route for the next section of the route. Your options are the similar as above but you cannot modify the offered detour. Offer Parking Parking at the destination may not be easy in city areas. As you Around Destination | approach the destination, Mappy PND can offer parking category Places near your destination. Tap the "P" button to open a top-down map with the destination and the offered parking Places. Select one and modify the route accordingly. Offer Hints Upon ||1f you leave the recommended route and suddenly exit the motorway, Detour the application offers different alternatives near the exit like petrol stations or restaurants. Also, if there are avoidable parts of the original route ahead (like a tunnel, a toll road or à ferry), you will find them in the list in case you want to bypass them with the help of Mappy PND.

5.3.8 Display settings

Display related settings include menu animations, separate skins for daytime and night use and the brightness of the display. Menu Animations When animation is turned on, buttons on menus and keyboard screens appear in an animated way. Screen transitions are also animated. re Day Skin Theme Select the style and colours of the application used in daytime mode. 9 Night Skin Theme Select the style and colours of the application used in night mode. Current Backlight Adjust the display backlight.

5.3.9 Regional settings

These settings allow you to customise the application for your local language, measurement units, time and date settings and formats, as well as to choose the time zone. Button Description Program language This button displays the current written language of the user interface. By tapping the button, you can select a new language from the list of available languages. The application will restart if you change this setting; you are asked to confirm this.

Units and Formats You can set the distance units to be used by the program. Mappy PND may not support all the listed units in some voice guidance languages. Select between 12 and 24 hours time display and the various international date display formats. You can also set other country specific units used to display different values in the application. Time Zone By default, time zone is taken from the map information and adjusted by your current location. Here you can set time zone and daylight saving manually.

5.3.10 Trip monitor settings

Trip logs contain useful information about your trips. Trip logs can be saved manually when you reach your destination or you can turn on the automatic saving here. You can access these logs in the Trip monitor. Trip monitor is available from the More menu. Enable auto-saving Trip monitor can record statistical data of your trips. If you need these logs later, you can let the application save them automatically for you. Trip database size This is not à button. This line shows the current size of the trip database, the sum of all trip and track logs saved. Save track log Track logs, the sequence of the positions given by the GPS receiver, can be saved together with trip logs. They can later be displayed on the map. You can let the application save the track log whenever it saves a trip.

5.3.11 Log collection settings

If you accept this when first using the application, it collects usage information and GPS logs that may be used for improving the application and the quality and coverage of maps. The data is processed anonymously; no one will be able to track any personal information. Here you can enable or disable collecting these logs. | 2 Application Usage Info. Anonymous statistical information on using the navigation software is collected for later development purposes. Understanding how different people use the application can help us improve the user interface and the program workflow. <> GPS Tracks Anonymous track logs are collected for later development purposes. Your trips can help us improve the quality and coverage of maps.

6 Glossary 2D/3D GPS reception The GPS receiver uses satellite signals to calculate its (your) position and needs at least four signals to give a three-dimensional position, including elevation. Because the satellites are moving and because objects can block the signals, your GPS device might not receive four signals. If three satellites are available, the receiver can calculate the horizontal GPS position but the accuracy is lower and the GPS device does not give you elevation data: only 2D reception is possible. Active route The currently navigated route. Whenever the destination is set, the route is active until you delete it, reach your destination or you quit Mappy PND. See also: Route. City Centre The city/town centre is not the geometric centre of the city/town but an arbitrary point the map creators have chosen. In towns and villages, it is usually the most important intersection; in larger cities, it is one of the important intersections. Colour theme Mappy PND comes with different colour themes for daytime or night use of the map and menu screens. Themes are custom graphic settings and they can have different colours for streets, blocks or surface waters in 2D and 3D modes, and they display shades or shadows in different ways in 3D mode. One daytime scheme and one night scheme is always selected for the map and for the menus. Mappy P ND uses them when it switches from day to night and back. GPS accuracy Several factors have impact on the deviation between your real position and the one given by the GPS device. For example, signal delay in the ionosphere or reflecting objects near the GPS device have a different and varying impact on how accurately the GPS device can calculate your position. Map Mappy PND works with digital maps which are not simply the computerised versions of traditional paper maps. Similarly to the paper road maps, the 2D mode of digital maps show you streets, roads, and elevation is also shown by colours. You can use digital maps interactively: you can zoom in and out (increase or decrease the scale), you can tilt them up and down, and rotate them left and right. In GPS-supported navigation, digital maps facilitate route planning.

North-up map orientation In North-up mode the map is rotated so its top always faces North. This is the orientation for example in Find on Map. Road Safety Camera Special alert points for speed, red light or bus lane cameras. Different data sources are available. You can configure Mappy PND to warn you when you approach one of these cameras. Detecting the location of Road Safety Cameras is prohibited in certain countries. It is the sole responsibility of the driver to check whether this feature can be used during the trip. The software is capable of showing and warning for more than just cameras. Various other types of proximity alert points like school zones and railway crossings are also available. Route A sequence of route events, i.e. manoeuvres (for example, turns and roundabouts) to reach the destination. The route contains one start point and one or more destinations. The start point is the current (or last known) position by default. If you need to see a future route, the start point can be replaced with any other given point. Track-up map orientation In Track-up mode the map is rotated so its top always points in the current driving direction. This is the default orientation in 3D map view mode. Vehimarker The current position is shown with a blue arrow on the map by default. The direction of the blue arrow shows the current heading. This position marker can be replaced with different 3D vehicle symbols. You can even specify different Vehimarkers for different route types (depending on which vehicle type is selected for route calculation).

7 End User Licence À greement 1 The contracting parties

1.1 This Agreement has been entered into by and between NNG Software Developing

and Commercial Ltd. (registered seat: 23 Bérc utca, H-1016 Budapest, Hungary; company reg.no.: 01-09-891838) as Licensor (hereinafter: Licensor) and You as the end user (hereinafter: User; the User and the Licensor jointly referred to as: Parties) in subject of the use of the products specified in this Agreement, including software products, databases and content. 2 Conclusion of the Agreement

2.1 The Parties hereby acknowledge that this Agreement shall be concluded by implicit

conduct of the Parties without signing the Agreement.

2.2 The User hereby acknowledges that following the lawful acquisition (online

purchase from authorized vendor or preinstalled on purchased Device) of the software product constituting the object of this Agreement (Section 4), any degree of use, installation into a computer or other hardware equipment (mobile phone, multi-function device, personal navigation device, in-car navigation or multi function head unit, etc.) {hereinafter referred to as: “Device”), installation of such Device into a vehicle, pressing of the “Accept” button displayed by the software during installation or use (hereinafter referred to as: “Use”) shall mean that the User has accepted the terms and conditions of this Agreement as legally binding. The time of conclusion of the present Agreement is the time of executing the first action of use (commencement of use).

2.3 This Agreement shall by no means authorize Use of the software product by those

persons having unlawfully acquired the software product or having unlawfully installed iton a Device or in a vehicle.

2.4 U.S. Government Users. If you acquire the Software Product by or on behalf of the

United States Government or any other entity seeking or applying rights similar to those customarily claimed by the United States Government, you are on notice that the Software Product and the Databases, content and services are commercial items as that term is defined at 48 C.F.R (“FAR”) 2.101 and that all use of the Software Product is subject to this Agreement. 3 Applicable laws and regulations

3.1 Any action related to this Agreement will be governed by the laws of the Republic

of Hungary, with specific reference to Act IV of 1959 on the Civil Code and to Act LXXVI of 1999 on Copyrights (the “Copyright Act”) shall apply. The United Nations Convention on Contracts for the International Sales of Goods is hereby excluded from application to this EULA.

3.2 The parties hereby agree that the courts of the Republic of Hungary will have

exclusive jurisdiction to rule on any disputes arising in connection with this Agreement.

3.3 The original language version of this Agreement is the Hungarian version. This

Agreement has versions in other languages as well. In case of dispute the Hungarian version shall prevail. 4 Object of the Agreement and Termination

4.1 The object of this Agreement shall be the navigation guidance software product of

Licensor (hereinafter referred to as: the “Software Product").

4.2 The Software Product shall include the operating computer program, its complete

documentation, the map database pertaining thereto and any third-party contents and services accessible through the Software Product (hereinafter together referred to as: the “Database").

4.3 Any form of display, storage, coding, including printed, electronic or graphic

display, storage, source or object code, or any other as yet undefined form of display, storage, or coding, or any medium thereof shall be deemed parts of the Software Product.

4.4 Error corrections, additions, updates or upgrades to the Software Product or the

Databases used by the User following the conclusion of this Agreement shall also be deemed parts of the Software Product and Used in accordance with this Agreement. 4.5. Your rights under this Agreement will terminate immediately without notice from Licensor if you materially breach it or take any action in derogation of Licensor's and/or its licensors' rights to the Software Product. Licensor may terminate this Agreement if any Software Product becomes, or in Licensor's reasonable opinion likely to become, the subject of a claim of intellectual property infringement or trade secret misappropriation. Upon termination, you will cease use of, and destroy Software Product and all parts of it and confirm compliance in writing to Licensor, if requested. 5 Rights under copyright

5.1 Unless otherwise provided by law or contractual provisions, the Licensor is the sole

and exclusive owner of all material copyrights vested in the Software Product.

5.2 Copyrights extend to the whole Software Product and to its parts separately as

5.3 The owner(s) of the copyrights of the Database or certain works protected by

intellectual property rights, that are forming part of the Software Product is (are) the Licensor, or natural person(s) or corporate entity(ies) owners of certain Databases (hereinafter referred to as: “Database Owner”). Some Database Owners are listed in the “About” or similar menu item of the Software Product. The Licensor hereby states that it has obtained sufficient usage and representation rights from the Database Owners in order to utilize the Database, to offer it for utilization and to transfer it for utilization as set forth in this Agreement.

5.4 Pursuant to this Agreement, all rights vested in the Software Product shall remain

in the ownership of the Licensor, except for those to which the User is entitled under law or by virtue of this Agreement. 6 Rights of the User

6.1 By default the User is entitled to install the Software Product on one Device having

a single GPS sensor built in, and to run and use one copy of the Software Product or a preinstalled copy of the Software Product thereon. The Software Product and Database is for the User's personal or internal business use only.

6.2 The User is entitled to make one backup copy of the Software Product. However, if

the Software Product operates after installation without the use of the original media copy, then the original media copy shall be deemed to be a backup copy. In all other cases, the User is only entitled to use the backup copy if the original media copy of the Software Product has been ascertainably and unequivocally rendered unsuitable for its lawful and intended use.

6.3 In the event that the Software Product comes preinstalled on- or otherwise licensed

together with the Device or purchased online for and installed by the User for a specific Device, the Software Product shall be tied to the Device and may not be separated-, transferred to-, or used with another Device or sold to another User without selling the Device itself.

6.4 The Database, content or services provided to User may only be used together

with User's copy of the Software Product and may not be used separately or with another copy of the Software Product. 7 Limitations of use

7.1 The Useris not entitled

7.1.1 to duplicate the Software Product (to make a copy thereof) except to the

extent allowed by this Agreement or Applicable law;

7.12 to resell, sublicense or use it for commercial purposes, use to lease, rent or

lend it, or to transfer it to a third person for any reason without transferring the Device on which it was first legally installed on (see section 6.3);

7.13 to translate the Software Product (including translation (compilation) to other

programming languages);

7.14 to decompile, disassemble, or reverse engineer the Software Product;

7.15 to evade the protection of the Software Product or to modify, circumvent or

obviate such protection through technological or by any other means;

7.1.6 to modify, extend, transform the Software Product (in whole or in part), to

separate it into parts, combine it with other products, install it in other products, utilize it in other products, not even for the purpose of achieving interoperability with other devices; 717 apart from using the computer program, to obtain information from the Database as à part of the Software Product, to decompile the Database, to use, copy, modify, extend, transform the Database in whole or in part or the group of data stored therein, or to install it in other products or otherwise, utilize it in other products or to transfer it, not even with the aim of achieving interoperability with other products.

7.2 The User may only use the Databases, content and services available through the

Software Product and provided by third parties and the data received through the services provided by third parties (including but not limited to the traffic data received from the RDS TMC or on-line TMC traffic information service) for his/her own personal benefit and at his/her own risk. Itis strictly prohibited to store, to transfer or to distribute these data or contents or to disclose them in full or in part to the public in any format or to download them from the product.

7.3 The User is not entitled to remove, modify or obscure of any copyright, trademark

notice, or restrictive legend included in the Software Product, the Database, content or services. 8 No warranty, limitation of liability

8.1 The Licensor hereby informs the User that although the greatest care was taken in

producing the Software Product, given the nature of the Software Product and its technical limitations, the Licensor does not provide a warranty for the Software Product being completely error-free, and the Licensor is not bound by any contractual obligation whereby the Software Product obtained by the User should be completely error-free.

8.2 THE LICENSED SOFTWARE PRODUCTS, DATABASES, CONTENT AND

SERVICES ARE PROVIDED ON AN ‘AS IS” AND “WITH ALL FAULTS BASIS” (INCLUDING NO WARRANTY FOR THE CORRECTION OF FAULTS) AND LICENSOR, THE DATABASE OWNERS AND THIRD PARTY SUPPLIERS EXPRESSLY DISCLAIM ALL WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF NON-INFRINGEMENT, MERCHANTABILITY, SATISFACTORY QUALITY, ACCURACY, TITLE AND FITNESS FOR A PARTICULAR PURPOSE. NO ORAL OR WRITTEN ADVICE OR INFORMATION PROVIDED BY LICENSOR OR ANY OF ITS AGENTS, DATABASE OWNERS, EMPLOYEES OR THIRD PARTY PROVIDERS SHALL CREATE A WARRANTY, AND USER IS NOT ENTITLED TO RELY ON ANY SUCH ADVICE OR INFORMATION. THIS DISCLAIMER OF WARRANTIES IS AN ESSENTIAL CONDITION OF THE AGREEMENT. Licensor does not warrant that the Software Product, Database, content or service are capable of interoperating with any other system, Device or product (e.g. software or hardware).

8.3 The Licensor does not assume any responsibility for damages incurred due to an

error in the Software Product (including errors of the computer program, the documentation and the Database).

8.4 The Licensor does not assume any responsibility for damages incurred due to the

Software Product not being applicable for any defined purpose, or due to the error or incompatibility of the Software Product with any other system, device or product (e.g. software or hardware).

8.6 The Licensor also draws the attention of the User to the fact that, when using the

Software Product in any form of vehicle, observing the traffic regulations and rules (e.g. use of obligatory and/or reasonable and suitable security measures, proper and generally expected care and attention in the given situation, and special care and attention required due to the use of the Software Product) is the exclusive responsibility of the User. The Licensor shall not assume any responsibility for any damages occurred in relation to use of the Software Product in a motor vehicle.

8.7 By concluding the Agreement, the User shall, in particular, acknowledge the

information stated in Section 8 above. 9 Sanctions

9.1 The Licensor hereby informs the User that, if the Licensor finds its rights under the

Copyright Act to be breached, the Licensor may

9.1.1 seek judicial recognition of this breach:;

9.1.2 demand that the breach cease and order the person in breach to refrain from

continuing such actions;

9.1.3 demand that the person under breach give proper compensation (even by

way of publicity at the expense of the person in breach);

9.14 claim the return of the increase of assets due to the breach;

9.1.5 demand the cease of the wrongful action and, demand restitution to its state

before the breach was committed at the expense of the person in breach, and may demand the destruction of instruments and materials used to commit the breach as well as of the products created by the breach;

9.1.6 claim for damages.

9.2 The Licensor hereby also informs the User that the breach of copyrights and

related rights is a crime under Act IV of 1978 on the Hungarian Criminal Code, which may be sentenced of two years in prison in basic cases and up to eight years in prison in aggravated cases.

9.3 Content and services provided by third parties. The Licensor hereby excludes any

liability of its own for the Database in the Software Product and for any content or service provided by a third party by using the Database. The Licensor does not warrant the quality, suitability, accuracy, fitness for a specific purpose or territorial coverage of the Database, content, product or service or the availability of the Database, content, product or service, and it specifically excludes any liability for the suspension or cancellation of the service, and any damage arising in relation to the service or for complete cancellation of the service. User acknowledges that the mapping data in Databases contains geographical data and other data. The User hereby acknowledges that (i) inaccurate or incomplete information due to the passage of time, changing circumstances, sources used and the nature of collecting comprehensive geographic data, may each lead to incorrect results; and (ii) that the Database, contents and services provided by third parties may only be used atthe risk of the User and for the personal or internal business benefit of the User. User acknowledges that the Databases, content and services are the confidential

information of Database Owners and disclosure of the Databases to third parties is prohibited. USE OF THE SOFTWARE PRODUCT'S REAL TIME ROUTE GUIDANCE FUNCTION IS AT USER'S SOLE RISK AS LOCATION DATA MAY NOT BE ACCURATE.

9.4 Content and services provided by the Licensor or an agent of the Licensor. For

certain Software Products the Licensor or a contractual partner may offer various products and services to the User through www.naviextras.com. The User may only use these services when the User has read and understood the relevant end user license agreement(s) at www.naviextras.com and the User is obliged to use the services in line with the terms and conditions thereof.

9.5 Purchase and acquisition of activation license for the use of certain functions,

Databases, content or services may require Internet connection with no alternative way of acquisition offered by Licensor. 10 Anonymous data collection

10.1 The User hereby acknowledges that the Software Product may collect, transmit to

Licensor or third parties, and in some cases store data connected to the usage of the Software Product by the User (e.g. movement/route data, user interaction data). Such data collection functions may be disabled or enabled by User any time from within the corresponding menu. The collected data is always anonymous, not associated in any way with any personal information of the User or with the User itself.

10.2 The collected data may be uploaded to Licensor's database or transmitted

periodically or in real time to a third party partner and used exclusively for the purpose of enhancing and improving the precision and reliability of features and services of the Software Product and the Databases. Uploading is executed through Licensor's special software or by the User navigation device, and the upload may be enabled or disabled by User. After successful data upload, the collected data is deleted from the Software Product storage media.

10.3 Collected data is transmitted, stored and handled anonymously and no

connection of the data with the User shall be established by Licensor or any third party.

10.4 Licensor hereby informs the User, that if it accesses the Internet through mobile

data service while abroad or otherwise roaming another mobile network the transmission of such data may result in special roaming charges. To avoid such charges it is the responsibility of the User to disable mobile data services while roaming or to turn off the data collection functions of the Software Product. 11 Online Content Service Auxiliary Terms

11.1 For online content services the following auxiliary terms shall also apply.

Database content (e.g. weather, traffic info, location based info) may be supplied by Licensor to the User's Device through an Internet connection (hereinafter: "Online Content Services"). Such Content may be granted for a fee or free of charge subject to Licensor's decision. Ensuring access to the Internet is the responsibility of the User.

11.2 Online Content Services in general are not available in all countries, furthermore

different conditions and Service characteristics may apply in different countries. Use of certain Online Services may be prohibited in various countries. It is the User's responsibility to comply with country specific regulation. Licensor excludes its liability for the consequences ofillegal use of such functions and User shall indemnify and hold Licensor harmless from all claims against Licensor from authorities or third parties due to the illegal use.

11.3 Online Content is downloaded by the Software Product from Service Provider's

Online content servers. The Licensor hereby excludes any liability of its own for the Online content. The Licensor does not warrant the quality, suitability, accuracy, fitness for a specific purpose or territorial coverage of the Online content, furthermore no warranty is offered regarding the availability (e.g. uptime) of Online content servers. User acknowledges that in any territory or time, slow- or non-connectivity may be experienced due to capacity limitations of Licensor's servers. The Software Product may allow the User to access and communicate third party servers directly. In such

cases use of such servers is for User's own risk entirely. Licensor shall not undertake any liability whatsoever for such servers and services accessed and received directly form third parties.

11.4 User acknowledges that the data or information provided through Online Content

Services is not updated in real-time and may not accurately reflect the real life situation or events.

11.5 The User hereby acknowledges that the Online Content Services may only be

used at the risk of the User and for the personal benefit of the User. It is the sole responsibility of the User to provide and maintain a connection to the public Internet network. User accepts that the usage of the Online Content Services generates data traffic (up- and downstream) and may result in increased data service fees payable by User.

11.6 Online Content Services may provide data, information or materials supplied

and/or licensed by third parties to Licensor. For such materials different terms and conditions imposed by such third parties may apply. Applicable third party terms shall be referred in the "About" section of the Software Product or as part of this Agreement. When first using / enabling Online Content, User accepts compliance with those third party terms and conditions.

11.7 Discontinuation. Licensor reserves the right to discontinue provision or access to

any Online Content Service with or without prior notice to the User. Such discontinuation shall not entail any consequences other than here stated. In case of discontinued Online Content Services that were (i) provided for a pre-paid fee, AND (ii) such fee covers the use of the Online Content Service for a definite term (i.e. pre-paid subscription service), User shall be entitled to a refund proportionate to the term remaining from such definite term from the time of the discontinuation. 11.8. Community Services. Some Online Content Services may be based on data and information uploaded by participating individuals (Users or other persons) or a Database created and maintained by a group of such individuals. Such data may not come from a trusted source and may also be intentionally false or misleading, as Licensor does not have any means to control or verify the credibility or accuracy of such data or the individuals providing the data. Therefore User accepts that community type Online Content Services must be used with extreme care. By participating in the community by providing data or any information via the Software Product or other means offered by Licensor (e.g. through a website or other software), User shall accept the following: (a) Licensor is granted a royalty free right to use the data uploaded, in particular, to modify, display, make available to the public, distribute, copy the data for any purpose; (b) User warrants that not third party has any rights that would hinder or render impossible the use of the data as set out in (a) above, and that no third party rights are infringed by uploading the data on those conditions; (c) User indemnifies and holds harmless Licensor from any claim from a third party against Licensor due to violation of its rights regarding the uploaded data. 12 Third Party Terms

12.1 Google Local Search. User acknowledges that Google Local Search (GLS)

functionality is provided by the usage of Google, Inc.'s service to the User. User hereby accepts all conditions of Google's Terms of Service provided at http://wWww.google.com/accounts/TOS . User accepts that the Google Local Search is declared "deprecated" and is not commercially supported by Google, Inc. and also it may be made unavailable without notice by Google in accordance with the relevant terms of service at http://code.google.com/inti/hu-HU/apis/websearch/terms.html .

8 Copyright note The product and the information contained herein are subject to change without prior notification. This manual may not, in whole or in part, be reproduced or transmitted in any form either electronically or mechanically, including photocopying and recording, without the express written consent of Logicom S.A. © 2013 - Logicom S.A © 2013 NAVTEQ. All rights reserved. Albania: © 2005 NAVTEQ. All rights reserved. Andorra: © 1993 NAVTEQ. All rights reserved. Austria: © 1996 NAVTEQ. All rights reserved. Belarus: © 2013 NAVTEQ. All rights reserved. Belgium: © 1995 NAVTEQ. All rights reserved. Bosnia and Herzegovina: © 2005 NAVTEQ. All rights reserved. Bulgaria: © 2005 NAVTEQ. All rights reserved. Croatia: © 2005 NAVTEQ. All rights reserved. Czech Republic: © 2002 NAVTEQ. All rights reserved. Denmark: © 1997 NAVTEQ. All rights reserved. Estonia: © 2005 NAVTEQ. All rights reserved. Finland: © 2001 NAVTEQ. All rights reserved. France: © 1993 NAVTEQ. All rights reserved. FYROM: © 2013 NAVTEQ. All rights reserved. Germany: © 1993 NAVTEQ. All rights reserved. Gibraltar: © 2013 NAVTEQ. All rights reserved. Greece: © 2003 NAVTEQ. All rights reserved. Hungary: © 2004 NAVTEQ. All rights reserved. Italy: © 1994 NAVTEQ. All rights reserved. Latvia: © 2005 NAVTEQ. All rights reserved. Liechtenstein: © 1996 NAVTEQ. All rights reserved. Lithuania: © 2005 NAVTEQ. All rights reserved. Luxembourg: © 1996 NAVTEQ. All rights reserved. Moldova: © 2013 NAVTEQ. All rights reserved. Monaco: © 1993 NAVTEQ. All rights reserved. Montenegro: © 2005 NAVTEQ. All rights reserved. Norway: © 2001 NAVTEQ. All rights reserved. Poland: © 2004 NAVTEQ. All rights reserved. Portugal: © 1997 NAVTEQ. All rights reserved. Ireland: © 1993 NAVTEQ. All rights reserved. Romania: © 2005 NAVTEQ. All rights reserved. Russia: © 2005 NAVTEQ. All rights reserved. San Marino: © 1994 NAVTEQ. All rights reserved. Serbia: © 2005 NAVTEQ. All rights reserved. Slovak Republic: © 2002 NAVTEQ. All rights reserved. Slovenia: © 2004 NAVTEQ. All rights reserved. Spain: © 1997 NAVTEQ. All rights reserved. Sweden: © 1994 NAVTEQ. All rights reserved. Switzerland: © 1996 NAVTEQ. All rights reserved. The Netherlands: © 1993 NAVTEQ. All rights reserved. Turkey: © 2013 NAVTEQ. All rights reserved. Ukraine: © 2013 NAVTEQ. All rights reserved. United Kingdom: © 1993 NAVTEQ. All rights reserved. Vatican City: © 1994 NAVTEQ. All rights reserved. All rights reserved.
