Product Type	Freestanding Dishwasher
Height	85.0 cm
Width	60.0 cm
Depth	60.0 cm
Weight	45.0 kg
Power Supply Voltage	220-240 V
Power Supply Frequency	50 Hz
Energy Consumption per Cycle	1.05 kWh
Water Consumption per Cycle	10.5 L
Noise Level	44 dB(A)
Number of Place Settings	13
Programs	Eco, Intensive, Quick, Glass, Pre-wash
Energy Efficiency Class	A++
Electronic Control	Yes
AquaStop System	Yes
Stainless Steel Interior	Yes
Adjustable Racks	Yes
Child Lock	Yes
Filter Cleaning	Clean filter after each cycle to maintain performance
Spray Arm Cleaning	Clean spray arms every few months
Spare Parts Availability	Filters, spray arms, racks, door hinges

Frequently Asked Questions - F55310VI0 AEG

How do I install the dishwasher?

Ensure the appliance is level and connect to water and power supply. Refer to the installation section in the manual for detailed steps. Use a qualified installer for proper setup.

What detergent should I use?

Use a dishwasher detergent (tablets, powder, or gel) suitable for automatic dishwashers. Do not use hand dishwashing liquid.

How do I load the dishwasher for best results?

Place larger items on the bottom rack and smaller, fragile items on the top rack. Ensure spray arms can rotate freely and that items do not block the detergent dispenser.

Why is the dishwasher not starting?

Check that the door is closed properly, the machine is plugged in, and the water supply is turned on. If the problem persists, refer to the error codes in the manual.

How do I clean the filter?

Turn off the dishwasher and remove the lower rack. Unscrew the filter assembly, rinse under running water, and scrub with a soft brush if needed. Reinstall securely. Clean after every use.

What does the error code E10 mean?

Error E10 indicates a water inlet problem. Check that the hose is not kinked and the water tap is open. If the issue persists, contact customer support.

How do I activate the child lock?

Press and hold the Child Lock button (if available) for 3 seconds until the indicator lights up. Refer to the manual for your specific model.

Can I open the dishwasher during operation?

Opening the door will pause the cycle. The machine will resume after closing the door, but be cautious of hot steam and water. Avoid opening during drying phase.

How often should I run the self-cleaning cycle?

Run a maintenance cycle (e.g., 65°C program with a dishwasher cleaner) every 3-6 months to remove grease and limescale buildup.

Where can I purchase spare parts?

Spare parts like filters, spray arms, and racks are available from authorized AEG dealers or online retailers. Use the model number F55310VI0 for correct compatibility.

USER MANUAL F55310VI0 AEG

Modern kitchen interior with white cabinetry, stainless steel appliances, and a large refrigerator (no visible text or symbols)

INDHOLDSFORTEGNELSE

1. OM SIKKERHED....3
2. SIKKERHEDSANVISNINGER....4
3. PRODUKTBESKRIVELSE AF APPARATET....6
4. BETJENINGSPANEL....6
5. PROGRAMMER....7
6. INDSTILLINGER....8
7. TILVALGSFUNKTIONER....10
8. F∅R IBRUGTAGNING.... 11
9. DAGLIG BRUG....12
10. RÅD OG TIP....14
11. VEDLIGEHOLDELSE OG RENG∅RING....15
12. FEJLFINDING....17
13. TEKNISK INFORMATION....18

FOR PERFEKTE RESULTATER

ADVARSEL!

Højspænding.

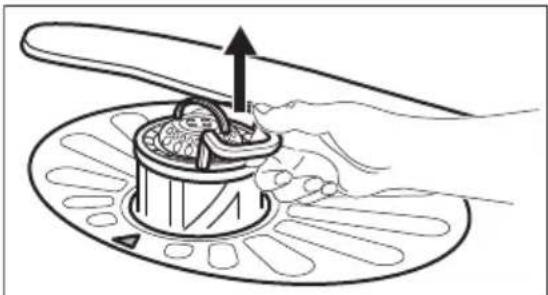

3. PRODUKTBESKRIVELSE AF APPARATET

Line drawing of a hand cleaning a wall with a pipe and bucket (no text or symbols)

Diagram of a hand holding a mechanical component with a curved arrow indicating rotation (no text or symbols present)

Diagram of a mechanical device with an arrow indicating upward motion, no text or symbols present

Illustration of a hand using a circular mechanical component to move a curved arrow (no text or symbols)

1. Skyl filtrene.

Line drawing of hands washing a sink with a faucet and cleaning device (no text or symbols)

Illustration of a hand holding a curved object with directional arrows, no text or symbols present

PAS PÅ!

WAARSCHUWING!

Line drawing of a hand cleaning a wall with a pipe and bucket (no text or symbols)

Diagram of a mechanical component with a curved blade and internal gear mechanism, no text or symbols present

Diagram of a hand using a tool to lift a mechanical component, showing motion direction (no text or symbols)

Illustration of a hand holding a circular component with a curved arrow indicating rotation (no text or symbols)

1. Was de filters.

Line drawing of a kitchen sink with a hand washing a showerhead and a water dispenser, no text or symbols present

Illustration of a hand using a tool to adjust or install a tray with a checkmark and directional arrows (no text or symbols)

LET OP!

12. PROBLEEMOPLOSSING

1. SAFETY INFORMATION......38

2. SAFETY INSTRUCTIONS....39

3. PRODUCT DESCRIPTION....41

4. CONTROL PANEL....41

5. PROGRAMMES....42

6. SETTINGS....43

7. OPTIONS......45

8. BEFORE FIRST USE....46

9. DAILY USE....47

10. HINTS AND TIPS....49

11. CARE AND CLEANING....50

12. TROUBLESHOOTING....52

13. TECHNICAL INFORMATION....53

FOR PERFECT RESULTS

Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it.

Visit our website for:

Get usage advice, brochures, trouble shooter, service information:

www.aeg.com

Register your product for better service:

www.registeraeg.com

Buy Accessories, Consumables and Original spare parts for your appliance:

www.aeg.com/shop

CUSTOMER CARE AND SERVICE

Always use original spare parts.

When contacting our Authorised Service Centre, ensure that you have the following data available: Model, PNC, Serial Number.

The information can be found on the rating plate.

Warning / Caution-Safety information

General information and tips

Environmental information

Subject to change without notice.

1. ⚠SAFETY INFORMATION

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible if an incorrect installation and use causes injuries and damages. Always keep the instructions with the appliance for future reference.

1.1 General Safety

• This appliance is intended to be used in household and similar applications such as:
  -farm houses; staff kitchen areas in shops, offices and other working environments;
  -by clients in hotels, motels, bed & breakfast and other residential type environments.
• Do not change the specification of this appliance.
• The operating water pressure (minimum and maximum) must be between 0.5 (0.05) / 8 (0.8) bar (Mpa)
• Obey the maximum number of 13 place settings.
• If the supply cord is damaged, it must be replaced by the manufacturer, its Authorised Service Centre or similarly qualified persons in order to avoid a hazard.
• Put knives and cutlery with sharp points in the cutlery basket with the points down or in a horizontal position.
• Do not keep the appliance door open without supervision to prevent to fall on it.
• Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket.
• Do not use water spray and steam to clean the appliance.
• The ventilation openings in the base (if applicable) must not be obstructed by a carpet.
• The appliance is to be connected to the water mains using the new supplied hose-sets. Old hose sets must not be reused.

1.2 Children and vulnerable people safety

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Do not let children play with the appliance.
• Keep all detergents away from children.
• Keep children and pets away from the appliance door when it is open.
• Cleaning and user maintenance shall not be made by children without supervision.

2. SAFETY INSTRUCTIONS

2.1 Installation

• Remove all the packaging.
• Do not install or use a damaged appliance.
• Do not install or use the appliance where the temperature is less than 0 °C.
• Obey the installation instruction supplied with the appliance.
• Make sure that the appliance is installed below and adjacent to safe structures.

2.2 Electrical connection

WARNING!

Risk of fire and electrical shock.

• The appliance must be earthed.
- Make sure that the electrical information on the rating plate agrees with the power supply. If not, contact an electrician.
• Always use a correctly installed shockproof socket.
- Do not use multi-plug adapters and extension cables.
- Make sure not to cause damage to the mains plug and to the mains cable. Should the mains cable need

to be replaced, this must be carried out by our Authorised Service Centre.
- Connect the mains plug to the mains socket only at the end of the installation. Make sure that there is access to the mains plug after the installation.
- Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.
- This appliance complies with the E.E.C. Directives.
- Only for UK and Ireland. The appliance has a 13 amp mains plug. If it is necessary to change the fuse in the mains plug, use a 13 amp ASTA (BS 1362) fuse.

2.3 Water connection

• Make sure not to cause damage to the water hoses.
• Before you connect the appliance to new pipes or pipes not used for a long time, let the water flow until it is clean.
• The first time you use the appliance, make sure that there is no leakage.
• The water inlet hose has a safety valve and a sheath with an inner mains cable.

WARNING!

Dangerous voltage.

- If the water inlet hose is damaged, immediately disconnect the mains plug from the mains socket. Contact the Authorised Service Centre to replace the water inlet hose.

2.4 Use

- Do not sit or stand on the open door.

- Dishwasher detergents are dangerous. Obey the safety instructions on the detergent packaging.

- Do not drink and play with the water in the appliance.

- Do not remove the dishes from the appliance until the programme is completed. There can be detergent on the dishes.

- The appliance can release hot steam if you open the door while a programme operates. - Do not put flammable products or items that are wet with flammable products in, near or on the appliance.

2.5 Service

- Contact the Authorised Service Centre to repair the appliance. We recommend only the use of original spare parts.

- When you contact the Authorised Service Centre, ensure that you have the following information that is available on the rating plate.

Risk of injury or suffocation.

- Disconnect the appliance from the mains supply. - Cut off the mains cable and discard it. - Remove the door catch to prevent children and pets to get closed in the appliance.

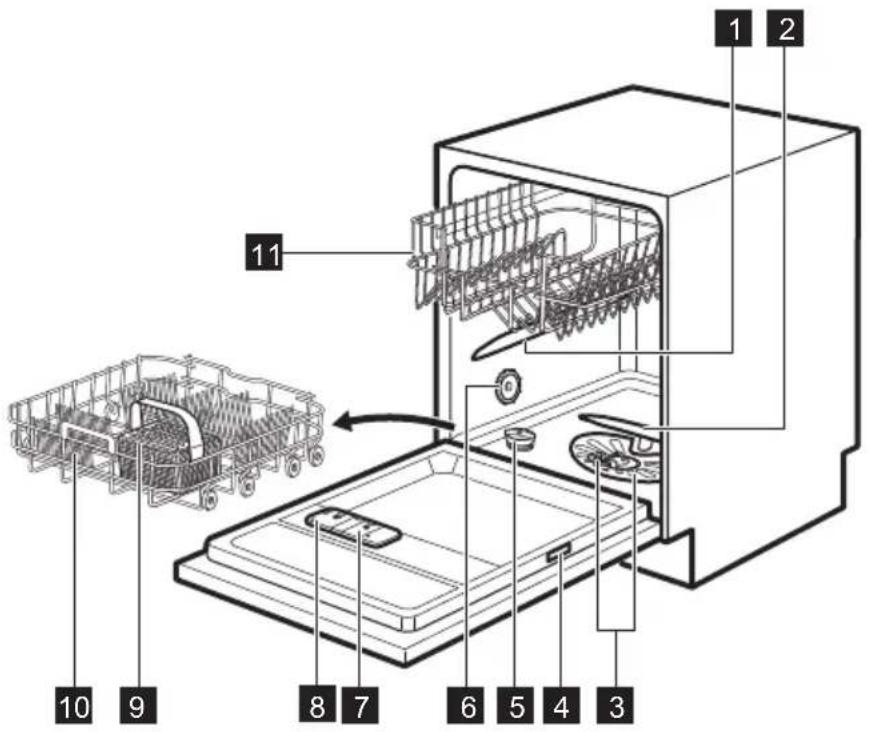

3. PRODUCT DESCRIPTION

1 Upper spray arm
2 Lower spray arm
3 Filters
4 Rating plate
5 Salt container
6 Air vent

7 Rinse aid dispenser
8 Detergent dispenser
9 Cutlery basket
10 Lower basket
11 Upper basket

4. CONTROL PANEL

1 On/off button
2 Display
3 Delay button

4 Programme buttons
5 Indicators

4.1 Indicators

Indicator Description
[==w0]	Multitab indicator.
[1487]	Salt indicator. It is always off while the programme operates.
	Rinse aid indicator. It is always off while the programme operates.

5. PROGRAMMES

Programme Degree of soilType of load		Programme phases Options
ECO 1)	Normal soilCrockery and cutlery	PrewashWash 50 °CRinsesDry	Multitab
AUTO 2)	AllCrockery, cutlery, pots and pans	PrewashWash from 45 °C to 70 °CRinsesDry	Multitab
PRO 3)	Heavy soilCrockery, cutlery, pots and pans	PrewashWash 70 °CRinsesDry	Multitab
30MIN 4)	Fresh soilCrockery and cutlery	Wash 60 °C or 65 °CRinses	Multitab
5)	All Prewash

1) With this programme you have the most efficient use of water and energy consumption for crockery and cutlery with normal soil. (This is the standard programme for test institutes).

2) The appliance senses the degree of soil and the quantity of items in the baskets. It automatically adjusts the temperature and the quantity of water, the energy consumption and the programme duration.

3) This programme has a high temperature rinsing phase for better hygiene results. During the rinsing phase, the temperature stays at 70° C for at least 10 minutes.

4) With this programme you can wash a load with fresh soil. It gives good washing results in a short time.

5) With this programme you can quickly rinse dishes to prevent remains of food to bond on dishes and odours to form in the appliance. Do not use detergent with this programme.

5.1 Consumption values

Programme 1)	Water (l)	Energy (kWh)	Duration (min)
ECO	11 1.050 195
AUTO	7 - 15 0.6 - 1.4 40 - 150
PRO	13 - 15 1.3 - 1.5 140 - 160
30MIN	9 0.9 30
	4 0.1 14

1) The pressure and the temperature of the water, the variations of the mains supply, the options and the quantity of dishes can change the values.

5.2 Information for test institutes

For all the necessary information for test performance, send an email to:

[e-mail]

Write down the product number (PNC) that is on the rating plate.

6. SETTINGS

6.1 Programme selection mode and user mode

When the appliance is in programme selection mode it is possible to set a programme and to enter the user mode.

In user mode, the following settings can be changed:

• The level of the water softener according to the water hardness.
• The activation or the deactivation of the acoustic signal for end of programme.
• The deactivation of the rinse aid dispenser when you want to use the Multitab option without rinse aid.

These settings will be saved until you change them again.

How to set the programme selection mode

The appliance is in programme selection mode when the programme indicator

ECO is on and the display shows the programme duration.

When you activate the appliance, usually it is in programme selection mode. However, if this does not happen, you can set the programme selection mode in the following way:

Press and hold simultaneously ECO AUTO and until the appliance is in programme selection mode.

6.2 The water softener

The water softener removes minerals from the water supply, which would have a detrimental effect on the washing results and on the appliance.

The higher the content of these minerals, the harder your water is. Water hardness is measured in equivalent scales.

The water softener should be adjusted according to the hardness of the water in your area. Your local water authority can advise you on the hardness of the water in your area. It is important to set the right level of the water softener to assure good washing results.

Water hardness

German degrees (°dH)	French degrees (°fH)	mmol/l Clarke de-grees	Water softener lev-el
47 - 50 84 - 90 8.4 - 9.0 58 - 63 10
43 - 46 76 - 83 7.6 - 8.3 53 - 57 9
37 - 42 65 - 75 6.5 - 7.5 46 - 52 8
29 - 36 51 - 64 5.1 - 6.4 36 - 45 7
23 - 28 40 - 50 4.0 - 5.0 28 - 35 6
19 - 22 33 - 39 3.3 - 3.9 23 - 27			5 1)
15 - 18 26 - 32 2.6 - 3.2 18 - 22 4
11 - 14 19 - 25 1.9 - 2.5 13 - 17 3
4 - 10 7 - 18 0.7 - 1.8 5 - 12 2
<4 <7 <0.7 < 5			1 2)

1) Factory setting.
2) Do not use salt at this level.

How to set the water softener level

The appliance must be in programme selection mode.

1. To enter the user mode, press and hold simultaneously ECO

AUTO until the indicators ECO and AUTO and start to flash and the display is blank.

1. Press

• The indicators ECO and AUTO go off.
- The indicator continues to flash.
- The display shows the current setting: e.g. 5L = level 5 .

1. Press again and again to change the setting.

2. Press the on/off button to confirm the setting.

6.3 The rinse aid dispenser

The rinse aid helps to dry the dishes without streaks and stains.

The rinse aid is automatically released during the hot rinse phase.

Use of rinse aid and multi-tablets

When you activate the option Multitab, the rinse aid dispenser continues to release rinse aid. However you can deactivate the rinse aid dispenser. In this case the drying results may not be satisfactory.

With the rinse aid dispenser deactivated, the rinse aid indicator is always off.

How to deactivate the rinse aid dispenser

The appliance must be in programme selection mode.

1. To enter the user mode, press and hold simultaneously ECO and AUTO until the indicators ECO and AUTO and the display is blank.
2. Press ECO

• The indicators go off.

AUTO

• The indicator continues to flash.

- The display shows the current setting.

• ≠ rinse aid dispenser activated.

• = rinse aid dispenser deactivated.

• Press ECO to change the setting.

• Press the on/off button to confirm the setting.

6.4 Acoustic signals

Acoustic signals sound when a malfunction of the appliance occurs. It is not possible to deactivate these acoustic signals.

There is also an acoustic signal that sounds when the programme is completed. By default this acoustic signal is deactivated but it is possible to activate it.

How to activate the acoustic signal for the end of programme

The appliance must be in programme selection mode.

7. OPTIONS

Desired options must be activated every time before you start a programme. It is not possible to activate or deactivate options while a programme is running.

Not all options are compatible with each other. If you have selected non compatible options, the appliance will automatically deactivate one or more of them. Only the indicators of the options still active will stay on.

1. To enter the user mode, press and hold simultaneously ECO and AUTO until the indicators ECO and start to flash and the display is blank.

2. Press AUTO.

• The indicators and go off.
• The indicator AUTO continues to flash.
• The display shows the current setting:

• 0b = Acoustic signal off.

• 16 = Acoustic signal on.

• Press to change the setting.

• Press the on/off button to confirm the setting.

7.1 Multitab

Activate this option when you use multi-tablets that integrate the salt, rinse aid and detergent functions. They can also contain other cleaning or rinsing agents.

This option deactivates the release of salt. The salt indicator does not come on.

With the use of this option the programme duration is prolonged to increase the cleaning and drying results with the use of multi-tablets.

Multitab is not a permanent option and must be selected at every cycle.

How to activate Multitab

Press and hold simultaneously

and 30MIN

comes on.

8. BEFORE FIRST USE

1. Make sure that the current level of the water softener agrees with the hardness of the water supply. If not, adjust the level of the water softener.

2. Fill the salt container.

3. Fill the rinse aid dispenser.
4. Open the water tap.
5. Start a programme to remove any processing residuals that can still be inside the appliance. Do not use detergent and do not load the baskets.

When you start a programme, the appliance can take up to 5 minutes to recharge the resin in the water softener. It seems that the appliance is not working. The washing phase starts only after this procedure is completed. The procedure will be repeated periodically.

8.1 The salt container

CAUTION!

Only use salt specifically designed for dishwashers.

The salt is used to recharge the resin in the water softener and to assure good washing results in the daily use.

How to fill the salt container

1. Turn the cap of the salt container counterclockwise and remove it.
2. Put 1 litre of water in the salt container (Only for the first time).
3. Fill the salt container with dishwasher salt.

1. Remove the salt around the opening of the salt container.


Line drawing of a hand cleaning a wall with a pipe and bucket (no text or symbols)

1. Turn the cap of the salt container clockwise to close the salt container.

Water and salt can come out from the salt container when you fill it. Risk of corrosion. To prevent it, after you fill the salt container, start a programme.

8.2 How to fill the rinse aid dispenser

9. DAILY USE

1. Open the water tap.

2. Press the on/off button to activate the appliance.
   Make sure that the appliance is in programme selection mode.

3. If the salt indicator is on, fill the salt container.

4. If the rinse aid indicator is on, fill the rinse aid dispenser.

5. Load the baskets.

6. Add the detergent. If you use multi-tablets, activate the option Multitab.

7. Set and start the correct programme for the type of load and the degree of soil.

CAUTION!

Only use rinse aid specifically designed for dishwashers.

1. Press the release button (D) to open the lid (C).
2. Pour the rinse aid in the dispenser (A) until the liquid reaches the fill level 'max'.
3. Remove the spilled rinse aid with an absorbent cloth to prevent too much foam.
4. Close the lid. Make sure that the release button locks into position.

You can turn the selector of the released quantity (B) between position 1 (lowest quantity) and position 4 or 6 (highest quantity).

9.1 Using the detergent

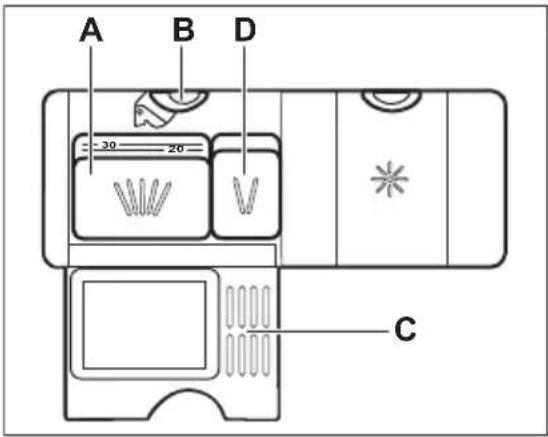

1. Press the release button (B) to open the lid (C).
2. Put the detergent, in powder or tablets, in the compartment (A).
3. If the programme has a prewash phase, put a small quantity of detergent in the compartment (D).
4. Close the lid. Make sure that the release button locks into position.

9.2 Setting and starting a programme

The Auto Off function

This function decreases energy consumption by deactivating automatically the appliance when it is not operating.

The function comes into operation:

• 5 minutes after the completion of the programme.
  • After 5 minutes if the programme has not started.

Starting a programme

1. Keep the appliance door ajar.
2. Press the on/off button to activate the appliance. Make sure that the appliance is in programme selection mode.
3. Press the button related to the programme you want to start.
   The display shows the programme duration.
4. Set the applicable options.
5. Close the appliance door to start the programme.

Starting a programme with delay start

1. Set a programme.
2. Press again and again until the display shows the delay time you want to set (from 1 to 24 hours).
   The delay indicator comes on.
3. Close the appliance door to start the countdown.
   While a countdown is running it is possible to increase the delay time but not to change the selection of the programme and options.
   When the countdown is completed, the programme starts.

Opening the door while the appliance operates

If you open the door while a programme is running, the appliance stops. When you close the door, the appliance continues from the point of interruption.

If the door is opened for more than 30 seconds during the drying phase, the running programme will end.

Cancelling the delay start while the countdown operates

When you cancel the delay start you have to set the programme and options again.

Press and hold simultaneously ECO AUTO and until the appliance is in programme selection mode.

Cancelling the programme

Press and hold simultaneously ECO and until the appliance is in programme selection mode. Make sure that there is detergent in the detergent dispenser before you start a new programme.

End of the programme

When the programme is completed the display shows 0:00.

1. Press the on/off button or wait for the Auto Off function to

10. HINTS AND TIPS

10.1 General

The following hints will ensure optimal cleaning and drying results in daily use and also help to protect the environment.

• Remove larger residues of food from the dishes into the waste bin.
• Do not pre-rinse dishes by hand. When needed, use the prewash programme (if available) or select a programme with a prewash phase.
  • Always use the whole space of the baskets.
• When loading the appliance, make sure that the dishes can be completely reached and washed by the water released from the spray arm nozzles. Make sure that items do not touch or cover each other.
• You can use dishwasher detergent, rinse aid and salt separately or you can use the multi-tablets (e.g. "3in1", "4in1", "All in 1"). Follow the instructions written on the packaging.
• Select the programme according to the type of load and degree of soil. With the ECO programme you have the most efficient use of water and energy consumption for crockery and cutlery with normal soil.

10.2 Using salt, rinse aid and detergent

• Only use salt, rinse aid and detergent for dishwasher. Other products can cause damage to the appliance.
• Multi-tablets are usually suitable in areas with a water hardness up to 21 °dH. In areas exceeding this limit, rinse aid and salt must be used in addition to the multi-tablets. However, in areas with hard and very hard water we recommend to use solo-detergent (powder, gel, tablets

automatically deactivate the appliance.

1. Close the water tap.

without additional functions), rinse aid and salt separately for optimal cleaning and drying results.

• If you use multi-tablets you can select the Multitab option (if available). This option increases the cleaning and drying results with the use of multi-tablets.
• Detergent tablets do not fully dissolve with short programmes. To prevent detergent residues on the tableware, we recommend that you use the tablets with long programmes.
• Do not use more than the correct quantity of detergent. Refer to the instructions on the detergent packaging.

10.3 What to do if you want to stop using multi-tablets

Before you start to use separately detergent, salt and rinse aid do the following procedure.

1. Set the highest level of the water softener.
2. Make sure that the salt and rinse aid containers are full.
3. Start the shortest programme with a rinsing phase. Do not add detergent and do not load the baskets.
4. When the programme is completed, adjust the water softener according to the water hardness in your area.
5. Adjust the released quantity of rinse aid.

10.4 Loading the baskets

• Only use the appliance to wash items that are dishwasher-safe.

• Do not put in the appliance items made of wood, horn, aluminium, pewter and copper.

• Do not put in the appliance items that can absorb water (sponges, household cloths).

• Remove remaining food from the items.
  • Make soft the remaining burned food on the items.
• Put hollow items (cups, glasses and pans) with the opening down.
  • Make sure that cutlery and dishes do not bond together. Mix spoons with other cutlery.
  • Make sure that glasses do not touch other glasses.
• Put small items in the cutlery basket.
• Put light items in the upper basket. Make sure that the items do not move.
  • Make sure that the spray arm can move freely before you start a programme.

10.5 Before starting a programme

Make sure that:

11. CARE AND CLEANING

WARNING!

Before maintenance, deactivate the appliance and disconnect the mains plug from the main socket.

Dirty filters and clogged spay arms decrease the washing results. Make a check regularly and, if necessary, clean them.

11.1 Cleaning the filters

The filter system is made of 3 parts.

• The filters are clean and correctly installed.
  • The cap of the salt container is tight.
  • The spray arms are not clogged.
• There is dishwasher salt and rinse aid (unless you use multi-tablets).
• The position of the items in the baskets is correct.
• The programme is applicable for the type of load and for the degree of soil.
• The correct quantity of detergent is used.

10.6 Unloading the baskets

1. Let the tableware cool down before you remove it from the appliance. Hot items can be easily damaged.
2. First remove items from the lower basket, then from the upper basket.

At the end of the programme water can still remain on the sides and on the door of the appliance.

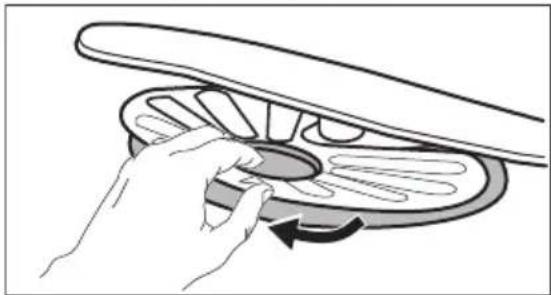

1. Turn the filter (B) counterclockwise and remove it.

Diagram of a mechanical component with a rotating shaft and housing, showing internal components (no text or symbols)

Diagram of a mechanical device with an arrow indicating upward motion, no text or symbols present

1. Remove the filter (C) out of filter (B).
2. Remove the flat filter (A).

Illustration of a hand pressing down on a curved mechanical component with a circular arrow indicating rotation (no text or symbols)

1. Wash the filters.

Line drawing of hands washing a showerhead into a sink with a water dispenser (no text or symbols)

1. Make sure that there are no residues of food or soil in or around the edge of the sump.

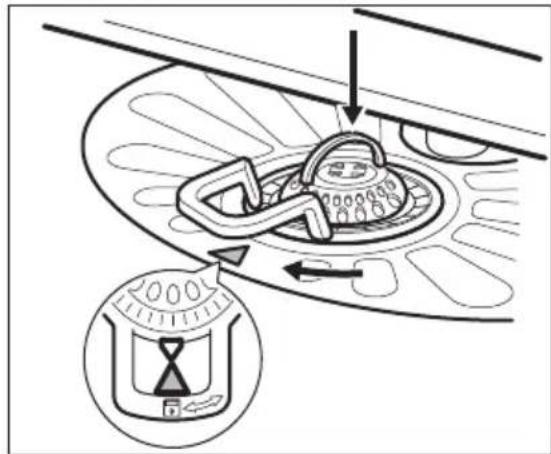

2. Put back in place the flat filter (A). Make sure that it is correctly positioned under the 2 guides.

Illustration of a hand using a tool to adjust or install a device with a magnified view of internal components (no text or symbols present)

1. Reassemble the filters (B) and (C).

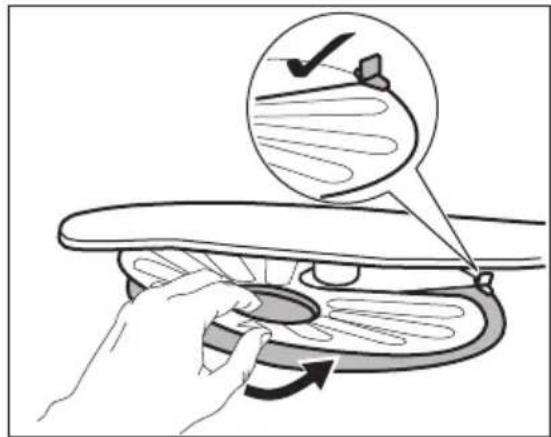

2. Put back the filter (B) in the flat filter (A). Turn it clockwise until it locks.

CAUTION!

An incorrect position of the filters can cause bad washing results and damage to the appliance.

11.2 Cleaning the spray arms

Do not remove the spray arms. If the holes in the spray arms are clogged, remove remaining parts of soil with a thin pointed object.

11.3 External cleaning

• Clean the appliance with a moist soft cloth.
• Only use neutral detergents.
• Do not use abrasive products, abrasive cleaning pads or solvents.

11.4 Internal cleaning

- Carefully clean the appliance, including the rubber gasket of the door, with a soft moist cloth.

- If you regularly use short duration programmes, these can leave deposits of grease and limescale inside the appliance. To prevent this,

we recommend to run long duration programmes at least 2 times per month.

12. TROUBLESHOOTING

If the appliance does not start or it stops during operation. Before you contact an Authorised Service Centre, check if you can solve the problem by yourself with the help of the information in the table.

With some problems, the display shows an alarm code.

Problem and alarm code Possible solution
You cannot activate the appliance.	Make sure that the mains plug is connected to the mains socket.Make sure that there is no a damage fuse in the fuse box.
The programme does not start.	Make sure that the appliance door is closed.Press Start.If the delay start is set, cancel the setting or wait for the end of the countdown.The appliance has started the procedure to recharge the resin inside the water softener. The duration of the procedure is approximately 5 minutes.
The appliance does not fill with water.The display shows,10	Make sure that the water tap is open.Make sure that the pressure of the water supply is not too low. For this information, contact your local water authority.Make sure that the water tap is not clogged.Make sure that the filter in the inlet hose is not clogged.Make sure that the inlet hose has no kinks or bends.
The appliance does not drain the water.The display shows,20	Make sure that the sink spigot is not clogged.Make sure that the drain hose has no kinks or bends.
The anti-flood device is on.The display shows,30	Close the water tap and contact an Authorised Service Centre.

Once you have checked the appliance, deactivate and activate the appliance. If the problem occurs again, contact an Authorised Service Centre.

For alarm codes not described in the table, contact an Authorised Service Centre.

12.1 The washing and drying results are not satisfactory

Problem Possible solution
There are whitish streaks or bluish layers on glasses and dishes.	The release quantity of rinse aid is too much. Adjust the rinse aid selector to a lower position.The quantity of detergent is too much.
There are stains and dry water drops on glasses and dishes.	The released quantity of rinse aid is not sufficient. Adjust the rinse aid selector to a higher position.The quality of the rinse aid can be the cause.
The dishes are wet. • The programme does not have a drying phase or has a drying phase with low temperature.The rinse aid dispenser is empty.The quality of the rinse aid can be the cause.The quality of the multi-tablets can be the cause. Try a different brand or activate the rinse aid dispenser and use rinse aid and multi-tablets together.

Refer to "Hints and tips" for other possible causes.

13. TECHNICAL INFORMATION

Dimensions Width / height / depth (mm) 596 / 818-898 / 555
Electrical connection1)	Voltage (V) 220 - 240
	Frequency (Hz) 50
Water supply pressure Min. / max. bar (MPa) 0.5 (0.05) / 8 (0.8)
Water supply	Cold water or hot water2) max 60 °C
Capacity Place settings 13
Power consumption Left-on mode (W) 0.99
Power consumption Off-mode (W) 0.10

1) Refer to the rating plate for other values.
2) f the hot water comes from alternative source of energy, (e.g. solar panels, aeolian energy), use the hot water supply to decrease energy consumption.

14. ENVIRONMENT CONCERNS

Recycle the materials with the symbol Put the packaging in applicable containers to recycle it. Help protect the environment and human health and to recycle waste of electrical and electronic appliances. Do not dispose appliances

marked with the symbol with the household waste. Return the product to your local recycling facility or contact your municipal office.

CE
