232157 - Kettle PRINCESS - Free user manual and instructions

Product type	Electric kettle
Brand	Princess
Model	232157
Capacity	1.7 liters
Power	2200 W
Supply voltage	220-240 V ~ 50/60 Hz
Body material	Stainless steel and plastic
Swivel base	Yes, 360° rotation
Automatic shut-off	Yes
Overheat protection	Yes
Anti-scale filter	Yes, removable
Water level indicator	Yes, transparent
Lid opening	Push-button
Dimensions (L x W x H)	22 x 20 x 25 cm
Net weight	1.2 kg
Power cord length	70 cm
Care and cleaning	Descale regularly with vinegar or a descaling product
Safety	Automatic shut-off in case of boiling or dry operation
Spare parts and repairability	Available on the manufacturer's website or via customer service

Frequently Asked Questions - 232157 PRINCESS

What is the capacity of the Princess 232157 kettle?

The capacity is 1.7 liters, ideal for preparing up to 7 cups of tea or coffee.

How do I descale the kettle?

Use a mixture of water and white vinegar or a commercial descaling agent. Fill halfway, boil, let sit for 15 minutes, then rinse thoroughly.

Can I boil milk in this kettle?

No, this kettle is designed only for heating water. Milk can burn and damage the appliance.

Is the base swivel?

Yes, the kettle sits on a 360° swivel base that allows it to be placed in any orientation.

Is there an anti-scale filter?

Yes, a removable filter is built into the spout to catch limescale particles. It is easy to clean.

Is the shut-off automatic?

Yes, the kettle turns off automatically as soon as the water boils or if it operates dry.

What is the power of the appliance?

The power is 2200 watts, allowing for rapid boiling of water.

Is the power cord detachable?

Yes, the cord stores in the base. The kettle is cordless when lifted from the base.

How do I clean the exterior?

Wipe with a damp cloth and mild detergent. Do not use abrasive products.

Where can I find spare parts?

Contact Princess customer service or visit their website to order parts such as the filter or base.

USER MANUAL 232157 PRINCESS

Silver Waterkettle Wave Article 232157/232164

Illustration of a modern electric kettle with handle and front panel (no text or symbols)

• Gebruiksaanwijzing • User's instructions • Mode d'emploi
• Bedienungsanleitung • Instrucciones de uso • Istruzioni per l'uso
  • Bruksanvisning • Brugsanvisning • Bruksanvisning
  • Käyttöohje • Instruções de uso • المستخدم دليل

CE

Nederlands 1

English 5

Français 9

Deutsch 13

Español 17

Italiano 21

Svenska 25

Dansk 29

Norsk 33

Suomi 37

Português 41

المملكةDistanced 45

1

2

Illustration of a kettle with open lid and internal components, showing electrical plug and shield (no text or symbols)

Algemeen

This attractive Princess Silver Waterkettle Wave, one of the products in our Silver range, is constructed from sturdy plastic with a silver finish. Your kettle can boil water very quickly.

The appliance has a jug with a hinged lid, a limescale filter, and an external indication of the water level. The kettle's base is connected to a 220 - 240V mains power supply. The power cord can be stored by wrapping it around the convenient lugs on the base.

Operation and controls

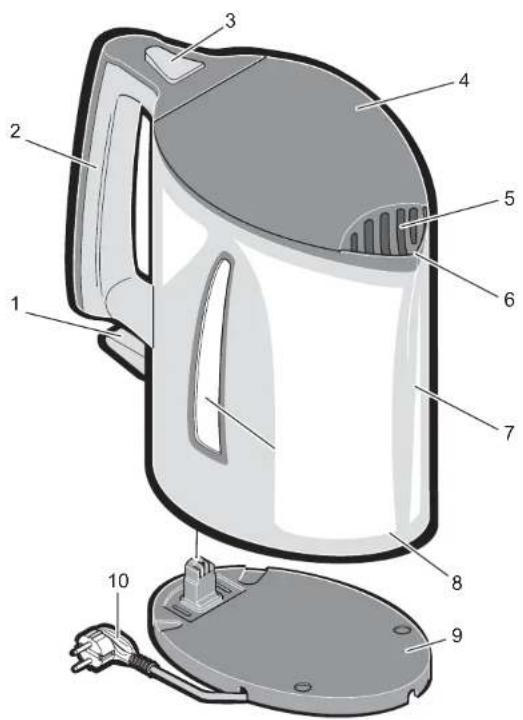

See Figure 1.

The appliance is equipped with the following features:

1 On/Off switch
2 Handle with indicator light
3 Lid release button
4 Cover
5 Descaling filter (detachable)
6 Spout
7 Jug
8 Water-level indicator
9 Base
10 Power cord and plug

Before use for the first time

1 Take the appliance out of the packaging.
2 Boil a full jug of water
3 Dispose of the boiled water.

Boiling water

1 Detach the jug from the base.
2 See Figure 2. Press the release button to open the lid.
3 Fill the jug with the required amount of water. To avoid damage, fill the 1-litre kettle (article no. 232157) with a minimum of 0.5 l and a maximum of 1 l water. Fill the 2-litre kettle (article no. 232164) with a minimum of 0.5 l and a maximum of 2 l water. Make sure that you do not spill any water on the base.
4 Close the jug's lid by pressing it until it clicks into place.
5 Place the jug on the base, and insert the plug in the wall socket. Push the On/Off switch downwards (to position I) so that the indicator lamp illuminates.
6 The jug kettle is now switched on, and the water will begin to heat. The jug kettle switches off automatically a few seconds after the water has come to the boil. However, this automatic cut-out operates only when the jug's lid is closed securely. If so required, you can stop heating the water by pushing the On/Off switch upwards.
7 The indicator light extinguishes once the jug kettle is switched off.
8 A further quantity of water can be boiled once the appliance has cooled down (after about 5 minutes).
9 The kettle is fitted with a triple safeguard which prevents the kettle from producing too much steam, boiling dry, or overheating. The safeguard will switch off the jug kettle if it is operated without water. Allow the jug kettle to cool down for at least 10 minutes before using it again.

Maintenance and cleaning

• Never use harsh or corrosive cleaning agents or sharp objects (such as knives or hard brushes) when cleaning.
• Before cleaning, make sure that the appliance is not connected to the power supply and that it has cooled down.
• Never use corrosive or scouring cleaning agents or sharp objects (such as knives or hard brushes) to clean the appliance.
• Never immerse the appliance in water.
• Never put the appliance in a dishwasher.
• Make sure that no moisture can contact the appliance's electrical components.

1 Clean the exterior of the appliance with a damp cloth. Dry the exterior thoroughly.

Descaling

• Descale the appliance at regular intervals! The guarantee on the appliance does not cover problems caused by limescale.
• Never use ammonia or other products to descale the appliance. These can be injurious to your health. Use solely a vinegar solution, or special descaling agents available from retailers.

1 See Figure 2. Remove the descaling filter by unclipping it and pulling it upwards out of the interior of the jug.

2 Clean the filter under running water, or in vinegar. Never remove the filter whilst the jug is still hot.
3 Fit the descaling filter in the jug, making sure that it clicks into place.

Lime will be deposited in the appliance at a rate depending on the hardness of the water. For this reason the appliance must be descaled at regular intervals.

1 Fill the jug with a vinegar solution to the MAX level, and bring to the boil.
2 Leave the jug with the vinegar solution to stand for a couple of hours.
3 Empty the jug, fill with clean water to the MAX level, and bring to the boil. Empty the jug. Repeat this process twice.
4 Finally, rinse the jug with clean cold water to remove all scale residues and any other fouling.

Safety

General

• Please read these instructions carefully and retain them for reference.
• Use this appliance only in accordance with the instructions.
• This appliance is intended solely for domestic use.
• Keep the appliance out of the reach of children, and of persons who may not be able to operate it safely.
• Have the appliance repaired only by a qualified electrician. Never try to repair the appliance yourself.
• Use solely accessories recommended by the supplier. The use of other accessories may result in damage to the appliance, thereby creating hazards for the user.

Electricity and heat

• Verify that the mains voltage is the same as that indicated on the type plate on the appliance before use.
• Plug the appliance into an earthed wall socket.
• Always remove the plug from the socket when the appliance is not in use.
• Always remove the plug from the wall socket by pulling on the plug, not the power cord.
• Never pull on the power cable to move the appliance or remove the plug from the wall socket.
• Check the appliance's power cord regularly to make sure it is not damaged. Do not use the appliance if the power cord is damaged. Have a

damaged power cord replaced by a qualified electrician.

• Make sure that the appliance, the power cord and the plug do not come in contact with sources of heat, such as a hot hob or naked flame.
• Make sure that the appliance, the power cord and plug do not come in contact with water.
  • Take care when touching the appliance and its parts. Allow the appliance to cool down first. The appliance and its parts will become hot whilst the appliance is in use. Touch only the handle when the appliance is hot.
• The appliance needs space to allow heat to escape, thereby preventing the risk of fire. Make sure that the appliance has sufficient space around it, and does not come in contact with flammable material. The appliance must not be covered.

During use

• Never use the appliance outdoors.
• Place the appliance on a flat, stable surface where it cannot fall.
• Never allow the power cord to hang over the edge of the draining board, worktop or table.
  • Always make sure that the cord is unwound completely.
• Make sure that your hands are dry before touching the appliance, power cord or plug.
• Never use the appliance in a humid room.

• Switch off the appliance and remove the plug from the wall socket in the event of a malfunction during use, and before cleaning the appliance, fitting or removing an accessory, or storing the appliance after use.

• Use solely the base supplied with the jug kettle. Never use the base for other purposes.

• Fill the jug with water before switching on the appliance. Fill only with cold water.
• Verify that the appliance is switched off before you remove the jug from the base.
• The jug's lid must remain securely closed whilst the water boils.
• This appliance must be used solely to boil or heat water. Never use it for other liquids!
• Never fill above the maximum-level indication (maximum of 1 l water for article no. 232157, and 2 l water for article no. 232164).
• Never immerse the appliance, the plug or the power cord in water or other liquid.
• Do not pick up the appliance if it falls into water. Remove the plug from the wall socket immediately. Do not use the appliance any more.
• Clean the appliance thoroughly after use (see the ‘Cleaning and maintenance’ Section). Allow the appliance to cool to room temperature before cleaning and storing it.

U.K. WIRING INSTRUCTIONS

The wires in the mains lead are coloured in accordance with the following code:

As the colours of the wire in the mains lead of this appliance may not correspond with the colour markings identifying the terminals on your plug, proceed as follows:

• The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured black.
• The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured red.
• The wire which is coloured GREEN/YELLOW must be connected to the terminal which is marked with the letter E or (earth symbol) and is coloured GREEN or GREEN/YELLOW

WARNING: THIS APPLIANCE MUST BE EARTHED

The Environment

Dispose of packaging material, such as plastic and boxes, in the appropriate waste containers.

You should ensure for the reuse of the appliance if you wish to dispose of it whilst it is still in good working order or needs only a minor repair.

When the appliance reaches the end of its useful life it must be disposed of in a responsible manner, thereby ensuring for the reuse of (parts of) the appliance. Do not dispose of the appliance with unsorted refuse; hand it in at the store, or take it to a recognized collection point. Contact your municipality for information about the reception and collection systems in your area.

Applicable European Directive:

• 2002/95/EC
