EWA7500 - Kettle AEG - Free user manual and instructions

Product Type	Electric Kettle
Brand	AEG
Model	EWA7500
Capacity	1.7 L
Power Rating	2200-2400 W
Voltage	220-240 V, 50-60 Hz
Dimensions (approx)	22 x 22 x 25 cm
Weight (approx)	1.2 kg
Material	Stainless Steel
Base Type	360° Cordless
Heating Element	Concealed (Stainless Steel)
Auto Shut-Off	Yes, after boiling
Boil-Dry Protection	Yes
Filter	Removable, washable
Water Level Indicator	Yes, transparent
Cord Length	Approx. 70 cm
Warranty	2 years

Frequently Asked Questions - EWA7500 AEG

How do I descale the AEG EWA7500 kettle?

To descale, fill the kettle with a mixture of white vinegar and water (1:2 ratio) or use a commercial descaling product. Bring to a boil, let it sit for 30 minutes, then rinse thoroughly. Repeat if necessary.

Can I boil less than a full kettle of water?

Yes, you can boil as little as 0.5 L. The kettle has a minimum water level mark; always ensure the element is covered to avoid damage.

What safety features does the EWA7500 have?

It includes auto shut-off when boiling is complete, boil-dry protection that turns off the kettle if there is no water, and a cool-touch handle.

How do I clean the removable filter?

Rinse the filter under running water using a soft brush to remove debris. For stubborn limescale, soak in a descaling solution before rinsing.

Does the kettle have a cordless base?

Yes, it has a 360° cordless base, allowing you to lift the kettle off the base at any angle for easy pouring.

What is the warranty period for the AEG EWA7500?

The kettle comes with a 2-year warranty covering manufacturing defects. Register your product online to extend the warranty.

Can I use the kettle for making tea or coffee?

Absolutely. Boil water and use it for tea, coffee, instant soup, or baby formula. The stainless steel interior is safe for all uses.

How long does it take to boil a full kettle?

With 2200-2400W power, it takes approximately 3-4 minutes to boil 1.7 L of water, depending on starting temperature.

Is the heating element exposed?

No, the heating element is concealed beneath the floor of the kettle, making it easier to clean and reducing scale buildup.

What should I do if the kettle does not turn on?

Check that the base is plugged in, the kettle is properly seated on the base, and the on/off switch is pressed. If not working, contact AEG customer service for assistance.

USER MANUAL EWA7500 AEG

Exterior view of a modern stainless steel AEG water heater with digital display (no text or symbols on body)

WATER KETTLE ULTRASPEED EWA7500

GB Instruction book......13–17

Before using the appliance for the first time, please read the safety advice on page 14.

DG

Teile

Metallic kettle with black handle and arrow pointing to top surface (no text or symbols)

Illustration of a stainless steel kettle with paper feed and a warning symbol (no text or labels)

D

3D rendered image of a metallic kettle with lid and handle, no text or symbols visible

Metallic kettle with black handle and metallic body, connected to a small bottle (no text or symbols visible)

This page is left blank intentionally

GB

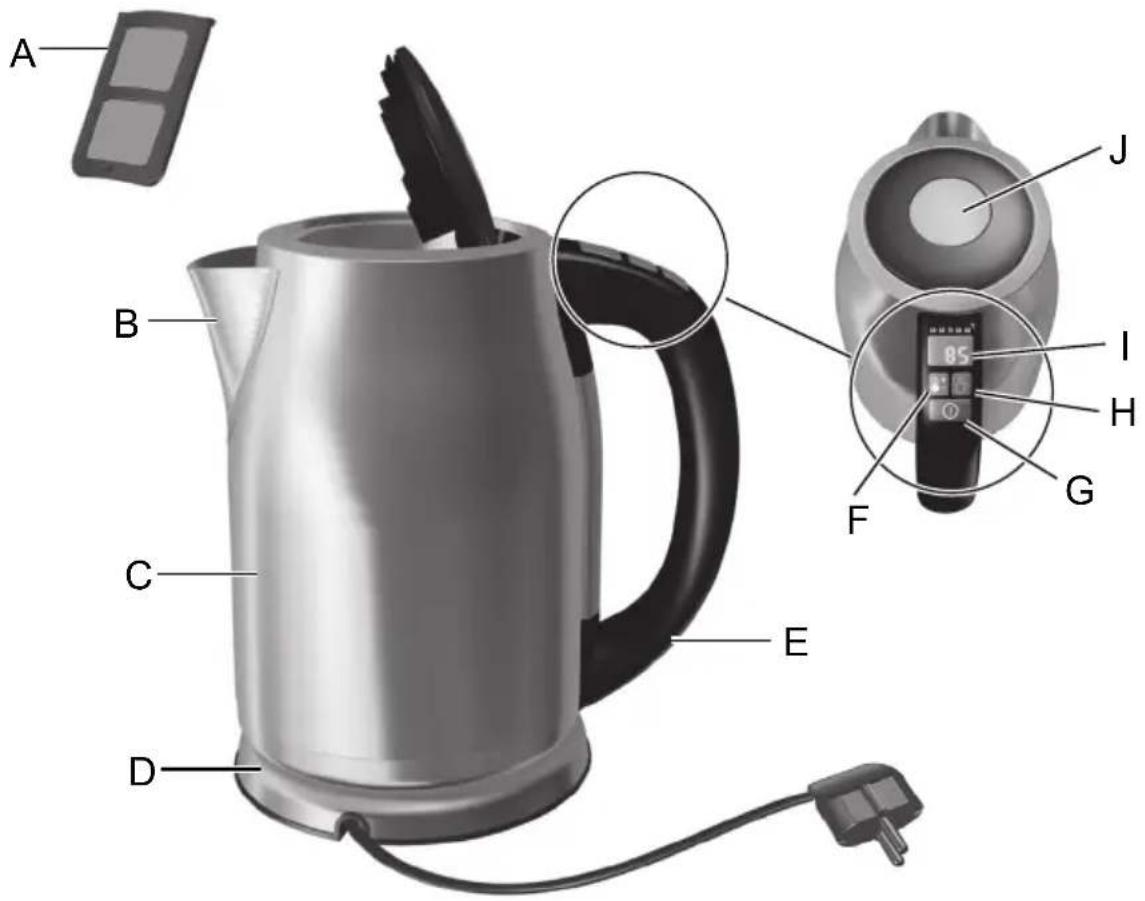

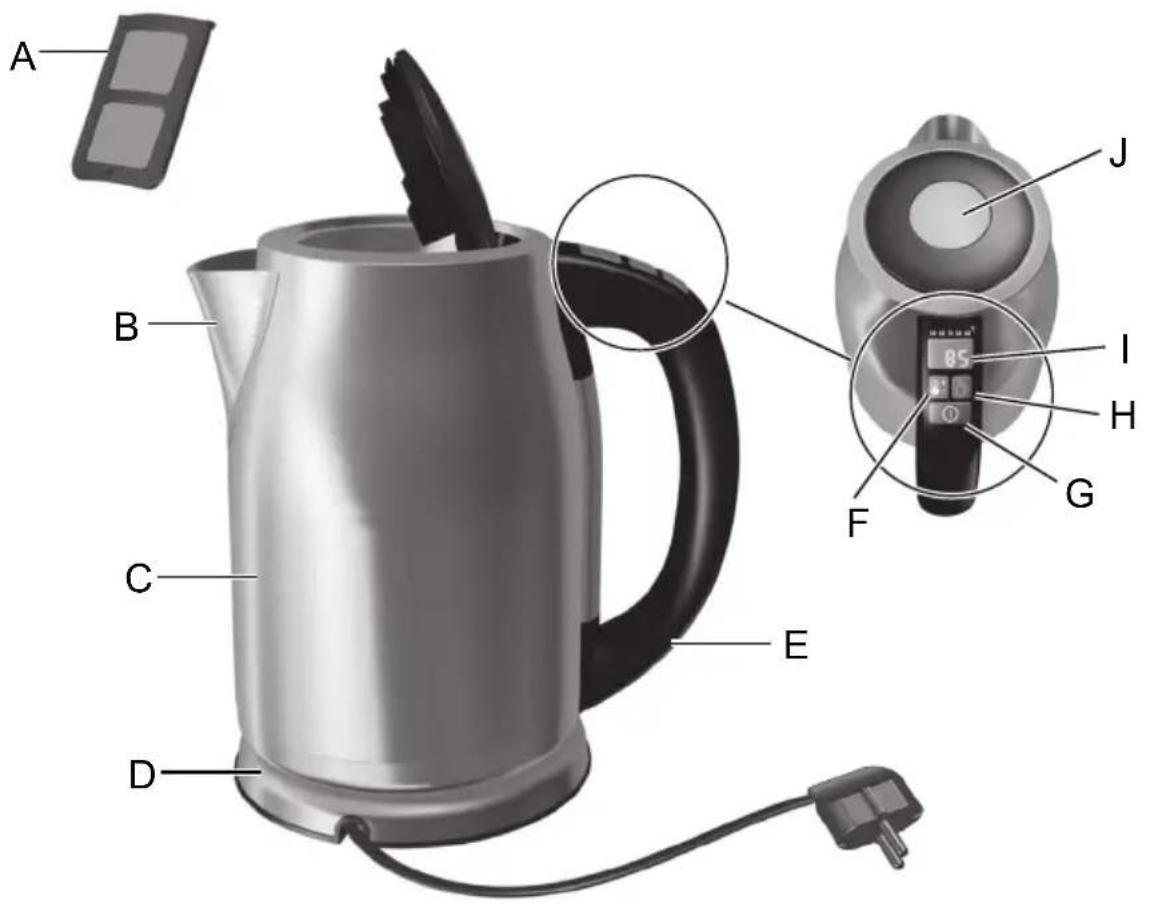

Components

A. Removable mesh filter
B. Spout
C. Jug
D. Separate base unit and mains cable
E. Handle
F. Temperature selection button
G. Power button
H. Keep warm button
I. LED display
J. Open lid button

GB

Read the following instruction carefully before using the appliance for the first time.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  • Children should be supervised to ensure that they do not play with the appliance.
• The appliance may only be connected to a power supply whose voltage and frequency comply with the specifications on the rating plate!
• Never use or pick up the appliance if
• the supply cord is damaged,
• the housing is damaged."
  • The appliance must only be connected to an earthed socket.

If necessary an extension cable suitable for 10 A can be used.

• If the appliance or the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified person, in order to avoid hazard.
  • Always place the appliance on a flat, level surface.
• The appliance must be switched off and the mains plug withdrawn before cleaning and maintenance.
• The appliance and accessories become hot during operation. Use only designated handles and knobs. Allow to cool down before cleaning or storage.
• The mains cable must not come into contact with any hot parts of the appliance.
• Do not immerse the appliance in water or any other liquid.
  ' Attention: If the kettle is overfilled there is a risk that the boiling water may spray out, which could scald or burn!

Therefore never fill the kettle above the maximum marking.

• Never operate appliance with open lid.
- Do not use or place the appliance on a hot surface or near source of heat.
• Only use the kettle for heating water!
• The kettle can only be used with the stand provided.
• Appliance is for indoor use only.
- This appliance is intended for domestic use only. The manufacturer cannot accept any liability for possible damage caused by improper or incorrect use.

Getting started

Illustration of a stainless steel kettle with a paper lid and a small cross symbol next to it, connected to a power plug (no text or symbols present)

1. Before first use, rinse the inside and wipe the outside of the kettle with a damp cloth.

1. Fill at least 0,5 L to ensure that the temperature shown on the display reliable.

Recommended temperatures:

50-60 °C for baby mixtures 80 °C for delicate teas (green/white) 90 °C for instant coffee or soup 100 °C for perfect black tea

Two metallic teapots with black handles and a white handle, separated by a diagonal line (no text or symbols visible)

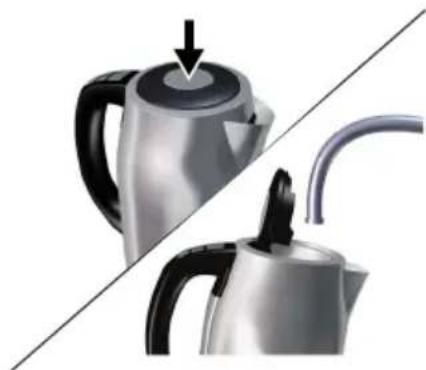

1. Press the button to open the lid, pour water into the kettle. It is also possible to fill the kettle through the spout, without opening the lid. Make sure water level is visible in the water level indicator, but not exceeding the Max. mark.

Metallic kettle with black handle and spout, no visible text or symbols

1. Close the lid and make sure that it snaps in correctly. Otherwise, the auto switch off function will not work reliably.

Place the kettle on the base.

The buzzer will buzz and the screen will indicate "0".

Illustration of a circular mechanical component connected to a power outlet (no text or symbols)

1. Place the base unit on a firm and flat surface. Plug the mains plug into a wall socket. Excess cord can be wound into the bottom of base unit.

6. To boil water:

1. Press the Power button. The screen will indicate "0" until the temperature reaches 40 °C and then will indicate current temperature. The kettle will switch off automatically when the water is boiling.

Getting started

7. To heat water to selected temperature (not boiling):

1. Press the Temperature selection button to select temperature. 2. Then press the Power button. When the selected temperature is reached, the kettle will automatically switch off.

8. To boil water then keep it warm at selected temperature:

1. Press the Keep warm button to select the keep warm temperature. 2. Then press the Power button. This function will switch off after 30 minutes. Then the buzzer will buzz.

9. To heat water to selected temperature (not boiling) and keep it warm.

1. Press the Temperature selection button to select temperature. 2. Then press the Keep warm button. 3. Then press the Power button. This function will switch off after 30 minutes. Then the buzzer will buzz.

Cleaning

Illustration of a stainless steel kettle with paper filter and a warning symbol (no text or labels)

1. Before cleaning, always unplug the appliance. Never rinse or immerse the kettle or base unit in water. Just wipe with a damp cloth, using no abrasive detergents. Occasionally rinse out the kettle with clean water.

3D rendered image of a metallic pitcher with lid and spout (no text or symbols)

1. To clean the mesh filter, grab the strainer insert and lift out.

Cleaning the heating plate – superficial spots of rust may appear on the base unit. Remove with a stainless steel cleaning agent.

Illustration of a silver and black kettle with a curved tube, accompanied by a small bottle (no text or symbols)

1. Decalcifying is recommended regularly, depending on water hardness. Fill the kettle with water and decalcifier according to decalcifier product instructions. Do not boil the solution as it may foam over. Afterwards, rinse kettle thoroughly with fresh water.

Problem Possible cause Solution
The appliance switches off before boiling. Too much lime scale at the heating element of the kettle.	Run the decalcifying procedure.
The appliance does not switch off. Close lid until it locks.	Insert the mesh filter correctly.
The appliance cannot be switched on. After operating with little or no water, the appliance has not cooled down sufficiently.	Allow to cool a short time and try again.

Disposal

Disposal

Packaging materials

The packaging materials are environmentally friendly and can be recycled. The plastic components are identified by markings, e.g. >PE<, >PS<, etc. Please dispose of the packaging materials in the appropriate container at the community waste disposal facilities.

Old appliance

The symbol — on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for

the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.
