Product Type	Electric Kettle
Brand	AEG
Model	EWA7100R
Dimensions (H x W x D)	Approx. 23 cm x 21 cm x 15 cm
Weight	Approx. 1.2 kg
Capacity	1.7 Liters
Power	2200 W
Voltage	220-240 V
Frequency	50/60 Hz
Material	Plastic body, stainless steel heating element
Cordless Design	Yes, with 360° swivel base
Heating Element	Concealed, limescale-resistant
Filter	Removable limescale filter
Water Level Indicator	Transparent window with markings
On/Off Switch	Yes, with indicator light
Auto Shut-Off	Yes, after boiling
Boil-Dry Protection	Yes
Keep Warm Function	No
Cord Length	Approx. 0.75 m
Warranty	2 years
Care Instructions	Regular descaling recommended
Spare Parts Available	Filter, base

Frequently Asked Questions - EWA7100R AEG

What is the capacity of the AEG EWA7100R kettle?

The kettle has a capacity of 1.7 liters, ideal for making multiple cups of hot beverages at once.

Does the kettle have auto shut-off?

Yes, the kettle features auto shut-off after the water reaches a rolling boil, ensuring safety and energy efficiency.

How do I descale the AEG EWA7100R kettle?

Use a descaling solution or a mixture of vinegar and water. Fill the kettle, boil, let it sit for 30 minutes, then rinse thoroughly. Repeat if necessary.

Is the kettle cordless?

Yes, the kettle is cordless and sits on a 360° swivel base for easy lifting and placement.

What is the power rating of the AEG EWA7100R?

The kettle operates at 2200 watts for fast boiling.

Does the kettle have a water level indicator?

Yes, there is a transparent window with clear markings showing the water level.

Can I use the kettle to keep water warm?

No, this model does not have a keep warm function. It switches off automatically after boiling.

What type of filter does the kettle have?

It has a removable limescale filter to capture particles for cleaner water.

What are the dimensions and weight of the kettle?

Approximate dimensions: 23 cm height, 21 cm width, 15 cm depth. Weight: 1.2 kg.

Is the kettle safe if it boils dry?

Yes, it has boil-dry protection that automatically switches off the kettle if there is not enough water.

USER MANUAL EWA7100R AEG

Black and silver AEG water heater with a handle, no visible text or symbols on the device itself.

D Anleitung....3–10

GB Instruction book....11–15

Before using the appliance for the first time, please read the safety advice on page 12 carefully.

DG

Teile

Illustration of a metallic kettle with a handle and a checkmark symbol (no text or labels)

D

Simple diagram of a circular device connected to a power outlet (no text or symbols)

1. Die Basis auf eine stabile ebene Fläche stellen. Den Netzstecker in eine Steckdose stecken. Nicht benötigtes Kabel kann an der Unterseite der Basis aufgewickelt werden.

2. Τοποθετήστε τη βάση σε μια σταθερή και επίπεδη επιφάνεια. Τοποθετήστε το φις σε μια πρίζα. Μπορείτε να τυλίξετε το καλώδιο που περισσεύει στο κάτω μέρος της βάσης.

3. Plaats de voet op een stevige en vlakke ondergrond. Steek de stekker in een stopcontact. Overtollig snoer kunt u onder aan de voet oprollen.

4. Placez le soclesur une surface plane solide. Branchez l'appareil à une prise secteur murale. Si le cordon d'alimentation est trop long, vous pouvez l'enrouler autour de la base du socle.

Illustration of a hand pouring liquid into a container with a piping (no text or symbols)

1. Die Taste zum Öffnen der Abdeckung drücken, Wasser in den Kocher füllen. Der Wasserstand soll an der Wasserstandanzeige sichtbar sein, die oberste Markierung jedoch nicht übersteigen.

2. Πιέστε το διακόπτη για να ανοίξετε το καπάκι και γεμίστε το βραστήρα με νερό. Βεβαιθείτε ότι το επίπεδο του νερού είναι ορατό στην ένδειξη της στάθμης νερού, αλλά δεν υπερβαίνει την ένδειξη Μαχ.

3. Druk op de knop om het deksel te openenen giet water in de waterkoker. Zorg ervoor dat het waterpeil binnen de waterniveau-aanduidingen blijft, en niet boven de aanduiding Max. uitkomt.

4. Pour ouvrir le couvercle, appuyez sur le bouton, puis versez de l'eau dans la bouilloire. Assurez-vous que l'indicateur de niveau d'eau soit visible, afin de ne pas dépasser le repère Max.

Close-up of a metallic kettle and its lid with a magnified inset showing the lid's opening (no text or symbols visible)

1. Die Abdeckung schließen und sicherstellen, dass sie einrastet. Andernfalls funktioniert die automatische Abschaltung nicht zuverlässig. Den Wasserkocher auf die Basis setzen. Den EIN/AUS-Schalter herunterdrücken; die Anzeige leuchtet auf und der Wasserkocher beginnt mit dem Erhitzen.

2. Κλείστε το καπάκι και βεβαιωθείτε ότι κλειδώνει κανονικά. Διαφορετικά, η λειτουργία αυτόματης απενεργοποίησης δεν θα λειτουργεί κανονικά. Τοποθετήστε το βραστήρα στη βάση. Πιέστε τον διακόπτη ΟΝ/ΟFF (ΕΝΕΡΓΟΠΟΙΗΣΗ/ΑΠΕΝΕΡΓΟΠΟΙΗΣΗ). Η ενδεικτική λυχνία θα ανάψει και ο βραστήρας θα αρχίσει να ζεσταίνεται.

3. Sluit de klep zodat deze goed vastklikt. Anders werkt de functie voor automatisch uitschakelen niet goed. Plaats de waterkoker op de voet. Druk de AAN/UIT-schakelaar naar beneden; het indicatielampje gaat branden en de waterkoker wordt opgewarmd.

4. Fermez le couvercle et assurez-vousqu'il soit fermé correctement. Si le couvercle est mal enclenché, l'arrêt automatique ne fonctionnera pas correctement. Placez la bouilloire sur son socle. Appuyez sur l'interrupteur marche/arrêt ; le voyant s'allume et la bouilloire commence à chauffer.

Illustration of a metallic kettle with a base, showing a close-up of its lid and a magnified view of its tip (no text or symbols)

Illustration of a metallic kettle with a handle and a checkmark symbol (no text or labels)

D

Exterior view of a modern stainless steel kettle with a handle and spout (no text or symbols visible)

Metallic kettle with a spoon lifting it, no visible text or symbols

1. Je nach Wasserhärte sollte das Gerät regelmäßig entkalkt werden. Den Wasserkocher der Produktanleitung entsprechend mit Wasser und Entkalker füllen. Die Lösung nicht kochen lassen, da sie überschäumen könnte. Danach den Wasserkocher gründlich mit frischem Wasser ausspülen.

2. Η αφαλάτωση συνίσταται τακτικά, ανάλογα με τη σκληρότητα του νερού. Γεμίστε το βραστήρα με νερό και αποσκληρυντικό σύμφωνα με τις οδηγίες χρήσης του αποσκληρυντικού. Μη βράζετε το διάλυμα γιατί μπορεί να ξεχειλίσει. Στη συνέχειαξεπλύνετε καλά το βραστήρα με τρεχούμενο νερό.

3. Ontkalken doet u bij voorkeur regelmatig, afhankelijk van de hardheid van het water. Vul de waterkoker met water en ontkalker, volgens de gebruiksaanwijzing van het ontkalkingsproduct. Laat de oplossing niet koken, aangezien deze kan gaan schuimen. Naderhandspoelt u de waterkoker grondig na met schoon water.

4. Il est recommandé il est recommandé de procéder à un détartrage régulier en fonction de la dureté de l'eau. Remplissez la bouilloire d'eau et de détartrant en respectant les consignes d'utilisation du produit détartrant. Ne laissez pas bouillir la solution, car la mousse formée pourrait déborder. Puis,, rincez soigneusement l'intérieur de la bouilloire à l'eau claire.

GB

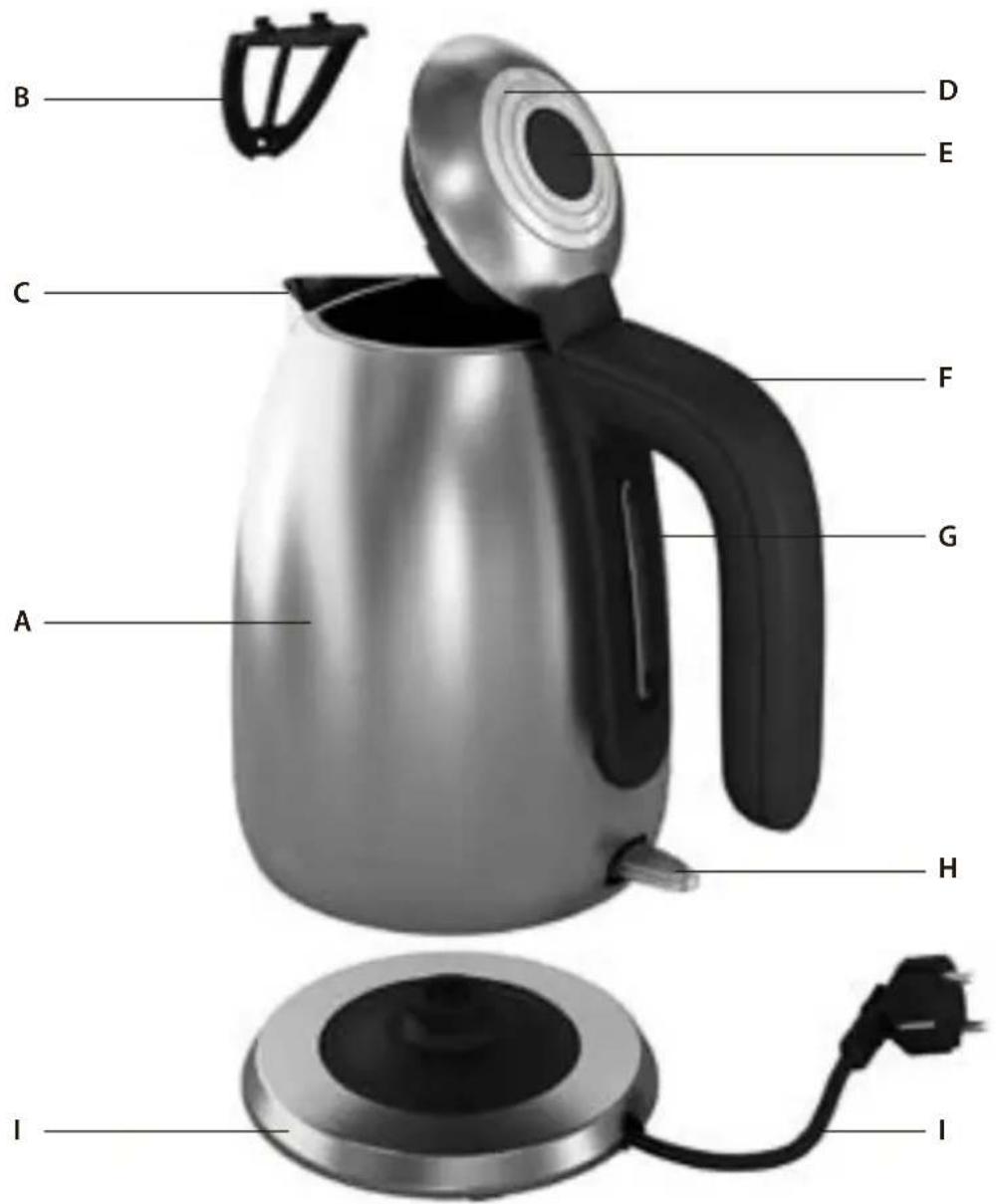

Components

A. Jug
B. Removable mesh filter
C. Spout
D. Lid
E. Opening lid button
F. Handle
G. Water level indicator
H. ON/OFF switch
I. Separate base and mains cable

Read the following instruction carefully before using the appliance for the first time.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  • Children should be supervised to ensure that they do not play with the appliance.
• The appliance may only be connected to a power supply whose voltage and frequency comply with the specifications on the rating plate!
• Never use or pick up the appliance if – the supply cord is damaged, – the housing is damaged."
• The appliance must only be connected to an earthed socket. If necessary an extension cable suitable for 10 A can be used.
• If the appliance or the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified person, in order to avoid hazard.

• Always place the appliance on a flat, level surface.
- The appliance must be switched off and the mains plug withdrawn before cleaning and maintenance.
- The appliance and accessories become hot during operation. Use only designated handles and knobs. Allow to cool down before cleaning or storage.
- The mains cable must not come into contact with any hot parts of the appliance.
- Do not immerse the appliance in water or any other liquid.
' Attention: If the kettle is overfilled there is a risk that the boiling water may spray out, which could scald or burn! Therefore never fill the kettle above the maximum marking.
- Never operate appliance with open lid.
- Do not use or place the appliance on a hot surface or near source of heat.
• Only use the kettle for heating water!
- The kettle can only be used with the stand provided.
• Appliance is for indoor use only.

- This appliance is intended for domestic use only. The manufacturer cannot accept any liability for possible damage caused by improper or incorrect use.

GB

Illustration of a metallic kettle with a handle and a checkmark symbol (no text or labels)

1. Before first use, wipe the inside and outside of the kettle with a damp cloth.

Simple diagram of a circular device connected to a wall-mounted power outlet (no text or symbols)

1. Place the base unit on a firm and flat surface. Plug the mains plug into a wall socket. Redundant cord can be wound up at the bottom of base unit.

Illustration of a stainless steel pitcher with a piping and valve, no text or symbols present

1. Press the button to open the lid, pour water into the kettle. Make sure water level is visible in the water level indicator, but not exceeding the Max. mark.

Illustration of a kettle and its lid with a magnified inset showing the lid's internal structure (no text or symbols)

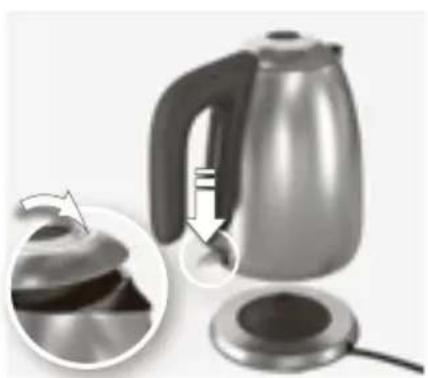

1. Close the lid and make sure it snaps in correctly. Otherwise the auto switch off function will not work reliably. Place the kettle onto the base. Press down the ON/OFF switch; the indicator light will illuminate and the kettle will start to heat up.

Illustration of a metallic kettle with a base, showing a close-up of its lid and a magnified view of its tip (no text or symbols)

1. The automatic switch off function. When the water has boiled or the kettle is moved from the base, it will switch off automatically. If you wish to stop the heating process before the water is boiling, simply lift up the ON/OFF switch to the OFF position.

Cleaning

Illustration of a kettle with a cloth cover and a warning symbol (no text or labels)

1. Before cleaning, always unplug the appliance. Never rinse or immerse the kettle or base unit in water. Just wipe with a damp cloth, using no abrasive detergents. Occasionally rinse out the kettle with clean water.

Metallic kettle with handle and spout, no visible text or symbols

1. To clean the mesh filter, grab the strainer insert and lift out. Cleaning the heating plate – superficial spots of rust may appear on the heating plate. Remove with a stainless steel cleaning agent.

Illustration of a stainless steel kettle with a handle and spout, no text or symbols present

1. Decalcifying is recommended regularly, depending on water hardness. Fill the kettle with water and decalcifier according to decalcifier product instructions. Do not boil the solution as it could foam over. Afterwards, rinse kettle thoroughly with fresh water.

Troubleshooting

Problem Possible cause Solution
The appliance switches off before boiling. Too much lime scale at the heating element of the kettle.	Run the decalcifying procedure.
The appliance does not switch off. Close lid until it locks.
	Instert the strainer correctly.
The appliance cannot be switched on. After operating with little or no water, the appliance has not cooled down sufficiently.	Allow to cool a short time and try again.

Disposal

Packaging materials

The packaging materials are environmentally friendly and can be recycled. The plastic components are identified by markings, e.g. >PE<, >PS<, etc. Please dispose the packaging materials in the appropriate container at the community waste disposal facilities.

Old appliance

The symbol 📄 on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health,

which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.
