Pocket Meal - High chair CHICCO - Free user manual and instructions

Brand	Chicco
Model	Pocket Meal
Product Type	Portable and foldable high chair
Category	Travel high chair
Dimensions (unfolded)	Approximately 40 x 40 x 30 cm
Weight	Approximately 2.5 kg
Maximum supported weight	15 kg
Recommended age	6 to 36 months
Materials	Reinforced plastic, metal, polyester fabric
Harness system	3-point safety harness
Main features	Foldable, portable, height adjustable, seat recline
Power supply	None (mechanical product)
Care and cleaning	Clean with a damp cloth and mild soap; do not immerse
Safety	Complies with EN 14988 standards; 3-point harness, tested stability
Spare parts and repairability	Spare parts available through customer service; repair possible by authorized center
Warranty	2 years (according to applicable legislation)
Included accessories	Carry bag, removable tray, harness

Frequently Asked Questions - Pocket Meal CHICCO

How to assemble the Pocket Meal high chair?

Unfold the metal frame until you hear a click, then attach the tray by snapping it onto the sides. Attach the safety harness following the diagram in the manual.

What is the maximum supported weight?

The recommended maximum weight is 15 kg, or about 3 years.

How to clean the high chair?

Use a damp cloth with mild soap. The fabric can be hand washed at 30°C. Do not use abrasive products or bleach.

Is the chair suitable for 6-month-old babies?

Yes, as soon as the child can sit up, from 6 months. Always use the safety harness.

Can I take the Pocket Meal on trips?

Absolutely, it folds easily and fits into the included carry bag. Lightweight at 2.5 kg.

How to adjust the height?

Press the side buttons on the frame to adjust the height to several levels. Make sure the buttons click into place correctly.

Is the tray removable?

Yes, the tray is removed by pressing the two buttons underneath. It is dishwasher safe (top rack).

Where can I find spare parts?

Contact Chicco customer service or visit their website. Common parts like the harness or tray are available.

Is the chair stable on all surfaces?

Yes, non-slip feet ensure good stability on flat surfaces. Do not use on an inclined floor.

What is the warranty?

The legal warranty is 2 years. Keep the proof of purchase for any claims.

USER MANUAL Pocket Meal CHICCO

Illustration of a baby boom chair with infant seat and backpack (no text or symbols)

E
P

F
Q

Illustration of a medical device with two blue tubing and a central rectangular frame (no text or symbols)

Illustration of hands adjusting a medical device with a blue bandage (no text or symbols visible)

Illustration of a blue V-shaped harness with straps, no text or symbols present

Illustration of a hand operating a mechanical device with a red arrow indicating motion (no text or symbols present)

Illustration of a hand using a seatbelt device to lift a seatbelt, with no visible text or symbols.

Illustration of a person using a folding chair with visible seat and legs (no text or symbols)

Illustration of a hand operating a mechanical device with a red arrow indicating the lever (no text or symbols present)

Illustration of a hand operating a small bicycle seat mounted on a tripod, with a red circular arrow indicating rotation (no text or symbols)

Illustration of a blue and purple folding tool with a handle, no text or symbols present

Illustration of a blue and purple mechanical device with a red circular indicator (no text or symbols)

POCKET MEAL

AVVISO IMPORTANTE IMPORTANTE - CON- SERVARE QUESTE ISTRUZIONI PER RI- FERIMENTI FUTURI.

ATTENZIONE: PER EVITARE RISCHI DI SOFFOCAMENTO, RIMUOVERE I SACCHETTI PLASTICI PRIMA DELL'USO DI QUESTO PRODOTTO. QUESTI SACCHETTI DEVONO ESSERE DI-STRUTTI O TENUTI LONTANI DA NEONATI E BAMBINI.

AVVERTENZE

IMPORTANT WARNING IMPORTANT - KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE.

WARNING: TO AVOID DANGER OF SUFFOCATION REMOVE PLASTIC COVERS BEFORE USING THIS AR- TICLE. THIS COVER SHALL BE DE- STROYED OR KEPT AWAY FROM BA- BIES AND CHILDREN.

WARNINGS

• WARNING: Do not leave the child unattended.
• WARNING: Make sure that any harness is correctly fitted before use.
• WARNING: Risk of falling: do not allow your child to climb the highchair.
• WARNING: Do not use the high chair unless all components are correctly fitted and adjusted.
• WARNING: Be aware of the risk of open fire and other sources of strong heat, such as electric bar fires, gas fires etc. in the near vicinity of the high chair.
• WARNING: Do not position the highchair in a place where your child is able to use their feet to push against the table or any other structure that may cause the high-chair to fall over.
• WARNING: Always use the restraint systems.
  • WARNING: Always check the se-

curity and the stability of the high-chair before using.

• WARNING: Ensure that all safety devices are fitted and working correctly before using. In particular, make sure that the highchair is locked in the open position.
• Do not use the highchair until the child can sit up unaided.
• This highchair is intended for use by children aged between 6 months and 36 months and up to 15 kg.
• Do not use the highchair if any part is broken, torn or missing.
• Before assembly, check that neither the product nor any of its components have been damaged during transportation. In this case, do not use and keep out of the reach of children.
• The highchair must only be opened, adjusted and closed by an adult.
  • Make sure that the person using the highchair knows exactly how it functions.
  • Make sure that during adjustment operations (tilting the backrest, adjusting the tray) the movable parts of the highchair do not come into contact with your child.
• The use of the safety harness with fabric crotch strap correctly fastened to the seat and with rigid crotch bar is necessary to ensure the safety of your child when the chair is used as a highchair.
• The tray alone does nor guarantee the safety of your child. Always use the safety harness.
• Do not allow other children to play unsupervised near the highchair, or to climb onto it.
  • Do not use the highchair for more

than one child at a time.

• Do not place the highchair near windows or walls where cords, curtains or other objects may be used by the child to climb out of the high chair or could represent choking or strangling hazards.
• Do not place the highchair near windows or walls also to prevent your child from affecting the stability of the highchair by pushing their feet against the wall and causing it to topple over.
  • Always place the highchair on a horizontal, stable surface when the child is seated in it. Never place the highchair near stairs or steps or on carpets.
• Bags or weights must not be placed on the tray or hung on the high chair frame as they might affect the stability of the high chair.
• If the highchair is exposed to direct sunlight for a long time, allow it to cool down before placing your child in it.
• Do not leave the highchair in the sun for a long time: this may alter the colour of the materials and fabric.
• Do not use components, replacement parts or accessories that have not been supplied or approved by the manufacturer.
• Do not open or close the highchair when your child is sitting in it.
• WARNING: Do up all 5 buttons on the frame before using the highchair.
• When not in use, the highchair must be kept out of the reach of children.

COMPONENTS

A. Backrest
B. Seat
C. Armrests

D. Side joint
E. Cover attachment buttons
F. Highchair Frame
G. Rear backrest adjustment lever
H. Carry handle
I. Side release button
J. Cover
K. Safety harness holes
L. Tray
M. Rigid crotch strap
N. Handle for securing the tray
O. Guides for fitting the tray
P. Footrest
Q. Legs
R. Safety harness
S. Fabric crotch strap

INSTRUCTIONS

ASSEMBLING/OPENING HIGHCHAIR

WARNING: When performing this operation, ensure that your child, or other children, are at a safe distance. Make sure that during these operations the movable parts of the highchair do not come into contact with your child.

Before using the highchair:

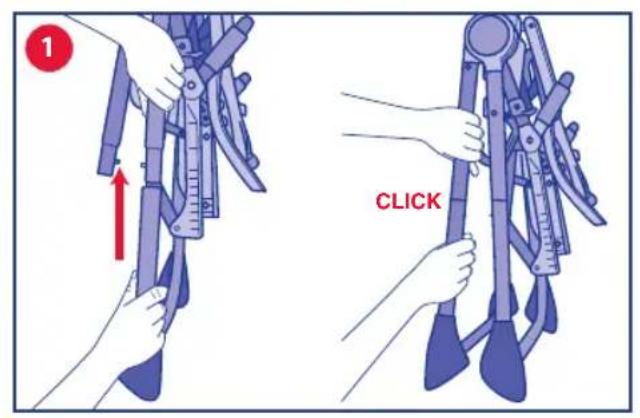

1. Attach legs "Q" to the frame of the highchair as shown in Figure 1.

WARNING: Do not use the highchair until the legs have been assembled.

WARNING: The front and back legs are interchangeable but for best results match the colour of the legs with that of the structure above.

Assemble the legs by holding down the two locking buttons and inserting the legs in the frame. The parts are correctly assembled only when the two locking buttons come out from the holes on the legs and an audible click is heard, signalling that the legs are securely fitted.

1. Open the highchair holding the top of backrest "A" and turn anti-clockwise pulling it upwards until an audible click is heard, signalling that the high chair is open (Fig.2).
2. After undoing safety harness "R", attach cover "J" to the frame of highchair "F" passing the safety harnesses through the dedicated holes (Fig.3).
   WARNING: Never use the highchair without its cover.

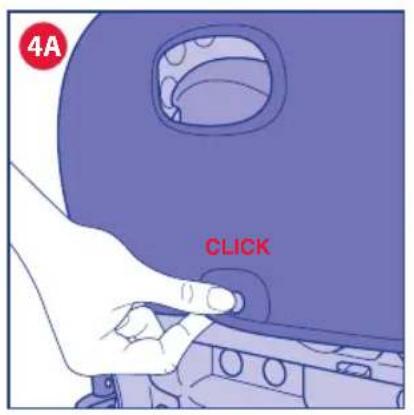

3. Then attach the cover to the frame using the special buttons "E" on the armrests "C" and on the back of the back-rest (Fig.4-4a).

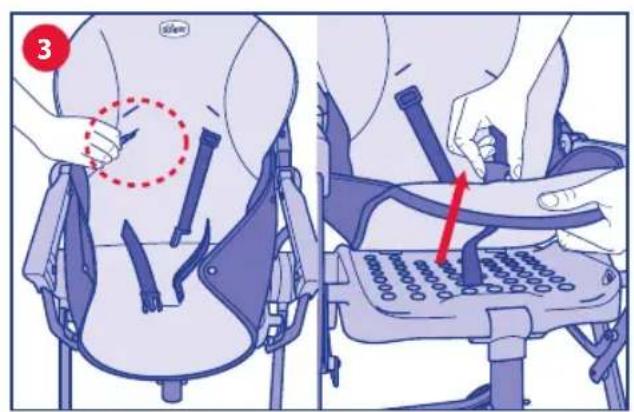

4. Pass crotch strap "S" through the dedicated hole (Fig.3).

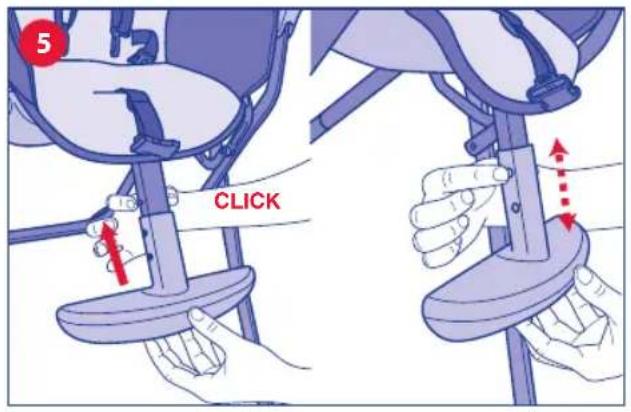

5. Insert footrest "P" in the frame holding down the two locking buttons on the ends of the footrest and sliding it into the frame. The parts are correctly assembled only when the two locking buttons come out from the holes on the frame and an audible click is heard, signalling that it is securely fitted.
   The footrest can be set to two different levels in order to adjust it to the height of your child. To select the desired height press on the locking buttons at the side, as when inserting the footrest, and slide the footrest into the desired position. When releasing, make sure you hear the click, indicating that it is securely in place (Fig.5).

The highchair can now be used by your child.

WARNING: Never move the highchair with your child seated in it.

COVER

The cover of the highchair is padded, removable and washable. If you want to remove the highchair cover follow the instructions in the paragraph "TIPS FOR CLEANING AND MAINTENANCE".

WARNING: Never use the highchair without its cover.

TIPS FOR CLEANING AND MAINTENANCE

Cleaning and maintenance operations must only be carried out by an adult.

CLEANING

Clean the cover with a soft cloth soaked in water or a neutral detergent. To remove the highchair cover release the 4 side buttons "E", of which there are two on each armrest (Fig.4), and the rear button under the backrest adjustment lever. Undo the safety harness and the fabric crotch strap and pull them out from the cover passing them through the holes. Repeat these steps in reverse order to replace the cover on the highchair.

Clean the plastic parts with a soft cloth soaked in water.

Never wash the tray in the dishwasher.

Never use abrasive detergents or solvents.

If the highchair comes into contact with water, dry the metal parts to prevent rust from forming.

MAINTENANCE

Keep the highchair in a dry place. If necessary, lubricate the moving parts with dry silicone lubricant.

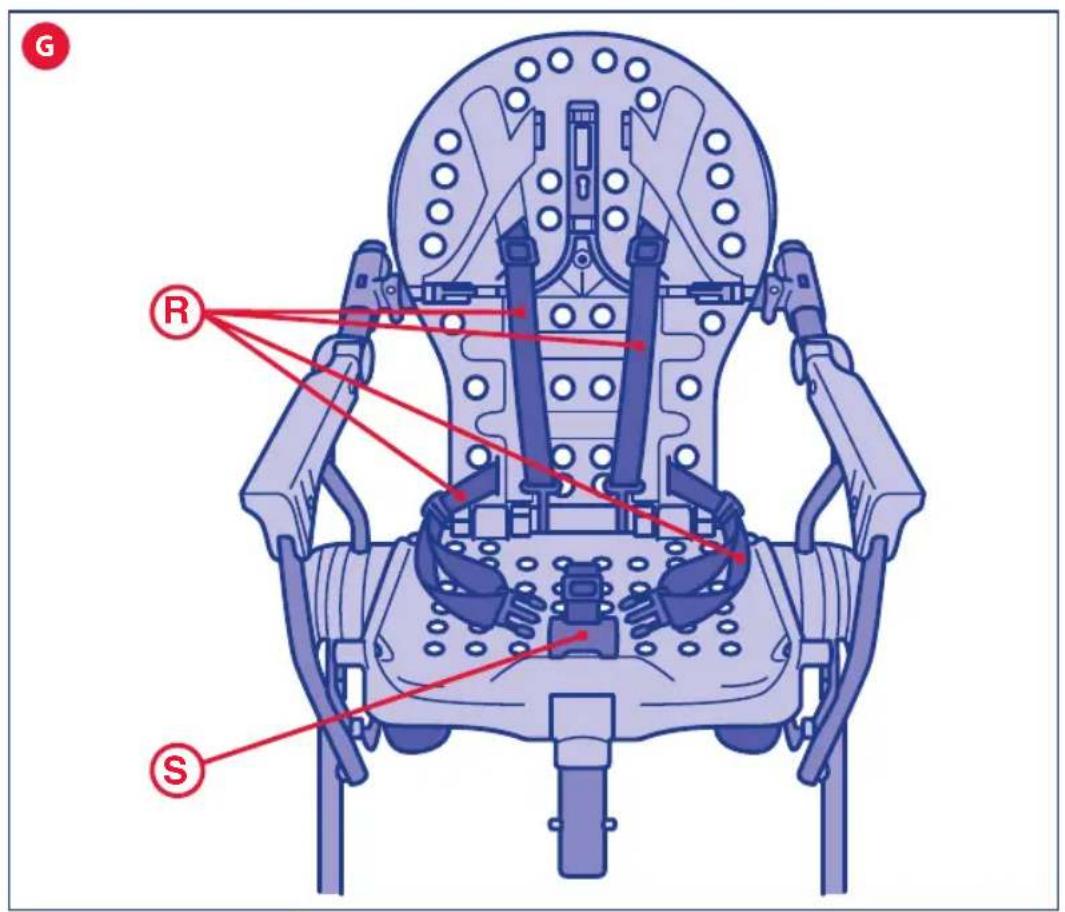

SAFETY HARNESS

The highchair has a 5-point safety harness.

Release the safety harness straps "R" as indicated in figure 6. Place the child on the highchair fastening them in with safety harness "R" (Fig. 7).

The safety harness can be adjusted to two height positions. Remove the highchair cover following the instructions in the paragraph "TIPS FOR CLEANING AND MAINTE-

NANCE", move the safety harness to the desired height, passing it through the holes "K" on the backrest (Fig. 3), and replace the cover on the backrest. The safety harness straps must be positioned in the holes at the same height and not at different heights.

WARNING: The use of the safety harness with fabric crotch strap is essential to guarantee the safety of your child.

WARNING: the tray alone does not guarantee the safety of your child. Always use the safety harness!

POSITIONING/ADJUSTING TRAY

Before using tray "L" attach rigid crotch strap "M" to the bottom of the tray.

WARNING:

IMPORTANT FOR THE SAFETY OF YOUR CHILD

- Never place the tray on the highchair without having first attached the rigid crotch strap to it. Once assembled it must not be removed.

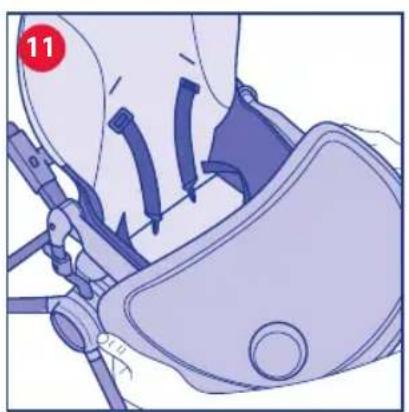

The tray can be adjusted to 3 positions.

Holding the tray, pull the handles away from the tray (Fig. 10). Position the tray on the frame inserting the armrest in the guides "O" (Fig. 11).

The 3 positions in which the tray can be fixed are indicated

by the corresponding symbols on the armrests. Adjust the tray until it is in the desired position and release the handles. If the tray is not automatically locked on the armrests, slightly move the tray until a double click is heard, indicating that the tray is locked.

WARNING: Always check that the tray is correctly fastened to the armrests before using (Fig. 12).

WARNING: Never leave the tray fitted in a position in which the danger signs are visible on the armrests: It is NOT safe! (see Fig. 12).

To remove the tray, pull the two handles away from the tray and lift it.

ADJUSTING THE ANGLE OF THE BACKREST

The backrest of the highchair can be reclined in 3 positions. To adjust the angle of the backrest push lever "G" on the back upwards, recline the backrest to the desired position and release the button. The backrest will automatically lock in place and a click will be heard indicating that it is correctly fastened. This operation can also be performed with the child in the highchair but may be more difficult (Fig. 14).

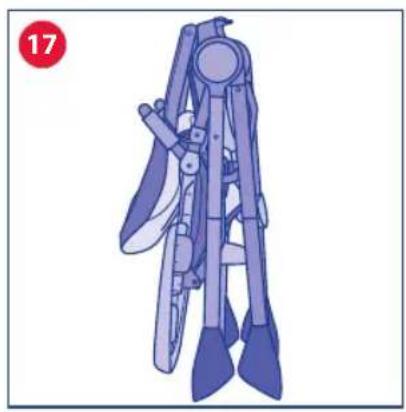

CLOSING THE HIGHCHAIR

WARNING: When performing this operation, ensure that your child, or other children, are at a safe distance. Make sure that during these operations the movable parts of the highchair do not come into contact with your child.

After placing the backrest in the vertical position, push the two buttons "I" at the side of the frame and lift upwards at the same time (Fig.15). Once the closing mechanism has been unblocked, tilt the frame slightly forwards and hold the top of the backrest, rotating it forwards until the high-chair is completely closed, as in Figures 16-17.

When closed, the highchair stands on its own. The previously described steps for closing the high chair can be carried out without removing the tray.

WARRANTY

The product is guaranteed against any conformity defect in normal conditions of use as provided for by the instructions for use. The warranty shall not therefore apply in the case of damages caused by improper use, wear or accidental events. For the duration of warranty on conformity defects please refer to the specific provisions of national laws applicable in the country of purchase, where provided.
