Brand	Salora
Model	40LED9112CSW
Product type	LED TV
Screen size	40 inches (101.6 cm)
Resolution	1920 x 1080 pixels (Full HD)
Refresh rate	60 Hz
Dimensions (without stand)	Approx. 90 x 52 x 8 cm
Dimensions (with stand)	Approx. 90 x 56 x 22 cm
Weight (without stand)	Approx. 7.5 kg
Weight (with stand)	Approx. 8.2 kg
Power supply	220-240 V ~ 50/60 Hz
Power consumption (standby)	Less than 0.5 W
Main functions	Digital TV (DVB-T/T2/C/S2), USB multimedia, HDMI, CI+, built-in speakers, teletext
Care and cleaning	Unplug before cleaning. Use a soft, dry cloth. Avoid abrasive products.
Safety	Do not expose to rain or moisture. Use a stable installation. Adequate ventilation.
Spare parts and repairability	Remote control, stand, screws provided. Spare parts available from after-sales service. Repairability index not specified.
General information	2-year warranty. Full manual available as PDF. Made in China.

Frequently Asked Questions - 40LED9112CSW SALORA

How to connect an antenna to this TV?

Plug the antenna cable into the ANT IN (DVB-T/T2) connector or into the SAT (DVB-S2) input depending on the signal type. Use an adapter if necessary.

The TV does not turn on, what should I do?

Check that the power cord is plugged in and the outlet works. Press the Standby button on the remote control or on the TV. If nothing happens, contact after-sales service.

How to switch between HDMI sources?

Press the Source button on the remote control. Use the arrows to select the desired HDMI input (HDMI1, HDMI2, etc.), then press OK to confirm.

Can I mount my TV on the wall?

Yes, this model is VESA 200x200 compatible. Use a suitable wall mount to avoid any risk of falling. Screws are not provided.

How to clean the LED screen?

Unplug the TV. Use a slightly damp microfiber cloth (water only). Wipe gently without pressing. Never use chemical products.

What to do if the remote control does not work?

Check the batteries (type AAA) and their polarity. Replace them if necessary. Point the remote control towards the TV's IR sensor. If the problem persists, use the buttons on the device.

Sound is low or distorted: how to improve?

Access the Sound menu via the Menu button on the remote control. Adjust the modes (Standard, Cinema, Music) or the equalizer. Check the distance of the speakers.

How to update the TV software?

Download the update file from the official Salora website onto a USB key. Plug it into the TV's USB port. Go to Menu > Support > Software update and follow the instructions.

The TV displays 'No signal': what to check?

Check that the selected source matches the input used (HDMI, antenna, etc.). Make sure the cable is properly connected and the source device is on. Perform a channel search via the Installation menu.

Can I plug headphones into this TV?

Yes, there is a headphone jack (3.5 mm) on the side or back. Plug in your headphones and the speaker sound will be cut off automatically.

USER MANUAL 40LED9112CSW SALORA

Close-up of a black battery casing with a white arrow pointing to its side (no text or symbols visible)

Sluit de stroom aan

Melding

ERKENNING VAN HANDELSMERK

Opmerking over PIP-venster

Security instructions 48

Please read all the instructions before

installation or operation. 49

Getting started 50

Notifications & Characteristics & Accessories .....50

Functions....50

Connecting the power cord ....51

Remote control 53

Connections....54

Turning the TV on/off 55

First time installation....55

Reading media through the USB input 55

Media browser menu 56

Quick Menu 56

Options and functions of the TV menu ....57

Channel list 60

Use of the channel list 60

Setting of parental control settings 60

Electronic Program Guide (EPG) 60

Connectivity Functions ....60

Connectivity Troubleshooting 62

WIRELESS DISPLAY 63

Software update 63

Troubleshooting and tips 64

Typical PC Input Display Modes 66

AV and HDMI Signal Compatibility 66

Security instructions

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

WARNING : TO AVOID THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER. NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

To operate your TV in extreme ambient conditions may cause the damage of the device.

In case of storm or lightening, or if you are not going to use the TV for some time, (during holidays for example) disconnect the power cord from the wall outlet. The electricity plug is used to disconnect the television from the main power and should therefore always be easy to operate.

The exclamation mark inside the equilateral triangle is used in the documentation provided with this device, to indicate to users instructions that are important for the proper operation and maintenance of the device.

Note : Please follow the instructions that appear on your screen concerning the activation of related functionalities.

Please read all the instructions pre installation or operation.

WARNING: Never let people (including dren) with reduced physical, sensory or tal capabilities or lack of experience and / or wledge use electrical devices unsupervised.

- For ventilation purposes, leave a free space of at least 10 cm all around the set.

- Do not block ventilation holes.

- Do not place the TV on sloping or unstable surfaces, the TV may tip over.

- Use this device in moderate climates.

- The power cord plug should be easily accessible. Do not place the TV, furniture, etc. on the power cord. A damaged power cord/plug can cause fire or give you an electric shock. Handle the power cord by the plug, do not unplug the TV by pulling the power cord. Never touch the power cord/plug with wet hands as this could cause a short circuit or electric shock. Never make a knot in the power cord or tie it with other cords. When damaged it must be replaced, this should only be done by qualified personnel.

- Do not use this TV in a humid or damp environment. Do not expose the TV to liquids. In case the cabinet contacts any liquids unplug the TV immediately and have it checked by qualified personnel before operating it any further.

- Do not expose the TV to direct sunlight, open flames or place it near intense heat sources such as electric heaters.

- Listening in excessive volumes from earphones and headphones may cause hearing loss.

- Ensure that no open flame sources, such as lit candles, are placed on top of the TV.

- To prevent injuries, this TV must be securely attached to a wall by carefully following the instructions (if the option is available).

- Occasionally, a few non-active pixels may appear on the screen as a fixed blue, green or red point. Please note that this does not affect the performance of your product. Take care not to scratch the screen with fingernails or other hard objects. - Before cleaning, unplug the TV from the wall socket. Only use a soft, dry cloth while cleaning.

Warning	Serious injury or death risk
Risk of electric shock	Dangerous voltage risk
Caution	Injury or property damage risk
Important	Operating the system correctly
Notice	Additional notes marked

Notifications & Characteristics & Accessories

Information relating to the environment

This television is designed to consume less power in a bid to protect the environment. In order to effectively reduce your electric energy consumption, you have to follow the steps below:

You can use the Power Save Mode setting, located in the Picture menu. If you set the Power Save Mode as Eco, the TV will switch to energy-saving mode and the luminance level of TV set will be decreased to the optimum level. Note that some picture settings will be unavailable to be changed when the TV is in Power Save Mode.

If pressed Right button, “Screen will be off in 15 seconds.” message will be displayed on the screen. Select PEED and press OK to turn the screen of immediately. If you don’t press any button, the screen will be off in 15 seconds. Press any button on the remote or on the TV to turn the screen on again. If you disable Power Save Mode, picture mode will be automatically set to Dynamic.

Turn the television of and disconnect it when not in use. This good practice will also help you to economise energy.

Standby notifications

1. If the television does not receive any incoming signal (an antenna or an HDMI source for example) for 5 minutes, it will go on standby. The next time it is turned on, the following message will appear: "TV switched to stand-by mode automatically because there was no signal for a long time". Press OK to continue.
2. If the television stays inactive for 4 hours, it will enter standby mode. The next time it is turned on, the following message will appear: "TV switched to stand-by mode automatically because no operation was made for a long time". Press OK to continue.

Functions

• Colour television with remote control.
• Digital tuner cable and High definition TNT (DVB-T/C)
• Fully integrated digital terrestrial-cable TV(DVB-T-C)
• The HDMI ports are meant for devices with HDMI plugs.
• USB ports.(with digital video tape function)
• OSD Settings Menu.
• Jack socket for external devices (video camera, video game, audio player, etc.)

• Stereo sound system.

• Teletext.

• Headphone jack.
  • Automatic settings system.
• Manual setting.
• Automatic shutdown which can be set between 2 to 6 hours maximum without using the remote control.
• Programmable shutdown.
• Parental control lock
• Automatic sound-off when there's no transmission.
• NTSC Video.
  • AVL (Automatic Volume Limitation)
• PLL Tuner (Frequency scanning).
  • PC port with Plug & Play function.

- Instant Plug&Play for Windows 98,) ME, 2000, XP, Vista.

• Gaming mode (optional)

- Ethernet (LAN) for Internet connectivity and service

• 802.11n WIFI Support (Optional)

• DLNA

Accessories included

• Remote control
• User manual
• Batteries:2 x AAA
• Side AV connection Cable

TV Control Switch & Operation

1. Up direction
2. Down direction
3. Volume / Info / Sources List selection and Standby-On switch
   The Control button allows you to control the Volume / Programme / Source and Standby-On functions of the TV.

To change volume: Increase the volume by pushing the button up. Decrease the volume by pushing the button down.

To change channel: Press the middle of the button, the information banner will appear on the screen. Scroll through the stored channels by pushing the button up or down.

To change source: Press the middle of the button twice (for the second time in total), the source list will appear on the screen. Scroll through the available sources by pushing the button up or down.

To turn the TV off: Press the middle of the button down and hold it down for a few seconds, the TV will turn into standby mode.

Notes:

• If you turn the TV off, this circle starts again beginning with the volume setting.
• Main menu OSD cannot be displayed via control buttons.

Operation with the Remote Control

Press the Menu button on your remote control to display the main menu screen. Use the Left or Right button to select a menu tab and press the OK to enter. Use Left / Right / Up / Down buttons to select or set an item. Press Return/Back or Menu button to quit a menu screen.

Input Selection

Once you have connected external systems to your TV, you can switch to different input sources. Press the Source button on your remote control consecutively to select the different inputs.

Changing Channels and Volume

You can change the channel and adjust the volume by using the Volume +/- and Programme +/- buttons on the remote.

Putting batteries in the remote control

Lift the cover at the back of the remote control Insert two AAAsize batteries. Make sure that the + and - ends of the batteries match the in the battery compartment (respect the right polarity). Put the cover back in place.

Close-up of a black battery with a white arrow pointing to its side (no text or symbols visible)

Connecting the power cord

IMPORTANT: This television is designed to operate solely with a 220-240V \~ 50 Hz. power supply. After taking the television out of its package, wait a bit for the TV to reach ambient temperature before connecting it to the electricity plug. Connect the power cord to the main plug.

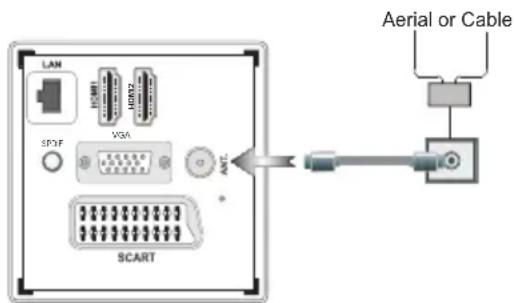

Connecting the antenna/Cable

Connect the aerial or cable TV plug to AERIAL INPUT (ANT-TV) socket located on the rear bottom side of the TV.

Notification

Manufactured under licence from Dolby Laboratories MANUFACTURED UNDER LICENCE

"Dolby" and the double D symbol are trademarks of Dolby Laboratories.

HDMI, the HDMI logo and the high definition multimedia interface are marks or registered trademarks of HDMI Licensing LLC.

“DLNA®, the DLNA Logo and DLNA CERTIFIED® are trademarks, service marks, or certification marks of the Digital Living Network Alliance.”

Information applicable to users in relation to disposal of old devices and batteries

[European Union only]

This symbol indicates that the equipment should not be disposed of as household waste. If you have to discard the TV set or the batteries, consider using collection systems or infrastructure for appropriate recycling.

Note: The Pb sign inscribed on the batteries indicates

that the battery contains lead.

Battery
Products

Technical details

TV Frequency (tuner)	VHF (BAND I/III) - UHF (BAND U) - HYPERBAND
Number of memorable channels	1000
Audio standard German	+Nicam Stereo
On screen display On Screen Display
RF Input Socket 75 Ohms (unbalanced)
Operating voltage: 220-240V ~, 50HZ
AUDIO OUTPUT POWER (WRMS.) (10% THD)	2 x 8 WRMS
Power consumption 75W (max)
TV Dimensions DxLxH (with foot)	220 x 923 x 588 mm
TV Dimensions DxLxH (without foot)	79/98 x 923 x 544 mm
Operating temperature and humidity	0°C up to 40°C, 85% humidity max

Remote control

(\*) MY BUTTON:

This button may have a default function depending on the model. However you can set a special function to this button by pressing on it for five seconds when on a desired source, channel or link. A confirmation message will be displayed on the screen. Now the MY BUTTON is associated with the selected function. Note that if you perform First Time Installation, MY BUTTON will return to its default function.

1. Standby: Switches On / Off the TV
2. TV: Displays channel list / Switches among broadcast types / Switches to TV Source
3. Volume +/-
4. Menu: Displays TV menu
5. OK: Confirms user selections, holds the page (in TXT mode), views channel list (DTV mode)
6. Back/Back: Returns to previous screen, opens index page (in TXT mode)
7. Internet: Opens the portal page, where you can reach many web based applications
8. My button (*)
9. Netflix: Launches the Netflix application.
10. Coloured Buttons: Follow the on-screen instructions for coloured button functions
11. Language: Switches between sound modes (analogue TV), displays and changes audio/subtitle language (digital TV, where available)
12. Rapid reverse: Moves frames backwards in media such as movies
13. Pause: Pauses the media being played
14. No function
15. Play: Starts to play selected media
16. Stop: Stops the media being played
17. Rapid advance: Moves frames forward in media such as movies
18. Subtitles: Turns subtitles on and off (where available)
19. Screen: Changes the aspect ratio of the screen
20. Text: Displays teletext (where available), press again to superimpose the teletext over a normal broadcast picture (mix)
21. Media browser: Opens the media browsing screen
22. EPG (Electronic programme guide): Displays the electronic programme guide
23. Exit: Closes and exits from displayed menus or returns to previous screen
24. Navigation buttons: Helps navigate menus, content etc. and displays the subpages in TXT mode when pressed Right or Left
25. Quick Menu: Displays a list of menus for quick access
26. Info: Displays information about on-screen content, shows hidden information (reveal - in TXT mode)
27. Programme +/-
28. Mute: Completely turns off the volume of the TV
29. Swap: Quickly cycles between previous and current channels or sources
30. Numeric buttons: Switches the channel, enters a number or a letter in the text box on the screen.
31. Source: Shows all available broadcast and content sources

Connections

Connector Type	Cables Device
	ScartConnection(back)
	VGACconnection(back)
SIDE AV	PC/YPbPrAudioConnection(side)	Side Audio/VideoConnection Cable (Supplied) PC Audio Cable (Not supplied)
	HDMICconnection(back)
SPDIF	SPDIF(Coaxial Out)Connection(back)
SIDE AV	Side AV(Audio/Video)Connection(side)	AV Connection Cable(supplied)
HEADPHONE	HeadphoneConnection(side)
PC to YPbPr	YPbPr VideoConnection(side)	YPbPr ConnectionCable(not supplied)
	USBConnection(side)
	CIConnection(side)		[2AXD]
LAN	ConnectionEthernet(back)	Câble LAN / Ethernet

You may use a VGA-compatible YPbPr cable (not provided) to enable the YPbPr signal via the VGA port. |You will no longer be able to use the VGA and YPbPr simultaneously. | For the YPBR or PC port, you have to connect the audio output of your device to the television's audio AV input. |When an external device is connected to the jack socket of your TV, the TV will enter AV mode automatically when you turn on the external device. |When you are in digital mode (tuner, usb, hdmi) you will not have audio-video signal output through the jack socket. |If you use a wall-mounted kit, un , it is advisable to connect all your cables before fixing your TV to the kit. |Insert or delete the CI module CI only when the television is off. Consult the module's instruction manual for more information on its settings. | Each USB input of your TV supports devices up to 500mA. Connecting devices that have current value above 500mA may damage your TV. By connecting an HDMI cable to your Sharp LCD TV, you have to use only a shielded HDMI cable to guarantee a sufficient immunity against parasitic frequency radiation.

If you want to connect a device to the TV, make sure that both the TV and the are turned off before making connection. After the connection you can turn on the units them.

First time installation - USB connections

Turning the TV on/off

To Switch the TV On

Connect the power cord to a power source such as a wall socket (220-240V AC, 50 Hz).

To switch on the TV from standby mode either:

Press the Standby button, Programme +/- or a numeric button on the remote control.

Press the side function switch on the TV until the TV comes on from standby.

To Switch the TV Off

Press the Standby button on the remote control or press the side function switch on the TV until the TV switches into standby mode.

To power down the TV completely, unplug the power cord from the mains socket.

Note: When the TV is switched into standby mode, the standby LED can blink to indicate that features such as Standby Search, Over Air Download or Timer is active. The LED can also blink when you switch on the TV from standby mode.

First time installation

When you turn on the television for the first time, the language selection menu appears. Select the language you want and press OK.

The First time installation (FTI) screen appears during first installation. Set your preferences using the browsing buttons. When you are through, press OK to continue.

IMPORTANT : If you chose France or Italy as an alternative, the PIN code menu will appear and you will have to enter 4-digit code. You will not be able to use 0000 as code (you are advised to write down this code on your instruction manual so that you can remember it when you need to use it). Enter a PIN code and confirm by entering it again. Press the OK button to continue.

WARNING : When prompted to enter a PIN code to access a menu item, you have to use the code you set during first installation. If you forget the said code, use the main code 4725.

Demo Mode

If you want to use your television inside a home, you are advised to select the home mode.

If you choose the shop mode, you will have to confirm your choice.

Choosing TV receiver mode

You will have to choose your reception mode, antenna or cable. If you choose the ANTENNA option from the Type of search screen, the digital television will search for digital terrestrial broadcasts.

NOTE: You can press the MENU button to cancel.

Once all the available channels have been saved, the list of the channels will appear on the screen. If you find the said channels interesting, depending on the LCN(*) , select Yes, then press OK.

Press the MENU button to exit the list of channels and watch the television.

(*) LCN Channel number system which displays channels in the order established by government agencies.

Installing the cable

If you choose the CABLE option and press the OK button on the remote control. You can set the frequencies manually or press OK to start an automatic search.

Note: The duration of the search will depend on the search zone selected.

Reading media through the USB input

You can connect external hard drives (hard drives with or without external power cables, depending on their voltage) or a USB port to your TV through your TV's USB ports.

IMPORTANT! Backup your files before making any connection to the TV. Note that the manufacturer shall not be held accountable if files are damaged or data lost. Some types of USB devices (MP3 players for example) or USB “hard drives / memory cards” “may be incompatible with this television. However, you will not be able to record with NTFS formatted disks.

If your hard drive's capacity is above 1TO, you may experience some issues with formatting. Avoid disconnecting your reader quickly after inserting it in the television's USB port. This can physically damage the USB reader and the USB device itself. Never remove the USB while a file is being read.

Media browser menu

You can view picture, music and video files stored in a USB device by connecting this device to your TV set. Connect a USB stick to one of the USB ports located on the side of the TV set. For video, photo and music files, you can access a settings sub menu (image, sound and others) by pressing the MENU button. This function does not work with recordings done on the TV set. By pressing the MENU button again the display disappears. You can set the preferences of your media browser through your settings menu.

Functioning of the Random / Repeat mode
Launch playback with ▶ and enable 📄	The TV set reads the next file and closes the list.
Launch playback with ▶ and enable 📄	The same folder will be read repeatedly.
Launch playback with OK ▶ and enable 📄	The folders concerned will be read randomly.

Quick Menu

The Quick Settings menu allows you to access some options quickly. This menu includes Power Save Mode, Picture Mode, Favourites, Sleep Timer, FollowMe TV to DMR, CEC RC Passthrough, FollowMe TV (optional) and Information booklet options. Press Q.MENU button on the remote control to view the quick menu. See the following chapters for details of the listed features.

FollowMe TV (optional)

With your tablet you can stream the current broadcast from your smart TV using the FollowMe TV feature. Install the appropriate application to your tablet PC. Start the application.

For further information on using this feature refer to the instructions of the application you use.

FollowMe TV to DMR (optional)

This feature allows video streaming from your TV to another TV or mobile devices, using proper applications (e.g. UPnP - Universal Plug and Play - applications like BubbleUPnP). Activate FollowMe TV to DMR and timeshifting starts. Press the red button and device selection menu will be displayed. Choose your device and press OK.

Note: FollowMeTV and FollowMe TV to DMR features work correlated with the PVR feature and requires a connected USB storage device with FAT32 format and enough space in it. HD channels are not supported and both of the devices must be connected to the same network.

E-Manual

You can find instructions for your TV's features in the E-Manual.

To use E-Manual, press to the Info button while main menu is displayed on the screen.

By using the navigation buttons select a desired category. Every category includes a different topics.

Select a topic and press OK to read instructions.

To close the E-Manual screen press the Exit button.

Note: The contents of the E-Manual may vary according to model.

CEC and CEC RC Passthrough

This function allows to control the CEC-enabled devices, that are connected through HDMI ports by using the remote control of the TV.

The CEC option in the Other Settings menu under Settings menu should be set as Enabled at first. Press the Source button and select the HDMI input of the connected CEC device from the Source List menu. When new CEC source device is connected, it will be listed in source menu with its own name instead of the connected HDMI ports name(DVD Player, Recorder 1 etc.).

The TV remote is automatically able to perform the main functions after the connected HDMI source has been selected.

To terminate this operation and control the TV via the remote again, press and hold the "0-Zero" button on the remote control for 3 seconds. Or press Q.Menu button on the remote, highlight the CEC RC Passthrough and set as Off by pressing Left or Right button. This feature can also be enabled or disabled under the Settings/Other Settings menu.

The TV supports also ARC(Audio Return Channel) feature. This feature is an audio link meant to replace other cables between the TV and the audio system (A/V receiver or speaker system).

When ARC is active, TV does not mute its other audio outputs automatically. So you need to decrease TV volume to zero manually, if you want to hear audio from connected audio device only (same as other optical or co-axial digital audio outputs). If you want to change connected device's volume level, you should select that device from the source list. In that case volume control keys are directed to connected audio device.

Options and functions of the TV menu

Content of the image menu
Mode	You can edit the image mode according to your preferences and demands. The Image mode can be set on one of these options : Cinema , Game, Sport, Dynamic and Natural.
Contrast	Adjusts the brightness and darkness of the screen.
Brightness	Adjusts the brightness of the screen.
Sharpness	Defines the sharpness of objects displayed on the screen.
Colour	Adjusts the colour value, adjusts colours.
Power Saving Mode	If you choose the Power saving mode set to Eco, you can enable or disable the screen . (When the mode is Dynamic, the Power saving mode set to Eco is automatically disabled.)
Back-lighting (optional)	This parameter controls the back-light level. The back-light function will be inactive if the Power saving mode is set to Eco. The Back-light mode cannot be enabled in VGA mode Multimedia navigator or when Image mode is defined on the Game.
Noise reduction	If the broadcasting signal is weak and the image noisy, use the noise reduction functionality to reduce the intensity of the noise.
Advanced settings
Dynamic contrast	You can adjust the dynamic contrast ratio at your convenience.
Colour temperature	Adjusts the desired colour tone.
Image zoom	Adjusts the size of images in the images zoom menu.Note: Auto (Available only in Scart mode with SCART PIN8 high/low voltage switch)
HDMI True Black (optional)	When you watch the television from the HDMI source, this option is visible in the Image setting menu. You can use this option to increase image darkness.
Film Mode	Films are recorded at a number of frames per second different from normal television programs. Enable this function when you are watching films so as to better visualize the accelerated images.
Skin tone	The skin tone function can be edited between -5 and 5.
Colour editing	Adjusts the desired colour tone.
RGB gain	You can configure the colour temperature values using the RGB Gain functionality.
Reset	Resets the image settings to the default values (except Game mode).
Auto-position (in PC mode)	Automatically optimises display. Press OK to optimise.
Position H (in PC mode)	This section changes the image horizontally towards the right or left side of the screen.
Position V (in PC mode)	This element moves the image vertically towards the upper or lower part of the screen.
Frequency guide (in PC mode)	The pilot frequency settings correct interferences which appear as vertical lines in the image for displays such as worksheets, paragraphs or texts in smaller font sizes.
Phase (in PC mode)	Depending on the resolution and the scanning frequency you enter for the television, you can see a fogged or sound image on the screen. In such a case you can use this element to get a clear image through trial and error.
In VGA mode (PC), certain elements of the image menu will be unavailable. On the contrary, the parameters of the VGA mode will be added to the Image parameters in PC mode.

Options and functions of the TV menu

Content of Sound menu
Volume	Adjusts the volume level.
Equaliser	You can choose from 4 pre-set modes or make your own settings by selecting the user mode.
Balance	This parameter is used to highlight the balance of the left or right loudspeakers.
Headphone	Adjusts the volume of the headphone.
Sound mode	You can choose stereo or select language in dual -I or dual -II mode if the transmission includes this option. .
AVL (Automatic Volume Limitation)	This function is used to limit the volume differences between programmes.
Headphone/Lineout	When you connect an external amplifier to your TV using the headphone jack, you can select this option as Lineout. If you have connected headphones to the TV, set this option as Headphone.
Dynamic Bass Enables	or disables the Dynamic Bass.
Surround Sound (optional)	Surround sound mode can be changed as On or Off.
Digital output	To be adjusted depending on the type of appliance attached to this plug.
Content of the Settings menu
Conditional access	Controls the conditional access modules when they are available.
Language	Configures language parameters (can vary depending on the country chosen). The favourite parameters and current ones will be available. The current settings can only be edited if the broadcaster takes charge of them.
Parental control	Enter the correct password to edit parental control settings. You can easily adjust menu lock and parental control from this menu. You can also enter a new pin code
Timer	This function is used to set sleep mode and to program recordings made on your USB device.
Date/Time	Selects the date and time.
Sources	Enables or disables selected Source options.
Network Settings Displays network settings.
Other settings: Displays other television setting options:
OSD display time	Defines the menu display time.
Encoded channels search	When this parameter is enabled, the search process locates scrambled channels as well.
Blue Screen	In Active mode, it displays a blue screen when there is no signal.
Software update	Updates the software package of your television.
Application version:	Displays the software version of your television.
Hearing-impaired	Enables specific functions for the hearing-impaired broadcast by the channels.
Audio description	Audio description refers to an extra narration path reserved for the visually and hearing impaired. You can only use this option if the broadcaster takes it in charge.
TV Automatic shutdown	When this function is enabled, it defines the time at which your television automatically stops (between one and six hours).

Options and functions of the TV menu

Standby search mode (optional)	If the Standby search mode is enabled, available channels will be searched when the television is on standby. If the television finds missing or new channels, a menu screen is displayed, asking if you wish to apply these changes or not. The channels list is updated and edited after this process.
Storage Mode (optional)	Enables or disables the Demo mode..
DLNA Renderer	DLNA renderer feature allows you to share files stored on your smartphone. If you have a DLNA renderer compatible smartphone and software installed, you can share/play photos with your TV. See instructions of your sharing software for more information. DLNA renderer mode will not be available with internet portal feature.
Power Up Mode This setting configures the power up mode preference.
Netflix	You can view your ESN(*) number and deactivate Netflix. (*) ESN number is an unique ID number for Netflix, created especially to identify your TV.
Virtual Remote (optional)	Enables or disables the virtual remote feature.
CEC	With this setting you can enable and disable CEC functionality completely. Press Left or Right button to enable or disable the feature.
Turn on mode	This parameter configures preferences of the power on mode. Always enabled: the television comes on when the main power on/off button is pressed. Standby: the television always comes on in standby mode. / Last view: the television comes on on the last channel/source selected.
Installation
Automatic channel search	If you wish to install or update new channels, you can use this menu. It displays automatic setting options. Digital antenna: Searches and stores DVB channels. Digital cable: Searches and stores DVB cable television channels Analogue: Searches and stores analogue stations. Analogue and digital antenna: Search and store DVB and analogue channels. Analogue and digital cable: Search and store analogue and DVB stations..
Manual channel search	Used to search or directly store a channel if the frequency is known.
Network channel search	Searches channels related to the transmission system.
Fine tune (analogue)	You can use this option to fine-tune analogue channels. It is only available if analogue channels are stored.
Initial Installation	Deletes all television settings and takes you back to the first installation.

Channel list

Use of the channel list

You can configure the channel list by moving, deleting, renaming and locking them to your liking.

Setting of parental control settings

To prevent certain programs from being watched, channels and menus can be locked through the parental control system.

To display lock menu option, enter the PIN code. By default, the set factory code is 0000. After entering the appropriate PIN code, the Parental control settings menu will be displayed :

Menu lock : The Menu lock option enables or disables access to the menu.

Maturity lock: After installation, this option searches information related to parental programs and if this parental level has been disabled, access to broadcast is not enabled.

Parental control lock: When the Parental lock option is selected, the television can only be controlled with a remote control. In this case, the control panel buttons will not be active.

PIN code setting: Defines a new PIN code.

The default PIN code can change depending on the country selected.

If a PIN code is required to display a menu option, enter one of the following codes: 0000 or 1234.

Electronic Program Guide (EPG)

Some channels, not all, display information concerning the on-going program and the next one. Press the button to get access to the EPG menu.

Up/Down/Left/Right: Navigate EPG.

OK: Displays programme options.

INFO: Displays, in detailed, information on the programme selected.

GREEN: Switches to List Schedule EPG.

YELLOW: Switches to Timeline Schedule EPG.

BLUE: Displays filtering options.

Programme Options

In EPG menu, press the OK button to enter the Event Options menu.

Select Channel

In EPG menu, using this option, you can switch to the selected channel.

Connectivity Functions

Connecting to a Wired Network

- Connect broadband ISP connection ethernet cable to the ETHERNET INPUT of your modem.

- Ensure that Nero Media Home software is installed to your PC.(for DLNA function). See Appendix A.

- Connect your PC to the one of your modem's LAN connectors (e.g. LAN 1) by using a proper LAN cable.

- Use another LAN output of your modem (e.g. LAN 2) to enable the connection to your TV.

- To access and play shared files, you must Select Media Browser. Press Menu button and select Media Browser. Press OK to continue. Select the desired file type and press OK. You must always use the Media Browser screen to access and play shared network files.

- PC/HDD/Media Player or any other devices that are DLNA 1.5 compatible should be used with wired connection for higher playback quality.

To configure wired settings please refer Network Settings section in Settings menu.

- You might be able to connect your TV to your LAN network depending on your network's configuration. In such a case, use an ethernet cable to connect your TV directly to the network wall outlet.

Connecting to a Wireless Network

IMPORTANT: "Veezy 200" USB dongle is required to use wireless network feature.

- To make your modem's SSID visible, you should change your SSID settings via modem's software. The TV cannot connect to the networks with hidden SSID.

For connecting to a wireless LAN network, you should perform the following steps:

1. Connect broadband ISP connection ethernet cable to the ETHERNET INPUT of your modem.
2. Ensure that Nero Media Home software is installed to your PC (for DLNA function).
3. Afterwards, you should connect wireless adaptor to one of the USB inputs of the TV.
4. To configure wireless settings please refer Network Settings section in the following sections.

• A Wireless-N router (IEEE 802.11a/b/g/n) with simultaneous 2.4 and 5 GHz bands designed to increase bandwidth. Optimized for smoother and faster HD video streaming, file transfers, and wireless gaming.
• Use LAN connection for quicker file sharing between other devices like computers.
• The frequency and channel differ depending on the area.
• The transmission speed differs depending on the distance and number of obstructions between the transmission products, the configuration of these products, the radio wave conditions, the line traffic, and the products that you use. The transmission may also be cut off or get disconnected depending on the radio wave conditions DECT phones, or any other WiFi 11b appliances. The standard values of the transmission speed are the theoretical maximum values for the wireless standards. They are not the actual speeds of data transmission.
• The location where the transmission is most effective differs depending on the usage environment.
• Wireless LAN adaptor should be connected directly to the TV's USB port. USB hubs are not supported.
• Wireless LAN adaptor supports 802.11 a,b,g & n type modems. It is highly recommended that you should use IEEE 802.11n communication protocol in order to avoid any possible problems while watching videos.
• Use the other usb input, if you experience problems with audio/video performance.

- You must change your modem's SSID when there are any other modems around with the same SSID.

Configuring Network Settings

Your TV's Network Settings include Wired and Wireless Connection options. However, if your TV does not have USB Wi-Fi dongle, you should use Wired Connection type. If you try to connect via Wireless Connection when your TV does not have a USB Wi-Fi dongle, a warning screen will appear and the TV will not get an IP address. Try connecting the LAN cable after this and then the TV will be able to get an IP address.

Configuring Wired Device Settings

If you are connecting the TV via ETHERNET INPUT, select Network Type as Wired Device to configure.

Network Type

Network type can be selected as Wired or Wireless device, in accordance with the active connection to the TV set. Select this as Wired if you have connected to the TV a LAN cable. Select as Wireless if you connect via the wireless USB dongle.

Configuration Status

This section displays the status of the connection.

IP Address

If an active connection is available, the IP address will be displayed on this section. If you want to configure IP address preferences, press GREEN button and switch to the advanced mode.

Configuring Wired Network Settings in Advanced Mode

While in Advanced Mode, press RED button to edit settings. When finished, press OK to save, Press RETURN/BACK to cancel.

IMPORTANT: "Veezy 200" USB dongle is required to use wireless network feature.

Wi-Fi feature can be used for a wireless network connection. If you have the Veezy 200 Wifi Dongle, select Network Type as Wireless Device to start connection process.

To enable Wi-Fi feature, profiles should be configured properly. Please plug in the Wi-Fi dongle to one of the USB ports.

Press YELLOW button to scan wireless network. Afterwards, available network list will be displayed. Please select your desired network from the list.

If the selected network is protected with a password, please enter the correct key by using the virtual keyboard. You can use this keyboard via navigation buttons and OK button on the remote control.

Wait until the IP the address is shown on the screen.

This means that the connection is now established. To disconnect from a wireless network, you should highlight Configuration Status and press OK.

You can navigate between menu tabs by pressing left/right buttons. The help bar on the bottom of the dialog shows features that you may use. Press BLUE button to check your internet connection speed.

You can check the signal strength by using the network settings menu for the wireless device mode.

Information

Configuration Status: Displays wi-fi status as connected or not connected.

IP Address: Displays the current IP address.

Network Name: Connected networks' name will be displayed.

Press GREEN button to switch to advanced mode and then press OK button to edit settings.

Delete Saved Wifi Profiles

Saved profiles will be deleted if you press red button while wireless device selection osd is on the screen.

Connecting to your Cell Phone via WiFi (Optional)

• If your cell phone has WiFi feature, you can connect your cell phone to your TV by using WiFi connection via a router, in order to play content from your phone. For this, your cell phone must have an appropriate sharing software.
• Connect to your router following the steps stated above in the Wireless Connection section.
• Afterwards, engage your cell phone with the router and then activate sharing software on your cell phone. Then, select files that you would like to share with your TV.
• If the connection is established correctly, you should now access the shared files of your cell phone via the Media Browser of your TV.
• Enter Media Browser menu and playback device selection OSD will be displayed. Select your cell phone's ident and press OK to continue.

Note: This feature may not be supported by some cell phones.

Connectivity Troubleshooting

Wireless Network Not Available

Ensure that the firewalls of your network allows the TV wireless connection. "Veezy 200" usb wifi dongle should be plugged properly (if available). If the wireless network does not function properly, try using the wired network in your home. Refer to the Wired Connection section for more information on the process.

Check the modem (router) first. If the router does not have a problem, check the internet connection of your modem. Try searching for wireless networks again, using the Network Settings menu screen.

Connection is Slow

See the instruction book of your wireless modem to get information on the internal service area, connection speed, signal quality and other settings. You need to have a high speed connection for your modem.

Distruption during playback or slow reactions

You could try the following in such a case:

Keep at least three meters distance from microwave ovens, mobile telephones, bluetooth devices or any other Wi-Fi compatible devices. Try changing the active channel on the WLAN router.

Using DLNA Network Service

DLNA (Digital Living Network Alliance) is a standard that eases viewing process of digital electronics and makes them more convenient to use on a home network. For further information, visit www.dlna.org.

DLNA standard allows you to view and play photos, music and videos stored in the DLNA media server connected to your home network.

Step 1: Nero Media Home

DLNA function cannot be used if the server program is not install to your PC. Please prepare your PC with the provided Nero Media Home programme.

For more information about the installation, please refer to Nero Media Home Installation section

Step 2: Connect to a Wired or Wireless Network

See the chapter Network Settings for detailed configuration information.

Step 3: Play Shared Files via Media Browser

Select Media Browser by using Left or Right button from the main menu and press OK button. Media browser will be then displayed.

DLNA support is available only with Media Browser folder mode. To enable folder mode, go to Settings tab in the main media browser screen and press OK. In the settings options, highlight View Style and change to Folder using Left or Right button.

Please select desired media type and press OK.

If sharing configurations are set properly, an OSD message will be displayed after selecting the desired media type. Select OK to display the selected network or USB memory content. If you want to refresh the device list, press GREEN button. You can press MENU to exit.

If available networks are found, they will be listed on this screen. Select media server or network that you want to connect by using "or" buttons and press OK button.

If you select media type as Video and choose a device from the selection menu, a new menu screen will appear on the screen.

Select Videos from this screen to list all the available video files from the selected network.

To play other media types from this screen, you must go back to main Media Browser screen and select media type as desired and then perform the network selection

again. Refer to Media Browser USB Playback section for further information on file playback.

Subtitle files do not work if you watch video from network through DLNA.

You can connect only one television with DLNA to same network. If a problem occurs with DLNA network, please switch on/off your television. Trick mode and jump are not supported with DLNA function.

CAUTION:

There may be some PC's which may not be able to utilize the DLNA function due to administrator and security settings. (such as business PC's).

For best home network streaming with this set, the supplied Nero software should be installed.

WIRELESS DISPLAY

Wireless Display is a standard for streaming video and sound content by Wi-Fi Alliance. This feature provides the ability to use your TV as wireless display device.

Using with mobile devices

There are different standards which enable sharing of screens including graphical, video and audio content between your mobile device and TV.

Plug the wireless USB dongle to TV first, if the TV doesn't have internal WiFi feature.

Then press the Source button on the remote and switch to Wireless Display source.

A screen appears stating that the TV is ready for connection.

Open the sharing application on your mobile device. These applications are named differently for each brand, please refer to the instruction manual of your mobile device for detailed information.

Scan for devices. After you select your TV and connect, the screen of your device will be displayed on your TV.

Note: This feature can be used only if the mobile device supports this feature. Scanning and connecting processes differ according to the programme you use. Android based mobile devices should have the software version V4.2 and above.

Internet Portal

You can access PORTAL mode using your TV. To do this, an active internet connection is required. Follow the steps on Connecting to a Wired/Wireless(optional) Network section to connect your TV to internet. After the connection is established, you can select or view portal options.

Note: Broadband internet connection is required for high quality viewing. Ensure that the internet connection is made properly. You must set the Country and Language data correctly in the

First Time Installation for the proper operation of internet portal.

Press "button on your remote control and portal application options will be displayed. Application options will be displayed as the template below. Available applications' contents may change depending on the application content provider.

Note on PIP Window

If you switch to portal mode while watching TV channels, current programme will be displayed on the PIP window. You can change channels using P+/P- buttons.

Current HDMI content will be displayed on the PIP window, if you switch to portal mode while watching HDMI source.

Use the “◀ or “”, “” or “” to navigate between the items on Portal screen. Press the OK button to confirm your selection. Press the BACK button to go to the previous screen.

Press the EXIT button to quit the Internet portal mode.

Software update

Your television can, through the antenna or cable, search and provide updates.

Software update search via the user interface

Simply go through the main menu. Choose Settings and select other settings menu. In the Other settingsmenu, select Software update and press the OK button to open the Update options menu.

3 Search and update mode

When the TV set receives signal from the antenna. If the Automatic search option in the Update options menu is active, the television automatically turns on at 3:00 a.m. and launches the search for broadcasting channels in order to update the new software. If new software is found and downloaded successfully, the television begins to work with the new software version when next it is turned on.

Note: If the television does not come on after the update, disconnect it for two minutes, then connect it again.

Troubleshooting and tips

The TV is not coming on

Check to ensure that the electricity plug is safely connected to the wall socket or that the batteries of the remote control are functional.

Poor picture quality

• Check if your antenna is properly connected. A poor signal level can negatively affect image quality.
• If you carried out manual settings, verify that you entered the right channel frequency.
• Image quality may be affected negatively when two devices are connected to the television set at the same time. If such is the case, disconnect one of the devices.

No image

• No image indicates that your TV is not receiving a signal. Have you selected the correct buttons on the remote control? Try once more. Also make sure that you have selected the right input source.
  • Is the antenna connected properly?
  • Is the antenna cable damaged?
• Are suitable plugs used to connect the antenna?
• If you are not sure, please consult your supplier.

No sound

• Has the mute button been pressed? If that is the case, press the "button, or increase the volume.
• Only one speaker is producing sound. Is the balance well placed in the middle? Consult the Sound menu.

The remote control is not working

- The batteries may be down. Replace the batteries.

Input sources cannot be selected.

• If you cannot select an input source, it is possible that no device is connected.
• Check the AV cables and connections if you have tried to connect a device.

Nero MediaHome Installation

To install Nero MediaHome, please proceed as follows:

Note: To use DLNA function, this software should be installed to your PC.

1. Enter the link below completely in the adress-bar of your web browser.
   http://www.nero.com/mediahome-tv

2. Click the Download button on the opening page. The installation file will be downloaded onto your PC.

3. After the download is completed, double click on the installation file to start the installation. The

installation wizard will guide you through the installation process.

1. The prerequisites screen will be displayed first. The installation wizard checks the availability of required third-party software on your PC. If applications are missing they are listed and must be installed before continuing installation.

2. Click the Install button. The integrated serial will be displayed. Please do not change the displayed serial.

3. Click the Next button. The License Conditions (EULA) screen will be displayed. Please read the license agreement carefully and select the appropriate check box if you agree to the terms of the agreement. Installation is not possible without this agreement.

4. Click the Next button. On the next screen you can set your installation preferences.

5. Click the Install button. The installation begins and finishes automatically. A progress bar will indicate the state of the installation process.

6. Click the Finish button. The installation is completed. You will be directed to the web site of the nero software.

7. A shortcut is now placed on your desktop.

Congratulations! You successfully installed Nero MediaHome on your PC.

Run Nero MediaHome by double clicking on the shortcut icon.

Internet Browser

To use the internet browser, please select the internet browser logo from the portal section.

• To navigate the web browser, use the arrow buttons on the remote control. Press OK to continue.
• After First time installation, predefined web sites and logos will be displayed on the browser's access page (see image above). To add a desired web page to the quick access page, whilst on the website you wish to add, select the "Add" menu and select "Quick Access" button.
• If you want to add bookmarks, select this item while the desired web page is on the screen.

- You can navigate the web browser in three ways. First, enter any URL in the address bar.

- You can search keywords by clicking the search button in the address dialog box or another way to navigate to pages is by clicking on links on web

pages and these will take you to the appropriate pages.

• When you scroll the pointer down to the middle of the screen, the remote control's shortcuts will be shown.
• Use the zoom shortcut buttons or the zoom menu to zoom in or zoom out.
• You can clear cookies or clear all browser data from the settings menu.
• Your TV is compatible with USB mice. Plug your mouse or wireless mouse adaptor to the USB input of your TV.

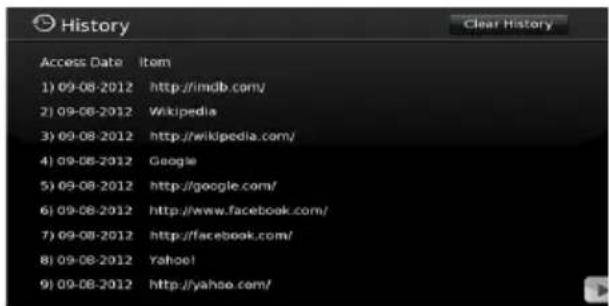

• To view your browsing history, click the history button. You can also clear your browsing history from here.

• The browser does not support multiple tabs.
• Some internet pages include flash content. These are not supported by the browser.
• Your TV does not support any download processes from the web browser.

Typical PC Input Display Modes

The following table is an illustration of some of the typical video display modes. Your TV cannot support all resolutions.

Index	Resolution	Frequency
1	0x350 85Hz
2	0x400 70Hz
3	0x400 85Hz
4	0x480 60Hz
5	0x480 66Hz
6	0x480 72Hz
7	0x480 75Hz
8	0x480 85Hz
9	0x600 56Hz
10	00x600 60Hz
11	00x600 70Hz
12	00x600 72Hz
13	00x600 75Hz
14	00x600 85Hz
15	32x624 75Hz
16	024x768 60Hz
17	024x768 66Hz
18	024x768 70Hz
19	024x768 72Hz
20	024x768 75Hz
21	024x768 85Hz
22	152x864 60Hz
23	152x864 70Hz
24	152x864 75Hz
25	152x864 85Hz
26	152x870 75Hz
27	280x768 60Hz
28	360x768 60Hz
29	280x768 75Hz
30	280x768 85Hz
31	280x960 60Hz
32	280x960 75Hz
33	280x960 85Hz
34	280x1024 60Hz
35	280x1024 75Hz
36	280x1024 85Hz
37	400x1050 60Hz
38	400x1050 75Hz
39	400x1050 85Hz
40	440x900 60Hz
41	440x900 75Hz
42	600x1200 60Hz
43	680x1050 60Hz
44	920x1080 60Hz
45	920x1200 60Hz

AV and HDMI Signal Compatibility
Source Supported Signals Available
EXT(SCART)	PAL O
	NTSC 60 O
	RGB 50/60 O
	SECAM		O
Side AV	PAL 50/60		O
	NTSC 60 O
	SECAM
YPbPr	480I, 480P	60Hz	O
	576I, 576P	50Hz	O
	720P	50Hz,60Hz	O
	1080I	50Hz,60Hz	O
HDMI1HDMI2	480I	60Hz	O
	480P	60Hz	O
	576I, 576P	50Hz	O
	720P	50Hz,60Hz	O
	1080I	50Hz,60Hz	O
	1080P	24Hz,25Hz,30Hz,50Hz,60Hz	O

(X: Not Available, O: Available)
In some cases a signal on the LCD TV may not be displayed properly. The problem may be an inconsistency with standards from the source equipment (DVD, Set-top box, etc.). If you do experience such a problem please contact your dealer and also the manufacturer of the source equipment.

Supported File Formats for USB Mode

Media Extension Format Notes
Video	.mpg,mpeg	Mpeg1-2 1080P@30fps, 50Mbit/sec
	.ts, .trp,tp, .m2ts	MPEG2 , H.264,VC1, AVS, MVC	H.264:1080Px2@25fps, 1080P@50fps MVC:1080P@ 24fps Other: 1080P@30fps -50Mbit/sec
	.vob MPEG2	1080P@30fps 50Mbit/sec
	.mkv MPEG	1-2-4,H.264	H.264:1080Px2@25fps, 1080P@ 50fps, 1080P@30fps, 50Mbit/sec
	.mp4 MPEG	4, XviD,H.264	H.264:1080Px2@25fps, 1080P@ 50fps, 1080P@30fps, 50Mbit/sec
	.avi MPEG2	4, Xvid,H.264	H.264:1080Px2@25fps, 1080P@ 50fps, 1080P@30fps, 50Mbit/sec
	.fla, .flv H.26	4, SorensonH.263	H.264:1080Px2@25fps, 1080P@50fps, 1080P@30fps, 40Mbit/sec
	.3gp MPEG	4, H.264 1920x1080	@30P 20Mbit/sec
	.asf, .wmv	VC1	1080P@30fps, 50Mbit/sec
Audio	3 MPEG1/2 L	layer1/2/3 (MP3)	Layer1: 32Kbps ~ 448Kbps (Bit rate) / 16KHz ~ 48KHz (Sampling rate)Layer2: 8Kbps ~ 384Kbps (Bit rate) / 16KHz ~ 48KHz (Sampling rate)Layer3: 8Kbps ~ 320Kbps (Bit rate) / 16KHz ~ 48KHz (Sampling rate)
	.wav	LPCM
	.WMA/ASF	WMA, WMA Pro	WMA: 128bps ~ 320Kbps (Bit rate) / 8KHz ~ 48Khz (Sampling rate)WMA Pro: < 768kbps (Bit rate) / ~ 96KHz (Sampling rate)
	.m4a/.aac	AAC, HEAAC	Free Format (Bit rate) / 8KHz ~ 48KHz (Sampling rate)
	.pcm	PCM	8Kbps ~ 320Kbps (Bit rate) / 16KHz ~ 48KHz (Sampling rate)
	(worksonly withvideofiles)	AC3	32Kbps ~ 640Kbps (Bit rate) / 32KHz, 44.1KHz, 48KHz (Sampling rate)
		EAC3	32Kbps ~ 6 Mbps (Bit rate) / 32KHz, 44.1KHz, 48KHz (Sampling rate)
		LPCM	64Kbps ~ 1.5Mbps (Bit rate) / 8KHz ~ 48Khz (Sampling rate)
		IMA-ADPCM/MS-ADPCM	384Kbps (Bit rate) / 8KHz ~ 48Khz (Sampling rate)
		G711 A/mu-law	64~128Kbps (Bit rate) / 8KHz (Sampling rate)
Picture	.jpeg	Baseline	Resolution(WxH): 15360x8640, 4147200 bytes
		Progressive Resolution(WxH): 1024x768, 6291456 bytes
	.png	non-interlace	Resolution(WxH): 9600x6400, 3840000 bytes
		interlace	Resolution(WxH): 1200x800, 3840000 bytes
	.bmp		Resolution(WxH): 9600x6400, 3840000 bytes
Subtitle	.sub -	Sub1,	Sub2, Sub3
	.srt	-

Table des matières

RISQUE D'ELECTROCUTION NE PAS OUVRIR

ATTENTION: POUR EVITER TOUT RISQUE D'ELECTROCUTION, NE RETIREZ PAS LE COUVERCLE. (OU LE ARRIÈRE).L'ENTRETIEN DES PIÈCES INTERNES EST INTERDIT AUX UTILISATEURS. VEUILLEZ CONFIER L'ENTRETIEN A UN PERSONNEL QUALIFIE.

Close-up of a black battery casing with a white arrow pointing to its side (no text or symbols visible)

(\*) MON BOUTON :

A	Product Fiche
B	Commercial Brand: SALORA
C	Product No.	10095047
D	Model No.	40LED9112CSW
E	Energy efficiency class	A
F	Visible screen size (diagonal, approx.) (inch/cm)	40 inches	102 cm
G	On mode average power consumption (Watt)	63
H	Annual energy consumption (kWh/annum)	91
I	Standby power consumption (Watt)	0,5
J	Off mode power consumption (Watt)	0
K	Display resolution (px)	1920x1080

	A B C D E F					Visible screen size (diagonal, approx.) (inch/cm)
English	Product Fiche Commercial Brand Product No. Model No. Energy efficiency class
Deutsch	Produkt-Datenblatt Markenzeichen Produkt-Nr. Modell-Nr. Energieeffizienzklasse					Sichtbare Bildschirmgröße (diagonal,ca.) (Zoll /cm)
عربي	قييم المنتج	العامة التجارية mythوكون	رقم انتج	رقم المويّب	تَهْ قُمْلِيَةِ الشَّالَةٍ	حجم انشासة الم rectangles (قُمْلِيَّ) (يوصّابِم)
Български	Справочен лист с техническите данни	Търговска марка	Продукт №	Модел №	Клас на енергийна ефективност	Видим размер на екрана (диагонал,прибл.) (инча /см )
čeština	Informační list	Značka výrobce	Číslo produktu	Model č.	Energetická třida	Viditelná velikost obrazovky (ühlopřička,přibl).(palcù /cm)
Dansk	Produktoplysningsskema	Varemærke	Produktnr.	Model nr.	Energieffektivitetsklasse	Synlig skærmstørrelse (diagonalt,ca.) (HK/cm)
Suomi	Tuote fiche	Kaupallinen merkki	Tuote nro.	Malli nro.	Virran tehokkuusluokka	Nakyván kuvaruudun koko (diagonaalinen.n.) (tuumaa/cm)
Français	Fiche du produit	Marque commerciale	Produit N°	Modèle N°	Classe d'efficacité énergétique	Taille d'ecran visible (diagonale,approx (pouces/cm)
Hrvatski	SAŽETAK PROIZVODA	Trgovačka marka	Br. proizvoda	Br. modela	Klasa energetske učinkovitosti	Vidljiva veličina ekrana (dijagonalna,približno) (inča/cm)
Nederlands	Productfiche	Commercieel merk.	Productnr.	Modelnr.	Energie efficiëntie klasse	Zichtbare schermgrootle (diagonaal,ca.) (inches/cm)
Español	Ficha del Producto	Marca Comercial	N° de Producto	N° de Modelo	Clasificación Energética	Tamaño de pantalla visible (diagonal,aprox.) (pulgadas/cm)
Svenska	Produktspecifikation	Varumárke	Produktnr.	Modelnr.	Energiklass	Synlig skärmstorlek (diagonal,ungefärlig) (tum/cm)
Italiano	Scheda prodotto	Marchio commerciale	Numero prodotto	Numero modello	Classe di eficienza energetica	Dimensioni visibili dello schermo (diagonale,circa)(pollici/cm)
Polski	KARTA PRODUKTU	Marka produktu Nr produktu	Nr modelu		Klasa efektywności energetycznej	Widoczny obraz ekranu (przekątna,okolo)(cali/cm)
Magyar	Termékismertető adatlap	Kereskedelmi marka	Termékszám	Modellszám	Energiahatékonysági osztály	Látható képtartomány (diagonális,kb.) (inches/cm)
Norsk	Produktinformasjon	Kommersiell merkevare	Produkt nr.	Modell nr.	Energieffektivitet klasse	Synlig skjermstorrelse (diagonal, ca.) (tommer/cm)
Português	Ficha do produto	Marca Comercial	Produto N°	Modelo N°	Classificação eficiência energética	Tamanho ecrà visivel (diagonal, aprox. (polegadas/cm)
Română	Fişă produs	Marcă comercială	Nr. Produs	Nr. Model	Clasa de eficiență energetică	Dimensiunea ecranului vizibil (diagonală, aprox.) (inch/cm)
Русский	Справочный листок технических данных изделия	Торовая марка	Номер изделия	Номер модели	Класс энергопотребления	Видимый размер экрана (по диагонали. Около) (дюймов/см)
беларуская	Справочный листок технических данных изделия	Торовая марка	Номер изделия	Номер модели	Класс энергопотребления	Видимый размер экрана (по диагонали.Около) (дюймов/см )
македонски	Технички податоци	Комерцијална марка	Производ бр.	Модел бр.	Класа на енергетска ефикасност	Големина на видлив екран (дијагонала, окопу) (инчи/cm)
український	Технічнідані	Кормеційна марка	Артикул	Модель	Клас енергоспоживання	Видимий розмір екрана (диагональ, Приблизно) (дюймів/см)
Srpski	Tehničke odlike	Komercijalna marka	Proizvod br.	Model br.	Klasa energetske efikasnosti	Veličina vidljivog ekrana (dijagonala, tokom) (inča/cm)
Slovenčina	Informačný list	Značka výrobcu	Číslo produktu	Model č.	Energetická trieda	Viditelná velikost'obrazovky (uhlopriečka, zhruba) (palcov/cm)
Slovenščina	Opis izdelka	Komercialna znamka	Št. Izdelka	Št. Modela	Razred energetske učinkovitosti	Vidna velikost zaslona (diagonala, pribl.) (palcev/cm)
Еллянік	Делтіо проϊόντος	Емторіко σήμα	Ар. Проϊόντος	Ар. Movtélου	Котнүоріа еверүекіакіς απόδοσης	Ораторе мэгёвос ововніς (диагушлює, птер.) (ivotes/cm)
Bosanski	Tehnički podaci	Komercijalna marka	Produkt br.	Model br.	Klasa energetske efikasnosti	Vidljiva veličina ekrana (diagonala, približno.) (inča/cm)
TÜRKçe	Ürün fişi	Ticari Marka	Ürün No.	Model No.	Enerji verimiliği sınıfı	Görülen ekran boyutu (çapraz, yakışk.) (inç/cm)
Shqip	Tě dhēnat e produktit	Marka tregtare	Nr. i produktit.	Nr. i modelit.	Klasa e eficiencès sè energjisé	Madnesia e ekrani te duksnem (diagonal, afërsisht) (inç/cm)
Lietuvių	Gaminio etiketė	Gamintojas	Gaminio Nr.	Modelio Nr.	Energetinio efektyvumo klasé	Matomas ekrano dydis (istrižainė, approx.) (coli./cm)
Latviešu	Produkta apraksts	Marka	Produkta nr.	Modelja nr.	Energoefektivitätes klase	Ekrána izmërs (pa diognăli, apmçram) (collas/cm)
Eesti	TOOTEKIRJELDUS	Toolja firma	Toote nr.	Mudeli nr.	Energiaklass	Vaadatava ekranai suurus (diagonaal, umbes) (toll/cm)
فارسی	مشخصات محصول	مارک تجاری	ثمارات محصول	ثمارات مدن	گروه کارایی اززی	انناز، صفحه قابل مشاهده (امنسي، غریا) (نَج) (انناز، صفحه قابل مشاهده (امنسي، غریا) (انناز، صفحه قابل مشاهده (امنسي، غریا) (انناز، صفحه قابل مشاهده (امنسي، غریا) (انناز، صفحه قابل مشاهده (امنسي، غریا) (انناز، صفحه قابل مشاهده (امنسي، غریا) (انناز، ص sculpt).

	GHIJ	K
English	On mode average power consumption (Watt)	Annual energy consumption (kWh/annum)	Standby power consumption (Watt)	Off mode power consumption (Watt)	Display resolution (px)
Deutsch	Durchschnittlicher Stromverbrauch im eingeschaltetem Zustand (Watt)	Jährlicher Energieverbrauch (kWh/Jahr) Standby-Stromverbrauch (Watt)		Stromverbrauch im ausgeschaltetem Zustand (Watt) Display-Auflösung (px)
	مestrط استهلاك الطاقة عند التشعت (مترط)	(الاستهلاك السوي للطقة-کاریو ومط/الطقة)	(استهلاك الطاقة في ضعع الاستعداد (والمط)	(استهلاك الطاقة في ضعع الابنقد (والمط)	(م积极推进 الشاشا/بکمال)
Български	Средна консумация на електроенергия във включено състояние(Watt)	Годишна консумация на електроенергия (kWh/годишна)	Консумация на електроенергия в режим на готовност (Watt)	Консумация на електроенергия в изключено състояние (Watt)	Разделителна способност на дисплея(пиксела)
čeština	Prüměrná spotreba elektrické energie v zapnutém režimu (Wattů)	Roční spotreba energie (kWh/Roční)	Spotreba elektrické energie v pohotovstním režimu (Wattů)	Spotreba elektrické energie ve vypnutém režimu (Wattů) Rozlišení disploje (px)
Dansk	Gennemsnitligt stromforbrug i taëndt tilstand (Watt)	Ärligt energiforbrug (kWh/Ärligt)	Strømforbrug (standby)(Watt)	Strømforbrug i slukket tilstand (Watt)	Skærmoplopsning (px)
Suomi	Păillă-tilan keskimääräinen virrankulutus (Wattia)	Vuosittainen sähkönkulutu (kWh/Vuosittainen)	Vakiovirran kulutus (Wattia)	Pois-tilan virrankulutus (Wattia)	Näytön erottelukyky (pikselia)
Français	Consommation énergétique moyenne en mode "marche" (Watt)	Consommation énergétique annuelle (kWh/annuel)	Consommation d'énergie en veille (Watt)	Consommation d'énergie en mode "arrêt" (Watt)	Résolution de l'écran (px)
Hrvatski	Prosječna potrošnja el. energije kada je proizvod uključen (Watta)	Godišnja potrošnja el. Energije (kWh/Godišnja)	Potrošnja el. energije u modu pripravnosti (Watta)	Potrošnja el. energije kada je proizvod isključen (Watta)	Rezolucija zaslona (piksela)
Nederlands	Aan-modus gemiddeld stroomverbruik (Watt)	Jaarlijks energieverbruik(kWh/Jaarlijks )	Stand-by stroomverbruik (Watt)	Uit-modus stroomverbruik (Watt)	Schemresolutie (px)
Español	Consumo eléctrico medio, en funcionamiento (Vatio)	Consumo eléctrico anual (kWh/anual)	Consumo en modo en espera (Vatio)	Consumo eléctrico modo apagado (Vatio)	Resolución de pantalla (px)
Svenska	Strömkonsumtion i PÅ-läge (Watt)	Energikonsumtion per år (kWh/Årlig)	Strömkonsumtion i viloläge (Watt)	Strömkonsumtion i AV-läge (Watt)	Skårmupplösning (pixlar)
Italiano	Consumo di corrente medio da accesa (Watt)	Consumo annuale di energia (kWh/annuo)	Consumo di corrente in modalità standby (Watt)	Consumo di corrente da spenta (Watt)	Risoluzione del display (px)
Polski	Średnie zużycie energii w trybie włączonym (Watów)	Roczne zużycie energii (kWh/Roczne)	Średnie zużycie energii w trybie oczekiwania (Watów)	Zużycie energii w trybie wylączonym (Watów)	Rozdzielczość obrazu (pikseli)
Magyar	Energiafogyasztás bekapcsolva hagyott üzemmódban (Watt) Éves energiafogyasztás	(kWh/Éves)	Energiafogyasztás standby üzemmódban (Watt)	Energiafogyasztás kikapcsolt üzemmódban (Watt)	Képermyõfelbontás (px)
Norsk	Pàmodus gjennomsnittlig stromforbruk (Watt)	Ärlig stromforbruk (kWh/Ärlig)	Hvilemodus stromforbruk (Watt)	Av-modus stromforbruk (Watt)	Skjermoplopsning (piksel)
Português	Consumo energia em modo médio (Watt)	Consumo annual energia (kWh/anual)	Consumo energia em stand-by (Watt)	Consumo energia em modo alimentação (Watt)	Resolução do visor (pixel)
Română	Consum electric mediu in modul pornit (Watj)	Consum anual de energie (kWh/anual)	Consum electric in stare de repaus (Watj)	Consum electric in modul oprit (Watj)	Rezolutia ecranului (pixel)
Русский	Средний расход энергии в режиме включения (ватт)	Ежегодный расход энергии (kВтч/Годовое)	Расход энергии в режиме ожидания (ватт)	Расход энергии в режиме выключения (ватт)	Разрешение экрана (пикселей)
беларуская	Средний расход энергии в режиме включения (ватт)	Ежегодный расход энергии (kWh/гадавое)	Расход энергии в режиме ожидания (ватт)	Расход энергии в режиме выключения (ватт)	Разрешение экрана (пикселей)
македонски	Просечна потрошувачка кога е включен	Годишна потрошувачка на енергija (kWh/Годишна)	Потрошувачка во мирување (вати)	Потрошувачка кога е исклучен (вати)	Резолуција на екран (пиксели)
український	Середня споживана потужність у робочому режимі (Вт)	Середньорична споживана потужність (kWh/Річне)	Сложивана потужність у режимі очікування (Вт)	Сложивана потужність у вимкненому стані (Вт)	Роздільна здатність екрана (пикселів)
Srpski	Prosečna potrošnja kada je uključeni (Vati)	Godišnja potrošnja energije (kWh/Godišnja)	Potrošnja tokom mirovanja (Vati)	Potrošnja kada je isključeni (Vati)	Rezolucija displeja (piks.)
Slovenčina	Priemerná spotreba elektrickej energie v zapnutom režime (Wattov)	Ročná spotreba energie (kWh/Ročná)	Spotreba elektrickej energie v pohotovostnom režime (Wattov)	Spotreba elektrickej energie vo vypnutom režime (Wattov)	Rezlišenie displeja (pixl.)
Slovenščina	Poraba elektricne energije v povprečnem načinu (Wattov)	Letna poraba energije (kWh/Letna)	Poraba energije v stanju pripravljenosti (Wattov)	Poraba energije načinu izklopa (Wattov)	Resolucija zaslona (piks.)
Еллёнvik	Мёоп катавдшоц рејматос клотourулов (Watt)	Ertróia katавдшоц evépyeias (kWh/Etróia)	Katavдшоц рејматос стын аваюvný (Watt)	Katavдшоц рејматос ог аттеверуотолігов (Watt)	Аралусон обовпс (Пієд)
Bosanski	Prosečna potrošnja kada je uključen (Watt)	Godišnja potrošnja energije (kWh/Godišnja)	Potrošnja tokom mirovanja (Watt)	Potrošnja kada je isključen (Watt)	Rezolucija ekrana (piks.)
Түйсү	(ок) түйсү түйсү түйсү түйсү түйсү түйсү түйсү түйсү түйсү түйсү түйсү түйсү түйсү түйсү түйсү түйсү түйсү түйсү түйсү түйсү түйсэ)	(ок) түйсү түйсү түйсү түйсү түйсү түйсү түйсү түйсү түйсү түйсү түйсү түйсү түйсү түйсү түйсү түйсү түйсү түйсү түйсүтүйсү түйсү түйсү түйсү түйсү түйсү түйсү түйсү түйсү түйсү түйсү түйсү түйсү түйсү түйсү түйсү түйсү түйсү түйсү түйсүтүйсэ)	(ок) түйсү түйсү түйсү түйсү түйсү түйсү түйсү түйсү түйсү түйсү түйсү түйсү түйсү түйсү түйсү түйсү түйсү түйсүтүйсэ)	(ок)! түйсү түйсү түйсү түйсү түйсү түйсү түйсү түйсү түйсү түйсү түйсү түйсү түйсү түйсү түйсү түйсү түйсү түйсү түйсү түйсृ)	(надан) түйсү түйсү түйсү түйсү түйсү түйсү түйсү түйсү түйсү түйсү түйсү түйсү түйсү түйсү түйсү түйсү түйсү түйсү түйсү түйса)
Türkçe	Açık moddaki ortalama güç tüketimi (Watt)	Yıllık enerji tüketimi (kWh/yıllık)	Bekleme durumunda enerji tüketimi (Watt)	Kapali moddaki güç tüketimi (Watt)	Ekran çözünürlüğü (piks.)
Shqip	Konsumi mesatar i energjisê si i ndezur (Watt)	Konsumi vjetor i energjisê (kWh/vjetor)	Konsumi i energjisê si nê gatishmêri (Watt)	Konsumi i energjisê si i fikur (Watt)	Rezolucioni i ekranit (piks.)
Lietuvlu	Vidutinês energijos sąnaudos jungus (Vatal)	Metinês energijos sąnaudos (kWh/Metinês)	Energijos sąnaudos budéjimo režimu (Vatal)	Energijos sąnaudos išjungus (Vatal)	Ekranok skiriamoji geba (pikseliu)
Latviešu	Energijas patérinş aktivă režimă (Vati)	Gada energijas patérinş (kWh/gada)	Energijas patérinş gaidišanas režimă (Vati)	Energijas patérinş izslēgtā stavokli (Vati)	Displeja rezolucija (pikseliem)
Eesti	Keskmine energiakulu töörežimil (Vatti)	Aastane energiakulu (kWh/aastane)	Energiakulu ooterežlimil (Vatti)	Energiakulu väljalülitatud olekus (Vatti)	Ekraani resolutsion (piksilt)
فازمسي	(مYZAN متوسط مصرف برق نحت فعل (و」と)	(مYZAN متوسط مصرف برق نحت فعل (و」と)	(مŞŞETÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİD ÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİD-ÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDS-ÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEI DÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDN-ÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEiDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEi DÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEi DEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDES-ÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEÖDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEÖN-ÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİKDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDän-ÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEÜDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEÜOEN-ÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEIEU-ÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEHEU-ÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDEİDÄDES-

Inhalt

⚠ Sicherheitsinformationen ...... 25

Close-up of a black battery casing with a white arrow pointing to its side (no text or symbols visible)

Nero MediaHome Installation
