20LED9100C - Television SALORA - Free user manual and instructions

Product Type	LED Television
Screen Size	20 inches (50.8 cm)
Resolution	1366 x 768 pixels (HD)
Dimensions (without stand)	Approximately 480 x 310 x 80 mm
Weight (without stand)	Approximately 3.5 kg
Power Supply	100-240 V, 50/60 Hz
Power Consumption (standby)	Less than 0.5 W
Power Consumption (operation)	Approximately 30 W
Connectivity	1 x HDMI, 1 x USB, 1 x VGA, 1 x Antenna input
Main Features	Remote control, OSD menu, image and sound adjustment, auto standby, child lock
Maintenance and Cleaning	Soft dry cloth; do not use abrasive products
Safety	Do not open the casing, avoid moisture, unplug before cleaning
Spare Parts and Repairability	Parts available from after-sales service; repair recommended by a professional
Included Accessories	Remote control, batteries, power cable, user manual
Dynamic Contrast	1000:1

Frequently Asked Questions - 20LED9100C SALORA

How to connect my Salora 20LED9100C television?

Plug in the power cable. Connect the sources (antenna, HDMI, USB) as needed. Turn on the TV using the POWER button on the remote control or the panel.

The remote control is not working, what to do?

Check the batteries: insert two new AAA batteries respecting polarity. Point the remote at the TV's infrared sensor. If the problem persists, reset the TV by unplugging it for 30 seconds.

How to adjust the picture?

Press the MENU button on the remote, navigate to 'Picture'. You can adjust contrast, brightness, saturation, and color temperature.

No sound, what to check?

Make sure the volume is not muted (MUTE button). Check that the internal speakers are not disabled in the 'Sound' menu. If using an external source, check the audio cable.

Can I connect a USB flash drive?

Yes, plug the USB drive into the USB port on the back. From the menu, select 'USB' to play photos, videos, or music. Supported formats: MP4, AVI, JPEG, MP3.

How to update the software?

Download the latest firmware version from the Salora website (if available). Copy the file to a USB drive formatted in FAT32, insert it, then go to Menu > Settings > Software Update.

The TV turns off by itself, why?

The auto standby timer may be activated. In the 'Settings' menu, disable 'Auto Standby' or increase the duration. Also check that the TV is not overheating.

How to clean the screen?

Use a dry, soft microfiber cloth. For stains, slightly dampen the cloth with pure water (no detergent). Wipe gently without pressing.

Can I mount the TV on the wall?

Yes, use a VESA 100x100 mm wall mount (not included). Attach the mount to the wall, then hang the TV following the mount instructions.

Where to find spare parts?

Contact Salora after-sales service or an authorized dealer. Parts such as the remote control, power cord, or panel can be ordered via their website or by phone.

USER MANUAL 20LED9100C SALORA

Software Upgrade....13

Probleemoplossen & tips....13

PC-invoer normale weergavemodi 14

Close-up of a cylindrical electronic component with two metallic leads and a central conical tip, no visible text or symbols.

Stroom aansluiten

Teletekst

Safety Information....30

Getting Started....31

Notifications & Features & Accessories....31

Features 31

Inserting the Batteries into the Remote 32

Connect Power 32

Antenna Connection 32

Remote Control 33

Connections.... 34

Media Browser Menu.... 36

Quick Menu 36

TV Menu Features and Functions 37

General TV Operation 39

Using the Channel List 39

Configuring Parental Settings....39

Electronic Programme Guide (EPG) 39

Software Upgrade.... 40

Troubleshooting & Tips 40

AV and HDMI Signal Compatibility 41

CAUTION
RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL

To operate your TV in extreme ambient conditions may cause the damage of the device.

In extreme weather (storms, lightning) and long inactivity periods (going on holiday) disconnect the TV set from the mains. The mains plug is used to disconnect the TV set from the mains and therefore it must remain readily operable.

This sign is present wherever there is very important information regarding the operation and maintenance of the appliance in the literature accompanying it.

Note: Follow the on screen instructions for operating the related features.

IMPORTANT - Please read these instructions fully before installing or operating

WARNING: Never let people (including children) with reduced physical, sensory or mental capabilities or lack of experience and / or knowledge use electrical devices unsupervised.

• For ventilation purposes, leave a free space of at least 10 cm all around the set.
• Do not block ventilation holes.
• Do not place the TV on sloping or unstable surfaces, the TV may tip over.
• Use this device in moderate climates.

- The power cord plug should be easily accessible. Do not place the TV, furniture, etc. on the power cord. A damaged power cord/plug can cause fire or give you an electric shock. Handle the power cord by the plug, do not unplug the TV by pulling the power cord. Never touch the power cord/plug with wet hands as this could cause a short circuit or electric shock. Never make a knot in the power cord or tie it with other cords. When damaged it must be replaced, this should only be done by qualified personnel.

- Do not use this TV in a humid or damp environment. Do not expose the TV to liquids. In case the cabinet contacts any liquids unplug the TV immediately and have it checked by qualified personnel before operating it any further.

- Do not expose the TV to direct sunlight, open flames or place it near intense heat sources such as electric heaters.

- Listening in excessive volumes from earphones and headphones may cause hearing loss.

- Ensure that no open flame sources, such as lit candles, are placed on top of the TV.

- To prevent injuries, this TV must be securely attached to a wall carefully by following the instructions (if the option is available).

• Occasionally, a few non-active pixels may appear on the screen as a fixed blue, green or red point. Please note that this does not affect the performance of your product. Take care not to scratch the screen with fingernails or other hard objects.
• Before cleaning, unplug the TV from the wall socket. Only use a soft, dry cloth while cleaning.

Warning	Serious injury or death risk
Risk of electric shock	Dangerous voltage risk
Caution	Injury or property damage risk
Important	Operating the system correctly
Notice	Additional notes marked

Getting Started

Notifications & Features & Accessories

Environmental Information

This television is designed to consume less energy to help save the environment. To reduce energy consumption, you should take the following steps:

If you set the Power Save Mode as Eco, the TV will switch to energy-saving mode. The Power Save Mode settings can be found in the 'Picture' section of the Main Menu. Note that some picture settings will be unavailable to be changed.

If Picture Off is selected, "Screen will be off in 3 seconds." message will be displayed. Select PROCEED and press OK to continue. The screen will be off immediately.

When the TV is not in use, please switch off or disconnect the TV from the mains plug. This will also reduce energy consumption.

Standby Notifications

1) If the TV does not receive any input signal (e.g. from an aerial or HDMI source) for 5 minutes, the TV will go into standby. When you next switch-on, the following message will be displayed: "Standby Cause No Signal" Press OK to continue.

2) If the TV has been left on and not been operated for a while, the TV will go into standby. When you next switch-on, the following message will be displayed.

"Standby Cause No Operation" Press OK to continue.

Features

• Remote controlled colour LED TV.
  • Fully integrated digital/cable/satellite TV (DVB-T/C)
• HDMI inputs are for connecting a device that has a HDMI socket.
• USB input.
• OSD menu system.
• Scart socket for external devices (such as DVD Players, PVR, video games, etc.)
• Stereo sound system.
• Teletext.
  • Headphone connection.
  • Automatic programming system.
• Manual tuning.
  • Automatic power down after up to six hours.
• Sleep timer.
• Child lock.
  • Automatic sound mute when no transmission.

• NTSC playback.
  • AVL (Automatic Volume Limiting).

• PLL (Frequency Search).

• PC input.
• Plug&Play for Windows 98, ME, 2000, XP, Vista, Windows 7.
  • Game Mode (Optional).

Accessories Included

• Remote Control
• Batteries: 2 x AAA
• Instruction Book

TV Control Switch & Operation

1. Up direction
2. Down direction
3. Programme/Volume / AV / Standby-On selection switch

The Control button allows you to control the Volume/Programme/ Source and Standby-On functions of the TV.

To change volume: Increase the volume by pushing the button up. Decrease the volume by pushing the button down.

To change channel: Press the middle of the button, the channel information banner will appear on screen. Scroll through the stored channels by pushing the button up or down

To change source: Press the middle of the button twice, the source list will appear on screen. Scroll through the available sources by pushing the button up or down.

To turn the TV off: Press the middle of the button down and hold it down for a few seconds, the TV will turn into standby mode.

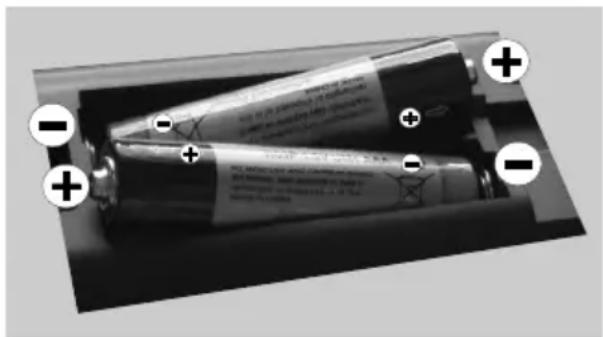

Inserting the Batteries into the Remote

Lift the cover on the back of the remote upward gently. Install two AAA batteries. Make sure to match the + and - ends of the batteries in the battery compartment (observe the correct polarity) Replace the cover.

Connect Power

IMPORTANT: The TV set is designed to operate on 220-240V AC, 50 Hz socket. After unpacking, allow the TV set to reach the ambient room temperature before you connect the set to the mains. Plug the power cable to the mains socket outlet.

Antenna Connection

Connect the "aerial" or "cable TV" plug to AERIAL INPUT (ANT) socket located on the back of the TV.

Notification

Manufactured under license from Dolby Laboratories.

TRADEMARK ACKNOWLEDGMENT

"Dolby" and the double-D symbol are trademarks of Dolby Laboratories.

DOLBY.

DIGITALPLUS

"HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC."

HIGH-DEFINITION MULTIMEDIA INTERFACE

Information for Users on Disposal of Old Equipment and Batteries

[European Union only]

These symbols indicate that equipment with these symbols should not be disposed of as general household waste. If you want to dispose of the product or battery, please consider the collection systems or facilities for appropriate recycling.

Notice: The sign Pb below the symbol for batteries indicates that this battery contains lead.

Products

Battery

Specification

TV Broadcasting PAL B/G D/K K I/I'
Receiving Channels	VHF (BAND I/III) - UHF (BAND U) - HYPERBAND
Number of Preset Channels	1000
Channel Indicator On Screen Display
RF Aerial Input 75 Ohm (unbalanced)
Operating Voltage 220-240V AC, 50Hz.
Audio German+Nicam Stereo
Audio Output Power (WRMS.) (10% THD)	2 x 2,5
Power Consumption 45 W
Weight 3,30
TV Dimensions DxLxH (with foot)	134 x 473 x 328
TV Dimensions DxLxH (without foot)	34 x 473 x 294
Operation temperature and operation humidity:	0°C up to 40°C, 85% humidity max

Getting Started

Remote Control

Teletext

Press button to enter. Press again to activate mix mode. Press once more to exit. Follow the instructions displayed on digital teletext screen.

Digital Teletext (for UK only)

Press button to view digital teletext information. Operate it with the coloured buttons, cursor buttons and the OK button. The operation method may differ depending on the contents of the digital teletext. Follow the instructions displayed on the digital teletext screen. When the button is pressed again, the TV returns to television broadcast.

1. Standby
2. Channel list/ back to TV source
3. Sleep timer
4. Teletext
5. Numeric buttons
6. AV Source selection
7. Green button
8. Red button

9. Mute

10. Volume up/down

11. Info/ reveal (in TXT mode)

12. Menu on/off

13. Navigation button

14. Confirm/ Hold( in TXT mode)

15. Return/Back/Index(in TXT mode)

16. Subtitle on/off

17. Language

18. Play, stop, rapid reverse, rapid advance

19. Pause(in media browser mode)

20. No function

21. Electronic program guide

22. Image size

23. My button1 (*)

24. My button 2 (**)

25. Exit

26. Navigation buttons

27. Navigation buttons

28. Navigation buttons

29. Quick menu

30. Programme up/down

31. Blue button

32. Yellow button

33. Swap

34. Media Browser

35. No Function

MY BUTTON 1

Press MY BUTTON 1 for five seconds when on a desired source, channel or link, until the "MY BUTTON IS SET" message is displayed on the screen. This confirms that the selected MY BUTTON is now associated with the selected function.

MY BUTTON 2

Press MY BUTTON 2 for five seconds when on a desired source, channel or link, until the "MY BUTTON IS SET" message is displayed on the screen. This confirms that the selected MY BUTTON is now associated with the selected function.

Connector Type Cables Device
	Scart Connection (back)
	VGA Connection (back)
	PC/YPbPr Audio Connection (side)	Side Audio YPbPr or PCConnection Cable
	HDMI Connection (back)
	SPDIFF Connection (back)
SIDE AV	Side AV (Audio/Video) Connection (side)
HEADPHONE	Headphone Connection (side)
	YPbPr Video Connection (side)	YPbPr Connection Cable
	USB Connection (side)
	CI Connection (side)

NOTE: When connecting a device via the Side AV input, you must use a connection cable to enable connection. See the illustrations above. To enable PC audio, you will need to use the SIDE AV CONNECTION cable's WHITE & RED inputs. If an external device is connected via the SCART socket, the TV will automatically switch to AV mode. When receiving DTV channels (Mpeg4 H.264) or while in Media Browser mode, output will not be available via the scart socket. When using the wall mounting kit (optional), we recommend that you plug all your cables into the back of the TV before mounting on the wall. Insert or remove the CI module only when the TV is SWITCHED OFF. You should refer to the module instruction manual for details of the settings. By connecting an HDMI cable to your TV, you have to use only a shielded HDMI cable to guarantee a sufficient immunity against parasitic frequency radiation.

Getting Started

First Time Installation - USB Connections

Switching On/Off

To Switch the TV On

Connect the power cord to the 220-240V AC, 50 Hz.

To switch on the TV from standby mode either:

Press the "button, P+ / P- or a numeric button on the remote control.

Press the side function switch until the TV comes on from standby.

To Switch the TV Off

Press the "button on the remote control or press the side function switch until the TV switches into standby mode.

To power down the TV completely, unplug the power cord from the mains socket.

Note: When the TV is switched to standby mode, the standby LED can blink to indicate that features such as Standby Search, Over Air Download or Timer is active. The LED can also blink when you switch on the TV from standby mode.

First Time Installation

When turned on for the first time, the language selection screen is displayed. Select the desired language and press OK.

The First Time Installation (FTI) screen will be displayed next. Set your preferences using the navigation buttons and when finished, press OK to continue.

You can activate Store mode option to be available in "Other settings" menu and your TV's features will be illustrated on the top of the screen. A confirmation screen will be displayed. Select YES to proceed.

If Home Mode is selected, Store mode will not be available after the First Time Installation. Press OK button to continue.

Aerial Installation

If you select AERIAL option from the Search Type screen, the television will search for digital terrestrial TV broadcasts.

NOTE: You can press MENU button to cancel.

After all the available stations are stored, the Channel List will be displayed on the screen. If you like how the channels are sorted according to the LCN (*), please select "Yes" and then press OK.

Press MENU button to quit channel list and watch TV.

(*) LCN is the Logical Channel Number system that organizes available broadcasts in accordance with a recognizable channel sequence (if available).

Cable Installation

If you select CABLE option and press OK button on the remote control. To continue, please select YES and press OK. To cancel operation, select NO and press OK. You can select frequency ranges from this screen.

Enter the frequency range manually by using the numeric button.

Note: Searching duration will change depending on the selected search step.

Media Playback via USB Input

You can connect a 2.5" and 3.5" inch (hdd with external power supply) external hard disk drives or USB memory stick to your TV by using the USB inputs of the TV.

IMPORTANT! Back up your files before making any connections to the TV. Manufacturer will not be responsible for any file damage or data loss. Certain types of USB devices (e.g. MP3 Players) or USB hard disk drives/memory sticks may not be compatible with this TV. The TV supports FAT32 and NTFS disk formatting.

While formatting a USB hard disk that has 1TB (Tera Byte) or more file capacity, you can experience problems with the formatting process. Do not repeatedly quickly plug and unplug the drive. This may cause physical damage to the USB player and USB device itself. Do not pull out USB module while playing a file.

Media Browser Menu

You can play photo, music, and movie files stored on a USB disk by connecting it to your TV. Connect a USB disk to one of the USB inputs located on the side of the TV. Pressing the Menu button while in the Media Browser mode will access the Picture, Sound and Settings menu options. Pressing the Menu button again will exit from this screen. You can set your Media Browser preferences by using the Settings Menu.

Loop/Shuffle Mode Operation
Start playback with ▶ and activate 📄	TV plays next file and loop the list.
Start playback with OK and activate 📄	The same file will be played in a loop (repeat).
Start playback with OK and activate 📄	The file will be played in a shuffle.

Quick Menu

Quick Settings menu allows you to access some options quickly. This menu includes Power Save Mode, Picture Mode, Equalizer Settings, Favourites and Sleep Timer options. Press Q.MENU button on the remote control to view quick menu. See the following chapters for the details of the listed features.

TV Menu Features and Functions

Picture Menu Contents
Mode	You can change the picture mode to suit your preference or requirements. Picture mode can be set to one of these options: Cinema, Game, Dynamic and Natural.
Contrast Sets the lightness and darkness values of the screen.
Brightness Sets	the brightness value for the screen.
Sharpness Sets	the sharpness value for the objects displayed on the screen.
Colour Sets the colour value, adjusting the colors.
Power Save Mode	To set the Power Save Mode as Eco, Picture Off and Disabled.(When the Mode is Dynamic, Power Save mode is automatically set as disabled.)
Backlight (Optional)	This setting controls the backlight level. The backlight function will be inactive if the Power Save Mode is set to Eco. The backlight cannot be activated in VGA, Media Browser mode or while the picture mode is set to Game.
Noise Reduction	If the broadcast signal is weak and the picture is noisy, use the Noise Reduction setting to reduce the amount of noise.
Advanced Settings
Dyanmic Contrast	You can change the Dynamic Contrast ratio to desired value.
Colour Temp Sets the desired colour tone.
Picture Zoom	Sets the desired picture size from picture zoom menu.Note: Auto (Only available in Scart mode with SCART PIN8 high voltage/low voltage switching)
Film Mode	Films are recorded at a different number of frames per second to normal television programmes. Turn this feature on when you are watching films to see the fast motion scenes clearly.
Skin Tone Skin tone can be changed between -5 and 5.
Colour Shift Adjusts the desired colour tone.
RGB Gain You can configure the colour temperature values using the RGB Gain feature.
Reset Resets the picture settings to factory default settings.(Except Game Mode)
Autoposition (in PC mode)	Automatically optimizes the display. Press OK to optimize.
H Position (in PC mode)	This item shifts the image horizontally to the right hand side or left hand side of the screen.
V Position (in PC mode)	This item shifts the image vertically towards the top or bottom of the screen.
Dot Clock (in PC mode)	Dot Clock adjustments correct the interference that appear as vertical banding in dot intensive presentations like spreadsheets or paragraphs or text in smaller fonts.
Phase (in PC mode)	Depending on the resolution and scan frequency that you input to the TV set, you may see a hazy or noisy picture on the screen. In such a case you can use this item to get a clear picture by trial and error method.
While in VGA (PC) mode, some items in Picture menu will be unavailable. Instead, VGA mode settings will be added to the Picture Settings while in PC mode.
Sound Menu Contents
Volume Adjusts the volume level.
Equalizer	Selects the equalizer mode. Custom settings can be made only when in user mode.
Balance This setting is used for emphasizing left or right speaker balance.
Headphone Sets headphone volume.
Sound Mode You can select a sound mode. (If the selected channel supports).
AVL (Automatic Volume Limiting)	Function sets the sound to obtain fixed output level between programmes.
Digital Out Sets digital out audio type.
Settings Menu Contents
Conditional Access Controls conditional access modules when available.
Language	Configures language settings (may change depending on the country selected) Preferred and current settings will be available. Current settings can be changed only if the broadcaster supports.
Parental	Enter correct password to change parental settings. You can easily adjust menu lock, maturity lock(may change depending on the country selected) and child lock in this menu. You can also set new pin number.
Timers	Sets sleep timer to turn off the TV after a certain time. Sets timers for selected programmes. (USB Record)
Date/Time Sets date and time.
Sources Enables or disables selected source options.
Other Settings: Displays other setting options of the TV set:
Menu Timeout	Changes timeout duration for menu screens.
Scan Encrypted Channels	When this setting is on, the search process will locate the encrypted channels as well.
Blue Background	Activates or deactivates the blue background system when the signal is weak or absent.
Software Upgrade	To ensure that your TV always has the most up to date firmware.
Application Version	Displays application version.
Hard of Hearing	Enables any special feature sent from the broadcaster.
Audio Description	Audio description refers to an additional narration track for blind and visually impaired viewers of visual media, including television and movies. You can use this feature, only if the broadcaster supports that additional narration track. Note: Audio description sound feature cannot be available in recording or time shifting mode..
Auto TV Off	You can set the timeout value of auto off feature. When the timeout value is reached and the TV has not been operated for a selected time, the TV will go into standby mode.
Standby Search (Optional)	If the Standby Search is set to On, when the TV is in standby mode, available broadcasts will be searched. If the TV locates any new or missing broadcasts, a menu screen will be displayed, asking you whether or not to execute these changes. Channel list will be updated and changed after this process.
Store Mode	If you are displaying the TV in a store, you can activate this mode. Whilst Store Mode is enabled, some items in the TV menu may not be available.
Power Up Mode This setting configures the power up mode preference.
Install and Retune Menu Contents
Automatic Channel Scan (Retune)(If available)	Displays automatic tuning options.Digital Aerial: Searches and stores aerial DVB stations.Digital Cable: Searches and stores cable DVB stations.Analogue: Searches and stores analogue stations.Digital Aerial & Analogue: Searches and stores aerial DVB and analogue stations.Digital Cable & Analogue: Searches and stores cable DVB and analogue stations.
Manual Channel Scan This feature can be used for direct broadcast entry.
Network Channel Scan S	Searches for the linked channels in the broadcast system.
Analogue Fine Tune	You can use this setting for fine tuning analogue channels. This feature is not available if no analogue channels are stored.
First Time Installation	Deletes all stored channels and settings, resets TV to factory settings.

General TV Operation

Using the Channel List

The TV sorts all stored stations in the Channel List. You can edit this channel list, set favourites or set active stations to be listed by using the Channel List options.

Configuring Parental Settings

To prohibit viewing of certain programmes, channels and menus can be locked by using the parental control system. To display parental lock menu options, the PIN number should be entered. The factory default PIN number is 0000. After coding the correct PIN number, parental settings menu will be displayed.

Menu Lock: Menu lock setting enables or disables the menu access.

Maturity Lock: When set, this option gets the maturity information from the broadcast and if this maturity level is disabled, disables access to the broadcast.

Child Lock: When Child Lock is set, the TV can only be controlled by the remote control. In this case the control panel buttons will not work.

Set PIN: Defines a new PIN number.

Note: If the Country option is set to France, you can use 4725 as the default code.

Electronic Programme Guide (EPG)

Some, but not all channels send information about the current and next programmes. Press the 📄button to view the EPG menu.

Red button (Prev Day): Displays the programmes of previous day.

Green button (Next day): Displays the programmes of the next day.

Yellow button (Zoom): Expands programme information.

Blue button (Filter): Views filtering options.

: Press button to view Select Genre menu. Using this feature, you can search the programme guide database in accordance with the genre. Info available in the programme guide will be searched and results matching your criteria will be listed.

(i) INFO: Displays, in detailed, information on the programme selected.

Numeric buttons (Jump): Jumps to the preferred channel directly via numeric buttons.

OK: Displays programme options.

Text (Search): Displays "Guide Search" menu.

© (Now) : Shows the current programme.

P+P- : More event info

IMPORTANT: Connect a USB disk to your TV while the TV is switched off. You should then switch on the TV to enable the recording feature.

Note: Switching to a different broadcast or source is not available during a recording.

Programme Options

In EPG menu, press the OK button to enter the Event Options menu.

Select Channel

In EPG menu, using this option, you can switch to the selected channel.

Set Timer / Delete Timer

After you have selected a programme in the EPG menu, press the OK button. Select the Set Timer on Event option and press the OK button. You can set a timer for future programmes. To cancel an already set timer, highlight that programme and press the OK button. Then select "Delete Timer" option. The timer will be cancelled.

Software Upgrade

Your TV is capable of finding and updating automatically via the Aerial/Cable/Satellite signal.

Software upgrade search via user interface

Simply navigate on your main menu. Choose Settings and select Other Settings menu. In Other Settings menu navigate on to the Software for Upgrade item and press OK button to check for a new software upgrade.

3 AM search and upgrade mode

While the TV is connected to an aerial signal. I Automatic scanning in the Upgrade Options menu is enabled, the TV wakes up at 03:00 and searches broadcast channels for new software upgrades. If new software is found and downloaded successfully, the next time the TV powers up, it will have the new software version.

Note: If the TV fails to come on after the upgrade unplug the TV for 2 minutes and plug in again.

Troubleshooting & Tips

Tv will not turn on

Make sure the power cord is plugged in securely to wall outlet. The batteries in the remote control may be exhausted. Press the Power button on the TV.

Poor picture

• Have you selected the correct TV system?
• Low signal level can cause picture distortion. Please check antenna access.
• Check if you have entered the correct channel frequency if you have done manual tuning.

- The picture quality may degrade when two devices are connected to the TV at the same time. In such a case, disconnect one of the devices.

No picture

• No Picture means that your TV is not receiving a transmission. Have you selected the correct button on the remote control? Try once more. Also make sure the correct input source has been selected.
  • Is the antenna connected properly?
  • Is the antenna cable damaged?
• Are suitable plugs used to connect the antenna?
• If you are in doubt, consult your dealer.

No sound

• Has the TV been set to mute? To cancel mute, press the "button, or increase the volume level.
• Sound is coming from only one speaker. Is the balance set to one extreme? See Sound Menu section.

Remote control - does not operate

- The batteries may be exhausted. Replace the batteries.

Input sources - can not be selected

• If you cannot select an input source, it is possible that no device is connected. if not
• Check the AV cables and connections if you have tried to connect a device.

PC Input Typical Display Modes

The following table is an illustration of some of the typical video display modes. Your TV may not support all resolutions. Your TV supports up to 1920x1080.

Index	Resolution	Frequency
1	640x480	60 Hz
2	800x600	56 Hz
3	800x600	60 Hz
4	1024x768	60 Hz
5	1024x768	66 Hz
6	1280x768	60 Hz
7	1280x960	60 Hz
8	1280x1024	60 Hz
9	1360x768	60 Hz
10	1400x1050	60 Hz
11	1600x1200	60 Hz
12	1920x1080	60 Hz

AV and HDMI Signal Compatibility

Source S	Supported Signals Available
EXT(SCART)	PAL 50/60 O
	NTSC 60 O
	RGB 50 O
	RGB 60 O
Side AV	PAL 50/60 O
	NTSC 60 O
PC/YPbPr	480I, 480P 60Hz O
	576I, 576P 50Hz O
	720P 50Hz,60Hz O
	1080I 50Hz,60Hz O
	1080P 50Hz,60Hz O
HDMI1	480I 60Hz O
	480P 60Hz O
	576I, 576P 50Hz O
	720P 50Hz,60Hz O
	1080I 50Hz,60Hz O
	1080P	24Hz, 25Hz30Hz, 50Hz,60Hz	O

(X: Not Available, O: Available)
In some cases a signal on the LED TV may not be displayed properly. The problem may be an inconsistency with standards from the source equipment (DVD, Set-top box, etc.). If you do experience such a problem please contact your dealer and also the manufacturer of the source equipment.

Supported File Formats for USB Mode

Media File Extension		Format		Remarks(Maximum resolution/Bit rate etc.)
		Video	Audio
Movie	mpg, mpeg	MPEG1, MPEG2		MPEG1: 768x576 @30PMPEG2:1920x1080 @ 30P
	vob	MPEG2		1920x1080 @ 30P
	mp4	MPEG4, Xvid , H.264
	mkv	H.264, MPEG4,VC-1
	avi	MPEG2, MPEG4, Xvid , H.264
	flv	H.264/VP6/Sorenson		H.264/VP6:1920x1080 @ 30PSorenson: 352x288 @30P
	3gp	MPEG4 , H.264		1920x1080 @ 30P
Music	.mp3	-	MPEG 1 Layer 2	32Kbps ~ 448Kbps(Bit rate)32K, 44.1k, 48k Hz,16K, 22.05K, 24K Hz (Sampling rate)
			MPEG 1 Layer 3	32Kbps ~ 320Kbps(Bit rate)32K, 44.1k, 48k Hz,16K, 22.05K, 24K Hz,8K, 11.025K, 12K Hz (Sampling rate)
Photo	.jpg .jpeg	Baseline JPEG	-	max WxH = 17000x10000 4147200bytes
	.	Progressive JPEG	-	max WxH = 4000x4000 3840000bytes
	.bmp	-	-	max WxH = 5760x4096 3840000bytes
Subtitle	.sub .srt	-	-	-

Table des matières

Connexions (Connections)....47

Mise sous/hors tension....48

RISQUE D'ELECTROCUTION NE PAS OUVRIR

ATTENTION: POUR EVITER TOUT RISQUE D'ELECTROCUTION, NE RETIREZ PAS LE COUVERCLE.L'ENTRETIEN DES PIÈCES INTERNES EST INTERDIT AUX UTILISATEURS. VEUILLEZ CONFIER L'ENTRETIEN A UN PERSONNEL QUALIFIE.

Close-up of a conical device with glowing components and polarity indicators (no readable text or symbols)

Télétexte

Connexions (Connections)

A	Product Fiche
B	Commercial Brand: SALORA
C	Product No. 10094993
D	Model No.	20LED9100C
E	Energy efficiency class	A
F	Visible screen size (diagonal, approx.) (inch/cm)	20 inches	51 cm
G	On mode average power consumption (Watt)	19
H	Annual energy consumption (kWh/annum)	27
I	Stand by power consumption (Watt)	0,5
J	Off mode power consumption (Watt)	0
K	Display resolution (px)	1600x900

	A B C D E F
English	Product Fiche Commercial Brand Product No. Model No. Energy efficiency class					Visible screen size (diagonal, approx.) (inch/cm)
Deutsch	Produkt-Datenblatt Markenzeichen Produkt-Nr. Modell-Nr. Energieeffizienzklasse					Sichtbare Bildschirmgröße (diagonal.ca.) (Zoll /cm)
عربي	قياسメント	العامة التجارية تبويونك	رقمメント	رقم الموديل	تنا قمالية الطاقة	(جيم اشاشته المريenne (قطري) (وصم/بسم)
Български	Справочен лист с техническите данни	Търовска марка	Продукт No	Модел No	Клас на енергийна ефективност	Видим размер на екрана (диагонал,прибл.) (инча /см )
čeština	Informační list	Značka výrobce	Čísло produktu	Model č.	Energetická třída	Viditelná velikost obrazovky (úhlopříčka,přibl).(palců /cm)
Dansk	Produktoplysningsskema	Varemærke	Produktnr.	Model nr.	Energieffektivitetsklasse	Synlig skærmstørrelse (diagonalt,ca.) (HK/cm)
Suomi	Tuote fiche	Kaupallinen merkki	Tuote nro.	Malli nro.	Virran tehokkuusluokka	Nakyván kuvaruudun koko (diagonaalinen,n.) (tuumaa/cm)
Français	Fiche du produit	Marque commerciale	Produit N°	Modèle N°	Classe d'efficacité énergétique	Taille d'ecran visible (diagonale,approx (pouces/cm)
Hrvatski	SAŽETAK PROIZVODA	Trgovačka marka	Br. proizvoda	Br. modela	Klasa energetske učinkovitosti	Vidljiva velička ekrana (diagonalna,približno) (inča/cm)
Nederlands	Productfiche	Commercieel merk.	Productnr.	Modelnr.	Energie efficiëntie klasse	Zichibare schermgroote (diagonala,ca.) (inches/cm)
Español	Ficha del Producto	Marca Comercial	No de Producto	No de Modelo	Clasificación Energética	Tamaño de pantalla visible (diagonal,aprox.) (pulgadas/cm)
Svenska	Produktspecifikation	Varumärke	Produktnr.	Modellnr.	Energiklass	Synlig skärmstorlek (diagonal,ungefärlig) (tum/cm)
Italiano	Scheda prodotto	Marchio commerciale	Numero prodotto	Numero modello	Classe di eficienza energetica	Dimensioni visibili dello schermo (diagonale,circa)(pollici/cm)
Polski	KARTA PRODUKTU	Marka produktu Nr produktu	Nr modelu		Klasa efektywności energetycznej	Widoczny obraz ekranu (przekątna,okolo)(cali/cm)
Magyar	Termékismertető adatlap	Kereskedelmi marka	Termékszám	Modellszám	Energiahatékonysági osztály	Látható képtartomány (diagonális,kb.) (inches/cm)
Norsk	Produktinformasjon	Kommersiell merkevare	Produkt nr.	Modell nr.	Energieffektivitet klasse	Synlig skjermstørrelse (diagonal, ca.) (tommer/cm)
Português	Ficha do produto	Marca Comercial	Produto No	Modelo No	Classificação eficiência energética	Tamanho ecrà visivel (diagonal, aprox. (polegadas/cm)
Română	Fişă produs	Marcă comercială	Nr. Produs	Nr. Model	Clasa de eficiență energetică	Dimensiunea ecranului vizibil (diagonală, aprox.) (inch/cm)
Русский	Справочный листок технических данных изделия	Торговая марка	Номер изделия	Номер модели	Класс энергопотребления	Видимый размер экрана (по диагонали. Около) (дюймов/см)
беларуская	Справочный листок технических данных изделия	Торговая марка	Номер изделия	Номер модели	Класс энергопотребления	Видимый размер экрана (по диагонали.Около)(дюймов/см )
македонски	Технички податоци	Комерцијална марка	Производ бр.	Модел бр.	Класа на енергетска ефикасност	Големина на видлив екран (дијагонала, околу) (инчи/см)
український	Технічні дані	Кормеційна марка	Артикул	Модель	Клас енергоспоживання	Видимий розмір екрана (диагональ, Приблизно) (дюймів/см)
Srpski	Tehničke odlike	Komercijalna marka	Proizvod br.	Model br.	Klasa energetske efikasnosti	Veličina vidljivog ekrana (diagonala, tokom) (inča/cm)
Slovenčina	Informačný list	Značka výrobcu	Čísло produktu	Model č.	Energetická trieda	Viditefná velkost'obrazovky (uhlopriečka, zhruba) (palcov/cm)
Slovenščina	Opis izdelka	Komercialna znamka	Št. İzdelka	Št. Modela	Razred energetske učinkovitosti	Vidna velikost zaslona (diagonala, pribl.) (palcev/cm)
Еллянік	Делтію проϊόντος	Емпорікó σήμα	Ap. Проϊόντος	Ap. Movtélou	Катнуоріа енергеискің атобооңс	Орото мегеевос ововңς (діагушвіоç, петр.) (інтієс/см)
Bosanski	Tehnički podaci	Komercijalna marka	Produkt br.	Model br.	Klasa energetske efikasnosti	Vidljiva velična ekrana (diagonala, približno.) (inča/cm)
لاوي	لاوي عَلَّدُ	لاوي عَلَّدُ	لاوي عَلَّدُ	لاوي عَلَّدُ	لاوي عَلَّدُ	لاوي عَلَّدُ (інтієс/см)
Türkçe	Ürün fişi	Ticari Marka	Ürün No.	Model No.	Enerji verimiliği sınıfı	Görülen ekran boyutu (çapraz, yakışk.) (inch/cm)
Shqip	Tě dhēnat e produktit	Marka tregtare	Nr. i produktit.	Nr. i modelit.	Klasa е eficiencês sê energjisê	Maconesia e ekranı te duksnem (diagonal, afërsisht) (inch/cm)
Lietuvių	Gaminio etlketė	Gamintojas	Gaminio Nr.	Modelio Nr.	Energetinio efektyvumo klasė	Matomas ekran odydis (istrizainė, approx.) (coli./cm)
Latviešu	Produkta apraksts	Marka	Produkta nr.	Modela nr.	Energoefektivitätes klase	Ekrána izmërs (pa diognăli, apmçram) (collas/cm)
Eesti	TOOTEKIRJELDUS	Tootja firma	Toote nr.	Mudeli nr.	Energiaklass	Vaadatava ekraani suurus (diagonaal, umbes) (toll/cm)
فارمسи	مشخصات محصول	isotarks تJEARÉ	refugees محصول	refugees مدل	گرووه کارایی نززی	Інтуاند صفحه قابل مشادده إِنْسی، ئقربيا لинг (لانلى متر)

	GHIJ	K
English	On mode average power consumption (Watt)	Annual energy consumption (kWh/annum)	Standby power consumption (Watt)	Off mode power consumption (Watt)	Display resolution (px)
Deutsch	Durchschnittlicher Stromverbrauch im eingeschaltetem Zustand (Watt)	Jährlicher Energieverbrauch (kWh/Jahr) Standby-Stromverbrauch	(Watt)	Stromverbrauch im ausgeschaltetem Zustand (Watt) Display-Auflösung (px)
عربية	متوسط استهلاك الطاقة عن التسجيل (والمط)	(الاستهلاك السنوي للطاقة (اكير وطلاة)	(استهلاك الطاقة في وXPSSتتتتتتتتتتتتتتتتتتتتتتتتتتتتتتتتتتتتتتتتتتتتتتتتتتتتتتتتتتتتتتتتتتتتتتتتتتتتتتتتتتتتتتتتتتتتتتتتتتتتт	(ستهلاك الطاقة في وXPSSتتتتتتتتتتتتتتتتتتتتتتتتتتتتتتتتتتتتتتتتتتتتт	(光辉ج الشاشة (كيل)
Български	Средна консумация на електроенергия във включено състояние(Watt)	Годишна консумация на електроенергия (kWh/Годишна)	Консумация на електроенергия в режим на готовност (Watt)	Консумация на електроенергия в изключено състояние (Watt)	Разделителна способност на дисплея (пиксела)
čeština	Prümérna spotřeba elektrické energie v zapnutém režimu (Wattú)	Roční spotřeba energie (kWh/Roční)	Spotřeba elektrické energie v pohotovstním režimu (Wattú)	Spotřeba elektrické energie ve vypnutém režimu (Wattú) Rozilšení disploje (px)
Dansk	Gennemsnitligt stromforbrug i taëndt tiistand (Watt)	Ärligt energiforbrug (kWh/Ärligt)	Stromforbrug (standby)(Watt)	Stromforbrug i slukket tilstand (Watt)	Skærmoplösning (px)
Suomi	Păällă-tilan keskimâäräinen virrankulutus (Wattia)	Vuosittainen sähkönkulutu (kWh/Vuosittainen)	Vakiovirran kulutus (Wattia)	Pols-tilan virrankulutus (Wattia)	Näytön erottelukyky (pikseila)
Français	Consommation énergétique moyenne en mode "marche" (Watt)	Consommation énergétique annuelle (kWh/annuel)	Consommation d'énergie en veille (Watt)	Consommation d'énergie en mode "arrêt" (Watt)	Résolution de l'écran (px)
Hrvatski	Prosječna potrošnja el. energije kada je proizvod uključen (Watta)	Godišnja potrošnja el. Energije (kWh/Godišnja)	Potrošnja el. energije u modu pripravnosti (Watta)	Potrošnja el. energije kada je proizvod isključen (Watta)	Rezolucija zaslona (piksela)
Nederlands	Aan-modus gemiddeld stroomverbruik (Watt)	Jaarlijks energieverbruik(kWh/Jaarlijks )	Stand-by stroomverbruik (Watt)	Uit-modus stroomverbruik (Watt)	Schermresolutie (px)
Español	Consumo eléctrico medio, en funcionamiento (Vatio)	Consumo eléctrico anual (kWh/anual)	Consumo en modo en espera (Vatio)	Consumo eléctrico modo apagado (Vatio)	Resolución de pantalla (px)
Svenska	Strömkonsumtion i PÀ-läge (Watt)	Energikonsumtion per år (kWh/Ärlig)	Strömkonsumtion i viloläge (Watt)	Strömkonsumtion i AV-läge (Watt)	Skärmupplösning (pixlar)
Italiano	Consumo di corrente medio da accesa (Watt)	Consumo annuale di energia (kWh/annuo)	Consumo di corrente in modalità standby (Watt)	Consumo di corrente da spenta (Watt)	Risoluzione del display (px)
Polski	Średnie zużycie energii w trybie włączonym (Watów)	Roczne zużycie energii (kWh/Roczne)	Średnie zużycie energii w trybie oczekiwania (Watów)	Zuzycie energii w trybie włączonym (Watów)	Rozdzielczość obrazu (pikseli)
Magyar	Energiafogyasztás bekapcsolva hagyott üzemmódban (Watt) Éves energiafogyasztás	(kWh/Éves)	Energiafogyasztás standby üzemmódban (Watt)	Energiafogyasztás kikapcsolt üzemmódban (Watt)	Képernyőfelbontás (px)
Norsk	Pámodus gjennomsnittlig stromforbruk (Watt)	Ärlig stromforbruk (kWh/Ärlig)	Hvilemodus stromforbruk (Watt)	Av-modus stromforbruk (Watt)	Skjermopplösning (piksel)
Português	Consumo energia em modo médio (Watt)	Consumo annual energia (kWh/anual)	Consumo energia em stand-by (Watt)	Consumo energia em modo alimentação (Watt)	Resolução do visor (pixel)
Română	Consum electric mediu in modul pornit (Watj)	Consum anual de energie (kWh/anual)	Consum electric in stare de repaus (Watj)	Consum electric in modul oprit (Watj)	Rezoluția ecranului (pixeli)
Русский	Средний расход энергии в режиме включения (ватт)	Ежегодный расход энергии (кВтч/Годовое)	Расход энергии в режиме ожидания (ватт)	Расход энергии в режиме выключения (ватт)	Разрешение экрана (пикселей)
беларуская	Средний расход энергии в режиме включения (ватт)	Ежегодный расход энергии (kWh/гајавое)	Расход энергии в режиме ожидания (ватт)	Расход энергии в режиме выключения (ватт)	Разрешение экрана (пикселей)
македонски	Просечна потрошувачка кога е вклучен	Годишна потрошувачка на енергија (kWh/Годишна)	Потрошувачка во мирување (вати)	Потрошувачка кога е исклучен (вати)	Резопуција на екран (пиксели)
український	Середня споживана потужність у робочому режимі (Вт)	Середньорічна споживана потужність (kWh/Річне)	Споживана потужність у режимі очікування (Вт)	Споживана потужність у вимкненому стані (Вт)	Роздільна здатність екрана (пикселів)
Srpski	Prosečna potrošnja kada je uključeni (Vati)	Godišnja potrošnja energije (kWh/Godišnja)	Potrošnja tokom mirovanja (Vati)	Potrošnja kada je isključeni (Vati)	Rezolucija displeja (piks.)
Slovenčina	Priemernă spotreba elektrickej energie v zapnutom režime (Wattov)	Ročnă spotreba energie (kWh/Ročnă)	Spotreba elektrickej energie v pohotovostnom režime (Wattov)	Spotreba elektrickej energie vo vypnutom režime (Wattov)	Rozlišenie displeja (pixl.)
Slovenščina	Poraba električne energije v povprečnem načinu (Wattov)	Letna poraba energije (kWh/Letna)	Poraba energije v stanju pripravljenosti (Wattov)	Poraba energije načinu izklopa (Wattov)	Resolucija zaslona (piks.)
Еллёнук	Месян катовálшо́н реúµatóс лепотру́ю́с (Watt)	Етніндіка катовálшо́н еvépyею́с (kWh/Eтніндік)	Катанвáшо́н реúµatóс стітн ава́му́н (Watt)	Катанвáшо́н реúµatóс стітн ава́му́н (Watt)	Аралуон овóvnіс (Пілєл)
Bosanski	Prosječna potrošnja kada je uključen (Watt)	Godišnja potrošnja energije (kWh/Godišnja)	Potrošnja tokom mirovanja (Watt)	Potrošnja kada je isključen (Watt)	Rezolucija ekrana (piks.)
Түйкçe	(дэх) түйкө түйкө түйкө түйкө түйкө түйкө түйкө түйкө түйкө түйкө түйкө түйкө түйкө түйкө түйкө түйкө түйкө түйкө түйкө түйкө түйкі	(дэх) түйкө түйкө түйкө түйкө түйкө түйкө түйкө түйкө түйкө түйкө түйкө түйкө түйкө түйкө түйкө түйкө түйкө түйкө түй, түйкө түйкө түйкө түйкө түйкө түйкө түйкө түйкө түйкө түйкө түйкө түйкө түйкө түйкө түйкө түйкө түйкө түйкө түйкө түйкел	(дэх) түйкө түйкө түйкө түйкө түйкө түйкө түйкө түйкө түйкө түйкө түйкө түйкө түйкө түйкө түйкө түйкө түйкө түйкө түйки	(дэх) түйкө түйкө түйкө түйкө түйкө түйкө түйкө түйкө түйкө түйкө түйкө түйкө түйкө түйкө түйкө түйкө түйкө түйкө түйс	(дэх) түйкө түйкө түйкө түйкө түйкө түйкө түйкө түйкө түйкө түйкө түйкө түйкө түйкө түйкө түйкө түйкө түйкө түйкө түйнг
Türkçe	Аçık moddaki ortalama güç tüketimi (Watt)	Yıllik enerji tüketimi (kWh/yıllik)	Bekleme durumunda enerji tüketimi (Watt)	Kapalı moddaki güç tüketimi (Watt)	Ekran çözünürtüğü (piks.)
Shqip	Konsumi mesatar i energijše si i ndezur (Watt)	Konsumi vjetor i energijše (kWh/vjetor)	Konsumi i energijše si ně gatlishměri (Watt)	Konsumi i energijše si i fikur (Watt)	Rezolucioni i ekranit (piks.)
Lietuvlu	Vidutinés energijos sānaudos jungus (Vatali)	Metinés energijos sānaudos (kWh/Metinés)	Energijos sānaudos budějimo režimu (Vatali)	Energijos sānaudos išjungus (Vatali)	Ekrano skiriamoji geba (pikselių)
Latviešu	Energijas patērīņš aktivá režimá (Vati)	Gada energijas patērīņš (kWh/gada)	Energijas patērīņš galōrīšanas režimá (Vati)	Energijas patērīņš izslēgtā stāvokī (Vati)	Displeja rezolúcija (pikseliem)
Eesti	Keskmine energiakulu töörežimil (Vatti)	Aastane energiakulu (kWh/aastane)	Energiakulu ooterežimil (Vatti)	Energiakulu väljalültatud olekus (Vatti)	Ekraani resolutsioon (pikslit)
فرايسي	(مYZAN) مYZAN مYZAN مYZAN مYZAN مYZAN مYZAN مYZAN مYZAN مYZAN مYZAN مYZAN مYZAN مYZAN مYZAN مYZAN مYZAN مYZAN مYZAN مYZAN مYZAN مYZAN مYZAN مYZAN مYZAN مYZAN مYZAN مYZAN مYZAN مYZAN مYZAN مYZAN مYZAN مYZAN مYZAN мYZAN مYZAN مYZAN مYZAN مYZAN مYZAN مYZAN مYZAN مYZAN مYZAN مYZAN مYZAN مYZAN مYZAN مYZAN مYZAN مYZAN مYZAN مYZAN مYZAN مYZAN مYZAN مYZAN مYZAN مYZAN مYZAN مYZAN مYZAN مYZAN مYZAN مYZAN مYZAN مYZAN مΥΑΝΙΝΙΝΙΝΙΝΙΝΙΝΙΝΙΝΙΝΙΝΙΝΙΝΙΝΙΝΙΝΙΝΙΝΙΝΙΝΙΝΙΝΙΝΙΝΙΝΙΝΙΝΙΝΙΝΙΝΙΝΙΝΙΝΙΝΙΝΙΝΙΝΙΝΙΝΙΝΙΝΙΝΙΝΙΝΙΝΙΝΙΝΙΝΙΝΙΝΙΝΕΝΤΗΣ ΣΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΔΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΛΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΔΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣTΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤАΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΞΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣτΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΑΣΤΕΝΤΕΝΤΕΝΤΕΝΤΕΝΤΕΝΤΕΝΤΕΝΤΕΝΤΕΝΤΕΝΤΕΝΤΕΝΤΕΝΤΕΝΤΕΝΤΕΝΤΕΝΤΕΝΤΕΝΤΕΝΤΕΝΤΕΝΤΕΝΤΕΝΤΕΝΤΕΝΤΕΝΤΕΝΤΕΝΤΕΝΤΕΝΤΕΝΤΕΝΥΝΟΥΝΟΥΝΟΥΝΟΥΝΟΥΝΟΥΝΟΥΝΟΥΝΟΥΝΟΥΝΟΥΝΟΥΝΟΥΝΟΥΝΟΥΝΟΥΝΟΥΝΟΥΝΟΥΝΟΥΝΟΥΝΟΥΝΟΥΝΟΥΝΟΥΝΟΥΝΟΥΝΟΥΝΟΥΝΟΥΝΟΥΝΟΥΝΟΥΝΟУΝΟΥΝΟΥΝΟΥΝΟΥΝΟΥΝΟΥΝΟΥΝΟΥΝΟΥΝΟΥΝΟΥΝΟΥΝΟΥΝΟΥΝΟΥΝΟΥΝΟΥΝΟΥΝΟΥΝΟΥΝΟΥΝΟΥΝΟΥΝΟΥΝΟΥΝΟΥΝΟΥΝΟΥΝΟΥΝΟΥΝΟΥΝΟΥΝΟΥΥΝΟΥΝΟΥΝΟΥΝΟΥΝΟΥΝΟΥΝΟΥΝΟΥΝΟΥΝΟΥΝΟΥΝΟΥΝΟΥΝΟΥΝΟΥΝΟΥΝΟΥΝΟΥΝΟΥΝΟΥΝΟΥΝΟΥΝΟΥΝΟΥΝΟΥΝΟΥΝΟΥΝΟΥΝΟΥΝΟΥΝΟΥΝΟΥΝΟΟΥΝΟΥΝΟΥΝΟΥΝΟΥΝΟΥΝΟΥΝΟΥΝΟΥΝΟΥΝΟΥΝΟΥΝΟΥΝΟΥΝΟΥΝΟΥΝΟΥΝΟΥΝΟΥΝΟΥΝΟΥΝΟΥΝΟΥΝΟΥΝΟΥΝΟΥΝΟΥΝΟΥΝΟΥΝΟΥΝΟΥΝΟΥΝΟΥΝούνινηνηνηνηνηνηνηνηνηνηνηνηνηνηνηνηνηνηνηνηνηνηνηνηνηνηνηνηνηνηνηνηνηνηνηνηνηνηνηνηνηνηνηνηνηνηνηνηνηνηναναναναναναναναναναναναναναναναναναναναναναναναναναναναναναναναναναναναναναναναναναναναναναναναναναν ανανανανανανανανανανανανανανανανανανανανανανανανανανανανανανανανανανανανανανανανανανανανανανανανανανβανανανανανανανανανανανανανανανανανανανανανανανανανανανανανανανανανανανανανανανανανανανανανανανανανακυνανανανανανανανανανανανανανανανανανανανανανανανανανανανανανανανανανανανανανανανανανανανανανανανανανούνινηνηνηνηνηνηνηνηνηνηνηνηνηνηνηνηνηνηνηνηνηνηνηνηνηνηνηνηνηνηνηνηνηνηνηνηνηνηνηνηνηνηνηνηνηνηνηνγικελείλεικελείλεικελείλεικελείλεικελείλεικελείλεικελείλεικελείλεικελείλεικελείλεικελείλεικελείλεικελείλεικε λείλεικελείλεικελείλεικελείλεικελείλ

Inhalt

Close-up of a cylindrical battery with two metallic casing, showing charge distribution (no visible text or symbols)

MY BUTTON 1
