USER MANUAL KID 740 B HOTPOINT

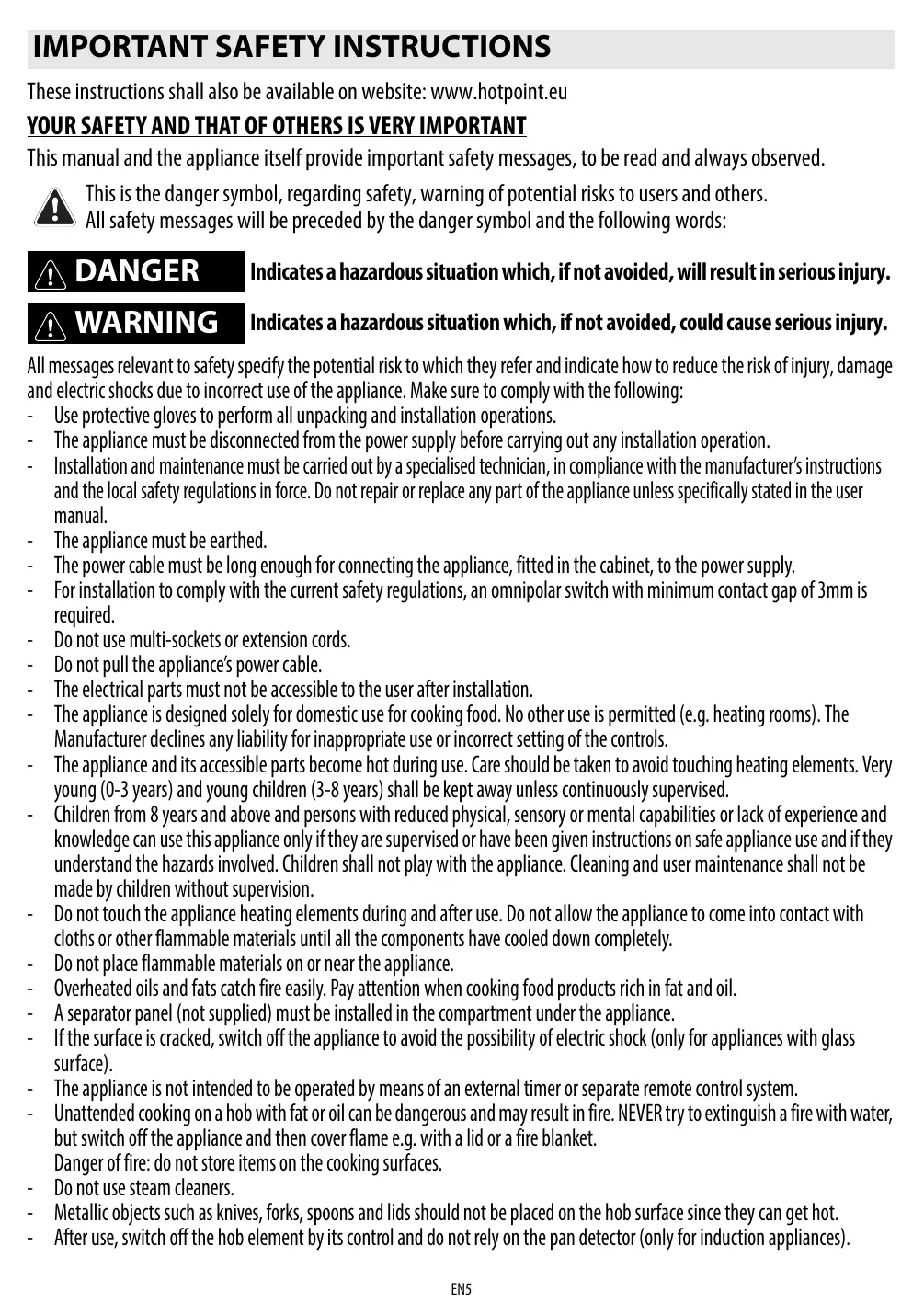

These instructions shall also be available on website: www.hotpoint.eu YOUR SAFETY AND THAT OF OTHERS IS VERY IMPORTANT This manual and the appliance itself provide important safety messages, to be read and always observed. À This is the danger symbol, regarding safety, warning of potential risks to users and others. All safety messages will be preceded by the danger symbol and the following words: \ DANGER Indicates a hazardous situation which, if not avoided, will result in serious injury. / A LUN TENTE Indicates a hazardous situation which, if not avoided, could cause serious injury. All messages relevant to safety spedify the potential risk to which they refer and indicate how to reduce the risk ofinjury, damage and electric shocks due to incorrect use ofthe appliance. Make sure to comply with the following: Use protective gloves to perform all unpacking and installation operations. The appliance must be disconnected from the power supply before carrying out any installation operation. Installation and maintenance must be carried out by a spedialised technician, in compliance with the manufacturers instructions and the local safety regulations in force. Do not repair or replace any part ofthe appliance unless specifically stated in the user manual. The appliance must be earthed. The power cable must be long enough for connecting the appliance, fitted in the cabinet, to the power supply. For installation to comply with the current safety regulations, an omnipolar switch with minimum contact gap of 3mm is required. Do not use multi-sockets or extension cords. Do not pull the appliances power cable. The electrical parts must not be accessible to the user after installation. The appliance is designed solely for domestic use for cooking food. No other use is permitted (e.g. heating rooms). The Manufacturer declines any liability for inappropriate use or incorrect setting of the controls. The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Very young (0-3 years) and young children (3-8 years) shall be kept away unless continuously supervised. Children from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge can use this appliance only ifthey are supervised or have been given instructions on safe appliance use and ifthey understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Do not touch the appliance heating elements during and after use. Do not allow the appliance to come into contact with dloths or other flammable materials until all the components have cooled down completely. Do not place flammable materials on or near the appliance. Overheated oils and fats catch fire easily. Pay attention when cooking food products rich in fat and oil. A separator panel (not supplied) must be installed in the compartment under the appliance. Ifthe surface is cracked, switch off the appliance to avoid the possibility of electric shock (only for appliances with glass surface). The appliance is not intended to be operated by means of an external timer or separate remote control system. Unattended cooking on a hob with fat or oil can be dangerous and may result in fire. NEVER try to extinguish a fire with water, but switch offthe appliance and then cover flame e.g. with a lid or a fire blanket. Danger of fire: do not store items on the cooking surfaces. Do not use steam cleaners. Metallic objects such as knives, forks, spoons and lids should not be placed on the hob surface since they can get hot. After use, switch offthe hob element by its control and do not rely on the pan detector (only for induction appliances). ENS

sposal of packing The packing material is 100% recyclable and marked with the recyding symbol (°). The various parts ofthe packing must not be dispersed in the environment, but disposed ofin compliance with local regulations. Disposal This appliance is marked in conformity with European Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE). By ensuring that this appliance is correctly disposed of, the user can help prevent potentially negative consequences for the environment and the health of people. The symbol x on the appliance or the accompanying documentation indicates that this product should not be treated as domestic waste but must be taken to an appropriate collection point for recycling WEEE. Energy saving tips For optimum results, it is advisable to: + Use pots and pans with bottom width equal to that ofthe cooking zone. + Onlyuse flat-bottomed pots and pans. + When possible, keep pot lids on during cooking. + Use a pressure cooker to to save even more energy and time. + Placethe potinthe middle ofthe cooking zone marked on the hob.

DECLARATION OF CONFORMITY Ç €

This appliance has been designed, manufactured and marketed in conformit with the safety requirements of "Low Voltage” Directive 2006/95/EC (replacing 73/ 23/EECas amended) and protection requirements of"EMC" Directive 2004/108/EC. = This appliance meetsthe eco design requirements of european regulation N. 66/2014, in conformity to the european standard EN 60350-2. BEFORE USE IMPORTANT: The cooking zones will not switch on if pots are not the right size. Only use pots bearing the symbol “INDUCTION SYSTEM" (Figure opposite). Place the pot on the required cooking zone before switching the hob on. Using suitable pots, the cooking zones cannot be used at temperatures below 10°C.

EXISTING POTS AND PANS

Lg > Sd x Use a magnet to check ithe bottom ofthe potis suitable for the induction hob: bottom ofthe pots and pans are unsuitable if ot magneticaly detectable. = ke sure pots have a smooth bottom, otherwise they could scratch the hob. Check dishes. = Never place hot pots or pans on the surface ofthe hobs control panel. This could result in damage.

RECOMMENDED POT BOTTOM WIDTHS

Place the pot on the required cooking zone before switching the hob on. For good cooking results, the diameter ofthe base ofthe pot should match the size ofthe hotplate.

Pan size To determine the size ofthe pot please measure the base ofthe pot (see picture) and refer to recommended pots bottom width table, reported below, for perfect usage and correct pan detection. Each cooking zone has a minimum limit of detecting pans, which varies depending on the material of the pan being used. You should therefore use the cooking one that is most suitable for the diameter of Your pan. EN6

For best performance, when you use two pots simultaneously, put them according to the pictures below:

Powerlevel Type of cooking Level use (indicating cooking experience and habits) ont pres rap sg re Temperalure of food as Dong ee of oral Reatg Frying-boïing Tea for browning, starting to cook, Fying fozen products, fast Doling 97 |Browning- song DOG | eat for slow frying, maintaining a high bol, cooking and grling (short duration, 5-10 minutes) -griling High SAPONES Browning = cooking stewing [deal for slow ring, maintaining a low Do, cooking and griling (medium duration, 10-20 minutes), 75 Slowfying-grling |preheating Cooking_stewing - Idea for stewing, maintaining a gent bo, cooking and griling (long duration. slow frying- gling "ing, mantennga a ingand griling (long duration) Medium pouer Tea for protonged cooReng ice, sauces, ras, PS qu gate We, Droi,m, 53 Cooking-simmering- [reaming pasta. thidkening-creaming pasta deal or profonged cooking rolumes ofless an a re: ce sauces, 10256, MSN WIN QUES e.g. water, wine, broth, milk) Ideal forsofening bites, gent melng chocolate, having small product and Keeping just cooked L 1 ann food hot {e.g. sauces, soups, minestrone) oW power F eping food hot- Fdeal for Keeping just-cooked food hot, creaming risottos and Keeping serving dishes warm creaming risottos with induction-suitable accessory), 0 ES Support surface Hobin standhy mode or of {possible end-of-cooking residual heat, indicated by “H") NOTE: When making quick-cook foods that require perfect heat distribution (e.g. pancakes) on the 28 cm double cooking zone (where present), use pans no greater than 24 cm in diameter. For delicate cooking (for example, melting chocolate or butter) use the smaller diameter single zones. INSTALLATION After unpacking the product, check for any damage during transport. In case of problems, contact the dealer or the After-Sales Service. For built-in dimensions and installation instruction, ee the pictures in page 2.

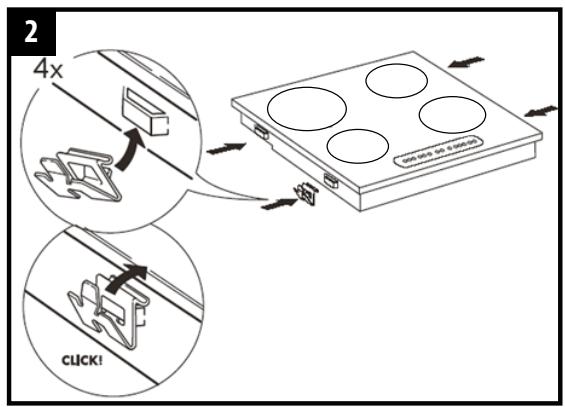

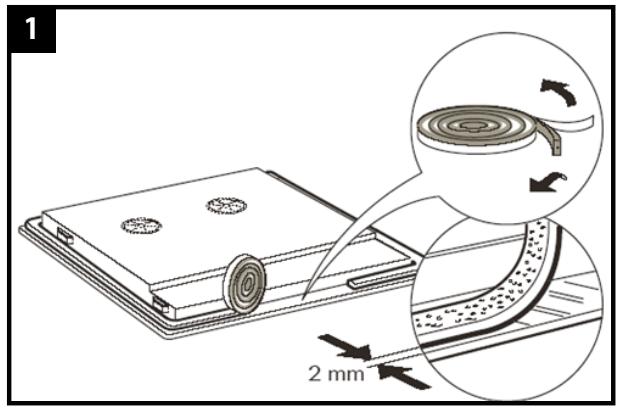

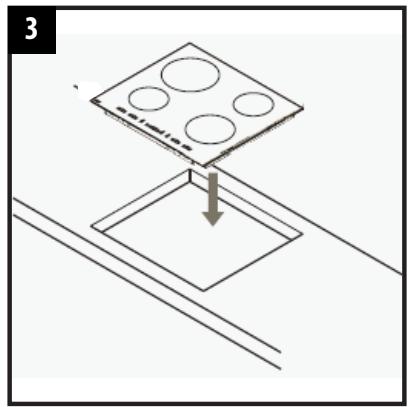

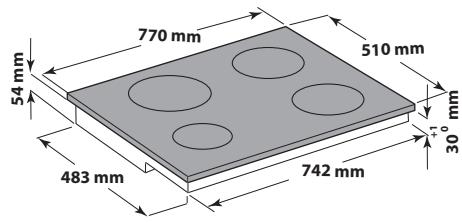

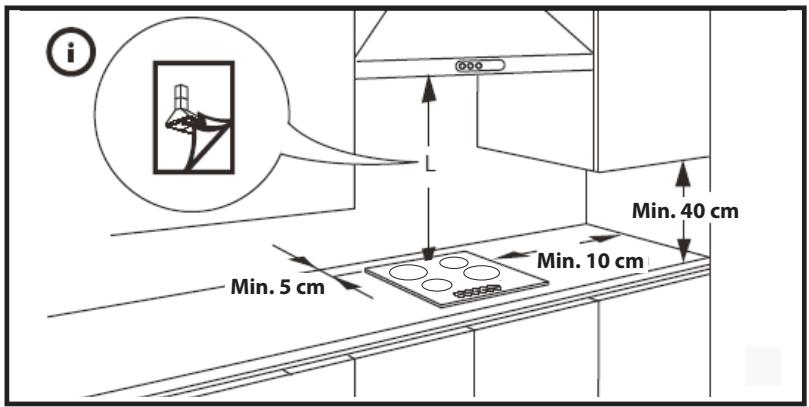

PREPARING THE CABINET FOR FITTING

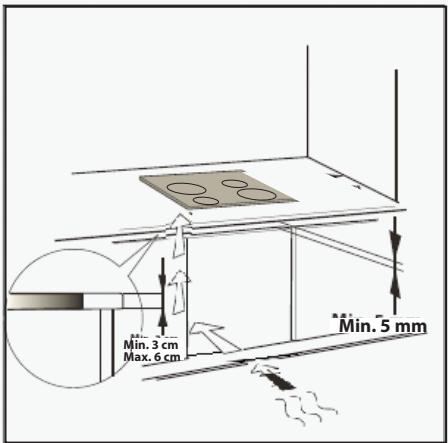

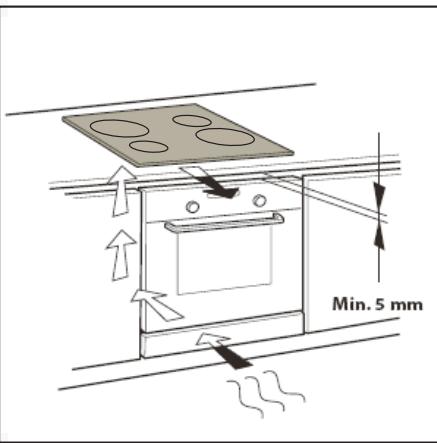

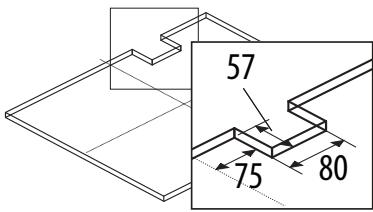

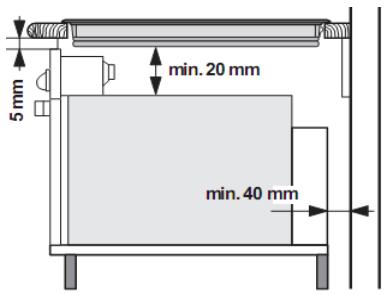

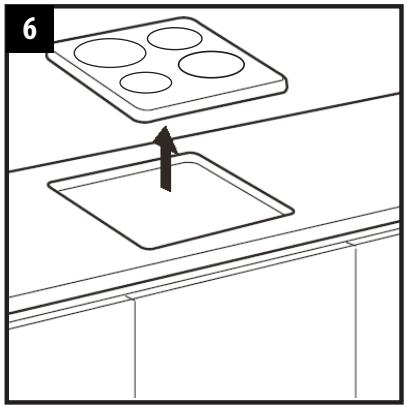

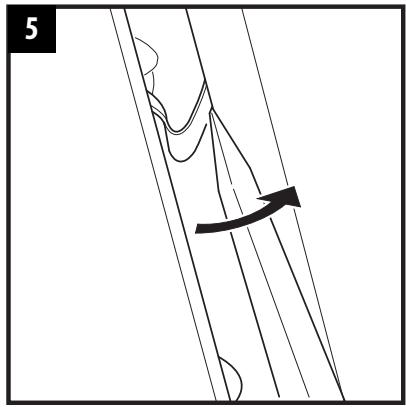

WARNING - Install a separator panel under the hob. = Thelower part ofthe product must not be accessible after install lation. = Donotfittheseparator panel ifan undertop ovenis installed. Æ 57 75 +80 rmin.5 mm in. 20 mm 67cm + The distance between the underside ofthe appliance and the separator panel must respect the dimensions given in the figure. + In order to ensure the correct operation of the product, do not obstruct the minimum required clearance between the hob and the top of the unit (min. 5 mm) + Ifanundertop oven is installed, make sure the oven is equipped with a cooling system. + Donotinstallthe hob above a dishwasher or washing-machine, so that the electronic circuits do not come into contact with steam or moisture which could damage them. + To remove the hob, use a screwdriver (not provided) to prise offthe perimeter clips on the underside of the appliance. EN7

ELECTRICAL CONNECTION = Disconnect the appliance from the power supply. WARNING = Installation must be carried out by qualified personnel who know the current safety and installation regulations. = Themanufacturer dedines all liablity orinjury to persons or animals and for damage to property resulting from failure to observe the regulations providedin this chapter. = Thepower cable must be long enough to allow the hob to be removed from the worktop. = Make sure the voltage specified on the dataplate located on the bottom ofthe appliancesthe same as that ofthe home. EN ER biue/grey black/broun ellow/green

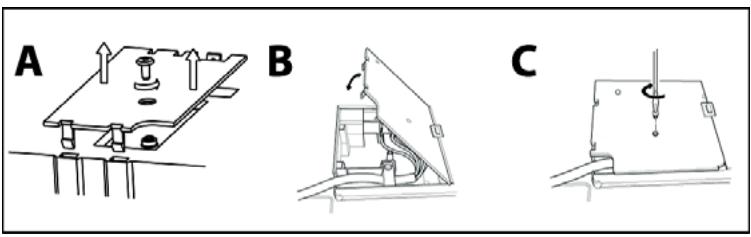

1. Remove the terminal cover (A) by unscrewing the screw and insert the cover into the hinge (B) ofthe terminal.

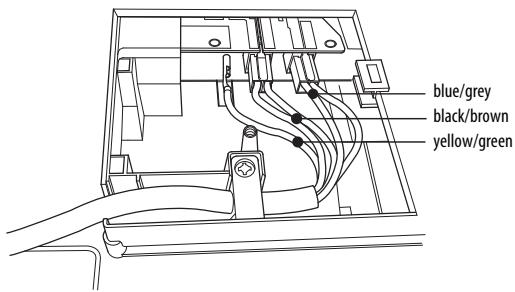

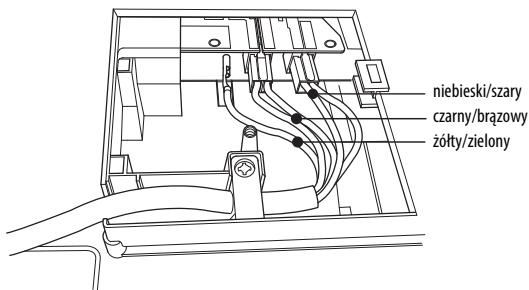

2. Plug the power cord into the clamp and connect the wires to the terminal block as shown in the wiring diagram located near the terminal. 3, Secure the power cable with the cable clamp.

4. Close the cover (C) and screw on the terminal with the screw removed.

For each connection to the network, the hob automatically checks for a few seconds.

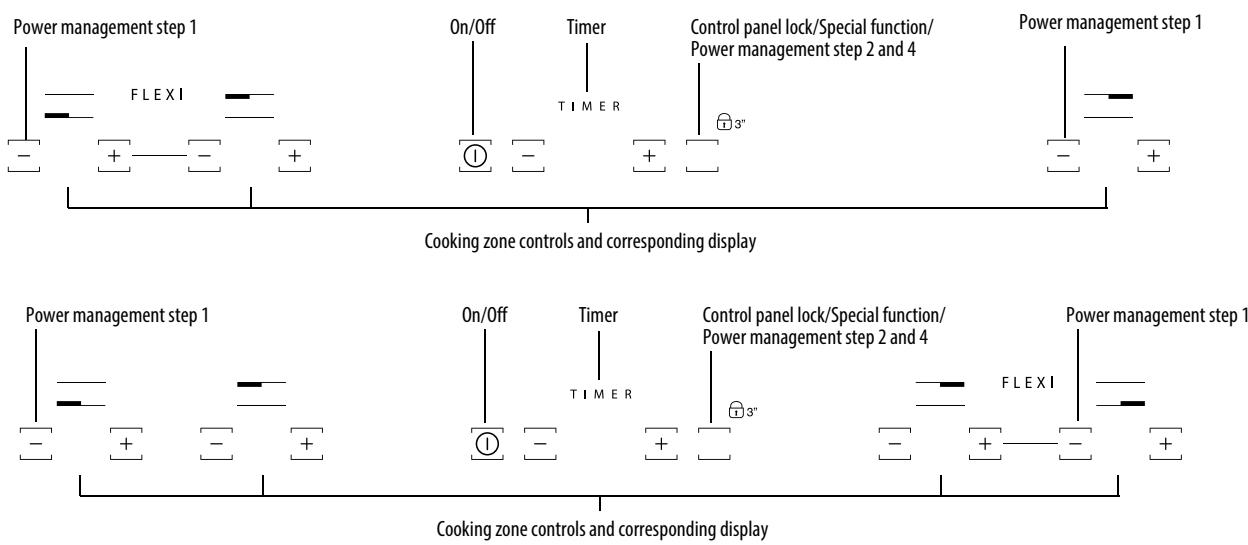

Control Panel Description Control panel Power management step 1 On/0f Timer Control panel lock/ Special uncion/ Power management step 1 Power management step 2 and 4 FLEX TIMER — _—__ = dr — Cooking one control and corresponding display Power management step 1 On/0f Timer Control panel lock/Special unction/ Power management step 1 Power management step 2 and 4 —_— ex | — CE — — Cooking one controls and corresponding display Suitching the hob ON/OFF Toswitch the hob on, press the © button for approx. 2 seconds until the cooking zone displays light up. To switch off, press the same button unti the displays switch off. Al the cooking zones are deactivated. Hthe hob has been in use, the residual heat indicator“H' remains lit until the cooking zones have cooled down. Hwithin 10 seconds of switching on, no function is selected, the hob suitches off automatically. Switching on and adjusting cooking zones D svernéouréspy

Selected cooking zone indication — Cooking zone postioning Place the pot on the cooking zone, switchingthe hob on, activate the required cooking zone by pressingthe corresponding +" button “0' appears on the display. Îtis possible to select the required power level, from min. Oo max. 9, or boosterP'ifavailable, To increase the power level, push the “+” button To decrease the power level push the “-" button. Deactivation of cooking zones To switch offthe cooking zone, press the corresponding “+” and" button for more than 3 seconds. The cooking zone switches off and, still hot, the letter “H” appears on the zone display. Control panel lock Thisfunction locksthe controls to preventaccdental activation ofthe hob. Toactivate the control panellock, switch the hob on and pressthe Lockfunction button forthreeseconds; an acousticsignal and a luminous indicator near the padlock symbol signal activation. The control panel is locked except for the switching off function. To deactivate the control Lock, repeat the activation procedure. The luminous dot goes offand the hobis active again. The presence of water, liquid splled from pots or any objects resting on the button below the symbol can accidentall actvate or deactivate the control panel lock. Timer T'Y F%_\ The timer can be used to set the cooking time for a maximum of 99 minutes (1 hour and 39 minutes) for all the cooking zones. + Select the cooking zone to be used with the timer, press the timer (see figure) and a beep signals the function. The display shows “00” and the LED indication comes on. The Timer value can be decreased and increased by keepingthe slider function "+" and" buttons pressed. Whenthe settime has elapsed, an acousticsignal EN9

sounds and the cooking zone switches off automatically. To deactivate the timer, keep the Timer button pressed for at least 3 seconds. Tosetthe timer for another zone, repeat the above steps. The timer display always shows the timer fo the selected zone or the shortest timer. To modif or deactivate the timer, pres the cooking zone selection button for the timer in question. Control panel warnings Residual heat indicator. Thehobisfitte … ith a residual heat indicator for each cooking zone. These indicators alert the user when cooking zones are still hot. Se léthe display shows +, the cooking zone is still hot. IFthe residual heat indicator of a given cooking zone is it, that one can be used, for example, to keep ( ( à dish warm or to melt butter. Wen the cooking zone cools dou, the display goes of. Incorrect or missing pot indicator. I you are using a pot that is not suitable, not correct} positioned or not of the correct dimensions for your induction hob, the message “no pot” will (a appear in the display (see figure at side). In these situations it is recommended to reposition the pot on the hob surface until you find the position of -L operation. Ifno pot is detected within 60 seconds, the hob swtches off. Fast boil function (Booster where it is available) This function, only present on some cooking zones, makes it possible to exploit the hob's maximum power (for example to bring water to the boil very quickly). To activate the function, press the “+” button until "P' appears on the display. After 5 minutes’ use ofthe booster function, the appliance automatically sets the zone tolevel 9. FLEXI This function is used in case of big pots thatthe single zone can not satisfed, ex, fish, big pot for meat. In order to active the FLEXI/CONNEXTION ZONE, please press on + and - buttons simultaneously as shown in the picture below. — FLEX —— “Power management” (Function where it is available) Thank to the “Power management’ function, the user can set the maximum power the hob can reach, as required. This setting is possible at any time and is maintained until the next change. By setting the required maximum power, the hob automatically adjusts distribution in the various cooking zones, ensuring that this limit is never exceeded; with the advantage of also being able to manage all the zones simultaneous|y, but without overload problems. 4 maximum power levels are available and showed on display: 2.5 — 4.0 — 6.0 7.2 KW (7.2 kW is considered as max power of cooktop) Atthe time of purchase, the hob set to maximum power After plugging the appliance into the electrical socket, in the fist 60 seconds it is possible to set the required power level by running the following points: ET] Control panel Display 1 Press for approximately 3 seconds both Power management button (step

7 Press the Power Management button (step ER 2)to confirm the previous | The display shows step 3 Presstosetthe chosentevel | The Night comes on together with the in-use TE amongstthe different | lights forthe individual cooking zones — options available 3 Press the Power The display shows the setlevel which fashes Management button (step | for approximately 2 seconds after which the

4) to confim the previous _ | hob emits an acoustic signal and then turns

step itself of: itis now ready for use In case ofan error when setting the power, the symbol [appears in the middle and an acoustic signal sounds for about 5 seconds. I this case repeat the configuration procedure from the beginning. Ifthe error occurs again, contact the After-Sales Service. During normal use, ithe user tres to increase the maximum available power level when reached,the level ofthe zone in use flashes twice and an acoustic signal sounds. To obtain a higher power in that zone, its necessary to manually decrease the power level of one or more already active cooking zones. EN10

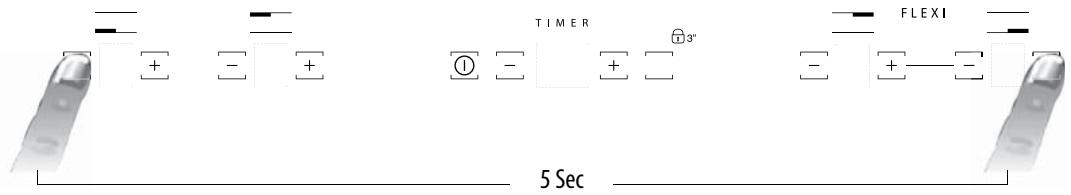

Activation/deactivation of the acoustil After switching the hob on, press and hold the “+” button and the outermost button on the right simultaneously for at least three seconds (‘control panel lock”). 5Sec FLEX I CLEANING WARNING Do not use steam cleaners. Before cleaning, make sure the cooking zones are switched off and that the residual heat indicator (*H”) is not displayed. IMPORTANT: Do not use abrasive sponges or scouring pads. Their use could eventually ruin the glass. + After each use, clean the hob (whenit is cool) to remove any deposits and stains due to food residuals. + Sugaror foods with a high sugar content damage the hob and must be immediately removed. + Salt, sugar and sand could scratch the glass surface. + Usea soft cloth, absorbent kitchen paper or a specific hob cleaner (follow the Manufacturer instructions). + Liquid spillages on the cooking zones may make pans vibrate or move. TROUBLESHOOTING GUIDE + Read and follow the instructions given in the section “Instructions for use” + Checkthatthe electricty supply has not been shut ft. + Drythe hob thoroughly after cleaning it. + Hwhenthe hob is suitched on, alphanumeric codes appear on the display, consult the following table for instructions + Hthe hob cannot be switched off after using it disconnect it from the power supply. ERROR CODE DESCRIPTION POSSIBLE CAUSES ERROR ELIMINATION The control panel Who À Th internal temperature ofelectronic | Waïtforthe hobto cool dou c81,@2 because of excessive high parts is too high before using it again. temperatures Thecontro panel indicates the 0" À Cooltop has been supplied with over | Cooktop may best used but call Gi code hob of because of an issue on voltage the After-Sales Service electronic circuit cs Hobis ES PORTO À boti notsuitable tothe induction hob | Use another induction pot eomedonot The sensor detectsadiscrepancy | Diconnedtthehobfiomthe F02 or FO4 or C4 Set n voages De 91°) between the appliance voltage and | mains and check the electrical issue 10 te power supply that ofthe mains supply connection F0, F0S, F06, F07, F10,F12, 25, F33, FH, Disconnect the hob from the power supply. F36, F37, F46, F47, F48, F49, F58, F61, F2, Wait a few seconds and plug it again. F63,F72,F74, F7 IFthe problem persists, call the After-Sales Service and specfy the error code

NOISES MADE BY THE HOB

The induction cooktops can generate a set ofnoise and vibration during normal operation, depending on the type of material and the processing ofthe food, such as those described below: + Noise contact: this type of vibration is due to the use of pots made of different materials superimposed + Sounds dickat mid-lower power: this noise is produced in order to achieve the low-mid power required. + Sounds like rhythmic lick: this noise is produced when operating several areas of cooking and / or igh performance. + Hissing weak: this ose is due to the type of container used and the quantity of food contained. + Background noise: the induction cooker is equipped with a fan aimed at cooling the electronic components and fo this reason during operation and also for à few minutes after switching ofthe hob you hear the noise ofthe fan. Increase / decrease the cooking zones activated, the background noise ofthe fan may increase or decrease. These conditions are normal and essential for the proper functioning of the induction system, they are not indication of failure or damage. ENT

AFTER-SALES SERVICE Before contacting the After-sales Service:

1. See if you can solve the problem yourself with the help ofthe “Troubleshooting guide’.

2. Switch the appliance off and then on again it to see ifthe problem has been eliminated.

Ifthe problem persists after the above checks, contact the nearest After-Sales Service. Always specify: + abriefdescription ofthe fault; + the product type and exact model; + the Service number (the number after the word Service on the rating plate), located under the appliance (on the metal plate). + yourfull address; + yourtelephone number. AAYAKA 0000 000 00000 Ifanyrepairs are required, contactan authorised After-Sales Service Centre (to ensure the use of original spare parts and correct repairs). Spare parts are available for 10 years. Product Guarantee and Repair Information Guarantee 12 Months Parts and Labour Guarantee Your applance has benefit of our manufactures guarantee, which coversthe_costofbreakdounrepairsfortwelemonthsfromthedateofpurchase. This gives vou the reassurance that with in that time, our applance is proven to be defective because of either workmanship or materials, we il, a tour discretion, eitherrepairorreplacetheapplianceatnocosttoyou: This guarantee is subject to the following conditions: - The appliance has been installed and operated correctiy and in accordance with our operating and maintenance instructions. = The applance is used only on the electricit or gas supp printed on the rating plate. - Theapplancehasbeenusedfonormaldomesticpurposesoniy. = The applince has not been alered, sericed, maintained, dismanted, or otherwiseinterferedwithbyany personnotauthorisedbyus. - Anyrepairworkmustbe undertakenbyusorourappointedagent. - Any part removed during repair work or any applance that is replaced become our property. - Theapplanceisusedinthe Unitedkingdomor Republicofirelanc. ‘The guarantee does not cover: - Damage resulting from transportation, improper use, neglectorinterference or as a result ofimproper instalation. - Replacement of any consumable item or accessory. These include but are not limited to: plugs, cables, batteries, light bulbs, fluorescent tubes and starters, covers andfiters. = Replacementofanyremovablepartsmadeofglassorplasti. THIS GUARANTEE WILL NOTAPPLYIFTHE APPLIANCE HASBEEN USED IN. COMMERCIAL OR NON.DOMESTIC PREMISES. Recyclingand Disposal Information As part of Hotpoint’s continued commitment to helping the environment, Hotpoint reserves the right to use quality, recycled components to keep down customer costs and minimise material wastage. Please dispose of packaging and old applances carefuly. To minimise the risk of injury to children, remove the door, plug, and cutthe mains cable offflush with the applance. Dispose of these parts separatelyto ensure thatthe appliance can no longer be plugged into mains socket, andthe door cannot be lockedshut. Repairs and After Sales Forproducthelpandadhice, repars, spare partsor accessories we'reheretohelp. For local repair engineers- 0348111606 ROI-0818313413 UKstandardlocalrateapplies ROllocallrishrateapples For Parts and Accessories visit parts.hotpoint.co.uk/shop Please remember to register vour appliance at www.hotpoitsenvice.couuk _toactivateyour10yearpartsguarantee. Please note, our advisors will require the following information: ENT2
