Viva Collection HD2638 - Toaster PHILIPS - Free user manual and instructions

Product type	Toaster
Brand	Philips
Model	Viva Collection HD2638
Power	1000 W
Capacity	2 slices of bread
Functions	Defrost, reheat, automatic shut-off, bread lift
Browning levels	7 adjustable levels
Housing material	Stainless steel
Dimensions (W x D x H)	30 x 20 x 25 cm
Weight	1.5 kg
Power supply	220-240 V, 50-60 Hz
Cable length	1.2 m
Crumb collection	Removable crumb tray
Cleaning	Exterior surface cleanable with a damp cloth
Safety	Automatic shut-off if jammed, rust protection
Maintenance	Empty the crumb tray regularly
Spare parts	Crumb tray, slice holder (available)
Repairability	Repairability index 8/10
Color	White and brushed steel
Warranty	2 years

Frequently Asked Questions - Viva Collection HD2638 PHILIPS

How to use the defrost function?

Press the defrost button before lowering the lever. The toasting time will be automatically adjusted to defrost the bread while toasting it.

How to clean the crumb tray?

Pull out the crumb tray at the bottom of the toaster, empty it, and wash it with soapy water. Dry it well before putting it back.

What to do if bread gets stuck?

First unplug the appliance. Use the bread lift function (if available) or wooden tongs to carefully remove the bread. Never use a metal object.

How to adjust the browning level?

Turn the adjustment knob to one of the 7 levels. The higher the number, the darker the toast. Start with a medium level (3-4) and adjust to your taste.

Can I toast pastries?

Yes, but watch carefully as they toast faster. Use a low browning level (1-2) and activate the reheat function if needed.

Does the toaster stop automatically?

Yes, the appliance has an automatic shut-off when the toasting cycle ends or in case of overheating for safety reasons.

How to clean the exterior of the toaster?

Unplug the appliance and let it cool down. Clean with a slightly damp soft cloth. Do not use abrasive cleaners or solvents.

Where to find spare parts?

Parts like the crumb tray are available on the Philips website or from authorized dealers. Use the model number HD2638 for search.

Is the toaster under warranty?

Yes, it comes with a 2-year warranty. Keep the proof of purchase and contact Philips customer service if you have a problem.

Can I toast gluten-free bread?

Yes, select a lower browning level because these breads burn easily. Watch the process to prevent sticking.

USER MANUAL Viva Collection HD2638 PHILIPS

All rights reserved.

196115-5012

EU	Uzer manual 7		KL	Gobrukszornatjing	36
EA	Brageswijedning	10	NO	Bukerbenbok 40	40
DE	Bonuzetandouch 13		11	Manual do utilizador 43
ES	Manual del usuario	17	59	Amanderbanbok 42
FI	Kalytooas	21	18	Kullama klavuzu 50
HJ	Mode d'empti	24	V	Heping di sung	54
IO	Bulu Patantuk Pangguna	28	59	FRA
I	Manuale utente	32	62	Jah	Jah

1

2

3

4

5 !

① Dust cover (HD2638 only)
② Warming rack lever
③ Crumb tray
④ Reheat button
⑤ Defrost button
⑥ Stop button
⑦ Bun warming setting
⑧ Browning control
⑨ Warming rack

1 Important

Read this important information leaflet carefully before you use the appliance and save it for future reference.

Danger

• Never immerse the appliance in water.
• Do not insert oversize foods and metal foil packages into the toaster, as this may cause fire or electric shock.

Warning

- If the power cord is damaged, you must have it replaced by Philips, a service centre authorized by Philips or similarly qualified persons in order to avoid a hazard.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or

mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

• Keep the appliance and its cord out of reach of children less than 8 years.
• To avoid the risk of fire, frequently remove crumbs from the crumb tray (see User Manual Chapter “Cleaning”).
• Do not operate the appliance under or near curtains or other flammable materials or under wall cabinets, as this may cause fire.
• Check if the voltage indicated on the bottom of the appliance corresponds to the local

power voltage before you connect the appliance.

- Do not let the appliance operate unattended.

- Do not place the dust cover (HD2638 only) or any other object on top of the toaster when the appliance is switched on or when it is still hot, as this can cause damage or fire.

- Immediately unplug the toaster if fire or smoke is observed.

- Keep the power cord away from hot surfaces.

• This appliance is only intended for toasting bread. Do not put any other ingredients in the appliance.

- The appliance is not intended to be operated by means of an external timer or a separate remote control system.

- Do not wind the power cord around the toaster after use or during storage as this may damage the cord.

Caution

- The toaster is intended for household use only and may only be used indoors. It is not intended for commercial or industrial use.

- Only connect the appliance to an earthed wall socket.

- Do not let the power cord hang over the edge of the table or worktop on which the appliance stands.

• Always unplug the appliance after use.

- Do not place the toaster on a hot surface.

- The warming rack is only intended for warming up rolls or croissants. Do not put any other ingredients on the warming rack, as this may lead to a hazardous situation.

- Do not hold the appliance upside down and do not shake it to remove the crumbs.

Electromagnetic fields (EMF)

This Philips appliance complies with all standards regarding electromagnetic fields (EMF). If handled properly and according to the instructions in this user manual, the appliance is safe to use based on scientific evidence available today.

This symbol on a product means that the product is covered by European Directive 2012/19/EU. Inform yourself about the local separate collection system for electrical and electronic products. Follow local rules and never dispose of the product with normal household waste. Correct disposal of old products helps prevent negative consequences for the environment and human health..

2 Guarantee & service

If you need service or information or if you have a problem, please visit the Philips website at www.philips.com or contact the Philips Consumer Care Centre in your country (you can find its phone number in the worldwide guarantee leaflet). If there is no Consumer Care Centre in your country, go to your local Philips dealer.

Before first use

Put the toaster in a properly ventilated room and select the highest browning setting. Let the toaster complete a few toasting cycles without bread in it. This burns off any dust and prevents unpleasant smells.

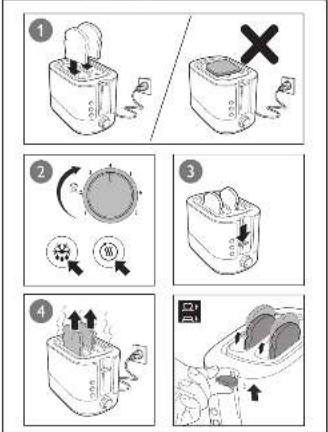

Toast, reheat, or defrost bread (fig.2)

Note:

- Do not operate the appliance without the crumb tray.

To toast bread, follow the steps 1, 2, 3, 4.

- Select a low setting (1-2) for lightly toasted bread.

- Select a high setting (5-7) for darkly toasted bread.

To reheat bread, press the reheat button (☐).

To defrost bread, press the defrost button (✗).

Note:

• You can stop the toasting process and pop up the bread at any time by pressing the stop button (STOP) on the toaster.
  • The reheat function has a preset duration. The toasting time does not change when you turn the browning control to another setting.

Tip:

- You may use different browning settings when toasting different types of bread:

• For dry, thin or stale bread, select a lower setting. This type of bread has less moisture and it will go brown quicker than moist, thick or fresh bread.
• For fruit bread like raisin bread, select a lower setting.
• For higher sugar content bread, select a lower setting.

• For heavier textured bread like rye bread or whole wheat bread, select a higher setting.

• When you toast one slice of bread, browning of toast may be slightly varied from one side to the other.

• For bread that may have loose food bits, for example raisin bread and whole wheat bread, remove the loose bits before putting bread slices into the slot. This can avoid potential flame/smoke resulting from loose food bits dropping/sticking in the toaster chamber.

Bun warming (fig.3)

To warm buns, follow the steps below:

① Push down the warming rack lever to unfold the warming rack.
② Turn the browning control to the bun warming setting ( 🔒).

Note:

- Never put the rolls to be warmed up directly on top of the toaster. Always use the warming rack to avoid damage to the toaster.

Cleaning (fig.4)

Warning:

- Never use scouring pads, abrasive cleaning agents or aggressive liquids to clean the appliance.

No. Reg.: I.22.PIC1.00588.0219
