Viva Collection HD2637 - Toaster PHILIPS - Free user manual and instructions

Product type	2-slice toaster
Brand	Philips
Model	Viva Collection HD2637
Dimensions (L x W x H)	30 x 20 x 25 cm
Weight	1.5 kg
Power	220-240 V, 50/60 Hz, 800 W
Main functions	7 browning levels, defrost, reheat, manual stop, high lift lever
Capacity	2 slices of bread
Material	Plastic and stainless steel
Color	White and silver
Cord length	1 meter
Cord storage	Yes, under the appliance
Crumb tray	Removable, dishwasher safe
Care and cleaning	Clean crumb tray regularly; wipe exterior with a damp cloth; do not immerse in water
Safety	Automatic shut-off if jammed, non-slip feet
Spare parts and repairability	Crumb tray available as spare part; repairability index calculated according to regulations
Warranty	2 years

Frequently Asked Questions - Viva Collection HD2637 PHILIPS

How to adjust the browning level?

Turn the browning control knob from 1 (light) to 7 (dark) according to your preference. For consistent results, select the same level for each use.

Can I use the defrost function with frozen bread?

Yes, insert the frozen bread into the slots, then press the Defrost button. The toaster will automatically adjust the toasting time to defrost and brown the bread.

How to use the reheat function?

Place the cold toast into the slots, lower the lever and press the Reheat button. The toaster will warm the bread without toasting it further.

What to do if bread gets stuck?

Make sure the appliance is unplugged and cool. Use the Manual stop function if needed. To remove the bread, tilt the appliance and shake it gently. Never use metal objects.

How to clean the crumb tray?

Remove the tray by sliding it out. Empty the crumbs and wash it by hand or in the dishwasher (top rack). Dry it before putting it back.

Can I toast brioches or bagels?

Yes, the toaster is suitable for different types of bread. For bagels, cut them in half and place the cut side inward. Use the appropriate browning level.

How to store the power cord?

Under the appliance there is a cord wrap. Wrap the cord around the pegs to store it neatly.

What does automatic shut-off mean?

The toaster turns off automatically if a slice of bread gets stuck after the toasting cycle, to prevent fire hazard. Unplug the appliance and remove the bread.

Can I use the toaster for waffles or thick toast?

The slots are designed for standard bread slices (about 2.5 cm thick). For thicker items, check that they fit freely without forcing.

Where can I buy spare parts?

Spare parts such as the crumb tray are available from Philips customer service or on approved spare parts websites. Refer to the manual for references.

USER MANUAL Viva Collection HD2637 PHILIPS

All rights reserved.

196115-5012

EU	Uzer manual 7		KL	Gobrukszornatjing	36
EA	Brageswijedning	10	NO	Bukerlandbok 40
DE	Bonuzetandouch 13		11	Manual do utilizador 43
ES	Manual del usuario	17	59	Amanderlandbok 42
FI	Kalytooas	21	18	Kullama klavuzu 50
HJ	Mode d'empti	24	V	Heping di sung	54
ID	Bulu Patantuk Pangguna	28	59	FA
I	Manuale utente	32	62	Jah	###

1

2

3

4

5 | !

① Dust cover (HD2638 only)
② Warming rack lever
③ Crumb tray
④ Reheat button
⑤ Defrost button
⑥ Stop button
⑦ Bun warming setting
⑧ Browning control
⑨ Warming rack

1 Important

Read this important information leaflet carefully before you use the appliance and save it for future reference.

Danger

• Never immerse the appliance in water.
• Do not insert oversize foods and metal foil packages into the toaster, as this may cause fire or electric shock.

Warning

- If the power cord is damaged, you must have it replaced by Philips, a service centre authorized by Philips or similarly qualified persons in order to avoid a hazard.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or

mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

• Keep the appliance and its cord out of reach of children less than 8 years.
• To avoid the risk of fire, frequently remove crumbs from the crumb tray (see User Manual Chapter “Cleaning”).
• Do not operate the appliance under or near curtains or other flammable materials or under wall cabinets, as this may cause fire.
• Check if the voltage indicated on the bottom of the appliance corresponds to the local

power voltage before you connect the appliance.

- Do not let the appliance operate unattended.

- Do not place the dust cover (HD2638 only) or any other object on top of the toaster when the appliance is switched on or when it is still hot, as this can cause damage or fire.

- Immediately unplug the toaster if fire or smoke is observed.

- Keep the power cord away from hot surfaces.

• This appliance is only intended for toasting bread. Do not put any other ingredients in the appliance.

- The appliance is not intended to be operated by means of an external timer or a separate remote control system.

- Do not wind the power cord around the toaster after use or during storage as this may damage the cord.

Caution

- The toaster is intended for household use only and may only be used indoors. It is not intended for commercial or industrial use.

- Only connect the appliance to an earthed wall socket.

- Do not let the power cord hang over the edge of the table or worktop on which the appliance stands.

• Always unplug the appliance after use.

- Do not place the toaster on a hot surface.

- The warming rack is only intended for warming up rolls or croissants. Do not put any other ingredients on the warming rack, as this may lead to a hazardous situation.

- Do not hold the appliance upside down and do not shake it to remove the crumbs.

Electromagnetic fields (EMF)

This Philips appliance complies with all standards regarding electromagnetic fields (EMF). If handled properly and according to the instructions in this user manual, the appliance is safe to use based on scientific evidence available today.

This symbol on a product means that the product is covered by European Directive 2012/19/EU. Inform yourself about the local separate collection system for electrical and electronic products. Follow local rules and never dispose of the product with normal household waste. Correct disposal of old products helps prevent negative consequences for the environment and human health..

2 Guarantee & service

If you need service or information or if you have a problem, please visit the Philips website at www.philips.com or contact the Philips Consumer Care Centre in your country (you can find its phone number in the worldwide guarantee leaflet). If there is no Consumer Care Centre in your country, go to your local Philips dealer.

Before first use

Put the toaster in a properly ventilated room and select the highest browning setting. Let the toaster complete a few toasting cycles without bread in it. This burns off any dust and prevents unpleasant smells.

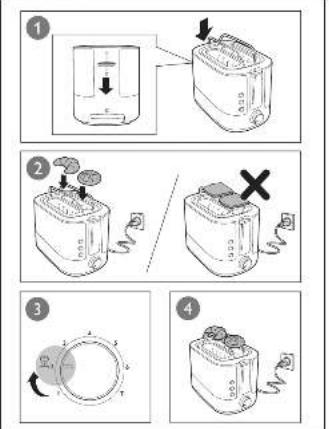

Toast, reheat, or defrost bread (fig.2)

Note:

- Do not operate the appliance without the crumb tray.

To toast bread, follow the steps 1, 2, 3, 4.

- Select a low setting (1-2) for lightly toasted bread.

- Select a high setting (5-7) for darkly toasted bread.

To reheat bread, press the reheat button (☐).

To defrost bread, press the defrost button (✗).

Note:

• You can stop the toasting process and pop up the bread at any time by pressing the stop button (STOP) on the toaster.
  • The reheat function has a preset duration. The toasting time does not change when you turn the browning control to another setting.

Tip:

- You may use different browning settings when toasting different types of bread:

• For dry, thin or stale bread, select a lower setting. This type of bread has less moisture and it will go brown quicker than moist, thick or fresh bread.
• For fruit bread like raisin bread, select a lower setting.
• For higher sugar content bread, select a lower setting.

• For heavier textured bread like rye bread or whole wheat bread, select a higher setting.

• When you toast one slice of bread, browning of toast may be slightly varied from one side to the other.

• For bread that may have loose food bits, for example raisin bread and whole wheat bread, remove the loose bits before putting bread slices into the slot. This can avoid potential flame/smoke resulting from loose food bits dropping/sticking in the toaster chamber.

Bun warming (fig.3)

To warm buns, follow the steps below:

① Push down the warming rack lever to unfold the warming rack.
② Turn the browning control to the bun warming setting ( 🔒).

Note:

- Never put the rolls to be warmed up directly on top of the toaster. Always use the warming rack to avoid damage to the toaster.

Cleaning (fig.4)

Warning:

- Never use scouring pads, abrasive cleaning agents or aggressive liquids to clean the appliance.

No. Reg.: I.22.PIC1.00588.0219
