Product type	Electric barbecue
Brand	Unold
Model	Edel 58535
Dimensions (L x W x H)	Approximately 45 x 30 x 15 cm
Weight	Approximately 3.2 kg
Power supply	220-240 V, 50/60 Hz, 2000 W
Cooking surface	Non-stick griddle with grooves
Temperature control	Adjustable thermostat from 80°C to 230°C
Indicator light	Power and heating indicator light
Main functions	Grilling, roasting, plancha cooking
Included accessories	Drip tray, spatula, user manual
Maintenance and cleaning	Non-stick plates hand washable with a soft sponge; do not use abrasive products
Safety	Automatic shut-off in case of overheating, cool handle, non-slip feet
Spare parts and repairability	Replacement plates available via Unold after-sales service
Warranty	2 years (legal compliance)
General information	Electric barbecue for domestic use, indoor or outdoor use

Frequently Asked Questions - Edel 58535 UNOLD

What type of oil should be used on the non-stick plate?

Use a heat-resistant oil, such as sunflower oil or rapeseed oil. Avoid flavored oils or extra virgin olive oil, which can burn.

Can metal skewers be used on the plate?

Yes, but be careful not to scratch the non-stick surface. Preferably use wooden skewers soaked in water to avoid burns.

How to clean the plate after use?

Let it cool completely, then clean with a soft sponge and soapy water. Never use abrasive cleaner or metal scraper.

Can the barbecue be used indoors?

Yes, this model is an electric barbecue that can be used indoors, provided safety instructions are followed (stable surface, away from flammable materials).

What is the maximum power?

The Unold Edel 58535 barbecue has a power of 2000 W, ideal for fast and even cooking.

How to prevent food from sticking?

Preheat the appliance properly and lightly brush the plate with oil before cooking. Do not overload the plate and flip the food gently.

Is the thermostat accurate?

Yes, the thermostat allows continuous adjustment from 80°C to 230°C with precise temperature maintenance thanks to the heating indicator light.

Can vegetables be cooked on this barbecue?

Absolutely, sliced vegetables or vegetable skewers cook perfectly. Season them and lightly oil them before cooking.

Is the power cord removable?

No, the cord is fixed. Its length is about 1 meter. Always unplug the appliance before cleaning.

What to do if the plate comes off?

This can happen over time. Contact Unold after-sales service to order a replacement plate. Do not continue to use the appliance if the plate is damaged.

USER MANUAL Edel 58535 UNOLD

Black UNOLD-style grater with open lid and side panels, featuring fried meat and green vegetables (no text or symbols visible)

BARBECUE GRILL Edel

Bedienungsanleitung

Instructions for use | Notice d'utilisation Gebruiksaanwijzing | Istruzioni per l'uso Instrucciones de uso | Instrukcja obsługi Modell 58535

Modern kitchen appliance with digital display and bucket containing red chili sauce (no visible text or symbols)

Illustration of a modern wheat bread machine with a bucket and kitchen utensils (no text or symbols)

UNOLD

Care + Style

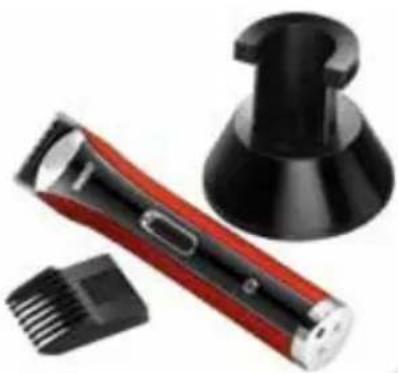

Product photo of a red and black electric toothbrush with a black clip, next to a black conical tool (no text or symbols visible)

Close-up of a metallic iron cutting tool with a white cable, no visible text or symbols

UNOLD®

Fan + Heat

Close-up of a desktop electric fan with visible blades and base (no text or symbols)

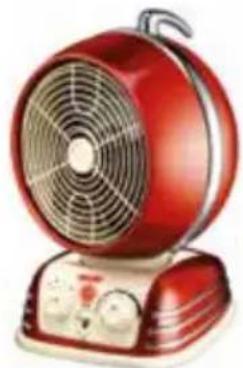

Red electric fan with a circular grille and control panel (no visible text or symbols)

INHALTSVERZEICHNIS

Instructions for use Model 58535

Technical Specifications....19

Explanation of the symbols....19

For your safety....19

Before using the appliance the first time....22

Temperature control 23

Grill surface 23

Glass lid 23

Food to be grilled 24

Grilling 24

Cleaning and storage....25

Recipes 26

Guarantee Conditions....28

Waste Disposal/Environmental Protection...28

Service 18

1 Glass lid (removable)
2 Grill plate (removable)
3 | Socket for power cord / thermostat plug
4 Grease drip pan
5 Housing handles
6 | Lid handle/ Lid locking mechanism

FR Page 29

Handles: Heat-resistant plastic, thermally insulated

Dimensions: Approx. 45.61 x 34.24 x 10.9 cm (LxDxH)

Weight: Approx. 4.05 kg

Cable: Approx. 85 cm

Features Temperature control, removable grill plate with smooth and grooved grill surface, ceramic non-stick coating, removable grease drip pan, removable glass lid

Accessories: Operating instructions

Equipment features, technology, colours and design are subject to change without notice.

EXPLANATION OF THE SYMBOLS

This symbol indicates potential hazards that may result in injury or damage to the appliance.

This symbol indicates a potential burning hazard. Please be especially careful at all times here.

This symbol indicates a possible fire hazard.

FOR YOUR SAFETY

Please read the following instructions and keep them for later reference.

1. This appliance can be used by children 8 years and older, as well as by persons with reduced physical, sensory or mental abilities or with lack of experience and/or knowledge, if they are supervised or if they have been instructed with regard to safe use of the appliance and have understood the dangers that can result from use of the appliance.

2. Children must not play with the appliance.

3. Children are not allowed to perform cleaning and user maintenance, unless they are 8 years of age or older and are supervised.

4. Keep the appliance and the power cord out of the reach of children under 8 years of age.
5. CAUTION – parts of this product can become very hot and cause burn injuries! Particular caution is required if children or persons at risk are present.
6. Only connect the appliance to an AC power supply with voltage corresponding to the voltage specified on the rating plate.
7. The appliance is intended for household use only, or for similar areas of use, such as:

■ Kitchen areas used by personnel in businesses, office facilities and other work environments

■ Use by guests in hotels, motels and other living quarters
■ Use by guests in bed-and-breakfast establishments

1. This appliance must not be operated with an external timer or a remote control system.
2. Never immerse the appliance in water or other liquids. Thermostat plug and power cord must not come into contact with water or other liquids. If this should occur, all parts must be completely dry before operating the appliance again.
3. Always plug the thermostat plug into the socket on the appliance first, and then plug the plug into an electrical outlet.
4. Never touch the appliance or power cord with wet hands.
5. For safety reasons, never place the appliance on hot surfaces, a metal trays or a wet surface.
6. Do not place the appliance or power cord near open flames during operation.
7. Ensure that the power cord does not hang over the edge of the counter top or table, since this can cause accidents, for example if small children pull on the power cord.
8. If you use an extension cord, ensure that it is intact and suitable for the power draw of the appliance; otherwise, there is a possibility of overheating.
9. Route the power cord and extension cord, if used, so that there is no possibility of the cords being pulled or tripped over.
10. Only use the appliance indoors.

11. Never leave the appliance unattended during operation and keep it out of the reach of children.

12. Before heating, uncoil the power cord completely so that it does not come into contact with hot parts of the appliance.

13. Never cover the grill surface with aluminium foil, baking paper or other materials.
14. During operation, never grasp the hot grill plate - danger of burn injuries!
15. When grilling with the cover closed, hot steam can form under the lid. When opening the lid, maintain a safe distance to avoid burn injuries.
16. To prevent smoke, do not overheat your cooking, frying, or baking utensils; the smoke can be hazardous for small animals (e.g. birds) with a particularly sensitive respiratory system. We recommend that you not keep birds in the kitchen.
17. Only touch the appliance on the handles when it is hot.
18. Only use the handle on the glass lid to open the appliance.
19. During operation, ensure that the appliance is free standing on a heat-resistant surface and is a safe distance away from flammable objects.
20. After use, unplug the plug from the electrical socket and allow the grill to cool down before cleaning the appliance and putting it away for safekeeping.
21. For cleaning, after cooling you can remove the plate and clean it by hand. Wipe off the appliance with a damp cloth.
22. To avoid damage, do not use the appliance with accessories of other manufacturers or brands.
23. If the glass lid is damaged contact our customer service department. Never operate the appliance if the glass lid is damaged - danger of injury!
24. Check the plug and the power cord regularly for wear or damage. In case of damage to the power cord or other parts, please send the appliance for inspection and repair to our customer service department. Unauthorised repairs can result in serious risks to the user and will void the warranty.

CAUTION:

The appliance is very hot during and after operation!

Never operate the appliance if water or other liquids are in the grease drip pan - danger of file!

Never operate the appliance if the grease drip pan is not inserted.

Do not open the housing of the appliance under any circumstances. There is danger of electric shock.

The manufacturer will not be liable in the event of incorrect assembly, improper or incorrect use or if repairs are carried out by unauthorized third parties.

BEFORE USING THE APPLIANCE THE FIRST TIME

1. Remove all packaging materials and any transport safeguards. Keep packaging materials away from children - danger of suffocation!
2. Check whether all parts are present. If parts are missing or damaged, contact your dealer or our customer service department.
3. Clean all parts with a damp cloth, as described in the chapter “Cleaning and care”.
4. Before first use, wipe off the grill plate with a damp cloth and apply a little vegetable oil.
5. Insert the grease drip pan and the grill plate into the appliance.
6. Place the closed appliance on a heat-resistant surface.
7. Connect the thermostat plug to the socket on the appliance. Caution: Always plug the thermostat plug into the socket on the appliance first, and then plug the plug into an electrical outlet!
8. Plug the plug into a 220-240 V\~ electrical outlet and set the temperature controller to the lowest temperature.
9. Allow the appliance to heat up for a few minutes. In this process, ensure that the room is adequately ventilated.
10. At first use some smoke and odours can form that will disappear after a short time.
11. Now you can use the appliance.

TEMPERATURE CONTROL

There are five temperature settings for the appliance. The temperature can be set from aapprox. 90 to 210°C. The following apply as guide values:

■ Low heat (level 2-3): e.g. for fish
■ Medium heat (level 4): Tender meat (e.g. poultry), vegetables
■ High heat (level 5): Steaks

GRILL SURFACE

1. The grooved grill surface is ideal for meat, such as steaks.
2. We particularly recommend the smooth surface for preparation of vegetables or fish. It is also ideally suited for keeping grilled food warm that was prepared on the grooved grill surface.
3. Only use cooking utensils of wood or plastic to place the food on the grill plate, or to remove food from the grill plate. Metallic objects can scratch the coating.

GLASS LID

1. When grilling, the lid can remain open or closed, as desired. With the lid closed, the grill temperature is slightly higher and the grilled food is cooked more quickly; moreover meat, for example, remains particularly tender.

2. When preparing food with the lid closed, be very careful when opening the lid, because hot steam can form - danger of burning!

■ Opening the lid

Slide the locking mechanism to the rear and open the lid.

Never push the opened lid further to the rear or forward - this can damage the hinge of the lid.

■ Closing/removing the lid

Pull the lid slightly upward and then swing it downward.

If you pull the lid further upward, you can remove the lid, and thus clean it more easily. Re-insert the lid by placing it in the guide rail.

Only use the lid handle to open the lid. When grilling the glass of the lid can become extremely hot - danger of burn injuries!

FOOD TO BE GRILLED

1. Try out our recipes or simply use your usual grill recipe.
2. If you plan to grill food that has been frozen, bear in mind that it must be completely thawed before it is grilled.
3. For meat that has been stored in the refrigerator beforehand, you will obtain the best results if you take it out of the refrigerator some time before grilling and let it acclimatise to room temperature.
4. Depending on the preparation method and type of meat, if possible meat should not be salted until after it is grilled. If you marinate the meat before grilling it will particularly tender and flavourful.
5. Grease and meat juices are collected in the grease drip tray. Thus you are grilling with minimal grease and your food is healthier and more easily digestible.

GRILLING

Caution! Never cover the grill surface with aluminium foil, baking paper or other materials. Do not use aluminium grilling trays. Fire can occur due to the heat accumulation.

1. Place the closed appliance on a heat-resistant surface.
2. Ensure that the grease drip pan is properly inserted. Never operate the appliance if the grease drip pan is not inserted, and never fill the grease pan with liquids, such as water.
3. Connect the thermostat plug to the socket on the appliance.
4. Plug the plug into a 220-240 V\~ electrical outlet and set the temperature controller to the lowest temperature.
5. Then select the desired temperature for your food. The temperature controller has five temperature settings (see chapter, Temperature control).
6. Let the appliance heat up for several minutes with the lid closed. Then open the lid and place the food on the grill plate.
7. Only use cooking utensils of wood or plastic to place the food on the grill plate, or to remove food from the grill plate. Metallic objects can scratch the coating.

8. Regularly check whether the grease drip pan is full. If the container is full, switch off the appliance and let the appliance cool down, empty the grease drip pan, and then continue preparing the food. Ensure that the grease drip pan never overflows, to avoid a possible fire hazard.

9. When your food is prepared turn the regulator on the thermostat plug to „0“ and unplug the plug from the electrical outlet.

10. Then unplug the thermostat plug from the socket on the appliance.
11. Allow the appliance to cool completely before cleaning it.

CAUTION:

The appliance is very hot during and after operation!

CLEANING AND STORAGE

Before cleaning or maintenance, unplug the plug from the electrical outlet and unplug the thermostat plug from the socket. Wait until the appliance has completely cooled.

The appliance and the thermostat plug must never be immersed in water!

1. After each use, clean the plate with a soft, damp cloth.
2. To avoid damaging the non-stick coated plate, do not use scouring pads or similar cleaning tools under any circumstances. Do not use any abrasive scouring agents, steel wool, metal objects, hot cleaning agents or disinfectants, since they can damage the appliance.
3. Ensure that the connection socket is absolutely dry before the next use.
4. The heating coils and heat radiating surfaces under the plate, as well as the housing can be wiped off with a well wrung-out, damp cloth.
5. Remove any grease that may have accumulated from the grease drip pan, and clean it in warm water rinsing water.
6. Likewise, the lid can be cleaned in warm rinsing water.
7. Then thoroughly dry lid and grease drip pan, re-insert them in the appliance and lock the lid.
8. Always ensure that water cannot penetrate into the housing.
9. The grill can be stored in vertical position to save space. Store the appliance in a dry place where it is protected against dust.

RECIPES

If not specified otherwise, the recipes are for 6 to 8 persons.

Schnitzel appetisers

400 g turkey (cut in 30 extremely thin slices), 2 eggs, salt, pepper, 5 tbsp flour, 5 tbsp grated almonds, 2 tbsp oil, 150 g horseradish cream cheese, 100 g lingonberry preserves, several leaves of iceberg lettuce, 7 slices of brown bread (box-shaped)

Salt and pepper schnitzel meat. Beat the eggs, first dip the meat in the flour, then in the egg, and then in the almonds. Heat the grill to level 4, add the oil. Fry the schnitzel pieces until they are golden brown on both sides, take them out and let them cool.

Mix the cream cheese with 50 g of the lingonberry preserves. Divide the bread slices twice in such a manner that 4 triangles per slice are produced. Spread the cream cheese mixture on the bread triangles, add a small piece of iceberg lettuce, place schnitzel slice on top. For the final touch place a dab of lingonberry preserves on each appetiser.

Pork medallions with pepper butter

250 g butter, lemon juice, salt, 5–6 tbsp pickled peppercorns, 1000 g pork medallions

On the day before: Stir the butter with lemon juice and salt until it is foamy. Stir in the peppercorns. Form the butter into a roll and let it become firm overnight in the refrigerator.

Pre-heat the grill with 2 tbsp oil on level 4 and grill the medallions 3-4 minutes on each side. Salt and pepper the medallions.

Slice the butter in slices that are 0.5 cm thick, and place the slices of butter on the medallions.

Juniper steak

14 I gin, a few splashes of Worcestershire sauce, 16 crushed juniper berries, 8, 200 g beef steaks, salt, 60 g butter Mix gin, Worcestershire sauce and juniper berries to form a marinades. Pat the steaks dry, pour the marinade over the steaks, cover the container and let them steep in the marinade for 3-4 hours.

Pre-heat grill with 2 tbsp on level 4. Take the meat out of the marinade and pat dry. Grill 3-4 minutes on each side.

Pour the melted butter over the steaks.

Garlic shrimp

30 shelled, raw shrimp, 1 bunch of flat-leaf parsley, juice of one lemon, 2 tbsp olive oil, 3 garlic cloves, several fresh bay leaves, salt, pepper, wooden skewers

On the day before: Finely chop parsley, peel and chop garlic. Mix with oil and lemon juice and let the shrimp steep overnight in the mixture.

Pre-heat grill with 2 tbsp on level 4. Pat shrimp dry, place on the skewer alternating with sage. Fry skewers 3-5 minutes, turn once in this process. Salt and pepper before serving.

Sautéed seafood

2 onions, 2 garlic cloves, 1 bay leaf, 2 tbsp oil, 500 g mussels (can), 500 g scampi, 200 g squid (can), salt, pepper

Peel and finely chop onions and garlic. Pre-heat grill with 3 tbsp oil on highest level for 3 minutes. Add onions and garlic and steam until glassy. Add seafood and bay leaf, sauté on level 3 for approx. 10 minutes. Season with salt and pepper.

Zucchini fritters

750 g potatoes, 500 g small zucchini, 2 eggs, 4 tbsp oatmeal, 1 onion, 1 tbsp salt, 1 pinch sugar. 6 tbsp oil Peel and grate potatoes, grate zucchini, finely grate onion.

Mix potatoes, zucchini, onions, oatmeal, eggs, salt and sugar. Preheat grill with 6 tbsp on level 4. With a tablespoon, put fritters into the hot oil and fry until golden brown on both sides.

Keep the fritters warm, until they are all fried, and serve hot. Goes well with apple sauce and herb quark.

The authors have thoroughly considered and tested the recipes included in these operating instructions. Nevertheless, a guarantee cannot be accepted. The authors, respectively UNOLD AG and their assignees shall not be liable for personal injuries, material damages and financial loss.

GUARANTEE CONDITIONS

We grant a 24 months guarantee, and in case of commercial use a 12 months guarantee, starting from the date of purchase for any damage demonstrably due to manufacturing defects and when the appliance has been used according to its intended use. Within the warranty period we will remedy defective materials or workmanship through repair or replacement, at our option. Our warranty terms apply only to appliances sold in Germany and Austria. For other countries, please contact the responsible importer. In the event of a claim for remedy of defects, please send the appliance to our after sales service, properly packaged, together with a copy of the automatically generated sales receipt, which must show the date of purchase, and a description of the defect. You can print out a return receipt on our website www.unold.de/ruecksendung. (only for entries from Germany and Austria). The warranty does not cover damage from normal wear, improper handling and failure to comply with the maintenance and care instructions. The warranty is void if repairs or modifications are made to the appliance by third parties. Any claims of the end consumer vis-à-vis the retailer are not limited by this warranty.

WASTE DISPOSAL / ENVIRONMENTAL PROTECTION

Our appliances are produced on a high quality level for a long lifetime. Regular maintenance and expert repairs by our after-sales service can extend the useful life of the appliance. If an appliance is defective and repair is not possible we ask you to follow the following instructions for disposal. Do not dispose this appliance together with your standard household waste. Please bring this product to an approved collection point for recycling of electric and electronic products. By separate collection and disposal of waste products you help to protect natural resources and ensure, that the product is disposed in an adequate way to protect health and environment.

NOTICE D'UTILISATION MODÈLE 58535

SPÉCIFICATION TECHNIQUE

Puissance : 1 650 Watts, 220-240 V\~, 50/60 Hz

CONDITIONS DE GARANTIE
