Pack Tablette 7″ Kids Tablet - Tablet BIGBEN INTERACTIVE - Free user manual and instructions

Product type	Kids touchscreen tablet
Brand	Bigben Interactive
Model	Pack Tablet 7" Kids Tablet
Dimensions (L x W x H)	19 x 12 x 2 cm
Weight	Approximately 350 g
Screen size	7 inches
Screen type	Capacitive touch LCD
Screen resolution	1024 x 600 pixels
Operating system	Android (manufacturer-specific version)
Processor	Quad-core 1.3 GHz
RAM memory	1 GB
Internal storage	16 GB (expandable via microSD)
Battery capacity	3000 mAh lithium-ion
Battery life	Up to 5 hours of use
Connectivity	Wi-Fi 802.11 b/g/n, Bluetooth 4.0
Camera	Rear 2 MP, front 0.3 MP
Sensors	Accelerometer
Main features	Parental controls, educational apps, silicone protective case, preloaded with children's content
Power supply	5V/1A via micro USB (charger included)
Care and cleaning	Clean with a soft, slightly damp cloth. Do not use abrasive products or solvents.
Safety	Use under adult supervision. Do not expose to water or extreme temperatures.
Spare parts and repairability	Available on the manufacturer's website (Bigben Interactive).

Frequently Asked Questions - Pack Tablette 7″ Kids Tablet BIGBEN INTERACTIVE

How to set up parental controls on the tablet?

Go to Settings, then 'Parental controls'. You can set a PIN, limit screen time, and block certain apps. See the manual for details.

Is the tablet suitable for toddlers?

Yes, it is designed for children aged 3 to 10. The silicone case protects against shocks and the interface is simplified. Always supervise use.

How to install new apps?

Open the app store (Google Play Store or built-in store). Search for the desired app and tap 'Install'. Installation requires a Wi-Fi connection.

What to do if the tablet does not turn on?

Make sure the battery is charged. Plug in the charger for at least 30 minutes. If it still does not turn on, press and hold the power button for 10 seconds. Contact support if the problem persists.

How to transfer photos or videos to a computer?

Connect the tablet to the computer via a USB cable. On the tablet screen, select 'File transfer'. The device will appear as a removable drive in the explorer.

Can the tablet be used without Wi-Fi connection?

Yes, many educational apps and games work offline. Wi-Fi connection is needed to download content or browse the Internet.

How to clean the tablet screen?

Use a slightly damp microfiber cloth (water only). Gently wipe the screen. Never use chemical cleaners or abrasive liquids.

Is the tablet water-resistant?

No, the tablet is not waterproof. Avoid any contact with water. If splashed, wipe immediately with a dry cloth.

Where to find spare parts (charger, cable)?

Spare parts are available on the official Bigben Interactive website or from authorized resellers. Only use compatible accessories.

How to reset the tablet to factory settings?

Go to 'Settings' > 'System' > 'Reset' > 'Reset tablet'. Confirm the operation. Note: all data will be erased.

USER MANUAL Pack Tablette 7″ Kids Tablet BIGBEN INTERACTIVE

Thank you for purchasing the Bigben Interactive KIDS TAB. Please keep this instruction manual for future reference. If you require any assistance or help please contact www.bigben.eu/support.

WARRANTY:

This product bearing the Bigben Interactive trademark, is guaranteed by the manufacturer for a period of 1 year from the date of purchase, and will, during this period be replaced with the same or a similar model, at our option, free of charge, if there is a defect due to faulty material, or workmanship. This guarantee does not cover defects arising from accidental damage, misuse or wear and tear, and is available only to the original purchaser of the product. This does not affect your statutory rights.

PRODUCT FEATURES:

• Additional contents for kids with games
- HDMI video output for full screen game support, internet browsing and media viewing
• Wi-Fi and Bluetooth connectivity
- Expandable storage via Micro SD
- Multiformat compatibility for video, audio and photo

PRODUCT CONTENTS:

• KIDS TAB 7 inch tablet
- Protective Silicon Bumper
- 5V - 2A AC power adaptor
- USB to micro USB cable for data transfer
- Stickers
- Set up guide

SPECIFICATIONS OF THE KIDS TAB:

• Android 4.4.2 operating system
  • Action ATM7021 (1.2 GHz) Cortex A9 CPU Dual Core
  • GPU: POWER VR SGX 540
  • RAM memory: 1Gb DDR3 Dual Channel
• Storage capacity: 4Gb
• Micro memory card reader SD/SDHC up to 32Gb
• Communication: Bluetooth® 3.0, WiFi 802.11 b/g/n
• Dual cameras
• Directional sensor
  • HDMI 1080p mini port
• Integrated loud speaker and microphone

CHARGING

Before using the KIDS TAB, please ensure that the internal battery is fully charged.

• Connect the supplied AC adaptor to the power input connection on the edge of the tablet.
• The screen will then indicate that the tablet is charging.
• Charging should be completed within 2-3 hours.

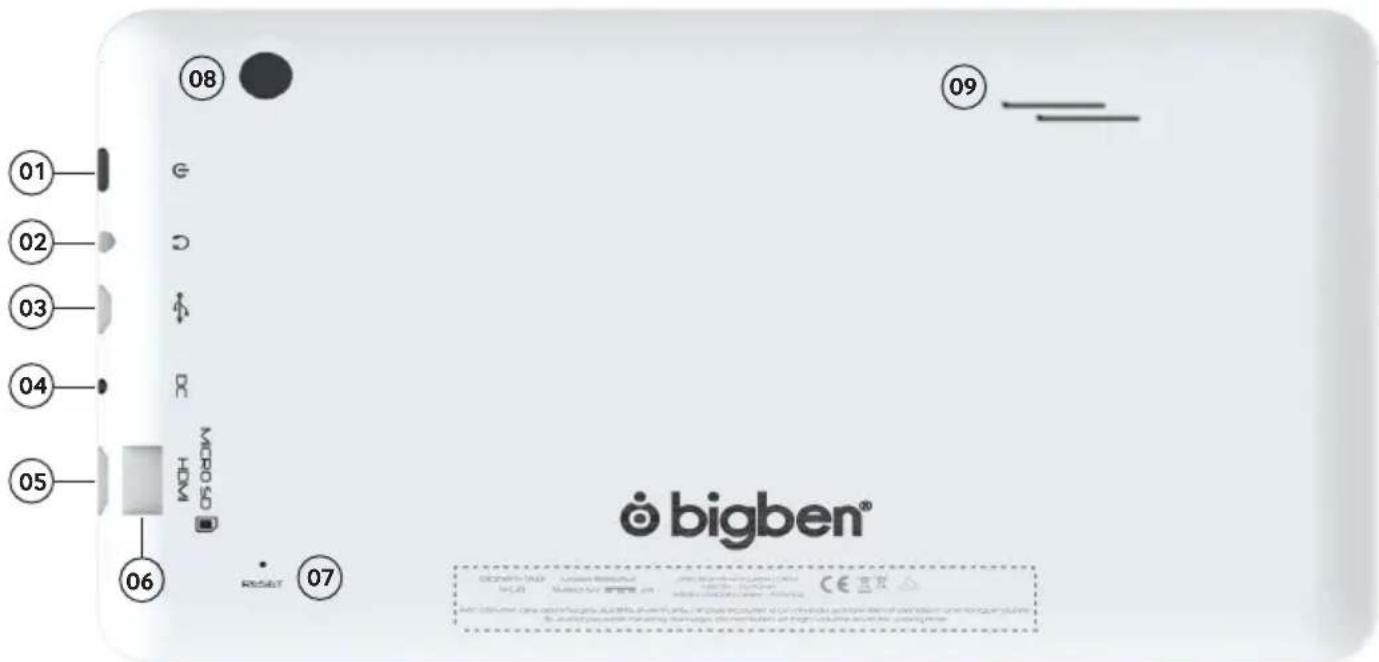

OVERVIEW

1. Power button
2. 3.5mm earphone socket
3. Micro USB connector
4. Power socket (DC)
5. Mini HDMI socket
6. Micro SD card slot
7. RESET button
8. Rear camera
9. Built-in speaker

POWERING ON

To switch on your KIDS TAB, simply press and hold the power button, on the edge of the tablet. When loading is complete you will see the welcome screen. Follow the onscreen instructions to familiarise yourself with the system. On any future power on you will see the lock screen. Drag the 'locked symbol to the right side to unlock the screen. When the screen is unlocked you will see the home screen. You can configure your tablet from here by entering the settings option. This will allow you to set your language, Wi-Fi settings and set up your Google account. You MUST set up a Google account in order to use Google Play to download apps and games. This will also involve creating a Gmail account. If you already have a Google account, you can retrieve it and use it on your KIDS TAB by inputting your Gmail address and password. Once this is set up, you are ready

To power off and put into standby mode simply press and release the power button.

To power off completely, press and hold the power button and select the 'Power Off' option on the screen.

ABOUT APPLICATIONS

Some applications have been installed on your tablet for your convenience.

You can also download and install additional applications from Google Play store

To open an application, touch the application icon.

SETTINGS CHANGES

The settings option allows you to make various changes and connections on your KIDS TAB

a) Language

You can select your preferred language using this setting option. To change the language used on your tablet, use the following steps:

• Press on the settings icon on the home page
• Press on the Language & input
• Press on the Language option. Default is always English.
• Select the language you want by scrolling through the list.

Now your KIDS TAB will use the selected language.

You can also specify the default KEYBOARD & INPUT METHODS from this page. Press on the Default option to select the keyboard type you want. The keyboard will be set up correctly according to your selected language, but you can change it for another preference if you wish.

b) Wi-Fi

To get an Internet connection on your KIDS TAB, a Wi-Fi Connection is required. To setup your connection, use the following steps:

• Press on the settings icon on the home page
• Slide the Wi-Fi switch on the right so it is in the ON position.
• Wait a moment while your KIDS TAB scans your environment to display all the Wi-Fi networks available.
• Select the desired Wi-Fi network.
• The KIDS TAB will directly connect if no security password is requested. If a password is required, a window will open and you will need to enter the correct code for your protected network. Follow the onscreen instructions to complete the set up.

c) Date and Time

To set the date and time use the following steps:

• Press on the settings icon on the home page
• Un-tick the automatic date, time and time zone options
• Set the time zone to your region
• Set the date to the correct day, month and year
• You can also change the date and time format.
• Once his is done you can then tick the automatic date, time and time zone options so the time stays in sync with the internet.

TRANSFER DATA

To transfer data into your KIDS TAB, you can use any of the following methods:

• Via USB cable
• Via Bluetooth
• Via SD card

a) Transferring with USB

To transfer files from a computer, use the following steps:

• Connect the supplied Micro USB cable to the USB port on the KIDS TAB and to your computer
  • The name of your tablet is BB8252
• The screen will advise that USB is connected. Press the 'Turn on USB storage' option to connect.
• An External device will then be detected by your computer.
• Copy and paste your selected files into the correct folders.

The content used by the Android system is arranged in different folders. These are the different folders for your media:

• DCIM: contain pictures and movies taken with the built-in camera.
• Music
• Movies
• Download

You can access these folders using the 'Explorer'

b) Transferring with Bluetooth

The KIDS TAB is compatible with the Bluetooth 3.0 technology.

The name of your tablet is «Bigben-TAB»

To setup your Bluetooth connection, use the following steps:

• Press on the settings icon on the home page.
• Slide the Bluetooth switch to the right in the ON position.
• Press on the Bluetooth option
• To add a device, press on 'SEARCH FOR DEVICES'
• A list of the available devices will be displayed. Select your chosen device and follow the instructions on the screen.

A passkey may be displayed on the KIDS TAB screen and on the screen of the other device. You will need to select 'Pair' on both devices to compete the connection.

c) Transferring with an SD card

• To transfer files using an SD, firstly copy your required files onto the SD card from your computer.
• Insert the SD card into the KIDS TAB. Make sure that the blank side is facing towards the back of the tablet.

The slot is sprung so make sure that you push it fully into position so it locks.

• Press the apps icon on the home page.
• Select the file manager \ explorer.
• Select the SD card option to view the files on the card.
• Press and hold the file until you get an options menu appear.
• Select the copy option and then press the home option in the file manager \ explorer.
• Select the folder you wish to copy to.
• Select the 'paste' option to copy the fi le. Your fi le will now copy to that folder.
• To remove the SD card, firstly un-mount the card from the settings menu. To so this go to settings\ storage\ un-mount SD card.
• When this is done, push on the top of the card to release it from the locking mechanism. Be careful when removing it so you don't lose it.

HDMI OUTPUT

The KIDS TAB has a Mini HDMI output. The screen of your tablet can be duplicated on your HDTV with a resolution up to 1080p if you connect the appropriate HDMI cable between your KIDS TAB and your TV. This cable is sold separately. Simply attach the Mini HDMI plug to the HDMI socket on the tablet and attach the full size HDMI connector to your TV.

NOTE: To have an optimum performance, it is not advised to use the HDMI function simultaneously with the AC adapter.

BACKUP & RESET

The Android system of your KIDS TAB allows you to back up your data including Apps, Wi-Fi passwords and other settings to the Google servers.

To save information, use the following steps:

• Press on the settings icon on the home page
• Press on 'Backup & reset' option
• A tick should appear next to this option to confirm it is set.
• If you need to restore any data for your account, ensure that the 'Automatic restore' option is also ticked.
• If, for any reason, you need to reset the Factory data, press on 'Factory data reset'

NOTE: This action will erase all data from your tablet's internal storage. Your tablet will then reset and start like it is new.

When you reinstall your apps again, your app settings and data should be restored assuming that you used the exact same

Google account and that the app supports the back-up feature.

Note that this feature DOES NOT backup your photos, music, videos etc. It is recommended that you back this data up to your computer via USB or SD card.

If in the unlikely event you experience any crashes or lock ups, there is a reset switch on the rear of the KIDS TAB.

Insert a thin object into the hole to perform a reset. The KIDS TAB will power off and restart. This reset WILL NOT delete any software from your device.

TROUBLESHOOTING

The KIDS TAB switches off during use.

• The battery level could be low, plug the AC adaptor for charging.
• Ensure that the sleep mode, (in the display settings), is not set to a short time period (i.e. 15 seconds).

The KIDS TAB does not switch on

• Press and hold the power button for 5 seconds.
• Connect the AC adaptor and press and hold the power button for 5 seconds. If the battery is fully discharged then it could take several minutes before you can use the tablet.

I have connected the AC Adaptor but the KIDS TAB is not charging.

• Ensure that you have correctly connected the AC adaptor into the DC socket.
• The battery is fully discharged. It can take several minutes before you can use the tablet.

The image on my TV is not good when I am using a HDMI cable.

- Try to change the resolution of the HDMI output in the HDMI settings. If the selected resolution is not appropriate for your TV screen.

The applications are slower than usual.

• Ensure that you close all of your previous APPS used. Press on the 'recent applications' button, in the Navigation bar, and remove them from the list.
• Switch off your KIDS TAB completely and switch it back on. Your tablet needs to be restarted occasionally to keep the best performance as possible.

The touch screen of the KIDS TAB is less sensitive.

- Ensure that the screen and your fingers are clean.

The KIDS TAB shows some error messages during use.

- Ensure that your Internet connection is ON and you are connected to the correct Wi-Fi network. Use another device to check your Internet connection.

The KIDS TAB cannot be connected to the Wi-Fi.

- Ensure that your Internet connection is ON and you are connected to the correct Wi-Fi network. Use another device to check your Internet connection.

- Ensure that you use the correct security key for your Wi-Fi network. Go into the Wi-Fi settings, press on the desired connection and select the option 'Forget'. Select it again and type your security key.

The KIDS TAB has no response.

- Press the reset button on the back to switch off the KIDS TAB. If the problem continues, please contact the technical helpline.

- The stability of the system could be compromised by some third-party applications, uninstall them and restart your KIDS TAB

For further instructions, please contact our technical helpline. See details in the 'Technical Helpline Information' section.

IMPORTANT HEALTH WARNING: PHOTOSENSITIVE SEIZURES

A very small percentage of people may experience a seizure when exposed to certain visual images, including flashing lights or patterns that may appear in video games. Even people with no history of seizures or epilepsy may have an undiagnosed condition that can cause "photosensitive epileptic seizures" while watching video games. Symptoms can include light-headedness, altered vision, eye or face twitching, jerking or shaking of arms or legs, disorientation, confusion, momentary loss of awareness, and loss of consciousness or convulsions that can lead to injury from falling down or striking nearby objects. Immediately stop playing and consult a doctor if you experience any of these symptoms. Parents, watch for or ask children about these symptoms—children and teenagers are more likely to experience these seizures. The risk may be reduced by being farther from the screen; using a smaller screen; playing in a well-lit room, and not playing when drowsy or fatigued. If you or any relatives have a history of seizures or epilepsy, consult a doctor before playing.

DISPOSAL, DECLARATIONS & SAFETY

Disposal of Old Electrical & Electronic Equipment

This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it should be taken to an applicable collection point for the recycling of electrical and electronic equipment. By ensuring that this equipment is disposed of correctly you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more information please contact your local council or waste disposal service.

Important Safeguards & Precautions

1. Do not expose to dust, direct sunlight, wet weather conditions, high humidity, high temperatures or mechanical shock.
2. Do not expose the unit, to splashing, dripping rain or moisture. Do not immerse in liquid.
3. Do not disassemble; there are no serviceable parts inside.
4. Do not use if the equipment is damaged.
5. Never carry the unit by its cables.
6. For external cleaning, use a soft, clean, cloth only. Use of detergents may damage the cabinet finish.

7. Do not dispose of batteries in fire or leave them near a heat source such as a radiator.

8. You should take a break at least every 5 to 10 minutes if your eyes feel tired or dry or if you experience discomfort of any kind.

9. You are advised to take one 15 minute break per hour when playing for extended periods of time.

RTTE

Hereby, Bigben Interactive SA, declares that the KIDS TAB device complies with the essential requirements of the directive 1995/5/EC of the European Parliament and of the Council of 9 March 1999 on radio equipment and telecommunications terminal equipment and the mutual recognition of their conformity.

To download the full statement, please visit our website: http://www.bigben.eu/support and the section `declaration of conformity'.

TECHNICAL HELPLINE INFORMATION

The Technical Helpline is a live one-to-one service

UK: 0905 710 0015 - Hours: 10:00am till 5:00pm, Monday to Friday

(All calls are charged at 30 pence per minute. All callers must be over 16 years of age. Permission must be obtained from the person paying the bill. Parental supervision is recommended).

Eire: 154 056 3001 - Hours: 10:00am till 5:00pm, Monday to Friday

(All calls are charged at 60 euro cents per minute. All callers must be over 16 years of age. Permission must be obtained from the person paying the bill. Parental supervision is recommended).

To ensure that your call is handled quickly and effectively please ensure that you have the model number and any other relevant information regarding your product.

Calls may be recorded for training purposes.

FR

TRANSFERT DE DONNÉES

Lesquin Cedex, France Avenue Ernest Solvay

CS90414 1480 Tubize, Belgium

www.bigben.eu

DE

www.bigben-interactive.de

NL

Email : [e-mail]

SP
