GENERAL INFORMATION:

before installing and using the hood, read carefully all instructions contained in the present handbook. We suggest that you always keep the handbook and the warranty certificate within easy reach.

USE:

the hood at issue is a SUCTION hood. The odours and vapours coming from the motor shall be conveyed into and external exhaust duct.

The extractor hood can be converted into a "Filtering" hood by purchasing the Carbon Filter pack – carbon filter cod. 9700400.

OUTLINE DIMENSIONS

FIXING INSTRUCTIONS FOR S.4000 ISLAND HOOD

OPERATION 1

1a Remove the two screws Z which fix the top pipe to the structure.

1b Let the top pipe slide downwards.

1c Remove the screws V which fix the sliding structure to the fixed one.

OPERATION 2

2a Check the necessary height from ceiling to bottom cable of the hood leaving 650/700 mm from the hob grids.

OPERATION 3

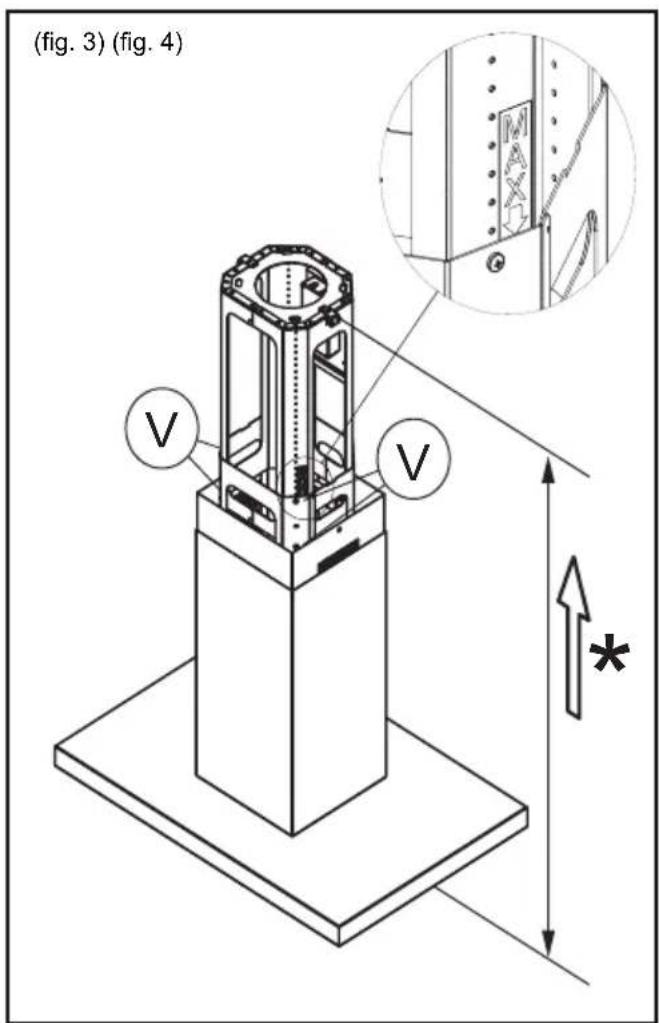

3a Reach the needed measure from bottom cable of the hood to top part of the sliding structure by pulling it upwards.

3b Fix the structure with screws V using 2 of them for each side (8 screws in total).

ATTENTION!

- There are 3 holes per side, DO NOT USE THE CENTRAL HOLE.

- Since the holes of the structure are 15 mm far from each other, use those nearest to the required measure.

- The maximum height, which can be obtained by granting the rigidity of the structure, is indicated with an appropriate notice.

OPERATION 4

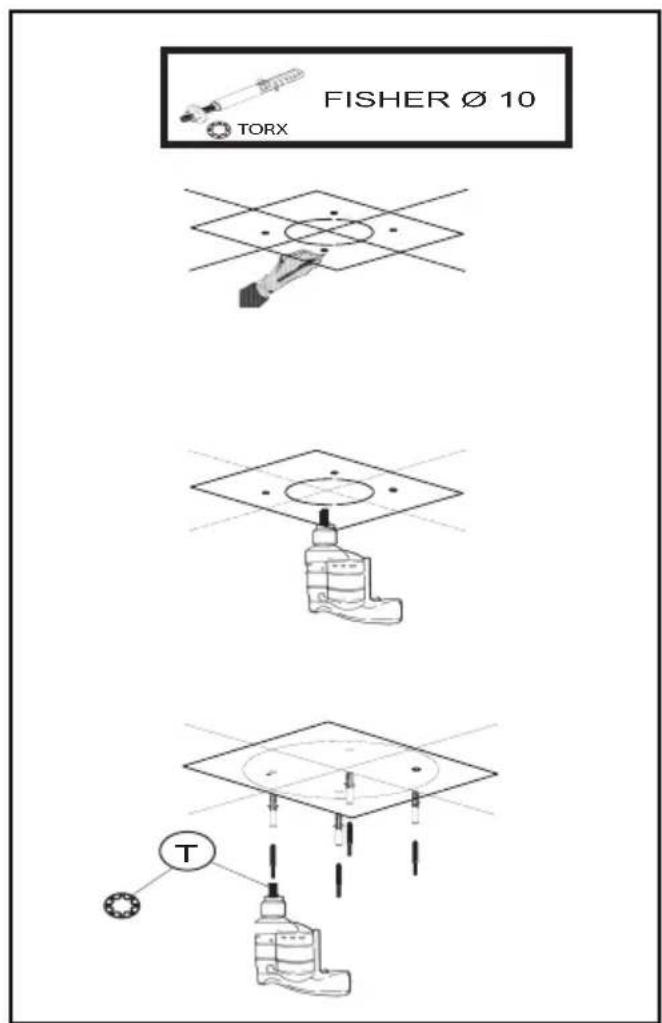

4a Find the fixing centre of the hood on the ceiling.

4b Use the appropriate jig to indicate the 4 drilling centres.

4c Drill with 10 mm bit.

4d Insert the Fishers and screw the special threaded bars with the appropriate "TORX KEY" (T) supplied in the package.

OPERATION 5

5a Take the hood towards the ceiling, insert the top structure into the threaded bars and fix it with washers and nuts Y (2 nuts per bar).

ATTENTION!

Fix with double nuts in order to avoid the loosening due to vibrations.

OPERATION 6

6a Connect the fumes evacuation pipe and arrange the electrical connection.

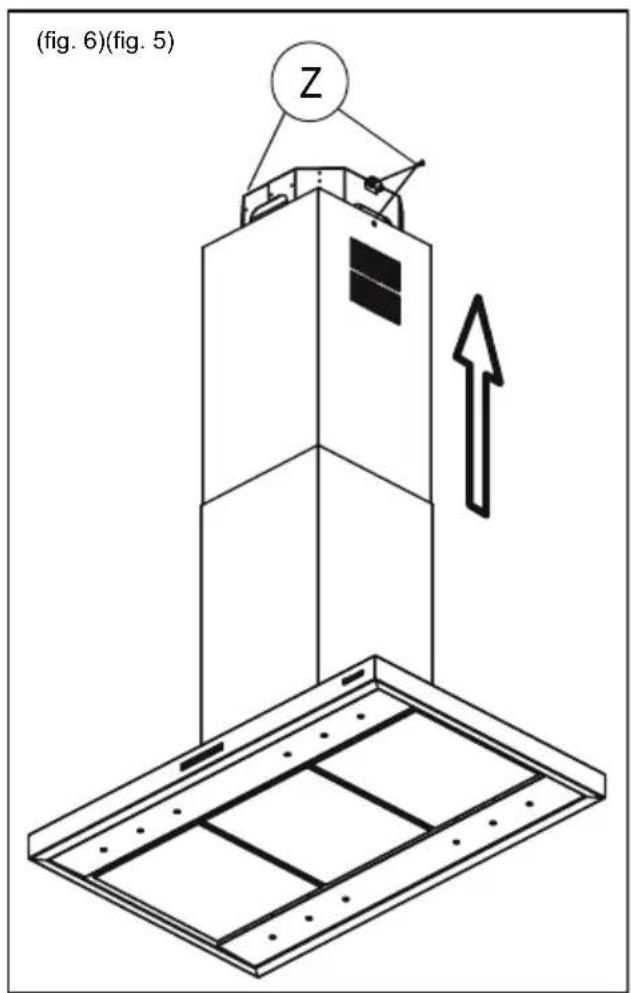

6b Take the sliding pipe upwards and fix with screws Z.

ELECTRICAL CONNECTIONS:

before carrying out any electrical connection, make sure that the voltage corresponds to the one mentioned on the label located on the inside of the appliance. It is advisable to entrust the installation of the electrical connection to a qualified technician.

Appliance provided without plug: please connect a plug or an omni-polar switch in compliance to the existing local regulations, and with an opening connection distance not inferior to 3 mm, The earth wire must not be interrupted by the switch.

Foster decline any responsibility for any inconveniences deriving from the non-observance of the aforesaid instructions of the use of materials which are not in compliance with the existing regulations.

CONTROL PANEL:

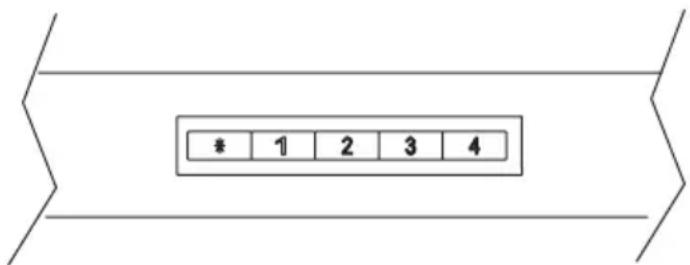

The control panel is electronic and is positioned in the lower-end part of the hood.

FUNCTION OF BUTTONS:

SWITCHED OFF

1) TURN-ON 1st SPEED AND MOTOR TURN-OFF
2) TURN-ON 2nd SPEED
3) TURN-ON 3rd SPEED
4) TURN-ON 4th SPEED

REMARKS:

• After 30 hours use of the hood, indicators of keys 1,2,3,4 flash for 30 seconds to signal the need to clean filters.
  The alarm can be reset by pressing for long speed key n° 3 with engine switched off.
• The keys perimetric edge remains always lighted. To deactivate it, press for long speed key n° 1 with engine switched off.
  To reactivate the lighting, press for long speed key n^ 1.
• It is possible to automatically delay the stalling of the engine by pressing for long one of the speed keys.
  The engine will run for others 10 minutes.

ATTENTION!

ATTENTION!

MAINTENANCE:

Please switch-off the electrical power, or disconnect the appliance before carrying out any maintenance operation.

1) Cleaning of the stainless steel parts: in order to avoid scratches in the steel surfaces, please don't use abrasive powders or brushes. Use liquid detergents specifically made for stainless steel items.
2) Filter Cleaning: Remove the filter from the container and wash it in the dishwasher or with soapy water, without rubbing it with a cloth or a sponge.

Before replacing the filter, carefully dry it without deforming it.

ATTENTION:

• The expelled air must not be convoyed in ducts which are shared by other appliances powered with energy different from the electrical one.
• Should the use of the hood be contemporaneous to other appliances powered by energy different from the electrical one, an adequate ventilation on the room is to be foreseen.
• The use of an open flame under the hood or the preparation of food with an open flame is to be excluded, as this could cause a fire. Check that the oil doesn't overheat during the frying process in order to prevent it from catching fire.
• The non-compliance to filter cleaning recommendations, causes a risk of fire. It is of course recommended to follow the said instructions

IMPORTANT:

The use of the hood in presence of other non-electrical appliances (such as, but not limited to, wood-burning stoves, gas stoves, non-electrical water-heaters) requires the presence of an external exhaust which ensures a good ventilation of the room.

Verify the conditions of the exhaust chimney in case the hood is not used for a long period of time.

Please also pay the maximum attention to the local standard regulations concerning exhaust scavenging.

All recommendations on the subject should be scrupulously observed in order to avoid unpleasant inconveniences.

THE MANUFACTURER DECLINES ANY RESPONSIBILITY CAUSED BY NON-COMPLIANCE TO THE HERE ABOVE MENTIONED RECOMMENDATIONS.

TECHNICAL FEATURES:

Type	ISLAND 90	ISLAND 120
Code	2442.090 2442.1	20
Dimensions	898X595X50 mm	1198X595X50 mm
Capacity	240-1000 m3/h	240-1000 m3/h
Cooking surface lighting	n. 12 LED X 1 W	n. 18 LED X 1 W
Anti-grease filters	1	1
Perimetric suction elements	3	4
Working speed	4	4
Operation	Aspirante	Aspirante
Finishing	inox spazzolato Foster	inox spazzolato Foster
Air outlet diameter	∅ 120-150 mm	∅ 120-150 mm
Voltage	220 – 240 V	220 – 240 V
Frequency	50 Hz	50 Hz
Max absorbed Power	362 W	368 W
