AWK1720W - Kettle BESTRON - Free user manual and instructions

Product type	Electric kettle
Brand	Bestron
Model	AWK1720W
Capacity	1.5 liters
Power	2000 watts
Power supply	220-240 V ~ 50/60 Hz
Dimensions (approx.)	22.5 x 15.5 x 24.5 cm
Weight	0.8 kg
Material	Stainless steel and plastic
Functions	Rapid heating, automatic shut-off, overheat protection, 360° swivel base
Care and cleaning	Regular descaling with vinegar or descaling product; clean the exterior with a damp cloth
Safety	Automatic shut-off in case of boiling and dry operation
Spare parts and repairability	Lid, base, anti-scale filter, seals; repair possible by approved center
Warranty	2 years

Frequently Asked Questions - AWK1720W BESTRON

How to fill the kettle correctly?

Remove the kettle from its base, open the lid and fill with cold water. Do not exceed the MAX level and do not fill below the MIN level. Close the lid before placing it back on the base.

What is the boiling time?

For a capacity of 1.5 liters, the boiling time is approximately 3 to 4 minutes, depending on the 2000 W power.

How to descale the kettle?

Pour a mixture of half water and half white vinegar into the kettle, bring to a boil, let it sit for 15 minutes, rinse thoroughly. Repeat if necessary.

Why does the kettle stop before boiling?

This may be due to significant limescale buildup. Descale the appliance. If the problem persists, check that the lid is properly closed.

Can I heat milk or other liquids?

No, the kettle is designed only for heating water. Other liquids may damage the appliance.

How to clean the exterior?

Use a soft, damp cloth. Do not use abrasive products or metal scouring pads.

Can the kettle stay on the base permanently?

Yes, the 360° swivel base allows the kettle to stay on the base. Unplug the appliance when not in use.

What to do if the kettle does not heat up?

Check that the kettle is properly placed on the base and that the cord is plugged in. If the problem persists, contact customer service.

Is the anti-scale filter removable?

Yes, the filter located in the spout can be removed for cleaning or replacement. Rinse it under running water.

What to do in case of overflow?

Immediately unplug the appliance and let it cool. Dry the base carefully. Never immerse the base in water.

USER MANUAL AWK1720W BESTRON

Abstract black and white geometric arrow pattern (no text or symbols)

BESTRON®

AWK1720

AWK1720W

AWK1720Z

Nederlands

Instruction manual cordless jug kettle

Italiano

Istruzioni per l'uso hervidor de agua sin cable

Español

Manual del usuario bolliture senza fili

_

| _

一

1

VEILIGHEIDSVOORSCHRIFTEN - Algemeen

WERKING - Water koken

CONDITIONS DE GARANTIE

DÉCLARATION DE CONFORMITÉ CE

SAFETY INSTRUCTIONS - General

• Please read these instructions carefully and retain them for reference.
  • Use this appliance solely in accordance with these instructions.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  • Children should be supervised to ensure that they do not play with the appliance.
  • Have any repairs carried out solely by a qualified electrician. Never try to repair the appliance yourself.

SAFETY INSTRUCTIONS - Electricity and heat

n parts of the appliance may get hot.

not touch these parts to prevent burning yourself.

• Before use please verify that the mains voltage is the same as indicated on the rating plate of the appliance.
  • Make sure that you always use an earthed wall socket to connect the appliance.
• Always remove the plug from the mains socket before moving the appliance and when the appliance is not in use.
• Remove the plug from the wall socket by pulling the plug, not the power cord.
• Check the appliance's power cord regularly to make sure it is not damaged. Do not use the appliance if the power cord is damaged. Have a damaged power cord replaced by a qualified repair service.
  Certain parts of the appliance may get hot. Do not touch these parts to prevent burning yourself.
• Make sure that the appliance, the power cord or the plug do not make contact with hot services, such as a hot hob or naked flame.
  • Make sure that the appliance, the power cord and plug do not make contact with water.

SAFETY INSTRUCTIONS - During use

• Never use the appliance outdoors.
• Place the appliance on a flat, stable surface.
  • Always remove the plug from the wall socket after use, and before cleaning the appliance.
• Never allow the power cord to hang over the edge of the draining board, worktop or table.
  • Make sure that your hands are dry before touching the appliance, power cord or plug.
  • Never use the appliance in a humid room.
• Never immerse the appliance, the plug or the power cord in water or other liquid.
• Do not pick up the appliance if it falls into water. Remove the plug from the wall socket immediately and do not use the appliance any more.
  • Use solely the base supplied with the jug kettle. Never use the base for other purposes.
• Remove the jug from the base, and fill with water from the tap. Never fill the jug above the 'max' level.
• Do not switch on the appliance before you have filled it with water. Fill only with cold water.
• The jug's lid must remain securely closed whilst the appliance is in use.
• Never open the lid when the water is still boiling.
• Use the appliance only to boil or heat water. Never use it for other liquids!
  • Fill the jug kettle with at least 0,5 litre of water.
• Allow the appliance to cool to room temperature before storage
  • This appliance may not be used through an external timer or by means of a remote control.

THE ENVIRONMENT

- Dispose of packaging material, such as plastic and boxes, in the appropriate waste containers.

When this product reaches the end of its useful life do not dispose of it by putting it in a dustbin; hand it in at a collection point for the reuse of electrical and electronic equipment. Please refer to the symbols on the product, the user's instructions or the packaging.

- The materials can be re-used as indicated. Your help in the re-use, recycling or other means of making use of old electrical equipment will make an important contribution to the protection of the environment.

- Contact your municipality for the address of the appropriate collection point in your neighbourhood.

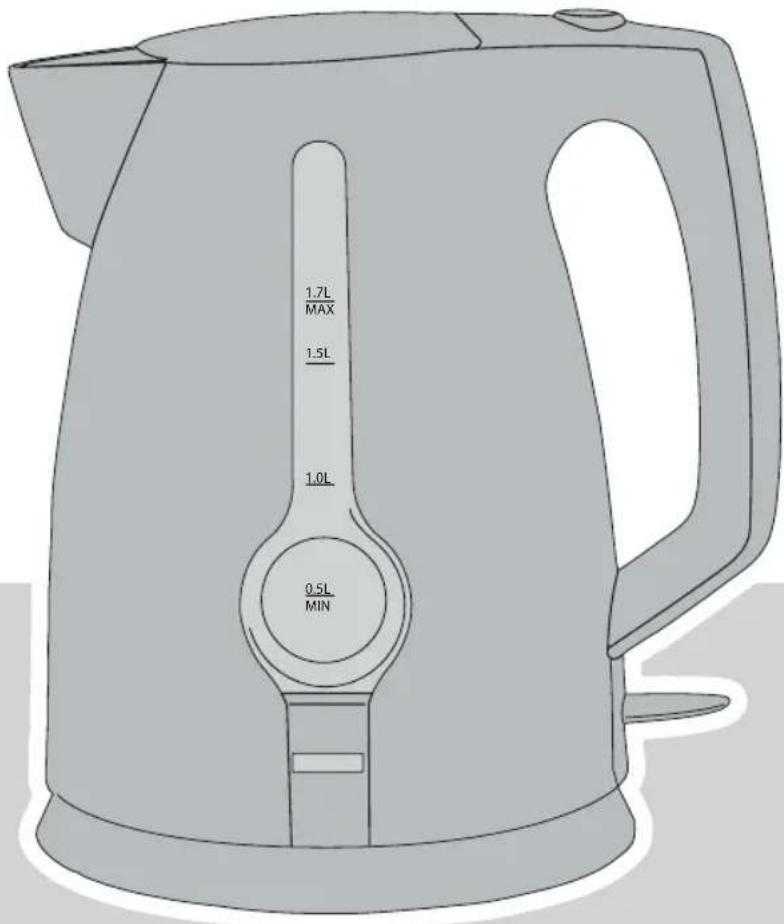

OPERATION - General

The appliance is intended only for domestic use, not for professional use.

1. Jug

2. Water-level indicator

3. Lid

4. Button to open the lid

5. Handle

6. On/Off switch

7. Pilot light

8. Spout

9. Base

10. Power cord and plug

Figure 1

OPERATION - Before use for the first time

When using the jug kettle for the first time boil three jugs of water, and dispose of the boiled water.

You can use vinegar or special descaling agents for the first time.

1. Turn the jug so that the spout faces away from you.

2. Hold the button to open the lid (4) pressed.

3. Fill the jug with the required quantity of water (at least 0.5 litres, and a maximum of 1.7 litres). Never fill the water boiler over the "max". Otherwise the hot water can spatter out of the base.

Make sure that you do not spill any water on the base.

1. Release the button to open the lid.

2. Place the jug on the base, and insert the plug in the wall socket. Push down the On/Off switch. The On/Off pilot light will illuminate.

3. The jug kettle is now switched on, and the water will now begin to heat. The jug kettle switches off automatically a few seconds after the water has come to the boil. The On/Off pilot light will now extinguish.

4. Remove the jug from the base by the handle, and pour the water out.

Be careful you do not contact the hot water. It can cause serious burning wounds.

1. When you wish to heat the water without it coming to the boil you can switch off the jug kettle at any time you require.

2. Remove the plug from the wall socket when you have finished using the jug kettle.

OPERATION - Overheating safeguard

The jug kettle is fitted with an overheating safeguard. This will switch off the jug kettle if it is operated without (sufficient) water. Allow the jug kettle to cool down for at least 10 minutes before using it again.

CLEANING AND MAINTENANCE

• Remove the plug from the wall socket, and allow the appliance to cool.
• Clean the jug with a damp cloth. Never immerse the appliance in water. Never put the appliance in a dishwasher. Make sure that the electrical connections do not become damp.
• If the interior of the jug has become severely discoloured, then the best way to clean it is with a damp cloth and a little washing soda. After cleaning, rinse the jug very thoroughly.

- Never use corrosive or scouring cleaning agents or sharp objects (such as knives or hard brushes) to clean the appliance.

- Before cleaning, make sure that the appliance is not connected to the power supply and that it has cooled down.

CLEANING AND MAINTENANCE - Descaling

Lime will be deposited on the heating element at a rate depending on the hardness of the water. For this reason the heating element must be cleaned at regular intervals.

1. Remove the plug from the wall socket, and allow the appliance to cool.

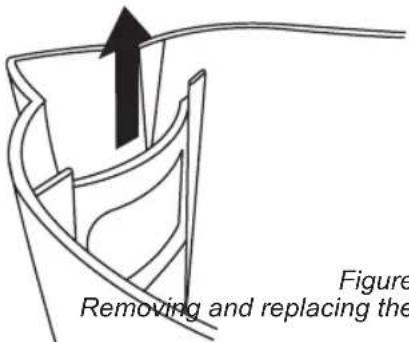

2. The jug kettle is fitted with a descaling filter. This filter must be removed for cleaning. Figure 2 shows how to remove and replace the filter.

Figure 2

1. Fill the jug with a vinegar solution to the MAX level, and bring to the boil.
2. Leave the jug with the vinegar solution to stand for a couple of hours.
3. Empty the jug, fill with clean water to the MAX level, and bring to the boil. Empty the jug. Repeat this process twice.

Never use ammonia or other products to descale the appliance. These can be injurious to your health. Use solely a vinegar solution, or special descaling agents available from retailers.

TECHNICAL DETAILS

Type: AWK1720/W/Z

Power consumption: 1850-2200W

Mains Voltage: 220-240V \~ 50/60Hz

GUARANTEE TERMS

The importer guarantees the appliance against defects caused by manufacturing and/or material faults for 60 months from the date of purchase, subject to the following conditions.

1. No charges will be made for labour costs or materials during the warranty period. Any repairs carried out during the warranty period do not extend the warranty period.

2. The importer automatically becomes the owner of any faulty parts that he replaces or a faulty appliance (in the event of replacement of the appliance).

3. All claims submitted under warranty must be accompanied by the original bill of sale.

4. Claims under warranty must be submitted to the dealer where the appliance was purchased or to the importer.

5. The warranty is issued solely to the first purchaser and cannot be transferred.

6. The warranty does not cover damage caused by:

a. Accidents, incorrect use, wear and/or neglect.

b. Faulty installation and/or use in a manner contravening the prevailing legal, technical or safety regulations.

c. Connection to a mains voltage other than the voltage specified on the type plate.
d. Unauthorized modifications.
e. Repairs carried out by third parties.
f. Careless transport, i.e. without suitable packaging materials or protection.

1. No claims may be made under this warranty for:

a. Losses incurred during transport.
b. The removal or changing of the appliance's serial number.

1. The guarantee does not cover power cords, lamps or glass parts.

2. No claims can be submitted under this warranty for damage other than the repair or replacement of faulty parts. The importer can never be held responsible for any consequential loss or damage or any other consequences, resulting either directly or indirectly from the appliance supplied by the importer.

3. In case of claims under guarantee you can contact your dealer where the appliance is purchased. Bestron offers you also the possibility to send the appliance directly to our Service Department. Do not send your appliance without consulting us. The package may be refused and any any costs will be for your account. Please contact the Service Department and they will tell you how to pack and send the appliance.
4. This appliance is not suitable for professional use.

SERVICE

If a fault should occur please contact the BESTRON service department:

THE NETHERLANDS:

Tel: +31 (0) 73 - 623 11 21

BESTRON NEDERLAND BV

Fax: +31 (0) 73 - 621 23 96

Bestron Service

Email: [e-mail]

Moeskampweg 20

Internet: www.bestron.com

5222 AW 's-Hertogenbosch

CE DECLARATION OF CONFORMITY

This product conforms to the essential requirements of the following EU safety directives:

• EMC Directive 2004/108/EC
• Low Voltage Directive 2006/95/EC

R. Neyman

Quality control

Simple line drawing of a curved structure with an upward arrow, no text or symbols present

Illustration of a gray water heater with handle and side panel (no text or symbols)

BESTRON®

AWK1720/W/Z

v 060114-08
