Product Type	Built-in Refrigerator
Brand	HOTPOINT
Model	BO 2320 A N I EU
Power Supply	220-240 V ~ 50/60 Hz, 150 W max
Maximum Power	150 W
Number of Shelves	Removable and height-adjustable (quantity not specified)
Fruit and Vegetable Bins	Yes (number not specified)
Door Bins	Yes, including a foldable bottle/can holder
Temperature Indicator	Yes, coldest zone identifiable
Interior Lighting	Yes, replaceable 15W or 25W bulb
Defrosting	Automatic (drain hole to be cleaned periodically)
Temperature Adjustment	Manual, positions 1 to 5 (1 = less cold, 5 = coldest)
Installation	Built-in, ventilated room, away from heat sources, wait 3 hours after transport
Electrical Connection	Grounded outlet required, plug must not be modified
Routine Maintenance	Clean exterior and interior with warm water and baking soda or mild soap
Seal Maintenance	Regular cleaning to ensure sealing
Safety	Grounding required, do not use outdoors, do not touch cooling parts
Compliance	Directives 73/23/EEC, 89/336/EEC, 2002/96/EC
Repairability	Only by authorized technician, original spare parts
Disposal	Do not dispose with household waste, follow local recycling regulations

Frequently Asked Questions - BO 2320 A N I EU HOTPOINT

How to set the refrigerator temperature?

Use the temperature adjustment knob located inside. The positions range from 1 (less cold) to 5 (coldest). An intermediate position is recommended for everyday use.

How to clean the appliance?

Clean the exterior and interior with a sponge soaked in warm water with baking soda or mild soap. Do not use solvents, abrasive products, bleach, or ammonia. Removable accessories can be soaked in hot soapy water.

What to do if the interior light does not come on?

Check that the plug is properly inserted or that the power is not cut off. If necessary, replace the bulb with one of the same type (15 W or 25 W) following the instructions in the manual.

How to defrost the refrigerator?

Defrosting is automatic. Defrost water drains to a hole at the back. Clean this hole periodically to ensure proper drainage. Do not use utensils other than the provided scraper.

Why is there water at the bottom of the refrigerator?

The defrost water drain hole is probably blocked. Clean it with a cotton swab or a small non-sharp object. See the Maintenance section of the manual.

The refrigerator is not cooling enough, what to do?

Check that the doors close properly, the seals are in good condition, the temperature setting is correct, and the appliance is not overloaded. Also ensure the ambient temperature is not below 14 °C.

How to replace the light bulb?

Unplug the appliance. Remove the protective cover as indicated in the manual. Replace the bulb with a new one of the same power (15 W or 25 W) and reassemble the cover.

The appliance makes noise, is it normal?

Yes, the refrigerant gas may produce a slight noise even when the compressor is stopped. Also ensure the appliance is level and not touching any vibrating objects.

Can I freeze food in this refrigerator?

This model is a refrigerator, not a freezer. It keeps food cold but does not have a freezer compartment. For freezing, use a suitable appliance.

How to install the appliance correctly?

Place it in a ventilated room, away from direct sunlight and heat sources. After transport, wait at least 3 hours before plugging it in. Ensure the electrical outlet is grounded and the voltage matches.

USER MANUAL BO 2320 A N I EU HOTPOINT

Positioning and connection

Description of the appliance, 3

Overall view

Accessories, 4

Start-up and use, 5

Starting the appliance

Setting the temperature

Using the refrigerator to its full potential

Maintenance and care, 6

Switching the appliance off

Cleaning the appliance

Avoiding mould and unpleasant odours

Defrosting the appliance

Replacing the light bulb

Precautions and tips, 7

General safety

Disposal

Respecting and conserving the environment

Troubleshooting, 8

Assistance, 9

ARISTON

! Before placing your new appliance into operation please read these operating instructions carefully. They contain important information for safe use, for installation and for care of the appliance.

! Please keep these operating instructions for future reference. Pass them on to possible new owners of the appliance.

Positioning and connection

Positioning

1. Place the appliance in a well-ventilated humidity-free room.
2. Do not obstruct the rear fan grills. The compressor and condenser give off heat and require good ventilation to operate correctly and save energy.
3. Ensure the appliance is away from any sources of heat (direct sunlight, electric stove, etc.).

Electrical connections

After the appliance has been transported, carefully place it vertically and wait at least 3 hours before connecting it to the electricity mains. Before inserting the plug into the electrical socket ensure the following:

• The appliance is earthed and the plug is compliant with the law.
• The socket can withstand the maximum power of the appliance, which is indicated on the data plate located on the bottom left side of the fridge (e.g. 150 W).
• The voltage must be in the range between the values indicated on the data plate located on the bottom left side (e.g. 220-240V).
• The socket is compatible with the plug of the appliance. If the socket is incompatible with the plug, ask an authorised technician to replace it (see Assistance). Do not use extension cords or multiple sockets.

! Once the appliance has been installed, the power supply cable and the electrical socket must be easily accessible.

! The cable must not be bent or compressed.

! The cable must be checked regularly and replaced by authorised technicians only (see Assistance).

! The manufacturer declines any liability should these safety measures not be observed.

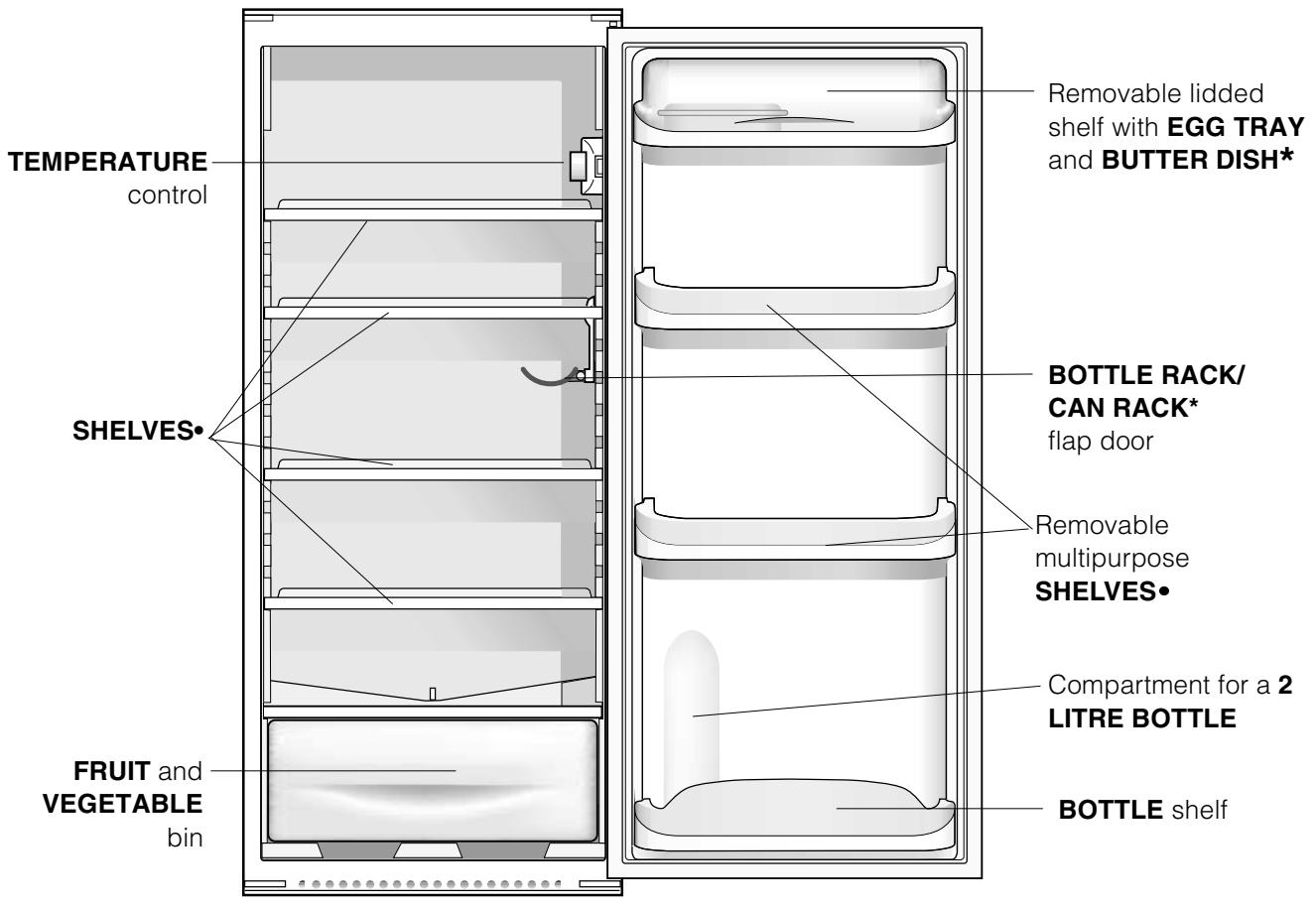

Overall view

The instructions contained in this manual are applicable to different model refrigerators. The diagrams may not directly represent the appliance purchased. For more complex features, consult the following pages.

• Varies by number and/or position.
  * Available only on certain models.

SHELVES: with or without grill. Due to the special guides the shelves are removable and the height is adjustable (see diagram), allowing easy storage of large containers and food. Height can be adjusted without complete removal of the shelf.

BOTTLE RACK/ CAN RACK* flap door: to store a bottle or several cans horizontally (see diagram). When not in use, close the flap door to increase the space in the refrigerator compartment.

Diagram of a mechanical device with a cylindrical component and directional arrow (no text or symbols)

Diagram of a machine with multiple cylindrical components and a hand operating it (no text or symbols visible)

TEMPERATURE Indicator light*: to identify the coldest area in the refrigerator.

1. Check that OK appears clearly on the indicator light (see diagram).

1. If the word “OK” does not appear it means that the temperature is too high: adjust the REFRIGERATOR OPERATION knob to a higher position (colder) and wait approximately 10 hours until the temperature has been stabilised.

2. Check the indicator light again: if necessary, readjust it following the initial process. If large quantities of food have been added or if the refrigerator door has been opened frequently, it is normal for the indicator not to show OK. Wait at least 10 hours before adjusting the REFRIGERATOR OPERATION knob to a higher setting.

Starting the appliance

! Before starting the appliance, follow the installation instructions (see Installation).

! Before connecting the appliance, clean the compartments and accessories well with lukewarm water and bicarbonate.

1. Insert the plug into the socket and ensure that the internal light illuminates.
2. Turn the TEMPERATURE ADJUSTMENT knob to an average value. After a few hours you will be able to put food in the refrigerator.

Setting the temperature

The temperature inside the refrigerator compartment automatically adjusts itself according to the position of the thermostat knob.

1 = warmest 5 = coldest

We recommend, however, a medium position.

The cooling section of the refrigerator is located inside the back wall of the refrigerator compartment for increased space and improved aesthetics. During operation, the back wall will be covered in frost or water droplets depending on whether the compressor is operating or paused. Do not worry, the refrigerator is functioning normally.

If the TEMPERATURE ADJUSTMENT knob has been set on high values with large quantities of food and with a high ambient temperature, the appliance can operate continuously, resulting in excessive frost formation and excessive energy consumption: compensate for this by shifting the knob towards lower values (defrosting will occur automatically).

In static appliances, the air circulates in a natural way: the colder air tends to move downwards as it is heavier. The food should be stored as follows:

Food	Arrangement inside the refrigerator
Fresh fish and meat	Above the fruit and vegetable bins
Fresh cheese	Above the fruit and vegetable bins
Cooked food	On any shelf
Salami, bread loaf, chocolate	On any shelf
Fruit and vegetables	In the fruit and vegetable bins
Eggs	On the shelf provided
Butter and margarine	On the shelf provided
Bottles, drinks, milk	On the shelf provided

Using the refrigerator to its full potential

• Use the TEMPERATURE ADJUSTMENT knob to adjust the temperature (see Description).
• Place only cold or lukewarm foods in the compartment, not hot foods (see Precautions and tips).
• Remember that cooked foods do not last longer than raw foods.
• Do not store liquids in open containers. They will increase humidity in the refrigerator and cause condensation to form.

Food hygiene

1. Once you have bought your food, remove all external packaging made of paper/cardboard or other wrappers, which could introduce bacteria or dirt inside your refrigerator.
2. Protect the food, (especially easily perishable items and those that have a strong smell), in order to avoid contact between them, thereby removing both the possibility of germ/bacteria contamination as well as the diffusion of strong odours inside the fridge.
3. Store all food in such a way as to ensure air can circulate freely between different items.
4. Keep the inside of your fridge clean, taking care not to use oxidiser or abrasive products.
5. Remove all food past its expiry date from the refrigerator.
6. For the correct preservation of food, all easily perishable items (soft cheeses, raw fish, meat, etc.) should be stored in the coldest zone of the fridge compartment, i.e. just above the salad crisper where the temperature indicator is situated.

Switching the appliance off

During cleaning and maintenance it is necessary to disconnect the appliance from the electricity supply: It is not sufficient to set the temperature adjustment knobs on ● (appliance off) to eliminate all electrical contact.

Cleaning the appliance

• The external and internal parts, as well as the rubber seals may be cleaned using a sponge that has been soaked in lukewarm water and bicarbonate of soda or neutral soap. Do not use solvents, abrasive products, bleach or ammonia.
• The removable accessories may be soaked in warm water and soap or dishwashing liquid. Rinse and dry them carefully.
• The back of the appliance may collect dust which can be removed by delicately using the hose of a vacuum cleaner set on medium power. The appliance must be switched off and the plug must be pulled out before cleaning the appliance.

Avoiding mould and unpleasant odours

• The appliance is manufactured with hygienic materials which are odour free. In order to maintain an odour free refrigerator and to prevent the formation of stains, food must always be covered or sealed properly.
• If you want to switch the appliance off for an extended period of time, clean the inside and leave the doors open.

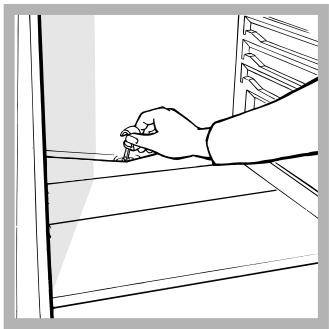

Defrosting the appliance

! Follow the instructions below.

Do not speed up the defrosting process by using any devices or tools other than the scraper provided, you may damage the refrigeration circuit.

Line drawing of a hand holding a small object near a window (no text or symbols)

The refrigerator has an automatic defrosting function: water is ducted to the back of the appliance by a special discharge outlet (see diagram) where the heat produced by the compressor causes it to evaporate. It is necessary to clean the discharge

hole regularly so that the water can flow out easily.

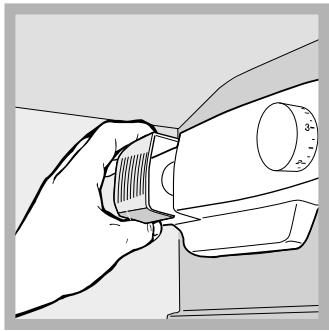

Replacing the light bulb

To replace the light bulb in the refrigerator compartment, pull out the plug from the electrical socket. Follow the instructions below.

Access the light bulb by removing the cover as indicated in the diagram.

Replace it with a similar light bulb within the power range indicated on the cover (15W or 25W).

Line drawing of a hand holding a mechanical component with a dial indicator (no text or symbols)

! The appliance was designed and manufactured in compliance with international safety standards. The following warnings are provided for safety reasons and must be read carefully.

This appliance complies with the following Community Directives:

- 73/23/EEC of 19/02/73 (Low Voltage) and subsequent amendments;

-89/336/EEC of 03.05.89 (Electromagnetic Compatibility) and subsequent amendments; - 2002/96/CE..

General safety

• The appliance was designed for domestic use inside the home and is not intended for commercial or industrial use.
• The appliance must be used to store and freeze food products by adults only and according to the instructions in this manual.
• The appliance must not be installed outdoors, even in covered areas. It is extremely dangerous to leave the appliance exposed to rain and storms.
• Do not touch the appliance with bare feet or with wet or moist hands and feet.
• Do not touch the internal cooling elements: this could cause skin abrasions or frost/freezer burns.
• When unplugging the appliance always pull the plug from the mains socket, do not pull on the cable.
• Before cleaning and maintenance, always switch off the appliance and disconnect it from the electrical supply. It is not sufficient to set the temperature adjustment knobs on ● (appliance off) to eliminate all electrical contact.
• In the case of a malfunction, under no circumstances should you attempt to repair the appliance yourself. Repairs carried out by inexperienced persons may cause injury or further malfunctioning of the appliance.
• Do not use devices or tools other than the special scraper provided inside the compartments.
• Do not put ice cubes taken directly from the freezer into your mouth.
• Do not allow children to tamper with the controls or play with the appliance. Under no circumstance should they be allowed to sit on the bins or to hang from the door.
• Keep packaging material out of the reach of children! It can become a choking or suffocation hazard.

Disposal

• Observe local environmental standards when disposing packaging material for recycling purposes.
• The European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected.
  Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

Respecting and conserving the environment

• Install the appliance in a fresh and well-ventilated room. Ensure that it is protected from direct sunlight and do not place it near heat sources.
• Try to avoid keeping the door open for long periods or opening the door too frequently in order to conserve energy.
• Do not fill the appliance with too much food: cold air must circulate freely for food to be preserved properly. If circulation is impeded, the compressor will work continuously.
• Do not place hot food directly into the refrigerator. The internal temperature will increase and force the compressor to work harder and will consume more energy.
• Defrost the appliance if ice forms (see Maintenance). A thick layer of ice makes cold transference to food products more difficult and results in increased energy consumption.
• Regularly check the door seals and wipe clean to ensure they are free of debris and to prevent cold air from escaping (see Maintenance).

If the appliance does not work, before calling for Assistance (see Assistance), check for a solution from the following list.

Malfunctions:

The internal light does not illuminate.

The refrigerator do not cool well.

The food inside the refrigerator is beginning to freeze.

The motor runs continuously.

The appliance makes a lot of noise.

The back wall of the refrigerator unit is covered in frost or droplets of water.

There is water at the bottom of the refrigerator.

Possible causes / Solutions:

• The plug has not been inserted into the electrical socket, or not far enough to make contact, or there is no power in the house.
• The door do not close properly or the seals are damaged.
• The door are opened too frequently.
• The TEMPERATURE ADJUSTMENT knob is not in the correct position
• The refrigerator or the freezer have been over-filled.

- The TEMPERATURE ADJUSTMENT knob is not in the correct position.

- The food is in contact with the back inside wall of the refrigerator.

- The door is not closed properly or is continuously opened.

- The outside ambient temperature is very high.

- The appliance has not been installed on a level surface (see Installation).

- The appliance has been installed between cabinets that vibrate and make noise.

- The internal refrigerant makes a slight noise even when the compressor is off. This is not a defect, it is normal.

- This shows the appliance is operating normally.

- The water discharge hole is blocked (see Maintenance).

Before calling for Assistance:

• Check if the malfunction can be solved on your own (see Troubleshooting).
• If after all the checks, the appliance still does not operate or the problem persists, call the nearest Service Centre

Communicating:

• type of malfunction
• appliance model (Mod.)
• serial number (S/N)

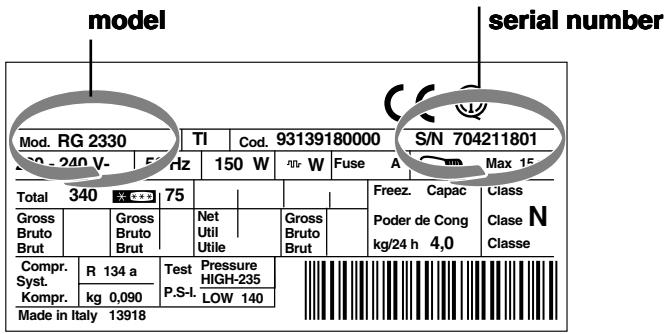

This information can be found on the data plate located on the bottom left side of the refrigerator compartment.

Never call on unauthorized technicians and always refuse spare parts which are not originals.

GB

English, 1

Français, 11

Deutsch, 21

Nederlands, 31

Dansk, 41

Svenska, 51

BO 2320 A NI EU

Sommaire

Installation, 12

Diagram of a mechanical device with a cylindrical component inserted into a housing (no text or symbols visible)

Diagram of a machine with rollers and a hand, no text or symbols present

Line drawing of a hand using a tool to clean or store floor tiles (no text or symbols)

Line drawing of a hand holding a tool with a circular component, no text or symbols present

Diagram of a mechanical device with a cylindrical component and attached rod, no visible text or symbols

Diagram of a machine with rollers and a handle, no text or symbols present

Line drawing of a hand using a tool to clean or install a cabinet shelf (no text or symbols)

Line drawing of a hand holding a mechanical component with a dial (no text or symbols)

Mechanical assembly diagram showing a cylindrical component being inserted into a housing (no text or symbols visible)

Diagram of a machine with rollers and a handle, no text or symbols present

Line drawing of a hand holding a clipboard against a shelf (no text or symbols)

Line drawing of a hand holding a cylindrical object with a knob, no text or symbols present

Mechanical diagram showing a bottle being inserted into a container with a belt, no text or symbols present

Diagram of a machine with multiple cylindrical components and a hand operating it (no text or symbols)

Line drawing of a hand holding a small object near a window (no text or symbols)

Line drawing of a hand holding a mechanical component with a circular dial (no text or symbols)

Diagram of a mechanical device with a cylindrical component and directional arrow (no text or symbols)

Diagram of a machine with cylindrical components and a hand operating it (no text or symbols)

Line drawing of a hand holding a tool near a window (no text or symbols)

Line drawing of a hand holding a mechanical component with a dial (no text or symbols)
