Product Type	Wet & Dry Electric Shaver
Model	AquaTouch S5620
Brand	Philips
Dimensions (approx.)	5.7 x 2.5 x 10.2 inches
Weight	0.67 lbs (300 g)
Power Source	Rechargeable battery (built-in)
Battery Type	NiMH
Charging Time	1 hour
Shaving Time	Up to 50 minutes (cordless use)
Voltage	100-240 V (worldwide compatible)
Shaving System	ComfortCut Blade System with rounded tips
Wet & Dry Use	Yes (can be used with or without gel/foam)
Pop-up Trimmer	Integrated precision trimmer for sideburns and stubble
Cleaning	Rinse under tap; supplied brush for cleaning
Maintenance	Replace shaving heads every 2 years; lubricate once a year
Replacement Parts	Shaving head unit: Philips SH30 or compatible
Warranty	2 years (subject to terms)
Included Accessories	Protective cap, cleaning brush, user manual

Frequently Asked Questions - AquaTouch S5620 PHILIPS

How do I charge the Philips AquaTouch S5620?

Connect the shaver to the charging adapter provided. The charging indicator shows the battery status. Charge for 1 hour for a full battery.

Can I use this shaver in the shower?

Yes, the AquaTouch S5620 is designed for wet and dry use. You can use it with shaving foam or gel under the shower.

How do I clean the shaver?

After each use, rinse the shaving head under warm tap water. Use the cleaning brush to remove any remaining hairs. Turn off the device before cleaning.

When should I replace the shaving heads?

For optimal performance, replace the shaving heads every 2 years or when they become damaged. Use Philips SH30 or compatible heads.

How long does the battery last on a full charge?

A full charge provides approximately 50 minutes of cordless shaving time.

Can I use the shaver while charging?

No, the AquaTouch S5620 cannot be used while plugged in. It operates cordlessly only.

What does the pop-up trimmer do?

The integrated pop-up trimmer extends from the body for precise trimming of sideburns, mustache, or stubble.

Is the shaver suitable for sensitive skin?

Yes, the ComfortCut blade system with rounded tips minimizes irritation. Use wet shaving with a gel for extra comfort.

How do I lubricate the shaver?

Apply a drop of sewing machine oil to the teeth of the trimmer and the shaving heads once a year. Wipe off excess.

Can I travel with this shaver?

Yes, it has a 100-240 V adapter for worldwide use. Also, it is cordless, so you can pack it in carry-on luggage.

USER MANUAL AquaTouch S5620 PHILIPS

Always here to help you

Register your product and get support at www.philips.com/welcome

series S5000

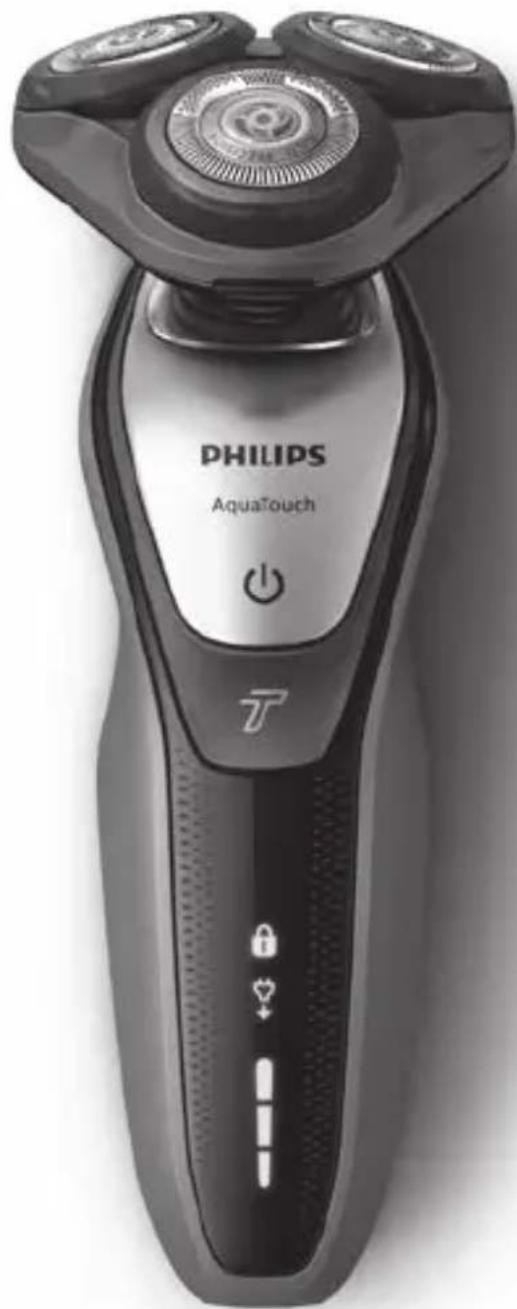

Black Philips Aquatouch electric shaver with three rotary buttons and power button (no text or symbols on body)

ENGLISH 4

DANSK 39

DEUTSCH 73

ΕΛΛΗΝΙΚΑ 111

ESPAÑOL 150

SUOMI 187

FRANÇAIS 221

ITALIANO 258

NEDERLANDS 294

NORSK 331

PORTUGUÊS 365

SVENSKA 402

TÜRKÇE 437

Introduction

Congratulations on your purchase and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome.

General description (Fig. 1)

1 Protection cap for cleansing brush attachment (specific types only)
2 Click-on cleansing brush attachment (specific types only)
3 Comb for beard styler attachment (specific types only)
4 Click-on beard stylister attachment (specific types only)
5 Click-on trimmer attachment (specific types only)
6 Protection cap for shaving unit (specific types only)
7 Click-on shaving unit
8 On/off button
9 Turbo button (specific types only)
10 Handle
11 Socket for small plug
12 Battery charge indicator with 1 light
13 Battery charge indicator with 3 lights
14 Unplug for use symbol
15 Travel lock symbol
16 Replacement reminder
17 Cleaning reminder
18 Cleaning cartridge for SmartClean system
19 SmartClean system (specific types only)
20 Cap of SmartClean system
21 On/off button
22 Battery symbol

23 Cleaning symbol
24 Replacement symbol
25 Ready symbol
26 Adapter
27 Small plug
28 Pouch (specific types only)

Note: The accessories supplied may vary for different products. The box shows the accessories that have been supplied with your appliance.

Important safety information

Read this important information carefully before you use the appliance and its accessories and save it for future reference. The accessories supplied may vary for different products.

Danger

- Keep the adapter dry.

Warning

• The adapter contains a transformer. Do not cut off the adapter to replace it with another plug, as this causes a hazardous situation.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Always unplug the shaver before you clean it under the tap.
• Always check the appliance before you use it. Do not use the appliance if it is damaged, as this may cause injury. Always replace a damaged part with one of the original type.

Prohibition sign showing a faucet without raindrops, enclosed in a circle (no text)

Prohibition sign of a faucet with no text or symbols

Caution

• Never immerse the cleaning system or the charging stand in water and do not rinse it under the tap.
• Never use water hotter than 80^irc C to rinse the shaver.
• Only use this appliance for its intended purpose as shown in the user manual.
• For hygienic reasons, the appliance should only be used by one person.
• Do not use the adapter in or near wall sockets that contain or have contained an electric air freshener to prevent irreparable damage to the adapter.
• Never use compressed air, scouring pads, abrasive cleaning agents or aggressive liquids such as petrol or acetone to clean the appliance.
• If your shaver comes with a cleaning system, always use the original Philips cleaning fluid (cartridge or bottle, depending on the type of cleaning system).
• Always place the cleaning system on a stable, level and horizontal surface to prevent leakage.
• If your cleaning system uses a cleaning cartridge, always make sure that the cartridge compartment is closed before you use the cleaning system to clean or charge the shaver.
• When the cleaning system is ready for use, do not move it to prevent leakage of cleaning fluid.
• Water may drip from the socket at the bottom of the shaver when you rinse it. This is normal and not dangerous because all electronics are enclosed in a sealed power unit inside the shaver.

Electromagnetic fields (EMF)

- This Philips appliance complies with all applicable standards and regulations regarding exposure to electromagnetic fields.

General

• This shaver is waterproof. It is suitable for use in the bath or shower and for cleaning under the tap. For safety reasons, the shaver can therefore only be used without cord.
• The appliance is suitable for mains voltages ranging from 100 to 240 volts.
• The adapter transforms 100-240 volts to a safe low voltage of less than 24 volts.

The display

Charging

Battery charge indicator with 3 lights

• Charging takes approx. 1 hour
• Quick charge: When the appliance is connected to the mains, the lights of the battery charge indicator light up one after the other continuously. When the appliance contains enough energy for one shave, the bottom light of the battery charge indicator flashes slowly.
• If you leave the appliance connected to the mains, the charging process continues. To indicate that the appliance is charging, first the bottom light flashes and then lights up continuously. Then the second light flashes and then lights up continuously, and so on until the appliance is fully charged.

Battery charge indicator with 1 light

- Charging takes approx. 1 hour.

Illustration of a laboratory test tube with a magnified inset showing internal structures (no text or symbols)

ENGLISH8

Illustration of a dropper with a magnified inset showing a spike (no text or symbols)

- Quick charge: When the appliance does not contain enough energy for one shave, the battery charge indicator flashes quickly. When the battery charge indicator starts flashing slowly, the appliance contains enough energy for one shave. - If you leave the appliance connected to the mains, the charging process continues. To indicate that the appliance is charging, the battery charge indicator flashes slowly.

Battery fully charged

Diagram of a laboratory test tube with a magnified inset showing internal structures (no text or labels)

Note: This appliance can only be used without cord.

Note: When the battery is full, the display switches off automatically after 30 minutes. If you press the on/off button during charging, the ‘unplug for use’ symbol flashes white to remind you that you have to disconnect the appliance from the mains.

When the battery is fully charged, all lights of the battery charge indicator light up continuously.

- Battery charge indicator with 3 lights

Diagram of a mechanical component with a labeled section and circular annotation (no text or symbols)

- Battery charge indicator with 1 light

Battery low

When the battery is almost empty, the battery charge indicator flashes orange.

Illustration of a hairdryer with a magnified inset showing the tip and base (no text or symbols)

- Battery charge indicator with 3 lights

Illustration of a hairdryer with a starburst graphic (no text or symbols)

- Battery charge indicator with 1 light

Remaining battery capacity

Diagram of a test tube with a magnified inset showing internal components (no text or labels)

Battery charge indicator with 3 lights

- The remaining battery capacity is indicated by the lights of the battery charge indicator that light up continuously.

'Unplug for use' reminder

- The appliance is equipped with an ‘unplug for use’ reminder. The ‘unplug for use’ symbol starts to flash to remind you that you have to disconnect the appliance from the adapter before you can switch it on.

Cleaning reminder

For optimal shaving performance, we advise you to clean the shaver after every use.

ENGLISH10

- When you switch off the shaver, the cleaning reminder flashes to remind you to clean the shaver.

Travel lock

You can lock the shaver when you are going to travel. The travel lock prevents the shaver from being switched on by accident.

Activating the travel lock

1 Press the on/off button for 3 seconds to enter the travel lock mode.

- While you activate the travel lock, the travel lock symbol lights up continuously. When the travel lock is activated, the travel lock symbol flashes.

Deactivating the travel lock

1 Press the on/off button for 3 seconds.

- The travel lock symbol flashes and then lights up continuously. The shaver is now ready for use again.

Illustration of a smart device with a lock icon and a starburst symbol (no text or labels)

Illustration of a smart device with a lock icon and a button, no text or symbols present

Replacing shaving heads

For maximum shaving performance, we advise you to replace the shaving heads every two years.

- The appliance is equipped with a replacement reminder which reminds you to replace the shaving heads. The replacement reminder lights up continuously.

Note: After replacing the shaving heads, you need to reset the replacement reminder by pressing the on/off button for 7 seconds.

Turbo setting (specific types only)

The appliance is equipped with a Turbo or Turbo+ setting. This setting is intended for quicker and more intense shaving and makes hard-to-reach areas easier to shave.

Illustration of a hand pressing a button on a knee joint (no text or symbols)

Activating the Turbo setting

1 To activate the Turbo setting, press the Turbo button once.

Deactivating the Turbo setting

1 To deactivate the Turbo setting, simply press the Turbo button once again.

Charging

Charging takes approx. 1 hour.

Note: This appliance can only be used without cord.

Charge the shaver before you use it for the first time and when the display indicates that the battery is almost empty.

Charging with the adapter

Diagram of a plug connected to a shaver with arrows indicating cable direction (no text or symbols)

1 Insert the small plug into the appliance and put the adapter in the wall socket.

Charging in the SmartClean system (specific types only)

1 Put the small plug in the SmartClean system.
2 Put the adapter in the wall socket.

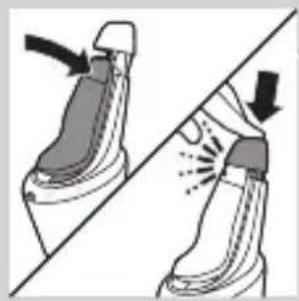

3 Press down the top cap to be able to place the shaver in the holder ('click').
4 Hold the shaver upside down above the holder. Make sure the front of the shaver points towards the SmartClean system.

Simple line drawing of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Illustration of a pair of boots with arrows indicating motion or force direction (no text or symbols)

5 Place the shaver in the holder, tilt the shaver backwards and press down the top cap to connect the shaver ('click').

- The battery symbol flashes slowly to indicate the shaver is charging.

Using the shaver

Switching the appliance on and off

Illustration of a hand holding a circular object with an arrow pointing to it, no text or symbols present

1 To switch on the appliance, press the on/off button once.
2 To switch off the appliance, press the on/off button once.

- Battery charge indicator with 3 lights: The display lights up for a few seconds to show the remaining battery status.

Shaving

Skin adaptation period

Your first shaves may not bring you the result you expect and your skin may even become slightly irritated. This is normal. Your skin and beard need time to adapt to any new shaving system. We advise you to shave regularly (at least 3 times a week) with this shaver for a period of 3 weeks to allow your skin to adapt to the new shaver.

Note: This appliance can only be used without a cord.

Illustration of a person applying facial hair to their ear (no text or symbols present)

1 Switch on the appliance.
2 Move the shaving heads over your skin in circular movements.

Note: Do not make straight movements.

3 Clean the shaver after use (see chapter ‘Cleaning and maintenance’).

Wet shaving

You can also use this shaver in the shower or on a wet face with shaving foam or shaving gel.

ENGLISH14

Illustration of a person's face with hand near ear area, no text or symbols present

To shave with shaving foam or shaving gel, follow the steps below:

1 Apply some water to your skin.

Line drawing of a person applying a product to their ear (no text or symbols)

2 Apply shaving foam or shaving gel to your skin.

Illustration of a hand washing a cup with water spray (no text or symbols)

3 Rinse the shaving unit under the tap to ensure that the shaving unit glides smoothly over your skin.

4 Switch on the shaver.

Illustration of a person applying makeup to their face with a brush (no text or symbols)

5 Move the shaving heads over your skin in circular movements.

Note: Rinse the shaver under the tap regularly to ensure that it continues to glide smoothly over your skin.

6 Dry your face and thoroughly clean the shaver after use (see chapter ‘Cleaning and maintenance’).

Note: Make sure you rinse all foam or shaving gel off the shaver.

Turbo setting (specific types only)

The appliance is equipped with a Turbo or Turbo+ setting for easy shaving of hard-to reach areas.

Illustration of a hand holding a circular button labeled 'Y' on a curved surface, with no visible text or symbols beyond the icon.

1 Switch on the shaver.

2 Press the Turbo button once to switch on the Turbo setting if you want to shave hard-to-reach areas more quickly.

Illustration of a man with a beard and a circular icon containing a stylized 'T' symbol (no text or symbols present)

3 Move the shaving heads over your skin in circular movements.

Note: Do not make straight movements.

4 To deactivate the Turbo setting simply press the Turbo button once.

Using the click-on attachments

Note: The accessories supplied may vary for different products. The box shows the accessories that have been supplied with your appliance.

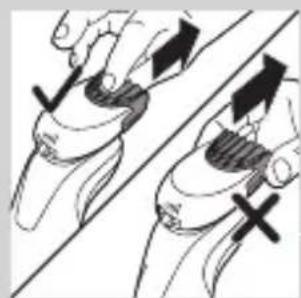

Removing or attaching the click-on attachments

Illustration of a hand holding a device with a cross symbol and upward arrow, no text or labels present.

1 Make sure the appliance is switched off.
2 Pull the attachment straight off the appliance.

Note: Do not twist the attachment while you pull it off the appliance.

Diagram showing a droplet on a surface with an arrow indicating light or motion, and a magnified inset showing a graduation cap (no text or symbols)

3 Insert the lug of the attachment into the slot in the top of the appliance. Then press down the attachment to attach it to the appliance ('click').

Illustration of a medical or laboratory procedure showing a device emitting particles from a surface, with an inset magnified view of the process (no text or symbols present)

Line drawing of a person applying makeup to their ear (no text or symbols)

Illustration of a graduation cap impact on a curved surface, with an inset showing the same cap's effect (no text or symbols present)

Line drawing of a hairbrush cutting into a pair of scissors (no text or symbols)

Using the trimmer attachment

You can use the trimmer attachment to groom your sideburns and moustache.

1 Make sure the appliance is switched off.
2 Insert the lug of the attachment into the slot in the top of the shaver. Then press down the trimmer attachment to attach it to the appliance ('click').
3 Switch on the appliance.
4 You can now start trimming.
5 Clean the attachment after use (see chapter 'Cleaning and maintenance').

Using the beard styler attachment

1 Make sure the appliance is switched off.
2 Insert the lug of the attachment into the slot in the top of the appliance. Then press down the attachment to attach it to the appliance ('click').

Using the beard styler attachment with comb

You can use the beard styler attachment with the comb attached to style your beard at one fixed setting, but also at different length settings. You can use it also to pre-trim any long hairs before shaving to have a more comfortable shave.

The hair length settings on the beard styler attachment correspond to the remaining hair length after cutting and range from 1 to 5mm.

1 Slide the comb straight into the guiding grooves on both sides of the attachment ('click').

Illustration of a man with a beard and a pipe, showing a hand holding a small object (no text or symbols present)

Illustration of two hands holding a curved object with directional arrows indicating movement or force (no text or symbols)

Line drawing of a person's head and neck with a hairpin (no text or symbols)

2 Press the length selector and then push it to the left or right to select the desired hair length setting.
3 Switch on the appliance.
4 You can now start styling your beard by moving the attachment upwards with gentle pressure making sure the front of the comb is in full contact with the skin.
5 Clean the attachment after use (see chapter 'Cleaning and maintenance').

Using the beard styler attachment without comb

You can use the beard styler attachment without the comb to contour your beard, moustache, sideburns or neckline to a length of 0.5mm.

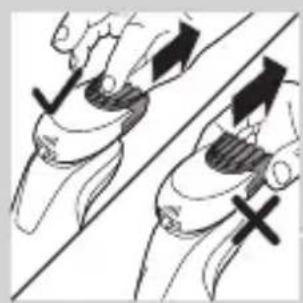

1 Pull the comb off the attachment.

Note: Grab the comb in the centre to pull it off the attachment. Do not pull at the sides of the comb.

2 Switch on the appliance.
3 You can now start contouring your beard, moustache, sideburns or neckline by moving the styler downwards with gentle pressure while holding it perpendicular to the skin.
4 Clean the attachment after use (see chapter 'Cleaning and maintenance').

Using the cleansing brush attachment

Use the rotating cleansing brush attachment with your daily cleansing cream. The cleansing brush attachment removes oil and dirt, contributing to a healthy and oil-free skin.

Illustration of a dropper tip dispensing liquid into a container with a magnified inset showing the dropper's tip (no text or symbols present)

1 Insert the lug of the attachment into the slot in the top of the appliance. Then press down the attachment to attach it to the appliance ('click').

Illustration of a mechanical component with motion lines indicating movement (no text or symbols)

2 Moisten the attachment with water. Do not use the appliance with a dry brush head, as this can irritate the skin.

Illustration of a person applying facial care to their face, with no text or symbols present.

Tip: Use the attachment before shaving for easier shaving and a more hygienic shaving result.

3 Moisten your face with water and apply a cleanser to your face.

4 Place the attachment on your right cheek.

5 Switch on the appliance.

6 Gently move the attachment across your skin from the nose towards the ear. Do not push the attachment too hard onto the skin to make sure the treatment remains comfortable.

7 After approx. 20 seconds you can move the attachment to your left cheek and start cleansing this part of your face.

Caution: Do not clean the sensitive area around your eyes.

8 After approx. 20 seconds you can move the attachment to your forehead and start cleansing this part of your face. Gently move the attachment from left to right.

Note: We advise you to not overdo the cleansing and to not cleanse any zone longer than 20 seconds.

Illustration showing two facial expressions with a magnified inset of the first face (no text or symbols)

9 After the treatment, rinse and dry your face. Your face is now ready for the next step of your daily skincare routine.
10 Clean the attachment after use (see chapter ‘Cleaning and maintenance’).

Cleaning and maintenance

Note: The accessories supplied may vary for different products. The box shows the accessories that have been supplied with your appliance.

Cleaning the shaver in the SmartClean system (specific types only)

Simple line drawing of a paintbrush with a cross mark and spray, no text or symbols present

Do not tilt the SmartClean system to prevent leakage.

Note: Hold the SmartClean system while you prepare it for use.

Note: If you clean the shaver in the SmartClean system once a week, the SmartClean cartridge will last approximately three months.

Preparing the SmartClean system for use

1 Put the small plug in the back of the SmartClean system.
2 Put the adapter in the wall socket.
3 Press the button on the side of the SmartClean system and lift the top part of the SmartClean system.

Simple line drawing of a container with an upward arrow, no text or symbols present

4 Pull the seal off the cleaning cartridge.

Diagram of a blender with a black arrow indicating the process (no text or symbols present)

5 Place the cleaning cartridge in the SmartClean system.

Mechanical component diagram showing a lever with a downward arrow indicating motion (no text or symbols)

6 Push the top part of the SmartClean system back down ('click').

Using the SmartClean system

Always make sure to shake excess water off the shaver before you place it in the SmartClean system.

Illustration of a hand pouring liquid into a container with an inset showing a cross-section of a container (no text or symbols)

1 Press down the top cap to be able to place the shaver in the holder ('click').

Close-up of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

2 Hold the shaver upside down above the holder. Make sure the front of the shaver points towards the SmartClean system.

Illustration of a pair of boots with arrows indicating motion or change, no text or symbols present

3 Place the shaver in the holder, tilt the shaver backwards and press down the top cap to connect the shaver ('click').

- The battery symbol flashes slowly to indicate that the shaver is charging.

Hand holding two circular buttons with a power symbol, next to a device component (no text or labels visible)

4 Press the on/off button on the SmartClean system to start the cleaning program.

- During the cleaning program (which takes approx. 10 minutes), the cleaning symbol flashes.

Diagram of a mechanical component with two circular indicators (one checked, one not checked) and a checkmark symbol, no readable text or labels present.

- When the cleaning program has been completed, the ready symbol lights up continuously.

- The battery symbol lights up continuously to indicate that the shaver is fully charged. This takes approx. 1 hour.

Note: If you press the on/off button of the SmartClean system during the cleaning program, the program aborts. In this case, the cleaning symbol stops flashing.

Note: If you remove the adapter from the wall socket during the cleaning program, the program aborts.

Note: 30 minutes after the charging phase has been completed, the SmartClean system switches off automatically.

5 To let the shaver dry, you can leave it in the SmartClean system until your next shave. You can also remove the shaver from the SmartClean system, shake off excess water, open the shaving unit and let the shaver air dry.

Replacing the cartridge of the SmartClean System

If you clean the shaver in the SmartClean system once a week, the SmartClean cartridge will last approximately three months.

Replace the cleaning cartridge when the replacement symbol flashes orange or when you are no longer satisfied with the cleaning result. If used once a week, the SmartClean cartridge will last for approximately three months

1 Press the button on the side of the SmartClean system and lift the top part of the SmartClean system.

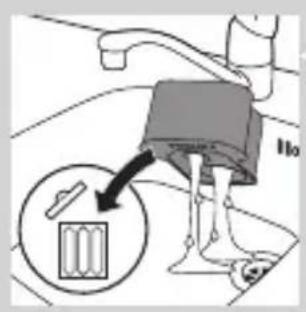

2 Take the empty cleaning cartridge from the SmartClean system and pour any remaining cleaning fluid out of the cleaning cartridge.
You can simply pour the cleaning fluid down the sink.
3 Throw away the empty cleaning cartridge.
4 Unpack the new cleaning cartridge and pull the seal off the cartridge.

Diagram of a blender with a black arrow pointing to its internal component (no text or symbols present)

5 Place the new cleaning cartridge in the SmartClean system.

Diagram of a mechanical component with a downward arrow indicating motion (no text or symbols)

6 Push the top part of the SmartClean system back down ('click').

Cleaning the shaver under the tap

Clean the shaver after every shave for optimal shaving performance.

Be careful with hot water. Always check if the water is not too hot, to prevent your hands from getting burnt.

Never dry the shaving unit with a towel or tissue, as this may damage the shaving heads.

Illustration of a hand holding a small object with motion lines indicating movement or force (no text or symbols)

1 Rinse the shaving unit under a warm tap for some time.

2 Press the release button and open the shaving unit.

Anatomical illustration of internal organs with arrows indicating movement or force (no text or labels)

Illustration of a fork being inserted into a bowl of noodles (no text or symbols)

3 Rinse the shaving head holder under a warm tap for 30 seconds.
4 Carefully shake off excess water and let the shaving head holder dry.
5 Close the shaving head holder ('click').

Thorough cleaning method

Anatomical illustration of a human head with internal organs and arrows indicating movement or force (no text or labels)

Make sure the appliance is switched off.

1 Press the release button and open the shaving unit.
2 Pull the shaving head holder off the bottom part of the shaving unit.

Illustration of a mushroom-shaped container with internal swirling patterns and an upward arrow, no text or symbols present.


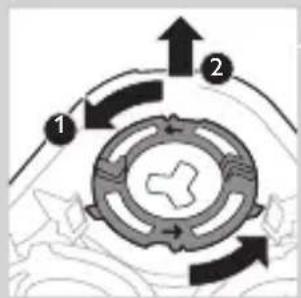

3 Turn the retaining rings anticlockwise and remove them.

Diagram showing two mechanical components with arrows indicating direction, no text or symbols present

4 Remove the shaving heads from the shaving head holder. Each shaving head consists of a cutter and guard.

Note: Do not clean more than one cutter and guard at a time, since they are all matching sets. If you accidentally put a cutter in the wrong shaving guard, it may take several weeks before optimal shaving performance is restored.

Diagram showing fluid flow between two vessels with bubbles and a central pipe (no text or symbols)

5 Clean the cutter and guard under the tap.

Diagram of a mechanical or biological structure with a central circular component and directional arrow (no text or symbols)

6 After cleaning, place the cutter back into the guard.

7 Put the shaving heads back into the shaving head holder.

Diagram showing a circular object with a downward arrow pointing to a triangular structure (no text or symbols)

Note: Make sure the projections of the shaving heads fit exactly into the recesses of the shaving-head holder.

8 Place the retaining rings back onto the shaving head holder and turn them clockwise.

ENGLISH26

- Each retaining ring has two recesses and two projections that fit exactly in the projections and recesses of the shaving head holder.

Diagram showing two circular components with arrows and a checkmark, no readable text or symbols present

- Turn the ring clockwise until your hear 'click' and the ring is fixed.

Note: Hold the shaving head holder in your hand when you reinsert the shaving heads and reattach the retaining rings. Do not place the shaving head holder on a surface when you do this, as this may cause damage.

Illustration of two hands holding a cloud-like object with arrows indicating motion (no text or symbols)

9 Reinsert the hinge of the shaving head holder into the slot of the shaving unit. Close the shaving head holder ('click').

Cleaning the click-on attachments

Never dry the trimmer or beard styler attachments with a towel or tissue, as this may damage the trimming teeth.

Cleaning the trimmer attachment

Clean the trimmer attachment every time you have used it.

Illustration of a shoe being lifted by a bag (no text or symbols)

1 Switch on the appliance with the trimmer attachment attached.
2 Rinse the trimmer attachment under a hot tap for some time.
3 After cleaning, switch off the appliance.

Illustration of a hand crushing a rock with a magnified circular section showing a pile of rocks (no text or symbols)

4 Carefully shake off excess water and let the trimmer attachment dry.

Tip: For optimal trimmer performance, lubricate the trimmer teeth with a drop of sewing machine oil every six months.

Illustration of two hands holding a curved object with directional arrows indicating movement or force (no text or symbols)

Cleaning the beard styler attachment

Clean the beard styler attachment every time you have used it.

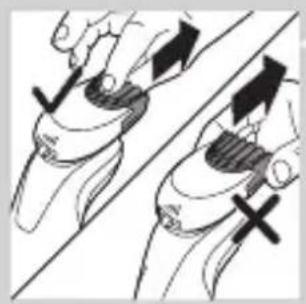

1 Pull the comb off the beard styler attachment.

Note: Grab the comb in the centre to pull it off the attachment. Do not pull at the sides of the comb.

2 Switch on the appliance.
3 Rinse the beard styler attachment and the comb separately under a hot tap for some time.
4 After cleaning, switch off the appliance.
5 Carefully shake off excess water and let the beard styler attachment and comb dry.

Tip: For optimal trimmer performance, lubricate the trimmer teeth with a drop of sewing machine oil every six months.

Cleaning the cleansing brush attachment

Clean the cleansing brush attachment every time you have used it.

Illustration of two hands holding small objects, one above and one below, separated by a diagonal line (no text or symbols)

Two cartoon fish jumping over a diagonal line, one falling and the other wading (no text or symbols)

ENGLISH28

Simple line drawing of a mechanical component with an upward arrow, no text or symbols present.

1 Make sure the appliance is switched off.
2 Detach the brush head from the brush base.

Two identical diagrams showing a hand holding a tool above a base, with no text or symbols present.

3 Clean both parts thoroughly with warm water and mild soap.

Illustration of mechanical components and a gear mechanism (no text or symbols)

4 Dry the cleansing brush attachment with a towel.

Storage

Diagram of a hairbrush with a curved blade and three circular blades, showing mechanical components (no text or symbols)

Note: The accessories supplied may vary for different products. The box shows the accessories that have been supplied with your appliance.

Note: We advise you to let the appliance and its attachments dry before you put the protection caps on the attachments and store the shaver in the pouch.

• Put the protection cap on the shaving unit to protect it from dirt accumulation.
• Store the shaver in the pouch supplied.

Illustration of a mechanical component with a downward arrow indicating motion (no text or symbols)

Diagram of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

- Put the protection cap on the cleansing brush attachment to protect it from dirt accumulation.

Replacement

Replacing the cleansing brush head

Simple line drawing of a mechanical component with an upward arrow, no text or symbols present.

- The cleansing brush head attachment should be replaced every 3 months or earlier if the filaments are deformed or damaged.

Replacing the shaving heads

For maximum shaving performance, we advise you to replace the shaving heads every two years.

Replacement reminder

The shaving unit symbol will light up to indicate that the shaving heads need to be replaced. Replace damaged shaving heads immediately. Only replace the shaving heads with original Philips shaving heads as specified in chapter ‘Ordering accessories’.

1 The shaving unit symbol lights up continuously when you switch off the shaver to indicate that the shaving heads need to be replaced.

ENGLISH30

Anatomical illustration of internal organs with arrows indicating movement or force (no text or labels)

2 Press the release button and open the shaving unit.

Diagram of a mechanical component with an upward arrow indicating motion or force (no text or symbols present)

3 Pull the shaving head holder off the bottom part of the shaving unit.

4 Turn the retaining rings anticlockwise and remove them.

Diagram showing a hand holding a circular object with arrows indicating motion or force (no text or symbols present)

5 Remove the shavings heads from the shaving head holder and throw them away.

Abstract diagram of a symmetrical structure with three circular elements and a top node, no text or symbols present.

6 Place new shaving heads in the holder.

Pure diagram of a mechanical or structural component with no visible text, numbers, or symbols

Note: Make sure the projections of the shaving heads fit exactly into the recesses of the shaving head holder.

7 Place the retaining rings back onto the shaving heads and turn them clockwise.

- Each retaining ring has two recesses and two projections that fit exactly in the projections and recesses of the shaving head holder.

Diagram showing two mechanical components with arrows indicating motion, no text or symbols present

- Turn the ring clockwise until your hear 'click' and the ring is fixed.

Note: Hold te shaving head holder in your hand when you reinsert the shaving heads and reattach the retaining rings. Do not place the shaving head holder on a surface when you do this, as this may cause damage.

Illustration of two hands exchanging a heart-shaped object, one with a downward arrow and the other with a curved arrow (no text or symbols)

8 Reinsert the hinge of the shaving head holder into the slot of the shaving unit. Close the shaving head holder ('click').

9 To reset the replacement reminder, press and hold the on/off button for approx. 7 seconds.

Ordering accessories

To buy accessories or spare parts, visit www.shop.philips.com/service or go to your Philips dealer. You can also contact the Philips Consumer Care Centre in your country (see the worldwide guarantee leaflet for contact details).

The following parts are available:

• HQ8505 adapter
• SH50 Philips shaving heads
• HQ110 Philips Shaving Head Cleaning Spray
• RQ111 Philips beard stylister attachment
• RQ585 Philips cleansing brush attachment
• RQ560, RQ563 Philips cleansing brush heads
• JC301, JC302, JC303, JC304, JC305 cleaning cartridge

Note: Availability of the accessories may differ per country.

Shaving heads

- We advise you to replace your shaving heads every two years. Always replace the shaving heads with original SH50 Philips shaving heads.

Recycling

Symbol of a trash bin crossed with no text or labels, accompanied by a solid black rectangle below (no text or symbols present)

- This symbol means that this product shall not be disposed of with normal household waste (2012/19/EU).

- This symbol means that this product contains a built-in rechargeable battery which shall not be disposed of with normal household waste (2006/66/EC). We strongly advise you to take your product to an official collection point or a Philips service centre to have a professional remove the rechargeable battery. - Follow your country's rules for the separate collection of electrical and electronic products and rechargeable batteries. Correct disposal helps prevent negative consequences for the environment and human health.

Removing the rechargeable shaver battery

Only remove the rechargeable battery when you discard the shaver. Make sure the battery is completely empty when you remove it.

Be careful, the battery strips are sharp.

Illustration showing a hand using a screwdriver to cut a cylindrical object, with another hand holding a small boat (no text or symbols present)

1 Remove the screw in the back panel with a screwdriver. Then remove the back panel.

Illustration of two skis with directional arrows indicating motion (no text or symbols)

2 Bend the hooks aside and remove the power unit.

Diagram showing two mechanical components with arrows indicating motion or force direction (no text or symbols)

3 Break the snap hooks and remove the front panel of the power unit.

Illustration of a hand using a tool to lift a car, showing mechanical components and motion (no text or symbols)

4 Take out the battery holder and cut the battery tags with a pair of cutting pliers.

Guarantee and support

If you need information or support, please visit www.philips.com/support or read the separate worldwide guarantee leaflet.

Guarantee restrictions

The shaving heads (cutters and guards) are not covered by the terms of the international guarantee because they are subject to wear.

Troubleshooting

This chapter summarises the most common problems you could encounter with the appliance. If you are unable to solve the problem with the information below, visit www.philips.com/support for a list of frequently asked questions or contact the Consumer Care Centre in your country.

Problem Possible cause Solution

The shaver does not shave as well as it used to.	The shaving heads are damaged or worn.	Replace the shaving heads (see chapter ‘Replacement’).
	Hairs or dirt obstruct the shaving heads.	Clean the shaving heads by following the steps of the thorough cleaning method (see chapter ‘Cleaning and maintenance’).
The shaver does not work when I press the on/off button.	The shaver is still attached to the mains. For safety reasons, the shaver can only be used without cord.	Disconnect the shaver from the mains and press the on/off button to switch on the shaver (see section ‘Unplug for use reminder’).
	The rechargeable battery is empty.	Recharge the battery (see chapter ‘Charging’).
	The travel lock is activated.	Press the on/off button for 3 seconds to deactivate the travel lock.
Problem Possible cause Solution
	The shaving unit is soiled or damaged to such an extent that the motor cannot run.	Clean the shaving heads or replace them (see chapters ‘Cleaning and maintenance’ and ‘Replacement’).
The shaver is not entirely clean after I clean it in the SmartClean system.	You have not placed the shaver in the SmartClean system properly, so there is no electrical connection between the SmartClean system and the shaver.	Press down the top cap ('click') to ensure a proper connection between the shaver and the SmartClean system.
	The cleaning cartridge is empty. The replacement symbol flashes to indicate you have to replace the cleaning cartridge.	Place a new cleaning cartridge in the SmartClean system (see chapter ‘Cleaning and maintenance’).
	You have used another cleaning fluid than the original Philips cleaning cartridge.	Only use the original Philips cleaning cartridges.
Water is leaking from the bottom of the shaver.	During cleaning, water may collect between the inner body and the outer shell of the shaver.	This is normal and not dangerous because all electronics are enclosed in a sealed power unit inside the shaver.

Problem Possible cause Solution

The SmartClean system does not work when I press the on/off button.	The SmartClean system is not connected to the mains.	Put the small plug in SmartClean system and put the adapter in the wall socket.
The shaver is not fully charged after I charge it in the SmartClean system.	You have not placed the shaver in the SmartClean system properly.	Make sure you press the shaver in the SmartClean system until it locks into place and press down the top cap.
I replaced the shaving heads, but the replacement reminder symbol is still showing.	You have not reset the shaver.	Reset the shaver by pressing the on/off button for approx. 7 seconds (see chapter ‘Replacement’).
A shaving head symbol had suddenly appeared on the display.	This symbol is a replacement reminder.	Replace the shaving heads (see chapter ‘Replacement’).
The nose trimmer attachment pulls at the hairs.	You move the appliance too fast.	Do not move the appliance too fast.

Problem Possible cause Solution

The nose trimmer attachment does not work.

The cutting element of the attachment is very dirty, for instance because some nasal mucus has dried inside the cutting element.

Clean the cutting element by rinsing it under the tap with hot water. Switch on the appliance and rinse the cutting element once more to remove any remaining hairs.

If rinsing the nose trimmer under the tap does not unblock the cutting element, then immerse it in a glass with warm water for a few minutes. Then switch on the appliance and rinse it under the tap.

Introduktion

No smoking sign with faucet symbol (no text)

Forsigtig

Simple line drawing of a showerhead spraying over a water-filled container (no text or symbols)

Elektromagnetiske felter (EMF)

Diagram of a test tube with a cap and a magnified inset showing internal structure (no text or labels)

Illustration of a dropper with a magnified inset showing a spike (no text or symbols)

Diagram of a laboratory test tube with a magnified inset showing internal structures (no text or labels)

Diagram of a hairbrush with a circular indicator labeled 'I' (no text or symbols on the diagram itself)

Lavt batteriniveau

Illustration of a hairdryer with a magnified inset showing the tip and base (no text or symbols)

Illustration of a hairdryer with a starburst graphic (no text or symbols)

Diagram of a test tube with a magnified inset showing internal components (no text or labels)

Illustration of a smart device with a lock icon and a speech bubble (no text or symbols)

Diagram of a smart device with a lock icon and a speech bubble (no text or symbols)

Udskiftning af skær

Illustration of a hand pressing a button on a knee joint (no text or symbols)

Diagram of a hairpin with two leads connected to a power outlet (no text or symbols)

Simple line drawing of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Illustration of two boots with arrows indicating motion or damage, no text or symbols present

5 Sæt shaveren i holderen, vip shaveren bagud, og tryk ned på den øverste hætte for at tilslutte shaveren ("klik").

- Batterisymbolet blinker langsomt for at indikere, at shaveren oplades.

Brug af shaveren

Illustration of a hand holding a circular object with an arrow pointing to it, no text or symbols present

1 Apparatet tændes ved at trykke én gang på on/off-knappen.
2 Apparatet slukkes ved at trykke én gang på on/off-knappen.

Illustration of a person applying a hairpin to their ear (no text or symbols present)

Illustration of a person's face with a hand near the ear, showing a stylized eye or mask (no text or symbols present)

Vådbarbering

Line drawing of a person's head and neck with a hand near the ear area (no text or symbols)

Illustration of a hand using a tool to lift a small object, no text or symbols present

Illustration of a person applying makeup to their ear with a brush (no text or symbols)

Illustration of a hand pressing a button on a device component (no text or symbols visible)

Illustration of a person's head with a T-shaped logo overlay (no text or symbols on the figure itself)

Illustration of a hand holding a mushroom-shaped object with an upward arrow and a cross symbol (no text or labels)

Illustration of a medical or laboratory procedure showing a device emitting particles into a surface, with an inset magnified view of the process (no text or symbols present)

Illustration of a medical or laboratory procedure showing a device emitting particles from a surface, with an inset magnified view of a graduation cap (no text or symbols present)

Line drawing of a person using a hairpin to apply product (no text or symbols)

Illustration of a medical procedure showing a device emitting particles onto skin, with an inset magnified view of the tissue (no text or symbols)

Line drawing of a hairbrush cutting down a button with a downward arrow (no text or symbols)

Illustration of a man with a beard eating a pipe (no text or symbols)

Illustration of two hands holding a tool with arrows indicating movement or force direction (no text or symbols)

Line drawing of a person applying a hair accessory to their neck (no text or symbols)

Illustration of a dropper tip dispensing liquid into a container, with an inset showing a dropper tip (no text or symbols present)

Illustration of a mechanical component with fluid flow, no text or symbols present

Illustration of a person applying facial care to their face, with no visible text or symbols

Simple line drawing of a paintbrush with a cross mark and sound waves, no text or symbols present.

Simple line drawing of a container with an upward arrow, no text or symbols present

Diagram of a blender with a black arrow pointing to its interior (no text or symbols present)

5 Placer rengøringspatronen i SmartClean-systemet.

Mechanical component diagram showing a lever mechanism with a downward arrow indicating motion (no text or symbols)

Illustration of a spray bottle with a stopper and a prohibition symbol (no text or labels)

Close-up of a mechanical component with a downward arrow indicating compression or disassembly (no text or symbols visible)

Illustration of a pair of boots with arrows indicating motion or damage, no text or symbols present

3 Sæt shaveren i holderen, vip shaveren bagud, og tryk ned på den øverste hætte for at tilslutte shaveren ("klik").

- Batterisymbolet blinker langsomt for at indikere, at shaveren oplades.

Hand holding a device with two circular buttons labeled 'Power' and 'Spiral', no visible text or symbols

Diagram of a mechanical component with two circular indicators (one checked, one not checked) and a checkmark symbol, no readable text or labels present.

Diagram of a blender with an arrow pointing to its base (no text or symbols present)

Diagram of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Illustration of a hand holding a small object with motion lines indicating movement or force (no text or symbols)

Anatomical illustration of internal organs with arrows indicating movement or force (no text or labels)

Illustration of a fork being inserted into a bowl of noodles (no text or symbols)

Anatomical illustration of a human head with internal organs and a curved arrow indicating a specific structure (no text or labels present)

Diagram of a mechanical component with an upward arrow indicating motion or force (no text or symbols present)

Diagram showing two mechanical components with arrows indicating motion or force direction (no text or symbols)

Illustration of two mechanical devices with water spray and a gear-like component, no text or symbols present

Diagram of a mechanical component with a central circular feature and a downward arrow, no text or symbols present.

Abstract diagram with three connected circular nodes and a central triangular structure (no text or symbols)

Pure diagram of a mechanical or architectural structure with no text, numbers, or symbols

Diagram showing two circular components with arrows and a checkmark, no readable text or symbols present

Illustration of two hands holding a cloud-like object with arrows indicating rotation or transformation (no text or symbols)

Line drawing of a shoe being lifted by a tool, showing the blade and handle (no text or symbols)

Illustration of a hand blowing bubbles with a magnified circular inset showing a landscape (no text or symbols)

Illustration of two hands holding a tool with directional arrows indicating movement or force (no text or symbols present)

Illustration of two hands using a tool to lift or lift a shoe, separated by a diagonal line (no text or symbols)

Two cartoon fish jumping over a diagonal line, one falling and the other wading (no text or symbols)

Diagram of a mechanical component with a top cylindrical part and an upward arrow, no text or symbols present.

Two identical mechanical components hanging from a diagonal line, no text or symbols visible

Illustration of mechanical components including a drum, screw, and base with motion lines (no text or symbols)

Simple line drawing of a mechanical component with a downward arrow indicating motion (no text or symbols)

Diagram of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Udskiftning

Diagram of a mechanical component with a top cylindrical part and an arrow indicating upward motion (no text or symbols)

Diagram of a biological structure with internal organs and directional arrows, no visible text or labels

Illustration of a mushroom-shaped container with internal swirling patterns and an upward arrow, no text or symbols present.

Diagram showing a hand holding three circular components with an arrow indicating upward motion, alongside a battery and switch (no text or symbols present)

Pure diagram of a mechanical or structural component with no visible text, numbers, or symbols

Diagram showing two circular components with arrows indicating direction, one crossed over the other by a diagonal line (no text or symbols)

Illustration of two hands holding a cloud-like object with a downward arrow and a glowing effect (no text or symbols)

Symbol of a trash bin crossed with no text or labels, accompanied by a solid black rectangle below (no text or symbols present)

Illustration of a hand holding a small object with a tool, alongside a close-up of the same object (no text or symbols present)

Illustration of two skis with directional arrows indicating motion (no text or symbols)

Two car body diagrams showing front and side views of a vehicle, with an arrow indicating motion or change (no text or symbols)

Illustration of a hand using a tool to lift a car, showing mechanical components and motion (no text or symbols)

No sign depicting a faucet with a showerhead, enclosed in a circle (no text or symbols)

Simple line drawing of a showerhead spraying over water in a container (no text or symbols)

Illustration of a hairdryer with a magnified inset showing internal structure (no text or symbols)

Diagram of a laboratory pipette with a magnified inset showing a test tube tip (no text or labels)

Diagram of a laboratory test tube with a magnified inset showing internal structure (no text or labels)

Diagram of a hairbrush with a circular indicator and arrow pointing to the tip (no text or symbols present)

Illustration of a hairdryer with a magnified inset showing internal structure (no text or symbols)

Diagram of a laboratory test tube with a capillary top and a magnified inset showing a star-shaped pattern (no text or symbols)

Diagram of a hairdryer with a magnified inset showing internal structure (no text or symbols)

Illustration of a robot's head with a lock icon and speech bubble (no text or symbols)

Diagram of a smart device with a lock icon and speech bubble (no text or symbols)

Illustration of a hand pressing a button on a patient's knee joint (no text or symbols)

Diagram of a hairpin plug connecting a power outlet to a cable with an arrow indicating direction (no text or symbols)

Close-up of a mechanical component with a black arrow pointing downward (no text or symbols visible)

Illustration of a pair of boots with arrows indicating motion or force (no text or symbols)

Illustration of a hand pressing down on a circular object (no text or symbols)

Illustration of a person applying a hair product to their face (no text or symbols)

Line drawing of a person's face with hand near ear area (no text or symbols)

Line drawing of a person applying a product to their ear (no text or symbols)

Illustration of a hand washing a small object with a water tap (no text or symbols)

Illustration of a person applying a hair product to their face (no text or symbols)

Illustration of a hand pressing a button on a knee joint (no text or symbols)

Illustration of a person's beard and ear with a T-shaped logo overlay (no text or symbols on the main subject)

Diagram showing a funnel with an arrow and a cross symbol, no text or labels present

Diagram showing a device emitting heat or emission from a surface, with an inset magnified view of a droplet (no text or symbols present)

Illustration of a medical or laboratory procedure showing a device emitting particles into a surface, with an inset magnified view of the process (no text or symbols present)

Illustration of a person using a hairdryer (no text or symbols present)

Illustration of a medical or laboratory procedure showing a device interacting with tissue, with an inset magnified view of a droplet (no text or symbols present)

Line drawing of a hairbrush cutting into a circular shape with a downward arrow (no text or symbols)

Illustration of a man with a beard eating a bowl (no text or symbols)

Illustration of two hands holding a device with directional arrows indicating movement (no text or symbols)

Line drawing of a person applying a hair product to their neck (no text or symbols)

Illustration of a dropper tip dispensing liquid into a container with an inset showing a dropper tip (no text or symbols)

Illustration of a mechanical component with fluid flow, no text or symbols present

Illustration of a person applying facial care to their face, with no visible text or symbols

Illustration showing two facial expressions with a magnified inset of the first face (no text or symbols)

Simple line drawing of a paintbrush with a cross mark and spray effect (no text or symbols)

Simple line drawing of a container with an upward arrow and label 'POTATO' (no other text or symbols)

Diagram of a blender with a handle and base, showing mechanical components without any text or symbols.

Diagram of a mechanical component with a downward arrow indicating direction (no text or symbols)

Close-up of a mechanical component with a downward arrow and a prohibition symbol (no text or labels)

Close-up of a mechanical component with a handle and base, showing a downward arrow (no text or symbols)

Illustration of a pair of boots with arrows indicating motion or change, no text or symbols present

Hand holding two circular buttons with power and spiral symbols, next to a container (no text or labels visible)

Diagram of a mechanical component with two circular indicators (one checked, one not checked) and no visible text or symbols.

Diagram of a blender with a plastic container inserted, showing internal components (no text or symbols)

Diagram of a mechanical component with a downward arrow indicating direction (no text or symbols)

Illustration of a hand holding a small object with motion lines indicating movement or force (no text or symbols)

Anatomical illustration of a human head and neck with internal organs, no text or labels present.

Illustration of a fork lifting noodles into a bowl (no text or symbols)

Anatomical illustration of a human head and neck region with internal organs, no text or labels present.

Illustration of a mushroom-shaped container with internal swirling patterns and an upward arrow (no text or symbols)

Diagram showing two mechanical components with arrows indicating direction, no text or symbols present

Diagram showing mechanical components with fluid flow, no text or symbols present

Diagram of a mechanical component with a central gear and base, no text or symbols present

Abstract diagram with three symmetrical shapes and arrows pointing inward (no text or symbols)

Pure diagram of a mechanical or structural component with no visible text, numbers, or symbols

Diagram showing mechanical components with arrows and a checkmark, no readable text or symbols present

Illustration of two hands exchanging a leaf with arrows indicating rotation or movement (no text or symbols)

Illustration of a shoe being dispensed from a bottle onto a surface (no text or symbols)

Illustration of a hand blowing bubbles with a magnified circular inset showing a drop labeled 'X' (no text or symbols present)

Illustration of two hands holding a curved object with directional arrows indicating movement or force (no text or symbols)

Illustration of two hands holding small objects above a diagonal line, no text or symbols present

Two cartoon fish jumping over a diagonal line, one falling and the other wading (no text or symbols)

Diagram of a mechanical component with a top cylindrical part and an arrow indicating upward motion (no text or symbols)

Two hanging objects with ropes tied on a diagonal line, no text or symbols visible

Illustration of various electronic components and a switch, including a bulb, capacitor, and diode (no text or symbols)

Diagram of a mechanical component with a downward arrow indicating motion or force (no text or symbols)

Illustration of a medical device with a downward arrow indicating motion (no text or symbols)

Simple line drawing of a spray bottle with a handle and spout (no text or symbols)

Simple line drawing of a mechanical component with a top and base, no text or symbols present.

Anatomical illustration of a human organ with internal structures and a directional arrow (no text or labels)

Illustration of a mushroom-shaped object with an upward arrow, no text or symbols present

Diagram showing a hand holding a circular object with an arrow indicating direction, alongside a gear-like device (no text or symbols present)

Abstract diagram with three symmetrical shapes and arrows, no text or symbols present

Pure diagram of a mechanical or structural component with a circular top and triangular base, no text or symbols present.

Diagram showing mechanical components with arrows and a checkmark, no readable text or symbols present

Illustration of two hands holding three identical circular objects with arrows indicating motion or transformation (no text or symbols)

Symbol of a trash bin crossed with no visible text or labels

Simple line drawing of a trash bin with two crossed lines indicating no waste or discharge (no text or symbols)

Illustration of a sewing machine tool and a sewing machine base, showing mechanical components without any text or symbols.

Two skis shown side by side, one with a curved arrow indicating motion or movement, the other with an arrow and motion arrows (no text or symbols)

Diagram of two car body components with an arrow indicating a change or movement (no text or symbols present)

Illustration of a hand holding a tool with a black arrow indicating direction (no text or symbols)

No sign depicting a faucet with a diagonal line and a diagonal line, crossed out by a diagonal line (no text or symbols)

Simple line drawing of a showerhead spraying over water in a container (no text or symbols)

Diagram of a laboratory test tube with a magnified inset showing internal structures (no text or labels)

Illustration of a test tube with a cap and a magnified inset showing a starburst (no text or symbols)

Illustration of a hairdryer with a magnified inset showing internal structure (no text or symbols)

Diagram of a mechanical component with a labeled circular feature (no text or symbols present)

Diagram of a hairbrush with a magnified inset showing internal structure (no text or symbols)

Diagram of a laboratory test tube with a magnified inset showing a labeled spike (no text or symbols present)

Diagram of a test tube with a cap and a magnified inset showing internal components (no text or labels)

Simple line drawing of a medical or anatomical structure with a small star-like point and a speech bubble containing an electrical symbol (no text or labels)

Illustration of a smart device with a lock icon and speech bubble (no text or symbols)

Illustration of a smart device with a lock icon and speech bubble (no text or symbols)

Illustration of a hand pressing a button on a human leg, with no visible text or symbols

Diagram of a hairpin with two leads and a plug, showing wiring connection (no text or symbols)

Illustration of a hand holding a small object with arrows indicating motion, and an inset showing a magnified view of two objects (no text or symbols present)

Close-up of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Illustration of a pair of boots with arrows indicating motion or force, no text or symbols present

Illustration of a person applying makeup to their ear with a brush (no text or symbols)

Line drawing of a person's face with hand near ear area (no text or symbols)

Line drawing of a person applying a product to their ear (no text or symbols)

Illustration of a hand washing a small object with a water dispenser (no text or symbols)

Illustration of a person applying a facial massage device to their ear (no text or symbols present)

Illustration of a person's beard and hair being brushed with a T-shaped tool (no text or symbols)

Illustration of a hand holding a device with a bulb and a cross symbol, no text or labels present

Diagram showing a funnel pouring liquid into a curved surface, with an inset magnified view of the process (no text or symbols)

Diagram showing a hairdryer tip interacting with a surface, with an inset magnified view of the hairdryer's surface (no text or symbols present)

Line drawing of a person applying makeup to their ear (no text or symbols)

Illustration of a medical procedure showing a needle inserted into tissue with an inset image of a graduation cap (no text or symbols present)

Illustration of a hairbrush cutting down a button with a downward arrow (no text or symbols)

Illustration of a man with a beard and a pipe, showing a hand holding a small object (no text or symbols present)

Illustration of two hands holding a tool with directional arrows indicating movement or force (no text or symbols)

Illustration showing two men applying facial care to their face, one with a magnified inset of the first eye (no text or symbols present)

Simple line drawing of a paintbrush with a cross mark and spray effect (no text or symbols)

Simple line drawing of a container with an upward arrow and label 'POT' (no text or symbols on the diagram itself)

Diagram of a blender with a black arrow pointing to its internal component (no text or symbols present)

Diagram of a mechanical component with a downward arrow indicating rotation (no text or symbols)

Illustration of a dropper tip with a stopper and a prohibition symbol (no text or labels)

Diagram showing fluid flow around a barrier with an inset magnified view of a mechanical component (no text or symbols)

Close-up of a mechanical component with a downward arrow indicating force or direction (no text or symbols visible)

Illustration of a pair of boots with arrows indicating motion or change, no text or symbols present

Hand holding two circular buttons with 'Power' and 'Spiral' symbols, connected to a device (no text or labels visible)

Diagram of a mechanical component with two circular indicators (one checked, one not checked) and a checkmark symbol, no readable text or labels present.

Diagram of a blender with a plug inserted into a container (no text or symbols visible)

Mechanical component diagram showing a lever with a downward arrow indicating motion (no text or symbols)

Illustration of a hand holding a small object with motion lines indicating movement or force (no text or symbols)

Anatomical illustration of internal organs with arrows indicating movement or force (no text or labels)

Illustration of a food item being lifted from a pipette into a bowl (no text or symbols)

Anatomical illustration of a human digestive system with an arrow indicating a specific structure (no text or labels present)

Illustration of a mechanical component with an upward arrow, no text or symbols present

Diagram showing two mechanical components with arrows indicating direction, no text or symbols present

Diagram showing fluid flow between two vessels with bubbles and a central pipe (no text or symbols)

Diagram of a mechanical or biological component with a central circular feature and a downward arrow, no visible text or symbols.

Diagram showing a circular object with a downward arrow pointing to a triangular structure (no text or symbols)

Diagram showing a mechanical component with arrows indicating motion, divided by a diagonal line (no text or symbols)

Illustration of two hands holding a cloud-like object with arrows indicating motion or transformation (no text or symbols)

Illustration of a hand holding a small object with a bundle of fibers or fibers emerging from it, next to a bottle (no text or symbols)

Illustration of a hand blowing bubbles with motion lines, accompanied by a magnified circular inset showing a hand holding a rock (no text or symbols)

Illustration of two hands holding a curved object with directional arrows indicating movement or force (no text or symbols)

Illustration of two hands pouring liquid from a bottle onto a shoe, separated by a diagonal line (no text or symbols)

Illustration of two cartoon fish separated by a diagonal line, one blowing water and the other wading with waves (no text or symbols)

Diagram of a mechanical component with a top cylindrical part and an upward arrow indicating motion (no text or symbols)

Two hanging objects with ropes tied on a diagonal line, no text or symbols visible

Illustration of mechanical components and a gear mechanism (no text or symbols)

Αποθήκευση

Simple line drawing of a mechanical component with a top cylindrical part and an upward arrow (no text or symbols)

Illustration of a biological structure with ornate topography and internal components, no visible text or symbols

Illustration of a mechanical component with an upward arrow, no text or symbols present

Diagram showing a hand holding a device with an upward arrow and a magnified view of the device (no text or symbols present)

Abstract diagram with three connected circular nodes and a central triangular structure (no text or symbols)

Pure diagram of a mechanical or architectural structure with no text, numbers, or symbols

Diagram showing mechanical components with arrows indicating motion or force, no readable text or symbols present

Illustration of two hands holding cloud-shaped objects with arrows indicating motion (no text or symbols)

Symbol of a trash bin crossed with no visible text or labels

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Illustration of a hand using a screwdriver to cut the pad, with another hand holding a small object below (no text or symbols)

Illustration of two mechanical components with directional arrows, no text or symbols present

Diagram showing two mechanical components with an arrow indicating motion or force, no text or symbols present.

Diagram showing two robotic arms with a tool, one open and the other tilted, against a diagonal line (no text or symbols)

No smoking sign with faucet symbol (no text or numbers)

Illustration of a hairdryer with a magnified inset showing internal structure (no text or symbols)

Illustration of a dropper with a magnified inset showing a star-shaped object (no text or symbols)

Diagram of a laboratory test tube with a magnified inset showing internal structure (no text or labels)

Diagram of a mechanical component with a circular annotation and pointer, no readable text or symbols present.

Illustration of a hairdryer with a magnified inset showing internal structure (no text or symbols)

Diagram of a dropper with a cap and a starburst pattern, no text or symbols present

Diagram of a test tube with a magnified inset showing internal components (no text or labels)

Simple line drawing of a device with a plug and arrow icon (no text or symbols)

Illustration of a robotic arm with a lock icon and speech bubble (no text or symbols)

Illustration of a smart device with a lock icon and a speech bubble (no text or symbols)

Illustration of a human torso with a speech bubble containing a heart symbol (no text or labels)

Diagram of a hairbrush connecting a plug to a cable with an arrow indicating direction (no text or symbols)

Illustration of a hand holding a small object with arrows indicating motion or force, alongside an inset showing a close-up of a mushroom-like structure (no text or symbols)

Close-up of a mechanical component with a black arrow pointing downward (no text or symbols visible)

Illustration of a pair of boots with arrows indicating motion or force (no text or symbols)

Illustration of a hand inserting a circular button into a rounded object (no text or symbols)

Illustration of a person applying makeup to their face with a brush (no text or symbols)

Line drawing of a person's face with hand near ear area, no text or symbols present

Line drawing of a person applying a product to their ear (no text or symbols)

Illustration of a hand using a tool to lift a small object, no text or symbols present

Illustration of a hand pressing a button on a human leg, with no visible text or symbols

Illustration of a person's head with a toothbrush and a circular icon containing a stylized 'T' symbol (no text or symbols present)

Illustration of a hand holding a device with a bulb and a cross symbol, no text or labels present

Diagram showing a funnel pouring liquid into a curved surface, with an inset magnified view of a droplet (no text or symbols)

Illustration of a robotic arm with motion lines and a magnified inset showing a robot head (no text or symbols)

Illustration of a person using a hairdryer to trim the neck (no text or symbols)

Illustration of a spray gun on a surface with an inset showing a spray gun (no text or symbols present)

Line drawing of a hairbrush cutting into a button with a downward arrow (no text or symbols)

Illustration of a man with beard and pipe, showing hand gesture (no text or symbols)

Illustration of two hands holding a tool with directional arrows indicating movement or force (no text or symbols present)

Line drawing of a person applying a hair accessory to their neck (no text or symbols)

Illustration of a dropper tip dispensing liquid into a container, with an inset showing a dropper tip (no text or symbols present)

Illustration of a mechanical component with fluid flow, no text or symbols present

Illustration of a person applying facial care to their face, with no visible text or symbols

Illustration showing a person applying facial care to another person's face, with no visible text or symbols

Simple line drawing of a paintbrush with a cross mark and spray effect (no text or symbols)

Simple line drawing of a container with an upward arrow, no text or symbols present

Diagram of a blender with a black arrow pointing to its lid (no text or symbols present)

Mechanical component diagram showing a lever mechanism with a downward arrow (no text or symbols)

Illustration of a spray bottle with a stopper and a prohibition symbol (no text or labels)

Close-up of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Diagram of a blender with a black arrow pointing to its internal component (no text or symbols present)

Mechanical component diagram showing a lever mechanism with a downward arrow indicating motion (no text or symbols)

Illustration of a hand holding a small object with motion lines indicating movement or force (no text or symbols)

Anatomical illustration of a human head and neck with internal organs, showing a highlighted region with arrows (no text or labels)

Illustration of a food item being lifted from a pipette into a bowl (no text or symbols)

Illustration of a decorative hat with ornate patterns and a scroll arrow (no text or symbols)

Illustration of a mushroom-shaped object with an upward arrow, partially enclosed in a cross-section (no text or symbols)

Diagram showing two mechanical components with arrows indicating direction, no text or symbols present

Diagram showing fluid flow between two vessels with bubbles and a central pipe (no text or symbols)

Diagram of a mechanical or biological structure with a central circular component and directional arrow (no text or symbols)

Diagram showing a circular object falling into a triangular structure with concentric rings (no text or symbols)

Diagram showing a mechanical or electrical component with arrows indicating motion, no text or symbols present

Illustration of two hands holding a cloud-like object with arrows indicating motion or transformation (no text or symbols)

Illustration of a shoe being lifted by a bag (no text or symbols)

Illustration of a hand crushing a rock with a magnified circular inset showing a pile of dust (no text or symbols)

Illustration of two hands holding a tool with directional arrows indicating movement (no text or symbols)

Illustration of two hands holding a shoe and a pair of boots, separated by a diagonal line (no text or symbols)

Diagram of a hairbrush with three blades and a top blade, showing mechanical components (no text or symbols)

Two-step diagram showing a tool pressing down on a component, with no visible text or symbols.

Diagram of a mechanical component with a top cylindrical part and an upward arrow indicating motion (no text or symbols)

Illustration of a stylized, ornate object resembling a helmet or abstract form with a curved handle (no text or symbols)

Illustration of a mechanical component with an upward arrow, no text or symbols present

Diagram showing a hand holding a circular object with arrows indicating motion or assembly (no text or symbols present)

Abstract diagram with three connected circular nodes and a central triangular structure (no text or symbols)

Pure diagram of a mechanical or architectural structure with no text, numbers, or symbols

Diagram showing two mechanical components with arrows indicating motion, no text or symbols present

Illustration of two hands holding a cloud-like object with arrows indicating motion or transformation (no text or symbols)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Simple line drawing of a trash bin with no text or symbols

Illustration of a sewing machine needle stitching a shoe, with no text or symbols present

Illustration of two skis with directional arrows indicating motion (no text or symbols)

Two mechanical components with arrows indicating motion or assembly, no visible text or symbols

Diagram showing two hands operating a tool with a black arrow indicating direction (no text or symbols present)

No sign depicting a faucet without any text or symbols

Prohibition sign showing a faucet without a shower, enclosed in a circle (no text or symbols)

Varoitus

Simple line drawing of a showerhead spraying over a water-filled container (no text or symbols)

Yleistä

Diagram of a test tube with a cap and a magnified inset showing internal structure (no text or labels)

Illustration of a dental tool with a starburst pattern and a speech bubble (no text or symbols)

Diagram of a laboratory pipette with a magnified inset showing internal structure (no text or labels)

Diagram of a mechanical component with a labeled circular feature (no text or symbols present)

Illustration of a hairbrush with a magnified inset showing internal structure (no text or symbols)

Diagram of a test tube with a spiky tip and a magnified inset showing a labeled section (no text or symbols present)

Diagram of a laboratory test tube with a magnified inset showing internal components (no text or labels)

Illustration of a smart device with a lock icon and a speech bubble (no text or symbols)

Illustration of a smart device with a lock icon and a button, no text or symbols present

Illustration of a medical or health device with a speech bubble containing a heart symbol (no text or labels present)

Diagram of a hairbrush connecting a plug to a cable with an arrow indicating direction (no text or symbols)

Illustration of a hand holding a small object with arrows indicating motion or force direction, and a magnified inset showing a close-up of a mechanical component (no text or symbols)

Close-up of a mechanical component with a downward arrow indicating force or direction (no text or symbols visible)

Illustration of a pair of boots with arrows indicating motion or damage, no text or symbols present

Line drawing of a person applying makeup to their face with a brush (no text or symbols)

Line drawing of a person's face with hand near ear area, showing skin texture (no text or symbols)

Line drawing of a person applying a cotton or cotton product to their ear (no text or symbols)

Illustration of a hand washing a cup with water spray (no text or symbols)

Illustration of a person applying a hair product to their face (no text or symbols)

Illustration of a hand holding a circular button labeled 'Y' on a curved surface, with no visible text or symbols beyond the label.

Illustration of a person's beard and ear with a T-shaped logo, no text or symbols present

Diagram showing a hand holding a device with a bulb and a cross symbol, no text or labels present

Diagram showing a funnel pouring liquid into a curved surface, with an inset magnified view of the process (no text or symbols)

Illustration of a hairdryer with an inset showing the tip and base (no text or symbols)

Line drawing of a hairbrush cutting down a piece of hair with a downward arrow (no text or symbols)

Illustration of a man eating with a spoon (no text or symbols)

Illustration of two hands holding a curved object with directional arrows indicating movement or force (no text or symbols)

Line drawing of a person applying a hair product to their neck (no text or symbols)

Illustration of a dropper tip dispensing liquid into a container, with an inset showing a dropper tip (no text or symbols present)

Illustration of a mechanical component with fluid flow, no text or symbols present

Illustration of a person applying facial care to their face with a tool, no text or symbols present

Illustration showing a person applying facial care to another person's face, with a magnified inset of the eye (no text or symbols)

Simple line drawing of a paintbrush with a cross mark, no text or symbols present

Close-up of a mechanical component with a downward arrow and a prohibition symbol (no text or labels)

Illustration of a hand cleaning a surface with arrows indicating direction (no text or symbols)

Simple line drawing of a mechanical component with a downward arrow, no text or symbols present

Illustration of a pair of boots with arrows indicating motion or change, no text or symbols present

Hand holding a device with two circular buttons labeled 'Power' and 'Spiral', no visible text or symbols

Diagram of a blender with a black arrow pointing to its interior (no text or symbols present)

Diagram of a mechanical component with a downward arrow indicating direction (no text or symbols)

Illustration of a hand holding a small object with motion lines indicating movement or force (no text or symbols)

Anatomical illustration of a human upper body with internal organs and a directional arrow indicating movement (no text or labels)

Illustration of a fork being inserted into a bowl of noodles (no text or symbols)

Illustration of a biological structure with swirling patterns and directional arrows (no text or symbols)

Illustration of a mushroom-shaped container with internal compartments and an upward arrow, no text or symbols present

Diagram showing two mechanical components with directional arrows, no text or symbols present

Illustration of two mechanical devices with water spray and a gear-like component, no text or symbols present

Pure mechanical component diagram without any text, numbers, or symbols

Pure diagram of a mechanical or structural component with no visible text, numbers, or symbols

Diagram showing two circular components with arrows and a checkmark, no readable text or symbols present

Illustration of two hands exchanging a cloud-like object with arrows indicating motion (no text or symbols)

Illustration of a hand holding a shoe with a tool above it, showing a bundle of wires or fibers emerging from the cup (no text or symbols)

Illustration of two hands holding a tool with directional arrows indicating movement or force (no text or symbols present)

Illustration of two hands pouring liquid from a bottle onto a surface, separated by a diagonal line (no text or symbols)

Two cartoon fish jumping over a diagonal line, one falling and the other wading (no text or symbols)

Diagram of a mechanical component with a top cylindrical part and an arrow indicating upward motion (no text or symbols)

Two identical mechanical components hanging from a diagonal line, no text or symbols visible

Illustration of kitchen utensils and a cloth on a diagonal line (no text or symbols)

Diagram of a mechanical component with a top cylindrical part and an upward arrow, no text or symbols present.

Illustration of a decorative object with floral patterns and an arrow, no visible text or symbols

Illustration of a stylized heart-shaped object with an upward arrow, placed above a circular base (no text or symbols)

Illustration of a hand holding a circular object with arrows indicating motion or assembly (no text or symbols)

Abstract diagram with three connected circular nodes and a central triangular structure (no text or symbols)

Pure diagram of a mechanical or architectural structure with no text, numbers, or symbols

Diagram showing two mechanical components with arrows indicating motion, no text or symbols present

Illustration of two hands holding a cloud-like object with arrows indicating motion (no text or symbols)

Symbol of a waste bin with no text or labels

Illustration showing a hand using a screwdriver to cut a cylindrical object, with another hand holding a small boat (no text or symbols present)

1 Irrota takapaneelin ruuvi ruuvitaltalla. Irrota sitten takapaneeli.

Illustration of two skis with directional arrows indicating motion (no text or symbols)

Two mechanical components with a diagonal line and an upward arrow, no visible text or symbols

Illustration of a robotic hand holding a tool, with an arrow indicating the process (no text or symbols present)

Simple line drawing of a showerhead spraying over water in a container (no text or symbols)

Illustration of a hairdryer with a magnified inset showing internal structure (no text or symbols)

Illustration of a test tube with a star-shaped label and arrow pointing to its tip (no text or symbols present)

Diagram of a laboratory test tube with a magnified inset showing internal structure (no text or labels)

Diagram of a hairbrush with a circular indicator labeled 'I' (no text or symbols on the diagram itself)

Illustration of a hairdryer with a magnified inset showing internal structure (no text or symbols)

Diagram of a dropper with a cap and a starburst pattern, no text or symbols present

Diagram of a laboratory test tube with a magnified inset showing internal components (no text or labels)

Illustration of a robotic arm with a lock icon and speech bubble (no text or symbols)

Illustration of a smart device with a lock icon and a speech bubble (no text or symbols)

Illustration of a human torso with a speech bubble containing a heart symbol (no text or labels)

Illustration of a hand pressing a button on a human knee joint (no text or symbols)

Diagram of a hairbrush connecting a plug to a cable with an arrow indicating direction (no text or symbols)

Illustration of a hand spraying water with a magnified inset showing a mushroom structure (no text or symbols)

Close-up of a mechanical component with a black arrow pointing downward (no text or symbols visible)

Illustration of a pair of boots with arrows indicating motion or change, no text or symbols present

Illustration of a hand holding a circular button with an arrow, pointing to a rounded object (no text or symbols present)

Illustration of a person applying makeup to their face with a brush (no text or symbols)

Line drawing of a person's face with hand near ear area (no text or symbols)

Line drawing of a person applying a product to their ear (no text or symbols)

Illustration of a hand washing a cup with a water dispenser (no text or symbols)

Illustration of a hand pressing a button on a human leg (no text or symbols)

Illustration of a person applying a toothbrush to their ear, with a circular logo containing the letter 'T' (no text or symbols on the diagram itself)

Illustration of a mushroom-shaped object with a cross symbol and an upward arrow, no text or symbols present.

Illustration of a funnel pouring liquid into a curved surface, with an inset showing a droplet on a surface (no text or symbols)

Diagram showing a device emitting light onto a surface with an inset magnified view of the device (no text or symbols)

Line drawing of a person applying makeup to their ear (no text or symbols)

Illustration of a spray gun dispensing liquid onto a surface, with an inset showing a droplet on a surface (no text or symbols)

Illustration of a hairbrush cutting into a toothbrush with a downward arrow (no text or symbols)

Illustration of a man with a beard eating a spoon (no text or symbols)

Illustration of two hands holding a curved object with directional arrows indicating movement or force (no text or symbols)

Line drawing of a person applying a hair accessory to their ear (no text or symbols)

Illustration of a dropper dispensing liquid into a container with an inset showing a dropper tip (no text or symbols)

Illustration of a mechanical component with motion lines indicating movement (no text or symbols)

Illustration of a person applying facial care to their face, with no visible text or symbols

Illustration showing two facial expressions with a magnified inset of the first face (no text or symbols)

Simple line drawing of a paintbrush with a cross mark and motion lines (no text or symbols)

Simple line drawing of a container with an upward arrow, no text or symbols present

Diagram of a blender with a black arrow indicating the process (no text or symbols present)

Mechanical component diagram showing a lever mechanism with a downward arrow indicating motion (no text or symbols)

Illustration of a spray bottle with a stopper and a prohibition symbol (no text or labels)

Illustration of a hand spraying water with a magnified inset showing a droplet on a surface (no text or symbols)

Close-up of a mechanical component with a black arrow pointing downward (no text or symbols visible)

Illustration of a pair of boots with arrows indicating motion or change, no text or symbols present

Hand inserting a power button into a device (no text or symbols visible)

Diagram of a mechanical component with two circular indicators (one checked, one not checked) and a checkmark symbol, no readable text or labels present.

Diagram of a blender with a black arrow pointing to its lid (no text or symbols present)

Diagram of a mechanical component with a downward arrow indicating rotation (no text or symbols)

Illustration of a hand holding a small object with motion lines indicating movement or vibration (no text or symbols)

Anatomical illustration of a human organ with internal structures and a directional arrow (no text or labels)

Illustration of a fork being inserted into a bowl of noodles (no text or symbols)

Illustration of a biological structure with layered patterns and an arrow indicating direction (no text or symbols)

Illustration of a biological structure with an upward arrow, no text or symbols present

Diagram showing two mechanical components with upward arrows, one divided by a diagonal line (no text or symbols)

Diagram showing fluid flow between two vessels with bubbles and a central pipe (no text or symbols)

Diagram of a mechanical or biological component with a central circular feature and a downward arrow, no visible text or symbols.

Diagram showing a circular object with a downward arrow pointing to a triangular structure (no text or symbols)

Diagram showing a mechanical component with arrows indicating motion, divided by a diagonal line (no text or symbols)

Illustration of two hands holding a cloud-like object with arrows indicating motion or transformation (no text or symbols)

Illustration of a shoe being lifted by a bag (no text or symbols)

Illustration of a hand crushing a rock with a magnified circular section showing a pile of rocks (no text or symbols)

Illustration of two hands holding a curved object with directional arrows indicating movement or force (no text or symbols)

Illustration of two hands holding a bag and a shoe, separated by a diagonal line (no text or symbols)

Two cartoon fish jumping over a diagonal line, one falling and the other wading (no text or symbols)

FRANÇAIS246

Simple line drawing of a mechanical component with an upward arrow, no text or symbols present.

Two identical diagrams showing a hand holding a tool above a base, with no text or symbols present.

Illustration of mechanical components and a gear mechanism (no text or symbols)

Diagram of a hairbrush with a circular base and handle, showing mechanical components (no text or symbols)

Two-step illustration showing a hairpin being inserted into a device, with no text or symbols present.

Diagram of a mechanical component with a cylindrical top and a base, showing an upward arrow (no text or symbols)

Illustration of a stylized human head with ornate patterns and a curved arrow indicating motion (no text or symbols)

Diagram of a mechanical component with an upward arrow indicating motion or force (no text or symbols present)

Diagram showing a hand holding a circular object with arrows indicating direction, alongside a battery and mechanical components (no text or symbols)

Abstract diagram with three connected circular nodes and a central triangular structure (no text or symbols)

Pure diagram of a mechanical or architectural structure with no text, numbers, or symbols

Diagram showing mechanical components with arrows indicating motion or force, no readable text or symbols present

Illustration of two hands holding a cloud-like object with arrows indicating motion (no text or symbols)

Symbol of a trash bin with crossed lines and a blank rectangular base (no text or numbers)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Illustration of a hand holding a pen and a small object, with no visible text or symbols

Illustration of two skis with directional arrows indicating movement or force (no text or symbols)

Two mechanical components with a diagonal line and an upward arrow, no visible text or symbols

Illustration of two hands using a tool to lift or lift an object, showing mechanical components and motion (no text or symbols)

No sign depicting a faucet with a showerhead, enclosed in a circle (no text or symbols)

Simple line drawing of a showerhead spraying over water in a container (no text or symbols)

Diagram of a hairdryer with a magnified inset showing internal structure (no text or symbols)

Diagram of a laboratory test tube with a magnified inset showing a test tube tip (no text or labels)

Diagram of a laboratory test tube with a magnified inset showing internal structure (no text or labels)

Diagram of a hairbrush with a circular indicator and arrow pointing to the tip (no text or symbols present)

Illustration of a hairdryer with a magnified inset showing internal structure (no text or symbols)

Diagram of a laboratory test tube with a capillary top and a magnified inset showing a star-shaped object (no text or labels)

Diagram of a hairdryer with a magnified inset showing the tip and base (no text or symbols)

Illustration of a robot's head with a lock icon and speech bubble (no text or symbols)

Illustration of a smart device with a lock icon and a speech bubble (no text or symbols)

Diagram of a hairbrush connecting a plug to a cable with an arrow indicating direction (no text or symbols)

Illustration of a hand holding a small object with arrows indicating motion, alongside an inset showing a close-up of a mushroom-like structure (no text or symbols)

Close-up of a mechanical component with a black arrow pointing downward (no text or symbols visible)

Illustration of a pair of boots with arrows indicating motion or damage, no text or symbols present

Illustration of a hand holding a circular object with an arrow pointing to it, no text or symbols present

Illustration of a person applying makeup to their face with a brush (no text or symbols)

Line drawing of a person's face with hand near ear area (no text or symbols)

Line drawing of a person applying a product to their ear (no text or symbols)

Illustration of a hand washing a cup with a water dispenser (no text or symbols)

Illustration of a hand pressing a button on a patient's knee joint (no text or symbols)

Illustration of a person applying a toothbrush to their beaded area, with a circular logo containing the letter 'T' (no text or symbols on the diagram itself)

Diagram showing a funnel with an upward arrow and a cross symbol, no text or labels present

Illustration of a medical procedure showing a surgical tool impacting a patient's ear with an inset image of the procedure (no text or symbols present)

Illustration of a robotic arm with motion arrows and a magnified inset showing the head area (no text or symbols)

Line drawing of a person using a hairpin to trim a neck (no text or symbols)

Illustration of a medical procedure showing a device interacting with tissue, with an inset magnified view of tissue (no text or symbols present)

Line drawing of a hairbrush cutting down with a downward arrow indicating compression (no text or symbols)

Illustration of a man with a beard eating a spoon (no text or symbols)

Illustration of two hands holding a curved object with directional arrows indicating movement (no text or symbols)

Line drawing of a person's head and neck with a hairpin (no text or symbols)

Illustration of a dropper tip dispensing liquid into a container, with an inset showing a dropper tip (no text or symbols present)

Illustration of a mechanical component with motion lines indicating movement (no text or symbols)

Illustration of a person applying facial care to their face, with no visible text or symbols

Illustration showing two men applying facial care to their face, one with a magnified inset of the first eye (no text or symbols present)

Simple line drawing of a paintbrush with a cross mark and spray, no text or symbols present

Simple line drawing of a container with an upward arrow and label 'SWEET' (no text or symbols on the diagram itself)

Diagram of a blender with a black arrow pointing to its internal component (no text or symbols present)

Diagram of a mechanical component with a downward arrow indicating motion (no text or symbols)

Close-up of a mechanical component with a downward arrow and a prohibition symbol (no text or labels)

Diagram showing a mechanical or fluidic process with arrows indicating flow direction, no text or symbols present

Close-up of a mechanical component with a handle and base, showing a downward arrow (no text or symbols)

Illustration of a pair of boots with arrows indicating motion or change, no text or symbols present

Hand holding two circular buttons with power and spiral symbols, connected to a device (no text or labels visible)

Technical line drawing of a mechanical component with two circular indicators (no text or symbols)

Illustration of a hand holding a small object with motion lines indicating movement or force (no text or symbols)

Anatomical illustration of a human head with internal organs and a curved arrow indicating a specific structure (no text or labels present)

Illustration of a noodle being lifted from a piping bag into a bowl (no text or symbols)

Anatomical illustration of a human digestive system with an arrow indicating a process (no text or labels present)

Illustration of a mechanical component with an upward arrow, showing internal gear-like structure (no text or symbols)

Diagram showing two mechanical components with arrows indicating direction, no text or symbols present

Diagram showing two mechanical components with fluid or material flows, no text or symbols present

Diagram of a mechanical or electrical component with a central shaft and surrounding gear (no text or symbols)

Pure diagram of a mechanical or architectural component with no text, numbers, or symbols

Diagram showing mechanical components with arrows indicating motion or force direction (no text or symbols)

Illustration of two hands holding a cloud-like object with a downward arrow and a glowing effect (no text or symbols)

Line drawing of a shoe being lifted by a cloth, showing fabric texture and a bottle (no text or symbols)

Illustration of a hand crushing debris with a magnified inset showing a pile of waste (no text or symbols)

Illustration of two hands holding a tool with directional arrows indicating movement or force (no text or symbols present)

Illustration of two hands pouring liquid from a bottle onto a surface, separated by a diagonal line (no text or symbols)

Two cartoon fish jumping over a diagonal line, one falling and the other wading (no text or symbols)

Diagram of a mechanical component with a top cylindrical part and an upward arrow, no text or symbols present.

Two identical diagrams showing a tool interacting with a base, connected by a diagonal line (no text or symbols)

Illustration of mechanical components and a gear mechanism on a diagonal line (no text or symbols)

Diagram of a hairbrush with a downward arrow indicating compression or disassembly (no text or symbols)

Simple line drawing of a mechanical component with a downward arrow indicating motion (no text or symbols)

Diagram of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Diagram of a mechanical component with a top cylindrical part and an upward arrow indicating motion (no text or symbols)

Anatomical illustration of internal organs with arrows indicating movement or force (no text or labels)

Diagram of a mechanical component with an upward arrow indicating motion or force (no text or symbols present)

Diagram showing a hand holding a device with a circular component and an upward arrow, no text or symbols present.

Abstract diagram of a symmetrical geometric structure with three circular elements and an upward arrow, no text or symbols present.

Pure diagram of a mechanical or structural component with no visible text, numbers, or symbols

Diagram showing two mechanical components with arrows indicating motion, one crossed over the other (no text or symbols)

Illustration of two hands holding a heart-shaped object with arrows indicating motion or change (no text or symbols)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Symbol of a trash bin crossed out by two diagonal lines (no text or labels)

Illustration of a hand holding a pen and a tool, partially overlapping with another hand holding a small object (no text or symbols present)

Illustration of two skis with directional arrows indicating movement or force (no text or symbols)

Two mechanical components with a diagonal line and an upward arrow, no visible text or symbols

Illustration of two hands using pliers to lift a tool, showing mechanical components (no text or symbols)

No sign depicting a faucet crossed out by a diagonal line, indicating no pollution or leakage (no text present)

Illustration of a syringe with a magnified inset showing internal structure (no text or symbols)

Illustration of a test tube with a magnified inset showing a star-shaped object (no text or symbols)

Diagram of a laboratory test tube with a magnified inset showing internal structure (no text or labels)

Diagram of a hairbrush with a circular indicator and arrow pointing to the tip (no text or symbols present)

Illustration of a hairdryer with a magnified inset showing internal structure (no text or symbols)

Diagram of a laboratory test tube with a capillary top and a magnified inset showing a star-shaped object (no text or labels)

Diagram of a hairdryer with a magnified inset showing the tip and body area (no text or symbols)

Illustration of a smart device with a lock icon and a starburst symbol (no text or labels)

Diagram of a smart device with a lock icon and a speech bubble (no text or symbols)

De reisvergrendeling deactiveren

Illustration of a human torso with a speech bubble containing a heart symbol (no text or labels)

De Turbo-instelling activeren

Diagram of a hairbrush connecting a plug to a cable with an arrow indicating direction (no text or symbols)

Close-up of a mechanical component with a black arrow pointing downward (no text or symbols visible)

Illustration of a pair of boots with arrows indicating motion or damage, no text or symbols present

Illustration of a hand holding a circular object with an arrow pointing to it, no text or symbols present

Illustration of a person applying makeup to their face with a brush (no text or symbols)

Line drawing of a person's face with hand near ear area (no text or symbols)

Line drawing of a person applying a product to their ear (no text or symbols)

Illustration of a hand holding a water dispenser with a bag, emitting mist (no text or symbols)

Illustration of a hand pressing a button on a patient's knee joint (no text or symbols)

Illustration of a person's beard and toothpaste being brushed (no text or symbols)

Diagram showing a mushroom-shaped object above a curved surface with a cross symbol and an upward arrow, no text or labels present.

Diagram showing a device emitting light onto a surface, with an inset magnified view of the device (no text or symbols present)

Illustration of a robotic arm with motion arrows and a magnified inset showing a small mechanical component (no text or symbols)

Line drawing of a person applying a hair accessory to their ear (no text or symbols)

Illustration of a medical procedure with an incision and magnified view of the procedure (no text or symbols)

Illustration of a hairbrush cutting down a surface with a downward arrow indicating compression (no text or symbols)

Illustration of a man smoking a beaded mouth with a pencil (no text or symbols)

Illustration of two hands holding a tool, with arrows indicating movement or force direction (no text or symbols)

Line drawing of a person applying a hair accessory to their neck (no text or symbols)

Illustration of a dropper tip dispensing liquid into a container with a magnified inset showing a dropper (no text or symbols)

Illustration of a mechanical component with fluid flow, no text or symbols present

Illustration of a person applying facial care to their face, with no visible text or symbols

Illustration showing two men applying facial care to their face, one with a magnified inset of the first eye (no text or symbols present)

Simple line drawing of a paintbrush with a cross mark and spray effect (no text or symbols)

Simple line drawing of a container with an upward arrow and label 'WATER' (no text or symbols on the diagram itself)

Illustration of a pair of boots with arrows indicating motion or change, no text or symbols present

Hand holding two circular buttons with power and spiral symbols, connected to a device (no text or labels visible)

Diagram of a device with two circular indicators: one checked and one not checked, no text or symbols present.

Illustration of a hand holding a small object with motion lines indicating movement (no text or symbols)

Illustration of a decorative hat with ornate patterns and a curved arrow, no text or symbols present

Illustration of a food item being lifted by a pipette (no text or symbols)

Anatomical illustration of a human digestive system with an arrow indicating a process (no text or labels present)

1 Druk op de ontgrendelknop en klap de scheerunit open.

Illustration of a mechanical component with an upward arrow, showing internal gear-like structure (no text or symbols)

Diagram showing two mechanical components with upward arrows, no text or symbols present

Illustration of a kitchen sink with water spray and a bowl of liquid (no text or symbols)

Diagram of a mechanical or electrical component with a central gear-like structure and a base (no text or symbols)

Pure diagram of a mechanical or architectural component with a circular top and triangular base, no text or symbols present.

Diagram showing mechanical components with arrows indicating motion or force direction (no text or symbols)

Illustration of two hands holding a cloud-like object with a downward arrow and a light burst, no text or symbols present.

Illustration of a shoe being lifted by a bag (no text or symbols)

Illustration of a hand crushing a rock with a magnified circular inset showing a pile of rocks (no text or symbols)

Illustration of two hands holding a curved object with directional arrows indicating movement or force (no text or symbols)

Illustration of two hands holding a tool and a pair of boots, separated by a diagonal line (no text or symbols)

Two cartoon fish jumping over a diagonal line, one falling and the other wading (no text or symbols)

Diagram of a mechanical component with a top cylindrical part and a base, showing an upward arrow (no text or symbols)

Two identical diagrams showing a tool emitting liquid from a container onto a base, separated by a diagonal line (no text or symbols)

Illustration of mechanical components and a gear mechanism (no text or symbols)

Opbergen

Illustration of a mechanical component with a downward arrow indicating motion or force (no text or symbols)

NEDERLANDS320

Illustration of a mechanical component with an arrow indicating downward motion (no text or symbols)

Diagram of a spray bottle with a stopper and internal structure (no text or symbols)

Diagram of a mechanical component with a top cylindrical part and an upward arrow, no text or symbols present.

Illustration of a stylized human head with ornate patterns and a curved arrow indicating motion (no text or symbols)

2 Druk op de ontgrendelknop en klap de scheerunit open.

Illustration of a mechanical component with an upward arrow, no text or symbols present

Diagram showing a hand holding three circular objects with an arrow indicating upward motion, alongside a battery and switch (no text or symbols)

Abstract diagram with three symmetrical shapes and arrows, no text or symbols present

Pure diagram of a mechanical or structural component with no visible text, numbers, or symbols

Diagram showing mechanical components with arrows and a checkmark, no readable text or symbols present

Illustration of two hands holding a cloud-like object with arrows indicating motion (no text or symbols)

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or numbers present)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Illustration of a hand holding a small object, with another hand partially visible below (no text or symbols)

Two illustrations of a skis with directional arrows indicating motion or movement (no text or symbols)

Diagram showing two car body parts with an arrow indicating a specific component (no text or labels present)

Diagram showing two hands operating a tool with an arrow indicating direction (no text or symbols present)

Prohibition sign showing a faucet without raindrops, enclosed in a circle (no text)

No smoking sign with faucet symbol (no text)

Forsiktig

Simple line drawing of a showerhead spraying over a water-filled container (no text or symbols)

- Ladingen tar ca. én time.

Illustration of a test tube with a cap and a magnified inset showing internal structure (no text or symbols)

Illustration of a test tube with a magnified inset showing a spike (no text or symbols)

Diagram of a dropper with a magnified inset showing internal structure (no text or symbols)

Diagram of a hairbrush with a magnified inset showing the tip area (no text or symbols present)

Lav batterikapasitet

Diagram of a medical or laboratory device with a magnified inset showing internal components (no text or symbols)

Diagram of a laboratory test tube with a magnified inset showing a labeled component (no text or symbols present)

Diagram of a test tube with a cap and a magnified inset showing internal components (no text or labels)

Illustration of a smart device with a lock icon and a speech bubble (no text or symbols)

Diagram of a smart device with a lock icon and a button, no text or symbols present

Bytte skjærehoder

Illustration of a robotic device with a circular icon showing a skull and directional arrows (no text or symbols)

Illustration of a hand pressing a button on a knee joint (no text or symbols)

Aktivere turboinnstillingen

Ladingen tar ca. én time.

Diagram of a hairpin plug connecting a power outlet with a cable, showing two arrows indicating direction (no text or symbols present)

Close-up of a mechanical component with a black arrow pointing downward (no text or symbols visible)

4 Hold barbermaskinen opp ned over holderen. Kontroller at forsiden av barbermaskinen vender mot SmartClean-systemet.

Illustration of a pair of boots with arrows indicating motion or change, no text or symbols present

Illustration of a hand holding a circular object with an arrow pointing to it, against a stylized background (no text or symbols)

Illustration of a person applying facial hair to their ear (no text or symbols present)

Line drawing of a person's face with hand near ear area (no text or symbols)

Line drawing of a person applying a cotton or cotton product to their ear (no text or symbols)

1 Fukt huden med litt vann.
2 Smør huden med barberskum eller barbergel.

Illustration of a hand washing a cup with a water dispenser (no text or symbols)

Illustration of a person applying a hairpin to their face (no text or symbols present)

Illustration of a hand pressing a button on a human leg (no text or symbols)

Illustration of a man applying a toothbrush to the ear with a circular logo (no text or symbols)

Illustration of a mushroom-shaped object with a cross symbol and an upward arrow, no text or symbols present.

Diagram showing a funnel pouring liquid into a curved surface, with an inset magnified view of the tip (no text or symbols)

Diagram showing a hairdryer interacting with a surface, with an inset magnified view of the contact area (no text or symbols present)

Illustration of a person using a hairdryer (no text or symbols present)

Illustration of a medical or laboratory procedure showing a device emitting particles into a surface, with an inset magnified view of a graduation cap (no text or symbols present)

Illustration of a hairbrush cutting into a toothbrush with a downward arrow (no text or symbols)

Illustration of a man smoking a bearded man with a pipe (no text or symbols)

Illustration of two hands holding a tool with directional arrows indicating movement or force (no text or symbols present)

Line drawing of a person applying a hair accessory to their neck (no text or symbols)

Illustration of a dropper tip dispensing liquid into a container, with an inset showing a dropper tip (no text or symbols present)

Illustration of a mechanical component with fluid flow, no text or symbols present

Illustration of a person applying facial care to their face, with no text or symbols present.

Simple line drawing of a paintbrush with a cross mark and motion lines, no text or symbols present.

Ikke vipp SmartClean-systemet. På den måten unngår du lekkasje.

Simple line drawing of a container with an upward arrow and label 'POTATO' (no text or symbols on the diagram itself)

Diagram of a blender with a black arrow pointing to its internal component (no text or symbols present)

Diagram of a mechanical component with a downward arrow indicating direction (no text or symbols)

6 Skyv den øvre delen av SmartClean-systemet tilbake ned (du skal høre et klikk).

Warning symbol of a device with a downward arrow and a prohibition sign (no text or labels)

Bruke SmartClean-systemet

Diagram showing a hand pouring liquid into a container with an inset magnified view of a lid (no text or symbols)

Close-up of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

2 Hold barbermaskinen opp ned over holderen. Kontroller at forsiden av barbermaskinen vender mot SmartClean-systemet.

Illustration of a pair of boots with arrows indicating motion or change, no text or symbols present

Hand holding two circular buttons with 'Power' and 'Spiral' symbols, next to a device (no text or labels visible)

Simple line drawing of a funnel with two circular indicators (one checked, one not checked) inside, no text or symbols present.

Diagram of a blender with a black arrow pointing to its internal component (no text or symbols present)

Diagram of a mechanical component with a downward arrow indicating motion (no text or symbols)

Illustration of a hand holding a small object with motion lines indicating movement or force (no text or symbols)

1 Skyll skjæreenheten under varmt rennende vann en liten stund.

Anatomical illustration of a human head with internal organs and a directional arrow indicating movement (no text or labels)

Illustration of a fork lifting a bowl of noodles (no text or symbols)

Anatomical illustration of a human head with internal organs and a directional arrow indicating movement (no text or labels)

Illustration of a mechanical component with an upward arrow, showing internal gear-like structure (no text or symbols)

Diagram showing two mechanical components with directional arrows, no text or symbols present

Illustration of two mechanical devices with water spray and a gear-like component, no text or symbols present

Pure mechanical component diagram without any text, numbers, or symbols

Pure diagram of a mechanical or structural component with no visible text, numbers, or symbols

Diagram showing two circular components with arrows and a checkmark, no readable text or symbols present

Illustration of two hands exchanging a cloud-like object with arrows indicating rotation or movement (no text or symbols)

Illustration of a foot stepping on a shoe with a bottle inserted (no text or symbols)

Illustration of a hand blowing bubbles with motion lines, accompanied by a circular icon showing a person's head (no text or symbols)

Illustration of two hands holding a tool with directional arrows indicating movement or force (no text or symbols present)

Illustration of a pair of kitchen utensils, one pouring liquid from a bottle onto a surface, the other pouring liquid onto a shoe (no text or symbols)

Two cartoon fish jumping over a diagonal line, one falling and the other wading (no text or symbols)

Diagram of a mechanical component with a top cylindrical part and an upward arrow, no text or symbols present.

Two identical diagrams showing a container being lifted by a tool, connected by a diagonal line (no text or symbols)

Illustration of cleaning tools including a bulb, cloth, and tray against a diagonal line (no text or symbols)

Diagram of a spray bottle with a downward arrow indicating downward motion (no text or symbols)

Diagram of a mechanical component with a top cylindrical part and an upward arrow, no text or symbols present.

Illustration of a decorative hat with floral patterns and an arrow indicating direction (no text or symbols)

Illustration of a mushroom-shaped container with internal organs and an upward arrow, no text or symbols present

Illustration of a hand holding a circular object with arrows indicating direction (no text or symbols)

Pure diagram of a mechanical or structural component with no visible text, numbers, or symbols

Diagram showing two circular components with arrows indicating direction, one crossed over the other by a diagonal line (no text or symbols)

Illustration of two hands holding a cloud-like object with a downward arrow and a glowing effect (no text or symbols)

Symbol of a trash bin crossed with no text or labels, representing waste sorting or recycling (no text present)

Illustration of a hand holding a pen and a slide, with no visible text or symbols

Ta bare ut det oppladbare batteriet når du avhender barbermaskinen. Kontroller at batteriet er helt tomt når du tar det ut.

Illustration of two skis with directional arrows indicating motion (no text or symbols)

Two views of a vehicle showing internal components and motion arrows (no text or symbols)

Illustration of a hand using a tool to lift a car, showing mechanical components and motion (no text or symbols)

4 Ta ut batteriholderen, og klipp over batterifikene med en avbitertang.

Garanti og støtte

Hvis du trenger kundestøtte eller informasjon, kan du gå til www.philips.com/support eller lese i garantiheftet.

Begrensninger i garantien

Simple line drawing of a showerhead spraying over a water-filled basin (no text or symbols)

Illustration of a hairdryer with a magnified inset showing internal structure (no text or symbols)

Illustration of a test tube with a star-shaped label and a speech bubble (no text or symbols on the tube itself)

Indicador de carga da bateria com 1 luz

Diagram of a laboratory test tube with a magnified inset showing internal structure (no text or labels)

- Indicador de carga da bateria com 3 luzes

Diagram of a handheld device with a circular button labeled 'I' and an arrow pointing to it (no text or symbols beyond the label)

- Indicador de carga da bateria com 1 luz

Bateria fraca

Illustration of a hairdryer with a magnified inset showing internal structure (no text or symbols)

Diagram of a laboratory test tube with a capillary top and a magnified inset showing a star-shaped object (no text or labels)

- Indicador de carga da bateria com 1 luz

Diagram of a laboratory test tube with a magnified inset showing internal components (no text or labels)

Illustration of a robot's torso with a padlock icon and a speech bubble (no text or symbols)

Illustration of a smart device with a lock icon and speech bubble (no text or symbols)

Illustration of a hand pressing a button on a knee joint (no text or symbols)

Diagram of a hairbrush connecting a plug to a cable with an arrow indicating direction (no text or symbols)

1 Introduza a ficha pequena no aparelho e coloque o adaptador na tomada eléctrica.

Carregamento no sistema SmartClean (apenas modelos específicos)

1 Introduza a ficha pequena no sistema SmartClean.
2 Ligue o adaptador à tomada eléctrica.

PORTUGUÊS374

Close-up of a mechanical component with a black arrow pointing downward (no text or symbols visible)

Illustration of a pair of boots with arrows indicating motion or force (no text or symbols)

Illustration of a hand inserting a circular component into a container (no text or symbols)

Illustration of a person applying facial contour or mask to their ear (no text or symbols)

Line drawing of a person's face with hand near ear area (no text or symbols)

Line drawing of a person applying a cotton or cotton product to their ear (no text or symbols)

Illustration of a hand washing a cup with a water dispenser (no text or symbols)

Illustration of a hand pressing a button on a human leg, with no visible text or symbols

Illustration of a man's beard and hair being brushed with a toothbrush, with a circular logo containing the letter 'T' (no text or symbols on the image itself)

Illustration of a hand holding a device with a bulb and a cross symbol, no text or labels present

Illustration of a funnel pouring liquid into a curved surface, with an inset showing a droplet on a surface (no text or symbols)

Diagram showing a spray gun interacting with a surface, with an inset magnified view of the spray (no text or symbols)

Line drawing of a person applying a hair to their ear (no text or symbols)

Illustration of a hairdryer with a magnified inset showing the tip and base (no text or symbols)

Line drawing of a hairbrush cutting into a circular cutter (no text or symbols)

Illustration of a man smoking a pipe with a beanie (no text or symbols)

Illustration of two hands holding a tool with arrows indicating movement or force direction (no text or symbols)

Line drawing of a person applying a hair accessory to their neck (no text or symbols)

Illustration of a dropper tip dispensing liquid into a container, with an inset showing a dropper tip (no text or symbols present)

Illustration of a mechanical component with fluid flow, no text or symbols present

Illustration of a person applying facial care to their face, with no visible text or symbols

Illustration showing two facial expressions with a magnified inset of the first face (no text or symbols)

Simple line drawing of a paintbrush with a cross mark and paint drop, no text or symbols present

Simple line drawing of a container with an upward arrow, no text or symbols present

4 Retire o selo da recarga de limpeza.

Illustration of a blender with a black arrow pointing to its lid (no text or symbols)

Diagram of a mechanical component with a downward arrow indicating rotation (no text or symbols)

Illustration of a spray bottle with a stopper and a prohibition symbol (no text or labels)

Utilizar o sistema SmartClean

Illustration of a hand spraying water with a magnified inset showing a person's head and shoulder (no text or symbols)

Close-up of a mechanical component with a black arrow pointing downward (no text or symbols visible)

Illustration of a pair of boots with arrows indicating motion or change, no text or symbols present

Hand holding two circular buttons with a power symbol, next to a device (no text or labels visible)

4 Prima o botão ligar/desligar no sistema SmartClean para iniciar o programa de limpeza.

- Durante o programa de limpeza (que demora aprox. 10 minutos), o símbolo de limpeza fica intermitente.

Technical line drawing of a mechanical component with two circular indicators (no text or symbols)

Diagram of a blender with a black arrow pointing to its base, showing mechanical components (no text or symbols)

Diagram of a mechanical component with a downward arrow indicating direction (no text or symbols)

Limpeza da máquina de barbear à torneira

Illustration of a hand holding a small object with motion lines indicating movement or force (no text or symbols)

Illustration of a biological structure with layered patterns and a central arrow (no text or symbols)

PORTUGUÊS386

Illustration of a food item being lifted by a fork, showing a bowl with noodles and a spoon (no text or symbols)

Illustration of a biological structure with a curved arrow indicating direction (no text or symbols)

Diagram of a mechanical component with an upward arrow indicating motion or assembly (no text or symbols present)

Diagram showing two mechanical components with directional arrows, no text or symbols present

Illustration of a mechanical device with fluid flow and a gear-like component (no text or symbols)

Diagram of a mechanical or biological structure with a central circular component and an arrow pointing downward (no text or symbols)

Diagram showing a circular object with a downward arrow pointing to a triangular structure (no text or symbols)

Diagram showing a mechanical component with arrows indicating motion, divided by a diagonal line (no text or symbols)

Illustration of two hands holding a cloud-like object with arrows indicating motion or transformation (no text or symbols)

Illustration of a shoe being lifted by a bag (no text or symbols)

Illustration of a hand crushing a rock with a magnified circular inset showing a pile of rocks (no text or symbols)

Illustration of two hands holding a tool with directional arrows indicating movement (no text or symbols)

Illustration of two hands holding a shoe and a pair of boots, separated by a diagonal line (no text or symbols)

2 Ligue o aparelho.

Illustration of two cartoon fish separated by a diagonal line, one falling and the other wading (no text or symbols)

PORTUGUÊS390

Diagram of a mechanical component with a top component and an arrow indicating upward motion (no text or symbols)

Two identical diagrams showing a tool with a spring and a base, connected by a diagonal line (no text or symbols)

Illustration of a mechanical component with motion indicators and a triangular base (no text or symbols)

Diagram of a hairbrush with three blades, showing the blade structure and direction of motion (no text or symbols)

Two-step diagram showing a hairpin being inserted into a device, with no text or symbols present.

- Guarde a máquina de barbear na bolsa fornecida.

Diagram of a mechanical component with a cylindrical top and a flanged base, showing an upward arrow (no text or symbols)

Illustration of a stylized human head with ornate hair and decorative patterns, no text or symbols present

Illustration of a mechanical component with an upward arrow, no text or symbols present

Diagram showing a hand holding a circular object with arrows indicating motion or assembly (no text or symbols present)

Abstract diagram with three connected circular nodes and a central triangular structure (no text or symbols)

Pure diagram of a mechanical or architectural component with no text, numbers, or symbols

Diagram showing two mechanical components with arrows indicating motion or force, separated by a diagonal line (no text or symbols)

Illustration of two hands holding a cloud-like object with arrows indicating motion (no text or symbols)

Encomendar acessórios

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or numbers present)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Illustration of a sewing machine needle and a sewing machine foot, showing mechanical components (no text or symbols)

Illustration of two skis with directional arrows indicating movement or motion (no text or symbols)

Two mechanical components with arrows indicating motion or assembly, no visible text or symbols

Diagram showing a robotic arm gripping a tool, with an arrow indicating the movement (no text or symbols present)

No sign depicting a faucet without any text or symbols

Prohibition sign of a faucet with no text or symbols

Försiktighet

Illustration of a hairdryer with a magnified inset showing internal structure (no text or symbols)

Illustration of a dropper with a magnified inset showing a spike (no text or symbols)

Diagram of a laboratory test tube with a magnified inset showing internal structures (no text or labels)

Diagram of a hairbrush with a circular indicator labeled 'I' (no text or symbols on the diagram itself)

Illustration of a hairdryer with a magnified inset showing the tip and base (no text or symbols)

Diagram of a test tube with a cap and magnified inset showing internal components (no text or labels)

Line drawing of a robot's torso with a lock icon and a speech bubble (no text or symbols)

Line drawing of a smart device with a lock icon and a button, no text or symbols present

Byte av rakhuvuden

Illustration of a hand pressing a button on a patient's knee joint (no text or symbols)

Diagram of a plug connected to a handheld device with two arrows indicating cable or connection (no text or symbols present)

Simple line drawing of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Illustration of a pair of boots with arrows indicating motion or change, no text or symbols present

Illustration of a hand holding a circular object with an arrow pointing to it, no text or symbols present

Illustration of a person applying facial hair to their ear (no text or symbols present)

Line drawing of a person's face with hand near ear area, no text or symbols present

Våtrakning

Illustration of a hand pressing a button on a device component (no text or symbols visible)

Illustration of a person's head with a T-shaped logo overlay (no text or symbols on the figure itself)

Illustration of a hand holding a device with a warning symbol (no text or labels)

Diagram showing a droplet on a surface with an inset magnified view of the droplet's tip (no text or symbols)

Illustration of a medical or laboratory procedure showing a device emitting particles from a surface, with an inset magnified view of a graduation cap (no text or symbols present)

Line drawing of a person using a hairpin to apply product (no text or symbols)

Illustration of a medical procedure with an incision and magnified view of a graduation cap (no text or symbols)

Line drawing of a hairbrush cutting down a button with a downward arrow (no text or symbols)

Illustration of a man with a beard and a pipe, showing a hand holding a small object (no text or symbols present)

Illustration of two hands holding a tool with directional arrows indicating movement or force (no text or symbols present)

Line drawing of a person applying a hair accessory to their neck (no text or symbols)

Illustration of a dropper tip dispensing liquid into a container with an arrow indicating flow (no text or symbols)

Illustration of a mechanical component with motion lines indicating movement (no text or symbols)

Illustration of a person applying facial care to their face, with no text or symbols present.

Simple line drawing of a paintbrush with a cross mark and spray effect (no text or symbols)

Simple line drawing of a container with an upward arrow and a shaded interior (no text or symbols)

Diagram of a blender with a black arrow pointing to its base, showing mechanical components (no text or symbols)

Diagram of a mechanical component with a downward arrow indicating rotation (no text or symbols)

Illustration of a dropper tip with a stopper and a prohibition symbol (no text or labels)

Close-up of a mechanical component with a black arrow pointing downward (no text or symbols visible)

Illustration of a pair of boots with arrows indicating motion or change, no text or symbols present

Hand holding two circular buttons with a power symbol, next to a device (no text or labels visible)

Technical line drawing of a mechanical component with two circular indicators (no text or symbols)

Diagram of a blender with a black arrow pointing to its lid (no text or symbols present)

Diagram of a mechanical component with a downward arrow indicating motion (no text or symbols)

Illustration of a hand holding a small object with motion lines indicating movement or force (no text or symbols)

Illustration of a hand holding a decorative object with swirling patterns, no text or symbols present

Illustration of a food item being lifted by a pipette, showing a bowl with noodles and a fork (no text or symbols)

Anatomical illustration of a human organ with arrows indicating movement or force (no text or labels present)

Illustration of a mushroom-shaped object with an upward arrow, no text or symbols present

Diagram showing two mechanical components with arrows indicating direction, no text or symbols present

Diagram showing fluid flow between two vessels with bubbles and a central pipe (no text or symbols)

Diagram of a mechanical or biological component with a central arrow pointing downward, no visible text or symbols

Diagram showing a circular object falling into a triangular structure with concentric rings (no text or symbols)

Diagram showing two circular components with arrows and a checkmark, no readable text or symbols present

Illustration of two hands holding a cloud-like object with arrows indicating motion or transformation (no text or symbols)

Illustration of a shoe being lifted by a bag (no text or symbols)

Illustration of a hand holding a tool with motion lines, accompanied by a magnified circular inset showing a mountain silhouette (no text or symbols)

Illustration of two hands holding a tool with directional arrows indicating movement or force (no text or symbols)

Illustration of two kitchen utensils with liquid splashing, separated by a diagonal line (no text or symbols)

Two cartoon fish jumping over a diagonal line, one falling and the other wading (no text or symbols)

SVENSKA426

Diagram of a mechanical component with a top cylindrical part and an upward arrow, no text or symbols present.

Two identical diagrams showing a tool with a handle and a base, connected by a diagonal line (no text or symbols)

Illustration of mechanical components and a gear mechanism (no text or symbols)

Diagram of a hand holding a small object with three circular elements, showing a downward arrow (no text or symbols)

Simple line drawing of a mechanical component with an arrow indicating downward motion (no text or symbols)

Diagram of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Diagram of a mechanical component with a top cylindrical part and an upward arrow indicating motion (no text or symbols)

Anatomical illustration of a human digestive system with an arrow indicating a specific region (no text or labels present)

Diagram of a mechanical component with an upward arrow indicating motion or force (no text or symbols present)

Diagram showing a hand holding a circular object with arrows indicating motion or force (no text or symbols present)

Abstract diagram of a symmetrical structure with three circular elements and an upward arrow, no text or symbols present.

Pure diagram of a mechanical or structural component with no visible text, numbers, or symbols

Diagram showing mechanical components with arrows indicating motion or force, no readable text or symbols present

Illustration of two hands holding a heart-shaped object with arrows indicating motion or transformation (no text or symbols)

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Illustration showing a hand using a screwdriver to cut a cylindrical object, with another hand holding a small boat (no text or symbols present)

Illustration of two skis with directional arrows indicating motion (no text or symbols)

Two mechanical components with a diagonal line and an upward arrow, no visible text or symbols

Illustration of a robotic arm gripping a tool, with a hand holding the grip and an arrow indicating motion (no text or symbols)

No sign depicting a faucet without any text or symbols

Simple line drawing of a showerhead spraying over a water-filled container (no text or symbols)

Elektromanyetik alanlar (EMF)

Diagram of a test tube with a cap and a magnified inset showing internal structure (no text or labels)

Diagram of a test tube with a spiky tip and a magnified inset showing a labeled section (no text or symbols present)

Diagram of a laboratory test tube with a magnified inset showing internal structures (no text or labels)

Diagram of a mechanical component with a labeled section and circular annotation (no text or symbols)

Illustration of a syringe with a magnified inset showing internal components (no text or symbols)

Illustration of a dropper with a cap and a starburst symbol (no text or labels)

Diagram of a test tube with a magnified inset showing internal components (no text or labels)

Line drawing of a robot's torso with a lock icon and a speech bubble (no text or symbols)

Line drawing of a smart device with a lock icon and a button, no text or symbols present

Illustration of a hand pressing a button on a knee joint (no text or symbols)

Diagram of a handheld device with cable and plug, showing connection to a wall socket (no text or symbols)

Diagram showing a hand pressing down on a surface with arrows indicating motion or force direction, and an inset magnified view of a mechanical component (no text or symbols)

Simple line drawing of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Illustration of a pair of boots with arrows indicating motion or change, no text or symbols present

Illustration of a hand holding a circular object with an arrow pointing to it, no text or symbols present

Illustration of a person applying a hair accessory to their face (no text or symbols present)

Illustration of a person's face with a hand touching the cheek area (no text or symbols)

Line drawing of a person's head and neck showing a cotton patch on the ear (no text or symbols)

Illustration of a hand using a tool to lift a small object, showing motion lines (no text or symbols)

Illustration of a person applying makeup to their face with a circular tool (no text or symbols)

Illustration of a hand pressing a button on a human leg, with no visible text or symbols

Illustration of a person's beard and toothbrush with a circular logo containing the letter 'T' (no text or symbols on the diagram itself)

Illustration of a hand holding a mushroom with a funnel and a cross symbol, no text or labels present

Diagram showing a funnel pouring liquid into a curved surface, with an inset magnified view of the process (no text or symbols)

Illustration of a robotic arm interacting with a curved surface, showing motion and magnified detail (no text or symbols)

Illustration of a hairbrush cutting down a surface with a downward arrow indicating compression (no text or symbols)

Illustration of a man smoking a pipe with a beanie (no text or symbols)

Illustration of two hands holding a tool with directional arrows indicating movement or force (no text or symbols present)

Line drawing of a person applying a hair product to their neck (no text or symbols)

Illustration of a dropper tip dispensing liquid into a container, with an inset showing a dropper tip (no text or symbols present)

Illustration of a tool tip dispensing liquid into a mechanical component (no text or symbols)

Illustration of a person applying facial care to their face with a tool, no text or symbols present

Illustration showing facial massage technique with a magnified inset of the eye area (no text or symbols)

Simple line drawing of a paintbrush with a cross mark and spray effect (no text or symbols)

Simple line drawing of a container with an upward arrow and label 'SWEA' (no text or symbols on the diagram itself)

Diagram of a blender with a black arrow pointing to its base, showing mechanical components (no text or symbols)

Diagram of a mechanical component with a downward arrow indicating rotation (no text or symbols)

Illustration of a dropper tip with a stopper and a prohibition symbol (no text or labels)

SmartClean sistemini kullanma

Diagram showing fluid flow around a barrier with an inset magnified view of a mechanical component (no text or symbols)

Close-up of a mechanical component with a black arrow pointing downward (no text or symbols visible)

Illustration of a pair of boots with arrows indicating motion or change, no text or symbols present

Hand holding two circular buttons with power and spiral symbols, connected to a device (no text or labels visible)

Technical line drawing of a mechanical component with two circular indicators (no text or symbols)

Illustration of a blender with a black arrow pointing to its lid (no text or symbols)

Diagram of a mechanical component with a downward arrow indicating motion (no text or symbols)

Illustration of a hand holding a small object with motion lines indicating movement or force (no text or symbols)

Illustration of a biological structure with swirling patterns and directional arrows (no text or symbols)

Illustration of a food item being lifted from a tube into a bowl (no text or symbols)

Anatomical illustration of a human digestive system with arrows indicating movement or force (no text or labels)

Illustration of a mushroom-shaped object with an upward arrow, no text or symbols present

Diagram showing two mechanical components with directional arrows, no text or symbols present

Illustration of two mechanical devices with water spray and a gear-like component, no text or symbols present

Pure mechanical component diagram without any text, numbers, or symbols

Pure diagram of a mechanical or structural component with no visible text, numbers, or symbols

Diagram showing mechanical components with arrows indicating motion or force, no readable text or symbols present

Illustration of two hands holding a cloud-like object with arrows indicating motion or transformation (no text or symbols)

Simple line drawing of a shoe being held by a tool, no text or symbols present

Illustration of a funnel-shaped object emitting particles, with an inset showing a hand holding a rock and a cross symbol (no text or labels)

Illustration of two hands holding a tool with directional arrows indicating movement or force (no text or symbols present)

Illustration of two hands pouring liquid from a container onto a surface, separated by a diagonal line (no text or symbols)

Two cartoon-style illustrations of a rocket and a falling object on a diagonal line (no text or symbols)

Diagram of a mechanical component with a top cylindrical part and an upward arrow indicating motion (no text or symbols)

Two hanging objects with ropes tied on a diagonal line, no text or symbols visible

Illustration of mechanical components and a gear mechanism (no text or symbols)

Diagram of a mechanical component with a top cylindrical part and an upward arrow, no text or symbols present.

Diagram of a biological structure with internal organs and directional arrows, no visible text or labels

Illustration of a mushroom-shaped container with internal swirling patterns and an upward arrow, no text or symbols present.

Diagram showing a hand holding a circular object with arrows indicating direction, alongside a divided line and a battery-like component (no text or symbols)

Pure diagram of a mechanical or structural component with no visible text, numbers, or symbols

Diagram showing two circular components with arrows indicating direction, one crossed over the other by a diagonal line (no text or symbols)

Illustration of two hands holding a cloud-like object with a downward arrow and a glowing effect (no text or symbols)

Symbol of a trash bin crossed with no text or labels, accompanied by a blank rectangular block below (no text or symbols present)

Illustration of a hand holding a small object with a tool, alongside a close-up of the same object (no text or symbols present)

Illustration of two skis with directional arrows indicating movement or motion (no text or symbols)

Diagram showing two mechanical components with arrows indicating motion or force direction (no text or symbols)

Illustration of a hand using a tool to lift a car, with an arrow indicating the process (no text or symbols present)
