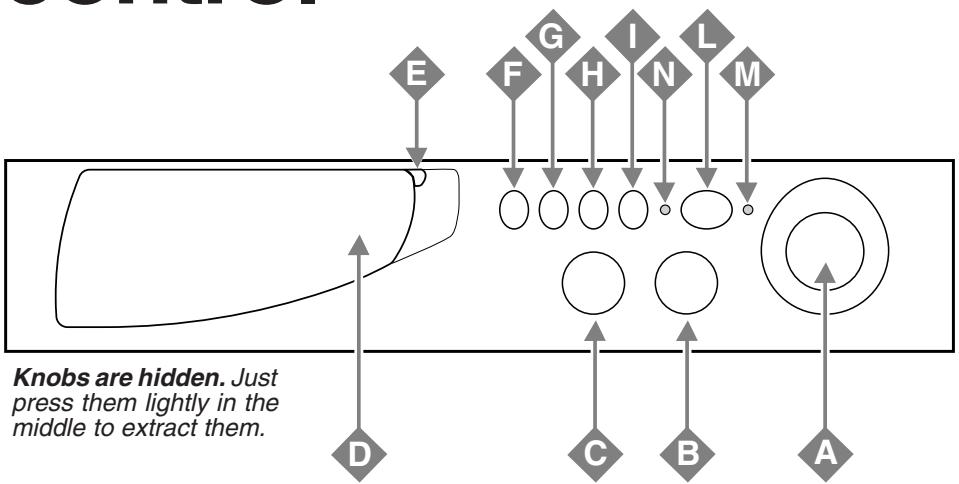

4. Understanding the control panel (page 10)

This Washing machine's control panel is very simple. It has only a few essential buttons to help you choose any type of wash and dry cycle, ranging from the most energetic, capable of cleaning a mechanic's overalls, to the most delicate for wool. Familiarizing yourself with it will help you get the best out of your wash while helping your machine last longer.

5. Guide to the wash programs (page 11)

Here is an easy table to help you choose the right program, temperature, detergents and possible additives. Choose the right program and you will get better results with your wash while saving time, water and energy, day after day.

6. Useful tips to wash and to avoid mistakes (pages 12-13-14)

Years back, our grandmothers were the ones who gave us good advice - and in those days synthetic fibers did not exist: washing was easy.

Cartoon illustration of a smiling computer character next to a blackboard with handwritten math equations and a soccer ball drawing.

7. The detergent dispenser (page 15)

How to use the detergent dispenser and the bleach compartment.

8. Problems and solutions (pages 16-17)

Before calling a technician, read these pages. Immediate solutions can be found for a many problems. If the problem persists, call the Customer Care. They will be glad to help you.

9. Care and maintenance (page 18-19)

With just a bit of care, the washing machine will repay you with outstanding performance for years and years to come.

10. Technical characteristics (page 19)

Here are the technical features of your washing machine: model number, electric and water specifications, size, capacity, speed of the spin cycle and compliance with US & Canadian regulations.

Introduction

Congratulations on your new Washing machine. In addition to its award winning design, this is a highly sophisticated engineered product that will give you many years of satisfaction. Please spend a few moments to read the Owners Manual. This will show you ways to best utilize your valuable purchase.

Here are 7 of the best reasons for buying your Washing machine :

1. Maximum Energy and Water Savings

This appliance is engineered to provide valuable energy and water savings when compared to other washing machines.

2. Space Savings

The Washing machine is designed to utilize horizontal and vertical space effectively.

4. Improved Operation

With a spin speed of 1200 RPM, more water is extracted, allowing improved dry times.

5. Better Clothing Appearance

This Washer-Dryer has no agitator to damage your clothes so they look better and last longer.

6. Placement Options

The Washing machine's sleek Italian design makes it a perfect appliance for any Kitchen or Laundry Room. Its compact size makes the Washing machine perfect for placement on any floor of your home.

7. Convenience

This appliance can be permanently installed and be made portable with casters and the faucet adapter kit (sold separately as accessories) where needed.

Important Safety Instructions

Your safety and that of your children

Your washing machine has been built in compliance with the strictest international safety regulations, to protect you and all your family.

WARNING -To reduce the risk of fire, electrical shock, or injury to persons when using your appliance, follow basic precautions, including the following:

1. Read all instructions before using the appliance.
2. Do not wash articles that have been previously cleaned in, washed in, or spotted with gasoline, dry cleaning solvents, other flammable or explosive substances as they emit vapors that could ignite or explode.
3. Do not allow children to play on or in the appliance. Close supervision of children is necessary when the appliance is used near children.
4. Before the appliance is removed from service or discarded, remove the door.
5. Do not reach into the appliance if the tub or drum is moving.
6. Do not install or store this appliance where it will be exposed to the weather.

7. Do not tamper with controls.

8. Do not repair or replace any part of the appliance or attempt any servicing unless specifically recommended in the user-maintenance instructions or in published user-repair instructions that you understand and have the skills to carry out.

9. Do not add gasoline, dry-cleaning solvents, or other flammable or explosive substances to the wash water. These substances give off vapors, that could ignite or explode.

10. Under certain conditions, Hydrogen gas may be produced in a hot water system that has not been used for 2 weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot water system has not been used for such a period, before using a washing machine, turn on all hot faucets and let the water flow from each for several minutes. This will release any accumulated Hydrogen.

11. Do not use fabric softeners or products to reduce static unless recommended by the manufacturers of the fabric softener product.

12. Check the Coin Trap every few months to remove any coins, buttons or similar size objects.

Save these instructions

Safety

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION:

To reduce the risk of electric shock, DO NOT remove cover (or back).

Refer for servicing to qualified services personnel.

The model number of this product may be found on the front and back of the unit and serial tag.

You should note the model and serial numbers of this unit in the space provided. Retain this booklet as a permanent record of your purchase to aid in identification in the event of Service Waranty.

MODEL N.

SERIAL N.

WARNING:

TO PREVENT FIRE OR SHOCK HAZARD DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

The lightning flash with arrowhead symbol, within a triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk

of electric shock to persons.

Cartoon illustration of a mechanic standing next to a smiling washing machine (no text or symbols present)

The exclamation point within a triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

Merloni Elettrodomestici SpA offers to our customers products with the ENERGY STAR Label.

This appliance was tested by UL and conforms with both Canadian and U.S. UL safety requirements and displays their Mark.

US LISTED

PRE-INSTALLATION

1. The washer must be installed on a strong level floor, and in protected, dry, and well-ventilated area close to a power and water supply of sufficient capacity, and a sufficient outlet.
2. Installation on Carpet or Wood increases vibrations.

- Carpets - place on thin carpet only.

- Wood - brace floor with screws and place additional sheets of plywood before installation.

1. Washing machine installation and grounding should be done in accordance with local codes by a qualified installer. "Installation Instructions" are included in your Use and Care manual for the Installer's reference.
2. The washer should be plugged into a properly grounded three (3) prong electrical outlet of 120 Volt, 1300 W, 13 A, 60 Hz. It should not be controlled by a wall switch or pull cord which might be turned off accidentally.

Your new appliance is carefully engineered product. Many times what appears to be a reason to call for service, requires nothing more than a simple adjustment you can easily make in your own home.

You will be charged for a service call while the appliance is in warranty if the problem is not caused by defective product workmanship or materials covered by this warranty.

To avoid a charge for an unnecessary service call, and before calling a serviceman, please refer to the troubleshooting section for situations that you can remedy. This section is included on pages 16-17 of this Use and Care Book.

Your Washing machine is front loading, with an extra large door opening for easier access. It has 9 wash cycles in addition to extra rinse and pre wash cycles.

You will obviously want to obtain the best possible wash. By reading and following the instructions in this booklet you will achieve excellent results.

Please, ensure that the instructions are followed. If you should need any further advice or assistance, please, contact the dealer where your machine was purchased.

This appliance is an automatic washer with a capacity of up to:

12 lbs. - 5,5 Kgs

Helpful Hints

Your Washing machine features three different speeds during the wash cycle. During the Cotton cycle the drum spins at 1,200 or 800 rpm depending on how you set it. During Permanent Press the drum spins at 850 rpm. During delicates, the drum spins at 500 rpm. The faster spinning will extract more water from highly absorbent fabrics and reduce the degree of dampness.

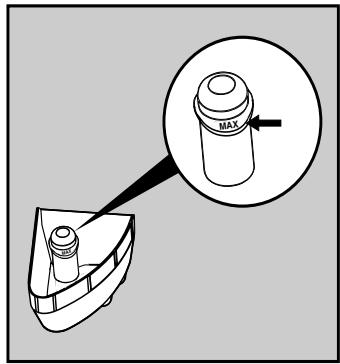

Using Liquid Fabric Softener. Fill the softener compartment up to the level marked. Using fabric softener fluffs out clothes immediately after the wash cycle. This helps speed drying time and reduce wrinkles.

Use Low sudsing Detergent. This is recommended for all front loading washers. It ensures there is no over sudsing, which may reduce the performance and damages to your machine.

When sorting laundry always take into consideration the quantity and type of fabric contained in the load. Highly absorbent fabrics such as those used in towels or jeans will absorb more water and become very heavy when saturated. If you notice that your clothes are taking longer than usual to dry you may be overloading the machine, or washing too many highly absorbent articles for a single load.

Installation

When the new washing machine arrives

Whether new or just transported to a new house, installation is extremely important for the correct functioning of your washing machine.

After removing the appliance from its packaging, check that it is intact. The inside of the machine is supported, for transportation, by four shipping bolts on the back panel.

Technical line drawing of a mechanical or electrical component with no visible text, numbers, or symbols.

Before using the washing machine, remove the 4 external shipping bolts, remove the spacers together with the rubber tubes attached to them (save all the parts) and use the plastic blanking plugs provided to fill in the holes. Use the wrench provided to remove the external bolts.

Attach the two rubber hoses provided to the red (hot) and white (cold) water inlets on the back (top right) of the appliance. Using the “U”-Connector provided, place the drain hose into the drain pipe (or the sink.) See Plumbing on Page 7 for more details.

Leveling

The washing machine must be levelled appropriately in order to guarantee its correct functioning. To level the appliance, the front feet must be adjusted; the angle of inclination, measured according to the worktop, must not exceed 2^ .

Diagram showing a curved surface with a spiral pattern and a rotation arrow, no text or symbols present

WARNING

Excessive Weight Hazard

Use two or more people to move and install your appliance. Failure to do so can result in back or other injury

The front feet are self-locking & adjustable

For your own protection, and to prevent accidents, injury and fire, please read the following carefully:

1. Destroy the carton and plastic bags, after the washing machine has been unpacked.
2. Children should never be left alone or unattended in the area where appliances are located.
3. Washer installation and grounding must be done in accordance with local codes by a qualified installer. Installation instructions are packed in new washer for the installer's reference.
4. ONLY Low Sudsing detergent is recommended for this appliance.

Retain the shipping bolts, spacers and washers. Should you move residence then these should be replaced to support the inside of the machine to prevent damage when transporting the machine.

Illustration of a woman pushing a smiling computer with a document nearby (no text or symbols present)

1. The washer must be plugged into a properly grounded 3-prong electrical outlet. For your safety, the third or round grounding prong must never be removed.

DO NOT USE AN EXTENSION CORD.

1. Repair or replacement of a part should be made only by a qualified service

technician to prevent personal injury or damage to the machine.

1. Disconnect power to the washer at the circuit breaker or fuse box, or unplug the machine in an emergency when servicing is required. Have the installer show the proper switch or fuse at the electrical disconnect box.

WARNING ⚠️ Electrical Requirements

Electrical Shock Hazard (death, fire or electrical shock):

1) Plug into a grounded 3 prong outlet.
2) Do not remove ground prong.
3) Do not use an adapter or an extension cord.
4) The Appliance should be connected to an Individual Branch Circuit with N. 14 AWG Wire and Protected by 15 A Fuse.

GROUNDING INSTRUCTIONS

This appliance must be grounded. In the event of malfunction, or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current. This appliance is equipped with a cord having an equipment-grounding conductor and grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.

WARNING - Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check a qualified electrician if you are in doubt as to whether the appliance is properly grounded.

Do not modify the plug provided with the appliance. If it will not fit the outlet, have a proper outlet installed by a qualified electrician.

Warning!

The company denies all liability if and when these instructions are not respected. Plastic bags, expanded styrofoam, nails and other packaging parts are not children's toys, and are potentially dangerous and they should be disposed off properly.

PLUMBING (Water Inlet)

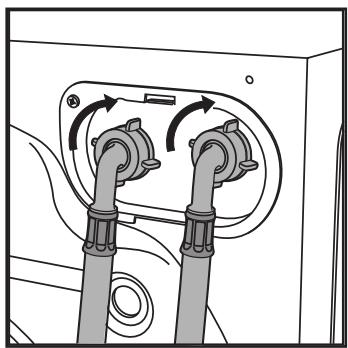

Included in the accessories supplied with this machine are 2 inlet hoses and 4 rubber washers. The straight end of these hoses should be connected to the supply (fig. 1).

The 90^ angled end of these hoses should be connected to the inlet valves on the back of the machine, using one of the washers to make a water tight seal on each connection.

The couplings should be tightened by hand, a tool should only be used if a leak occurs.

Do not use excessive force (see fig. 1).

Repair or replacement of a part should be made only by a qualified service technician to prevent personal injury or damage to the machine. inlet valves are color coded:

$$ \begin{array}{l} \text { Red } = \text { Hot } \ \text { White } = \text { Cold } \end{array} $$

Connection to the water mains

Water pressure must range within the values indicated on the data plate on the rear of your washer-dryer. If the water pipes are new or left unused, then before connecting the machine run the

Diagram of two connected pipes with directional arrows indicating flow or movement (no text or symbols)

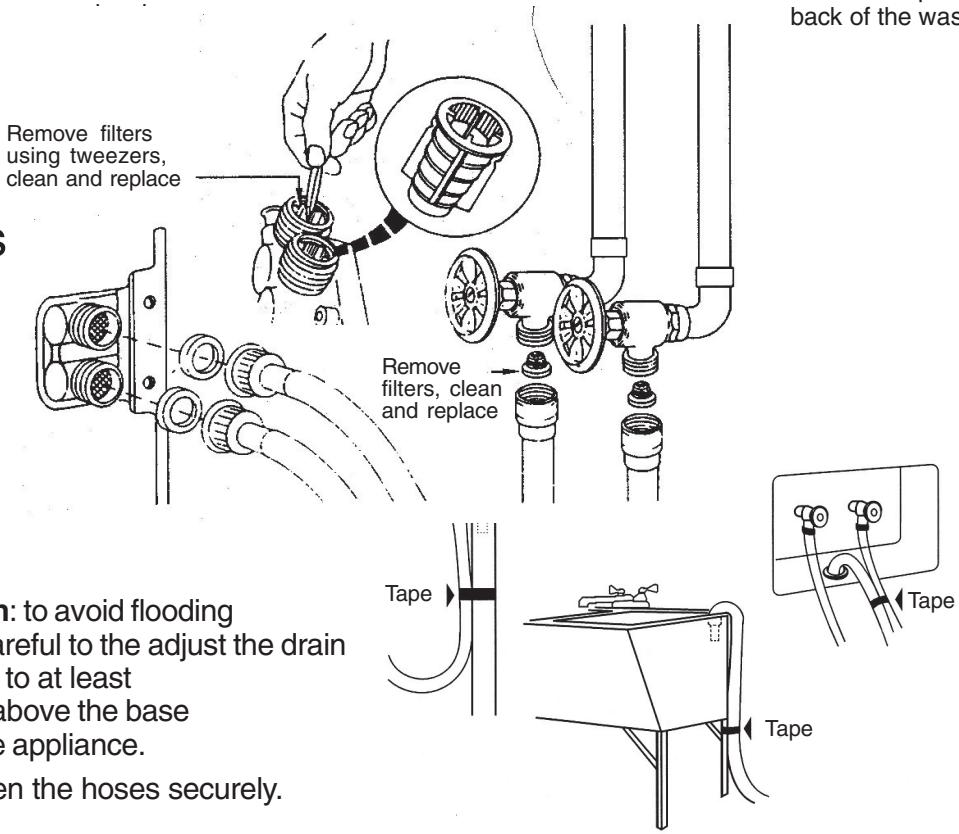

water until clear to remove debris. Connect the inlet hose to a cold water tap having a 34 " BSP thread. Ensure that there are rubber washers are at each end of the inlet hose. The L-Shaped end goes on the machine and straight ends on the water faucets

Fig. 1 - Water pipe inlet at the rear top right

Note:

Replace inlet hoses after 5 years of use to reduce the risk of hose failure. Record hose installation or replacement dates on the hoses for future reference.

Periodically inspect and replace hoses if bulges, kinks, cuts, wear or leaks are found.

PLUMBING (Water Out)

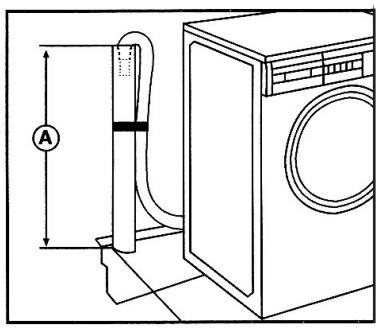

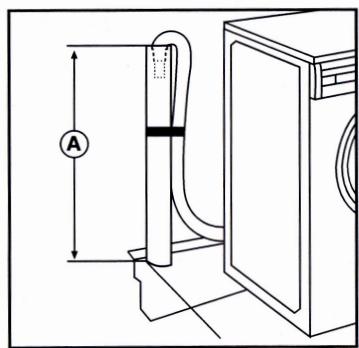

You should carefully position the drain hose to avoid kinks and ensure proper drainage of the water (fig. 2-3-4-5).

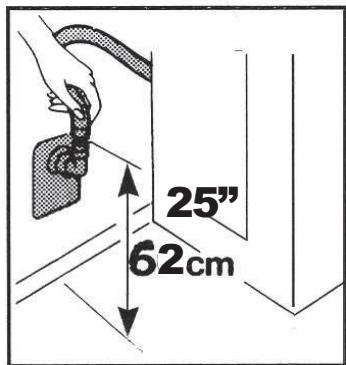

The outlet end of the drain hose must be at least 25" (62 cm) above the base of the machine. At this point it is possible for the water to be discharged into a sink or drain pipe, but an air break must be available at this 25" height to prevent the machine from syphoning (see fig. 2-3 aside).

No more than 6" of the drain hose should be inserted in the drain pipe.

IMPORTANT

make sure that the drain hose is not kinked and the water flow has not been restricted.

25" 62cm

Fig. 2 - Drainage

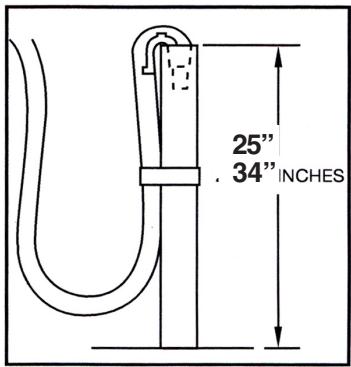

25" . 34" INCHES

Fig. 3 - Drainage

Standpipe drain system:

In RV installation needs a 1-1/2 inch (3.7 cm) diam. standpipe with minimum carry away capacity of 7 gallons (31 liters) per minute or 2" (5 cm) in home installation (fig.3-4).

Floor Standpipe drain:

Top of standpipe must be at least 25 inches (62 cm) high and no higher than 34 inches (86 cm) from the bottom of washer (A) (fig. 3-4).

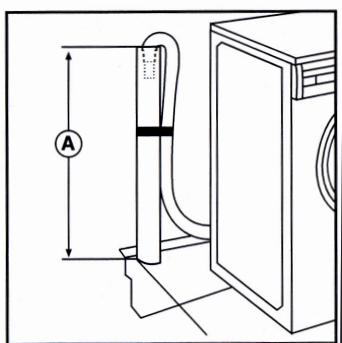

Wall standpipe drain:

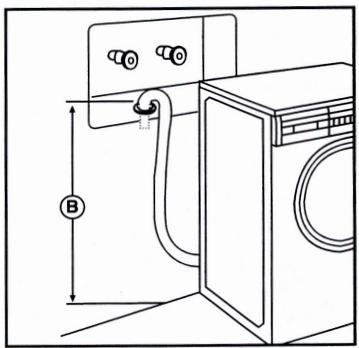

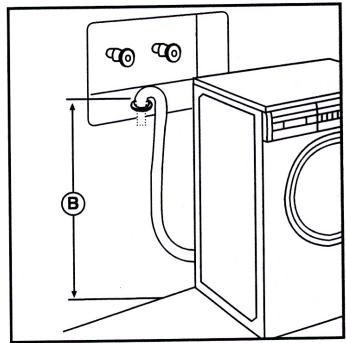

25 inches (62 cm) min.; 34 inches (86 cm.) max from end of drain hose to bottom of washer (B) (fig. 5).

Technical diagram showing a device with a vertical measurement labeled 'A' and an open door, likely illustrating a measurement or installation procedure.

Fig. 4 - Drainage

Line drawing of a washing machine with attached door and hanging switch (no text or symbols)

Fig. 5 - Drainage

RECESSED, CLOSET AND ALCOVE INSTALLATION (Instructions)

The machine may be installed in a recessed area, closet or alcove.

The installation spacing is in inches and is the minimum acceptable.

Additional spacing should be considered for easy

Black-and-white cartoon illustration of a woman washing clothes from a large machine, with laundry scattered nearby (no text or symbols)

installation, servicing and in compliance with local codes or ordinances.

Other installation must use the minimum dimensions indicated.

* Additional clearances for wall, door and floor moldings maybe required.

es or quired. 0""*

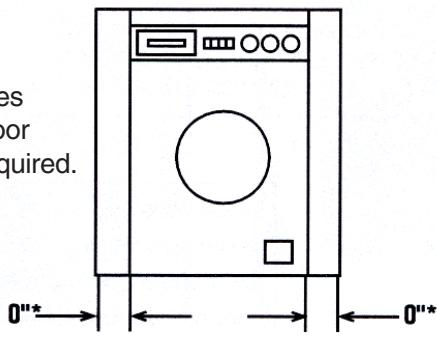

Recessed front view

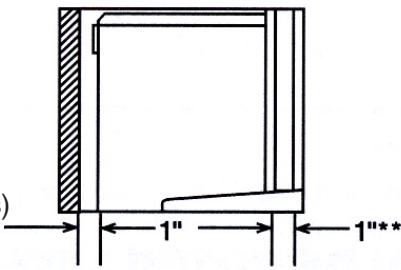

Minimum installation spacing

** Additional space is needed when an external exhaust elbow is used (just for vented models)

1" 1"**

Side View

Operating instructions

What goes in your washer ?

Before washing, you can do a great deal to ensure better results. Divide your garments according to fabric and color. Read the labels, follow their guidelines.

Dividing your garments according to fabric and color, is very important for good results

LAUNDRY PREPARATION

Sorting

Clothes should be sorted from separate items which could damage other garments. Sort items into loads according to similar colors, fabrics, garment construction and degrees of soil.

• Color. Separate clothes into three groups: whites and pastels, medium and bright colors and dark colors. Items which bleed color should be washed alone.
• Type of fabrics. Delicate items should be separated from sturdier items. Fabrics that shed lint should be separated from those which shed none or attract lint.
• Garment constructions. Garments that may fray easily or that have unusual trim require gentle care. These garments may be washed in the loader using the knit cycle. If garments are fragile and delicate, hand washing may be desirable.
• Degree of soil. Heavily soiled items should be separated from the rest of the wash to prevent transfer of soil in the wash water.

Inspection

While sorting clothes into wash-loads, also inspect each garment to see if it requires special care.

- Remove stains, while they are fresh and easy to get out. Try cold water first to remove unknown stains. Hot water sets stains containing protein such as blood, egg, meat and milk. To remove difficult stains, refer to the removal Chart at the end of the manual.

• Pretreat heavily soiled areas such as collars, cuffs and centers of pillowcases. Refer to the “Pretreating” section for specific instructions.
• Mend rips and tears, before washing, so further damage is not done to garments.
• Empty pockets. Objects left in pockets such as crayon, pens or markers, or tobacco crumbs may stain an entire wash load. Paper tissues will shred leaving bits on each item in the washer. Remove coins and other foreign objects to prevent damage to the machine.
• Fasten all hooks, zippers and buttons.
• Turn knit garments inside out to reduce the tendency of knits to “pill”. Fabric “pills” are balls of fibers on the surface the garments caused by wear or friction.
• Remove loose dirt and sand. Brush dirt from trouser cuffs; shake or vacuum rugs to remove loose surface soil.
• If buckle is washable, place a scrap of material securely around the ornament before washing and drying to prevent scratching and damage to the machine. Remove non-washable trims, buckles, buttons and belts.
• Tie strings, belts and apron sashes into bows to avoid tangling during washing.
• Before loading the washer, make sure the drum is empty.

Pretreating

Pretreat heavily soiled areas such as collars, cuffs and center of pillowcases by using a prewash spray, or brushing liquid detergent or a laundry detergent or a laundry detergent and water paste over the areas before washing.

Refer to the Stain Removal Chart for treatment of specific stains. If an entire item is heavily soiled or very stained, it may be both easier and more effective to prewash the item before laundering than to pretreat every spot.

Prewashing

Prewash excessively soiled clothes, such as work or children's clothes. Prewashing with detergent will help loosen the soil.

Laundry aids

Detergents are the most popular cleaning agents for home laundry.

Using too little detergent results in poor wash quality, while using too much causes excessive suds and poor rinsing. Detergents not only remove soil, but also hold it in suspension in the wash water to prevent redepositing it on the wash load. The amount to use depends on wash load size, amount of soil, water hardness and detergent type.

ALWAYS measure the amount of detergent. The amount of suds formed is not necessarily an indication of how much to use. Some detergents form a great amount of suds, others only a few. Use only detergents suitable for front loading washers.

LAUNDRY AIDS

1. Use only low sudsing detergent.
2. The degree of soil will change detergent amounts. For heavier soiled loads, increase the amount of detergent used.
3. If water is extremely hard, detergent should be increased. Less detergent should be used in soft water.
4. If garments have been pretreated, decrease the amount of detergent. If garments have been heavily pretreated, it may not be necessary to add detergent.
5. If the previous machine owned was a top loader, the initial washloads in a front loader may require a reduced quantity of

detergent until the detergent remaining in the clothes is removed. Old detergent trapped in the garments will be released during the tumble action wash cycle.

For quantities of detergent to be used, refer to the detergent manufacturer's instructions on the box.

Detergent will be flushed automatically into the machine from the detergent dispenser. The suds level should never rise more than halfway up the porthole. Too much foam will not impede the wash action of your machine but will rise through the detergent dispenser and make a mess on the floor!

If this should happen clear excessive suds by setting the timer to the beginning of the first rinse and allow the machine to rinse out.

Bleaches

Bleach functions to whiten clothes, remove certain problem stains, to deodorize and in some cases to sanitize; however bleaching is not a substitute for good laundry techniques. Bleach should never be added to the rinse water. Always dilute bleach before using.

To add bleach, open detergent dispenser door and pour in compartment 4 (see page 15 and 13-14).

WARNING:

Under no circumstances overfill the bleach dispenser. Excessive bleach will run directly into the machine and may possibly damage the clothes.

Fabric Softener

All fabrics, particularly towels, benefit from the use of fabric conditioners in the final rinse. Items of laundry feel softer, and are more easily ironed and making these clinging affect of synthetics is considerably reduced.

Pour the softener into “Additives” compartment of the detergent dispenser to the level indicated on the syphon. Under no circumstances overfill, as the softener will immediately syphon into the machine and in so doing, impair the wash results.

Starting the washing machine

After installing your new washing machine, start a wash cycle by setting a desired program.

Starting your washing machine in the right way is important for the quality of your wash, to help prevent future problems and enhance life expectancy of your appliance. Once you have loaded your washing machine and added the detergent together with any fabric conditioner,

For more delicate garments: protect underwear, tights and stockings and delicate items by placing them in a canvas pouch

always check that:

1. The door is closed correctly.
2. The plug is secured in the socket.
3. The water supply is turned on.

Choose the desired program

The program is selected according to the type of garments that need to be washed. To choose a program, refer to the table on page 11, then:

1) turn Washer knob until the selected program is aligned with the mark on the knob,
2) Set the Wash Temp knob to the appropriate Wash/Rinse temperature settings,
3) if necessary use buttons F, G, H, I and lastly, press the Power button.
4) Remember, if you want to use the "Delay Timer" it should be set before the wash cycle.

At the end of the wash cycle... Mode+Door Lock light will flash fast for a few seconds, and then flashes slowly.

Then turn the washer off by pressing the Power button (O position). You can now open the washing machine door safely. After having removed the freshly cleaned laundry, leave the door open to allow air circulation inside the drum.

Remember that, in the event of a power failure, or should the washer switch itself off, the program chosen will remain in memory.

Making the right choice is important. And it's easy.

Here I'm in control

Knobs are hidden. Just press them lightly in the middle to extract them. E F G H I N L M D C B A

Washer knob and Delay start

Use this knob to select the wash program.

Turn this knob clockwise only.

To select a program, you should turn the knob so that the word/number of the desired program is in line with the pointer on the knob.

Now press on/off button L, pilot lamp M will start flashing.

After 5 seconds, the setting will be accepted, pilot lamp M will stop flashing (staying lit) and the wash cycle will begin.

If you want to interrupt the program in progress or set a new one, select one of the Reset positions and wait 5 seconds. When the cancellation has been accepted, pilot lamp will flash 5 times, and you can then turn the appliance off.

You can use this knob to delay the appliance's operation.

Select one of the 4 delay time positions, press the on/off button L in and wait 5 sec. The setting has now been accepted (pilot lamp M stays lit) and you can select the program you desire.

Pilot lamp M has a particular flashing motion (2 sec. on and 4 sec. off) to indicate that a delayed start has been set.

During this phase, you can open the appliance door and change the washing load, should you wish to do so.

After the wash cycle has been set and accepted by the washer-dryer, turning the knob will have no effect (except for when it is on position Reset (Stop).

Temperature control knob

It is used to set the wash temperature in the recommended program table on page 11. It also allows you to reduce the temperature recommended for the selected program, and even to set a cold wash cycle.

Spin speed knob

It is used to change/exclude the spin cycle (by choosing symbol Ⓞ) of the selected program. The maximum speed for the four types of fabric are:

Fabric

Cotton

Synthetics

Wool

Silk

Speed

max rpm

800 rpm

600 rpm

no

Detergent dispenser

It is divided into 3+1 sections:

1. Detergent for pre-wash;
2. Detergent for the main cycle wash;
3. Fabric conditioner;
4. Bleach.

Cartoon illustration of a surprised character holding a card, with expressive eyes and surprised expression (no text or symbols)

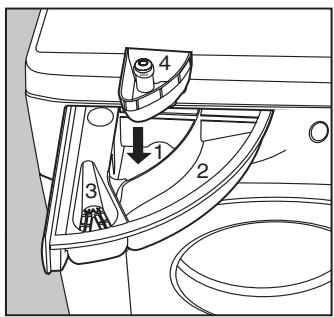

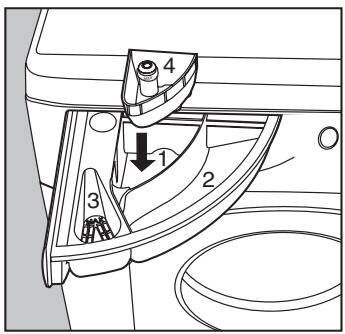

The detergent dispenser with the additional bleach compartment is here. (For details see page 15).

Technical diagram of a car air intake component with numbered parts and directional arrow indicating flow or movement.

Program key to consult a straightforward chart of the different programmes available: pull the grey tab outwards to open it.

Soaking

This function allows you to leave your washing to soak for one hour during the wash cycle. During this time, your washing is also tumbled.

Extra Rinse

This function adds one rinse cycle for Cotton and

Permanent Press fabrics. Use of this function is recommended for improving rinsing results when washing full loads and large quantities of detergent are used.

Recommended for detergent contact allergies.

Easy iron

This function allows your clothes to come out of the machine without wrinkling, making it much easier to iron. You can use it with Permanent

Press and Hand Washables programs.

Press this button in such programs and the wash cycle will come to a stop on one position Easy iron. You can complete the cycle by pressing button H again.

Pre-wash

With this button, you can pre-wash on all programs except the Wool program. (see page 11).

ON-OFF (Power)

To turn on the washer, press button L in. To turn off, press button L again so that it is out. Turning the appliance off does not cancel the selected program.

On-Off lamp - Door lock (Status)

Lamp M flashes slowly when the appliance is switched on and awaiting instructions and at the end of a cycle, indicating that the door can be opened. It flashes quickly when the door should not be opened. A steady light means the appliance has accepted the selected program.

Door locked lamp

The safety lamp indicates the washing machine door is locked to prevent it from beeing opened accidentally. You must wait 2 minutes for the lamp to extinguish, before opening it.

What are you washing today?

A program for all seasons

Type of fabric and degree of soil

Program knob

Wash temperature knob

Pre-wash

Detergent for wash

Fabric softener

Bleach

Length of the cycle (minutes)

Description of wash cycle

DELAY TIMER

12h 9h 3h 1h

12 - 9 - 3 - 1 hour delay		Start is delayed by 12 - 9 - 3 - 1 hours
Stop/Reset	●	Interrupts/ Cancels the selected program

COTTON

Exceptionally soiled whites (sheets, tablecloths, etc.)	1	Heavy	◆	◆	◆	◆	90	Wash cycle , rinse cycles, intermediate and final spin cycles
Heavily soiled whites and fast colors	2	Regular	◆	◆	◆	◆	50	Wash cycle , rinse cycles, intermediate and final spin cycles
Slightly soiled whites and delicate colors (shirts, jumpers, etc.)	3	Light	◆	◆	◆	◆	40	Wash cycle , rinse cycles, intermediate and final spin cycles
Rinse cycles					◆		25	Rinse cycles, intermediate and final spin cycles
Spin cycle							13	Draining and final spin cycle
Stop/Reset								Interrupts/ Cancels the selected program

PERMANENT PRESS

Heavily soiled fast color synthetics (baby linen, etc.)	4	Heavy	◆	◆	◆	80	Wash cycle , rinse cycles, Easy Iron or delicate spin cycle
Delicate color synthetics (all types of slightly soiled garments)	5	Regular	◆	◆	◆	65	Wash cycle , rinse cycles, Easy Iron or delicate spin cycle
Delicate color synthetics (all types of slightly soiled garments)	6	Light	◆	◆	◆	40	Wash cycle , rinse cycles and delicate spin cycle
Rinse cycles					◆	25	Rinse cycles, Easy Iron or delicate spin cycel
Fabric softener					◆		Rinse cycles with automatic introduction of softener, anti-crease or delicate spin cycle
Spin cycle						10	Draining and delicate spin cycle
Stop/Reset							Interrupts/ Cancels the selected program

HAND WASHABLES

Delicates	7	Light	◆	◆	◆	64	Delicates, rinse cycles, Easy Iron or draining
Silk, particularly delicate garments and fabrics (curtains, silk, viscose, etc.)	8	Silk	◆	◆	◆	60	Wash cycle, rinse cycles, Easy Iron or draining
Wool	9	Wool		◆	◆	45	Wash cycle, rinse cycles and delicate spin cycle
Rinse cycles					◆		Rinse cycles, Easy Iron or draining
Spin cycle							Draining and delicate spin cycle (Silk excluded)
Drain							Draining
Stop/Reset	●						Interrupts/ Cancels the selected program

IMPORTANT: TO CANCEL THE WASH PROGRAM YOU HAVE JUST SET, SET THE WASHER KNOB TO THE “RESET” POSITION AND WAIT FOR AT LEAST 5 SECONDS.

The data found in the table are an average, and can vary according to the quantity and type of washing, the water system temperature and the room temperature.

Useful tips

■ Never use your washing machine to wash... torn, fraying or non-hemmed linen. If it is absolutely necessary, place it in a bag for protection. Do not wash colored linen with whites.

■ Watch the weights!

For best results, do not exceed the weight limits stated below (figures show weight of dry garments):

- Resistant fabrics:

12 lbs (5.5 kg) maximum

- Synthetic fabrics:

6 lbs 10 oz (3 kg) maximum

- Delicate fabrics:

5 lbs 8 oz (2.5 kg) maximum

- Pure new wool:

3 lbs (1,5 kg) maximum

- Bathrobe: 5 lbs 8 oz (2.5 kg)

maximum

How much does it weigh?

1 sheet 1 _1/4 lb (400-550 gr.)

1 pillow case 4 oz.(120 gr.)

1 tablecloth 1 lb (450 gr.)

1 bathrobe 2-3 lbs

(900-1,300 gr.)

1 towel 5oz/1 lb (150-500 gr.)

Colored T-shirts, printed ones and shirts last longer if turned inside out before washing.

Printed T-shirts and sweatshirts should always be ironed inside out.

Denim Alert.

Some overalls have straps with hooks that can damage the drum of your washing machine or other garments during the wash. To minimize the risk, place hooks in the pocket and fasten with safety pins.

■ Vacations: unplug the appliance.

It is recommended that you should unplug the machine from the socket and turn off the water supply. Leave the door ajar to allow air circulation to the draw and the door gasket area. This will prevent unpleasant odours.

For more delicate garments: protect underwear, tights and stockings and delicate items by placing them in a linen bag

WOOL CYCLE

For best results, we recommend you use very little detergent, taking care not to wash more than 3 lbs (1,5 kg) of laundry.

UNDERSTANDING FABRIC CARE LABELS

The symbols on labels of your garments will help you in choosing the suitable wash program, the right temperature, wash cycles, and ironing methods. Don't forget to give a glance to these useful indications!

Machine Wash Cycle	Normal/Cotton Heavy Duty	Permanent Press/wrinkle resistant	Delicate/Gentle	Hand wash	Do not wash	Do not wring
Water Temp.	Hot(50°C/120°F)	Warm(40°C/105°F)	≈ Cold/Cool(30°C/85°F)
Tumble Dry	Dry	[HBDT]Normal/Cotton Heavy Duty	Permt Press/wrinkle resistant	Delicate/Gentle	Do not tumble dry	Do not dry
Special Instructions	Line dry/hang to dry	Drip dry	Dry flat	In the shade
Bleach Symbols	Any bleach (when needed)	Only non-chlorine bleach (when needed)		Do not bleach

Look,

...and select the right temperature!

Black-and-white cartoon illustration of a person with glasses and a 40° sign, holding papers (no text or symbols on the figures)

Stain Removal Chart

Blood

Rinse or soak fresh stain in cold water. Work detergent into any remaining stain. Rinse. If stain persists, put a few drops of ammonia on stain and repeat detergent treatment. Rinse. If necessary bleach.

Candle Wax

Scrape off excess. Place stain between clean white blotters or several layers of facial tissues. Press with warm iron. Sponge with detergent. If dye spot remains, bleach.

Ketchup

Scrape of excess. Soak in cold water 30 minutes. Pretreat with a detergent paste. Launder.

Chewing Gum

Rub with ice to harden. Scrape off excess with dull blade. Sponge with detergent.

Chocolate or Cocoa

Soak 15 minutes in cold water. Rub detergent paste into stain, then rinse thoroughly. Launder in hottest water safe for fabric. If colored stain remains, sponge with hydrogen peroxide, rinse and launder.

Coffee or Tea (Black)

Soak fresh stains immediately in cold water. Then use bleach treatment with hottest water safe for fabric. Or if safe for the fabric pour boiling water through spot from a height of 1 to 3 feet. Launder.

Coffee or Tea (With Cream)

Rinse or soak in cold water. Work detergent into stain. Rinse. Dry. If grease stain remains, sponge with cleaning fluid. Repeat, if necessary. If stain remains, bleach.

Cosmetics: eye shadow, lipstick, liquid make-up, mascara, powder, pancake make-up or rouge

Apply undiluted liquid detergent to stain, or dampen stain and rub in soap or detergent paste until thick suds are formed. Work in until stain is gone, rinse well. Repeat if necessary. If color remains, bleach if safe for fabrics.

Cream, Ice Cream or Milk

Sponge stain with cool water or soak stain in cool water for 30 minutes or longer. If stain remains, work a detergent in- to spot then rinse. Bleach if necessary.

Deodorants and Antiperspirants

Wash or sponge stain thoroughly with warm water and detergent; rinse. If stain remains, bleach with hot sudsy water. Launder. You may be able to restore fabric color by sponging with ammonia. Rinse thoroughly.

Dye

Rinse or soak in cold water. Work detergent into stain. Rinse. If necessary, bleach. Stain is not always possible to remove. A commercial color remover may also be used.

Egg or Meat Juice

Rinse in cold water. If stain remains, sprinkle with meat tenderizer, let stand 15-20 minutes. If stain still remains, sponge with cleaning fluid or diluted bleach. Launder in hot water. The use of hot water first may set stain.

Fabric Softener Stain

Rub with bar soap until stain has lightened. Rinse thoroughly. Launder. Rubbing alcohol is sometimes effective if the color of the garment can take it. Launder. If desired, dry cleaning can be used.

Felt tip pen

Spray spot with cleaners suitable to this purpose. Sponge stain thoroughly. Rinse with cold water. Reapply cleaner if necessary.

Fruit, Wine

Soak fresh stains immediately with cool water. Then use bleach treatment with hottest water safe for fabrics, pour boiling water through spot from a height of 1 to 3 feet. Launder.

Grass

Work detergent into stain. Sponge with denatured alcohol. Bleach, if necessary.

Grease or Oil

Scrape away excess. Rub detergent paste or a general purpose liquid household cleaner into stain, rinse with hot water. If stain remains, sponge thoroughly with a grease solvent. Dry. Repeat if necessary. To remove yellow stain, use a chlorine or oxygen bleach.

Ink. Ball-point

Same ball-point inks are set by water. First test a scrap of cloth. Sponge stain repeatedly with acetone, or rubbing alcohol. Hair spray is effective. Launder. Bleach if necessary. Use amyl acetate on triacetate, arnel, dynel and verel. Use acetone on other fabrics.

NOTE: Some inks cannot be removed.

Mildew

Brush off surface growth to keep mold spores from spreading. Dip article into solution of 1/2 cup bleach per 1 gallon of cool sudsy water for 5 to 10 minutes. Rinse well. Launder.

Mud

Let stain dry; then brush well. Rinse repeatedly in cool water until mud comes out. Launder. (Hot soaps suds set a red or yellow clay stain).

Mustard

Soak in hot detergent water for several hours. If stain remains, bleach.

Nail Polish

Treat while fresh, scraping or wiping off as much as possible, before it dries. Place stain face down on white paper towels. Sponge back of stain acetone (nail polish remover) or sponge with denatured alcohol and a few drops of household ammonia. Sponge stain frequently. Launder with water at temperature suitable for fabric.

Do not use acetone on acetate, arnel, dynel or rayon.

Paint

Sponge or soak in turpentine or solvent recommended as a thinner on label. Launder.

Perfume

Rinse in cold water. Rub undiluted liquid detergent or a detergent paste into stain. Rinse. If stain remains, bleach.

Perspiration

Wash or sponge stain thoroughly with warm water and detergent paste. If perspiration has changed the color of the fabric, restore it by treating with ammonia or vinegar. Apply ammonia to fresh stains; rinse with water. Apply vinegar to old stains; rinse with water.

Rust and Iron

Apply commercial rust remover, according to manufacturer's directions. Rinse. Or, if safe for fabric, boil stained article in solution of 4 teaspoons of cream of tartar to 1 pint water.

Scorch

Rinse or soak in cold water. Work detergent into stain. Rinse. Bleach, if necessary. Stain may be impossible to re move.

Urine

Soak in cool water. If stain is dry, work a detergent paste into the spot then rinse. If necessary, bleach.

Shoe

Polish Scrape off as much as possible. Pretreat with a detergent paste; rinse. If stain persists, sponge with rubbing alcohol (1 part to 2 parts water) or turpentine. Remove turpentine by sponging again with warm detergent solution or with alcohol. Bleach if necessary.

Soft Drinks

Sponge with cold water, some stains are invisible when they have dried, but turn brown when heated and may be impossible to remove.

Tar and Asphalt

Act quickly before stain is dry. Sponge with grease solvent or turpentine. Launder.

It's important for a good wash

Useful tips about the detergent dispenser

The first secret is the easiest: the detergent dispenser is opened by pulling it out.

You must follow the quantity recommendations provided by the manufacturers when adding detergent or fabric softener. Quantities will vary according to the wash load, the water hardness and how soiled the clothes are.

Experience will help you select the right quantity almost automatically.

Before adding detergent for pre-washing in compartment 1, make sure that the extra compartment for bleach 4 has not been inserted.

Ensure no overfilling when adding fabric conditioner in compartment 3.

The washing machine automatically adds the softener to the wash in each program.

Liquid detergent is poured into compartment 2 just a few seconds before starting the wash cycle.

Remember that liquid detergent is only designed for wash cycles of up to 60 degrees on non pre-wash items.

Special containers are sold with liquid or powder detergents for placing inside the washing machine drum, these are positioned according to the instructions found in the detergent box

Never use hand wash detergent, because it may form too much foam, which could damage the washing machine. Detergents that are specifically formulated for both hand and machine wash are an exception.

One last secret: when washing with cold water, always reduce the amount of detergent you use: it dissolves less easily in cold water than in hot water, so part of it would be wasted.

Cartoon illustration of a smiling face with surprised expression, holding a phone to his ear (no text or symbols present)

Technical diagram of a mechanical component with numbered parts and a downward arrow indicating direction

In compartment 1:

Detergent for pre-washing (powder)

In compartment 2:

Detergent for washing (powder or liquid)

In compartment 3:

Additives (softeners, perfumes, etc.)

In compartment 4:

Bleach and delicate bleach.

Technical diagram of a vehicle air intake system with labeled components and directional arrows

Detergent cleansing

dispenser

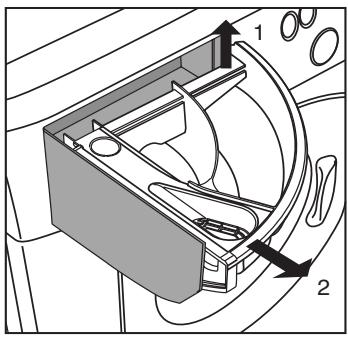

The detergent dispenser can be removed and cleaned: pull it outwards, as indicated in the figure. Then leave it under warm running water for a few minutes.

Cutting costs efficiently

A guide to environmentally friendly and economic use of your appliance.

MAXIMISE THE LOAD SIZE

Achieve the best use of energy, water, detergent and time by using the recommended maximum load size.

SAVE up to 50% energy by washing a full load instead of 2 half loads.

DO YOU NEED TO PRE-WASH?

For heavily soiled laundry only! SAVE detergent, time, water and between 5 to 15% energy consumption by NOT selecting Prewash for slight to normally soiled laundry.

IS A HOT WASH REQUIRED?

Pretreat stains with stain remover or soak dried in stains in water before washing to reduce the necessity of a hot wash programme.

SAVE up to 50% energy by using a 140^ F ( 60^ C) wash program.

Bleach cycle and stain removal button

If bleaching is necessary, the extra case 4 (provided) must be inserted into compartment 1 of the detergent dispenser. When pouring in the bleach, be careful not to exceed the "max" level indicated on the central pivot (see illustration).

The use of the additional bleach container excludes the possibility of using the pre-wash cycle.

Traditional bleach can only be used on sturdy white fabrics, whereas delicate bleach can be used for colored fabrics, synthetics and for wool.

Diagram showing a mechanical component with an inset highlighting a cylindrical component labeled 'MAX' and an arrow pointing to it.

You cannot bleach with the "Silk" program.(See page 11).

NOTE: BLEACH ONLY WORKS WITH HOT WASH TEMP.

Troubleshooting

Before calling, read the following

In most cases, when your washing machine fails to work, the problems arising can be easily solved without having to call for a technician. Before calling for assistance, always check these points.

The washing machine fails to start.

Is the plug correctly inserted into the socket? It could have been moved while cleaning.
Is there electricity in the house?

A circuit breaker may have switched off as a result of too many electrical appliances working at the same time. Or maybe due to a general failure in your entire area.

Is the washing machine door closed properly?

For safety reasons, the washer-dryer cannot work if the door is open or not shut properly.

"I only want an authorised specialised technician with original Ariston spare parts!"

Is the On/Off button pressed?
If it is, has a program been set?
Is the Washer knob in the correct position for those models concerned?
Is the water supply turned on? For safety reasons, if the washer-dryer does not load water, it cannot start a wash cycle.

? s, the work if ot shut rised WRONG

RIGHT

WRONG

Turn off the water supply after use. This will eliminate the possibility of leakage.

Always leave the appliance door ajar to avoid bad odours.

Clean the appliance's exteriors gently. To clean the exteriors and the rubber parts of the appliance, always use a soft cloth dipped in warm and soapy water.

Leave the washing machine plugged in while cleaning.

Even during maintenance, the appliance should always be unplugged.

Use solvents and aggressive abrasives.

Never use solvents or abrasives to clean the external and rubber parts of the washing machine.

Neglect the detergent dispenser. It is removable and can easily be cleaned by leaving it under running water.

Go on holiday without thinking about her.

Before leaving, always make sure that the washing machine is unplugged and that the water supply is turned off.

You will be charged for a service call while the appliance is in warranty if the problem is not caused by defective workmanship or materials.

But where did all the water go?

Simple: with the new Ariston technology, you need less than half of it, to get good results on twice as much!

This is why you cannot see the water through the door:

Cartoon character holding a magnifying glass, no text or symbols present

because there is little, very little of it, to respect the environment yet without renouncing maximum cleanliness.

And, on top of that, you are also saving electricity.

Cartoon illustration of a document character with arms and legs, appearing to hold or press (no text or symbols present)

The washing machine fails to fill with water.

Is the hose correctly connected to the tap?
Is there a water shortage? There could be work in progress in your building or street.
Is there sufficient water pressure? The autoclave may be malfunctioning.
Is the tap filter clean? If the water is very hard, or if work has recently been carried out on the water piping, the tap filter could be clogged with particles and debris.
Is the rubber hose kinked? The rubber hose bringing water to washer-dryer must be as straight as possible. Make sure it is not squashed or kinked.

The Washer knob keeps turning?

Wait a few minutes for the drain pump to empty the tub, switch the washer-dryer off, select one of the

positions stop/Reset, then switch it back on. If the knob continues to turn, call for assistance because it is showing an anomaly.

Cartoon illustration of a washing machine with steam rising from its cup (no text or symbols)

The washing machine continuously fills and drains water.

Is the drain hose positioned too low? It must be installed at a height ranging from 25" to 34" (62 to 86 cms.).
Is the end of the hose immersed in water?
Does the wall drainage system have a breather pipe? If the problem persists even after these checks, turn the water supply off the machine and call for assistance.

If you live on an upper floor of your building, there may be a problem with your drain trap.

To solve this problem, a special valve must be installed.

ZZZL...

The washing machine does not drain or spin.

Does the selected program incorporate water draining? Some programs stop at the end of the wash cycle and draining will have to be selected manually.
Is the "Easy iron" function -where provided - enabled? This function requires manual selection for draining.
Is the drain pump clogged? To check it, turn off the water supply, unplug the washer-dryer and follow the instructions on page 18, or call technical support.

Always get assistance from authorized service agent and always insist on original spare parts.

Is the drain hose kinked? The drain hose must be as straight as possible. Make sure the drain hose is not crimped or kinked.
Is the washing machine's drain hose clogged? Is there an extension of the drain hose? If so, is it positioned incorrectly, blocking the water flow?

Cartoon drawing of a distressed, anthropomorphic character with expressive eyes and limbs (no text or symbols)

Excessive vibration during the spin cycle.

■ Have all shipping bolts been removed during installation? See the following page on installation procedures.
Has the washing machine been levelled correctly? The levelling of the appliance should be checked periodically. Adjust the feet and check them with

Is there space between the machine and adjacent units? If it is not a built-in model, the washing machine will oscillate a bit during the spin cycle. An inch or two of space should therefore be left around it.

Cartoon illustration of a document character winking water, with expressive eyes and arms (no text or symbols)

The washing machine leaks.

Is the metal ring of the inlet hose properly attached? Turn off the water supply, unplug the appliance and try tightening its attachment without forcing it.
Is the detergent dispenser obstructed? Remove and wash it under tap water.
Is the drain hose well attached? Turn off the water supply, unplug the appliance and try tightening its attachment.

Cartoon illustration of a character holding a large book with floating coins and speech bubbles (no text or symbols)

Too much foam.

Is the detergent appropriate for washing machine? Check whether the definition on its label reads “for machine wash” or “hand and machine wash”, or any other similar wording.

Is the correct amount being used? An excessive amount of detergent, besides producing too much foam, does not guarantee a more effective wash, and causes scaling in the internal parts of the appliance.

.If, despite all checks, the washer-dryer fails to function and the problem persists, call your nearest authorized Customer Service Centre, 1-888-426-0825 providing the following information:

• the nature of malfunction
• the model type no. (Mod. .....)
• the serial number (S/N ....)

This information can be found on the data plate situated at the back of the washer-dryer.

Cleaning Filters

Remove filters using tweezers, clean and replace back of the was Remove filters, clean and replace Tape to avoid flooding areful to the adjust the drain to at least above the base e appliance. en the hoses securely. Tape Tape

Drain: to avoid flooding be careful to the adjust the drain hose to at least 25" above the base of the appliance. Fasten the hoses securely.

Easy Care and Maintenance

Treat your machine well and it will provide many years of trouble free service

Your washing machine is a reliable companion in life. It is just as important for you to keep it in shape.

Your washing machine is designed to provide reliable service over many years. A few simple steps will help to extend its life and avoid problems. It is advisable to turn off water faucets when the machine is not in use. This protects the hoses, etc.

If the water in your area is hard, use a water softener (hard water often leaves white stains around taps or drains, especially in bath tubs. For more accurate information about the type of water in the system, call your local water utility).

Pockets must always be emptied, removing pins, badges, coins, or any other hard objects.

CLEANING THE EXTERIOR

The washing machine exterior should be cleaned with a rag dipped in lukewarm water and soap. Do not use polish of any kind on the plastic trim. Some polishes contain agents which can damage plastics.

Cleaning the interior

If you live an area where phosphate detergents are banned, it may be necessary to recondition the washer periodically. Because a non-phosphate detergent must be used, body oils and detergent may accumulate in the washer tub. This is particularly evident in hard water areas or in homes where heavily soiled garments are regularly laundered. To remove this build-up, run the washer through a complete cycle using hot water and 2 cups of water softener. Do not add any clothes, detergent, or other laundry aids.

Once the accumulation has been removed, your laundry should be satisfactory if you follow the preventive suggestions in this owner's manual.

GENERAL MAINTENANCE

After washing is complete the water faucets should be turned off to relieve water pressure on the hoses.

Wipe the inside of the door with a soft cloth to remove any remaining moisture. Periodically, a thin coat of paste wax should be applied to the inner door of the washer; especially to the area which is immediately next to the door window. This will protect the door finish from laundry aid spills and any discoloration which may results of these spills.

Clear the Coin Trap

Clear the coin trap in case of blockage. For instructions, please read the section below.

Never add too much detergent.

Detergents already contain deliming agents. Only if the water is particularly hard, that is, rich in lime content, do we recommend the use of a specific product at every wash.

A periodical wash cycle with a dose of a deliming product, without detergents or washing, may prove useful.

Never use too much detergent or additives because this could cause excessive sudsing, scaling, and possible damage to components in your washing machine.

It is important to wash the detergent dispenser regularly. To prevent dried washing powder from accumulating, place the dispenser under running water for a few minutes.

Use only low-sudsing deter- gents.

Illustration of a woman holding a newspaper with falling items, no text or symbols present

Do not forget to empty all pockets: small objects can cause serious damage to your washing machine!

When in need, check the pump and the rubber hose.

The washing machine comes equipped with a self-cleaning pump that does not require any cleaning or maintenance. Small objects may accidentally fall into the pump: coins, hair clips, loose buttons, etc. To avoid possible damage, they are withheld in an accessible coin trap, located at the bottom right end of the machine.

Diagram of a mechanical component with a lever and curved arrow, labeled Fig. 1 (no text or symbols on the diagram itself)

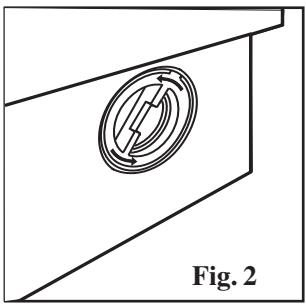

Attention: Before attempting to examine this coin trap, first ensure that the machine has finished its program and is empty. Unplug the machine, as with any maintenance.

To gain access, gently ease down the top of the kick plate panel at the base of the machine with a screwdriver etc, to release it. Then ease the top edge forward to allow it to be lifted clear (Fig. 1). Place a shallow dish or tray below the cover of the pre-chamber to catch any water that might be present. Open the cover by turning it counterclockwise (Fig. 2). When finished cleaning, ensure that the cover is securely tightened.

Re-fit the kick plate cover by inserting the hooks on its lower edge into the slots and ease the top edge back into position.

Technical diagram showing a circular component with directional arrows, labeled Fig. 2 (no text or symbols on the diagram itself)

The water inlet hose

Check the rubber hoses at least once a year. If you see any cracks, replace the hose immediately. When you use your washing machine, water pressure is very strong and a cracked tube could easily split open. Superior quality Stainless Steel hoses are recommended.

Technical characteristics

Model	AW 120
Dimensions	width 23.4" (59.5 cm)height 33.4" (85 cm)depth 22" (56 cm)
Capacity	1.92 cu.ft	Washing: 2-12 lbs
Electrical connections	voltage 120 Volt 60 Hz (minimal working 108 volt)maximum absorbed power 1350 W, 13 A.
Water connections:	maximum pressure 100 psi (689.6 kPa)minimum pressure 20 psi (137.9 kPa)
Spinning speed	up to 1200 rpm
US LISTED	This appliance conforms with the UL directives for USA and Canada

As a result of technological progress, the manufacturer reserves the right to make any improvements to its appliances without giving prior notice to its clientele.

CUSTOMER CARE, SERVICE & PARTS

Contact number: 1 888 426-0825

STATEMENT OF WARRANTIES ARISTON Clothes Washers

The warranties provided by (Ariston) in this statement of warranties apply only to Ariston clothes washer sold to the first using purchaser by Ariston or its authorized distributors, dealers, retailers or service centers in the United States or Canada. The warranties provided herein are not transferable.

Length of Warranty

1st Year Full Limited Warranty from the date of installation\*

Ariston will repair or replace, free of charge, any component part that proves defective in conditions of normal home use. Shipping and labor costs included. Waranty repair service must be performed by an authorized Ariston service center.

2nd Year Limited Warranty from the date of installation\*

Ariston will provide replacement parts, free of charge, for any component part that proves defective under conditions of normal home use, labor charges excluded.

3rd - 5th Year Limited Warranty on Electronics from the date of installation\*

Ariston will repair or replace free of charge, any microprocessor or circuit board that proves defective under conditions of normal home use 3rd year through 5th year from the date of original installation, labor charges excluded.

3rd - 5th Year Limited Warranty on Motor from the date of installation\*

Ariston will repair or replace free of charge, any motor or component part of the motor that proves defective under conditions of normal home use, 3rd year through 5th year, from the date of original installation, labor charges excluded.

Lifetime Limited Warranty against Stainless Steel Rust Through from the date of installation\*

Ariston will replace your clothes washer, free of charge, with the same model or a current model that is equivalent or better in functionality if the washer drum should rust though under conditions of normal home use, labor, shipping, and installation charges excluded.

10 day warranty after purchase on cosmetic damages detected

Ariston will replace any cosmetic parts, free of charge - including labor call, which are detected damaged with in 10 days after purchase. Any damages deemed caused by improper handing, shipping, or installation will not be covered under this clause.

* Date of installation shall refer to the earlier of the date the clothes washer is installed or ten business days after delivery date.

Exclusions:

This warranty does not cover repair or service calls to correct the installation, to provide instructions on the use of your product, to replace house fuses or correct plumbing or the electric wiring in your home. In addition any repair to the products that's use was in a manner other than what is normal for home use is void of any warranty claim. The warranties exclude any defects or damage arising from accident, alteration, misuse, abuse, improper installation, unauthorized service work, or external forces beyond Ariston control, such as fire, flood, and other acts of God, or installation not in accordance with local electric or plumbing codes. Labor, shipping, and installation charges incurred in the repair or replacement of any product after a period of one year from the date of installation shall not be covered by this warranty. Any and all replaced or repaired parts shall assume the identity of the original for the purposes of the applicable warranty period. To the extent permitted by law, this warranty is in lieu of all other express and implied warranties, including the implied warranties of merchantability and fitness for a particular purpose. Ariston does not assume any responsibility for incidental or consequential damages.

To obtain warranty services call 1-888-426-0825, or write to:

Ultra 8 International, 2505 Anthem Village Drive, Suite E - PO BOX 562, Henderson Nevada 89052

Be sure to provide: model number, serial number, purchase date, and the sellers name and address.

ARISTON

Ultra 8 International, 3027 East Sunset Road, Suite 101, LAS VEGAS Nevada 89120

Cartoon illustration of a smiling computer character next to a chalkboard with numbers and symbols, likely illustrating a math or logic problem.

Pure technical diagram of a mechanical or electrical component with no visible text, numbers, or symbols.

Diagram showing a spiral object on a curved surface with an arrow indicating rotation (no text or symbols)

¡ATENCIÓN!

Illustration of a woman pushing a large soap can next to a newspaper (no text or symbols present)

Diagram of two pipes with rotating arrows inside a container (no text or symbols)

Technical diagram of a washing machine with labeled connection points and dimension annotation B

Line drawing of a washing machine with a vertical scale and measurement markings (no text or symbols)

USO Y MANTENIMIENTO DE LA LAVADORA AUTOMÁTICA PARA EVITAR LLAMADAS INÚTILES

Black-and-white illustration of a woman washing clothes from a large washing machine, with laundry scattered nearby (no text or symbols)

Technical diagram of a car interior with numbered components and directional arrow indicating flow or movement

Leyenda

Technical diagram of a car air intake system with labeled components and directional arrows

Cartoon illustration of a surprised face with expressive eyes and hands, no text or symbols present

Technical diagram of a mechanical component with numbered parts and an arrow indicating direction

Diagram showing a mechanical component with an inset highlighting a cylindrical component labeled 'MAX' and an arrow indicating direction.

Cartoon illustration of a smiling washing machine holding a magnifying glass (no text or symbols)

Cartoon illustration of a smiling worker holding a walkie-talkie, wearing a cap and overalls (no text or symbols)

Cartoon illustration of a washing machine with steam rising from it, accompanied by a person holding a bag (no text or symbols)

Cartoon drawing of a distressed, anthropomorphic object with no visible text or symbols

Cartoon illustration of a smiling paper with eyes and mouth, surrounded by water droplets (no text or symbols)

Cartoon illustration of a sad, anthropomorphic cube character surrounded by floating bubbles (no text or symbols)

Black-and-white cartoon illustration of a muscular figure and a monstrous, anthropomorphic figure interacting with an open book (no text or symbols present)

CORRECTO

Illustration of a woman sorting items from a smiling paper airplane (no text or symbols)

Diagram of a mechanical component with a lever and directional arrow, labeled Fig. 1 (no text or symbols on the diagram itself)

Technical diagram showing a circular component with internal arrows, labeled Fig. 2 (no text or symbols on the diagram itself)

Cartoon illustration of a smiling computer with a phone and a calculator, standing beside a blackboard with handwritten math equations.

Technical line drawing of a mechanical component with no visible text or symbols

Diagram showing a spiral object on a surface with an arrow indicating rotation (no text or symbols)

ATTENTION

Illustration of a woman pushing a large washing machine with a smiling face, next to a newspaper (no text or symbols present)

Diagram of two pipes connected to a wall-mounted device with directional arrows indicating flow (no text or symbols)

25" 34" INCHES

A

Line drawing of a washing machine with attached door and hanging pipe (no text or symbols)

Black-and-white cartoon illustration of a woman washing clothes from a washing machine, with scattered clothes nearby (no text or symbols)

Mode d'emploi

Cartoon illustration of a surprised face with a pointing hand (no text or symbols)

Technical diagram of a mechanical component with labeled parts 1 and 2, showing internal structure and directional arrows.

Technical diagram of a mechanical component with numbered parts and a downward arrow indicating direction

Bac 1:

Additifs (assouplissants, parfums, etc.)

Bac 4:

Diagram showing a device with a magnified view of a cylindrical component labeled 'MAX' pointing to it, with an arrow indicating direction.

Cartoon illustration of a mechanic in workwear standing beside a computer monitor (no text or symbols present)

Cartoon character holding a magnifying glass, no text or symbols present

Cartoon illustration of a smiling worker holding a walkie-talkie, wearing a cap and overalls (no text or symbols)

Cartoon illustration of a washing machine with steam rising from a cup (no text or symbols)

Cartoon illustration of a monster and a devil-like creature in a chaotic scene, no text or symbols present

A FAIRE A NE PAS FAIRE

Cartoon illustration of a distressed, anthropomorphic character with no visible text or symbols

Cartoon illustration of a character with a large block and floating bubbles (no text or symbols)

Cartoon illustration of a sad, anthropomorphic document character wading through water (no text or symbols)

Illustration of a woman holding a newspaper with falling items, no text or symbols present

Diagram of a mechanical component with a lever and directional arrow, labeled Fig. 1 (no text or symbols on the diagram itself)

Pure technical diagram showing a circular component mounted on a rectangular base, labeled Fig. 2 (no text or symbols within the diagram itself)
