USER MANUAL AVD 169 HOTPOINT

GB Installation, 2-3

Unpacking and levelling, 2 Electric and water connections, 2-3 The first wash cycle, 3 Technical details, 3

Washing machine description, 4-5 Control panel, 4 Display, 5

Starting and Programmes, 6 Briefly: how to start a programme, 6 Programme table, 6

Setting the temperature, 7 Setting the spin cycle, 7 Options, 7

Detergents and laundry, 8 Detergent dispenser, 8 Bleach cycle, 8 Preparing your laundry, 8 Special items, 8 Woolmark Platinum Care, 8

Precautions and advice, 9

General safety, 9 Disposal, 9 Saving energy and respecting the environment, 9

Care and maintenance, 10

Cutting off the water or electricity supply, 10 Cleaning your appliance, 10 Cleaning the detergent dispenser, 10 Caring for your appliance door and drum, 10 Cleaning the pump, 10 Checking the water inlet hose, 10

Troubleshooting, 11 Service, 12

Before calling for Assistance, 12

GB Keep this instruction manual in a safe place for future reference. Should the appliance be sold, transferred or moved, make sure the instruction manual accompanies the washing machine to inform the new owner as to its operation and features. Read these instructions carefully: they contain vital information on installation, use and safety.

Unpacking and levelling

Levelling your appliance correctly will provide it with stability and avoid any vibrations, noise and shifting during operation. If it is placed on a fitted or loose carpet, adjust the feet in such a way as to allow enough room for ventilation beneath the washing machine.

Electric and water connections Connecting the water inlet hose

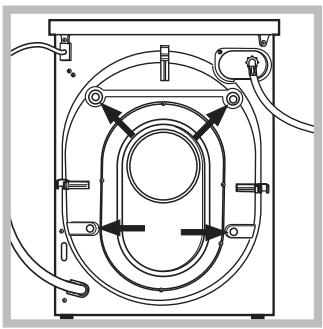

1. Unpack the washing machine. 2. Check whether the washing machine has been damaged during transport. If this is the case, do not install it and contact your retailer. 3. Remove the four protective screws and the rubber washer with the respective spacer, situated on the rear of the appliance (see figure).

4. Seal the gaps using the plastic plugs provided. 5. Use the plug provided to seal the three holes where the plug was housed, situated on the lower right-hand side on the rear of your appliance. 6. Keep all the parts: you will need them again if the washing machine needs to be moved to another location.

Packaging materials are not children's toys. Levelling

1. Install the washing machine on a flat sturdy floor, without resting it up against walls, furniture cabinets or other. 2. If the floor is not perfectly level, compensate for any unevenness by tightening or loosening the adjustable front feet (see figure); the angle of inclination, measured according to the worktop, must not exceed 2°.

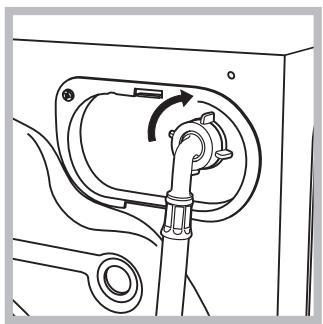

1. Insert seal A into the end of the inlet hose and screw the latter onto a cold water tap with a 3/4 gas threaded mouth (see figure). Before making the connection, allow the water to run freely until it is perfectly clear. 2. Connect the other end of the water inlet hose to the washing machine, screwing it onto the appliance's cold water inlet, situated on the top right-hand side on the rear of the appliance (see figure).

3. Make sure there are no kinks or bends in the hose.

The water pressure at the tap must be within the values indicated in the Technical details table (on the next page).

If the water inlet hose is not long enough, contact a specialist store or an authorised serviceman.

Do not use extensions or multiple sockets.

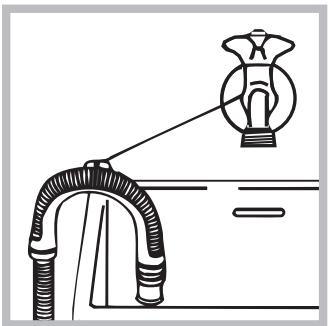

Connecting the drain hose

GB The power supply cable must never be bent or dangerously compressed.

Connect the drain hose, without bending it, to a draining duct or a wall drain situated between 65 and 100 cm from the floor;

The power supply cable must only be replaced by an authorised serviceman. Warning! The company denies all liability if and when these norms are not respected.

The first wash cycle

Electric connections

voltage 220/230 Volts 50 Hz maximum absorbed power 1850 W

• the supply voltage is included within the values i ndicated on the Technical details table (on the right);

• the socket is compatible with the washing machine's plug. If this is not the case, replace the socket or the plug.

Control programmes according to IEC456 directive

programme 3; temperature 60°C; run with a load of 5 kg.

Before plugging the appliance into the mains socket, make sure that: • the socket is earthed and in compliance with the applicable law; • the socket is able to sustain the appliance's maximum power load indicated in the Technical details table (on the right);

The washing machine should not be installed in an

When the washing machine is installed, the mains socket must be within easy reach.

This appliance is compliant with the following European Community Directives: - 73/23/CEE of 19/02/73 (Low Voltage) and subsequent amendments - 89/336/CEE of 03/05/89 (Electromagnetic Compatibility) and subsequent amendments

outdoor environment, not even when the area is sheltered, because it may be very dangerous to leave it exposed to rain and thunderstorms.

We advise against the use of hose extensions; in case of absolute need, the extension must have the same diameter as the original hose and must not exceed 150 cm in length.

Once the appliance has been installed, and before you use it for the first time, run a wash cycle with detergent and no laundry, setting the 90°C programme without a pre-wash cycle.

alternatively, place it over the edge of a basin, sink or tub, fastening the duct supplied to the tap (see figure). The free end of the hose should not be underwater.

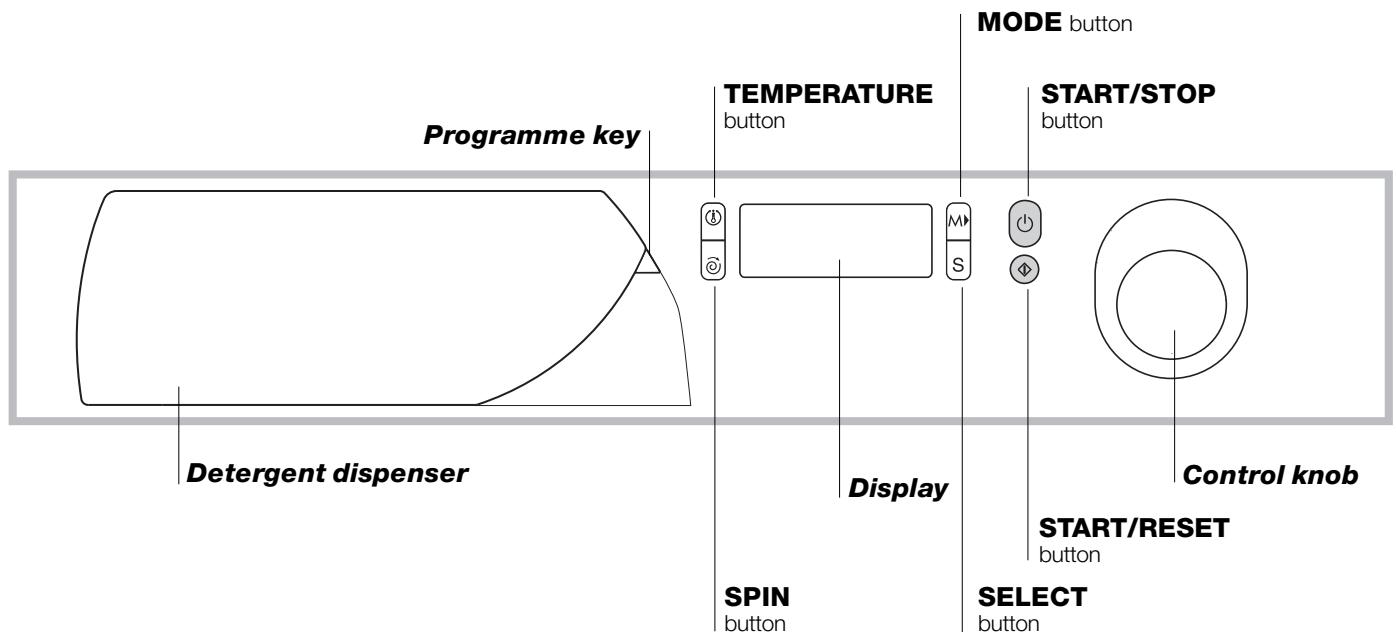

Washing machine description Control panel

Detergent dispenser to add detergent and fabric softener (see page 8).

MODE button to choose the options for the appliance personalisation (see page 7).

Programme key to consult a straightforward chart of the different programmes available: pull the grey tab outwards to open it.

SELECT button to set the options for the appliance personalisation (see page 7).

TEMPERATURE button to adjust the wash temperature (see page 7). SPIN button to adjust the spin speed or exclude it altogether (see page 7). Display to programme the washing machine and follow the wash cycle progress (see opposite page).

START/STOP button to turn the washing machine on and off. START/RESET button to start the programmes or cancel any incorrect settings. Control knob to select the wash programmes. The retractable control knob: press the centre of the knob for it to pop out. The knob stays still during the cycle.

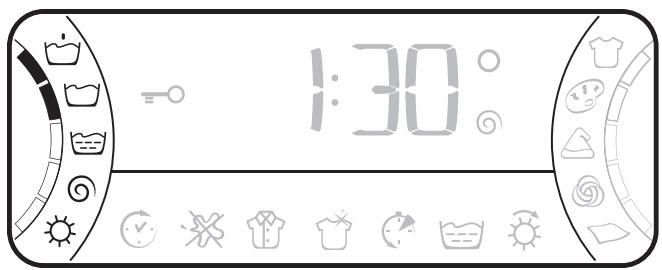

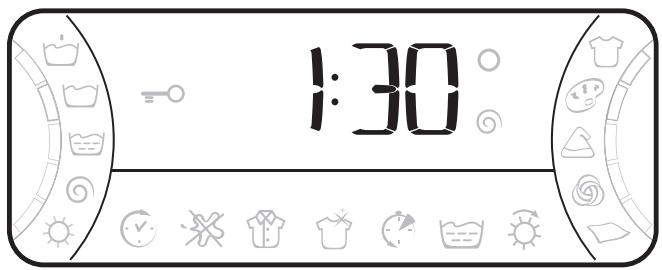

GB The following information is displayed during the wash cycle:

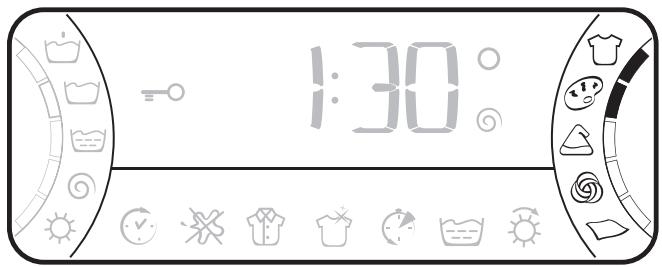

Cycle phase under way: Spin cycle

Once you have pressed the START/RESET button to start the programme, the display will indicate the amount of time left until the end of the wash cycle. If a delayed start has been set (using the Delay Timer, see page 7), the delay time will be indicated on the display.

In addition to being a practical tool to programme your appliance (see page 7), the display provides useful information concerning the wash cycle and status.

Disabled symbol. Detergents

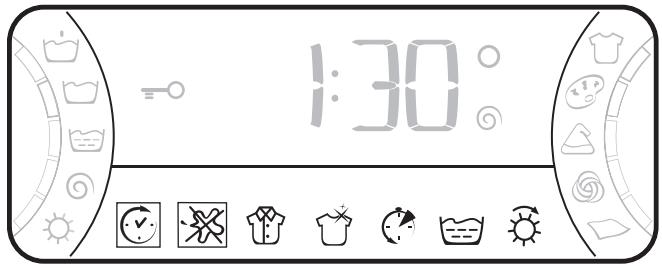

Fabric selected: Wool

Synthetics Personalisation options: The enabled options are bordered by a frame. To choose the options, see page 7.

Door lock: If the symbol is on, the washing machine door is locked to prevent it from being opened accidentally. To avoid any damages, wait for the symbol to switch itself off before you open the appliance door. This model is fitted with a device that allows you to open the appliance door during some of the programme phases. This is possible when the symbol is not on.

At the end of the programme, the word END is displayed.

In the event of an anomaly, an error code will appear, such as: F-01, which should be communicated to the Service Centre (see page 12).

Starting and Programmes Briefly: starting a programme GB

4. Add the detergent and any fabric softener (see page 8). 5. Start he programme by pressing the START/RESET button. To cancel it, keep the START/RESET button pressed for at least 2 seconds. 6. When the programme has ended, the word END is displayed. Take out your laundry and leave the appliance door ajar to allow the drum to dry thoroughly. 7. Turn the washing machine off by pressing button .

1. Turn the washing machine on by pressing button . 2. Load your laundry into the washing machine and shut the appliance door. 3. Set the knob to the desired programme. The estimated duration of the selected programme is displayed. The temperature and spin speed are automatically set according to the programme (to change them, see page 7).

Programme table Type of fabric and degree Programof soil mes

Bleaching Cycle option/ length Description of wash cycle bleach (minutes)

Cotton Extremely soiled whites (sheets, tablecloths, etc.) Extremely soiled whites (sheets, tablecloths, etc.) Heavily soiled whites and fast colours Slightly soiled whites and delicate colours (shirts, jumpers, etc.) Slightly soiled delicate colours

Pre-wash, wash cycle, rinse cycles, intermediate and final spin cycles Wash cycle, rinse cycles, intermediate and final spin cycles Wash cycle, rinse cycles, intermediate and final spin cycles

Wash cycle, rinse cycles, intermediate and final spin cycles

Wash cycle, rinse cycles, intermediate and final spin cycles

Synthetics Heavily soiled fast colours (baby linen, etc.) Fast colours (all types of slightly soiled garments) Heavily soiled fast colours (baby linen, etc.) Delicate colours (all types of slightly soiled garments) Delicate colours (all types of slightly soiled garments)

Wash cycle, rinse cycles and delicate spin cycle Wash cycle, rinse cycles, anticrease or draining cycle

Rinse cycles and spin cycle

Rinse cycles, anti-crease or draining

Draining and heavy duty spin cycle

Draining and delicate spin cycle

Notes For the anti-crease function: see Easy iron, opposite page. The information contained in the table is purely indicative. Special programme Daily 30' (programme 9 for Synthetics) is designed to wash lightly soiled garments in a short amount of time: it only lasts 30 minutes and allows you to save on both time and energy. By setting this programme (9 at 30°C), you can wash different fabrics together (except for woollen and silk items), with a maximum load of 3 kg. We recommend the use of liquid detergent.

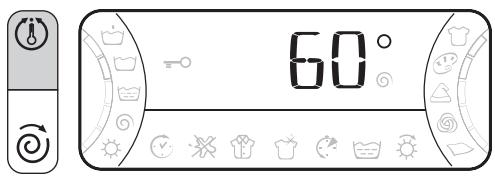

Personalisations Setting the temperature

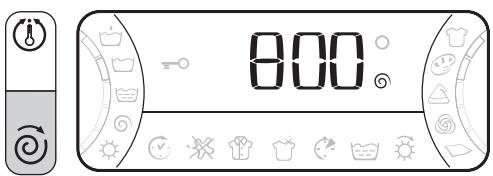

Setting the spin cycle

Press button and the maximum spin speed allowed for the programme set will be displayed. Press the same button to lower the value down to OFF, which indicates that the spin cycle has been excluded altogether (press it again to go back to the maximum value). . The spin cycle exclusion is indicated by symbol The spin cycle setting is enabled with all the programmes except for 11 and the Draining cycle.

Press button and the maximum temperature allowed for the programme set will be displayed. Press the same button to lower this temperature. OFF indicates a cold wash. The temperature adjustment is enabled with all wash programmes.

The various wash options available with this washing machine will make for the desired results, every time. To select the various options, the following procedure should be followed at all times:

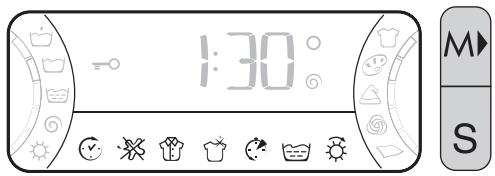

1. Press the MODE button to scroll through the various options available; the enabled symbol will flash. 2. To select it, press the SELECT button, until the word ON is displayed (for the Delay Timer, the time will be displayed: see table below). 3. Confirm your setting by pressing the MODE button again: the symbol for the option will stop flashing on the display. The selected options can be seen on the display, as they are bordered by a frame.

Delays the start of the wash by up to 24 hours.

Press (SELECT button) repeatedly until the desired delay is displayed. OFF indicates no delay has been set.

Bleaching cycle designed to remove the toughest stains.

Please remember to pour the bleach into extra compartment 4 (see page 8). This option is incompatible with the EASY IRON option.

2, 3, 4, 5, 6, 7, 8, 10, Rinse cycles.

This option reduces the amount of creasing on fabrics, making them easier to iron.

If you set this option, programmes 6, 7, 8, 11 and Delicate Rinse will be suspended, leaving the laundry to soak (Anti-crease) and icon will flash: - to conclude the cycle, press the START/RESET button; - to run the draining cycle alone, set the knob to the relative symbol and press the START/RESET button. This option is incompatible with the BLEACHING option.

All programmes except for 1, 2, 9, 10 and Draining.

Allows for an impeccable wash, visibly whiter than a standard Class A wash.

This option is incompatible with the RAPID option.

1, 2, 3, 4, 5, 6, 7, 8

Cuts the duration of the wash cycle by 30%.

This option is incompatible with the SUPER WASH option.

1, 2, 3, 4, 5, 6, 7, 8

Increases the efficiency of the rinse.

Recommended when the appliance has a full load or with large quantities of detergent.

1, 2, 3, 4, 5, 6, 7, 8, and Rinse cycles.

Enabled with programmes:

Detergents and laundry

GB Detergent dispenser Good washing results also depend on the correct dose of detergent: adding too much detergent won't necessarily make for a more efficient wash, and may in fact cause build up on the interior of your appliance and even pollute the environment.

MAX Open up the detergent dispenser and pour in the detergent and fabric softener, as follows.

compartment 1: Detergent for pre-wash (powder) Before pouring in the detergent, make sure that extra compartment 4 has been removed. compartment 2: Detergent for the wash cycle (powder or liquid) Liquid detergent should only be poured in immediately prior to the wash cycle start. compartment 3: Additives (fabric softeners, etc.) The fabric softener should not overflow from the grid. extra compartment 4: Bleach

Do not use hand wash detergent because it may form too much foam.

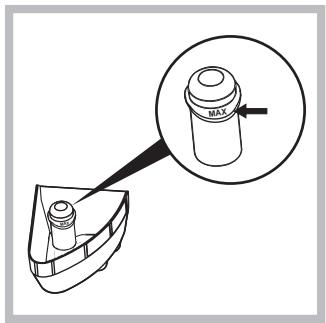

Bleach cycle Traditional bleach should be used on sturdy white fabrics, and delicate bleach for coloured fabrics, synthetics and for wool.

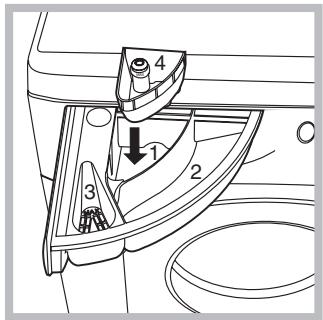

MAX MAX Place extra compartment 4, provided, into compartment 1. When pouring in the bleach, be careful not to exceed the "max" level indicated on the central pivot (see figure).

To run the bleach cycle alone, pour the bleach into extra compartment 4 and set the Rinse programme (for Cotton fabrics) or delicate Rinse (for Synthetic fabrics). To bleach during a wash cycle, pour in the detergent and fabric softener, set the desired programme and enable the Bleaching option (see page 7).

The use of extra compartment 4 excludes the possibility of using the pre-wash cycle. In addition, the bleach cycle cannot be run with programmes 11 (Silk) and Daily 30' (see page 6).

Preparing your laundry • Divide your laundry according to: - the type of fabric/the symbol on the label. - the colours: separate coloured garments from whites. • Empty all pockets and check for loose buttons. • Do not exceed the weight limits stated below, which refer to the weight when dry: Sturdy fabrics: max 5 kg Synthetic fabrics: max 2.5 kg Delicate fabrics: max 2 kg Wool: max 1 kg How much does your laundry weigh?

sheet 400-500 g pillow case 150-200 g tablecloth 400-500 g bathrobe 900-1,200 g towel 150-250 g

Special items Curtains: fold curtains and place them in a pillow case or mesh bag. Wash them separately without exceeding half the appliance load. Use programme 11 which excludes the spin cycle automatically. Quilted coats and windbreakers: if they are padded with goose or duck down, they can be machine-washed. Turn the garments inside out and load a maximum of 2-3 kg, repeating the rinse cycle once or twice and using the delicate spin cycle. Trainers: remove any mud. They can be washed together with jeans and other tough garments, but not with whites. Wool: for best results, use a specific detergent, taking care not to exceed a load of 1 kg.

Woolmark Platinum Care As gentle as a hand wash. Ariston sets a new standard of superior performance that has been endorsed by The Woolmark Company with the prestigious Woolmark Platinum Care brand. Look for the Woolmark Platinum Care logo on the washing machine to ensure you can safely and effectively wash wool garments labelled as "hand wash" (M.00221): Set programme 10 for all "Hand wash" garments, using the appropriate detergent.

Precautions and advice

General safety • This washing machine should only be used by adults and in accordance with the instructions provided in this manual.

• Do not open the detergent dispenser while the appliance is in operation. • Do not touch the drain water as it could reach very high temperatures.

• Always keep children well away from the appliance while in operation. • The appliance door tends to get quite hot during the wash cycle.

Disposal • Disposing of the packaging material: observe local regulations, so the packaging can be re-used.

• Use the correct quantity of detergent depending on the water hardness, how soiled the garments are and the amount of laundry you have, to avoid wastage and to protect the environment: despite being biodegradable, detergents do contain ingredients that alter the natural balance of the environment. In addition, avoid using fabric softener as much as possible. • If you use your washing machine from late in the afternoon until the early hours of the morning, you will help reduce the electricity board's peak load. The Delay Timer option (see page 7) helps to organise your wash cycles accordingly. • If your laundry has to be dried in a tumble dryer, select a high spin speed. Having the least water possible in your laundry will save you time and energy in the drying process.

• Disposing of an old washing machine: before scrapping your appliance, cut the power supply cable and remove the appliance door.

• Before loading your laundry into the washing machine, make sure the drum is empty.

• Treating stains with a stain remover or leaving them to soak before washing will cut down the need to wash them at high temperatures. A programme at 60°C instead of 90°C or one at 40°C instead of 60°C will save up to 50% on energy.

• Should it have to be moved, proceed with the help of two or three people and handle it with the utmost care. Never try to do this alone, because the appliance is very heavy.

• The pre-wash cycle is only necessary on extremely soiled garments. Avoiding it will save on detergent, time, water and between 5 and 15% energy.

• In the event of a malfunction, do not under any circumstances touch internal parts in order to attempt repairs.

Saving on detergent, water, energy and time • To avoid wasting resources, the washing machine should be used with a full load. A full load instead of two half loads allows you to save up to 50% on energy.

• Never force the washing machine door: this could damage the safety lock mechanism designed to prevent any accidental openings.

Environmentally-friendly technology If you only see a little water through your appliance door, this is because thanks to the latest Ariston technology, your washing machine only needs less than half the amount of water to get the best results: an objective reached to respect the environment.

• Do not pull on the power supply cable to unplug the appliance from the electricity socket. Pull the plug out yourself.

• Never touch the washing machine when barefoot or with wet or damp hands or feet.

Saving energy and respecting the environment

The washing machine was designed and built in compliance with the applicable international safety regulations. The following information is provided for your safety and should consequently be read carefully.

Care and maintenance

GB Cutting off the water or electricity supply • Turn off the water tap after every wash. This will limit the wear of your appliance's water system and also prevent leaks. • Unplug your appliance when cleaning it and during all maintenance operations.

Cleaning your appliance The exterior and rubber parts of your appliance can be cleaned with a soft cloth soaked in lukewarm soapy water. Do not use solvents or abrasives.

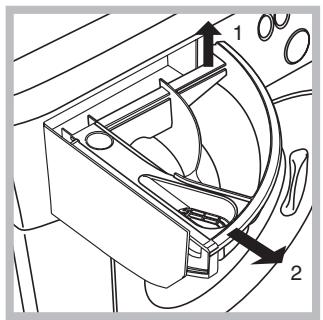

Cleaning the detergent dispenser Remove the dispenser by raising it and pulling it out (see figure). Wash it under running water; this operation should be repeated frequently.

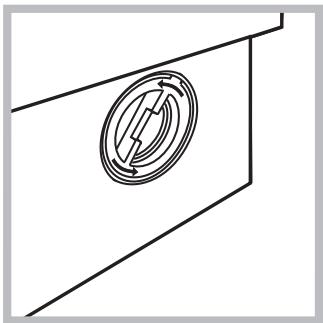

Cleaning the pump The washing machine is fitted with a self-cleaning pump that does not require any maintenance. Sometimes, small items (such as coins or buttons) may fall into the pre-chamber that protects the pump, situated in the lower part of the same.

Make sure the wash cycle has ended and unplug the appliance. To access the pre-chamber: 1. using a screwdriver, remove the cover panel on the lower front of the washing machine (see figure);

2. unscrew the lid rotating it anticlockwise (see figure): a little water may trickle out. This is perfectly normal;

Caring for your appliance door and drum • Always leave the appliance door ajar to prevent unpleasant odours from forming.

3. clean the interior thoroughly; 4. screw the lid back on; 5. reposition the panel, making sure the hooks are securely in place before you push it onto the appliance.

Checking the water inlet hose Check the water inlet hose at least once a year. If you see any cracks, replace it immediately: during the wash cycles, water pressure is very strong and a cracked hose could easily split open.

Never use hoses that have already been used.

Troubleshooting Your washing machine could fail to work. Before calling for Assistance (see page 12), make sure the problem can't easily be solved by consulting the following list.

Possible causes/Solution:

The washing machine won't start.

• The appliance is not plugged into the socket, or not enough to make contact. • There has been a power failure.

The wash cycle won't start.

• The appliance door is not shut properly (the word DOOR is displayed). button has not been pressed. • The • The START/RESET button has not been pressed. • The water tap is not turned on. • A delayed start has been set (using the Delay Timer, see page 7).

The washing machine fails to load water (The wording H2O is displayed).

The washing machine continuously loads and unloads water.

• The drain hose is not fitted between 65 and 100 cm from the floor (see page 3). • The free end of the hose is underwater (see page 3). • The wall drainage system doesn't have a breather pipe.

The water inlet hose is not connected to the tap. The hose is bent. The water tap is not turned on. There is a water shortage. The water pressure is insufficient. The START/RESET button has not been pressed.

• The drum was not unblocked correctly during installation (see page 2). • The washing machine is not level (see page 2). • The washing machine is closed in between furniture cabinets and the wall (see page 2).

The washing machine leaks.

• The water inlet hose is not screwed on correctly (see page 2). • The detergent dispenser is obstructed (to clean it, see page 10). • The drain hose is not secured properly (see page 3).

There is too much foam.

• The detergent is not suitable for machine washing (it should bear the definition "for washing machines" or "hand and machine wash", or the like). • You used too much detergent.

The washing machine vibrates too much during the spin cycle.

• The programme does not foresee the draining: some programmes require enabling the draining manually (see page 6). • The Easy iron option is enabled: to complete the programme, press the START/RESET button (see page 7). • The drain hose is bent (see page 3). • The drain duct is clogged.

The washing machine does not drain or spin.

If the problem persists even after these checks, turn off the water tap, switch the appliance off and call for Assistance. If the dwelling is on one of the upper floors of a building, there may be drain trap problems causing the washing machine to load and unload water continuously. In order to avoid such an inconvenience, special anti-drain trap valves are available in shops.

Service Before calling for Assistance: • Check whether you can solve the problem on your own (see page 11); • Restart the programme to check whether the problem has been solved; • If this is not the case, contact an authorised Technical Service Centre on the telephone number provided on the guarantee certificate. Always request the assistance of authorised servicemen.

GB Notify the operator of: • the type of problem; • the appliance model (Mod.); • the serial number (S/N). This information can be found on the data plate situated on the rear of the washing machine.
