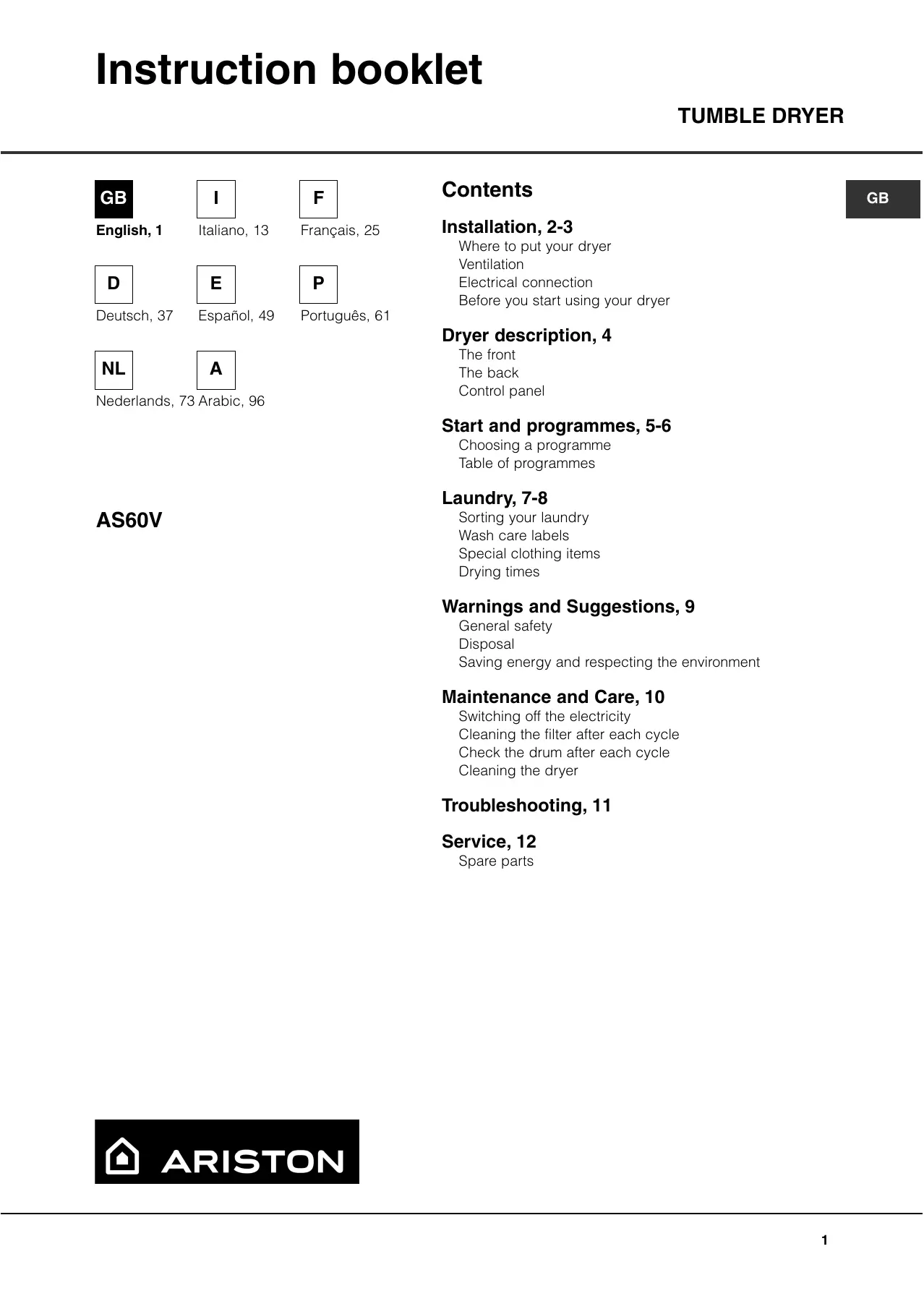

Instruction booklet TUMBLE DRYER Œ © English, 1 Italiano, 13 Français, 25 D E P Deutsch, 37 Español, 49 Português, 61 NL A Nederlands, 73 Arabic, 96 AS60V (\ ARISTON Contents Installation, 2-3 Where to put your dryer Ventilation Electrical connection Before you start using your dryer Dryer description, 4 The front The back Control panel Start and programmes, 5-6 Choosing a programme Table of programmes Laundry, 7-8 Sorting your laundry Wash care labels Special clothing items Drying times Warnings and Suggestions, 9 General safety Disposal Saving energy and respecting the environment Maintenance and Care, 10 Switching off the electricity Cleaning the filter after each cycle Check the drum after each cycle Cleaning the dryer Troubleshooting, 11 Service, 12 Spare parts

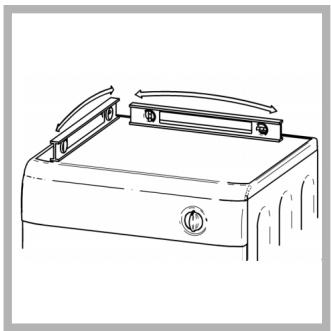

Installation ! Keep this instruction booklet on hand in order to refer to it when necessary. Take it with you when you move, and, should you sell this appliance or pass it on to another party, make sure that this booklet is supplied along with the dryer so that the new owner may be informed about warnings and suggestions on how the dryer works. ! Read these instructions carefully; the following pages contain important information on installation and suggestions on how the appliance works. Where to put your dryer - Place your dryer at a distance from gas ranges, stoves, heaters, or cook tops because flames can damage the appliance. -_If you are going to install the appliance under a work counter, be sure to leave a 10mm space between the top and any other objects on or above the machine and a 15mm space between the sides and lateral furnishings or walls. This is to ensure proper air circulation. Make sure that the back vents are not obstructed + Make sure you put your dryer in an environment that is not damp and has proper air circulation throughout. Ventilation The Dryer dries your laundry by drawing in cool, clean and relatively dry air, heating it, and then distributing it through the clothes as they are gently tumbled. For optimum performance, the moist air is then blown out through a vent tube at the back of the dryer. When the dryer is in use, there has to be adequate ventilation to avoid the back flow of gases into the room from appliances burning other fuels, including open fires. Mobile venting A vent tube must always be fitted when the dryer is used in conjunction with Mobile Venting. The tube must be fitted securely into the back of the dryer (see Dryer Description). If possible, it is always best to connect the tube to a permanent outlet close to the dryer. If permanent installation is not possible, the dryer will work just as well with the tube passing through a partly-opened window. !'Ensure that the end of the tube is not directed toward the air intake vent at the rear of the dryer. ! The vent tube should not exceed 2.4 metres in length and should be kept free of any possible accumulation of fluff, lint and water by shaking it out frequently. Always ensure that the tube is not squashed Permanent venting In conjunction with the vent tube we recommend using a Wall/Window Vent Kit, available at a retail location or the nearest Spare Parts Dealer. Wall mounting

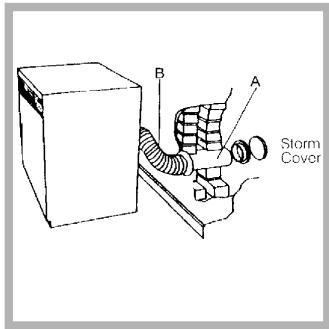

1. Leave an opening in

the wall to the left of the dryers proposed position. gomf 2. Keep the tube as short and straight as possible to prevent condensed moisture from backing up into the dryer.

3. Similarly, the duct in the

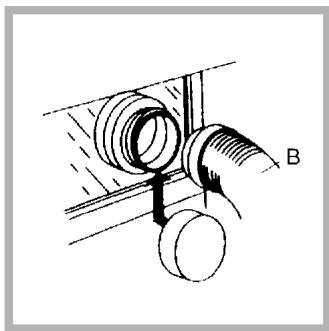

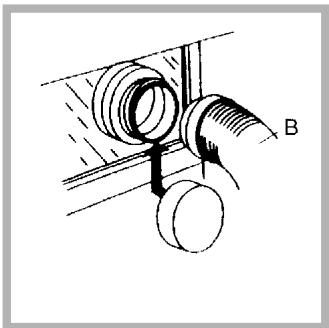

wall should slope downwards towards the outside. Window mounting

1. With a stacked dryer

the hole in the window should ideally be made below the vent.

2. The tube should be

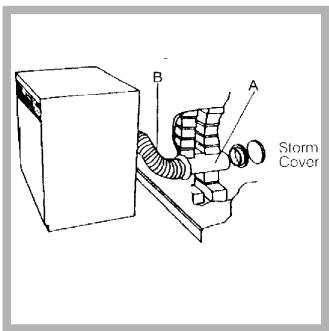

kept as short as possible Depending on how often you use your dryer, it is essential that areas À and B are checked periodically to remove lint or debris. The vent tube adaptor must be fitted securely thus preventing any humid air from being emitted back into the room. ! The Dryer should not be pushed so far back that the tube adaptor is pulled out of position or the tube is squashed or bent. ! The tube should be kept clear of the air intake vent and kinks or ‘U' bends must be avoided as these will obstruct the tube or trap condensation.

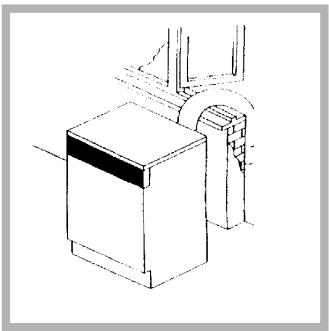

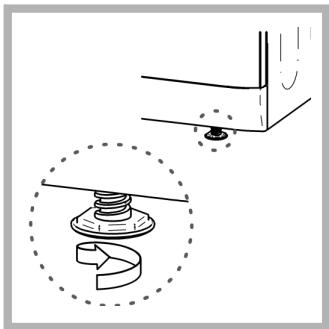

Ô ARISTON Open window venting The end of the tube should be directed downwards, to prevent warm moist air from condensing in the room orin the dryer. ! Ensure that the dryer is adequately ventilated and that the end of the vent tube is not directed towards the air intake duct. 1 The vent tube must always be fitted for optimum performance. 1! Make sure that the vent tube and air intake vents are not obstructed or blocked ! The dryer must not recycle exhaust air. ? Misusing a tumble dryer may create a fire hazard ? Do not discharge exhaust air into a flue which is used for exhaust fumes from other appliances that burn gas or other fuels. Electrical connections Make sure of the following before you insert the plug into the the electrical socket + The socket must be grounded. + The socket must be able to sustain the machines maximum power, which is indicated on the rating label (see Dryer Description). +_ Power voltage must be within the values indicated on the rating label (see Dryer Description). + _ The socket must be compatible with the dryers plug. Should this not be the case, replace the plug or the socket. ! The dryer must not be installed outdoors, even if the space is sheltered. It can be very dangerous if it is exposed to rain or storms. ? Once installed, the dryers electrical wire and plug must be within easy reach ! Do not use extension cords. ! The power cord must not be bent or squashed. ! The power supply cord should be checked periodically and replaced by a cord specially prepared for this dryer and fitted only by authorised technicians (see Service). New or longer power cords are supplied at an extra charge by authorised dealers.. ! The manufacturer denies any responsibility should any of these rules not be followed ! If in doubt about any of the above consult a qualified electrician Levelling your dryer The dryer must be installed level for correct operation When you have installed your dryer in its final location check that it is level first side to side, then front to back. If the dryer is not level, use a wooden block to support it while adjusting the two front legs up or down, until your dryer is level. Before you start using your dryer Once you have installed your dryer and before you use it, clean the inside of the drum to remove any dust that could have accumulated during transport.

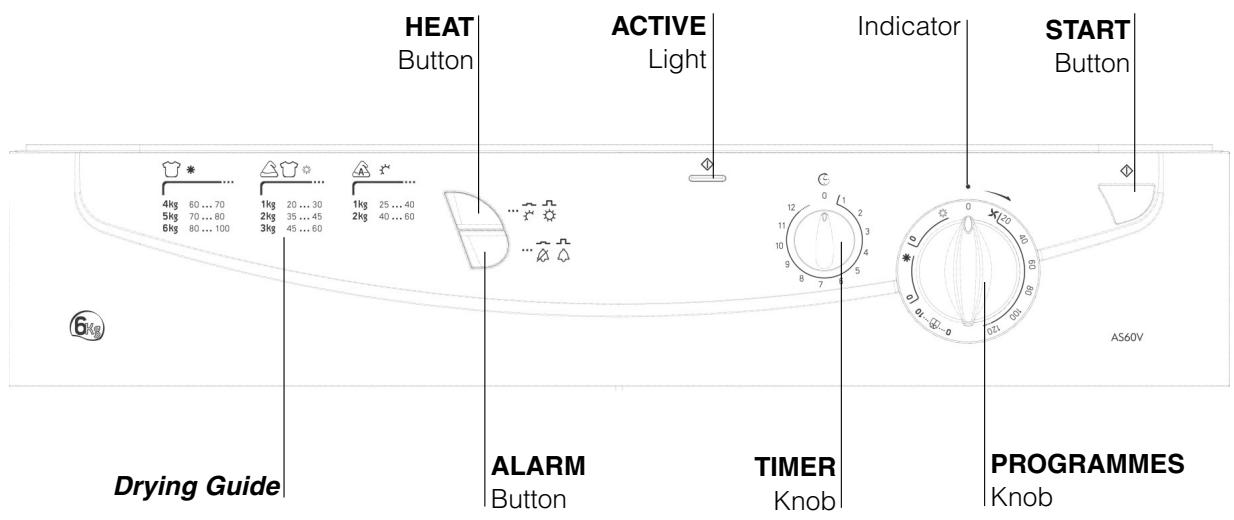

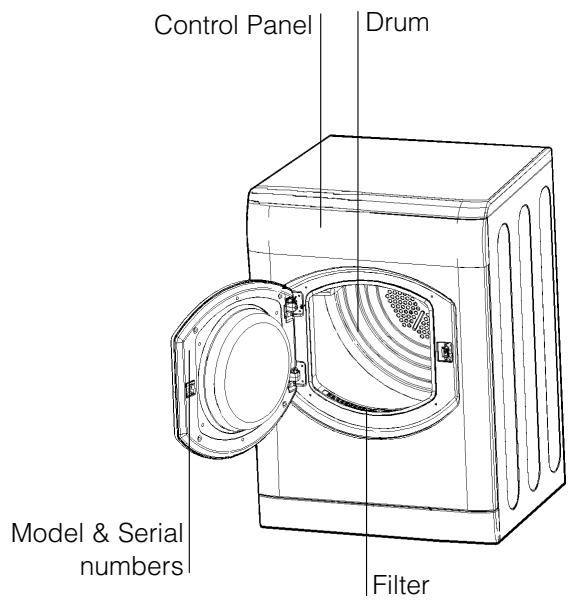

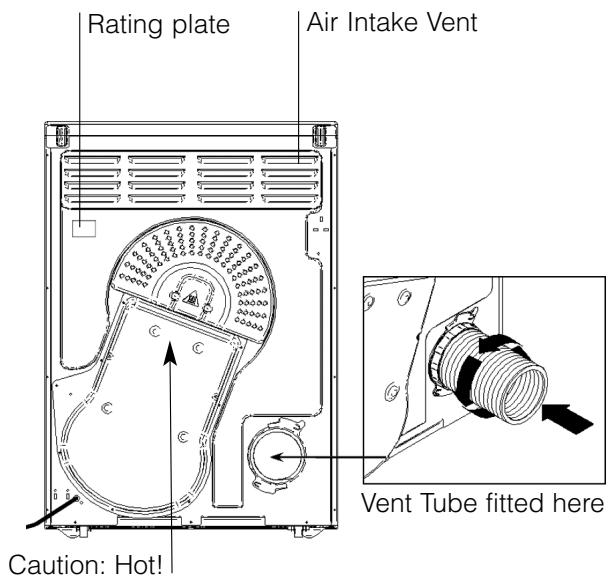

ALARM Drying Guide Button The START button begins drying a selected programme (see Start and Programmes). The HEAT button selects drying temperature (see Start and Programmes). OUT: HIGH heat. IN: LOW heat. The ALARM buzzer signals the end of a drying cycle. OUT: Buzzer ON. IN: Buzzer OFF. The ACTIVE indicator light signals that your dryer is in use. This light will glow when the START button is pressed. It will remain on until the door is opened or the power is turned off. This light will be on during a delayed start programme. The back Rating plate Air Intake Vent ju LA Vent Tube fitted here Caution: Hot! ACTIVE Indicator START Light Button ER 9

Ca | Lo À TIMER PROGRAMMES Knob Knob The Drying Guide allows you to consult a user friendly table of fabric types and load capacities. The TIMER knob sets a delay on the dryer's start time. Rotate it clockwise until you reach the number of hours you want to delay the start time: If you have gone too far, turn the knob counter-clockwise (see Start and Programmes). The PROGRAMMES knob sets the programme: rotate it clockwise, never counter-clockwise, until the indicator is pointing to the programme you want to select (see Start and Programmes).

Start and Programmes Ô ARISTON Choosing a programme

Plug the dryer into the electrical socket. Sort your laundry according to fabric type (see Laundry). Open the door and make sure the filter is clean and in place (see Maintenance). Load the machine and make sure items are not in the way of the door seal. Close the door. Choose the drying programme by checking the Programmes table (see Programmes) as well as the indications for each type of fabric (see Laundry). - Set the temperature with the HEAT button. - Select a programme or drying time by rotating the PROGRAMMES knob clockwise. Set a delay time by using the TIMER knob if necessary.

If you wish to eliminate the buzzer sound, press the ALARM button Press the START button to begin. The DRYING indicator light will turn on and will stay on, even during the delay. The indicator light will remain on until you open the dryer door. During the drying programme, you can check on your laundry and take out items that are dry while others continue drying. When you close the door again, press the START button in order to resume drying. About 10 minutes before the programme is completed, it enters the final COOL TUMBLE phase (fabrics are cooled), which should always be allowed to complete. . The buzzer will warn you when drying is complete. Open the door, take the laundry out, clean the filter and replace it (see Maintenance) . Unplug the dryer. uonel|eSUI

Start and Programmes Programmes Programme What it does. How to set it... Note: , Automatic Re Drying (average loads) Dries completely: your clothes are ready to be worn. For average loads (from 1 to 3kg) of Cotton L7, polycotton or synthetics &

1. Select HIGH HEAT X# by pressing

3. Press the START button €) , the

ACTIVE light @> will turn on. ! If you select LOW HEAT, this programme will not dry your clothes. For Acrylic fibres or small loads select Timed Drying. This programme can also be used for large loadbs if you require a slightly drier result. Automatic

• Drying (large loads) Dries completely: your clothes are ready to be worn. For large loads (from 3 to 6kg) of Cotton © Select HIGH HEAT ++ by pressing the HEAT button

ACTIVE light > will turn on ! If you select LOW HEAT, this programme will not dry your clothes. For Acrylic fibres or small loads select Timed Drying. This programme can also be used for average loads if you prefer a damper result. up to 120 minutes] ironed, Acrylic fibres À ,or small loads (less than 1kg) HEAT ## or LOW HEAT # by pressing the HEAT button.

2. Position the PROGRAMMES knob

on the desired time.

3. Press the START button @. the

ACTIVE light <> will turn on Easy Iron Brief programme (approximately |1. Select HIGH HEAT x£ by pressing |! This is not a drying 10 minutes) that softens fibres of | the HEAT button programme (see below). clothing that is ready for ironing 2. Position the PROGRAMMES knob on ff].

3. Press the START button €, the

ACTIVE light © will turn on. Timed Drying | Dries wet clothes that will be 1. Select required heat setting HIGH |Consult suggested drying times (see Laundry). Cool Tumble Phase Heating elements turn themselves off and clothing is cooled down This is the programmes final phase. Approximately 10 minutes before the finish, the knob advances automatically to the Cool Tumble Phase. After the Buzzer will sound (if selected) and the clothing is ready to be taken out. Always allow the dryer to complete this phase. Easy Iron Programme Qi ‘Easy Iron’ is a short 10 minute programme (8 minutes of heat followed by a 2 minute cool tumble period) which fluffs the fibres of clothing that have been left in the same position/location for an extended period of time. The cycle relaxes the fibres and makes them easier to iron and fold. ‘Easy lron' is not a drying programme and should not be used for wet articles of clothing For best results:

1. Do not load more than the maximum capacity.

These numbers refer to the dry weight Fabric Maximum load Cotton and Cotton mixtures 2.5kg Synthetics 2kg Denim 2kg

2. Unload the dryer immediately after the end of the programme, hang, fold or iron the articles and put

them away in the closet. Should this not be possible repeat the programme. The ‘Easy Iron’ effect varies from one fabric to the next. It works well on traditional fabrics like Cotton or Cotton mix, and less well on acrylic fibres and on materials such as Tencel®.

Laundry Ô ARISTON Sorting your laundry + Check symbols on clothing labels to make sure that the articles can be tumble dried. + Sort laundry by fabric type. + _ Empty pockets and check buttons. + _ Close zippers and hooks and tie loose belts and strings. + Wring out each item in order to eliminate as much excess water as possible. ! Do not load dripping wet clothes into the dryer. Maximum load size Do not load more than maximum capacity. These numbers refer to dry weight: Natural fibres: 6kg max (131b) Synthetic fibres: 3kg max (6.6lb) ? DO NOT overload the dryer as this could result in reduced drying performance. Typical load Clothes Blouse Cotton 150g 50z Other 100g 30z Dress Cotton 500g tlb 20z Other 350g 120z Jeans 700g 1lb60z 10 nappies 1000g 2lb 30z Shirt Cotton 300g 100z Other 200g 7oz T-Shirt 125g 4oz Household Items Duvet cover Cotton 1500g 3lb 50z (Double) Other 1000g 21b30z Large Tablecloth 700g 1lb60z Small Tablecloth 250g 9oz Tea Towel 100g 30z Bath Towel 700g 1lb60z Hand Towel 350g 120z Double Sheet 500g tlb 20z Single Sheet 350g 120z Wash Care Labels Look at the labels on your garments, especially when tumble drying for the first time. The following symbols are the most common May be tumble dried K Do not tumble dry © Tumble dry at high heat setting Tumble dry at low heat setting Ke] Items not suitable for tumble drying + _ Articles that containing rubber or rubber-like materials or plastic film (pillows, cushions, or PVC rainwear), any other flammable articles or objects that contain flammable substances (towels soiled with hair spray). + Glass fibres (certain types of draperies) + _ltems which have been dry cleaned +_ Items with the ITCL Code R (see Special clothing items). These can be cleaned with special at-home dry cleaning products. Follow instructions carefully. + Large bulky items (quilts, sleeping bags, pillows, cushions, large bedspreads etc). These expand when drying and would prevent airflow through the dryer. At the end of a drying cycle, cottons could still be damp if you grouped cottons and synthetics together. If this happens simply give them an additional short period of drying. uonel|eSUI uondu2s9q

Laundry Special clothing items Blankets and Bedspreads: acrylic items (Acilan, Courtelle, Orion, Dralon) must be dried with special care on LOW heat setting. Avoid drying for a long period of time. Pleated or creased garments: read the manufacturer's drying instructions on the garment. Starched articles: do not dry these with non-starched items. Make sure that as much of the starch solution is removed from the load as possible before placing it in the dryer. Do not over-dry: the starch will become powdery and leave your clothing limp, which defeats the purpose of starch. Drying times The table below presents APPROXIMATE drying times in minutes. Weights refer to dry garments Cottons © High (full) Heat X£ Drying times 800-1000rpm in washing machine Half Load Full Load 1kg 2kg 3kg 4kg 5kg 6kg 20-30 1365-45 |45-60 |60-70 |70-80 |80-100 Synthetics & High (full) Heat ++ Drying times on reduced spin in washing machine Half Load Full Load 1kg 2kg 3kg 20-30 35-45 45-60 Acrylics 4 / 2 Low (gentle) Heat x Drying times on reduced spin in washing machine Half Load Full Load 1kg 2kg 25-40 40-60 Times are approximate and can vary depending upon: + Amount of water retained in clothes after spin cycle: towels and delicates retain a lot of water. + _ Fabrics: items that are the same type of fabric but different textures and thicknesses may not have the same drying time: + Quantity of laundry: single items or small loads may take longer to dry. + _Dryness: If you are going to iron some of your clothes, they can be taken out while still a bit damp. Others can be left longer if you need them to be completely dry. + Heat setting. + _ Room temperature: if the room where the dryer is located is cold, it will take longer for the dryer to dry your clothes. + Bulk: some bulky items can be tumble dried with care. We suggest that you remove these items several times, shake them out, and return them to the dryer until finished {Do not over-dry your clothes. All fabrics contain a little natural moisture, which keeps them soft and fluffy.

Warnings and Suggestions Ô ARISTON ! The appliance has been designed and built according to international safety standards. These warnings are given for safety reasons and must be read carefully. C € This appliance conforms to the following EEC Directives: - 72/23JEEC and 93/68/EEC (Low Voltage Equipment) - 89/336/EEC, 92/31/EEC and 93/68/EEC (Electromagnetic Compatibility) General safety + _ This tumble dryer has been designed for home, and not professional use. <_ This dryer must be used by adults, and the instructions in this booklet should be followed carefully. + Do not touch the appliance while barefoot or with wet hands or feet. + Unplug the machine by pulling on the plug, not the cord. + _ Children must not be in proximity of the dryer when in use. After using the dryer, turn it off and unplug it. Keep the door closed to make sure that children do not use it as a toy. .< The appliance must be installed correctly and have proper ventilation. The air intake vents behind the machine, the outlet vents and the vent tube should never be obstructed (see Installation). + _ Never direct the vent tube outlet towards the air intake at the back of the machine. <_ Never allow the tumble dryer to recycle exhaust air. ._ Never use the dryer on carpeting where the pile height would prevent air from entering the dryer from the base. + _ Check to see if the dryer is empty before loading it. . The back of the dryer could become very hot. Never touch it while in use. + Do not use the dryer unless the filter is securely in place (see Maintenance). + Do not use liquid fabric softeners in the dryer, add it to the final rinse of your wash. + Do not overload the dryer (see Laundry) for maximum loads + Do not load items that are dripping wet. <_Tumble dry items only if they have been washed with detergent and water, rinsed and been through the spin cycle. It is a fire hazard to dry items that HAVE NOT been washed with water. + Carefully check all instructions on clothing labels (see Launary). Do not dry garments that have been treated with chemical products. .<_ Never dry articles that are contaminated with flammable substances (petrol, oil, paint, hair spray, creams, cooking fat or oils). + Do not tumble dry rubber, foam rubber, plastic, plastic foam, nappy pants or liners, polythene or paper. + _ Do not tumble dry large, very bulky items. +. Do not tumble dry acrylic fibres at high temperatures. +_ Complete each programme with its Cool Tumble Phase. + _ Do not turn off the dryer when there are still warm items inside. + Clean the filter after each use (see Maintenance). + _ Do not allow lint to collect around the dryer. + _ Never climb on top of the dryer. It could result in damage. + _ Always follow electrical standards and requirements (see Installation) + _ Always buy original spare parts and accessories (see Service). Recycling and disposal information 7 As part of our continued commitment to helping the environment, we reserve the right to use quality recycled components to keep down customer costs and minimise material wastage. + _Disposing of the packaging material: follow local regulations, so the packaging can be recycled. + _ To minimise risk of injury to children, remove the door and plug - then cut off mains cable, flush With the appliance. Dispose of these parts separately to ensure that the appliance can no longer be plugged into a mains socket. Disposal of old electrical appliances The European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment The crossed out “wheeled bin" symbol on FT the product reminds you of your obligation, that when you dispose of the appliance it mm must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance. Saving energy and respecting the environment + Wring out items to eliminate excess water before tumble drying (if you use a washing machine first, select a high spin cycle). Doing this will save time and energy during drying. + _ Always dry full loads - you save energy: single items or small loads take longer to dry. + Clean the filter after each use to contain energy consumption costs (see Maintenance). uonduseq uonel|e1SUI sewuwei6oid ee) suonse66ns pue soueusjulem BunoouselqnoiL eoyues

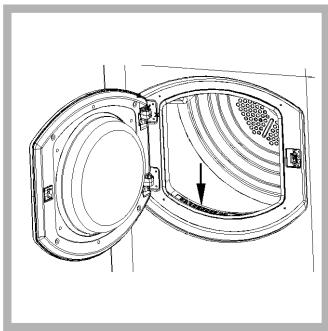

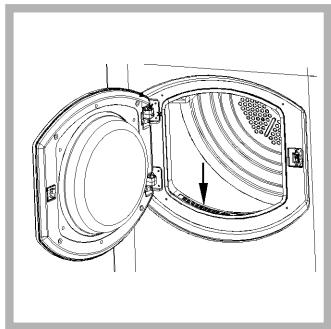

Maintenance and Care Switching off the electricity Unplug your dryer when not using it, when cleaning it and during all maintenance operations. Clean the filter after each cycle The filter is an important part of your dryer: it accumulates lint and fluff that is formed while drying. Small items could also become trapped in the filter. When finished drying, therefore, clean the filter by rinsing it under running water or with your vacuum cleaner. Should the filter become clogged up, the airflow inside the dryer will be seriously compromised: drying times lengthen and you will consume more energy. lt may also damage your dryer. The filter is found in front of the dryer trim = à) (see diagram).

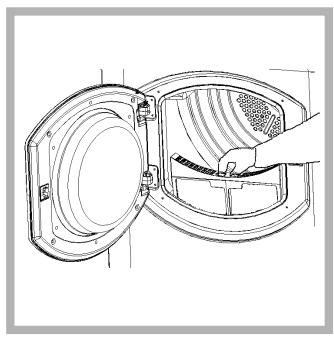

Removing the filter:

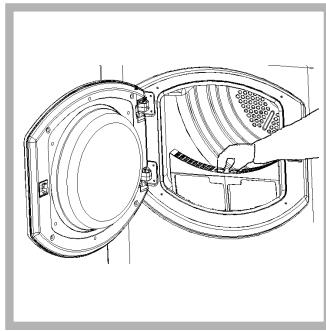

1. Pull the plastic grip of

the filter upwards (see diagram).

2. Clean the filter and

replace it correctly. Ensure the filter is fully located flush into the tumble dryer trim. ? Do not use the dryer without replacing the filter. Check the drum after each cycle Turn the drum manually in order to remove small items (handkerchiefs) that could have been left behind Cleaning the drum ! Do not use abrasives, steel wool or stainless steel cleaning agents to clean the drum. A coloured film may start to appear on the stainless steel drum, this may be caused by a combination of water and, or cleaning agents such as fabric conditioner from the wash. This coloured film will not affect the dryer performance. Cleaning + _ External parts in metal or plastic and rubber parts can be cleaned with a damp cloth. + _ Periodically check the vent tube and any permanent venting fixture to make sure that there has been no accumulation of fluff or lint, and remove it. + Remove lint that collects around the filter and the outlet vents. ? Do not use solvents or abrasives. ! Your dryer uses special bearing components which do not need lubrication. ! Have your dryer checked regularly by authorised technicians to ensure electrical and mechanical safety (see Service).

Troubleshooting Ô ARISTON One day your dryer seems not to be working. Before you call your Service Centre (see Service), go through the following troubleshooting suggestions: Problem: Possible causes / Solution: The tumble dryer won't start. + The plug is not plugged into the socket, or not making contact. + _ There has been a power failure. - The fuse has blown. Try to plug another appliance into the socket. + _ You are using an extension cord? Try to plug the dryer's power cord directly into the socket. + The door is not closed securely? +_The PROGRAMMES knob has not been set properly (see Start and Programmes). + _The START button has not been pressed (see Start and Programmes). uonellezsul uondi1959q Drying cycle will not begin. + You have set a delayed time (see Start and Programmes). Its taking a long time to dry. + The filter has not been cleaned (see Maintenance). + _ The temperature setting is not ideal for the type of fabric you are drying (see Start and Programmes). + _ Auto Programmes require a HIGH temperature setting (see Start and Programmes). + The correct programme has not been selected for the load (see Start sowuwe16014 PUE LES and Programmes). 5 + The flexible vent tube is obstructed (see /nstallation). S + The air intake vent is obstructed (see Installation) S + _The permanent ventilation flap on the storm cover is obstructed (see Installation) + _ The items were too wet (see Launary). + _The dryer was overloaded (see Laundry) VE e = ® 3 ETS) $ w

Service Before calling the Service Centre: + _ Use the troubleshooting guide to see if you can solve the problem yourself (see Troubleshooting). +_Ifnot, turn off the dryer and call the Service Centre closest to you. What to tell the Service Centre: + name, address and post code. + _ telephone number. + _the type of problem. + the date of purchase. + _the appliance model (Mod.). + _the serial number (S/N). This information can be found on the data label inside the door of the machine. Spare Parts This dryer is a complex machine. Repairing it yourself or having a non-authorised person try to repair it could cause harm to one or more persons, could damage the machine and could invalidate the spare parts warranty. Call an authorised technician if you experience problems while using the machine. The spare parts have been designed exclusively for this appliance and not for other uses.
