USER MANUAL AL 68 X HOTPOINT

Instructions for installation and use

Machine à laver

How to get better results

Instructions for installation and use

Class A at 40°C

The first washing machine to give a perfect wash at only 40°C

■ Cashmere Gold

The first washing machine to have "The Woolmark Company" recognition

Margherita 2000 Washing machine safe

and easy to use

Quick guide to Margherita 2000

Here are the 11 topics explained in this manual. Read, learn and have fun: you will discover many secret ways to get a better wash, more easily and making your washing machine last longer.

1. Installation and removal (p. 10)

Installation, after delivery or transport, is the most important operation for the correct functioning of your Margherita 2000 washing machine. Always check:

1. That the electric system conforms to regulations;
2. That the inlet and draining pipes are connected correctly;
3. That the washing machine is levelled properly; something worth checking to aid the performance of your washing machine

2. What goes in your washing machine and how to start your Margherita 2000 (p. 2)

A correct distribution of your laundry is vital to the successful outcome of the wash and the life of the washing machine. Learn all the tips and secrets to dividing your linen: colour, type of fabric.

3. Guide to understanding labels (p. 5)

The symbols on the labels of your garments are easy to understand and equally important for the success of your wash. The guide includes simple instructions to help you choose the right temperature, wash cycles and ironing methods.

4. Useful tips to avoid mistakes (p. 6)

Years back, our grandmothers were the ones who gave us good advice -and in those days synthetic fibres did not exist: washing was easy. Today, Margherita 2000 offers you helpful advice allowing you to wash cashmere and wool even better than an expert laundress would by hand.

5. The detergent dispenser (p. 7)

How to use the detergent dispenser.

6. Understanding the control panel (p. 3)

Margherita 2000's control panel is very simple. It has only a few essential buttons to help you choose any type of wash cycle, ranging from the most energetic, capable of cleaning a mechanic's overalls, to the most delicate for cashmere. Familiarising yourself with it will help you get the best out of your wash while helping your washing machine last longer. It's easy.

7. Guide to Margherita 2000's programmes (p. 4)

Herein is an easy table to help you choose the right programme, temperature, detergents and possible additives. Choose the right programme and you will get better results with your wash while saving time, water and energy, day after day.

8. Care and maintenance (p. 11)

Margherita 2000 is a true friend. With just a bit of care, it will repay you with loyalty and devotion.

With the necessary upkeep, it will wash for years and years to come.

9. Problems and solutions (p. 8 and 9)

Before calling a technician, read these pages: immediate solutions may be found for a number of problems. If the problem persists, call your local Ariston customer services who will be pleased to help. Any failure will be repaired, as soon as possible.

10. Technical characteristics (p. 9)

Herein are the technical features of your washing machine: model type number, electric and water specifications, size, capacity, speed of the spin cycle and compliance with Italian and European regulations.

11. Safety for you and your family (p. 12)

Here you will find the necessary safety guidelines, and it is important for you to read this section carefully.

What goes in your washer?

Before washing, you can do a great deal to ensure better results. Divide your garments according to fabric and colour. Read the labels, follow their guidelines.

Dividing your garments according to fabric and colour, is very important for good results.

Before washing.

Divide your washing according to the type of fabric and colour fastness.

Empty all pockets (coins, paper, money and small objects) and ensure all loose buttons are repaired or removed prior to loading.

The labels say it all.

Always look at the labels: they tell you everything about your garment and how to wash it in the best possible way.

The table on page 5 shows all meanings behind these symbols. Their recommendations are important to achieve better wash results

Big and small happily together.

This washing machine has aspecial electronic control device for even distribution: before the spin cycle starts, this device allows the garments to positions themselves, to minimise noise and vibrations during the spin cycle.

Starting Margherita 2000

After installing your new washing machine, start a wash cycle by setting programme "1" at 90 degrees.

Starting Margherita 2000 in the right way is important for the quality of your wash, to help prevent future problems and enhance life expectancy of your appliance. Once you have loaded your washing machine and added the detergent together with any fabric conditioner, always check that:

For more delicate garments: protect underwear, tights and stockings and delicate items by placing them in a canvas pouch.

1. The door is closed correctly.
2. The plug is secured in the socket.
3. The water supply is turned on.
4. Selector knob A is positioned on one of the symbols (Stop/ Reset).

Choose the desired programme The programme is selected according to the type of garments that need to be washed. To choose a programme, refer to the table on page 4. Press On/Off button H (ON position), turn knob B to the desired temperature settings and, lastly, turn knob A until the selected programme coincides with the mark on the upper part of window M. If necessary, use buttons D,E,F and G.

Remember that, if you want to use it, the "programmed start" should be set before the wash cycle.

At the end of the wash cycle... The L lamp to extinguish: it will take about three minutes.

Then turn Margherita 2000 off by pressing On-Off button H (OFF position). You can now open the washing machine door safely.

After having removed the freshly cleaned washing, leave the door open to allow air circulation inside the drum.

Always disconnect electricity at the socket and turn off the water supply.

Remember that, in the event of a power failure, or should the washing machine switch itself off, the programme chosen will remain in its memory.

How to eliminate the most common stains

Ink and biro Dab with a wad of cotton soaked in methyl alcohol or alcohol at 90^ .

Tar Dab with fresh butter, rub in turpentine then wash immediately.

Wax Scrape away, then run a hot iron between two sheets of absorbent paper. Then rub in cotton with turpentine or methyl alcohol.

Chewing gum Rub in nail polish remover and wipe with a clean rag.

Mold Cotton and white linen should be placed in a solution of 5 parts water, one bleach and a spoon of vinegar, then washed immediately. For other white fabrics, use hydrogen peroxide at 10 volumes and wash immediately.

Lipstick Dab with ether on wool or cotton. Use tricloroetilene for silk.

Nail polish Place a sheet of absorbent paper on the side of the stain, wet it with nail polish remover, shifting the garment as the sheet gradually changes colour.

Grass Dab with a wad of cotton soaked in methyl alcohol.

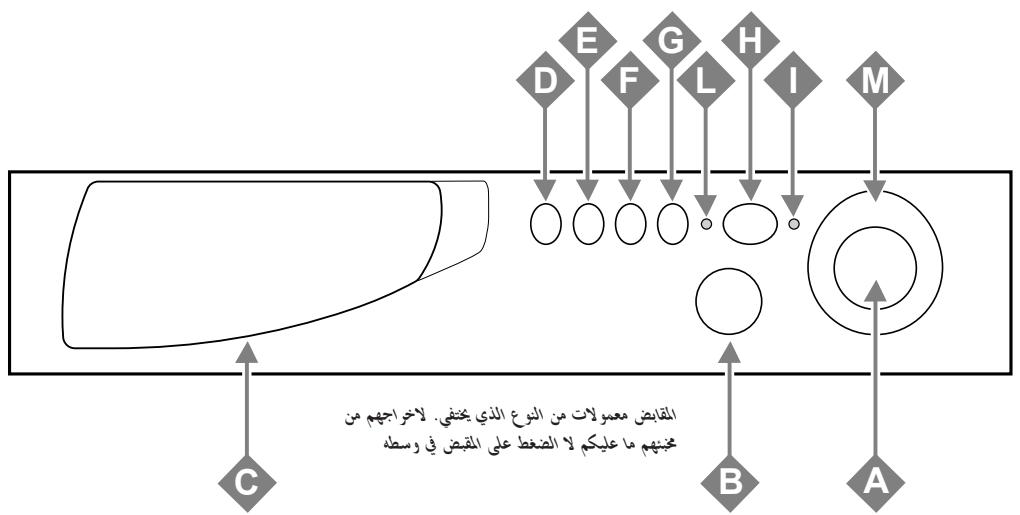

Here I’m in command

Making the right choice is important. And it's easy.

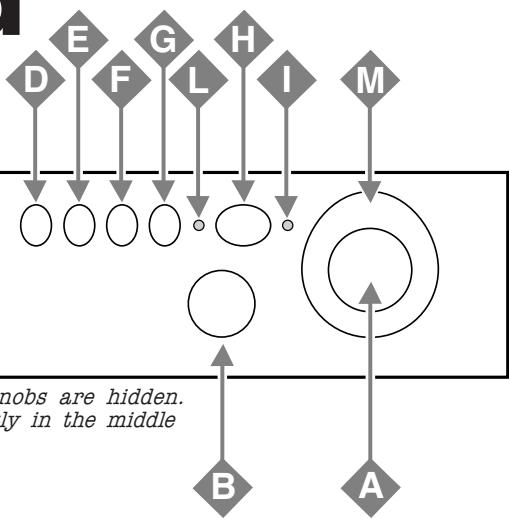

Programme selector knob and programmed start

It is used to select the wash programme.

Before setting anything, press the on/off button (H). Lamp I will begin to flash.

The chosen programme is visible through the window M.

Remember that the knob can only be turned in a clockwise direction.

To select the programmes, make sure the mark situated on window M is aligned with the symbol/number corresponding to the desired programme for at least 5 seconds. After these 5 seconds, the setting is accepted, lamp I stops flashing (staying lit) and the wash cycle begins. If you want to interrupt the programme in progress or to set a new one, select one of the symbols (Stop/Reset) and wait for 5 seconds: when the cancellation has been accepted, lamp I will flash.

You can use this knob to delay the washing machine's operation: select one of the four positions for programmed start and wait for 5 seconds. This is when the setting has been accepted (lamp i stops flashing and stays lit) and you can select the programme you require.

Pilot lamp I has a particular flashing action (2 seconds lit and 4 seconds off) to indicate that the delayed start has been set.

During this phase, it is possible to open the door and modify the washing load.

After the wash cycle has been set and accepted by the washing machine, turning the knob will have no effect (except for when it is on position ● Stop/Reset).

The detergent dispenser is here.

Temperature control knob

It is used to set the wash temperature in the recommended programme table on pag.4. It also allows you to reduce the temperature recommended for the selected programme, and even to set a cold wash cycle (长)

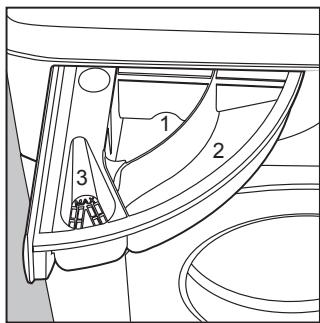

Detergent dispenser

It is divided into three compartments:

1. Detergent for pre-wash;
2. Detergent for the main cycle wash;
3. Fabric conditioner.

Anti-crease

This button allows you to interrupt a programme (on symbol▲) keeping the washing soaking in water before the spin cycle. It is a very useful button in particular because it can be used for delicates and synthetics. It is only to be used with wash program-mes for synthetic fabrics, silk and curtains when it is impossible for you to take the washing out immediately. Before opening the washing machine door, finish the wash cycle as follows:

Silk and curtains: press button D and Margherita 2000 will drain the water.

Synthetic fabrics: press button D if you want a spin cycle, or turn knob A to symbol if you want the water to be drained.

Spin Exclusion

Press this button and the washing machine will not carry out a spin cycle, but rather a drum spin at medium speed to assist water draining. We recommend that you use it when washing garments which are difficult to iron.

Extra Economy

Reduces water consumption during the rinse cycles. We recommend that you use this function only with small laundry loads, dosing the detergent proportionally.

Prewash

With this button, you can prewash on all programmes except the wool programme and the special programmes (see page 4).

On-off

When button H is pressed, the washing machine is switched on, when it is not the machine is switched off.

Turning the appliance off does not cancel the selected programme.

The on-off lamp

Lamp I flashes when the appliance is switched on and awaiting a programme to be set. A steady light means the appliance has accepted the selected programme.

The door block lamp

The safety lamp indicates that the washing machine door is locked to prevent it from being opened accidentally. To avoid any damages to lock mechanism, you must wait for the lamp to extinguish, before attempting to open the door which takes around three minutes.

A programme for all seasons

Type of fabric and degree of soil	Programme knob	Temperature knob	Detergent for wash	Fabric softener	Length of the cycle (minutes)	Description of wash cycle
COTTONS
Exceptionally soiled whites (sheets, tablecloths, etc.)	1	90°C	◆	◆	145	Wash cycle at 90°C, rinse cycles, intermediate and final spin cycles
Heavily soiled whites and fast colours	2	60°C	◆	◆	130	Wash cycle at 60°C, rinse cycles, intermediate and final spin cycles
Heavily soiled whites and fast colours	3	40°C	◆	◆	150	Wash cycle at 40°C, rinse cycles, intermediate and final spin cycles
Slightly soiled whites and delicate colours (shirts, jumpers, etc.)	4	40°C	◆	◆	95	Wash cycle at 40°C, rinse cycles, intermediate and final spin cycles
Rinse cycles			◆	◆		Rinse cycles, intermediate and final spin cycles
Spin cycle						Draining and final spin cycle
Stop/Reset						Interrupts/Cancels the selected programme
SYNTHETICS
Heavily soiled fast colour synthetics (baby linen, etc.)	5	60°C	◆	◆	100	Wash cycle at 60°C, rinse cycles, anti-crease or delicate spin cycle
Delicate colour synthetics (all types of slightly soiled garments)	6	40°C	◆	◆	70	Wash cycle at 40°C, rinse cycles, anti-crease or delicate spin cycle
Delicate colour synthetics (all types of slightly soiled garments)	7	30°C	◆	◆	30	Wash cycle at 30°C, rinse cycles and delicate spin cycle
Rinse cycles			◆			Rinse cycles, anti-crease or delicate spin cycle
Fabric softener				◆		Rinse cycles with automatic introduction of softener, anti-crease or delicate spin cycle
Spin cycle						Draining and delicate spin cycle
Stop/Reset						Interrupts/Cancels the selected programme
WOOL
Hand wash	8	40°C	◆	◆	45	Wash cycle at 40°C, rinse cycles and delicate spin cycle
Rinse cycles			◆			Rinse cycles and delicate spin cycle
Spin cycle						Draining and delicate spin cycle
Stop/Reset						Interrupts/Cancels the selected programme
SILK
Particularly delicate garments and fabrics (curtains, silk, viscose, etc.)	9	30°C	◆	◆	50	Wash cycle at 30°C, rinse cycles, anti-crease or draining
Rinse cycles			◆			Rinse cyclesi, anti-crease or draining
Draining						Draining
Stop/Reset						Interrupts/Cancels the selected programme
PROGRAMMED START (Delay Timer)
12 - 9 - 3 - 1 hour delay						Start is delayed by 12 - 9 - 3 - 1 hours
Stop/Reset						Interrupts/Cancels the selected programme

Important: to cancel the wash programme you have just set, select one of the symbols (Stop/Reset) and wait for at least 5 seconds.

The data found in the table is purely indicative, and can vary according to the quantity and type of washing, the water system temperature and the room temperature.

Special programmes

Class A at 40^ C Margherita 2000 has a special programme to allow you to obtain optimum results even at low temperatures. By setting programme 3 at a temperature of 40^ C , the results you will obtain will be the same as you would normally obtain at 60^ C thanks to the washing machine's action and the length of the wash cycle.

Daily wash Margherita 2000 has a programme available for the washing of lightly soiled garments in a short amount of time. By setting programme 7 at a temperature of 30^ , you can wash different types of fabrics together (except for wool and silk), with a maximum load of 3 kg. This programmes allows you to save on both time and energy as it only lasts around 30 minutes. We recommend the use of liquid detergent.

Understanding labels

Learn the meaning of these symbols and you will get better results, your garments will last longer resulting in an improved wash.

All over Europe, garment labels contain messages expressed in small yet important symbols. Understanding them is very important if you want to get better results and treat your garments the way they deserve to be treated.

These symbols are divided in five different categories and shapes: washing, bleaching , ironing , dry cleaning and drying .

Useful tips

Turn shirts inside out to get better results and make them last longer.

Always empty pockets of their contents.

Look at the label: it will always give you useful advice.

When loading your washing, try to have a mixture of large to small items.

Make sure you select the right temperature!

Consult and learn the symbols in this table: they will help you obtain a better wash, treat your clothes properly, and get a better performance out of your Ariston Margherita 2000.

Wash Delicat-e action	Bleaching	Ironing	Dry cleaning	Drying
95 Wash at 95°C	95 Bleaching only in cold water	Hot iron at max 200°C	Dry clean with any solvent	Machine dryable
60 Wash at 60°C	60 Do not bleach	Medium hot ironing at max 150°C	Dry clean only with perchloride, benzine av., pure alcohol, R111 and R113	Do not machine dry
40 Wash at 40°C	40	Iron at max 110°C	Dry clean with av. benzine, pure alcohol and R113	Spread to dry
30 Wash at 30°C	30	Not ironable	Do not dry clean	Hang to dry without spin drying
Hand wash	Hand wash			Dry on clothes hanger
Not washable in water

Useful tips

Never use your washing machine to wash... torn, fraying or non-hemmed linen. If it is absolutely neccessary, place it in a bag for protection. Do not wash coloured linen with whites.

Watch the weight!

For best results, do not exceed the weight limits stated below (figures show weight of dry garments):

• Resistant fabrics: 5.5kg maximum
• Synthetic fabrics: 2.5kg maximum
• Delicatefabrics: 2kg maximum
  Pure new wool: 1kg maximum

How much does it weigh?

1 sheet 400-500 gr.
1 pillow case 150-200 gr.
1 tablecloth 400-500 gr.
1 bathrobe 900-1,200 gr.
1 towel 150-250 gr.

Coloured T-shirts, printed ones and shirts last longer if turned inside out before washing. Printed T-shirts and sweatshirts should always be ironed inside out.

Dungaree alert.

Very popular "salopette" type overallshavestraps with hooks that can damage the drum of your washingmachine or other garments during the wash. To minimise the risk, place hooks in the pocket and fasten with safety pins.

Holidays: unplug the appliance.

It is recommended that you should unplug the machine from the socket and turn off the water supply. Leave the door ajar to allow air circulation to the draw and the door gasket area. This will prevent unpleasant odours.

How to wash almost anything

Curtains.

Curtains tend to crease a great deal. A useful tip to reduce creasing: fold the curtains and place them in a pillow case or mesh bag. Do not load anything else inside the appliance, this will ensure that the overall weight does not exceed the half load. Remember to use the specific programme 9 which automatically excludes the spin cycle.

■ Quilted coats and anorak.

You can wash quilted coats and wind-cheaters, too, if they are padded with goose or duck down. Do not load more than 2 - 3kg and never load 5.5kg . Repeat rinse once or twice using the gentle spin.

Trainers.

Once you have removed mud and dirt from trainers, you can even wash them with jeans or any other tough garments. Do not wash trainers with whites.

EXCLUSIVE

Cashmere Gold: As gentle as a hand wash

The first Washing Machine to have "The Woolmark Company" recognition.

The Cashmere Gold wash programme has been studied for its machine wash ability, which enables washing for even the most delicate and valuable of wool or Cashmere garments. Tests carried out in the laboratories of "The Woolmark Company" have

certified that Margherita 2000 is the first and only washing machine which guarantees taking every care with all woollen garments intended for "hand wash only".

This has been made possible thanks to the speed of the

drum at 90 rpm, even during the rinse cycle, thus preventing the fibres from rubbing.

Always use programme 8 with garments bearing the hand wash drawing; represented by the washbasin and the hand.

Useful tips about the detergent dispenser

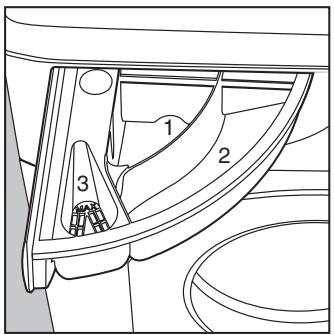

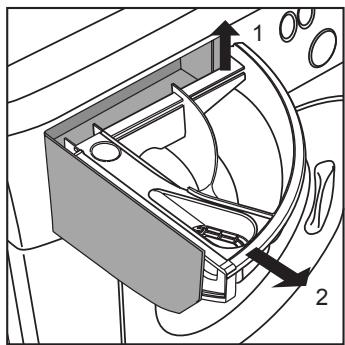

The first secret is the easiest: the detergent dispenser is opened by rotating it outwards.

You must follow the dosage recommendations provided by the manufacturers when adding detergent or fabric conditioner. Doses will vary according to the wash load, the water hardness and how soiled the washing is.

Experience will help you select the right dosage almost automatically: it will become your secret.

Ensure no overfilling when adding fabric conditioner in compartment 3.

The washing machine automatically adds the softener to the wash in each programme.

Liquid detergent is poured into compartment 2 just a few seconds before starting the wash cycle.

Remember that liquid detergent is only designed for wash cycles of up to 60 degrees on non prewash items, so you will not have to use button G.

Special containers are sold with liquid or powder detergents for placing inside the washing machine drum, these are positioned according to the instructions found in the detergent box

Never use hand wash detergent, because it may form too much foam, which could damage the washing machine.

Detergents that are specifically formulated for both hand and machine wash are an exception.

One last secret: when washing with cold water, always reduce the amount of detergent you use: it dissolves less easily in cold water than in hot water, so part of it would be wasted.

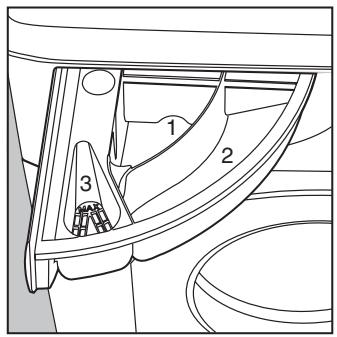

In compartment 1:

Detergent for pre-washing (powder)

In compartment 2:

Detergent for washing

(powder or liquid)

In compartment 3:

Additives (softeners, perfumes, etc.)

The detergent dispenser can be removed and cleaned: just lift it up and pull it outwards, as indicated in the figure. Then leave it under running water for a few minutes.

Cutting costs efficiently

MAXIMISE THE LOAD SIZE

Achieve the best use of energy, water, detergent and time by using the recommended maximum load size.

SAVE up to 50% energy by washing a full load instead of 2 half loads.

DO YOU NEED TO PRE-WASH?

For heavily soiled laundry only!

SAVE detergent, time, water and between 5 to 15% energy consumption by NOT selecting Prewash for slight to normally soiled laundry.

IS A HOT WASH REQUIRED?

Pretreat stains with stain remover or soak dried in stains in water before washing to reduce the necessity of a hot wash programme.

SAVE up to 50% energy by using a 60^ wash programme.

BEFORE USING A DRYING PROGRAMME ...

SAVE energy and time by selecting a high spin speed to reduce the water content in laundry before using a drying programme.

A guide to

environmentally

friendly and economic

use of your appliance.

Troubleshooting

Before calling, read the following

In most cases, when your washing machine fails to work, the problems arising can be easily solved without having to call for a technician. Before calling for assistance, always check these points.

The washing machine fails to start.

■Is the plug correctly inserted into the socket? It could have been moved whilst cleaning.
■ Is there electricity in the house?

A circuit breaker may have switched off as a result of too many electrical appliances working at the same time. Or maybe due to a general failure in your entire area.

■ Is the washing machine door closed properly?

For safety reasons, the

washing machine cannot work if the door is open or not shut properly.

■Is the On/Off button pressed?
If it is, then a programmed start has been set.
■Is the programmed start knob, in the correct position for those models concerned?
■ Is the water supply turned on? For safety reasons, if the washing machine does not load water, it cannot start a wash cycle.

RIGHT

WRONG

Turn off the water supply after use. This will eliminate the possibility of leakage.

Always leave the appliance door ajar to avoid bad odours.

Clean the appliance's exteriors gently. To clean the exteriors and the rubber parts of the appliance, always use a soft cloth dipped in warm and soapy water.

Leave the washing machine plugged in while cleaning. Even during maintenance, the appliance should always be unplugged.

Use solvents and aggressive abrasives. Never use solvents or abrasives to clean the external and rubber parts of the washing machine.

Neglect the detergent dispenser. It is removable and can easily be cleaned by leaving it under running water.

Go on holiday without thinking about her. Before leaving, always make sure that the washing machine is unplugged and that the water supply is turned off.

But where did all the water go?

Simple: with the new Ariston technology, you need less than half of it, to get good results on twice as much! This is why you cannot see the water through the door: because there is little, very little of it, to respect the environment yet without renouncing maximum cleanliness. And, on top of that, you are also saving electricity.

The washing machine fails to fill with water.

■Is the hose correctly connected to the tap?
■ Is there a water shortage? There could be work in progress in your building or street.
■Is there sufficient water pressure? The autoclave may be malfunctioning.
Is the tap filter clean? If the water is very calcareous, or if work has recently been carried out on the water piping, the tap filter could be clogged with particles and debris.
■ Is the rubber hose kinked? The tract of the rubber hose bringing water to washing machine must be as straight as possible. Make sure it is not squashed or kinked.

The programme selector knob keeps turning?

Wait a few minutes for the drain pump to empty the tub, switch Margherita 2000 off, select one of the symbols stop/ reset , then switch it back on. If the knob continues to turn, call for assistance because it is showing an anomaly.

The washing machine continuously fills and drains water.

■ Is the drain hose positioned too low? It must be installed at a height ranging from 60 to 100cm
■ Is the end of the hose immersed in water?
Does the wall drainage system have a breather pipe? If the problem persists even after these checks, turn the water supply off the machine and call for assistance.

If you live on an upper floor of your building, there may be a problem with your drain trap. To solve this problem, a special valve must be installed.

The washing machine does not drain or spin.

Does the selected programme incorporates water draining? Some programmes stop at the end of the wash cycles and draining will have to be selected manually.
■ Is the "Anti-crease" function -where provided -enabled? This function requires manual selection for draining.
■ Is the drain pump clogged? To check it, turn off the water supply, unplug the washing machine and follow the instructions on page 11, or call for technical assistance.

Always get assistance from authorised technicians and always insist on original spare parts.

■ Is the drain hose kinked? The tract of the drain hose must be as straight as possible. Make sure the drain hose is not squashed or kinked.
■ Is the washing machine's drain duct clogged? Is there an extension of the drain hose? If so, is it positioned incorrectly, blocking the water flow?

Excessive vibration during the spin cycle.

Have all transit screws been removed durind installation? See the following page on installation procedures.
Has the washing machine been levelled correctly? The levelling of the appliance should be checked periodically. Adjust the feet and check them with a level.

■ Is there space between the machine and adjacent units? If it is not a built-in model, the washing machine will oscillate a bit during the spin cycle. A few cm of space should therefore be left around it.

The washing machine leaks.

Is the metal ring of the inlet hose properly attached? Tum off the water supply, unplug the appliance and try tightening its attachment without forcing it.
■ Is the detergent dispenser obstructed? Remove and wash it under tap water.
■ Is the drain hose well attached? Turn off the water supply, unplug the appliance and try tightening its attachment.

Too much foam.

■ Is the detergent appropriate for machine washing? Check whether the definition on its label reads "for machine wash" or "hand and machine wash", or any other similar wording.
■ Is the correct amount being used? An excessive amount of detergent, besides producing too much foam, does not guarantee a more effective wash, and causes scaling in the internal parts of the appliance.

If, despite all checks, the washing machine fails to function and the problem persists, call your nearest authorised Customer Service Centre, providing the following information:

• the nature of malfunction
• the model type no. (Mod....)
• the serial number (S/N ....) This information can be found on the data plate situated at the back of the washing machine.

Technical characteristics

Model	AL 68 X
Dimensions	width 59,5 cm
	height 85 cm
	depth 53,5 cm
Capacity	from 1 to 5,5 kg
Electrical connections	voltage 220/230 Volt 50 Hz maximum absorbed power 1850 W
Water connections	maximum pressure 1 MPa (10 bar) minimum pressure 0,05 MPa (0,5 bar) drum capacity 46 litre
Spinning speed	up to 600 rpm
Control programs in compliance with IEC regulation 456	carried out with 5,0 kg load
CE	This appliance conforms with the following E.E.C. directives: -73/23/EEC of 19/02/73 (Low Voltage) and subsequent modifications -89/336/EEC of 03/05/89 (Electromagnetic Compatibility) and subsequent modifications

Installation and removal When Margherita 2000 arrives

Whether new or just transported to a new house, installation is extremely important for the correct functioning of your washing machine.

After removing the appliance from its packaging, check that it is intact. If in doubt, contact a qualified technician immediately. The inside of the machine is supported, for transportation, by four screws on the back panel.

Before using the washing machine, remove the screws, remove the spacers together with the rubber tubes attached to them (keeping all the parts) and use the plastic plugs provided to fill in the holes. Important: Use the cap (provided) to close the 3 holes which housed the stop pin, situated in the right-hand part of the lower back of the washing machine.

Part A must not be removed.

Levelling

The washing machine must be levelled appropriately in order to guarantee its correct functioning. To level the appliance, the front feet must be adjusted; the angle of inclination, measured according to the worktop, must not exceed 2^ . When placed on carpet, make sure the ventilation is not reduced.

Retain the transit screws, spacers and washers. Should you move house then these should be replaced to support the inside of the machine to prevent damage when transporting the machine.

The front feet are adjustable.

Connection to the water mains

Water pressure must range within the values indicated on the data plate on the rear of your washing machine. If the water pipes are new or left unused, then before connecting the machine run the water until clear to remove debris. Connect the inlet hose to a cold water tap having a 3/4 "BSP thread. Ensure that the rubber sealing washers are fitted at each end of the inlet hose, with the fitter washer at the tap end.

The rubber hose filter.

Connect the inlet hose to the threaded connector on the machine rear.

Water pipe inlet at the top right.

Connecting the drain hose

There are two hooks (right or left) on the rear of your washing machine to which the drain hose is to be fixed. Insert the other end in a stand pipe or place it on the edge of a sink or tub avoiding excessive kinks and bending. It should be placed at a height

ranging from 60 to 100cm .If it is necessary to fix the end of the hose at a height below 60~cm from the ground, it must be fixed in the appropriate hook placed on the upper part of the back panel.

The hook to be used in case the drain hose ends at a height below 60~cm

If the drains hose empties into a tub or sink then fit the plastic guide and secure it to the tap.

The guide for draining into tubs and sinks.

The end of the drain hose must be positioned so that it cannot become submerged.

Extensions are unadvisable. In case of absolute need, the extension must have the same diameter as the original hose and must not exceed 150~cm . In case of wall draining pipes, their efficiency must be checked by a qualified technician. If the dwelling is on one of the upper floors of a building, there may be drain trap problems causing the washing machine to load and unload water continuously.

In order to avoid such an inconvenience, special anti-drain trap valves are available in shops.

Electric connection

Before connecting the appliance to the electric socket, be sure that:

1) the electric socket is able to sustain the appliance's maximum power load indicated on the data plate and in compliance with the law;
2) the supply voltage is included within the values indicated on the data plate;
3) the socket is compatible with the appliance's plug. If not, do not use adapters, but replace either the socket or the plug;
4) electric household appliances must be equipped with an "earthing" system.

Warning!

The company denies all liability if and when these norms are not respected.

Plastic bags, expanded styrofoam, nails and other packaging parts are not children's toys, and are potentially dangerous.

Treat your machine well and it will provide many years of trouble free service

Your washing machine is a reliable companion in life and on the job. It is just as important for you to keep it in shape.

Margherita 2000 is a washing machine designed to provide reliable service over many years. A few simple steps will help to prolong its life and avoid problems. It is advisable, to turn off water taps when the machine is not to be used, this protects the hoses, etc.

If the water in your area is too hard, use a deliming product (water is hard if it often leaves whitish stains around taps or drains, especially of bath tubs.

Formore accurate information as to the type of water in your system, call the local water works or a local plumber).

Pockets must always be emptied removing even pins, badges and any other hard object.

The washing machine exterior should be cleaned with a rag dipped in lukewarm water and soap.

It is important to wash the detergent dispenser regularly. To prevent dried washing powder from accumulating, place the dispenser under running water for a few minutes.

Never exaggerate with doses.

Normal detergents already contain deliming agents. Only if the water is particularly hard, that is, rich in lime content, do we recommend the use of a specific product at every wash.

A periodical wash cycle with a dose of a deliming product, without detergents or washing, may prove useful.

Never use too much detergent or additives because this could cause an excess amount of foam, scaling and possible damage to the component parts of your washing machine.

Do not forget to empty all pockets: small objects can cause damage to your friend Margherita 2000.

When in need, check the pump and the rubber hose.

Margherita 2000 comes equipped with a self-cleaning pump that does not require any cleaning or maintenance. Small objects may accidentally fall into the pump: coins, hair clips, loose buttons and other small items. To avoid possible damage, they are withheld in an accessible pre-chamber, situated at the lower end of the pump.

Attention: Before attempting to examine this pre-chamber, first ensure that the machine has finished its programme and is empty. Unplug the machine, as with any maintenance.

To gain access gently ease down the top of the plinth panel situated at the base of the machine, with a screwdriver etc, to release it. Then ease the top edge forward to allow it to be lifted clear (Fig. 1). Place a shallow dish or tray below the cover of the pre-chamber to catch the small amount of water present. Release the cover by turning anti-clockwise (Fig. 2). Ensure that the cover is securely replaced.

Re-fit the plinth cover by inserting the hooks on its lower edge into the slots and ease the top edge back into position.

The water inlet hose

Check the rubber hose at least once a year. If you see any cracks, replace it immediately. When you use your washing machine, water pressure is very strong and a cracked tube could easily split open.

Your safety and that of

your family

Read these instructions and all the information in this manual carefully: they are an important source, not only of numerous useful tips, but also of vital information on safety, use and maintenance.

1. Margherita 2000 should not be installed in an outdoor environment, not even when a roof shelters the area, because it may be very dangerous to leave it exposed to rain and thunderstorms.
2. It must only be used by adults and exclusively for washing clothes following the instructions provided in this manual.
3. Should it have to be moved, proceed with the help of two or three people and handle it with the utmost care. Never try to do this alone, because the appliance is very heavy.
4. Before loading the washing machine, make sure the drum is empty.

Margherita 2000 has been built in compliance with the strictest international safety regulations. To protect you and all your family.

1. Never touch the washing machine when barefoot or with wet or damp hands or feet.

2. Never use extensions or multiple plugs, which are particularly dangerous in humid environments. The power supply cable must never be bent or dangerously compressed.

3. Never open the detergent dispenser while the appliance is functioning; do not use hand wash detergent because the abundance of foam could damage its internal parts.

4. Never pull on the supply cable or the washing machine to disconnect it from the wall socket: it is extremely dangerous.

5. While the appliance is functioning, do not touch the drain water as it could reach very high temperatures. The appliance door, during wash cycles, tends to become hot; ensure that children do no touch it. Never force the washing machine door because this could damage the safety lock which prevents accidental opening when the nachine is working. Allow a few minutes at the end of the program for the lock to release.
6. In case of malfunctioning, first close the water tap and unplug the appliance from the wall socket; do not under any circumstances touch internal parts in order to attempt repairs.

How to change the power supply cable

The Margherita 2000 power supply cable is special and can be purchased exclusively from authorised Technical Service Centres.

To replace the cable:

1. Make sure that Margherita 2000 is switched off and unplugged.

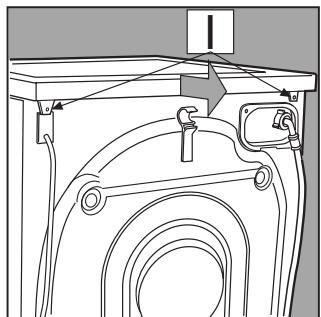

2. Remove the covering lid by unscrewing the two screws I, and then pull it towards you [fig. 3].

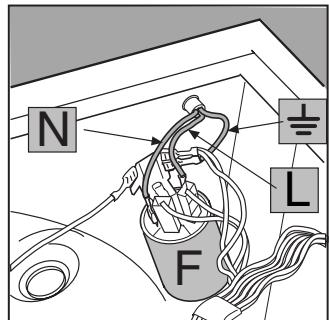

3. Disconnect the wires from the radio interference suppressor F [fig. 4] noting as to their position (Blue=N wire; Brown=L wire) leaving the earth wire until last ±

N.B.: letters L, N and the symbol ± are indicated on the radio interference suppressor.

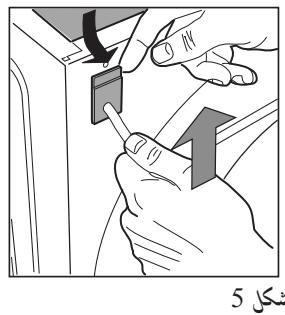

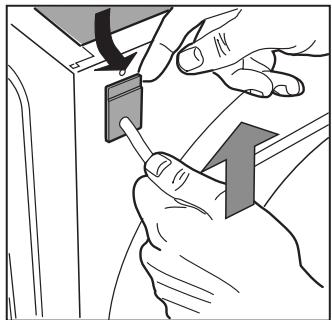

4. Remove the upper part of the cable slightly from the back panel of the appliance, pull the power supply cable upwards and take it out [fig. 5].

To connect the new power supply cable, reverse the procedure.

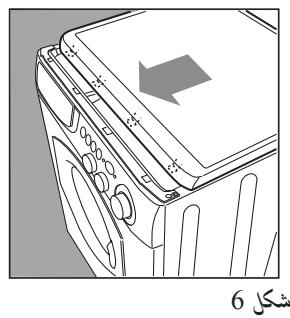

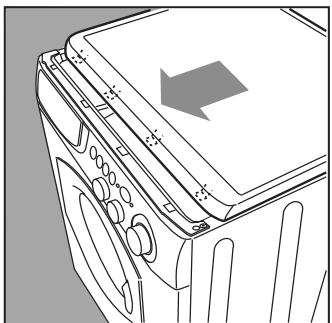

To put the covering lid back on, rest it on the washing machine [fig. 6] and let it slide forwards until the hooks situated on the front slide into the special slots formed into the control panel and tighten the screws back on.

Fig. 3

Fig. 4

Fig. 5

Fig. 6

MARGHERITA 2000 AL 68

AL 68 X

Dispositif antibalourds.

Additives (assouplissants, perfumes, etc.)

Zapnuti-vypnuti (On/Off)

Ipn Heo6xOJHMOCT H3IOJ3BaHTe 6yToHH D,E,FnG.

AkoKeJaeteIaH3NIOJ3BaTe "OTIOJKeH CTapT,ToI Tp86Ba Ia 6bIe 3aIaJe HIIpeIN CTapTHpaHeTo Ha IIporpamata.

BHHa 3aTbapnTe KpaHa Ha BODaTa. IomHete, Ye npHeBeHTyaJIeH TOKOB yIap, IepaJIHaTa MaIIHHa ce cAmOH3KJIIOvBa, Ho 3aJaDeHaTa IIporpMa 6HbA 3aIIaMeTeHa.

B KpaHa IINKbJa Ha H3HnPaHe... H3aKaaiTe OKOJIO 3 MmHyTHJaAMiTa L Da H3rAcHe. H3KJIIOyete Margherita 2000 KaTo IOCTaBHTe 6yToHa H(BKJI.H3KJI) B IO3HIIIN OFF. Cera MoKe Ja OTBOpHTe IepaJIHrTa. CJeI N3BaJxJaHe Ha IpaHeto, OcTabeTe BrpataOTBopeHa, 3a Ja ce H3IaPn BJIarTa ot Ka3aHa.

Korato cIaIate OMEKOTHTeJI B OTJeIeHHe 3, BHIMaBaIte Ja He HauBHHaBA DeJeHHeNo.

IepaJIHaTa MaIIHHa ABTomaTHUHO CmecBa OMEKOTHTeJI H IpeHJIHHI IIpeIIapat B IIpoIeCa Ha H3INpaHe.

TeuHnIe IpeIapat ce cHIIba caMo HAnKOJIko cekyHnI IpeIi CTapInpaHe Ha IIpOgpaMaTa.

BHHMaHHe!TeuHHrT IpeIapat e cAmo 3a IpaHe Ido 60^ KOeTo He H3NCKBa IpeIIpHa; 3aTOBa He6HbA Ja H3IOJI3BaTe 6yToH G.

HnKora He H3IOJBaIte IpeIepaIAT3a pBcHIO IIpaHe, 3aIIOTo 6pa3yBa MHOIO IIHa, KOeTO 6H MoTIO da yBpeIM MaIHINHata.

H oIe eHa IpeIpobka: KOraTo IepeTe cbc cTuJeHa BOJa, BINHaHn HAmaJIyBaIte KOJIHycTeBTO Ha IpeIIapata; TOI ce pa3TbApM MHOro IIO-TPUdHO B cTuJeHa BOJa HuaCT OT HrO HMa Da 6bJde OIOJBOTBoPeHa.

OTdeneHne1:

Ppeneapat 3a ppei-npahe

OTdeneHne 2:

Ppenapat 3a cBunHcKo npaHe

OTdeneHne 3:

Dobabkn

(OMEKOTNTeJ,apOMaTn3aTOPn)

OTeJeHHeTo 3a nepuInen npenapat MoKe da 6bIe N3BaDeHO NocHCTeHO: JeKO NOBdIrHeTe H3DbPnaTHe HnpeD,kaKTo e nokazHa hFHypata. POnce ro octabete Ha TeauaBoa 3a 3a HrkoJIKo MmHyTN.

Kakда peailln3npate

NKOHOMM

HapbvnK 3a

IkoHOMnHa ynoTpe6a

Ha Baun ypei.

3APEJDAIHTE BAPABAHAMAKCIMAJHO

Taka ile orpaHnHTe HeHyKHTe pa3xoIHa BOJa n eheprna

HJKAETEJIINCEOTIPEIIIIPAHE?

I3IOJI3BaIte rO caMo 3a cHJIHO 3aMbpcEHn Ipexn!

Ie cIeCTHTe ot 5 % Io 15 % eHepnA aKo He n36peTe Iporpamc IIpeI-panHe.

HJXHO JIN EJA IEPETIPIHBICOKA TEMIIEPATYPA

ПобраиTe TOUHTo TempeaTypaTa 3a Панe; He H3NoJI3BaIte TempeaTypHa NaI 60^ KbM TIX IIpN6IgBaIte caMo Iprn KpaIIHa HeO6XoJIMocT. Korato ce HaJIaRaJa IIpeMaxBaTe IIeTHa, IIpeДВapHTeJIHO HaKIncHete IdexHTe 3a Дa He 3aДaBaTe BHCOKa TempepaTypa.

Ie cIeCTHte 50% eHeprn, H3IOJI3BaIKN 60^ C TeMHepaTypa.

IIPEINIà IIOJI3BATE IIPOIgPAMA 3A CYIIEHE ...

BkIIOHcTe IeHTpOHyrata Ha BHCOKN o6OpOTn; Taka IIe peaJIIN3HpaTe HKOHOHH Ha BpeMe H eHeprH.

HnPMATa IIpOHN3BOJNTeJI He HOCN OTROBOPHOCT,aKO TROPHTe YKa3aHnI He ca CIIa3eHH.

BcKaKBn OIIaKOBbUHN MaTePnaJIH Ja He ce ocTabrT 6e3 HaI3Op,3aIoTO ca IOTehuHaJIHO OIIaChN.

Othacayte ce dobose c Hea n Tye 6bde Ba

Верен Рпунов

BawaTapepanhye Bn cnykni bIro,ako ce rpnknte do6pe 3a He n npndpbkaTe Bdo6bp BN.

Margherita 2000 e nepaJIHaTaMaIIHHa, cI3JaIeHa Ja Bn cIyKnBЯрHo HNeOTKa3Ho.

ETo HnKoJIko IpoCTn IpaBnIa,3aJa aIOIbPjKeTBeDIObP BnI.

Пьб罗:ВинагиЗатравяп Крана на ВОДАТСЛЕД BCЯКО ИПИРаHe.

ПОТоЗн haunH Ie H36eRHeTe OIIaCTHOCTTA OT TeOBE, KOraTO He CTe B KbIIN.

AkoBoJATABbB BuaIIHpaIHOeIOTBbPda，TO H3IOJI3BaITe OMEKOTHTeJIH,3aJaIOJIyUHTeIOIO6pnpezUYITaTHINHINIPAhe.

BnHaHn H3Ipa3BaHte Dko6oBeTeOT T8XHOTcBbPkaHne.

BbHINHITeYacTHHaIepaJIHTaJaCe 3a6bpcBaTcKbPIIaIIOToIIeHa B caIyHeHpa3TbOp.

BaKHo: PeIOBHO IOUHCTBaIte OTJeJIeHNHeTo 3a IepJIeH IpeIIapA.T.

IocTaTbUHoe eJa ocTabNte KaceTaTa 3a IpeIpaT 3a

HЯКОЛКOMMHUHTHa XJIaIka TeuaIIa BOJa.

Hnkora He npebuwaabaite Do3npOBkata Ha npenapat.

CbBpeMeHHHTeIepHINHIIpeIapAH Bue CbIbPjKaT CbCTaBKN cpeIy BapOBHTa BOJa.

Camo, aKo BOJATAe oOc6eHO TBbpJa Bn IpeIIOpByBaMe Ja IIOJI3BaTe OMEKOTBAII IIpeIIapat IIprh BCsKO IIpaHe.

Hnkora He IIpekaJIbAitc c IepnIHNITE IIpeIapatn I OMEKOTHTeJI3aIpxH,3aIIOToIle ce 6pa3yBa FOJIMo KOJIInyeCTBO IHa,KoEtO e BpeJHo 3a BaIIaTa IpeJIHH.

He 3abpaerime da u3npa3hurne dxkoboe me om maxxHomo cblpkaHue.

a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a

.

(6) 12x - 1 > 3 - x 或 12x + 1 > 3

J 2000 2000

(7) 12 ②

aennnnn nn nnnnne ennnnne ennnnne ennnnne ennnnne ennnnne ennnnne ennnnne ennnnne ennnnne ennnnne ennnnne ennnnne ennnnne ennnnne ennnnne ennnnne ennnnne ennnnne ennnnne ennnnne ennnnne ennnnne ennnnne ennnnne ennnnne

(3) ⏜2⏜2⏜2⏜2⏜2⏜2⏜2 .6

2000 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

y_ = 12

? alal l 1

J 1

J 12 J 13 J 14 J 15 J 16 J 17 J 18 J 19 J 20 J 21 J 22 J 23 J 24 J 25 J 26 J 27 J 28 J 29 J 30 J 31 J 32 J 33 J 34 J 35 J 36 J 37 J 38 J 39 J 40 J 41 J 42 J 43 J 44 J 45 J 46 J 47 J 48 J 49 J 50 J 51 J 52 J 53

j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j

H 100000000000000000000000000000000000000000000000000000000000000000000000000000

1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

J 1
J 1
J 1
J 1
J 1
J 1
J 1
J 1
J 1
J 1
J 1
J 1
J 1
J 1
J 1
J 1
J 1
J 1
J 1
J 1
J 1
J 1
J 1
J 1
J 1
J 1

2000

90 1

（）

J 3 A J 4 |Stop) (St)

2000 1
Jgssb 1
a Jg 1
Jg 1
Jg 1
Jg 1
Jg 1
Jg 1
Jg 1
Jg 1
Jg 1
Jg 1
Jg 1
Jg 1
Jg 1
Jg 1
Jg 1
Jg 1
Jg 1
Jg 1
Jg 1
Jg 1
Jg 1

yI 1 yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI

1

90 1 1 1 1 1 1 1 1 1 1 1 1 1

1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

2000

2015年全国春季学业考试

J 120
J 120
J 120
J 120
J 120
J 120
J 120
J 120
J 120
J 120
J 120
J 120
J 120
J 120
J 120
J 120
J 120
J 1

M 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 360 370 380 390 400

5 5
15
I 5
J 25
J 25
J 25
J 25
J 25
J 25
J 25
J 25
J 25
J 25
J 25
J 25

22 Jn 10000000000000000000000000000000000000000000000000000000000000000000

S OBC = S COD + S_ BOC

0sIyI I 1 yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI y

l_2 : y = - 9x

1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

(1)

1 1

slae!

H 1000000000000000000000000000000000000000000

J 1

slibl Jlii!

Jus cdo 1 Jus Jus Jus Jus Jus Jus Jus Jus

S_ OBC = 12 · CO · BC = 12 × CD × 5

.0000

Jaaaillnll 1

1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

(1)

a1 = 2,an + 1 = 2 - an2 + 2 - ann + 1

a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a

3.4.1.2.2.2.2.2

m = 311

#

Jau 1000000000000000000000000000000000000000000

J 1

S木弟 = S1 + S2 + S3

1

J

3 0 a

□

S OBC = S COD + S BOC - S BOC

a 1000

a

S OBC = S COD + S BOC - S BOC

SJJ SJJJJJJJJJJJJJJ

Jybi jni jj 0 yj 1 jzjj Jnnn nn n nn n nn n nn n nn

y 1325y0y0y0

113

1

Sj: jzrb Sjzrb Jannnll Jannnnnll paae ge yaleed 2011 aie 3 2011 1 1

2000 2000 2000

a3 = 2,b3 = 4

500-400 1

200-150 1

500-400 1

1200-900 1

250-150 1

1 2

j（）

1. S ACD = 13S CDE = 12 × 12 × 3 × 4 = 3

ii 150

121 1jbi jbi jbi jbi jbi jbi

a

a

y

J 1

1 , 2 , 3 , 4 , 5 , 6 , 7 , 8 , 9 , 10

3 Cullio 10202012！

"Company Woolmark The"

J 1

90 200000000000000000000000000000000000000000000000000

"Company Woolmark The" 2000 2000 2000 2000 2000 2000 2000 2000 2000 2000 2000 2000 2000 2000 2000 2000 2000 2000 2000 2000 200

j0y1324567890123456789012345678901234567890123456789012345678901234567890123456789012345678901234567890123456789012

i

a

aannnnae

它恰好 y = 12 ③ a > 0 , y > 1

1 1

J

1 : 3, 2 : 1,3

(3 y m) 1

249 + 4913 = 89

(jilu jj 3 sanns) (sabll janns jnnn

312 + 12( x - 1) = 0

(1) a_4 = 2

J 1

1 2

k > 3 - 1

J 60 J 60

G

1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

i

a 1 a 1
Jauu 1 Jauu 1 Jauu 1 Jauu 1 Jauu 1 Jauu 1 Jauu 1 Jauu 1 Jauu 1 Jauu 1 Jauu 1 Jauu 1 Jauu 1 Jauu 1 Jauu 1 Jauu 1 Jauu 1 Jauu 1 Jauu 1 Jauu 1 Jauu 1

A

P 10000000000000000000000000000000000000000000000000000

a

a

3 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

a

01234567890

J 8

1 1

i 1

1

a a a a a a a a a a a a a a a a a a

1

Suee eee

1.

100 100 100 100

Jus Jus Jus Jus Jus Jus

Jaua aae 1

J 1

1 2000 1 2000 1 2000 1 2000 1 2000 1 2000 1 2000 1 2000 1 2000 1 2000 1 2000 1 2000 1 2000 1 2000 1 2000 1

. yinns Jinyi xi jiyu shi xi xi

100,60

3 2

a 121
a 121
a 121
a 121
a 121
a 121
a 121
a 121
a 121

S OBC = S COD + S_ BOC

J 1

9.111

J 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

aalalalalalalalalalalalalalalalalalalalalalalalal

s sll 15 ? j 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J

J 1

1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

( x + 1) ( y - 1) = 0

(....Mod) 1

(……)

a a a a 1000 1000000000000000

□

sla siai iiaa

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50

J2j 150
S 2000000000000000000000000000000000000000000000000000000000000000000000000000000

J 1

0 2 a a a a a a a a a a a a a a a a a a a a a a a a a

aal aas 1s5 jay yannn

（）

J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J

（20 1
（3
（4

J 100 60 20
j 60 60
j 60 60
j 60 60
j 60 60
j 60 60

a

60 6j

1 p 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

32 ① 1( k - 1) ! ② 1k! ③ 1k + 1 ④ 1k + 2

jpl 3 p 2p 1 jy 20
J 3 p 3 p 1 C 20
J 3 p 3 p 1 y 20
J 3 p 3 p 1
J 3 p 3 p 1
J 3 p 3 p 1
J 3 p 3 p 1
J 3 p 3 p 1
J 3 p 3 p 1
J 3 p 3 p 1
J 3 p 3 p 1
J 3 p 3 p 1
J 3 p 3 p 1
J 3 p 3 p 2
J 3 p 3 p 2
J 3 p 3 p 2
J 3 p 3 p 2
J 3 p 3 p 2
J 3 p 3 p 2
J 3 p 3 p 2
J 3 p 3 p 2
J 3 p 3 p 2
J 3 p 3 p 2
J 3 p 3 p 1
J 3 p 3 p 1
J 3 p 3 p 1
J 3 p 3 p 1
J 3 p 3 p 1
J 3 p 3 p 1
J 3 p 3 p 1
J 3 p 3 p 1
J 3 p 3 p 1
J 3 p 3 p 4
J 3 p 3 p 4

ARGHERITA 2000

aegaae aee 5 yeaes eae 1 1 1 1 1 1 1 1 1 1 1 1

（20 1

1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

（20 1

sllg jj 10
i 10
ii 10
ii 10
ii 10
ii 10
ii 10
ii 10
ii 10
ii 10
ii 10
ii 10
ii 10
ii 10
ii 10
ii 10
ii 10
ii 10
ii 10
ii 10
ii 10
ii 10
(ii)

1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J

1.4.5.6.7.8.9.10.11.12.13.14.15.16.17.18.19.20.21.22.23.24.25.26.27.28.29.30.31.32.33.34.35.36.37.38.39.40.41.42.43.44.45.46.47.48.49.50.51.52.53.54.55.56.57.58.59.60.61.62.63.64.65.66.67.68.69.70.71.72.73.74.75.76.77.78.79.80.81.82.83.84.85.86.87.88.89.90

1 1

1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

gogol

S OBC = S COD + S BOC - S BOC

S ACD = S COD + S CDA - S BOC

s

7 1
J 1
J 1
J 1
J 1
J 1
J 1
J 1
J 1
J 1
J 1

-6
1 1
1 1
1 1
1 1
1 1
1 1

120 120 120 120 120 120 120 120 120 120 120 120 120 120 120 120 120 120 120 120 120 120 120 120 120 120

5

（5）S 100000000000000000000000000000000000000000000000000000000000000000000

（4）yJyJyJyJyJyF
N=3yJyJyJyJyJy
L= yJyJyJyJy
1yJyJyJyJyN.LyJyJy
JyJyJyJyJyJy JyJyJyJy
JyJyJyJyJyJyJy JyJyJy
