ET2221AUKR - Desktop computer ASUS - Free user manual and instructions

Product type	All-in-one computer
Brand	Asus
Model	ET2221AUKR
Category	Desktop computer
Screen size	21.5 inches
Screen resolution	1920 x 1080 pixels (Full HD)
Screen type	LED touchscreen
Processor	Intel Core i3 or i5 (depending on configuration)
RAM memory	4 GB to 8 GB DDR3
Storage	Hard drive 500 GB to 1 TB
Operating system	Windows 8.1 or 10
Connectivity	Wi-Fi 802.11 b/g/n, Bluetooth 4.0, Ethernet
Ports	USB 3.0, USB 2.0, HDMI, headphone jack, microphone
Power supply	AC adapter 120 W
Dimensions (W x H x D)	53.2 x 40.6 x 4.7 cm
Weight	5.5 kg
Key features	Multi-touch touchscreen, stereo speakers, HD webcam
Care and cleaning	Use a soft, lint-free cloth, dry or slightly damp. Avoid abrasive products.
Safety	Do not expose to moisture, do not block ventilation slots.
Spare parts and repairability	Contact Asus customer service or an authorized center for parts.

Frequently Asked Questions - ET2221AUKR ASUS

How to reset the ASUS ET2221AUKR?

To reset your ASUS ET2221AUKR, access the recovery settings in Windows. Go to Settings > Update & Security > Recovery and choose Reset this PC. You can keep or remove your files.

Can I upgrade the RAM on the ASUS ET2221AUKR?

Yes, you can upgrade the RAM. This model uses DDR3 SO-DIMM modules. To access the slots, remove the back cover (see manual). The maximum capacity is 16 GB (2 x 8 GB).

How to connect an external monitor to the ASUS ET2221AUKR?

The computer has an HDMI output port. Connect an HDMI cable between the computer and the external monitor. Use the Fn + F8 keys or Windows display settings to switch between displays.

How to use the touch screen of the ASUS ET2221AUKR?

The touchscreen supports multi-touch. You can touch, swipe, pinch, and zoom. Make sure the touch driver is installed. If the touch does not respond, recalibrate it via Settings > Devices > Touch screen.

How to clean the screen of my ASUS ET2221AUKR?

Turn off the computer and unplug it. Use a soft, lint-free cloth slightly damp (distilled water). Never apply liquid directly. Avoid cleaners based on alcohol or ammonia.

What to do if the computer does not turn on?

First check the power supply: plug in the AC adapter and ensure the indicator light is on. Try a different power cable. If nothing happens, contact Asus support as it may be a hardware issue.

How to replace the hard drive of the ASUS ET2221AUKR?

The hard drive is accessible via the bottom cover (screws to remove). Remove the existing drive and insert a new SATA 2.5-inch drive. Reattach the cover and reinstall the operating system.

Does the ASUS ET2221AUKR support 5 GHz Wi-Fi?

Yes, this model is equipped with a 802.11 b/g/n Wi-Fi card that supports the 5 GHz band (n). Make sure your router broadcasts on this band and that the Wi-Fi driver is up to date.

How to access the BIOS of the ASUS ET2221AUKR?

To access the BIOS, press the F2 or Del key immediately after turning on the computer, before Windows starts. In the BIOS, you can change the boot order or system settings.

Where to find spare parts for the ASUS ET2221AUKR?

Spare parts are available from Asus customer service or through authorized resellers. Go to the official Asus website and use the Parts and accessories section by entering your model number.

USER MANUAL ET2221AUKR ASUS

Before launching your TV Tuner application, check if your digital TV-in or analog TV-in cable is connected.

Launching your TV Tuner Application

To launch ArcSoft TV 5.0 in Windows® 8, do one of the following:

- From the Windows® desktop, click the Arcsoft TV 5.0 icon.

NOTE: The Arcsoft TV desktop shortcut icon is not available for AIO ET2300

- Click ☐ to launch the search screen for applications. Type "Arcsoft" in the search field and click the Arcsoft TV icon from the search results.

Setting up your TV Tuner Application

To set up ArcSoft TV 5.0:

1. On the main menu, click Live TV.

1. The Setup Wizard will launch to guide you through setting up your TV Tuner application. Select your country or region and click Next to continue.

1. The Setup Wizard will attempt to detect the installed TV Tuner device. Select the appropriate TV tuner card which came with your All-in-One PC.

1. Select the type of television service you use.

• Select Cable TV for cable television.
- Select Antenna TV for television received via an antenna.

1. Click Scan to begin scanning for available channels.

1. If your All-in-One PC came with both an analog and digital TV tuner, the Setup Wizard will prompt you to set up your second TV tuner.

• Select Yes to set up the second TV Tuner.
- Select No to complete the Setup Wizard.

1. Click Finish to complete the Setup Wizard.

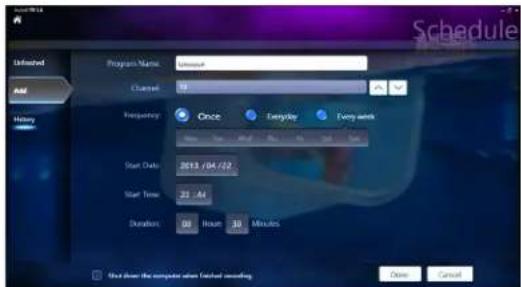

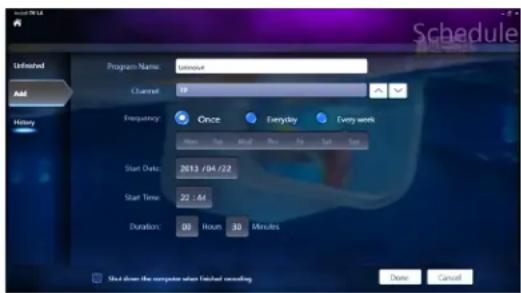

Scheduling recordings of TV broadcasts

To schedule recordings of TV broadcasts:

1. On the main menu, click Schedule.

1. On the left panel, click Add.

2. Configure the following options:

3. Program Name

4. Channel
   Frequency
5. Start Date/Time - Specify the date/time of recording.
   • Duration - Specify length of recording.
6. Shut down the computer when finished recording

1. Click Done to save settings and schedule recording.

NOTE: The All-in-One PC needs to be powered on to automatically record TV broadcasts.

1. To schedule additional recordings, repeat steps 1\~4.

NOTE: The number of recordings you can schedule is limited by the available storage on your All-in-One PC.

Using the Entertainment Program Guide (EPG)

The EPG displays the time and TV programs playing on a specified channel and date.

NOTE: EPG is only available for All-in-One PCs with a digital TV tuner.

Using the Live TV Onscreen Controls

1 Home button

Click this icon to go to the Arcsoft TV 5.0 main menu.

2 TV/AV

Click this button to toggle between analog TV and digital TV.*

*This item is only available for All-in-One PCs with both an analog and digital TV tuner.

3 Take a screenshot

Click this button to take a screen capture of the video or media playing.

4 Record

Click this button to begin recording the television broadcast.

5 Pause

Click this button to pause recording or playback.

6 Volume Controls

Click this button to display onscreen volume controls to increase/decrease volume.

7 CH-/CH+

Click this button to increase or decrease the channel by one.

8 Add to Favorites

Click this button to add this channel to the Favorites list.

9 Favorites List

Click this button to display list of saved Favorites.

10 Subtitles and Audio Tracks

Click this button to display list of available subtitles and audio channels/tracks.

Using the Remote Control

1 Playback Buttons

Play

Starts playing media. If playback is paused, pressing this button begins playback from the current position.

Pause

Pauses media playback at the current position.

Stop

Stops playing media at the current position.

Record

Record the TV show to disk. If pressed while Live TV is on, records the current show. If pressed from the EPG screen, records a TV show or TV series to disk.

Fast Forward

Speeds up the playback of the media file to the first forward value (3X).

Rewind

Reverses direction of playback and speeds up the time base to the first rewind value (3X).

Skip Forward

Skips forward one increment when this button is pressed.

Skip Back

Skips backward one increment when this button is pressed.

2 Navigation Keys

Press the up/down keys to move through the menu bar in a submenu. Press the up/down keys to decrease/increase a numerical value.

Press the left/right keys to move through the main menus in the Home screen.

Press the left/right keys to move through the items in a submenu.

Press OK to confirm the selection.

Start\*

Takes the user to the Windows Media Center Start menu.

*This button is only available for All-in-One PCs installed with Windows Media Center.

4	Volume controlsPress the (+) button to increase the volume by one unit. Press the (-) button to decrease the volume by one unit.
5	BackMoves back one position in the user interface,
6	Number keys
7	ClearClear any entered user input.
8	Power on/offPress this button to put the All-in-One PC to sleep mode. Press a second time to wake up the system from sleep mode.
9	Media Center Buttons*Record TVDisplays the Recorded TV page in Windows Media Center.GuideDisplays the media guide in Windows Media Center.Live TVShows live TV on the currently selected channel.DVD menuDisplays the DVD menu.*These buttons are only available for All-in-One PCs installed with Windows Media Center.
10	Channel controlsIncreases/decreases the current channel by one.
11	MuteMutes the computer audio.
12	InformationPress to display information about the movie, video, or music.
13	EnterPress this button to select an option or input text.

4	Volume controlsPress the (+) button to increase the volume by one unit. Press the (-) button to decrease the volume by one unit.
5	BackMoves back one position in the user interface,
6	Number keys
7	ClearClear any entered user input.
8	Power on/offPress this button to put the All-in-One PC to sleep mode. Press a second time to wake up the system from sleep mode.
9	Media Center Buttons*Record TVDisplays the Recorded TV page in Windows Media Center.GuideDisplays the media guide in Windows Media Center.Live TVShows live TV on the currently selected channel.DVD menuDisplays the DVD menu.*These buttons are only available for All-in-One PCs installed with Windows Media Center.
10	Channel controlsIncreases/decreases the current channel by one.
11	MuteMutes the computer audio.
12	InformationPress to display information about the movie, video, or music.
13	EnterPress this button to select an option or input text.

Media Center Shortcut buttons

Displays the main Radio page in Windows Media Center.

Displays the Music Library in Windows Media Center.

Displays the Picture Library in Windows Media Center.

Displays the Video Library in Windows Media Center.

*These buttons are only available for All-in-One PCs installed with Windows Media Center.

Teletext buttons\*

Press these buttons to access Teletext features when available.

*These buttons are only available for All-in-One PCs installed with Windows Media Center.

NOTE:

• To avail of Windows Media Center features, you can purchase a Windows 8 Media Center Pack separately.
- You can download a version of this manual in a different language at the ASUS support site at http://support.asus.com
