ZVC315HP - Vacuum Cleaner Zelmer - Free user manual and instructions

Product Type	Canister Vacuum Cleaner
Brand	Zelmer
Model	ZVC315HP
Dimensions (LxWxH)	38 x 26 x 32 cm
Weight	5.2 kg
Power Supply	220-240 V ~ 50/60 Hz
Motor Power	2000 W
Suction Power Control	Electronic slider on handle
Dust Bag Capacity	3.0 L
Filtration System	HEPA 13 washable filter
Noise Level	76 dB(A)
Cable Length	5.0 m
Operating Radius	8.0 m
Included Accessories	Floor nozzle, crevice tool, upholstery brush
Maintenance	Replace dust bag when full, clean HEPA filter every 3 months
Safety Features	Overheating protection, automatic shut-off
Repairability	Spare parts available: bags, filters, hose, nozzle
General Information	Compact design, easy to store, suitable for carpets and hard floors

Frequently Asked Questions - ZVC315HP Zelmer

How often should I replace the dust bag?

Replace the dust bag when the indicator shows full or at least every 3 months for optimal performance. Use only Zelmer type ZVC bags.

Can I wash the HEPA filter?

Yes, the HEPA filter is washable. Rinse it under lukewarm water and let it dry completely for 24 hours before reinserting. Do not use detergents.

What is the maximum power of the vacuum?

The Zelmer ZVC315HP has a maximum motor power of 2000 W. Suction can be adjusted via the slider on the handle.

Why does the vacuum suddenly stop working?

The vacuum has overheating protection. If it stops, unplug it and let it cool for 30 minutes. Check if the bag is full or the filter is clogged.

Is the vacuum suitable for pet hair?

Yes, the floor nozzle and upholstery brush work well on pet hair. The HEPA filter traps allergens.

How long is the power cable?

The power cable is 5.0 meters long, giving a total operating radius of up to 8 meters with the hose.

Where can I buy spare bags and filters?

Spare parts are available from Zelmer authorized dealers or online. Use model ZVC315HP for correct compatibility.

Can I use the vacuum without a dust bag?

No, the vacuum requires a dust bag for proper operation. Using it without a bag may damage the motor.

What does the indicator light mean?

A red indicator light means the dust bag is full or the airflow is blocked. Replace the bag or check for blockages.

How do I clean the exhaust filter?

The exhaust filter is behind the cover. Tap it gently or rinse if washable. Refer to the user manual for detailed steps.

USER MANUAL ZVC315HP Zelmer

Exterior view of a modern vacuum cleaner (no visible text or symbols)

zelmer

golden service

Quigo

P1 INSTILNCIA CEYDROGNA

00KUZACZTypZICHS

NAYELO RIOUZI

VYSAVAČ Typ ZAC515 17-18

27

VSS/VACTyp ZAC15 17-27

2016年5月13日

2015JIN'87X1153nus 47-29

(1) 2017年1月1日

14.18.01.01 31:17:51

Black and white photo of a vacuum cleaner on tiled floor (no visible text or symbols)

zelmer

[Unreadable]

[Unreadable]

A

zelmer

www.mfg

资料来源：中国证券报

m = 311

Theorem 1.2. (Theorem of [10, Theorem 1.1]) Let be a finite field and let (x) be the set of all elements of such that

m = 311

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated text (underscores) where none should exist. Hence, the result is inconsistent with the Ground Truth.

m = 311

Theorem 1.2. (Theorem of [10, Theorem 1.1]) Let be a finite field and let (x) be the set of all elements of such that

Theorem 1.2. (Theorem of [10, Theorem 1.1]) Let be a finite field and let (x) be the set of all elements of such that

Theorem 1.2. (Theorem of [10, Theorem 1.1]) Let be a finite field and let (x) be the set of all elements of such that

Theorem 1.2. (Theorem of [10, Theorem 1.1]) Let be a finite field and let (x) be the set of all elements of such that

Theorem 1.2. (Theorem of [10, Theorem 1.1]) Let be a finite field and let (x) be the set of all elements of such that

Theorem 1.2. (Theorem of [10, Theorem 1.1]) Let be a finite field and let (x) be the set of all elements of such that

Theorem 1.2. (Theorem of [10, Theorem 1.1]) Let be a finite field and let (x) be the set of all elements of such that

Theorem 1.2. (Theorem of [10, Theorem 1.1]) Let be a finite field and let (x) be the set of all elements of such that

Theorem 1.2. (Theorem of [10, Theorem 1.1]) Let be a finite field and let (x) be the set of all elements of such that

Theorem 1.2. (Theorem of [10, Theorem 1.1]) Let be a finite field and let (x) be the set of all elements of such that

Theorem 1.2. (Theorem of [10, Theorem 1.1]) Let be a finite field and let (x) be the set of all elements of such that

m = 311

m = 311

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated text (underscores) where none should exist, violating the rule to ignore such lines. Hence, the OCR result is inconsistent with the Ground Truth.

m = 311

-

-

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated underscores where none should exist based on the GT's visual context. Hence, the OCR result is inconsistent with the Ground Truth.

m = 311

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

广力云智慧零售收银系统

m = 311

Theorem 1.2. (Theorem of [10, Theorem 1.1]) Let be a finite field and let (x) be the set of all elements of such that

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated text (underscores) where none should exist. Hence, the result is inconsistent with the Ground Truth.

Theorem 1.2. (Theorem of [10, Theorem 1.1]) Let be a finite field and let (x) be the set of all elements of such that

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated text (underscores) where none should exist. Hence, the result is inconsistent with the Ground Truth.

m = 311

Theorem 1.2. (Theorem of [10, Theorem 1.1]) Let be a finite field and let (x) be the set of all elements of such that

-

Theorem 1.2. (Theorem of [10, Theorem 1.1]) Let be a finite field and let (x) be the set of all elements of such that

Theorem 1.2. (Theorem of [10, Theorem 1.1]) Let be a finite field and let (x) be the set of all elements of such that

Theorem 1.2. (Theorem of [10, Theorem 1.1]) Let be a finite field and let (x) be the set of all elements of such that

Theorem 1.2. (Theorem of [10, Theorem 1.1]) Let be a finite field and let (x) be the set of all elements of such that

Theorem 1.2. (Theorem of [10, Theorem 1.1]) Let be a finite field and let (x) be the set of all elements of such that

Theorem 1.2. (Theorem of [10, Theorem 1.1]) Let be a finite field and let (x) be the set of all elements of such that

Theorem 1.2. (Theorem of [10, Theorem 1.1]) Let be a finite field and let (x) be the set of all elements of such that

Theorem 1.2. (Theorem of [10, Theorem 1.1]) Let be a finite field and let (x) be the set of all elements of such that

Theorem 1.2. (Theorem of [10, Theorem 1.1]) Let be a finite field and let (x) be the set of all elements of such that

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated underscores where none should exist based on the GT's visual context. Hence, the OCR result is inconsistent with the Ground Truth.

m = 311

m = 311

m = 311

m = 311

Theorem 1.2. (Theorem of [10, Theorem 1.1]) Let be a finite field and let (x) be the set of all elements of such that

m = 311

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

m = 311

-

-

m = 311

-

[Non-Text]

-

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

The image is too blurry to recognize any text content.

m = 311

m = 311

The image is too blurry to recognize any text content.

The image is too blurry to recognize any text content.

m = 311

· = 0

m = 311

· = 0

m = 311

· = 0

m = 311

· = 0

· = 0

m = 311

· = 0

m = 311

The image is too blurry to recognize any text content.

m = 311

1. 2017年

The image is too blurry to recognize any text content.

m = 311

-

-

m = 311

-

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

广力云智慧零售收银系统

m = 311

m = 311

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated underscores where none should exist based on the GT's visual context. Hence, the OCR result is inconsistent with the Ground Truth.

m = 311

The image is too blurry to recognize any text content.

The image is too blurry to recognize any text content.

m = 311

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated text (underscores) where none should exist. Hence, the result is inconsistent with the Ground Truth.

m = 311

· = 0

m = 311

· = 0

m = 311

· = 0

m = 311

· = 0

m = 311

· = 0

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated text (underscores) where none should exist. Hence, the result is inconsistent with the Ground Truth.

m = 311

The image is too blurry to recognize any text content.

1. 2017年

· = 0

m = 311

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

The image is too blurry to recognize any text content.

m = 311

m = 311

The image is too blurry to recognize any text content.

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

PL Stanowmi Kland!

The following policy is the past year's end of 2015, an effective sequential approach to the future development of the development of a recent project. The project was announced that several projects were developed and closed, which gone to the development of a recent project.
No mag 30 of the case, no. 100000
The following table provides the information in English:
Molocanato do 2014. 2015. 2016.

Notes

Congratulations on your choice of our appliance, and welcome among the users of Zelmer products.

In order to achieve best possible results we recommend using exclusively original Zelmer accessories. They have been specially designed for this product.

Please read this instruction manual carefully. Pay special attention to important safety instructions. Keep this User's Guide for future reference.

Important safety instructions

DANGER! / WARNING!

Health hazard

- Do not operate the appliance if the cord, the housing or the handle is visibly damaged. In such a case, return the appliance to a service center.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- The appliance can only be repaired by qualified service personnel. Improper servicing may cause a serious hazard to the user. In case of defects please contact a qualified service center.

● Always unplug the appliance before cleaning, assembling or dismantling.

- Turn off the device and unplug it from an outlet before replacing the equipment or approaching moving parts during use.

- Do not use the vacuum cleaner clean people or animals, pay special attention to keep the nozzles away from eyes and ears.

- Do not use the vacuum cleaner clean liquids or other damp dirt.

- This appliance can be used by children aged from 8 years and above and persons with reduced

physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

CAUTION!

Not observance can result in damage to possessions

Connect the vacuum cleaner only to a 230 V mains supply equipped with a 16 A fuse.

Do not unplug by pulling on cord.

Do not run the vacuum cleaner or the brushes over the cord, it may cause damage to the cord insulation.

Do not use the vacuum cleaner without the filters installed in the vacuum cleaner or if the filters are damaged.

Do not pick up: matches, cigarette butts, hot ash. Avoid picking up sharp objects.

Check the suction hose, the tubes and the nozzles – remove the dirt from the inside.

Do not vacuum fine dust such as: flour, cement, gypsum, toners for printers and copy machines etc.

It is forbidden to cover up the air holes of the vacuum cleaner while it is working. Otherwise, the hot air has no way of exiting the vacuum cleaner, and this may lead to motor overheating causing a failure or a deformation of the plastic parts.

SUGGESTION

Information on the product and suggestions for its use

to

The vacuum cleaner is for household use only.

Operate the appliance only in indoor spaces and vacuum only dry surfaces. Before vacuuming dry the carpets that were wet cleaned.

to

Vacuum cleaner is a universal device with a switchable sucking brush nozzle, which is used for vacuuming hard floors and carpets.

Vacuum cleaners with the energy efficiency class A do not work with ZELMER Turbo Brush Type VB1000.

Product data sheet provided with the vacuum cleaner showing the technical parameters is an integral part of the instruction manual.

VERSIONS OF ZVC315 VACUUM CLEANERS

Version\Styling option and equipment	Adjusting the suction power	Tank full indicator “CYCLONE”	Protection against lack of HEPA/EPA inlet filter	Inlet filter	Suction tube	Sucker-brush sweeper	Small nozzle sucker	Gap sucker	Small brush sweeper	“BNB” Parquet brush sweeper
1	2	3	4	5	6	7	8	9	10	11
ZVC315HP	+	+	+	HEPA H13	Telescopic	+	+	+	+	+
ZVC315SK	+	+	+	EPA	Telescopic	+	+	+	+	-

Technical parameters

The type of the vacuum cleaner and the technical parameters are indicated on the rating label. Mains protection 16 A. Does not cause interferences with audio/video devices.

Does not require grounding ☐

ZELMER vacuum cleaners meet the requirements of the applicable norms.

The appliance is in conformity with the requirements of the directives:

• Electrical equipment designed for use within specific voltage limits (LVD) – 2006/95/EC.
  – Electromagnetic compatibility (EMC) – 2004/108/EC.

The device meets the requirements of Commission Regulation (EU) No. 666/2013 on implementing the Directive of the European Parliament and of the Council 2009/125/EC with regard to eco-design requirements for vacuum cleaners.

The device complies with the requirements of the Commission Delegated Regulation (EU) No. 665/2013 supplementing Directive of the European Parliament and of the Council 2010/30/EU with regard to energy labelling of vacuum cleaners.

Noise level: 77 dB(A).

This vacuum cleaner has a dust bin “CYCLONE” with cyclone filtration, which allows vacuuming without the use of a traditional bag. A characteristic feature of the cyclone filter is the use the phenomenon of turbulence of air stream for separating fixed impurities. Separation of impurities occurs in the container part of circular cross section, in which the rotating air moves the pollutions on the wall of the container. The initially purified air is targeted to the foam inlet filter and washable HEPA/EPA inlet filter. For washable inlet filter HEPA/EPA was used a special filtering material, which allows to rinse the filter with running water after its dirty, and reuse of the filter.

Static electricity

In the process of vacuuming of some surfaces in areas of low air humidity the device may become electrically charged. It is a natural phenomenon – it does not damage the device, and it is not considered to be a fault.

In order to minimize the phenomenon, we recommend you to:

discharge the device by touching metal items in the room with the pipe,
increase air humidity in the room,
use widely available antistatic agents.

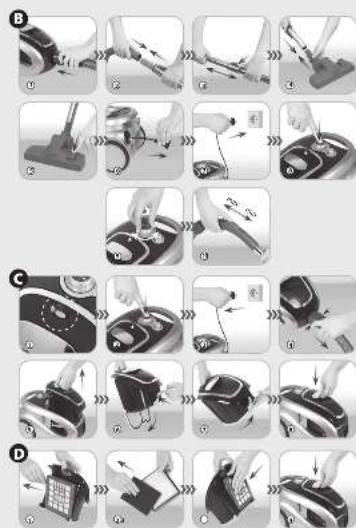

Structure of device

1 Outlet filter cover
2 A hook for mounting sucker-brush sweeper or telescopic tube
3 A plug with power connecting cable
4 On/Off button and simultaneously a knob for suction power control
5 Dust bin full indicator "CYCLONE"
6 Cable retractor button
7 An attach to unlock the dust bin "CYCLONE"
8 A handle for carrying vacuum cleaner
9 A bolt – mechanical suction power regulator
10 Suction hose
11 Telescopic suction tube with a fastening hook
12 Outlet filter "Microfilter" (mounted in a vacuum cleaner)
13 Foam exhaust filter (mounted in vacuum cleaner, in exhaust filter cover)
14 Inlet filter (mounted in dust container "CYCLONE"). Vacuum cleaner is equipped in one filter only (A or B)

A Inlet filter EPA (mounted in vacuum cleaner ZVC315SK)
B Inlet filter HEPA H13 (mounted in vacuum cleaner ZVC315HP)

15 Foam inlet filter (mounted in dust container) "CYCLONE", in the inlet filter HEPA/EPA frame

16 Dust container "CYCLONE" (which is a removable segment of the vacuum cleaner)
17 Dust container cone "CYCLONE" (mounted in dust container "CYCLONE")
18 Switchable sucker-brush sweeper
19 Gap sucker
20 Small brush sweeper
21 Small sucker
22 "BNB" Parquet brush sweeper (Brush Natural Bristle). Available only in case of ZVC315HP version.

Used for cleaning and polishing of hard, scratch-sensitive surfaces such as wood flooring, panels, parquet, marble, tiles, etc.

Delicate and soft bristles of Natural origin provide maximum vacuuming efficiency and protects against scratches on the surface.

Prepare the vacuum cleaner to use

B

① Insert the tip of the suction hose to the vacuum cleaner inlet. The characteristic "click" indicates a properly fitted hose.
② The second end of the hose (a handle) connect to telescopic suction tube.
③ Set the telescopic suction tube to the desired length by sliding the slider according with arrow and put out / slide out the tube.
④ On the other end of the suction tube install the appropriate sucker or brush.
⑤ Use combination carpet & floor brush for vacuuming both hard surfaces and carpets. To clean hard surfaces – wooden floors, plastic floors, ceramic tiles etc. pull out the brush by pressing the switch on the combination brush according to the figure 📁. Retract the brush when vacuuming carpets (set the switch in “）
⑥ Catch the connection cable plug (3) and draw it out from the vacuum cleaner.

When drawing out the power cable you have to pay attention to yellow band indicating the end of the cable drawn out. Further attempts (jerks) may lead to damage of the cable.

⑦ Plug the cord into an AC outlet.

Before you start vacuum cleaner make sure whether the dust container "CYCLONE" is mounted in chamber of the vacuum cleaner, and whether the inlet and outlet filters are mounted in the vacuum cleaner.

⑧ Start the vacuum cleaner by pressing On/Off button (4).
⑨ Vacuum cleaner is equipped with electronic power regulator, which - during the vacuuming - can smooth control the suction power of vacuum cleaner. By turning the knob (4) right or left - you can increase or decrease the suction power.
⑩ Vacuum cleaner is also equipped in mechanical control of suction power (9), which is located on the handle of the hose. It can temporarily slightly adjust the suction power, without adjustment done with knob (4).

Disassembly/assembly of "CYCLONE" dust container

Vacuum cleaner is equipped in removable dust container "CYCLONE" (which is a removable segment of vacuum cleaner), which accumulates contaminants. As soon as the "CYCLONE" dust container is full, it should be emptied.

Vacuum cleaner is equipped with a safet valve which is located in the chamber of "CYCLONE" dust container. The valve is activated (open) automatically when a total jam (occlusion) occurs on the sucking hose or this happens to equipment connected to it, as well as in the case of excessive overfill of "CYCLONE" dust container. When the valve is open you can hear a characteristic so ("a sound of flutter") in the vacuum cleaner.

① Vacuum cleaner is equipped with a dust container "CYCLONE" full indicator (5). When the gap of dust container "CYCLONE" full indicator is totally filled with red mark during operation (vacuum cleaner operates at full power and sucker nozzle or brush is upraised over cleaned surface) so this informs that there is a need to empty the dust bin "CYCLONE". The dust container "CYCLONE" full indicator (5) may work also in the case of clogging of the suction hose or clogging of equipment connected to the hose.
② Switch off the vacuum cleaner by pressing On/Off button (4).
③ Take off the cable connection plug from the wall outlet.
④ Press the two side buttons on the hose end, then remove the hose end from vacuum cleaner inlet hole.
⑤ Raise the hook to unlock the dust container "CYCLONE" (7) and remove dust container "CYCLONE" (16) from the vacuum cleaner.
⑥ Move the dust container "CYCLONE" on garbage trash. Press the button located on dust container "CYCLONE", the bottom of the container will open and the contents will fall out to the trash.
⑦ After emptying the container, snap the bottom. Pay attention to the fact that a seal located on the bottom of container must be correctly positioned.

container must be precisely closed. Otherwise the dust will penetrate the vacuum chamber and the suction power will decrease.

cleaner

⑧ Insert the empty dust container "CYCLONE" to vacuum cleaner. The characteristic "click" indicates that container has been mounted correctly.

Emptying the dust container "CYCLONE" is necessary when you notice that:

a) "CYCLONE" dust container full indicator indices turned on,
b) sucking power of vacuum cleaner decreased,
c) dust container "CYCLONE" is full.

Disassembly of filters

case of dirty filters: inlet filter, foam filter (15), HEPA/EPA inlet filter (14), outlet foam filter (13), "Microfilter" (12) you can replace them with new filters, clean them or rinse with running water.

Do not wash the filter in the washing machine or dishwasher.

Filters can be dried in natural way only.

Do not dry the filters using hairdryers, on heaters and radiators.

Before replacement of filters make sure that vacuum cleaner is switched off and connection cable plug is pulled out from the wall outlet.

INLET FILTER HEPA/EPA AND FOAM INLET FILTER

Vacuum cleaners are equipped with inlet filter HEPA type H13 or EPA.

It is necessary to clean periodically the inlet filter HEPA/EPA (14) in order to remove minor fractions of the dust, and foam inlet filter (15) must be also cleaned.

Disassembly the "CYCLONE" dust container and empty it in accordance with paragraph (C).

① Remove the HEPA/EPA foam inlet filter (14) from "CYCLONE" dust container.

② Remove foam inlet filter (15). If the foam inlet filter (15) is dirty, you can replace it with a new filter, you can clean it or rinse with running water. Do not forget to dry above mentioned filter before re-installation.

The main function of the foam inlet filter (15) is to protect HEPA/EPA inlet filter (14) against excessive dirt.

safety reasons it is unacceptable to install the moist or damaged foam inlet filter (15).

- Clean the pleats of HEPA/EPA inlet filter (14), in case of filter damage it should be absolutely replaced with a new filter. If HEPA/EPA inlet filter (14) is dirty, you can replaced it with a new filter, you can clean it or rinse with running water. Do not forget to dry above mentioned filter before re-installation.

safety reasons it is unacceptable to install the moist or damaged inlet filter HEPA/EPA (14).

- Insert a new/rinsed inlet foam filter (15) into previously occupied space.

③ Insert a new/rinsed HEPA/EPA inlet filter (14) to the dust container into previously occupied space.

④ Insert "CYCLONE" dust container with mounted HEPA/EPA inlet filter (14) to vacuum cleaner chamber. The characteristic "click" indicates that container has been correctly mounted.

It is recommended to replace HEPA/ER filter (14) with a new one every 6 months of use.

not vacuum without HEPA/EPA inlet filter (14) installed in "CYCLONE" dust container.

Lack of HEPA/EPA inlet filter (14) shall prevent insertion of "CYCLONE" dust container to the vacuum cleaner.

"MICROFILTER" OUTLET FILTER AND OUTLET FOAM FILTER

① In order to replace "Microfilter" outlet filter (12) press the hook located in the filter cover and pull out the filter cover from vacuum cleaner.
② Pull out the "Microfilter" outlet filter (12).

If the "Microfilter" outlet filter (12) is dirty, you can replace it with a new filter, you can clean it or rinse with running water. Do not forget to dry above mentioned filter before re-installation.

safety reasons it is unacceptable to install the moist or defective "Microfilter" filter (12).

outlet

③ Carefully insert a new / rinsed filter to previously occupied space.
④ Pull out the foam outlet filter from filter cover (1).

If the outlet foam filter (13) is dirty, you can replace it with a new filter, you can clean it or rinse with running water. Do not forget to dry above mentioned filter before re-installation.

safety reasons it is unacceptable to install the moist or damaged outlet foam filter (13).

⑤ Carefully insert a new / rinsed filter to previously occupied space.
⑥ Put the filter cover so that two tips located at the right side of the cover should hit the holes in the body of the vacuum cleaner, press the filter cover so the hook snapped in the body. Characteristic "click" sound informs, that the filter cover has been properly installed.

not use the vacuum cleaner with and outlet filters mounted in the device.

no it

maged inlet and outlet filters must be always replaced with new, factory original filters.

THE CONE OF "CYCLONE" DUST CONTAINER

It is necessary to clean periodically the "CYCLONE" dust container cone.

① Disassembly "CYCLONE" dust container according to point (C).
② Press the button located on "CYCLONE" dust container and open the bottom of the container. If "CYCLONE dust container is full, empty it according to the point (C).
③ Turn the cone left, so the two tips located on the flange of the cone were put out from the slots of the container. Put out the cone.

④ If the "CYCLONE" dust container cone (17) is dirty, you can rinse it with running water. Do not forget to dry above mentioned cone before re-installation.

⑤ Insert the rinsed cone of "CYCLONE" dust container into the container slot so the tip located on the flange of the cone was in the slot of container's body. Turn right the cone so that the two tips located on the flange of the cone were blocked in the slots of the container.
⑥ Snap the bottom of "CYCLONE" dust container. Please pay attention to the proper positioning of seal found on the bottom of the container.
⑦ Insert "CYCLONE" dust container to vacuum cleaner chamber. The characteristic "click" indicates that the container has been correctly mounted.

End of operation, cleaning and maintenance

① Switch off vacuum cleaner pressing On/Off switch (4).
② Put the connection cable plug out the wall outlet.
③ Wind the cable by pressing retractor button (6).

Performing this action, hold the power cable to avoid any tangles and shocking the vacuum cleaner body with the plug.

④ Disconnect telescopic suction tube and a sucker or a brush sweeper.
⑤ Disconnect telescopic suction tube and a hose.
⑥ Press the two side buttons located at the hose end, then remove the hose end from vacuum cleaner inlet hole.
⑦ Vacuum cleaner can be stored either in vertical or horizontal position. The hose may remain attached to the vacuum cleaner, but please note that the hose should not be strongly bent during storage.

Storing in horizontal position:

- Insert a fixing hook of sucker-brush sweeper to a hook for fixing the sucker-brush sweeper located on the back of the vacuum cleaner over the outlet filter cover.

Vertical storage:

—place the nozzle brush on the telescopic pipe,

• then insert the hook of the telescopic pipe into the fastening situated on the bottom of the vacuum cleaner, near the front wheel.
  ⑧ If necessary, clean the casing and the chamber of the vacuum cleaner with a damp cloth (it may be damped in dishwashing liquid), dry it off, and wipe it dry.

Do not use any scrubbing agents or solvents.

Examples of problems you may encounter when using the vacuum cleaner

PROBLEM SOLUTION
A characteristic fluttering in the vacuum cleaner is heard.	·Check the CYKLON dust container and other accessories. Remove the reason for the clog-up or empty and clean the CYKLON dust container.·Replace or clean the filters.

PROBLEM SOLUTION
The vacuum cleaner works less efficiently.	Empty and clean the CYKLON dust container, replace or clean the filters, check the suction pipe, the hose, and the nozzle – remove the reason for the clog-up.
The cut-out of the wiring system has been triggered.	Check if there are any other devices, besides the vacuum cleaner, plugged into the same electrical circuit. If the cut-out is triggered again, have the vacuum cleaner repaired in a servicing center.
The vacuum cleaner does not work; the body or the power cord is damaged.	Have the vacuum cleaner repaired in a servicing center.

Ecology – Environmental protection

Each user can contribute to protect the environment. It is neither difficult nor expensive. In order to do so:

Return cardboard packages to recycling points.

Throw polyethylene (PE) bags into appropriate containers.

Return a worn out appliance to an appropriate collecting point as the components of the appliance may pose a threat to the environment.

Do not dispose the appliance with the municipal waste!

The manufacturer does not accept any liability for any damages resulting from unintended use or improper handling.

The manufacturer reserves his rights to modify the product any time in order to adjust it to law regulations, norms, directives, or due to construction, trade, aesthetic or other reasons, without notifying in advance.
