Product Type	Car Stereo Receiver
Brand	Pyle
Model	PLCD3MR
Dimensions	7.0 x 2.0 x 6.0 inches (Single DIN)
Weight	2.0 lbs
Power Supply	12V DC Negative Ground
Output Power	4 x 50 Watts Peak Power
Audio Features	AM/FM Radio, CD Player, Bluetooth, USB, AUX Input
Radio Bands	AM/FM with 30 Presets
Display	LCD with Adjustable Color
Bluetooth Version	5.0 with A2DP, AVRCP
Supported Audio Formats	MP3, WMA, WAV
Remote Control	Included
Security	Detachable Faceplate
Installation	Single DIN, DIN Sleeve Mount
Additional Features	Equalizer, Subwoofer Output, Rear USB Port
Country of Origin	China

Frequently Asked Questions - PLCD3MR Pyle

How to install the Pyle PLCD3MR car stereo?

First, disconnect the car battery. Use the included DIN sleeve and mounting screws. Connect wiring harness according to colors (red to 12V, yellow to battery, black to ground, etc.). Slide the stereo into the sleeve and secure.

Does the PLCD3MR support Bluetooth?

Yes, it has Bluetooth 5.0 for hands-free calling and audio streaming via A2DP and AVRCP profiles.

How to pair a phone with Bluetooth?

Press the BT button on the front panel or remote. On your phone, search for 'Pyle PLCD3MR' and connect. Default PIN is 0000 if prompted.

How to reset the stereo?

Press the reset button on the front panel (usually near the volume knob) with a pointed object. Alternatively, disconnect the car battery for 10 seconds.

What are the wiring color codes?

Common colors: Red = Accessory 12V, Yellow = Battery 12V, Black = Ground, White/White-Black = Left Front, Gray/Gray-Black = Right Front, Green/Green-Black = Left Rear, Violet/Violet-Black = Right Rear.

Can I play music from a USB drive?

Yes, insert a USB drive into the rear USB port. It supports MP3, WMA, and WAV files. Maximum drive capacity is 32 GB.

Does the stereo have a CD player?

Yes, the PLCD3MR includes a CD player that supports CD, CD-R, and CD-RW discs.

How to set the clock?

Press and hold the CLK button until the hour flashes. Turn the volume knob to adjust, then press CLK again to set minutes. Repeat to finish.

What is the maximum USB drive capacity?

The stereo supports USB drives up to 32 GB formatted in FAT32. Larger drives may not work.

How to clean and maintain the unit?

Use a soft, dry cloth to clean the faceplate. Avoid liquids and abrasives. Remove the faceplate when not in use to deter theft and protect the display.

USER MANUAL PLCD3MR Pyle

OWNER'S MANUAL Marine Audio System

Front view line drawing of a vintage electronic device front panel with buttons and display (no text or symbols)

• MP3 Player
• PLL Synthesizer Stereo Radio
  • Digital Compact Disc Player
  • Automatic Memory Storing
• Undetachable Panel
• Preset Equalization
  • Electronic Shockproof (ESP) Function
  • Auxiliary Input Function
• Remote Control

Installation....3

Take out screw before installation .....3

DIN Front-Mount (Method A)......3

Installing the unit ....3

Removing the unit 4

DIN Rear-Mount (Method B)......5

Wiring Connection......6

Operation....7

Location of keys 7

Switching on/off the unit ....8

Sound adjustment 8

Loudness....8

Equalization 8

Subwoofer 8

Display 8

Remote sensor 8

ESP function......8

Auxiliary input 8

Reset function ....8

Radio operation 9

Switching to radio mode......9

Selecting the frequency band .....9

Selecting station 9

Automatic memory storing &

program scanning 9

Station storing....9

Local/Distant 9

Mono/Stereo 9

CD operation ....10

Switching to CD mode......10

Selecting tracks 10

Pausing playing....10

Previewing all tracks 10

Repeating the same track .....10

Playing all tracks in random......10

Ejecting a disc....10

MP3 operation ....10

Switching to MP3 mode......10

Ejecting a disc....10

Selecting tracks in single step .....10

Selecting directory up/down......10

Pausing playing....10

Previewing all tracks .....10

Repeating the same track .....10

Playing all tracks in random......10

Selecting tracks by AMS/D-AUD

button....11

Display information ......12

WMA operation....12

Mixed-CD operation ......12

USB play operation 12

Supported MP3/WMA decoding

modes 13

Disc notes....13

Remote control....14

Specification 15

Trouble shooting ....16

Notes:

• Choose the mounting location where the unit will not interfere with the normal function of the driver.
• Before installing the unit, connect the wiring temporarily and make sure it is all connected up properly and the system works properly.
• Use only the parts included with the unit to ensure proper installation. The use of unauthorized parts can cause malfunctions.
• Consult with your nearest dealer if installation requires the drilling of holes or other modifications of the vehicle.
• Install the unit where it does not get in the driver's way and cannot injure the passenger if there is a sudden stop.
• If installation angle exceeds 30^ from horizontal, the unit might not give its optimum performance.

- Avoid installing the unit where it would be subject to high temperature, such as from direct sunlight, or from hot air, from the heater, or where it would be subject to dust, dirt or excessive vibration.

DIN FRONT/REAR-MOUNT

This unit can be properly installed either from “Front” (conventional DIN Front-mount) or “Rear” (DIN Rear-mount installation, utilizing threaded screw holes at the sides of the unit chassis). For details, refer to the following illustrated installation methods.

TAKE OUT SCREWS BEFORE INSTALLATION

Before installing the unit, please remove the two screws.

Take out screws before installation

Diagram of a mechanical setup with a pin inserted into a block and a magnified inset showing a pin inserted into a cylindrical component (no text or symbols present)

DIN FRONT-MOUNT (Method A) Installation Opening

This unit can be installed in any dashboard having an opening as shown below:

Installing the unit

Be sure you test all connections first, and then follow these steps to install the unit.

1. Make sure the ignition is turned off, and then disconnect the cable from the vehicle battery's negative (-) terminal.
2. Disconnect the wire harness and the antenna.
3. Lift the top of the outer trim ring then pull it out to remove it.
4. The two supplied keys release tabs inside the unit's sleeve so you can remove it. Insert the keys as far as they will go (with the notches facing up) into the appropriate slots at the middle left and right sides of the unit. Then slide the sleeve off the back of the unit.

1. Mount the sleeve by inserting it into the opening of the dashboard and bend open the tabs located around the sleeve with a screwdriver. Not all tabs will be able to make contact, so examine which ones will be most effective. Bending open the appropriate tabs behind the dashboard to secure the sleeve in place.

1. Reconnect the wire harness and the antenna and be careful not to pinch any wires or cables.

2. Slide the unit into the sleeve until it locks into place.

3. To further secure the unit, use the supplied metal strap to secure the back of the unit in place. Use the supplied hardware (Hex Nut (M5mm) and Spring Washer) to attach one end of the strap to the mounting bolt on the back of the unit. If necessary, bend the metal strap to fit your vehicle's mounting area. Then use the supplied hardware (Tapping Screw (5x25mm) and Plain Washer) to attach the other end of metal strap to a solid metal part of the vehicle under the dashboard. This strap also helps ensure proper electrical grounding of the unit.

Note: to install the short threading terminal of the mounting bolt to the back of the unit and the other long threading terminal to the dashboard.

1. Reconnect the cable to the vehicle battery's negative (-) terminal. Then replace the outer trim ring and install the unit's front panel. (see the steps of "to install the front panel").

Removing the unit

1. Make sure the ignition is turned off, then disconnect the cable from the vehicle battery's negative (-) terminal.

2. Remove the metal strap attached to the back of the unit (if attached).

3. Lift the top of the outer trim ring then pull it out to remove it.

4. Insert both of the supplied keys into the slots at the middle left and right sides of the unit, then pull the unit out of the dashboard.

Illustration of a hand using a tool to cut a rectangular block, showing motion direction (no text or symbols)

DIN REAR-MOUNT (Method B)

If your vehicle is a Nissan or Toyota, follow these mounting instructions.

Use the screw holes marked T (Toyota), N (Nissan) located on both sides of the unit to fasten the unit to the factory radio mounting brackets supplied with your vehicle.

To fasten the unit to the factory radio mounting brackets.

Align the screw holes on the bracket with the screw holes on the unit, and then tighten the screws (5x5mm) on each side.

Note: the outer trim ring, sleeve and the metal strap are not used for method B installation.

    B --> I["RED"]
    B --> J["FUSE"]

    C --> K["YELLOW"]
    C --> L["FUSE"]

    D --> M["BLACK"]

    F --> N["BLUE"]

    G --> O["WHITE"]
    G --> P["WHITE/BLACK"]

    H --> Q["GREEN"]
    H --> R["GREEN/BLACK"]

    S["SUBWOOFER CABLE (GREEN)"] --> T["RCA CABLE (GREY) Rch RED Lch WHITE"]
    S --> U["FRONT Rch SPEAKER"]
    S --> V["VIOLET"]
    S --> W["REAR Rch SPEAKER"]

LOCATION OF KEYS

1. POWER
2. SEL
3. DISC SLOT
4. DISPLAY
5. EQ
6. IR REMOTE
7. EJECT
8. AUX IN
9. 1>>
10. 1>>
11. BAND (LOU)
12. MOD

13. M6

14. M5

15. SHF
16. RPT
17. 1 to 6
18. SCN
19. PAU
20. DSP
21. MONO
22. LOC
23. MUTE
24. RESET
25. AS/PS
26. USB interface

GENERAL OPERATION

• SWITCHING ON/OFF THE UNIT

Switch on the unit by pressing any button (except ▲ EJECT button (7)). When system is on, press ⏻ POWER button (1) to turn off the unit.

• SOUND ADJUSTMENT

Press SEL button (2) shortly to select the desired adjustment mode. The adjustment mode will change in the following order:

By rotating the audio knob (2) clockwise or counter-clockwise, it is possible to adjust the desired sound quality.

Press and hold the SEL button (2) for several seconds to adjust beep options, Rotate the audio knob (2) clockwise or counter-clockwise to select as follows:

• BEEP 2'nd mode:
  The beep is only generated when double key is pressed for (1 sec). e.g.
  When preset button (17) is pressed.
  When BND(LOU) button (11) is pressed. When AS/PS(D-AUD) button (25) is pressed.
• BEEP ALL mode:
  The beep is generated when any key is pressed.
• BÉEP OFF mode:
  The beep is disabled.

LOUDNESS

Press BND/LOU/ENT button (11) for several seconds to reinforce the bass output. Press it for several seconds again to release this function.

MUTE

Press MUT button (23) to mute the sound instantly. Press any button to get out of mute mode.

EQUALIZATION

Press EQ button (5) to turn on equalization function and to select desired audio mode. There are five kinds of modes as shown below:

SUBWOOFER

Press MOD button (12) for several seconds to toggle sub-woofer output. Press it for several seconds again to release this mode.

LIQUID CRYSTAL DISPLAY

Exhibits current frequency and activated functions on the display (4).

REMOTE SENSOR

Point the remote control handset to the remote sensor IR (6). Press the function keys on the handset to control the system.

ESP FUNCTION

If the unit has the electronic shockproof function, it can be shockproof for several seconds.

AUXILIARY INPUT

The unit can be connected to a portable audio player through the AUX IN jack (8) on the front panel. After finishing the connection, you can press MOD button (12) on the front panel to switch the mode to AUX IN mode.

RESET FUNCTION

RESET button (24) must be activated with either a ballpoint pen or thin metal object. The RESET button is to be activated for the following reasons:

• Initial installation of the unit when all wiring is completed.
• All the function buttons do not operate.
• Error symbol on the display.

Note: If pressing the RESET button (24) does not work, please use a cotton swab soaked in isopropyl alcohol to clean the socket on the front panel.

RADIO OPERATION

• SWITCHING TO RADIO MODE

Press MOD button (12) momentarily to select radio mode, the radio mode appears in the display together with the memory band and frequency.

- SELECTING THE FREQUENCY BAND

In radio mode, press BND/LOU (ENT) button (11) momentarily to select the desired band.

The reception band will change in the following order:

- SELECTING STATION

Press ▶ button (9) or ◀ button (10) momentarily to activate automatic seek function. Press for several seconds until “MANUAL” appears on the display, the manual tuning mode is selected. If both buttons have not been pressed for several seconds, they will return to seek tuning mode and “AUTO” appears on the display.

• AUTOMATIC MEMORY STORING & PROGRAM SCANNING

- Automatic Memory Storing Press AS/PS (D-AUD) button (25) for several seconds, the radio searches from the current frequency and checks the signal strength until one cycle search is finished. Then 6 strongest stations are stored into the corresponding preset number button.

- Program Scanning Press AS/PS (D-AUD) button (25) momentarily to scan preset stations. When the field strength level is more than the threshold level of stop level, the radio will hold at that preset number for several seconds with mute, then search again.

• STATION STORING

Press any one of the preset buttons (17) (1 to 6) to select a station, which had been stored in the memory. Hold the preset button (17) for several seconds(until it beeps) to assign the current station to the specific button pressed.

- LOCAL/DISTANT

Press LOC button (22) to select between local and distant stations.

Local setting for reception of strong stations, and a distant setting for reception of weaker stations. This function is in effect during AUTO SEEK operation.

MONO/STEREO

Press MON button (21) to select mono or stereo mode. You can sometimes improve reception of distant stations by selection mono operation.

CD OPERATION

- SWITCHING TO CD MODE

If there is no CD inserted in the driver: Gently insert the CD with the printed side up into the CD compartment until you feel some resistance. The CD is drawn into the driver automatically. CD playback begins.

If a CD is already inserted in the driver: Keep pressing MOD button (12) momentarily until the CD mode display appears.

- SELECTING TRACKS

Press ◀ button (10) or ▶ button(9) to move to the previous track or the following track. Track number shows on display.

Hold ◀ button (10) or ▶ button (9) to fast reverse or fast forward. CD play starts from when you release the button.

• PAUSING PLAYING

Press PAU button (19) to pause CD player. Press it again to resume play.

• PREVIEWING ALL TRACKS

Press SCN button (18) to play first several seconds of each track on the current disc. Press again to stop intro and listen to track.

• REPEATING THE SAME TRACK

Press RPT button (16) to continuously repeat the same track. Press it again to stop repeat.

- PLAYING ALL TRACKS IN RANDOM

Press SHF button (15) to play all tracks on CD in random order. Press again to cancel the function.

- EJECTING A DISC

Press ▲ button (7) to stop CD playing and eject the disc from the disc slot (3).

Note: When you first play a CD and when a track is playing, press M5 button (14) or M6 button (13), the unit will search the disc again and start to play the first track. Later, there is no function of pressing M5 button (14) or M6 button (13).

MP3 OPERATION

• SWITCHING TO CD (MP3) MODE

If there is no MP3 disc inserted in the driver:

Gently insert the MP3 disc with the printed side up into the disc slot (3) until you feel some resistance.

The MP3 disc is drawn into the driver automatically. The MP3 playback begins.

If a MP3 disc is already inserted in the driver:

Keep pressing MOD button (12) momentarily until the CD (MP3) mode display appears.

- EJECTING A DISC

Press ▲ button (7) to stop MP3 playing and eject the disc from the disc slot (3).

- SELECTING TRACKS IN SINGLE STEP

Press ◀ button (10) or ▶ button (9) to move to the previous track or the following track. Track number shows on display.

- SELECTING DIRECTORY UP/DOWN

Press M5 button (14) or M6 button (13) to select directory downward or upward.

If the MP3 disc does not contain any directory, there is no function for M5 button (14) or M6 button (13).

• PAUSING PLAYING

Press PAU button (19) to pause MP3 player. Press it again to resume play.

- PREVIEWING ALL TRACKS

Press SCN button (18) to play first several seconds of each track on the current disc. Press again to stop intro and listen to track.

• REPEATING THE SAME TRACK

Press RPT button (17) to continuously repeat the same track. Press it again to stop repeat.

- PLAYING ALL TRACKS IN RANDOM

Press SHF button (15) to play all tracks on MP3 disc in random order. Press again to cancel the function.

- SELECTING TRACKS BY AS/PS/D-AUD BUTTON

AS/PS (D-AUD) button is assigned as Digital Audio Mode selection button in MP3 operation.

When pressed, it selects each mode of Digital Audio.

"Searching track directly" => "Searching Directory or File Name" => "Navigation" from root by

TUNE/SEEK/TRACK UP/DOWN

buttons=> "Navigation" from current directory by TUNE/SEEK/TRACK UP/DOWN buttons.

Searching Track Directly

Press AS/PS (D-AUD) button for one time. It enters into “Searching track directly” in Digital Audio CD.

The unit searches the track selected by following direct numeric buttons: M1-M6, MOD (7),

TUNE/SEEK/TRACK DOWN (8), TUNE/SEEK/TRACK UP (9), DSP(0).

If you select three digits, the unit searches for the track at once. If you select one or two digits, the unit waits for ENT (BND/LOU) button to be pressed. The unit searches for the track after a few seconds, even if the enter button is not pressed.

Searching Directory or File Name

Press AS/PS (D-AUD) button twice. It enters into "Searching Directory or File Name" in Digital Audio CD.

The unit searches files and directories that have the same character which is inputted by the user pressing the corresponding buttons listed on Table 1 below.

Explain as follows:

• Use the corresponding buttons to select the characters A to Z, blank, 0 to 9, _, -, +.
• Press SEL button (2) to confirm entry of each character.
• Press BND/LOU (ENT) button to start the title search.

In case the selected title is a directory name, display will show (''), then

• Use the TUNE/SEEK/TRACK UP/DOWN buttons to list all songs under this directory and select the title.
• Press BND/LOU (ENT) button to confirm and start the play.
• Repeat the above steps if the newly selected title is again a directory.

Searching From Root Directory

Press AS/PS (D-AUD) button (23) for three times. The unit searches file or directory from root by

TUNE/SEEK/TRACK UP/DOWN

buttons. (D-DIR icon turns on if the name is directory). Display will list all available directories and songs. Select the desired directory/songs by using TUNE/SEEK/TRACK UP/DOWN

buttons and BND/LOU (ENT) button (24) to confirm. If the selected title is a song, it starts to play.

If the selected title is a directory name, display will show (''), then

• Use the TUNE/SEEK/TRACK UP/DOWN buttons to list all songs under this directory and select the title.
• Press BND/LOU (ENT) button to confirm and start playing.
• Repeat the above steps if the newly selected title is again a directory.

Searching From Current Directory

Press AS/PS (D-AUD) button (23) four times. The unit searches file or directory from current directory by

TUNE/SEEK/TRACK UP/DOWN

buttons. (D-DIR icon turns on if the name is directory). The current directory name is displayed for a second and the current file name is displayed (selected). The user can select the directory or file in the directory by TUNE/SEEK/TRACK

UP/DOWN buttons. The selected file can be played by pressing BND/LOU (ENT) button.

• DISPLAY INFORMATION

Press DSP button (20) to show following information, such as the clock, ID3 TAG (if available: song title, directory name, artist name and other contents...) and other information.

KEY Assigned IN Searching mode (Table 1)

AS/PS Mode Select
BND/LOU ENTER
M1 A, B, C, 1
M2 D, E, F, 2
M3 G, H, I, 3
M4 J, K, L, 4
M5 M, N, O, 5/	Directory DOWN
M6 P, Q, R, 6/	Directory UP
MOD S, T, U, 7
TUNE/SEEK/TRACK DOWN	V, W, X, 8
TUNE/SEEK/TRACK UP Y, Z, SPACE, 9
PUSH SEL CHARACTER SHIFT RIGHT
DSP _, -, +, 0
AUDIO KNOB	CHARACTER SELECT (A, B - 8, 9, 0)

AUDIO KNOB & TUNE/SEEK/ TRACK UP/DOWN buttons:

Searching file and directory during Navigation.

WMA OPERATION

For units that can play discs, WMA discs the operation is the same as MP3 operation described above.

If available, the unit can play the mixed-CD disc (the disc contains both CD audio tracks and MP3 files).

When you insert a mixed-CD disc into the CD slot, it starts to play the CD audio tracks. And the operation is the same with the CD operation described as above. If you want to switch to play MP3 files, press M5 button (14) or M6 button (13), it will search the disc over again and start to

play the MP3 files. And the operation is the same with the MP3 operation described as above.

If you want to revert to play CD audio tracks, press M5 button (14) or M6 button (13) repeatedly, when it jumps to the end (i.e. when it selects the first directory or the last directory), and then press M5 button (14) or M6 button (13) again, it will start to play the CD tracks again. In this way, you can switch between playing CD audio tracks or MP3 songs repeatedly.

USB PLAY OPERATION

On the front panel of unit, there is an USB interface (26), you can connect an USB driver through this interface.

When you connect an USB driver through the interface, the unit will search the MP3/WMA files and start to play it automatically. In other mode, you can also press MOD button (12) to select USB mode.

When playing the MP3/WMA files in the device, the operation is the same with the MP3 operation described above.

Note:

• The main unit can only support the standard USB-memory disc.
• USB MP3 player is not a standard which means different brand name or different models have their own standard. So our product cannot support all MP3 players.
• When connecting an MP3 player and there has normal battery in the player (non rechargeable battery), you should remove the battery from the MP3 player then connect it to the USB interface. Otherwise, it may cause battery burst.
• When in USB play mode, be sure not to remove the USB driver from the USB interface.

SUPPORTED MP3/WMA DECODING MODES

The main unit supports MP3/WMA (Windows Media Audio) decoding modes as below.

Standard	Bit Rate (kbps)	Supports Mode
MPEG1 Audio Layer 3 (44.1kHz)	32, 48, 64, 96, 128, 192, 256, 320	Stereo
Windows Media Audio (44.1kHz)	64, 96, 128, 192	Stereo

The USB solution can support:

1. Folder: 500 max.
2. File: 999 max.
3. Depth of folder: 8 layers
4. Size: 1 GB

CAUTION:

When there are important files in the USB device, do not connect it to the main unit to play. And don't play the CD-R/RW disc that has important files in it. Because any wrong operation may cause files loss. And our company assumes no responsibility for this.

SD/MMC OPERATION

There is a SD/MMC interface (22) on the front panel of the unit.

When you insert a SD/MMC card in the SD/MMC interface, the unit will search the MP3 files or WMA files in the card and start to play MP3 files or WMA files automatically. The operation is the same with the MP3 operation described above. If in other mode, you can also press

MODE button (11) to select SD/MMC mode.

When there is no USB driver in the USB interface, you cannot record to SD/MMC directly.

When there are important files in the SD/MMC card, do not connect it to the main unit to play.

DISC NOTE

A. Notes on discs:

1. Attempting to use non-standard shape discs (e.g. square, star, heart) may damage the unit. Be sure to use round shape CD discs only for this unit.
2. Do not stick paper or tape etc., onto the label side or the recording side of any discs, as it may cause a malfunction.
3. Dirt, dust, scratches and warped discs will cause misoperation.

B. Notes on CD-Rs (recordable CDs)/CD-RWs (rewritable CDs):

1. Be sure to use discs with following marks only for the unit to play:

1. The unit cannot play a CD-R and CD-RW that is not finalized. (Please refer to the manual of your CD-R/CD-RW recorder or CD-R/CD-RW software for more information on finalization process).
2. Depending on the recording status, conditions of the disc and the equipment used for the recording, some CD-Rs/CD-RWs may not be played on this unit. (See *1)
   *1: To have more reliable play back, please see following recommendations:

a. Use CD-RWs with speed 1x to 4x and write with speed 1x to 2x.
b. Use CD-Rs with speed 1x to 8x and write with speed 1x to 2x.
c.Do not play a CD-RW which has been written for more than 5 times.

C. Notes on MP3 files (MP3 Version Only):

1. The disc must be in the ISO9660 level 1 or level 2 format, or Joliet or Romeo in the expansion format.
2. When naming a MP3 file, be sure the file name extension is ".MP3".
3. For a non-MP3 file, even though the file name extension is “.MP3”, the unit cannot recognize it.

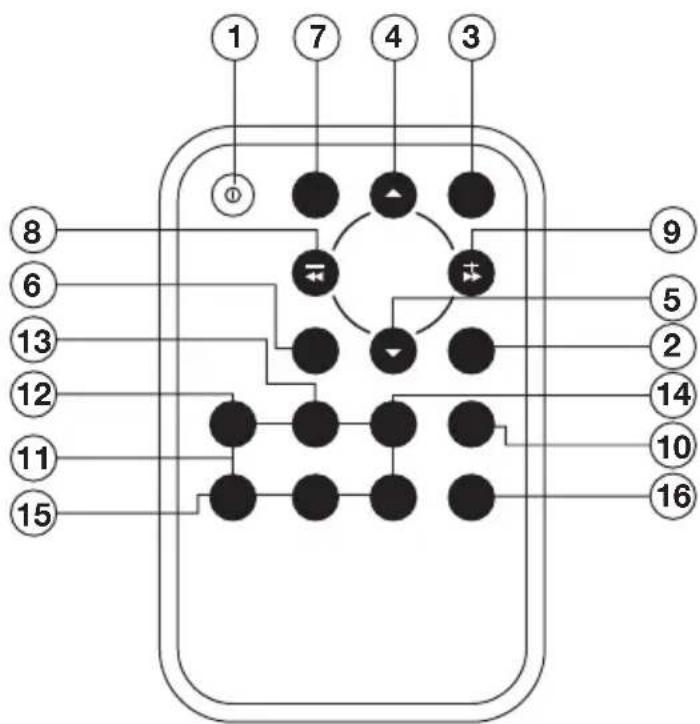

FUNCTION KEYS & CONTROL

1. PWR Power ON/OFF Button

2. DSP Display Button

3. SEL Sound Mode Select Button

4. VOL ▲ Volume Up Button

5. VOL ▼ Volume Down Button

6. BND (LOU) Band Select Button (When pressed momentarily)

Loudness Button (When held down)

1. MODE Mode Button

2. TUNE/SKIP/CH ↔ Tune/SKIP Down Button

3. TUNE/SKIP/CH ▶ Tune/SKIP Up Button

4. AS/PS (D-AUD) Automatic Memory Storing & Program Scanning Button

5. M1 - M6 Preset Buttons

6. PAU Pause Button

7. SCN Scanning Button

8. RPT Repeat Button

9. SHF Shuffle Button

10. Mute Mute Button

GENERAL

Power Supply Requirements : DC 12 Volts, Negative Ground

Chassis Dimensions : 178 (W) x 160 (D) x 50 (H)

Tone Controls

- Bass (at 100 Hz) : □ 10 dB

- Treble (at 10 KHz) : □ 10 dB

Maximum Output Power : 4 x 40 Watts

Current Drain : 15 Ampere (max.)

CD PLAYER

Signal to Noise Ratio : More than 55 dB

Channel Separation : More than 45 dB

Frequency Response : 40 Hz - 18 KHz

RADIO

FM

Frequency Coverage : 87.5 to 107.9 MHz

IF : 10.7 MHz

Sensitivity (S/N = 30 dB) : 4 V

Stereo Separation : > 25 dB

AM

Frequency Coverage : 530 to 1710 KHz

IF : 450 KHz

Sensitivity (S/N = 20 dB) : 36 dBu

Before going through the checklist, check wiring connection. If any of the problems persist after check list has been made, consult your nearest service dealer.

Symptom Cause Solution
No power. The car ignition switch is If the power supply is not on. connected to the car accessory circuits, but the engine is not moving, switch the ignition key to “ACC”.
Disc cannot be Presence of CD disc inside Remove the disc in the player, loaded or ejected. the player. then put in a new one.
No sound.	Volume is too low.	Adjust volume to a desired level.
	Wiring is not properly connected.	Check wiring connection.
Sound skips.	The installation angle is more than 30 degrees.	Adjust the installation angle less than 30 degrees.
	The disc is extremely dirty or defective disc.	Clean the compact disc, then try to play a new one.
The operation keys do not work.	The built-in microcomputer is not operating properly due to noise. into its place.	Press the RESET button. Front panel is not properly fixed
The radio does not work. The radio station automatic selection does not work.	The antenna cable is not insert the antenna cable firmly. connected.
	The signals are too weak.	Select a station manually.
